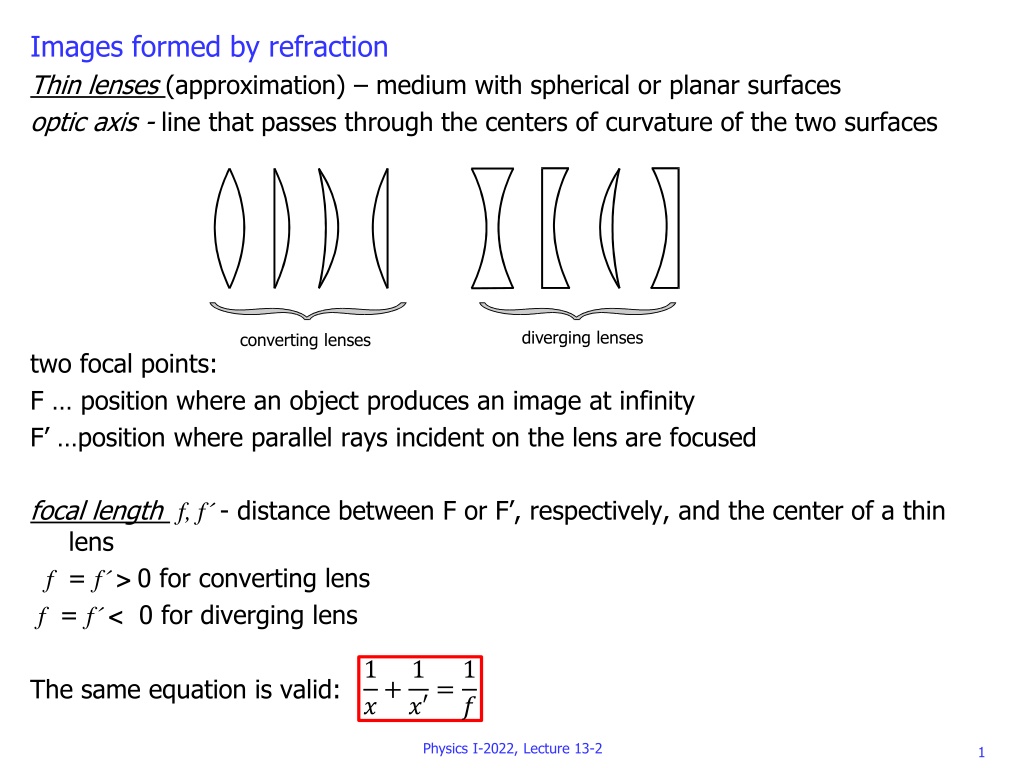

Images formed by refraction Thin lenses (approximation) medium with spherical or planar surfaces optic axis - line that passes through the centers of curvature of the two surfaces spojky rozptylky diverging lenses converting lenses two focal points: F position where an object produces an image at infinity F position where parallel rays incident on the lens are focused focal length f, f - distance between F or F , respectively, and the center of a thin lens f = f > 0 for converting lens f = f < 0 for diverging lens 1 ?+1 ? =1 The same equation is valid: ? Physics I-2022, Lecture 13-2 1

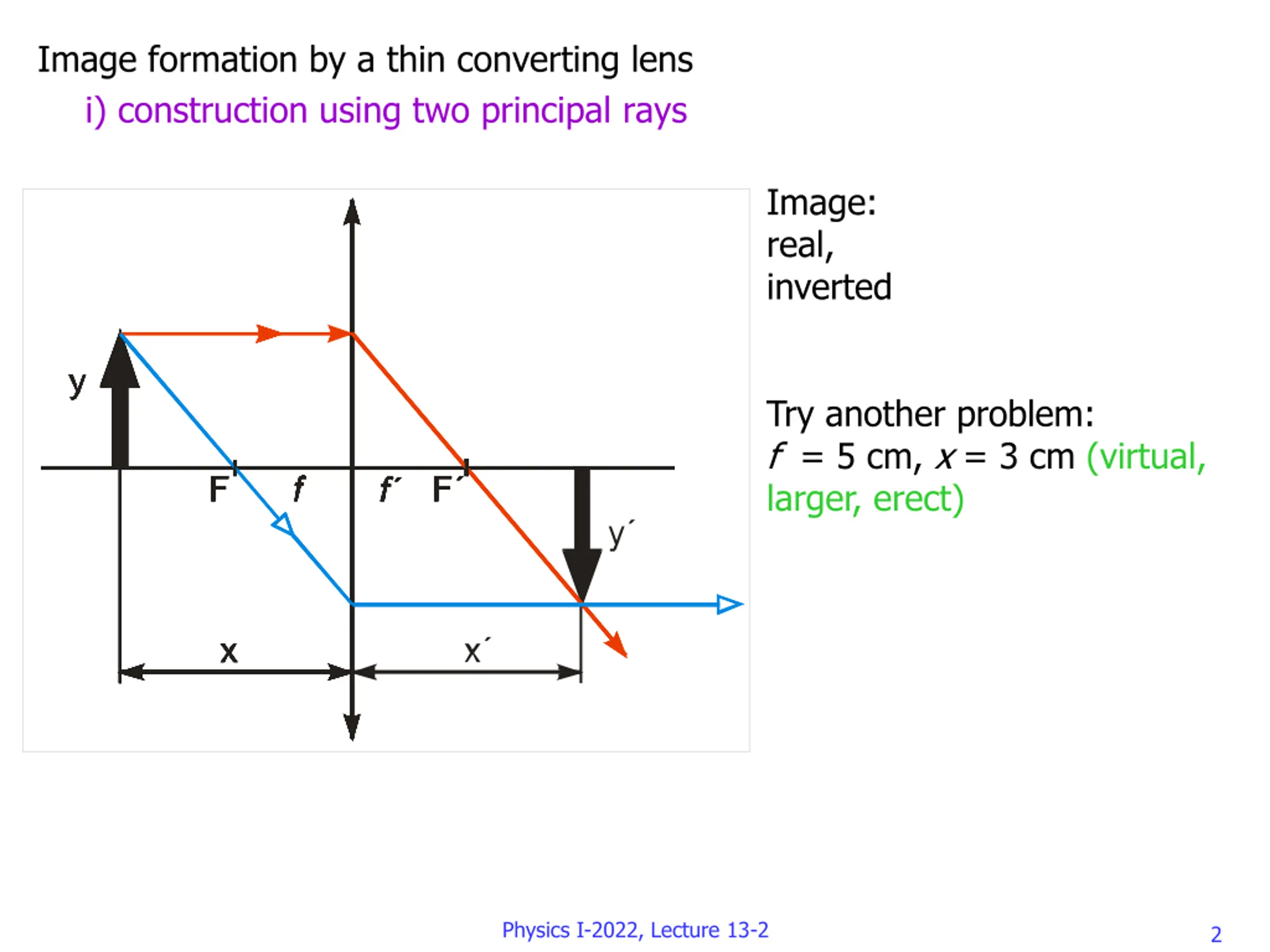

Image formation by a thin converting lens i) construction using two principal rays Image: real, inverted Try another problem: f = 5 cm, x = 3 cm (virtual, larger, erect) Physics I-2022, Lecture 13-2 2

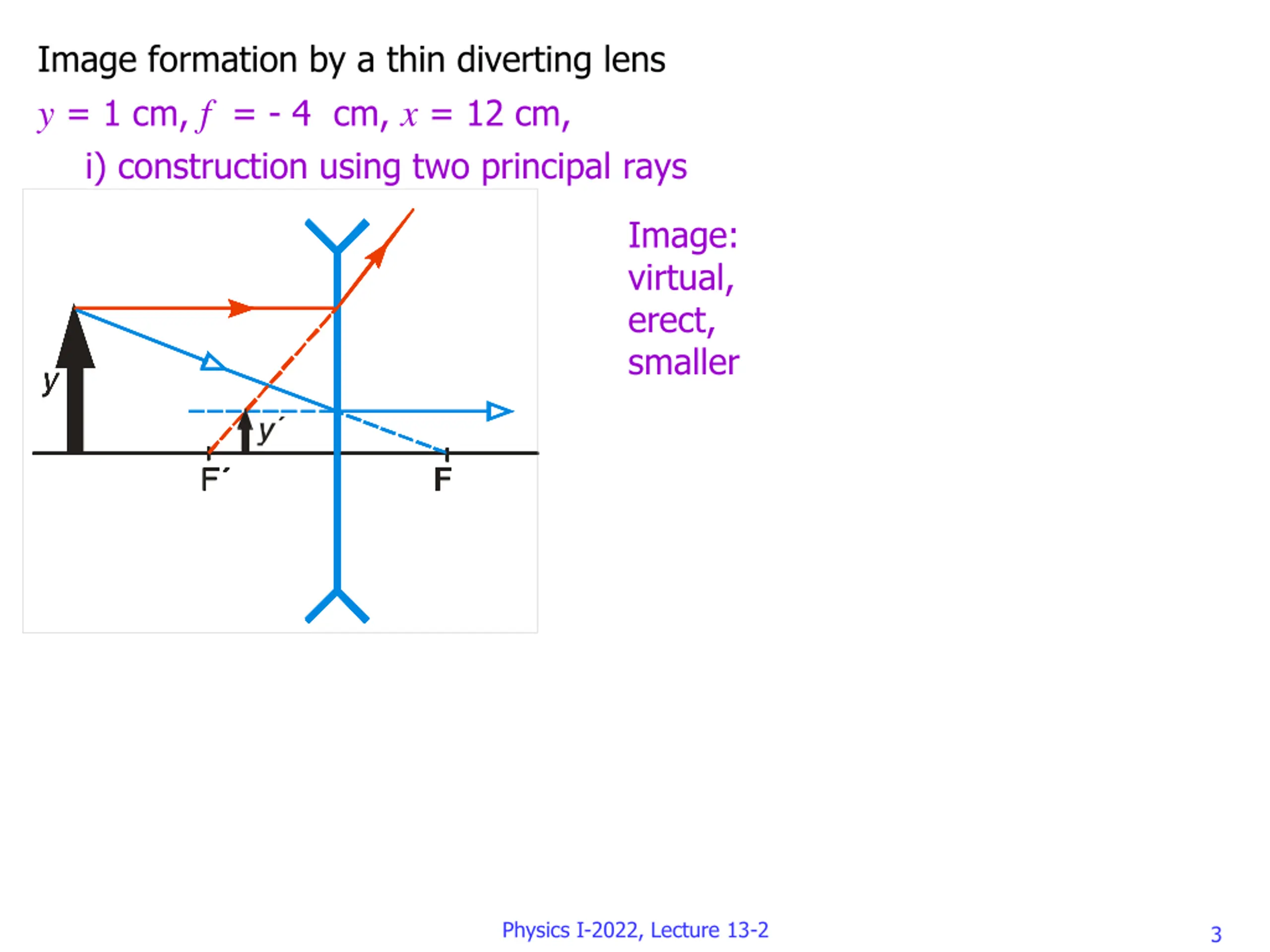

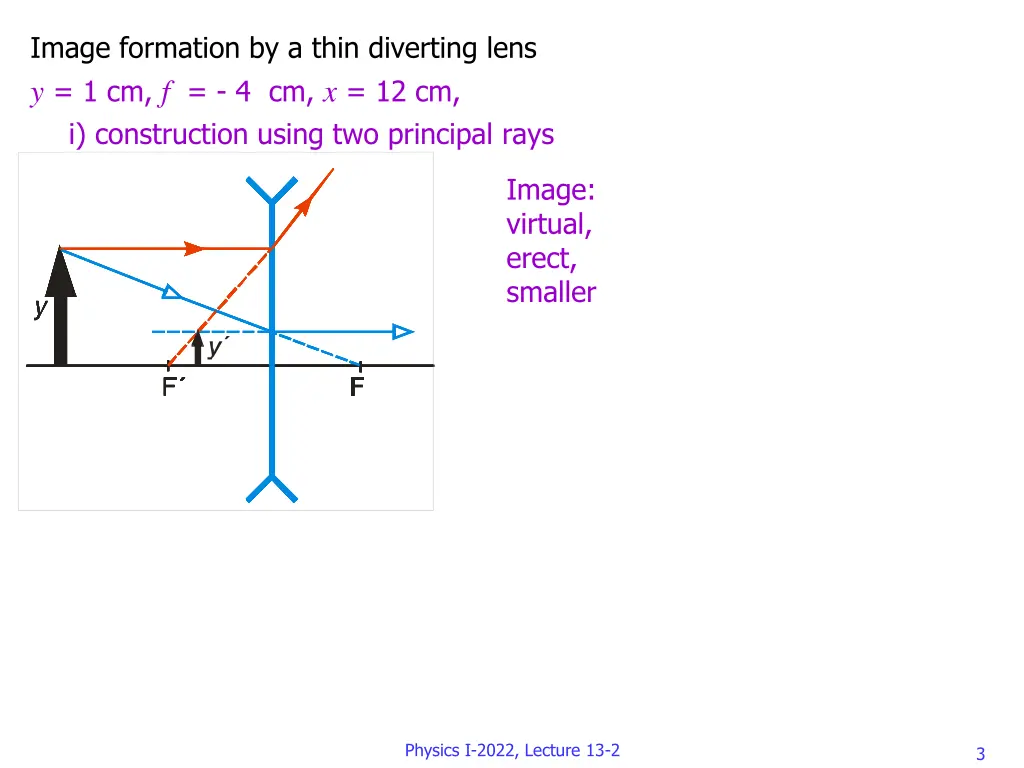

Image formation by a thin diverting lens y = 1 cm, f = - 4 cm, x = 12 cm, i) construction using two principal rays Image: virtual, erect, smaller Physics I-2022, Lecture 13-2 3
End of video 13-2 Physics I-2022, Lecture 13-2 4
