Presentation Transcript

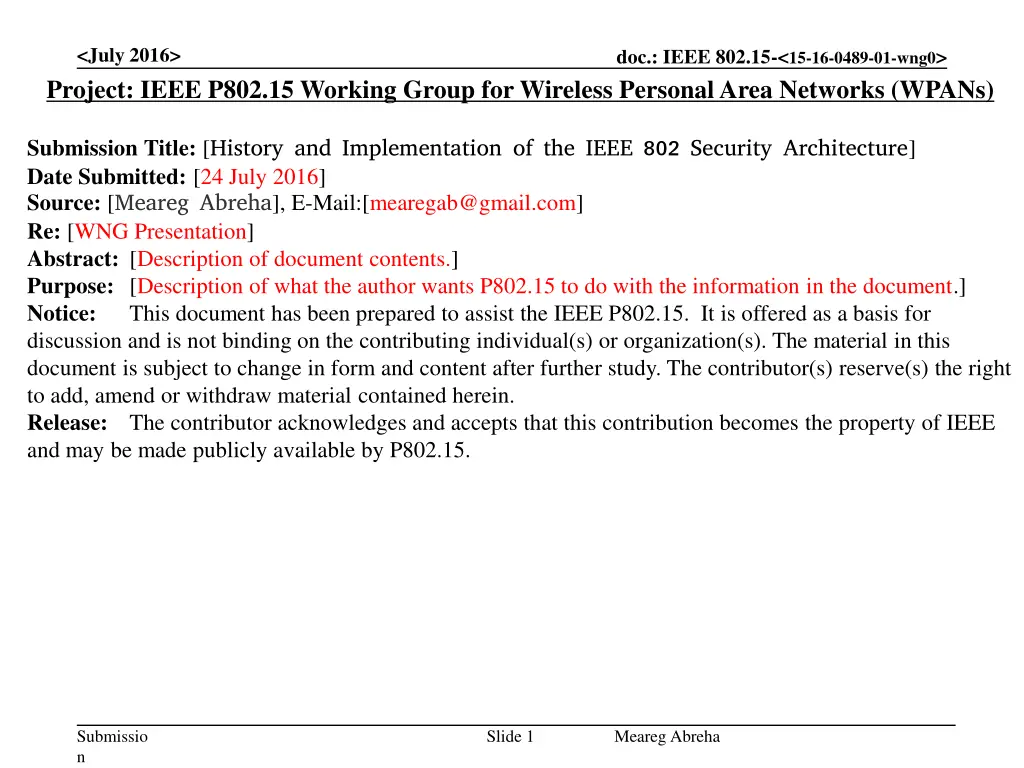

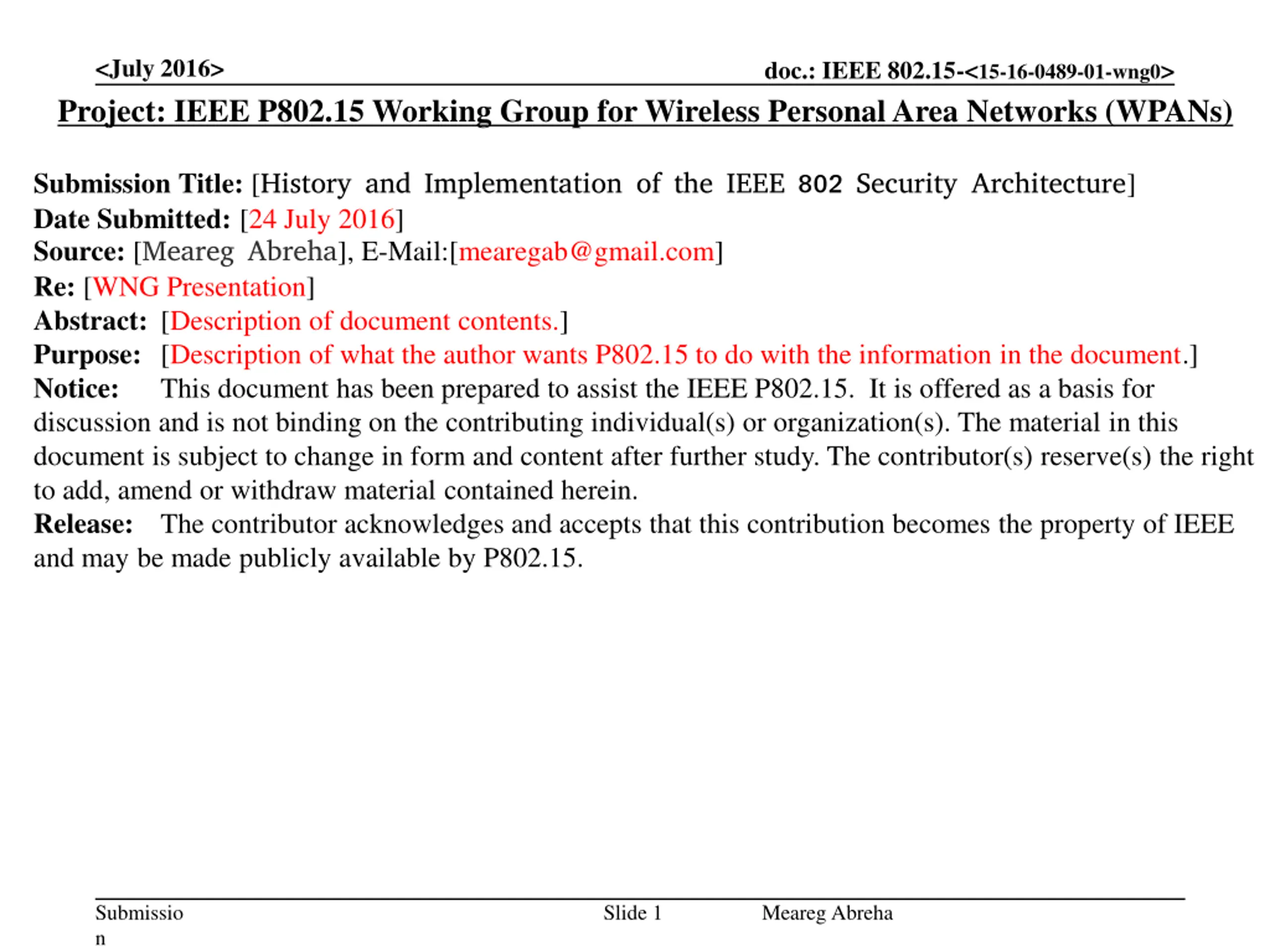

  1. <July 2016> Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) doc.: IEEE 802.15-<15-16-0489-01-wng0> Submission Title: [History and Implementation of the IEEE 802 Security Architecture] Date Submitted: [24 July 2016] Source: [Meareg Abreha], E-Mail:[mearegab@gmail.com] Re: [WNG Presentation] Abstract: [Description of document contents.] Purpose: [Description of what the author wants P802.15 to do with the information in the document.] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Submissio n Slide 1 Meareg Abreha

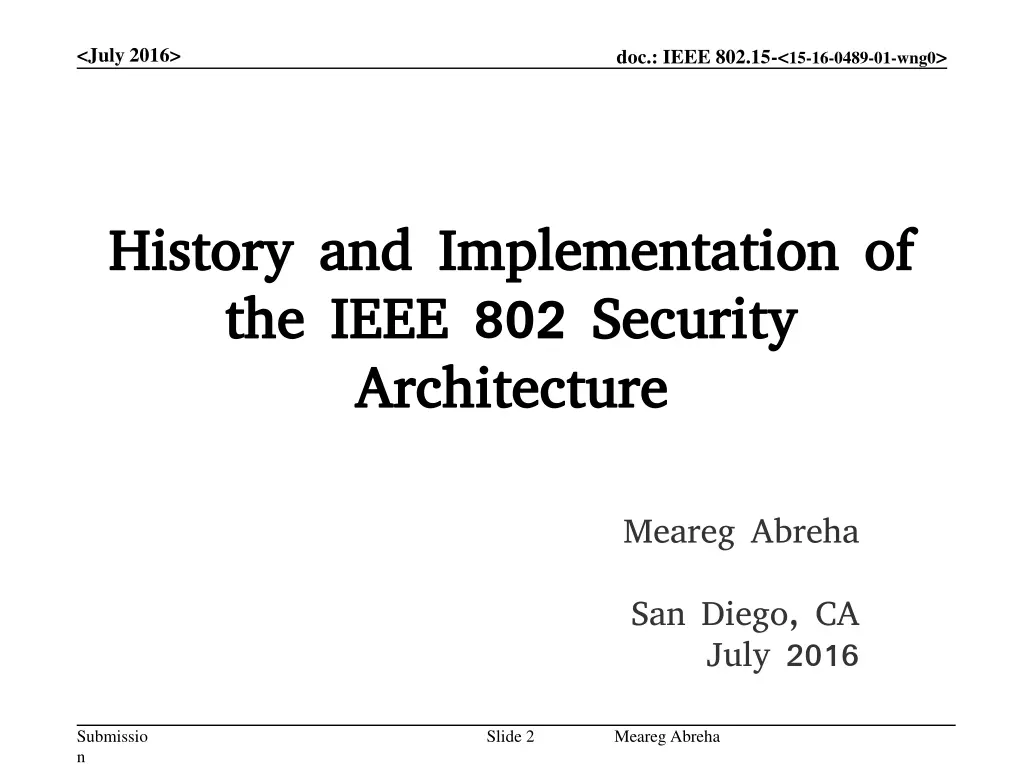

  2. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> History and Implementation of History and Implementation of the IEEE 802 Security the IEEE 802 Security Architecture Architecture Meareg Abreha San Diego, CA July 2016 Submissio n Slide 2 Meareg Abreha

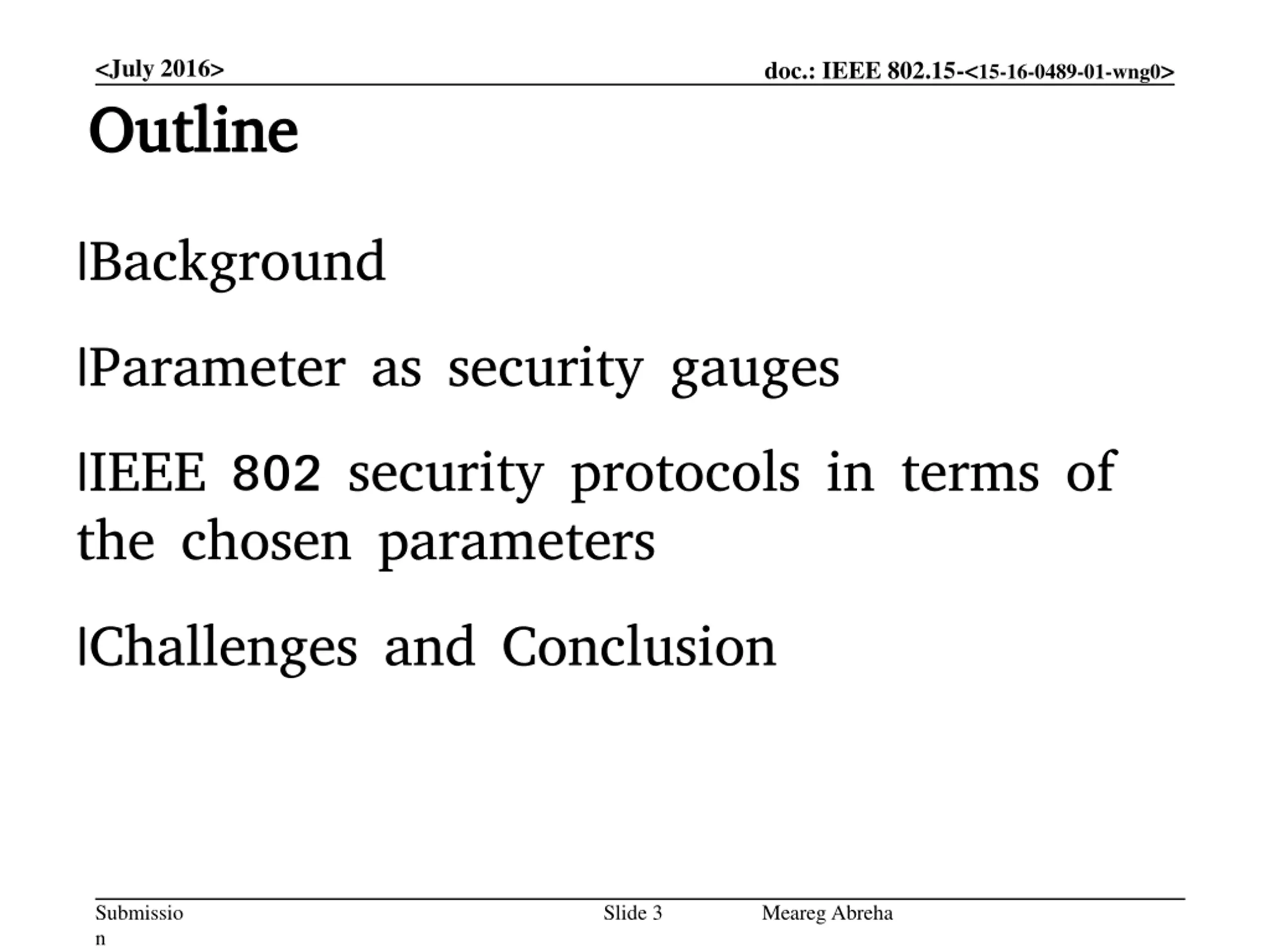

  3. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Outline Outline lBackground lParameter as security gauges lIEEE 802 security protocols in terms of the chosen parameters lChallenges and Conclusion Submissio n Slide 3 Meareg Abreha

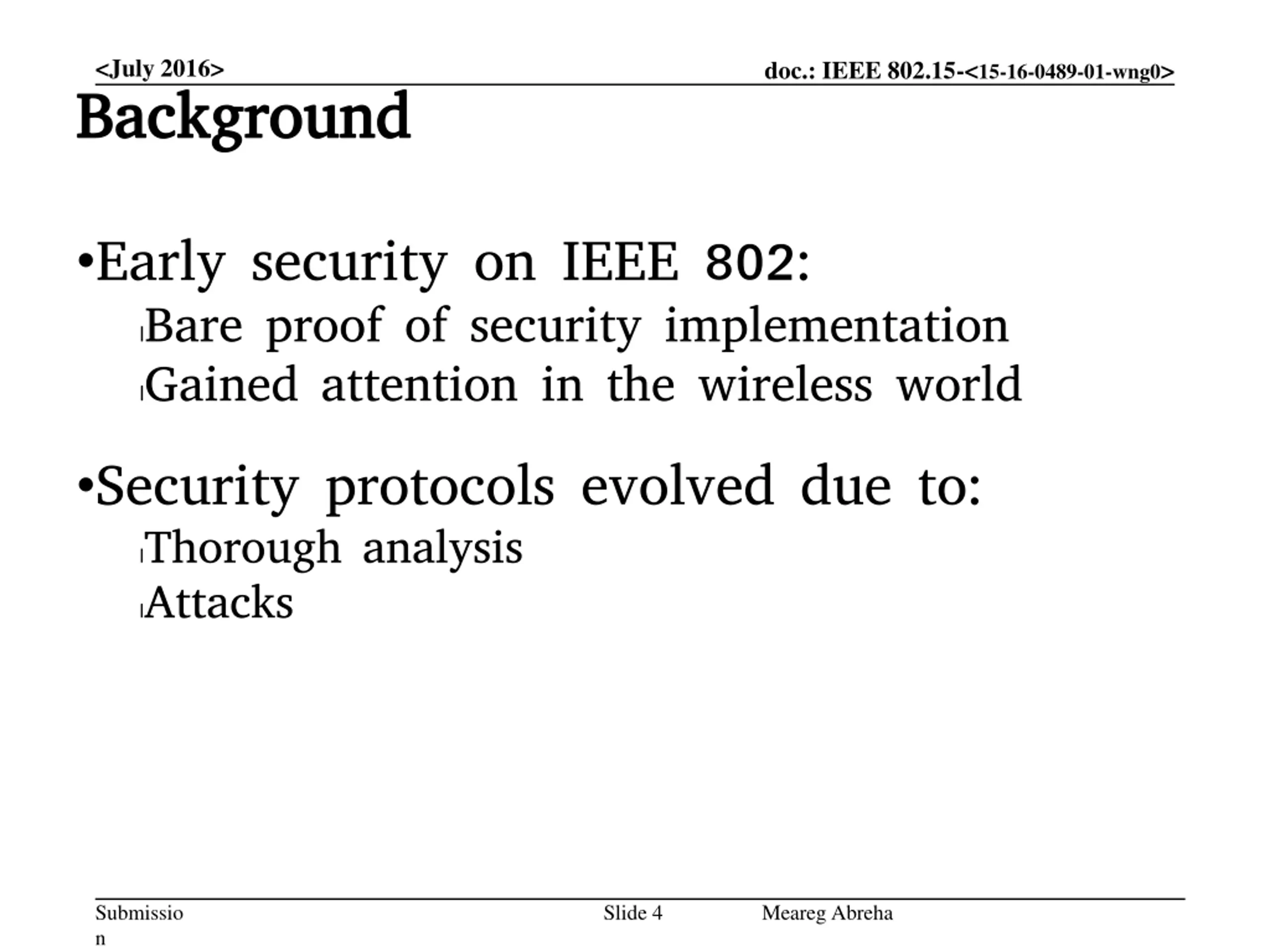

  4. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Background Background Early security on IEEE 802: lBare proof of security implementation lGained attention in the wireless world Security protocols evolved due to: lThorough analysis lAttacks Submissio n Slide 4 Meareg Abreha

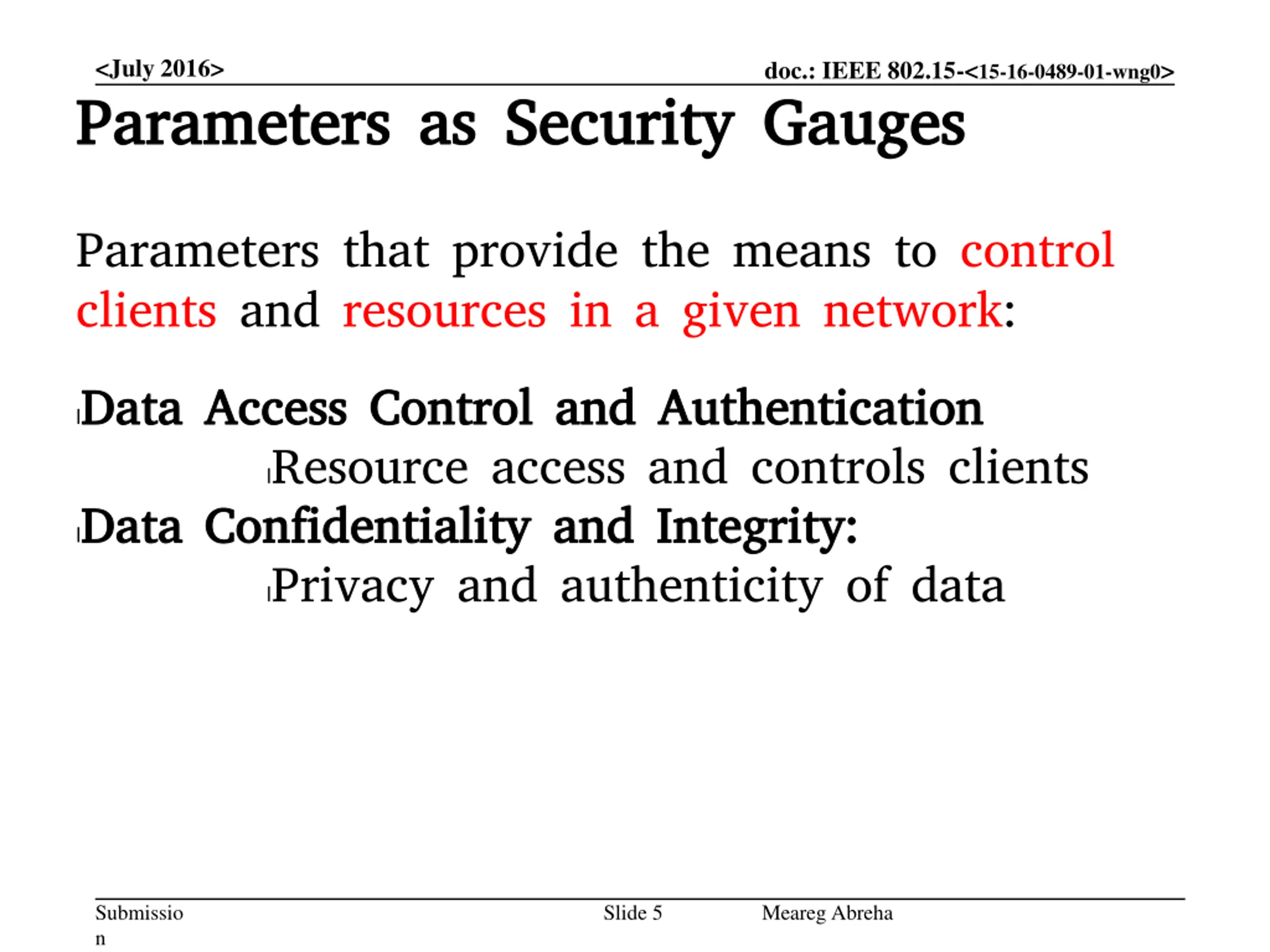

  5. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Parameters as Security Gauges Parameters as Security Gauges Parameters that provide the means to control clients and resources in a given network: lData Access Control and Authentication Data Access Control and Authentication lResource access and controls clients lData Confidentiality and Integrity: Data Confidentiality and Integrity: lPrivacy and authenticity of data Submissio n Slide 5 Meareg Abreha

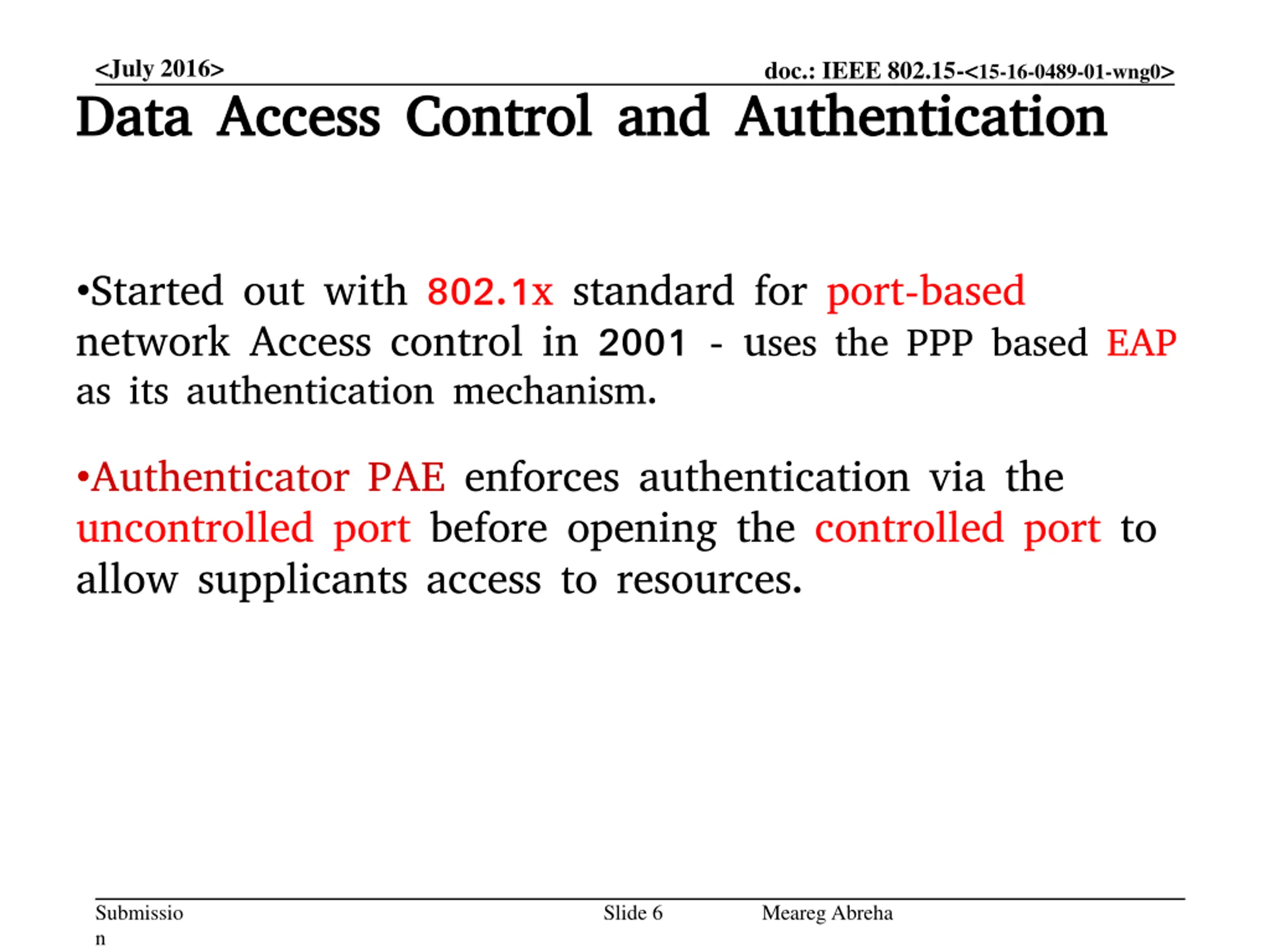

  6. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Access Control and Authentication Data Access Control and Authentication Started out with 802.1x standard for port-based network Access control in 2001 - uses the PPP based EAP as its authentication mechanism. Authenticator PAE enforces authentication via the uncontrolled port before opening the controlled port to allow supplicants access to resources. Submissio n Slide 6 Meareg Abreha

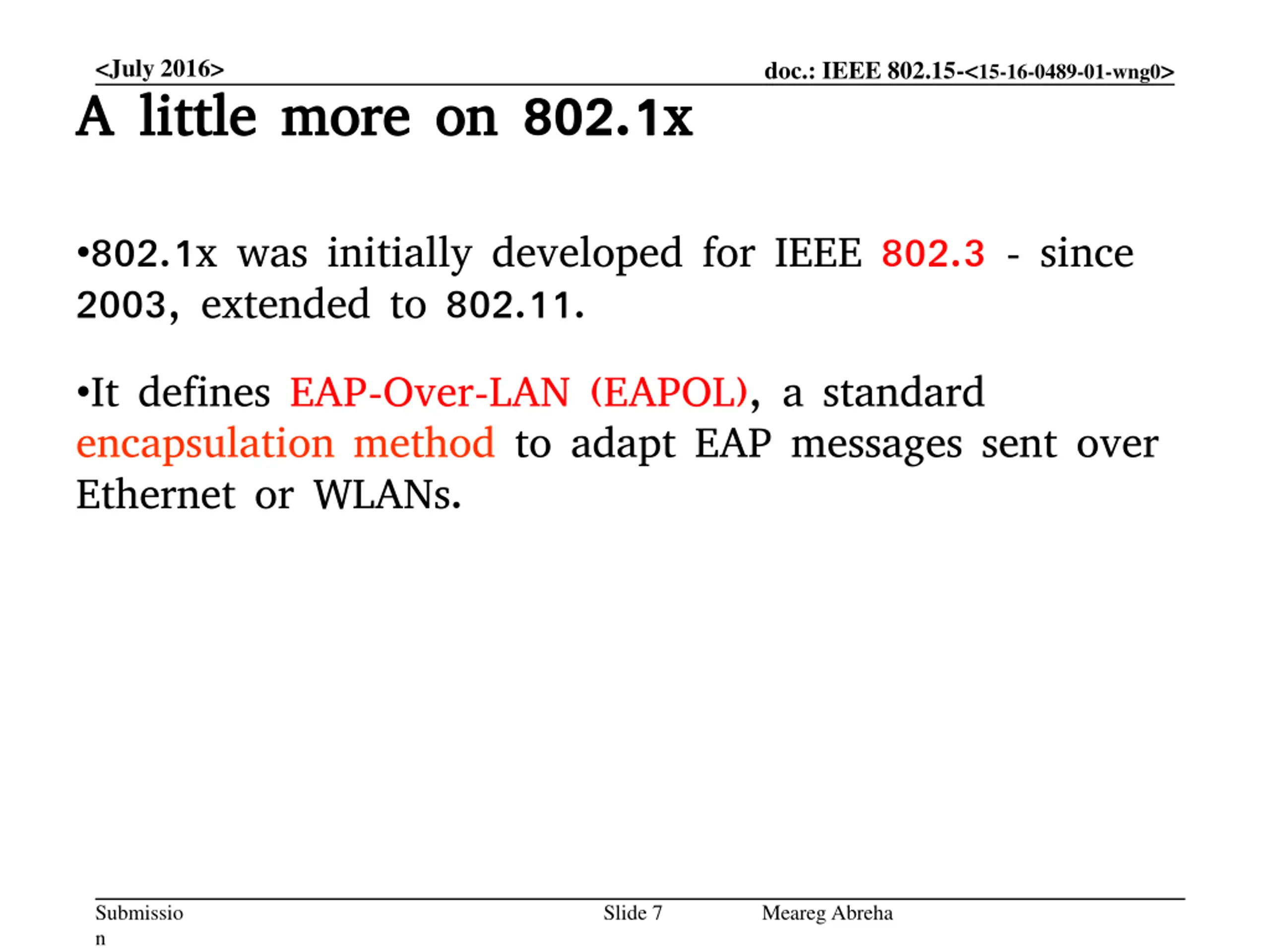

  7. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> A little more on 802.1x A little more on 802.1x 802.1x was initially developed for IEEE 802.3 - since 2003, extended to 802.11. It defines EAP-Over-LAN (EAPOL), a standard encapsulation method to adapt EAP messages sent over Ethernet or WLANs. Submissio n Slide 7 Meareg Abreha

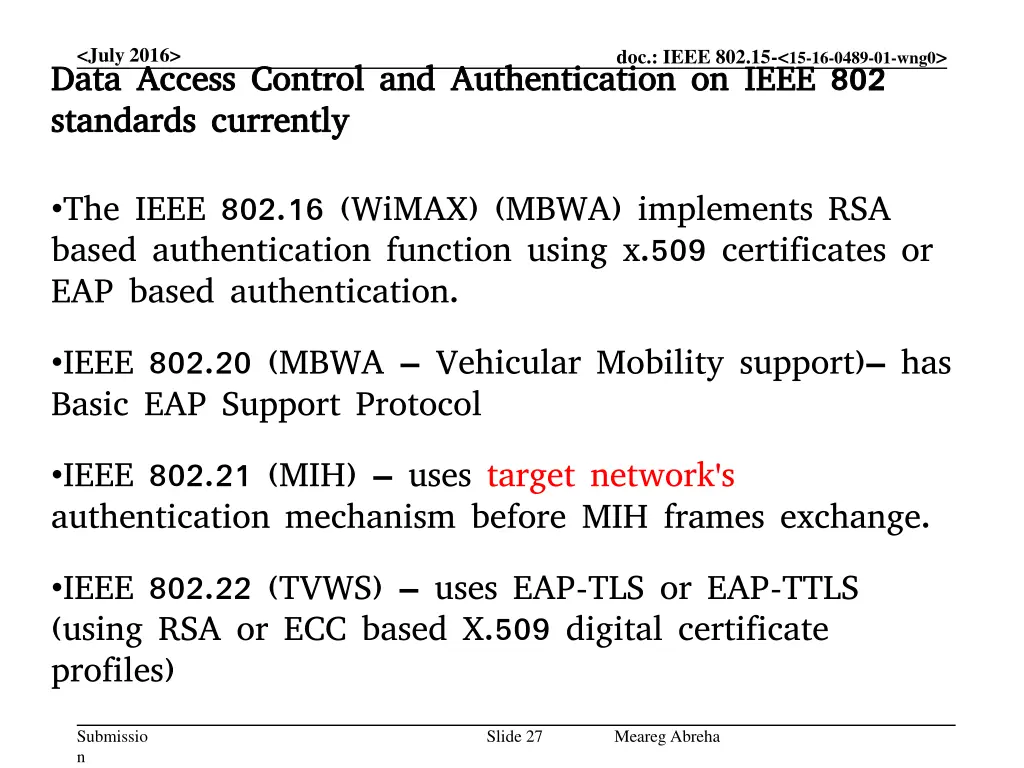

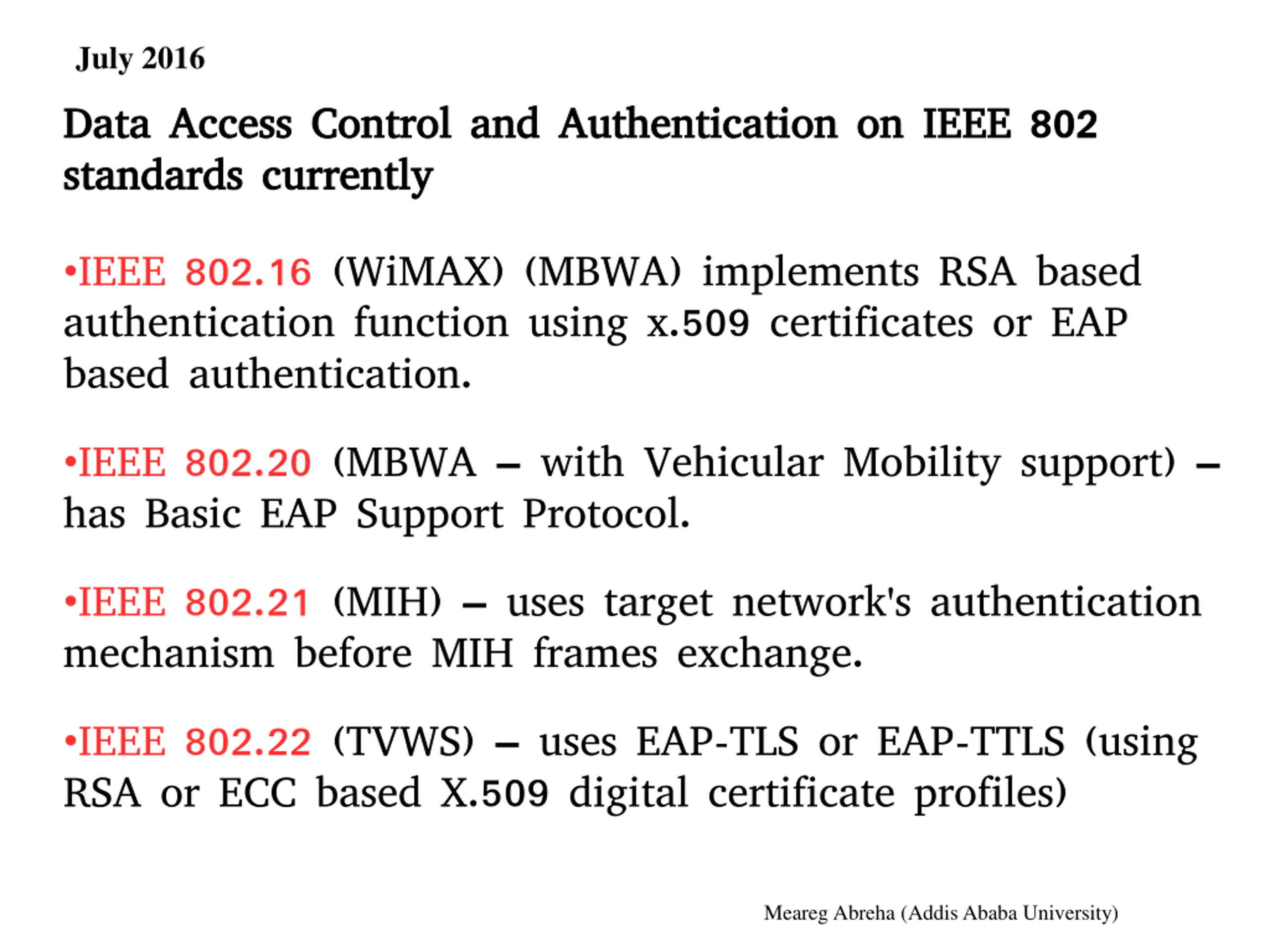

  8. July 2016 Data Access Control and Authentication on IEEE 802 Data Access Control and Authentication on IEEE 802 standards currently standards currently The IEEE 802.11i Enterprise mode implements the 802.1x with authentication servers such as RADIUS In IEEE 802.21, MIH SA is established either using TLS handshake, (D)TLS or EAP execution over the MIH protocol. Meareg Abreha (Addis Ababa University)

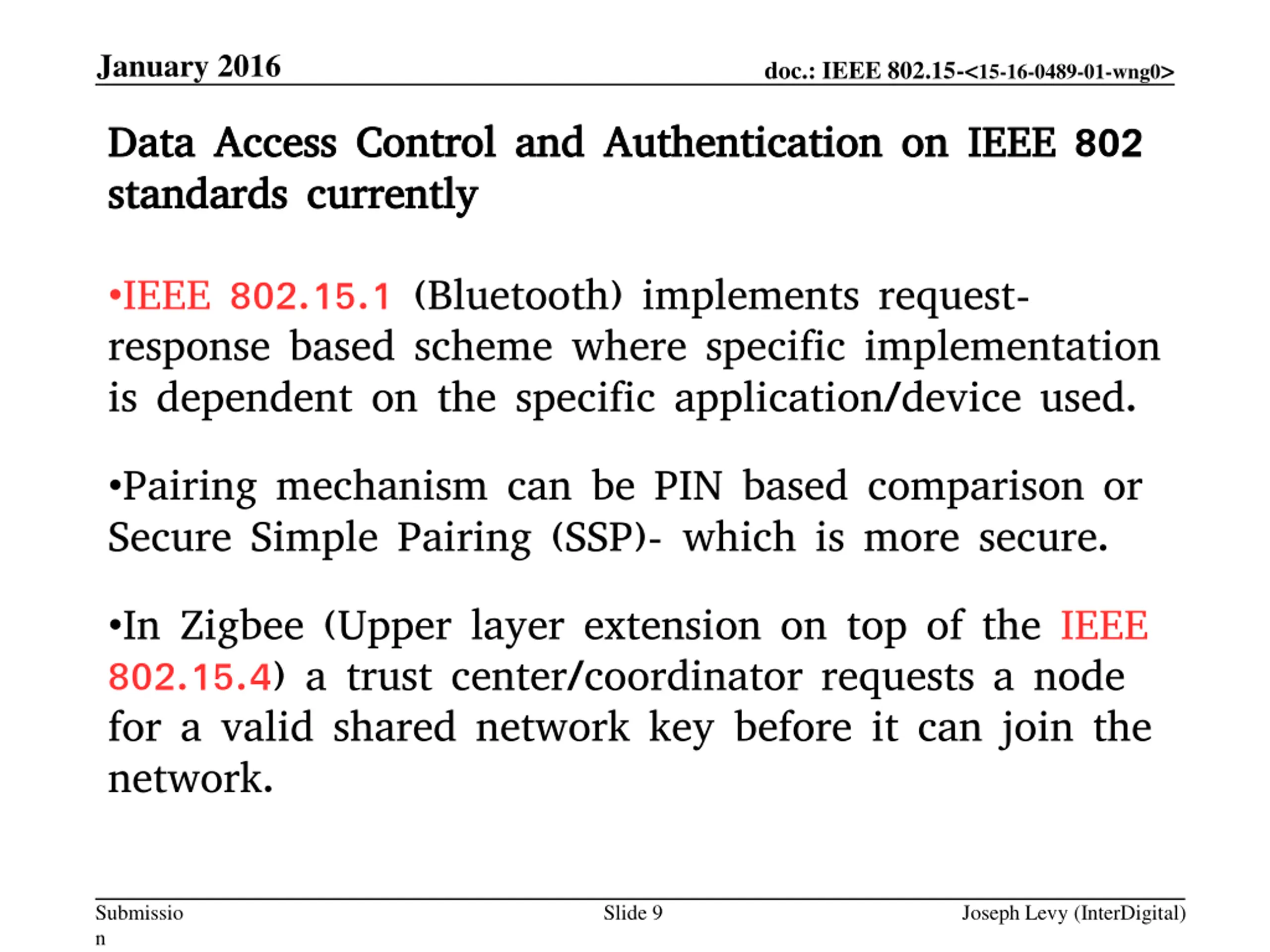

  9. January 2016 doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Access Control and Authentication on IEEE 802 Data Access Control and Authentication on IEEE 802 standards currently standards currently IEEE 802.15.1 (Bluetooth) implements request- response based scheme where specific implementation is dependent on the specific application/device used. Pairing mechanism can be PIN based comparison or Secure Simple Pairing (SSP)- which is more secure. In Zigbee (Upper layer extension on top of the IEEE 802.15.4) a trust center/coordinator requests a node for a valid shared network key before it can join the network. Submissio n Slide 9 Joseph Levy (InterDigital)

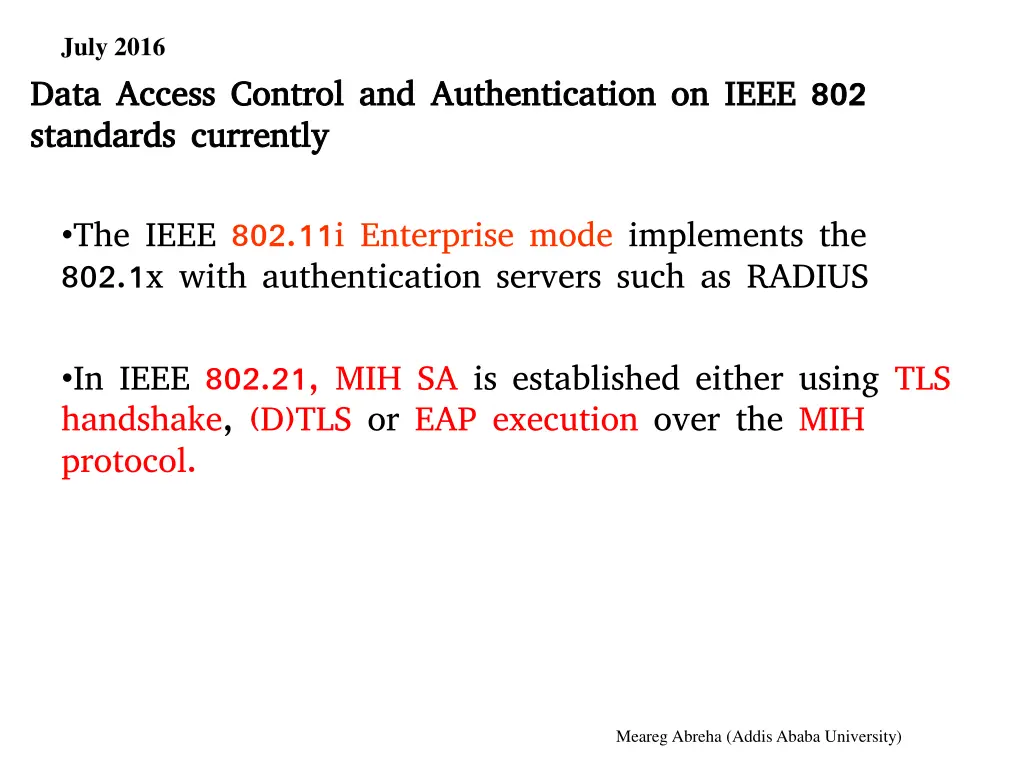

  10. July 2016 Data Access Control and Authentication on IEEE 802 Data Access Control and Authentication on IEEE 802 standards currently standards currently IEEE 802.16 (WiMAX) (MBWA) implements RSA based authentication function using x.509 certificates or EAP based authentication. IEEE 802.20 (MBWA with Vehicular Mobility support) has Basic EAP Support Protocol. IEEE 802.21 (MIH) uses target network's authentication mechanism before MIH frames exchange. IEEE 802.22 (TVWS) uses EAP-TLS or EAP-TTLS (using RSA or ECC based X.509 digital certificate profiles) Meareg Abreha (Addis Ababa University)

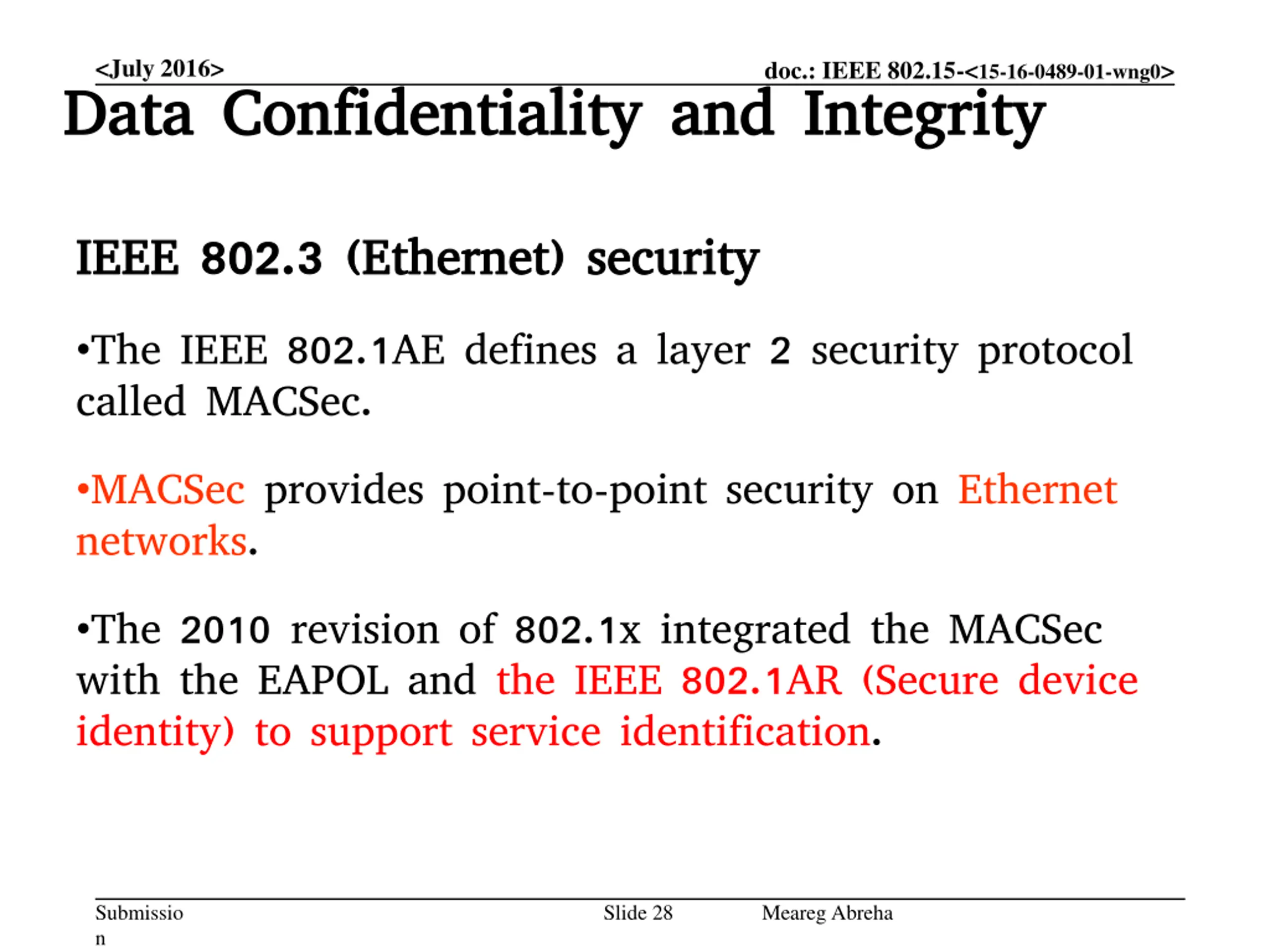

  11. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.3 (Ethernet) security IEEE 802.3 (Ethernet) security The IEEE 802.1AE defines a layer 2 security protocol called MACSec. MACSec provides point-to-point security on Ethernet networks. The 2010 revision of 802.1x integrated the MACSec with the EAPOL and the IEEE 802.1AR (Secure device identity) to support service identification. Meareg Abreha (Addis Ababa University)

  12. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.11 (WLANs) security IEEE 802.11 (WLANs) security Popularity along medium vulnerability- led to a series of security protocols evolution. The 1999 IEEE 802.11 standard introduced the first wireless protocol called WEP. WEP uses RC4 algorithm for data encryption and integrity- also the reason for its vulnerability. Meareg Abreha (Addis Ababa University)

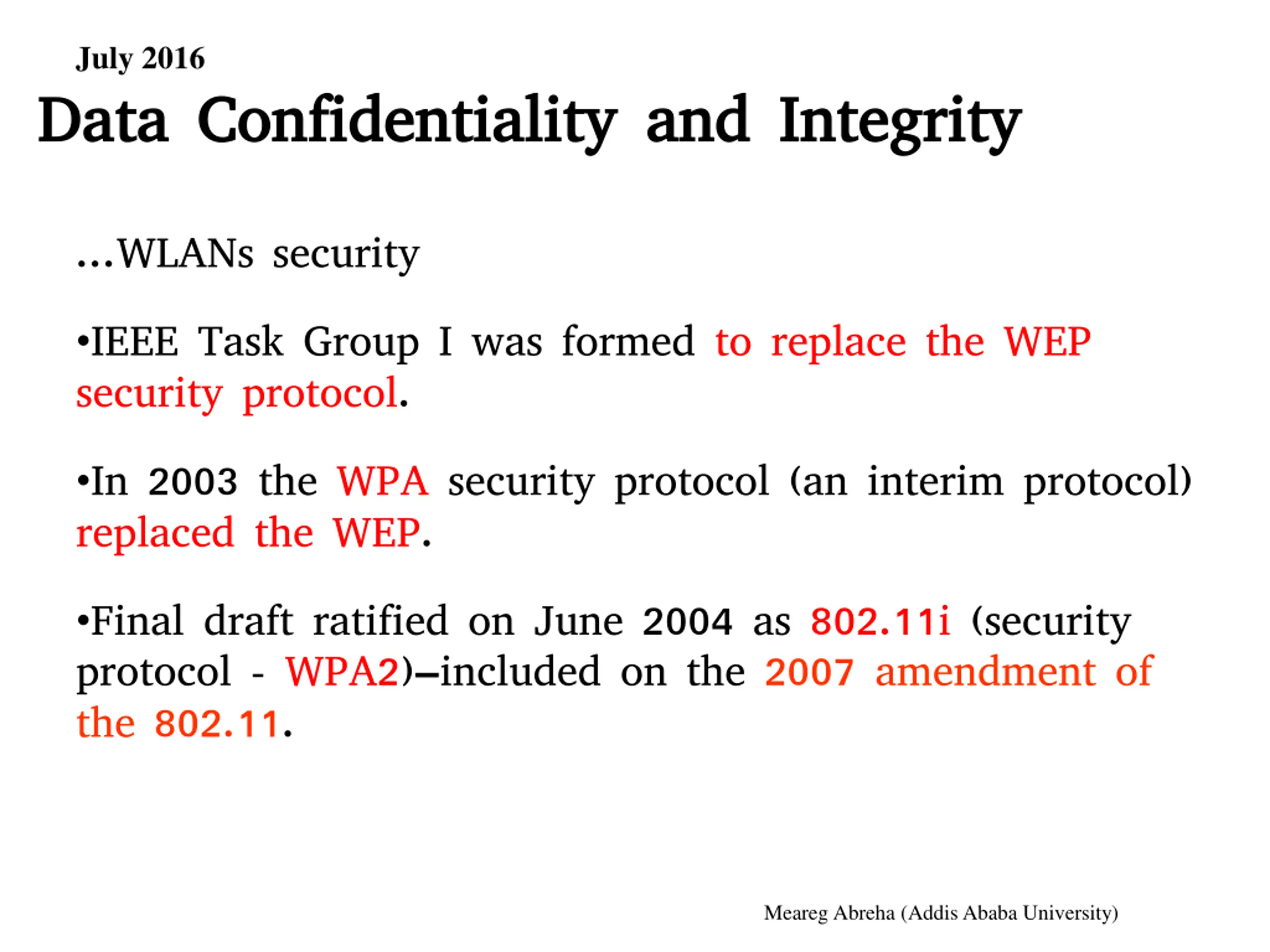

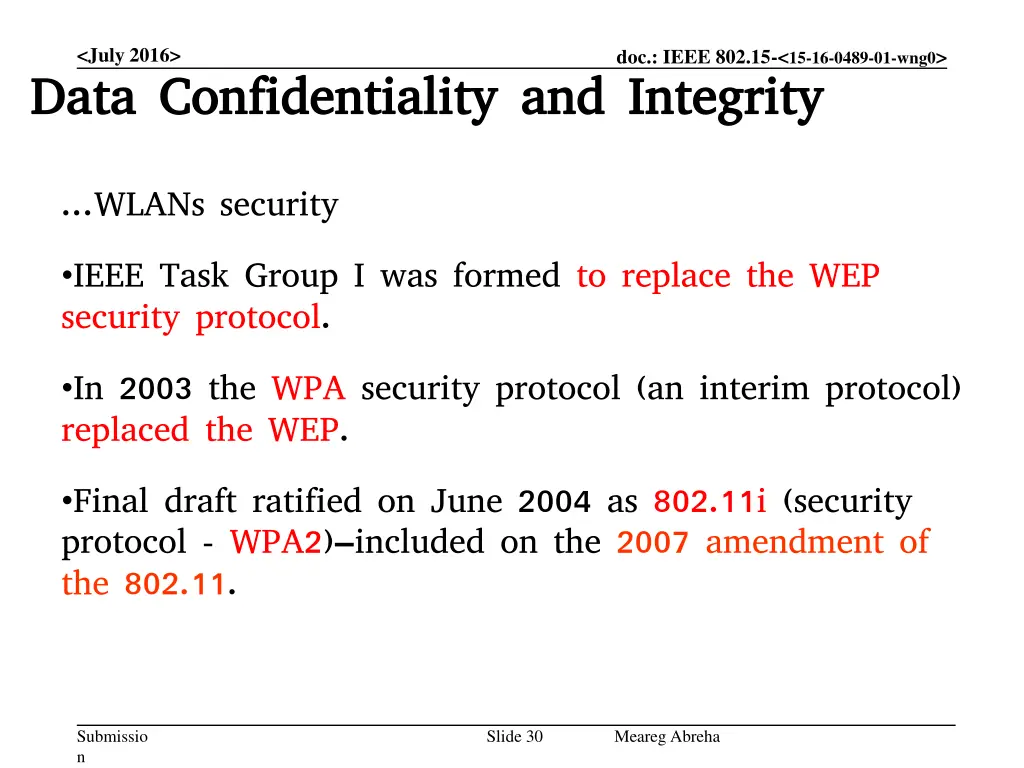

  13. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security IEEE Task Group I was formed to replace the WEP security protocol. In 2003 the WPA security protocol (an interim protocol) replaced the WEP. Final draft ratified on June 2004 as 802.11i (security protocol - WPA2) included on the 2007 amendment of the 802.11. Meareg Abreha (Addis Ababa University)

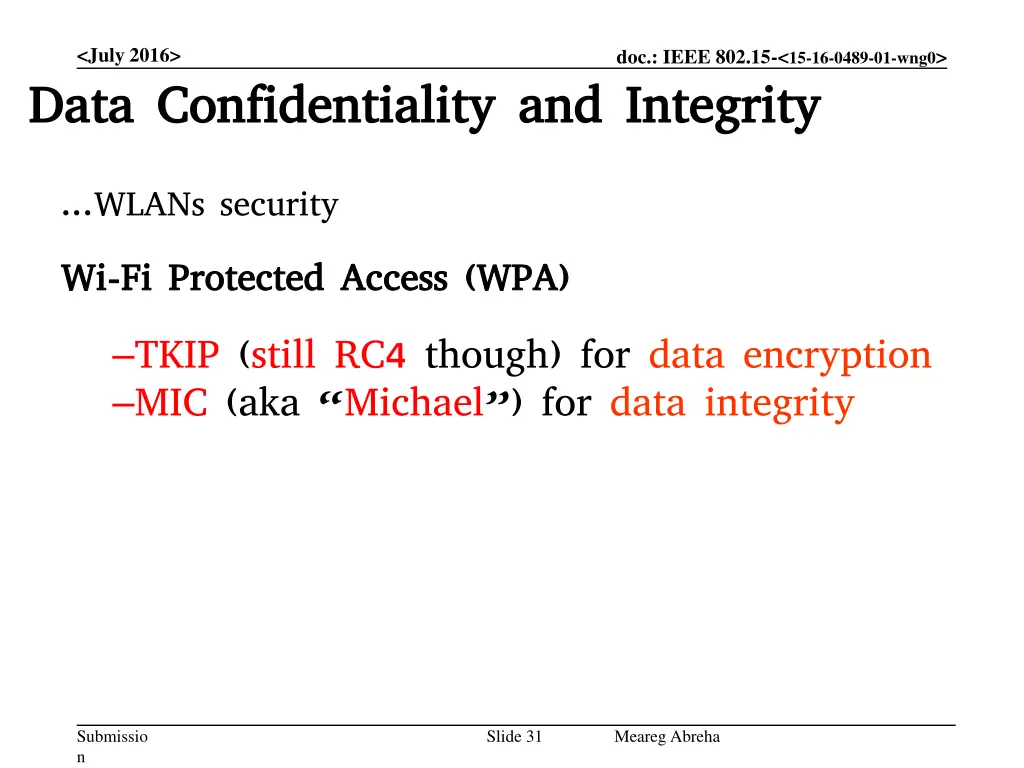

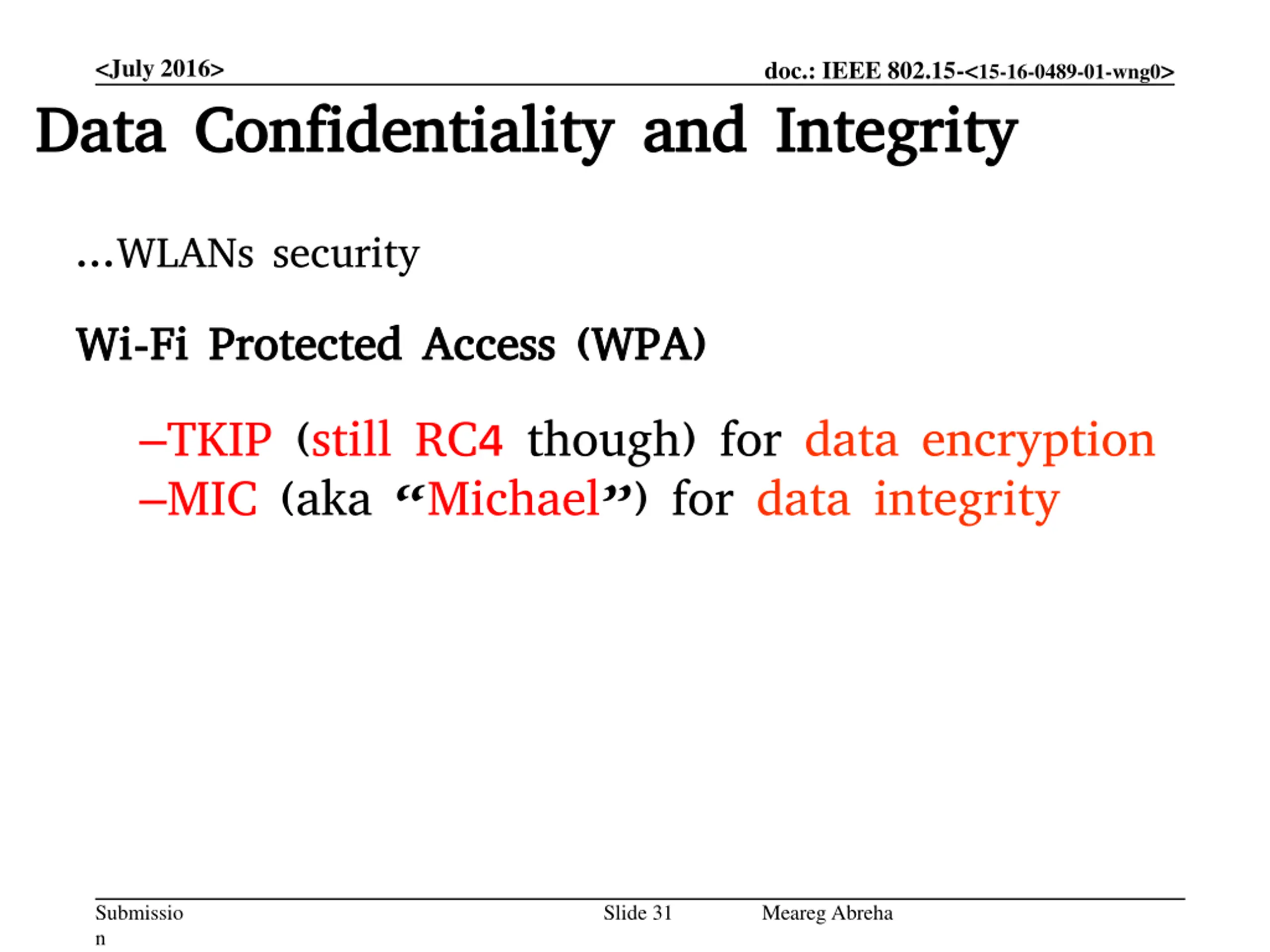

  14. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security Wi Wi- -Fi Protected Access (WPA) Fi Protected Access (WPA) TKIP (still RC4 though) for data encryption MIC (aka Michael ) for data integrity Meareg Abreha (Addis Ababa University)

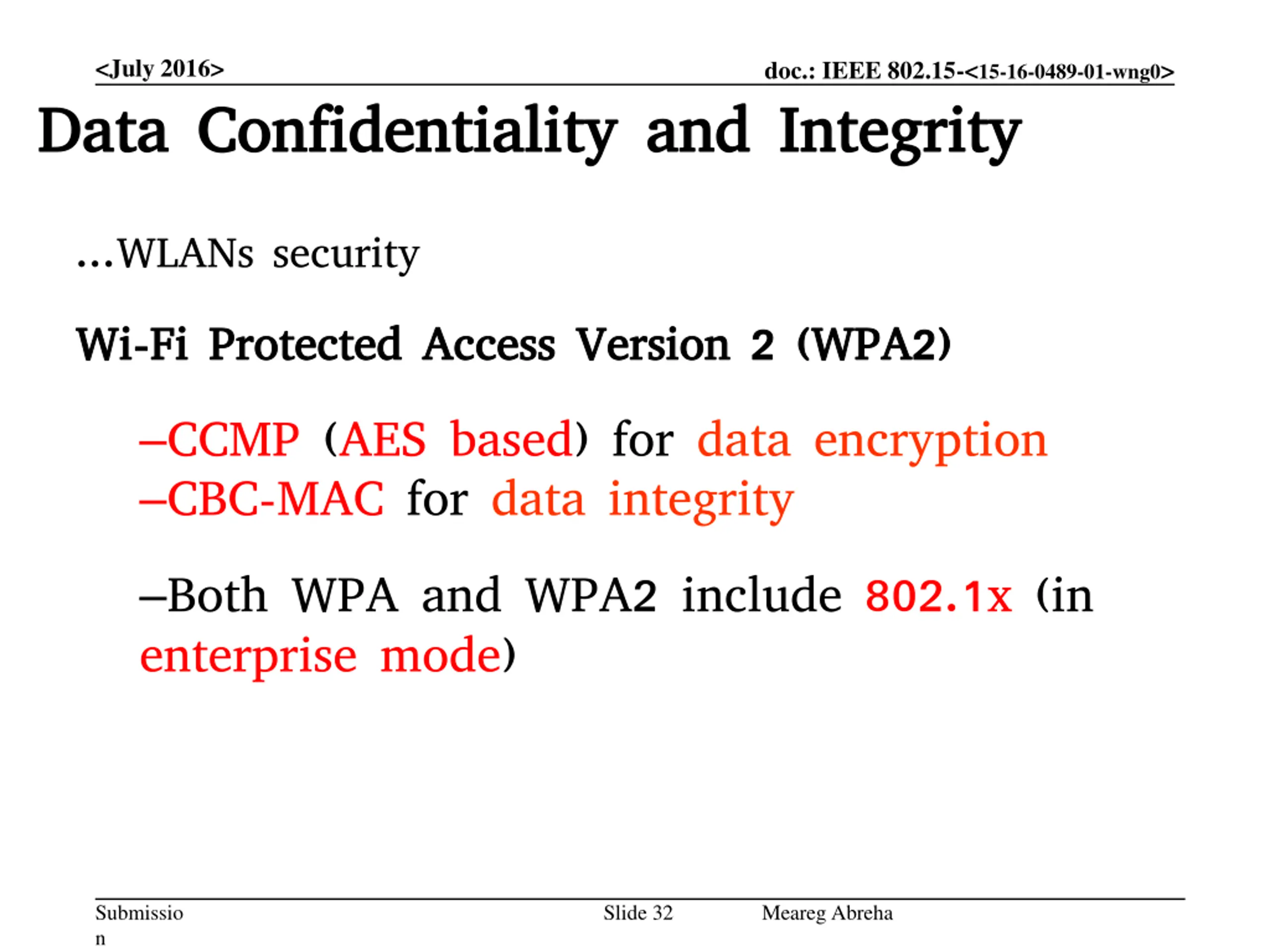

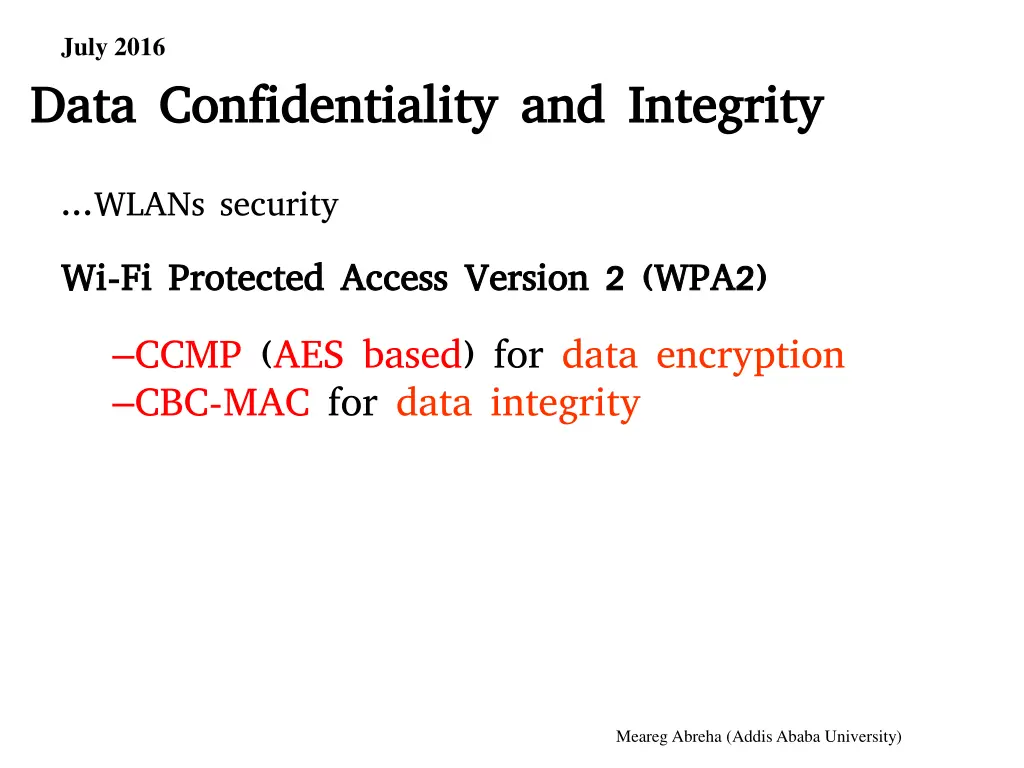

  15. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security Wi Wi- -Fi Protected Access Version 2 (WPA2) Fi Protected Access Version 2 (WPA2) CCMP (AES based) for data encryption CBC-MAC for data integrity Meareg Abreha (Addis Ababa University)

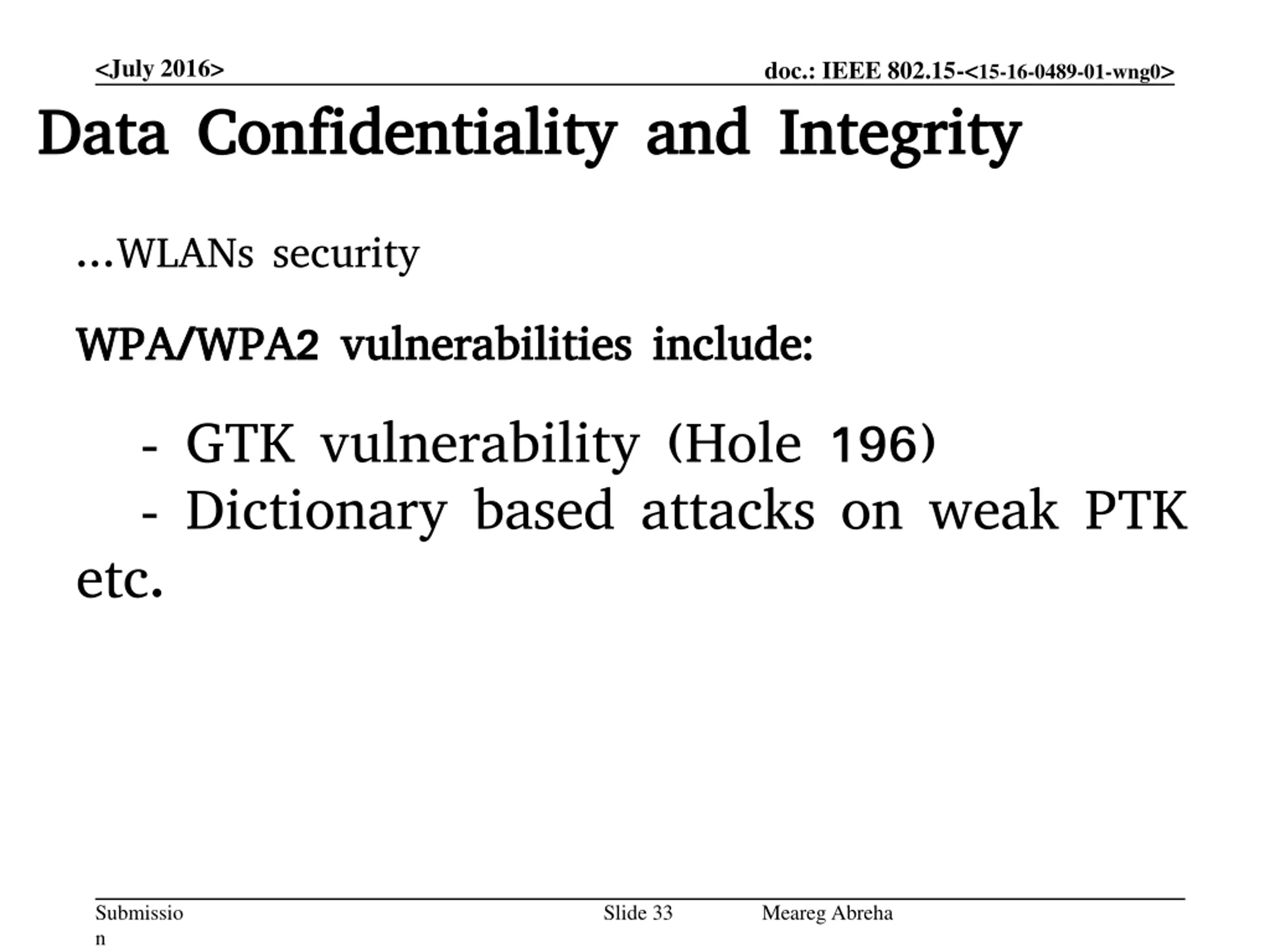

  16. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security WPA/WPA2 vulnerabilities include: WPA/WPA2 vulnerabilities include: - GTK vulnerability (Hole 196) - Dictionary based attacks on weak PTK Meareg Abreha (Addis Ababa University)

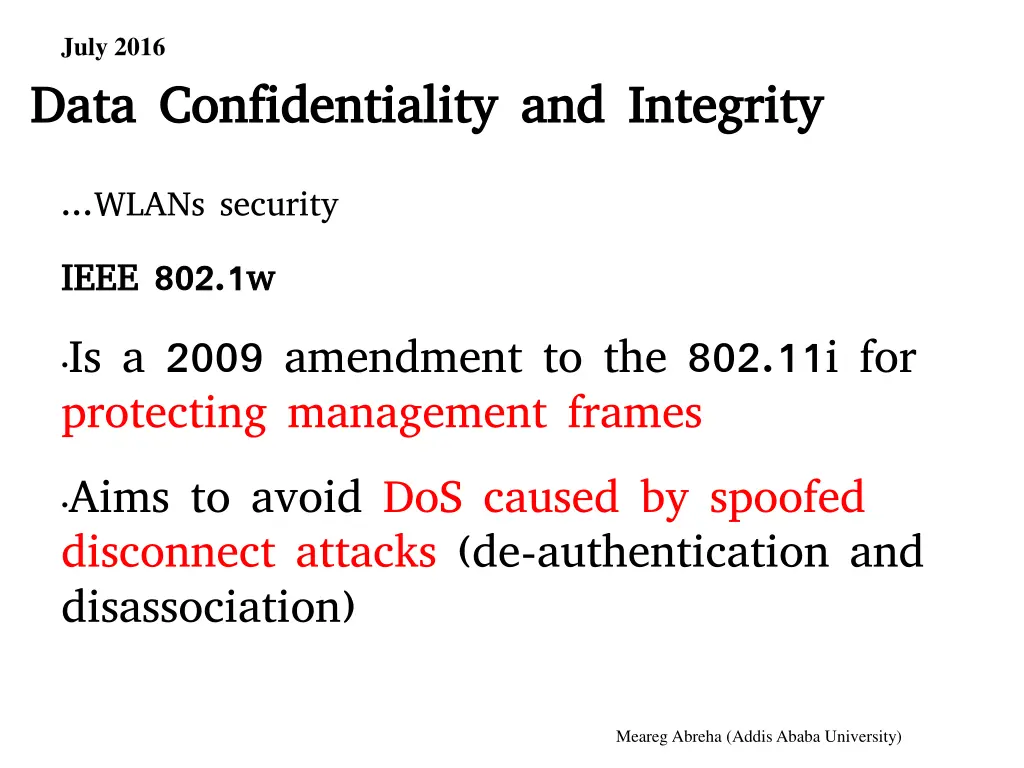

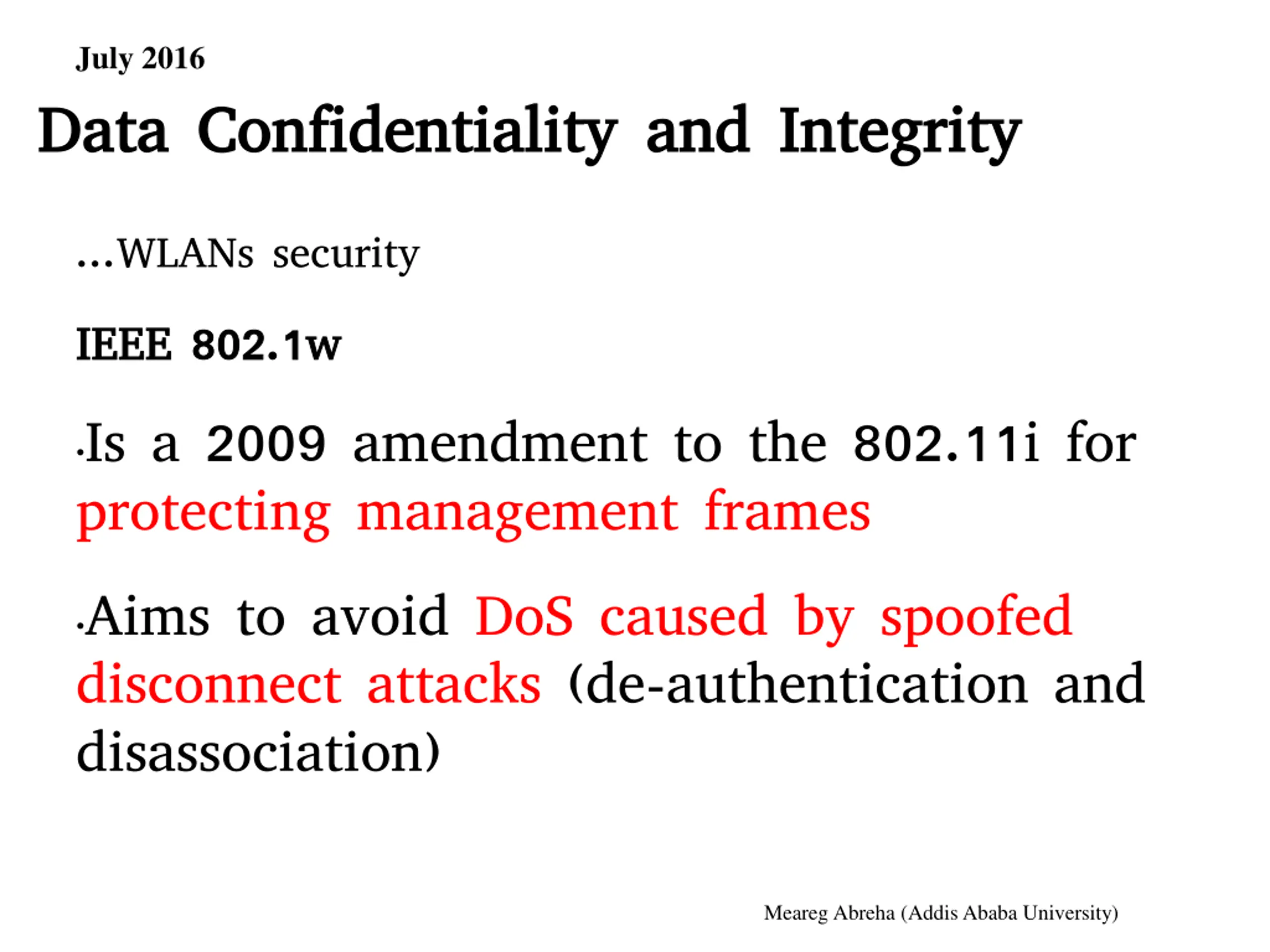

  17. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security IEEE 802.1w IEEE 802.1w Is a 2009 amendment to the 802.11i for protecting management frames Aims to avoid DoS caused by spoofed disconnect attacks (de-authentication and disassociation) Meareg Abreha (Addis Ababa University)

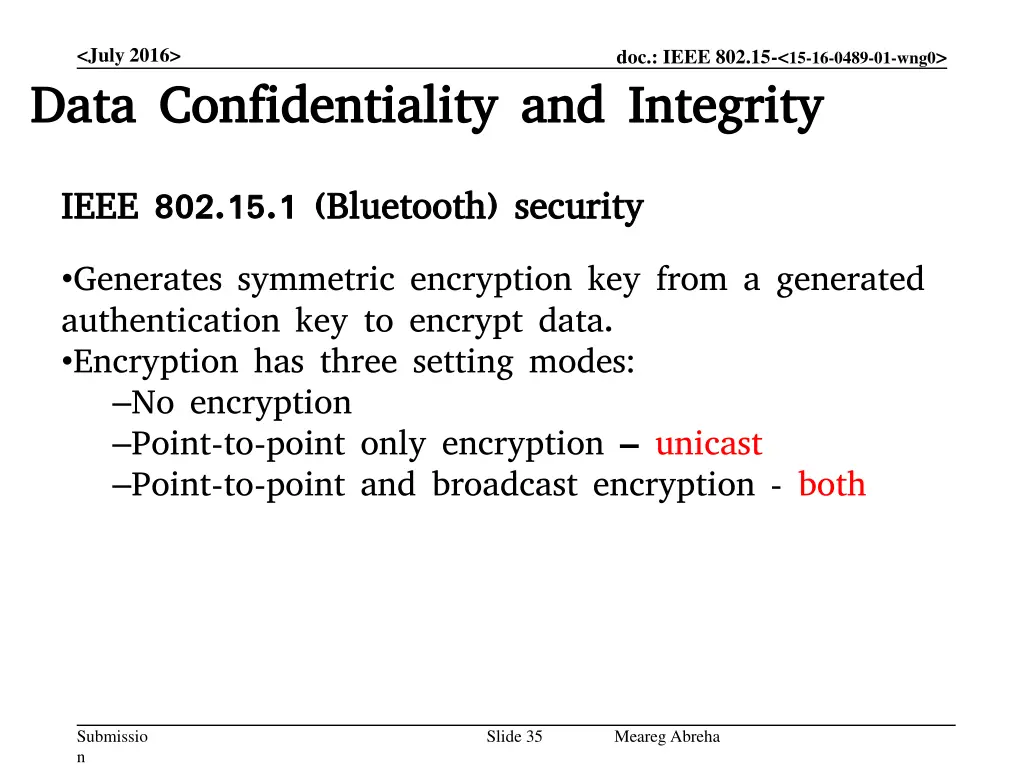

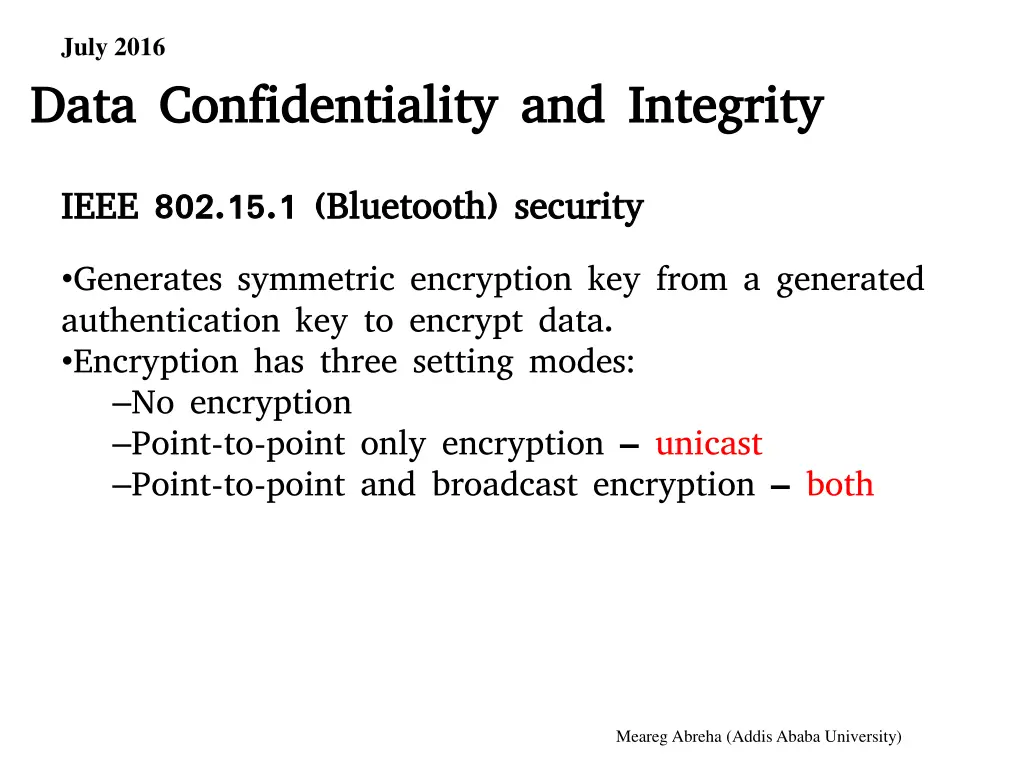

  18. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.15.1 (Bluetooth) security IEEE 802.15.1 (Bluetooth) security Generates symmetric encryption key from a generated authentication key to encrypt data. Encryption has three setting modes: No encryption Point-to-point only encryption unicast Point-to-point and broadcast encryption both Meareg Abreha (Addis Ababa University)

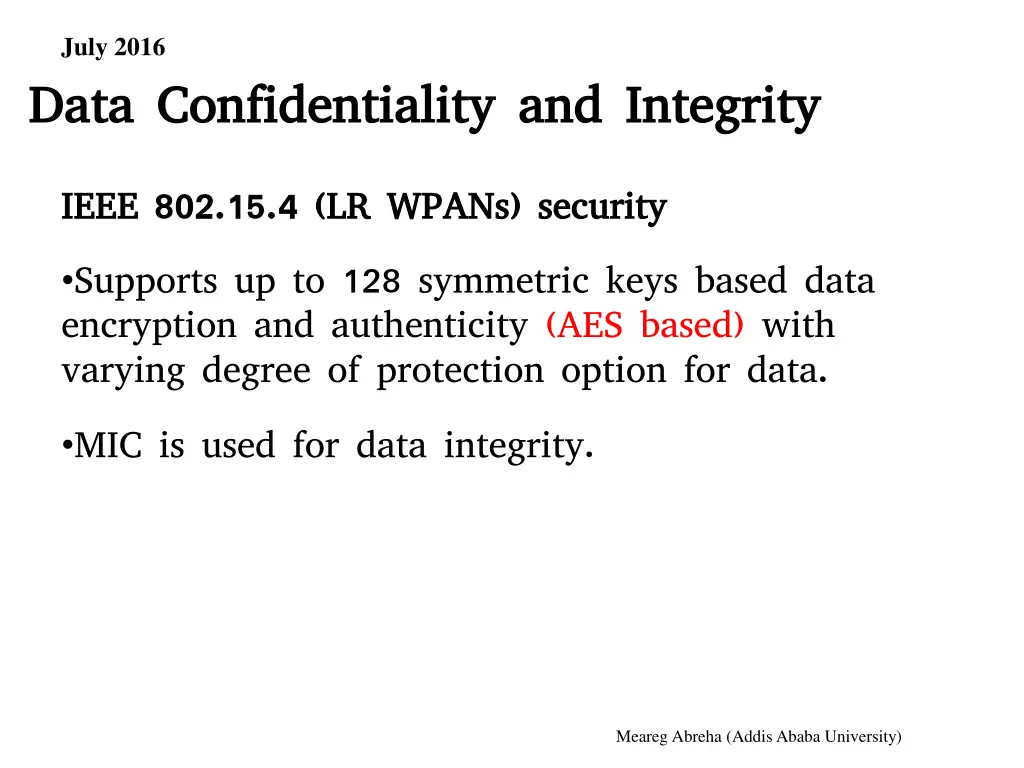

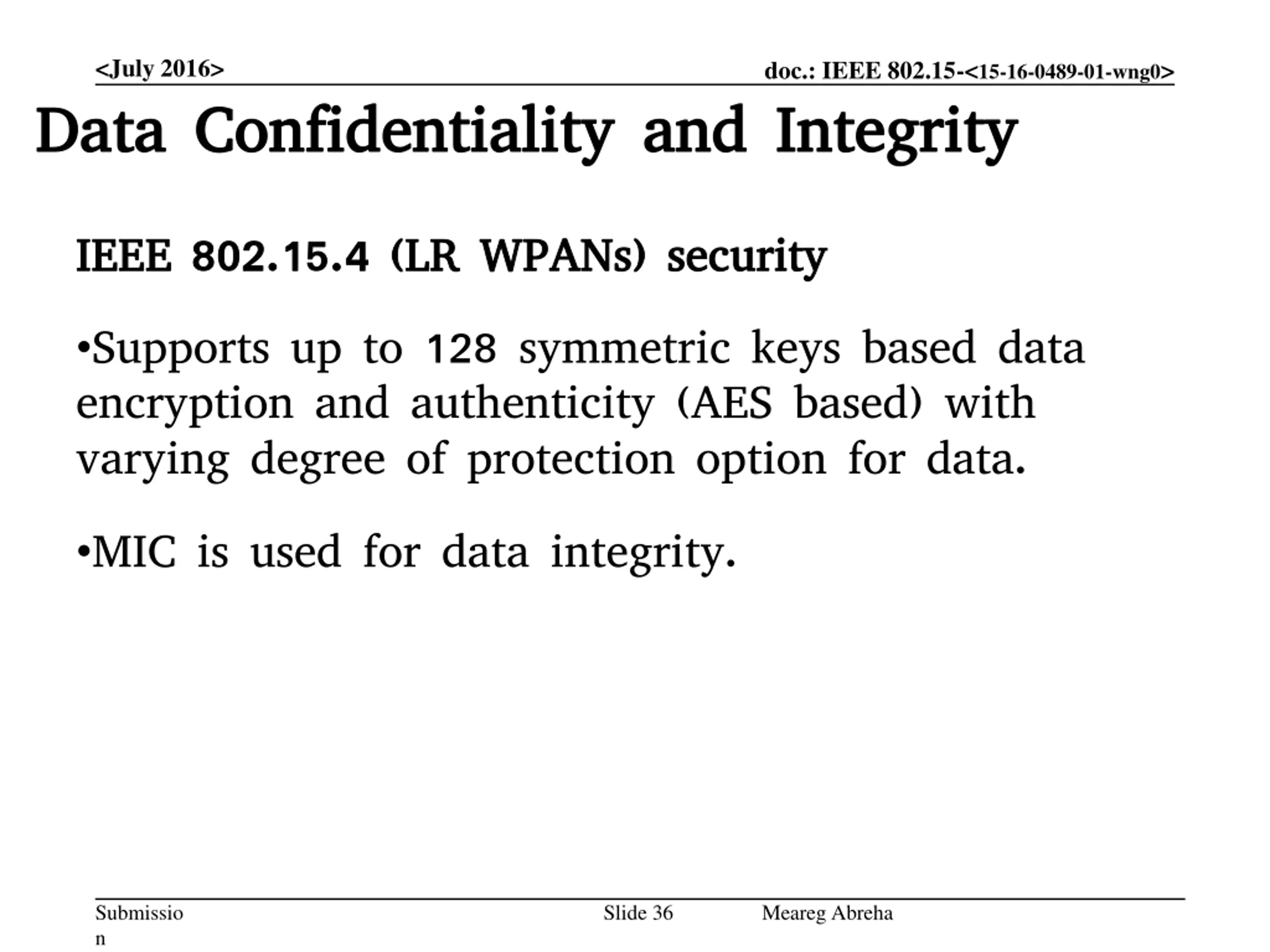

  19. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.15.4 (LR WPANs) security IEEE 802.15.4 (LR WPANs) security Supports up to 128 symmetric keys based data encryption and authenticity (AES based) with varying degree of protection option for data. MIC is used for data integrity. Meareg Abreha (Addis Ababa University)

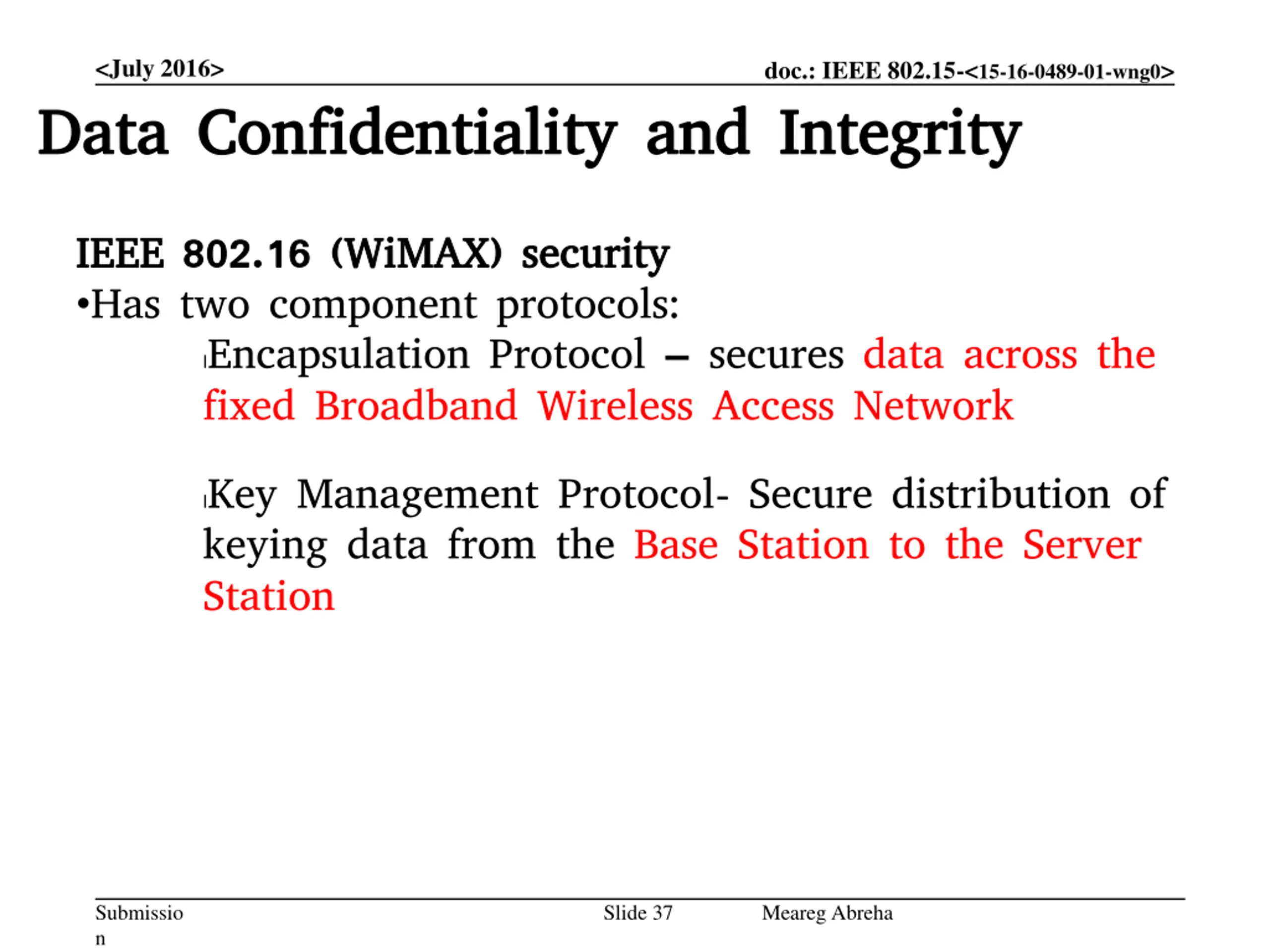

  20. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.16 (WiMAX) security IEEE 802.16 (WiMAX) security Has two component protocols: lEncapsulation Protocol secures data across the fixed Broadband Wireless Access Network lKey Management Protocol- Secure distribution of keying data from the Base Station to the Server Station Meareg Abreha (Addis Ababa University)

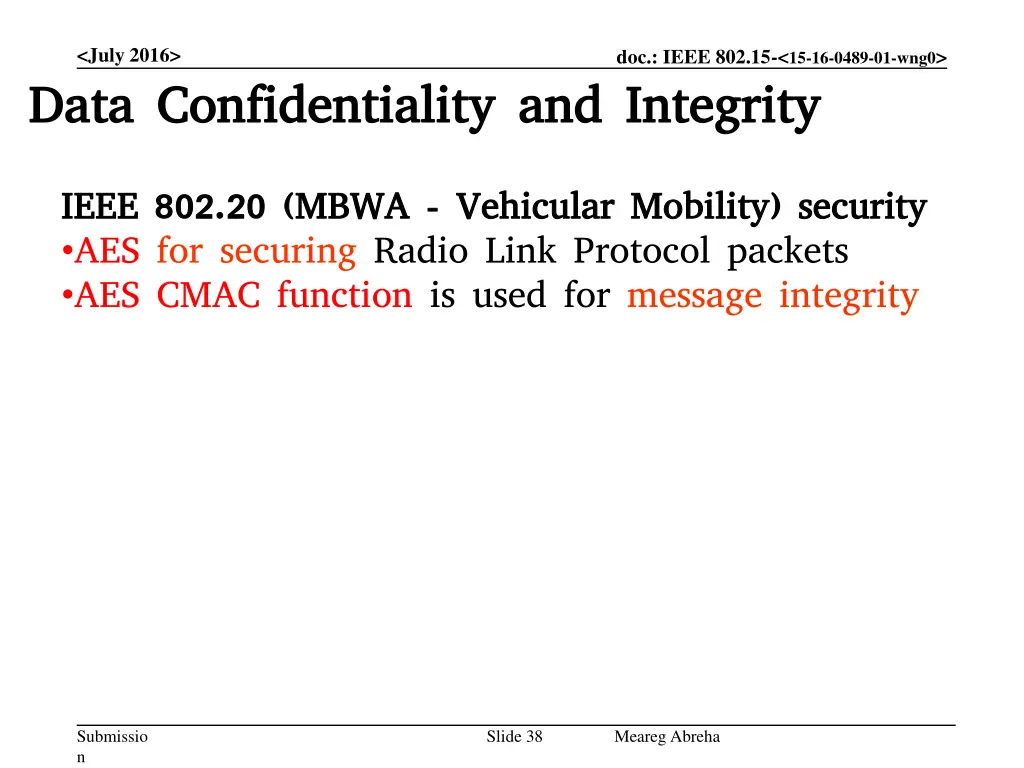

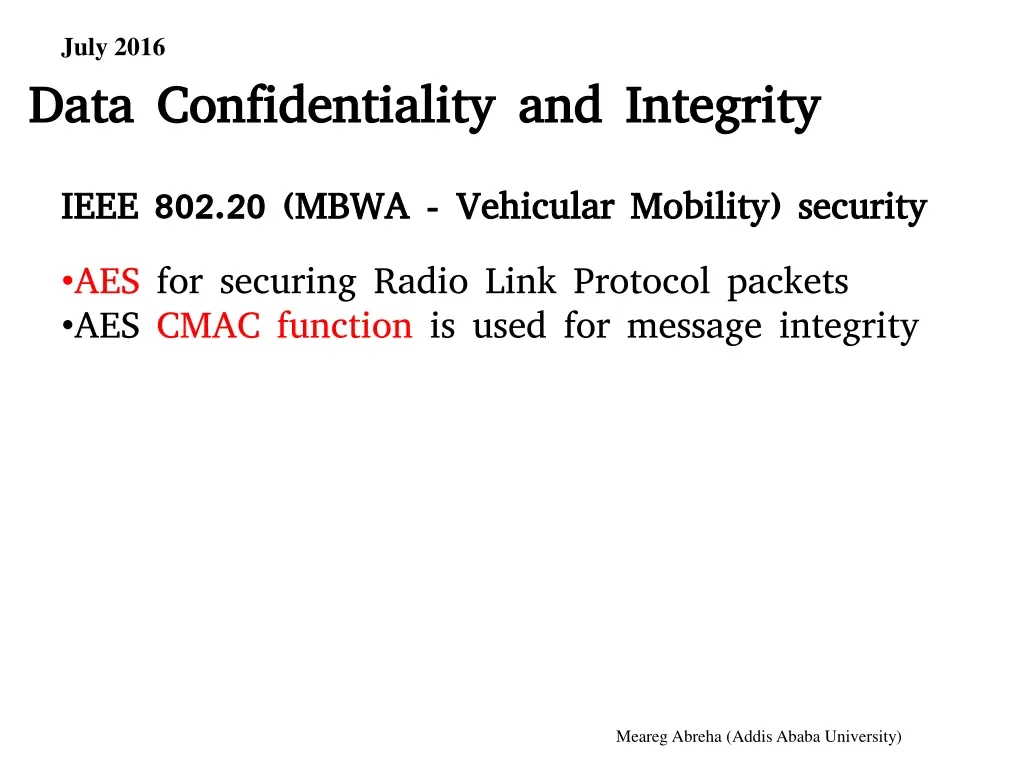

  21. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.20 (MBWA IEEE 802.20 (MBWA - - Vehicular Mobility) security Vehicular Mobility) security AES for securing Radio Link Protocol packets AES CMAC function is used for message integrity Meareg Abreha (Addis Ababa University)

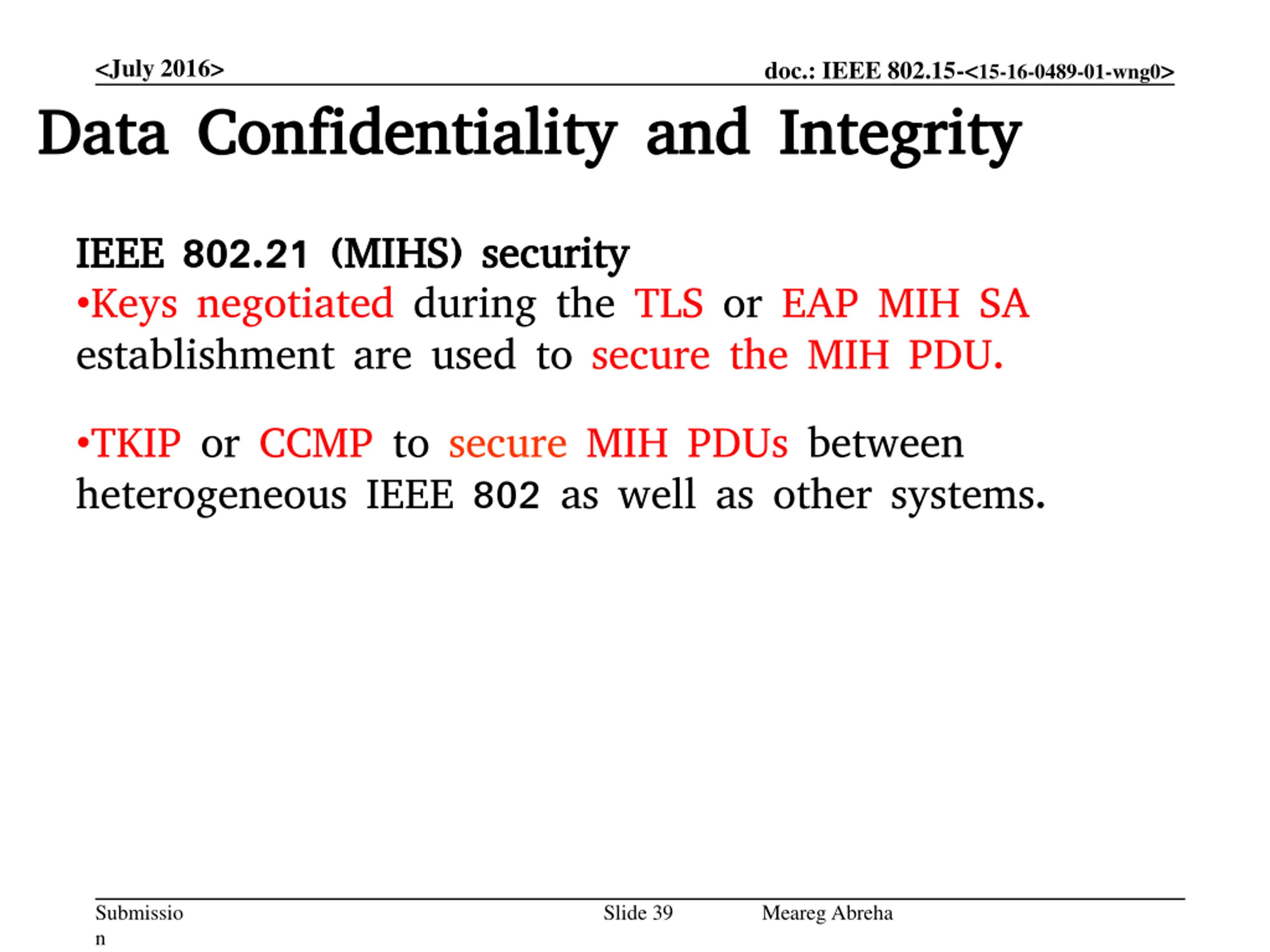

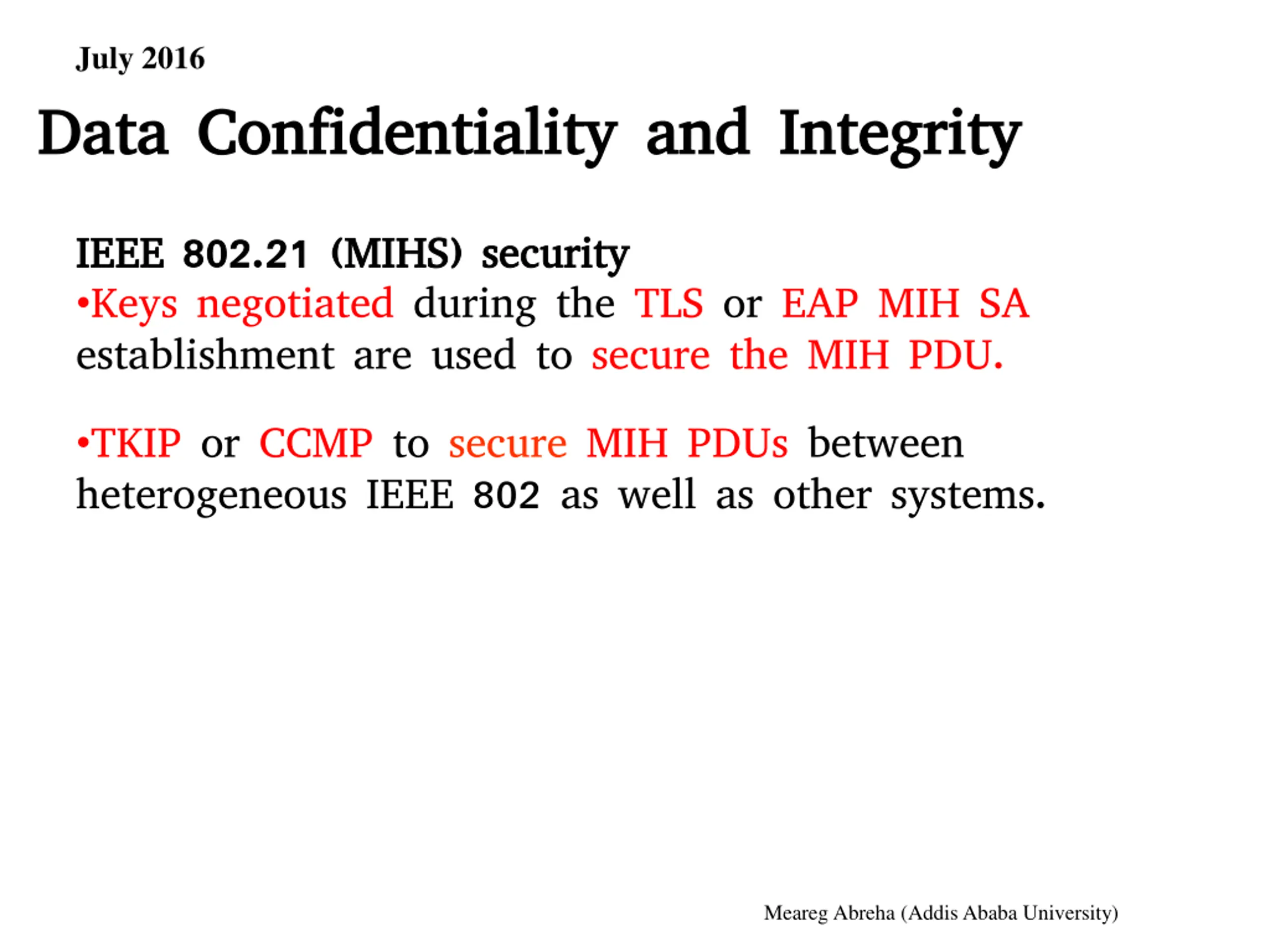

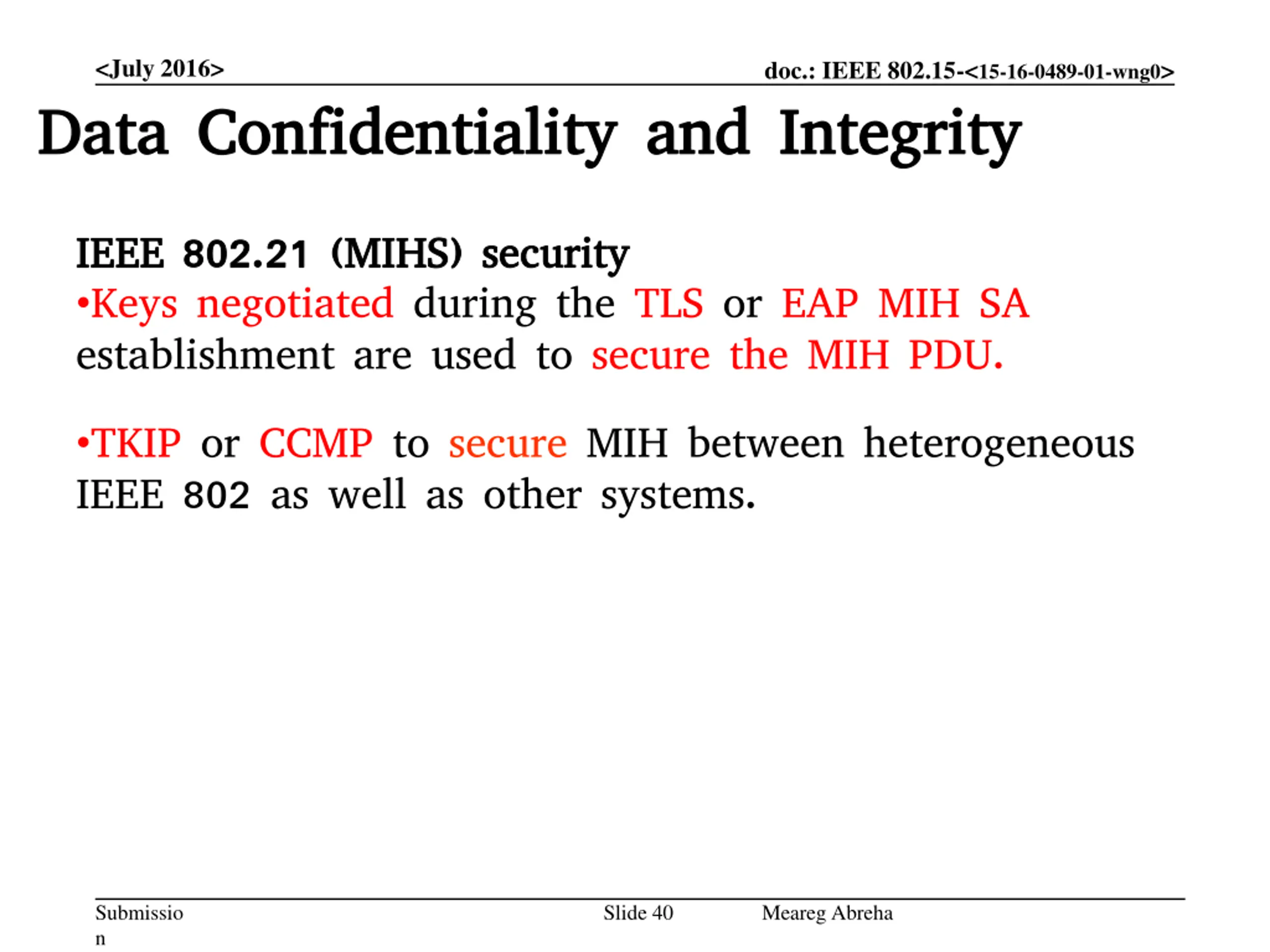

  22. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.21 (MIHS) security IEEE 802.21 (MIHS) security Keys negotiated during the TLS or EAP MIH SA establishment are used to secure the MIH PDU. TKIP or CCMP to secure MIH PDUs between heterogeneous IEEE 802 as well as other systems. Meareg Abreha (Addis Ababa University)

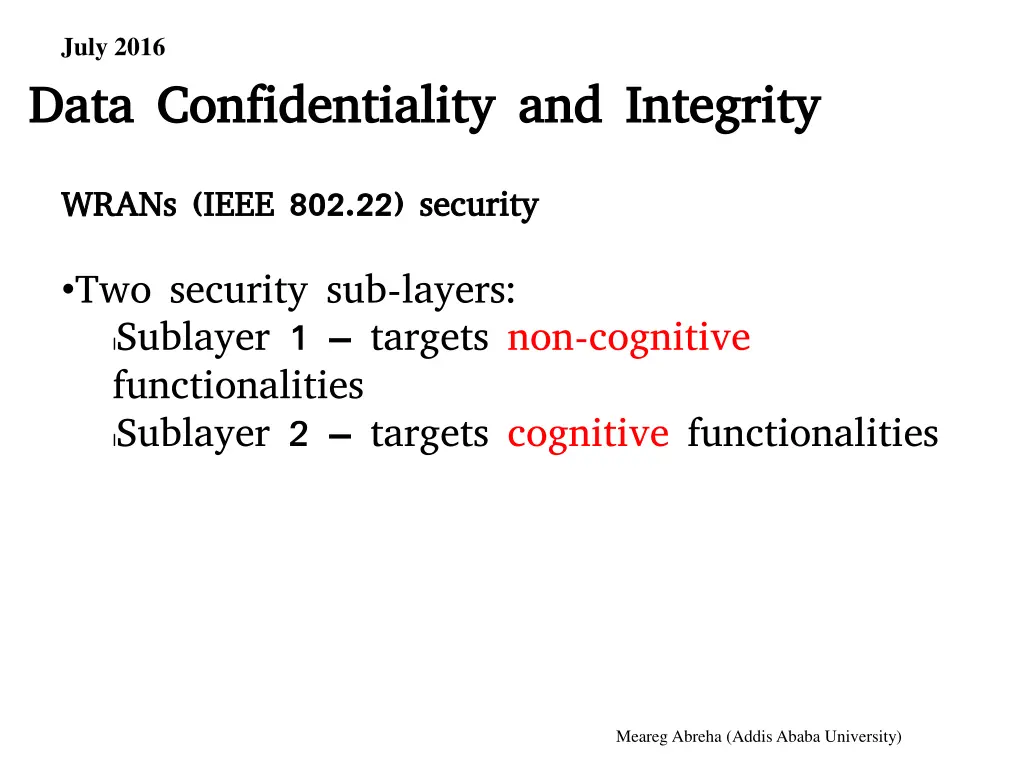

  23. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity WRANs (IEEE 802.22) security WRANs (IEEE 802.22) security Two security sub-layers: lSublayer 1 targets non-cognitive functionalities lSublayer 2 targets cognitive functionalities Meareg Abreha (Addis Ababa University)

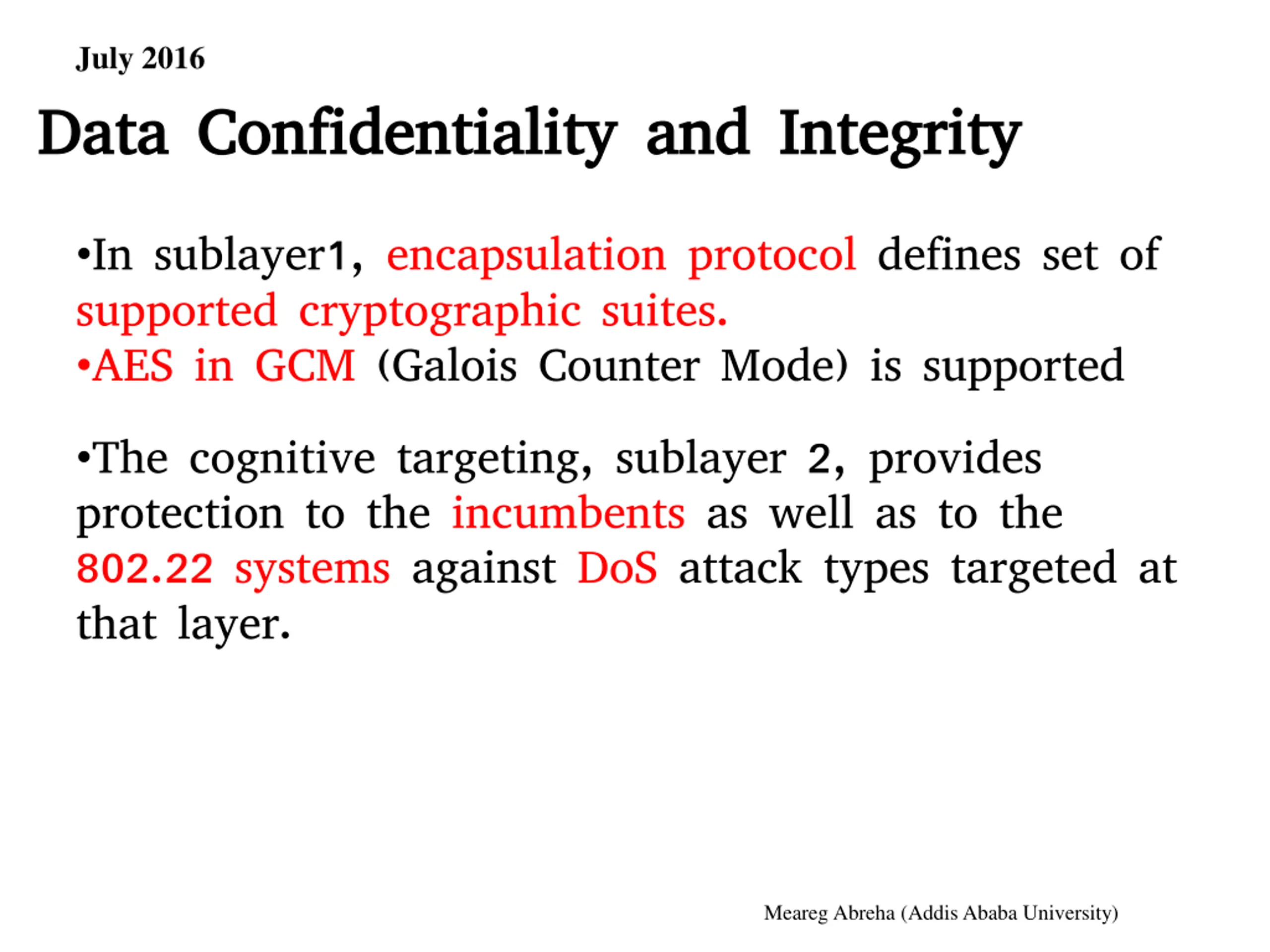

  24. July 2016 Data Confidentiality and Integrity Data Confidentiality and Integrity In sublayer1, encapsulation protocol defines set of supported cryptographic suites. AES in GCM (Galois Counter Mode) is supported The cognitive targeting, sublayer 2, provides protection to the incumbents as well as to the 802.22 systems against DoS attack types targeted at that layer. Meareg Abreha (Addis Ababa University)

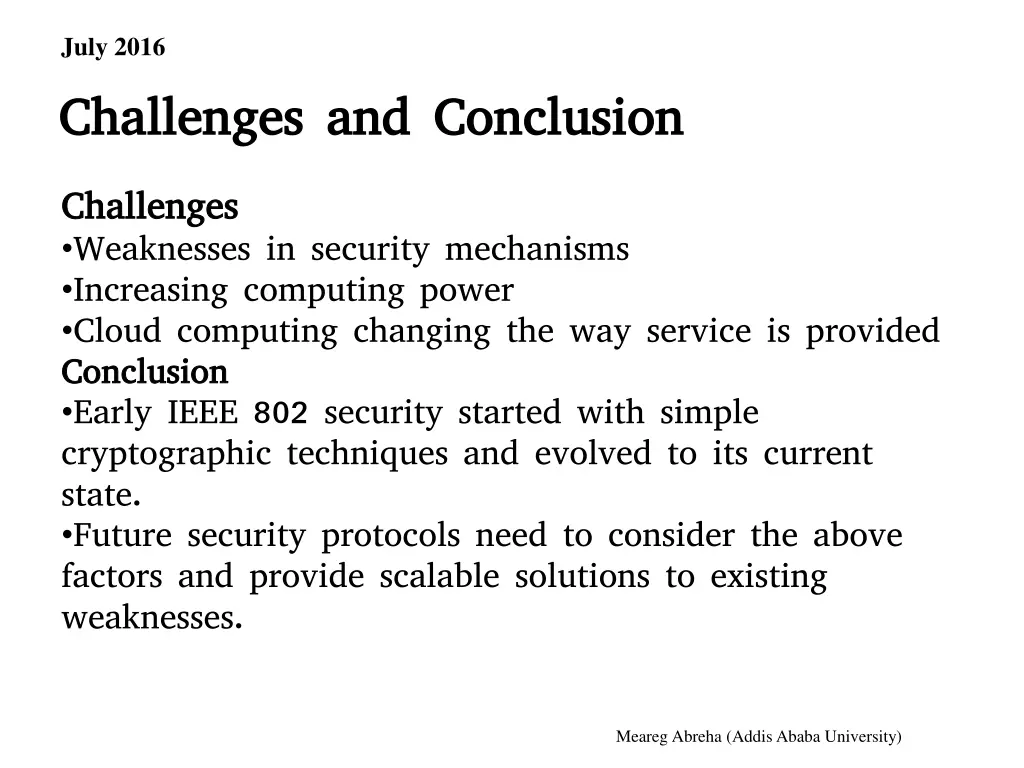

  25. July 2016 Challenges and Conclusion Challenges and Conclusion Challenges Challenges Weaknesses in security mechanisms Increasing computing power Cloud computing changing the way service is provided Conclusion Conclusion Early IEEE 802 security started with simple cryptographic techniques and evolved to its current state. Future security protocols need to consider the above factors and provide scalable solutions to existing weaknesses. Meareg Abreha (Addis Ababa University)

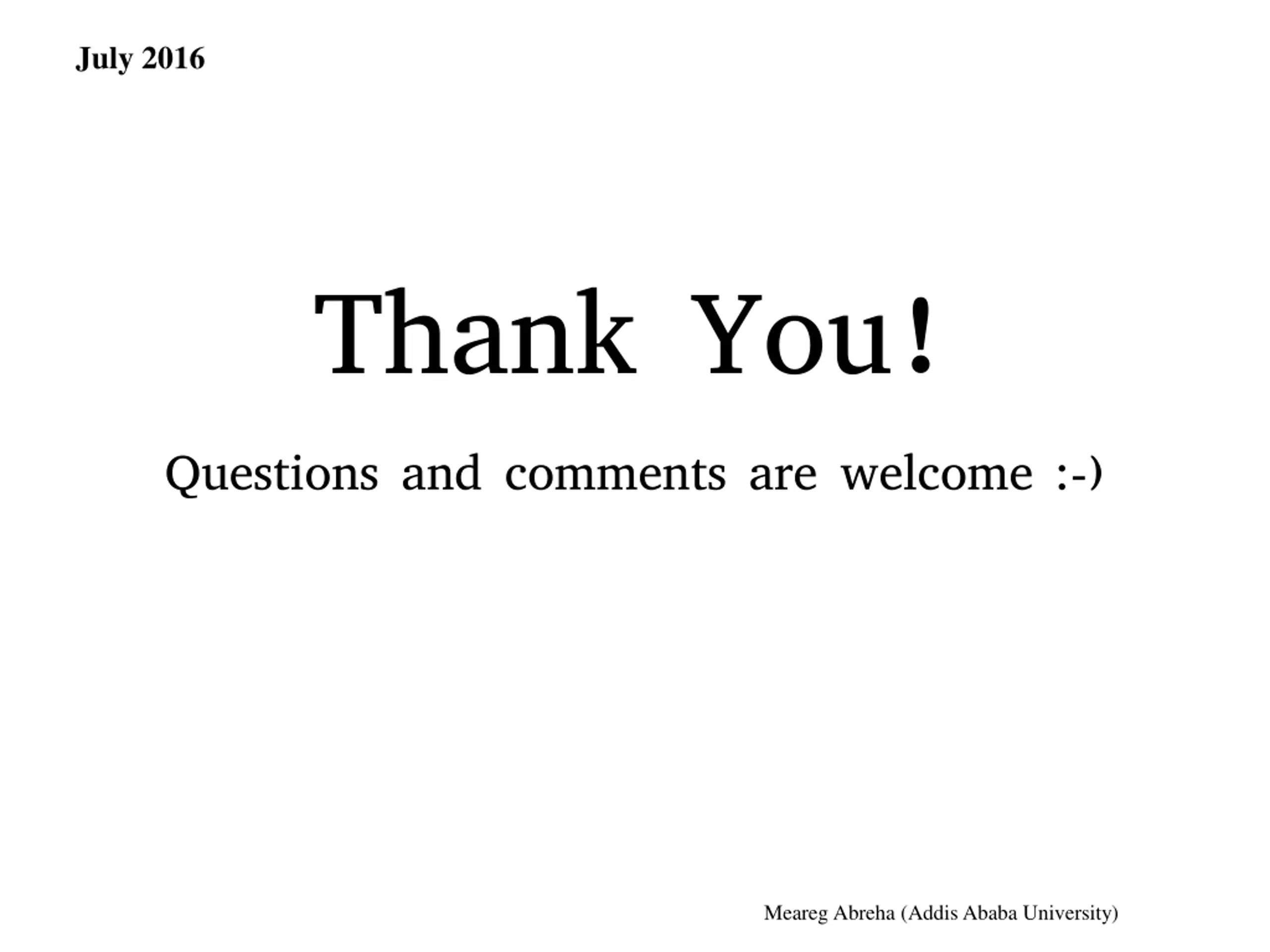

  26. July 2016 Thank You! Questions and comments are welcome :-) Meareg Abreha (Addis Ababa University)

  27. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Access Control and Authentication on IEEE 802 Data Access Control and Authentication on IEEE 802 standards currently standards currently The IEEE 802.16 (WiMAX) (MBWA) implements RSA based authentication function using x.509 certificates or EAP based authentication. IEEE 802.20 (MBWA Vehicular Mobility support) has Basic EAP Support Protocol IEEE 802.21 (MIH) uses target network's authentication mechanism before MIH frames exchange. IEEE 802.22 (TVWS) uses EAP-TLS or EAP-TTLS (using RSA or ECC based X.509 digital certificate profiles) Submissio n Slide 27 Meareg Abreha

  28. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.3 (Ethernet) security IEEE 802.3 (Ethernet) security The IEEE 802.1AE defines a layer 2 security protocol called MACSec. MACSec provides point-to-point security on Ethernet networks. The 2010 revision of 802.1x integrated the MACSec with the EAPOL and the IEEE 802.1AR (Secure device identity) to support service identification. Submissio n Slide 28 Meareg Abreha

  29. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.11 (WLANs) security IEEE 802.11 (WLANs) security Popularity along medium vulnerability- led to a series of security protocols evolution. The 1999 IEEE 802.11 standard introduced the first wireless protocol called WEP. WEP uses RC4 algorithm for data encryption and integrity- also the reason for its vulnerability. Submissio n Slide 29 Meareg Abreha

  30. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security IEEE Task Group I was formed to replace the WEP security protocol. In 2003 the WPA security protocol (an interim protocol) replaced the WEP. Final draft ratified on June 2004 as 802.11i (security protocol - WPA2) included on the 2007 amendment of the 802.11. Submissio n Slide 30 Meareg Abreha

  31. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security Wi Wi- -Fi Protected Access (WPA) Fi Protected Access (WPA) TKIP (still RC4 though) for data encryption MIC (aka Michael ) for data integrity Submissio n Slide 31 Meareg Abreha

  32. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security Wi Wi- -Fi Protected Access Version 2 (WPA2) Fi Protected Access Version 2 (WPA2) CCMP (AES based) for data encryption CBC-MAC for data integrity Both WPA and WPA2 include 802.1x (in enterprise mode) Submissio n Slide 32 Meareg Abreha

  33. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security WPA/WPA2 vulnerabilities include: WPA/WPA2 vulnerabilities include: - GTK vulnerability (Hole 196) - Dictionary based attacks on weak PTK etc. Submissio n Slide 33 Meareg Abreha

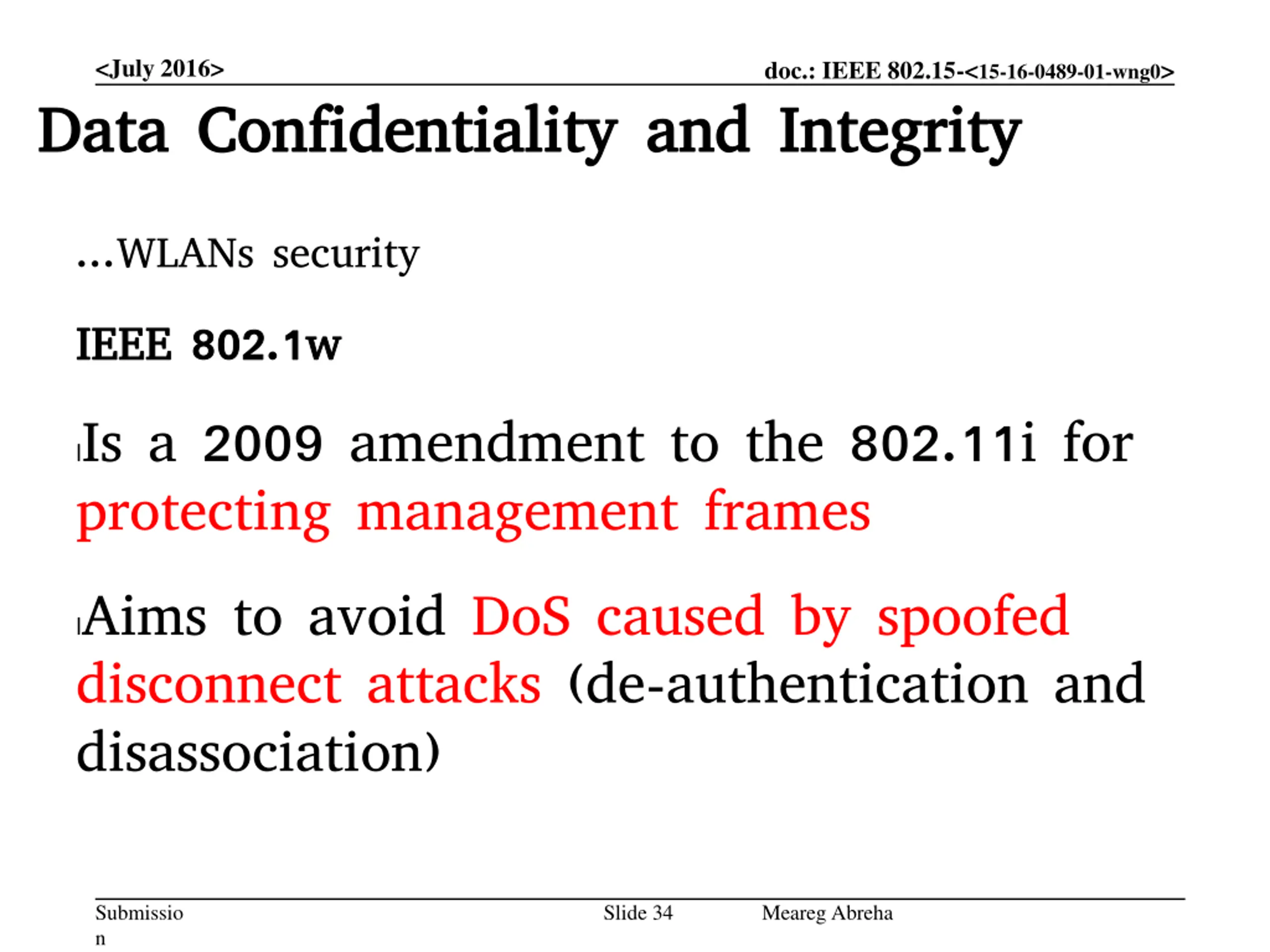

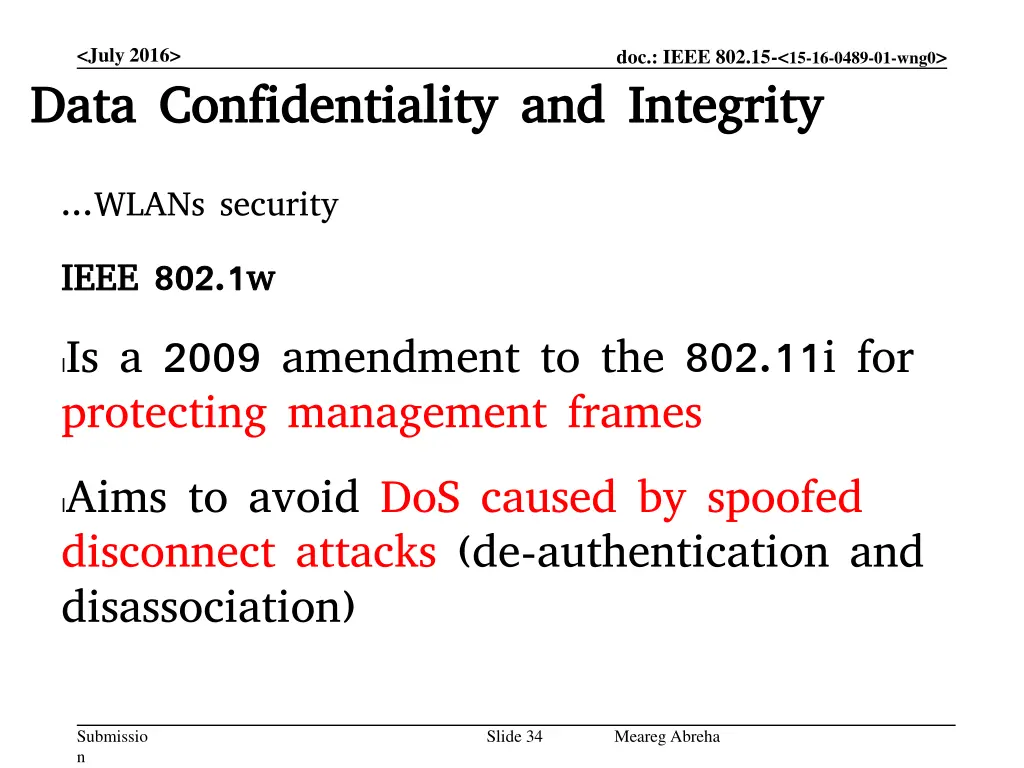

  34. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity ...WLANs security IEEE 802.1w IEEE 802.1w lIs a 2009 amendment to the 802.11i for protecting management frames lAims to avoid DoS caused by spoofed disconnect attacks (de-authentication and disassociation) Submissio n Slide 34 Meareg Abreha

  35. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.15.1 (Bluetooth) security IEEE 802.15.1 (Bluetooth) security Generates symmetric encryption key from a generated authentication key to encrypt data. Encryption has three setting modes: No encryption Point-to-point only encryption unicast Point-to-point and broadcast encryption - both Submissio n Slide 35 Meareg Abreha

  36. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.15.4 (LR WPANs) security IEEE 802.15.4 (LR WPANs) security Supports up to 128 symmetric keys based data encryption and authenticity (AES based) with varying degree of protection option for data. MIC is used for data integrity. Submissio n Slide 36 Meareg Abreha

  37. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.16 (WiMAX) security IEEE 802.16 (WiMAX) security Has two component protocols: lEncapsulation Protocol secures data across the fixed Broadband Wireless Access Network lKey Management Protocol- Secure distribution of keying data from the Base Station to the Server Station Submissio n Slide 37 Meareg Abreha

  38. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.20 (MBWA IEEE 802.20 (MBWA - - Vehicular Mobility) security Vehicular Mobility) security AES for securing Radio Link Protocol packets AES CMAC function is used for message integrity Submissio n Slide 38 Meareg Abreha

  39. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.21 (MIHS) security IEEE 802.21 (MIHS) security Keys negotiated during the TLS or EAP MIH SA establishment are used to secure the MIH PDU. TKIP or CCMP to secure MIH PDUs between heterogeneous IEEE 802 as well as other systems. Submissio n Slide 39 Meareg Abreha

  40. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity IEEE 802.21 (MIHS) security IEEE 802.21 (MIHS) security Keys negotiated during the TLS or EAP MIH SA establishment are used to secure the MIH PDU. TKIP or CCMP to secure MIH between heterogeneous IEEE 802 as well as other systems. Submissio n Slide 40 Meareg Abreha

  41. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity WRANs (IEEE 802.22) security WRANs (IEEE 802.22) security Two security sub-layers: lSublayer 1 targets non-cognitive functionalities lSublayer 2 targets cognitive functionalities Submissio n Slide 41 Meareg Abreha

  42. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Data Confidentiality and Integrity Data Confidentiality and Integrity In sublayer1, encapsulation protocol defines set of supported cryptographic suites. AES in GCM (Galois Counter Mode) is supported The cognitive targeting, sublayer 2, provides protection to the incumbents as well as to the 802.22 systems against DoS attack types targeted at that layer. Submissio n Slide 42 Meareg Abreha

  43. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Challenges and Conclusion Challenges and Conclusion Challenges Challenges Weaknesses in security mechanisms Increasing computing power Cloud computing changing the way service is provided Conclusion Conclusion Early IEEE 802 security started with simple cryptographic techniques and evolved to its current state. Future security protocols need to consider the above factors and provide scalable solutions to existing weaknesses. Submissio n Slide 43 Meareg Abreha

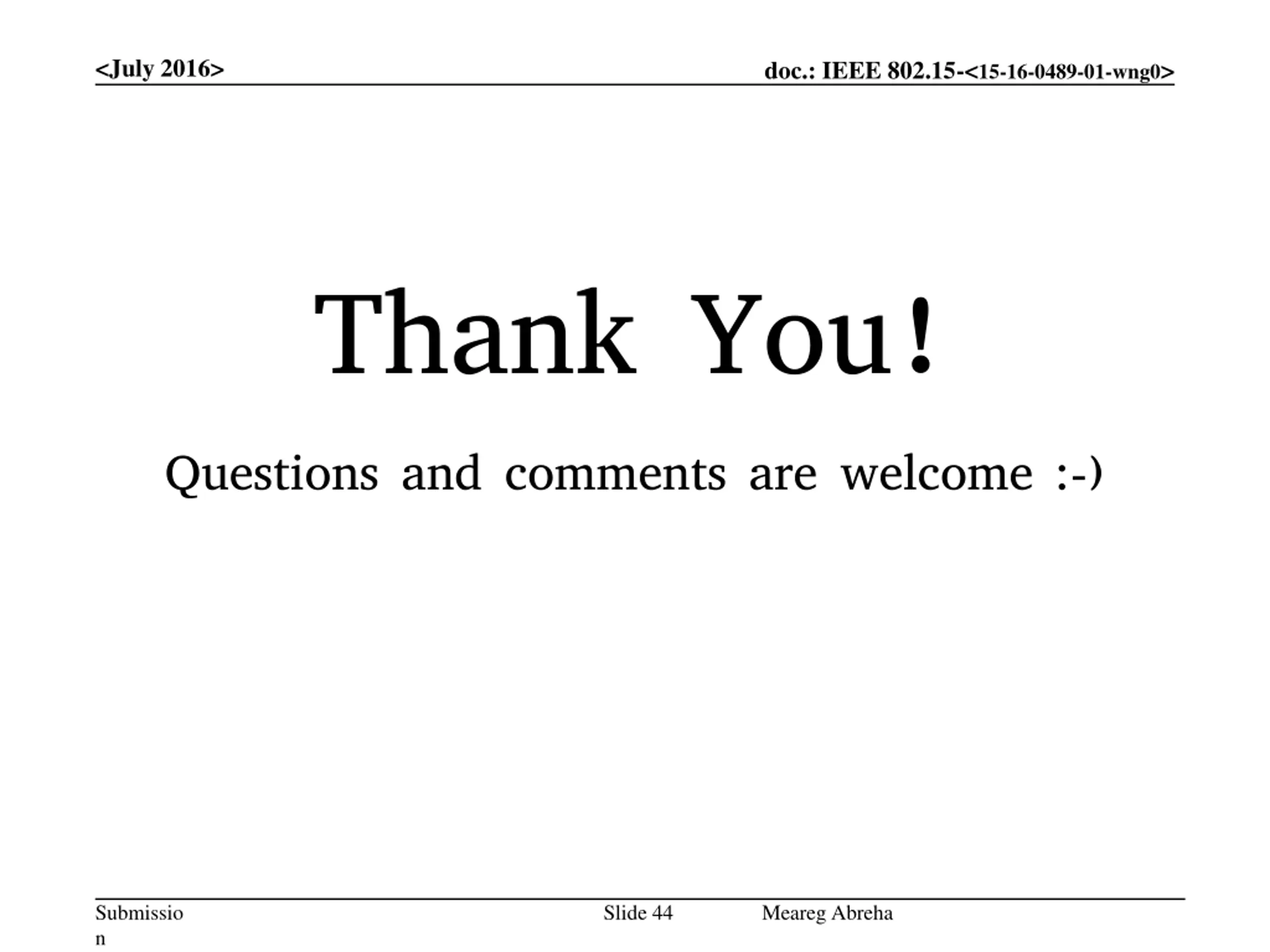

  44. <July 2016> doc.: IEEE 802.15-<15-16-0489-01-wng0> Thank You! Questions and comments are welcome :-) Submissio n Slide 44 Meareg Abreha
