Presentation Transcript
CMM Comparison of Coil A115 and Reaction-Impregnation Filler and QXFA116 Fuji film Fred Nobrega August 8, 2019 Coil Working Group Meeting

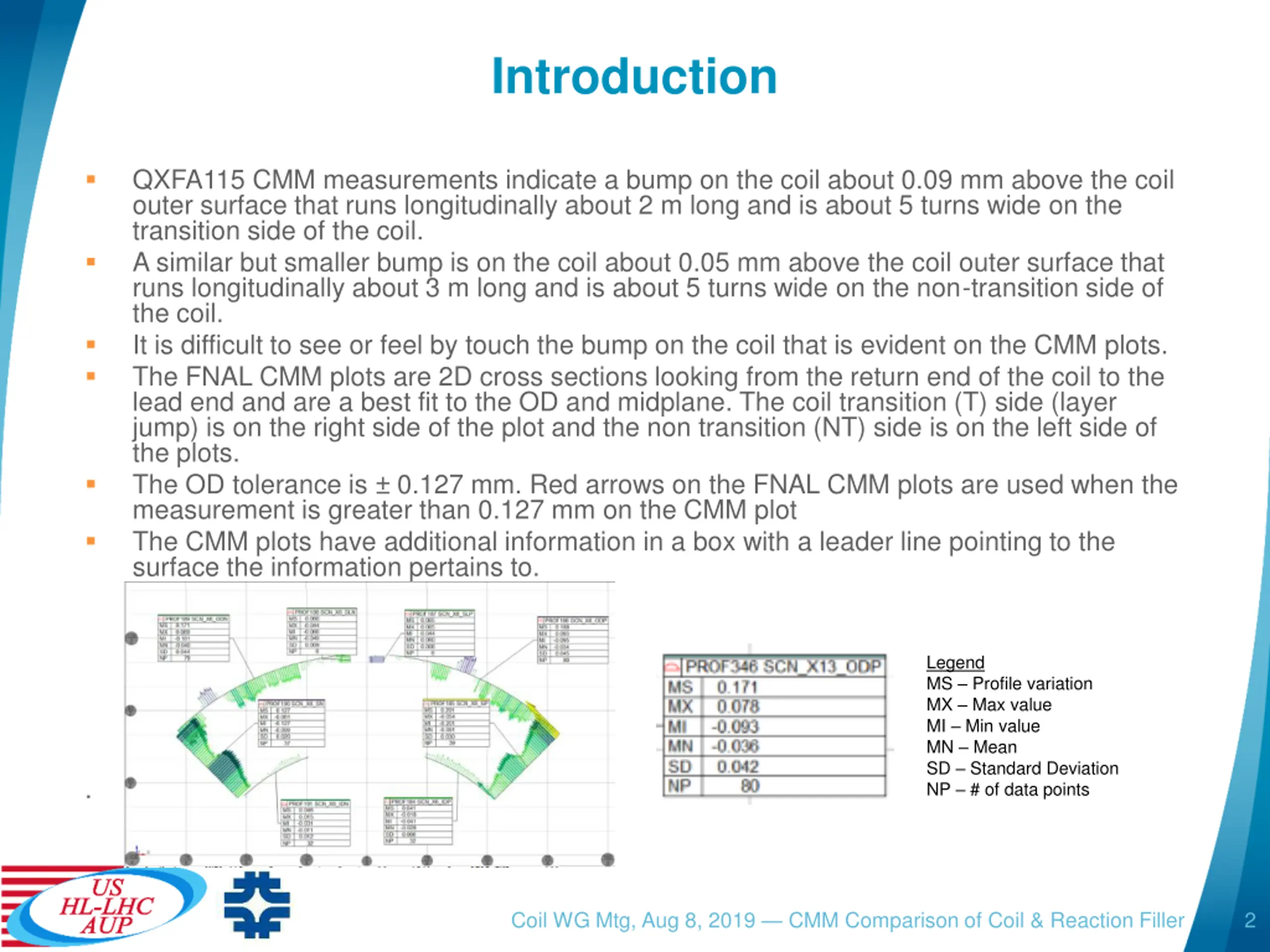

Introduction QXFA115 CMM measurements indicate a bump on the coil about 0.09 mm above the coil outer surface that runs longitudinally about 2 m long and is about 5 turns wide on the transition side of the coil. A similar but smaller bump is on the coil about 0.05 mm above the coil outer surface that runs longitudinally about 3 m long and is about 5 turns wide on the non-transition side of the coil. It is difficult to see or feel by touch the bump on the coil that is evident on the CMM plots. The FNAL CMM plots are 2D cross sections looking from the return end of the coil to the lead end and are a best fit to the OD and midplane. The coil transition (T) side (layer jump) is on the right side of the plot and the non transition (NT) side is on the left side of the plots. The OD tolerance is 0.127 mm. Red arrows on the FNAL CMM plots are used when the measurement is greater than 0.127 mm on the CMM plot The CMM plots have additional information in a box with a leader line pointing to the surface the information pertains to. Legend MS Profile variation MX Max value MI Min value MN Mean SD Standard Deviation NP # of data points . Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 2

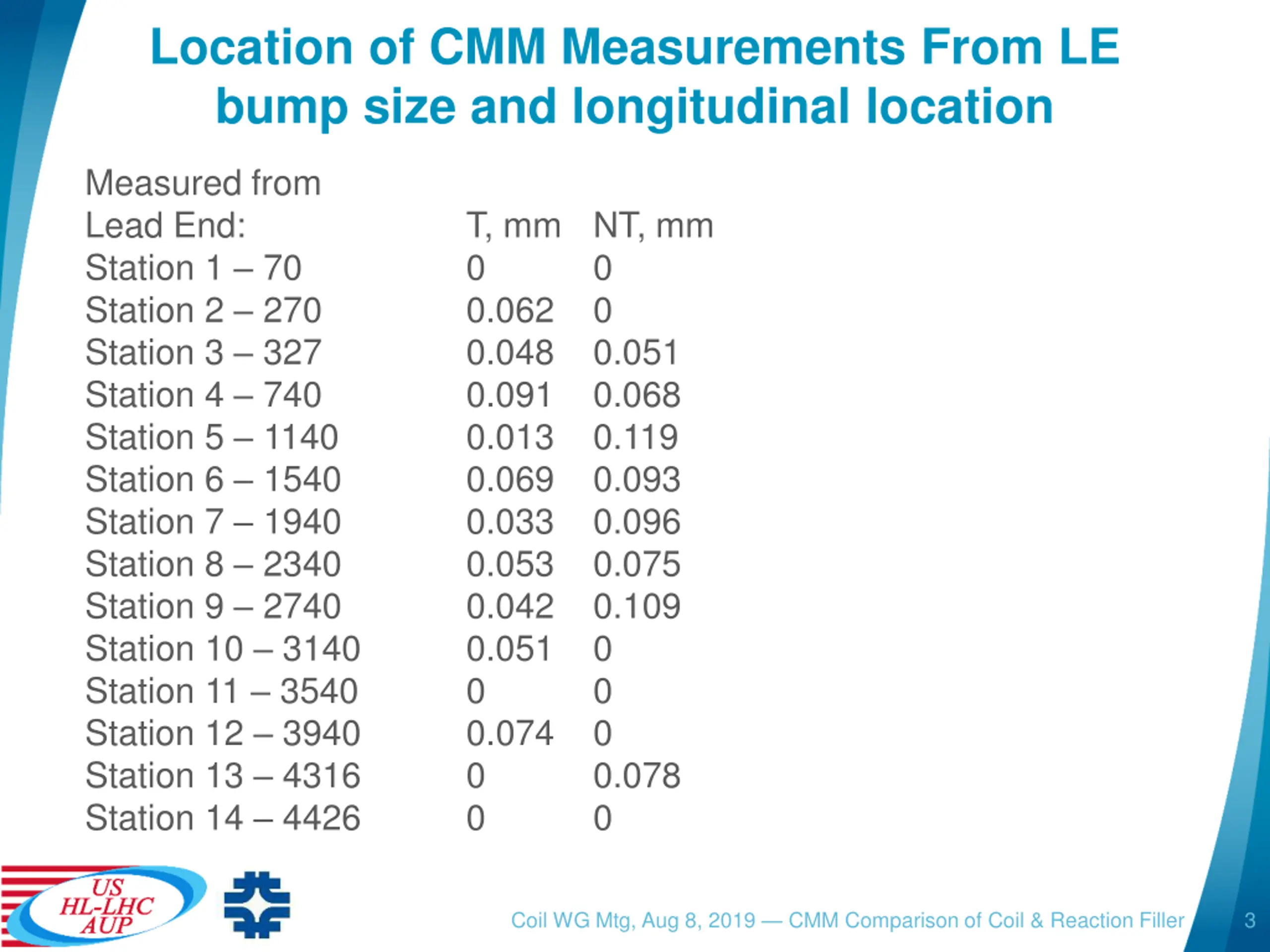

Location of CMM Measurements From LE bump size and longitudinal location Measured from Lead End: Station 1 70 Station 2 270 Station 3 327 Station 4 740 Station 5 1140 Station 6 1540 Station 7 1940 Station 8 2340 Station 9 2740 Station 10 3140 Station 11 3540 Station 12 3940 Station 13 4316 Station 14 4426 T, mm NT, mm 0 0.062 0.048 0.091 0.013 0.069 0.033 0.053 0.042 0.051 0 0.074 0 0 0 0 0.051 0.068 0.119 0.093 0.096 0.075 0.109 0 0 0 0.078 0 Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 3

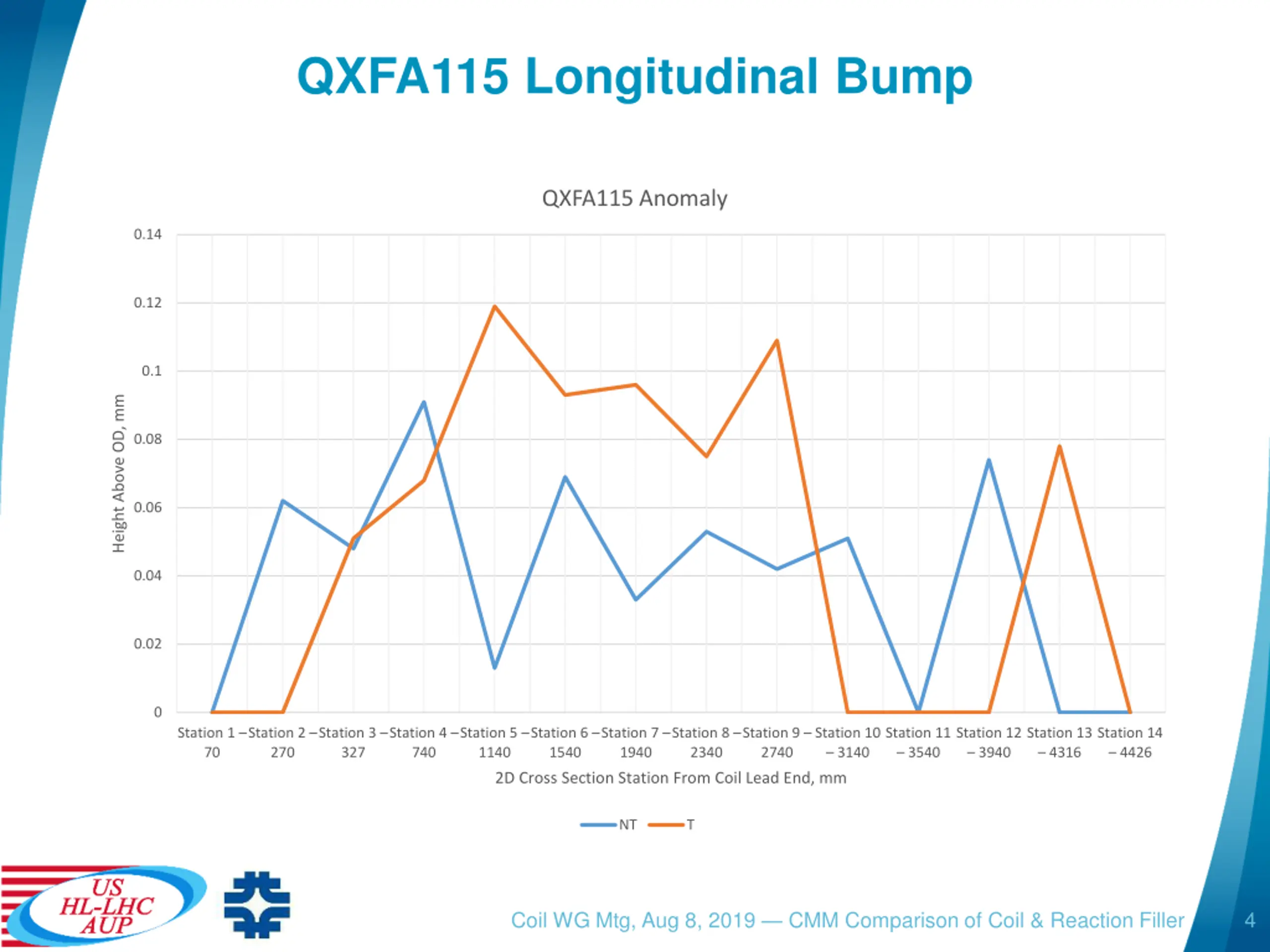

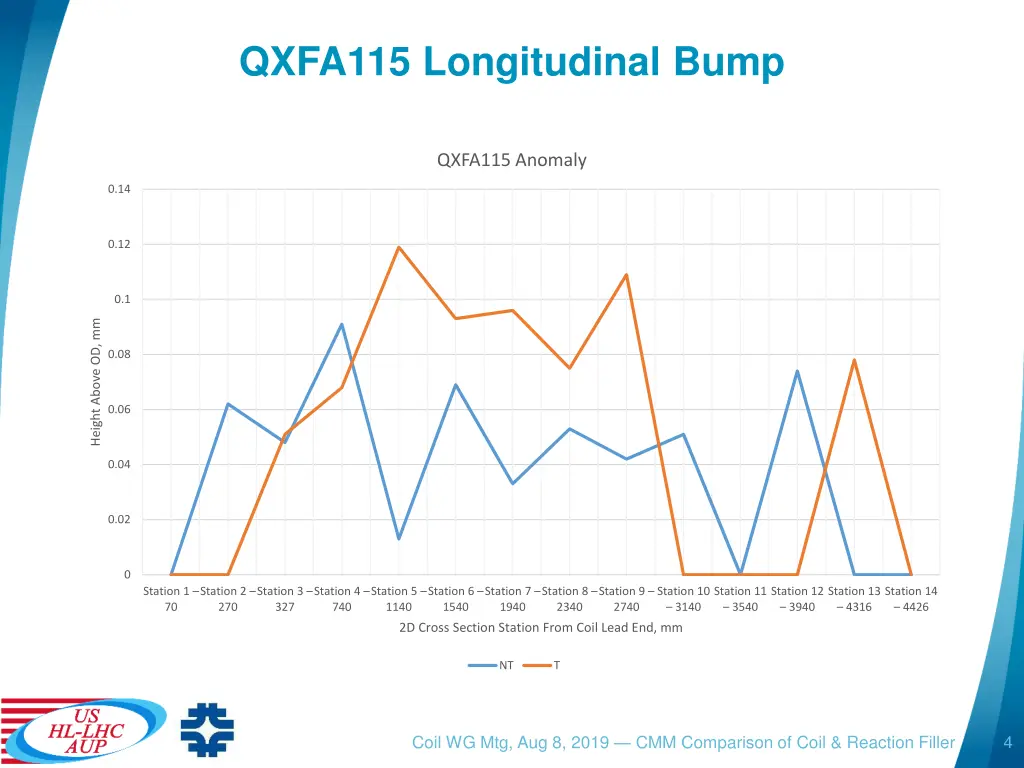

QXFA115 Longitudinal Bump QXFA115 Anomaly 0.14 0.12 0.1 Height Above OD, mm 0.08 0.06 0.04 0.02 0 Station 1 70 Station 2 270 Station 3 327 Station 4 740 Station 5 1140 Station 6 1540 Station 7 1940 Station 8 2340 Station 9 2740 Station 10 3140 Station 11 3540 Station 12 3940 Station 13 4316 Station 14 4426 2D Cross Section Station From Coil Lead End, mm NT T Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 4

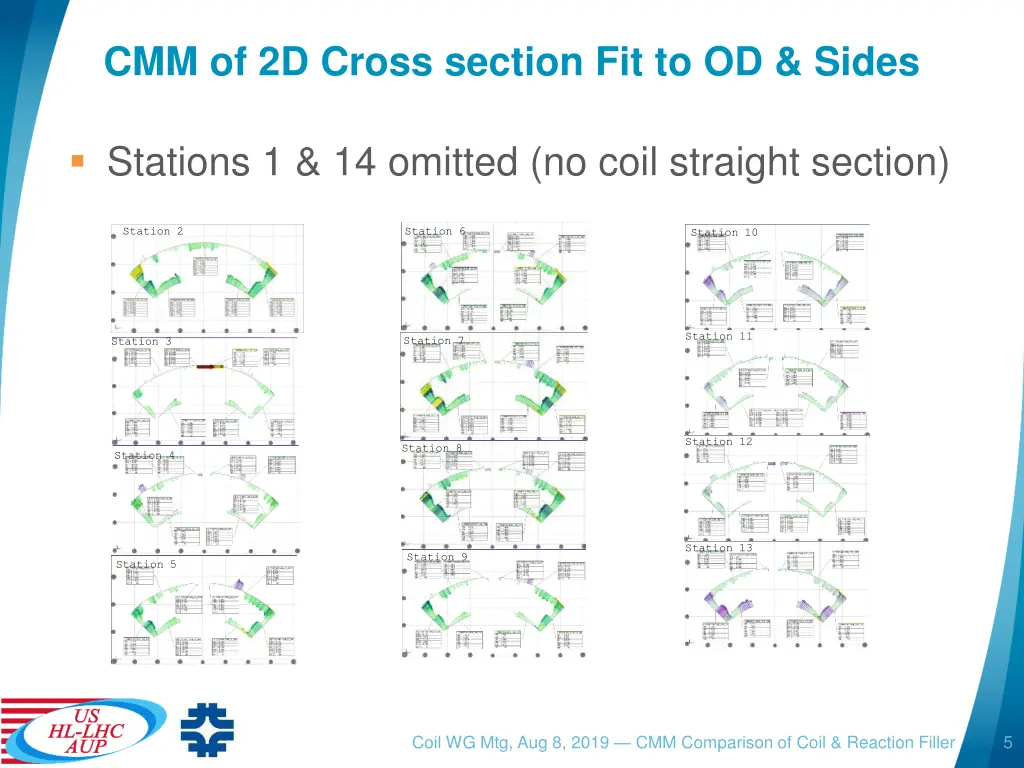

CMM of 2D Cross section Fit to OD & Sides Stations 1 & 14 omitted (no coil straight section) Station 6 Station 2 Station 10 Station 11 Station 7 Station 3 Station 12 Station 8 Station 4 Station 13 Station 9 Station 5 Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 5

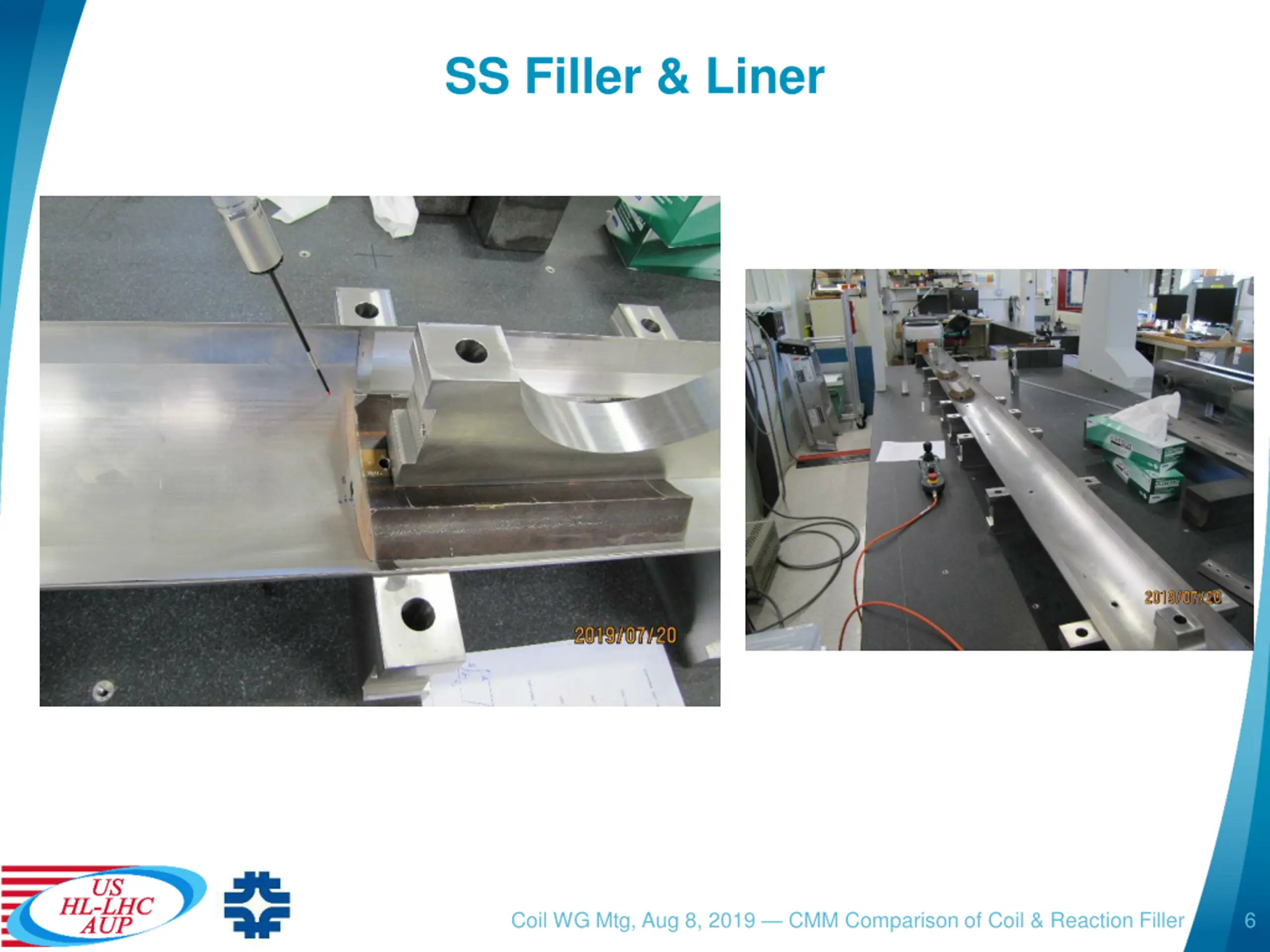

SS Filler & Liner Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 6

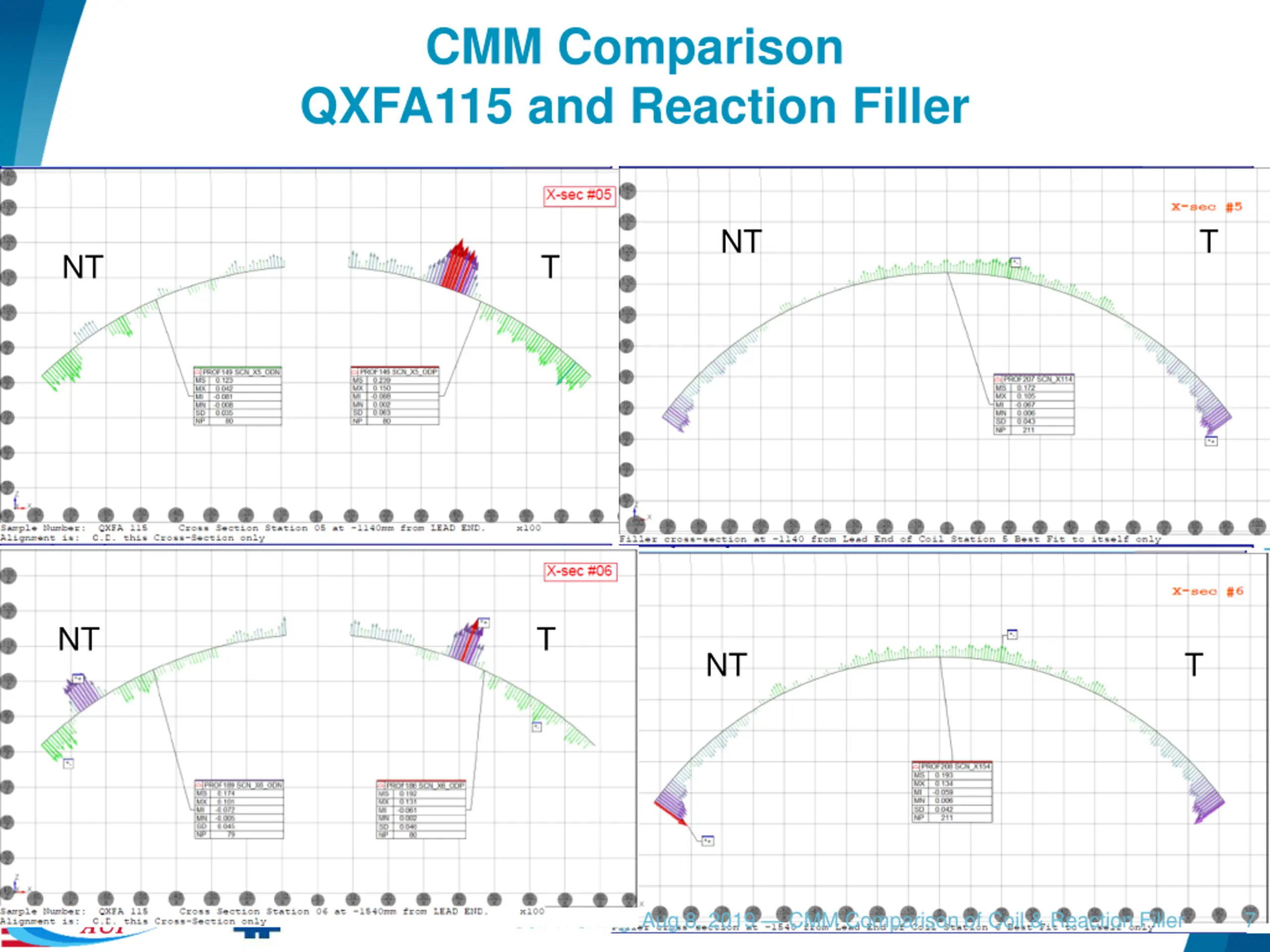

CMM Comparison QXFA115 and Reaction Filler NT T NT T NT T NT T Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 7

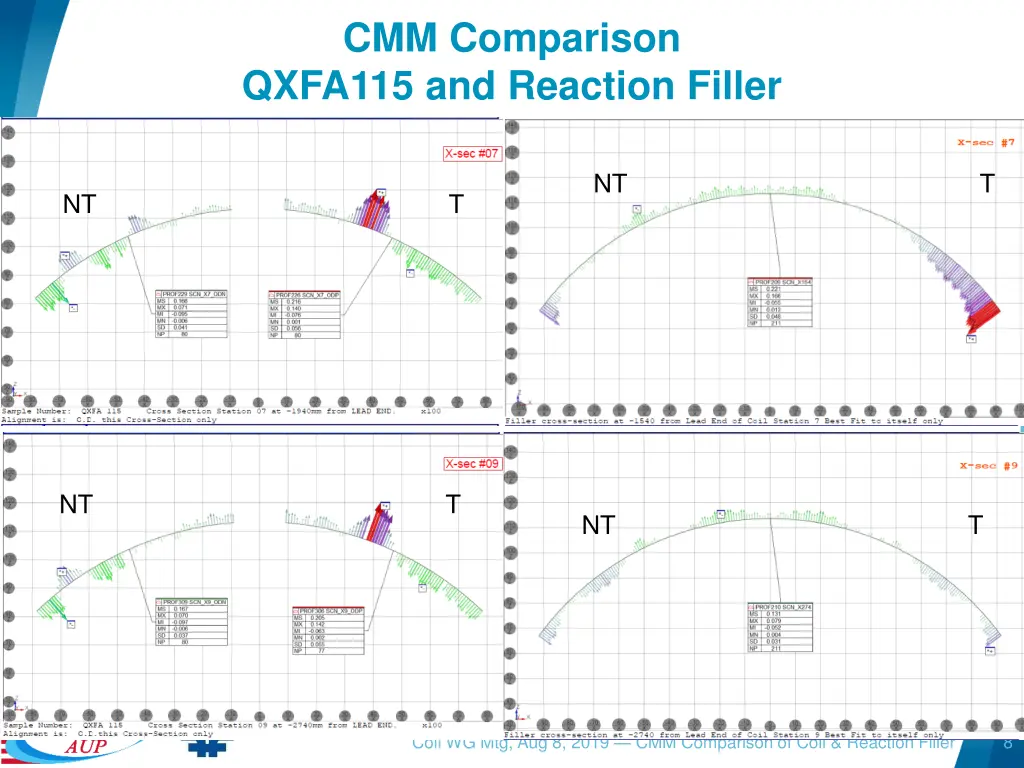

CMM Comparison QXFA115 and Reaction Filler NT T NT T NT T NT T Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 8

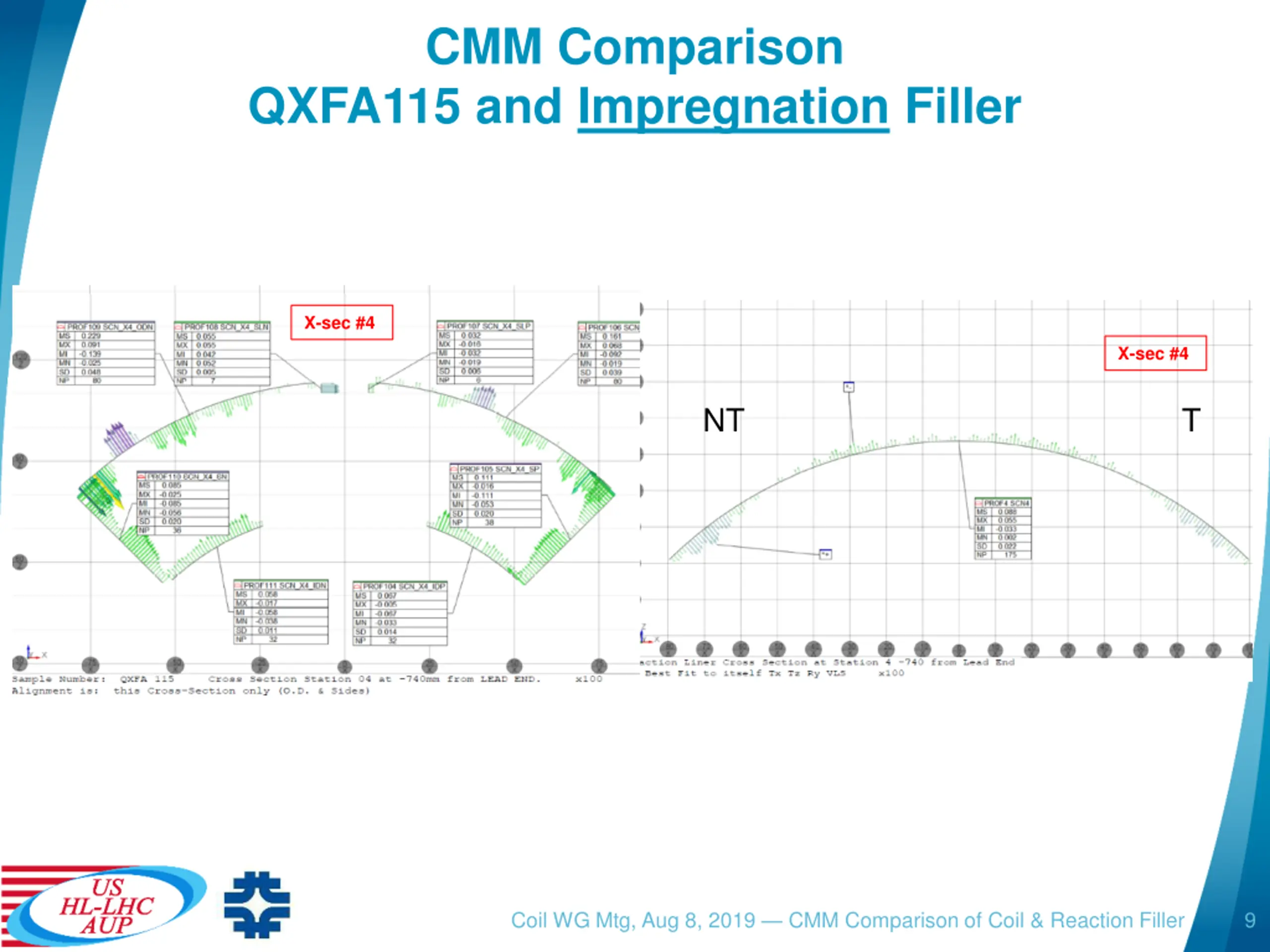

CMM Comparison QXFA115 and Impregnation Filler X-sec #4 X-sec #4 NT T Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 9

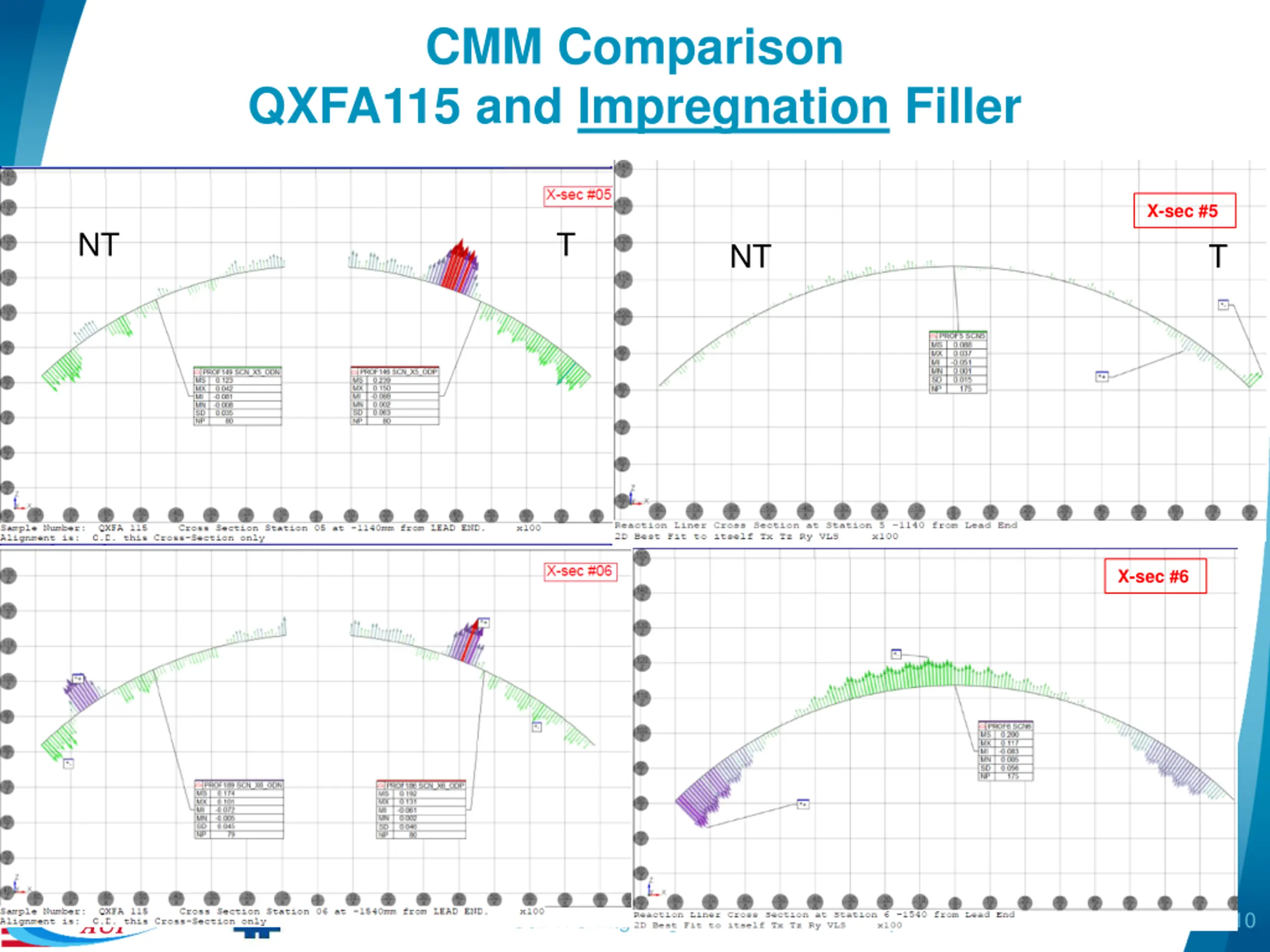

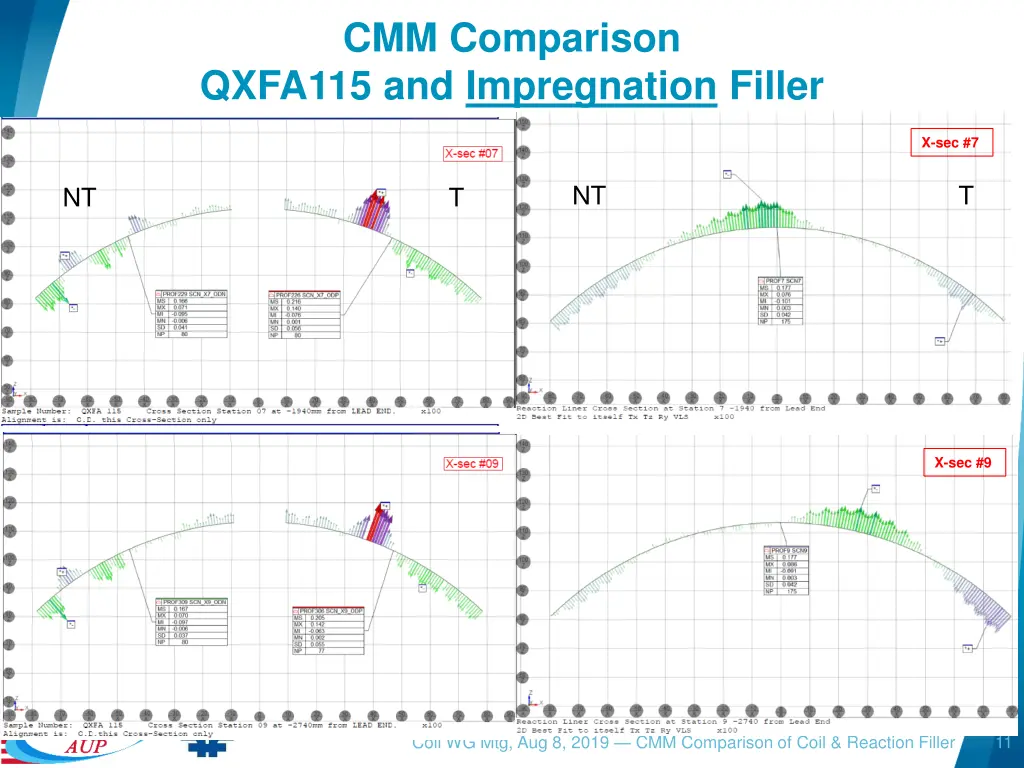

CMM Comparison QXFA115 and Impregnation Filler X-sec #5 NT T NT T X-sec #6 Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 10
CMM Comparison QXFA115 and Impregnation Filler X-sec #7 NT T NT T X-sec #9 Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 11

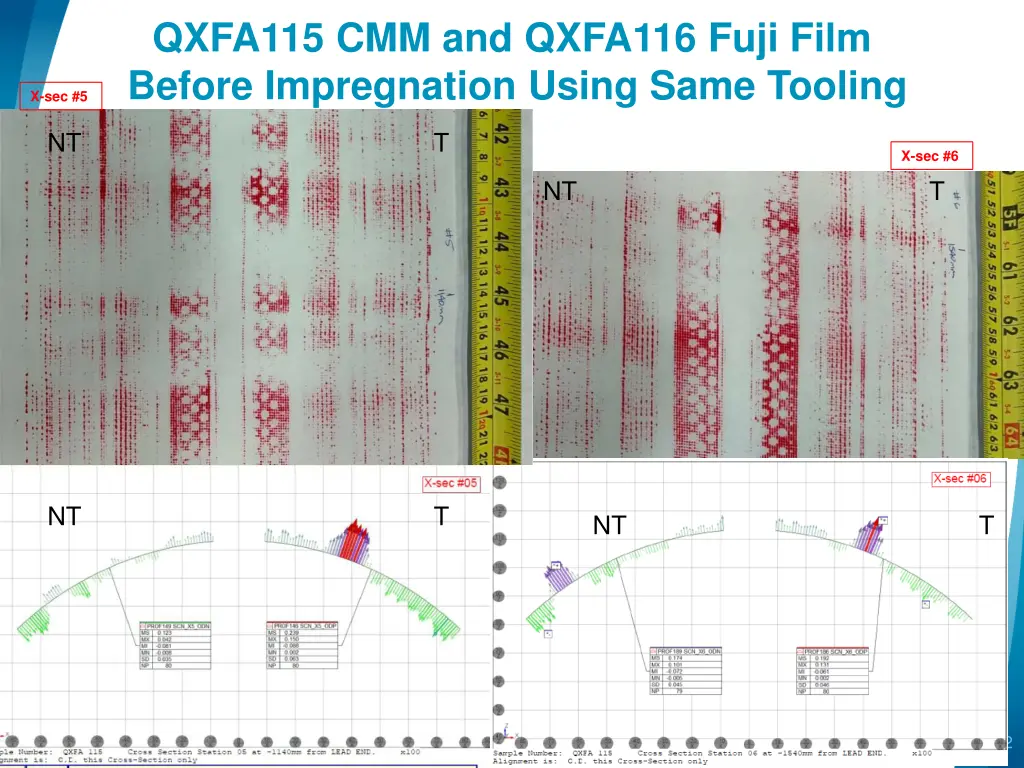

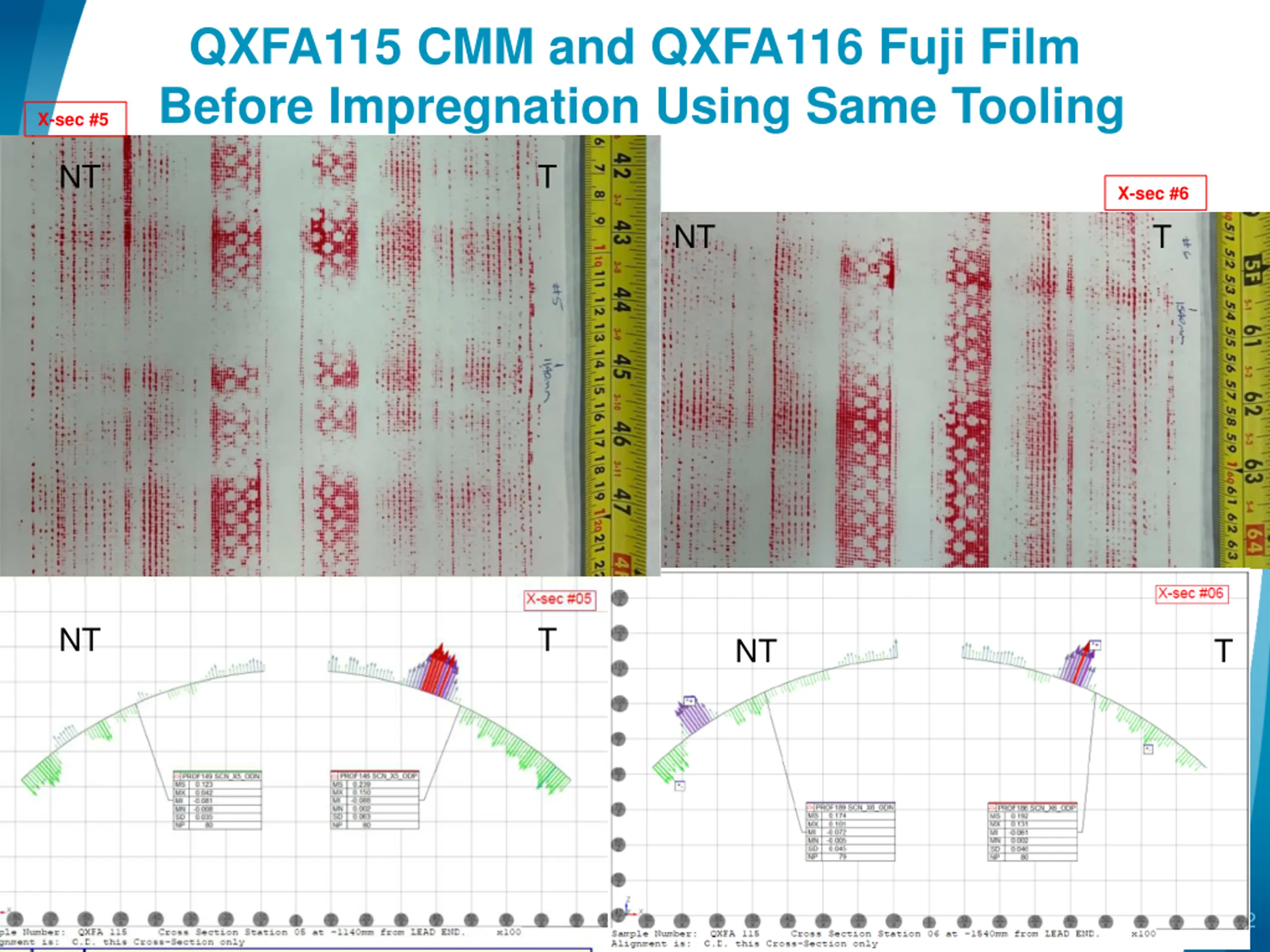

QXFA115 CMM and QXFA116 Fuji Film Before Impregnation Using Same Tooling X-sec #5 NT T X-sec #6 T NT NT T NT T Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 12

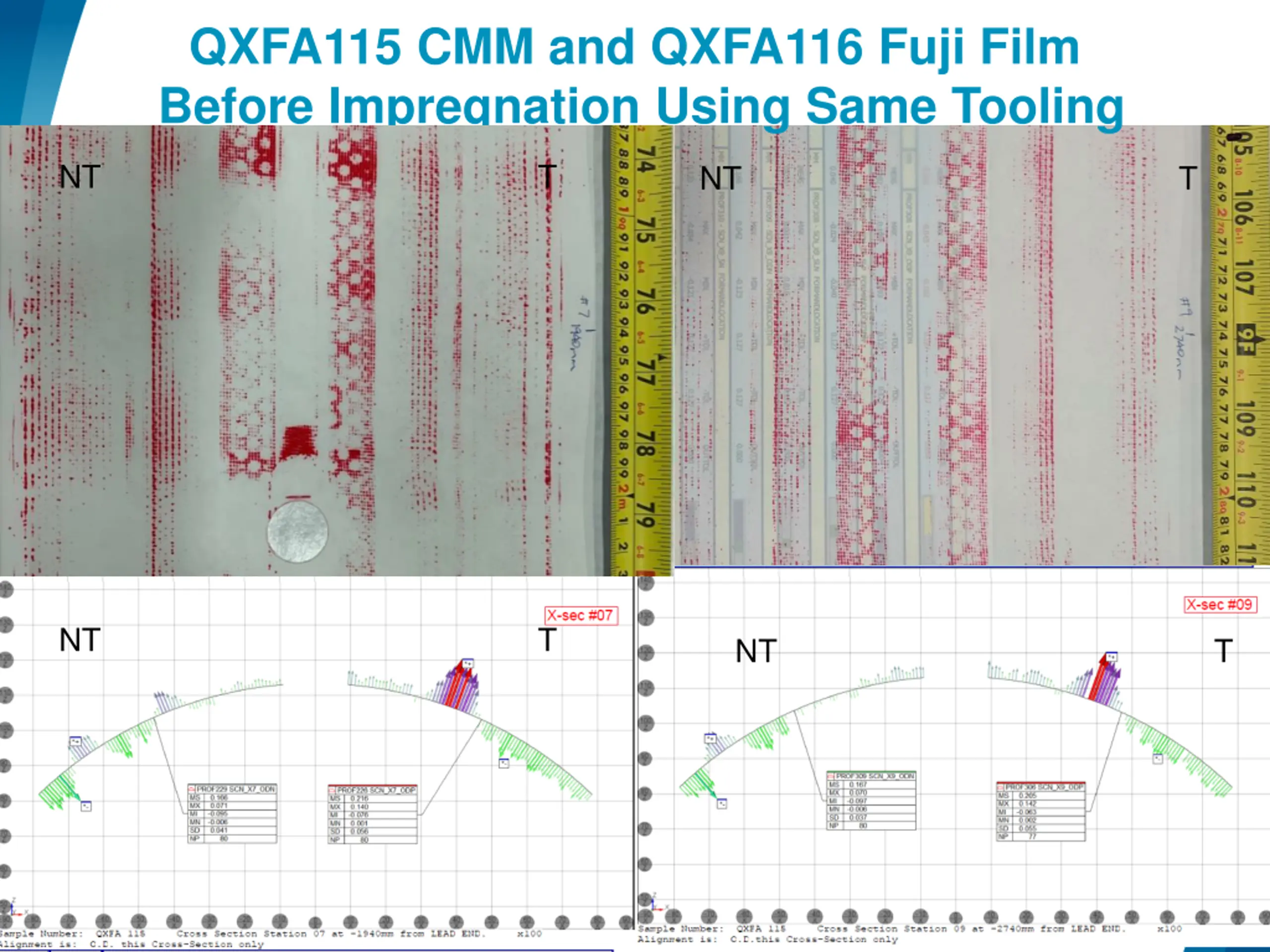

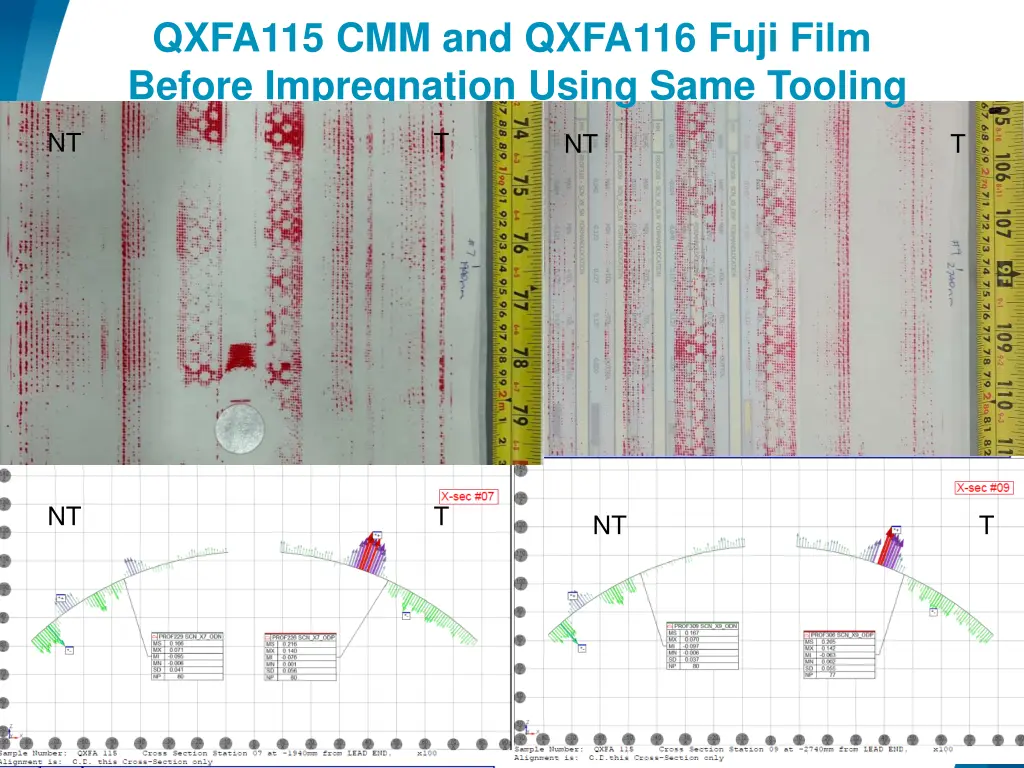

QXFA115 CMM and QXFA116 Fuji Film Before Impregnation Using Same Tooling NT T NT T NT T NT T Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 13

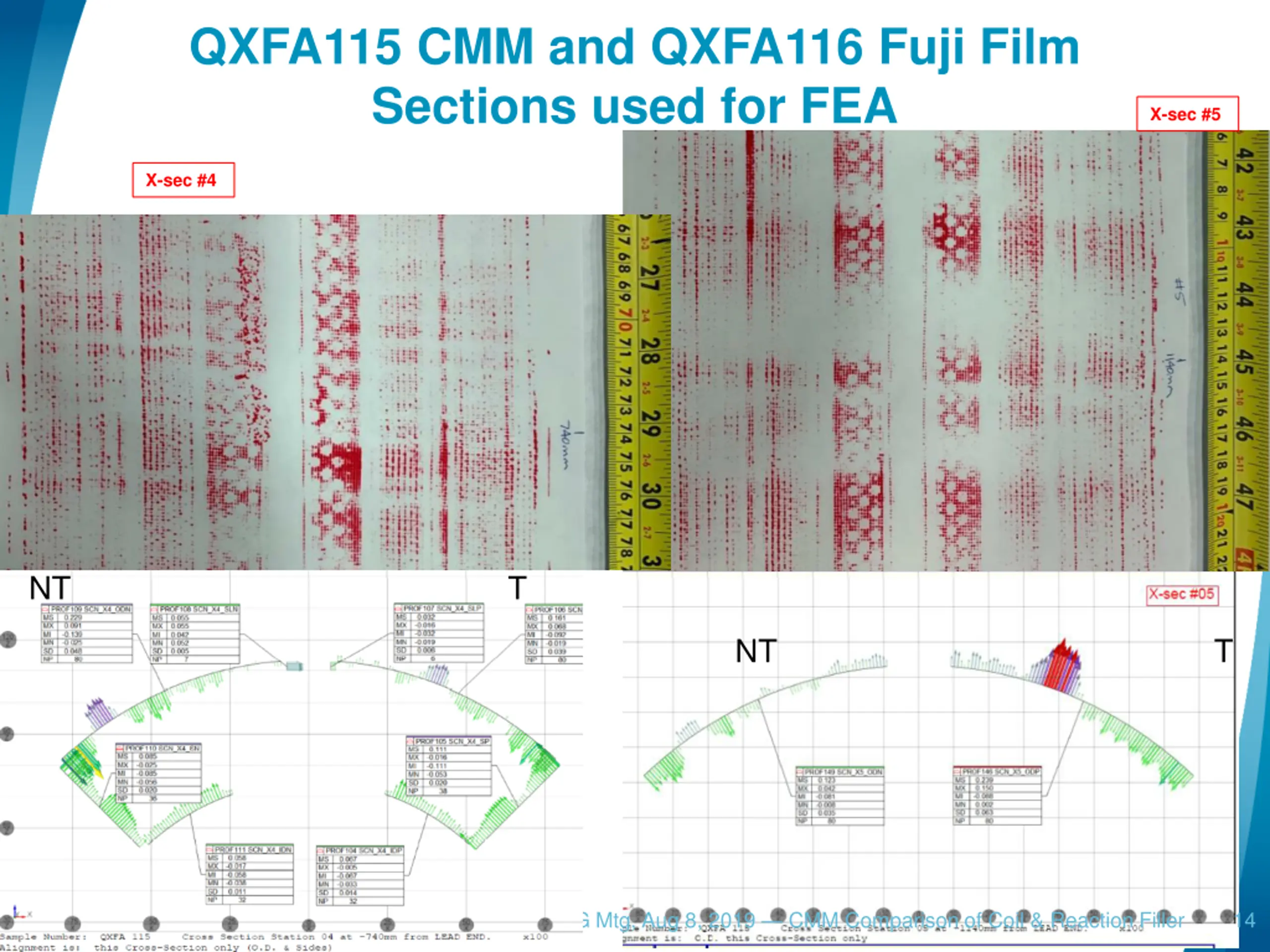

QXFA115 CMM and QXFA116 Fuji Film Sections used for FEA X-sec #5 X-sec #4 NT T NT T Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 14
Next Steps Epoxy Impregnate coil QXFA116 Use Fuji film on coil QXFA116 before removal from impregnation tooling. Use Fuji film on coil QXFA115 with impregnation tooling and compare results with QXFA116. Continue to investigate cause of bumps/ridges along coil O.D. Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 15
BACKUP Heng s initial analysis of coil bumps. Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 16

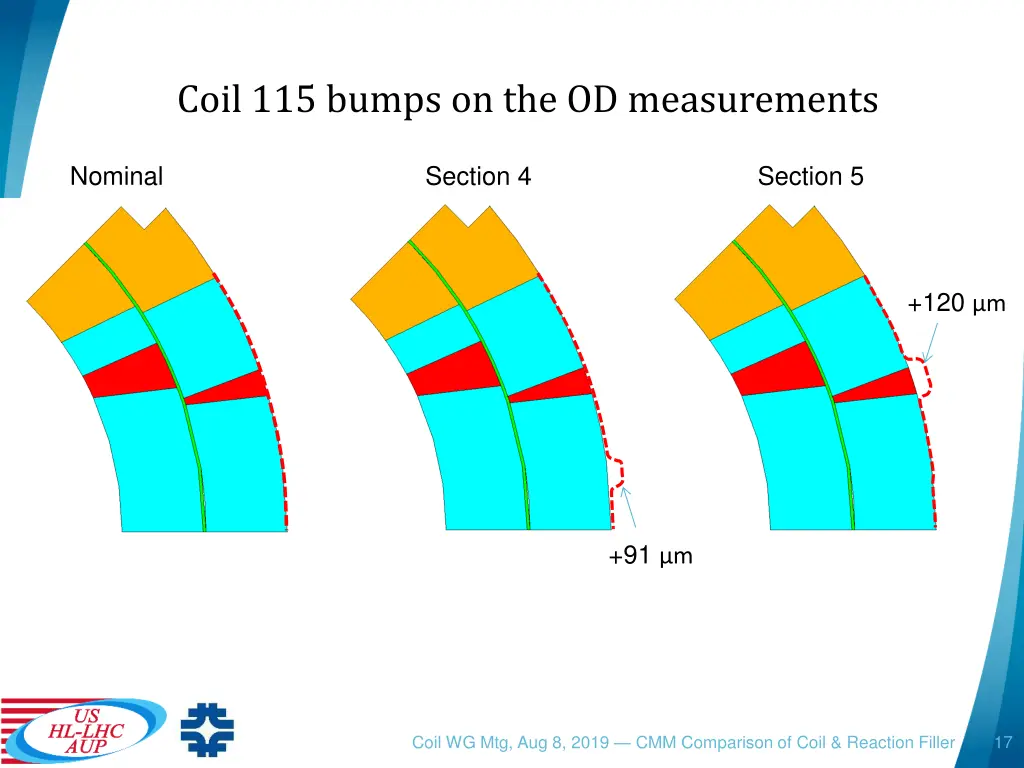

Coil 115 bumps on the OD measurements Nominal Section 4 Section 5 +120 m +91 m Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 17

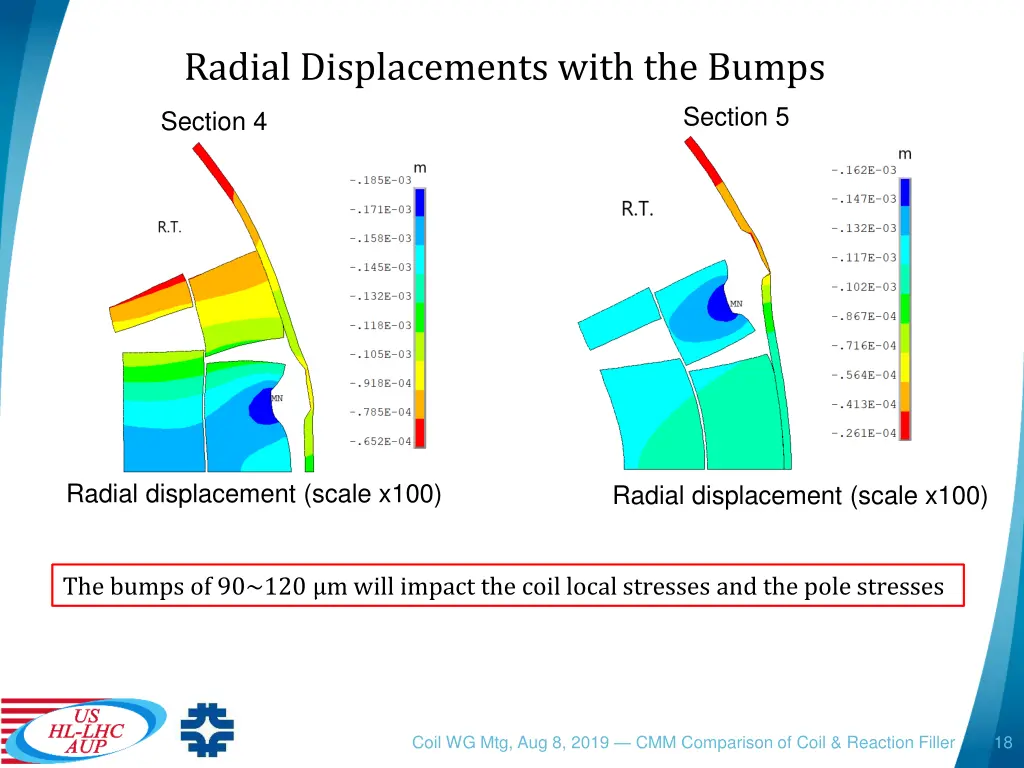

Radial Displacements with the Bumps Section 5 Section 4 Radial displacement (scale x100) Radial displacement (scale x100) The bumps of 90~120 m will impact the coil local stresses and the pole stresses Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 18
TF plots due to the bumps Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 19

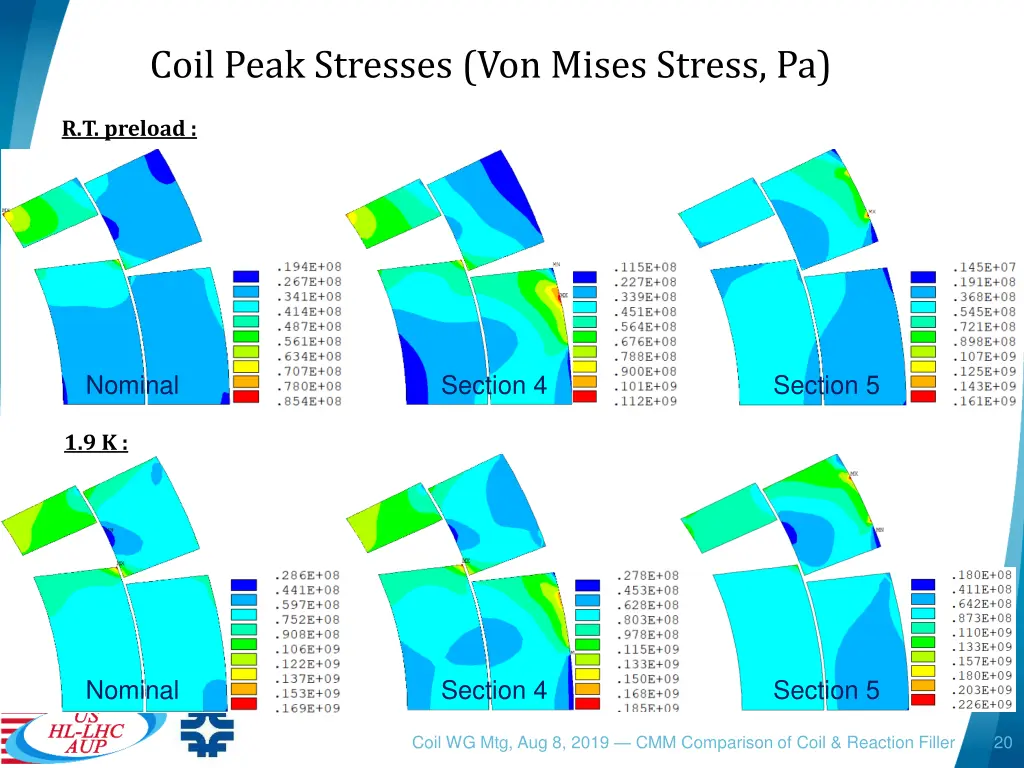

Coil Peak Stresses (Von Mises Stress, Pa) R.T. preload : Nominal Section 4 Section 5 1.9 K : Nominal Section 4 Section 5 Coil WG Mtg, Aug 8, 2019 CMM Comparison of Coil & Reaction Filler 20
