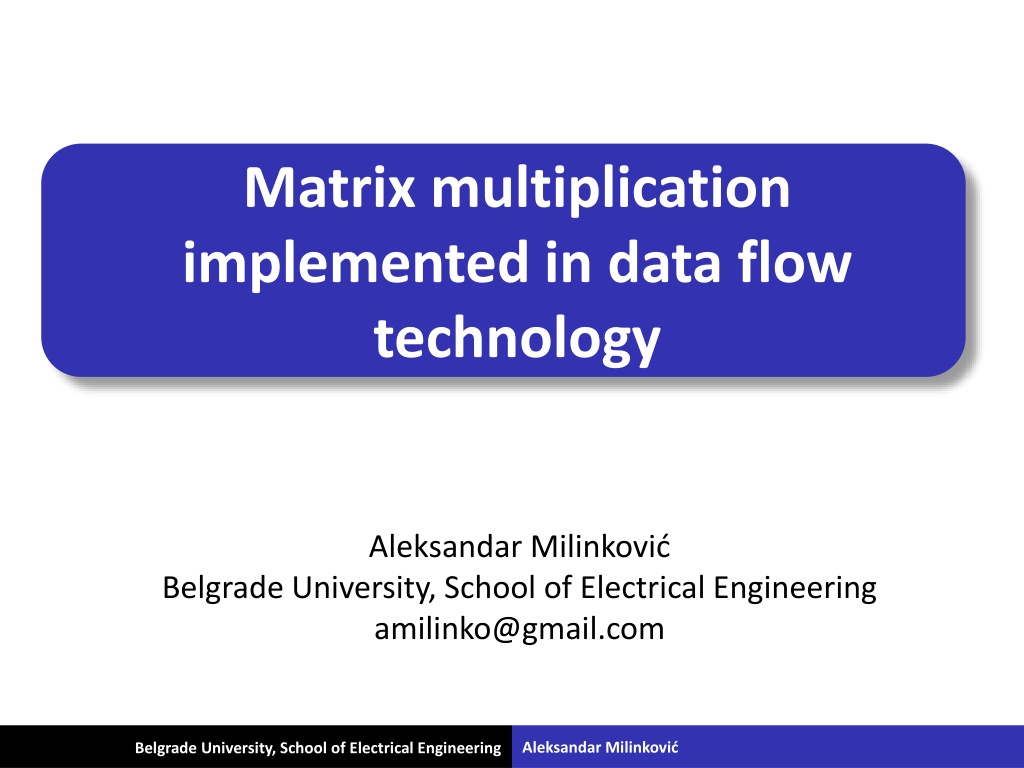

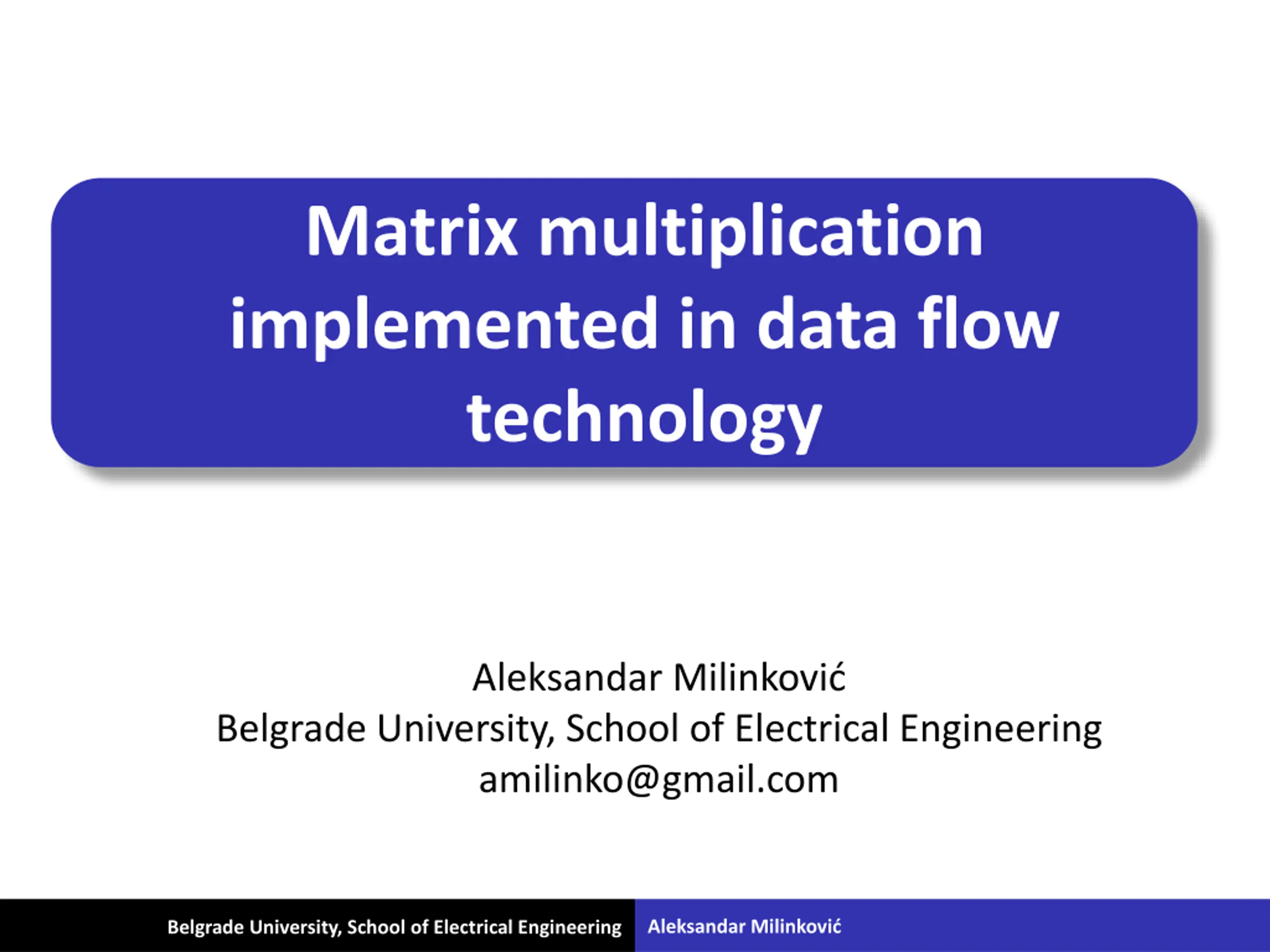

Matrix multiplication implemented in data flow technology Aleksandar Milinkovi Belgrade University, School of Electrical Engineering amilinko@gmail.com Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

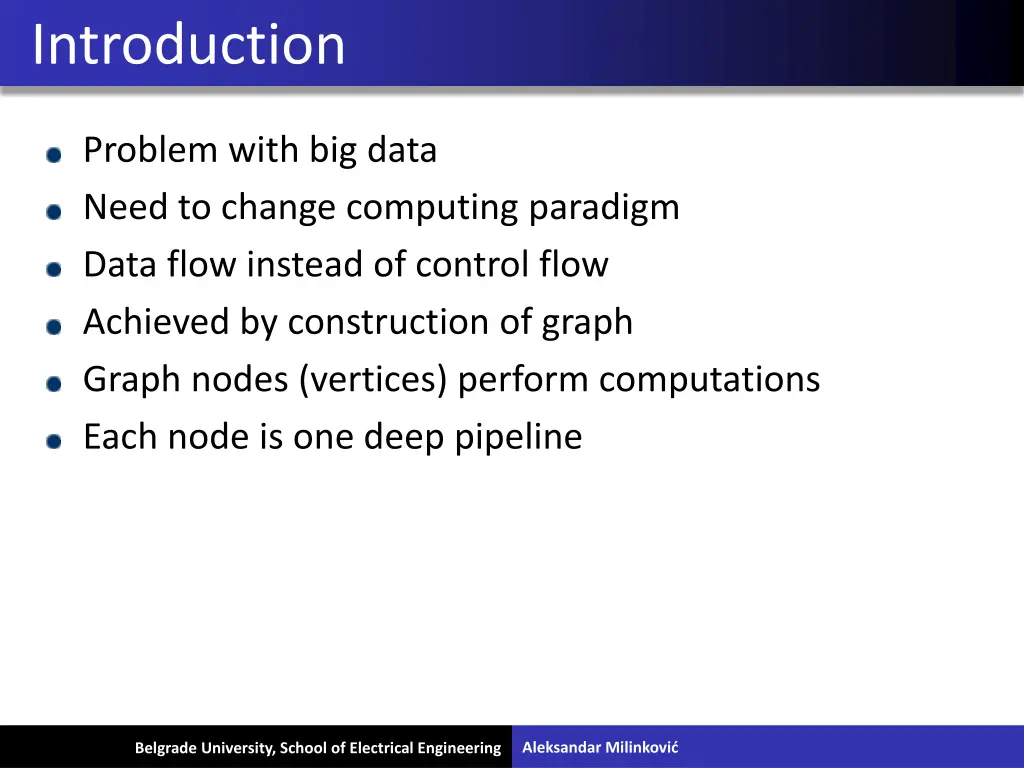

Introduction Problem with big data Need to change computing paradigm Data flow instead of control flow Achieved by construction of graph Graph nodes (vertices) perform computations Each node is one deep pipeline Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

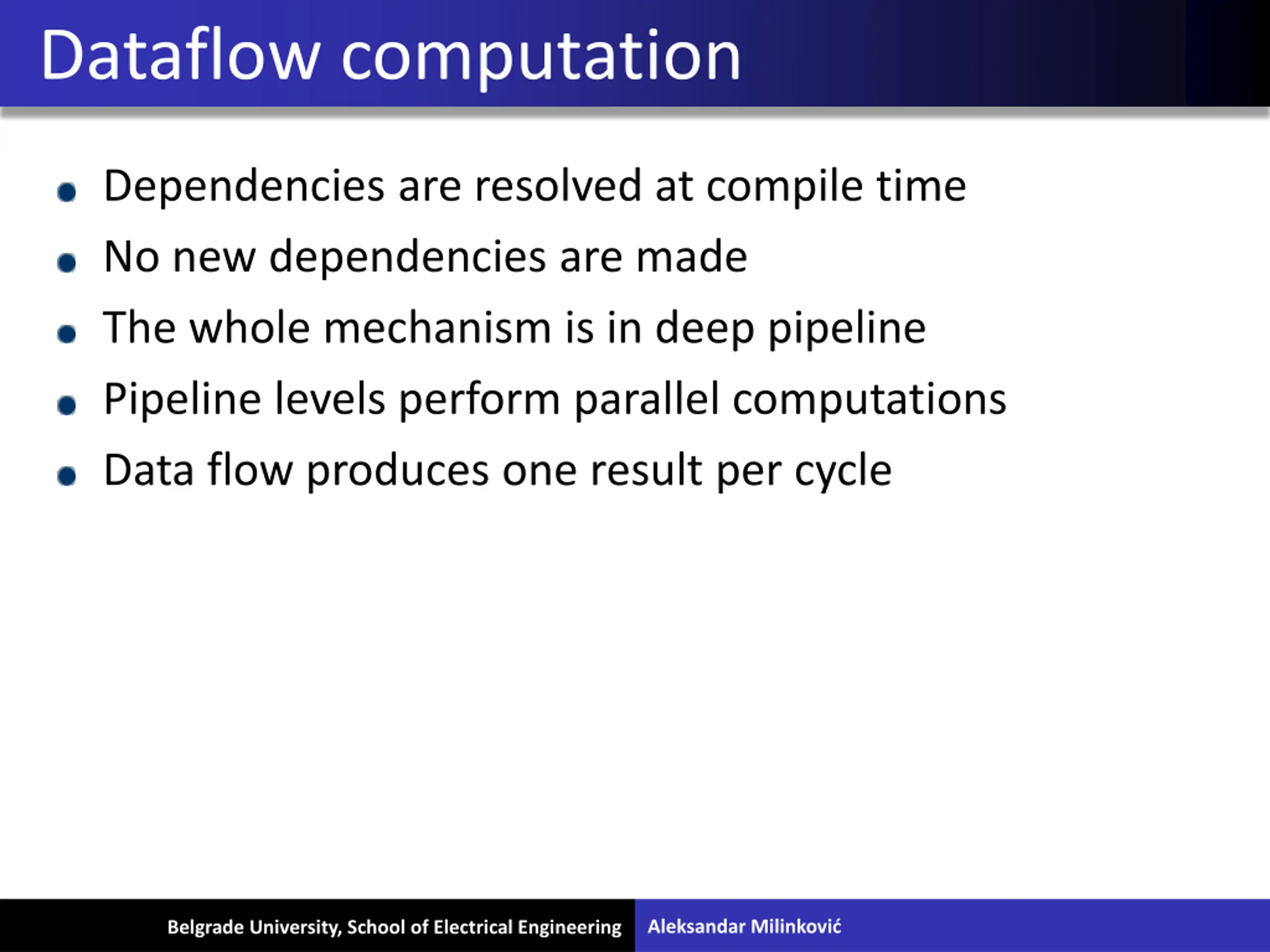

Dataflow computation Dependencies are resolved at compile time No new dependencies are made The whole mechanism is in deep pipeline Pipeline levels perform parallel computations Data flow produces one result per cycle Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

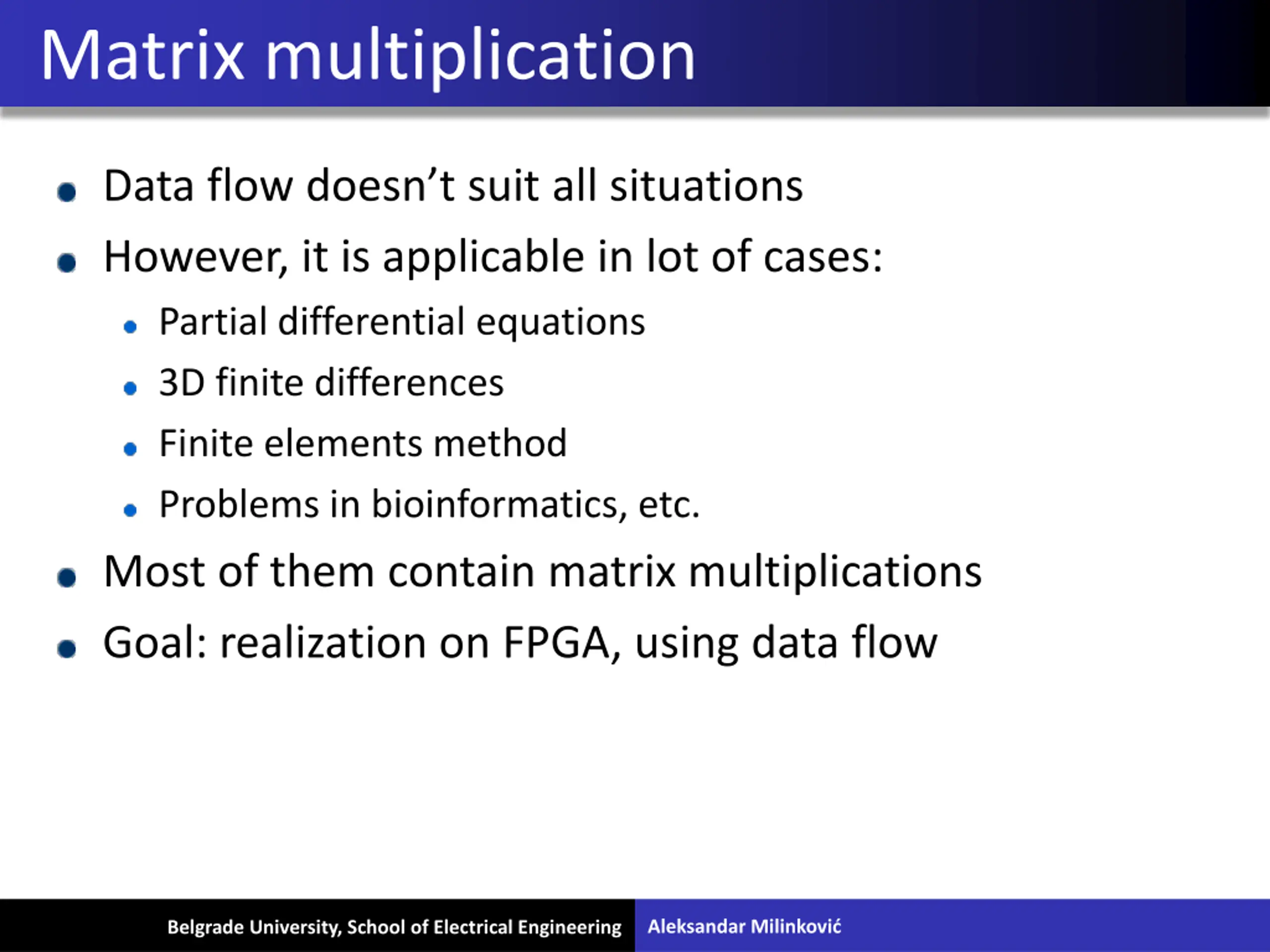

Matrix multiplication Data flow doesn t suit all situations However, it is applicable in lot of cases: Partial differential equations 3D finite differences Finite elements method Problems in bioinformatics, etc. Most of them contain matrix multiplications Goal: realization on FPGA, using data flow Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

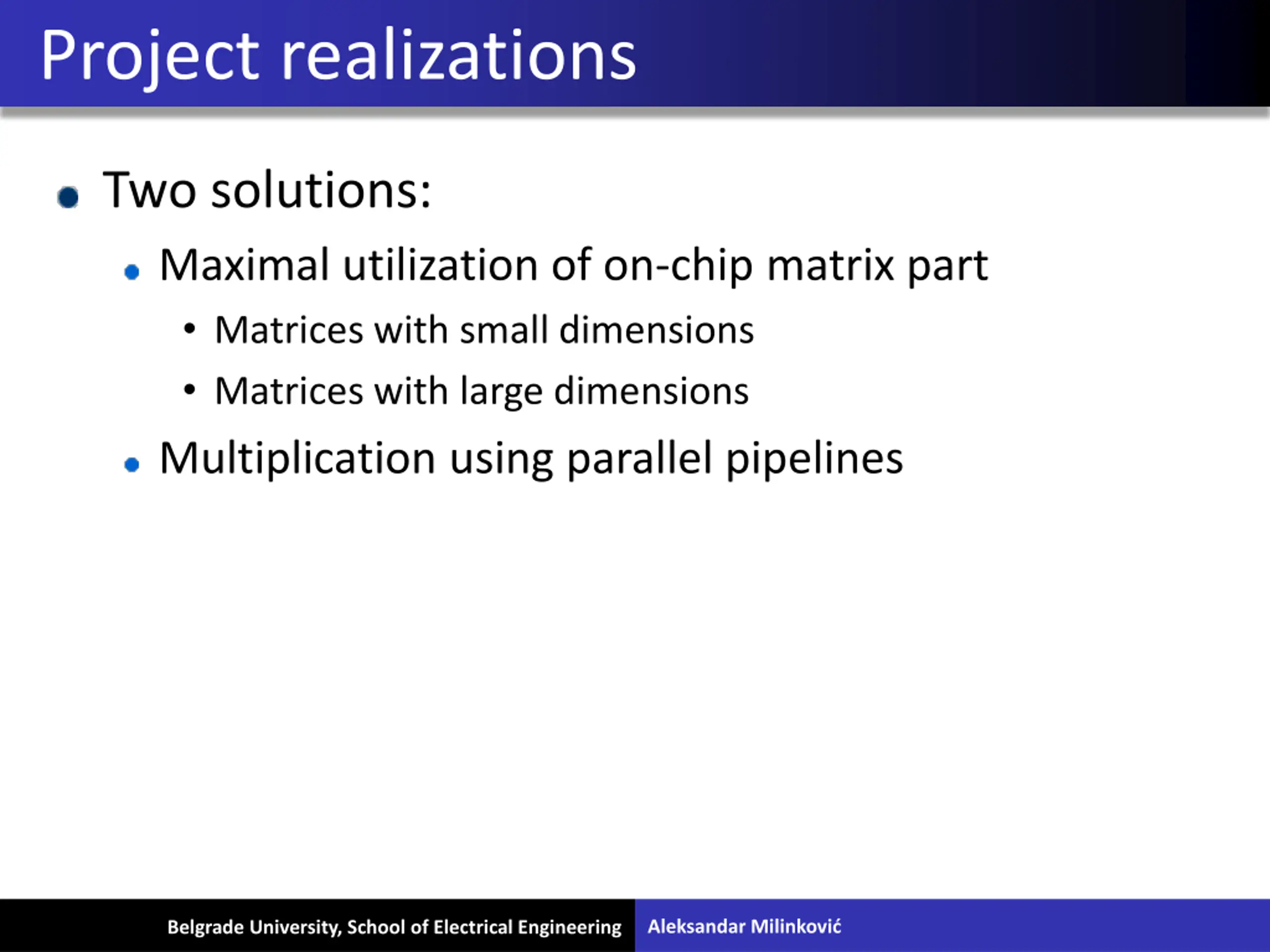

Project realizations Two solutions: Maximal utilization of on-chip matrix part Matrices with small dimensions Matrices with large dimensions Multiplication using parallel pipelines Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

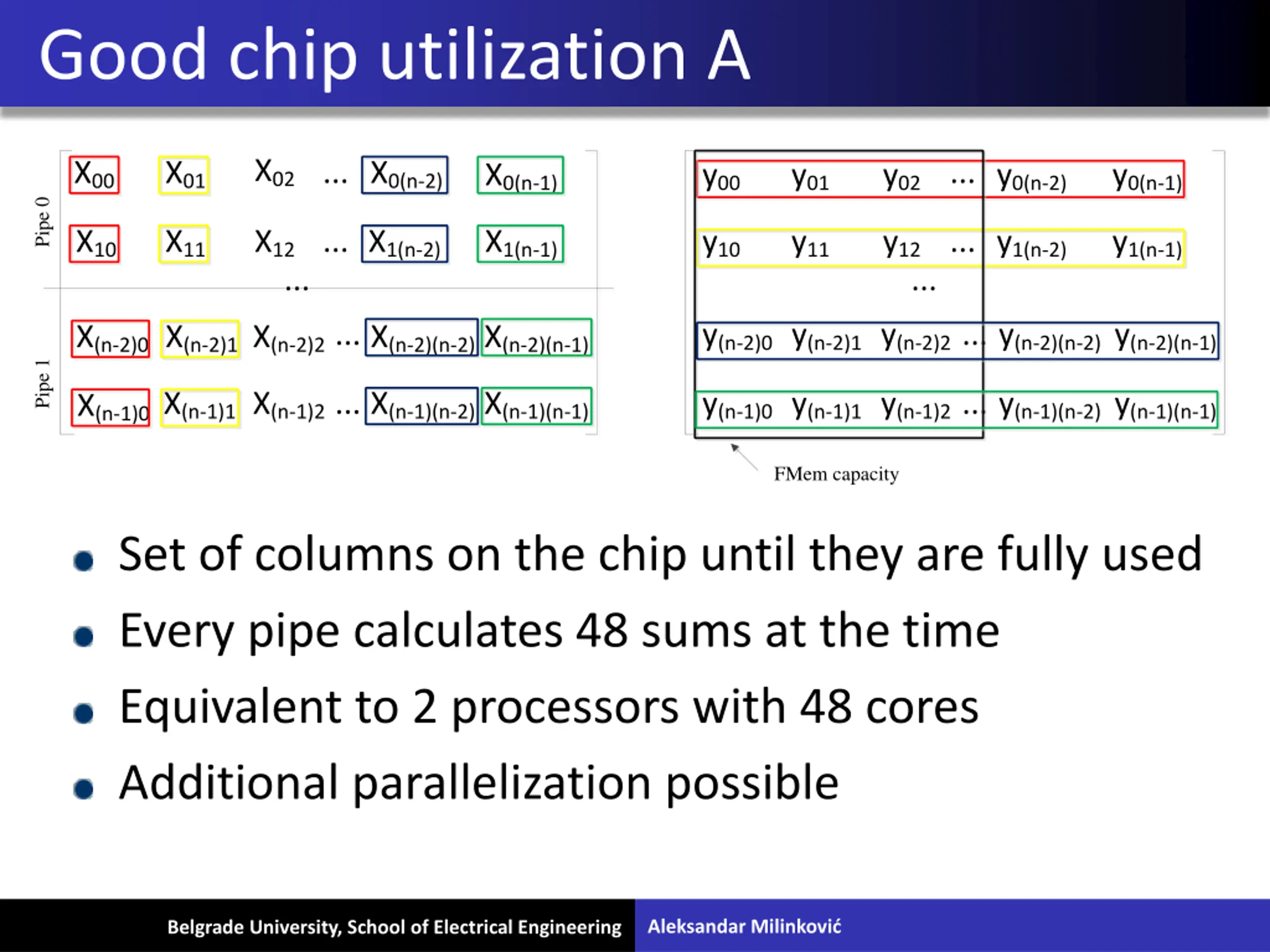

Good chip utilization A X02 ... X0(n-2) X00 X01 y02 ... y0(n-2) X0(n-1) y00 y01 y0(n-1) Pipe 0 X10 X11 X12 ... X1(n-2) X1(n-1) y10 y11 y12 ... y1(n-2) y1(n-1) ... ... ... y(n-2)0 y(n-2)1 y(n-2)2 ... y(n-2)(n-2) y(n-2)(n-1) X(n-2)0 X(n-2)1 X(n-2)2 X(n-2)(n-2) X(n-2)(n-1) Pipe 1 X(n-1)0 X(n-1)1 X(n-1)2 ... X(n-1)(n-2) X(n-1)(n-1) y(n-1)0 y(n-1)1 y(n-1)2 ... y(n-1)(n-2) y(n-1)(n-1) FMem capacity Set of columns on the chip until they are fully used Every pipe calculates 48 sums at the time Equivalent to 2 processors with 48 cores Additional parallelization possible Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

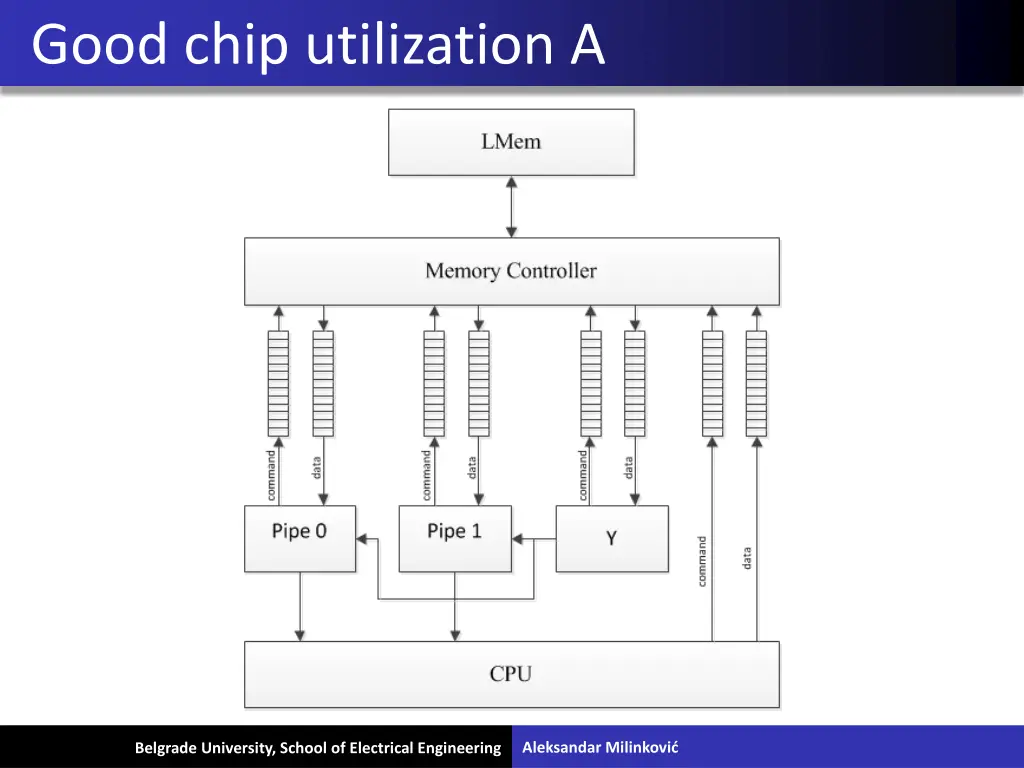

Good chip utilization A Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

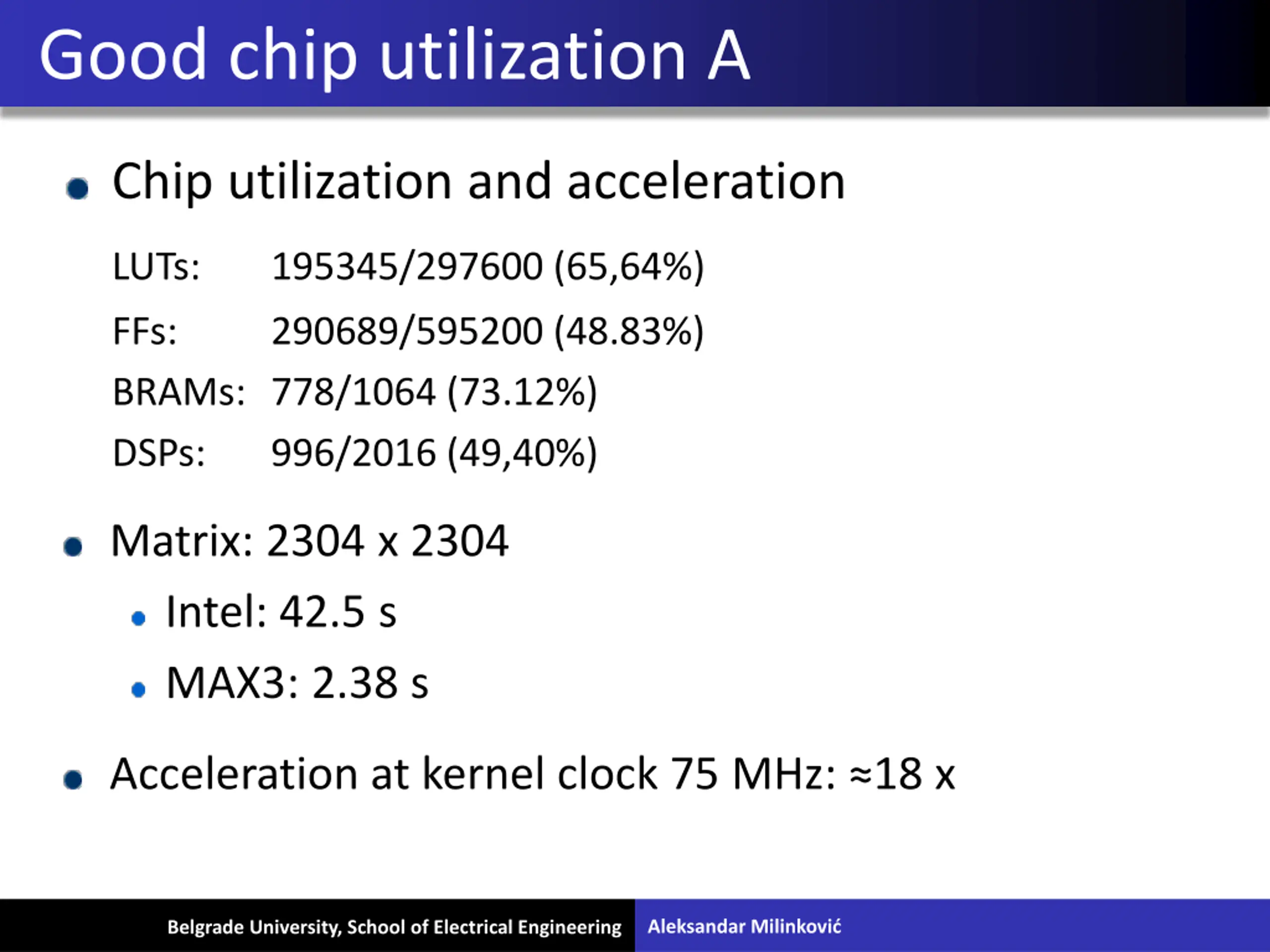

Good chip utilization A Chip utilization and acceleration LUTs: 195345/297600 (65,64%) FFs: BRAMs: 778/1064 (73.12%) DSPs: 996/2016 (49,40%) 290689/595200 (48.83%) Matrix: 2304 x 2304 Intel: 42.5 s MAX3: 2.38 s Acceleration at kernel clock 75 MHz: 18 x Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

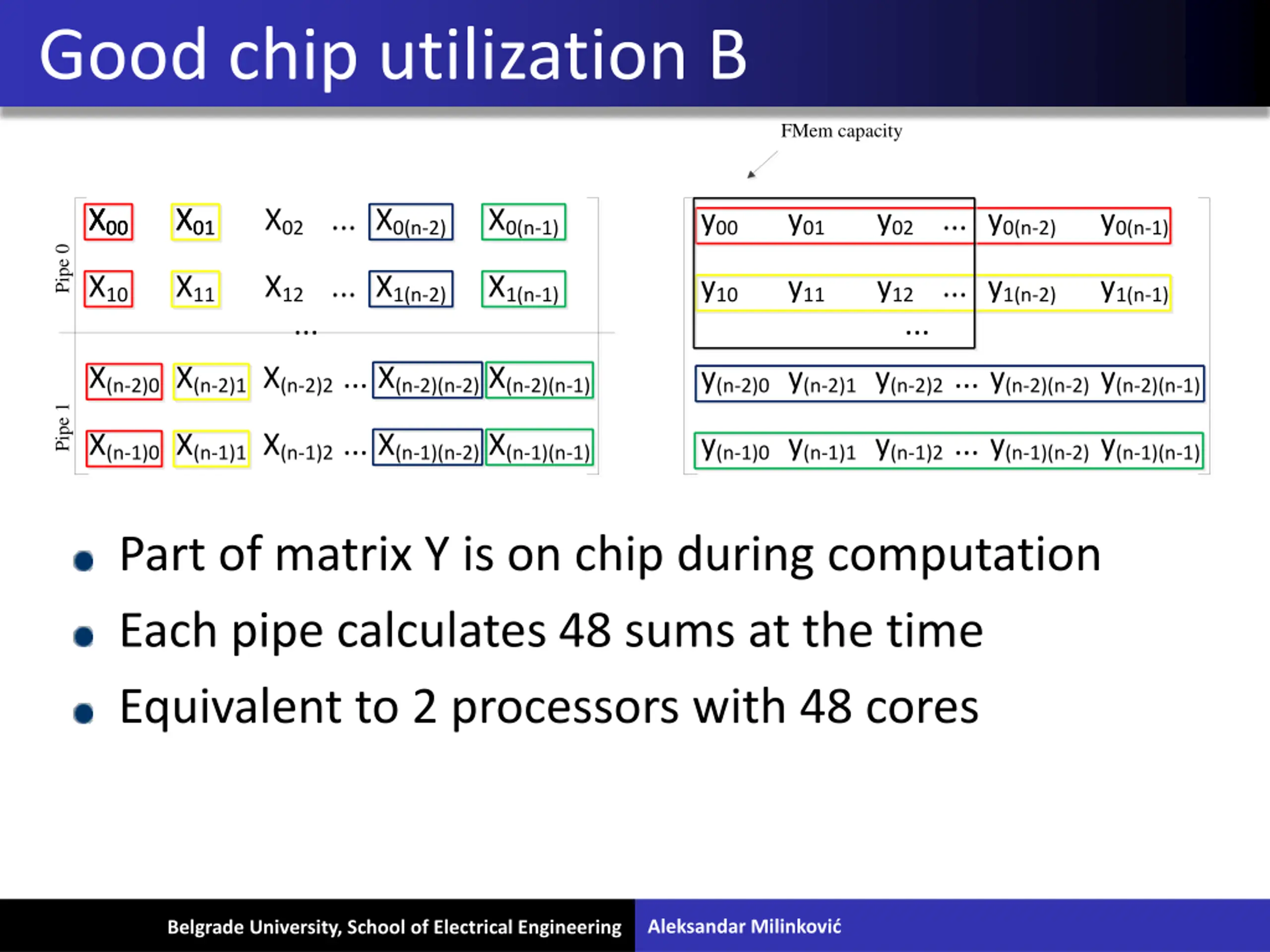

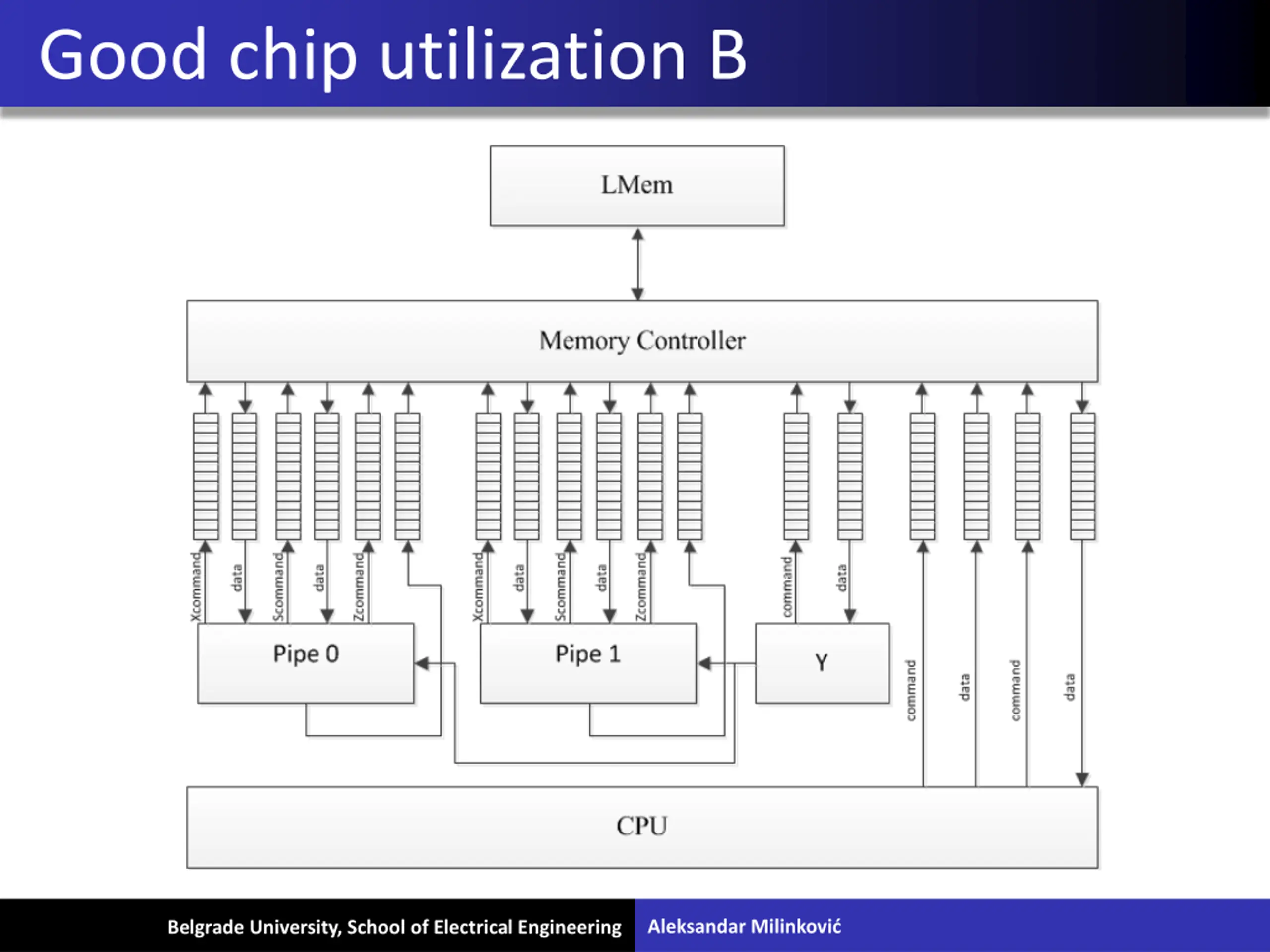

Good chip utilization B FMem capacity X00 X00 X00 X01 X01 X02 ... X0(n-2) X0(n-1) y00 y01 y02 ... y0(n-2) y0(n-1) Pipe 0 X10 X11 X12 ... X1(n-2) X1(n-1) y10 y11 y12 ... y1(n-2) y1(n-1) ... ... X(n-2)0 X(n-2)1 X(n-2)2 ... X(n-2)(n-2) X(n-2)(n-1) y(n-2)0 y(n-2)1 y(n-2)2 ... y(n-2)(n-2) y(n-2)(n-1) Pipe 1 X(n-1)0 X(n-1)1 X(n-1)2 ... X(n-1)(n-2) X(n-1)(n-1) y(n-1)0 y(n-1)1 y(n-1)2 ... y(n-1)(n-2) y(n-1)(n-1) Part of matrix Y is on chip during computation Each pipe calculates 48 sums at the time Equivalent to 2 processors with 48 cores Aleksandar Milinkovi Belgrade University, School of Electrical Engineering
Good chip utilization B Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

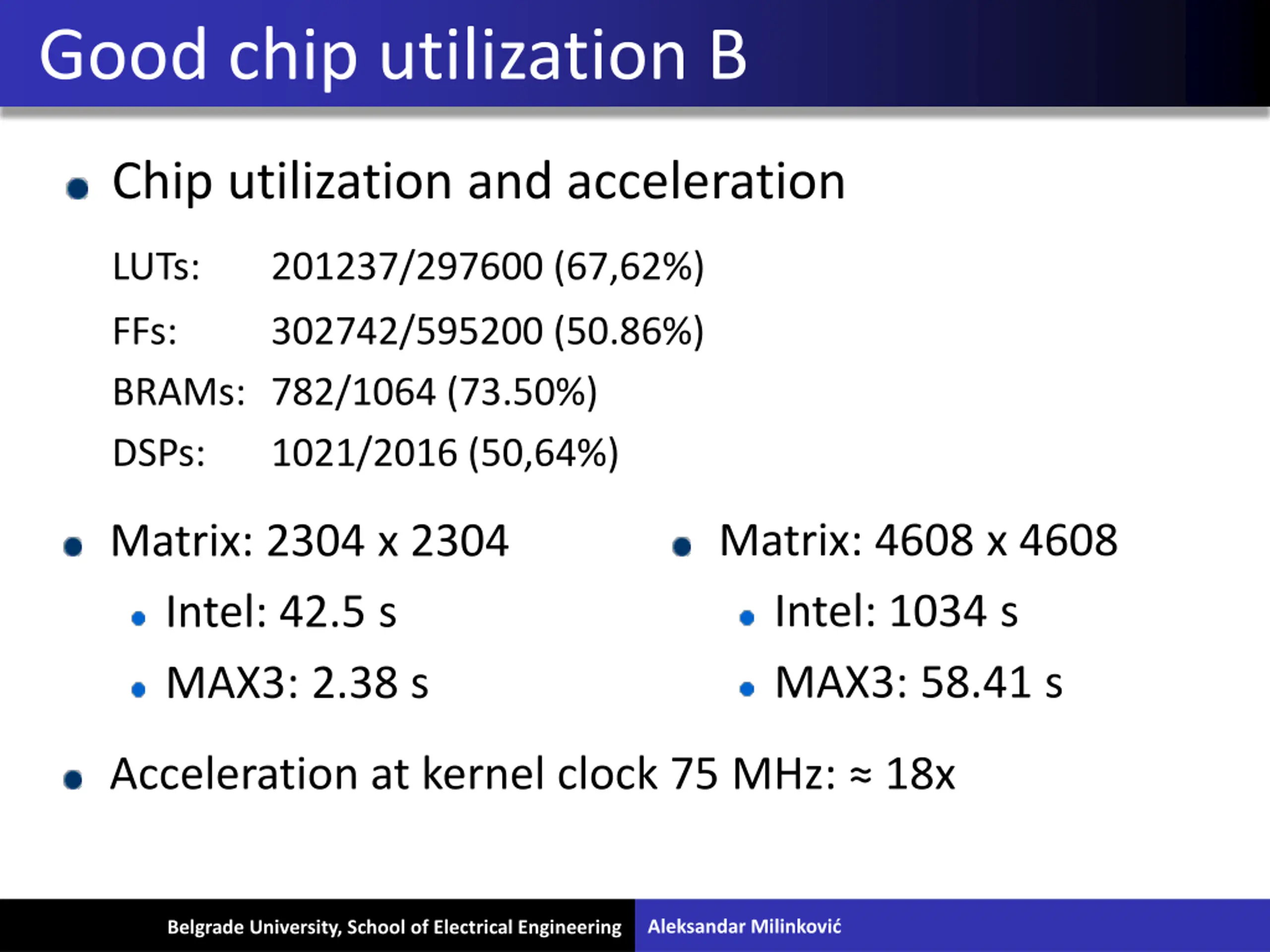

Good chip utilization B Chip utilization and acceleration LUTs: 201237/297600 (67,62%) FFs: BRAMs: 782/1064 (73.50%) DSPs: 1021/2016 (50,64%) 302742/595200 (50.86%) Matrix: 4608 x 4608 Intel: 1034 s MAX3: 58.41 s Matrix: 2304 x 2304 Intel: 42.5 s MAX3: 2.38 s Acceleration at kernel clock 75 MHz: 18x Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

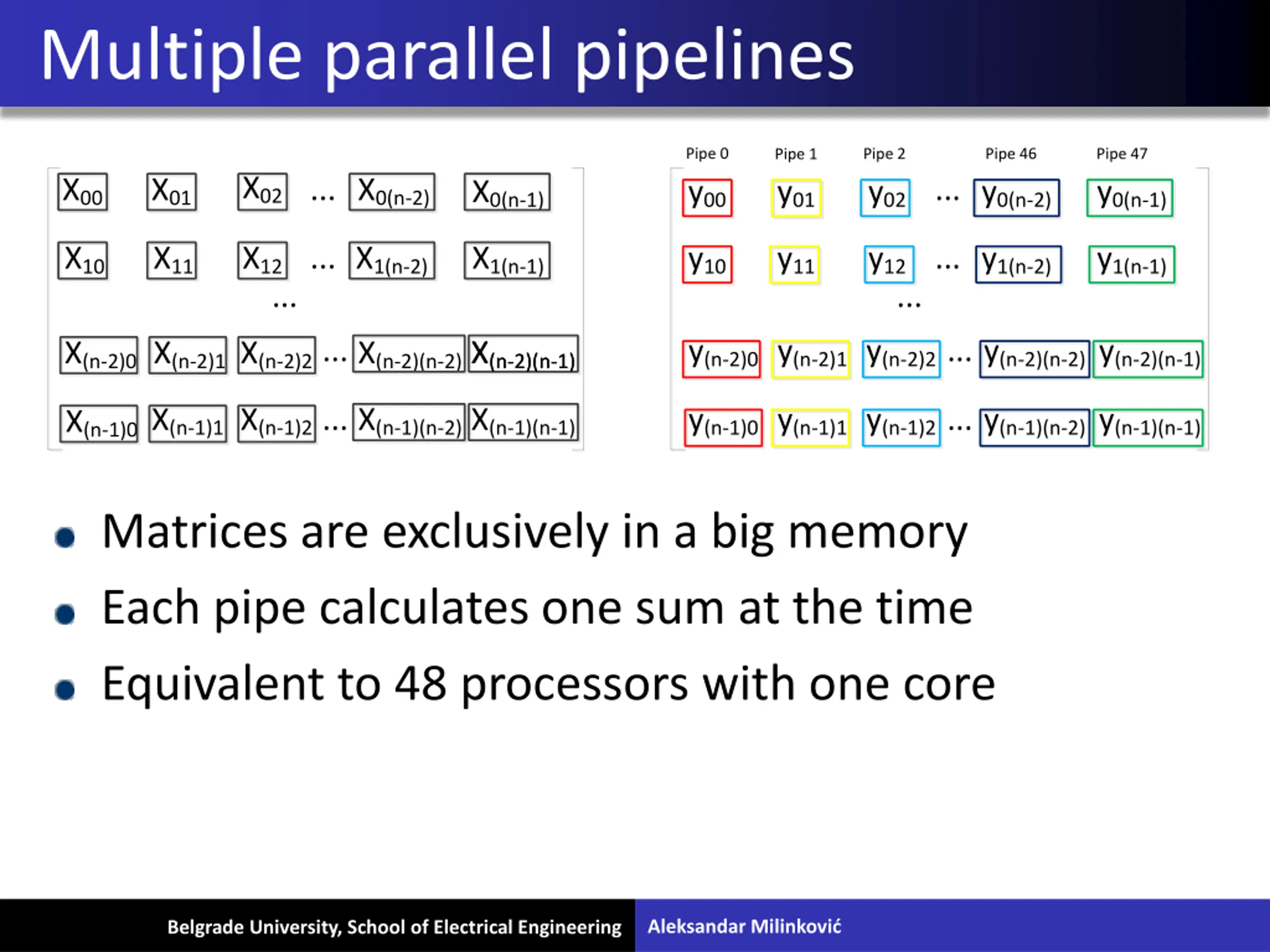

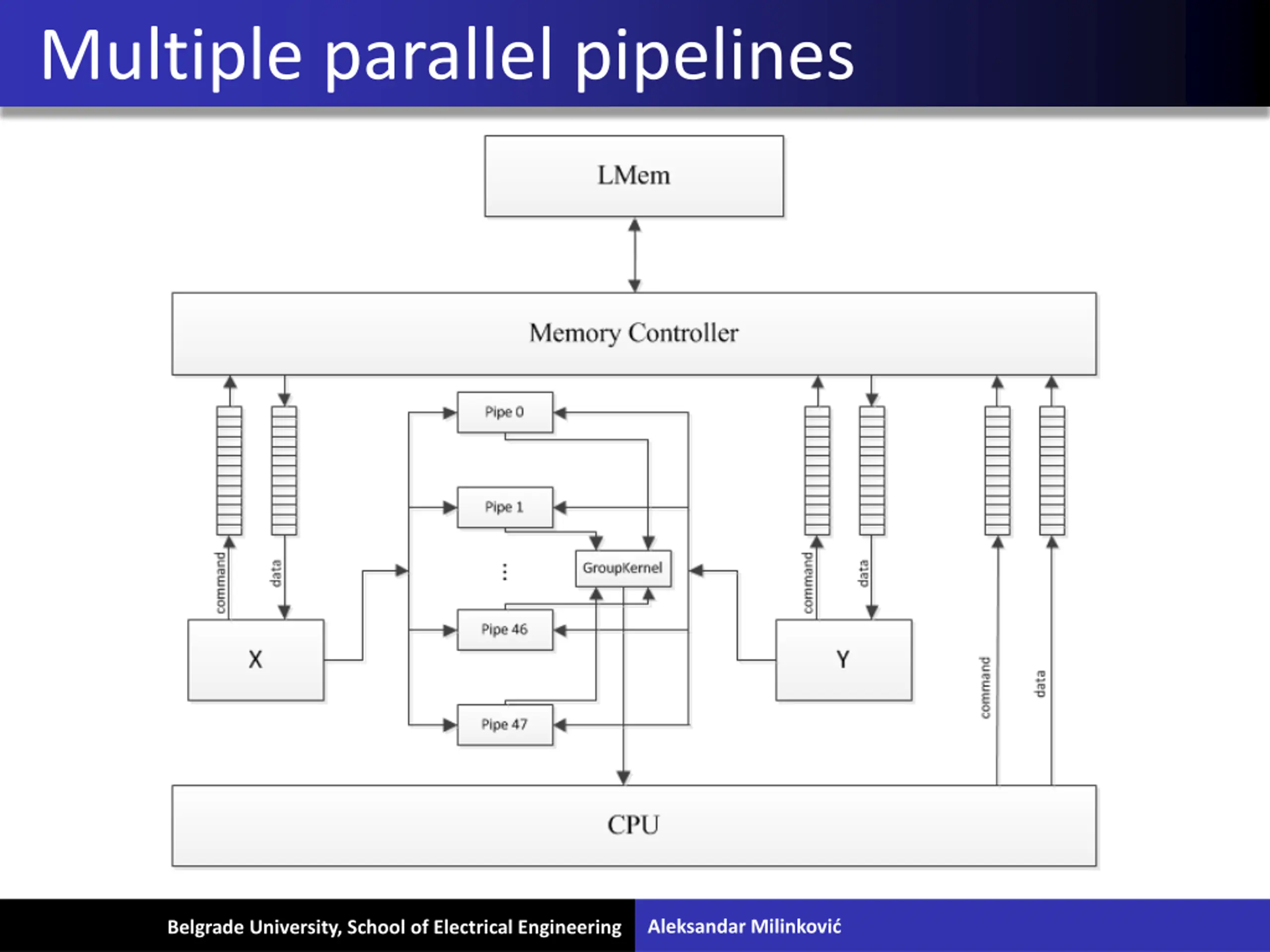

Multiple parallel pipelines Pipe 0 Pipe 2 Pipe 46 Pipe 47 Pipe 1 X02 ... X0(n-2) X00 X01 y02 ... y0(n-2) X0(n-1) y00 y01 y0(n-1) X10 X11 X12 ... X1(n-2) X1(n-1) y10 y11 y12 ... y1(n-2) y1(n-1) ... ... ... y(n-2)0 y(n-2)1 y(n-2)2 ... y(n-2)(n-2) y(n-2)(n-1) X(n-2)0 X(n-2)1 X(n-2)2 X(n-2)(n-2) X(n-2)(n-1) X(n-2)(n-1) X(n-1)0 X(n-1)1 X(n-1)2 ... X(n-1)(n-2) X(n-1)(n-1) y(n-1)0 y(n-1)1 y(n-1)2 ... y(n-1)(n-2) y(n-1)(n-1) Matrices are exclusively in a big memory Each pipe calculates one sum at the time Equivalent to 48 processors with one core Aleksandar Milinkovi Belgrade University, School of Electrical Engineering
Multiple parallel pipelines Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

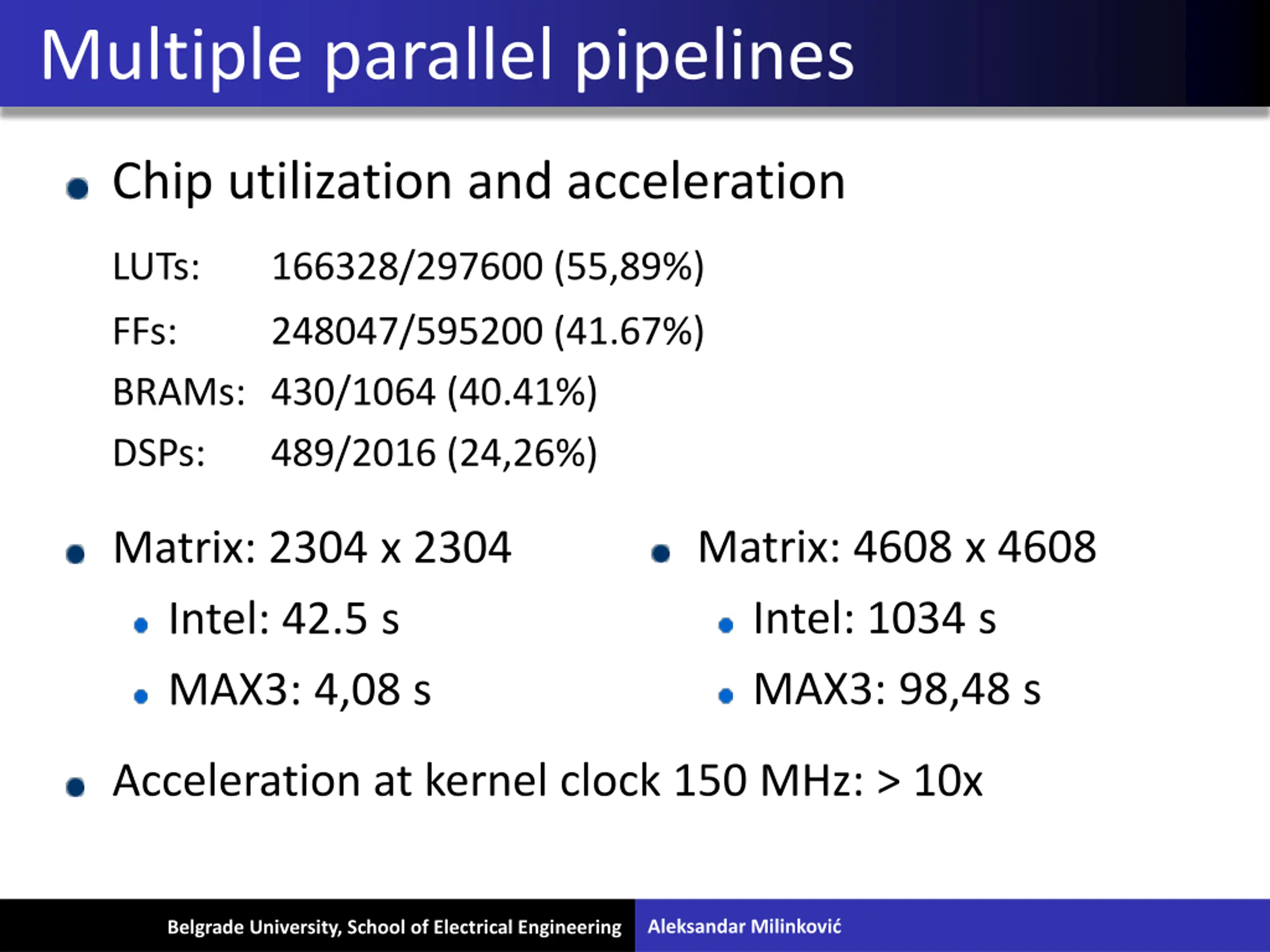

Multiple parallel pipelines Chip utilization and acceleration LUTs: 166328/297600 (55,89%) FFs: BRAMs: 430/1064 (40.41%) DSPs: 489/2016 (24,26%) 248047/595200 (41.67%) Matrix: 4608 x 4608 Intel: 1034 s MAX3: 98,48 s Matrix: 2304 x 2304 Intel: 42.5 s MAX3: 4,08 s Acceleration at kernel clock 150 MHz: > 10x Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

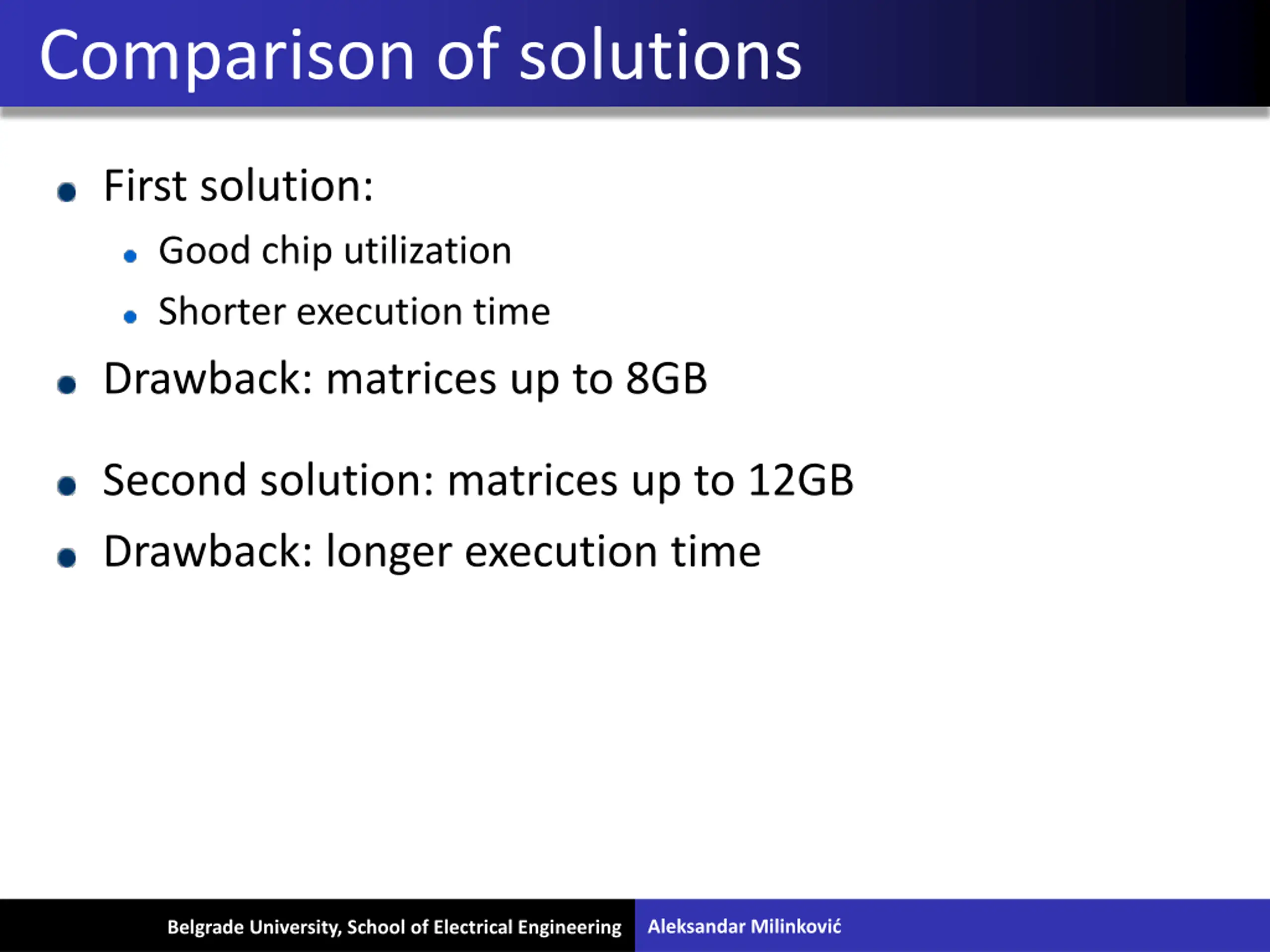

Comparison of solutions First solution: Good chip utilization Shorter execution time Drawback: matrices up to 8GB Second solution: matrices up to 12GB Drawback: longer execution time Aleksandar Milinkovi Belgrade University, School of Electrical Engineering

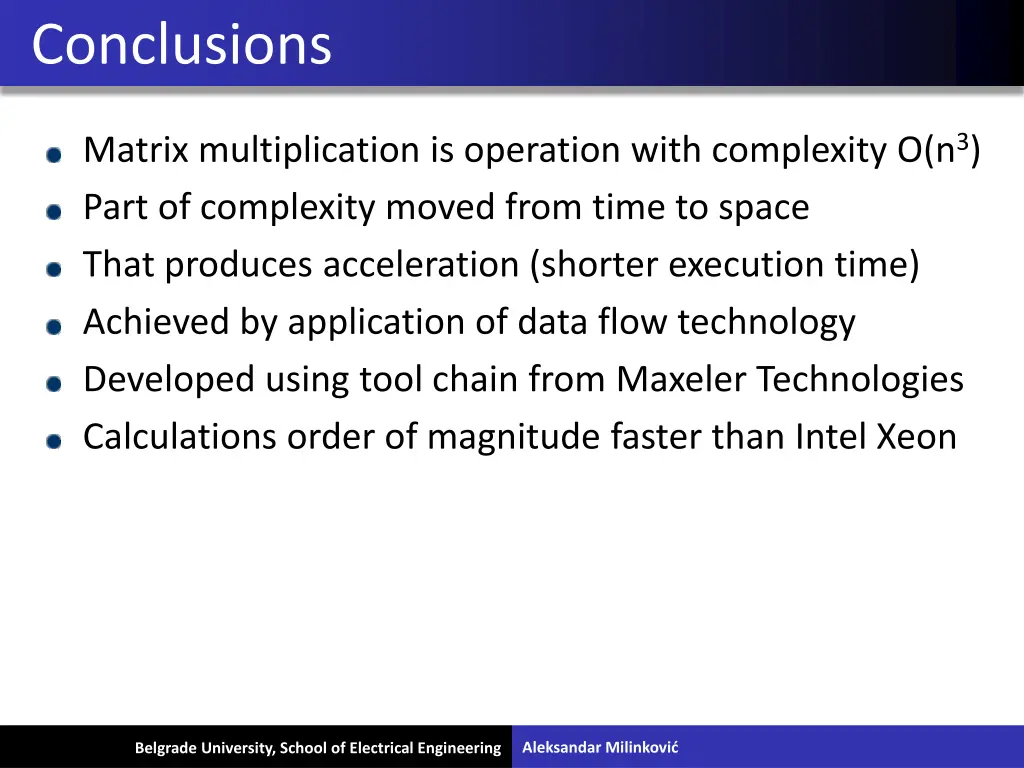

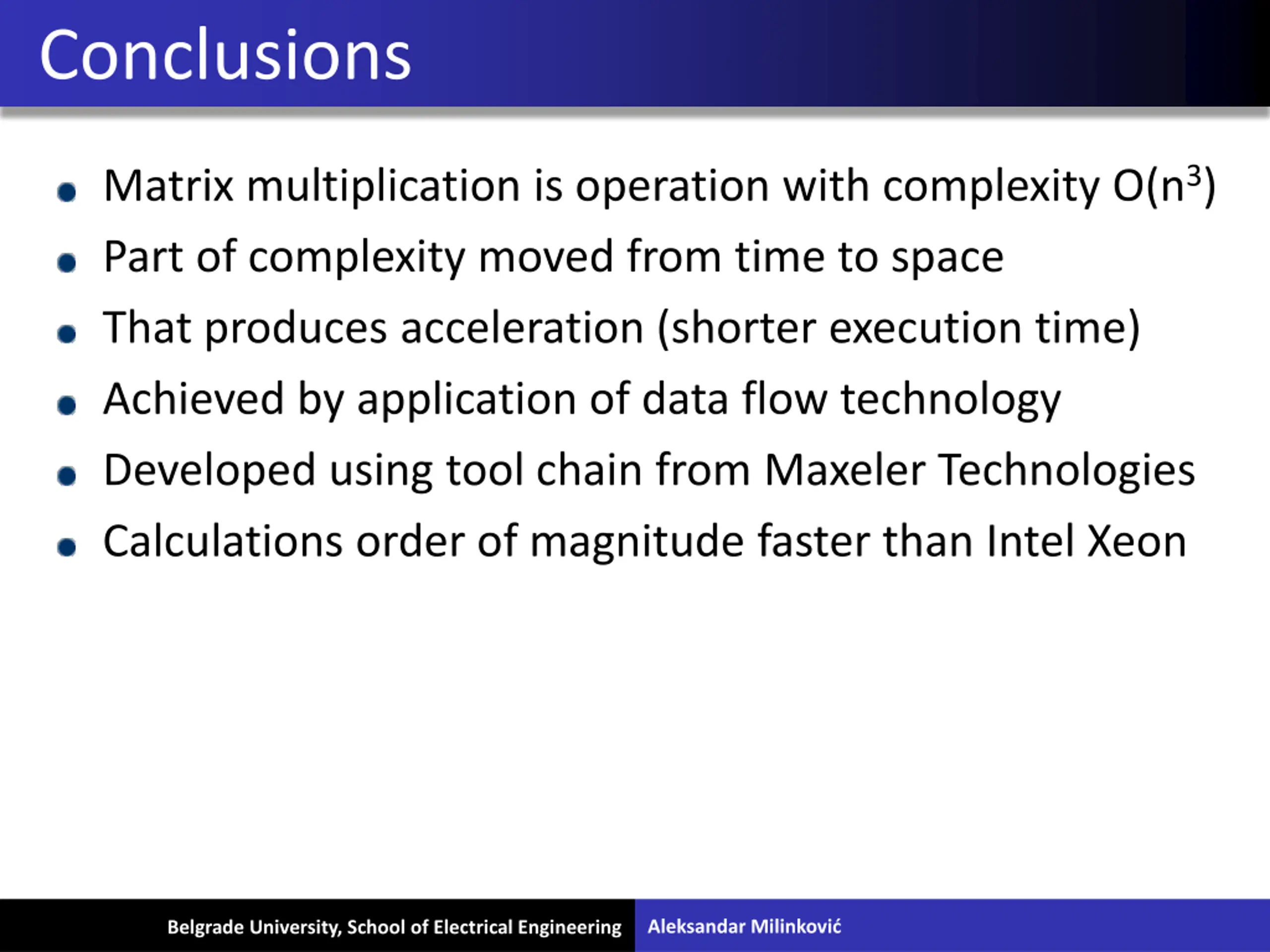

Conclusions Matrix multiplication is operation with complexity O(n3) Part of complexity moved from time to space That produces acceleration (shorter execution time) Achieved by application of data flow technology Developed using tool chain from Maxeler Technologies Calculations order of magnitude faster than Intel Xeon Aleksandar Milinkovi Belgrade University, School of Electrical Engineering
