Presentation Transcript
Implementing PID on a microcontroller BJ Furman ME 190 Mechatronics Engineering Design 11NOV2015 (adapted from: http://brettbeauregard.com/blog/2011/04/improving-the-beginners-pid-introduction/)

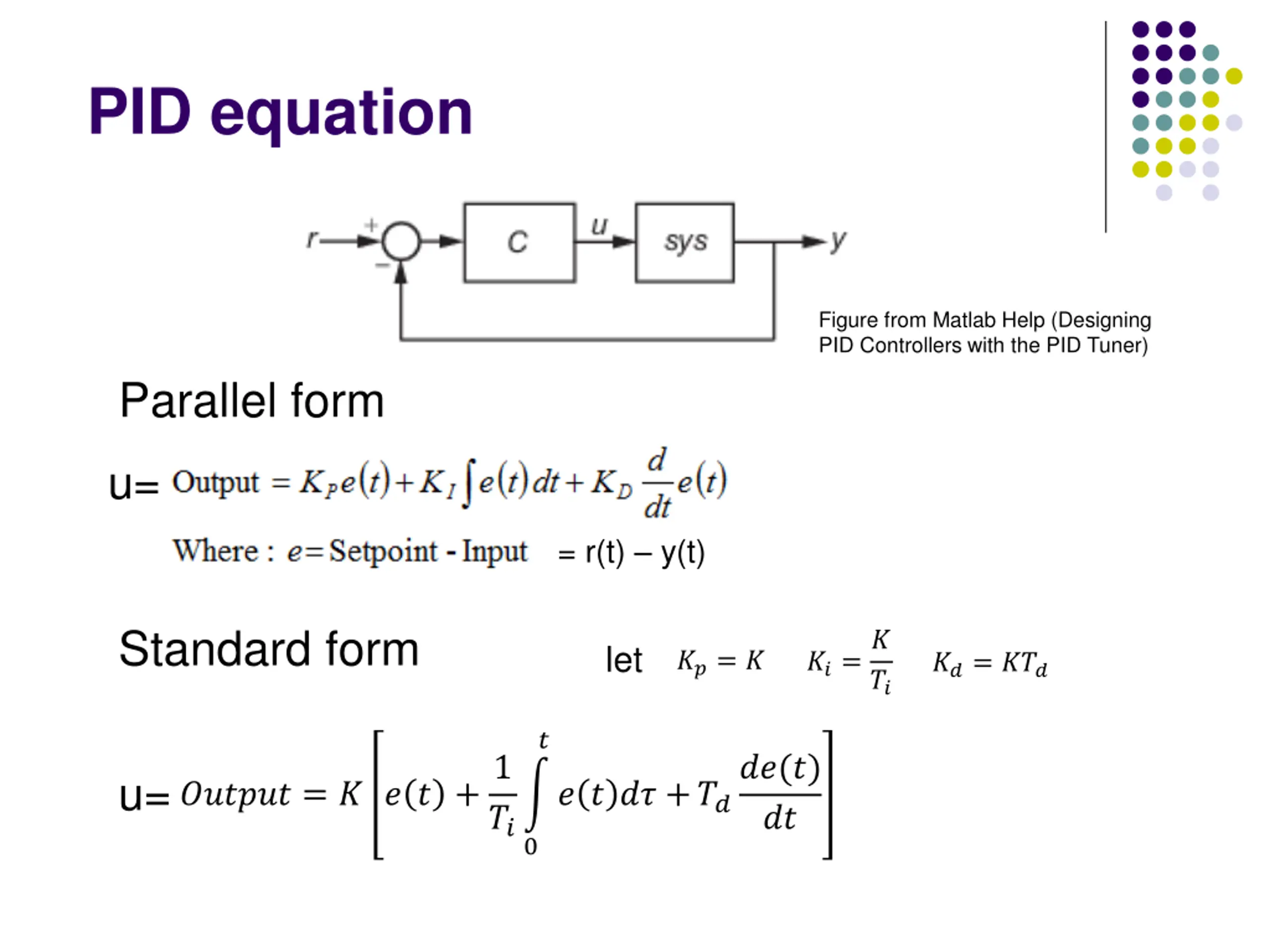

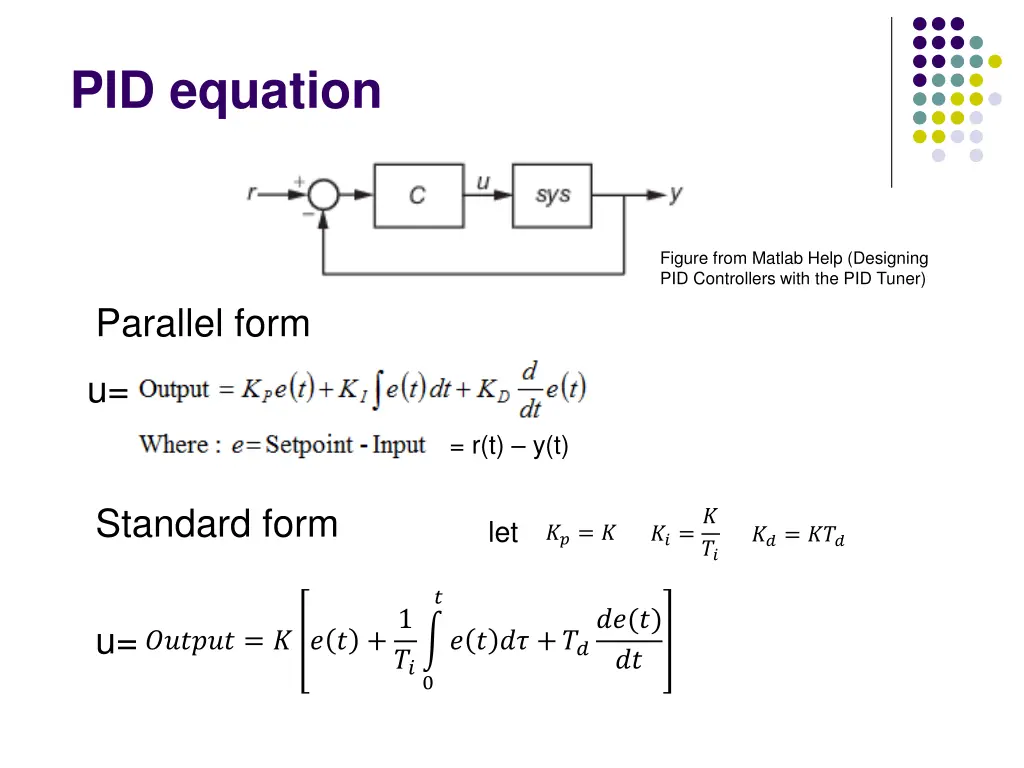

PID equation Figure from Matlab Help (Designing PID Controllers with the PID Tuner) Parallel form u= = r(t) y(t) Standard form ??=? let ??= ? ??= ??? ?? ? ?????? = ? ? ? +1 ??(?) ?? u= ? ? ?? +?? ?? 0

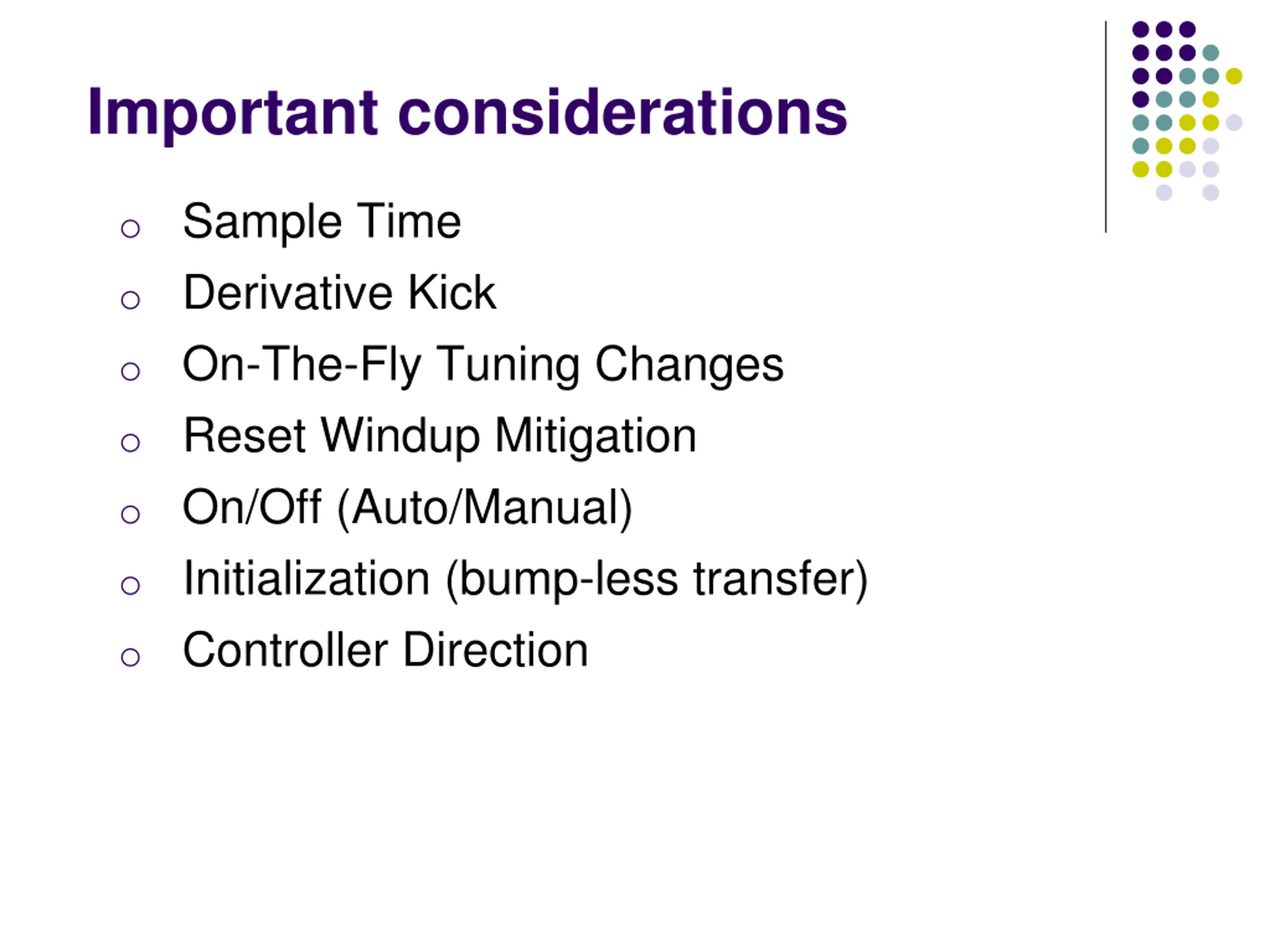

Important considerations o Sample Time o Derivative Kick o On-The-Fly Tuning Changes o Reset Windup Mitigation o On/Off (Auto/Manual) o Initialization (bump-less transfer) o Controller Direction

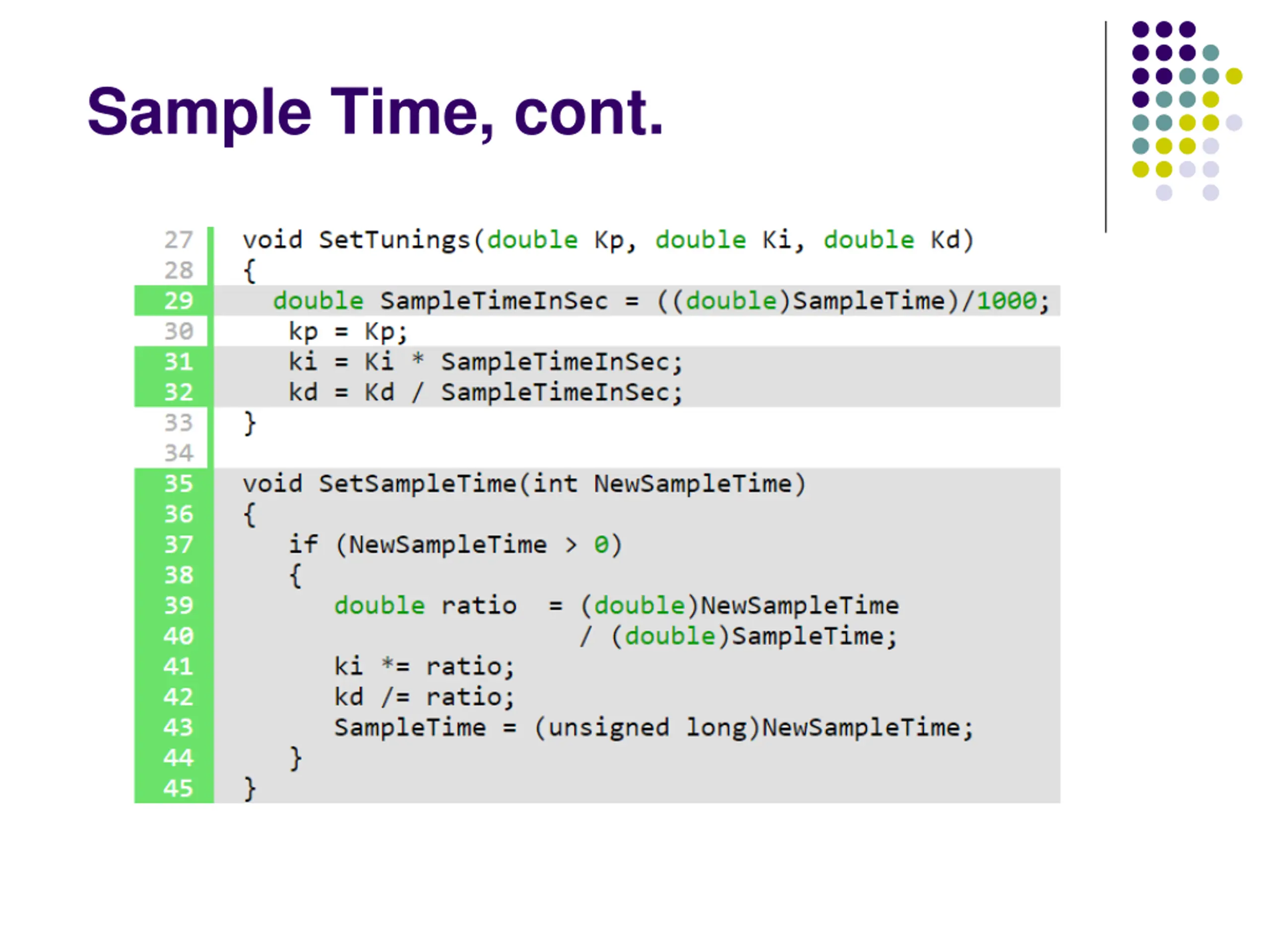

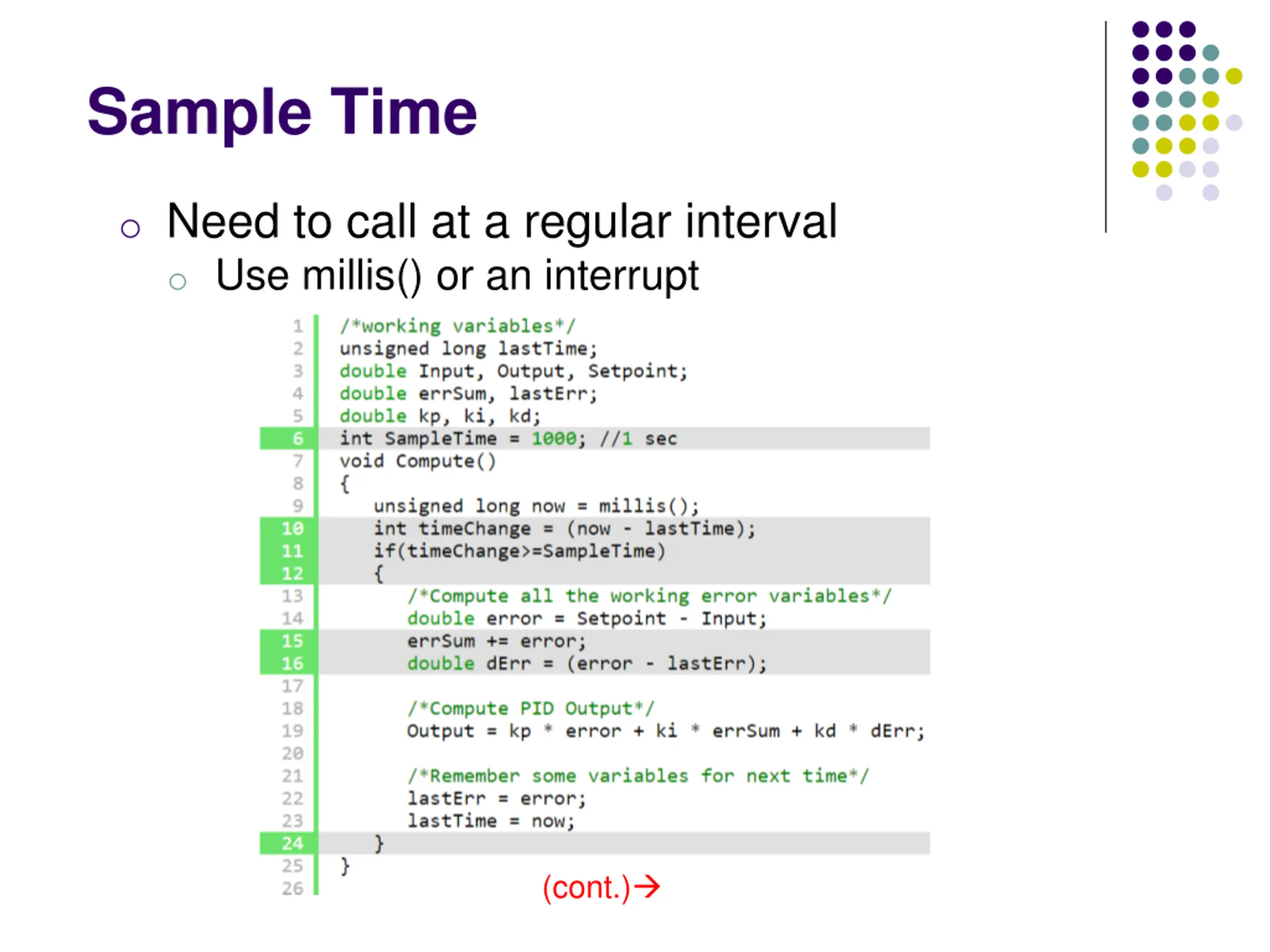

Sample Time o Need to call at a regular interval o Use millis() or an interrupt (cont.)

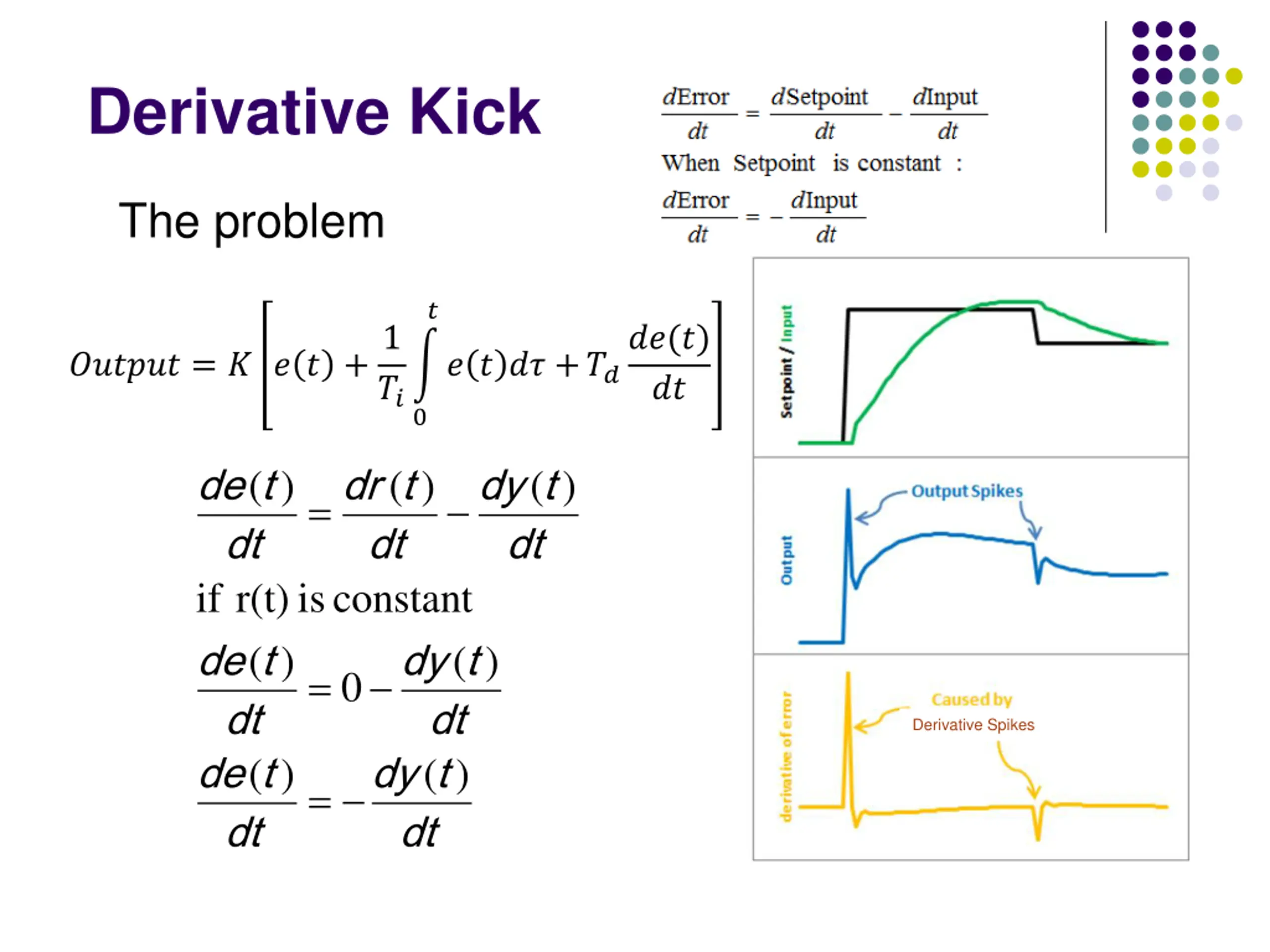

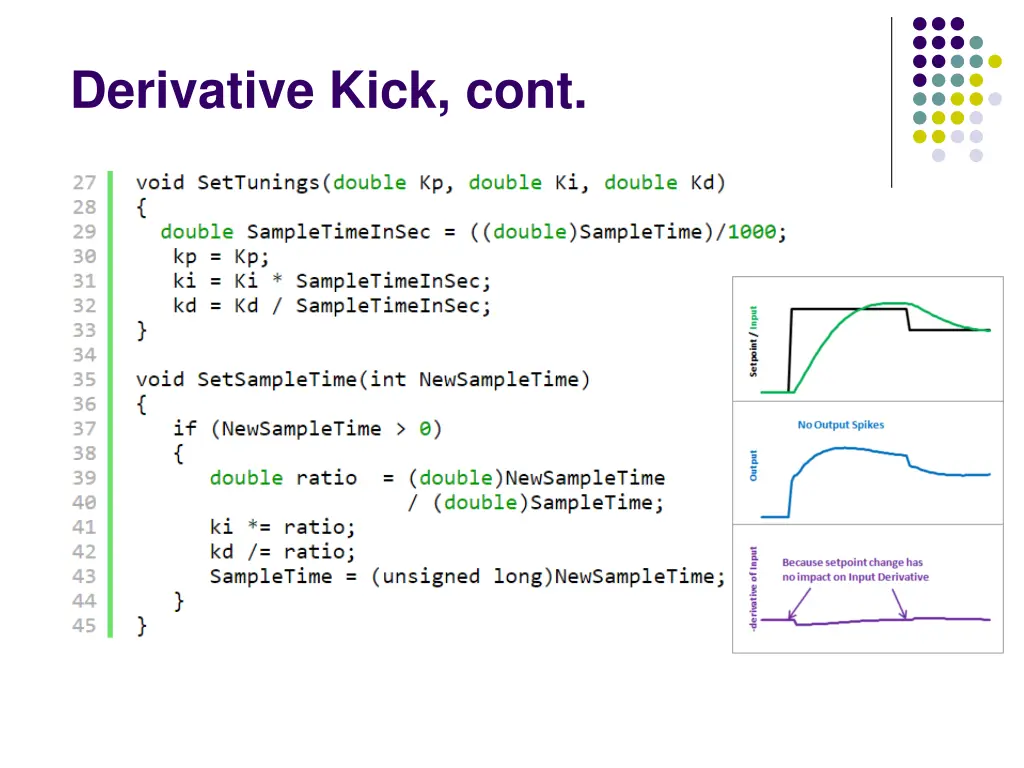

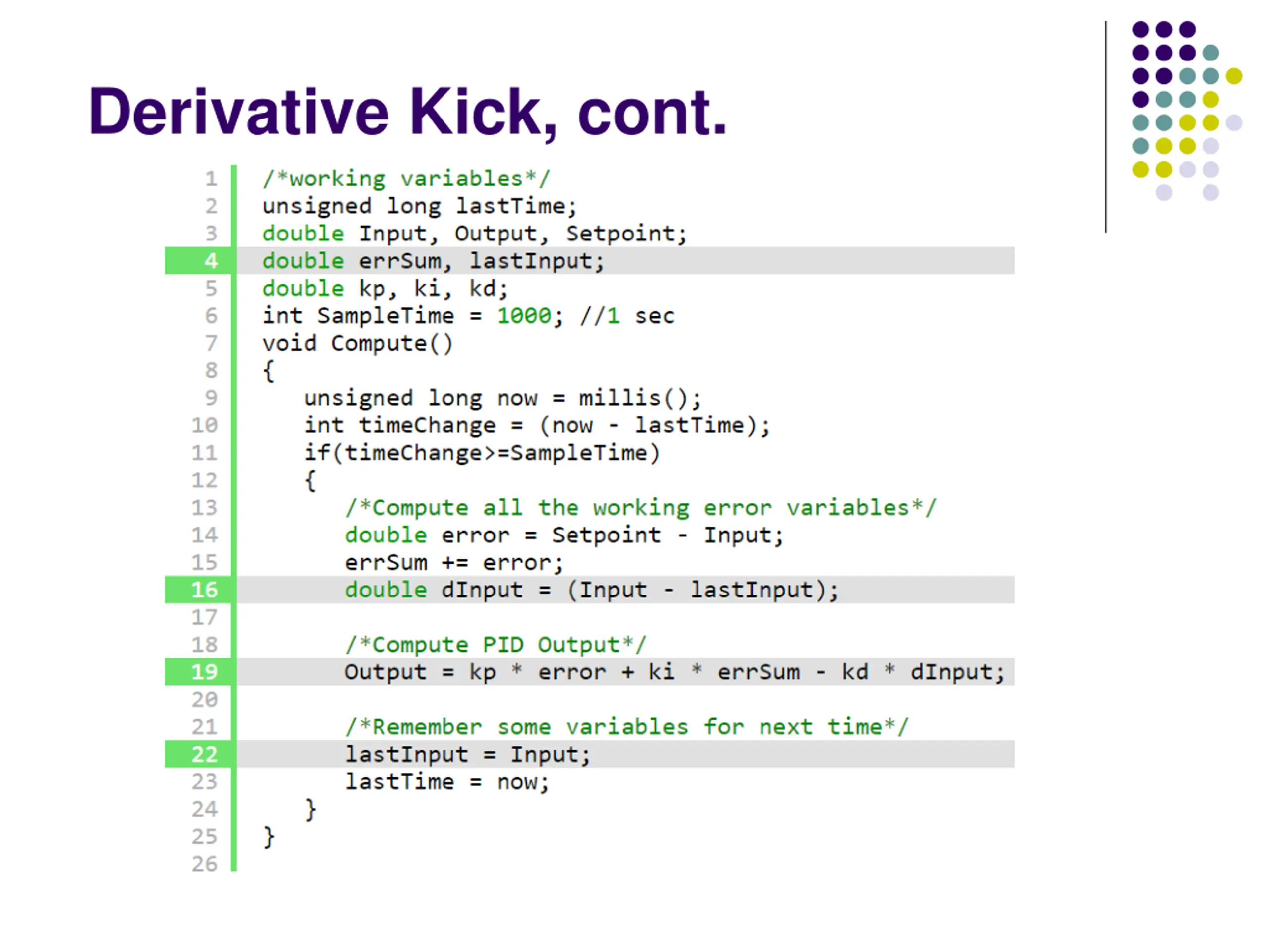

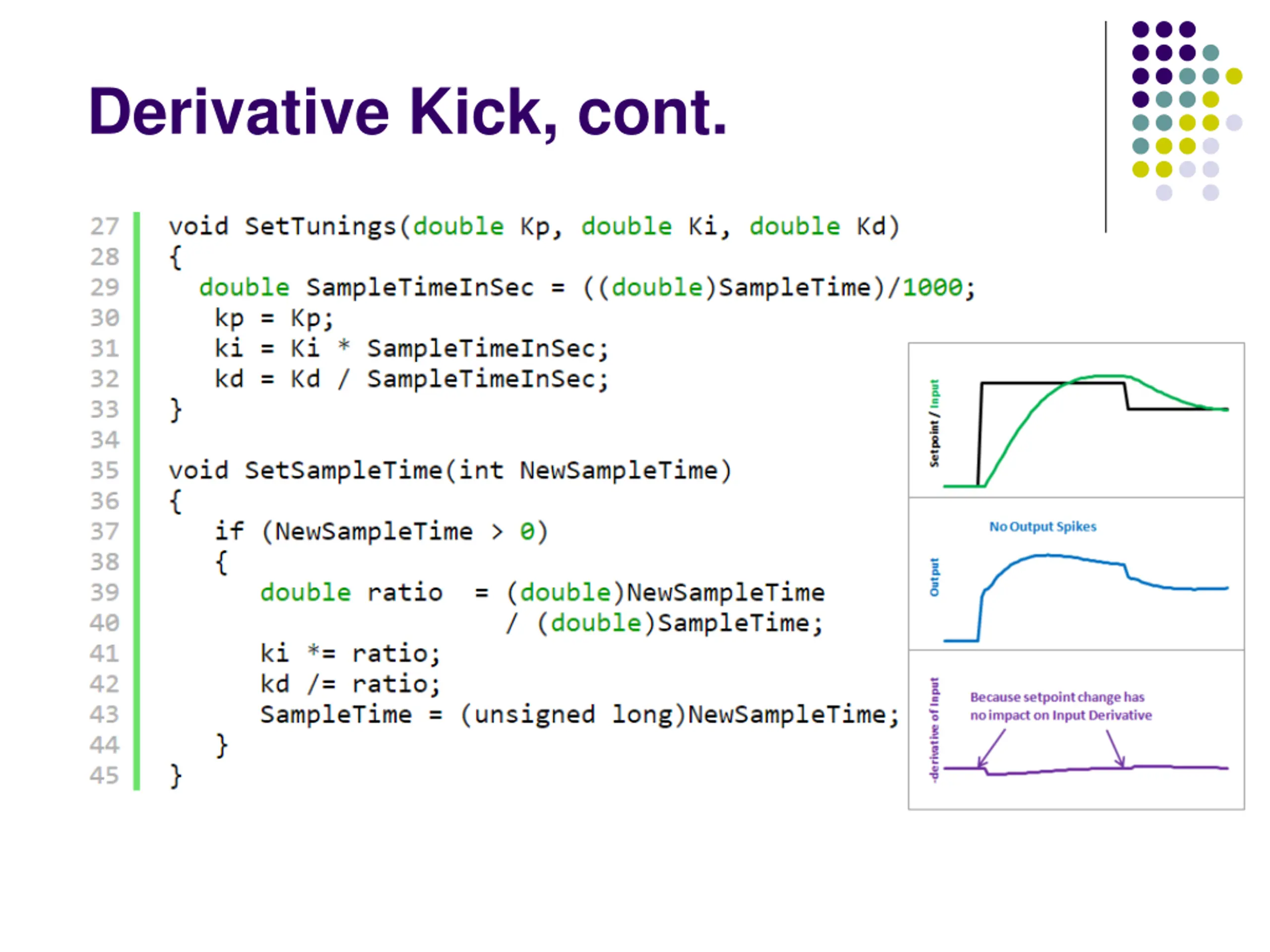

Derivative Kick The problem ? ?????? = ? ? ? +1 ??(?) ?? ? ? ?? +?? ?? 0 t ( ) t ( ) t ( ) de dr dy = dt r(t) dt dt if constant is t ( ) t ( ) de dy = 0 dt dt Derivative Spikes t ( ) t ( ) de dy = dt dt

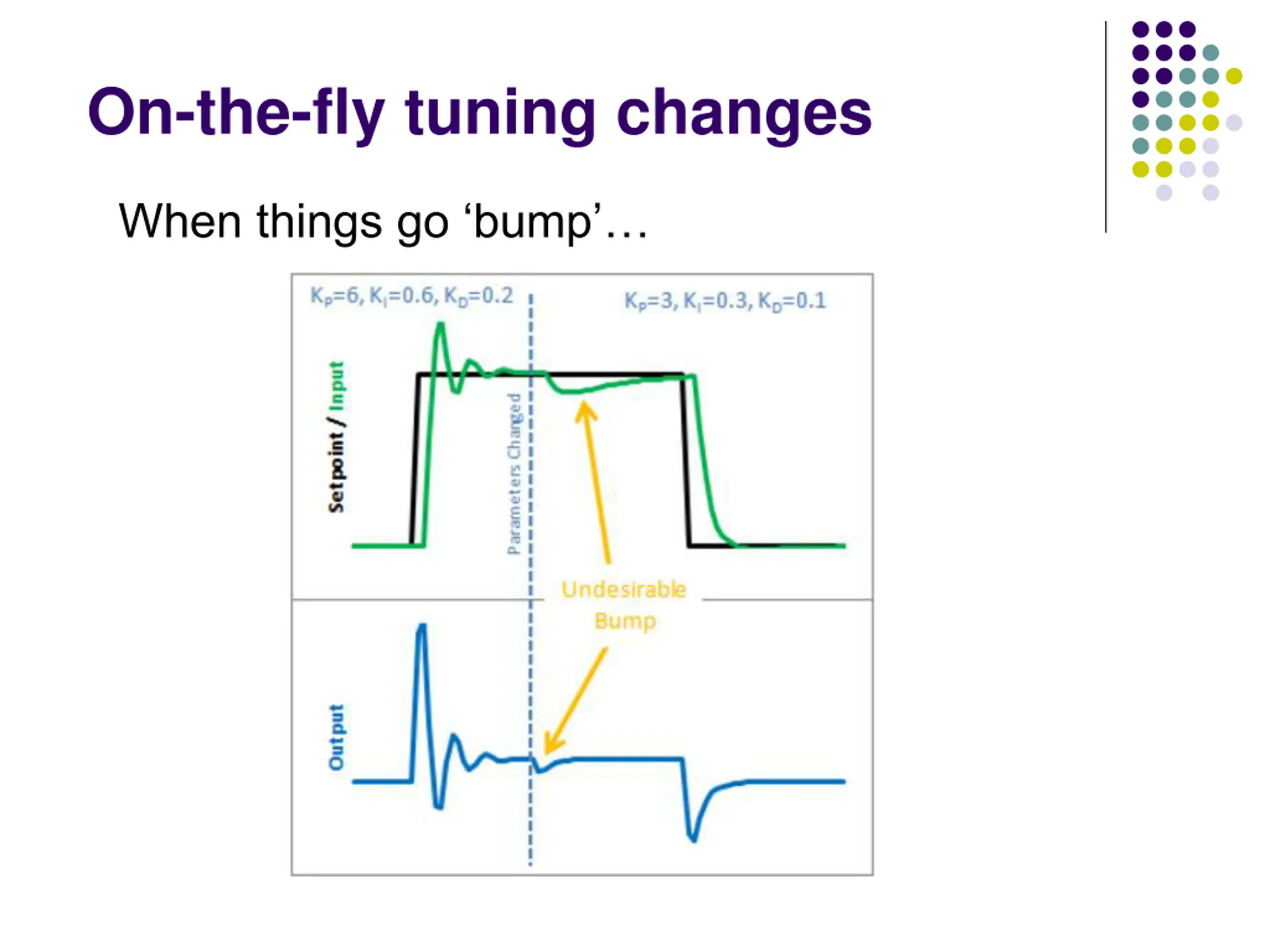

On-the-fly tuning changes When things go bump

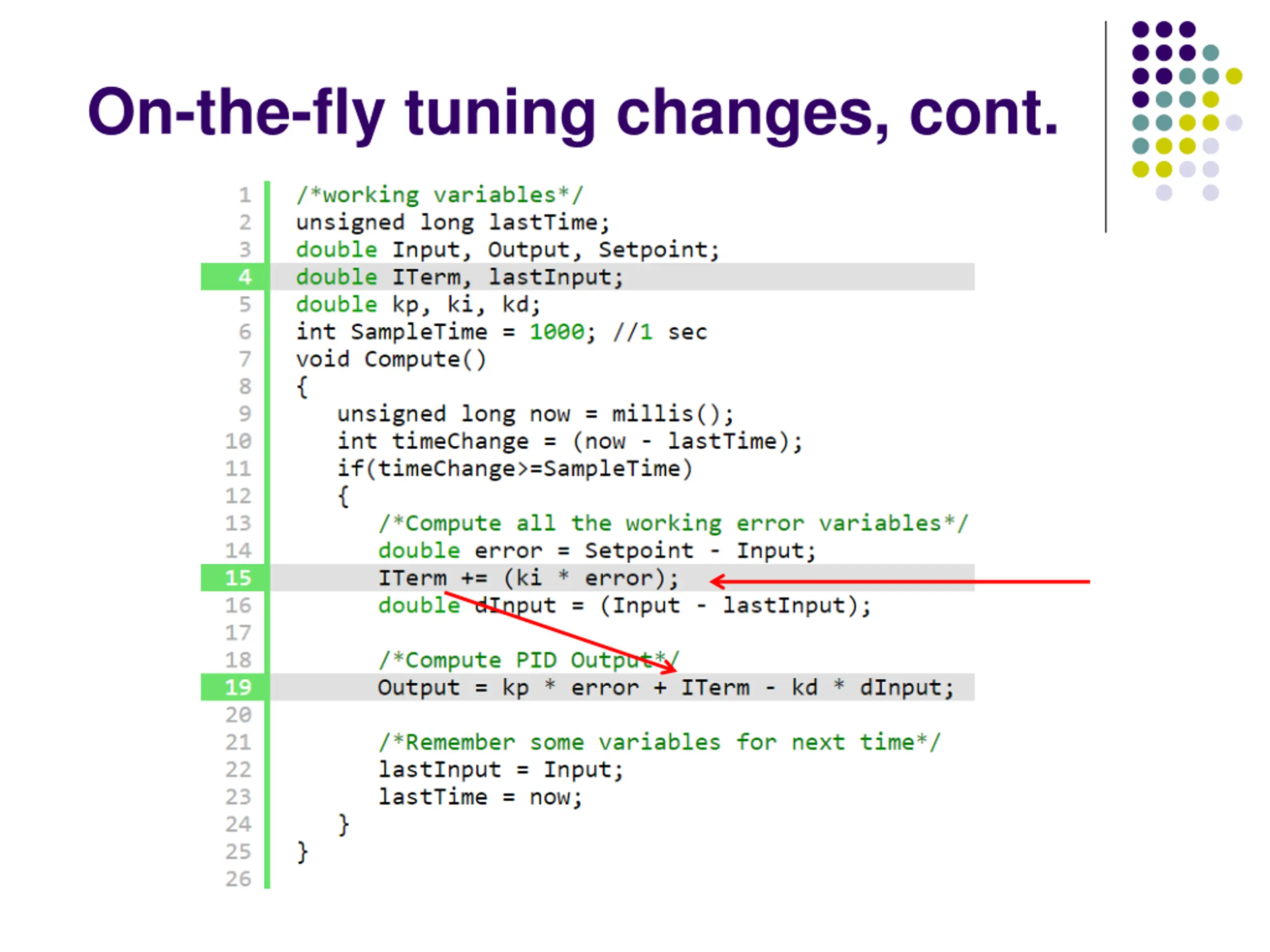

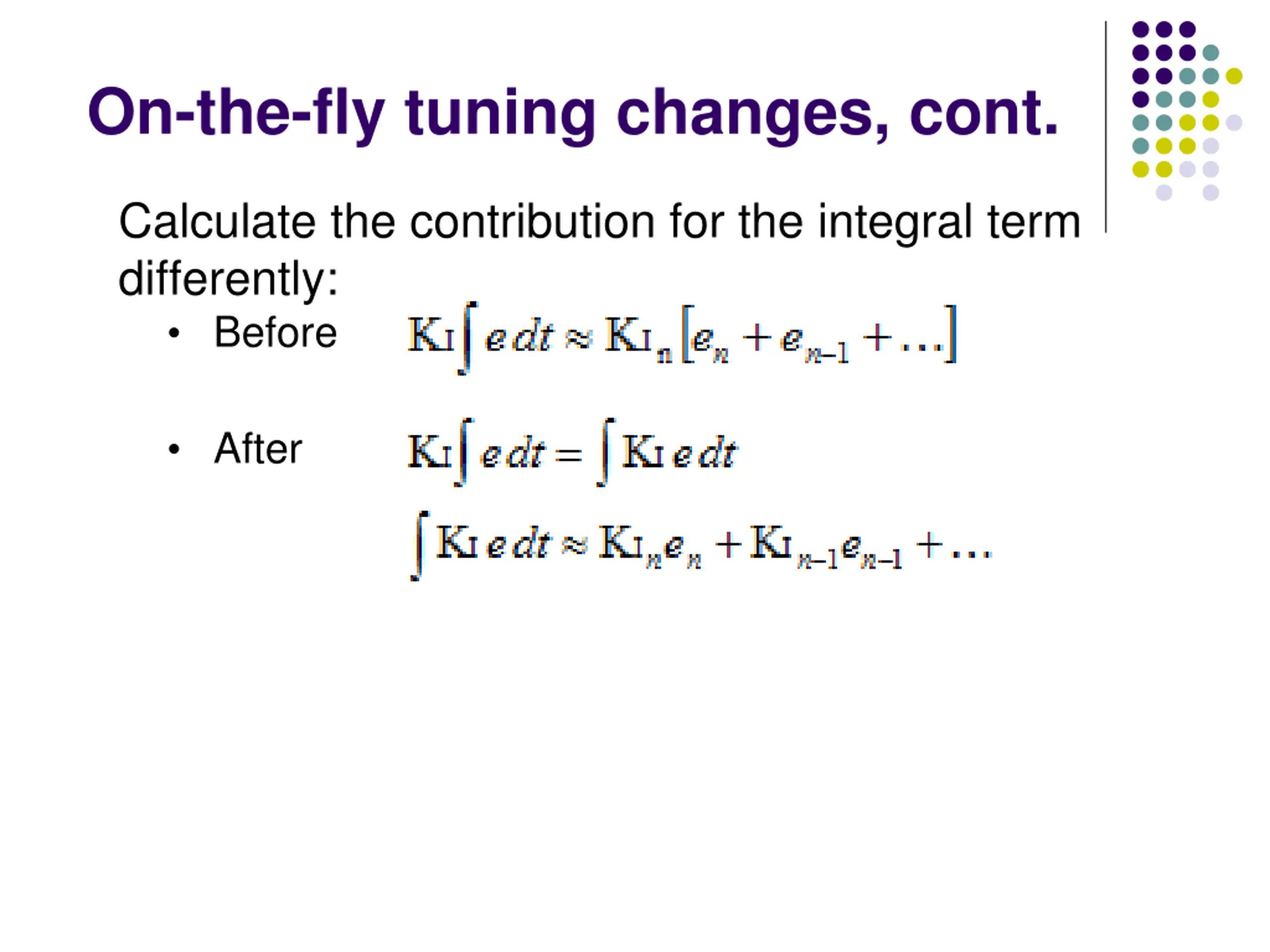

On-the-fly tuning changes, cont. Calculate the contribution for the integral term differently: Before After

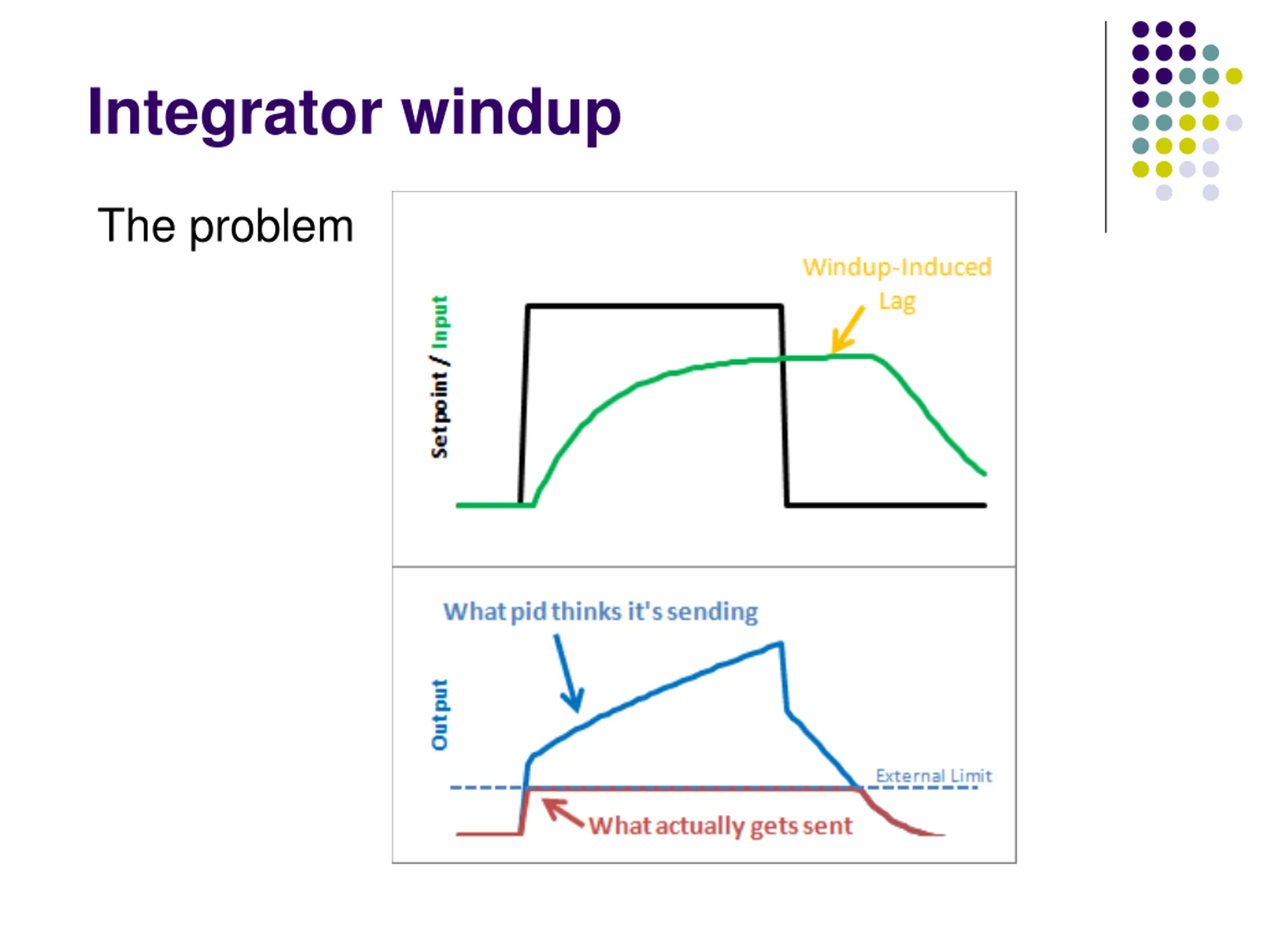

Integrator windup The problem

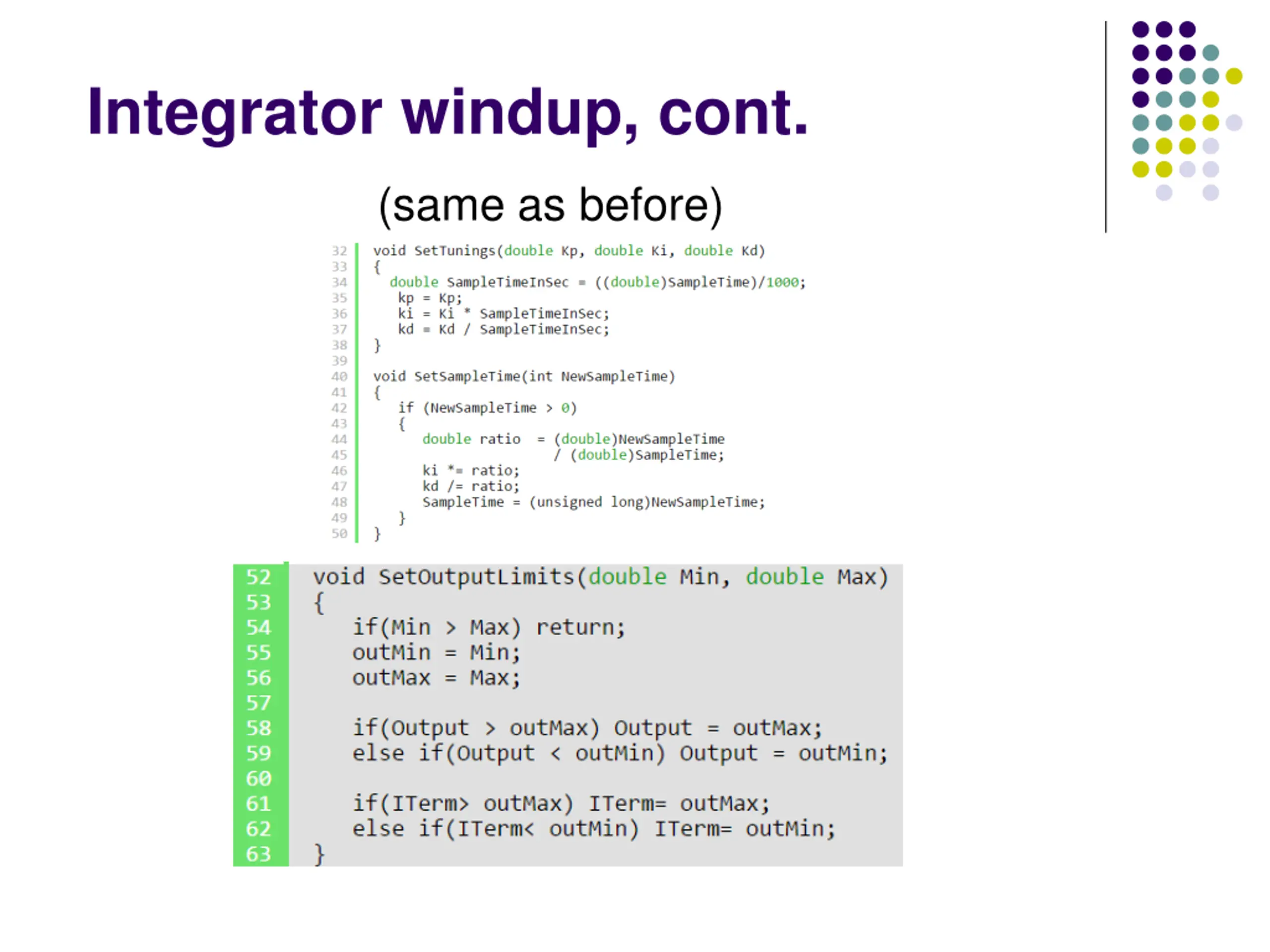

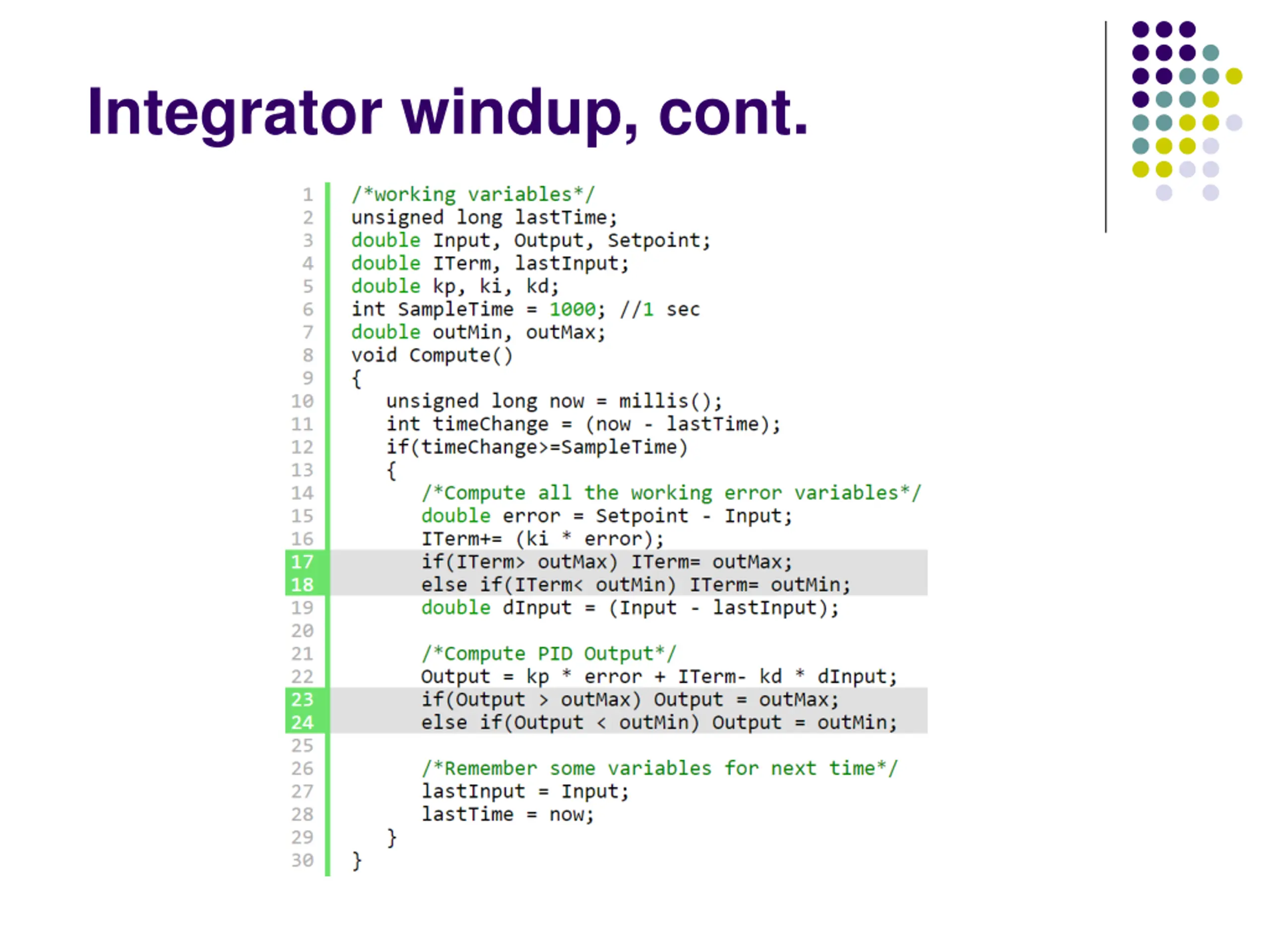

Integrator windup, cont. (same as before)

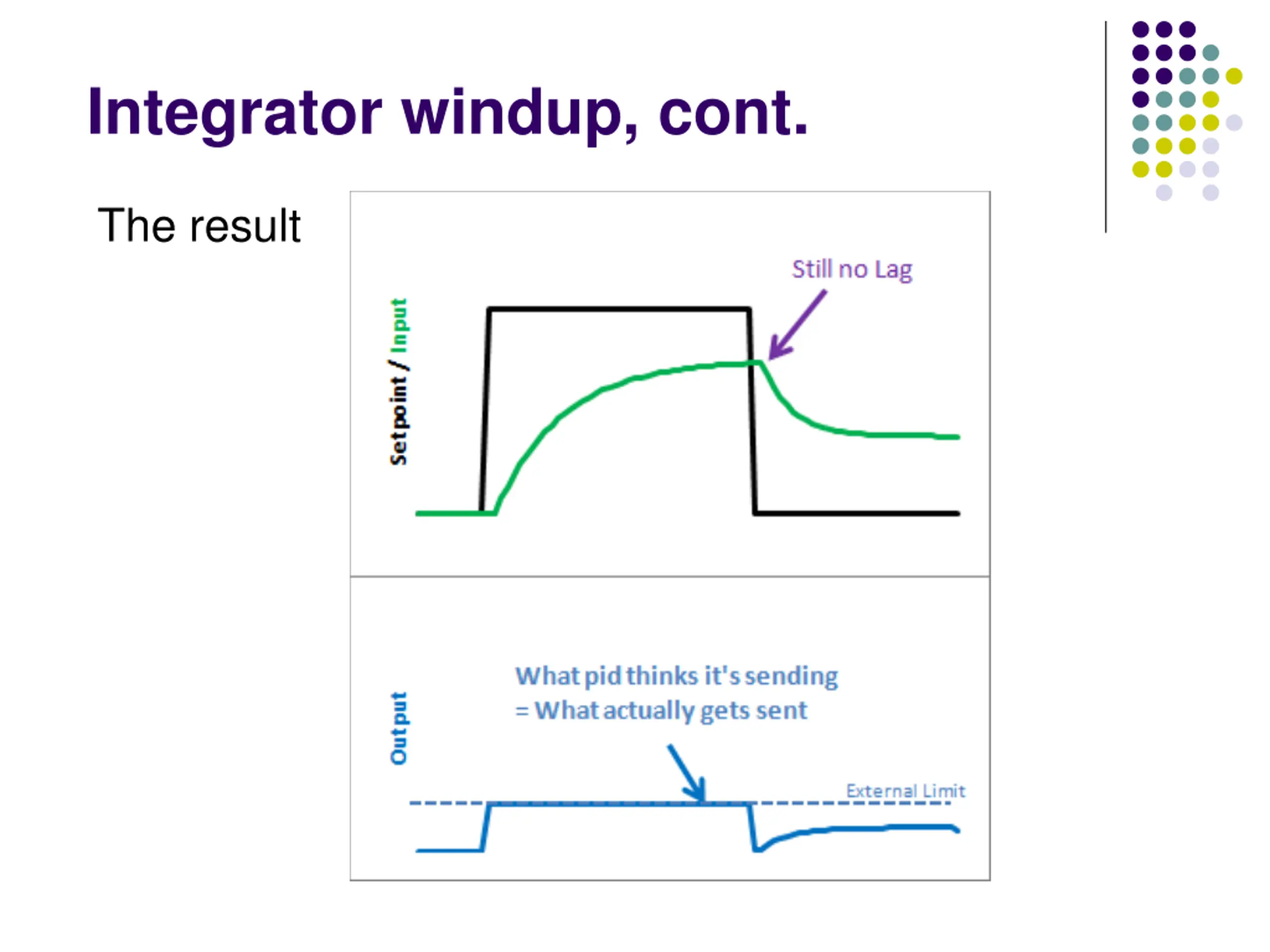

Integrator windup, cont. The result

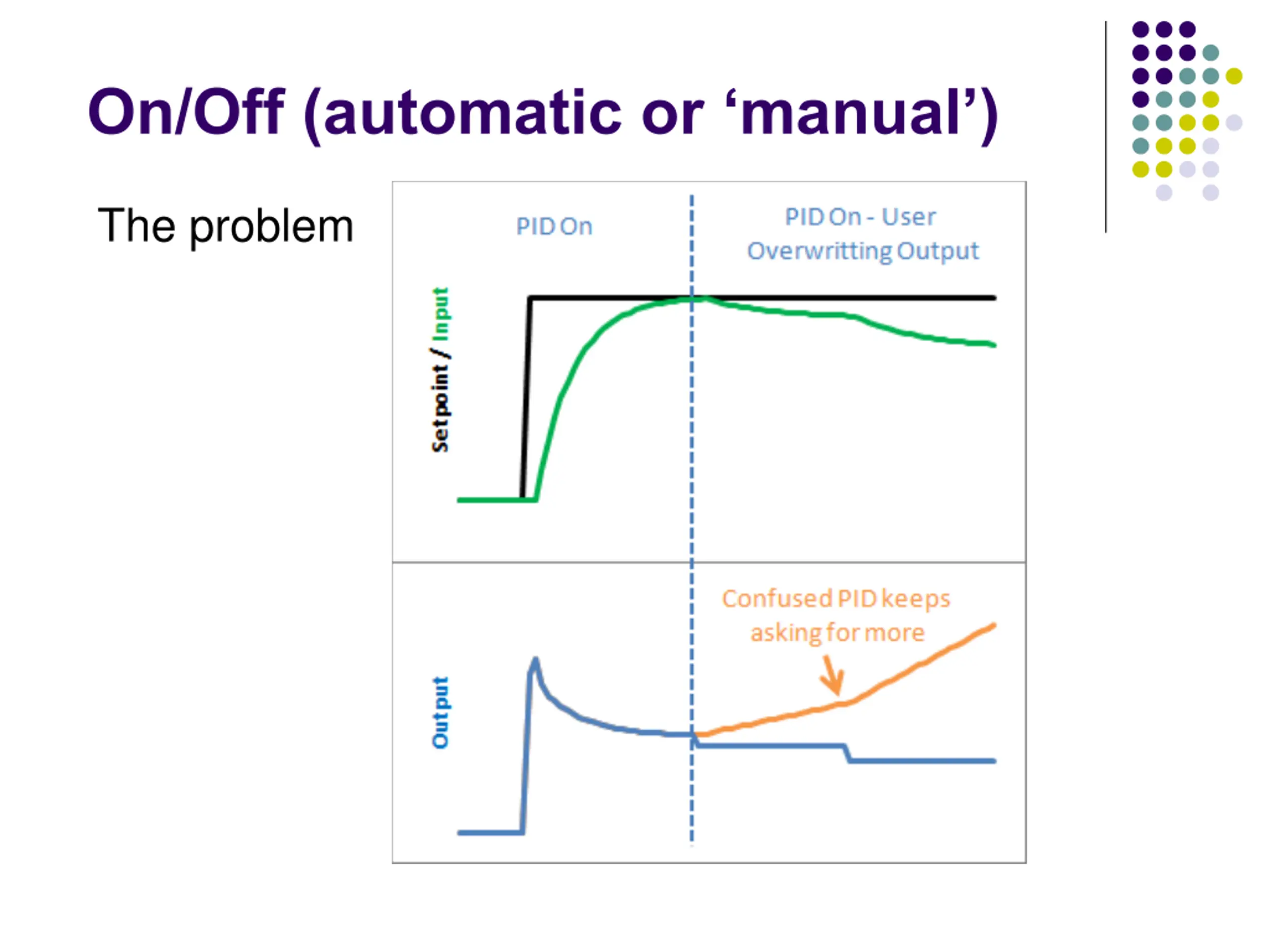

On/Off (automatic or manual) The problem

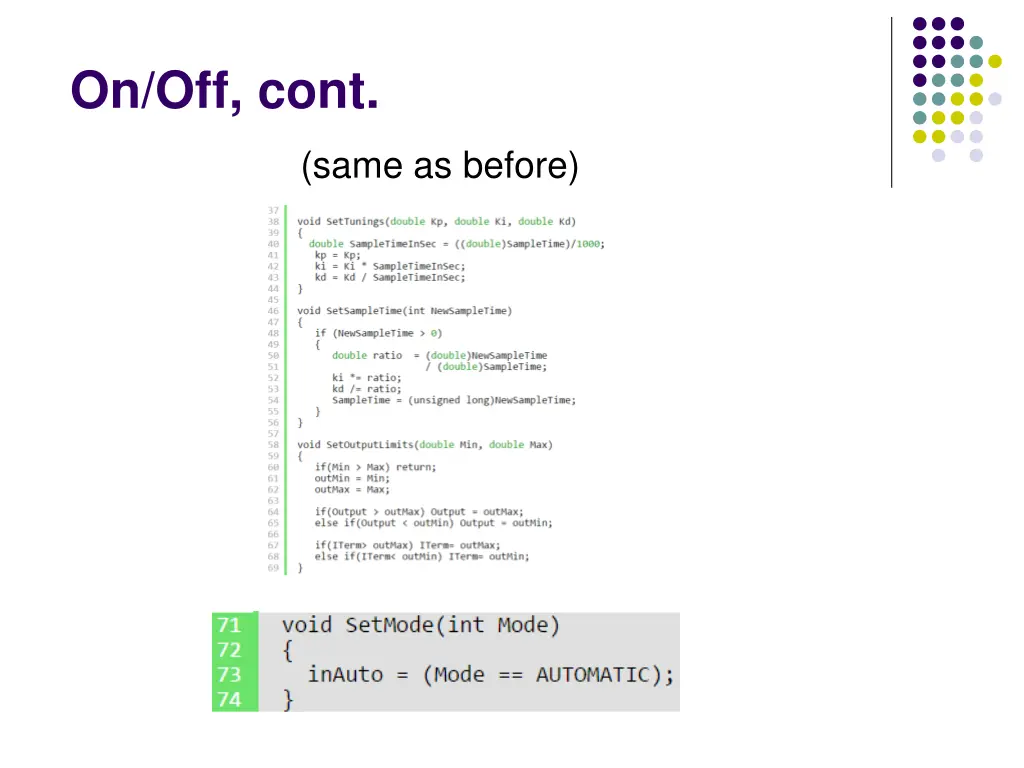

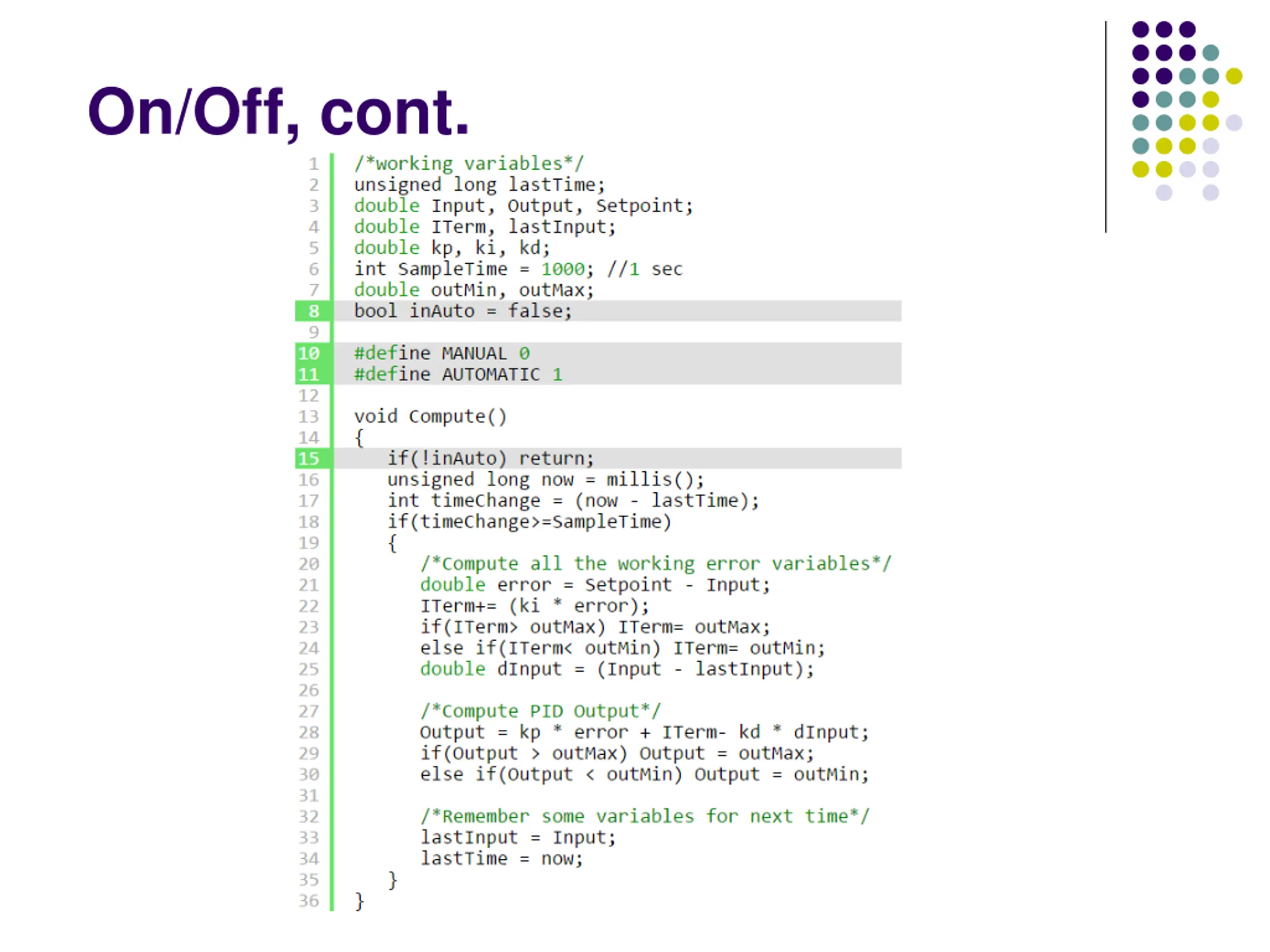

On/Off, cont. (same as before)

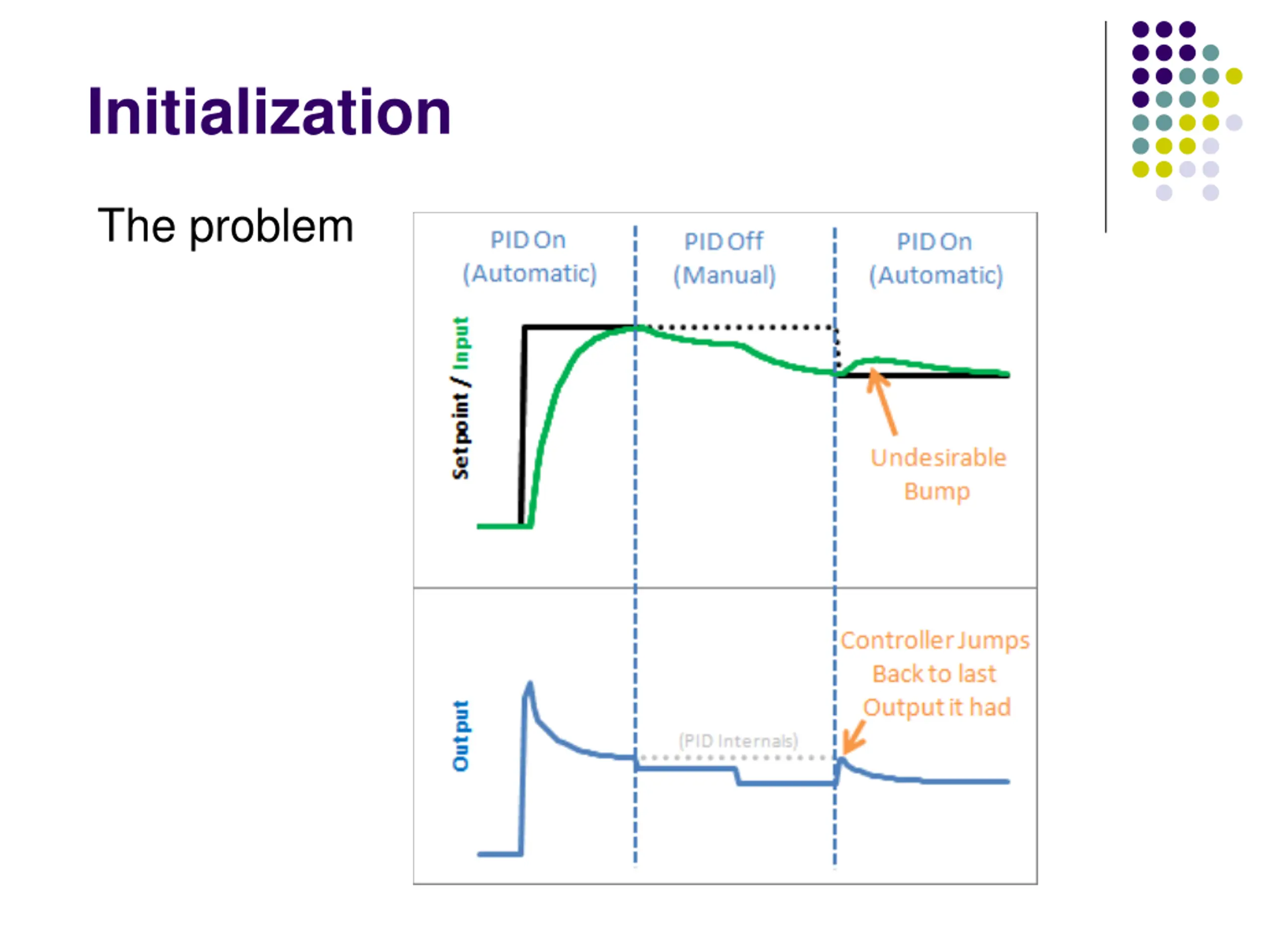

Initialization The problem

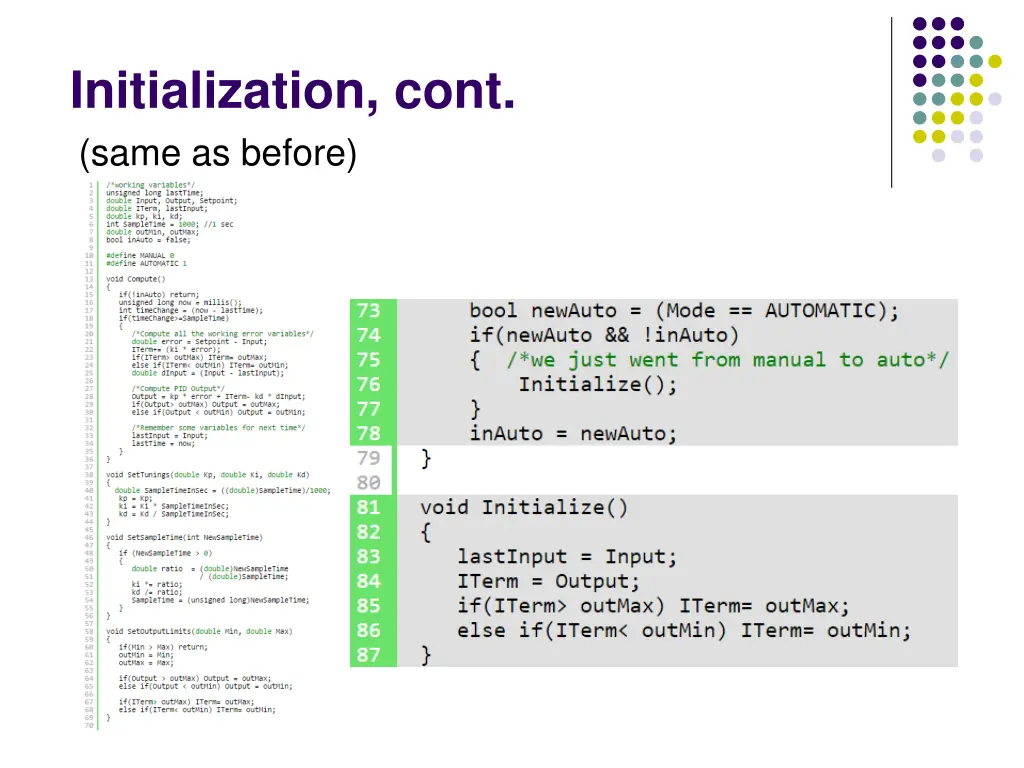

Initialization, cont. (same as before)

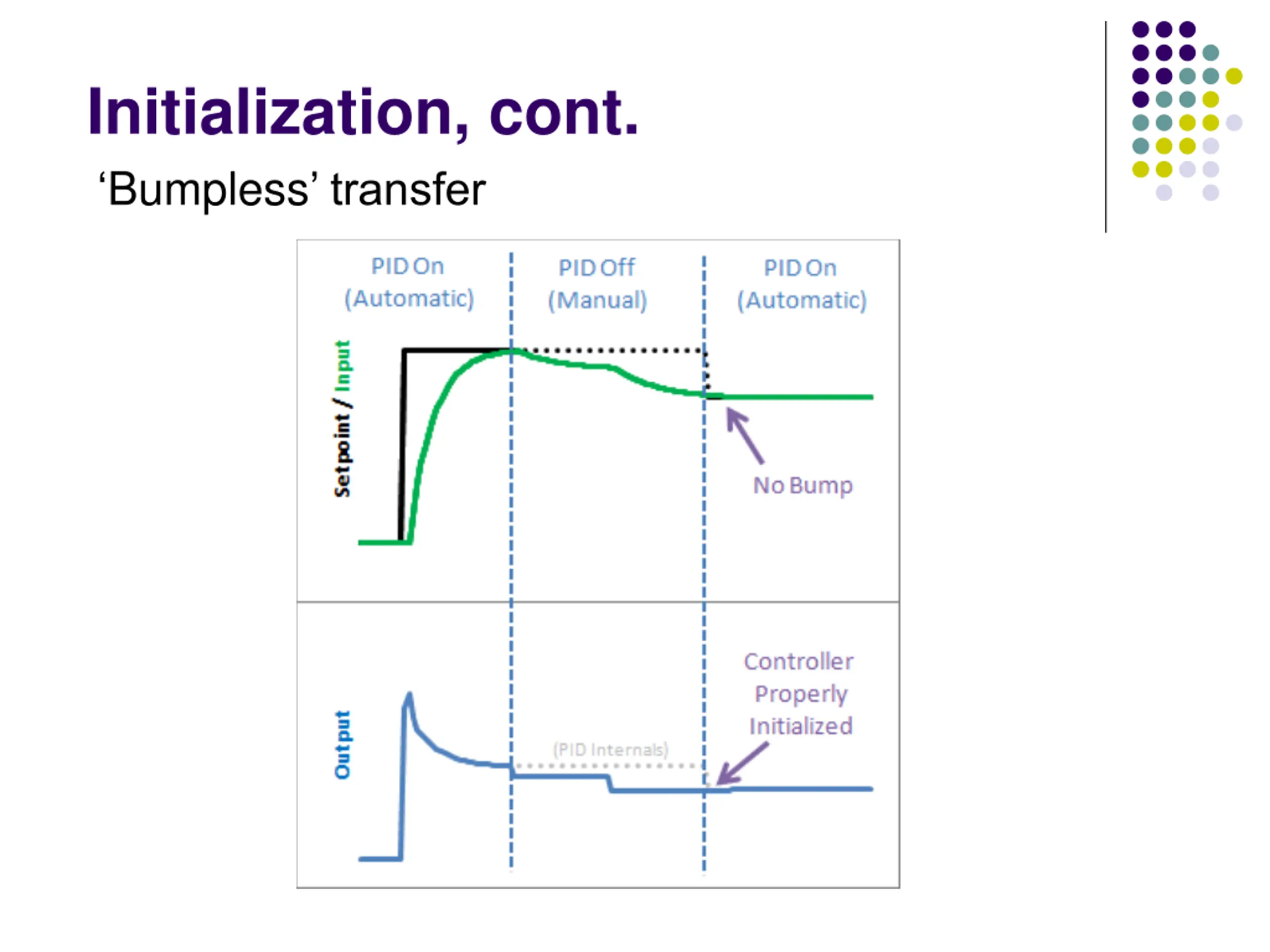

Initialization, cont. Bumpless transfer

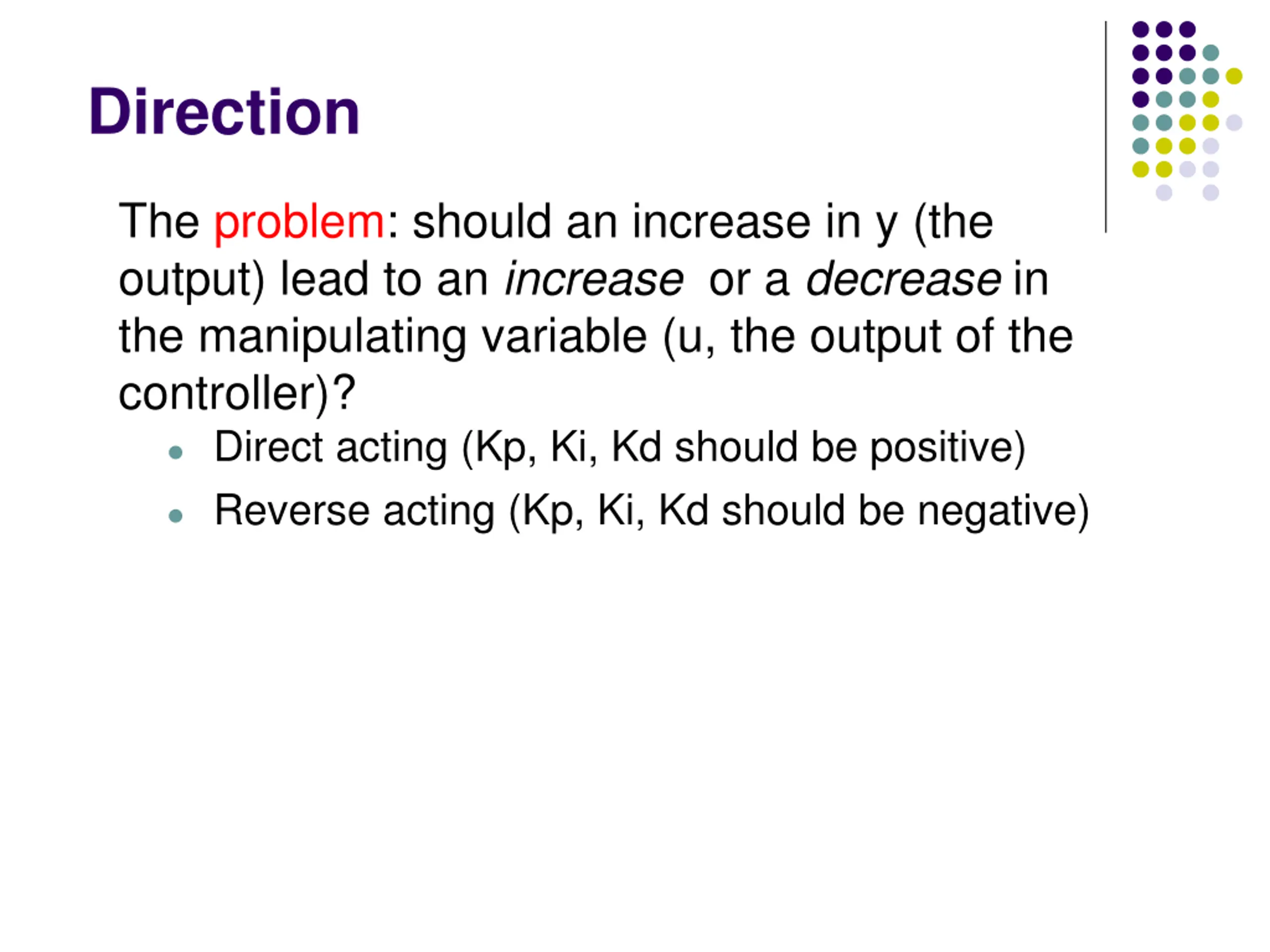

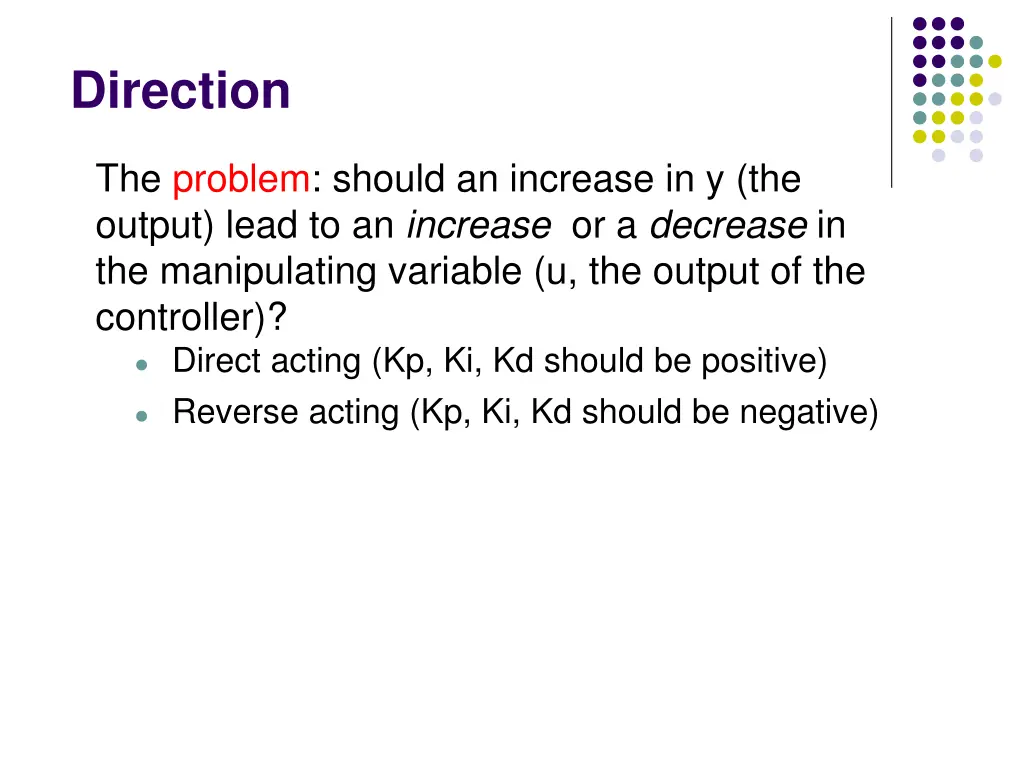

Direction The problem: should an increase in y (the output) lead to an increase or a decrease in the manipulating variable (u, the output of the controller)? Direct acting (Kp, Ki, Kd should be positive) Reverse acting (Kp, Ki, Kd should be negative)

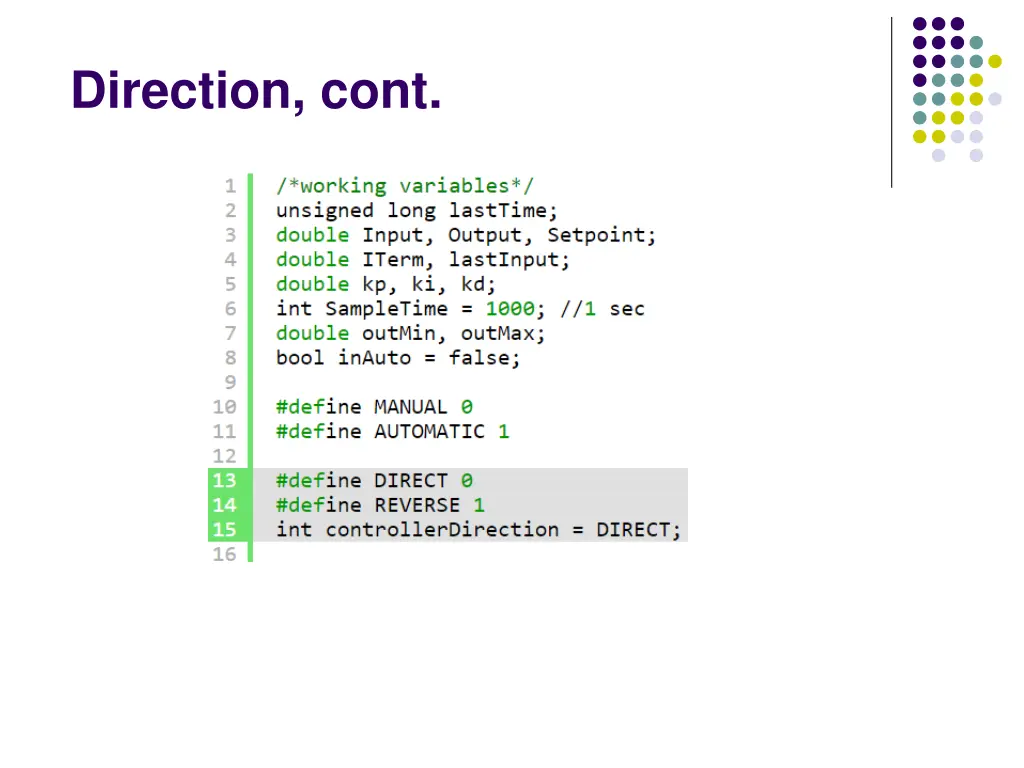

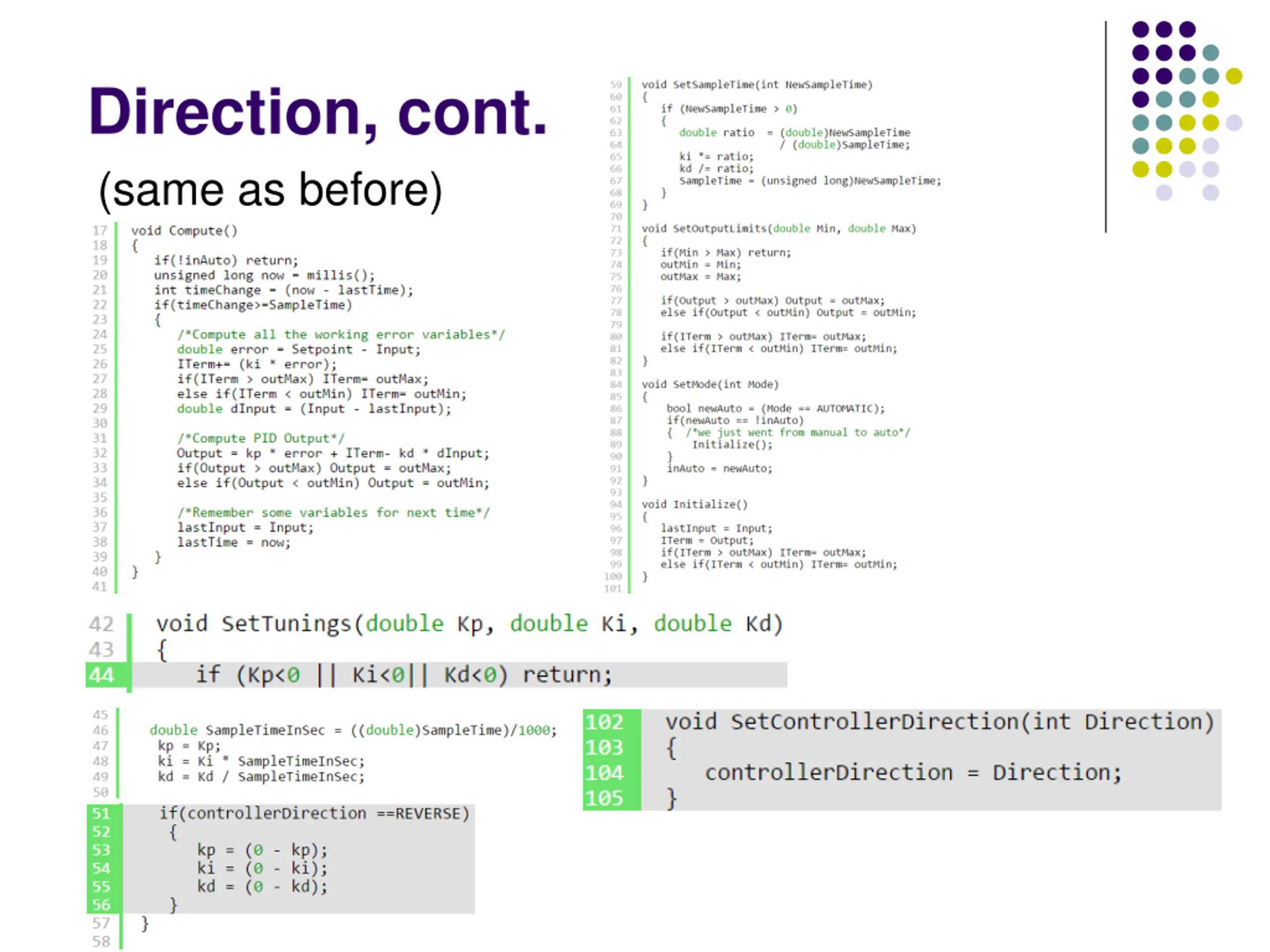

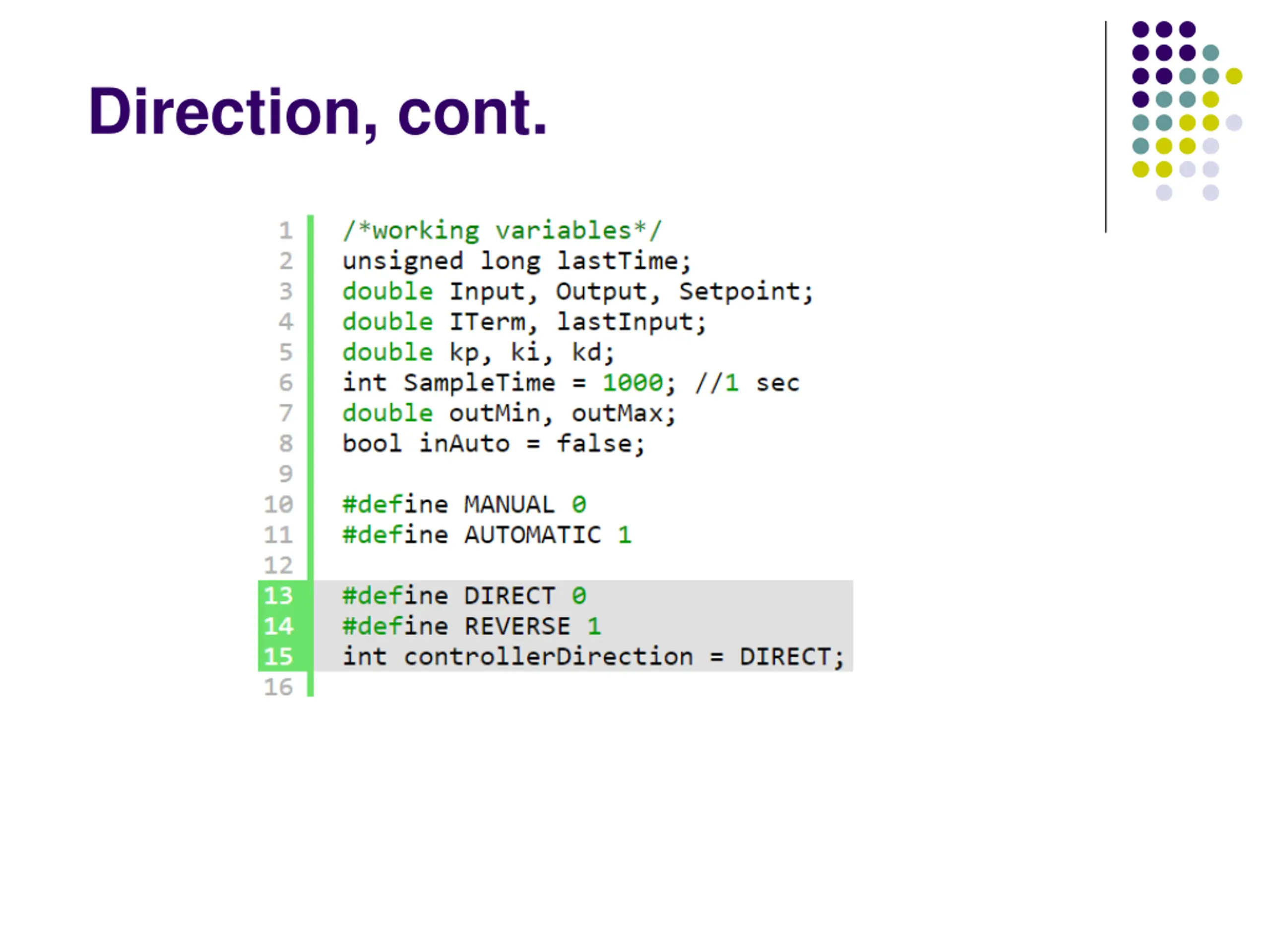

Direction, cont. (same as before)
