  1. On Abstraction Refinement for Program Analyses in Datalog Xin Zhang, Ravi Mangal, Mayur Naik Georgia Tech Radu Grigore, Hongseok Yang Oxford University

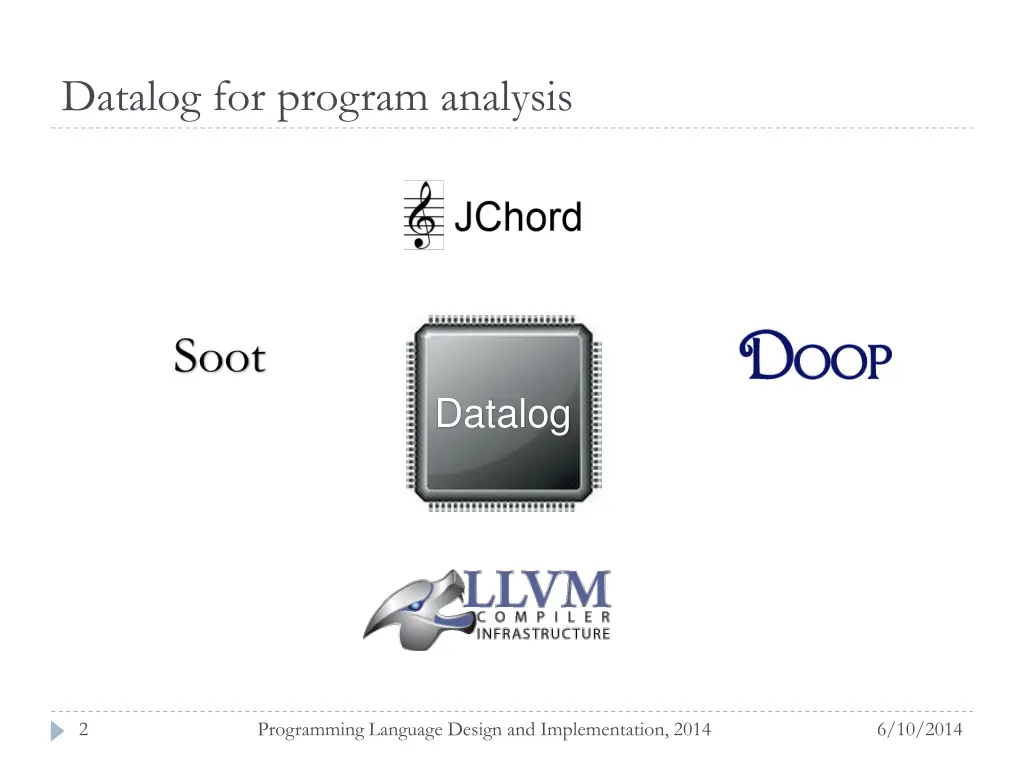

  2. Datalog for program analysis Datalog 2 Programming Language Design and Implementation, 2014 6/10/2014

  3. What is Datalog? Datalog 3 Programming Language Design and Implementation, 2014 6/10/2014

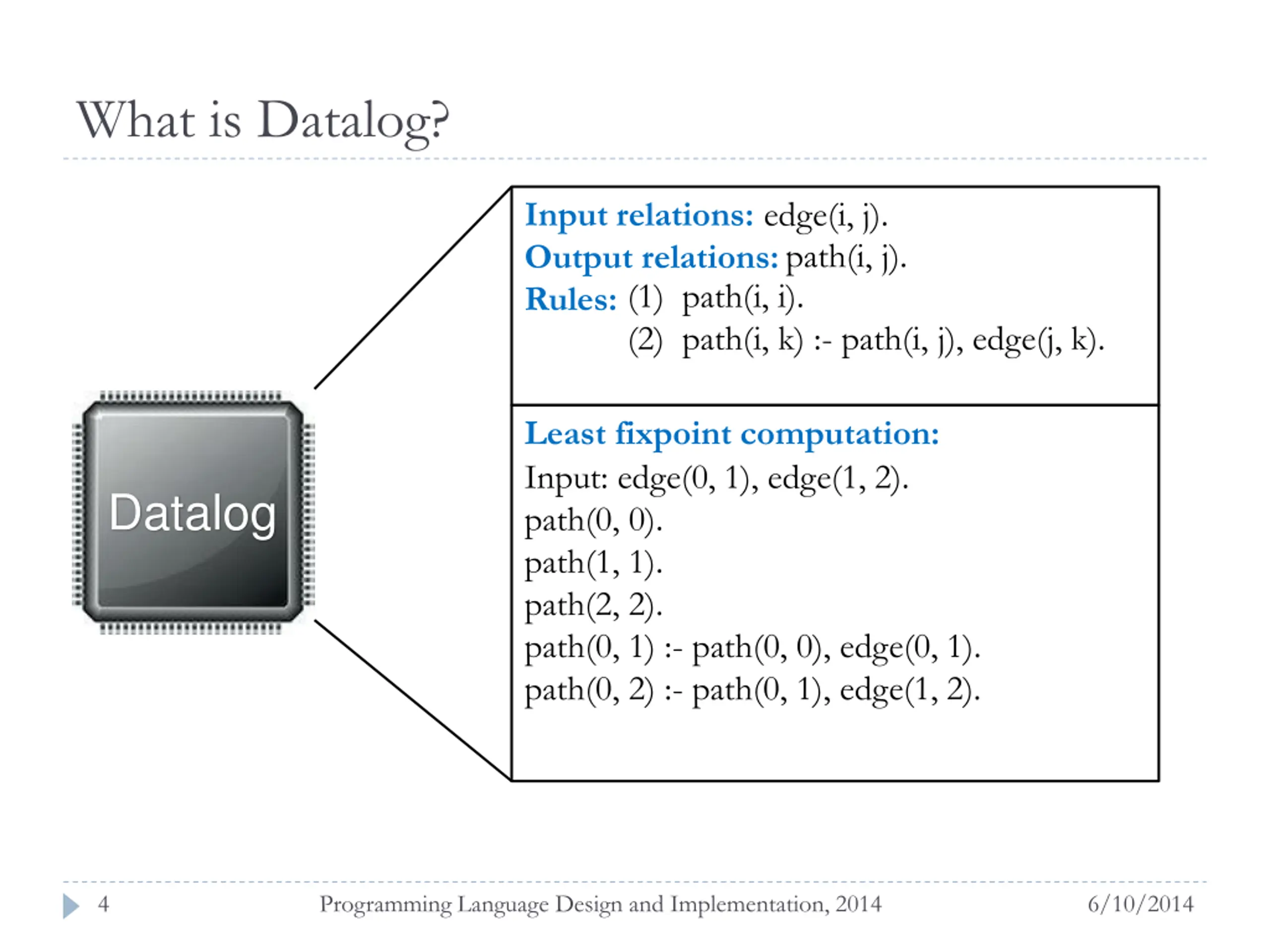

  4. What is Datalog? Input relations: Output relations: Rules: (1) path(i, i). (2) path(i, k) :- path(i, j), edge(j, k). edge(i, j). path(i, j). Least fixpoint computation: Input: edge(0, 1), edge(1, 2). path(0, 0). path(1, 1). path(2, 2). path(0, 1) :- path(0, 0), edge(0, 1). path(0, 2) :- path(0, 1), edge(1, 2). Datalog 4 Programming Language Design and Implementation, 2014 6/10/2014

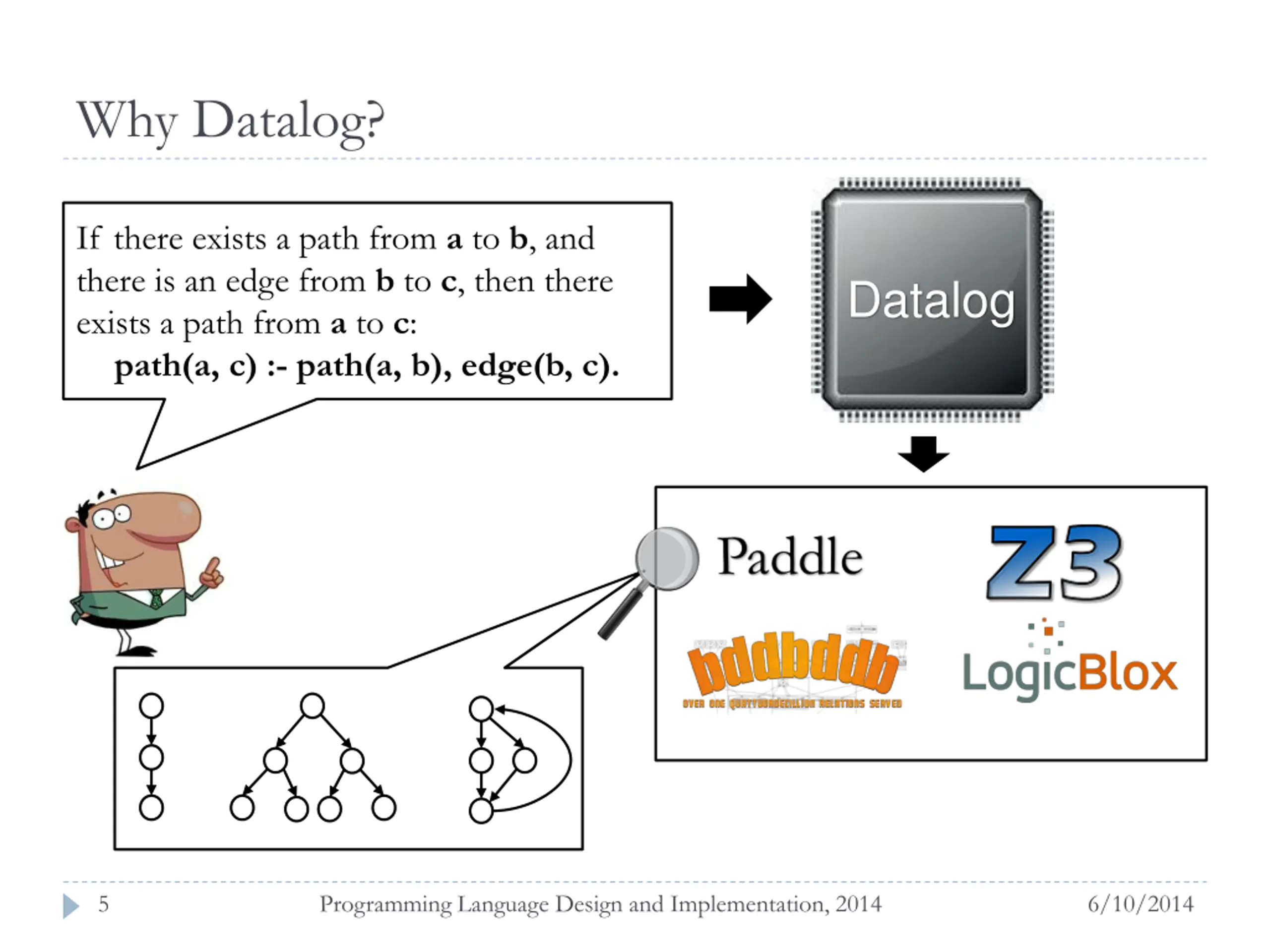

  5. Why Datalog? If there exists a path from a to b, and there is an edge from b to c, then there exists a path from a to c: path(a, c) :- path(a, b), edge(b, c). Datalog 5 Programming Language Design and Implementation, 2014 6/10/2014

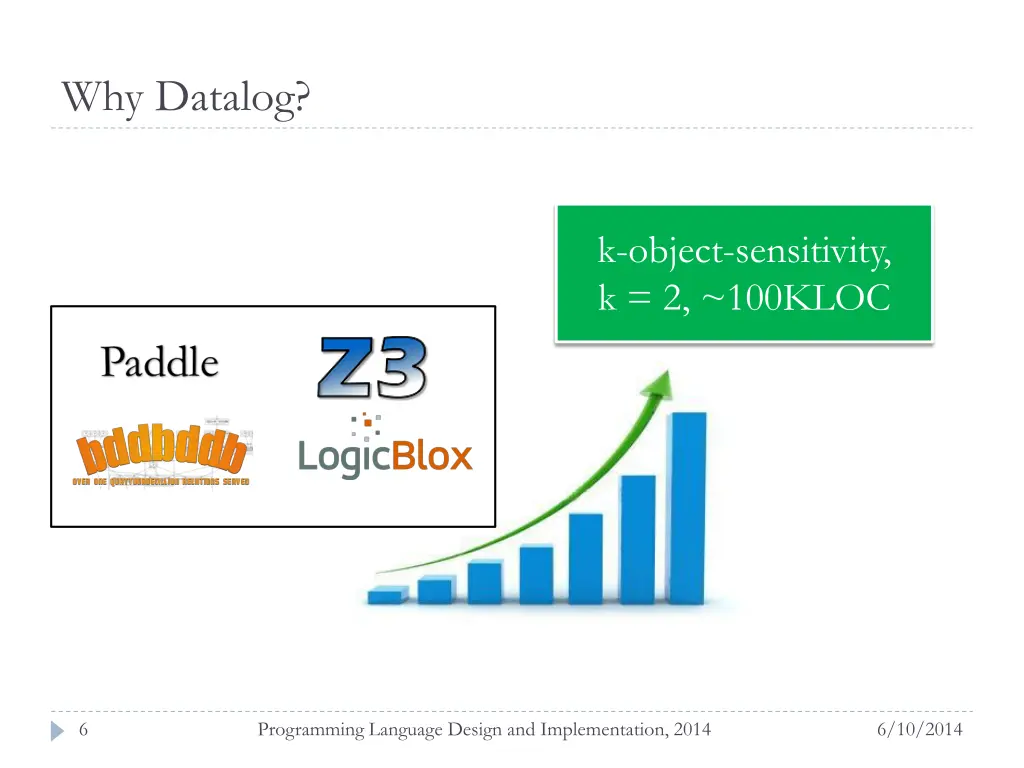

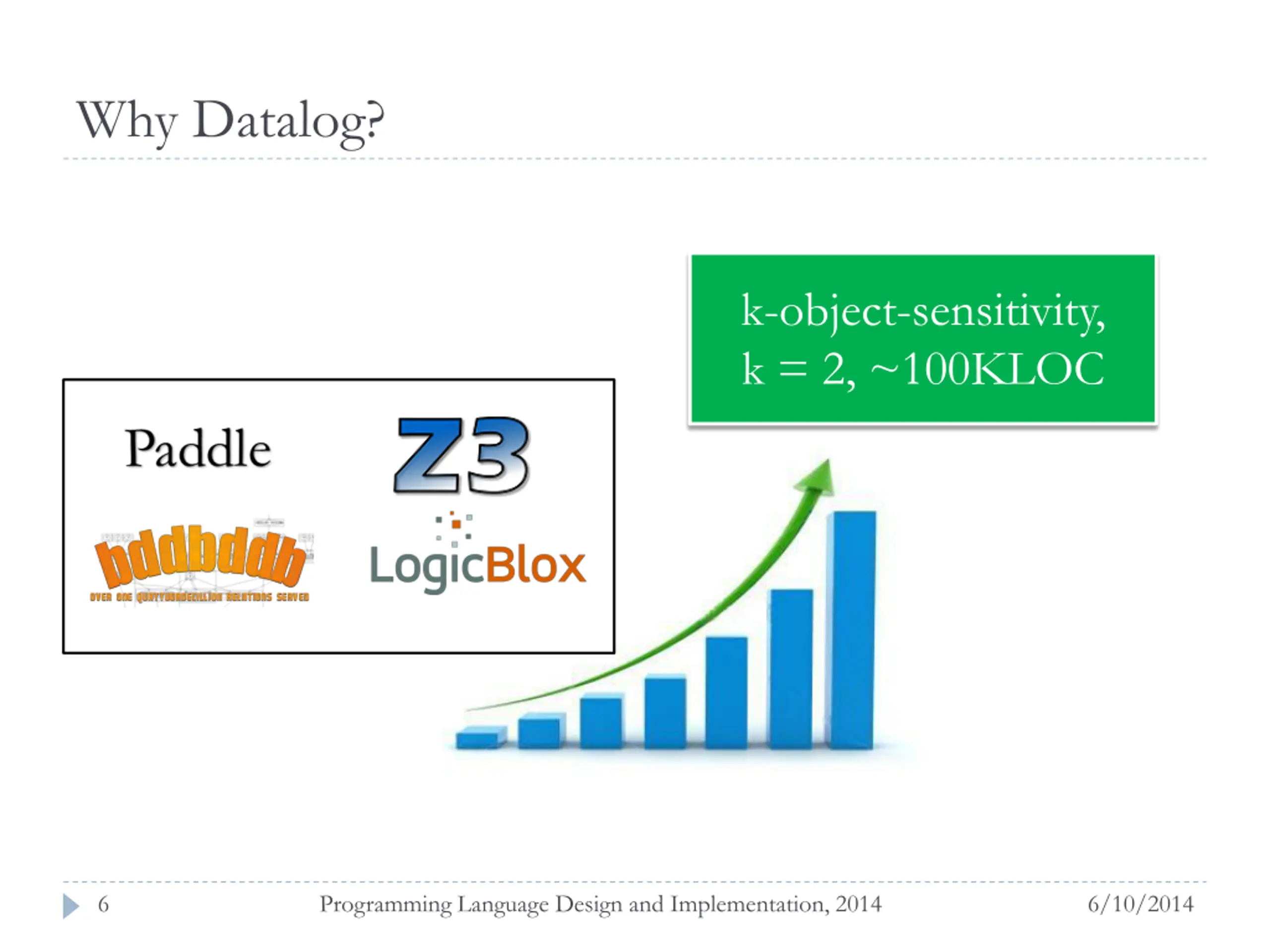

  6. Why Datalog? k-object-sensitivity, k = 2, ~100KLOC 6 Programming Language Design and Implementation, 2014 6/10/2014

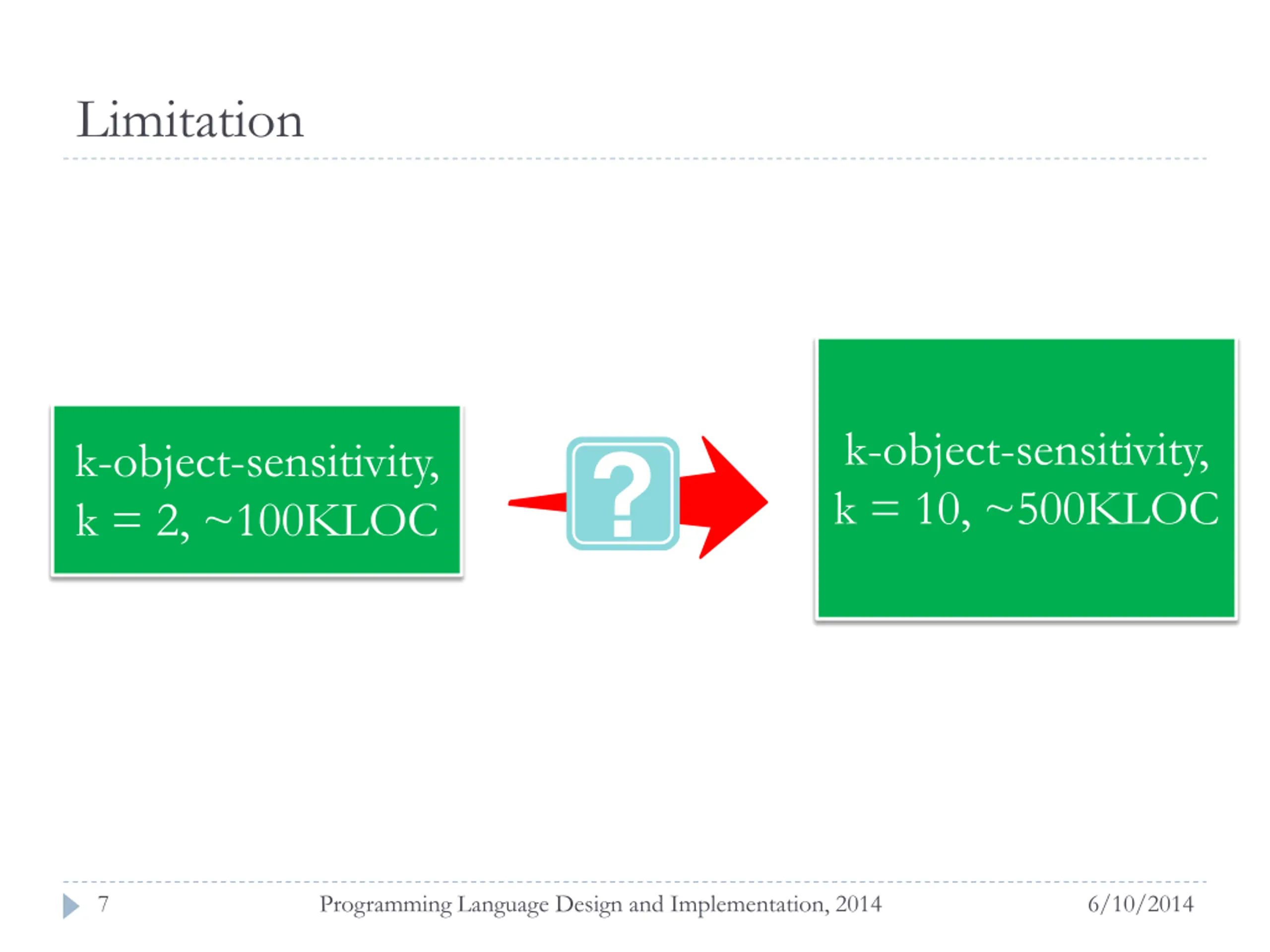

  7. Limitation k-object-sensitivity, k = 10, ~500KLOC k-object-sensitivity, k = 2, ~100KLOC 7 Programming Language Design and Implementation, 2014 6/10/2014

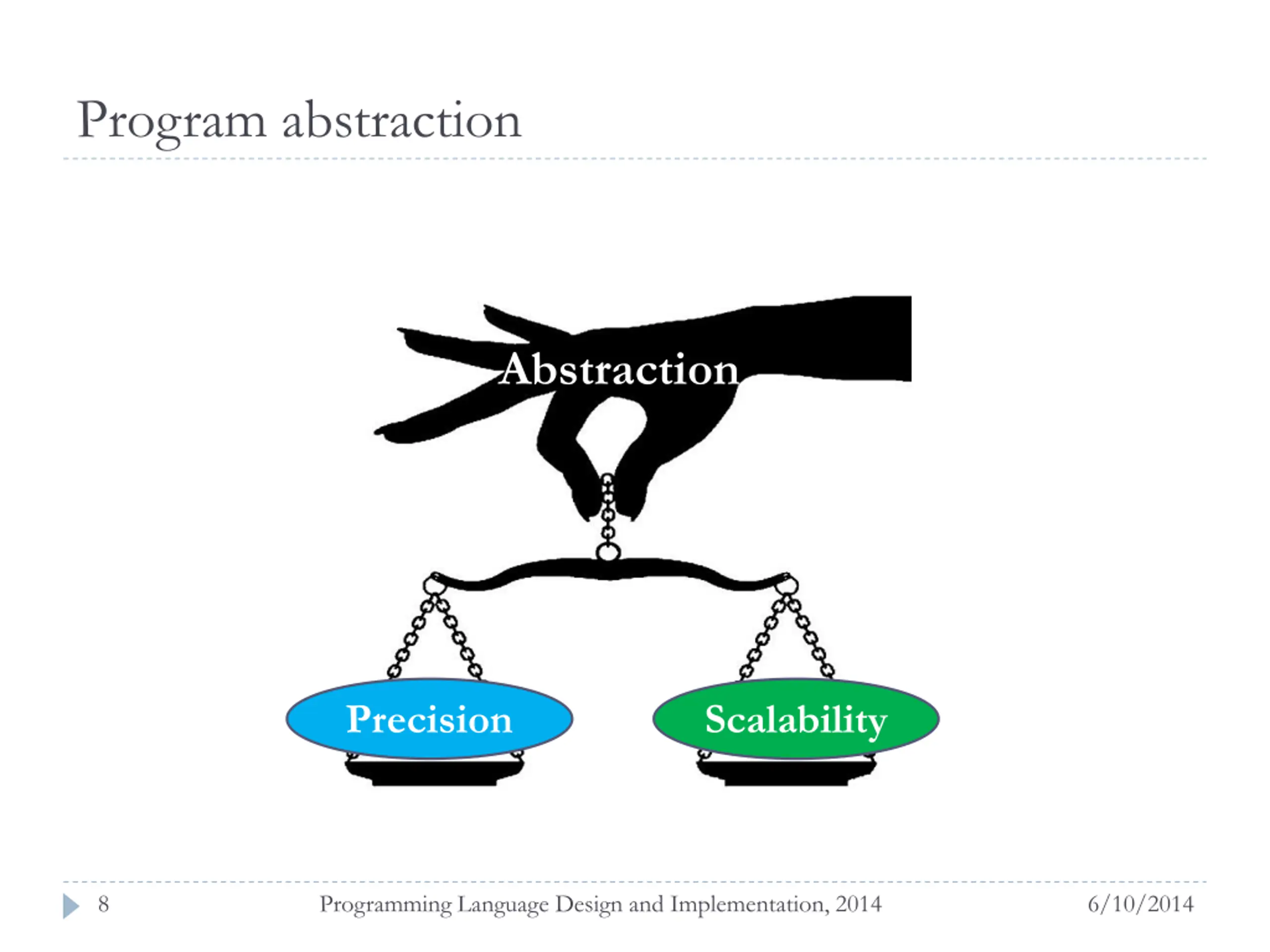

  8. Program abstraction Abstraction Precision Scalability 8 Programming Language Design and Implementation, 2014 6/10/2014

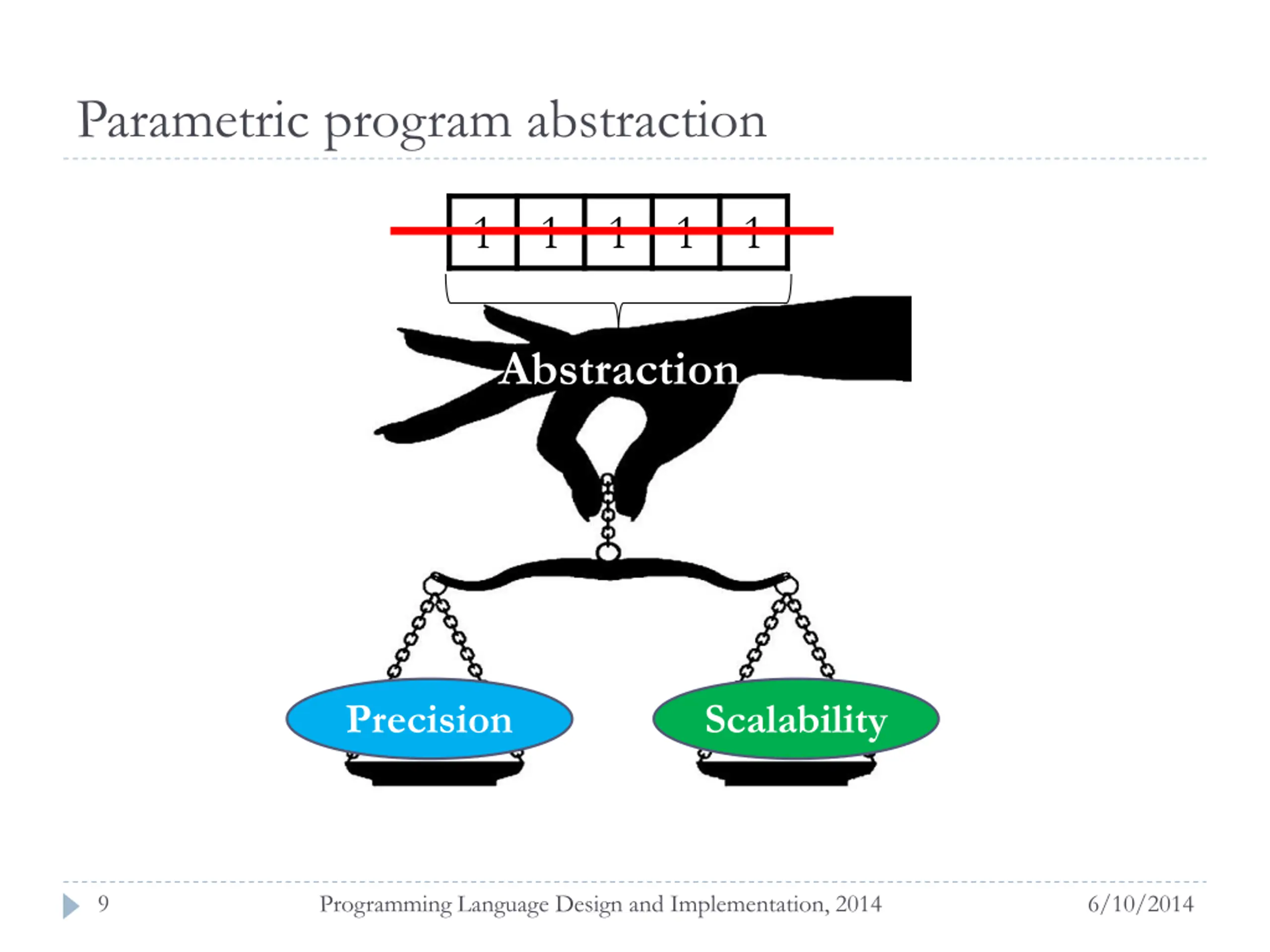

  9. Parametric program abstraction 1 1 1 1 1 Abstraction Precision Scalability 9 Programming Language Design and Implementation, 2014 6/10/2014

  10. Parametric program abstraction 1 0 1 1 0 Abstraction Precision Scalability 10 Programming Language Design and Implementation, 2014 6/10/2014

  11. Parametric program abstraction: Example 1 Cloning depth K for each call site and allocation site 1 0 1 1 0 Pointer Analysis 11 Programming Language Design and Implementation, 2014 6/10/2014

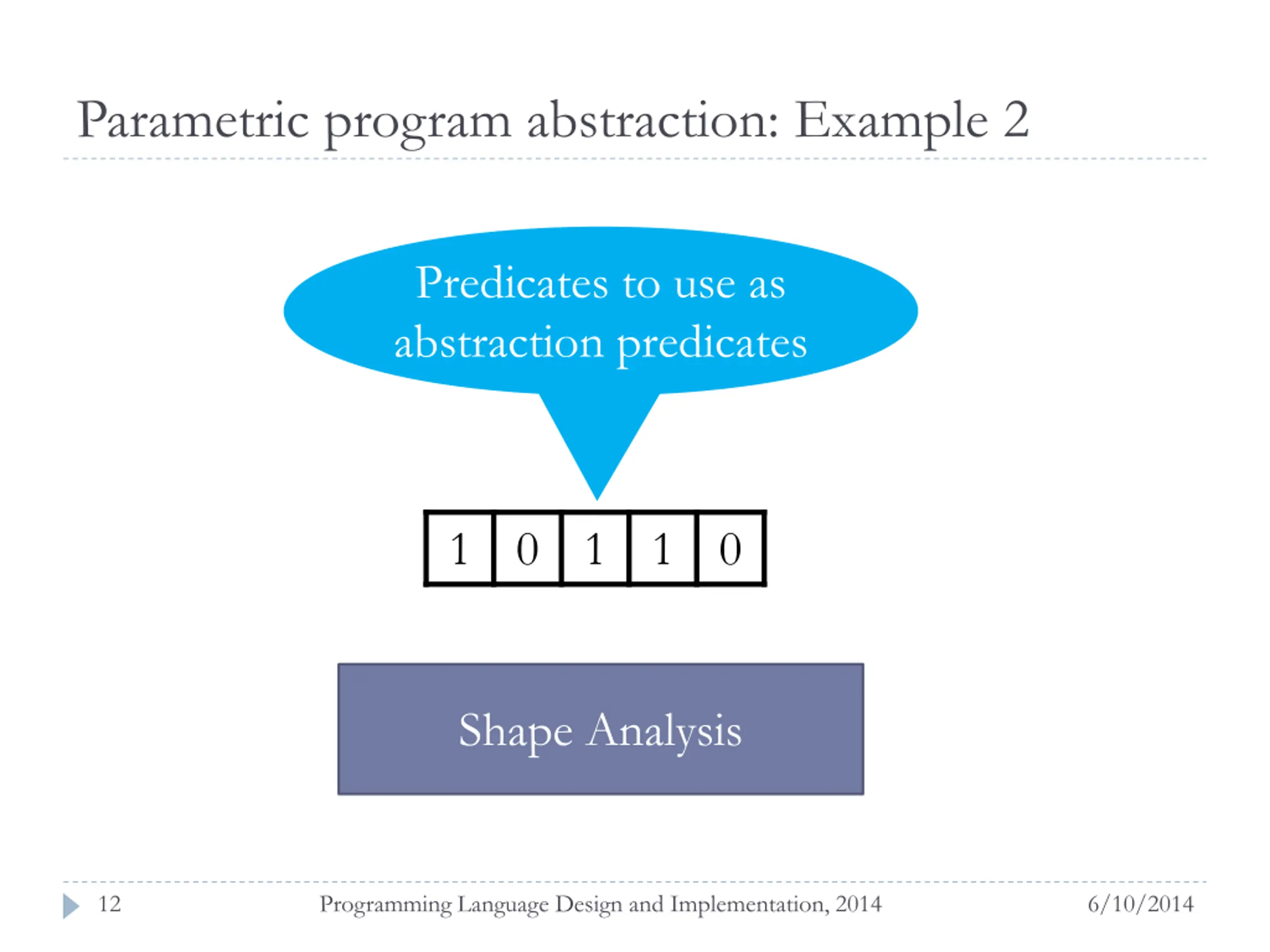

  12. Parametric program abstraction: Example 2 Predicates to use as abstraction predicates 1 0 1 1 0 Shape Analysis 12 Programming Language Design and Implementation, 2014 6/10/2014

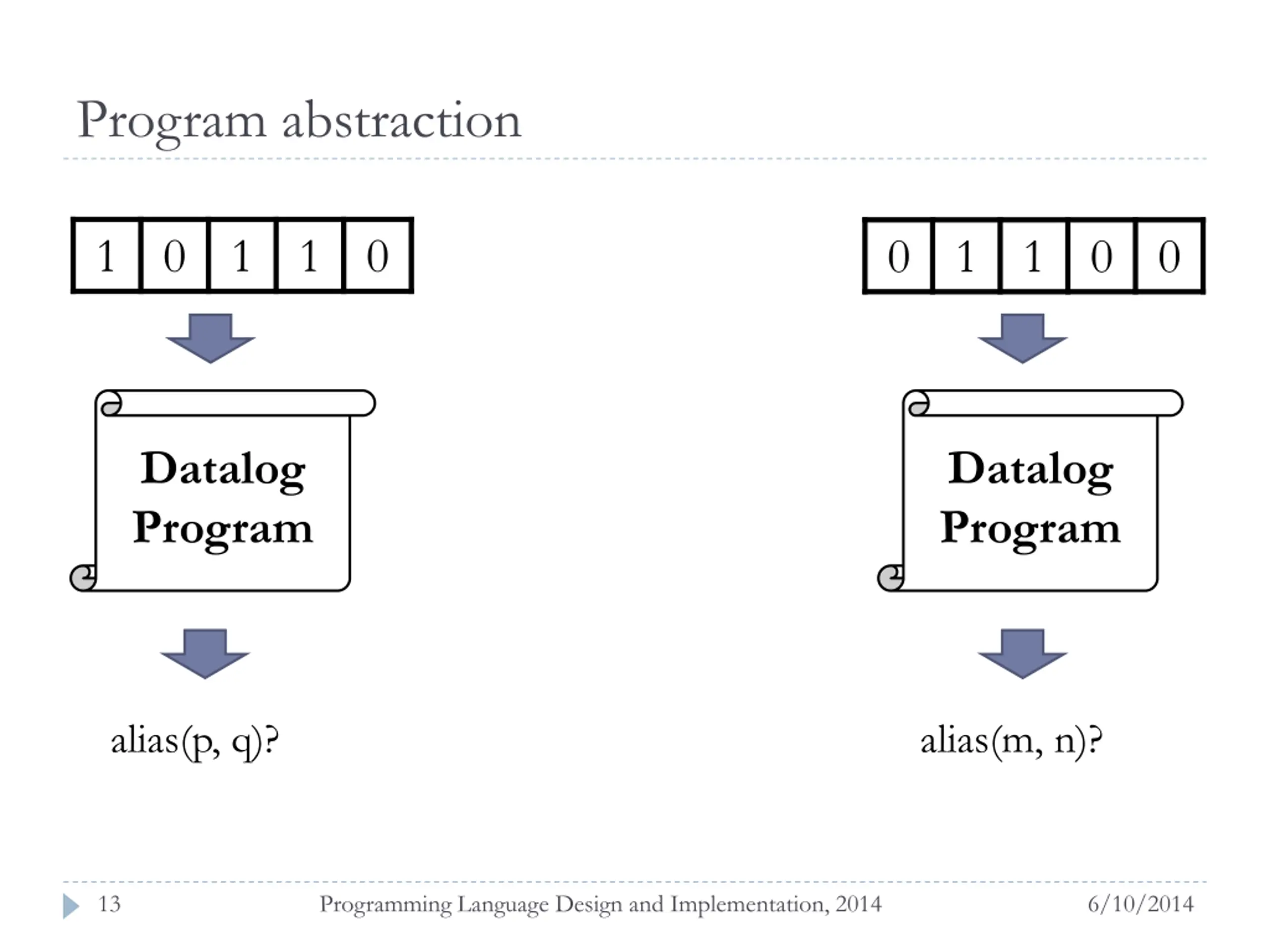

  13. Program abstraction 1 0 1 1 0 0 1 1 0 0 Datalog Program Datalog Program alias(p, q)? alias(m, n)? 13 Programming Language Design and Implementation, 2014 6/10/2014

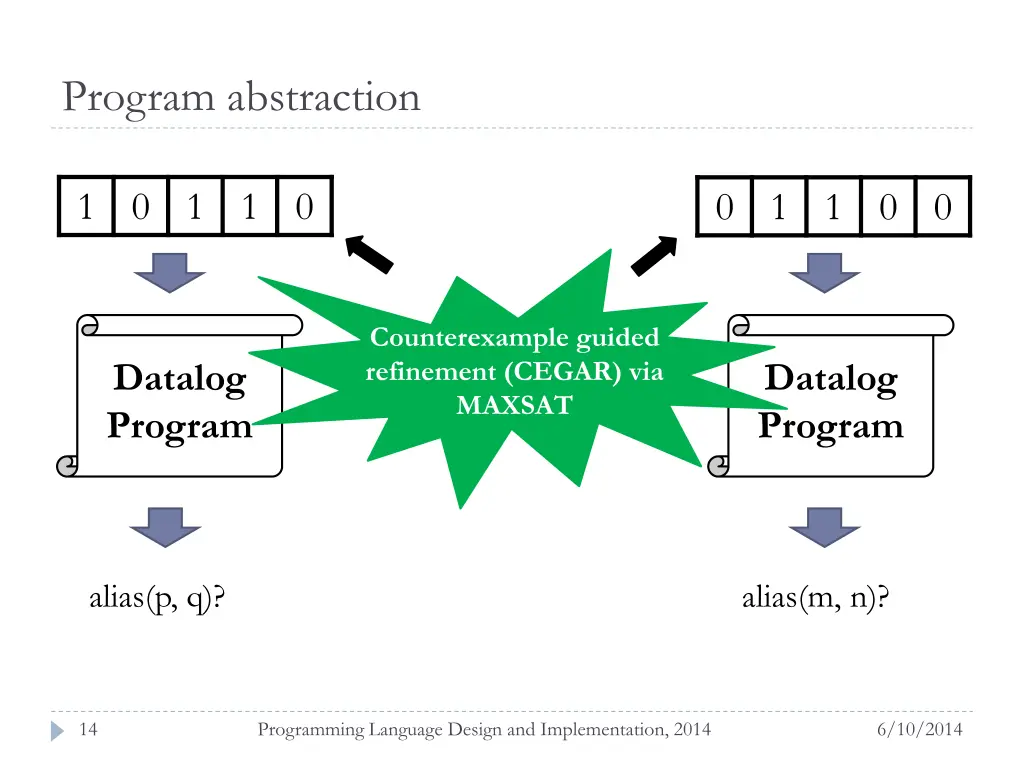

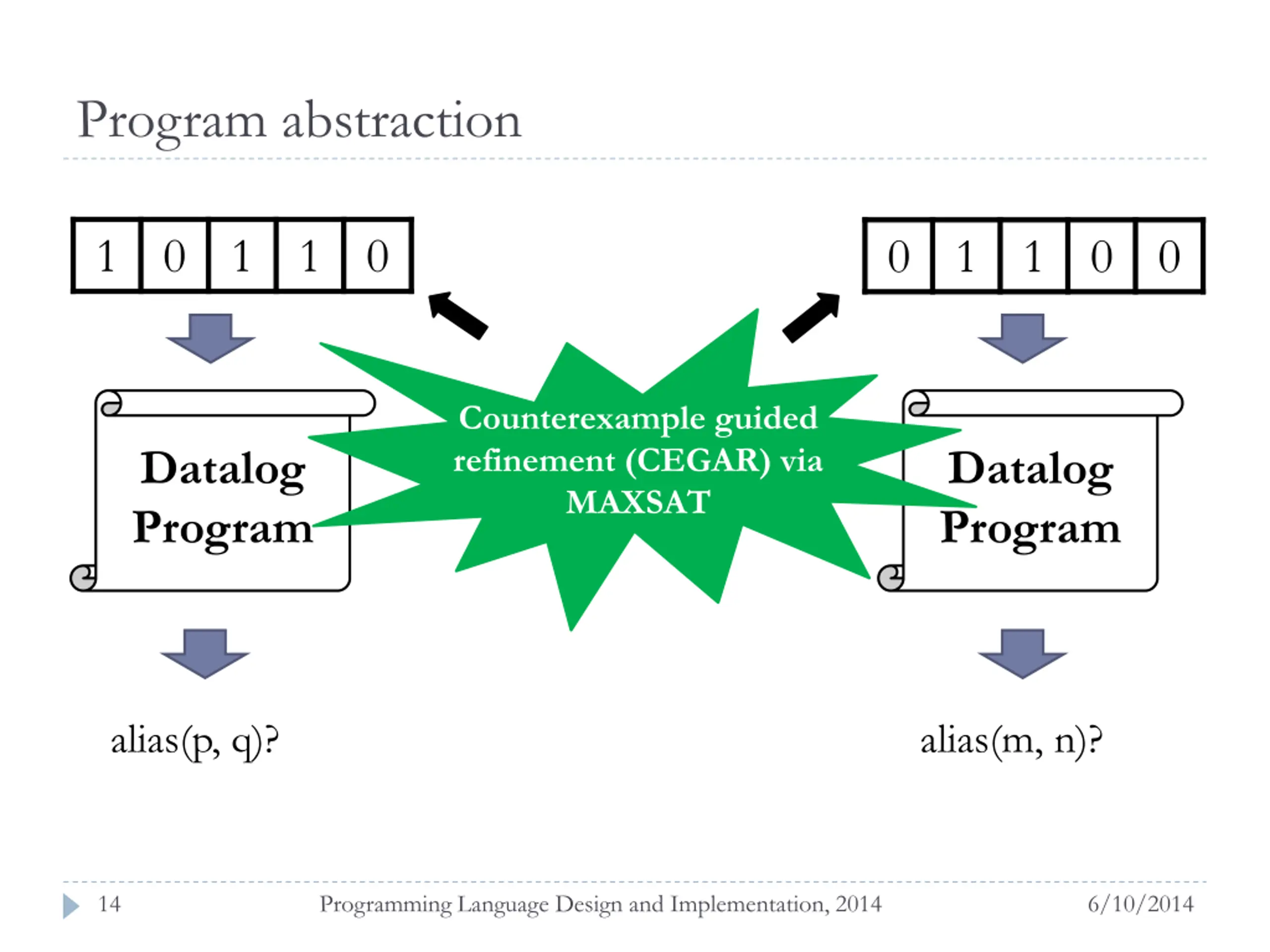

  14. Program abstraction 1 0 1 1 0 0 1 1 0 0 Counterexample guided refinement (CEGAR) via MAXSAT Datalog Program Datalog Program alias(p, q)? alias(m, n)? 14 Programming Language Design and Implementation, 2014 6/10/2014

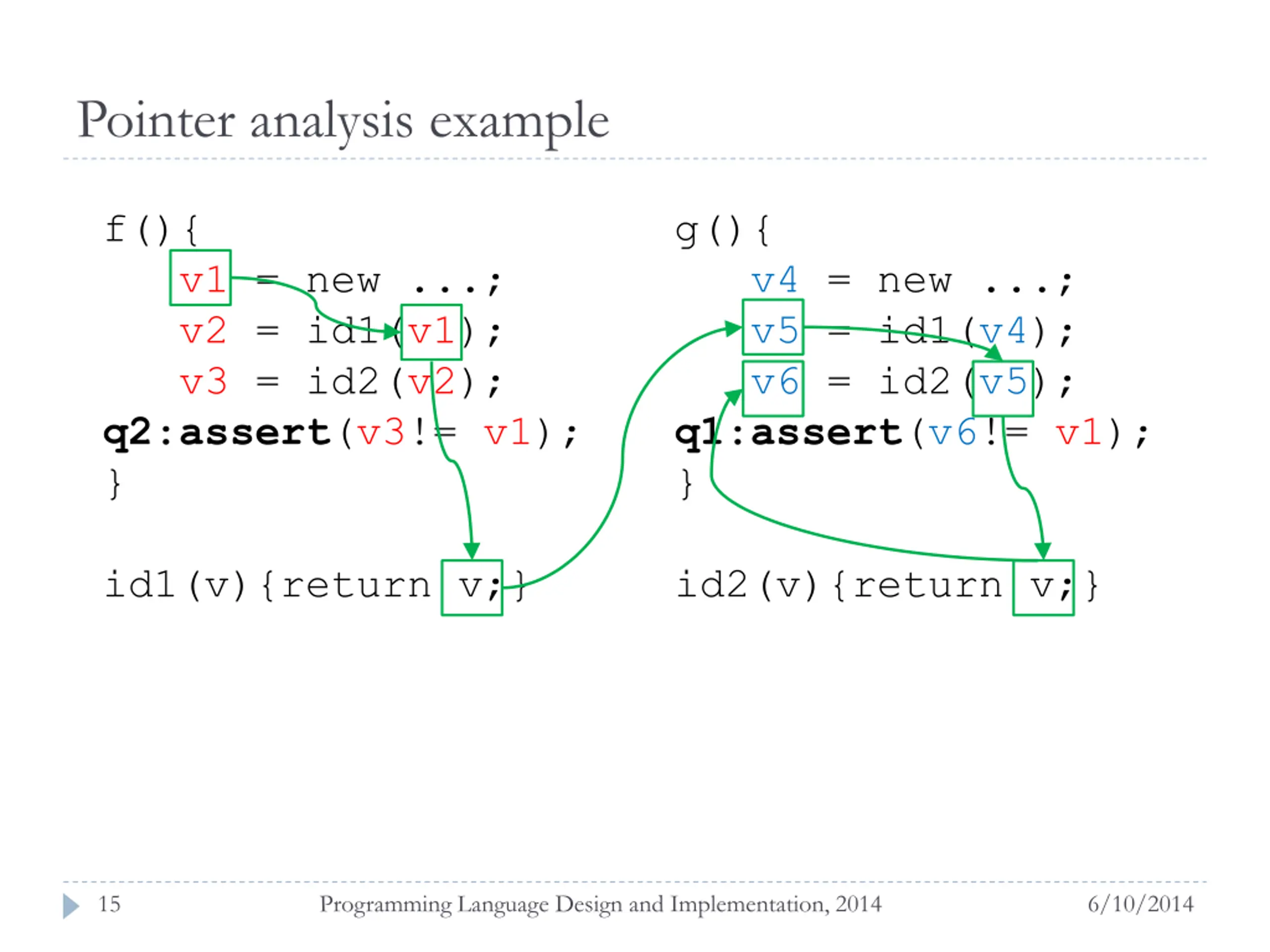

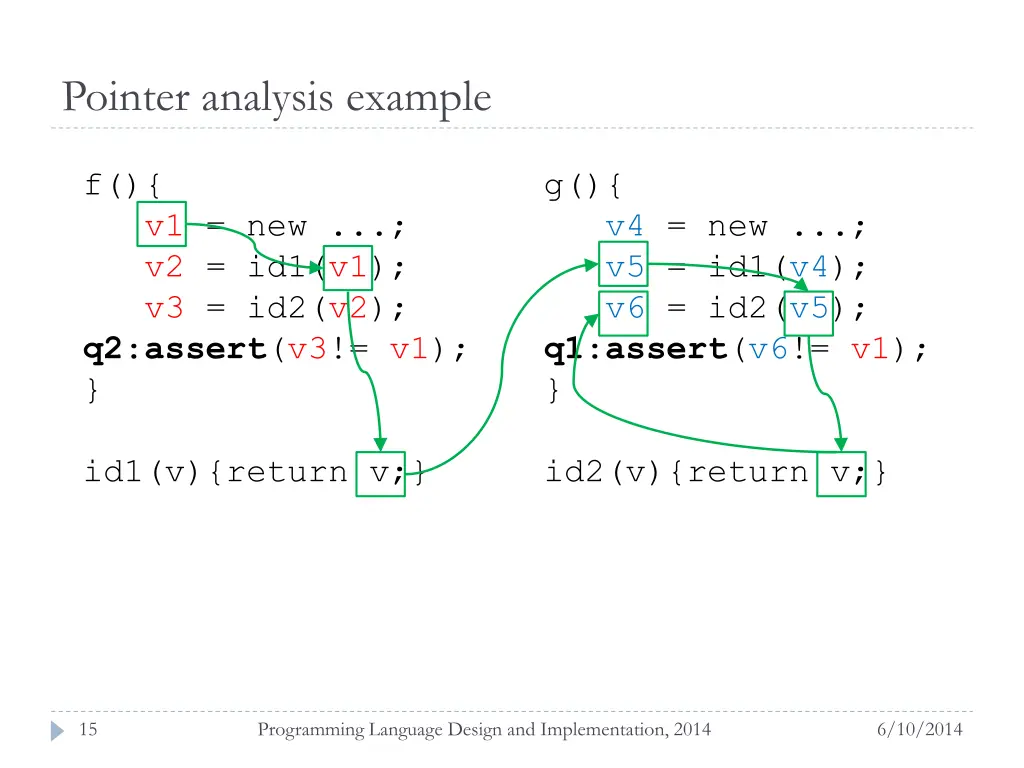

  15. Pointer analysis example f(){ v2 = id1(v1); v3 = id2(v2); q2:assert(v3!= v1); } g(){ v5 = id1(v4); v6 = id2(v5); q1:assert(v6!= v1); } v1 = new ...; v4 = new ...; id1(v){return v;} id2(v){return v;} 15 Programming Language Design and Implementation, 2014 6/10/2014

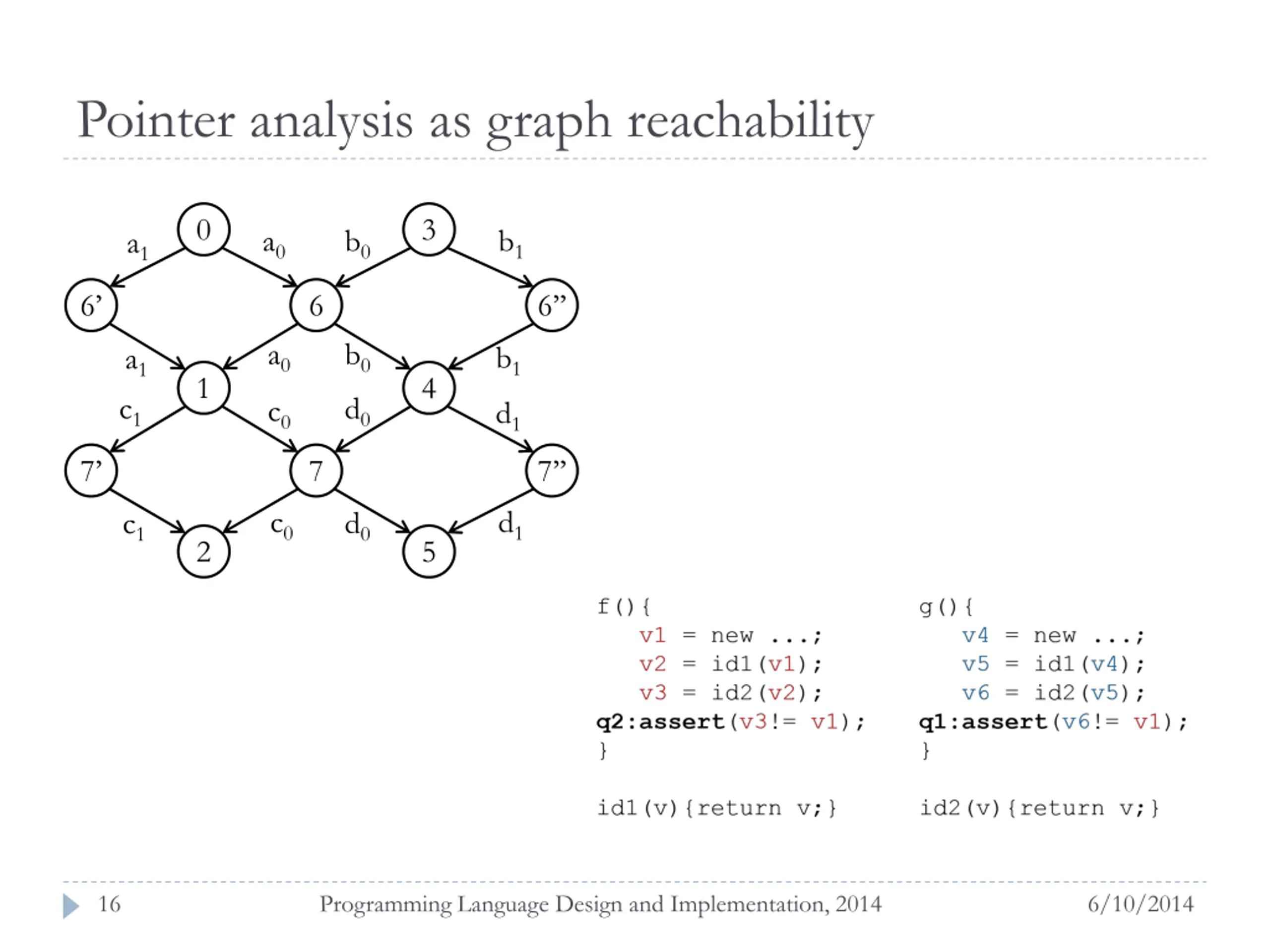

  16. Pointer analysis as graph reachability 0 3 a0 b0 b1 a1 6 6 6 a0 b0 b1 a1 1 4 c1 d0 c0 d1 7 7 7 c0 d1 d0 c1 2 5 16 Programming Language Design and Implementation, 2014 6/10/2014

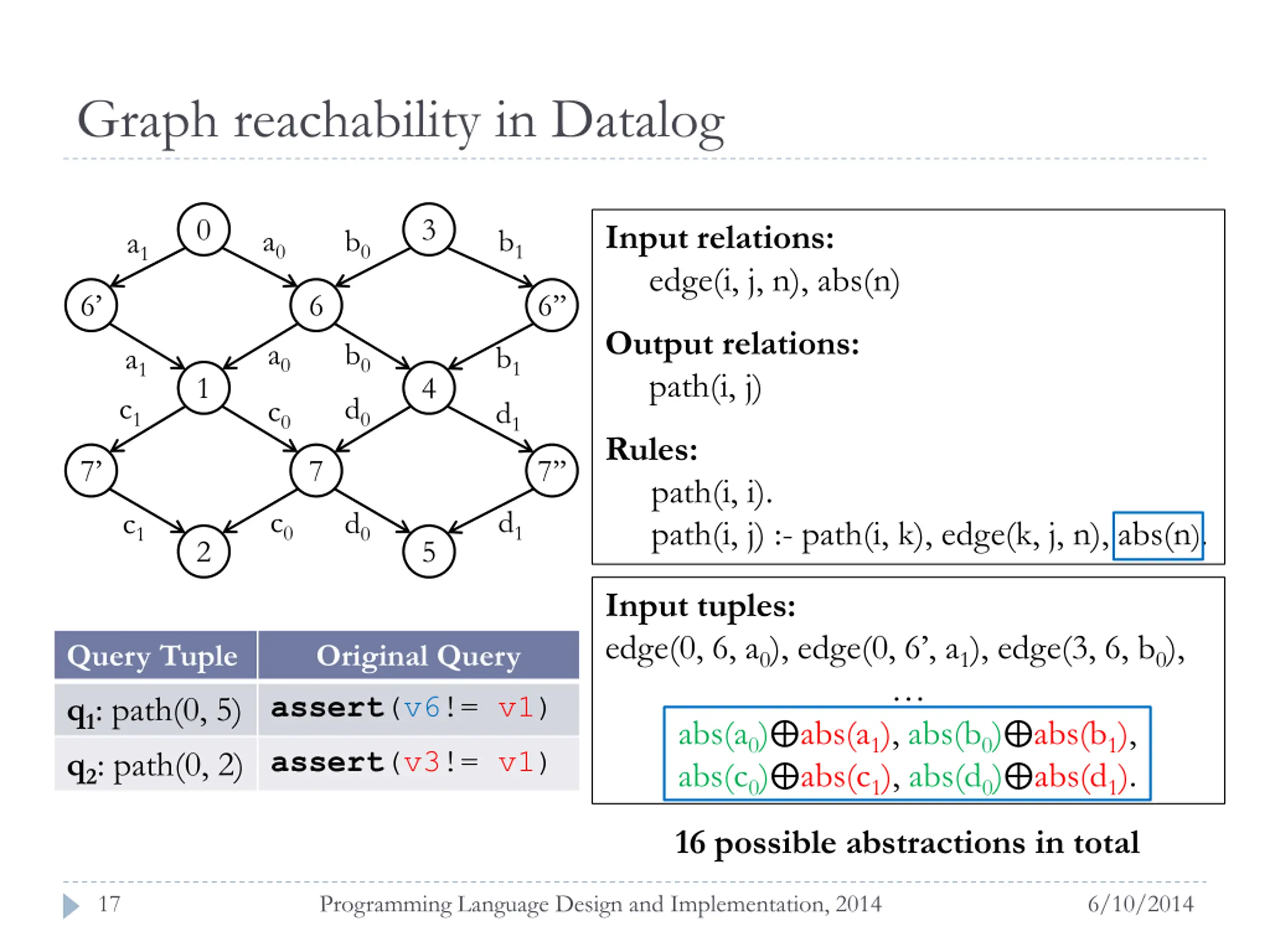

  17. Graph reachability in Datalog 0 3 Input relations: edge(i, j, n), abs(n) a0 b0 b1 a1 6 6 6 Output relations: path(i, j) a0 b0 b1 a1 1 4 c1 d0 c0 d1 Rules: (1) path(i, i). (2) path(i, j) :- path(i, k), edge(k, j, n), abs(n). 7 7 7 c0 d1 d0 c1 2 5 Input tuples: edge(0, 6, a0), edge(0, 6 , a1), edge(3, 6, b0), abs(a0) abs(a1), abs(b0) abs(b1), abs(c0) abs(c1), abs(d0) abs(d1). Query Tuple q1: path(0, 5) assert(v6!= v1) q2: path(0, 2) assert(v3!= v1) Original Query 16 possible abstractions in total 17 Programming Language Design and Implementation, 2014 6/10/2014

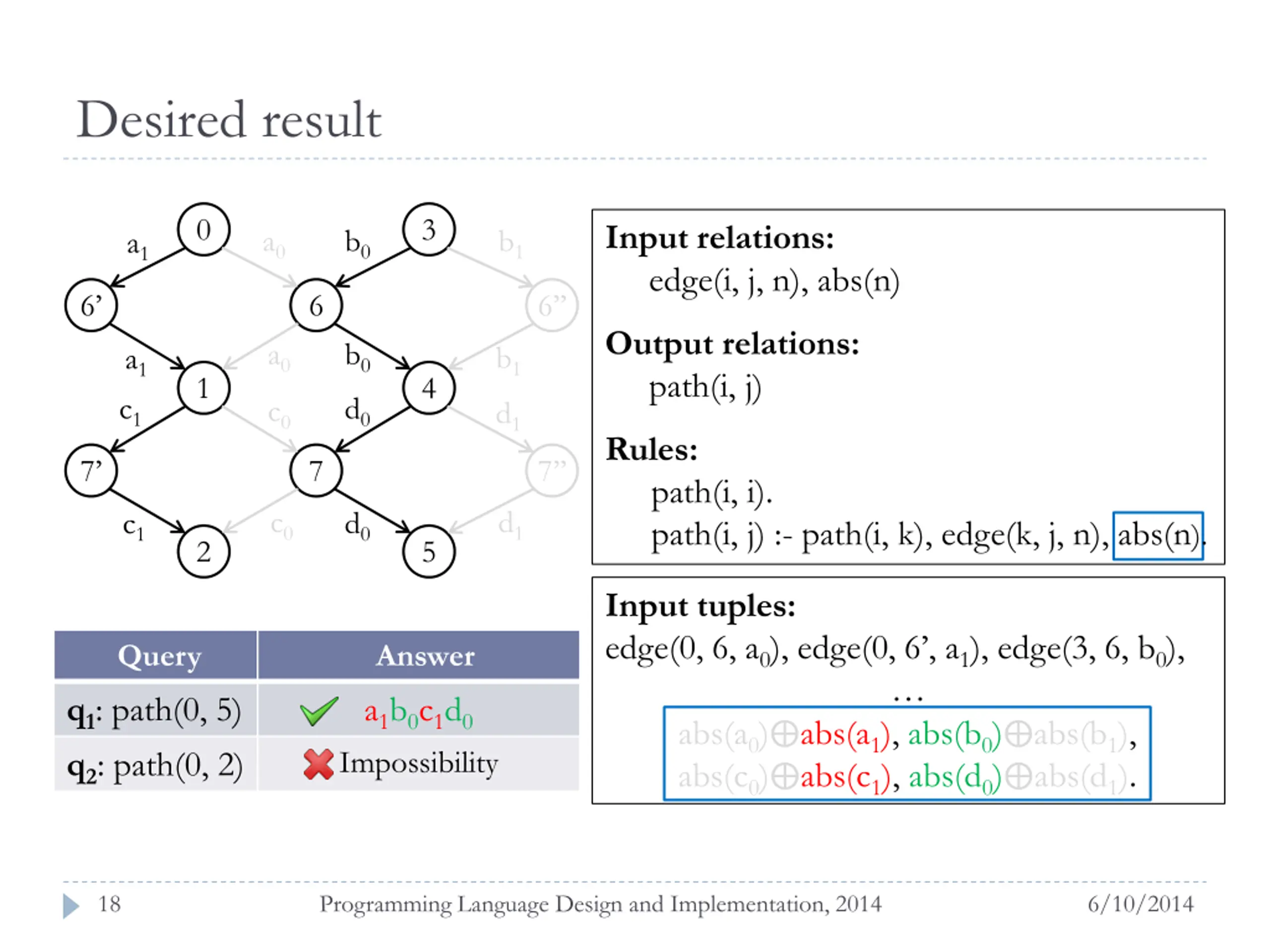

  18. Desired result 0 3 Input relations: edge(i, j, n), abs(n) a0 b0 b1 a1 6 6 6 Output relations: path(i, j) a0 b0 b1 a1 1 4 c1 d0 c0 d1 Rules: (1) path(i, i). (2) path(i, j) :- path(i, k), edge(k, j, n), abs(n). 7 7 7 c0 d1 d0 c1 2 5 Input tuples: edge(0, 6, a0), edge(0, 6 , a1), edge(3, 6, b0), abs(a0) abs(a1), abs(b0) abs(b1), abs(c0) abs(c1), abs(d0) abs(d1). Query Answer a1b0c1d0 Impossibility q1: path(0, 5) q2: path(0, 2) 18 Programming Language Design and Implementation, 2014 6/10/2014

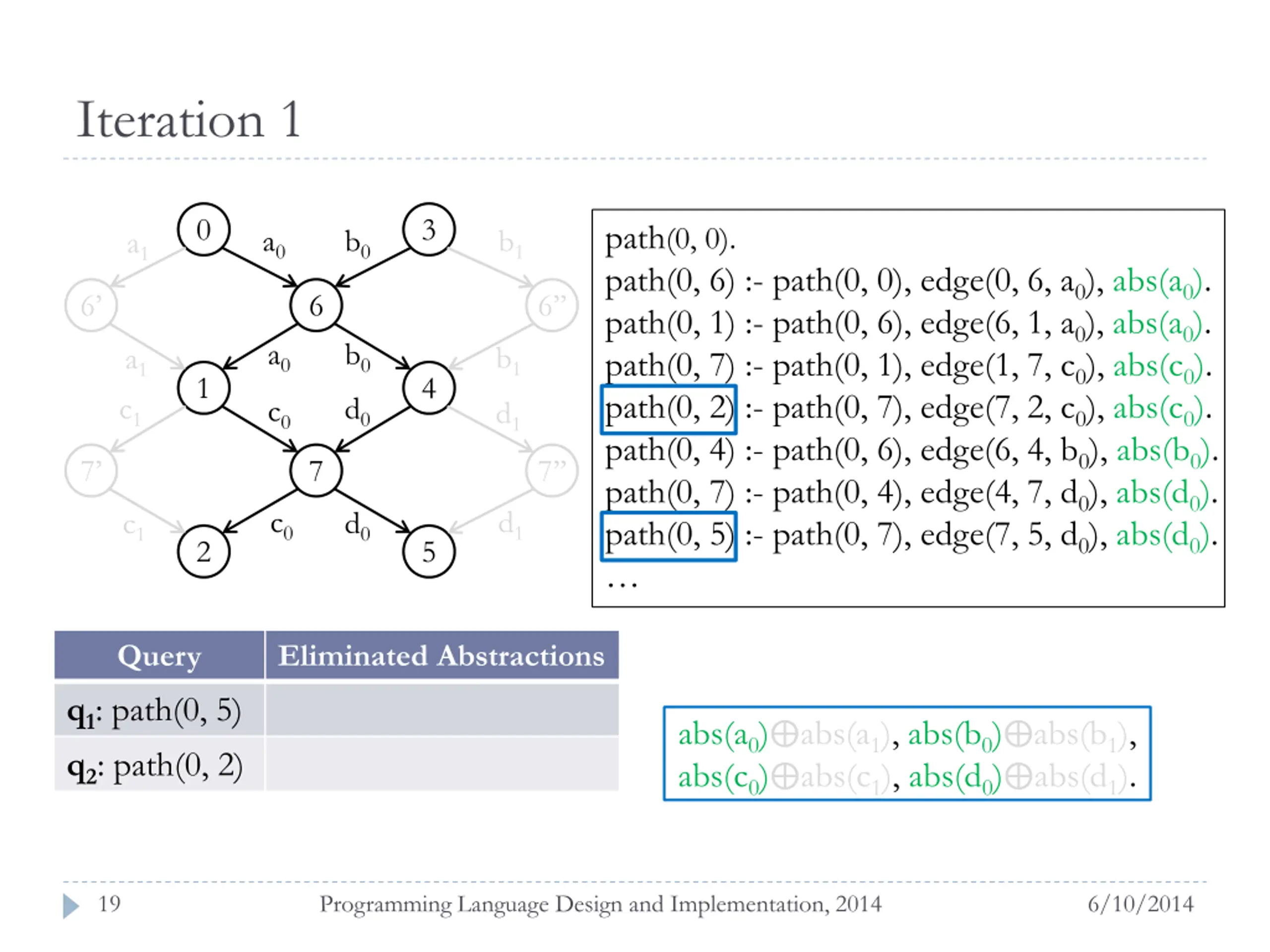

  19. Iteration 1 0 3 path(0, 0). path(0, 6) :- path(0, 0), edge(0, 6, a0), abs(a0). path(0, 1) :- path(0, 6), edge(6, 1, a0), abs(a0). path(0, 7) :- path(0, 1), edge(1, 7, c0), abs(c0). path(0, 2) :- path(0, 7), edge(7, 2, c0), abs(c0). path(0, 4) :- path(0, 6), edge(6, 4, b0), abs(b0). path(0, 7) :- path(0, 4), edge(4, 7, d0), abs(d0). path(0, 5) :- path(0, 7), edge(7, 5, d0), abs(d0). a0 b0 b1 a1 6 6 6 a0 b0 b1 a1 1 4 c1 d0 c0 d1 7 7 7 c0 d1 d0 c1 2 5 Query Eliminated Abstractions q1: path(0, 5) q2: path(0, 2) abs(a0) abs(a1), abs(b0) abs(b1), abs(c0) abs(c1), abs(d0) abs(d1). 19 Programming Language Design and Implementation, 2014 6/10/2014

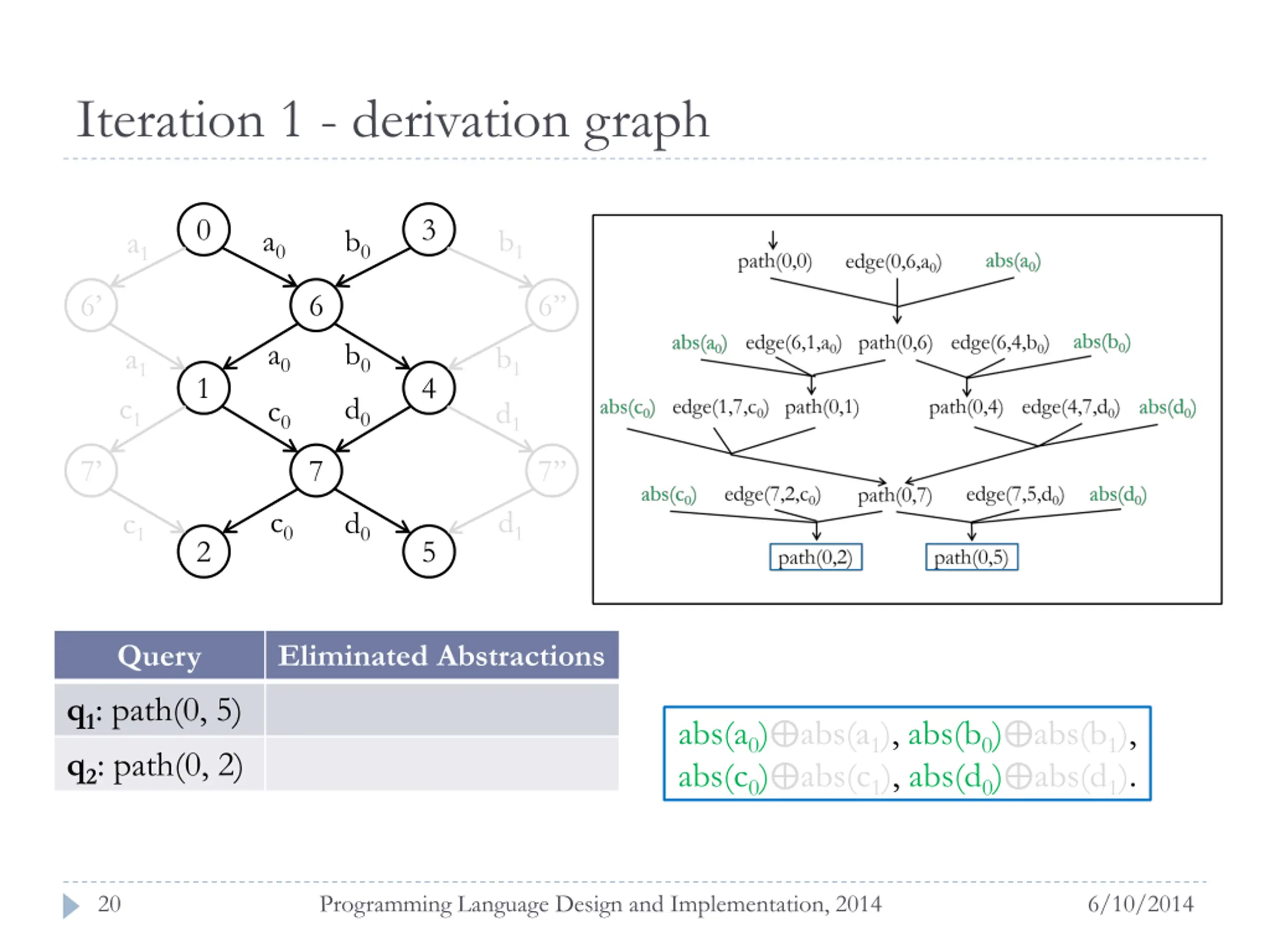

  20. Iteration 1 - derivation graph 0 3 a0 b0 b1 a1 6 6 6 a0 b0 b1 a1 1 4 c1 d0 c0 d1 7 7 7 c0 d1 d0 c1 2 5 Query Eliminated Abstractions q1: path(0, 5) q2: path(0, 2) abs(a0) abs(a1), abs(b0) abs(b1), abs(c0) abs(c1), abs(d0) abs(d1). 20 Programming Language Design and Implementation, 2014 6/10/2014

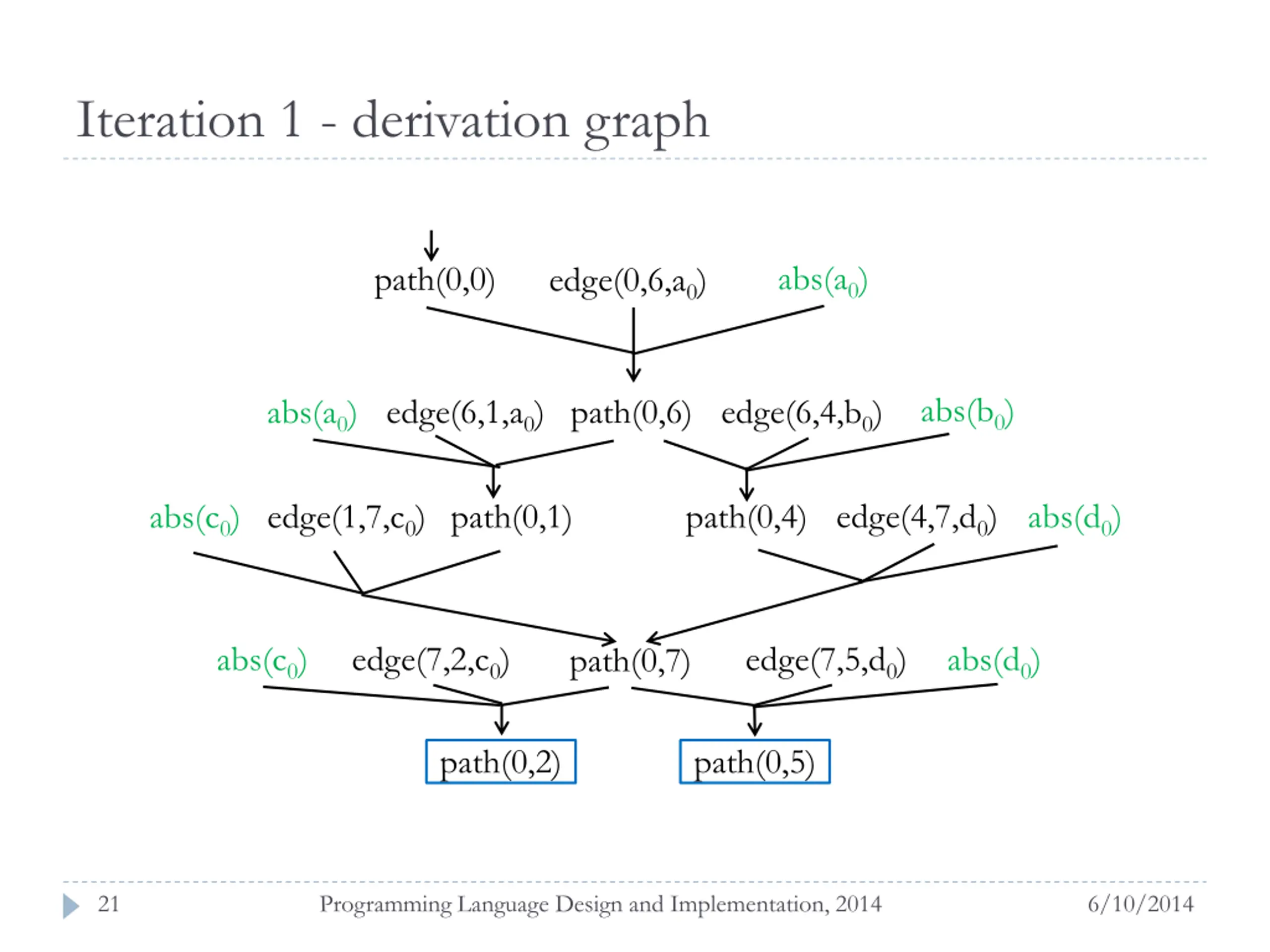

  21. Iteration 1 - derivation graph abs(a0) path(0,0) edge(0,6,a0) abs(b0) abs(a0) edge(6,1,a0) path(0,6) edge(6,4,b0) abs(d0) edge(4,7,d0) abs(c0) edge(1,7,c0) path(0,1) path(0,4) abs(c0) edge(7,2,c0) edge(7,5,d0) abs(d0) path(0,7) path(0,2) path(0,5) 21 Programming Language Design and Implementation, 2014 6/10/2014

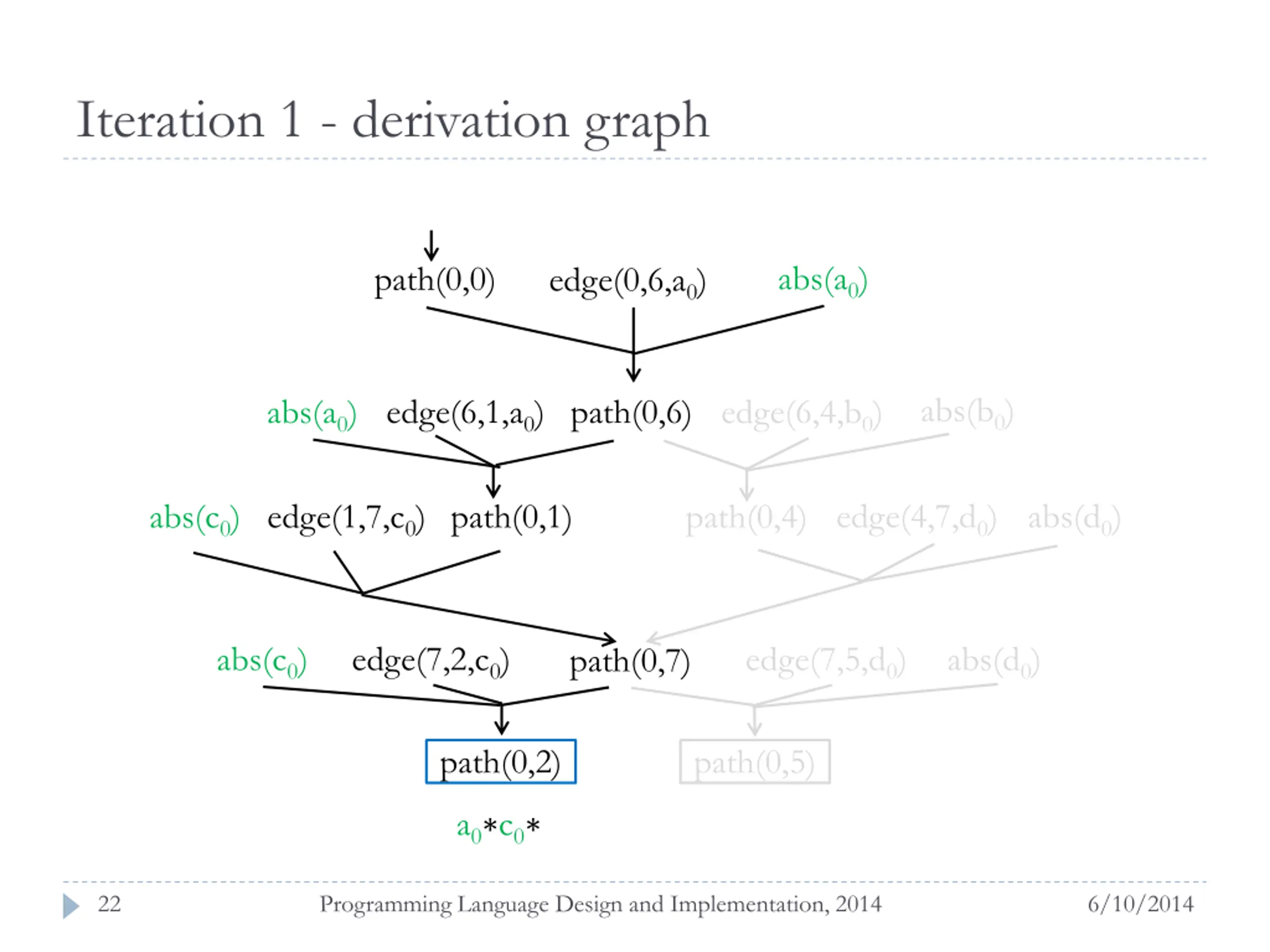

  22. Iteration 1 - derivation graph abs(a0) path(0,0) edge(0,6,a0) abs(b0) abs(a0) edge(6,1,a0) path(0,6) edge(6,4,b0) abs(d0) edge(4,7,d0) abs(c0) edge(1,7,c0) path(0,1) path(0,4) abs(c0) edge(7,2,c0) edge(7,5,d0) abs(d0) path(0,7) path(0,2) path(0,5) a0 c0 22 Programming Language Design and Implementation, 2014 6/10/2014

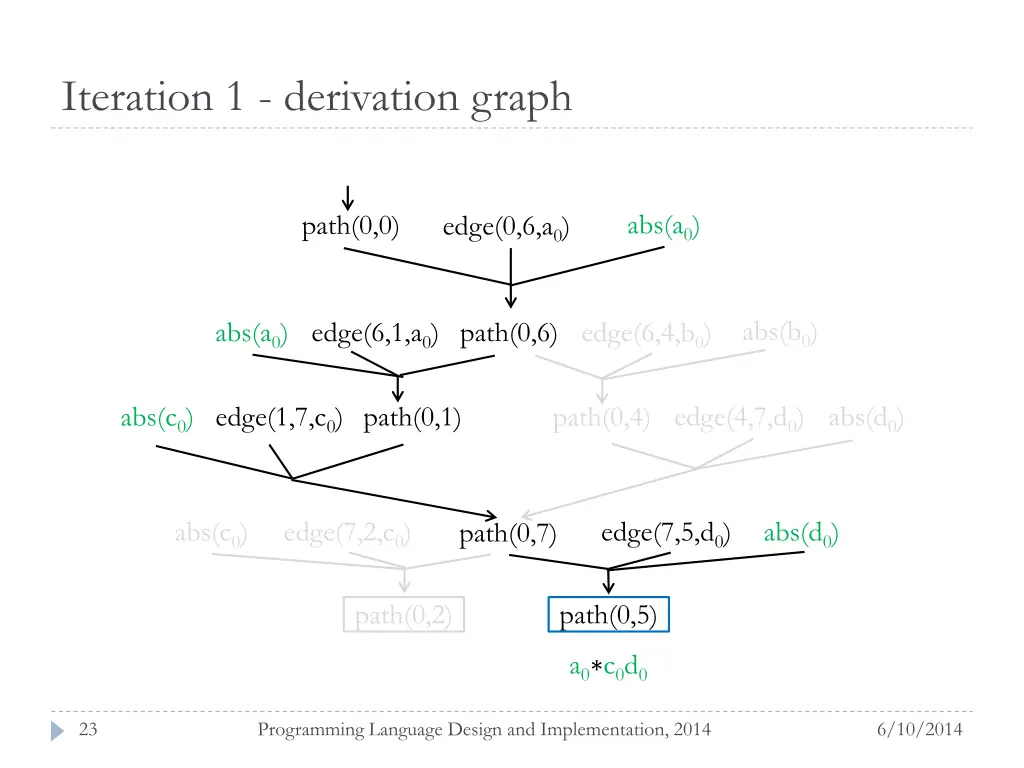

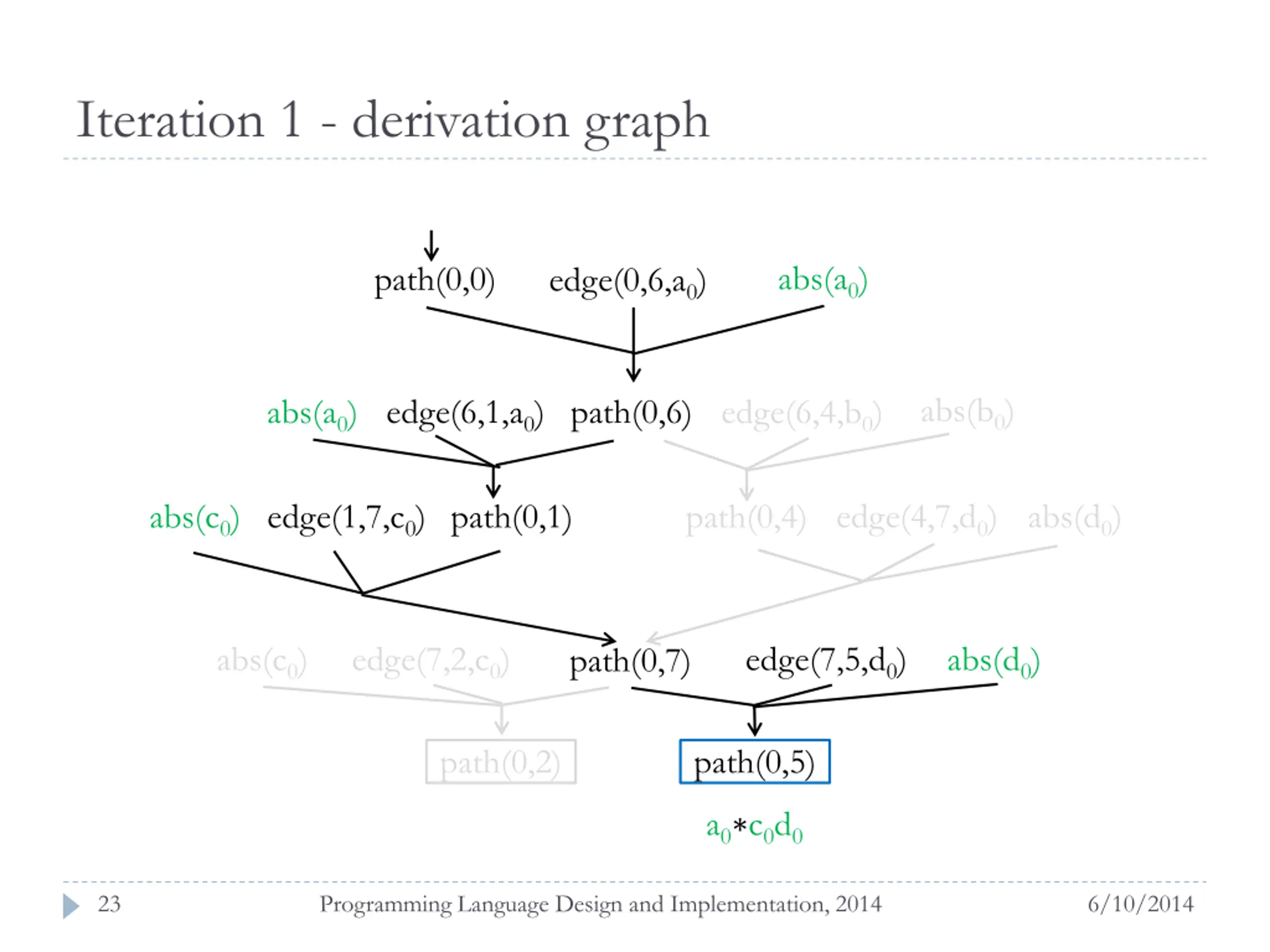

  23. Iteration 1 - derivation graph abs(a0) path(0,0) edge(0,6,a0) abs(b0) abs(a0) edge(6,1,a0) path(0,6) edge(6,4,b0) abs(d0) edge(4,7,d0) abs(c0) edge(1,7,c0) path(0,1) path(0,4) abs(c0) edge(7,2,c0) edge(7,5,d0) abs(d0) path(0,7) path(0,2) path(0,5) a0 c0d0 23 Programming Language Design and Implementation, 2014 6/10/2014

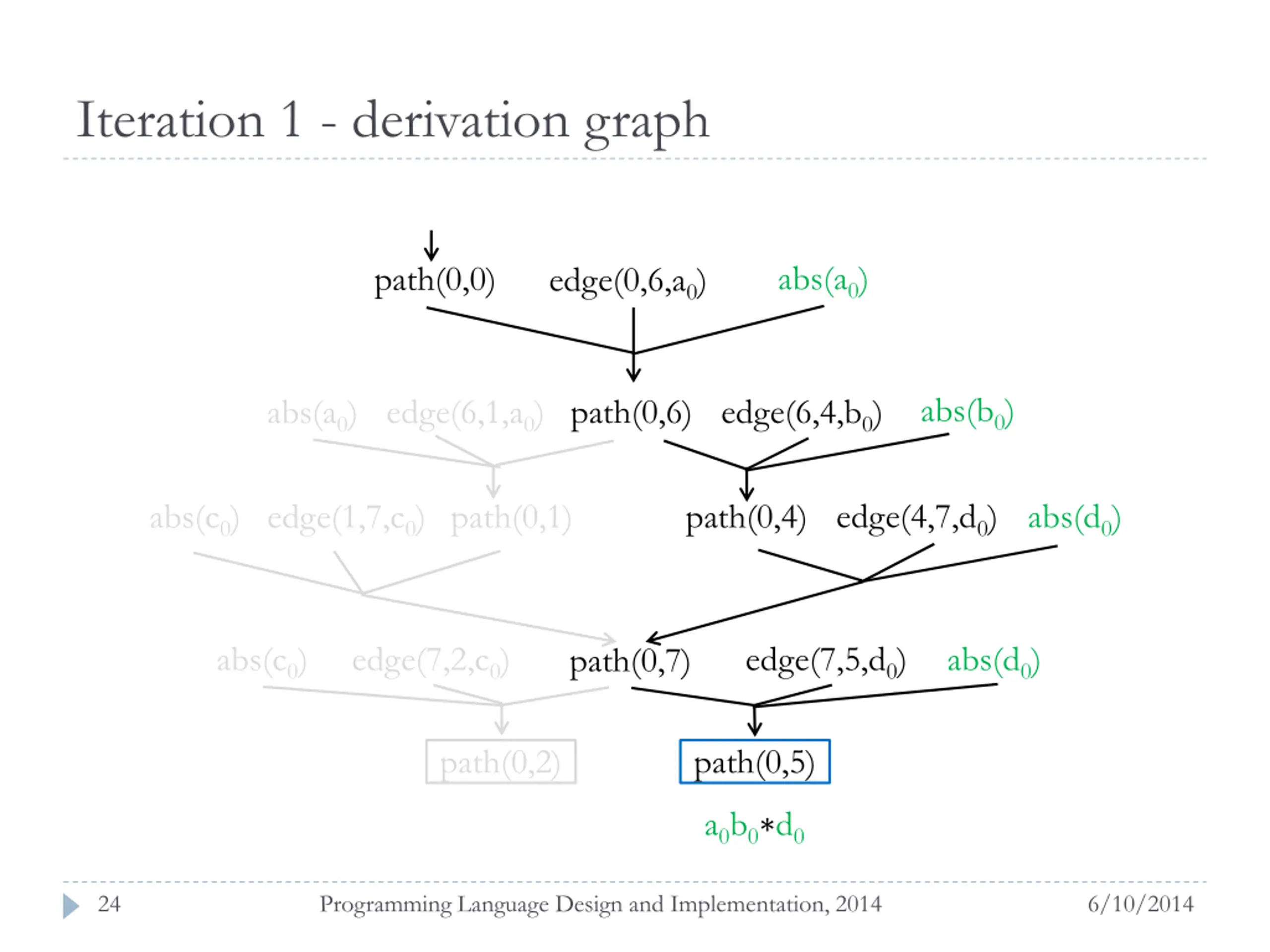

  24. Iteration 1 - derivation graph abs(a0) path(0,0) edge(0,6,a0) abs(b0) abs(a0) edge(6,1,a0) path(0,6) edge(6,4,b0) abs(d0) edge(4,7,d0) abs(c0) edge(1,7,c0) path(0,1) path(0,4) abs(c0) edge(7,2,c0) edge(7,5,d0) abs(d0) path(0,7) path(0,2) path(0,5) a0b0 d0 24 Programming Language Design and Implementation, 2014 6/10/2014

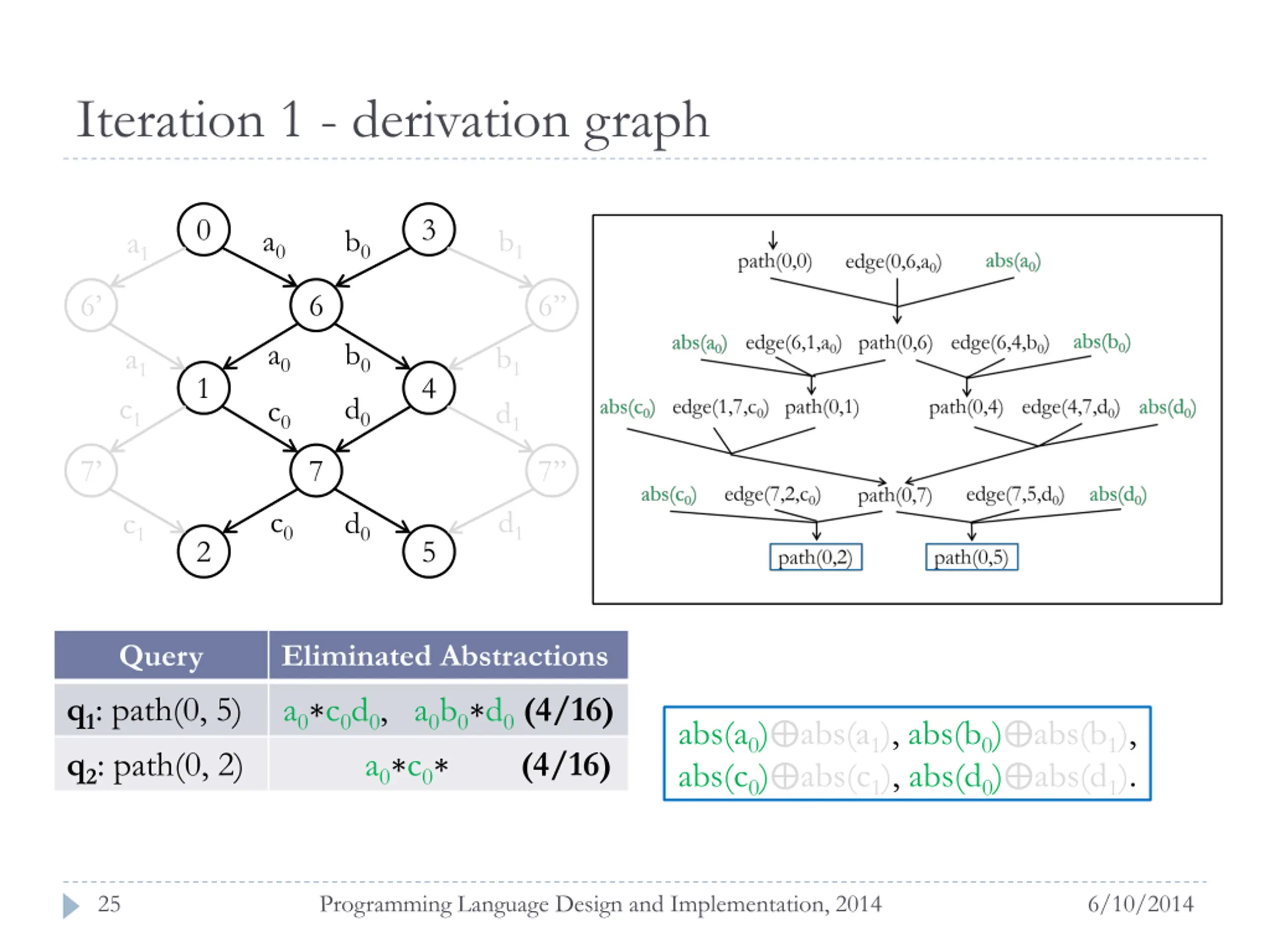

  25. Iteration 1 - derivation graph 0 3 a0 b0 b1 a1 6 6 6 a0 b0 b1 a1 1 4 c1 d0 c0 d1 7 7 7 c0 d1 d0 c1 2 5 Query Eliminated Abstractions a0 c0d0, a0b0 d0(4/16) a0 c0 (4/16) q1: path(0, 5) q2: path(0, 2) abs(a0) abs(a1), abs(b0) abs(b1), abs(c0) abs(c1), abs(d0) abs(d1). 25 Programming Language Design and Implementation, 2014 6/10/2014

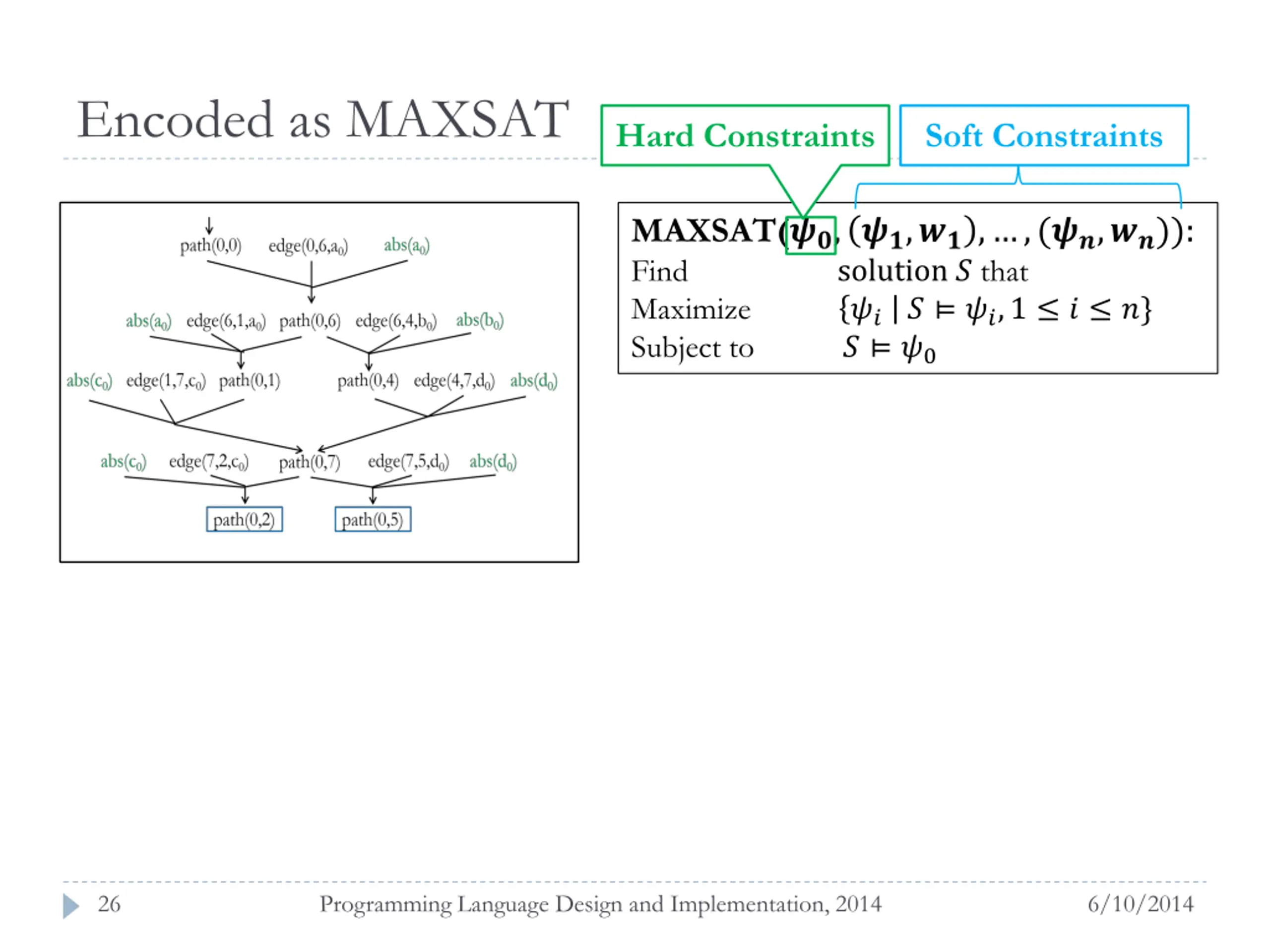

  26. Encoded as MAXSAT Hard Constraints Soft Constraints MAXSAT(??, ??,??, ,(??,??)): Find solution ?that Maximize ?? ? ??,1 ? ?} Subject to ? ?0 26 Programming Language Design and Implementation, 2014 6/10/2014

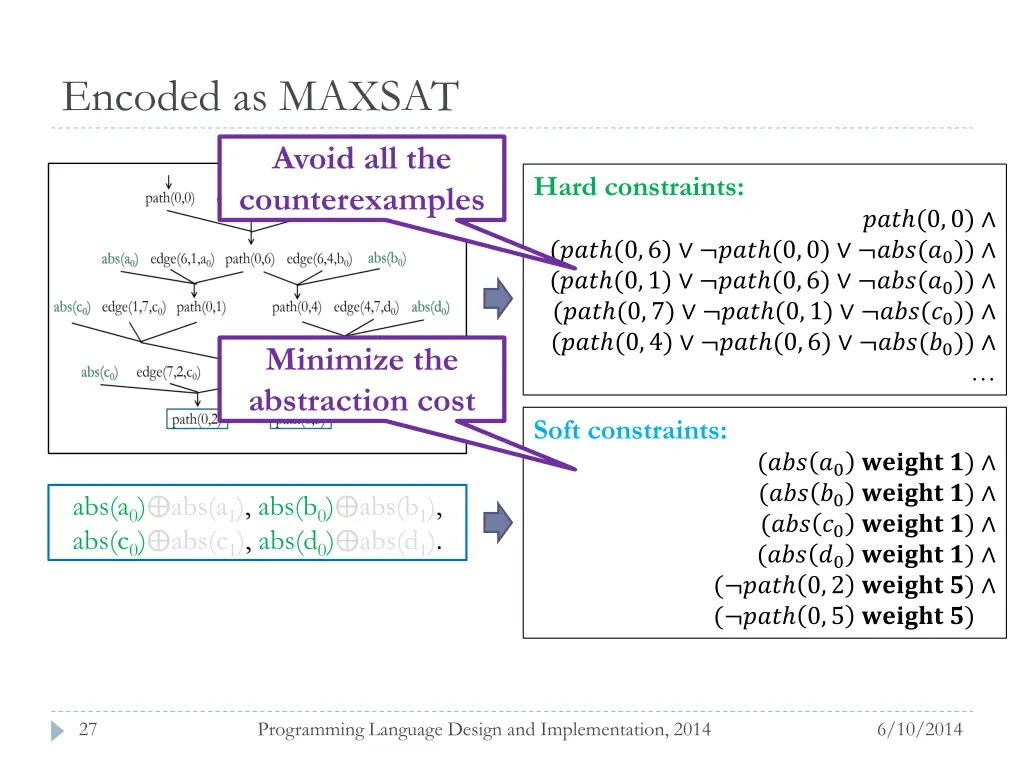

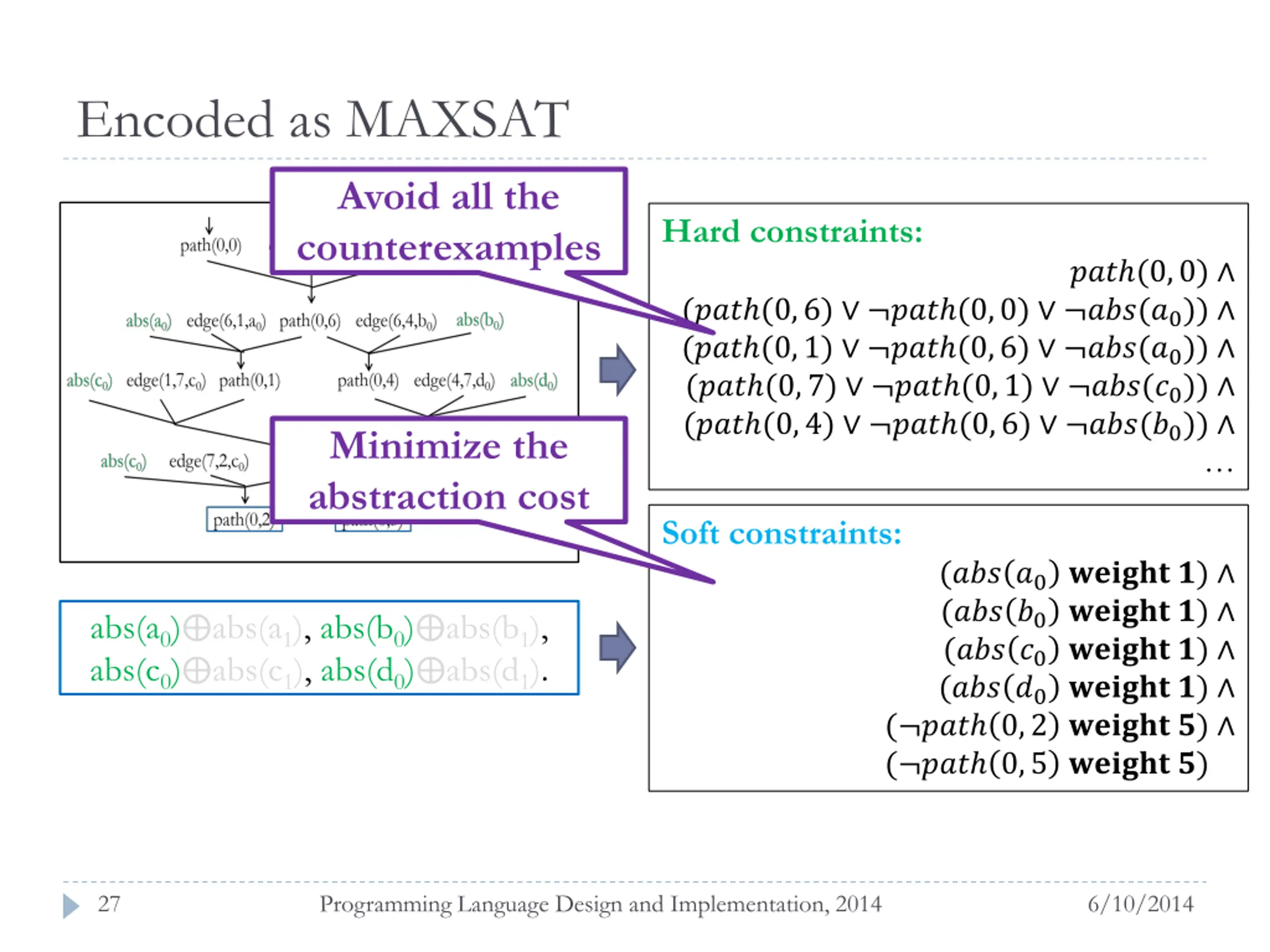

  27. Encoded as MAXSAT Avoid all the counterexamples Hard constraints: ??? (0,0) (??? (0,6) ??? (0,0) ???(?0)) (??? (0,1) ??? (0,6) ???(?0)) (??? (0,7) ??? (0,1) ???(?0)) (??? (0,4) ??? (0,6) ???(?0)) Minimize the abstraction cost Soft constraints: (??? ?0 ?????? ?) (??? ?0 ?????? ?) (??? ?0 ?????? ?) (??? ?0 ?????? ?) ( ??? 0,2 ?????? ?) ( ??? 0,5 ?????? ?) abs(a0) abs(a1), abs(b0) abs(b1), abs(c0) abs(c1), abs(d0) abs(d1). 27 Programming Language Design and Implementation, 2014 6/10/2014

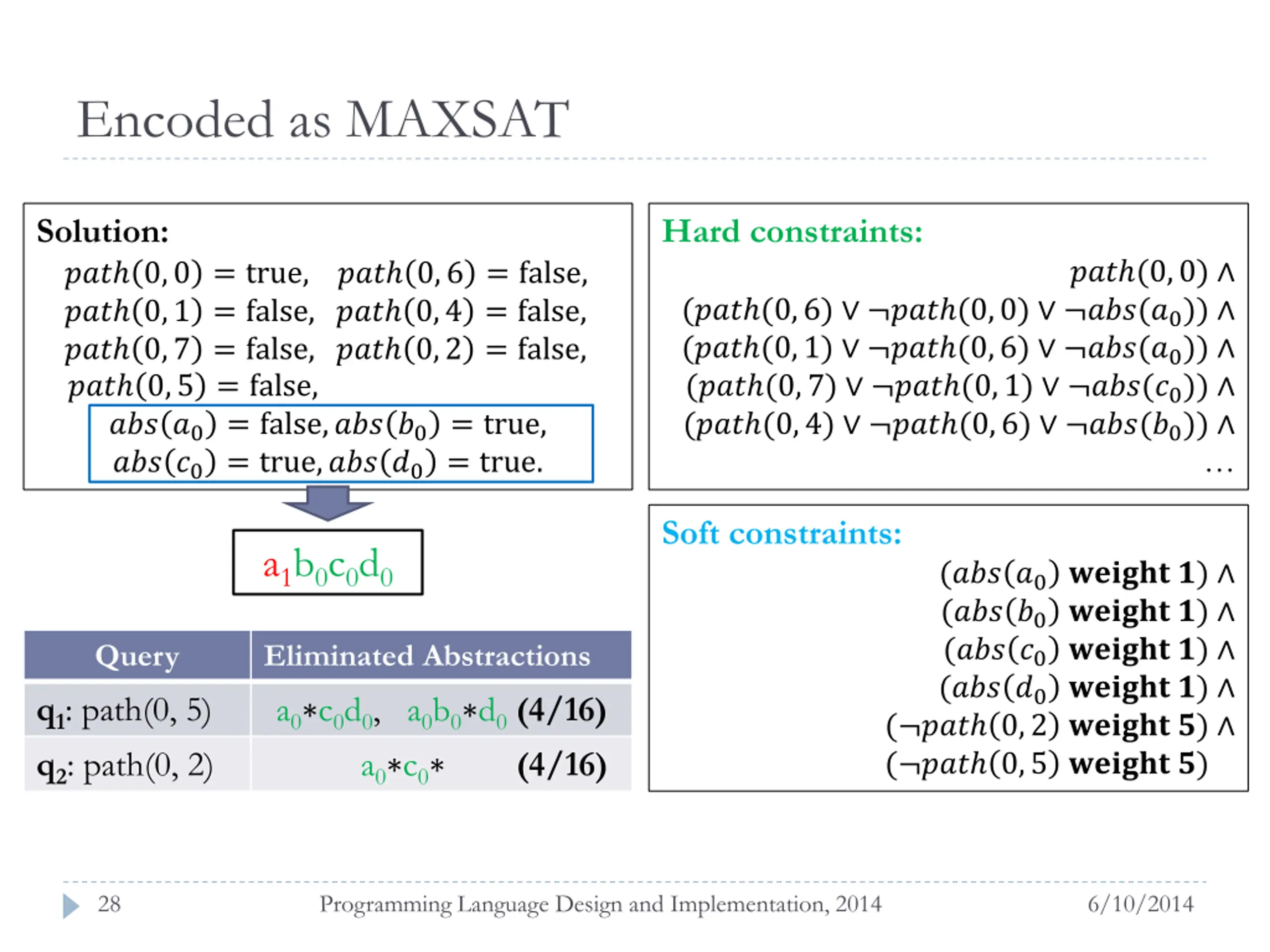

  28. Encoded as MAXSAT Solution: ??? 0,0 = true,??? 0,6 = false, ??? 0,1 = false,??? 0,4 = false, ??? 0,7 = false,??? 0,2 = false, ??? 0,5 = false,?,?? 0,6 = 0, ??? ?0 = false,??? ?0 = true, ??? ?0 = true,??? ?0 = true. Hard constraints: ??? (0,0) (??? (0,6) ??? (0,0) ???(?0)) (??? (0,1) ??? (0,6) ???(?0)) (??? (0,7) ??? (0,1) ???(?0)) (??? (0,4) ??? (0,6) ???(?0)) Soft constraints: a1b0c0d0 (??? ?0 ?????? ?) (??? ?0 ?????? ?) (??? ?0 ?????? ?) (??? ?0 ?????? ?) ( ??? 0,2 ?????? ?) ( ??? 0,5 ?????? ?) Query Eliminated Abstractions a0 c0d0, a0b0 d0(4/16) a0 c0 (4/16) q1: path(0, 5) q2: path(0, 2) 28 Programming Language Design and Implementation, 2014 6/10/2014

  29. Iteration 2 and beyond Iteration 1 Derivation ?? Constraints Datalog solver MAXSAT solver ?? ?? a1b0c0d0 Query Answer Eliminated Abstractions a0 c0d0, a0b0 d0, a1 c0d0 (4/16) a0 c0 , a1 c0 (4/16) q1: path(0, 5) q2: path(0, 2) 29 Programming Language Design and Implementation, 2014 6/10/2014

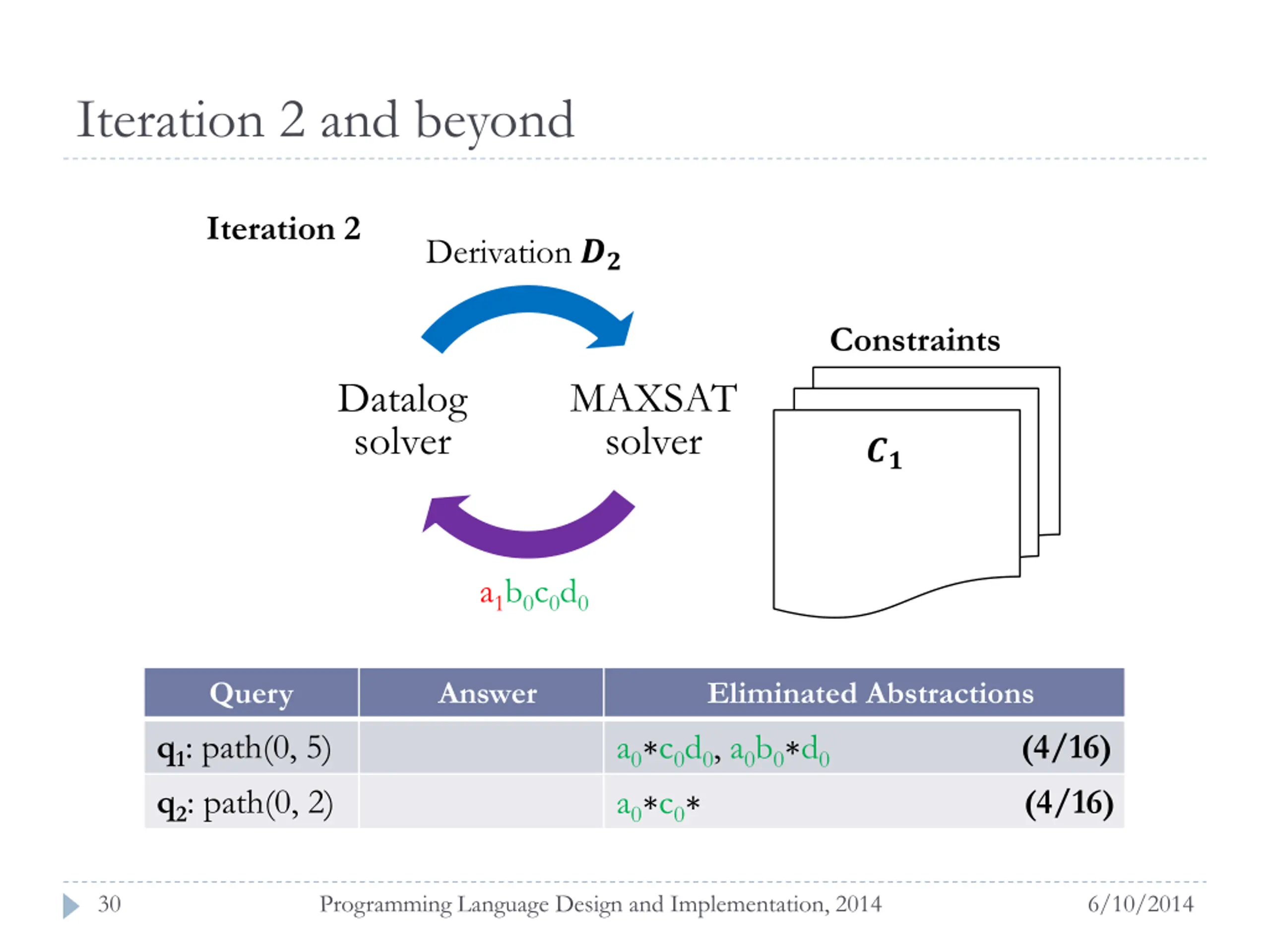

  30. Iteration 2 and beyond Iteration 2 Derivation ?? Constraints Datalog solver MAXSAT solver ?? ?? a1b0c0d0 Query Answer Eliminated Abstractions a0 c0d0, a0b0 d0, a1 c0d0 a0 c0 , a1 c0 (4/16) q1: path(0, 5) q2: path(0, 2) (4/16) 30 Programming Language Design and Implementation, 2014 6/10/2014

  31. Iteration 2 and beyond Iteration 2 Derivation ?? Constraints Datalog solver MAXSAT solver ?? ?? ?? a1b0c0d0 Query Answer Eliminated Abstractions a0 c0d0, a0b0 d0, a1 c0d0 (4/16) a0 c0 (4/16) q1: path(0, 5) q2: path(0, 2) 31 Programming Language Design and Implementation, 2014 6/10/2014

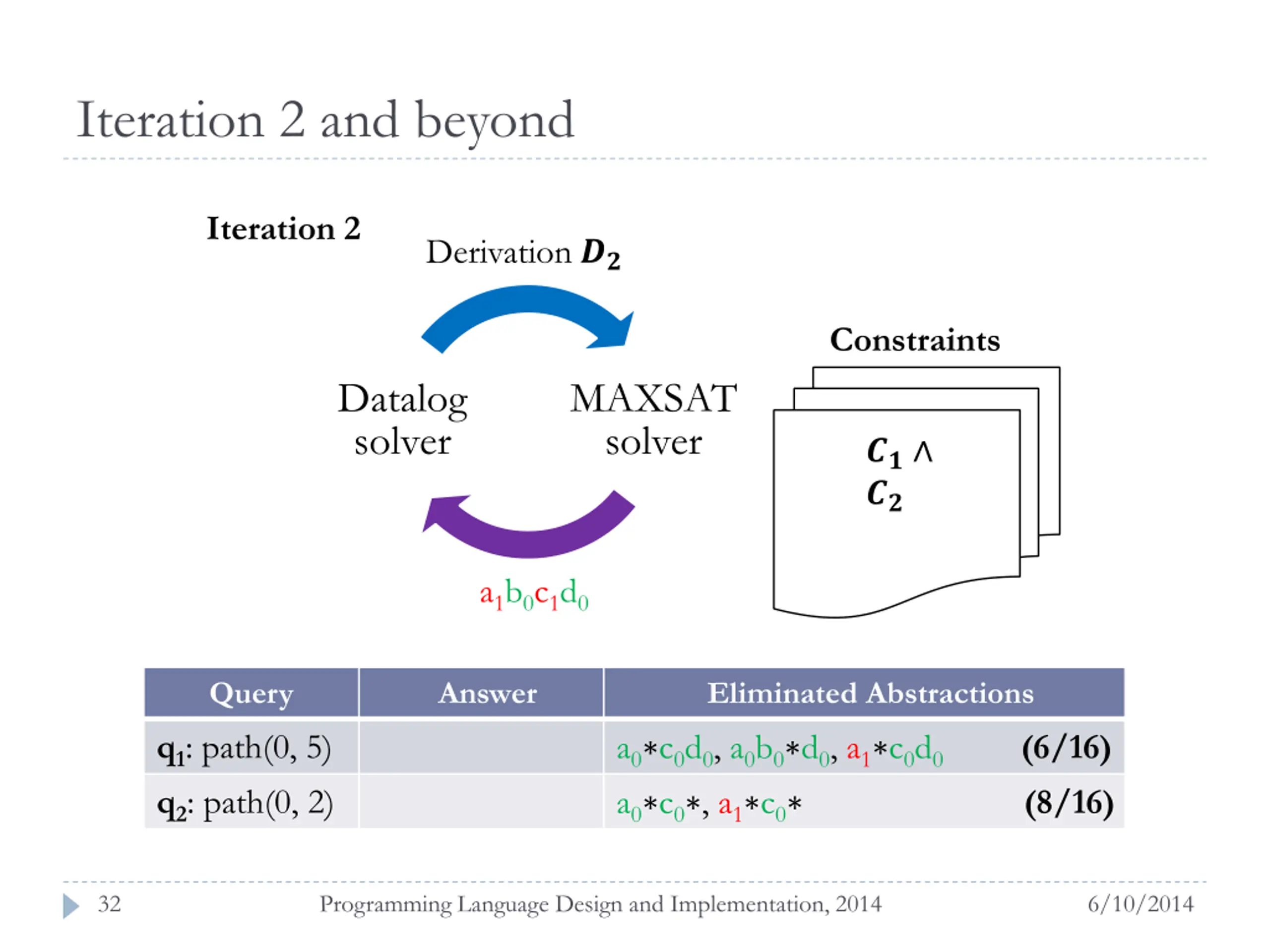

  32. Iteration 2 and beyond Iteration 2 Derivation ?? Constraints Datalog solver MAXSAT solver ?? ?? ?? a1b0c1d0 Query Answer Eliminated Abstractions a0 c0d0, a0b0 d0, a1 c0d0 (6/16) a0 c0 , a1 c0 (8/16) q1: path(0, 5) q2: path(0, 2) 32 Programming Language Design and Implementation, 2014 6/10/2014

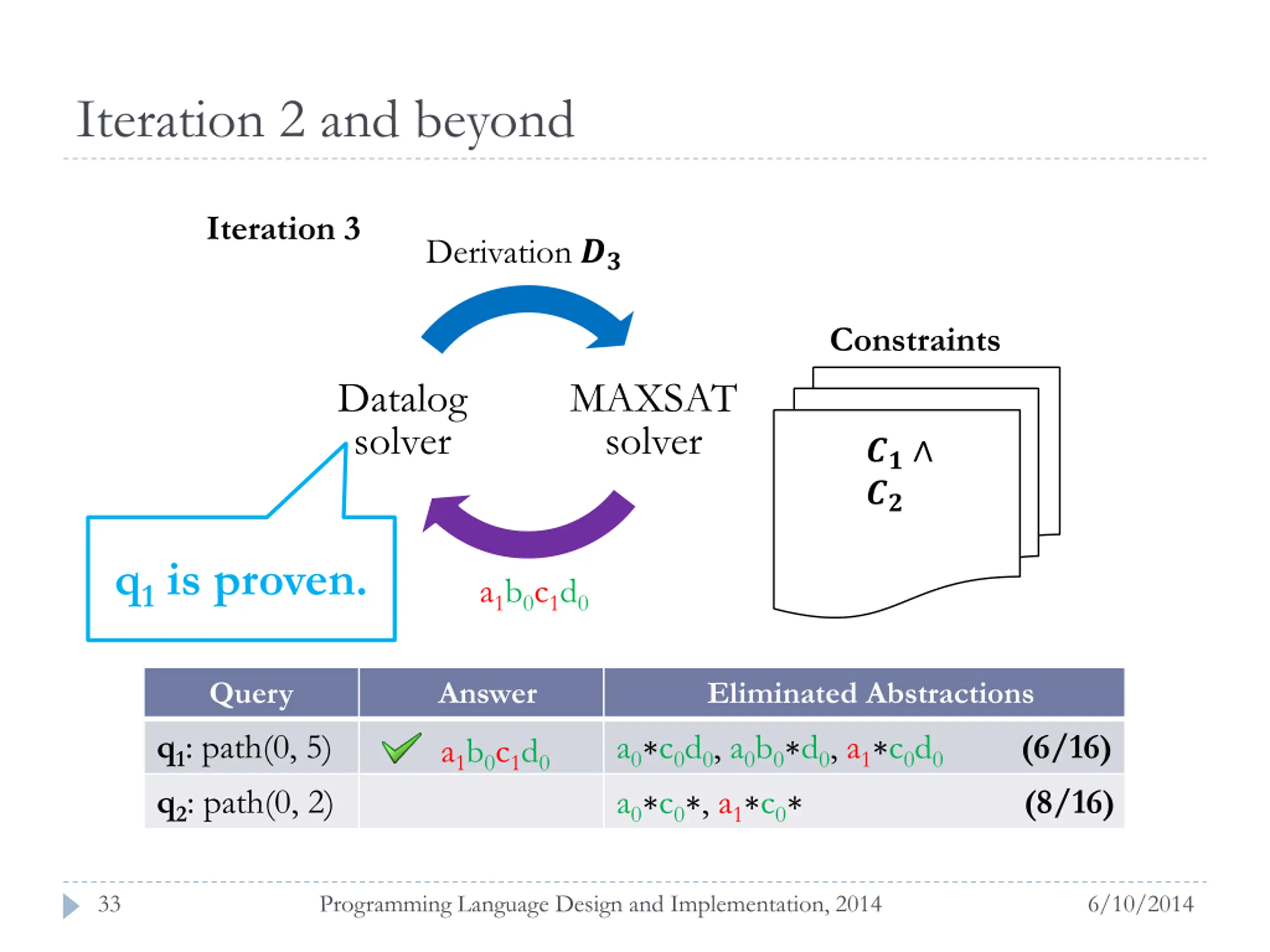

  33. Iteration 2 and beyond Iteration 3 Derivation ?? Constraints Datalog solver MAXSAT solver ?? ?? ?? q1 is proven. a1b0c1d0 Query Answer Eliminated Abstractions a0 c0d0, a0b0 d0, a1 c0d0 a0 c0 , a1 c0 (8/16) q1: path(0, 5) q2: path(0, 2) (6/16) a1b0c1d0 33 Programming Language Design and Implementation, 2014 6/10/2014

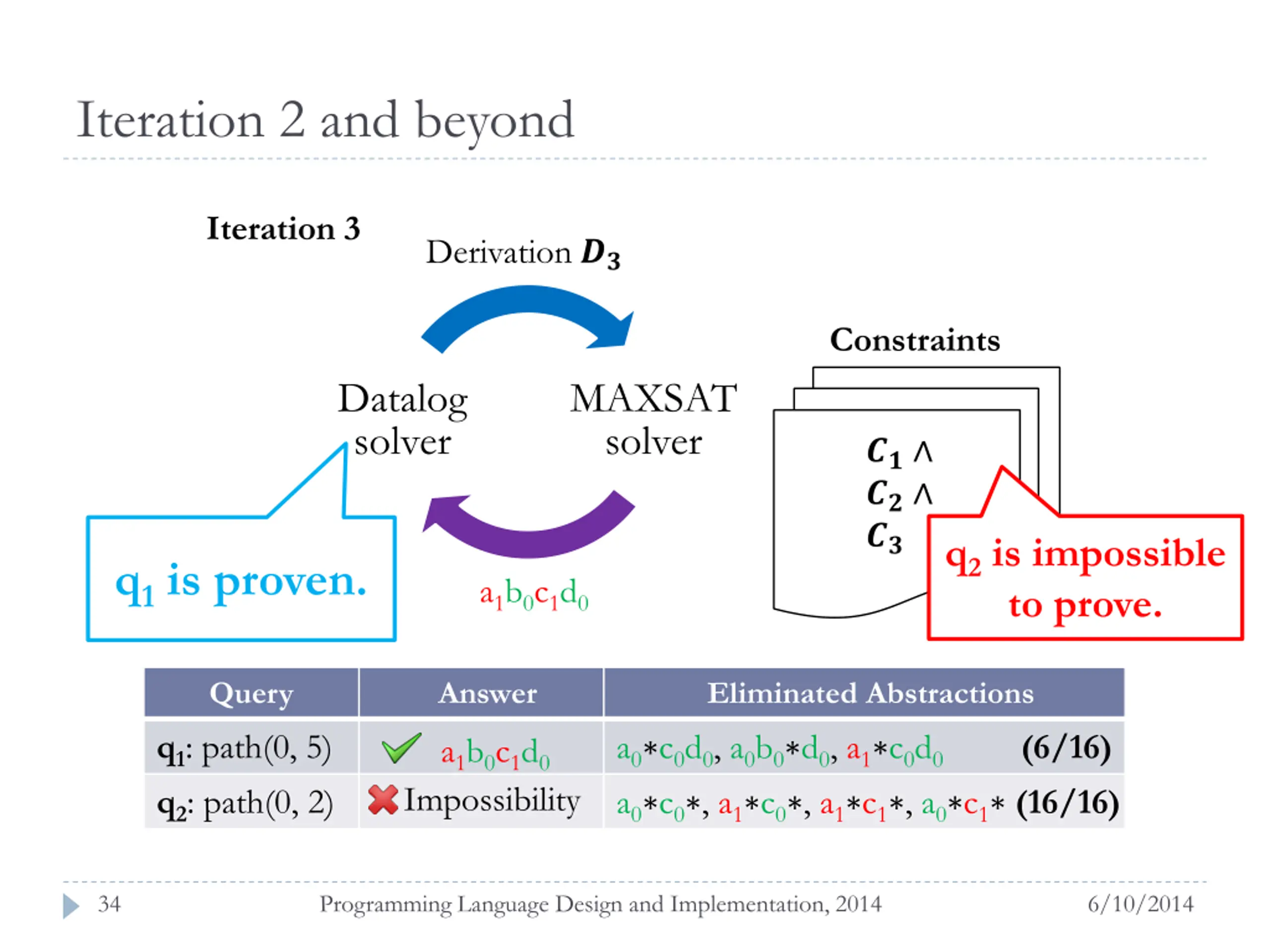

  34. Iteration 2 and beyond Iteration 3 Derivation ?? Constraints Datalog solver MAXSAT solver ?? ?? ?? ?? q2 is impossible to prove. q1 is proven. a1b0c1d0 Query Answer Eliminated Abstractions a0 c0d0, a0b0 d0, a1 c0d0 a0 c0 , a1 c0 , a1 c1 , a0 c1 (16/16) q1: path(0, 5) q2: path(0, 2) (6/16) a1b0c1d0 Impossibility 34 Programming Language Design and Implementation, 2014 6/10/2014

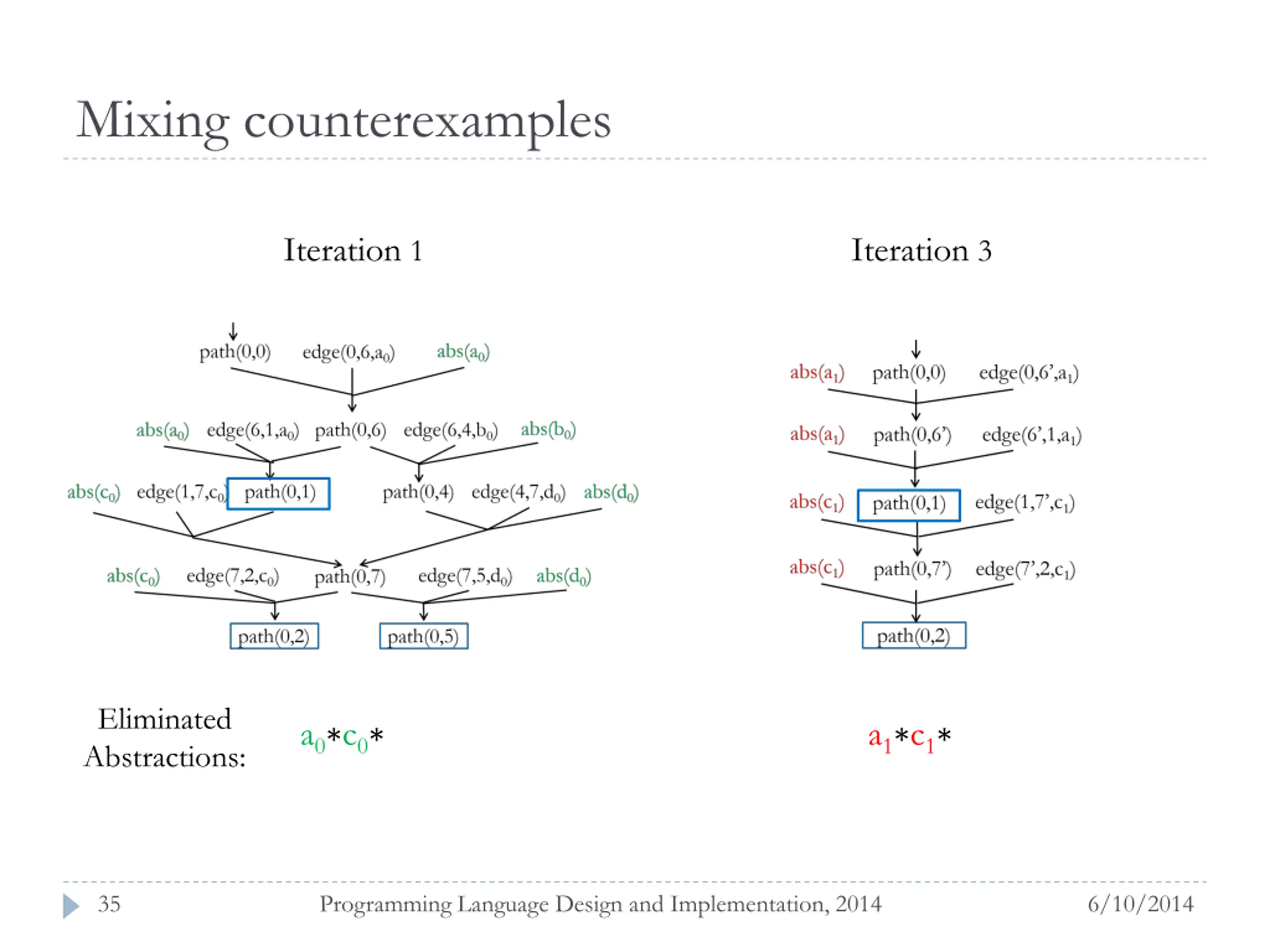

  35. Mixing counterexamples Iteration 1 Iteration 3 Eliminated Abstractions: a0 c0 a1 c1 35 Programming Language Design and Implementation, 2014 6/10/2014

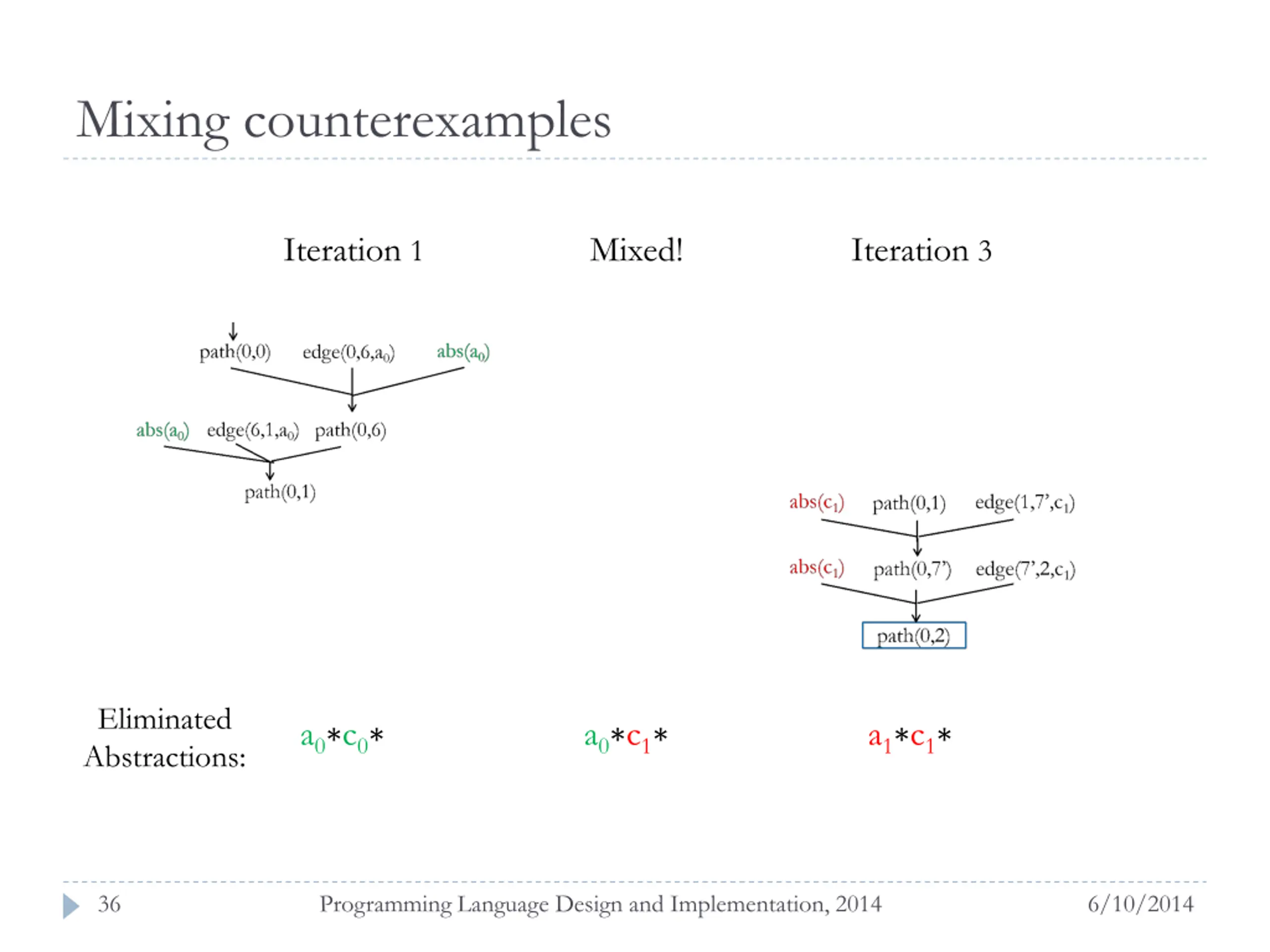

  36. Mixing counterexamples Iteration 1 Mixed! Iteration 3 Eliminated Abstractions: a0 c0 a0 c1 a1 c1 36 Programming Language Design and Implementation, 2014 6/10/2014

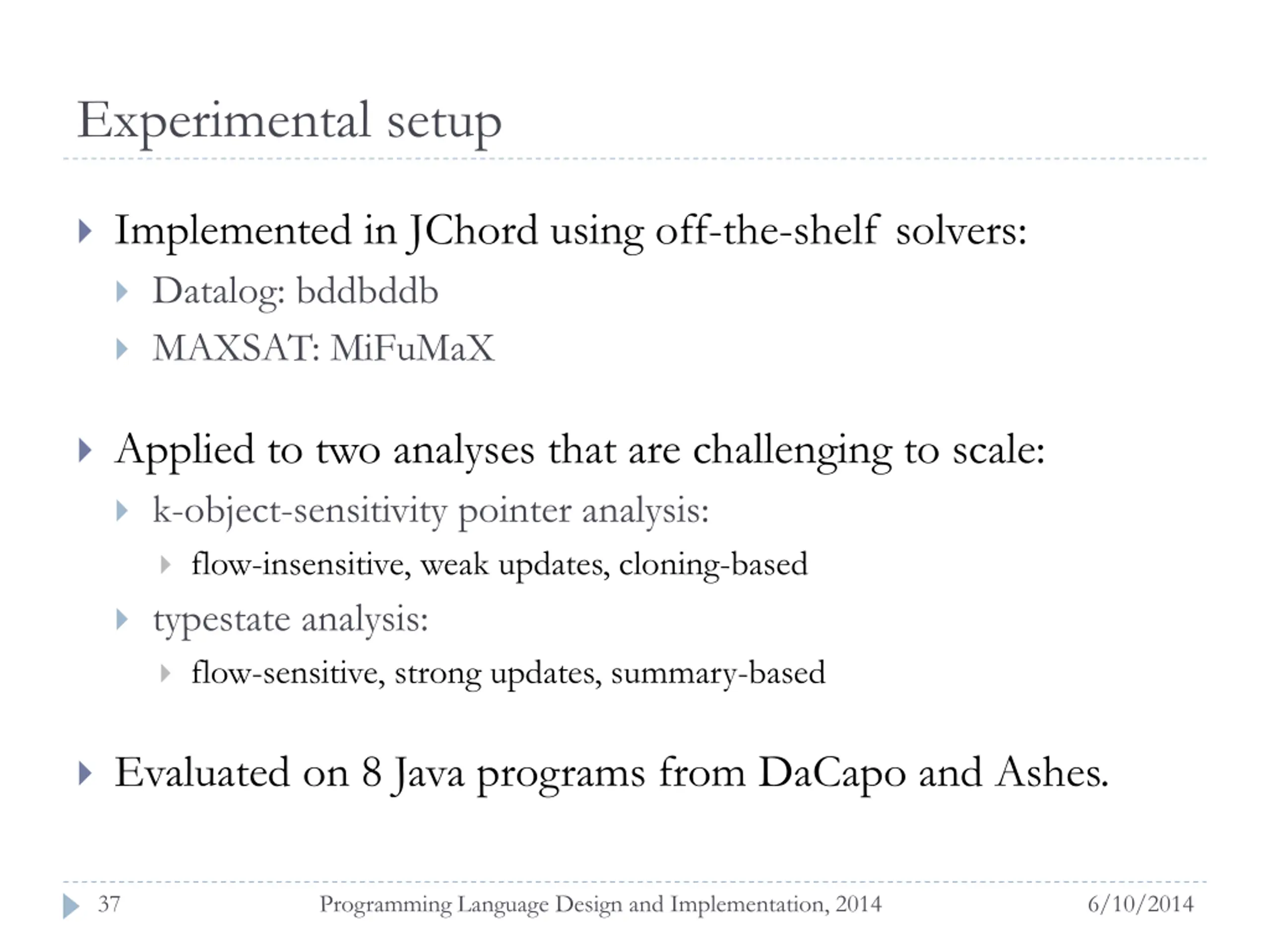

  37. Experimental setup Implemented in JChord using off-the-shelf solvers: Datalog: bddbddb MAXSAT: MiFuMaX Applied to two analyses that are challenging to scale: k-object-sensitivity pointer analysis: flow-insensitive, weak updates, cloning-based typestate analysis: flow-sensitive, strong updates, summary-based Evaluated on 8 Java programs from DaCapo and Ashes. 37 Programming Language Design and Implementation, 2014 6/10/2014

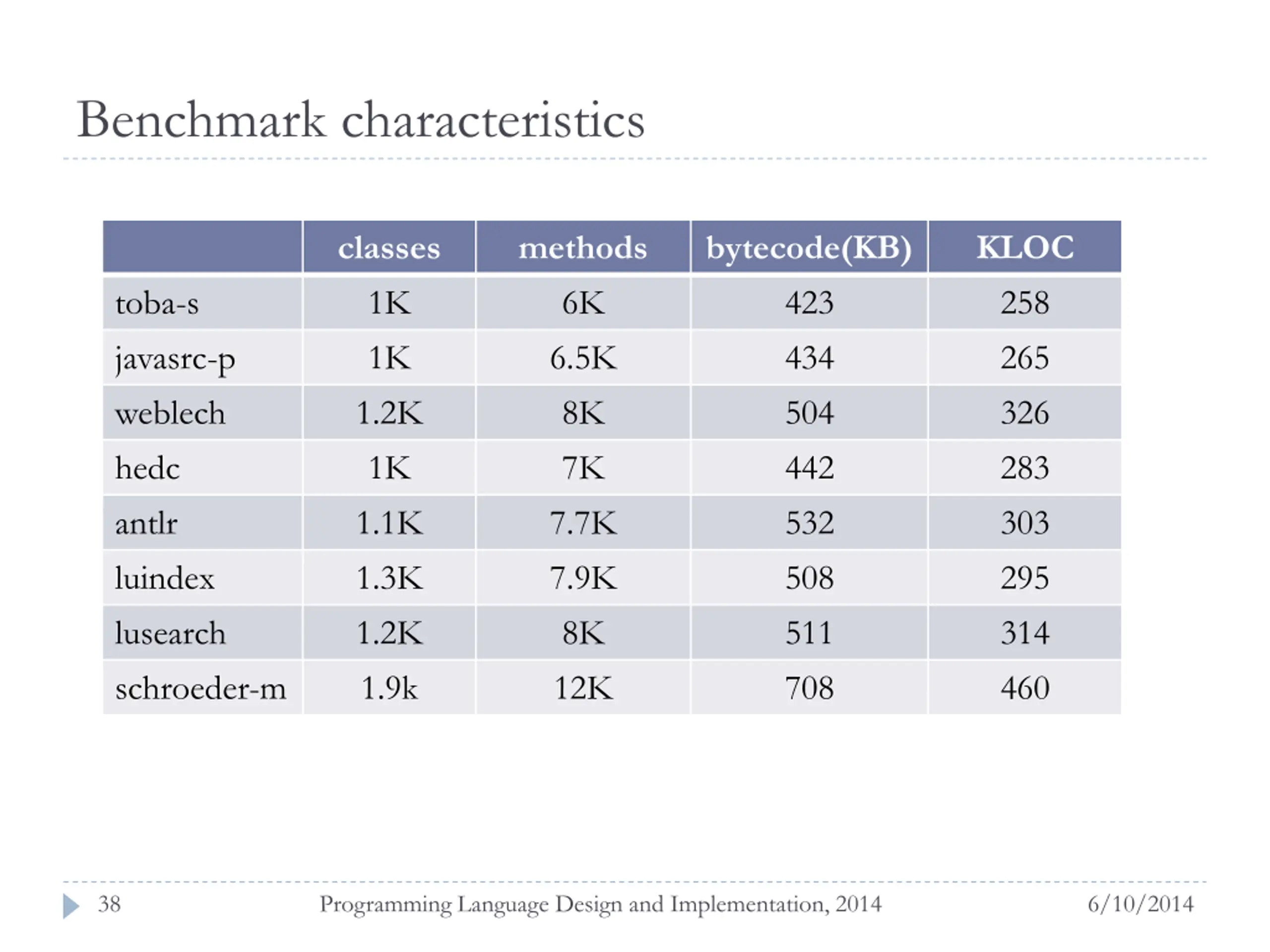

  38. Benchmark characteristics classes 1K 1K 1.2K 1K 1.1K 1.3K 1.2K 1.9k methods 6K 6.5K 8K 7K 7.7K 7.9K 8K 12K bytecode(KB) 423 434 504 442 532 508 511 708 KLOC 258 265 326 283 303 295 314 460 toba-s javasrc-p weblech hedc antlr luindex lusearch schroeder-m 38 Programming Language Design and Implementation, 2014 6/10/2014

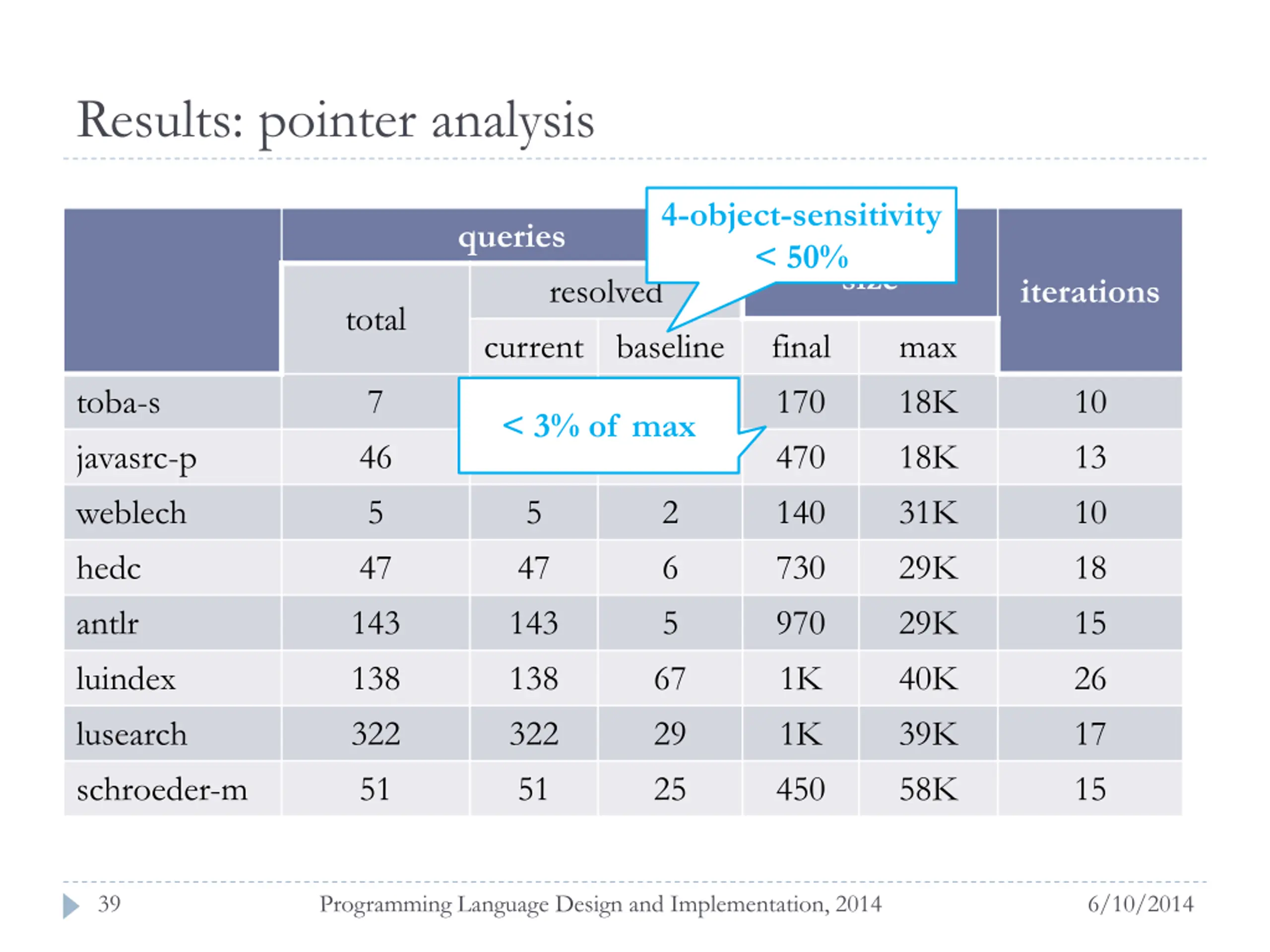

  39. Results: pointer analysis 4-object-sensitivity < 50% queries abstraction size resolved iterations total current 7 46 5 47 143 138 322 51 baseline 0 0 2 6 5 67 29 25 final 170 470 140 730 970 1K 1K 450 max 18K 18K 31K 29K 29K 40K 39K 58K toba-s javasrc-p weblech hedc antlr luindex lusearch schroeder-m 7 46 5 47 143 138 322 51 10 13 10 18 15 26 17 15 < 3% of max 39 Programming Language Design and Implementation, 2014 6/10/2014

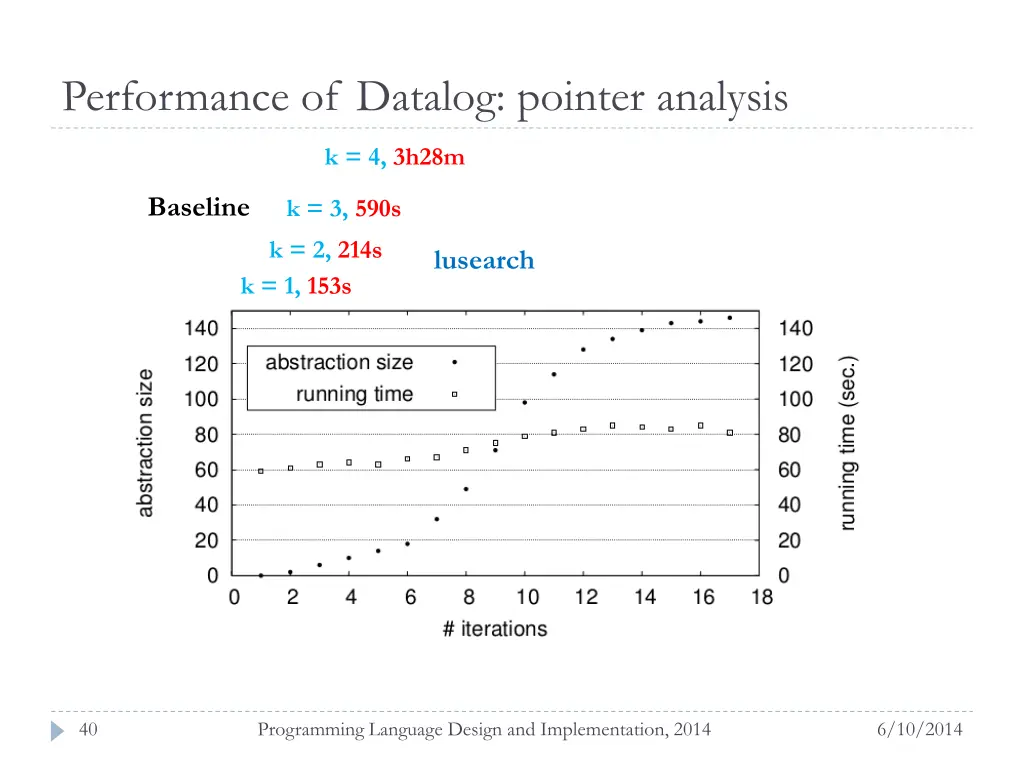

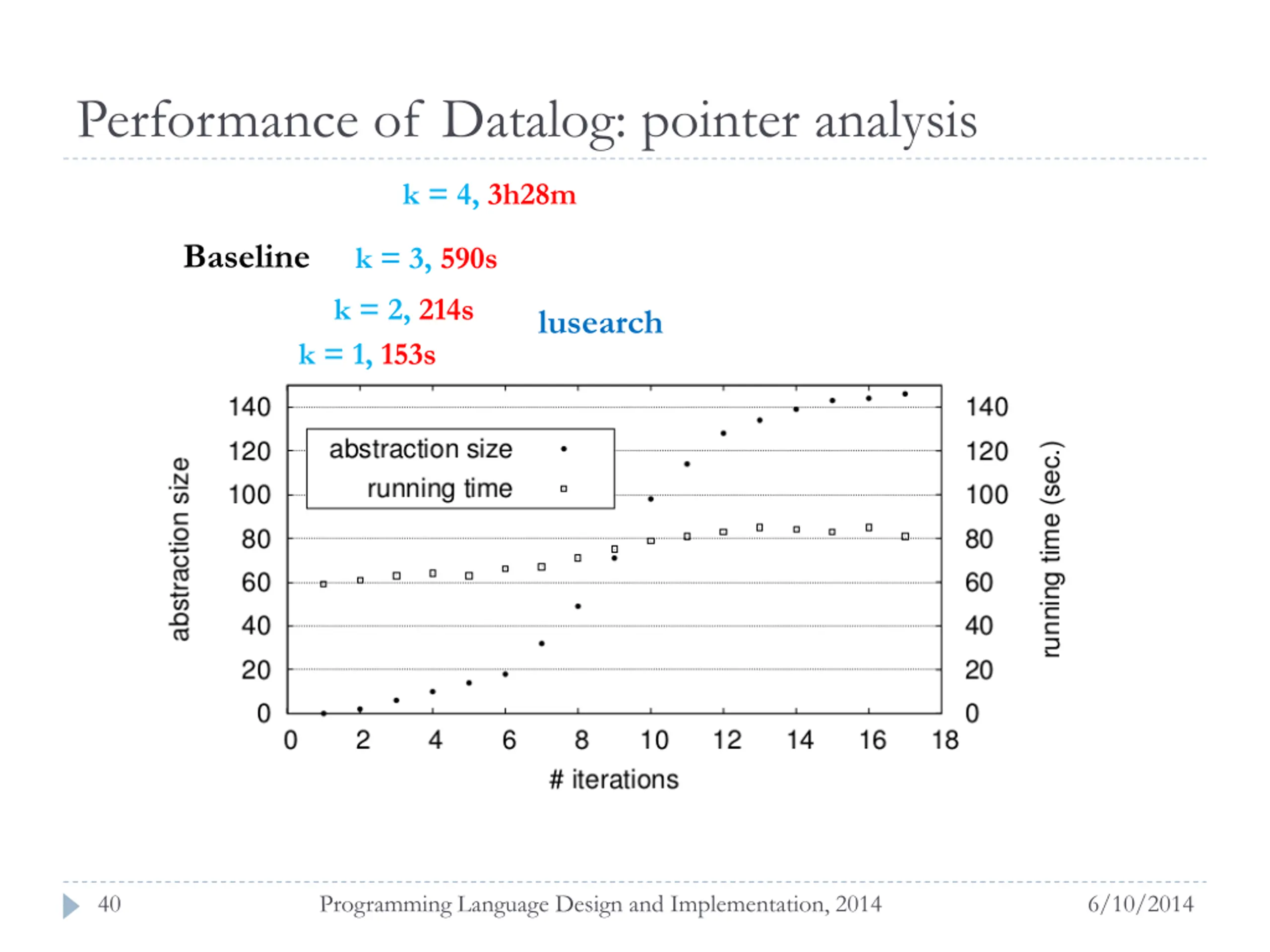

  40. Performance of Datalog: pointer analysis k = 4, 3h28m Baseline k = 3, 590s k = 2, 214s lusearch k = 1, 153s 40 Programming Language Design and Implementation, 2014 6/10/2014

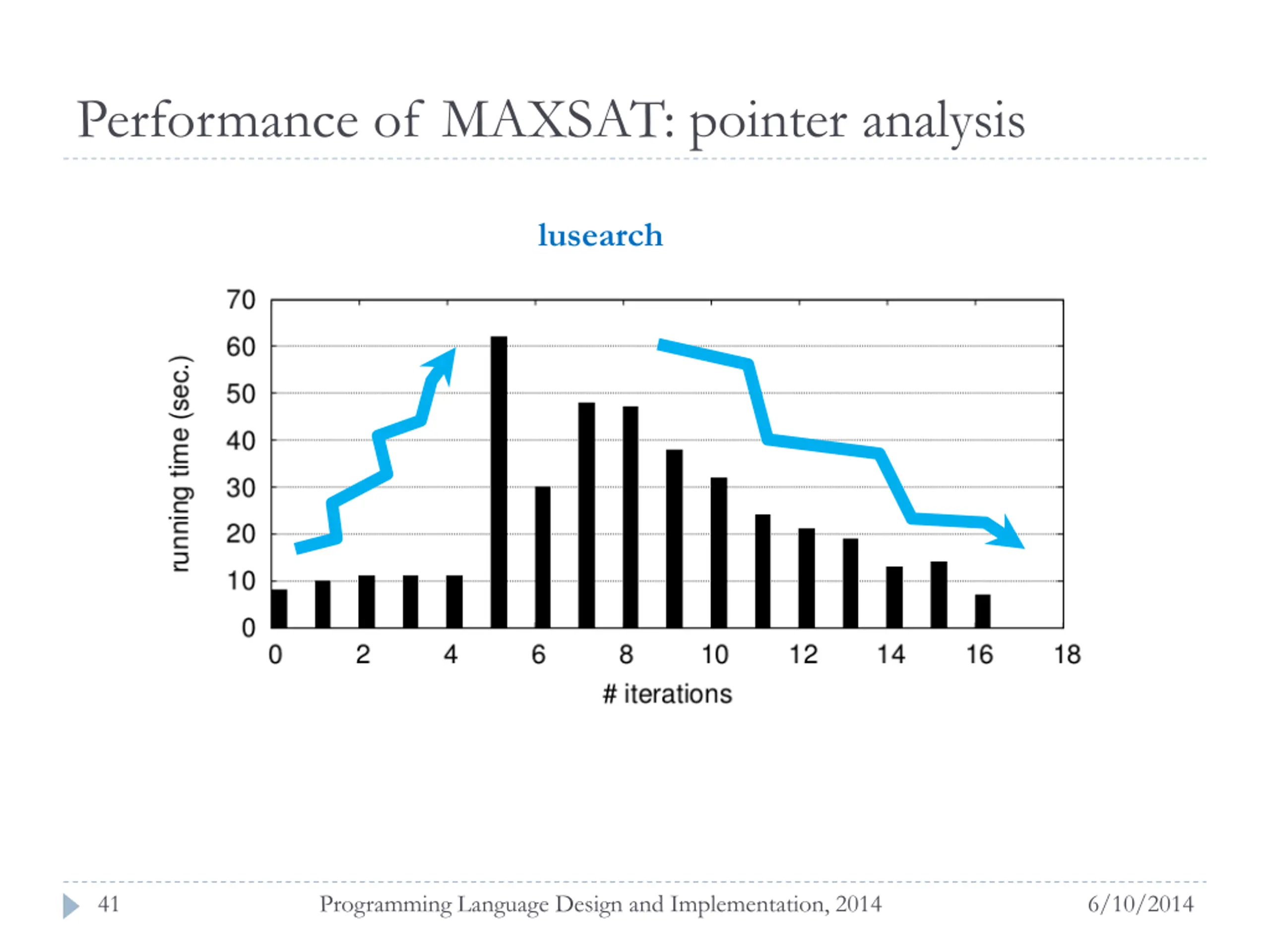

  41. Performance of MAXSAT: pointer analysis lusearch 41 Programming Language Design and Implementation, 2014 6/10/2014

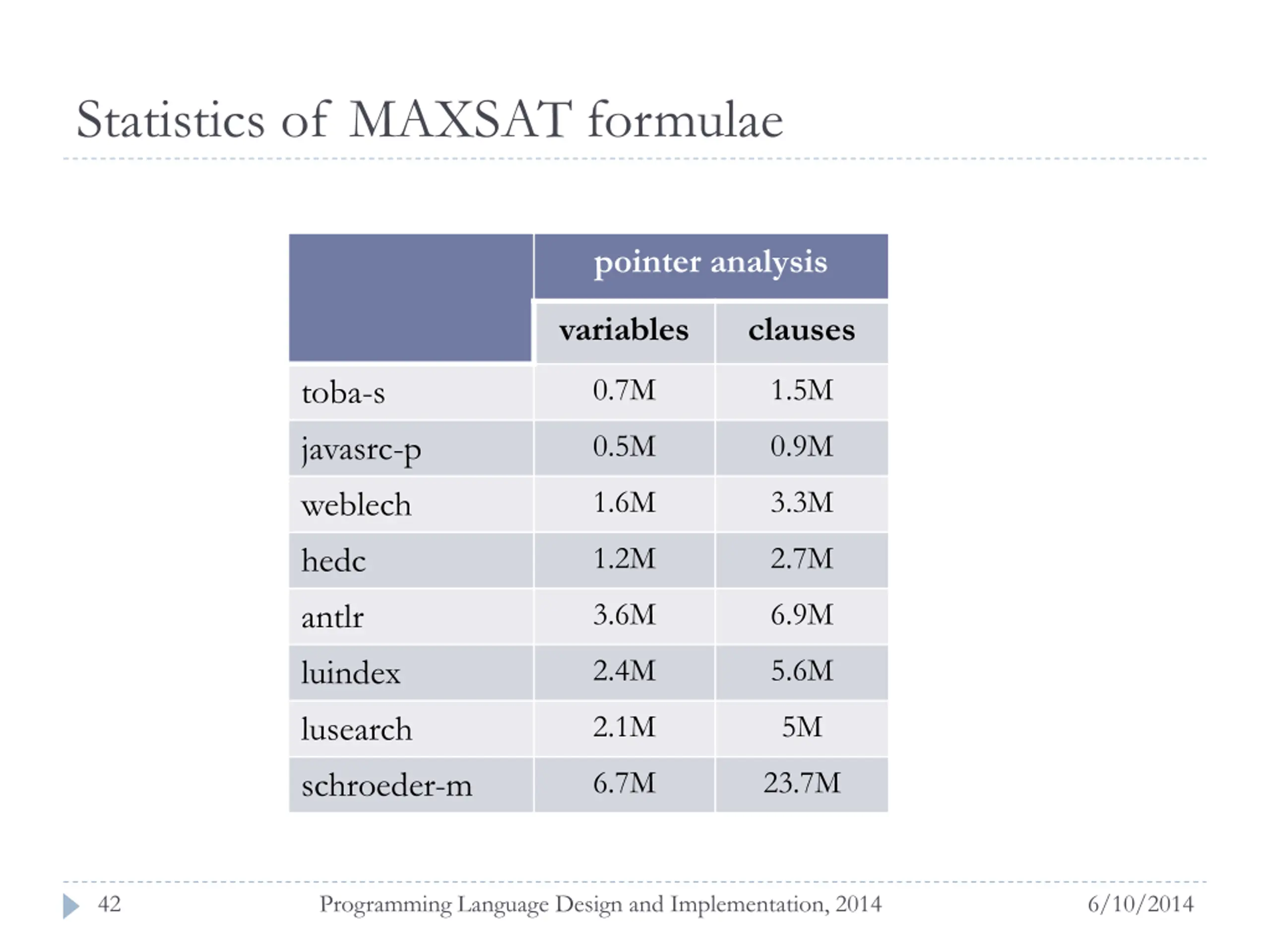

  42. Statistics of MAXSAT formulae pointer analysis variables clauses 0.7M 1.5M toba-s javasrc-p weblech hedc antlr luindex lusearch schroeder-m 0.5M 0.9M 1.6M 3.3M 1.2M 2.7M 3.6M 6.9M 2.4M 5.6M 2.1M 5M 6.7M 23.7M 42 Programming Language Design and Implementation, 2014 6/10/2014

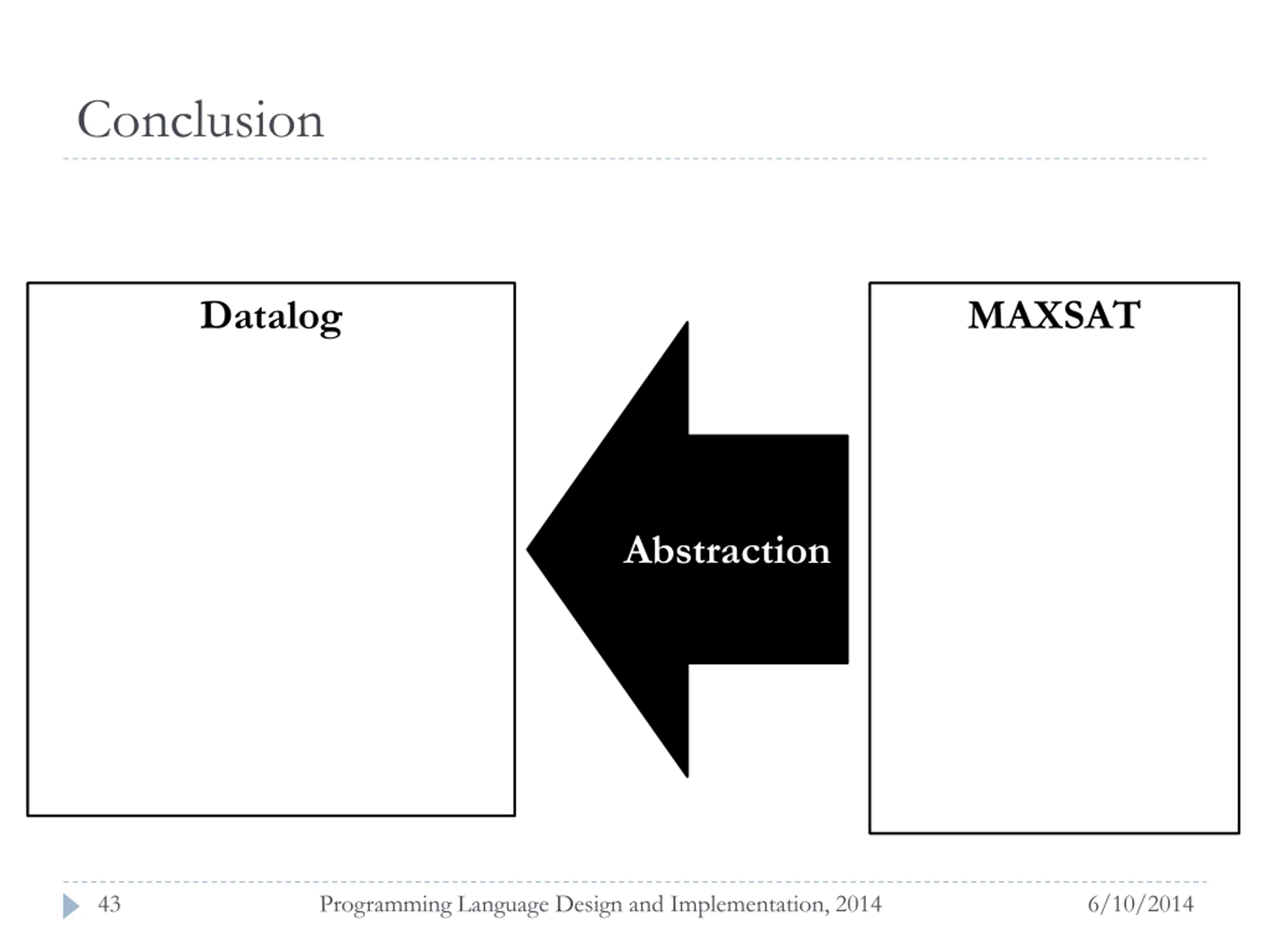

  43. Conclusion Datalog MAXSAT Abstraction 43 Programming Language Design and Implementation, 2014 6/10/2014

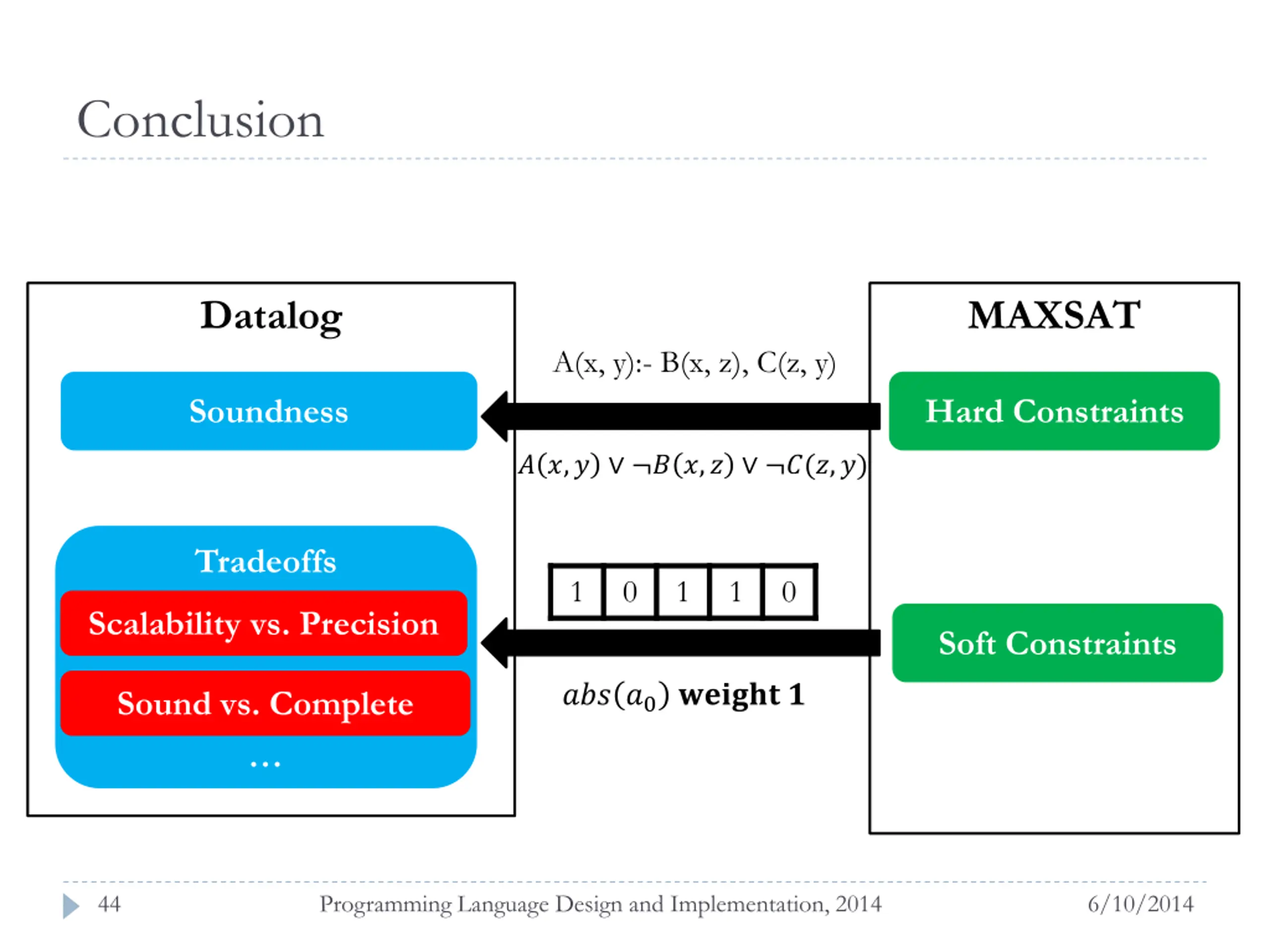

  44. Conclusion Datalog MAXSAT A(x, y):- B(x, z), C(z, y) Soundness Hard Constraints ? ?,? ? ?,? ?(?,?) Tradeoffs 1 0 1 1 0 Scalability vs. Precision Soft Constraints ??? ?0 ?????? ? Sound vs. Complete 44 Programming Language Design and Implementation, 2014 6/10/2014
