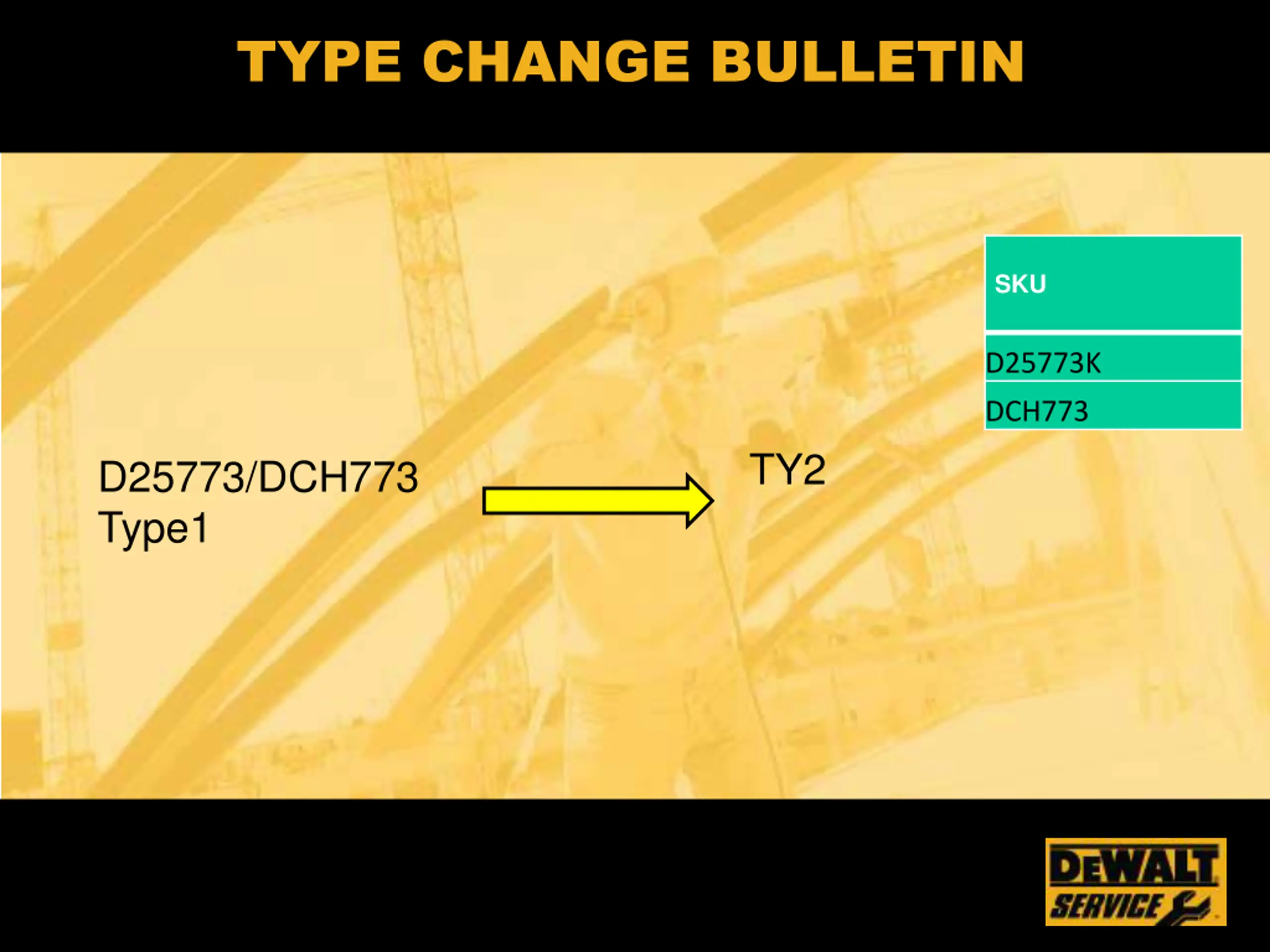

TYPE CHANGE BULLETIN SKU D25773K DCH773 TY2 D25773/DCH773 Type1

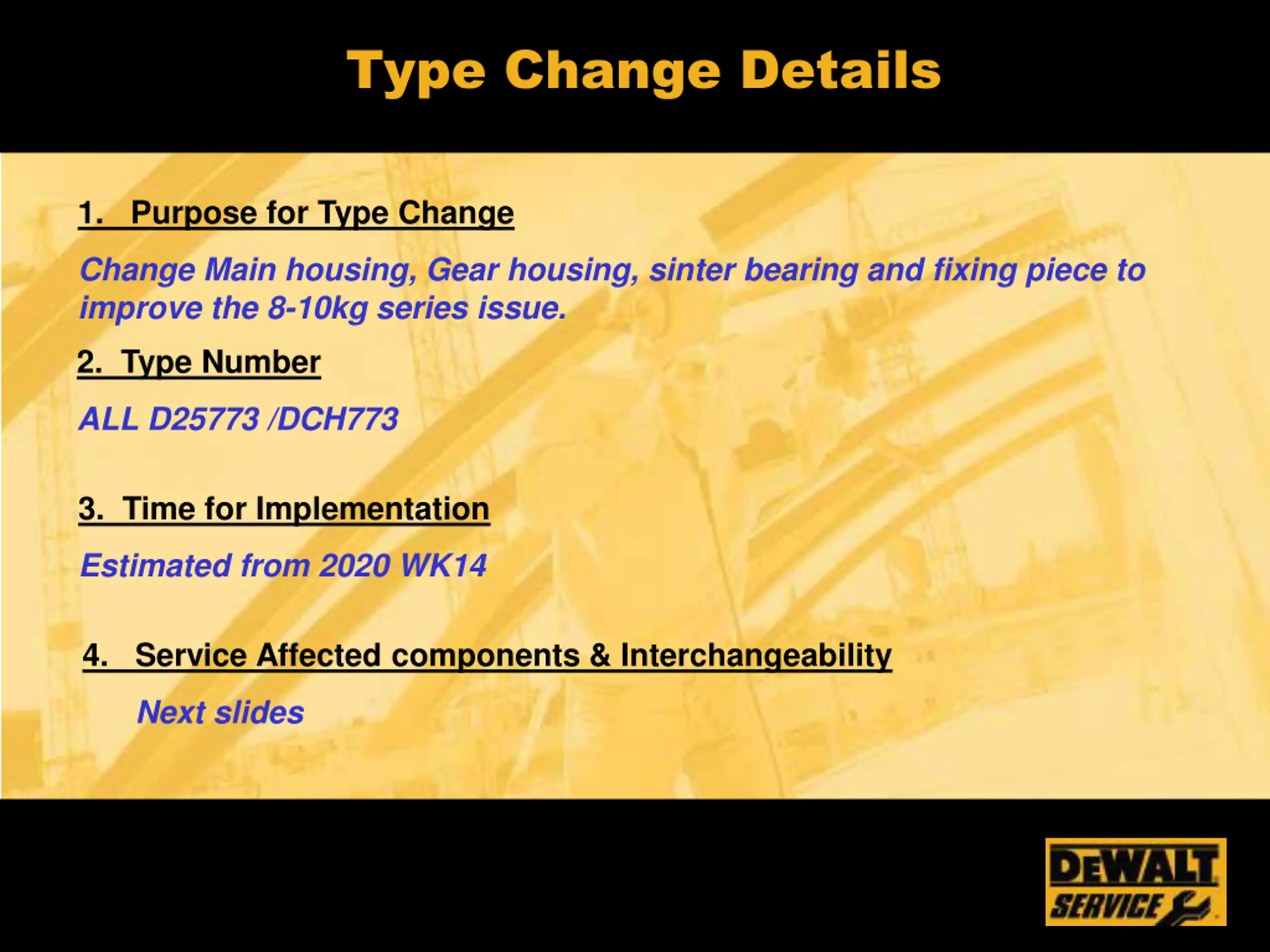

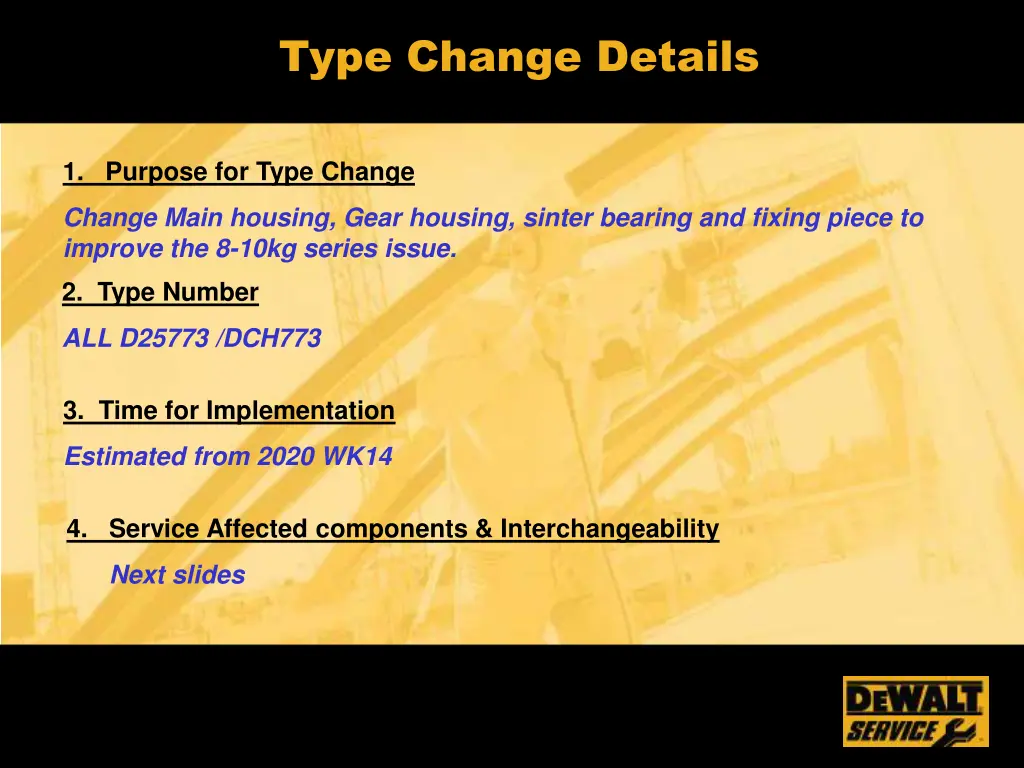

Type Change Details 1. Purpose for Type Change Change Main housing, Gear housing, sinter bearing and fixing piece to improve the 8-10kg series issue. 2. Type Number ALL D25773 /DCH773 3. Time for Implementation Estimated from 2020 WK14 4. Service Affected components & Interchangeability Next slides

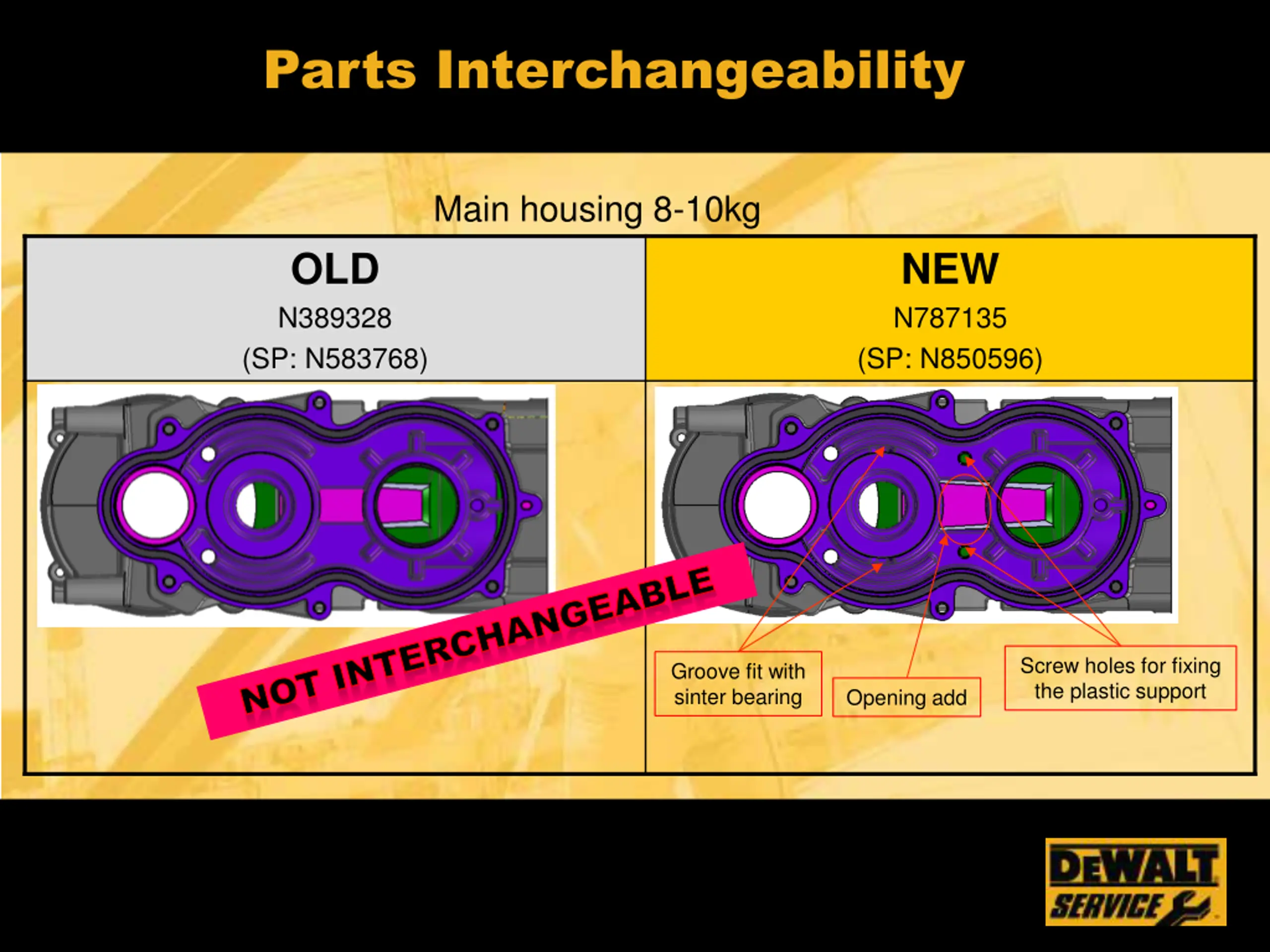

Parts Interchangeability Main housing 8-10kg OLD N389328 (SP: N583768) NEW N787135 (SP: N850596) NOT INTERCHANGEABLE NOT INTERCHANGEABLE Screw holes for fixing the plastic support Groove fit with sinter bearing Opening add

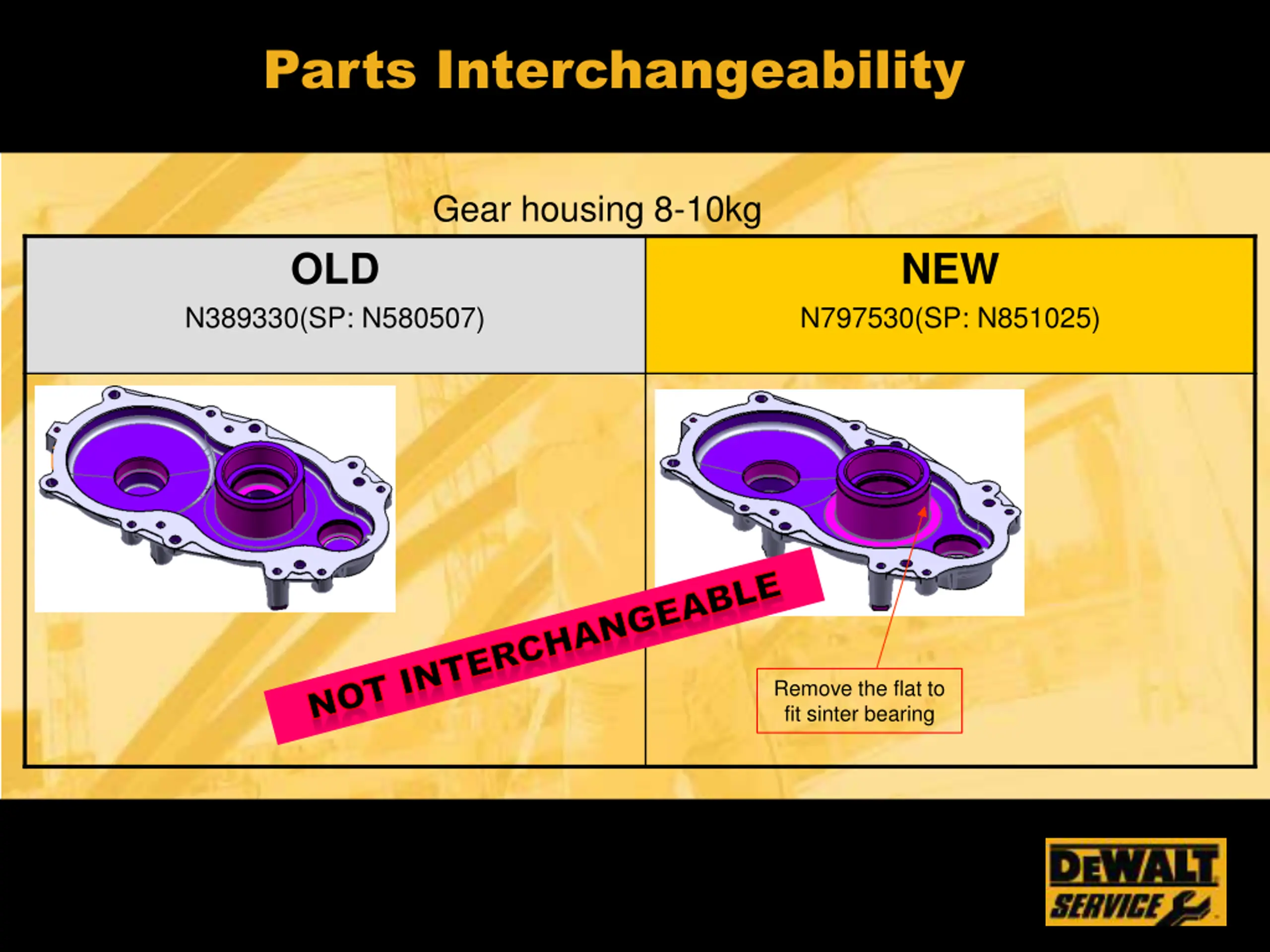

Parts Interchangeability Gear housing 8-10kg OLD NEW N389330(SP: N580507) N797530(SP: N851025) NOT INTERCHANGEABLE NOT INTERCHANGEABLE Remove the flat to fit sinter bearing

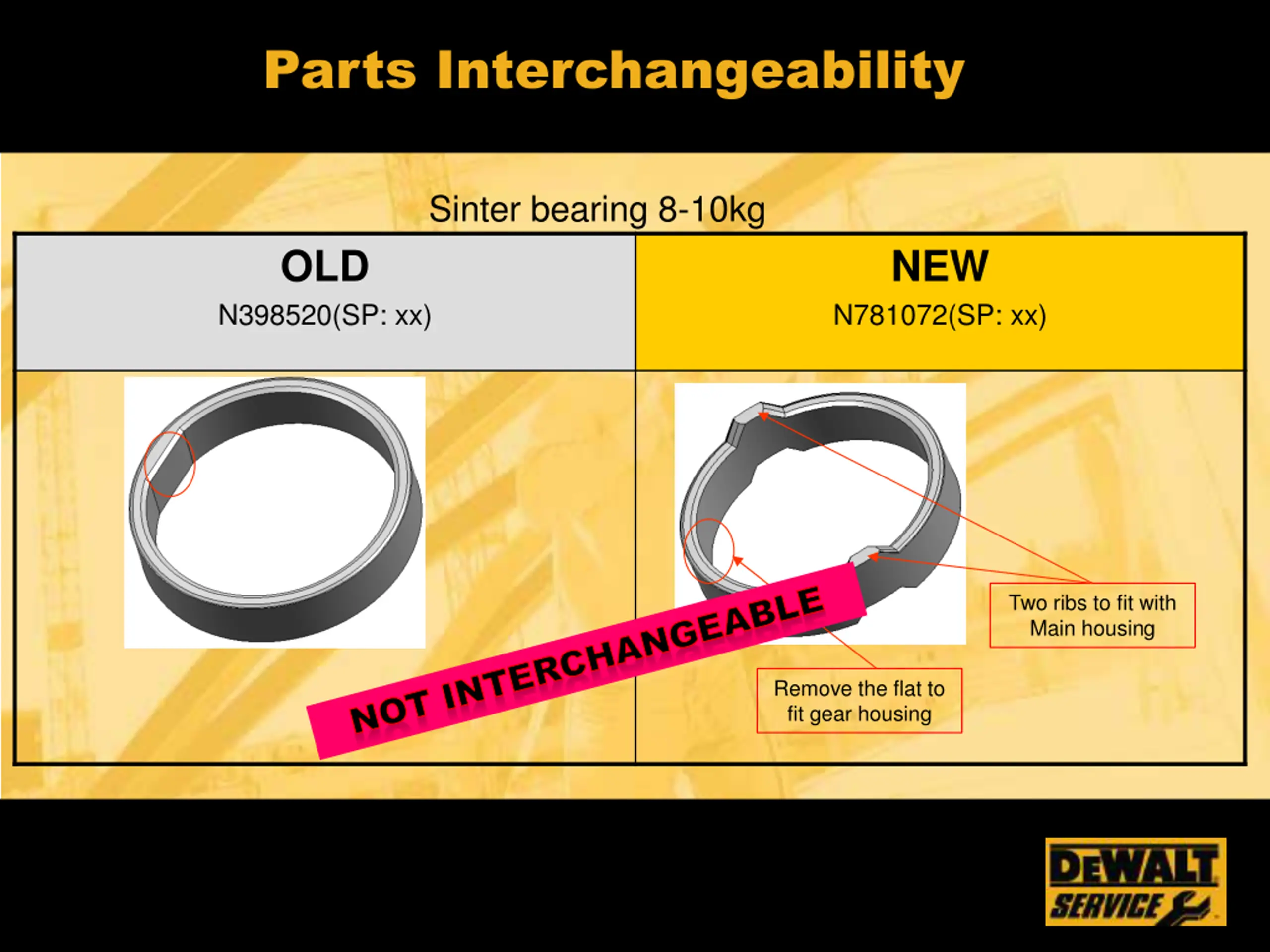

Parts Interchangeability Sinter bearing 8-10kg OLD NEW N398520(SP: xx) N781072(SP: xx) NOT INTERCHANGEABLE NOT INTERCHANGEABLE Two ribs to fit with Main housing Remove the flat to fit gear housing

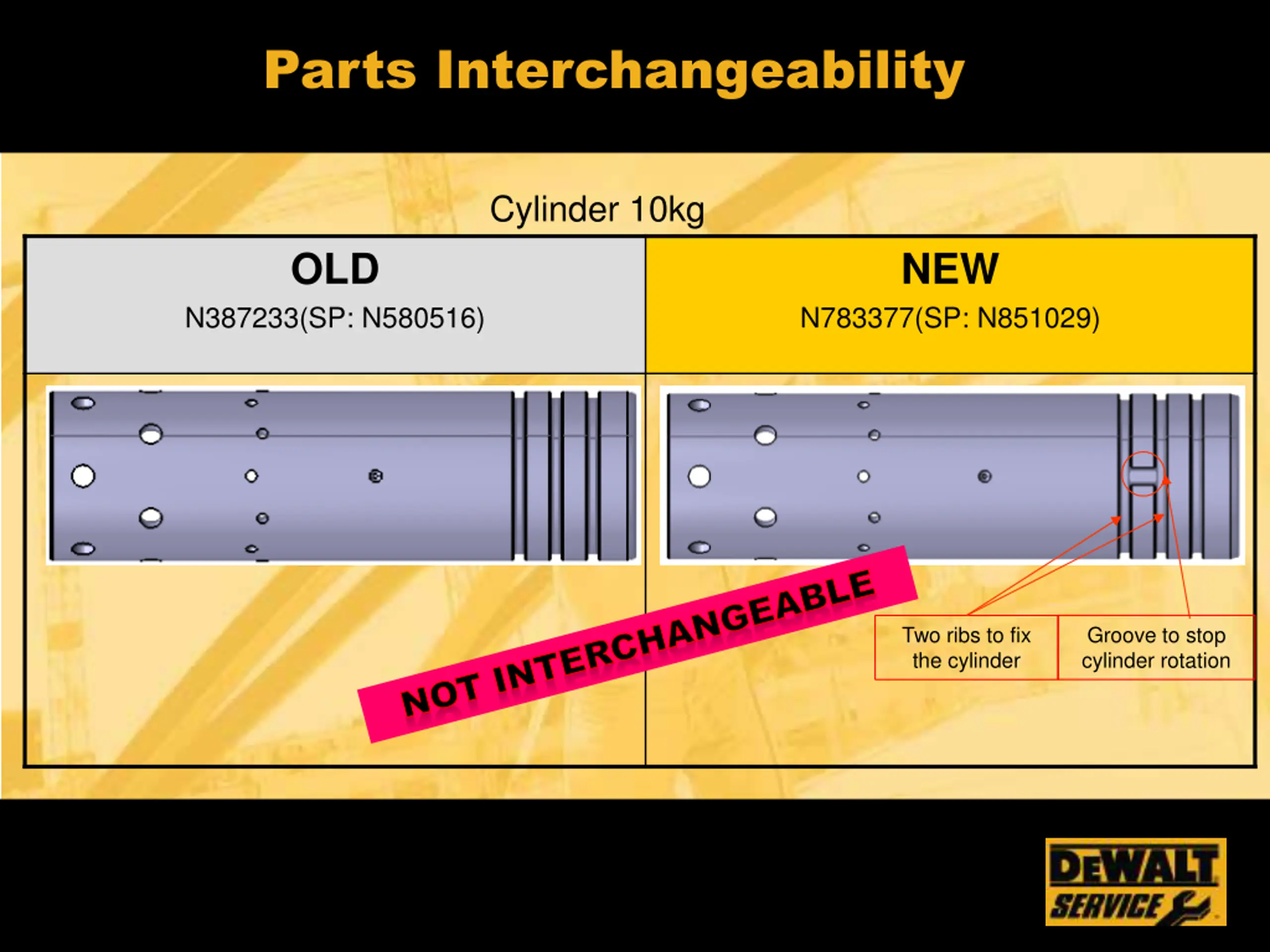

Parts Interchangeability Cylinder 10kg OLD NEW N387233(SP: N580516) N783377(SP: N851029) NOT INTERCHANGEABLE NOT INTERCHANGEABLE Groove to stop cylinder rotation Two ribs to fix the cylinder

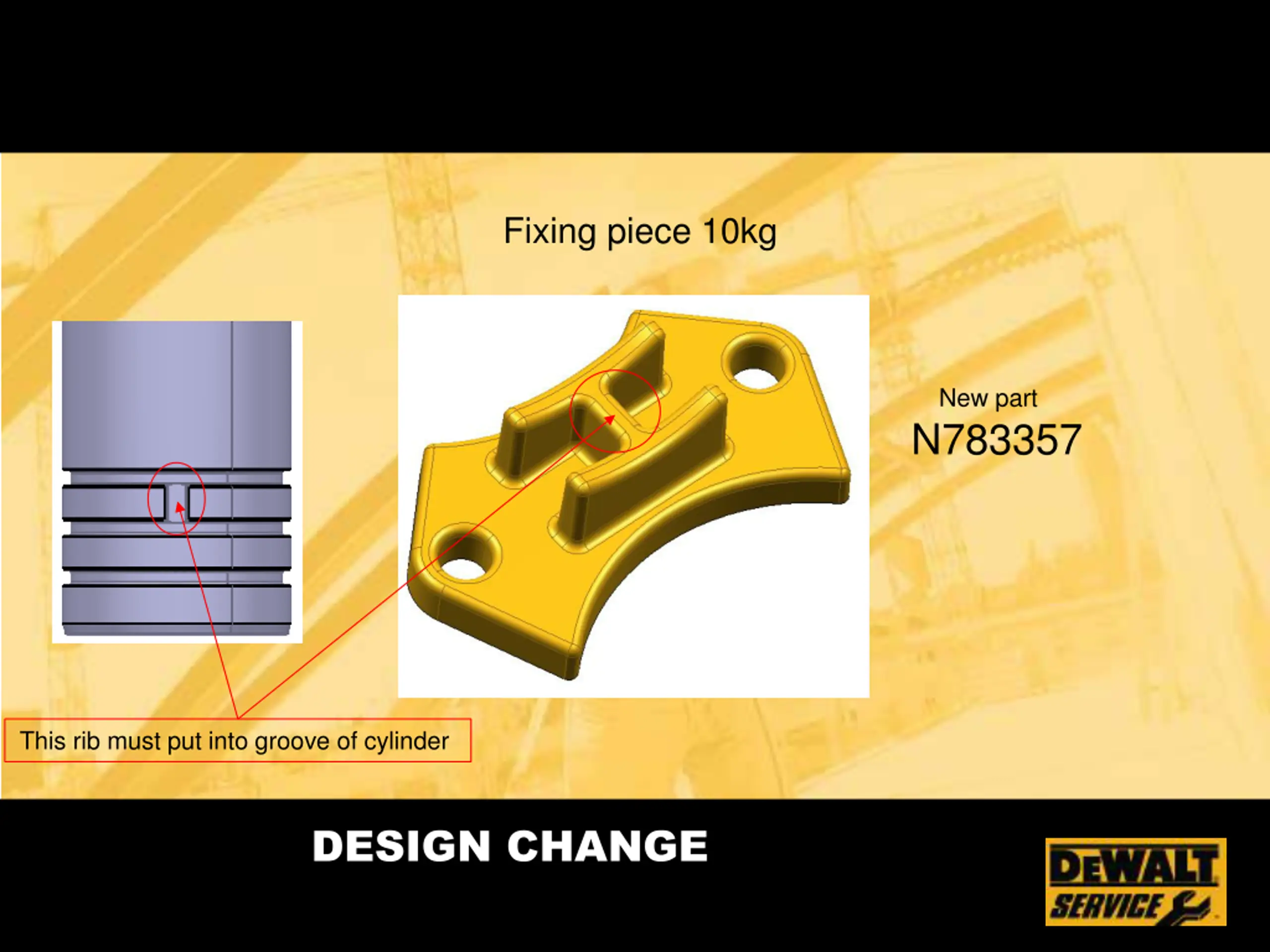

Fixing piece 10kg New part N783357 This rib must put into groove of cylinder DESIGN CHANGE
