1. Information Security - 2 Topic: Architectural Aid to Secure Systems Engineering V. Kamakoti RISE LAB, Department of Computer Science and Engineering IIT Madras SESSION 5: VIRTUAL MACHINE BASED ROOTKITS (VMBR)

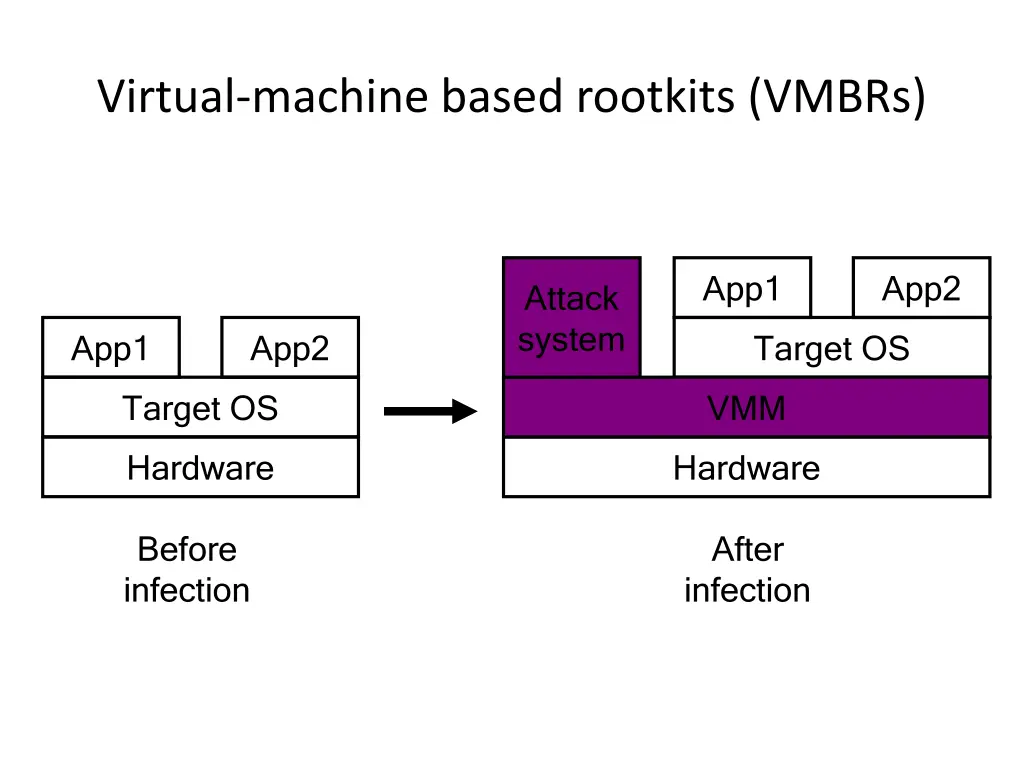

2. Virtual-machine based rootkits (VMBRs) App1 App2 Attack system App1 App2 Target OS Target OS VMM Hardware Hardware Before infection After infection

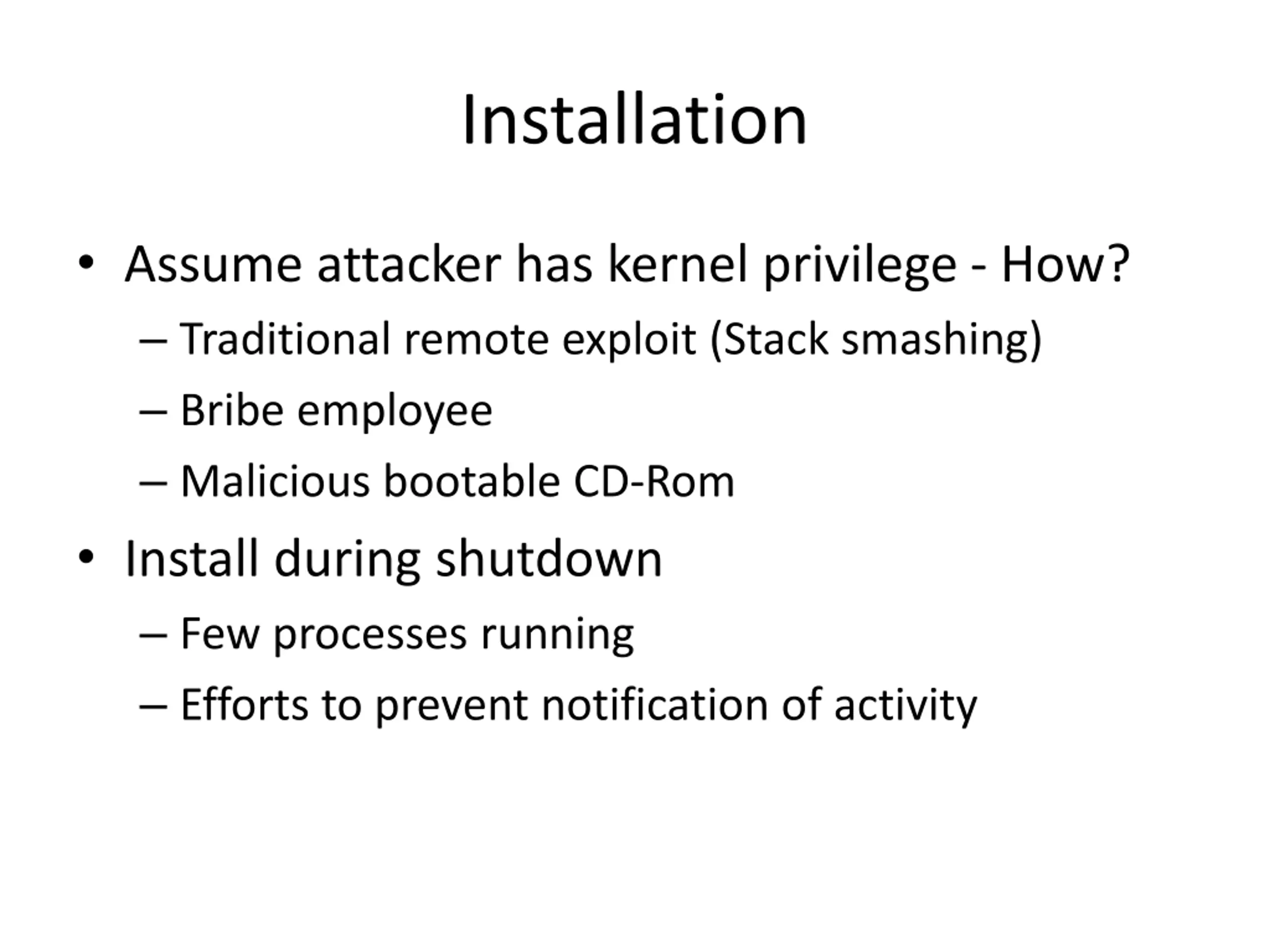

3. Installation Assume attacker has kernel privilege - How? Traditional remote exploit (Stack smashing) Bribe employee Malicious bootable CD-Rom Install during shutdown Few processes running Efforts to prevent notification of activity

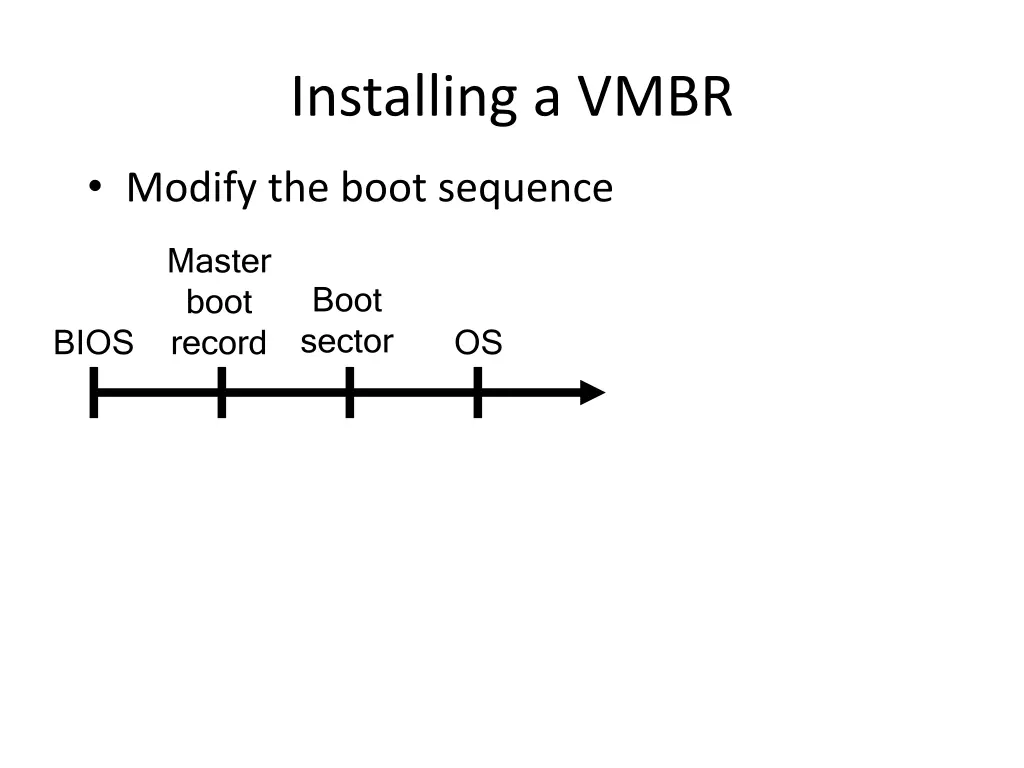

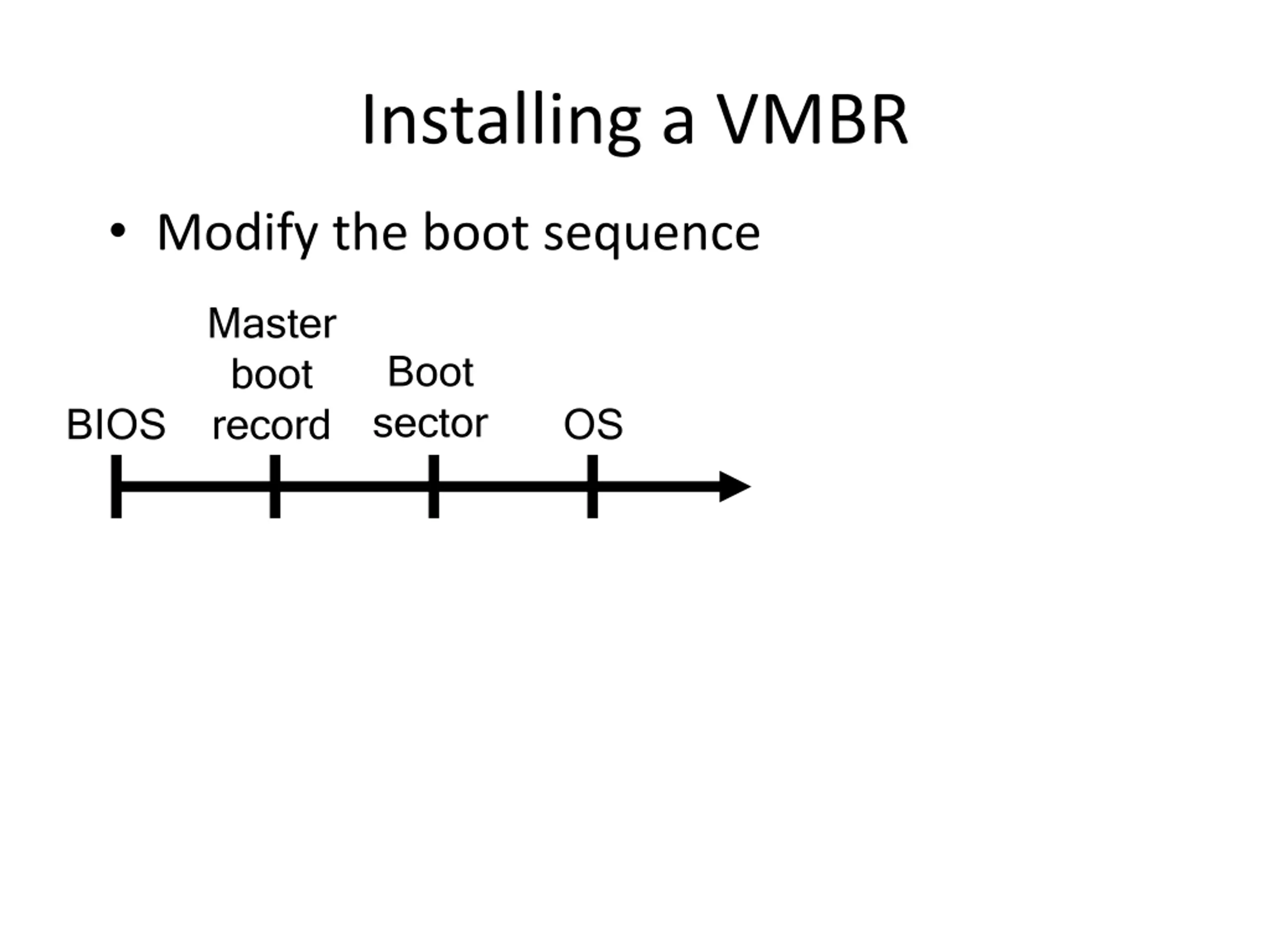

4. Installing a VMBR Modify the boot sequence Master boot record Boot sector BIOS OS

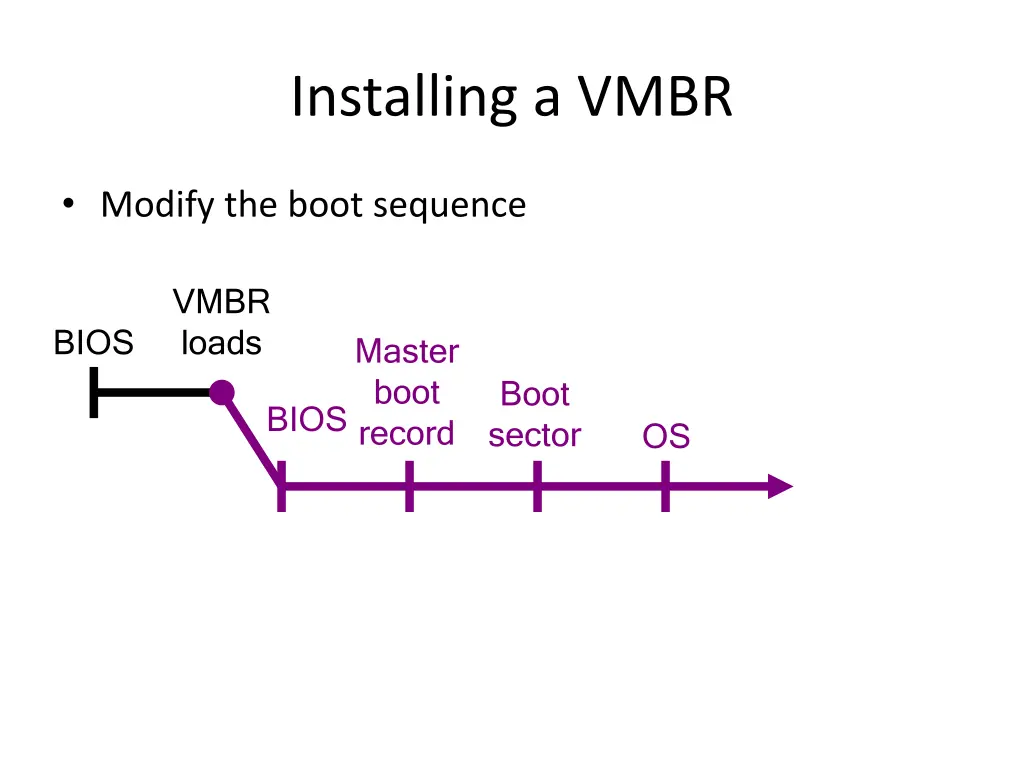

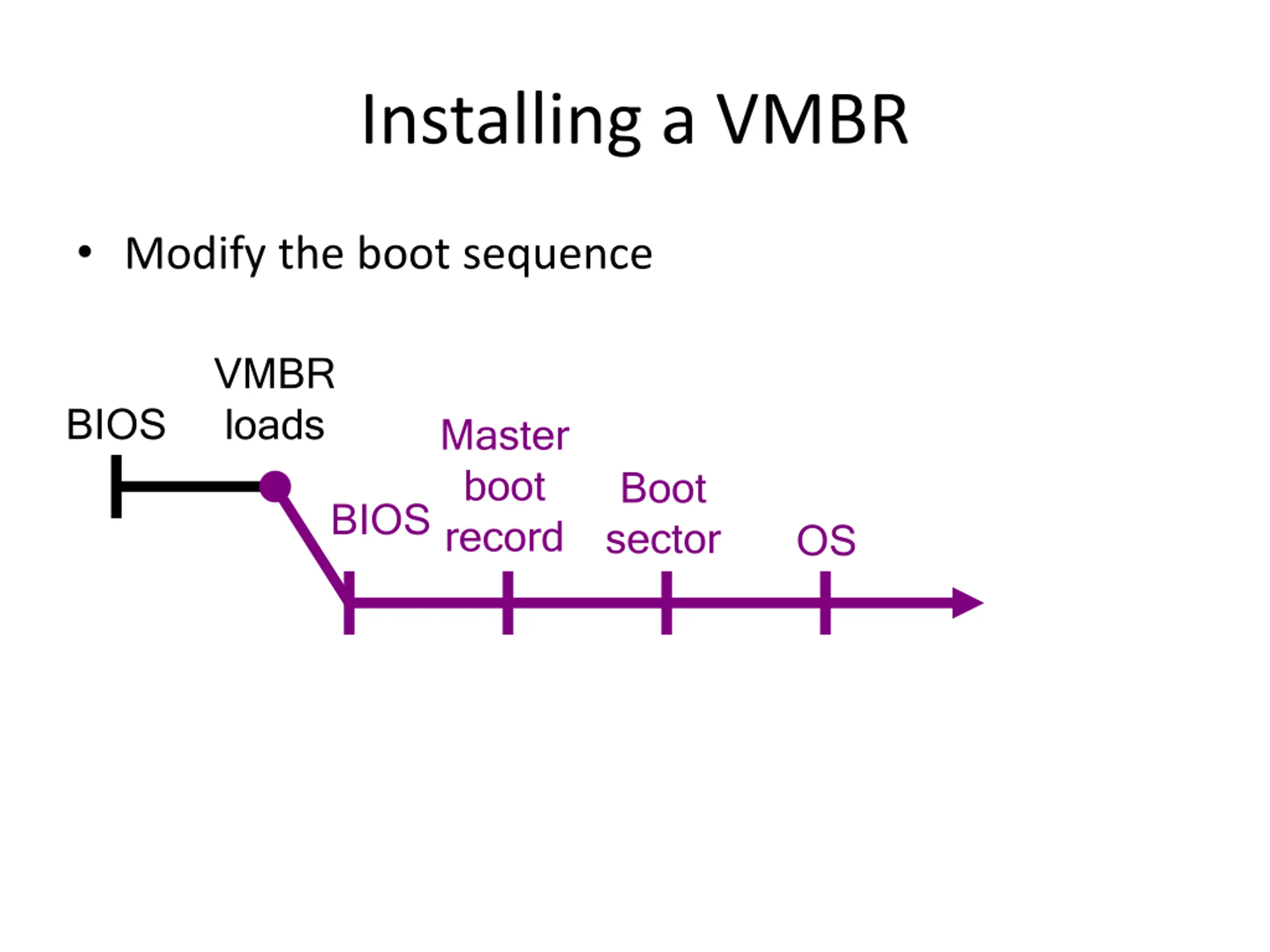

5. Installing a VMBR Modify the boot sequence VMBR loads BIOS Master boot record Boot sector BIOS OS

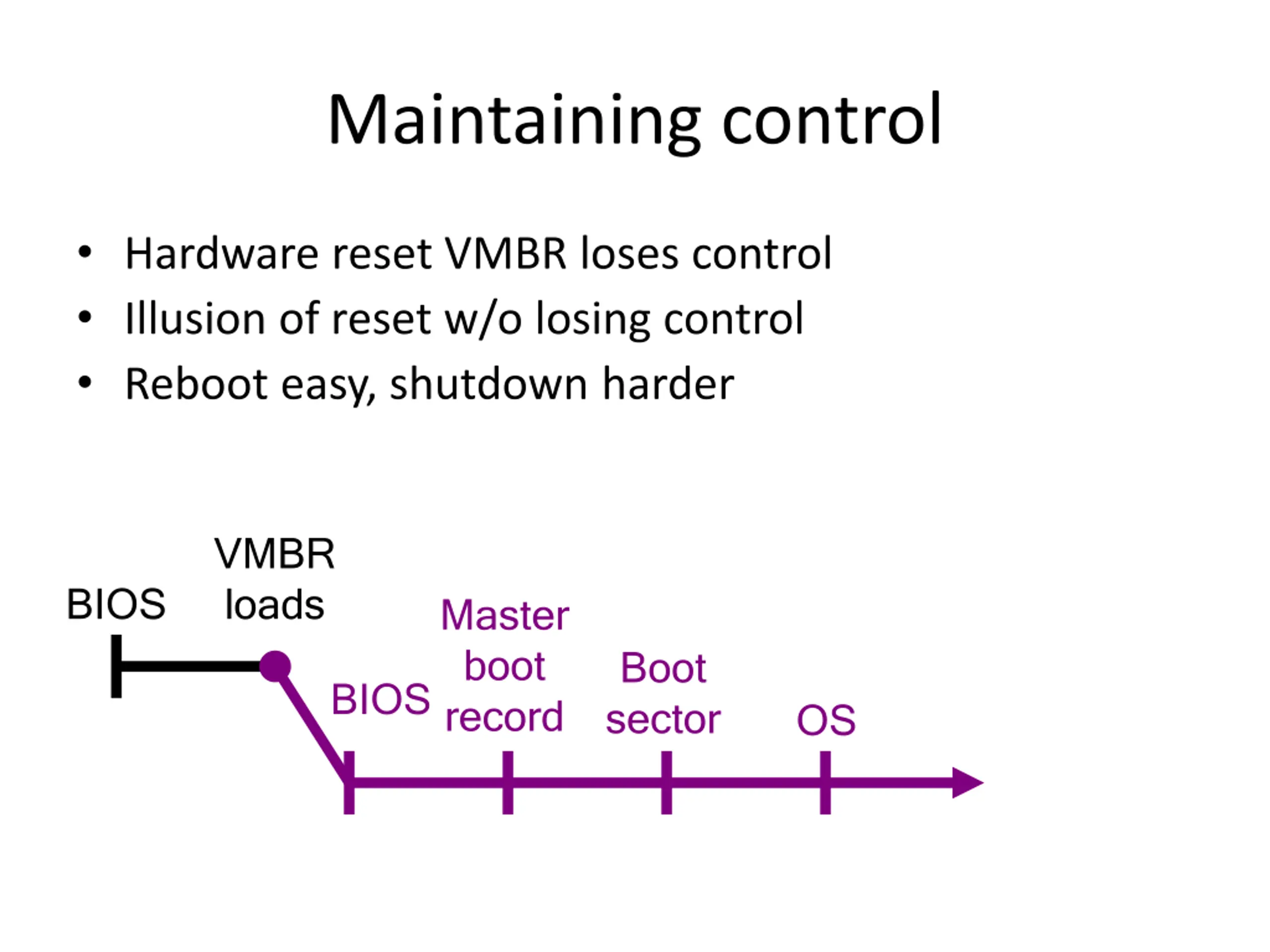

6. Maintaining control Hardware reset VMBR loses control Illusion of reset w/o losing control Reboot easy, shutdown harder VMBR loads BIOS Master boot record Boot sector BIOS OS

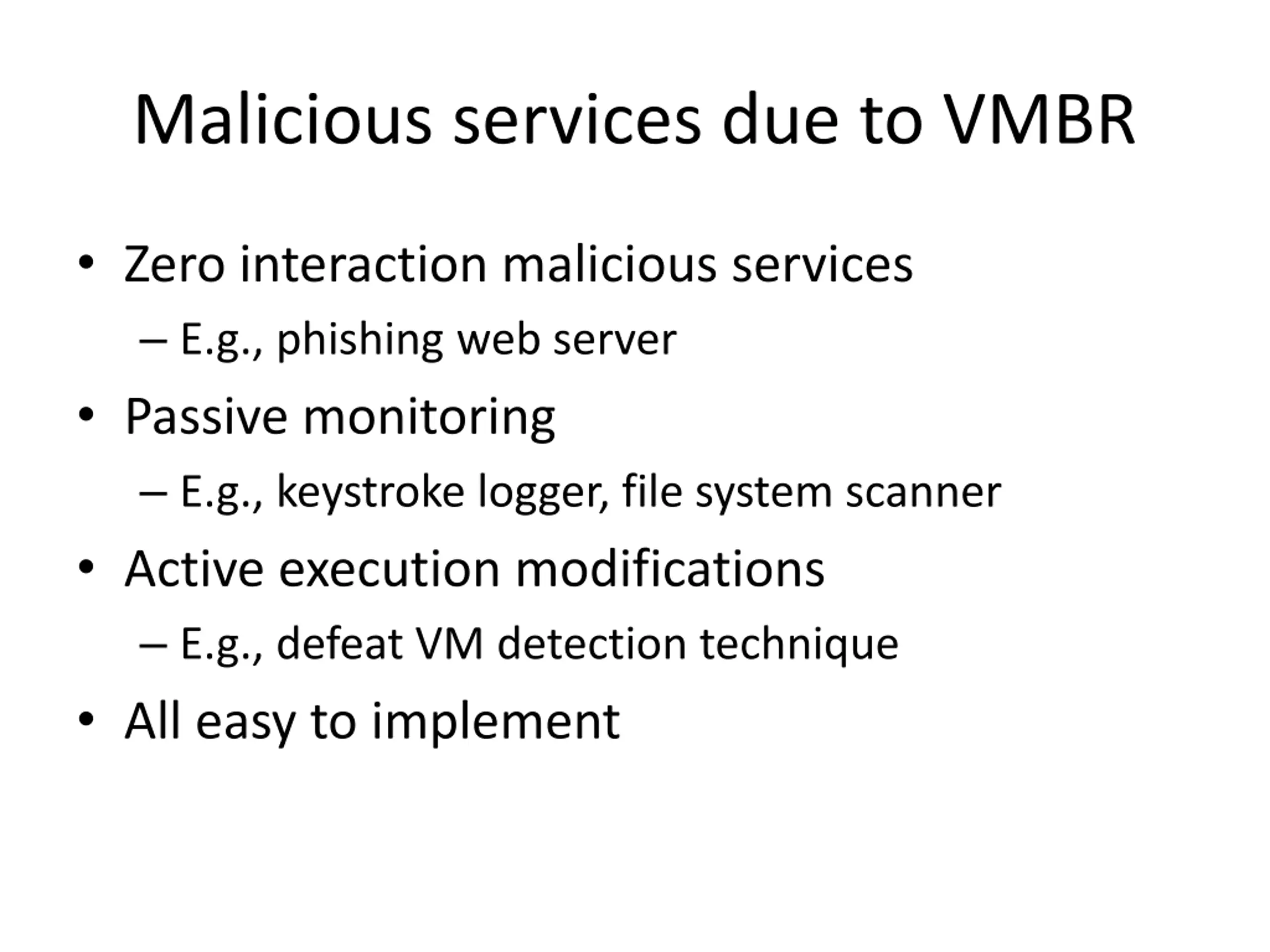

7. Malicious services due to VMBR Zero interaction malicious services E.g., phishing web server Passive monitoring E.g., keystroke logger, file system scanner Active execution modifications E.g., defeat VM detection technique All easy to implement

8. End of Session-5 Thank You
