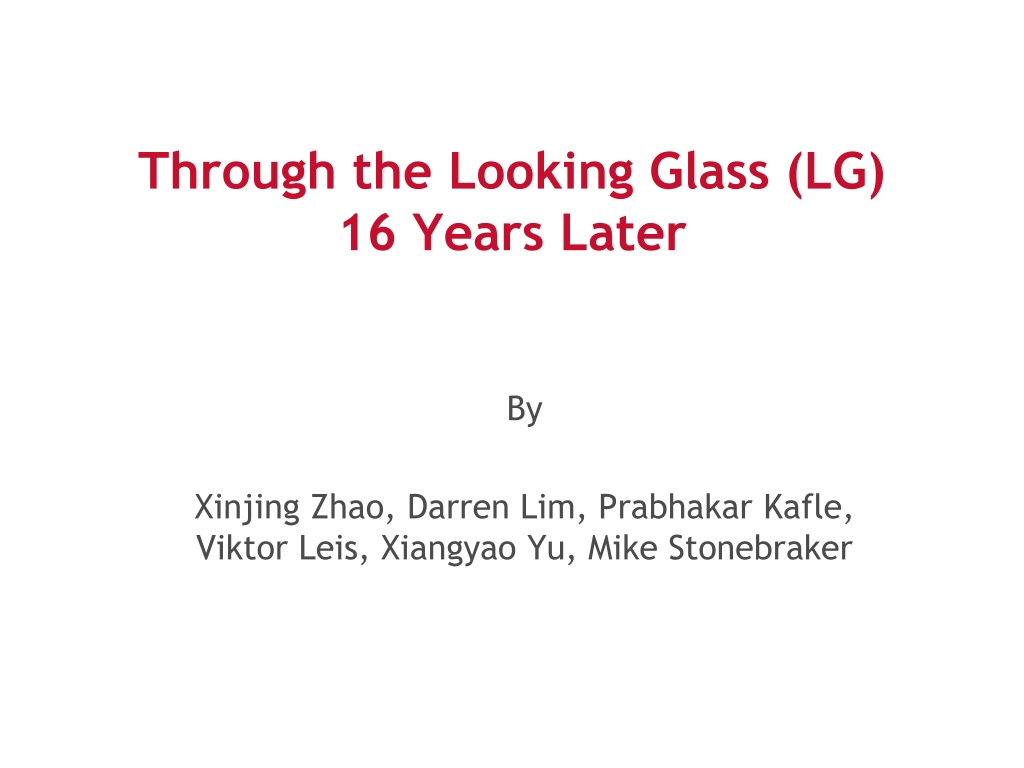

Through the Looking Glass (LG) 16 Years Later By Xinjing Zhao, Darren Lim, Prabhakar Kafle, Viktor Leis, Xiangyao Yu, Mike Stonebraker

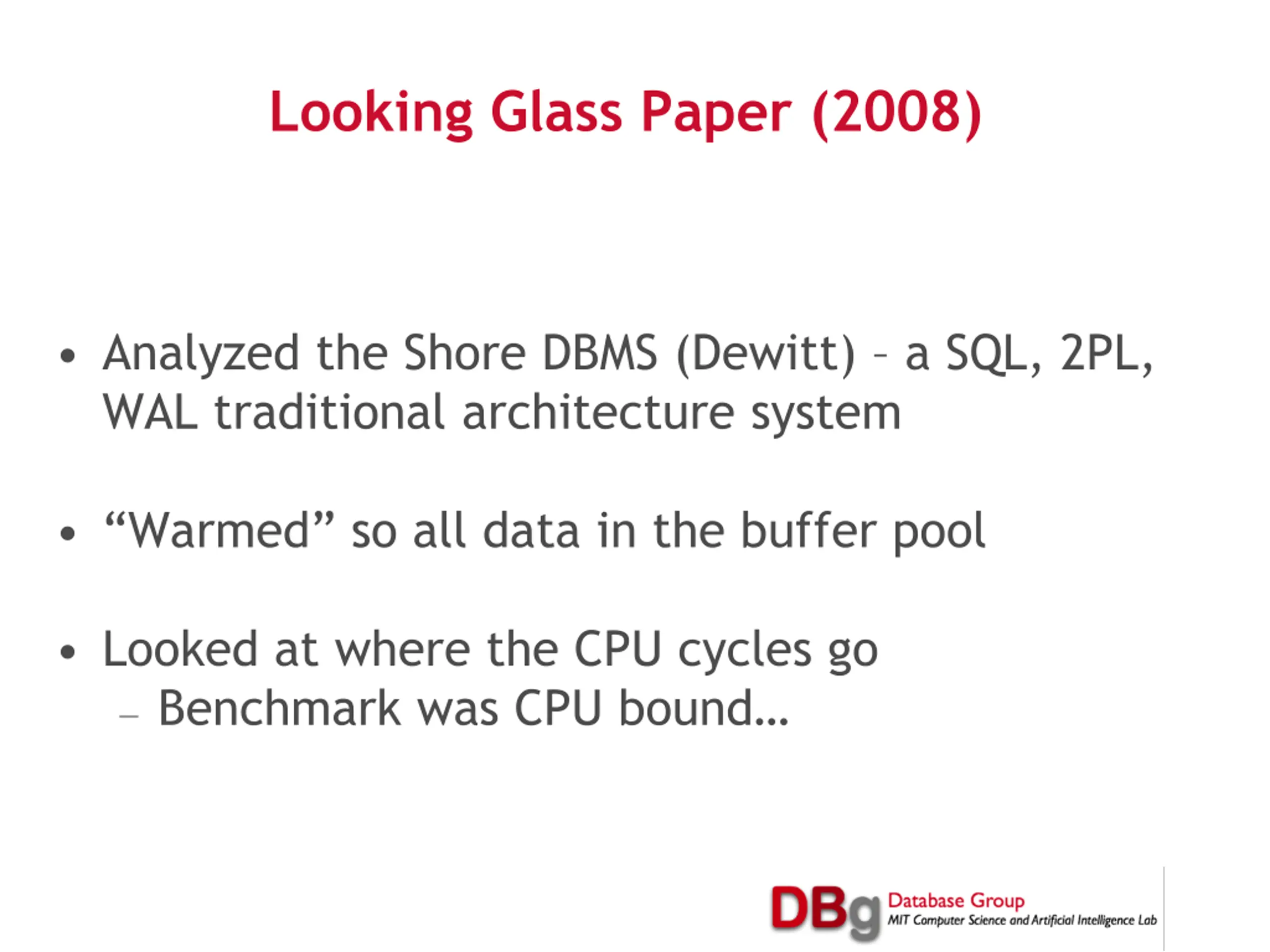

Looking Glass Paper (2008) Analyzed the Shore DBMS (Dewitt) a SQL, 2PL, WAL traditional architecture system Warmed so all data in the buffer pool Looked at where the CPU cycles go Benchmark was CPU bound

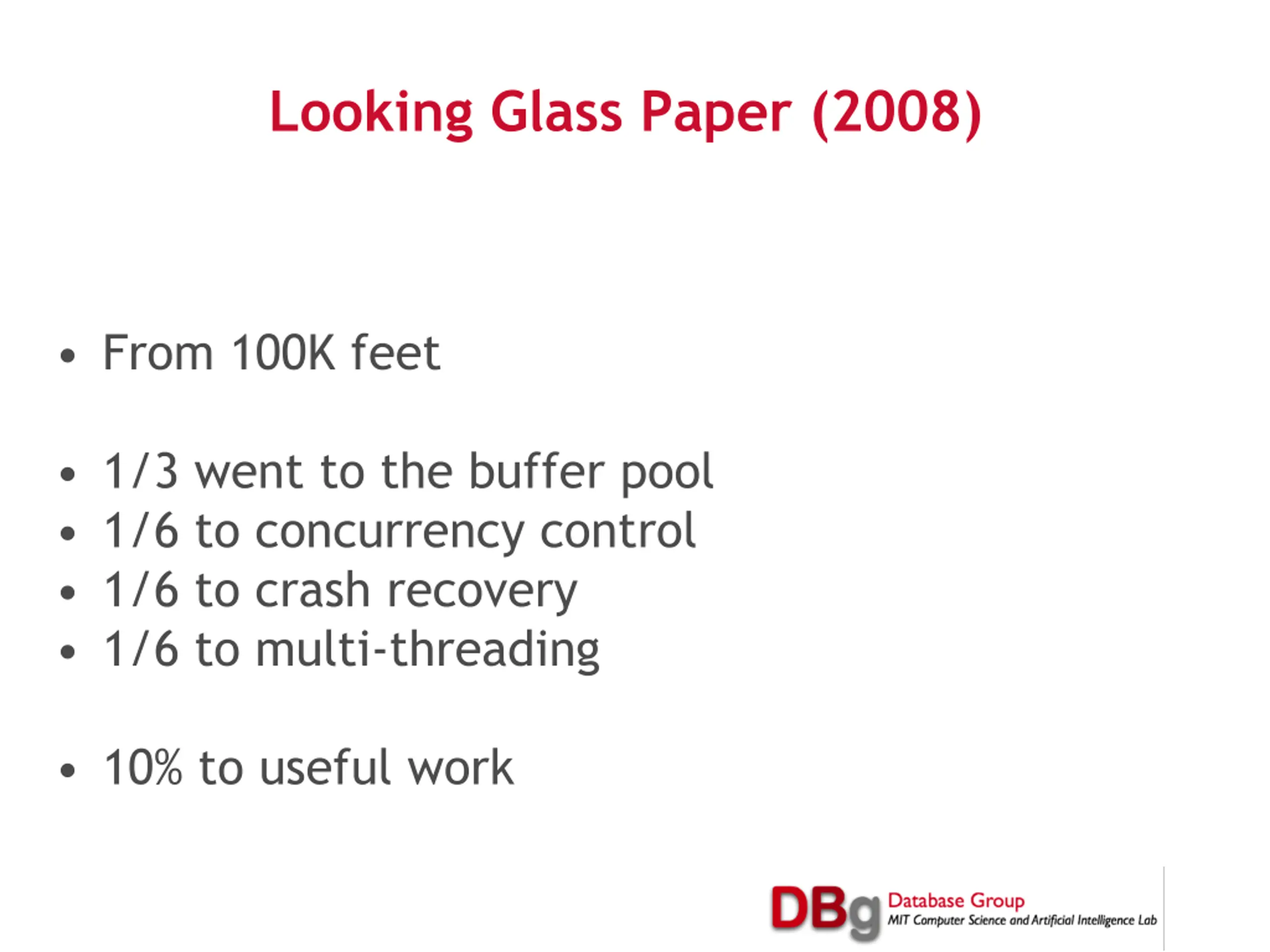

Looking Glass Paper (2008) From 100K feet 1/3 went to the buffer pool 1/6 to concurrency control 1/6 to crash recovery 1/6 to multi-threading 10% to useful work

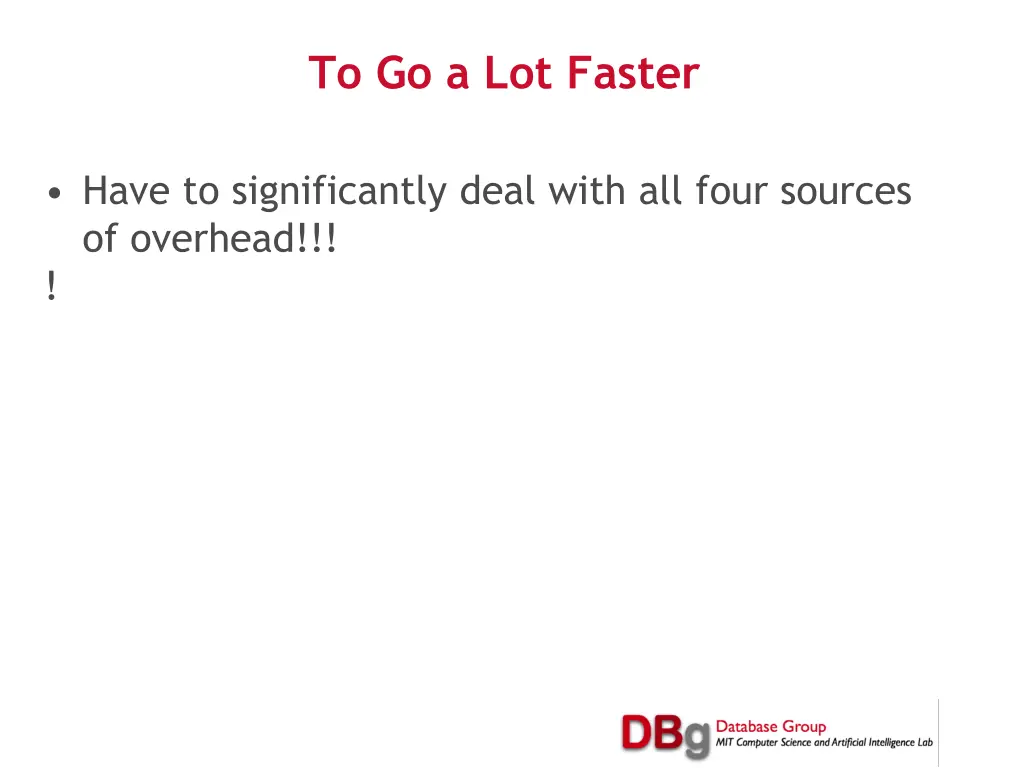

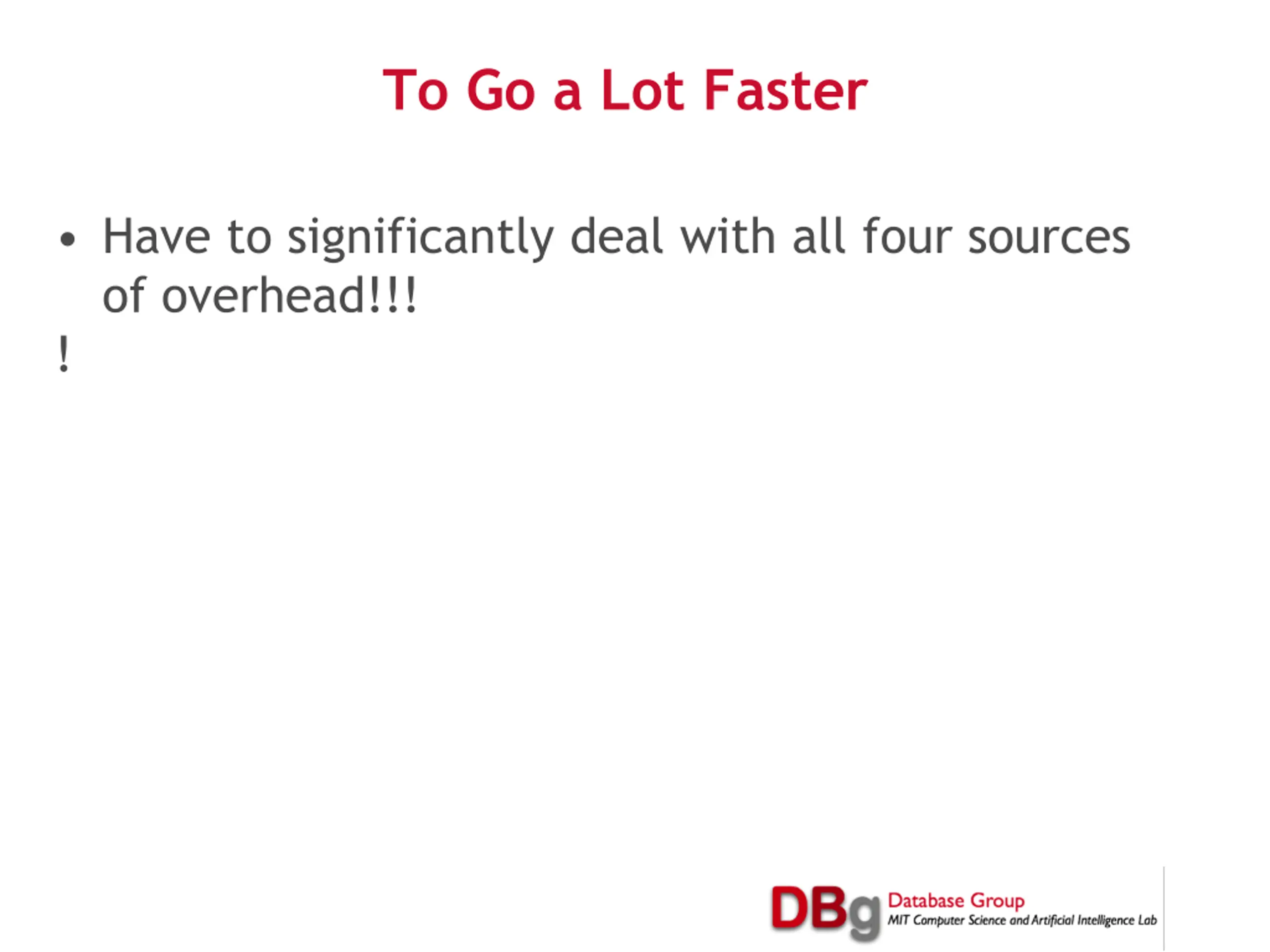

To Go a Lot Faster Have to significantly deal with all four sources of overhead!!! !

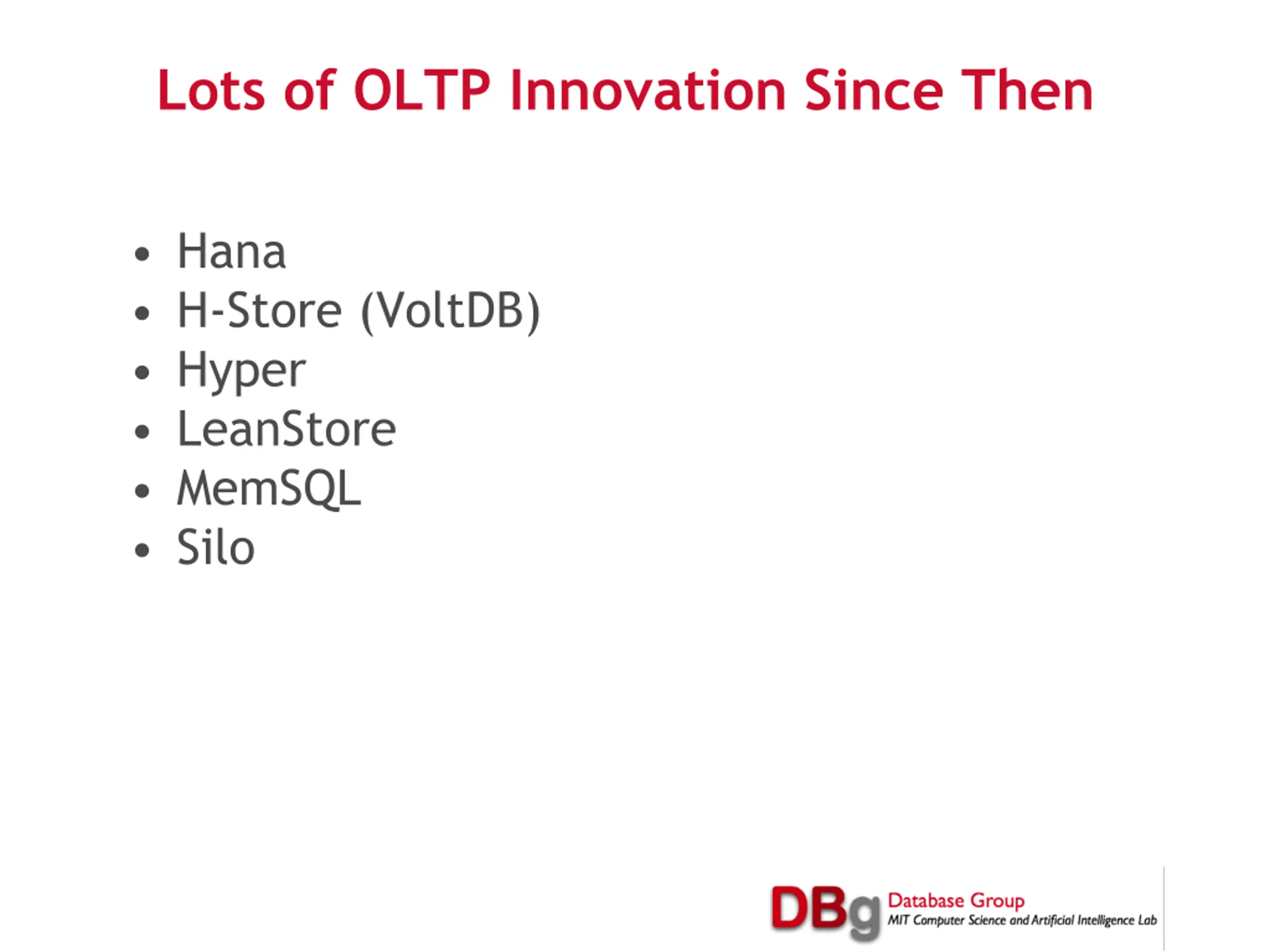

Lots of OLTP Innovation Since Then Hana H-Store (VoltDB) Hyper LeanStore MemSQL Silo

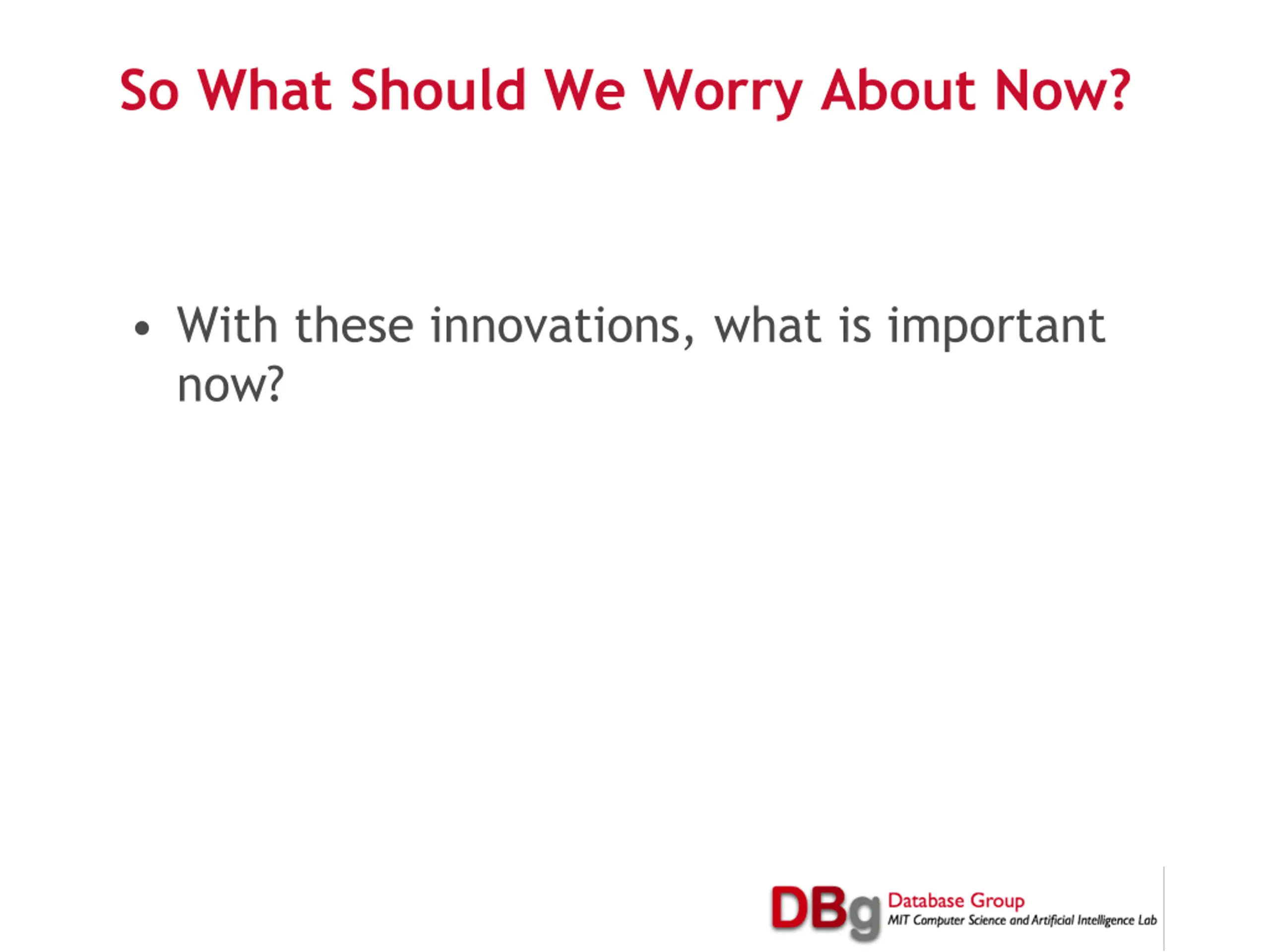

So What Should We Worry About Now? With these innovations, what is important now?

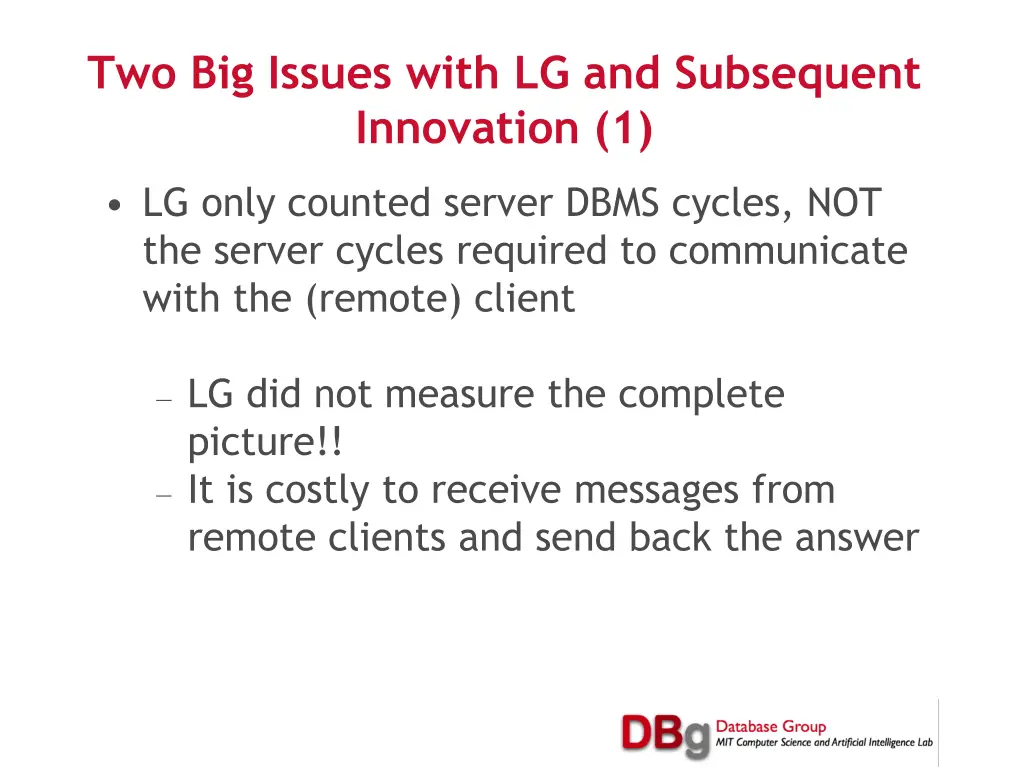

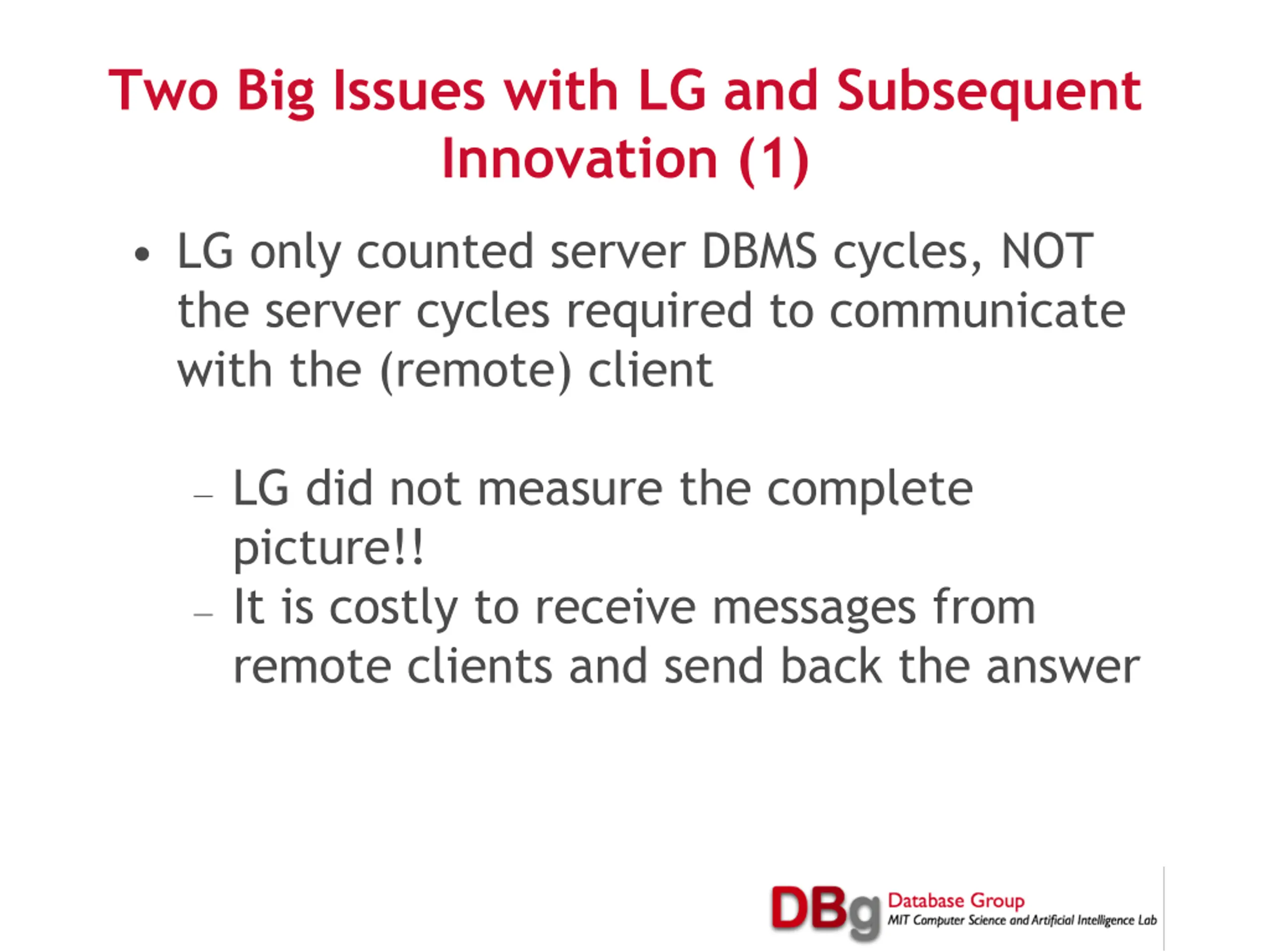

Two Big Issues with LG and Subsequent Innovation (1) LG only counted server DBMS cycles, NOT the server cycles required to communicate with the (remote) client LG did not measure the complete picture!! It is costly to receive messages from remote clients and send back the answer

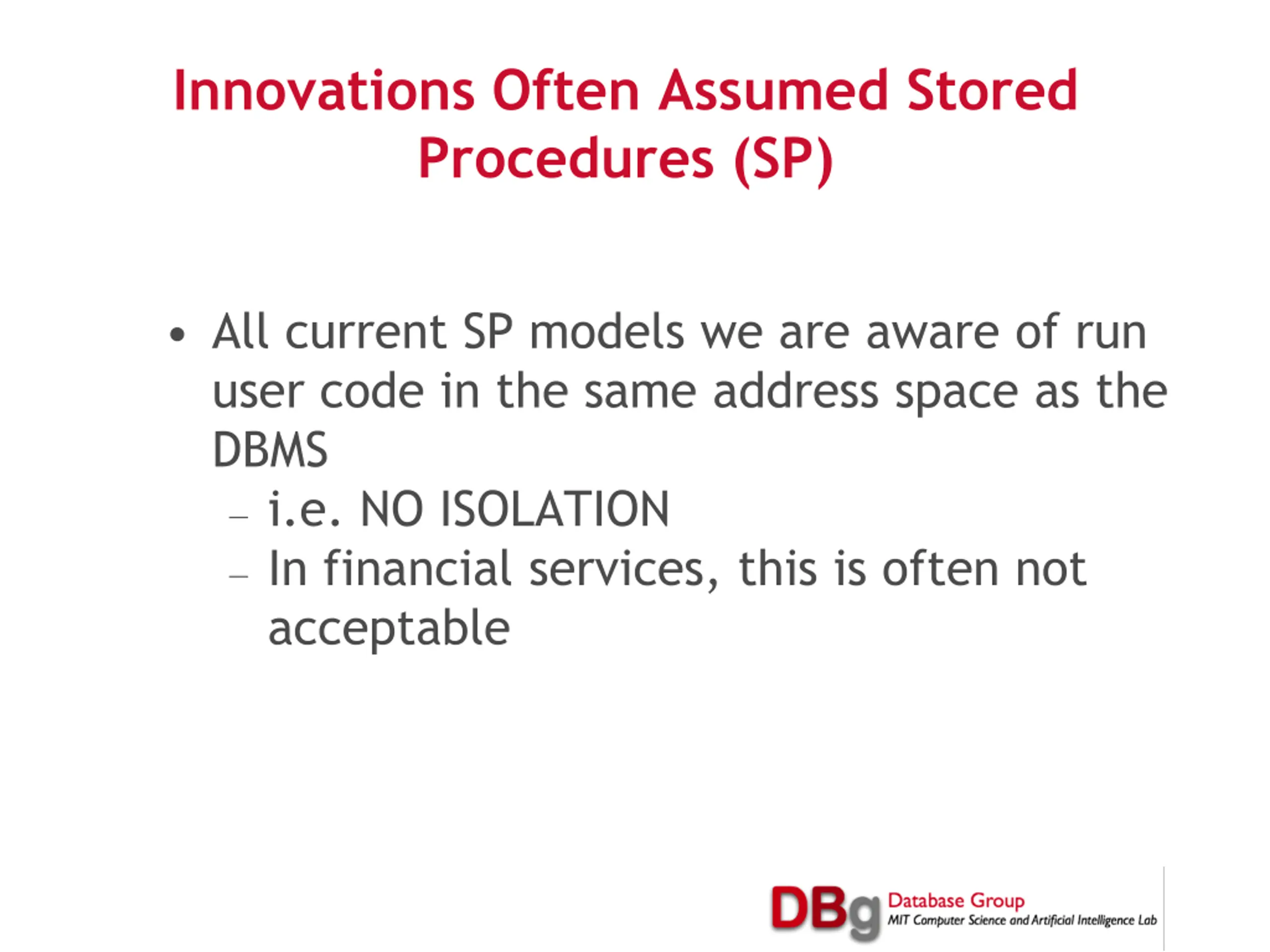

Innovations Often Assumed Stored Procedures (SP) All current SP models we are aware of run user code in the same address space as the DBMS i.e. NO ISOLATION In financial services, this is often not acceptable

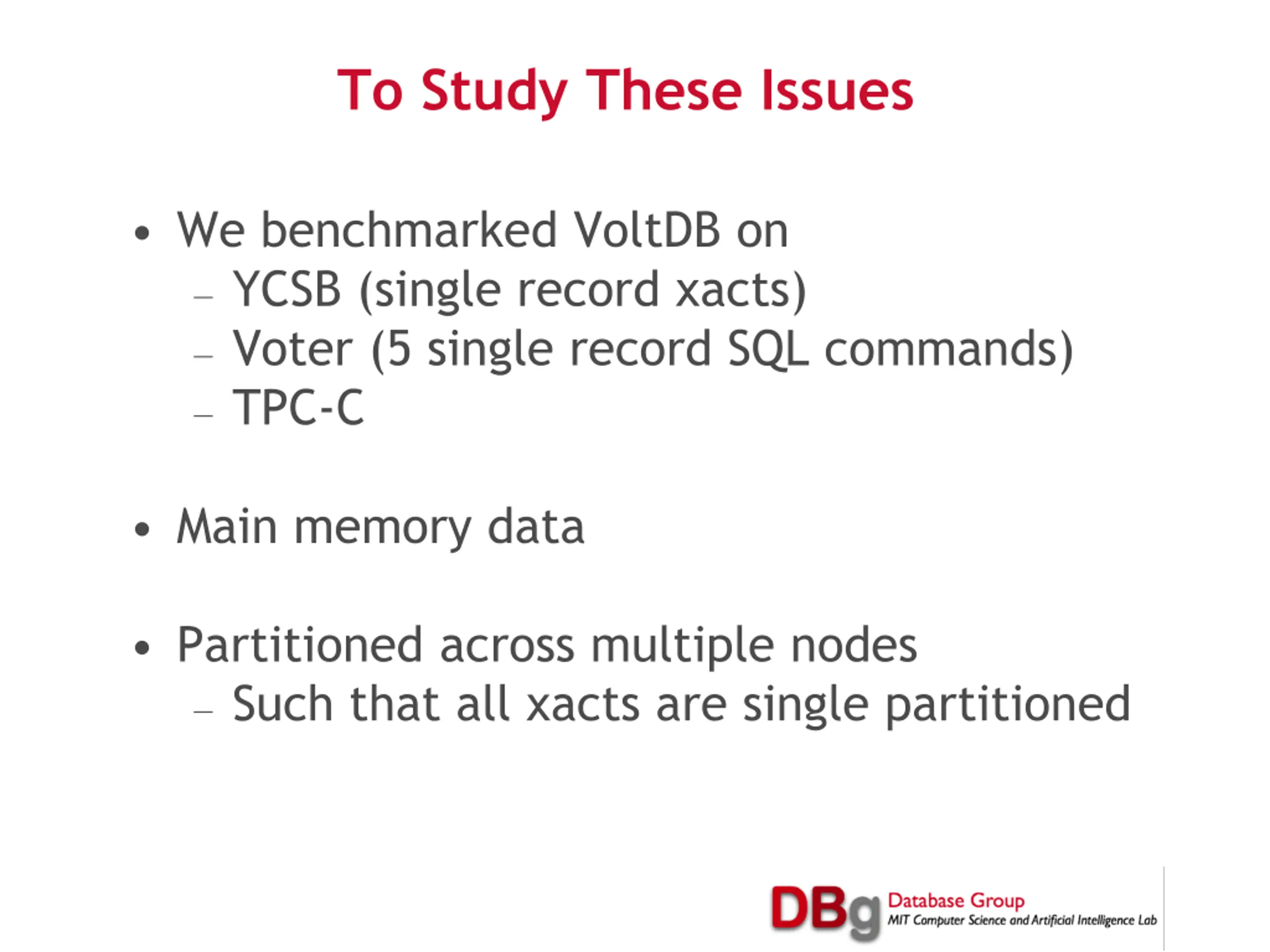

To Study These Issues We benchmarked VoltDB on YCSB (single record xacts) Voter (5 single record SQL commands) TPC-C Main memory data Partitioned across multiple nodes Such that all xacts are single partitioned

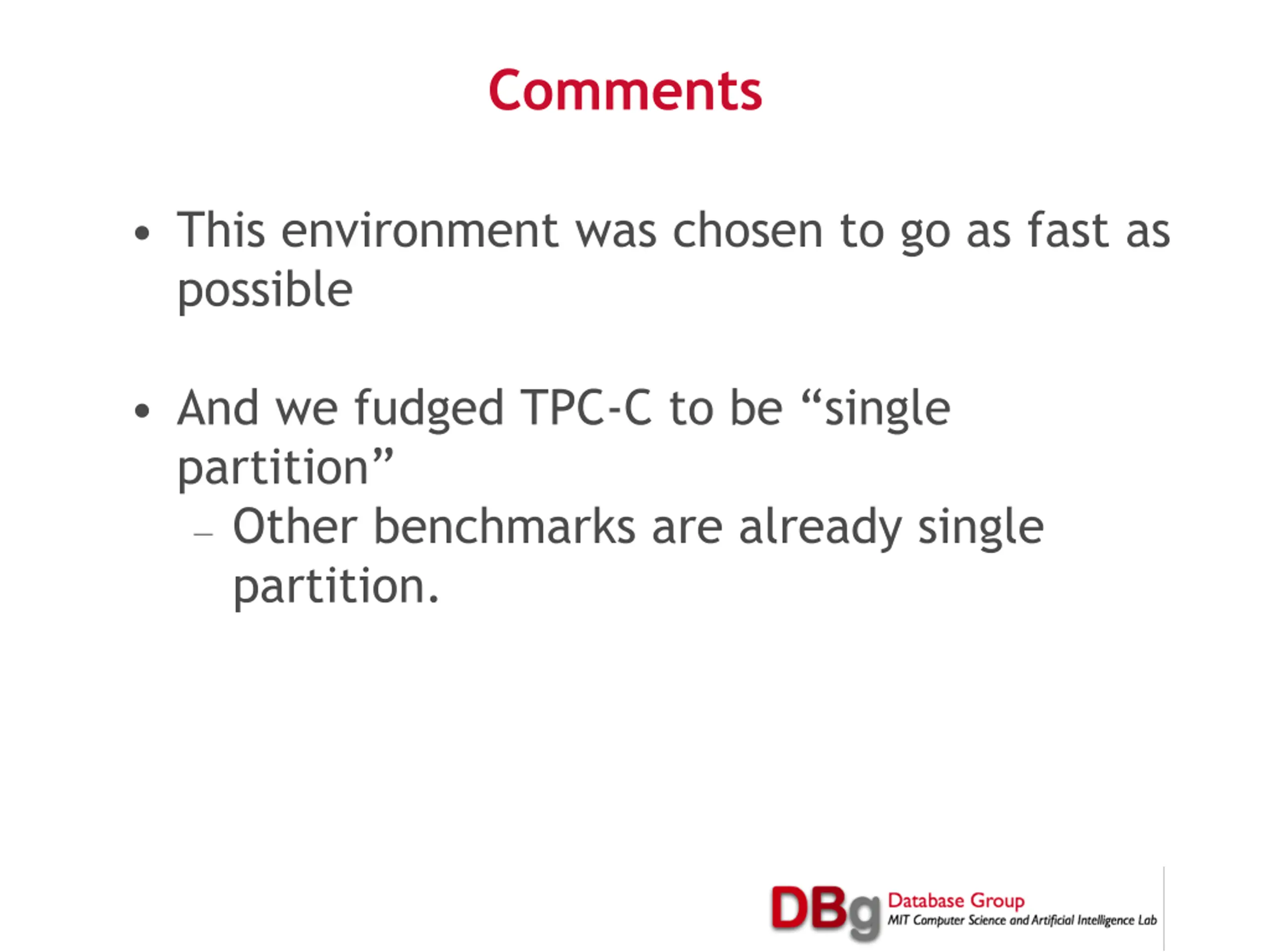

Comments This environment was chosen to go as fast as possible And we fudged TPC-C to be single partition Other benchmarks are already single partition.

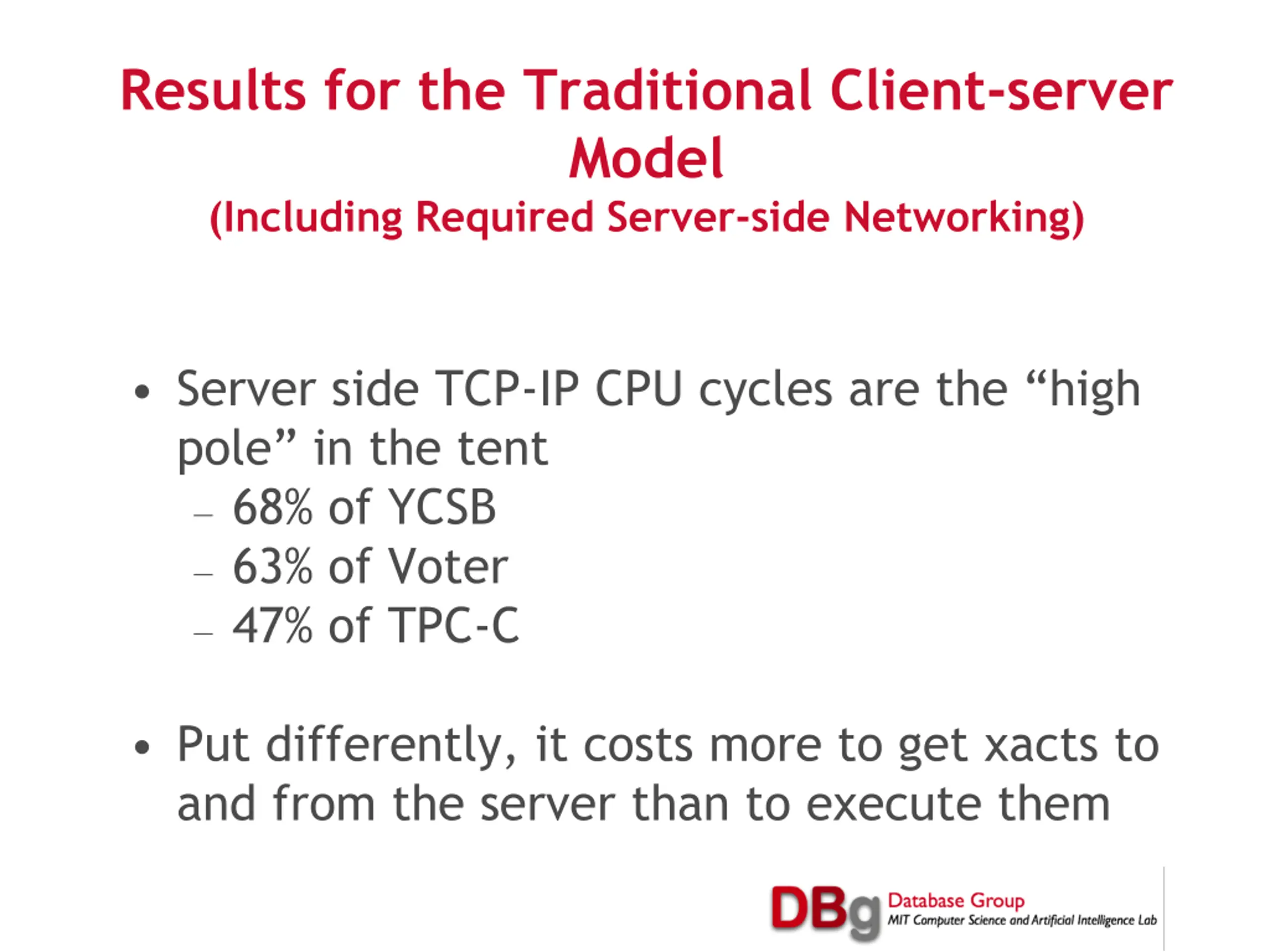

Results for the Traditional Client-server Model (Including Required Server-side Networking) Server side TCP-IP CPU cycles are the high pole in the tent 68% of YCSB 63% of Voter 47% of TPC-C Put differently, it costs more to get xacts to and from the server than to execute them

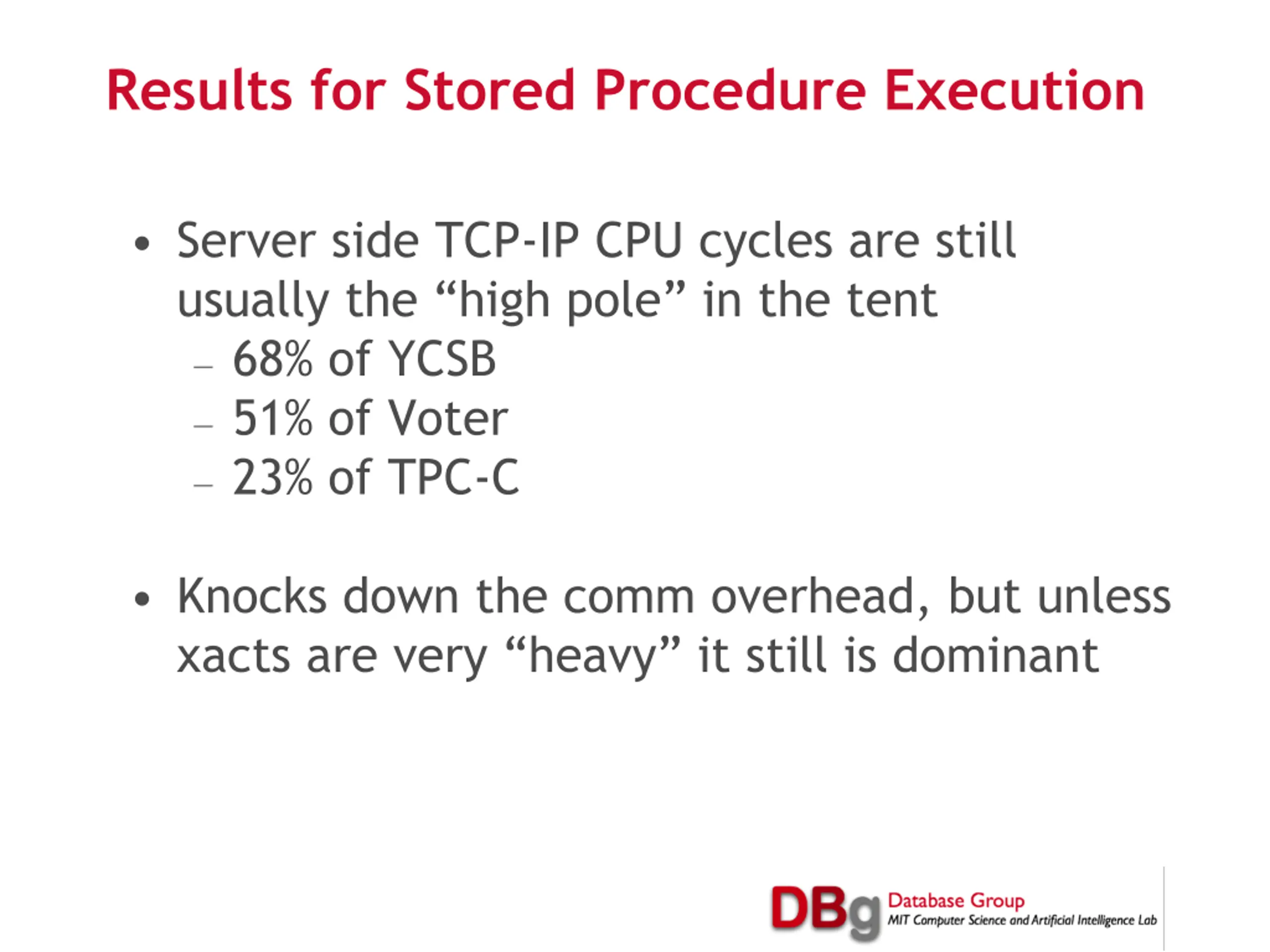

Results for Stored Procedure Execution Server side TCP-IP CPU cycles are still usually the high pole in the tent 68% of YCSB 51% of Voter 23% of TPC-C Knocks down the comm overhead, but unless xacts are very heavy it still is dominant

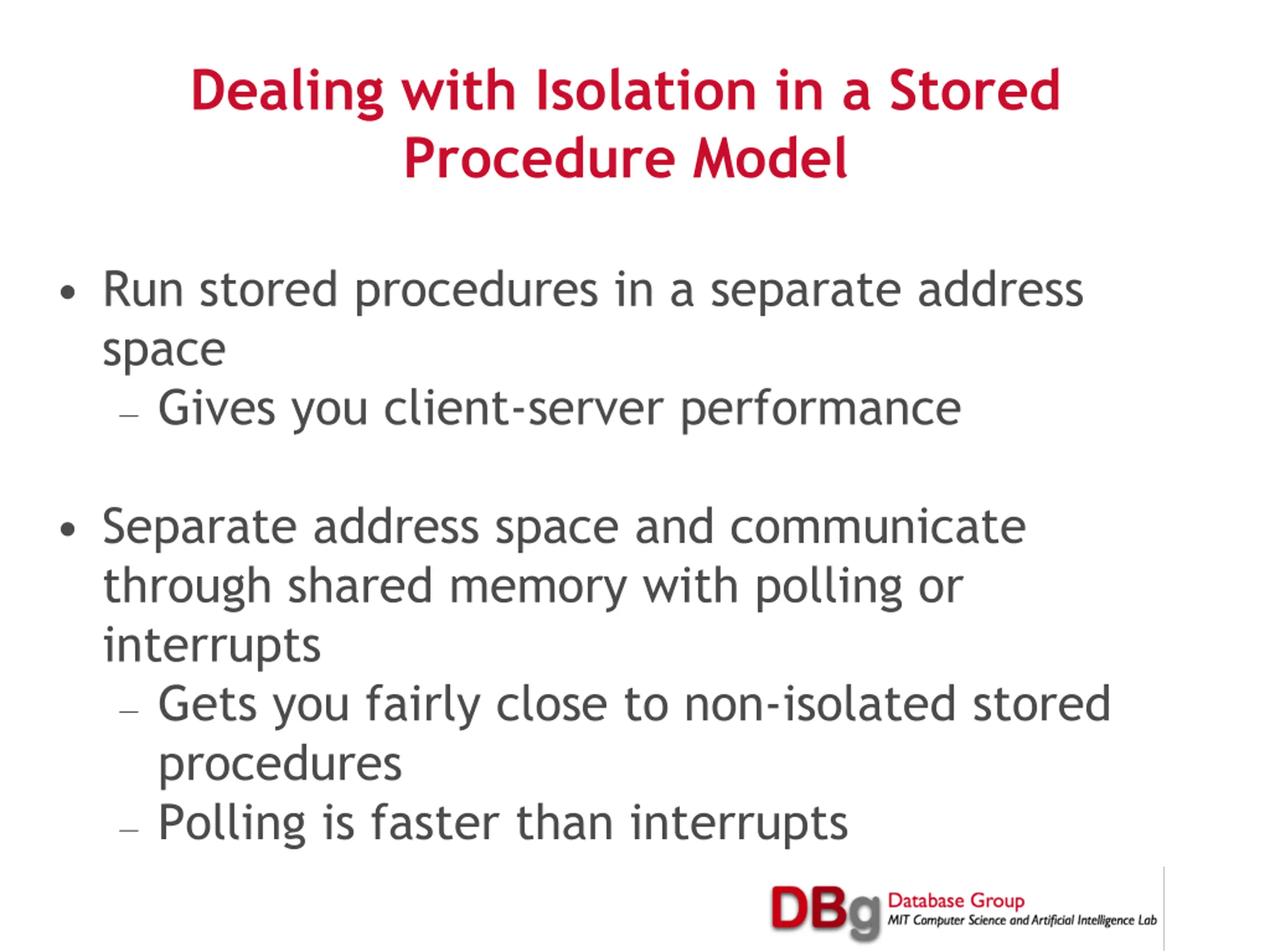

Dealing with Isolation in a Stored Procedure Model Run stored procedures in a separate address space Gives you client-server performance Separate address space and communicate through shared memory with polling or interrupts Gets you fairly close to non-isolated stored procedures Polling is faster than interrupts

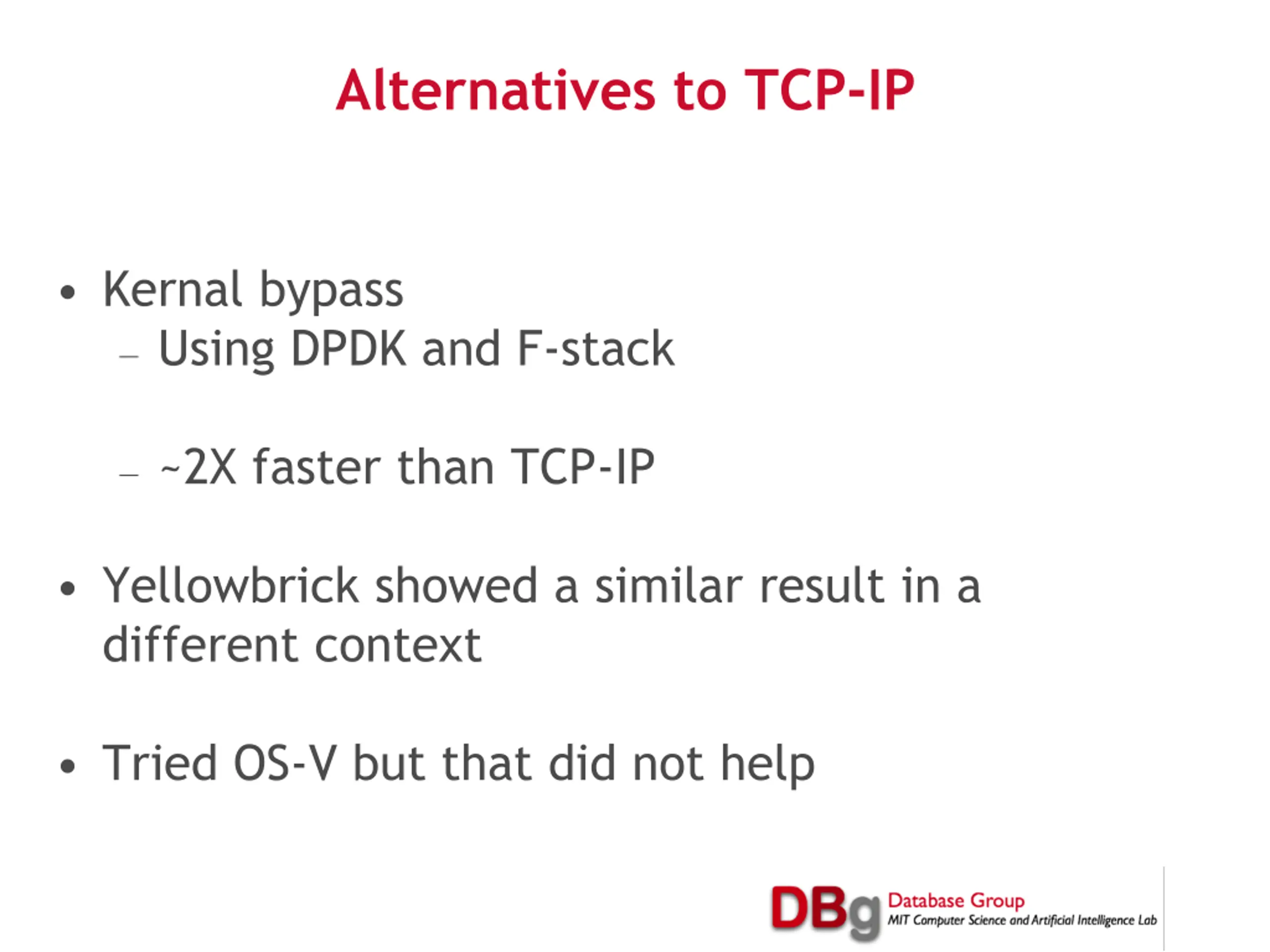

Alternatives to TCP-IP Kernal bypass Using DPDK and F-stack ~2X faster than TCP-IP Yellowbrick showed a similar result in a different context Tried OS-V but that did not help

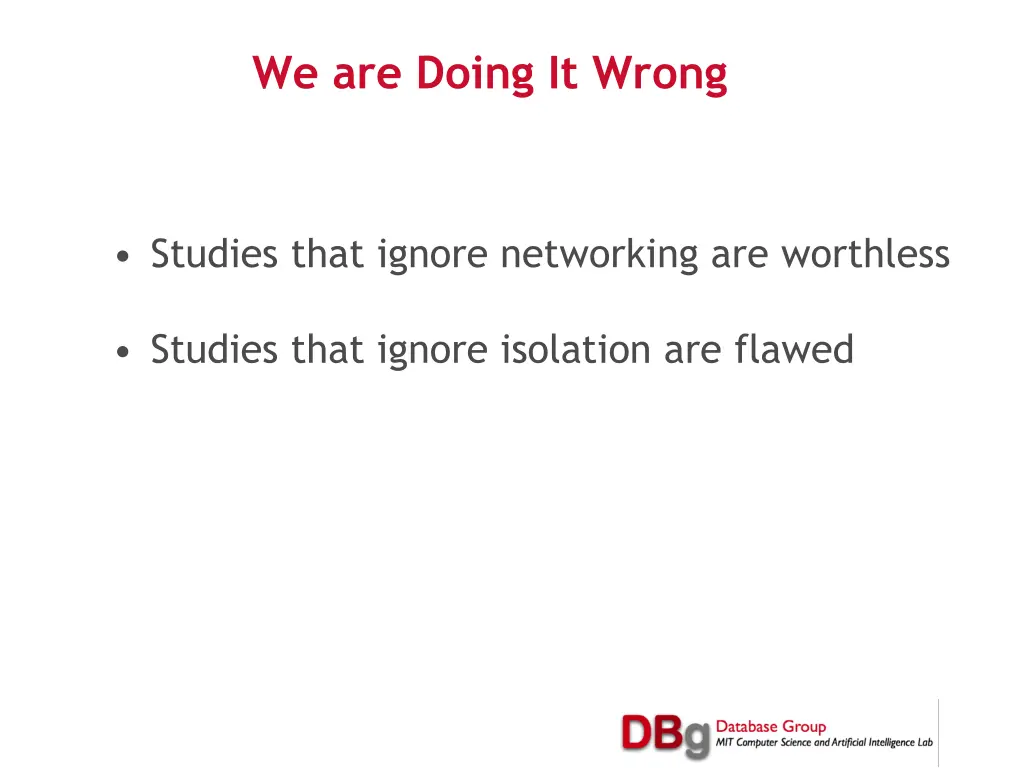

We are Doing It Wrong Studies that ignore networking are worthless Studies that ignore isolation are flawed

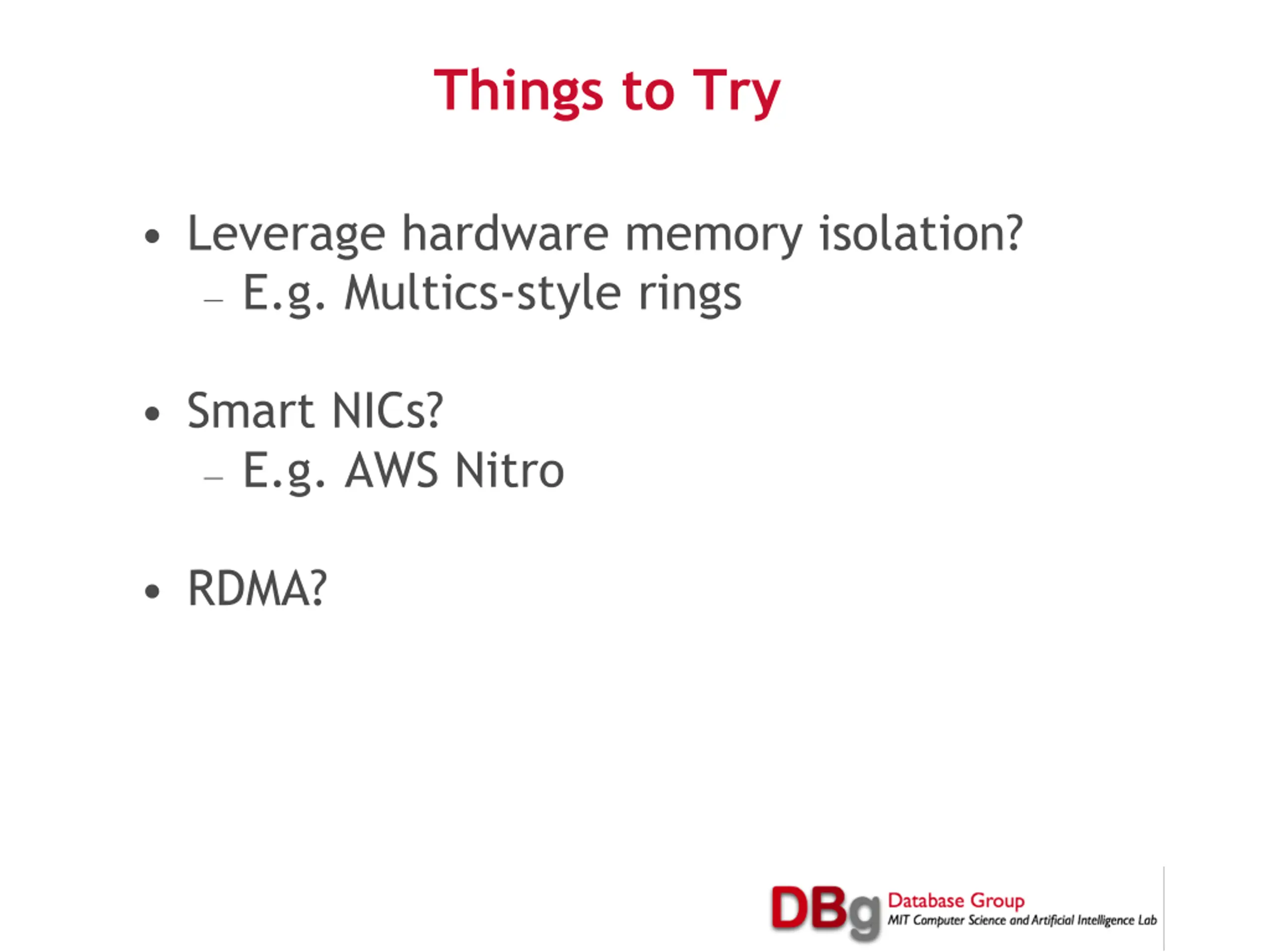

Things to Try Leverage hardware memory isolation? E.g. Multics-style rings Smart NICs? E.g. AWS Nitro RDMA?

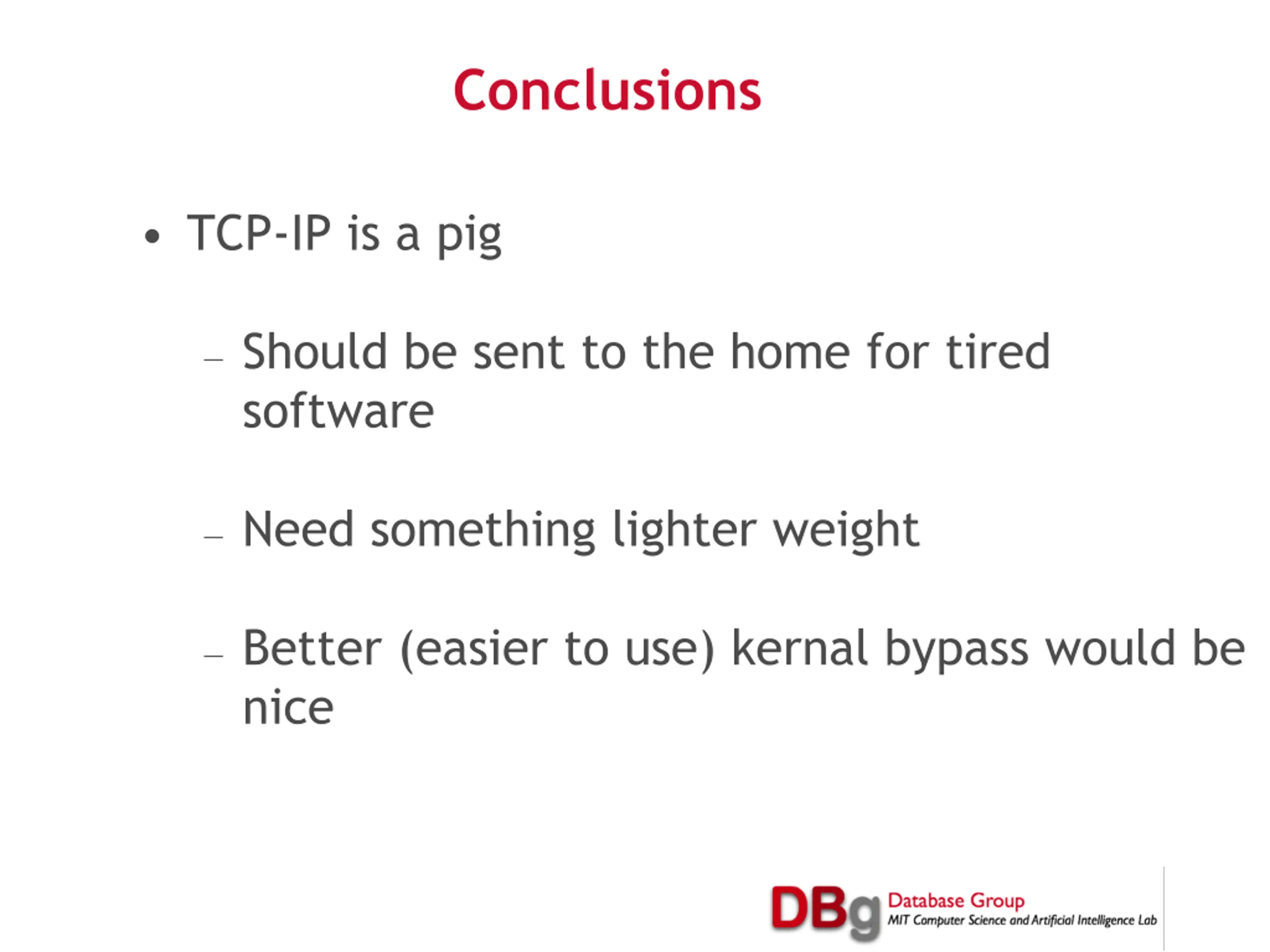

Conclusions TCP-IP is a pig Should be sent to the home for tired software Need something lighter weight Better (easier to use) kernal bypass would be nice

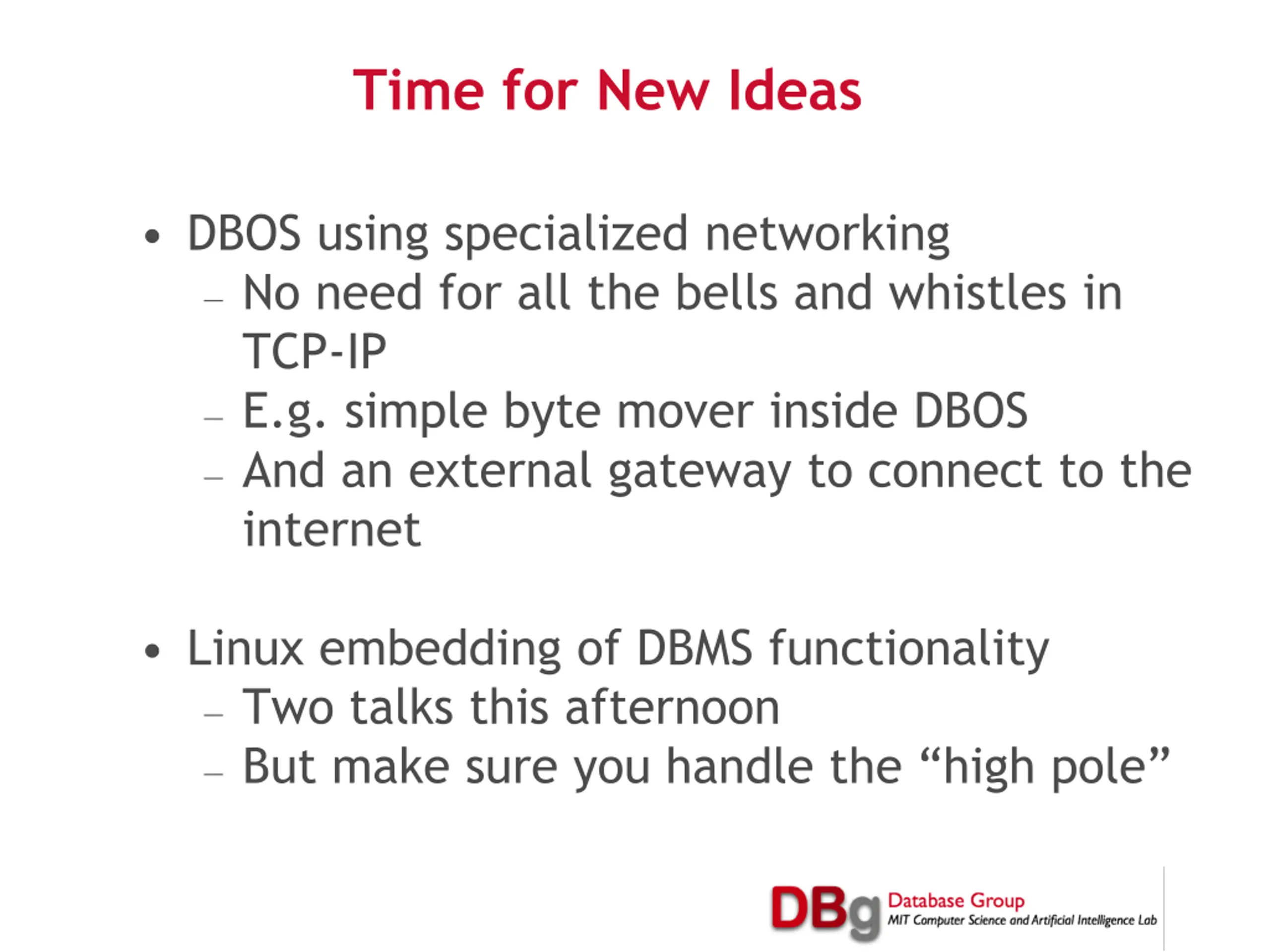

Time for New Ideas DBOS using specialized networking No need for all the bells and whistles in TCP-IP E.g. simple byte mover inside DBOS And an external gateway to connect to the internet Linux embedding of DBMS functionality Two talks this afternoon But make sure you handle the high pole
