BALE CART & GRAPPLE BY HAUKAAS Product Information

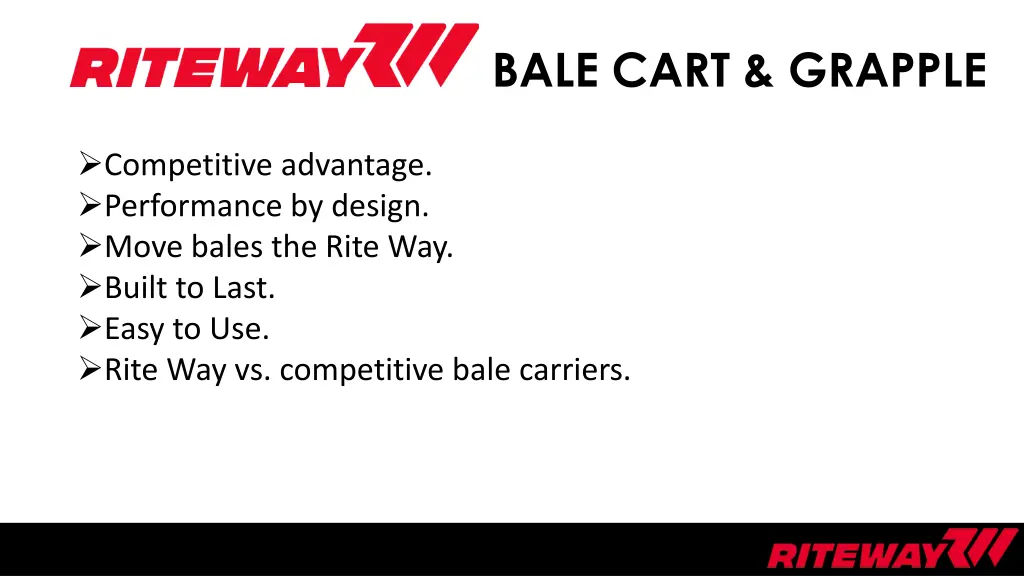

BALE CART & GRAPPLE Competitive advantage. Performance by design. Move bales the Rite Way. Built to Last. Easy to Use. Rite Way vs. competitive bale carriers.

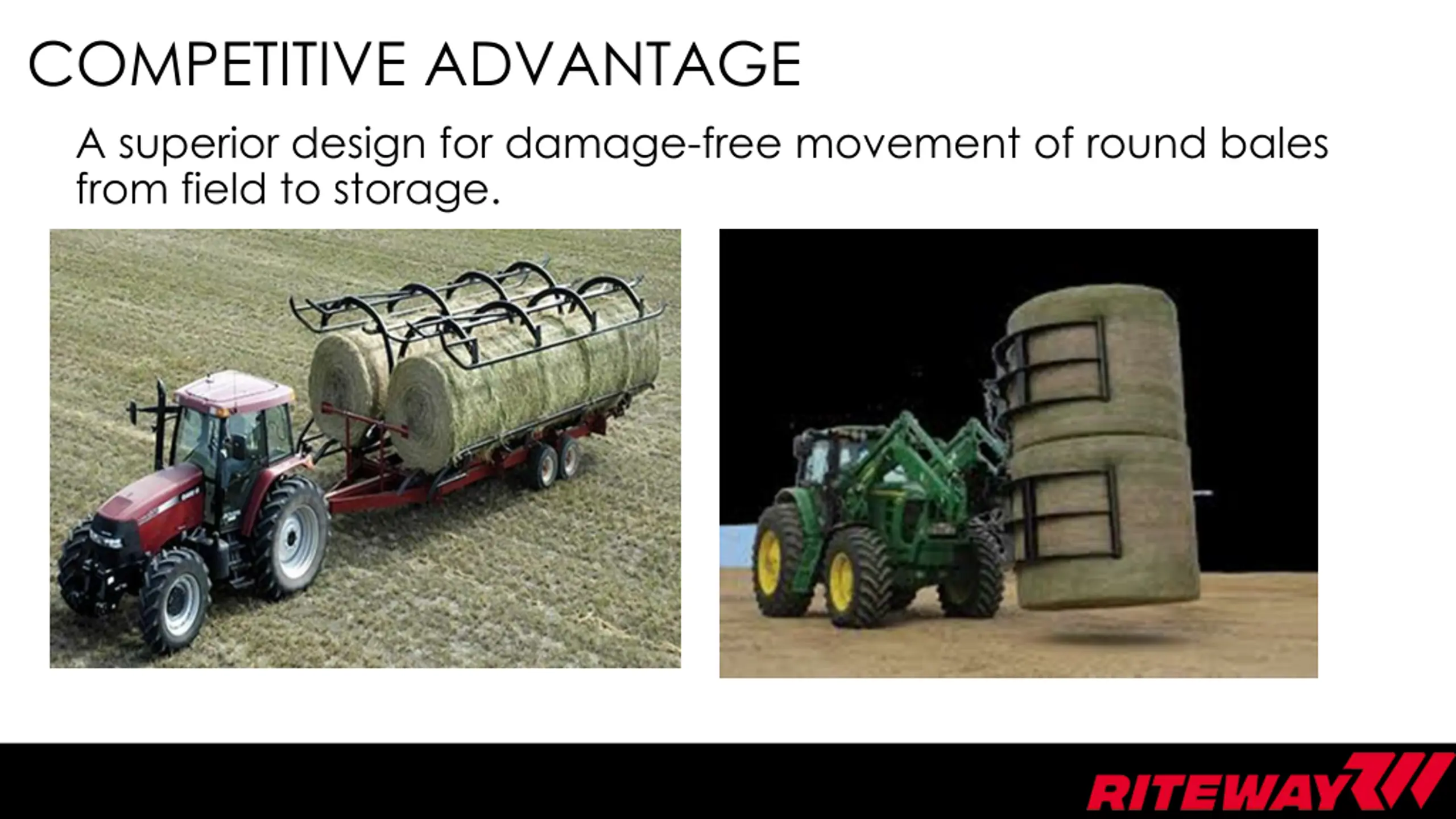

COMPETITIVE ADVANTAGE A superior design for damage-free movement of round bales from field to storage.

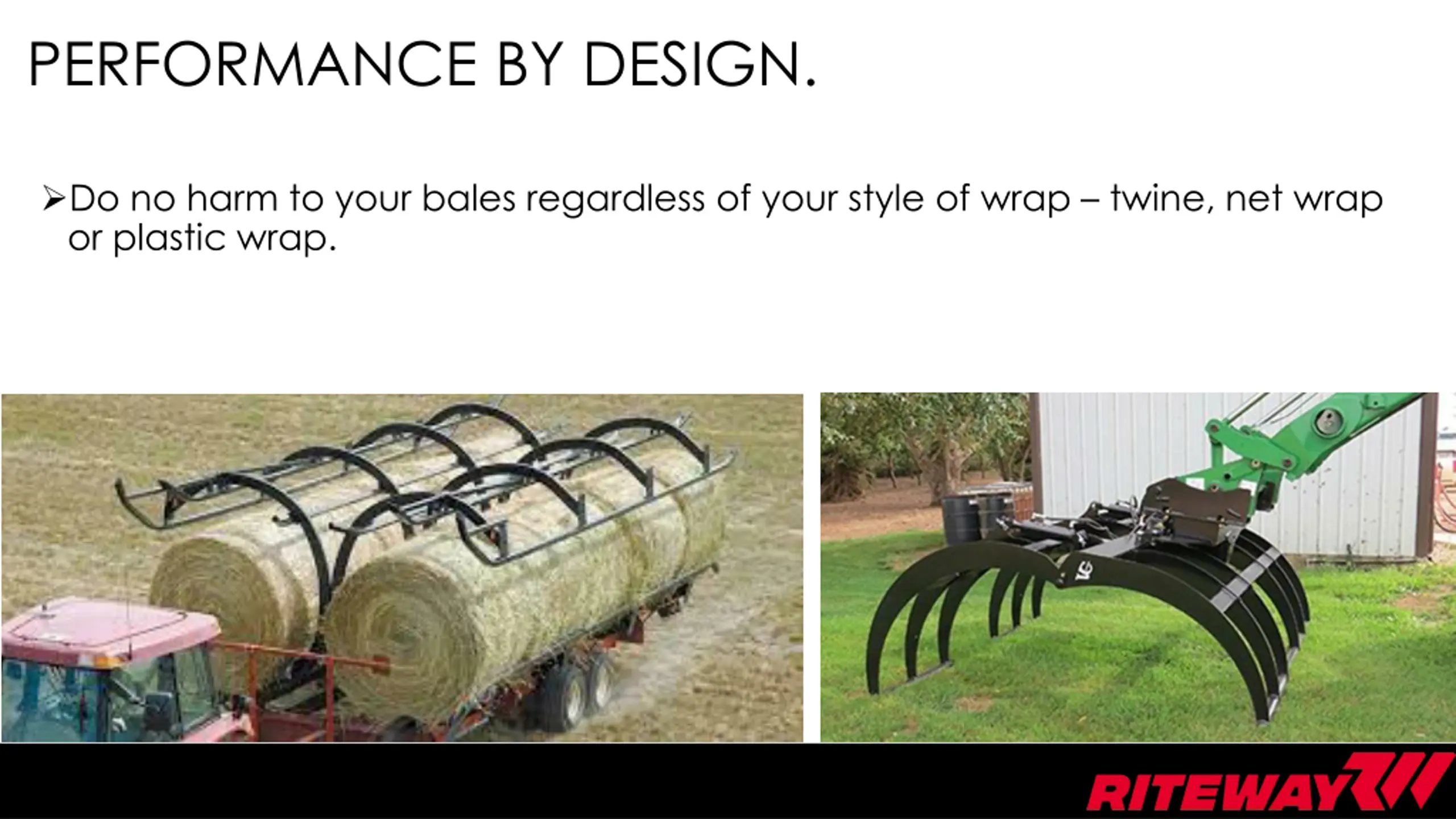

PERFORMANCE BY DESIGN. Do no harm to your bales regardless of your style of wrap twine, net wrap or plastic wrap.
PERFORMANCE BY DESIGN. Pick bales in a variety of widths 48 72 . Bale chamber is adjustable for 48 72 diameter bales. Move 8 12 bales with every load (bale width dependent). Chamber adjustment for bale diameter.

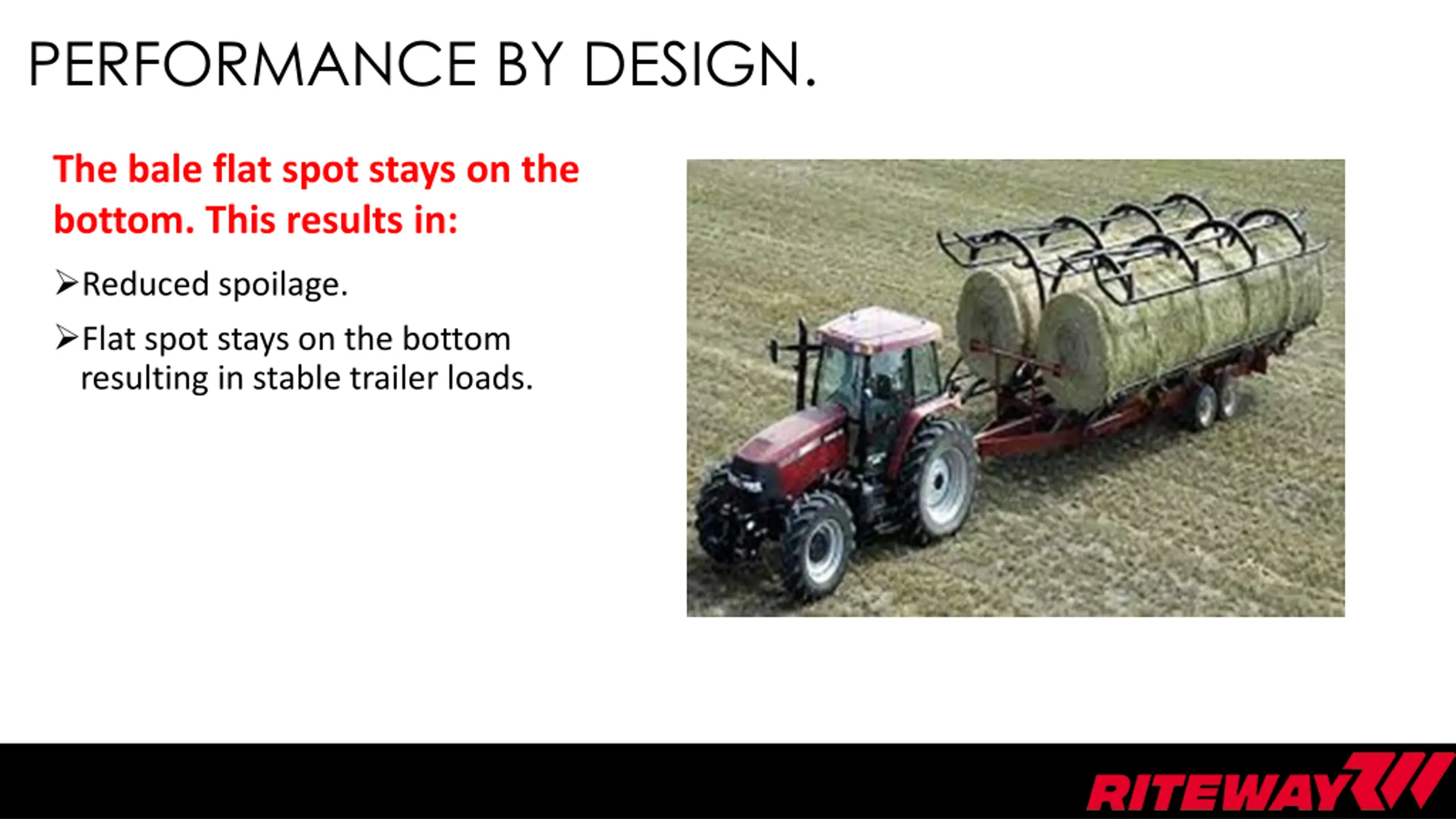

PERFORMANCE BY DESIGN. The bale flat spot stays on the bottom.This results in: Reduced spoilage. Flat spot stays on the bottom resulting in stable trailer loads. Chamber adjustment for bale diameter.

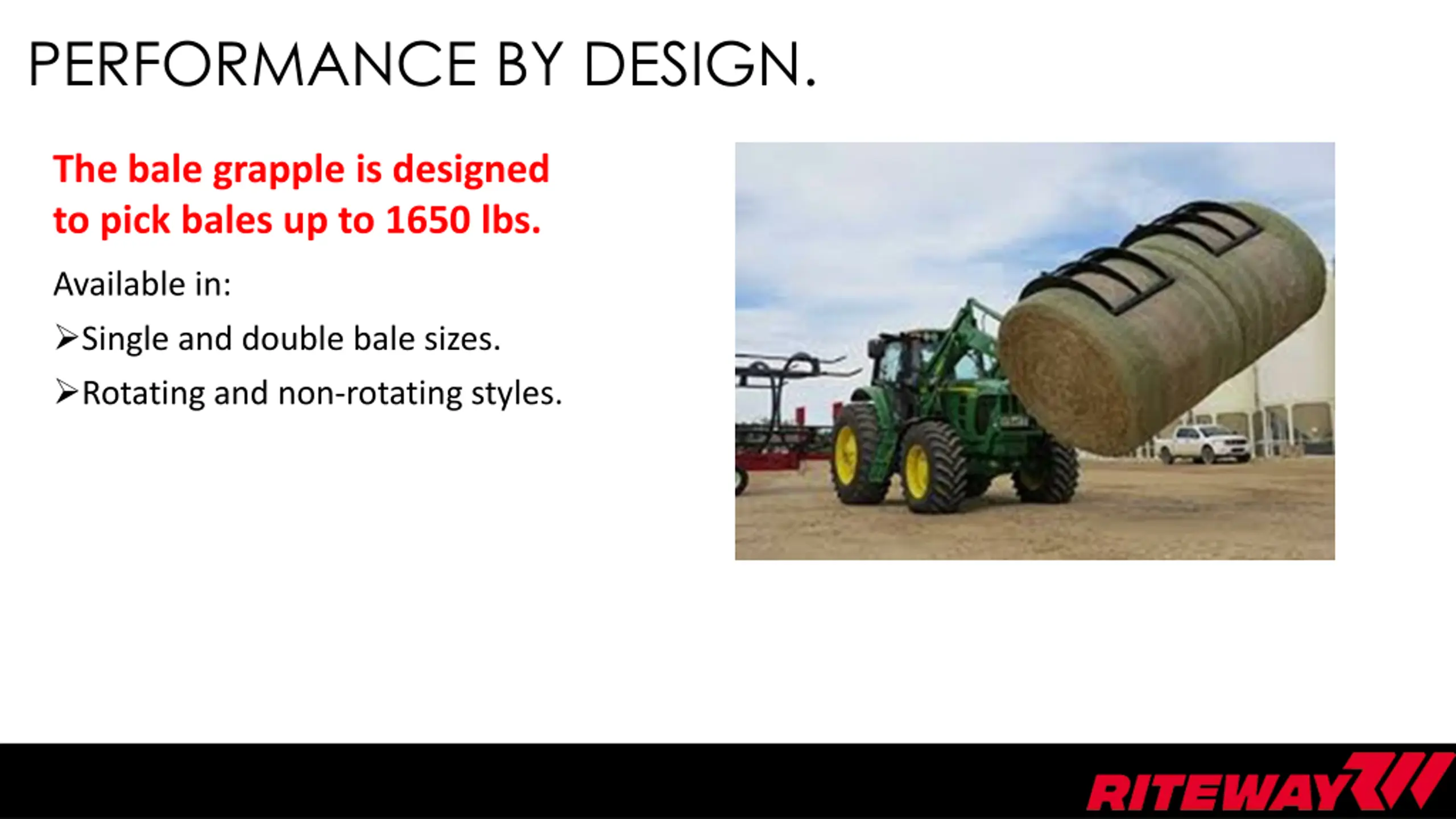

PERFORMANCE BY DESIGN. The bale grapple is designed to pick bales up to 1650 lbs. Available in: Single and double bale sizes. Rotating and non-rotating styles. Chamber adjustment for bale diameter.

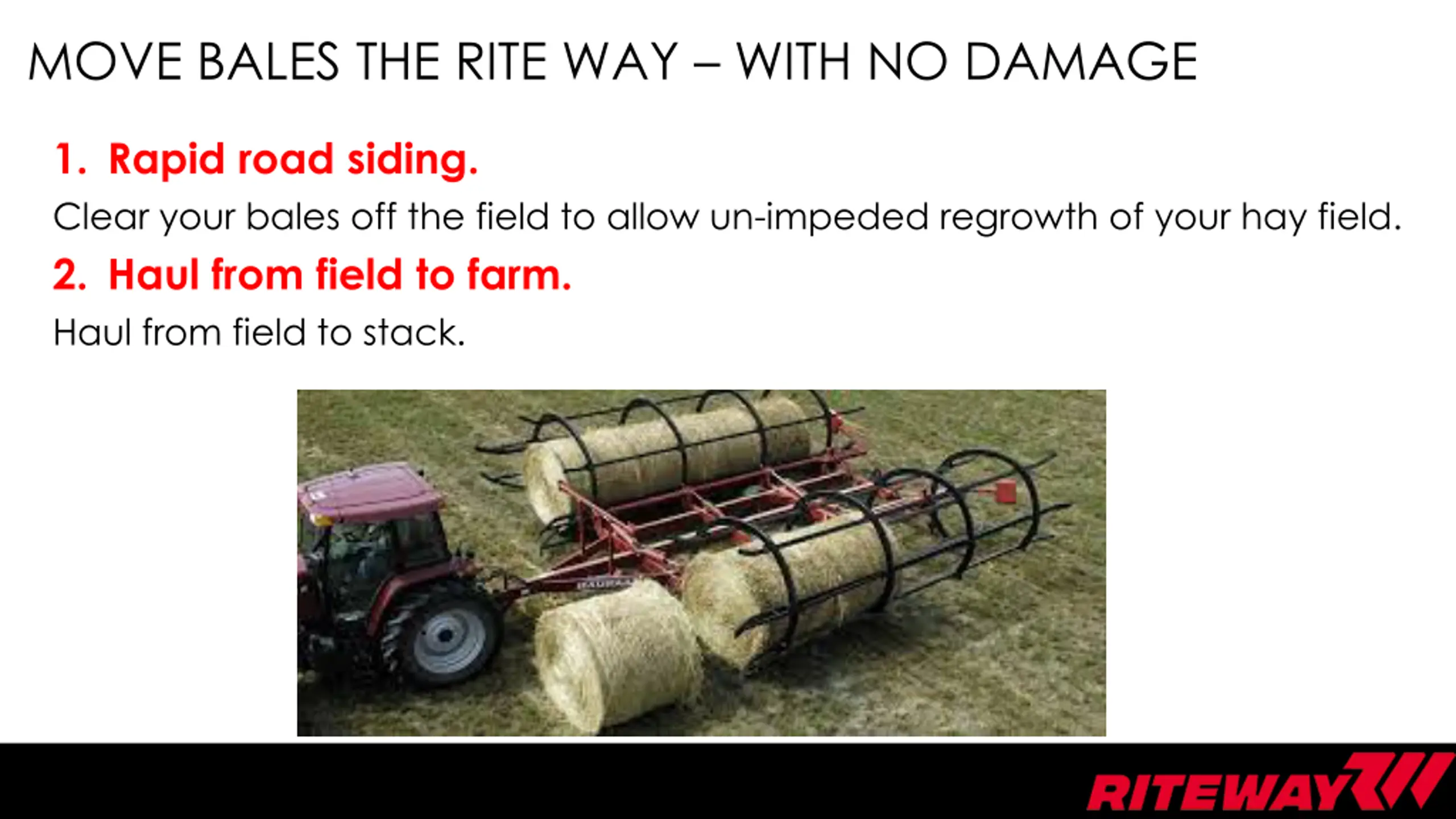

MOVE BALES THE RITE WAY WITH NO DAMAGE 1. Rapid road siding. Clear your bales off the field to allow un-impeded regrowth of your hay field. 2. Haul from field to farm. Haul from field to stack.

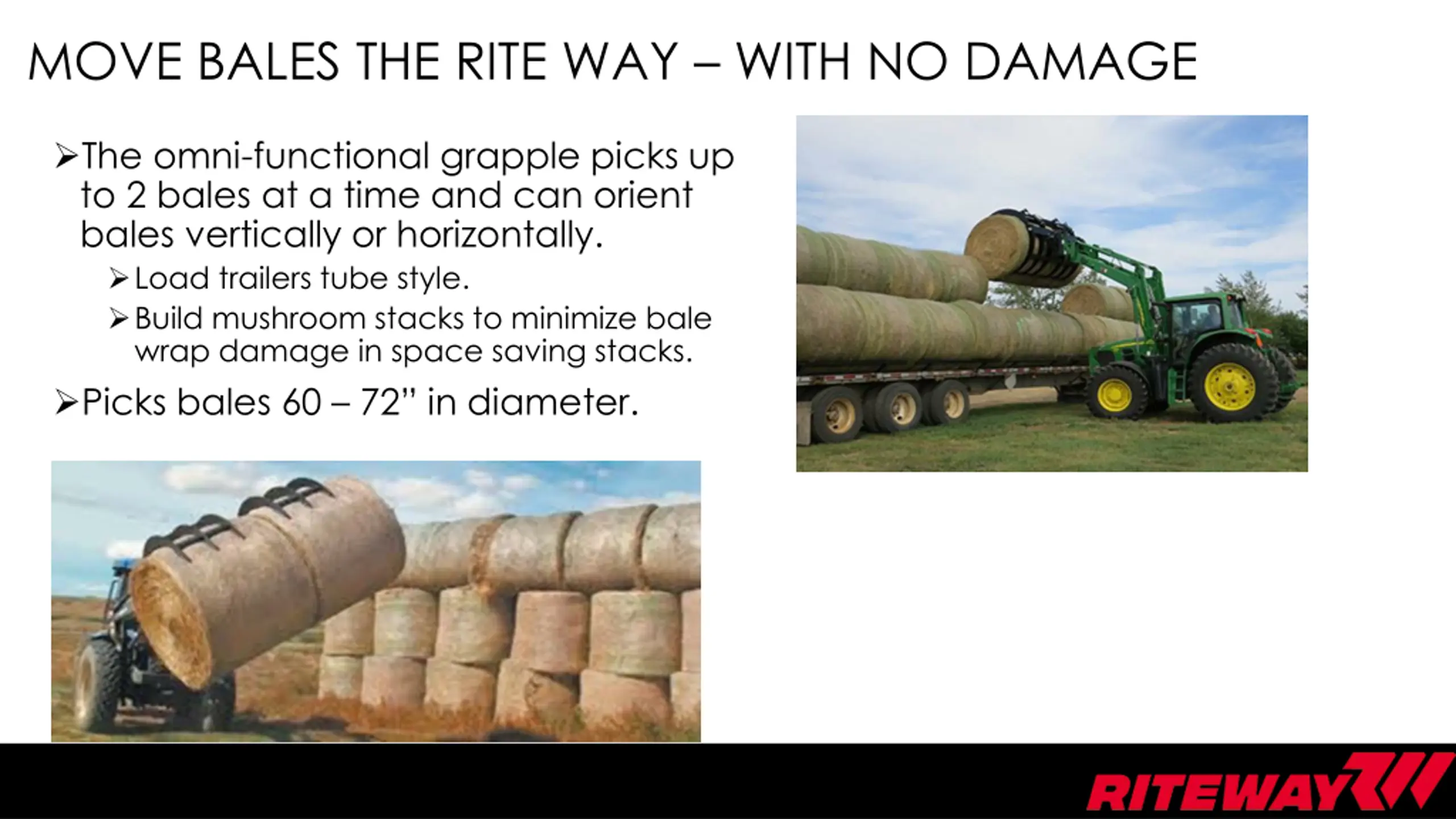

MOVE BALES THE RITE WAY WITH NO DAMAGE The omni-functional grapple picks up to 2 bales at a time and can orient bales vertically or horizontally. Load trailers tube style. Build mushroom stacks to minimize bale wrap damage in space saving stacks. Picks bales 60 72 in diameter.

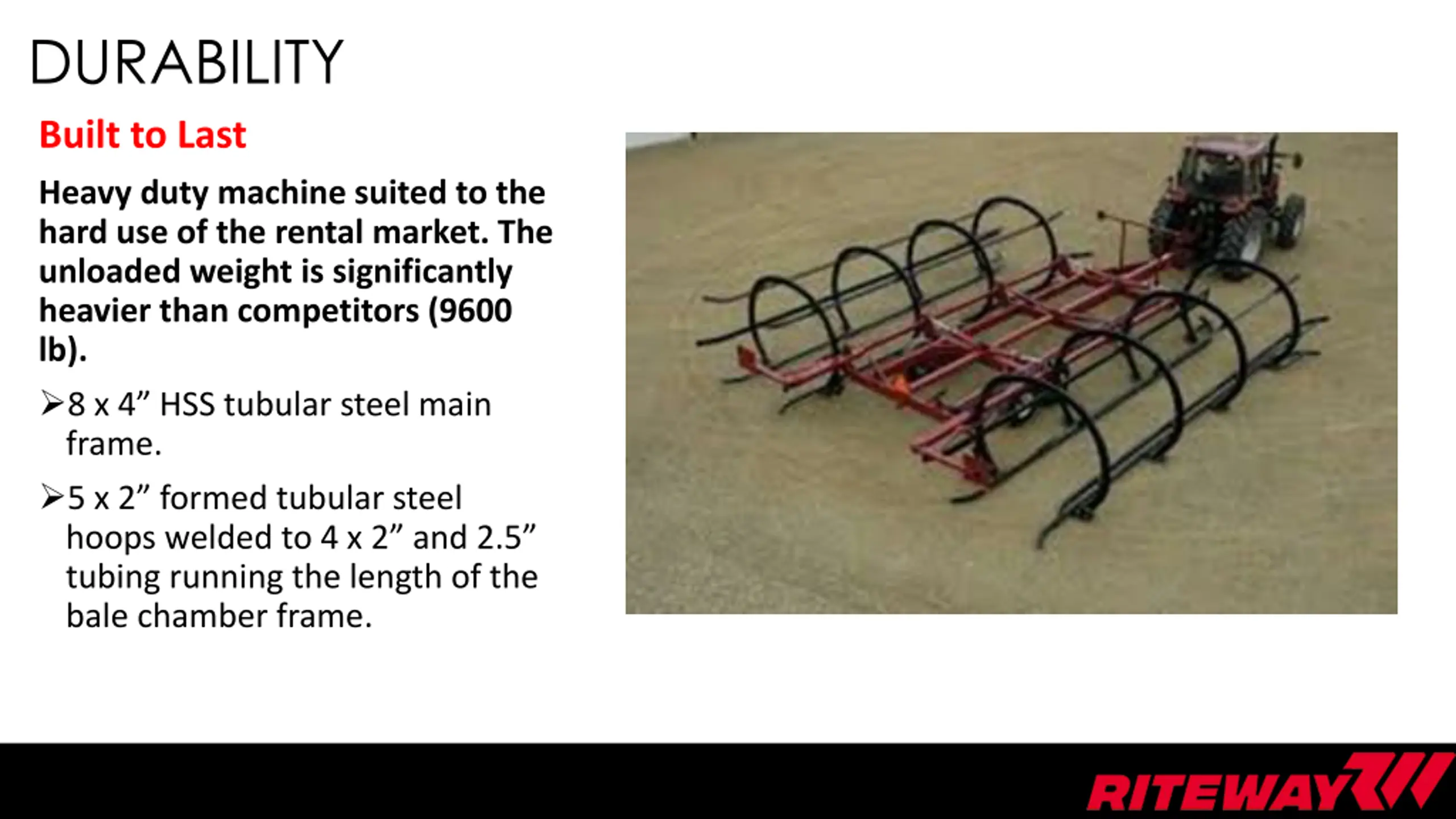

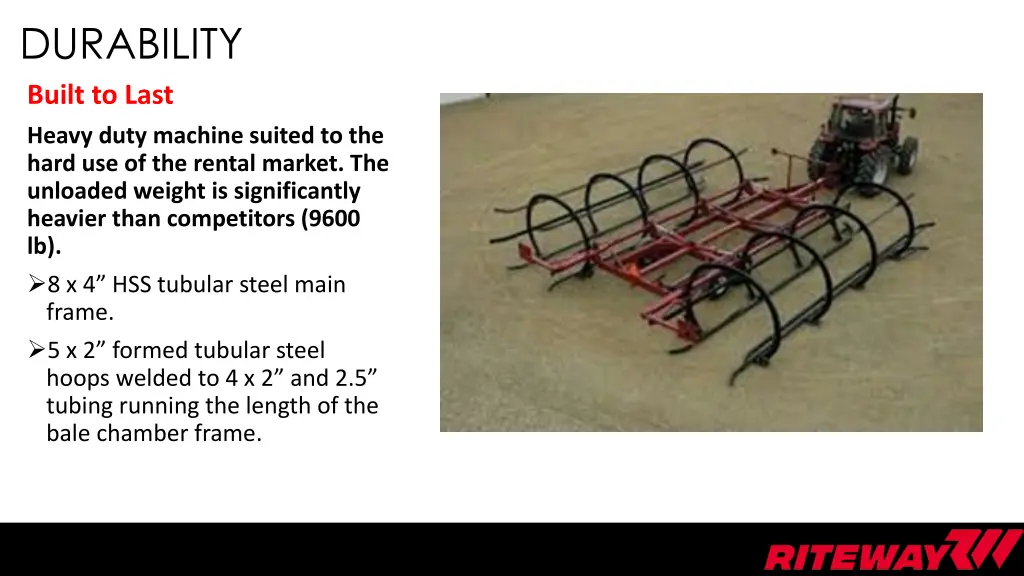

DURABILITY Built to Last Heavy duty machine suited to the hard use of the rental market. The unloaded weight is significantly heavier than competitors (9600 lb). 8 x 4 HSS tubular steel main frame. 5 x 2 formed tubular steel hoops welded to 4 x 2 and 2.5 tubing running the length of the bale chamber frame.

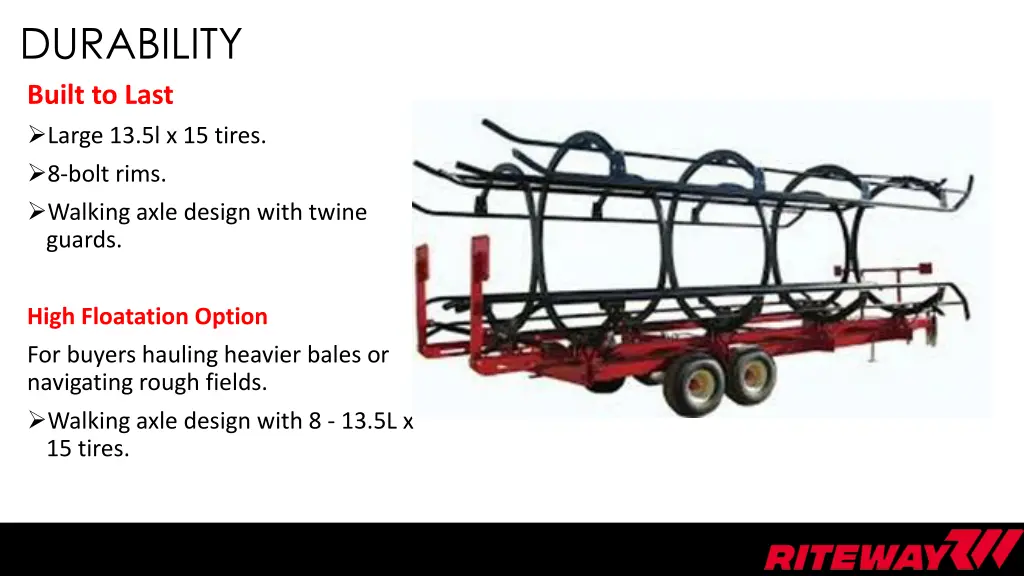

DURABILITY Built to Last Large 13.5l x 15 tires. 8-bolt rims. Walking axle design with twine guards. High Floatation Option For buyers hauling heavier bales or navigating rough fields. Walking axle design with 8 - 13.5L x 15 tires.

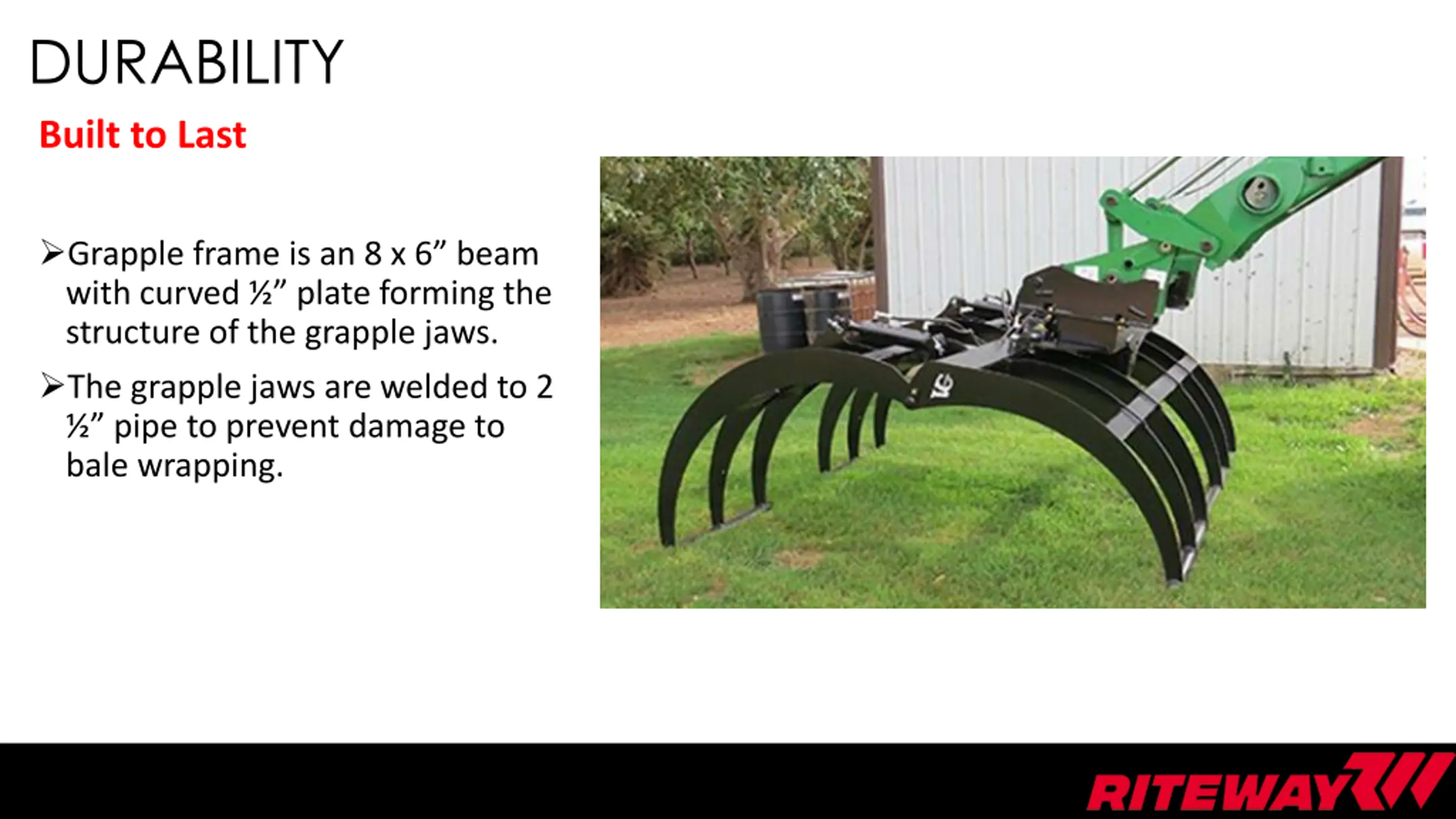

DURABILITY Built to Last Grapple frame is an 8 x 6 beam with curved plate forming the structure of the grapple jaws. The grapple jaws are welded to 2 pipe to prevent damage to bale wrapping.

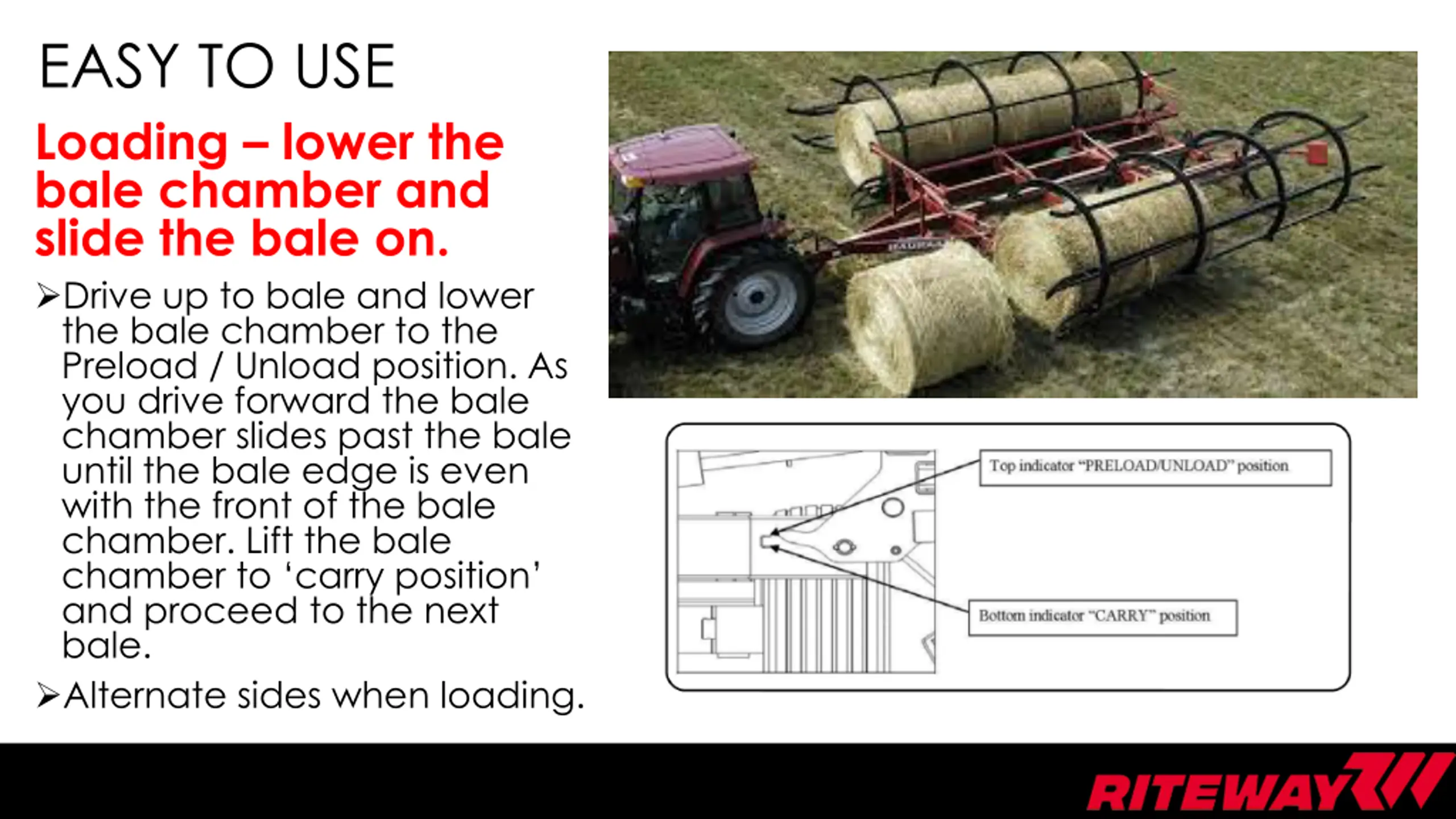

EASY TO USE Loading lower the bale chamber and slide the bale on. Drive up to bale and lower the bale chamber to the Preload / Unload position. As you drive forward the bale chamber slides past the bale until the bale edge is even with the front of the bale chamber. Lift the bale chamber to carry position and proceed to the next bale. Alternate sides when loading.

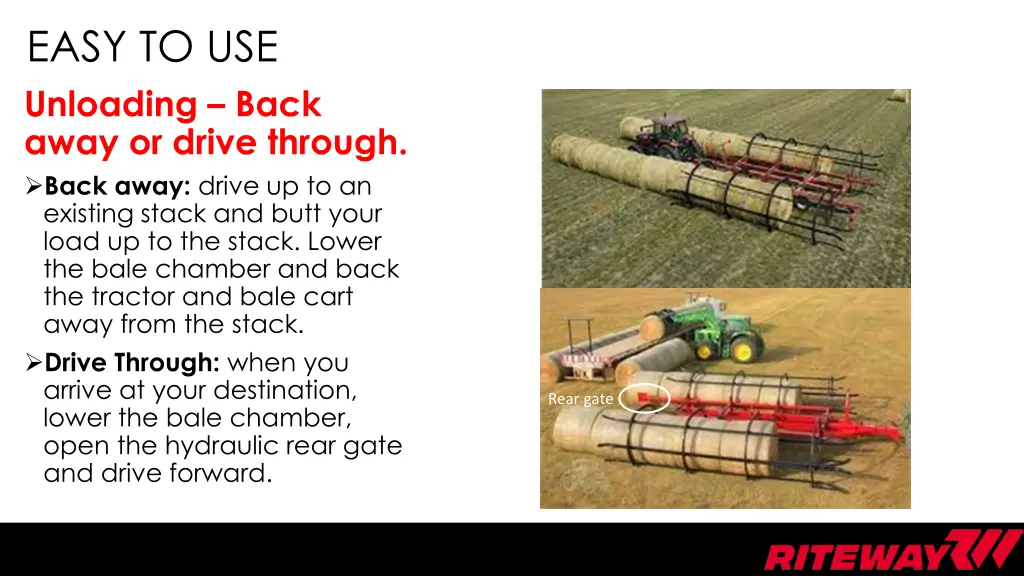

EASY TO USE Unloading Back away or drive through. Back away: drive up to an existing stack and butt your load up to the stack. Lower the bale chamber and back the tractor and bale cart away from the stack. Drive Through: when you arrive at your destination, lower the bale chamber, open the hydraulic rear gate and drive forward. Rear gate

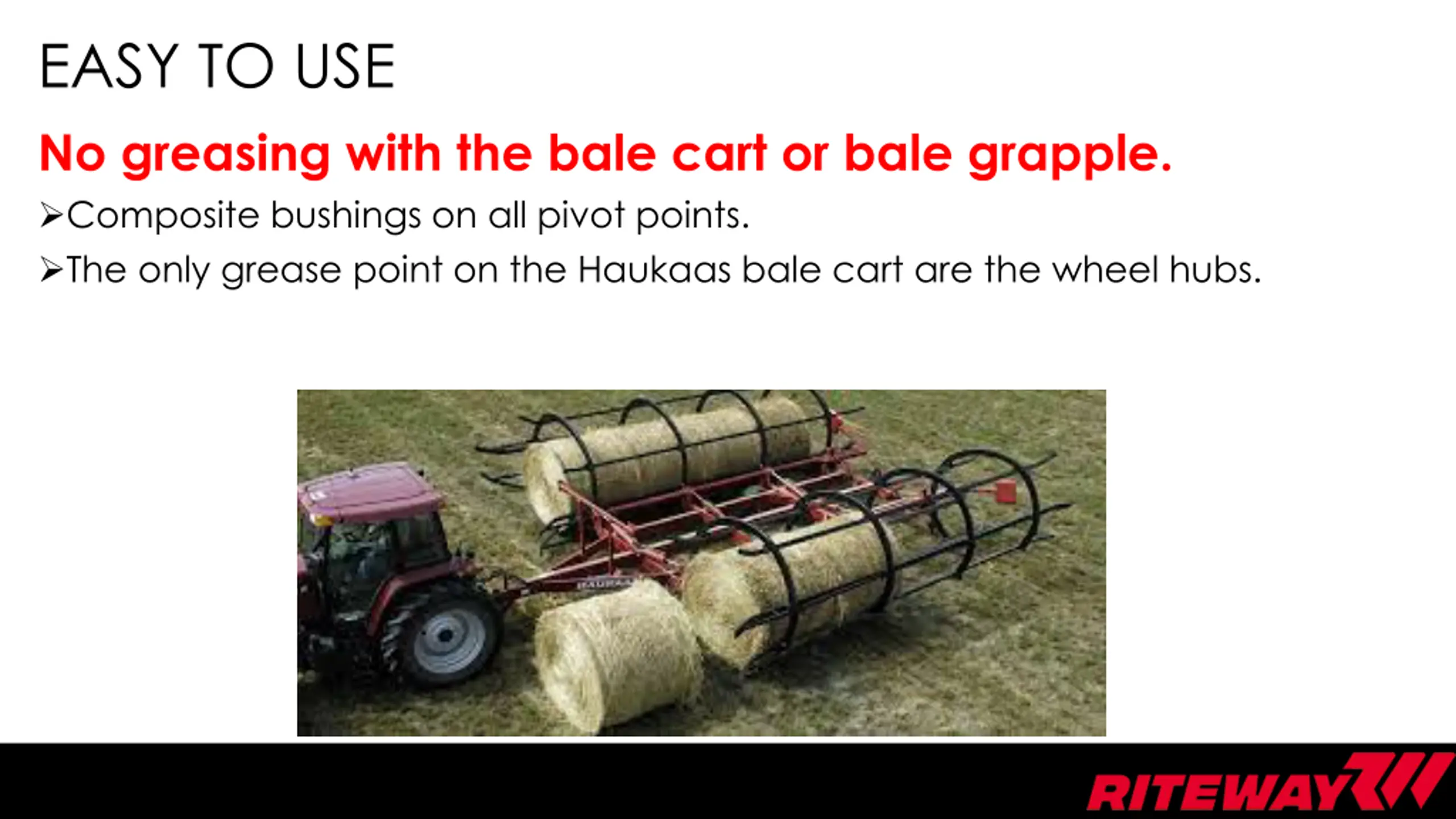

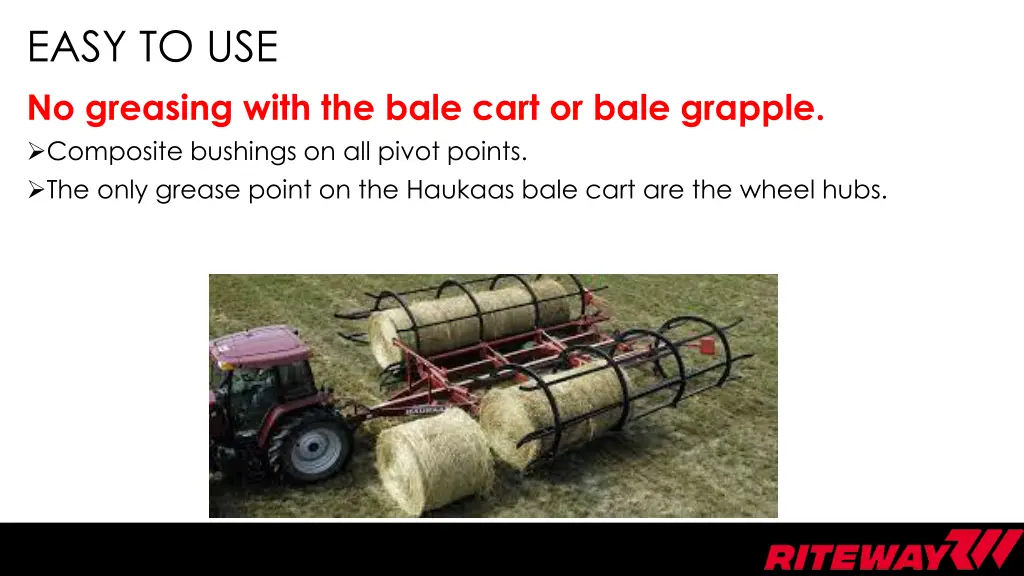

EASY TO USE No greasing with the bale cart or bale grapple. Composite bushings on all pivot points. The only grease point on the Haukaas bale cart are the wheel hubs.

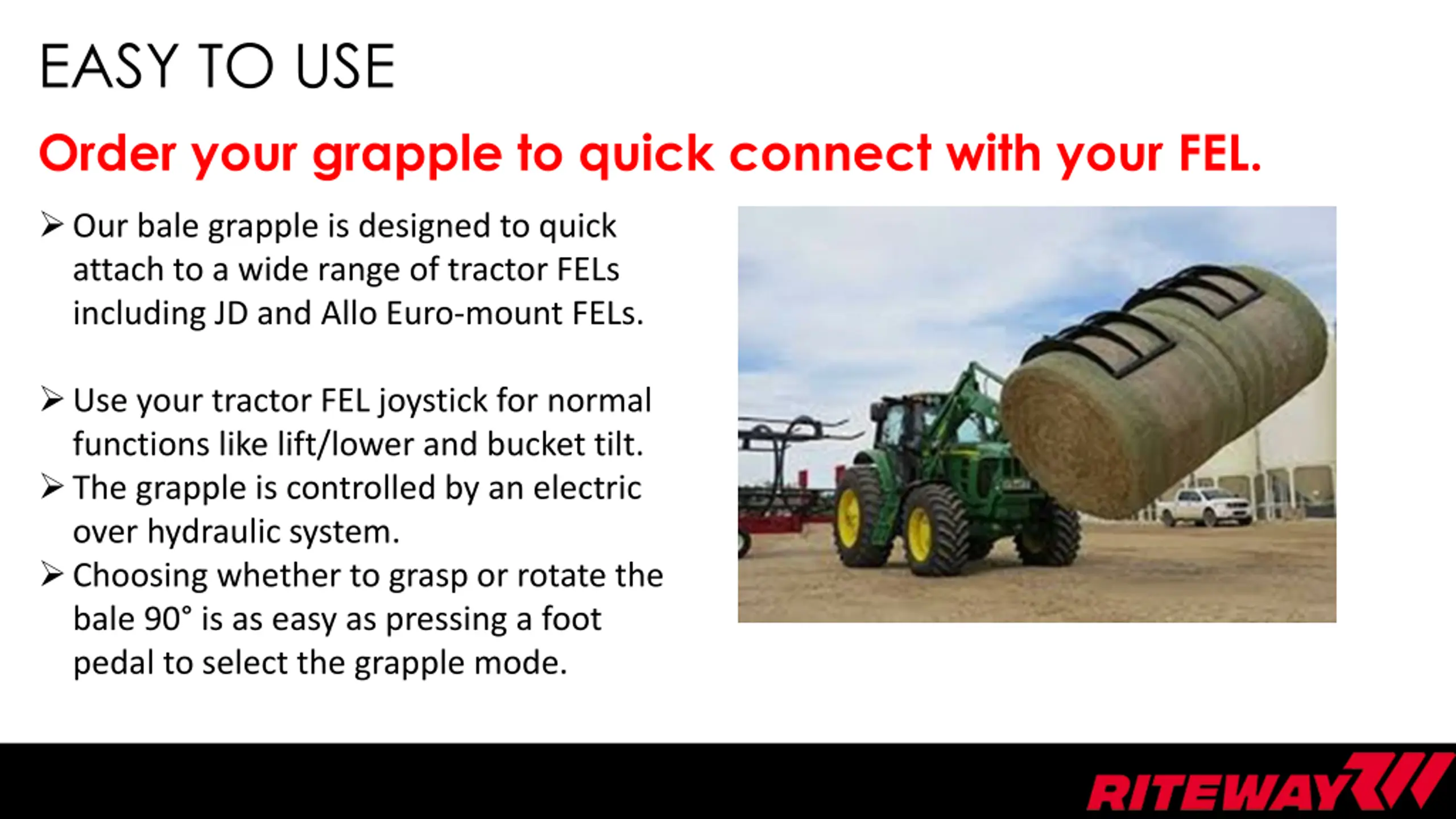

EASY TO USE Order your grapple to quick connect with your FEL. Our bale grapple is designed to quick attach to a wide range of tractor FELs including JD and Allo Euro-mount FELs. Use your tractor FEL joystick for normal functions like lift/lower and bucket tilt. The grapple is controlled by an electric over hydraulic system. Choosing whether to grasp or rotate the bale 90 is as easy as pressing a foot pedal to select the grapple mode.

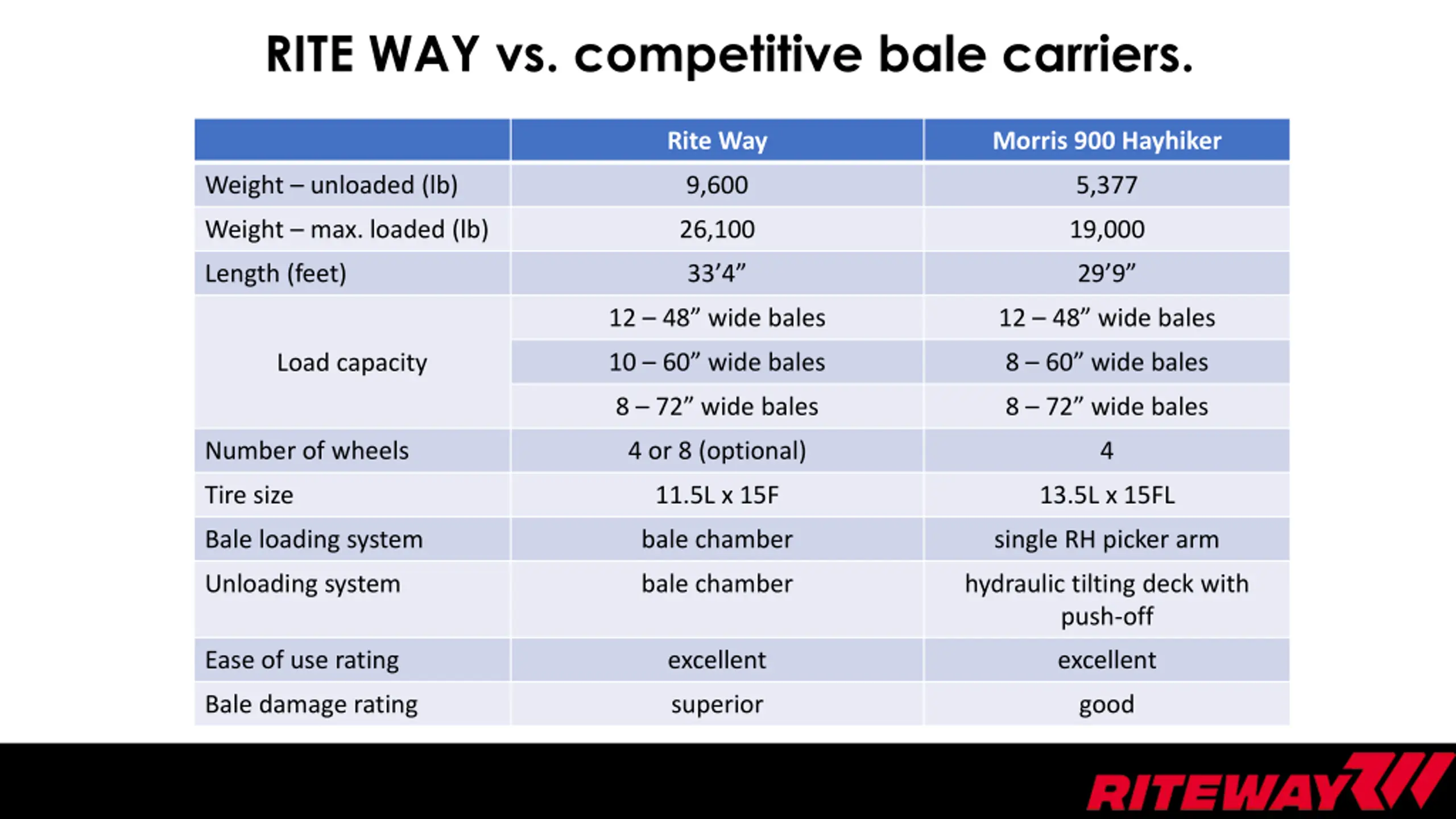

RITE WAY vs. competitive bale carriers. Rite Way Morris 900 Hayhiker Weight unloaded (lb) 9,600 5,377 Weight max. loaded (lb) 26,100 19,000 Length (feet) 33 4 29 9 12 48 wide bales 12 48 wide bales 10 60 wide bales 8 60 wide bales Load capacity 8 72 wide bales 8 72 wide bales Number of wheels 4 or 8 (optional) 4 Tire size 11.5L x 15F 13.5L x 15FL Bale loading system bale chamber single RH picker arm Unloading system bale chamber hydraulic tilting deck with push-off Ease of use rating excellent excellent Bale damage rating superior good

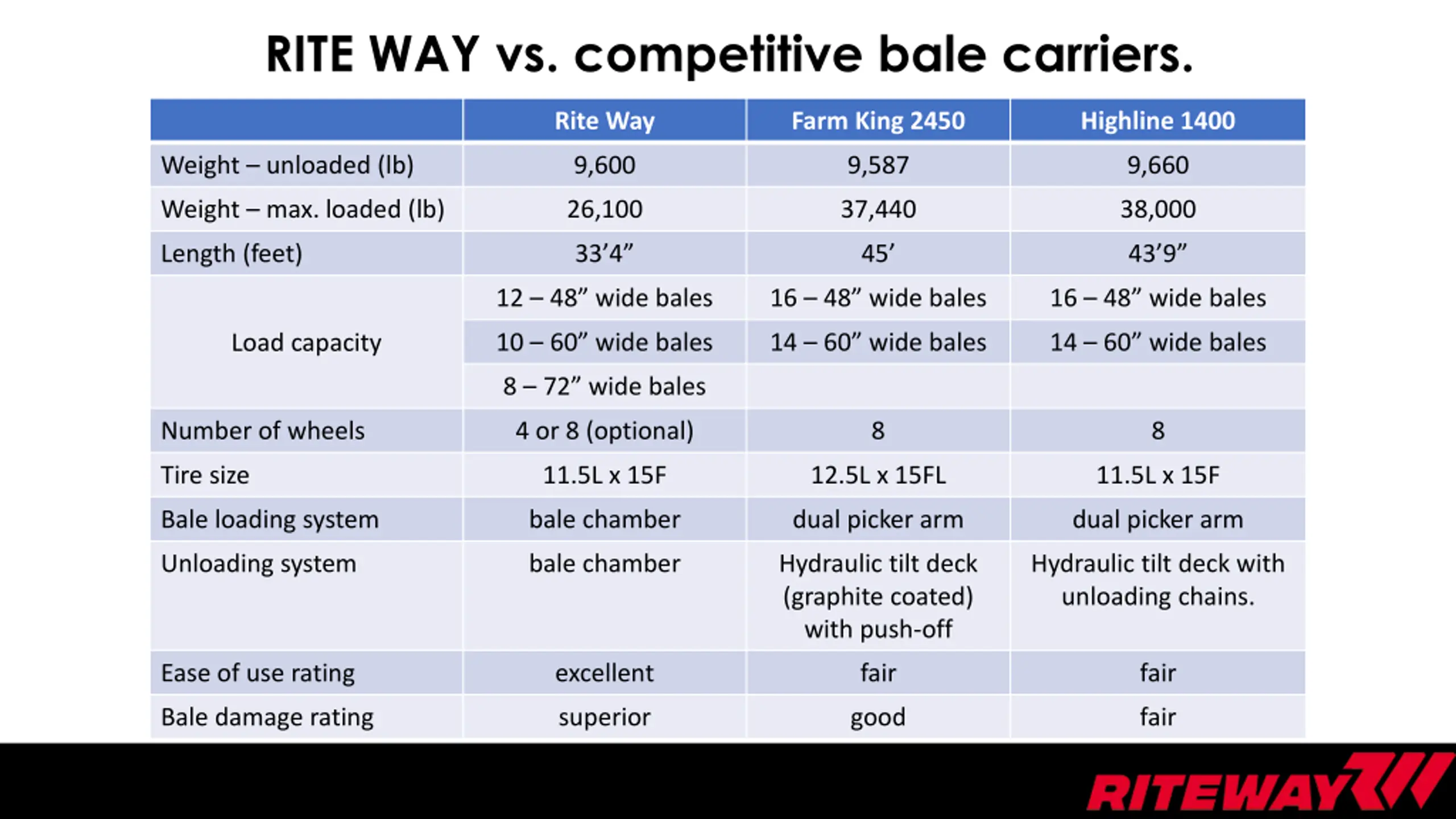

RITE WAY vs. competitive bale carriers. Rite Way Farm King 2450 Highline 1400 Weight unloaded (lb) 9,600 9,587 9,660 Weight max. loaded (lb) 26,100 37,440 38,000 Length (feet) 33 4 45 43 9 12 48 wide bales 16 48 wide bales 16 48 wide bales 10 60 wide bales 14 60 wide bales 14 60 wide bales Load capacity 8 72 wide bales Number of wheels 4 or 8 (optional) 8 8 Tire size 11.5L x 15F 12.5L x 15FL 11.5L x 15F Bale loading system bale chamber dual picker arm dual picker arm Unloading system bale chamber Hydraulic tilt deck (graphite coated) with push-off Hydraulic tilt deck with unloading chains. Ease of use rating excellent fair fair Bale damage rating superior good fair
