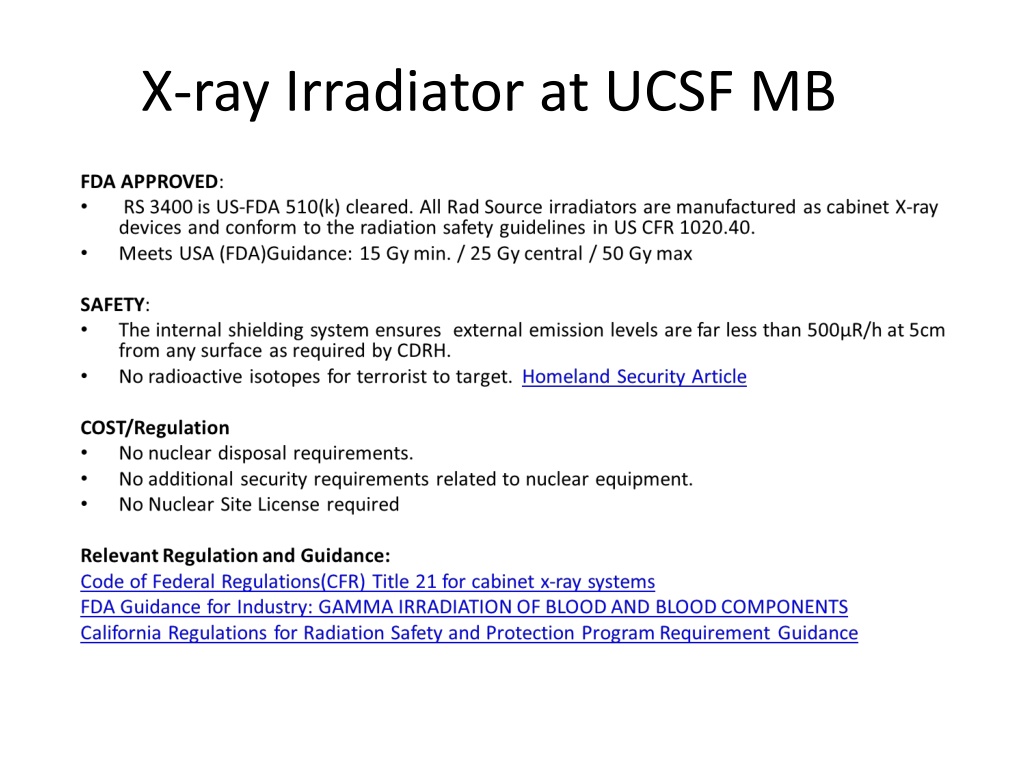

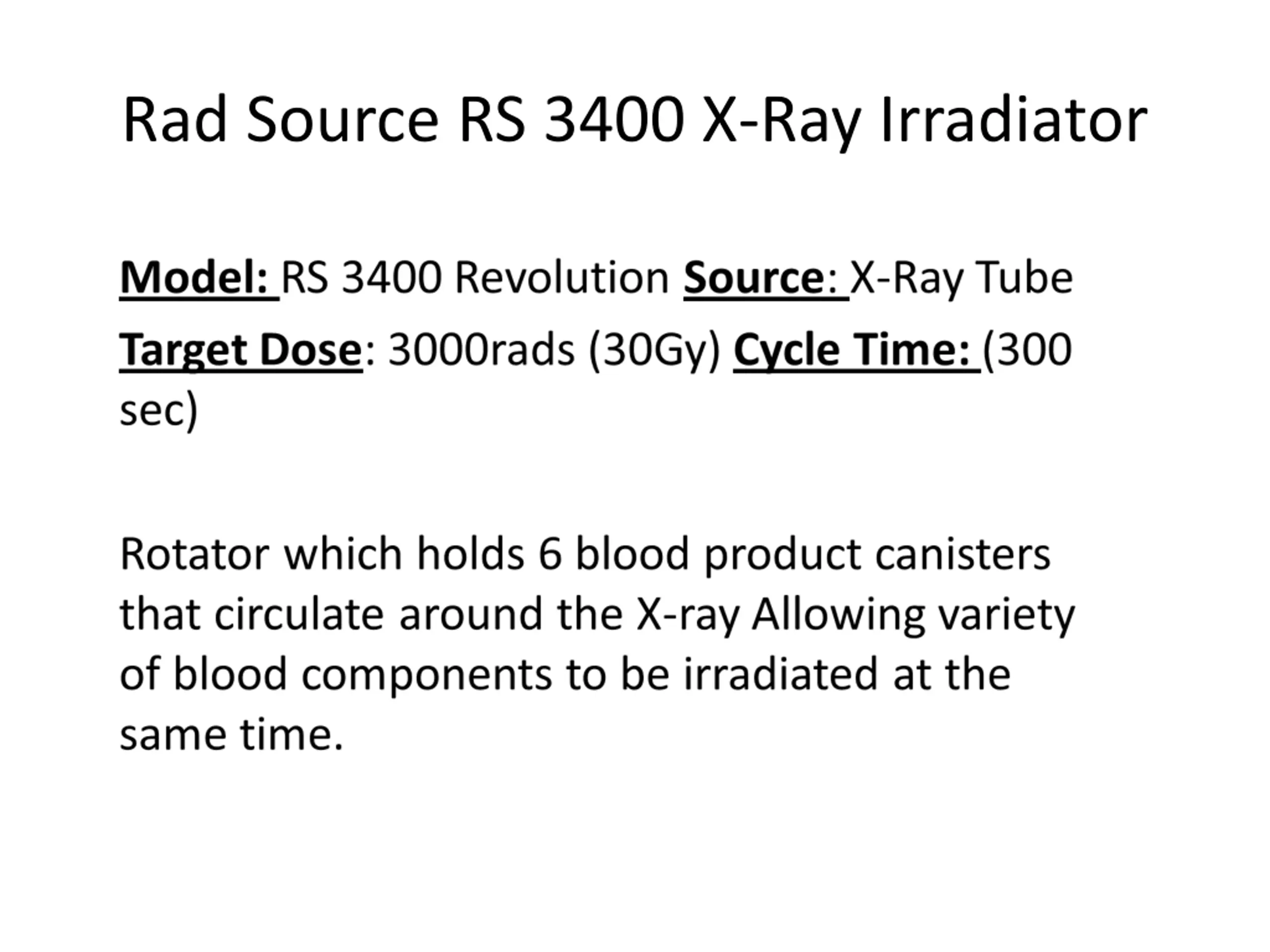

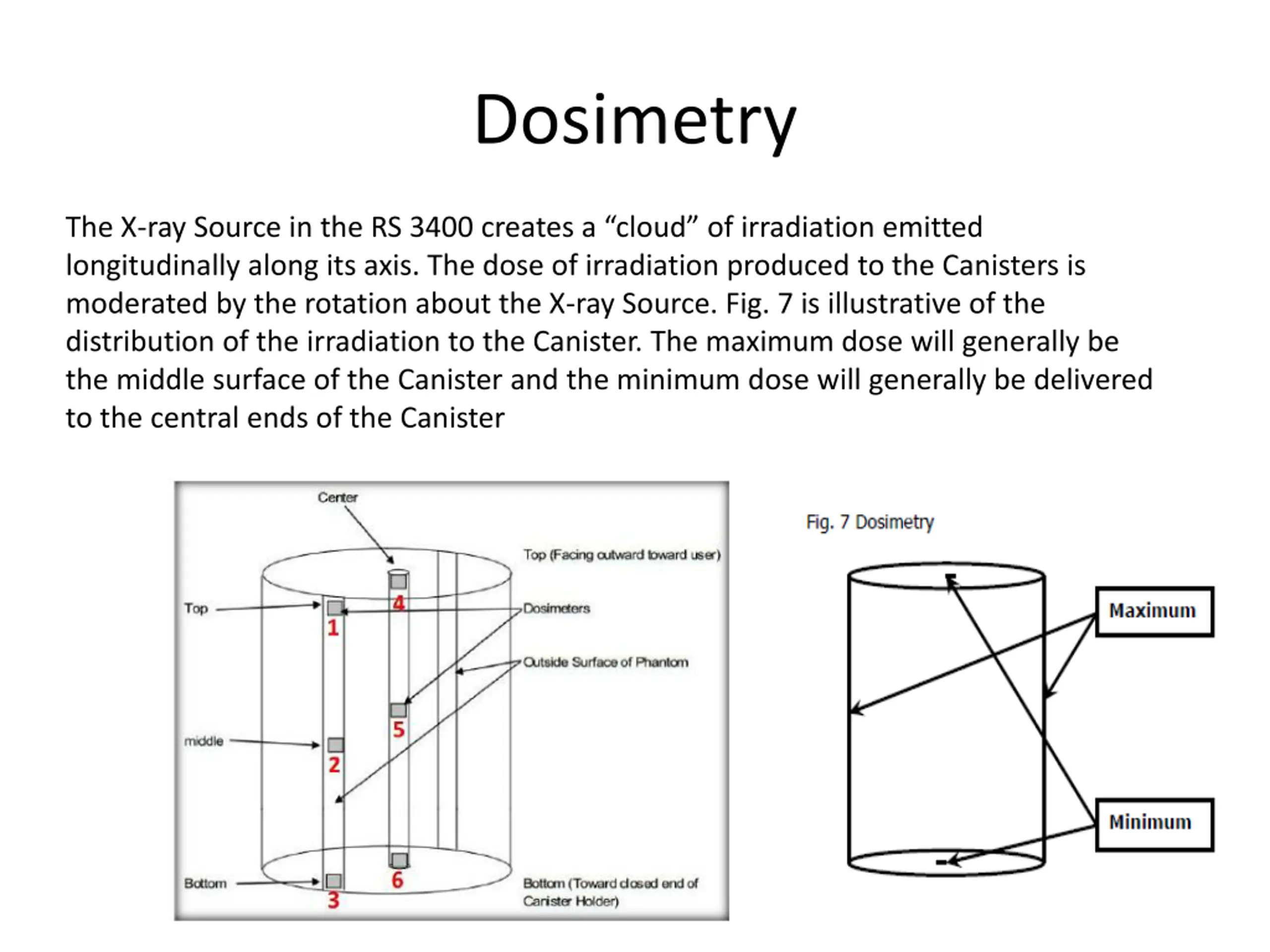

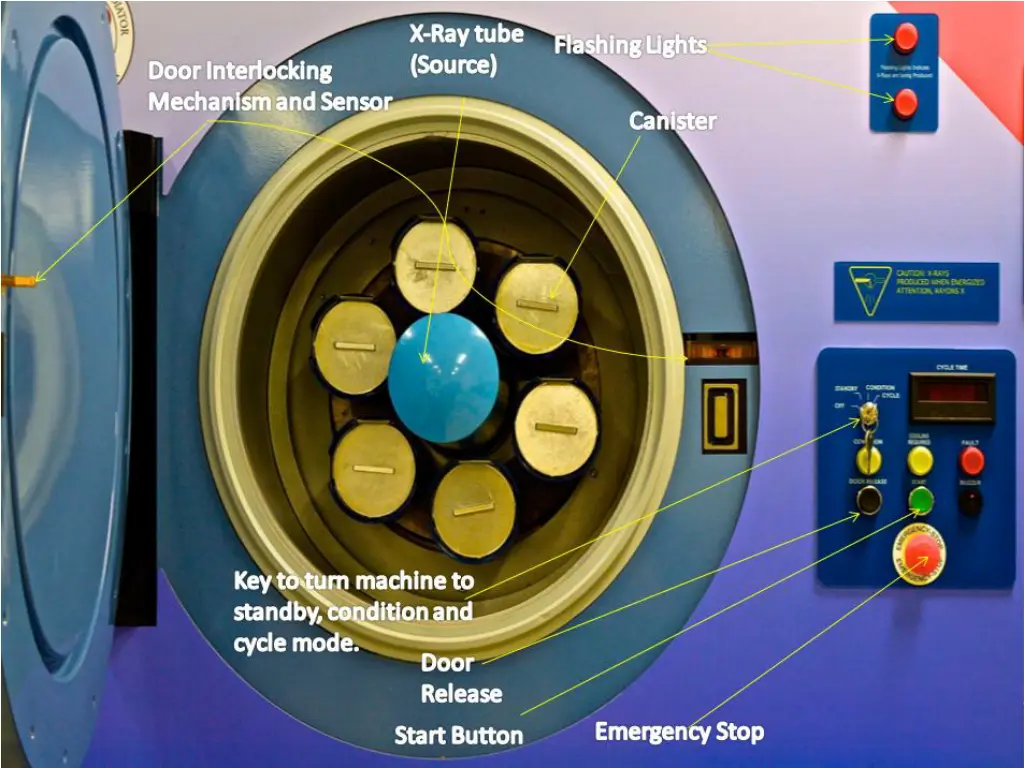

Dosimetry The X-ray Source in the RS 3400 creates a cloud of irradiation emitted longitudinally along its axis. The dose of irradiation produced to the Canisters is moderated by the rotation about the X-ray Source. Fig. 7 is illustrative of the distribution of the irradiation to the Canister. The maximum dose will generally be the middle surface of the Canister and the minimum dose will generally be delivered to the central ends of the Canister

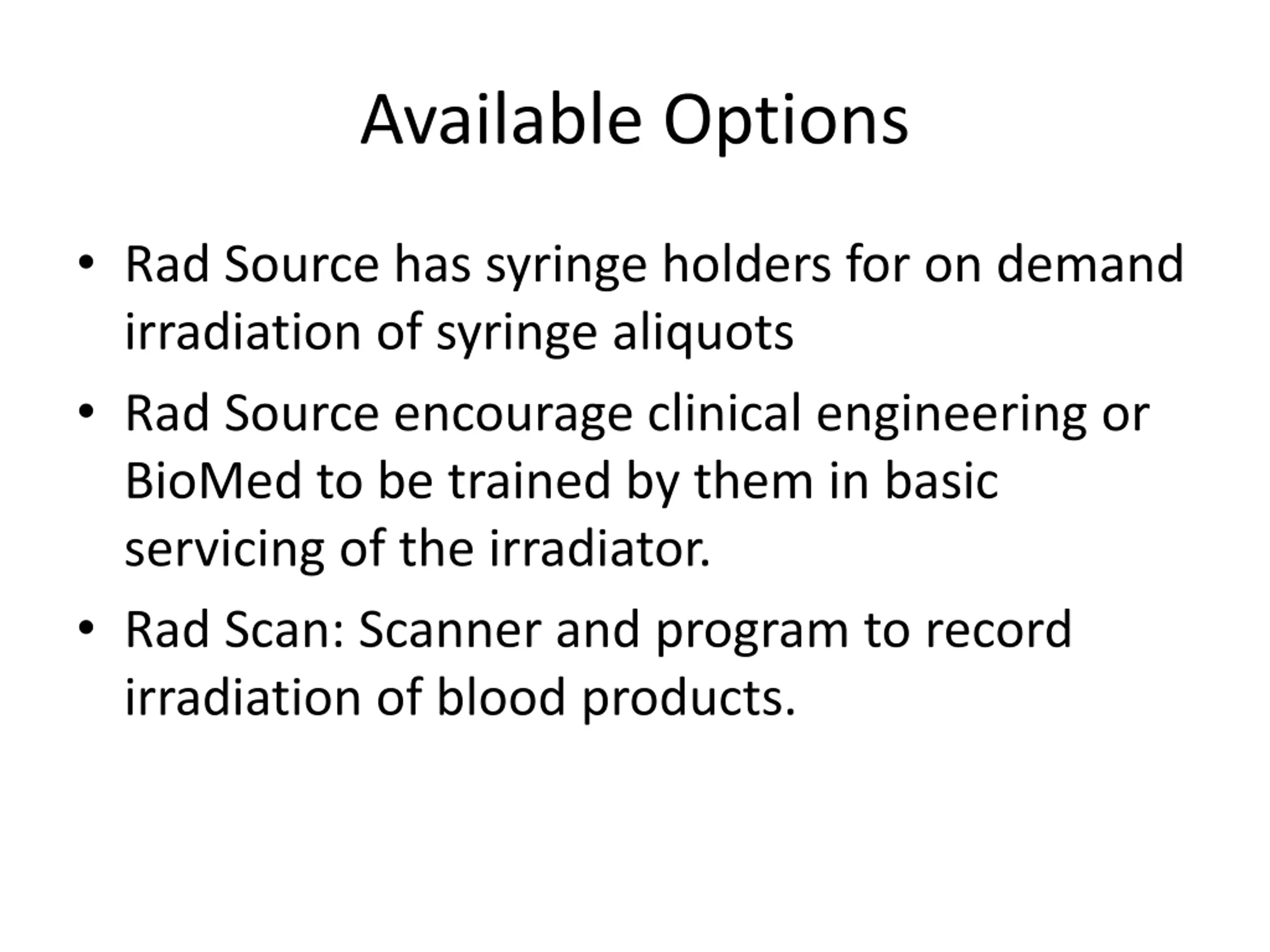

Available Options Rad Source has syringe holders for on demand irradiation of syringe aliquots Rad Source encourage clinical engineering or BioMed to be trained by them in basic servicing of the irradiator. Rad Scan: Scanner and program to record irradiation of blood products.

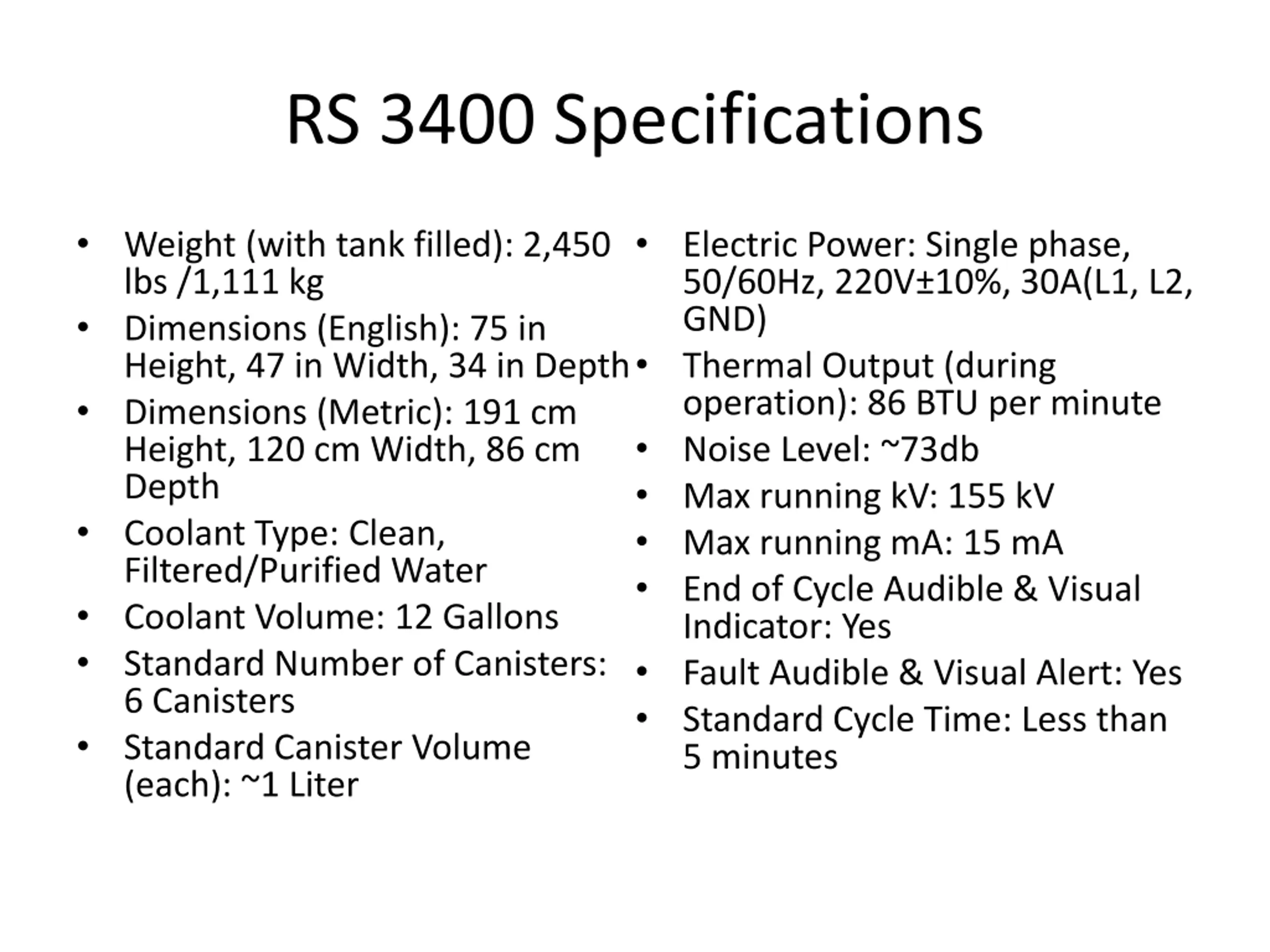

RS 3400 Specifications Weight (with tank filled): 2,450 lbs /1,111 kg Dimensions (English): 75 in Height, 47 in Width, 34 in Depth Dimensions (Metric): 191 cm Height, 120 cm Width, 86 cm Depth Coolant Type: Clean, Filtered/Purified Water Coolant Volume: 12 Gallons Standard Number of Canisters: 6 Canisters Standard Canister Volume (each): ~1 Liter Electric Power: Single phase, 50/60Hz, 220V 10%, 30A(L1, L2, GND) Thermal Output (during operation): 86 BTU per minute Noise Level: ~73db Max running kV: 155 kV Max running mA: 15 mA End of Cycle Audible & Visual Indicator: Yes Fault Audible & Visual Alert: Yes Standard Cycle Time: Less than 5 minutes

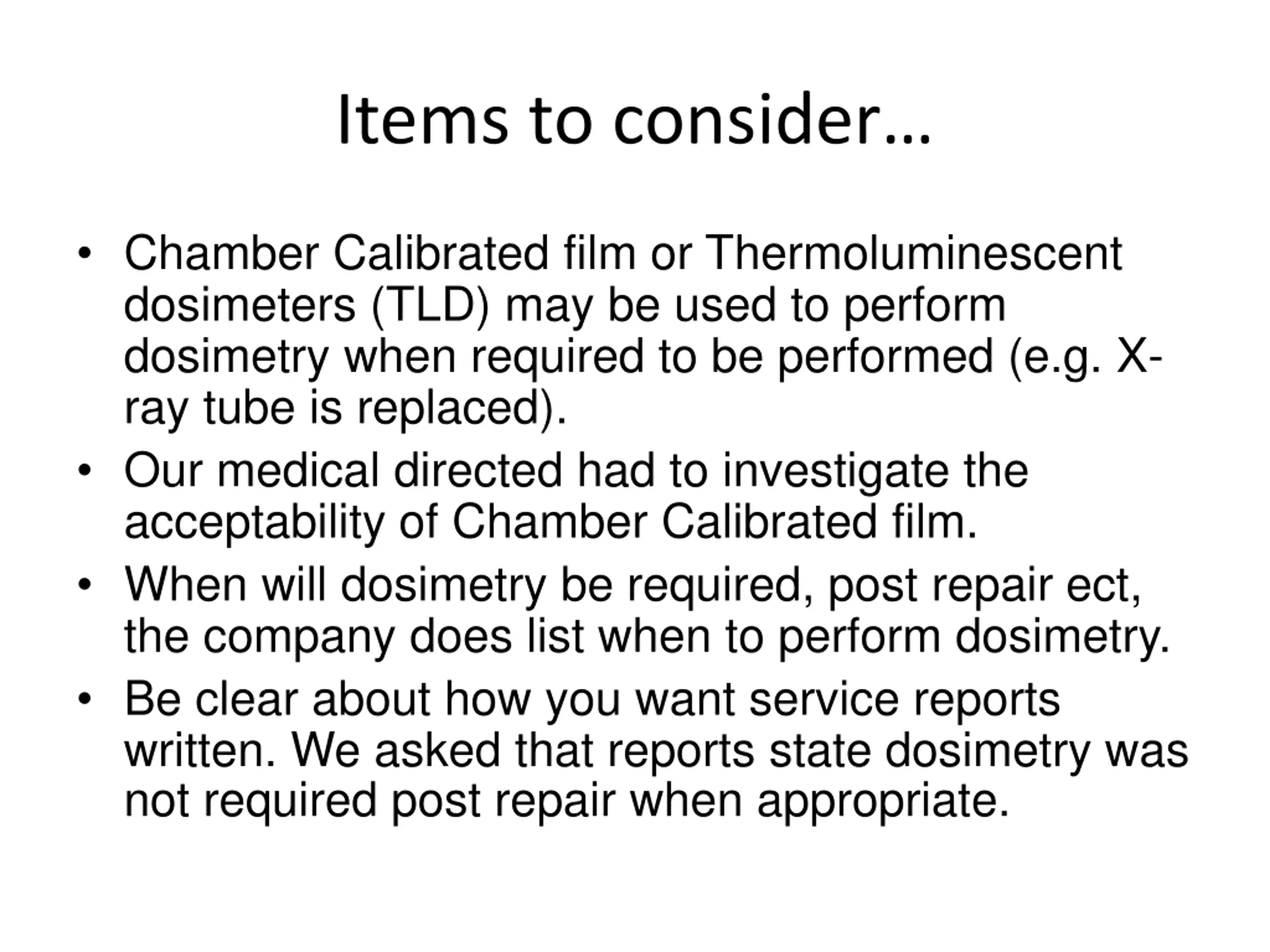

Items to consider Chamber Calibrated film or Thermoluminescent dosimeters (TLD) may be used to perform dosimetry when required to be performed (e.g. X- ray tube is replaced). Our medical directed had to investigate the acceptability of Chamber Calibrated film. When will dosimetry be required, post repair ect, the company does list when to perform dosimetry. Be clear about how you want service reports written. We asked that reports state dosimetry was not required post repair when appropriate.

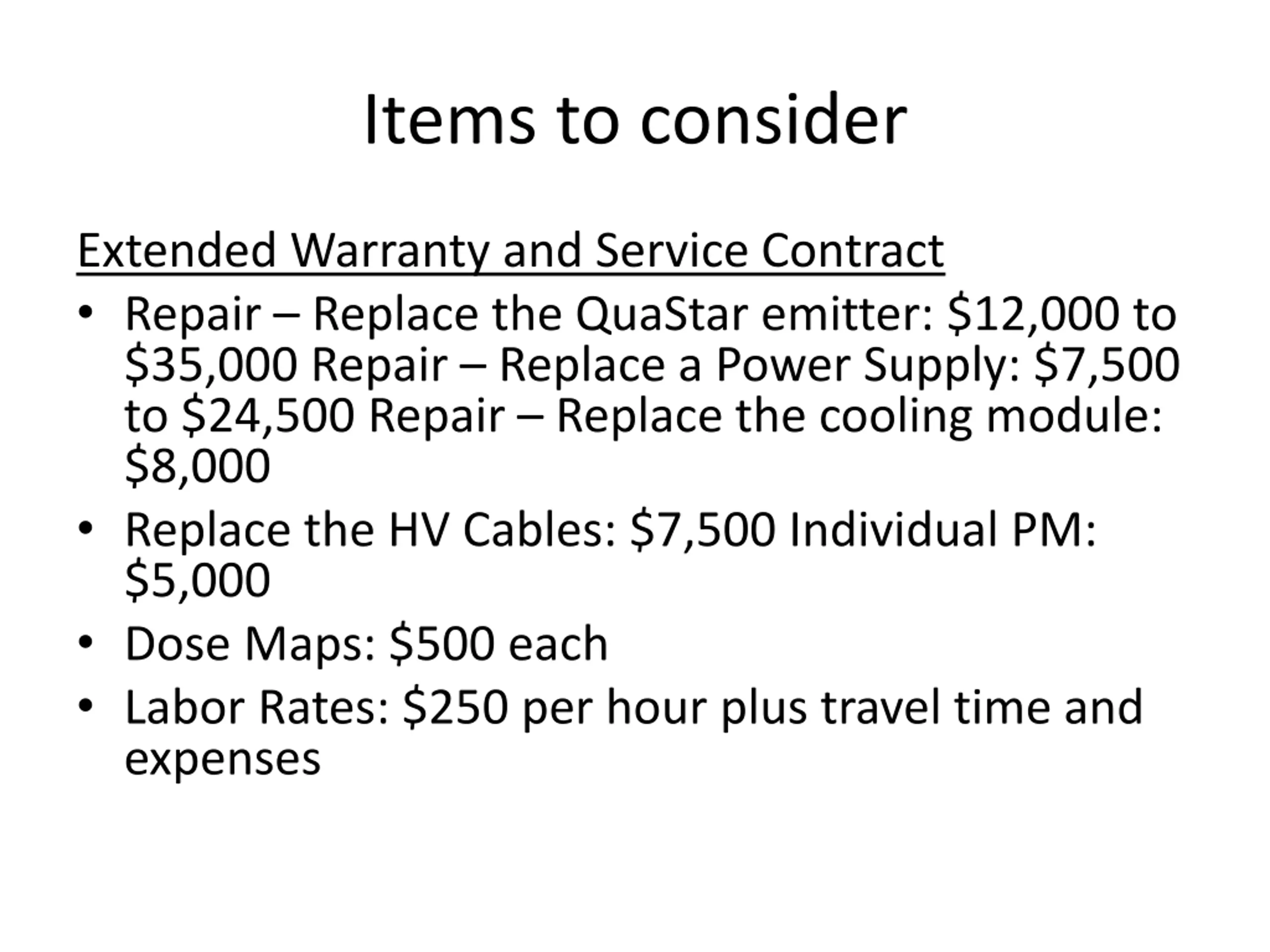

Items to consider Extended Warranty and Service Contract Repair Replace the QuaStar emitter: $12,000 to $35,000 Repair Replace a Power Supply: $7,500 to $24,500 Repair Replace the cooling module: $8,000 Replace the HV Cables: $7,500 Individual PM: $5,000 Dose Maps: $500 each Labor Rates: $250 per hour plus travel time and expenses
