Multi-Story Power Distribution Networks for GPUs Qixiang Zhang, Liangzhen Lai, Mark Gottscho, and Puneet Gupta Electrical Engineering Department nanocad.ee.ucla.edu mgottscho@ucla.edu

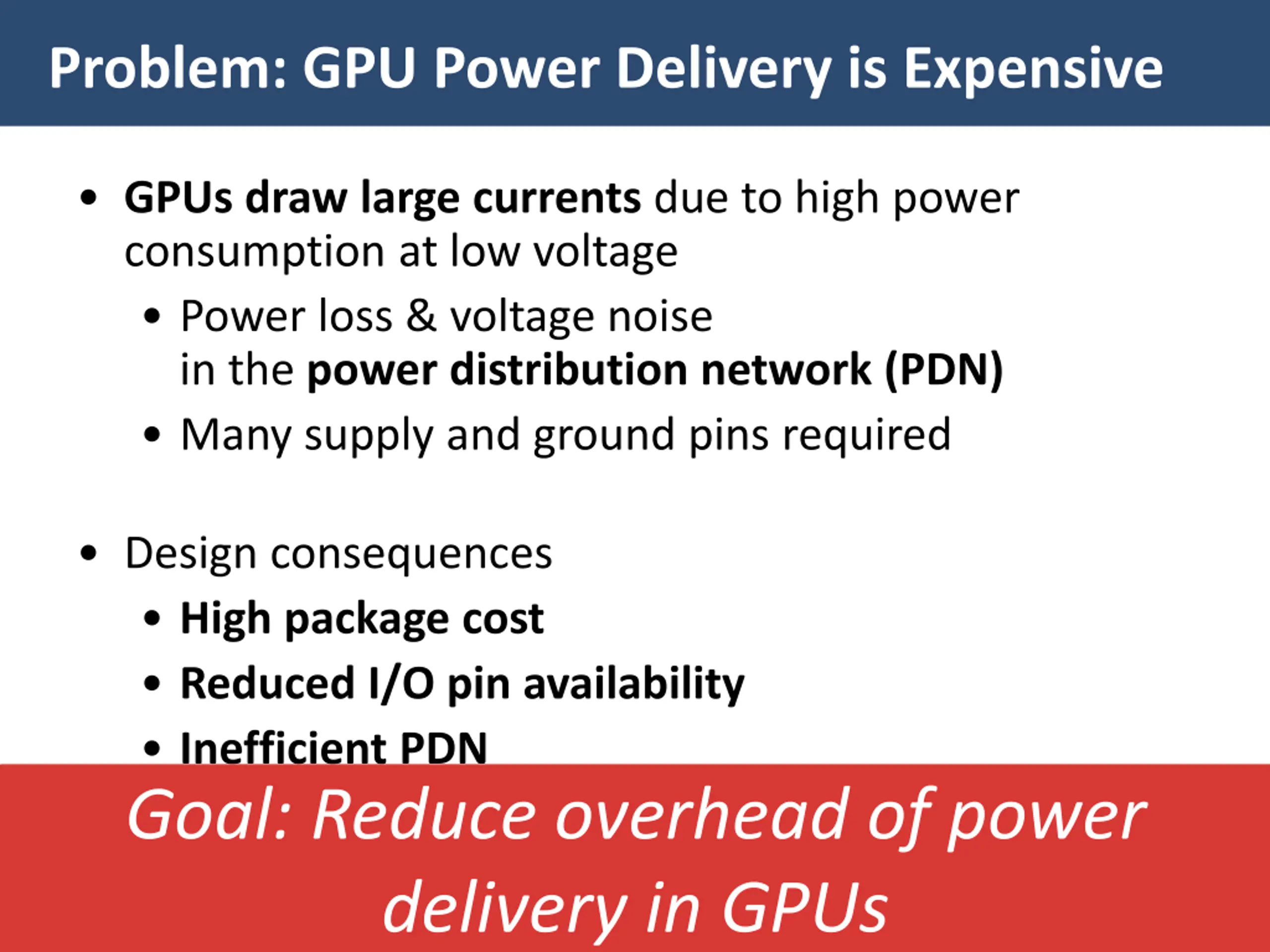

Problem: GPU Power Delivery is Expensive GPUs draw large currents due to high power consumption at low voltage Power loss & voltage noise in the power distribution network (PDN) Many supply and ground pins required Design consequences High package cost Reduced I/O pin availability Inefficient PDN Aging & wearout Goal: Reduce overhead of power delivery in GPUs 16-Mar-2016 Mark Gottscho / UCLA 1

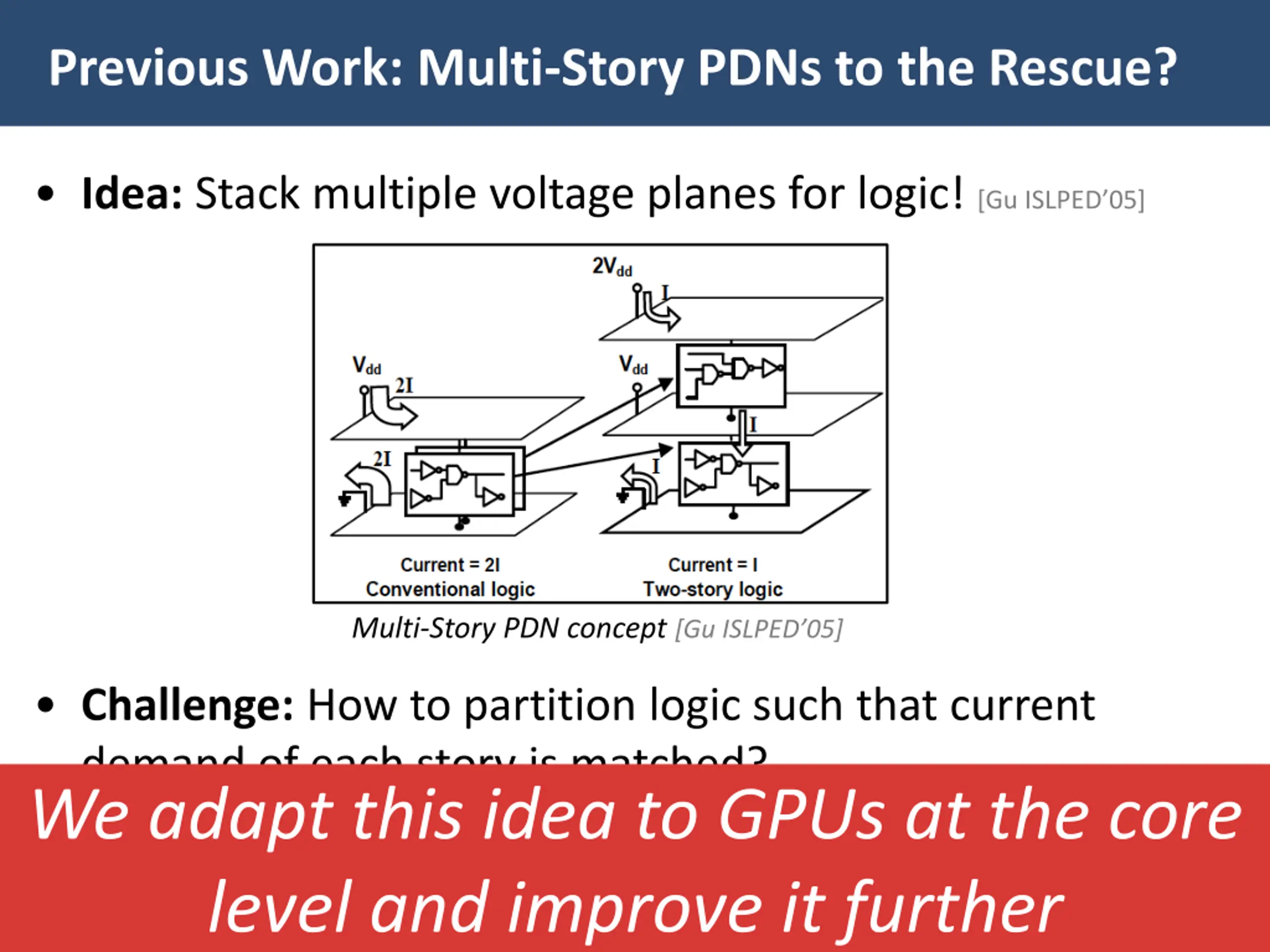

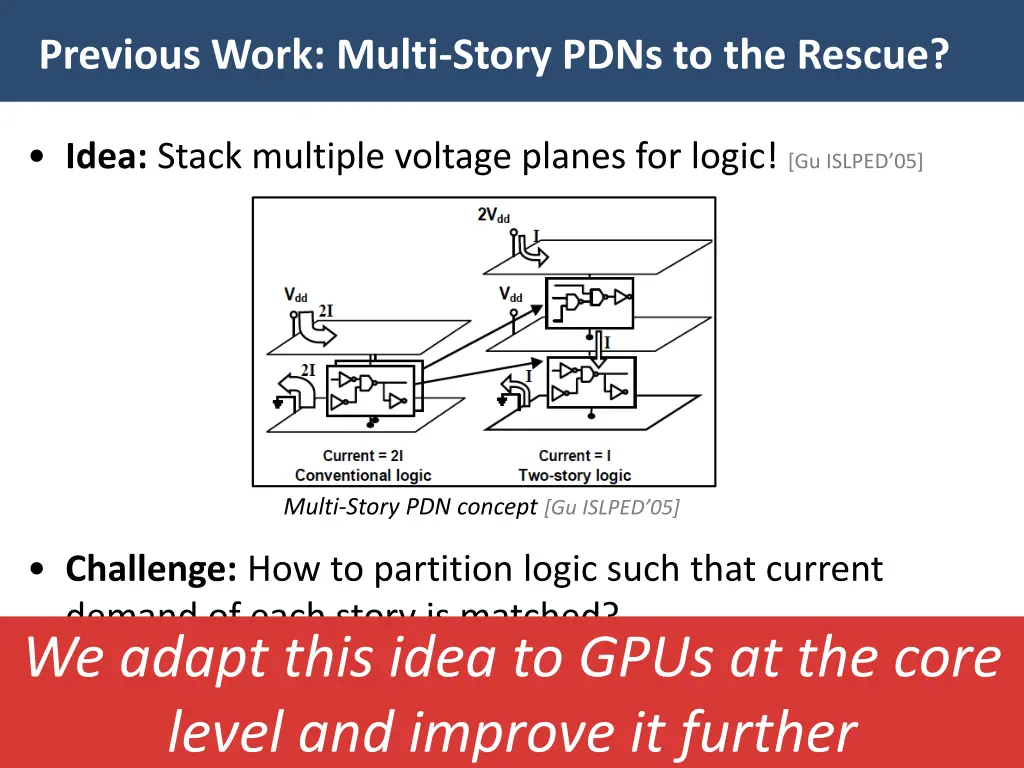

Previous Work: Multi-Story PDNs to the Rescue? Idea: Stack multiple voltage planes for logic! [Gu ISLPED 05] Multi-Story PDN concept [Gu ISLPED 05] Challenge: How to partition logic such that current demand of each story is matched? Gate-level, functional units, cores, ? We adapt this idea to GPUs at the core level and improve it further 16-Mar-2016 Mark Gottscho / UCLA 2

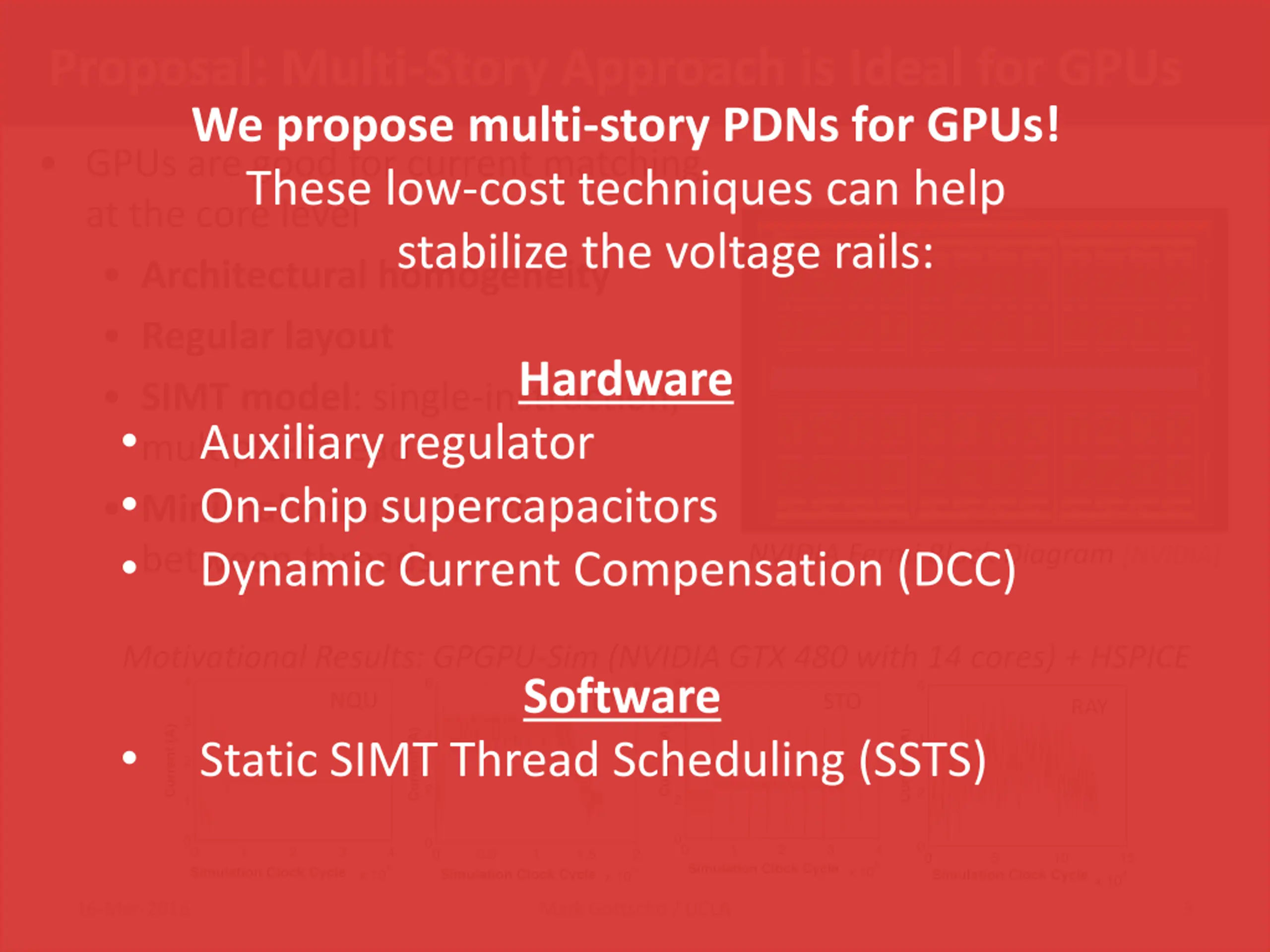

Proposal: Multi-Story Approach is Ideal for GPUs We propose multi-story PDNs for GPUs! These low-cost techniques can help stabilize the voltage rails: GPUs are good for current matching at the core level Architectural homogeneity Regular layout SIMT model: single-instruction, multiple-thread Minimal communication between threads Dynamic Current Compensation (DCC) Hardware Auxiliary regulator On-chip supercapacitors NVIDIA Fermi Block Diagram [NVIDIA] Motivational Results: GPGPU-Sim (NVIDIA GTX 480 with 14 cores) + HSPICE Software Static SIMT Thread Scheduling (SSTS) NQU STO LPS RAY 16-Mar-2016 Mark Gottscho / UCLA 3

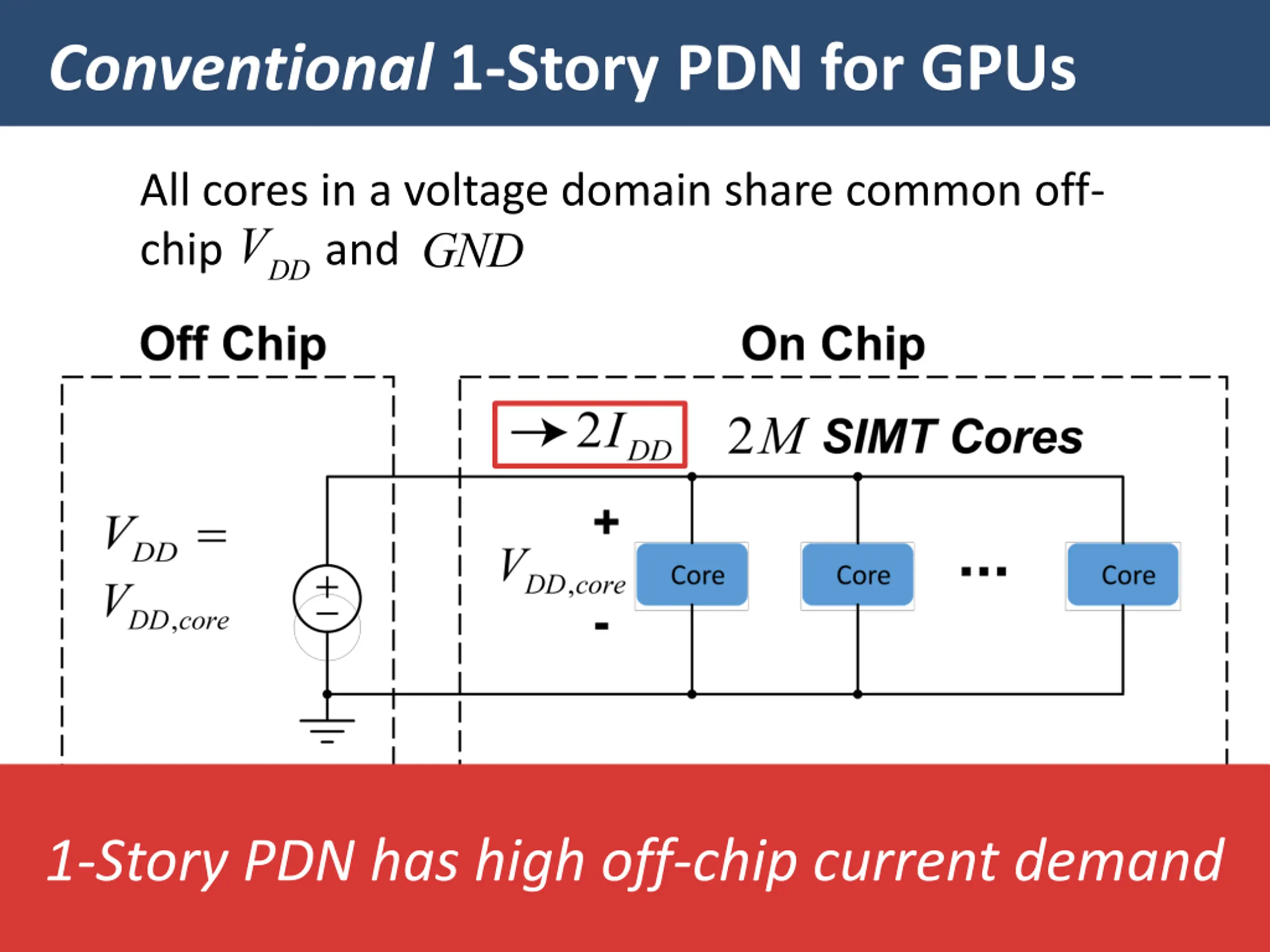

Conventional 1-Story PDN for GPUs All cores in a voltage domain share common off- chip and VDD GND 16-Mar-2016 1-Story PDN has high off-chip current demand Mark Gottscho / UCLA 4

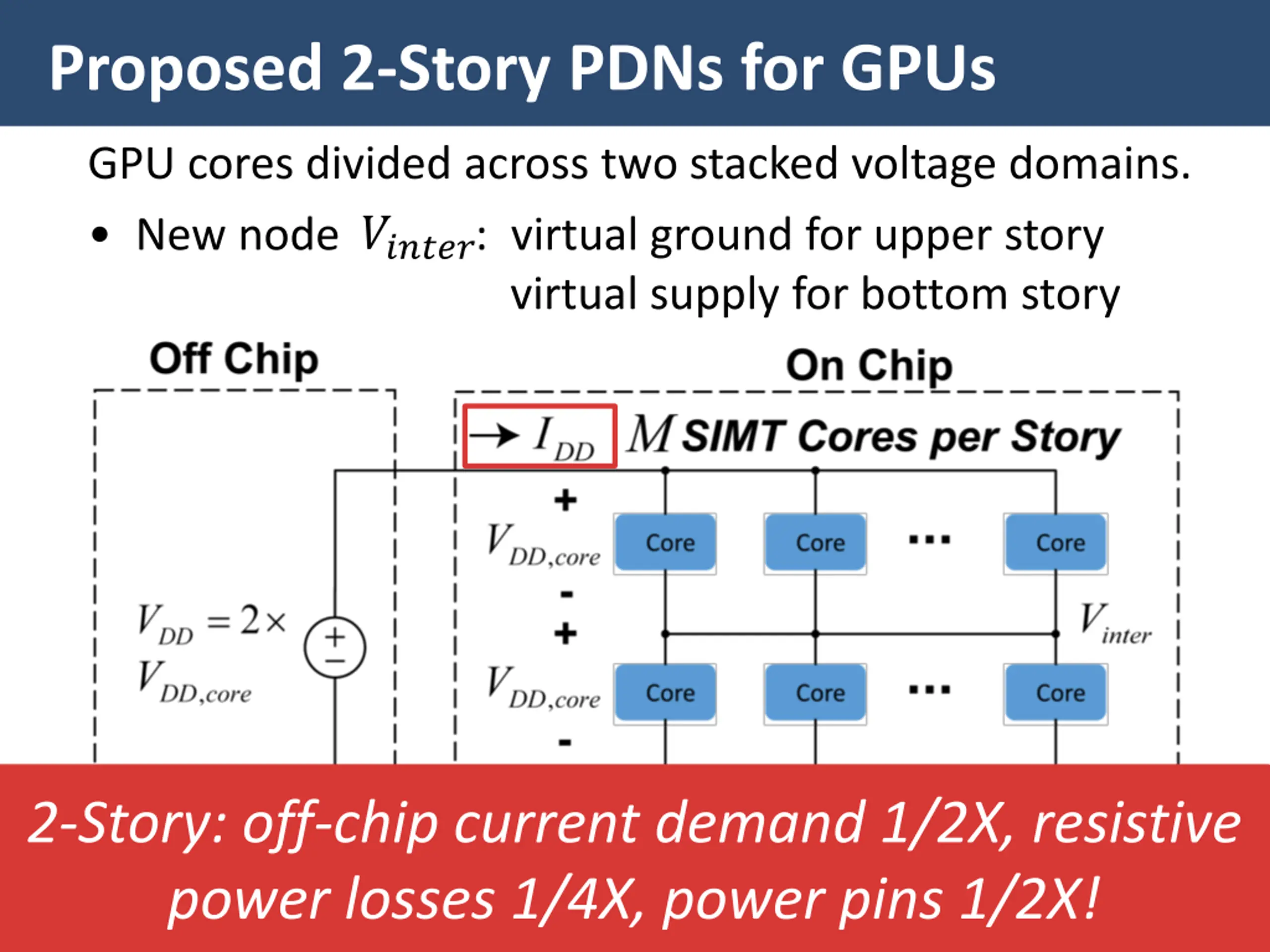

Proposed 2-Story PDNs for GPUs GPU cores divided across two stacked voltage domains. New node : virtual ground for upper story virtual supply for bottom story ?????? 2-Story: off-chip current demand 1/2X, resistive power losses 1/4X, power pins 1/2X! 16-Mar-2016 Mark Gottscho / UCLA 5

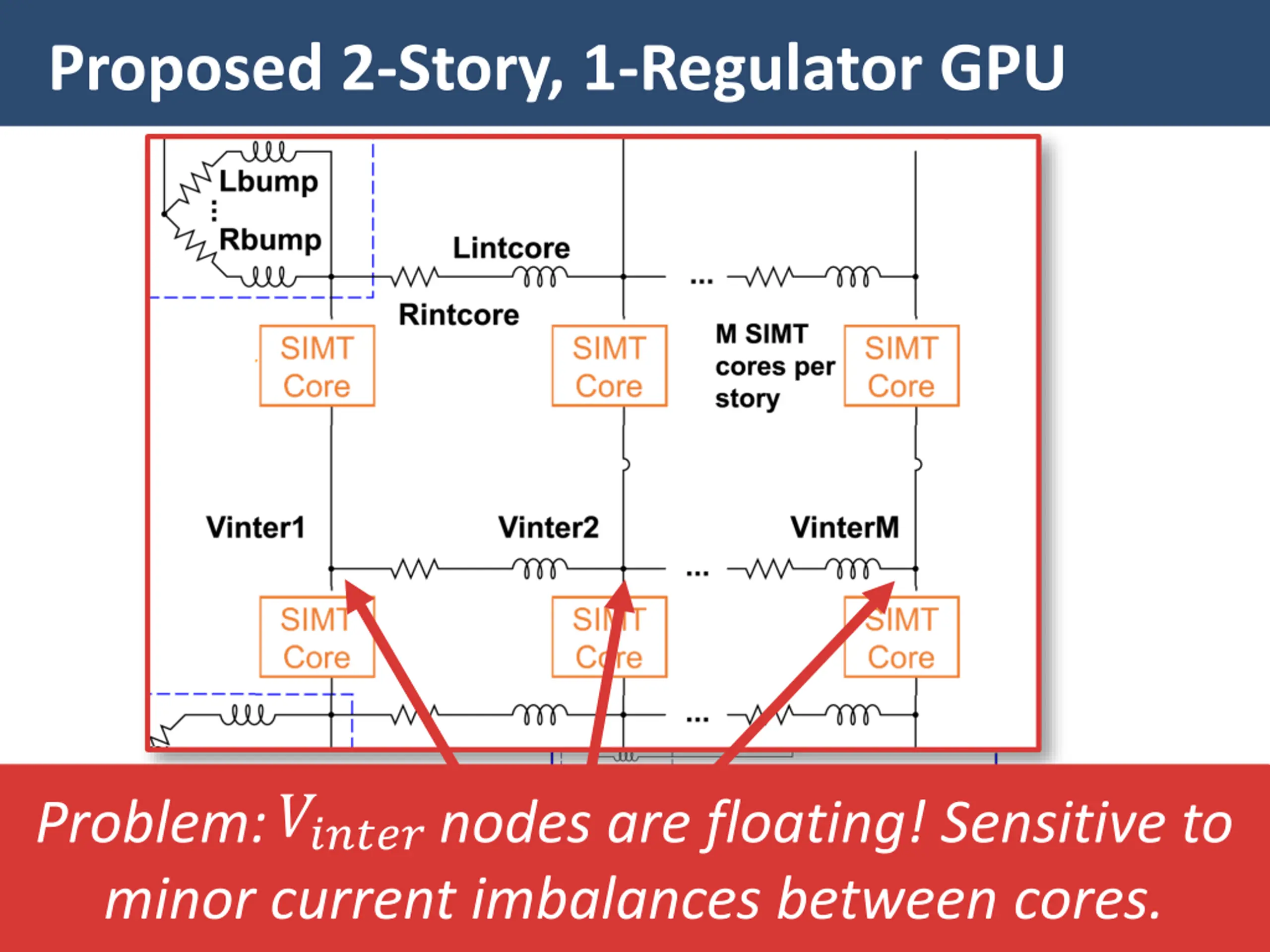

Proposed 2-Story, 1-Regulator GPU Problem: nodes are floating! Sensitive to ?????? 16-Mar-2016 minor current imbalances between cores. Mark Gottscho / UCLA 6

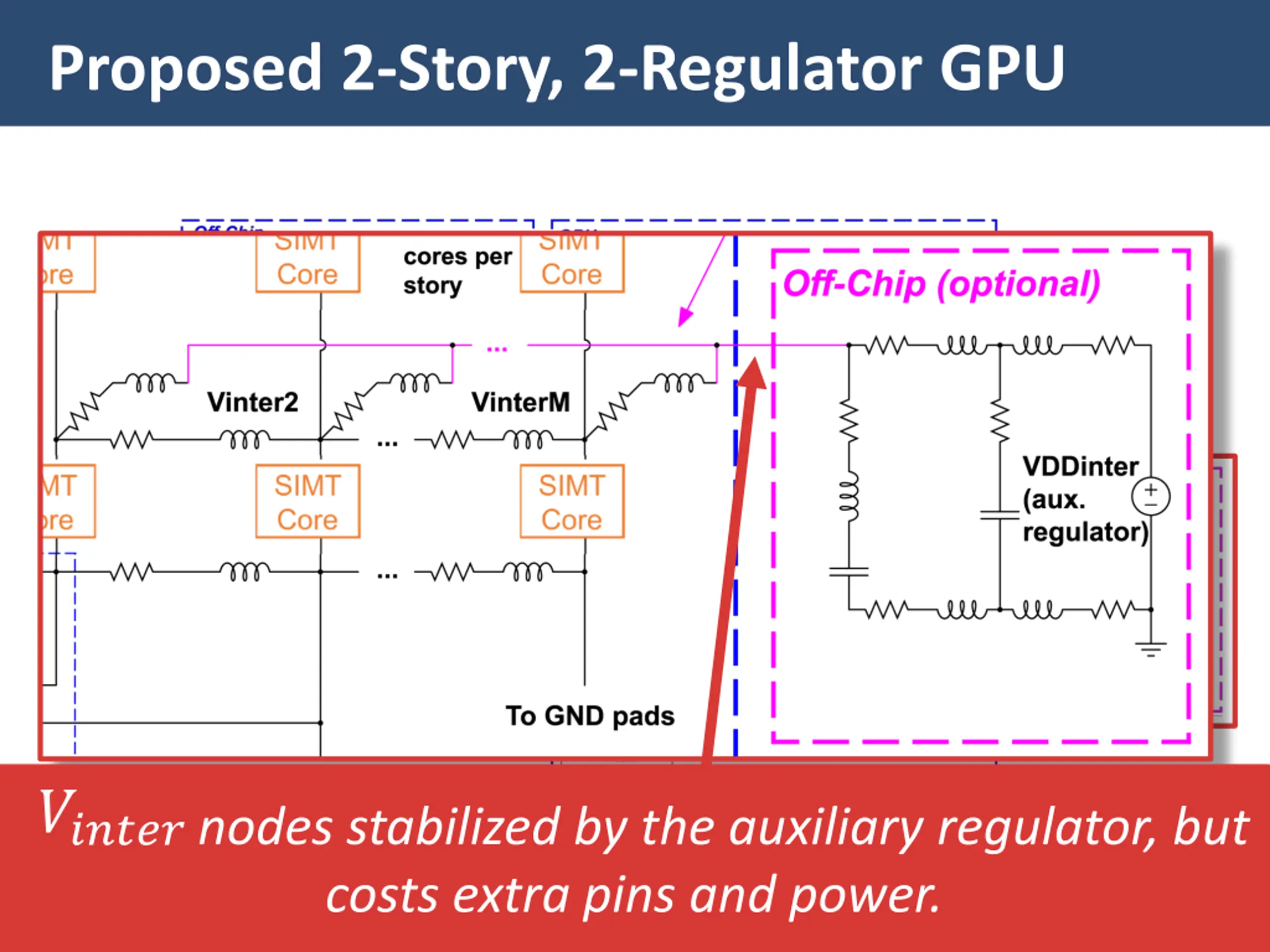

Proposed 2-Story, 2-Regulator GPU ?????? nodes stabilized by the auxiliary regulator, but costs extra pins and power. 16-Mar-2016 Mark Gottscho / UCLA 7

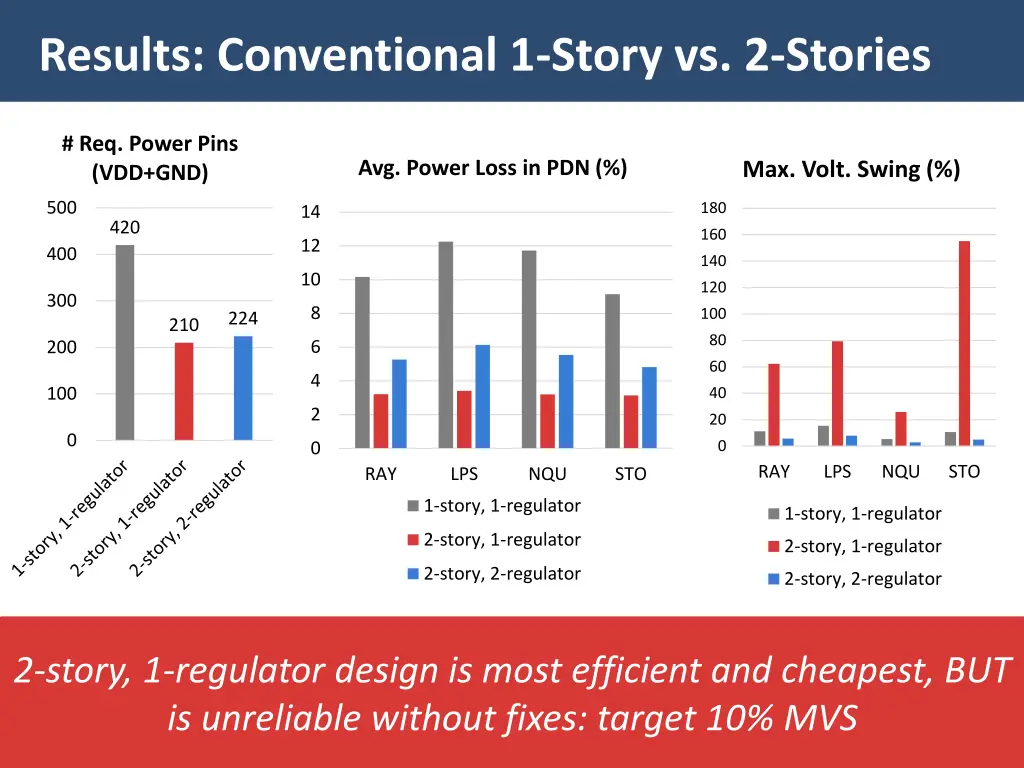

Results: Conventional 1-Story vs. 2-Stories # Req. Power Pins (VDD+GND) Avg. Power Loss in PDN (%) Max. Volt. Swing (%) 500 180 14 420 160 12 400 140 10 120 300 8 100 224 210 80 6 200 60 4 100 40 2 20 0 0 0 RAY LPS NQU STO RAY LPS NQU STO 1-story, 1-regulator 1-story, 1-regulator 2-story, 1-regulator 2-story, 1-regulator 2-story, 2-regulator 2-story, 2-regulator 2-story, 1-regulator design is most efficient and cheapest, BUT is unreliable without fixes: target 10% MVS 16-Mar-2016 Mark Gottscho / UCLA 8

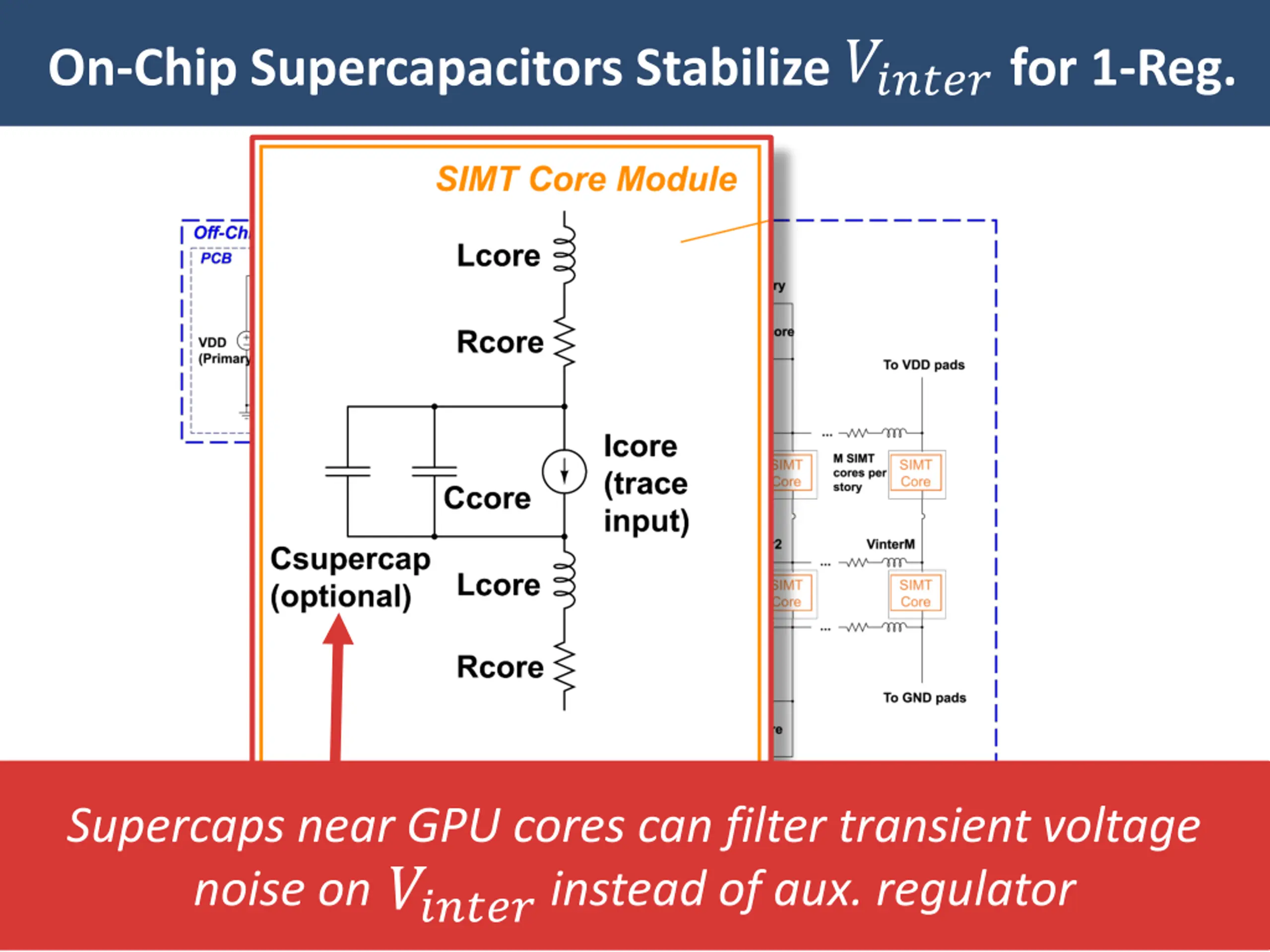

?????? On-Chip Supercapacitors Stabilize for 1-Reg. Supercaps near GPU cores can filter transient voltage noise on instead of aux. regulator ?????? 16-Mar-2016 Mark Gottscho / UCLA 9

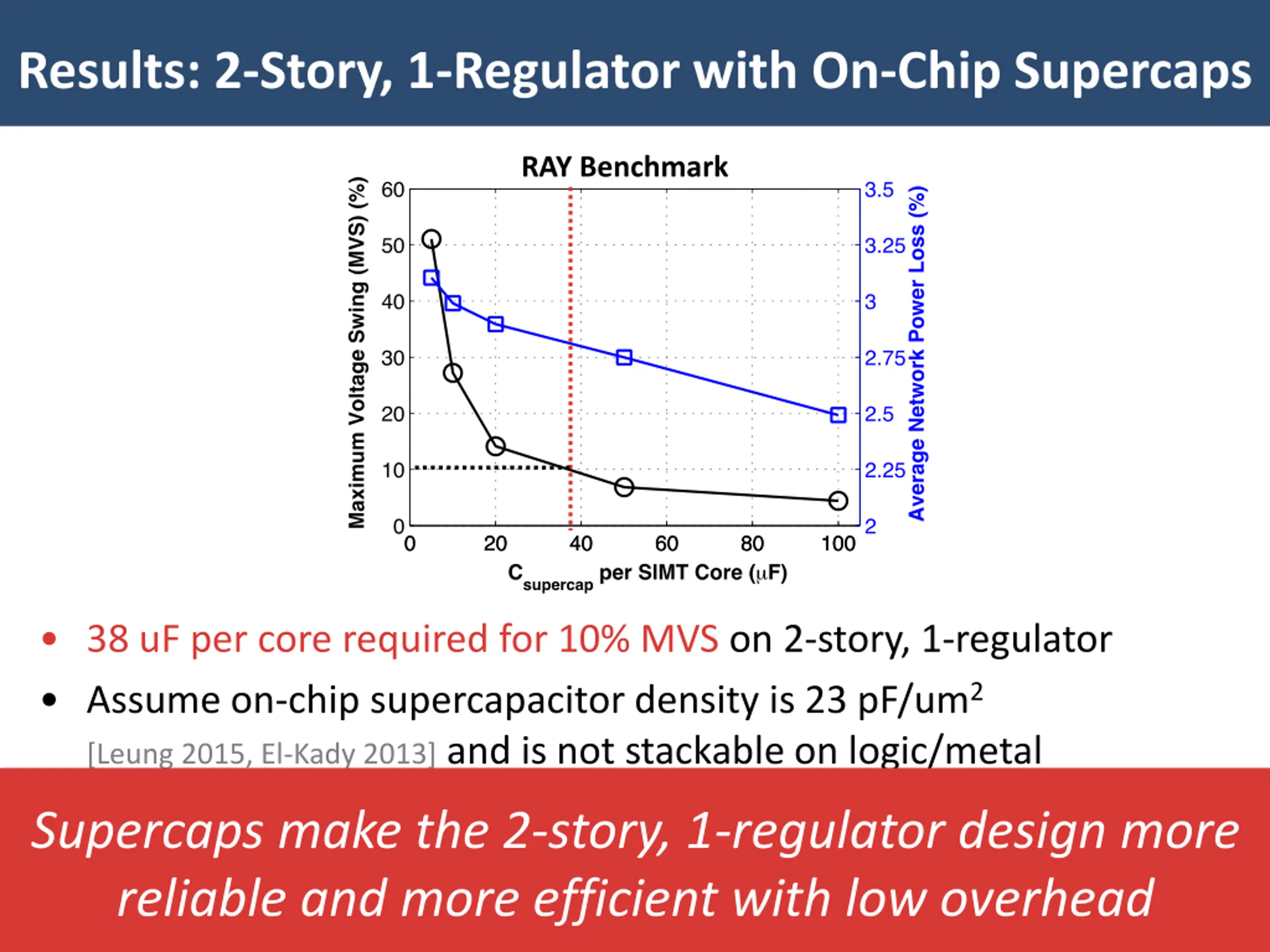

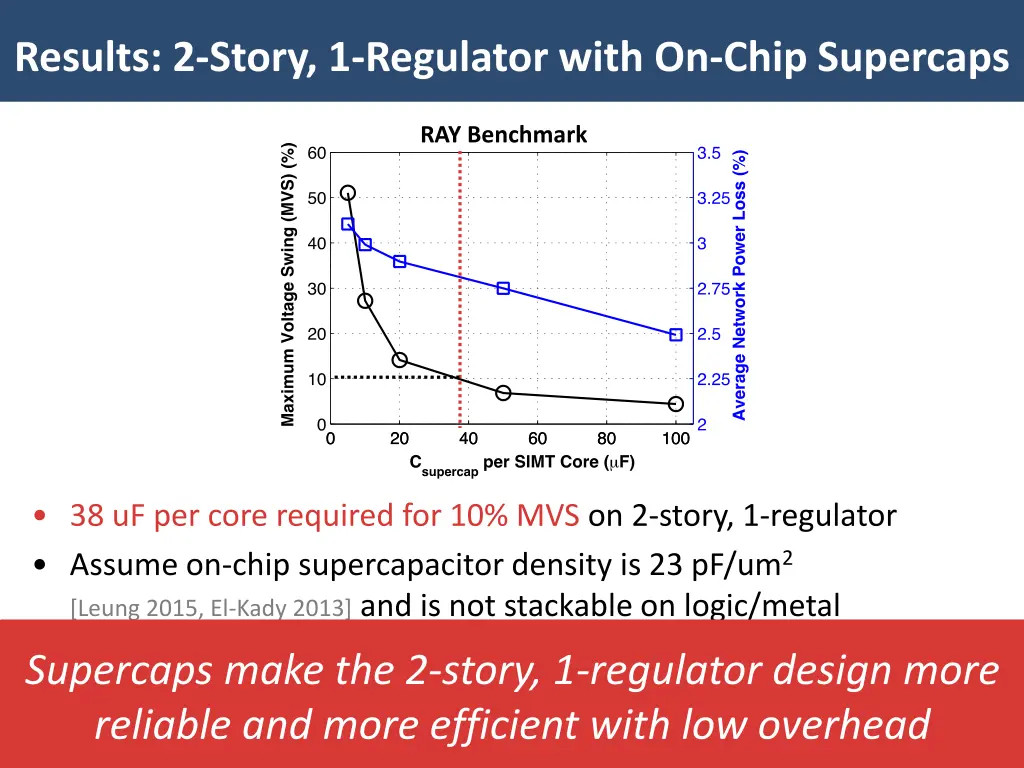

Results: 2-Story, 1-Regulator with On-Chip Supercaps RAY Benchmark 38 uF per core required for 10% MVS on 2-story, 1-regulator Assume on-chip supercapacitor density is 23 pF/um2 [Leung 2015, El-Kady 2013] and is not stackable on logic/metal Supercap area overhead est. 1.65 mm2per core, 4.6% for chip Supercaps make the 2-story, 1-regulator design more 16-Mar-2016 reliable and more efficient with low overhead Mark Gottscho / UCLA 10

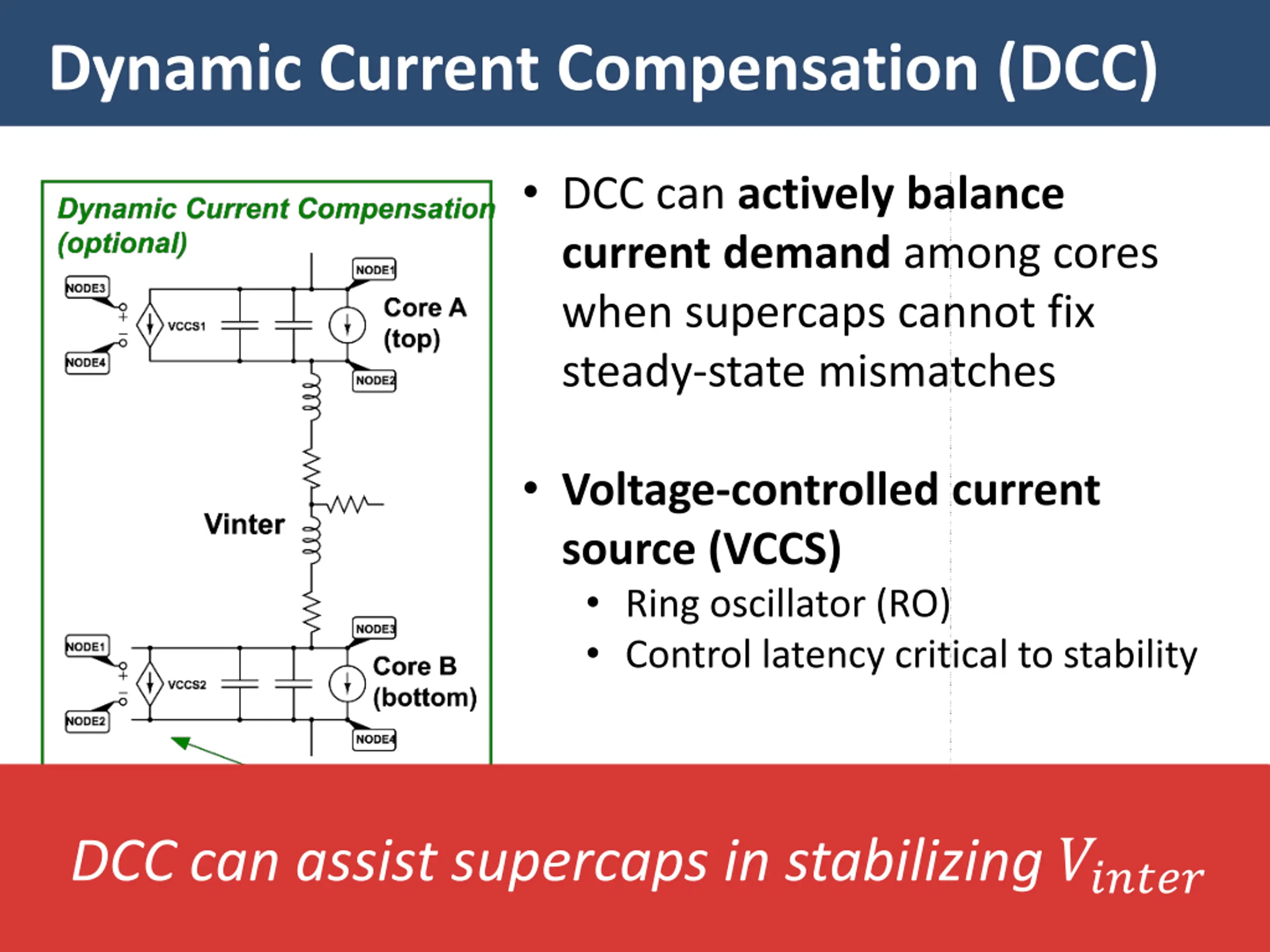

Dynamic Current Compensation (DCC) DCC can actively balance current demand among cores when supercaps cannot fix steady-state mismatches Voltage-controlled current source (VCCS) Ring oscillator (RO) Control latency critical to stability ?????? 16-Mar-2016 DCC can assist supercaps in stabilizing Mark Gottscho / UCLA 11

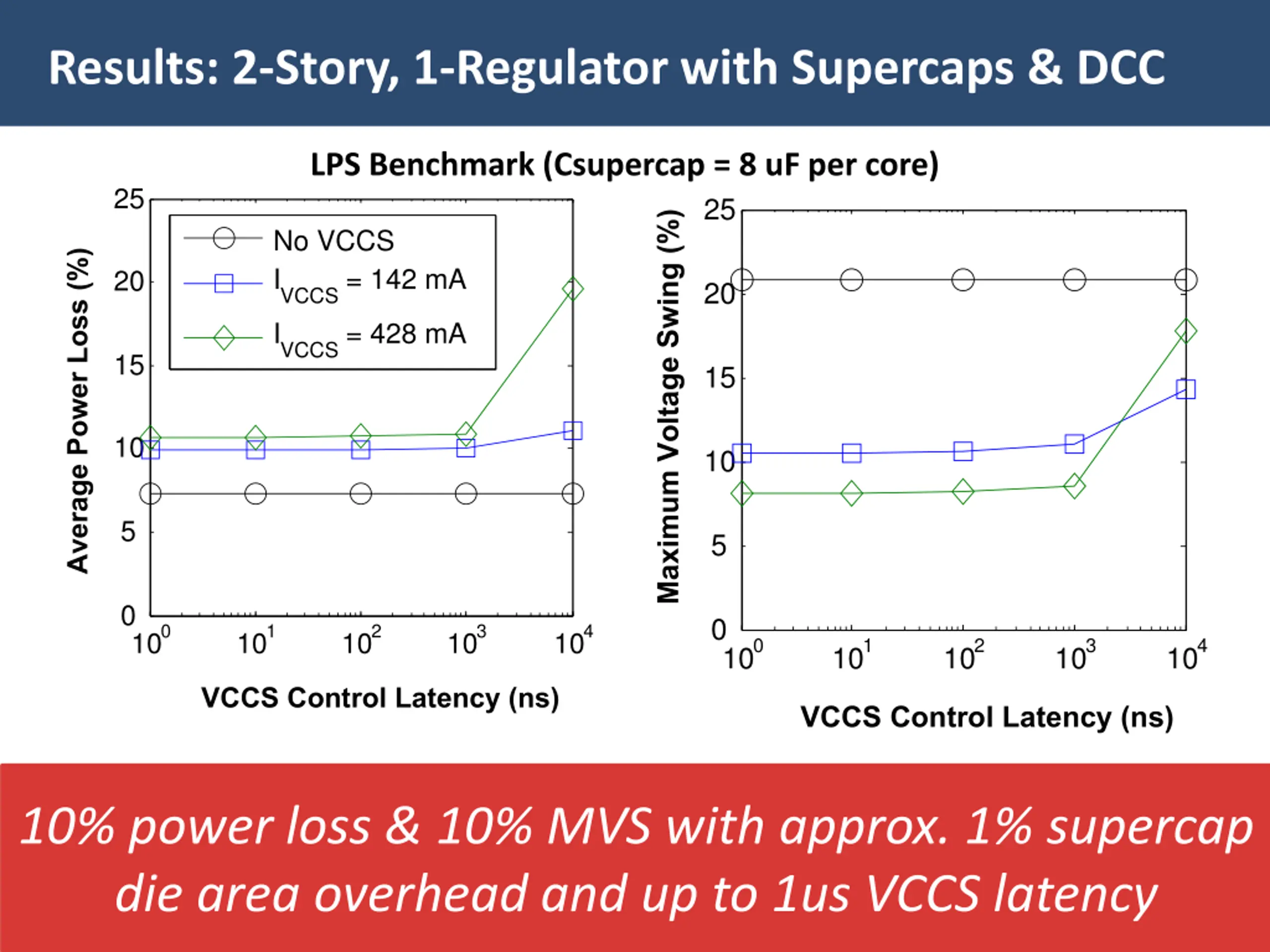

Results: 2-Story, 1-Regulator with Supercaps & DCC LPS Benchmark (Csupercap = 8 uF per core) 25 25 Maximum Voltage Swing (%) No VCCS IVCCS = 142 mA IVCCS = 428 mA Average Power Loss (%) 20 20 15 15 10 10 5 5 0 0 100 101 102 103 104 100 101 102 103 104 VCCS Control Latency (ns) VCCS Control Latency (ns) 10% power loss & 10% MVS with approx. 1% supercap 16-Mar-2016 die area overhead and up to 1us VCCS latency Mark Gottscho / UCLA 12 Student Version of MATLAB Student Version of MATLAB

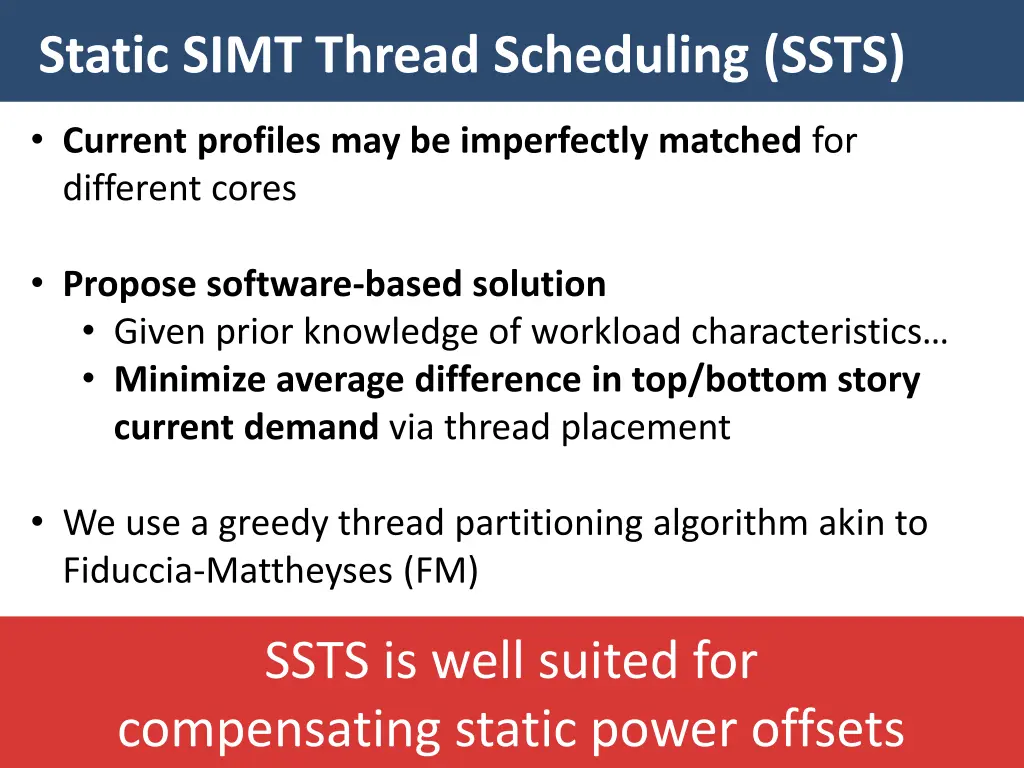

Static SIMT Thread Scheduling (SSTS) Current profiles may be imperfectly matched for different cores Propose software-based solution Given prior knowledge of workload characteristics Minimize average difference in top/bottom story current demand via thread placement We use a greedy thread partitioning algorithm akin to Fiduccia-Mattheyses (FM) SSTS is well suited for compensating static power offsets 16-Mar-2016 Mark Gottscho / UCLA 13

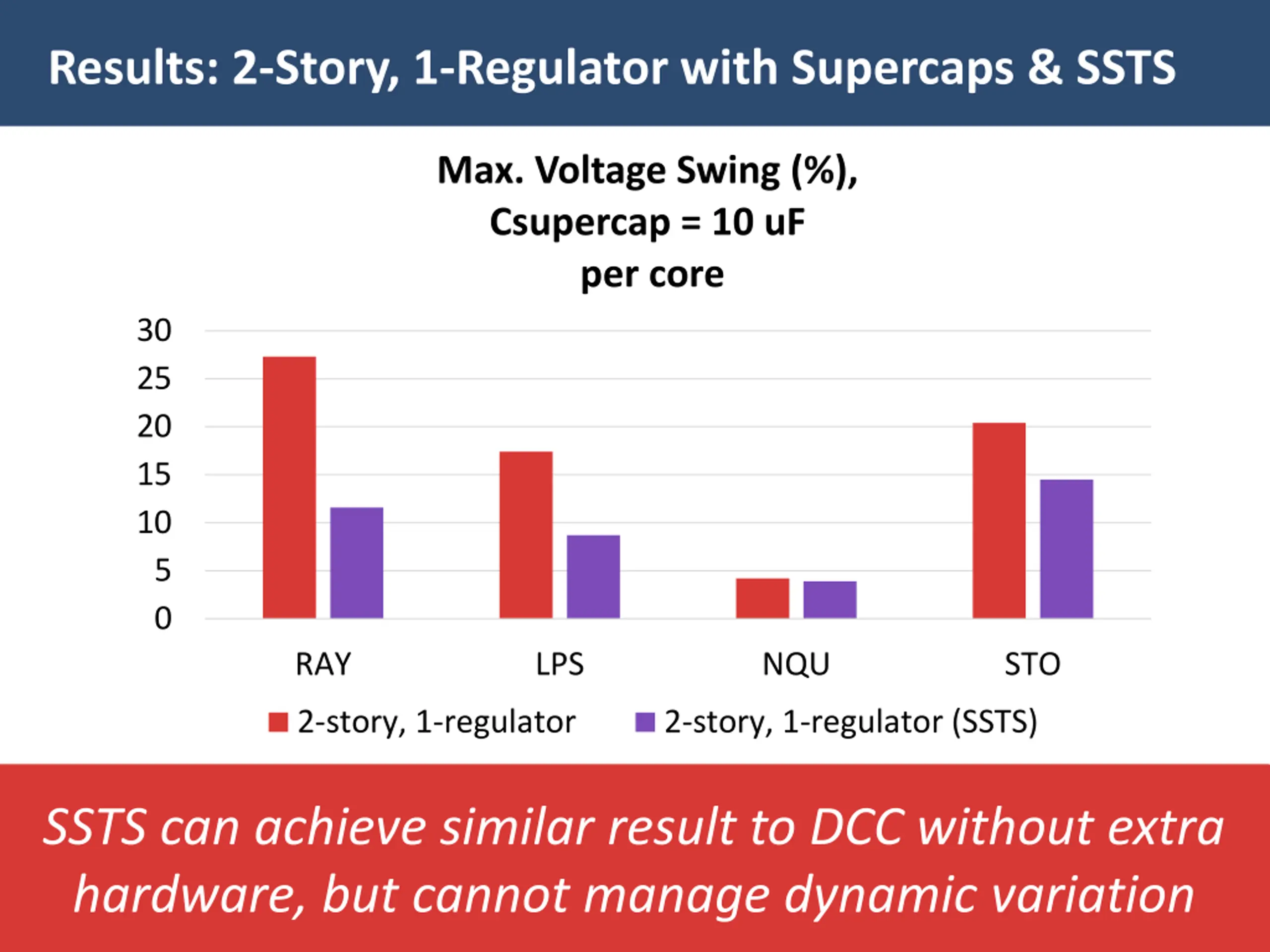

Results: 2-Story, 1-Regulator with Supercaps & SSTS Max. Voltage Swing (%), Csupercap = 10 uF per core 30 25 20 15 10 5 0 RAY LPS NQU STO 2-story, 1-regulator 2-story, 1-regulator (SSTS) SSTS can achieve similar result to DCC without extra 16-Mar-2016 hardware, but cannot manage dynamic variation Mark Gottscho / UCLA 14

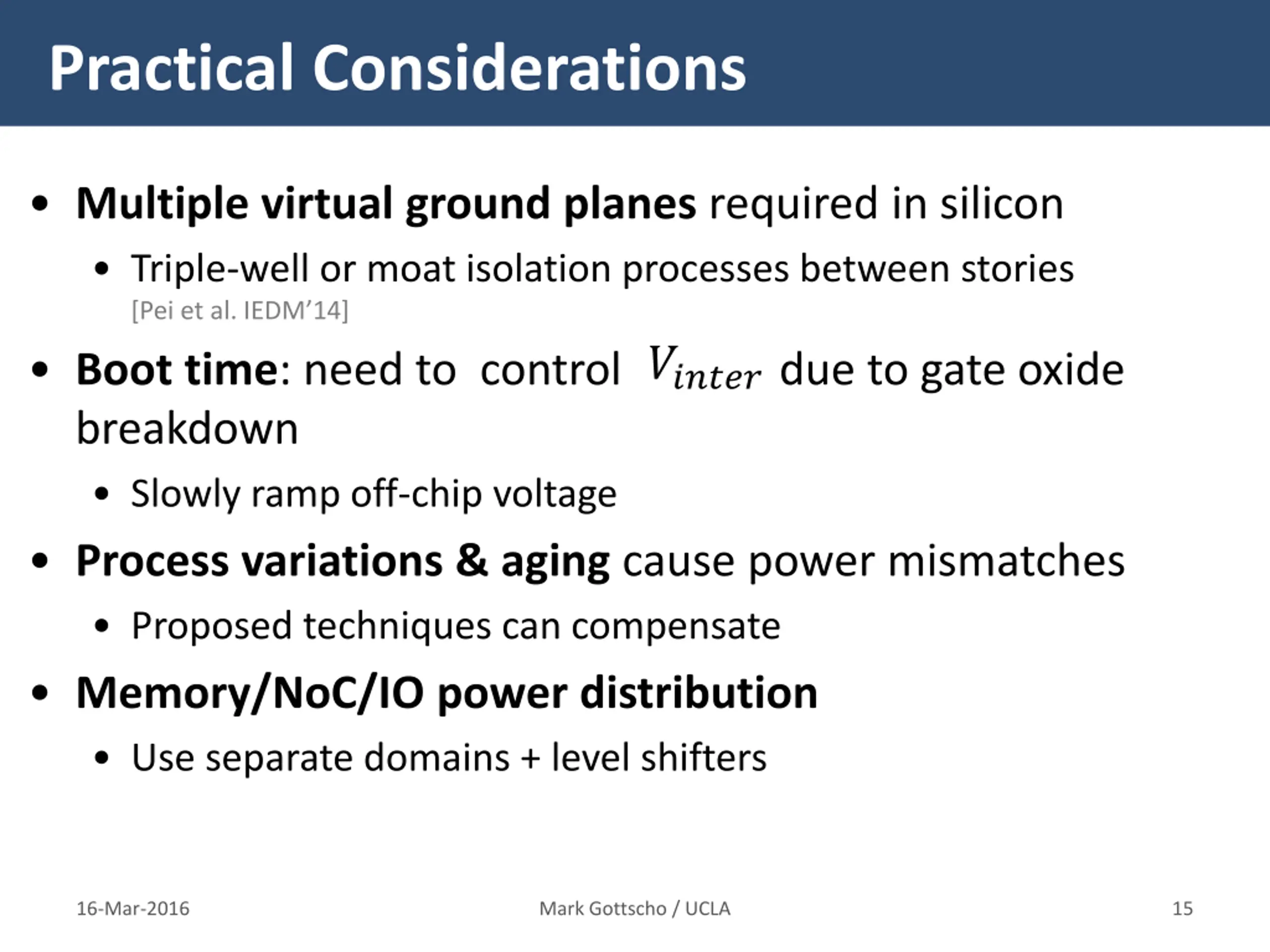

Practical Considerations Multiple virtual ground planes required in silicon Triple-well or moat isolation processes between stories [Pei et al. IEDM 14] Boot time: need to control due to gate oxide breakdown Slowly ramp off-chip voltage Process variations & aging cause power mismatches Proposed techniques can compensate Memory/NoC/IO power distribution Use separate domains + level shifters ?????? 16-Mar-2016 Mark Gottscho / UCLA 15

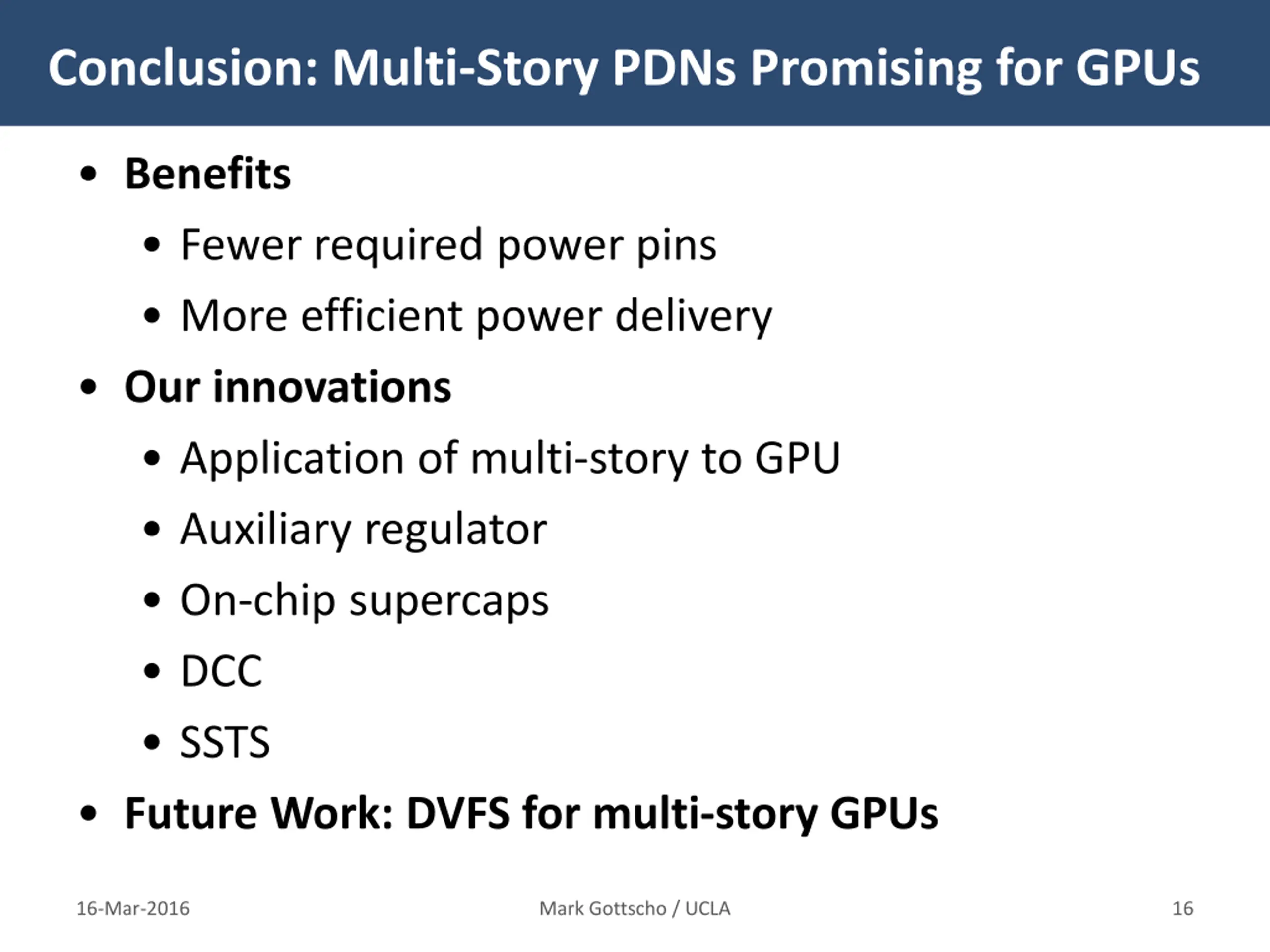

Conclusion: Multi-Story PDNs Promising for GPUs Benefits Fewer required power pins More efficient power delivery Our innovations Application of multi-story to GPU Auxiliary regulator On-chip supercaps DCC SSTS Future Work: DVFS for multi-story GPUs 16-Mar-2016 Mark Gottscho / UCLA 16

Thank you!
