1. 4 to 20 mA receiver 1

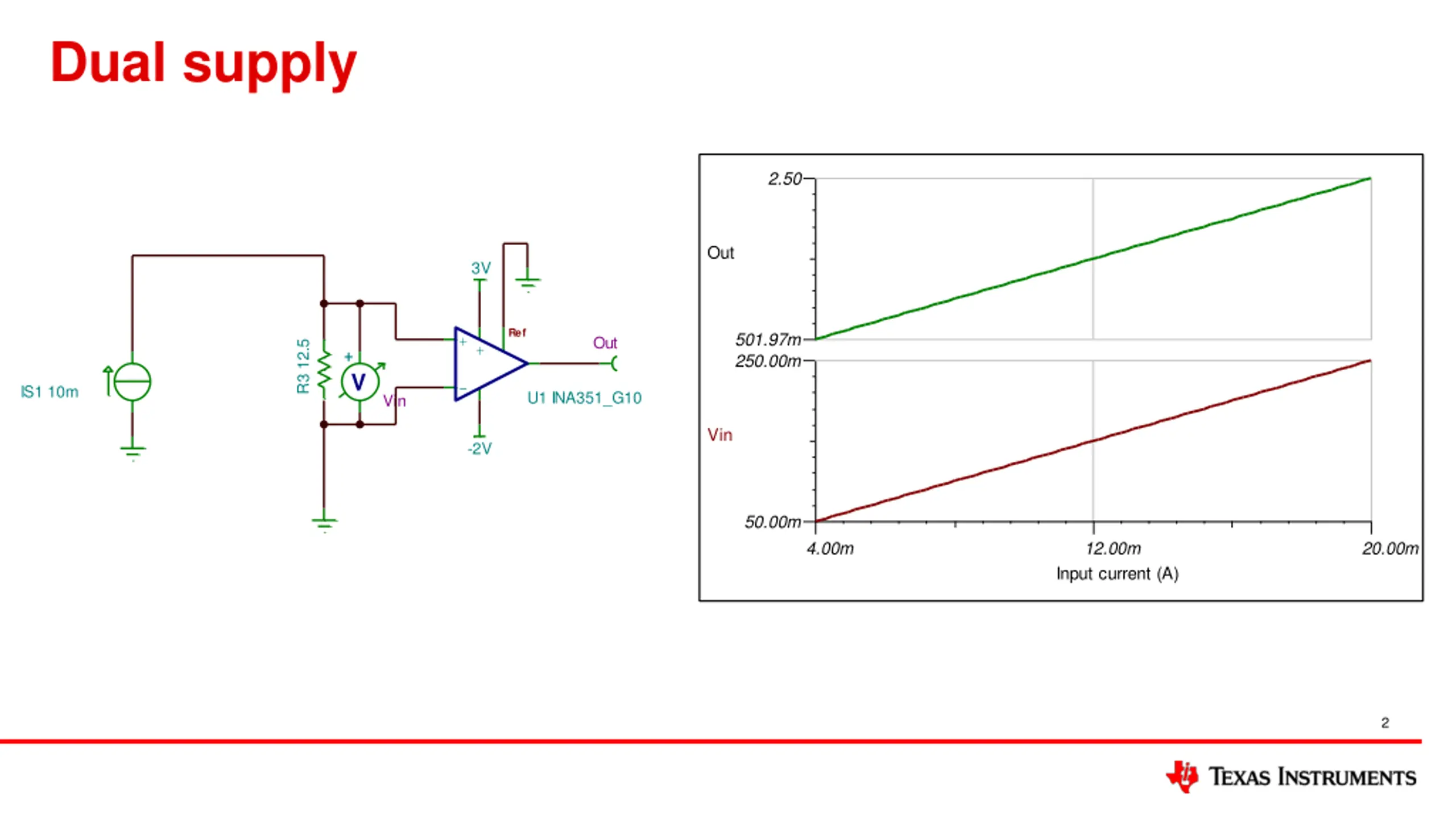

2. Dual supply 2.50 T Out 3V Ref 501.97m 250.00m ++ Out R3 12.5 + V - IS1 10m U1 INA351_G10 Vin Vin -2V 50.00m 4.00m 12.00m 20.00m Input current (A) 2

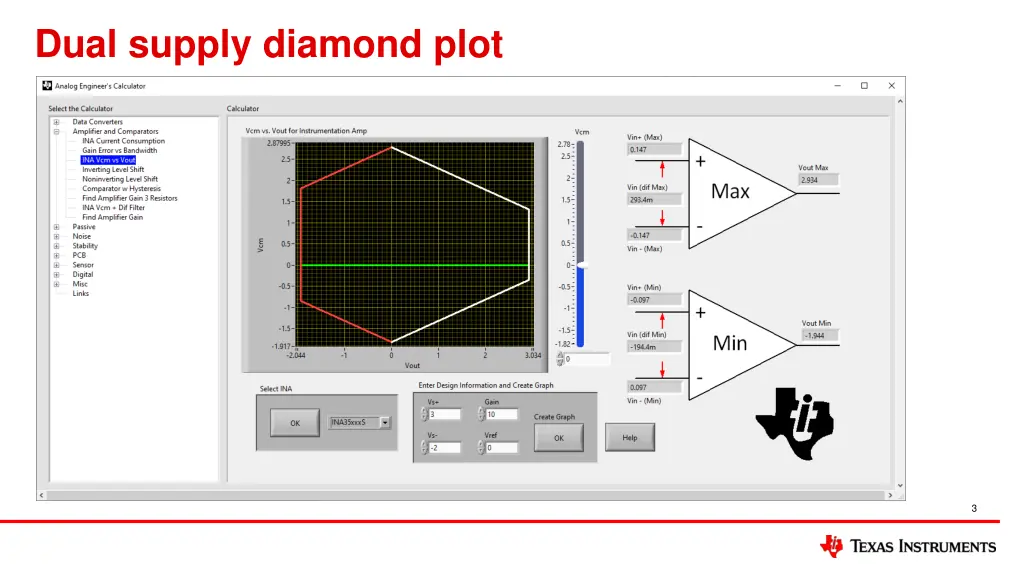

3. Dual supply diamond plot 3

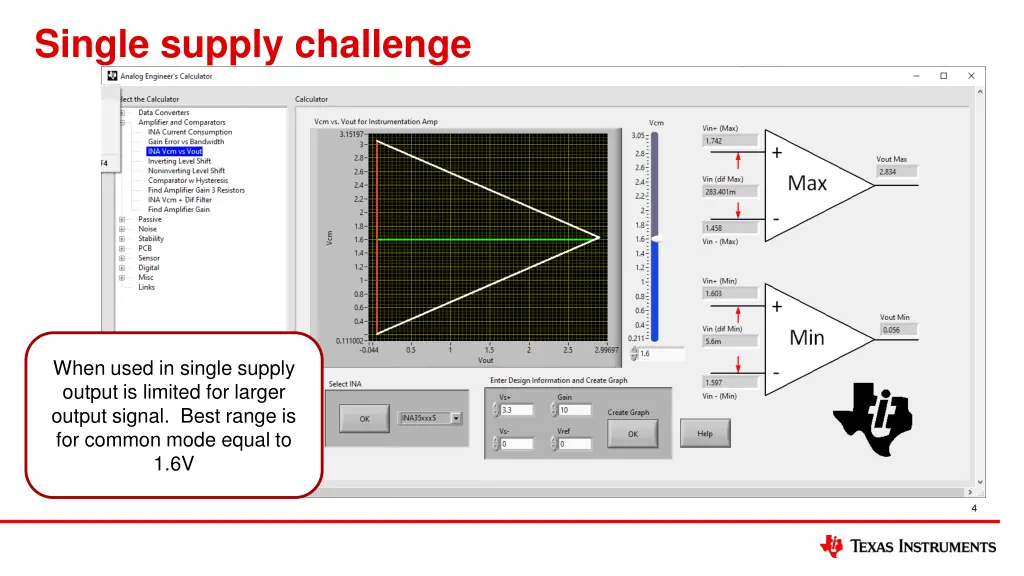

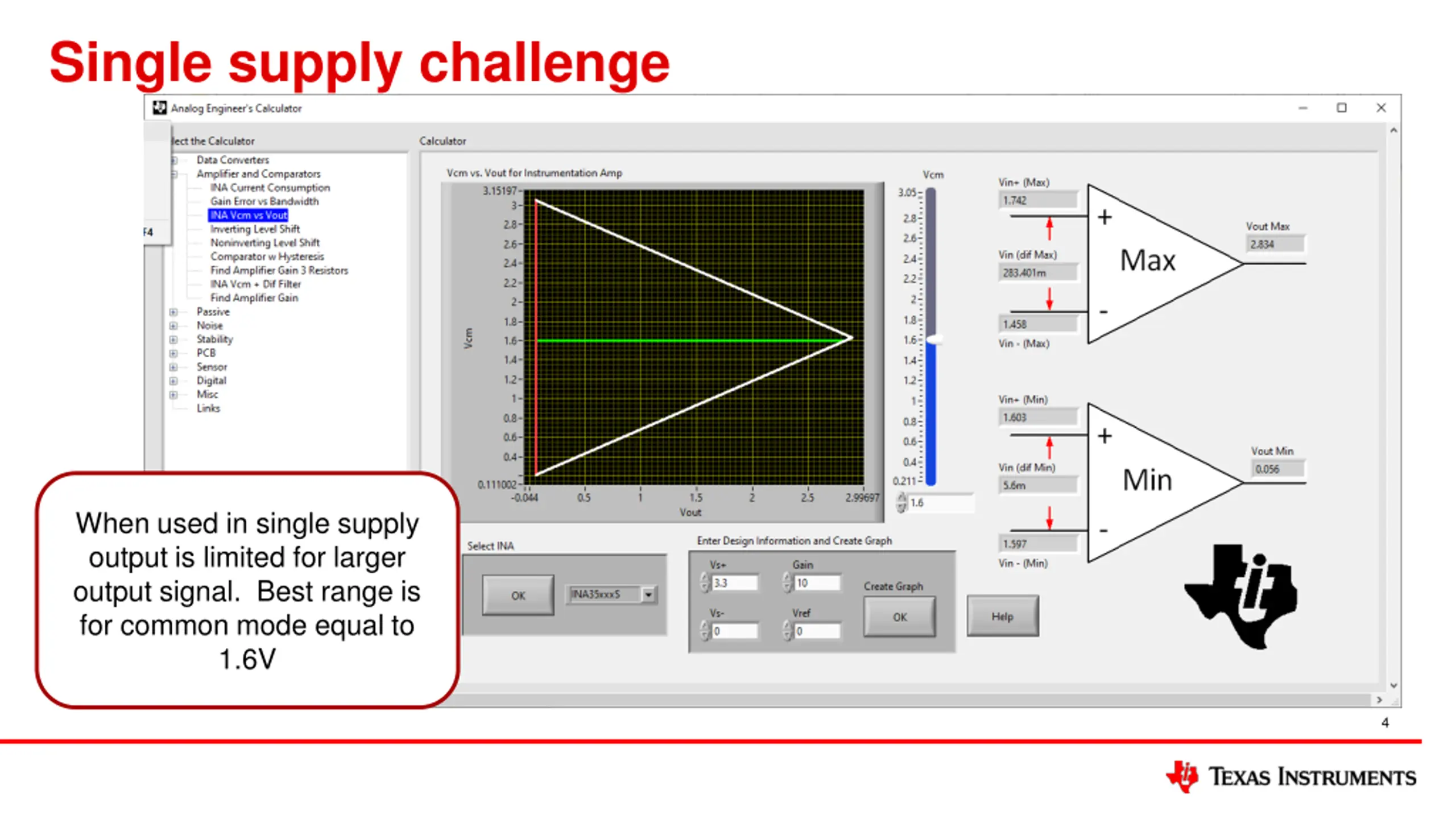

4. Single supply challenge When used in single supply output is limited for larger output signal. Best range is for common mode equal to 1.6V 4

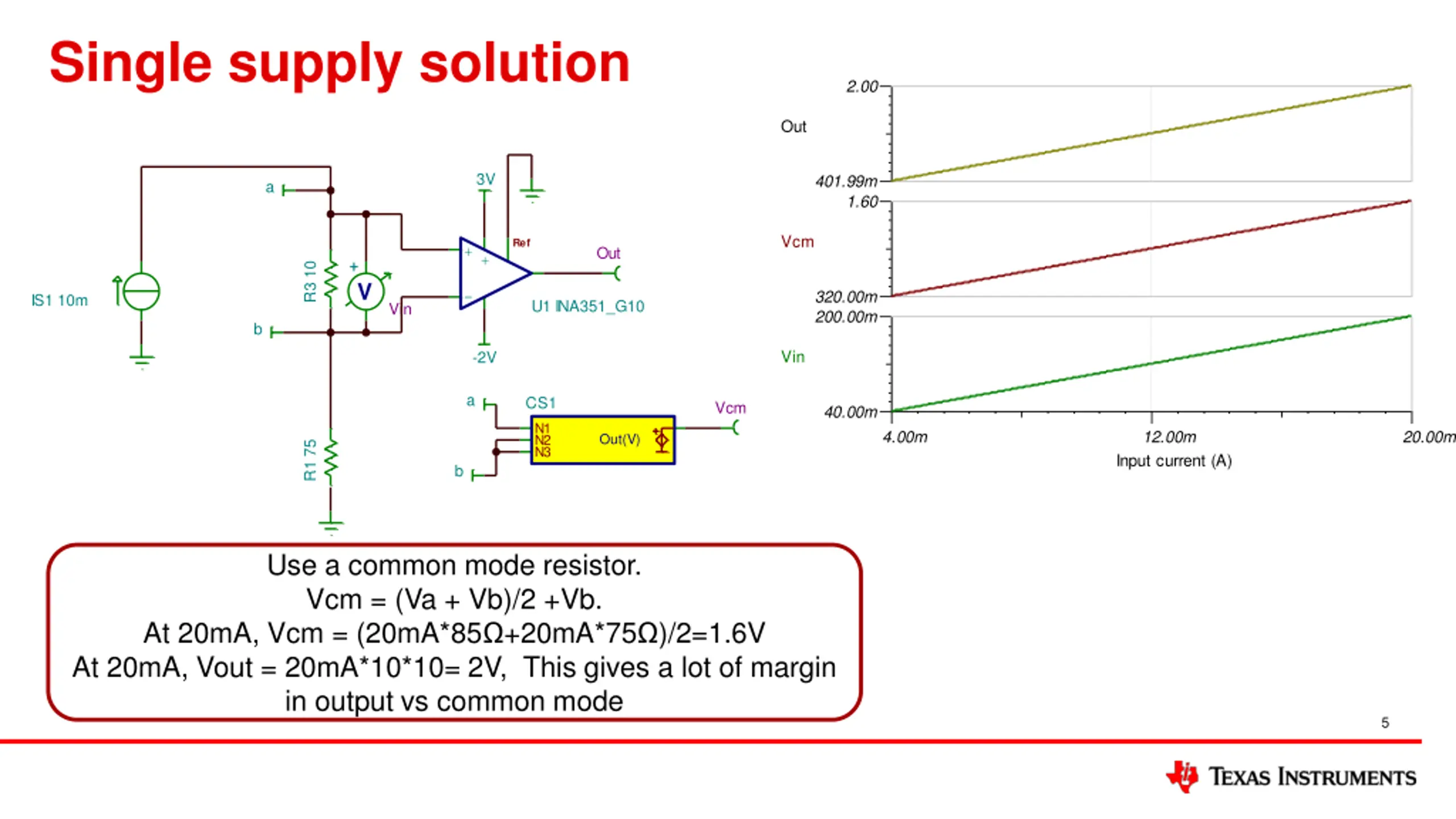

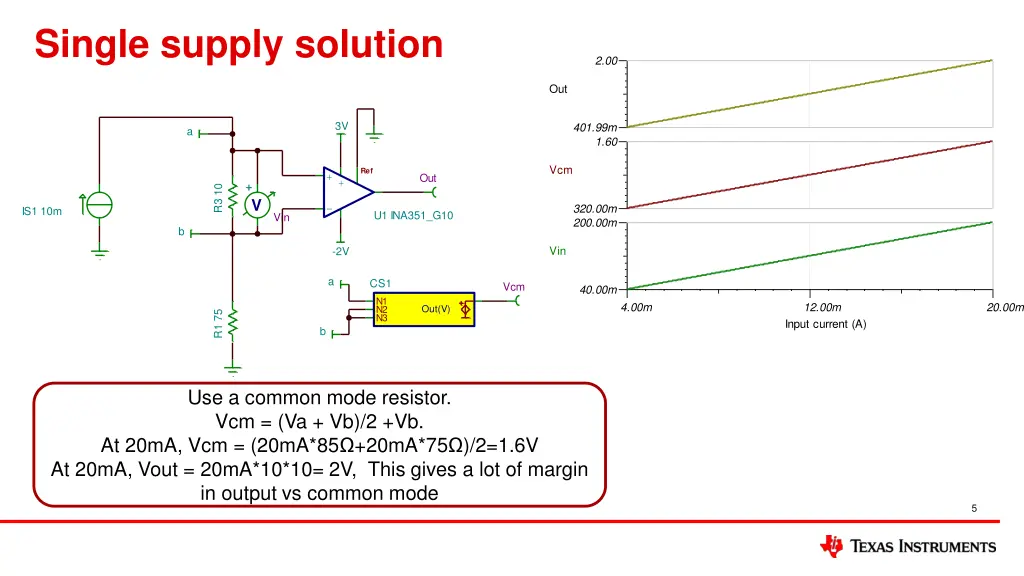

5. Single supply solution 2.00 T Out 3V 401.99m a 1.60 Vcm Ref ++ Out + R3 10 V 320.00m 200.00m - IS1 10m U1 INA351_G10 Vin b Vin -2V a CS1 Vcm 40.00m N1 N2 N3 4.00m 12.00m 20.00m Out(V) R1 75 Input current (A) b Use a common mode resistor. Vcm = (Va + Vb)/2 +Vb. At 20mA, Vcm = (20mA*85 +20mA*75 )/2=1.6V At 20mA, Vout = 20mA*10*10= 2V, This gives a lot of margin in output vs common mode 5

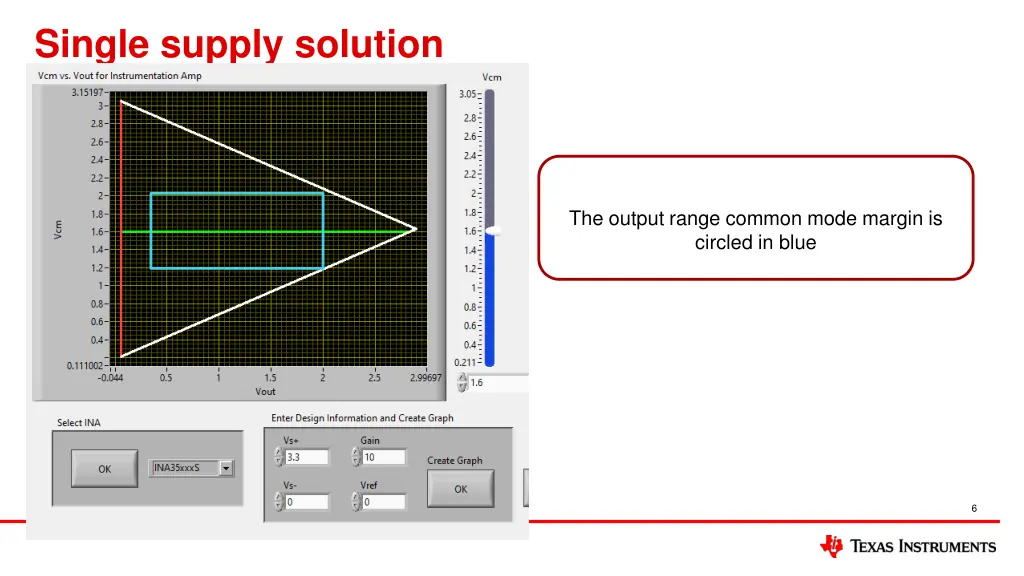

6. Single supply solution The output range common mode margin is circled in blue 6

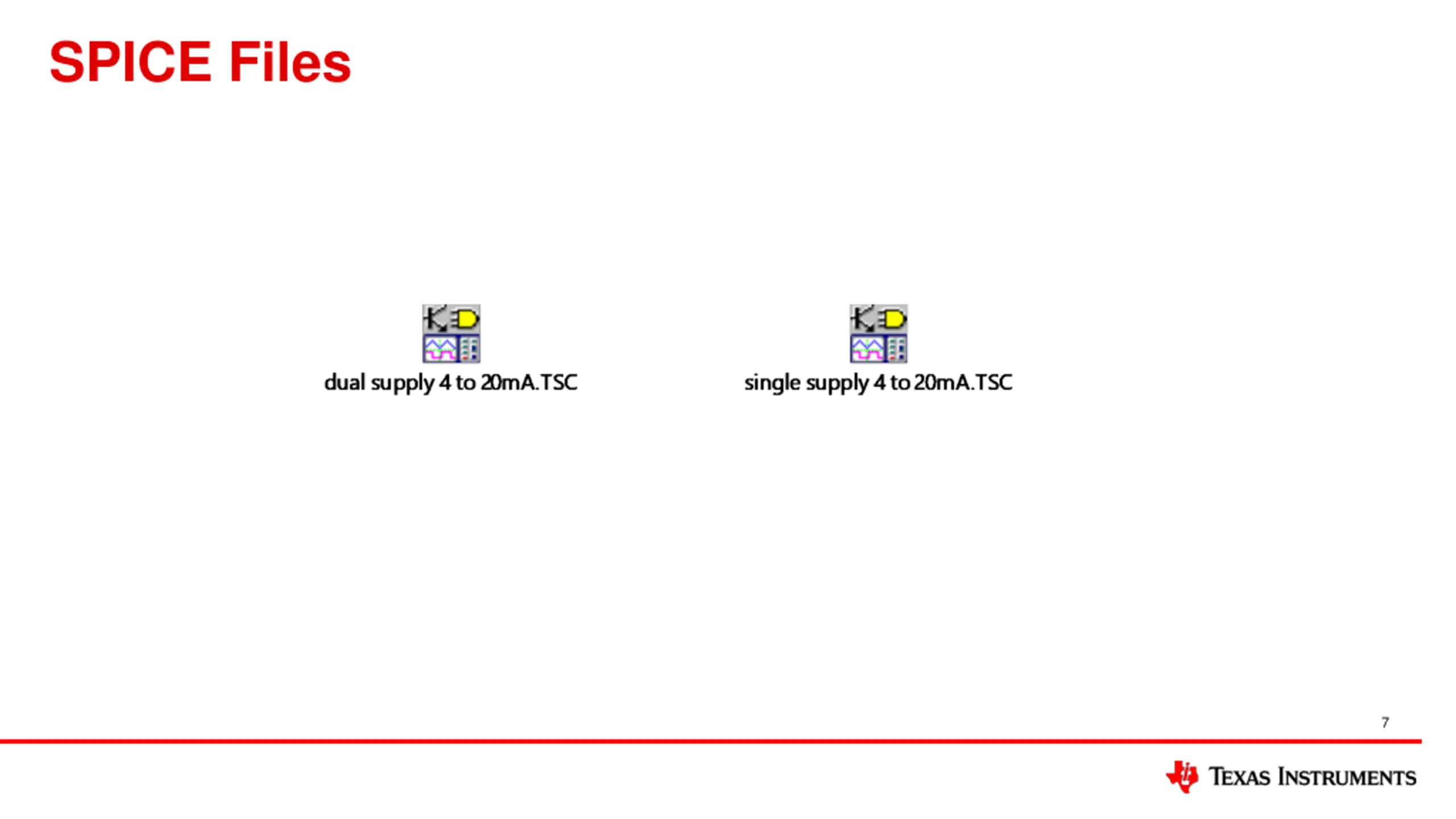

7. SPICE Files 7
