Presentation Transcript

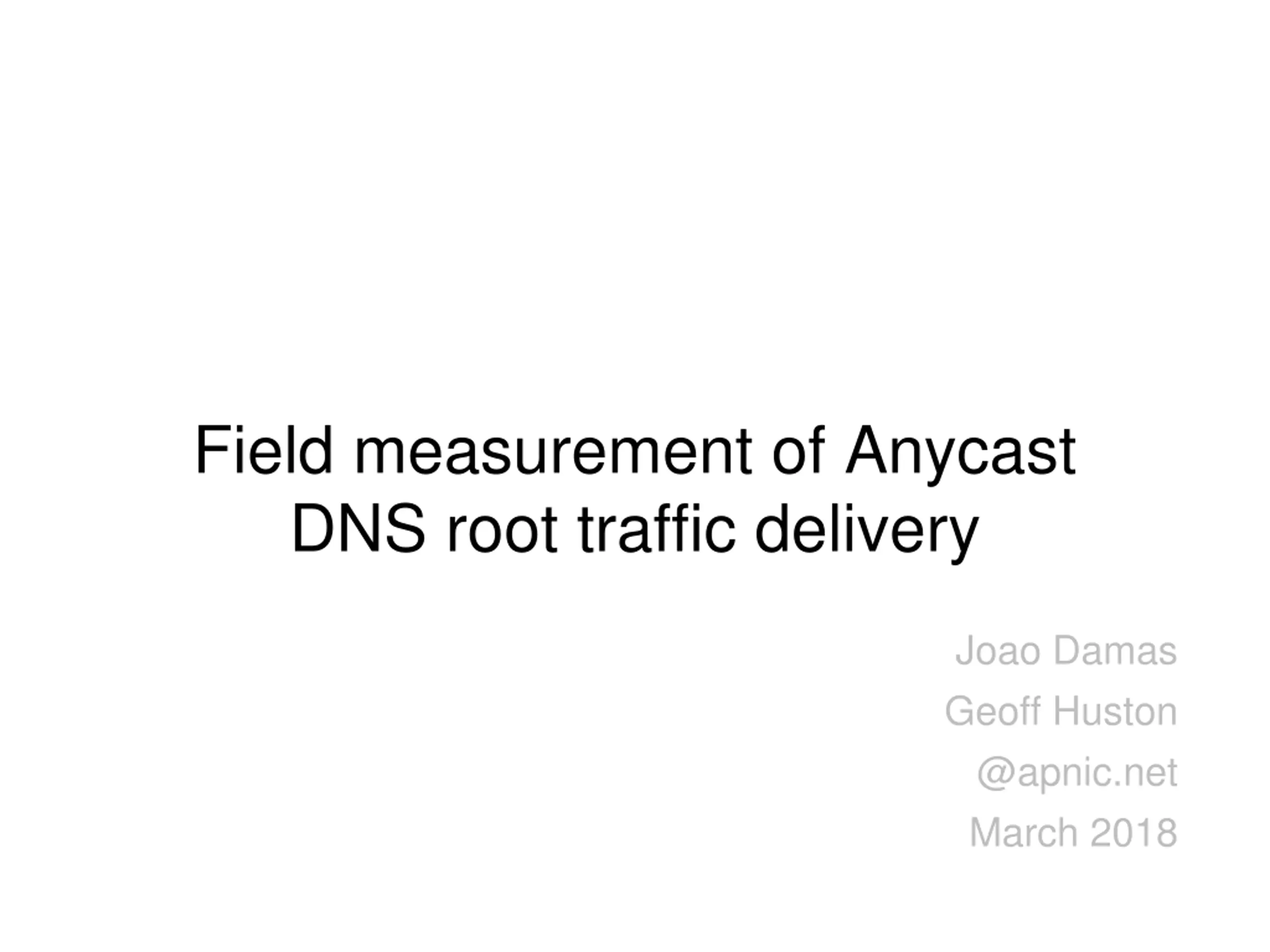

Field measurement of Anycast DNS root traffic delivery Joao Damas Geoff Huston @apnic.net March 2018

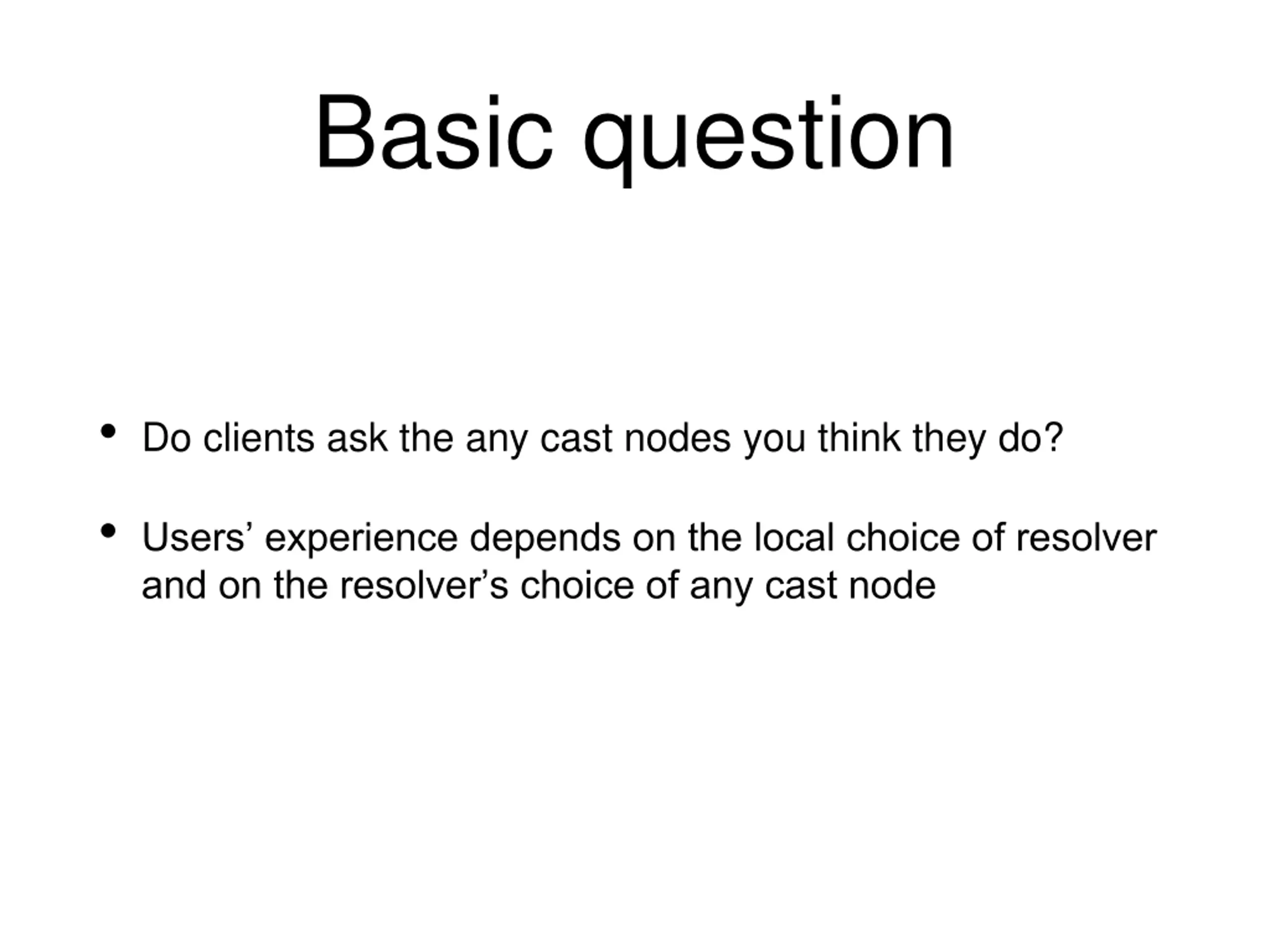

Basic question Do clients ask the any cast nodes you think they do? Users experience depends on the local choice of resolver and on the resolver s choice of any cast node

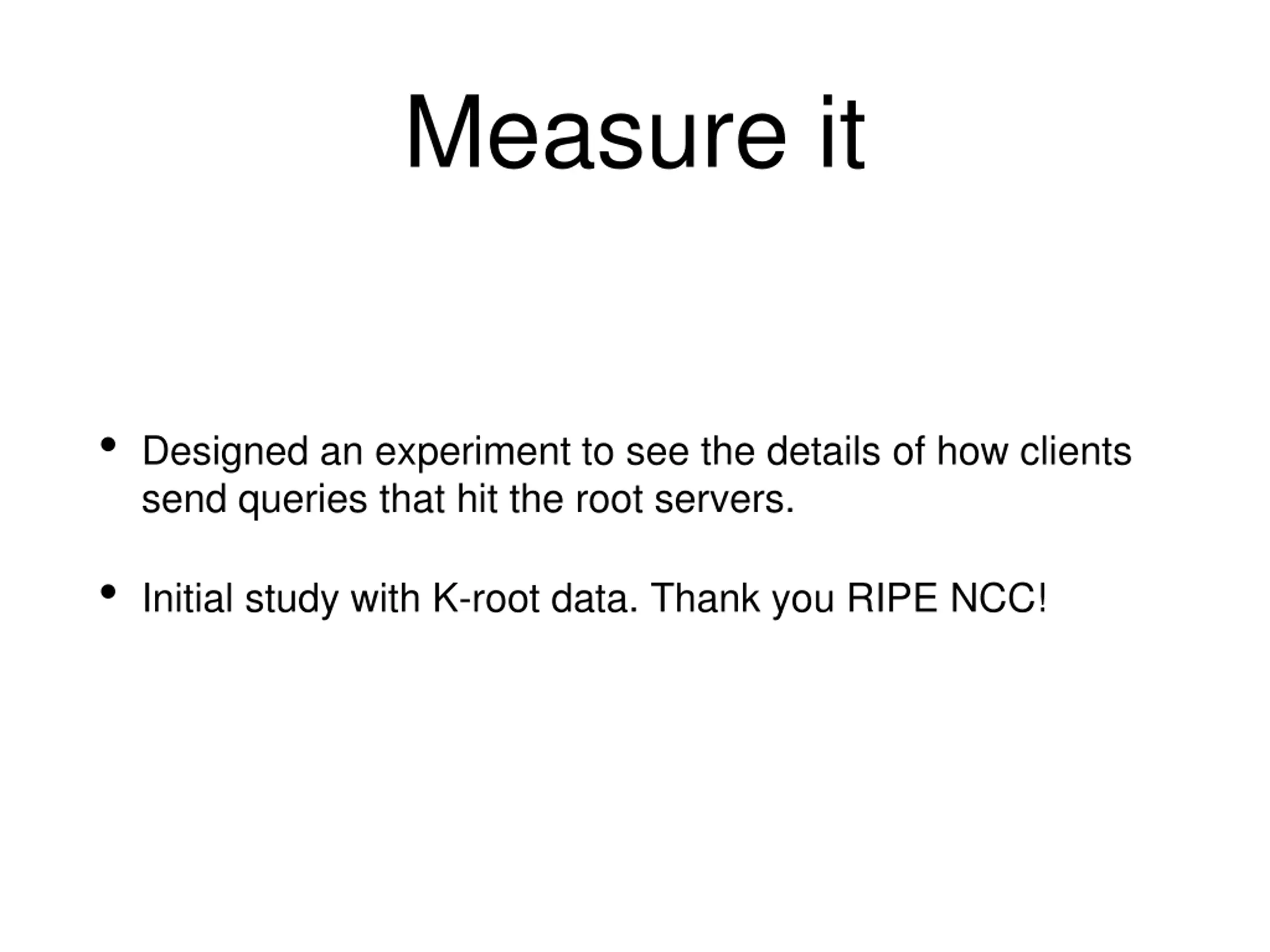

Measure it Designed an experiment to see the details of how clients send queries that hit the root servers. Initial study with K-root data. Thank you RIPE NCC!

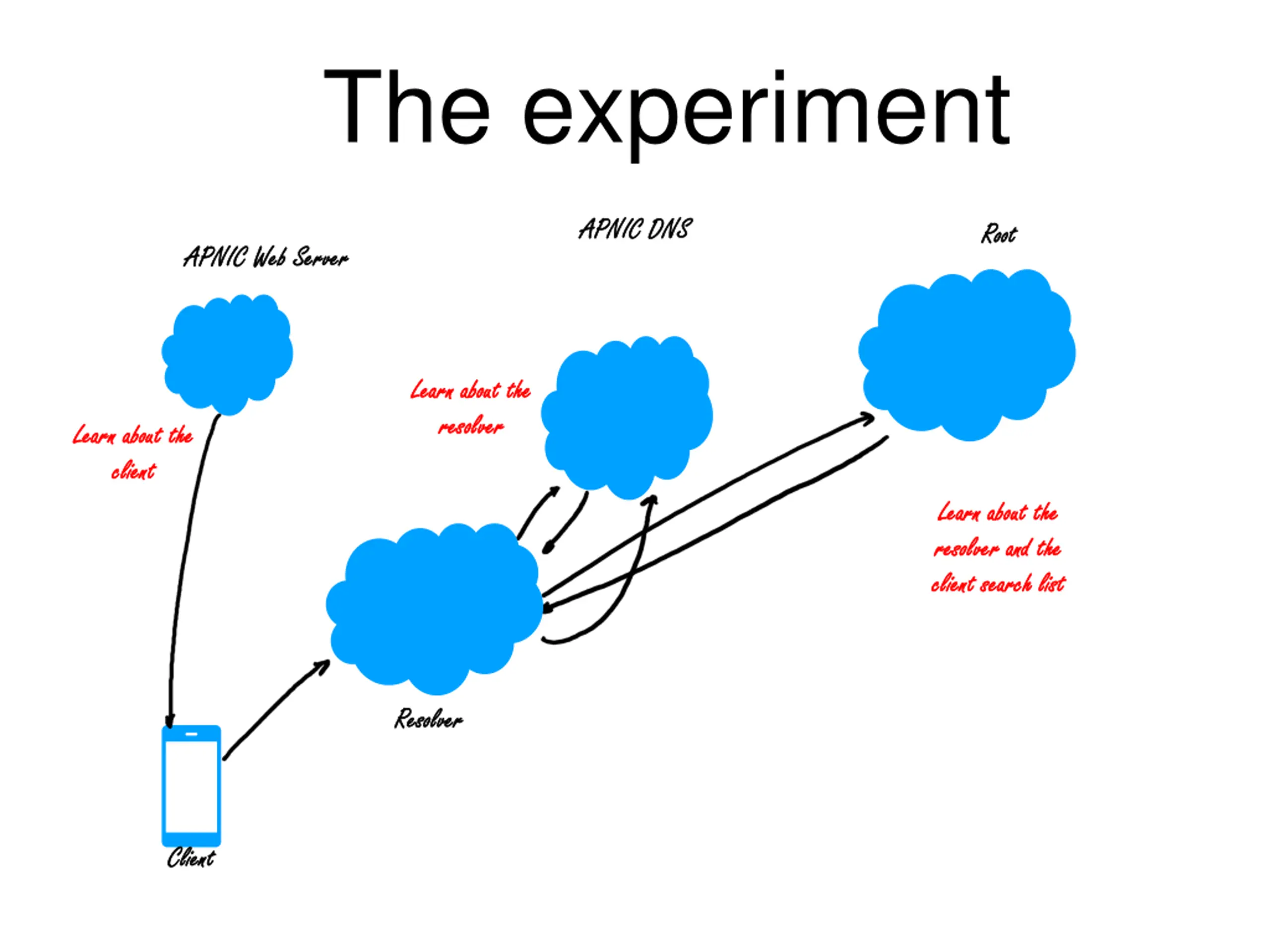

The experiment APNIC DNS APNIC DNS Root Root APNIC Web Server APNIC Web Server Learn about the Learn about the resolver resolver Learn about the Learn about the client client Learn about the Learn about the resolver and the resolver and the client search list client search list Resolver Resolver Client Client

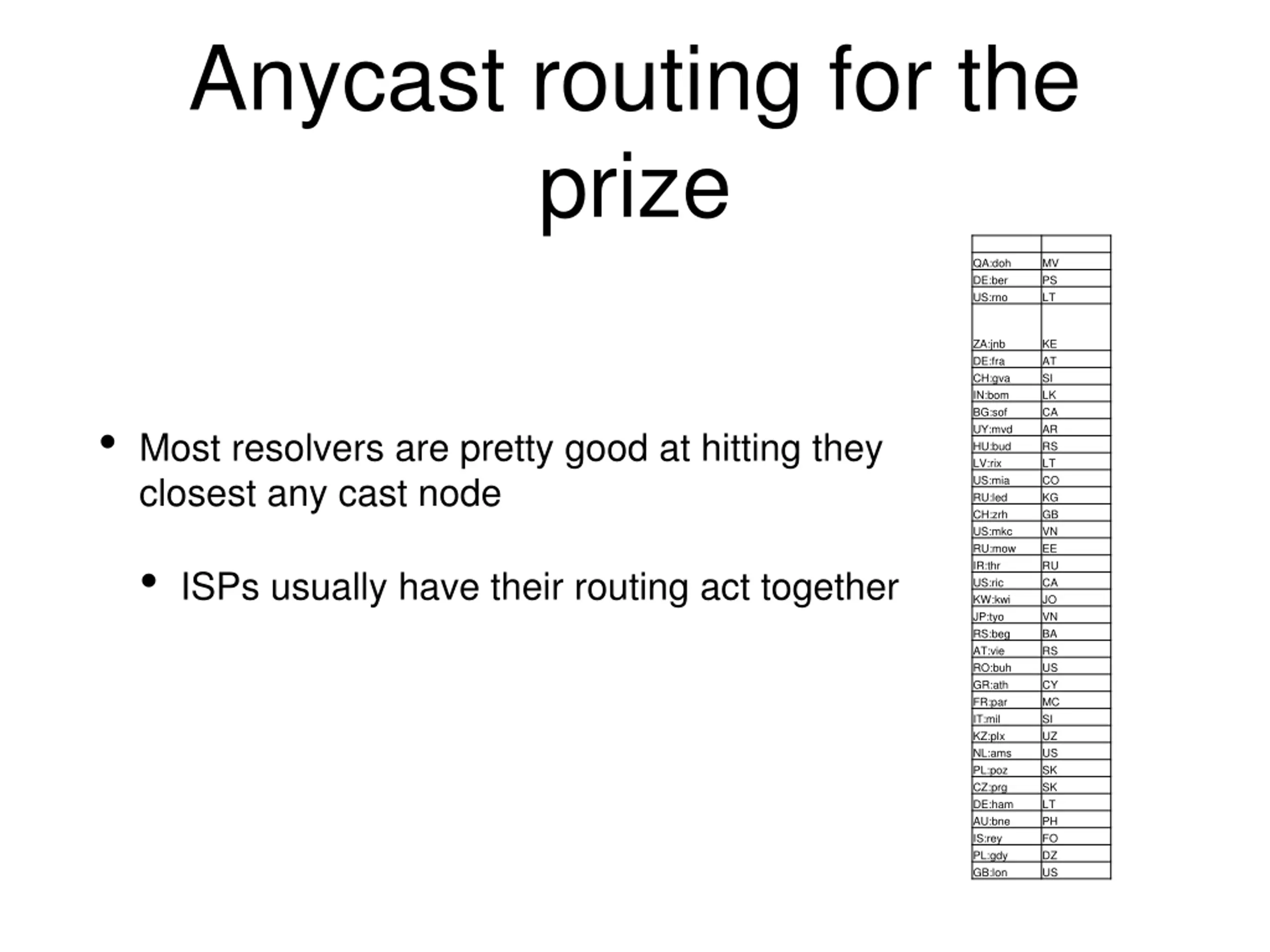

Anycast routing for the prize QA:doh DE:ber US:rno MV PS LT ZA:jnb DE:fra CH:gva IN:bom BG:sof UY:mvd HU:bud LV:rix US:mia RU:led CH:zrh US:mkc RU:mow IR:thr US:ric KW:kwi JP:tyo RS:beg AT:vie RO:buh GR:ath FR:par IT:mil KZ:plx NL:ams PL:poz CZ:prg DE:ham AU:bne IS:rey PL:gdy GB:lon KE AT SI LK CA AR RS LT CO KG GB VN EE RU CA JO VN BA RS US CY MC SI UZ US SK SK LT PH FO DZ US Most resolvers are pretty good at hitting they closest any cast node ISPs usually have their routing act together

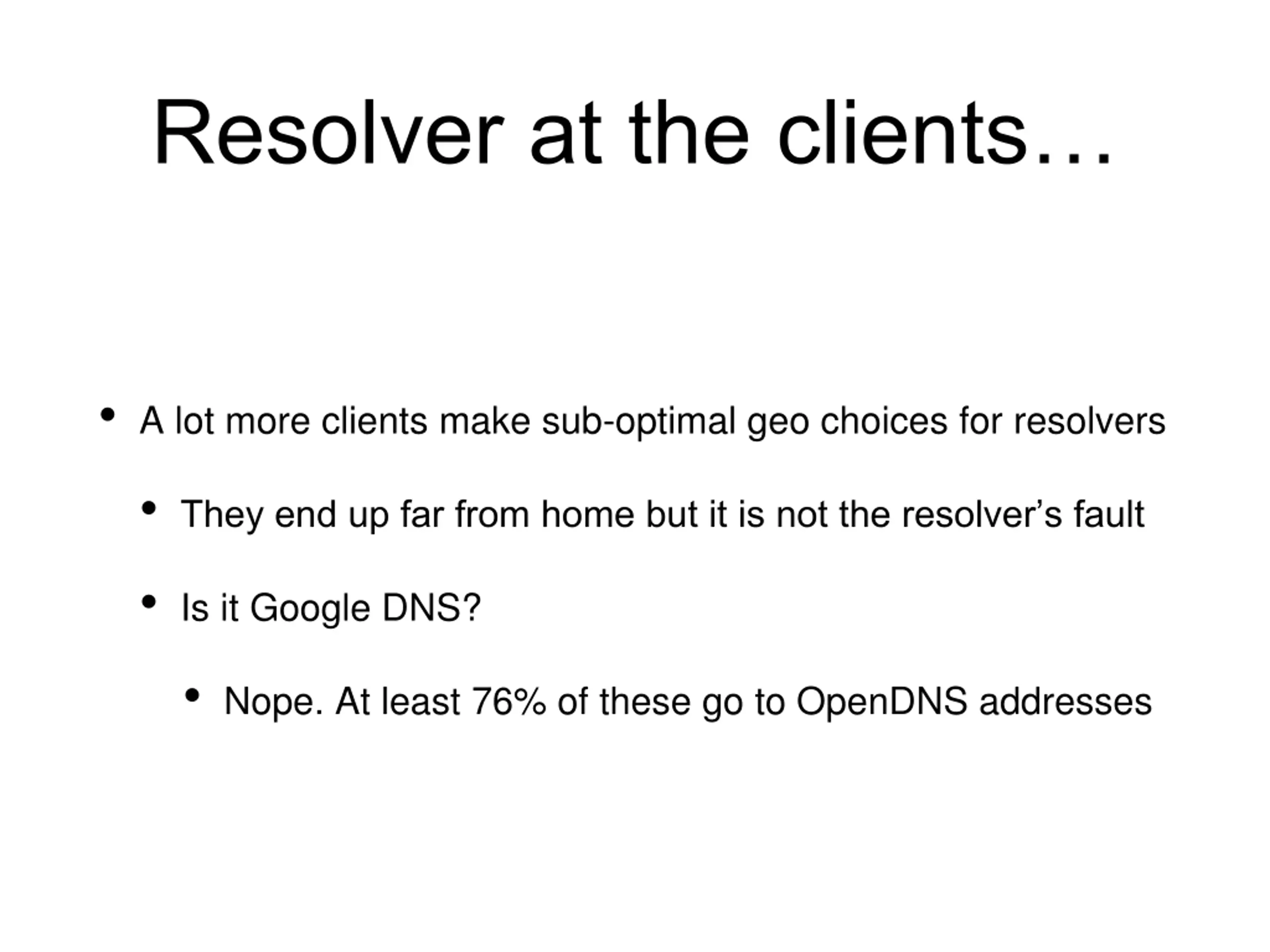

Resolver at the clients A lot more clients make sub-optimal geo choices for resolvers They end up far from home but it is not the resolver s fault Is it Google DNS? Nope. At least 76% of these go to OpenDNS addresses

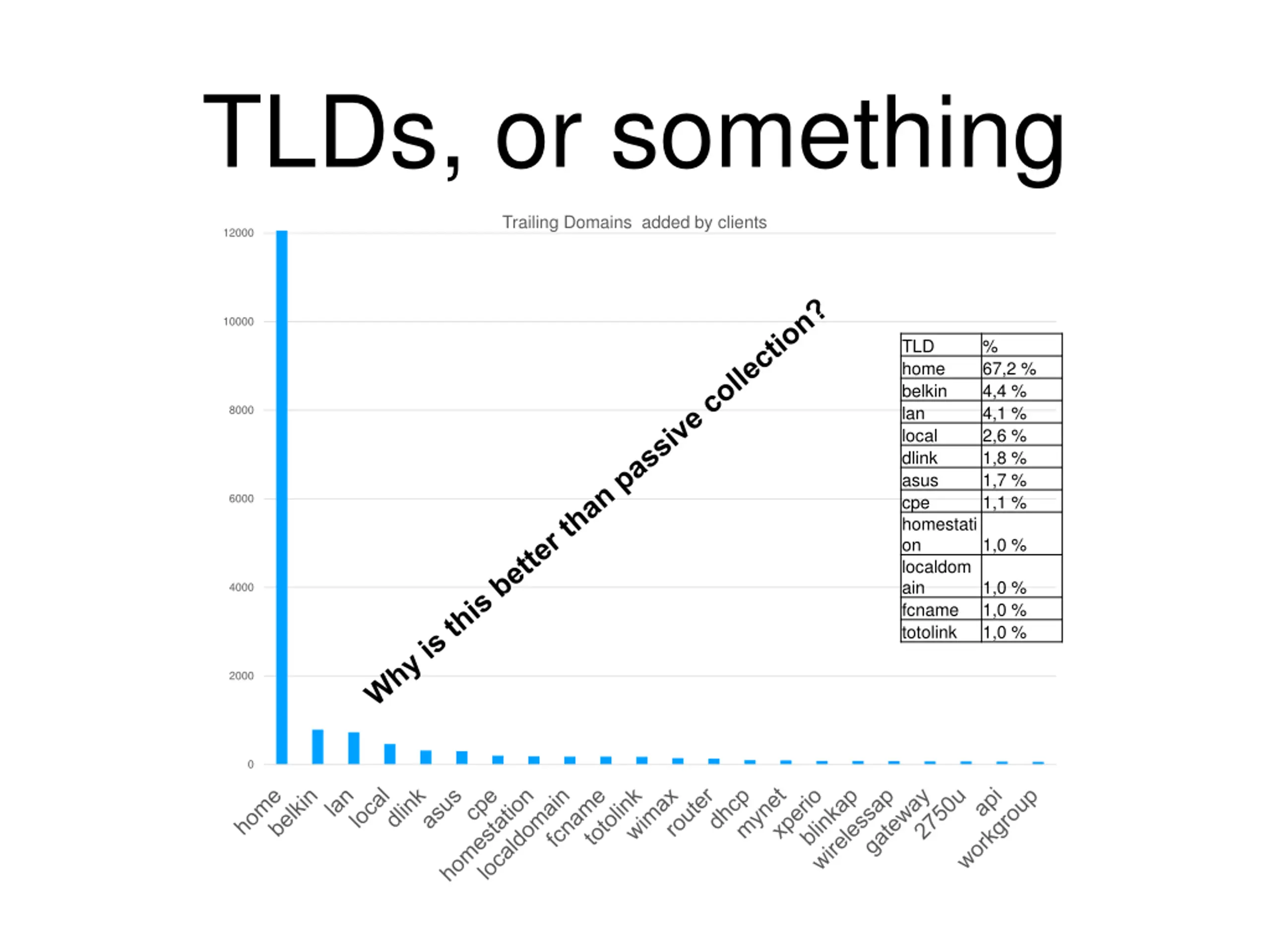

TLDs, or something Trailing Domains added by clients 12000 10000 TLD home belkin lan local dlink asus cpe homestati on localdom ain fcname totolink % 67,2 % 4,4 % 4,1 % 2,6 % 1,8 % 1,7 % 1,1 % 8000 6000 1,0 % 1,0 % 1,0 % 1,0 % 4000 2000 0
