Huffman coding (Gonzalez et al. 2008, A.Wong Lecture 16b 2011) Popular lossless data compression technique Removes coding redundancy (or in context of image processing, redundant image data) Often used in compression standards: JPEG MPEG-1, 2, 4 Uses variable-length coding Encoding a source symbol using a table that considers the estimated occurrence probability of that symbol Resulting data size depends on underlying image characteristics

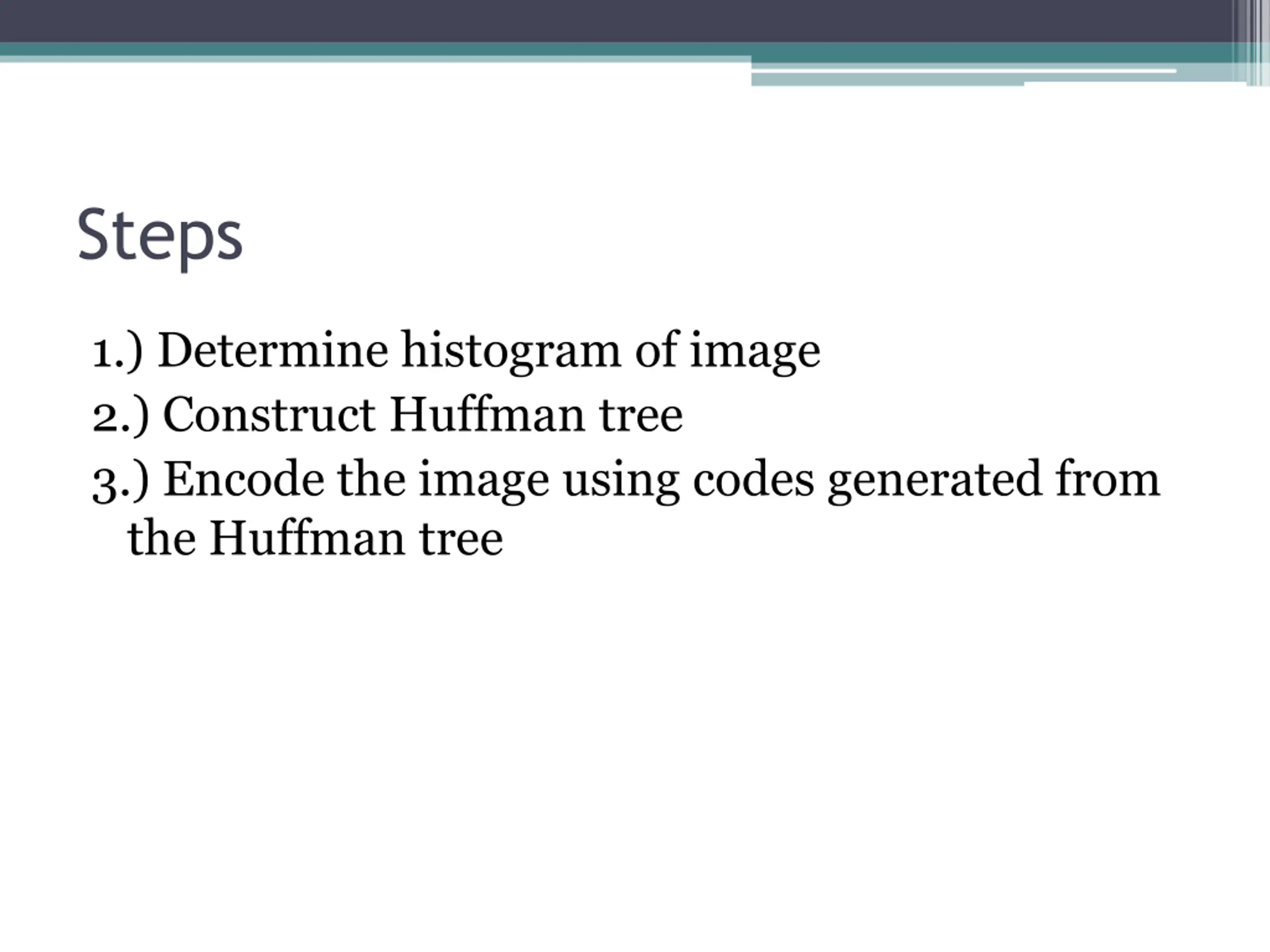

Steps 1.) Determine histogram of image 2.) Construct Huffman tree 3.) Encode the image using codes generated from the Huffman tree

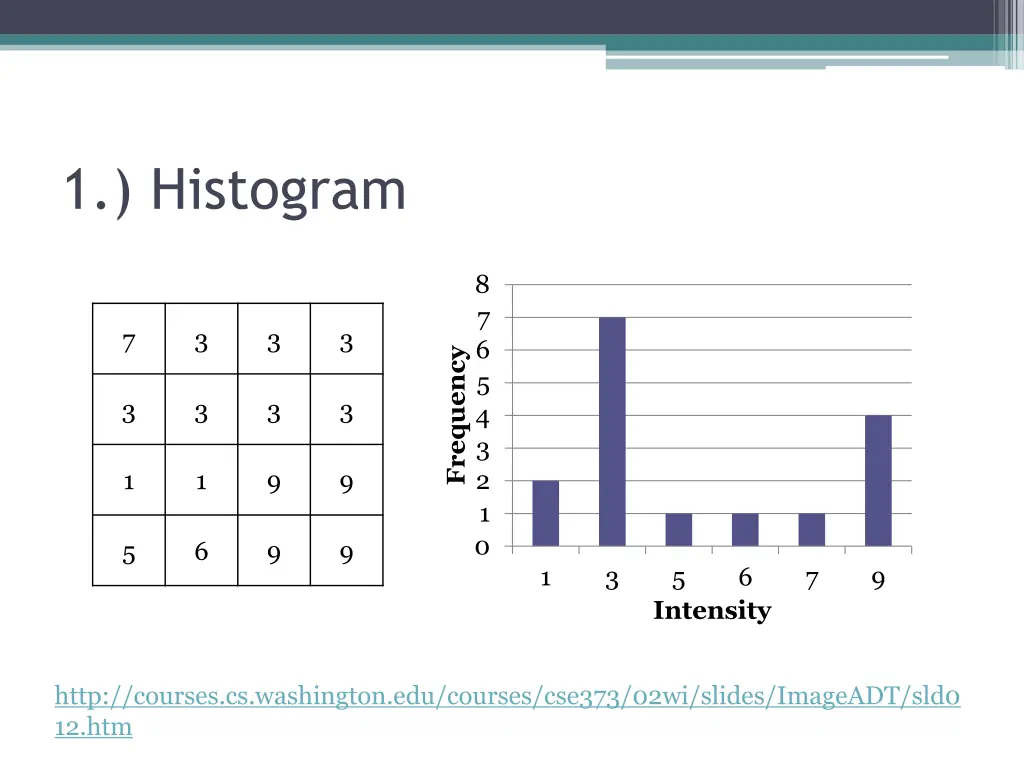

1.) Histogram 8 7 7 3 3 3 6 Frequency 5 3 3 3 3 4 3 2 1 1 9 9 1 0 5 6 9 9 1 3 5 6 7 9 Intensity http://courses.cs.washington.edu/courses/cse373/02wi/slides/ImageADT/sld0 12.htm
2) Huffman tree Sorted from lowest to highest frequency Intensity 5 6 7 1 9 3 Frequency 1 1 1 2 4 7 Intensity 1 3 5 6 7 9 Frequency 2 7 1 1 1 4 10 Frequency 5 0 1 3 5 6 7 9 Intensity

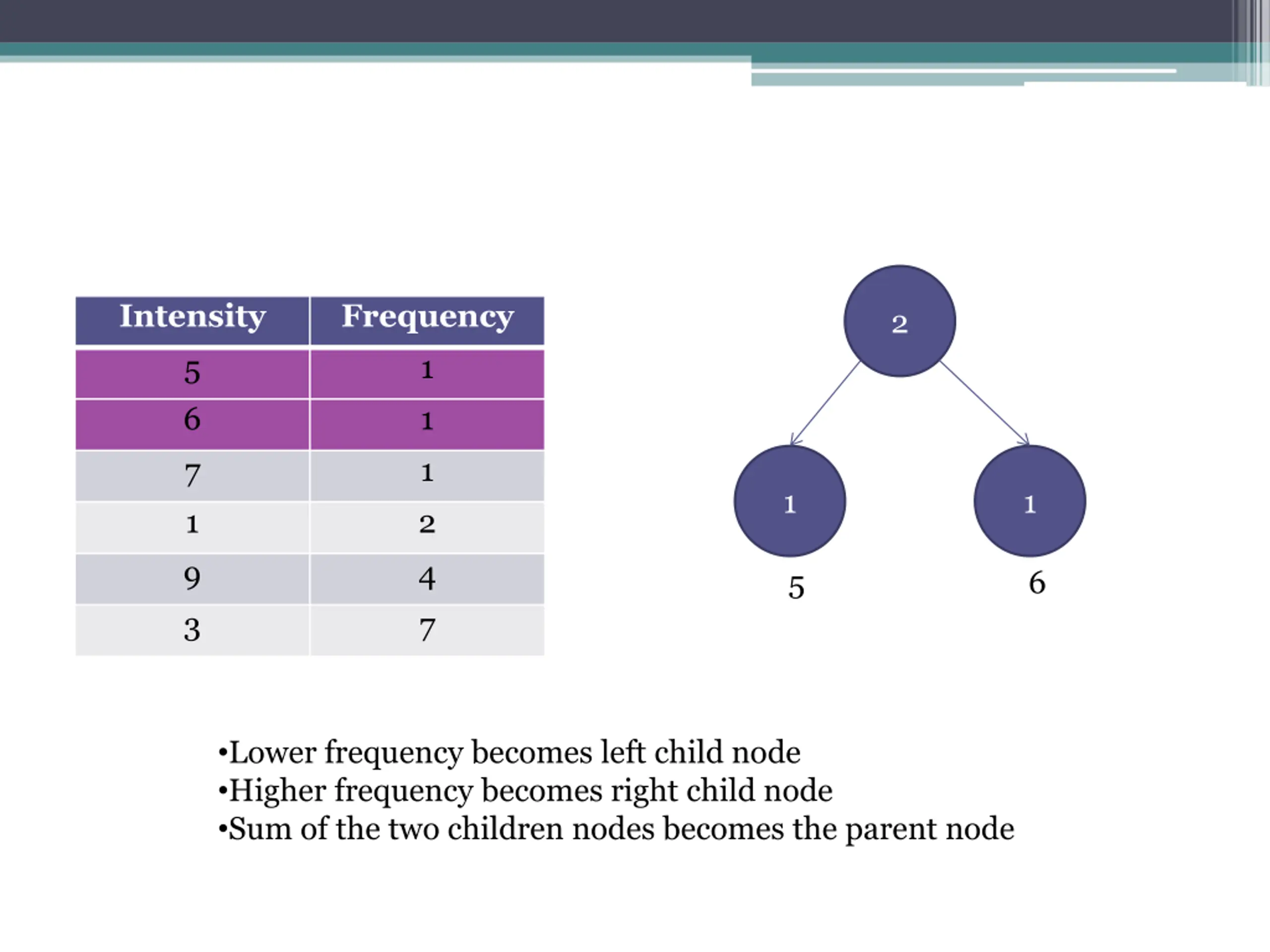

Intensity 5 6 7 1 9 3 Frequency 1 1 1 2 4 7 2 1 1 5 6 Lower frequency becomes left child node Higher frequency becomes right child node Sum of the two children nodes becomes the parent node

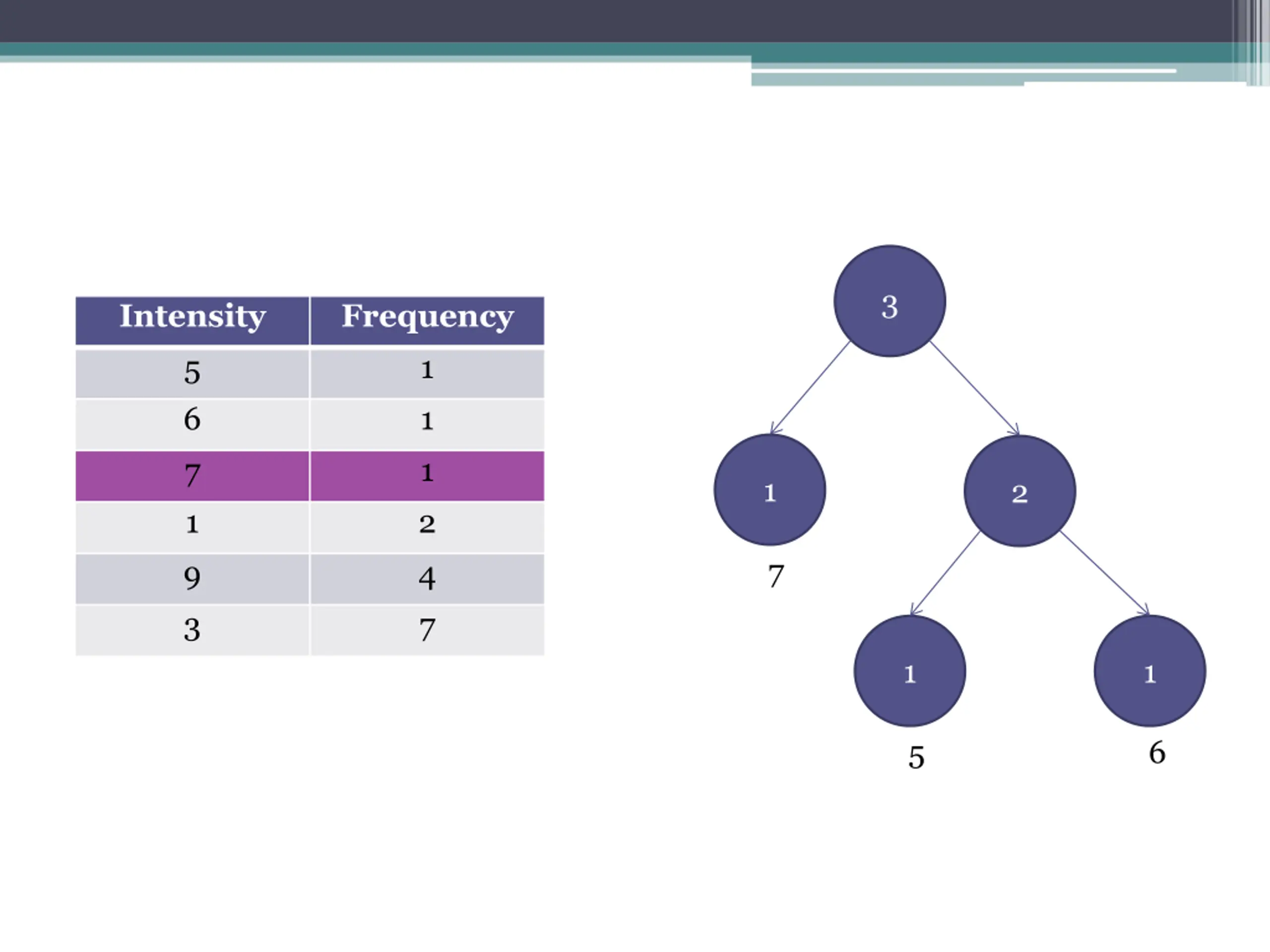

3 Intensity 5 6 7 1 9 3 Frequency 1 1 1 2 4 7 1 2 7 1 1 5 6

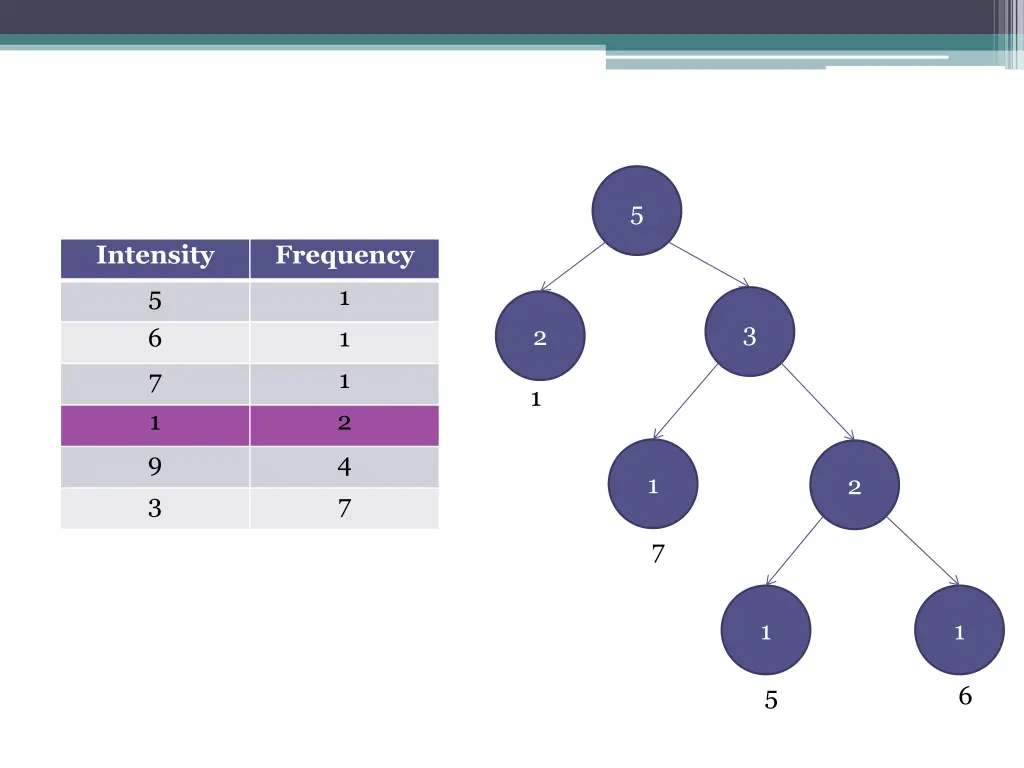

5 Intensity 5 6 7 1 9 3 Frequency 1 1 1 2 4 7 3 2 1 1 2 7 1 1 5 6

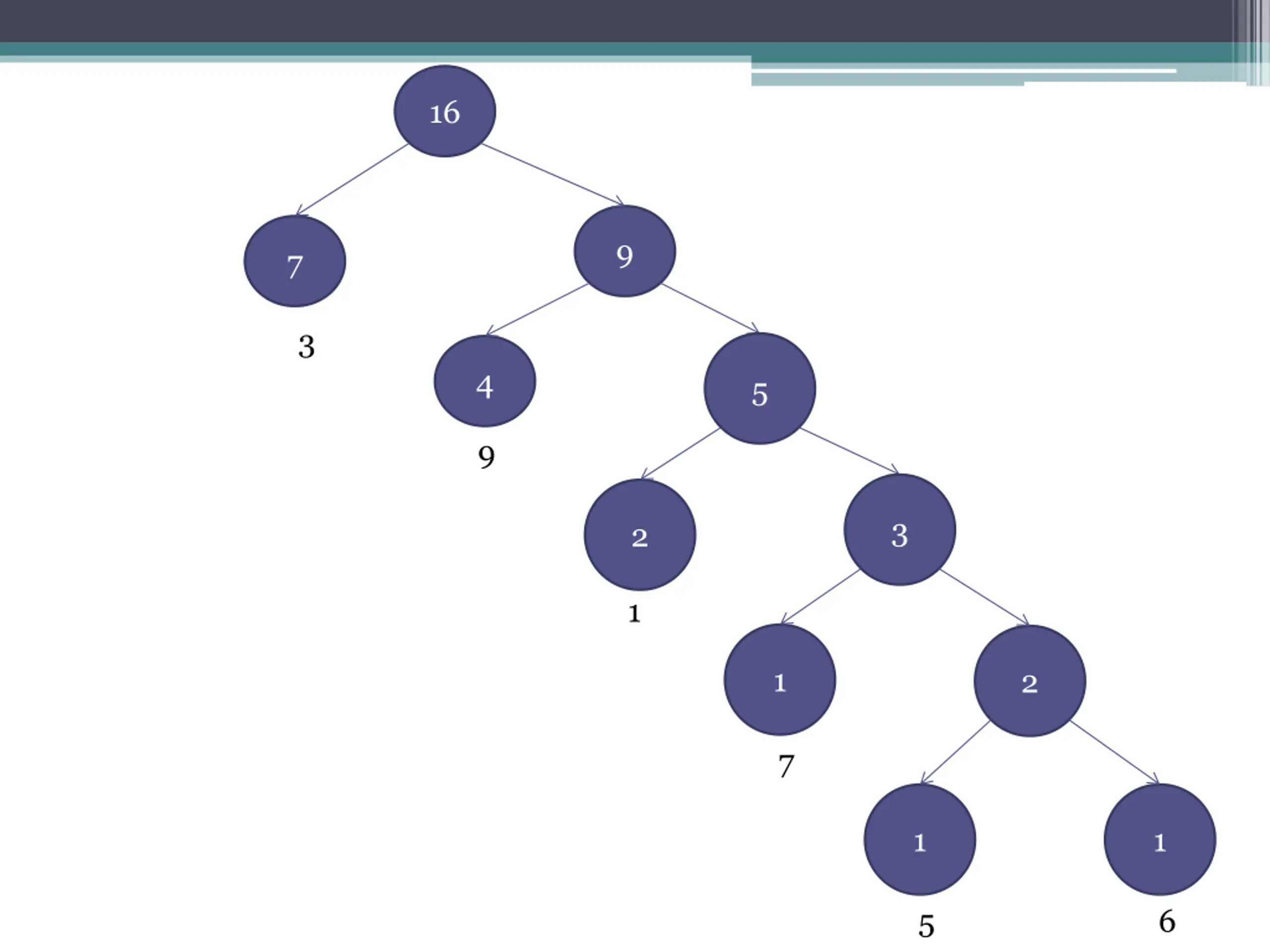

16 9 7 3 4 5 9 3 2 1 1 2 7 1 1 5 6
3) Encoding If traversing the left branch Label 1 If traversing the right branch Label 0 Follow this procedure from the root to the child of interest adding a 1 or 0 depending on the traversal 1 0

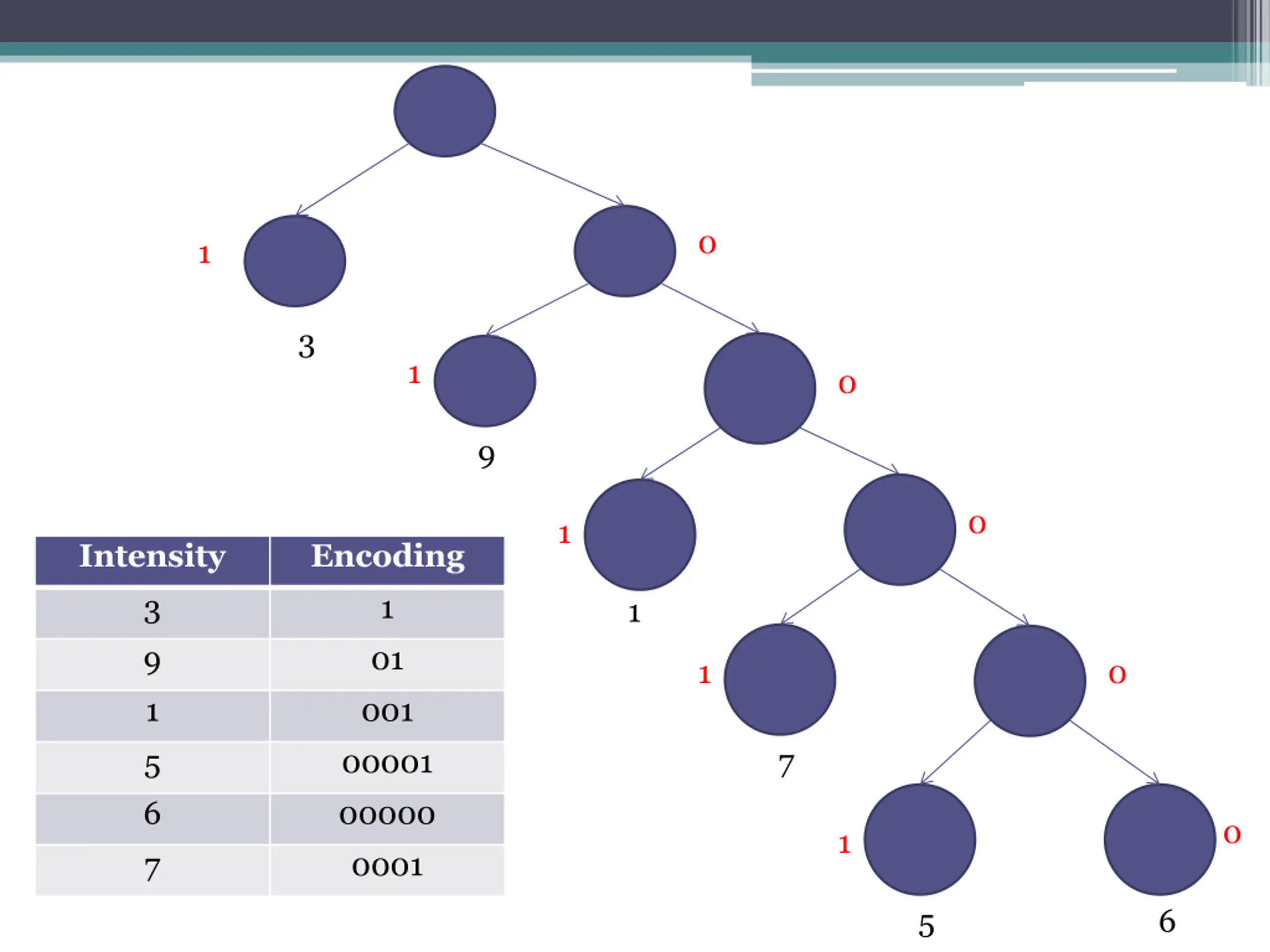

0 1 3 1 0 9 0 1 Intensity 3 9 1 5 6 7 Encoding 1 01 001 00001 00000 0001 1 1 0 7 0 1 5 6

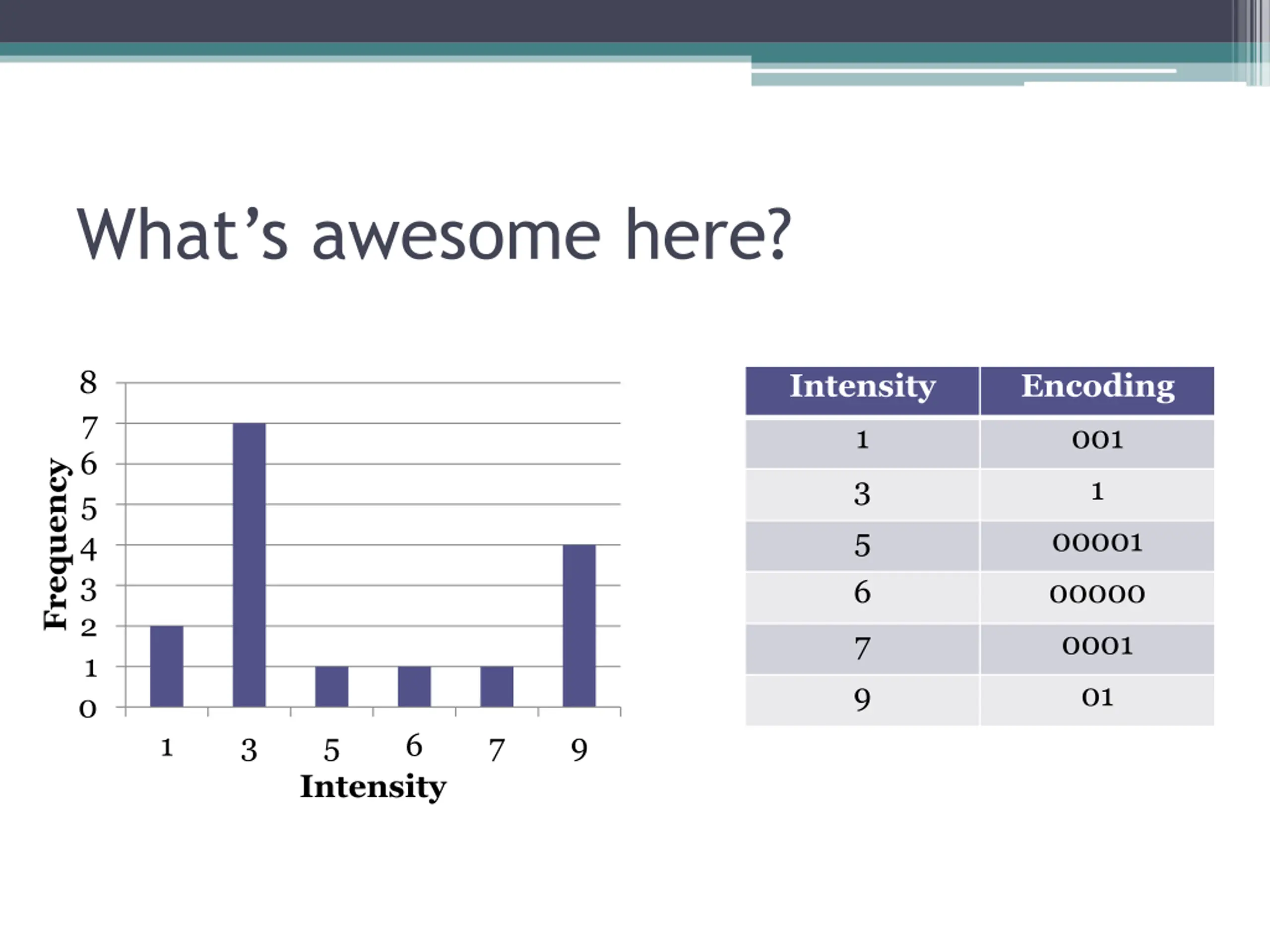

Whats awesome here? 8 Intensity 1 3 5 6 7 9 Encoding 001 1 00001 00000 0001 01 7 6 Frequency 5 4 3 2 1 0 1 3 5 6 7 9 Intensity

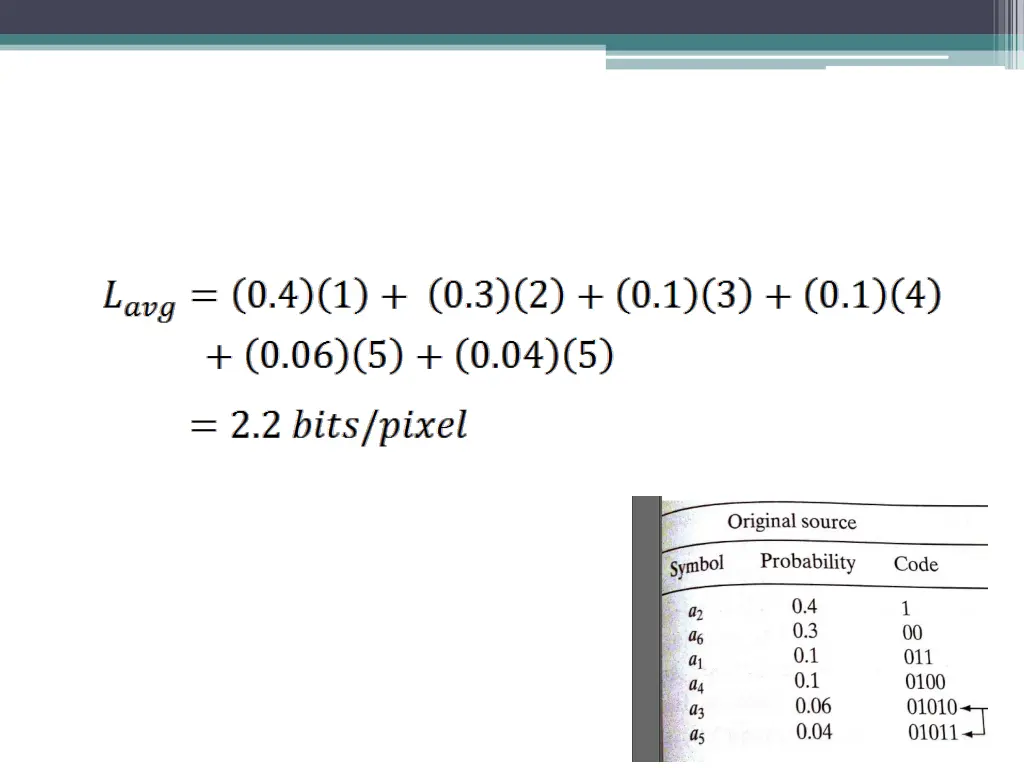

Real Example Which values are going to have the shortest code?

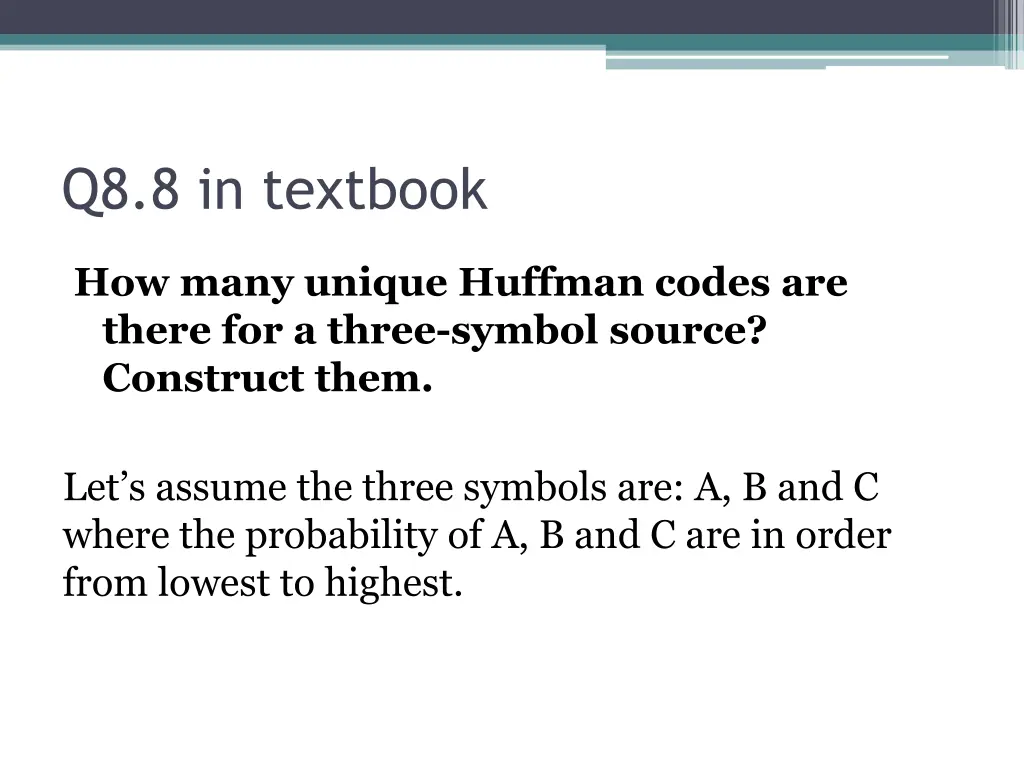

Q8.8 in textbook How many unique Huffman codes are there for a three-symbol source? Construct them. Let s assume the three symbols are: A, B and C where the probability of A, B and C are in order from lowest to highest.
What would the Huffman tree look like? 9 1 0 4 5 C A B C 11 10 0 0 1 3 1 A B
What would happen if the probability of C was less than the sum of A and B? 7 1 3 4 0 A B C 01 00 1 C 0 1 3 1 A B
Therefore there are two unique codes for a three-symbol source Notice the codes are complements of each other A B C 11 10 0 A B C 01 00 1

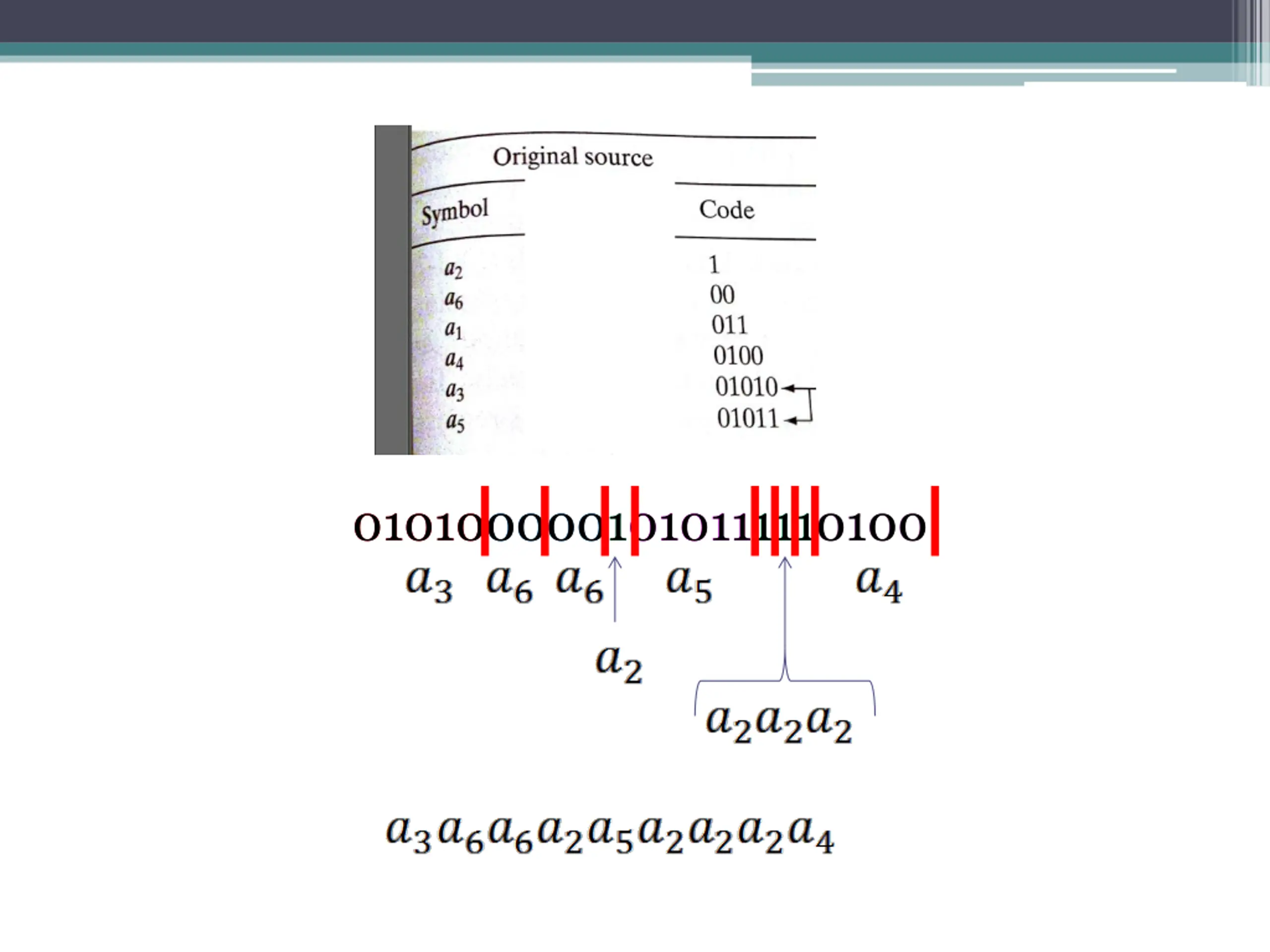

Q8.10 in textbook Using the Huffman code in Fig. 8.8, decode the encoded string: 0101000001010111110100
0101000001010111110100 0101000001010111110100
Another example 010100111100 010100111100
