Insights into Atmospheric InfraRed Sounder (AIRS) Instrument
Learn about AIRS, a crucial instrument providing global temperature and water vapor profiles since 2002 with high accuracy. Discover its data continuity importance for NOAA and EUMETSAT.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

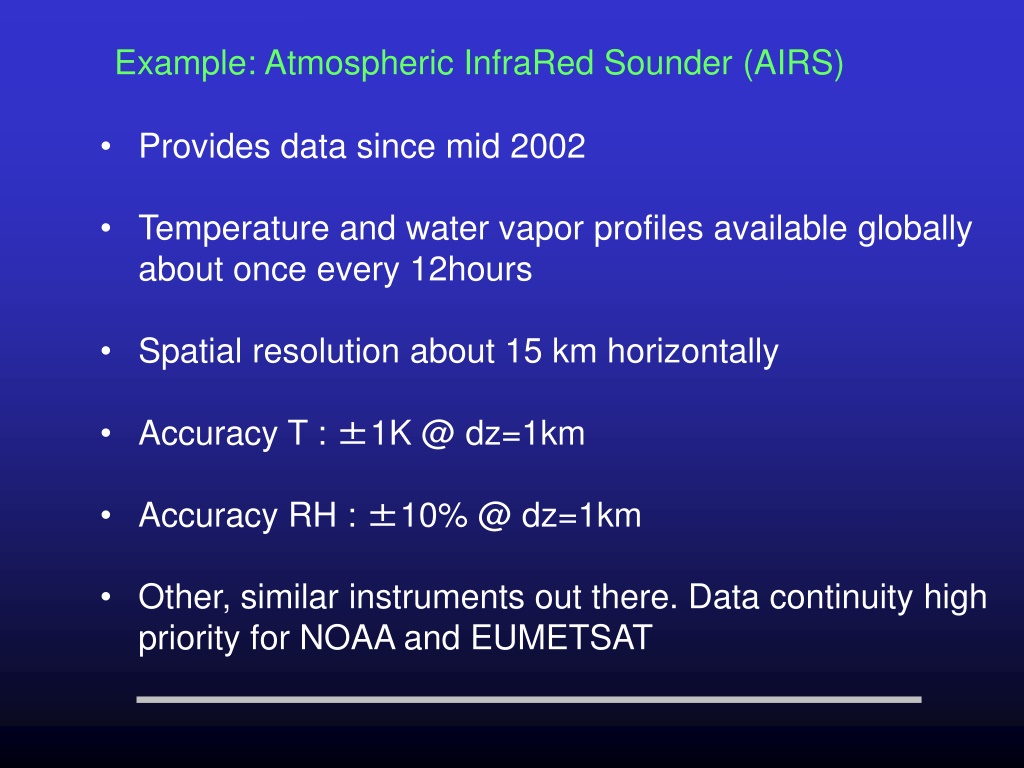

Example: Atmospheric InfraRed Sounder (AIRS) Provides data since mid 2002 Temperature and water vapor profiles available globally about once every 12hours Spatial resolution about 15 km horizontally Accuracy T : 1K @ dz=1km Accuracy RH : 10% @ dz=1km Other, similar instruments out there. Data continuity high priority for NOAA and EUMETSAT

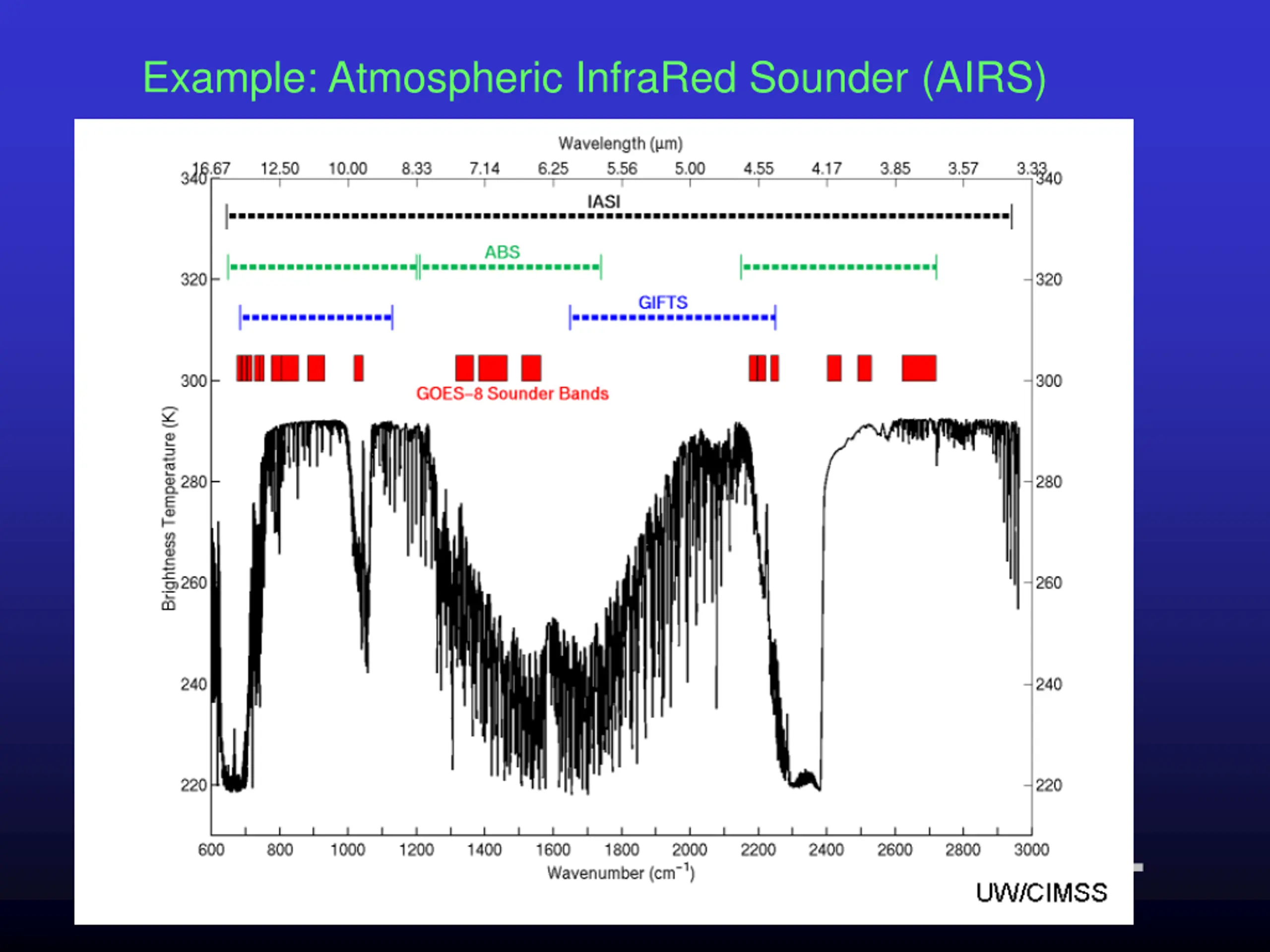

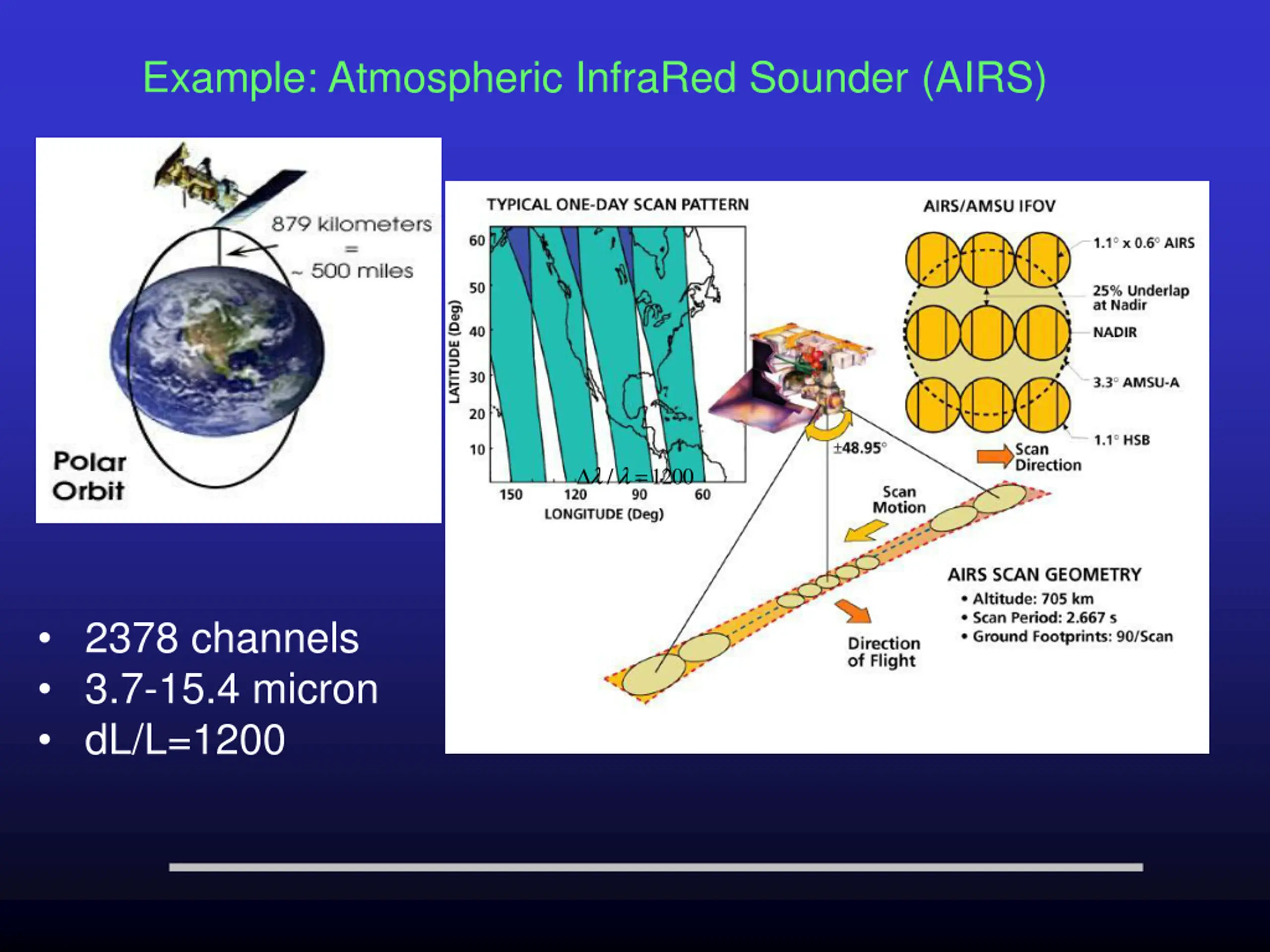

Example: Atmospheric InfraRed Sounder (AIRS) Dl /l =1200 2378 channels 3.7-15.4 micron dL/L=1200
