GitHub Insights Understanding Open Source @jeffmcaffer Microsoft Georgios Gousios Delft University of Technology (TU Delft) Kevin Lewis Microsoft

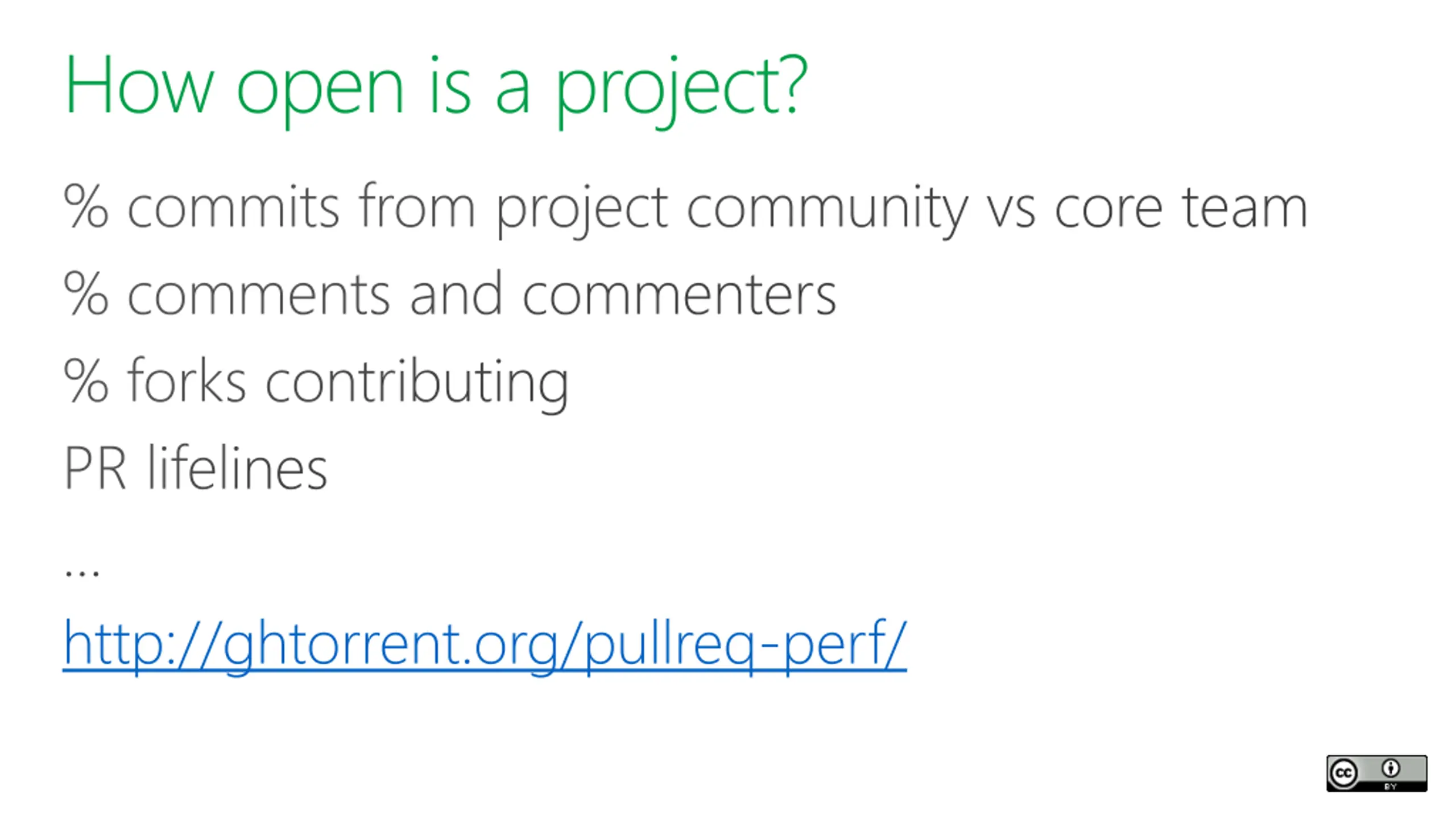

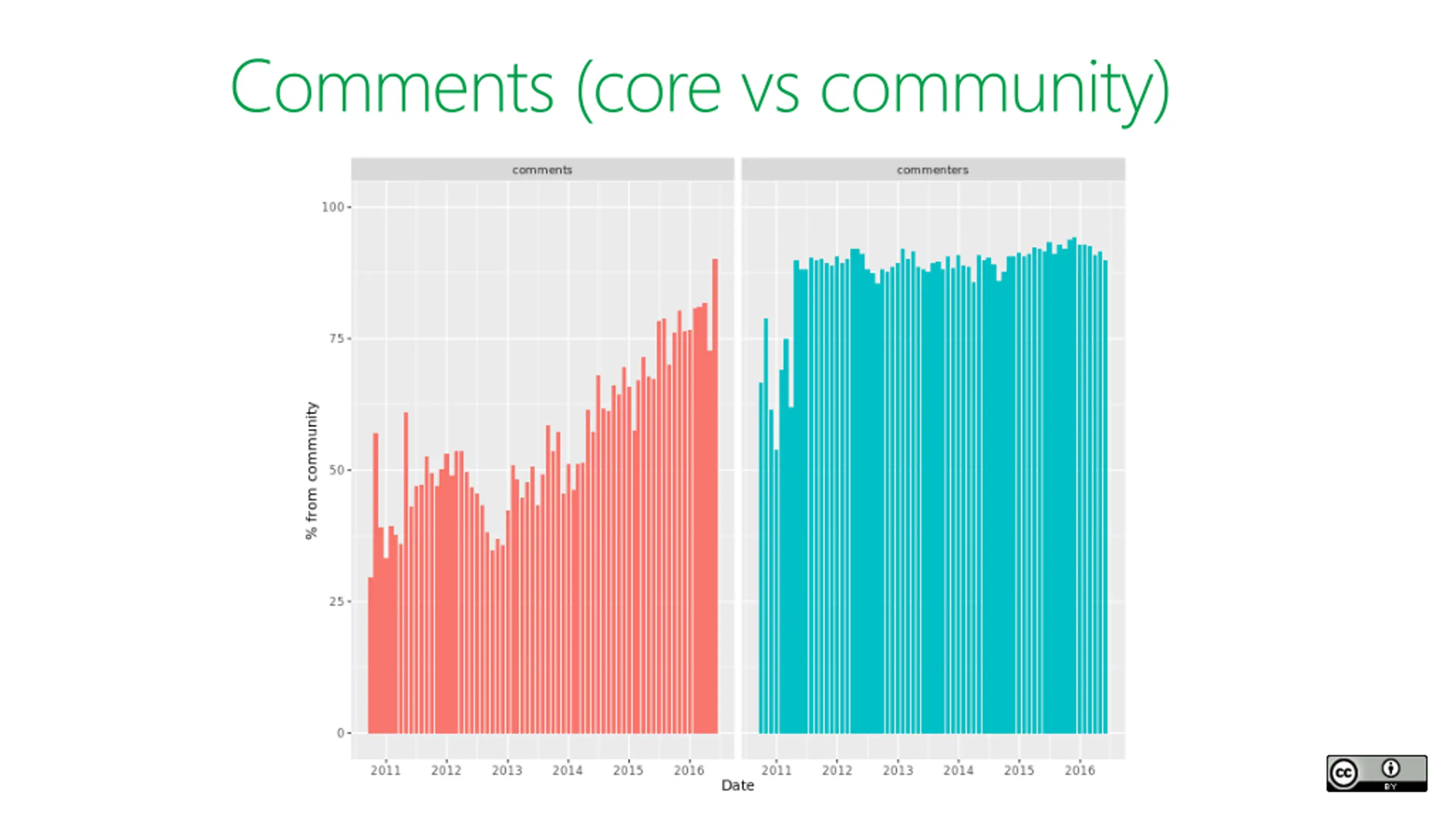

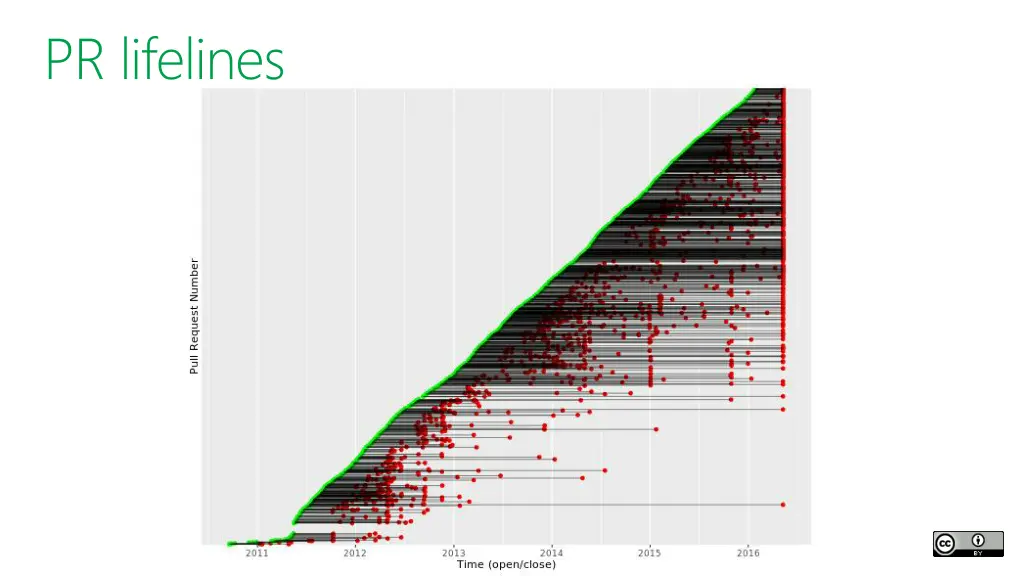

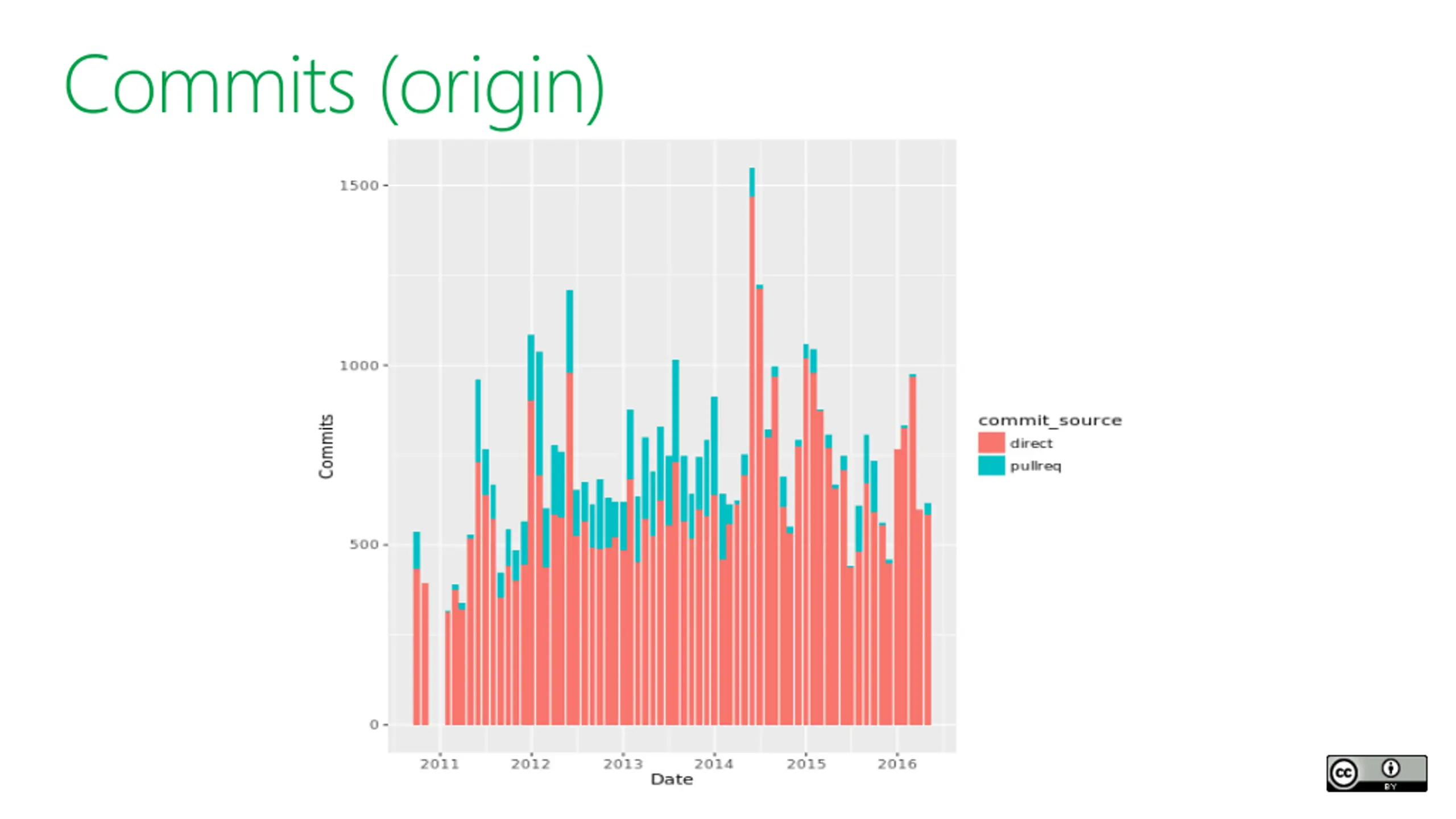

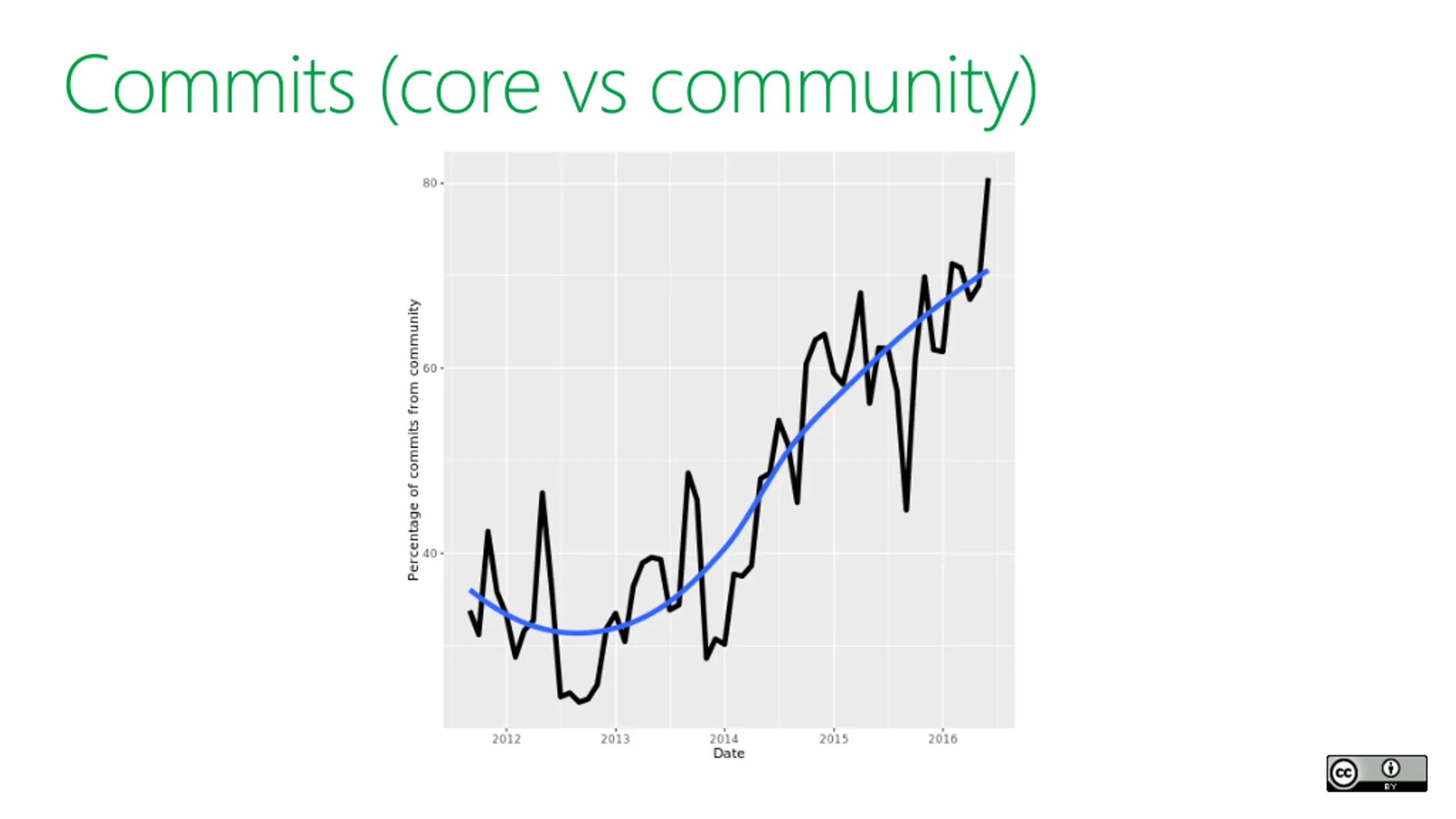

How open is a project? % commits from project community vs core team % comments and commenters % forks contributing PR lifelines http://ghtorrent.org/pullreq-perf/
Business insights Project health Ours are we building a good community? Yours is this a good project to use/invest in? Product adoption Trends for products, APIs, technologies, Sample/tutorial effectiveness API health and evolution How are people using our API? Are they using it right ? Can it be improved? How many people would a change break?

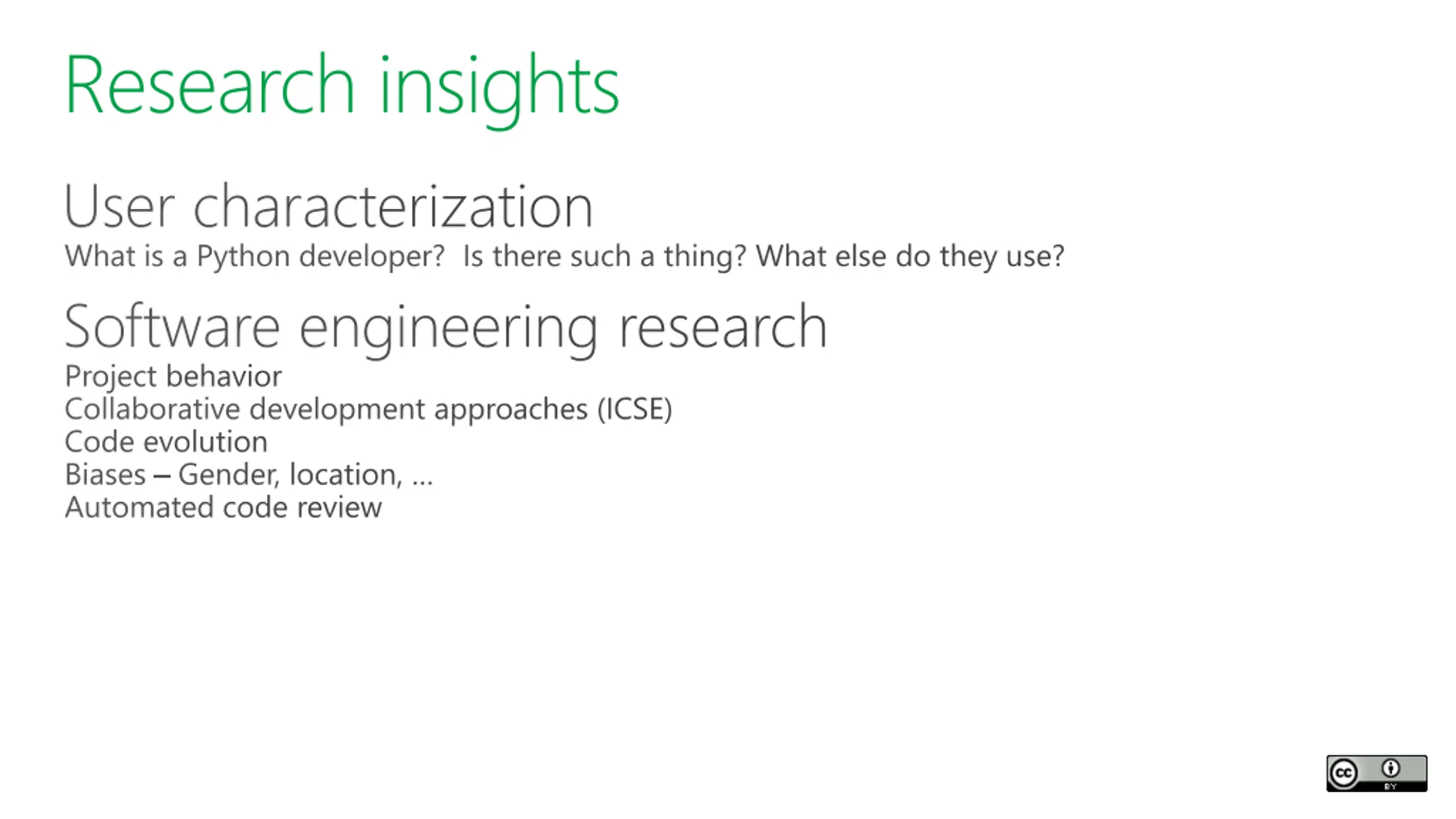

Research insights User characterization What is a Python developer? Is there such a thing? What else do they use? Software engineering research Project behavior Collaborative development approaches (ICSE) Code evolution Biases Gender, location, Automated code review

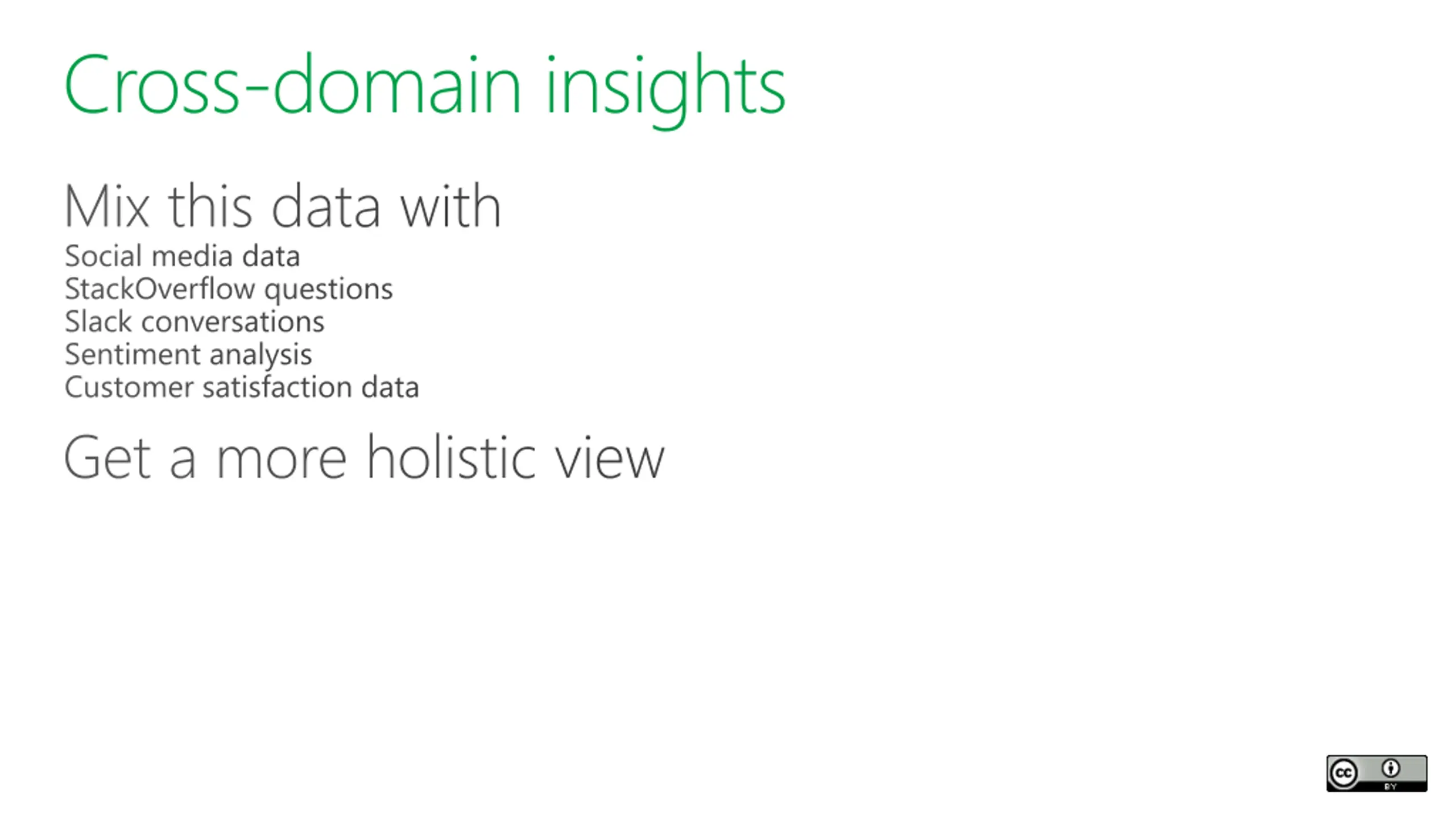

Cross-domain insights Mix this data with Social media data StackOverflow questions Slack conversations Sentiment analysis Customer satisfaction data Get a more holistic view

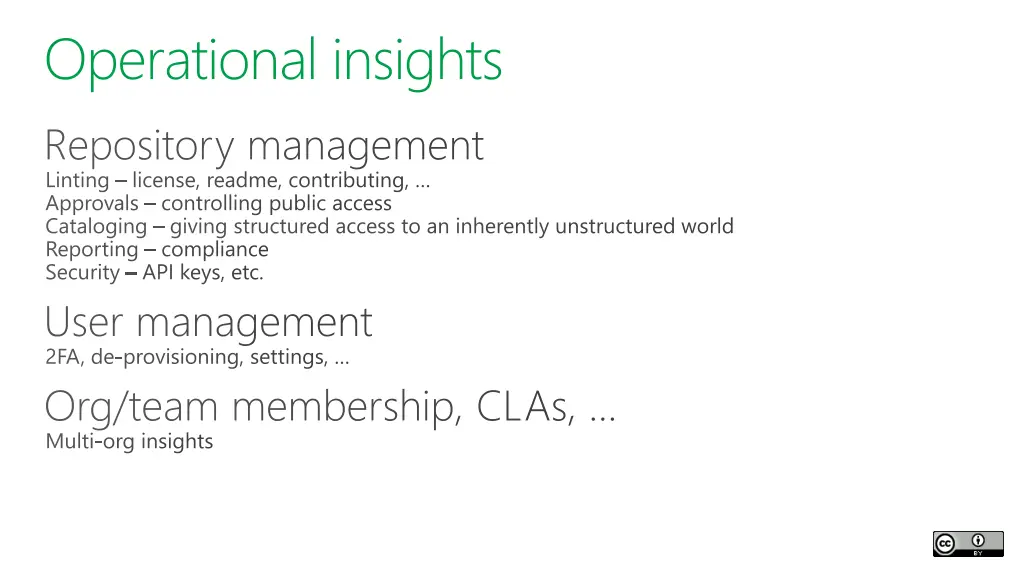

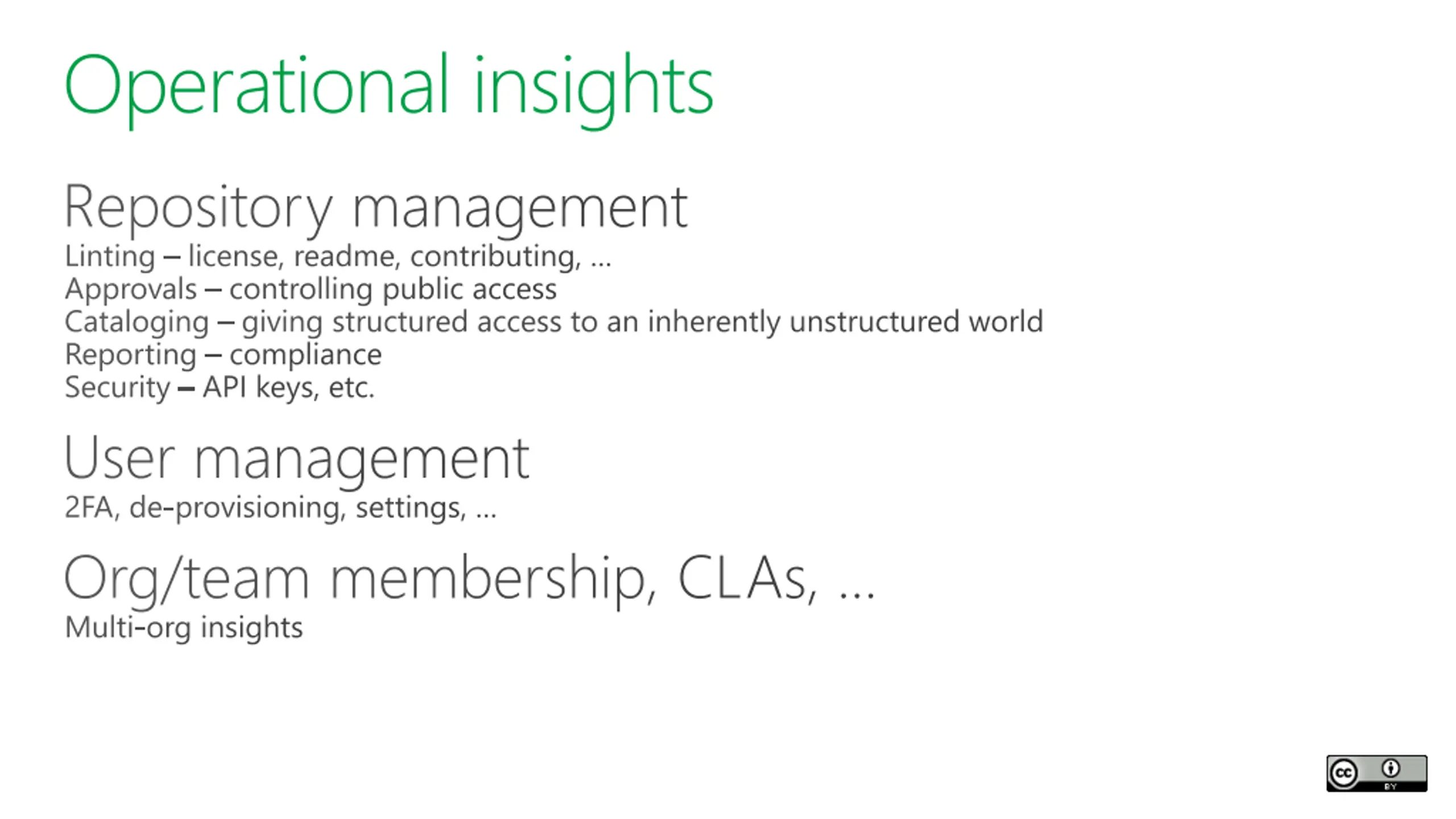

Operational insights Repository management Linting license, readme, contributing, Approvals controlling public access Cataloging giving structured access to an inherently unstructured world Reporting compliance Security API keys, etc. User management 2FA, de-provisioning, settings, Org/team membership, CLAs, Multi-org insights

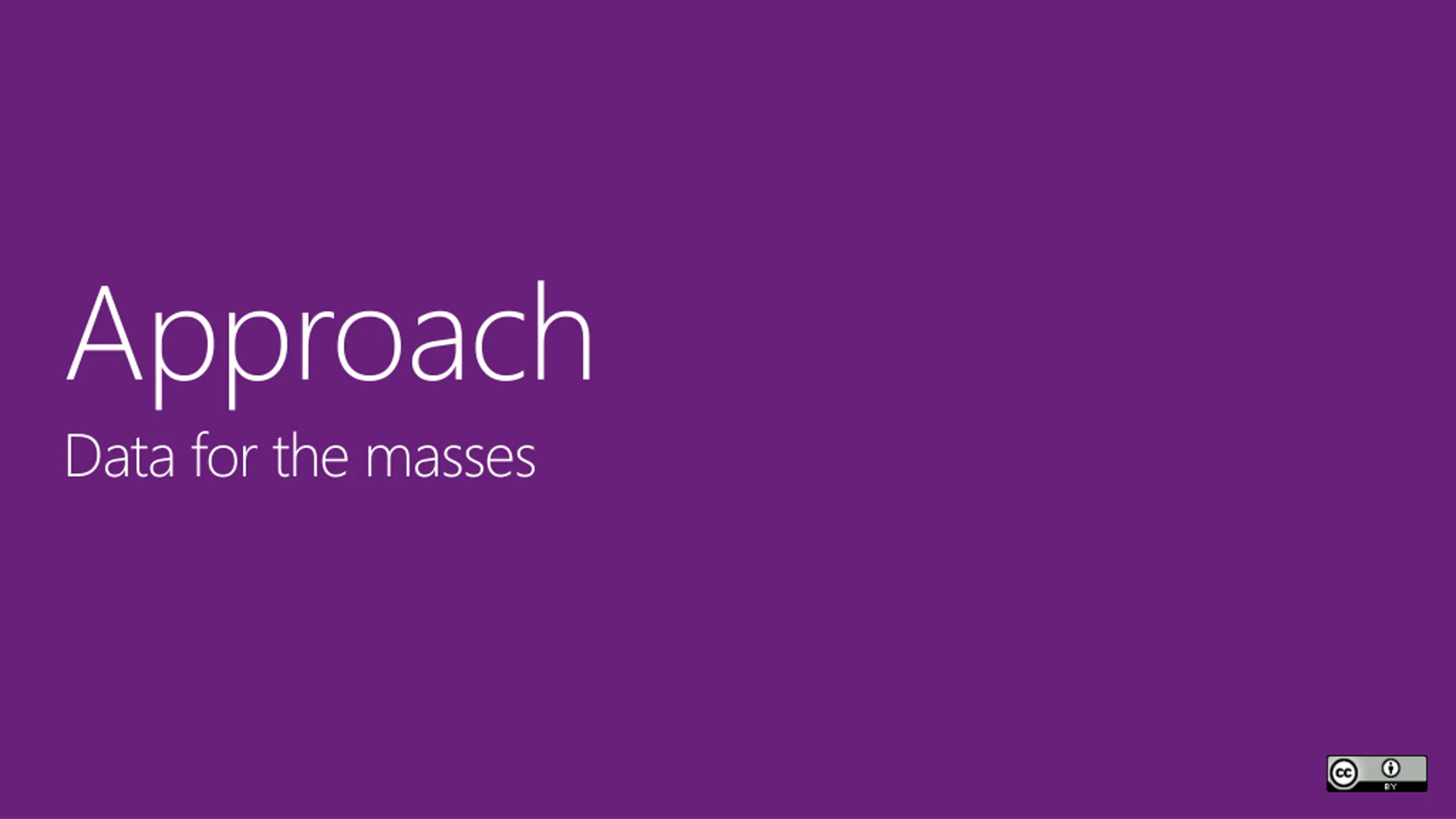

Approach Data for the masses

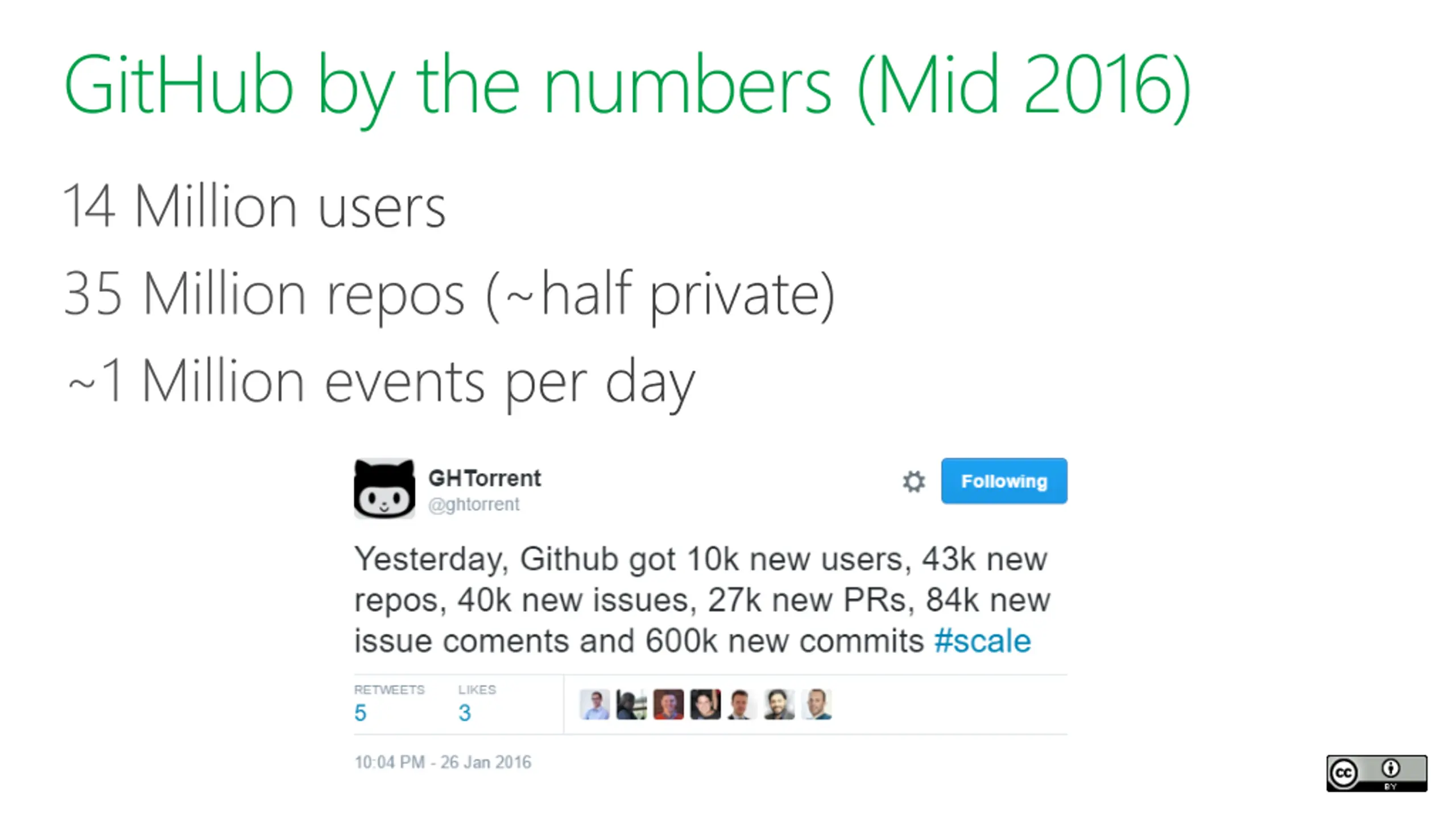

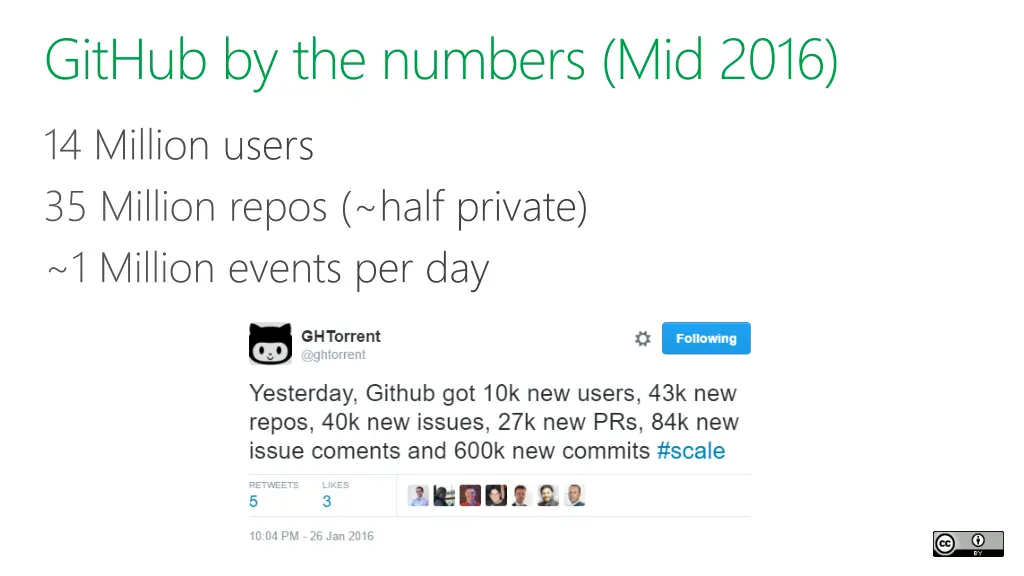

GitHub by the numbers (Mid 2016) 14 Million users 35 Million repos (~half private) ~1 Million events per day

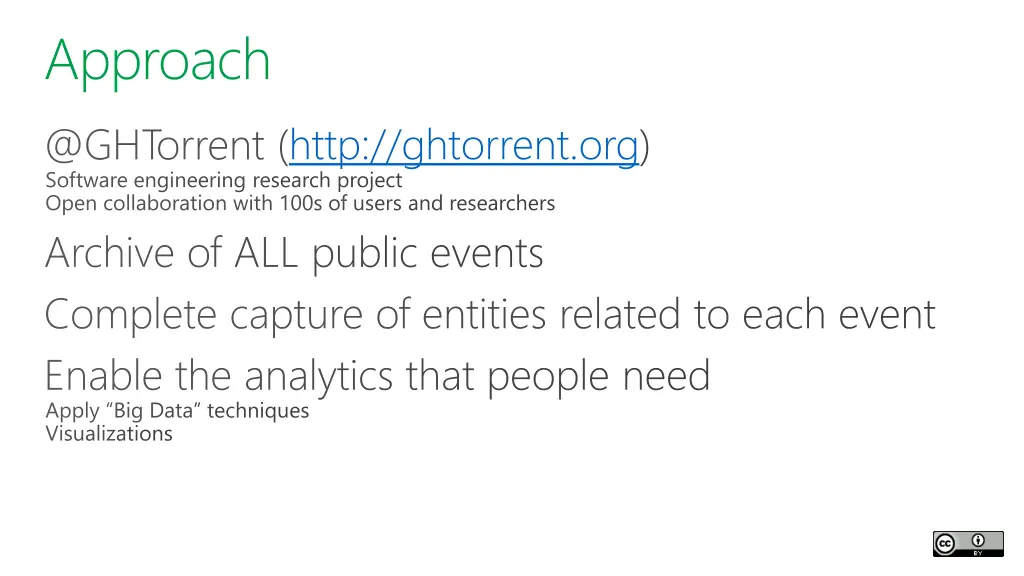

Approach @GHTorrent (http://ghtorrent.org) Software engineering research project Open collaboration with 100s of users and researchers Archive of ALL public events Complete capture of entities related to each event Enable the analytics that people need Apply Big Data techniques Visualizations

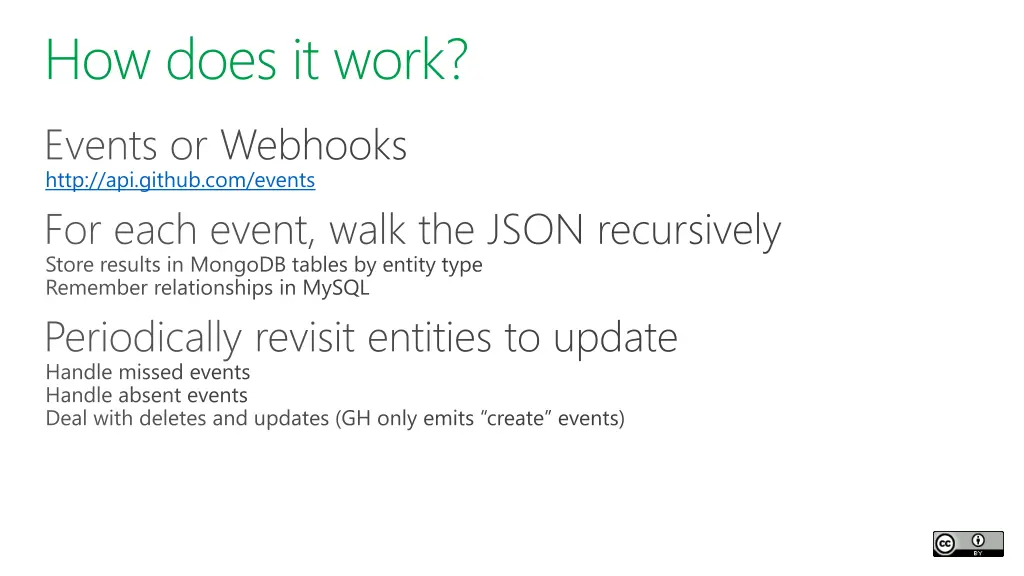

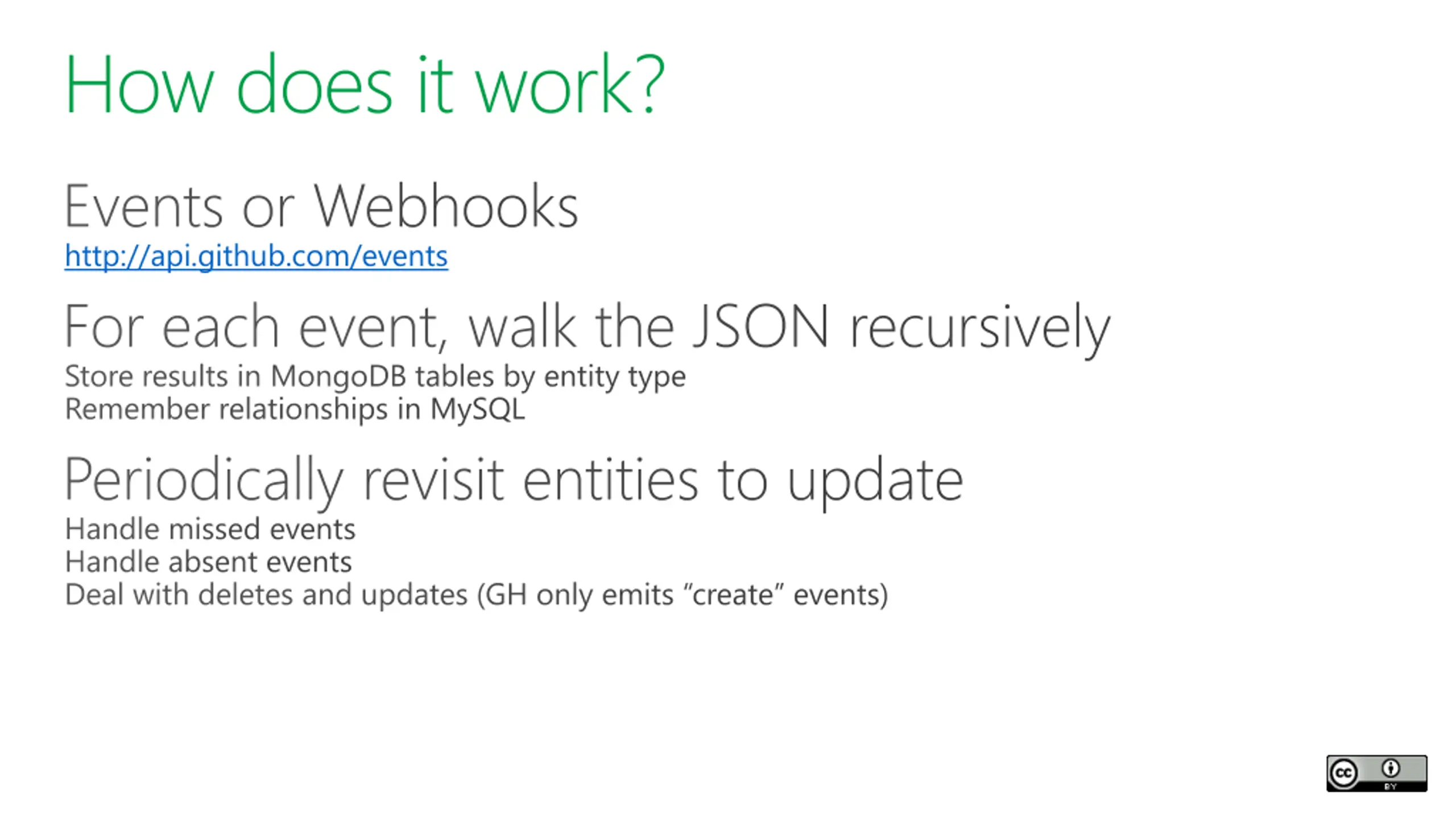

How does it work? Events or Webhooks http://api.github.com/events For each event, walk the JSON recursively Store results in MongoDB tables by entity type Remember relationships in MySQL Periodically revisit entities to update Handle missed events Handle absent events Deal with deletes and updates (GH only emits create events)

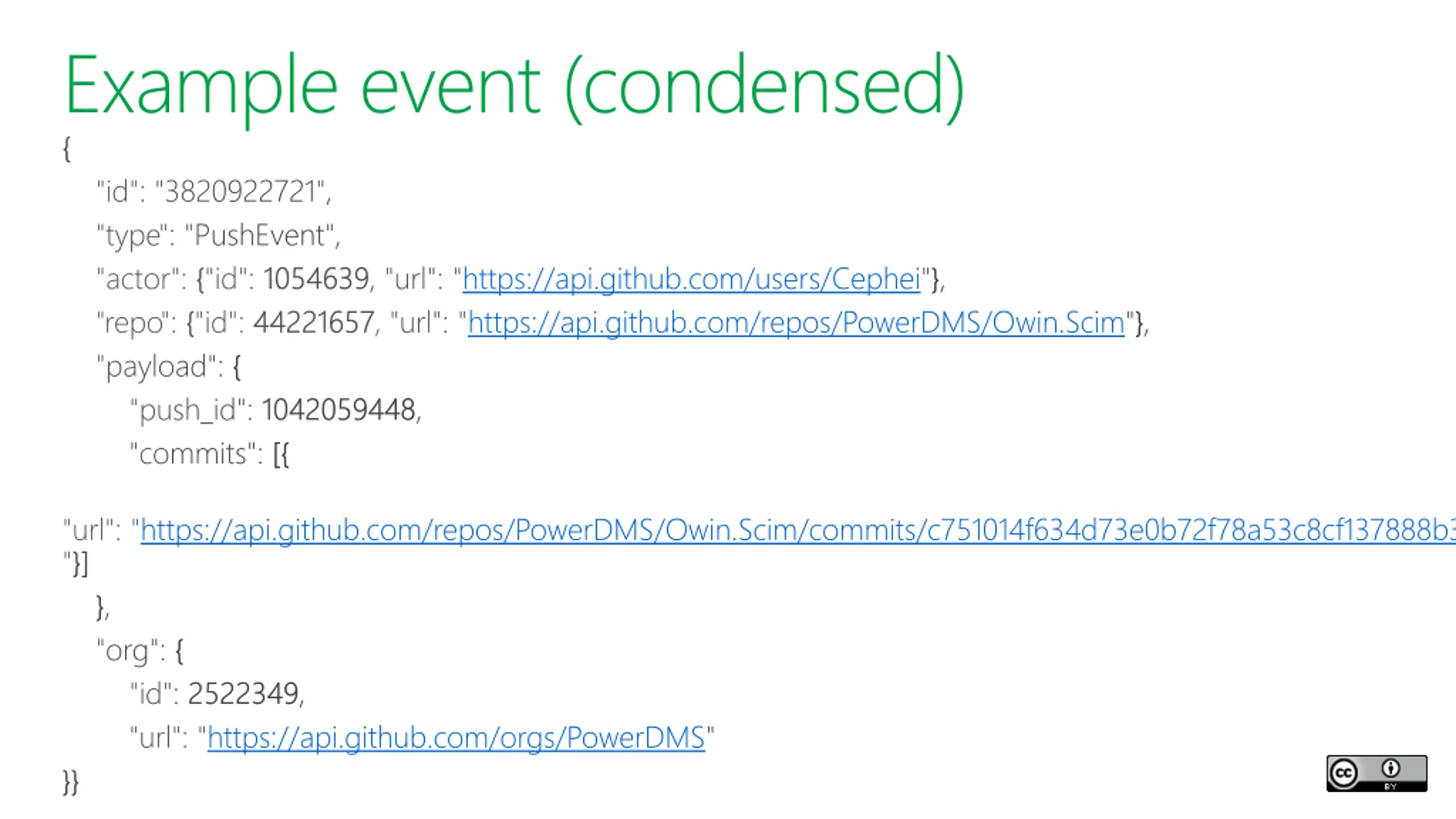

Example event (condensed) { { "id": "3820922721", "type": "PushEvent", "actor": { {"id": 1054639 1054639, "url": "https://api.github.com/users/Cephei"} }, "repo": { {"id": 44221657 44221657, "url": "https://api.github.com/repos/PowerDMS/Owin.Scim"} }, "payload": { { "push_id": 1042059448 1042059448, "commits": [{ [{ "url": "https://api.github.com/repos/PowerDMS/Owin.Scim/commits/c751014f634d73e0b72f78a53c8cf137888b309d "}] }] } }, "org": { { "id": 2522349 2522349, "url": "https://api.github.com/orgs/PowerDMS" }} }}

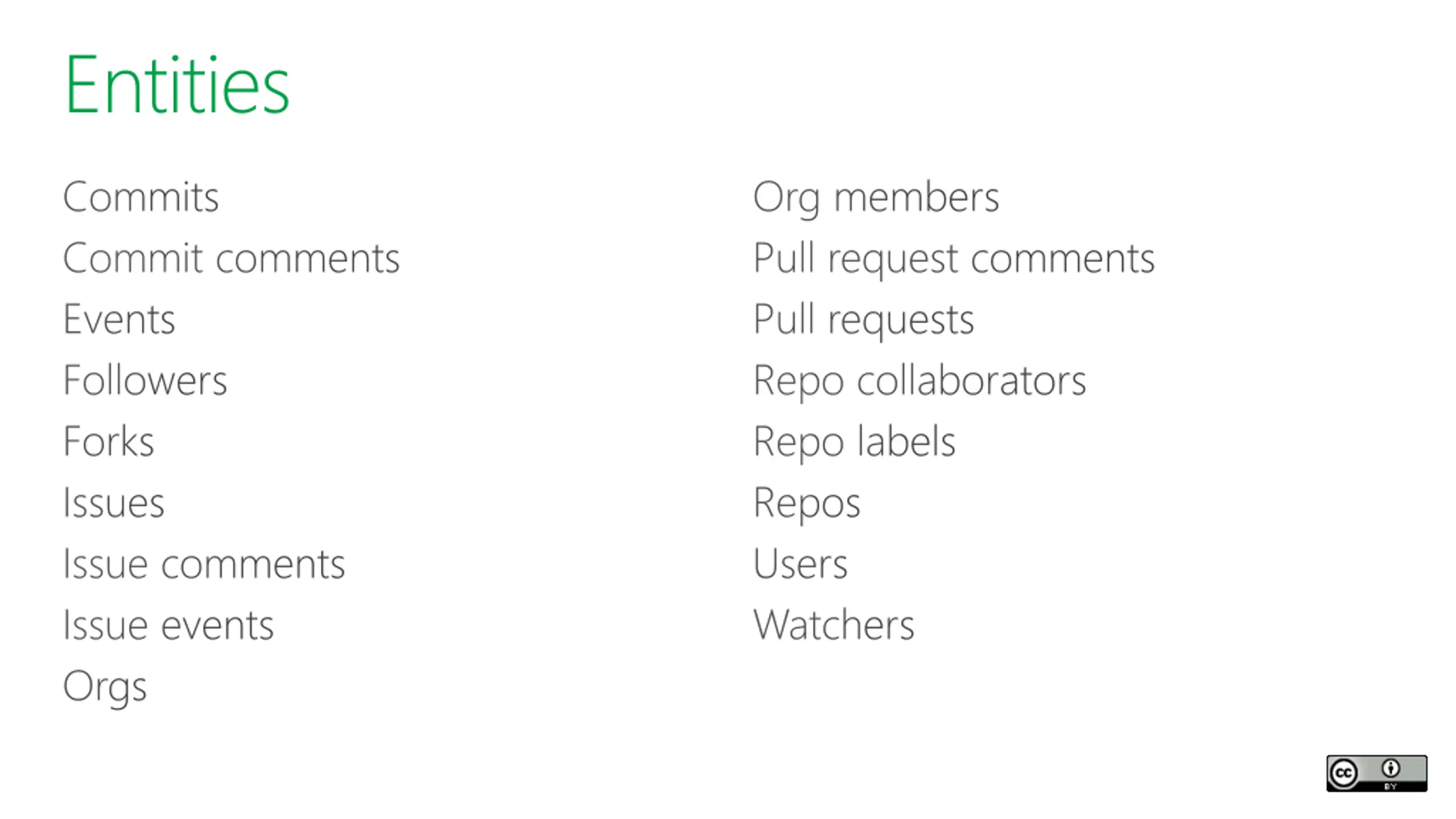

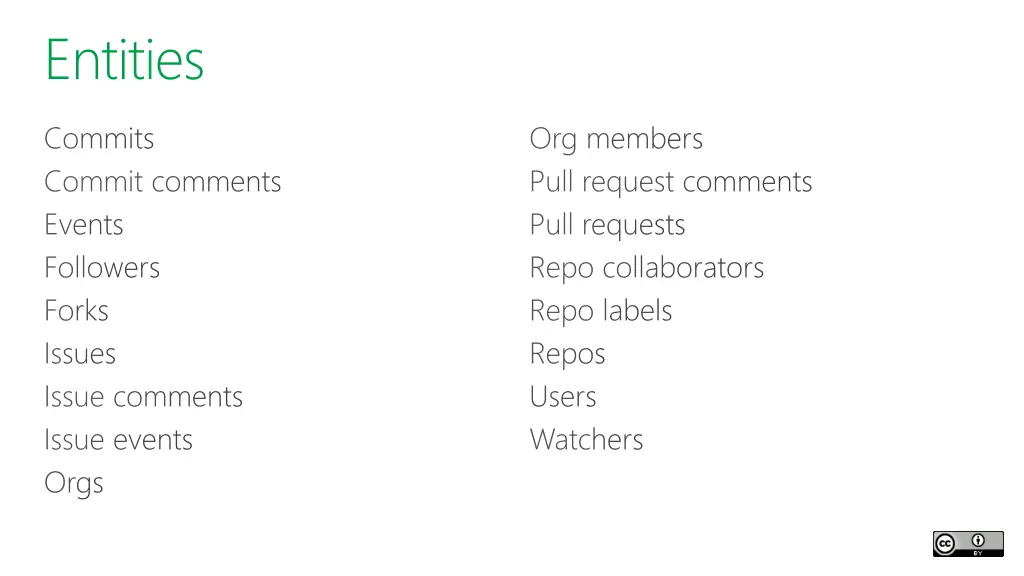

Entities Commits Commit comments Events Followers Forks Issues Issue comments Issue events Orgs Org members Pull request comments Pull requests Repo collaborators Repo labels Repos Users Watchers

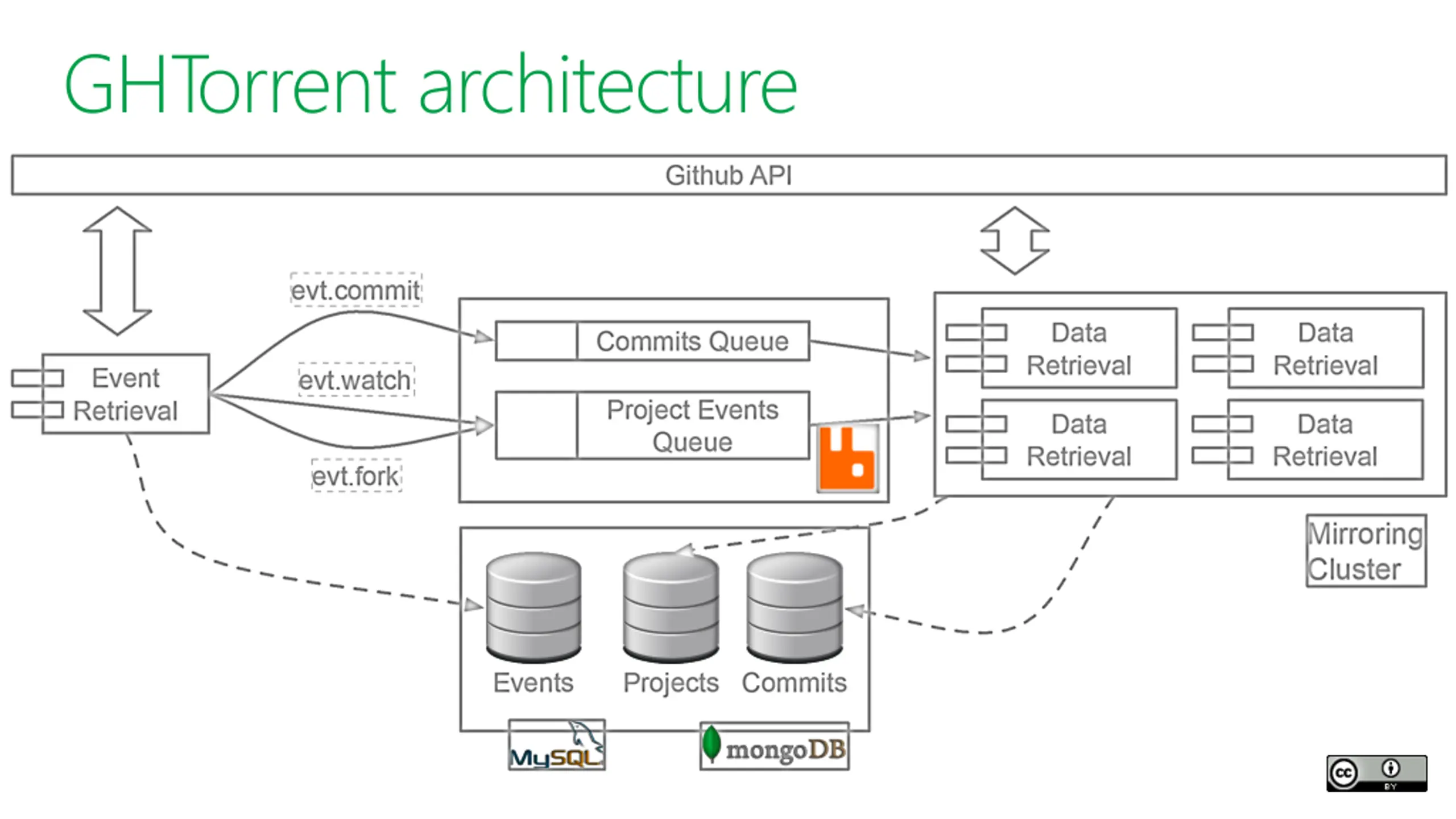

GHTorrent architecture Github API evt.commit Data Retrieval Data Retrieval Commits Queue Event Retrieval evt.watch Project Events Queue Data Retrieval Data Retrieval evt.fork Mirroring Cluster Events Projects Commits

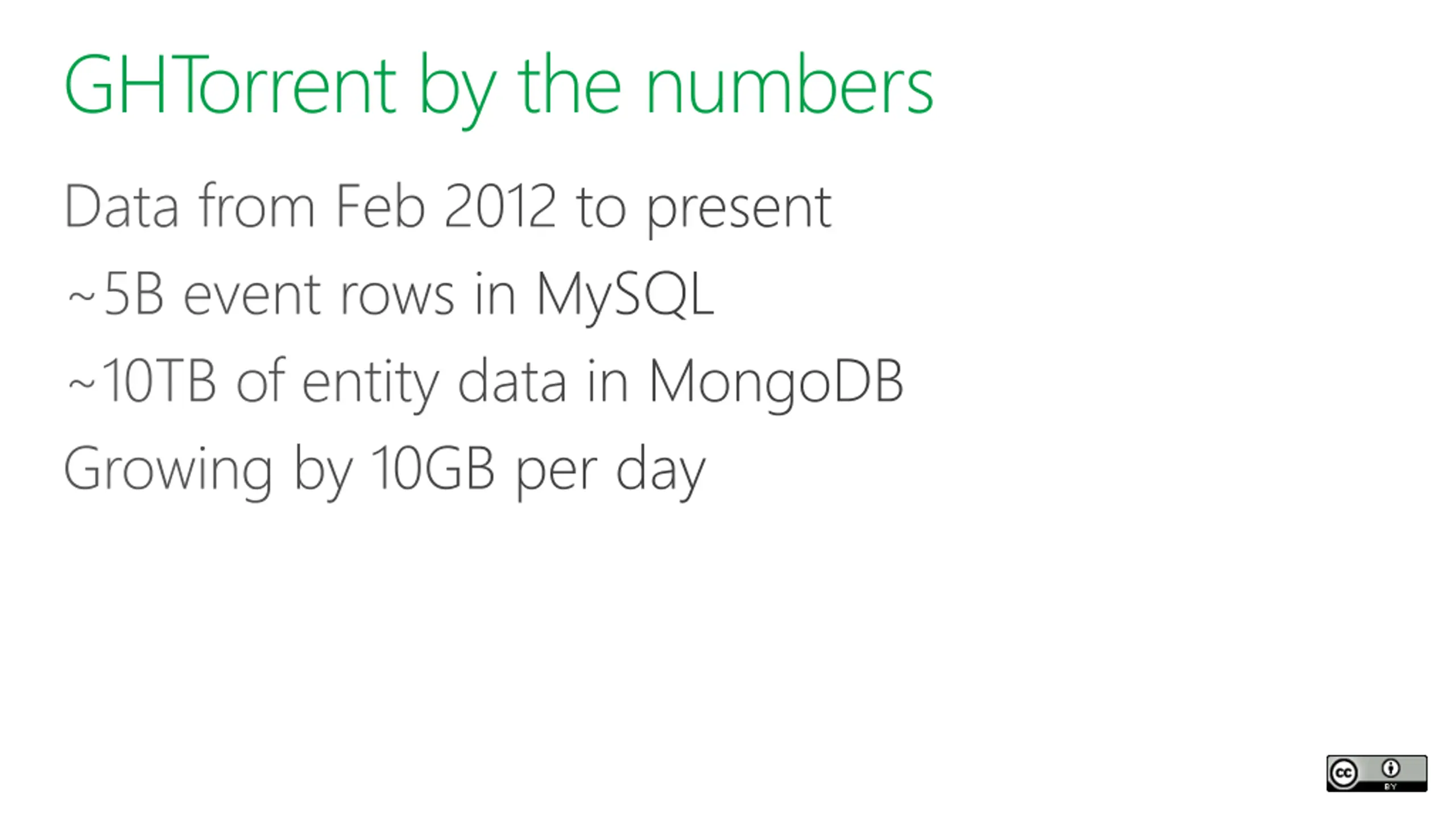

GHTorrent by the numbers Data from Feb 2012 to present ~5B event rows in MySQL ~10TB of entity data in MongoDB Growing by 10GB per day
Using the data You can do it too!

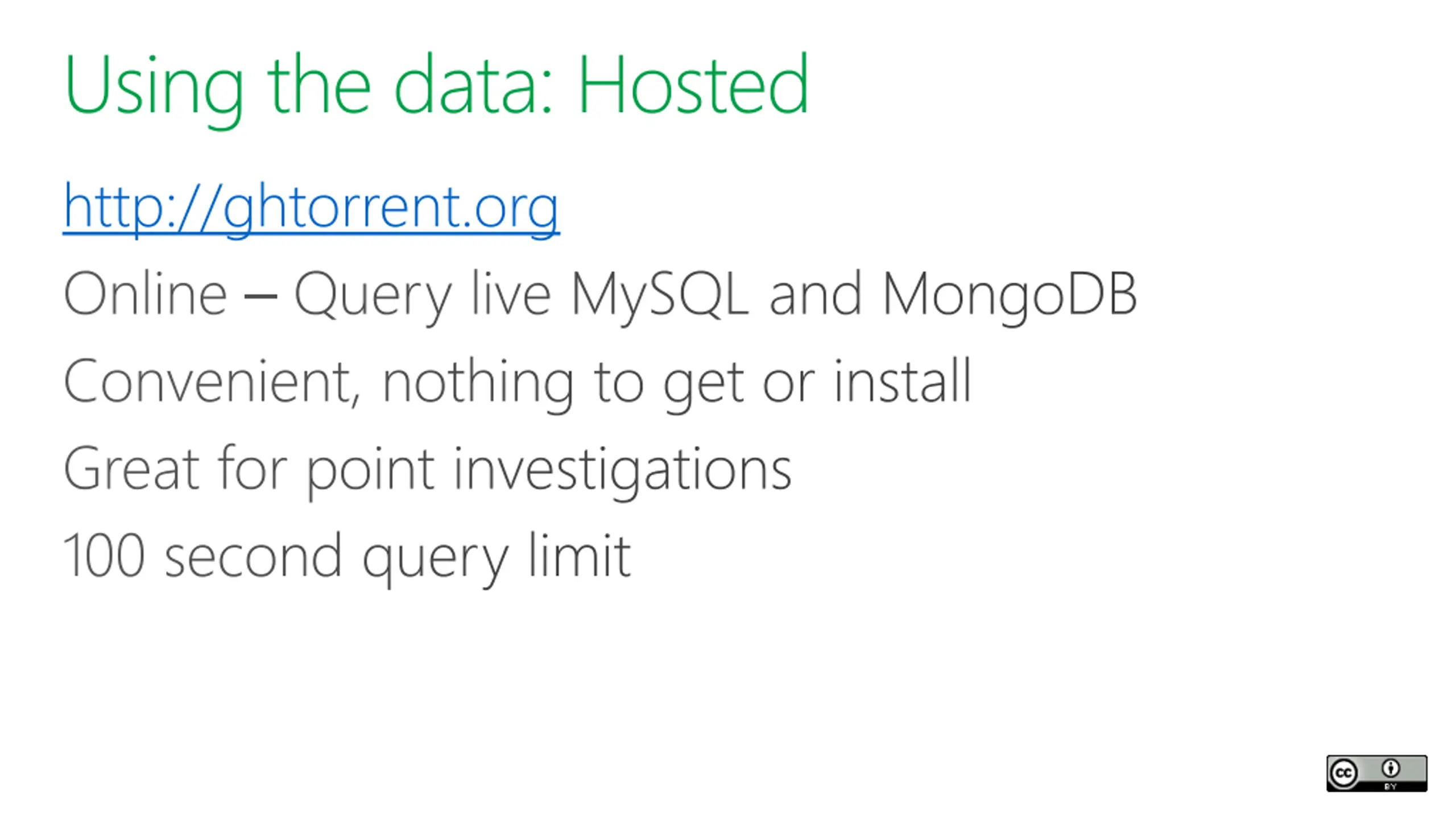

Using the data: Hosted http://ghtorrent.org Online Query live MySQL and MongoDB Convenient, nothing to get or install Great for point investigations 100 second query limit

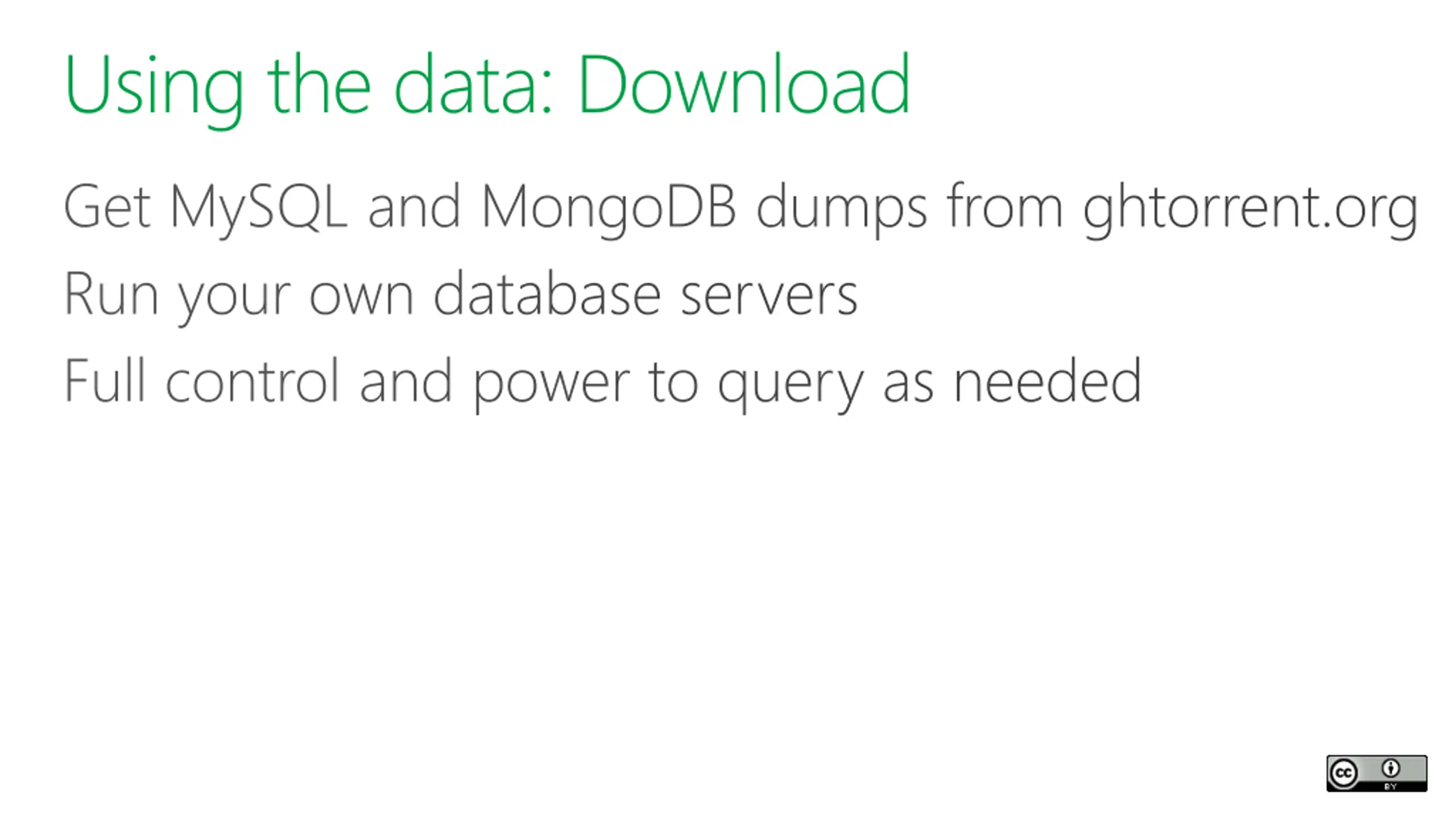

Using the data: Download Get MySQL and MongoDB dumps from ghtorrent.org Run your own database servers Full control and power to query as needed

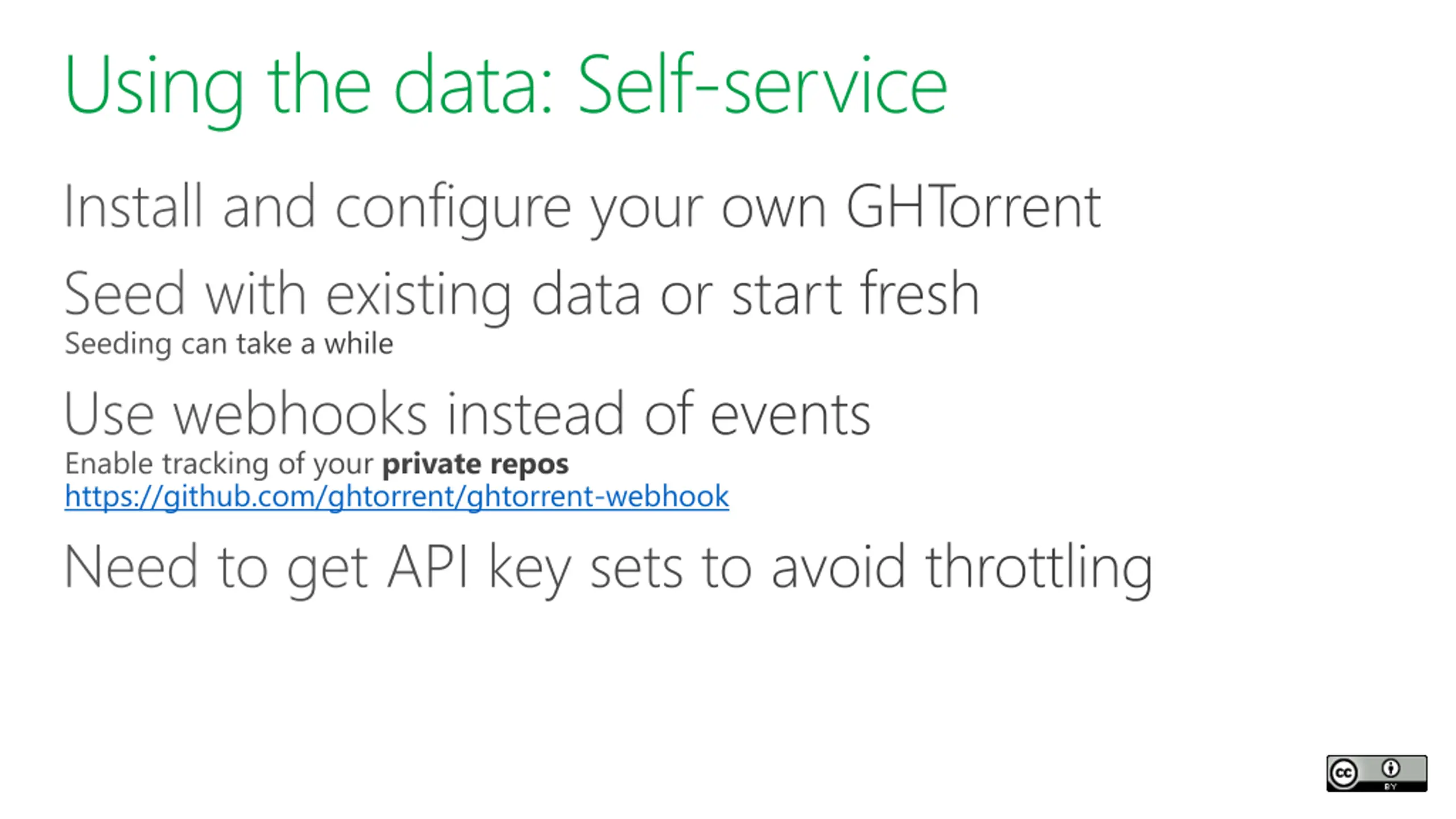

Using the data: Self-service Install and configure your own GHTorrent Seed with existing data or start fresh Seeding can take a while Use webhooks instead of events Enable tracking of your private repos https://github.com/ghtorrent/ghtorrent-webhook Need to get API key sets to avoid throttling

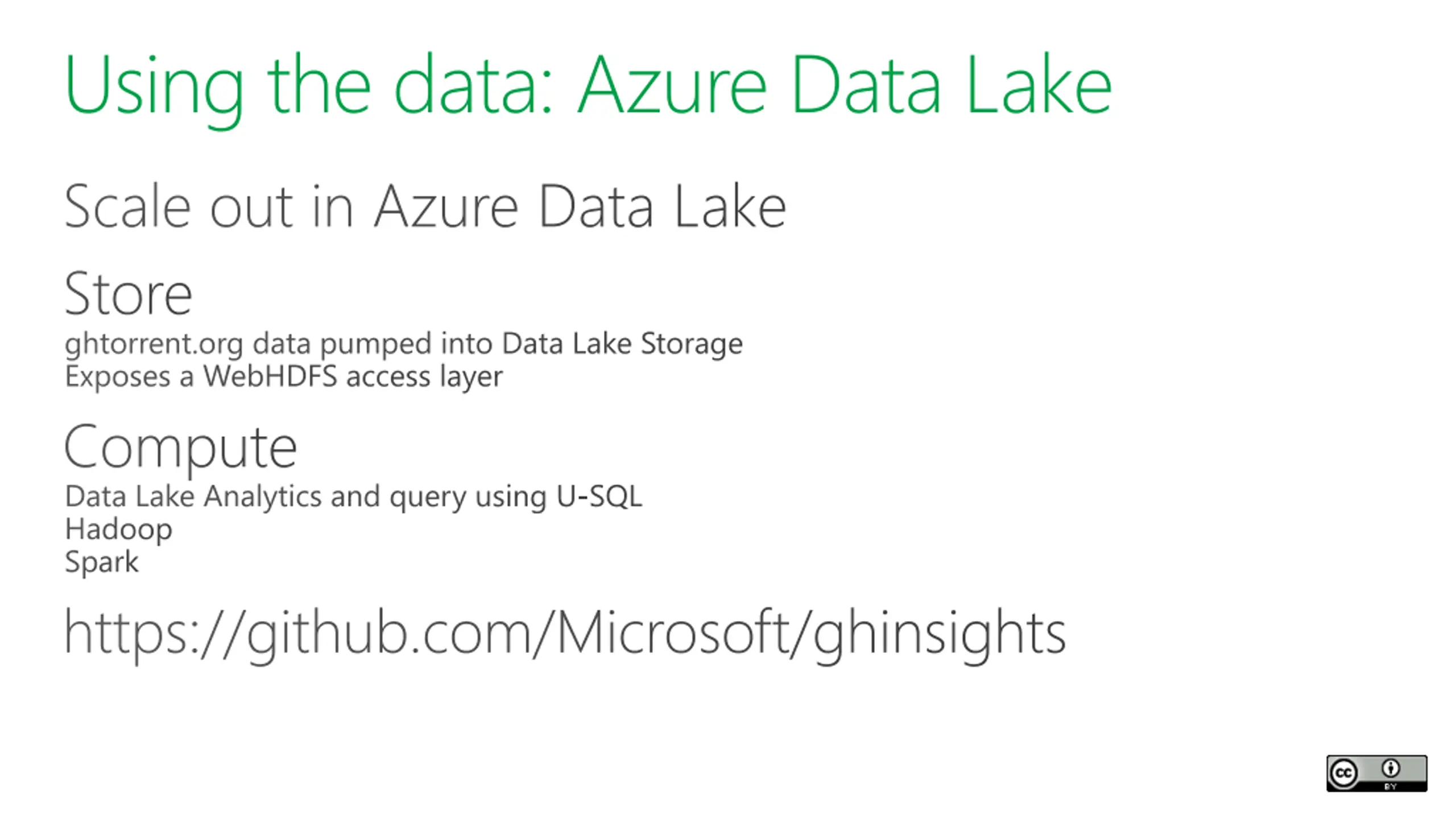

Using the data: Azure Data Lake Scale out in Azure Data Lake Store ghtorrent.org data pumped into Data Lake Storage Exposes a WebHDFS access layer Compute Data Lake Analytics and query using U-SQL Hadoop Spark https://github.com/Microsoft/ghinsights

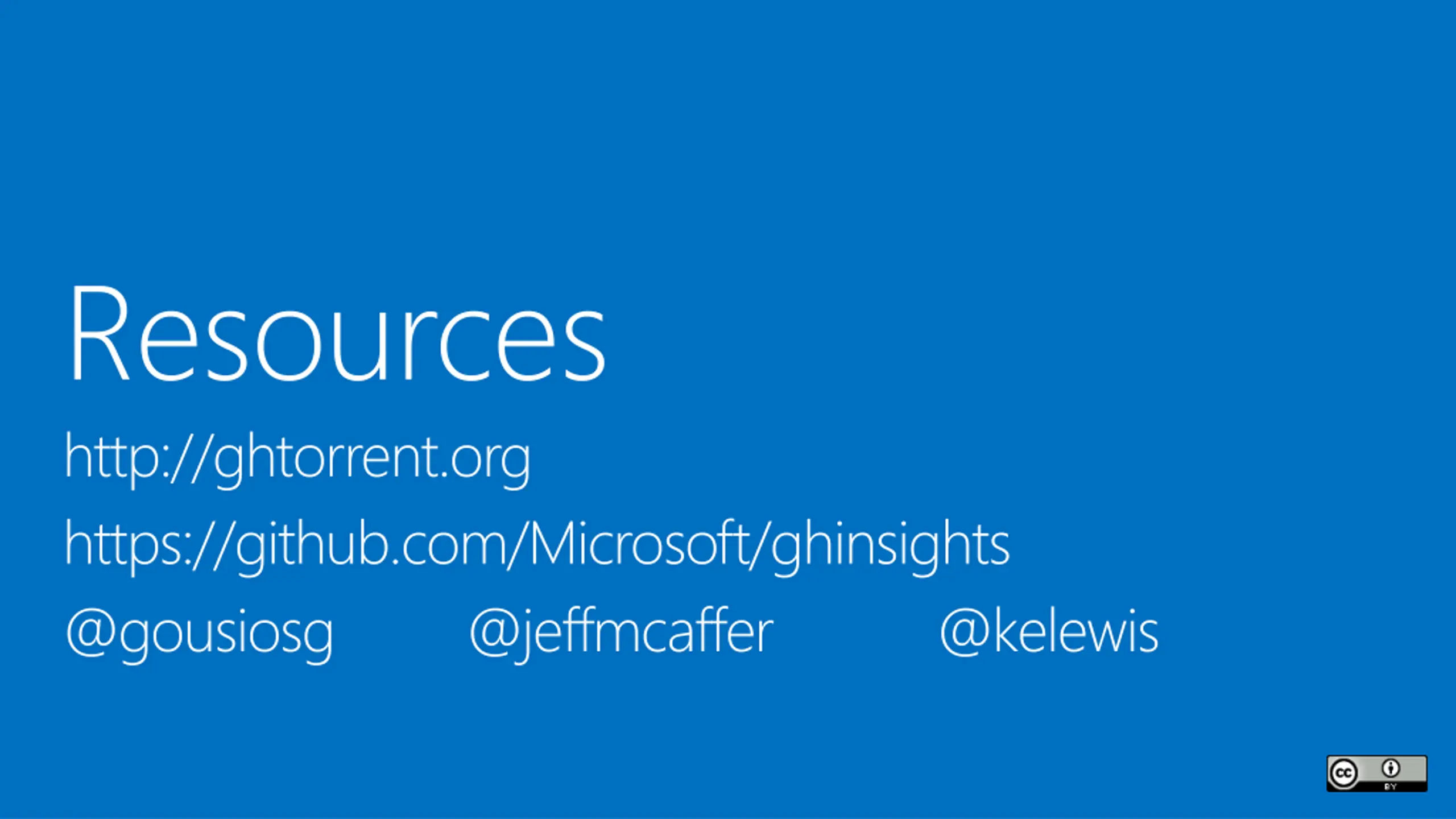

Resources http://ghtorrent.org https://github.com/Microsoft/ghinsights @gousiosg @jeffmcaffer @kelewis
