Global Positioning System Alex Liang and Akhil Maddukuri

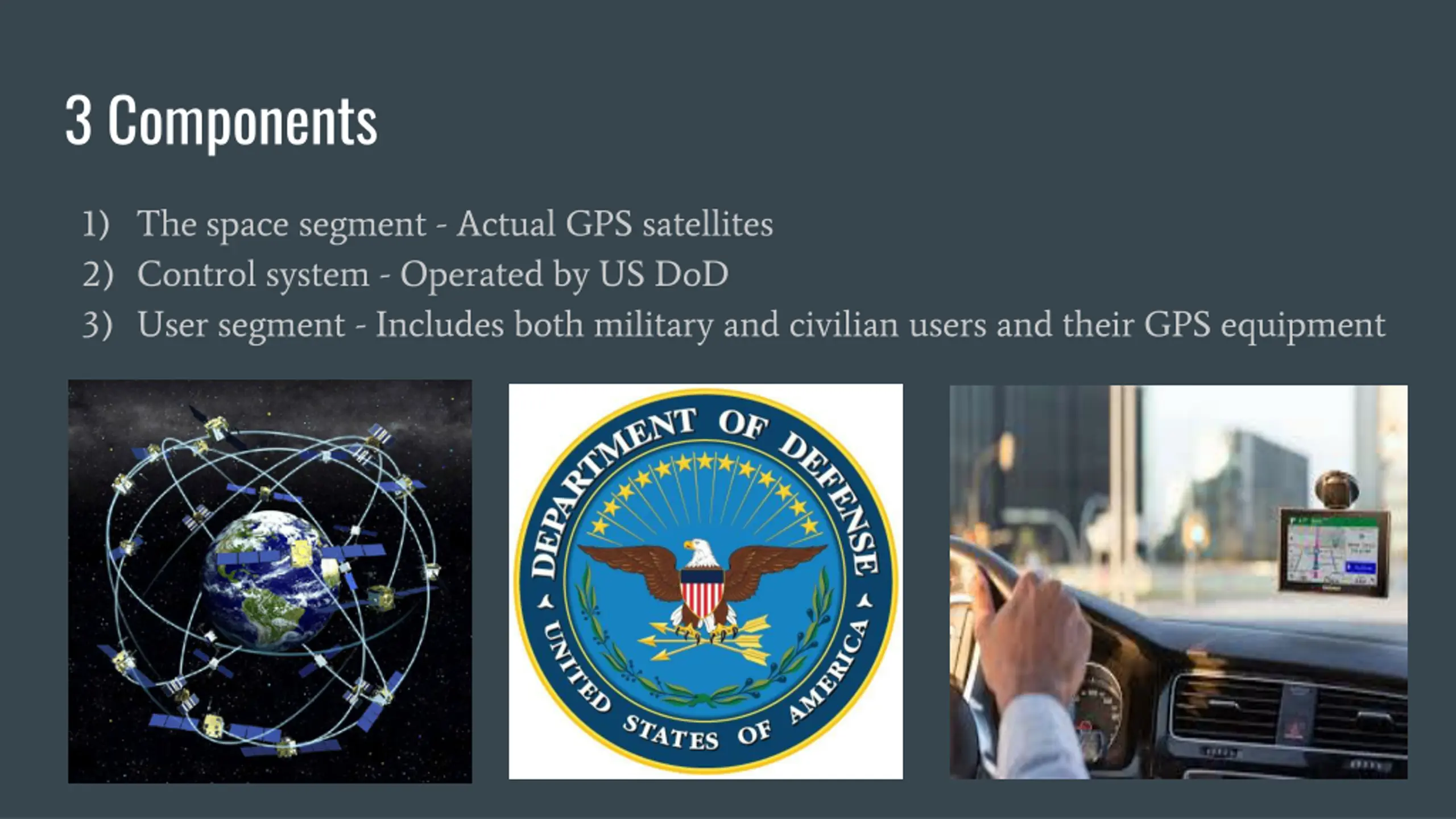

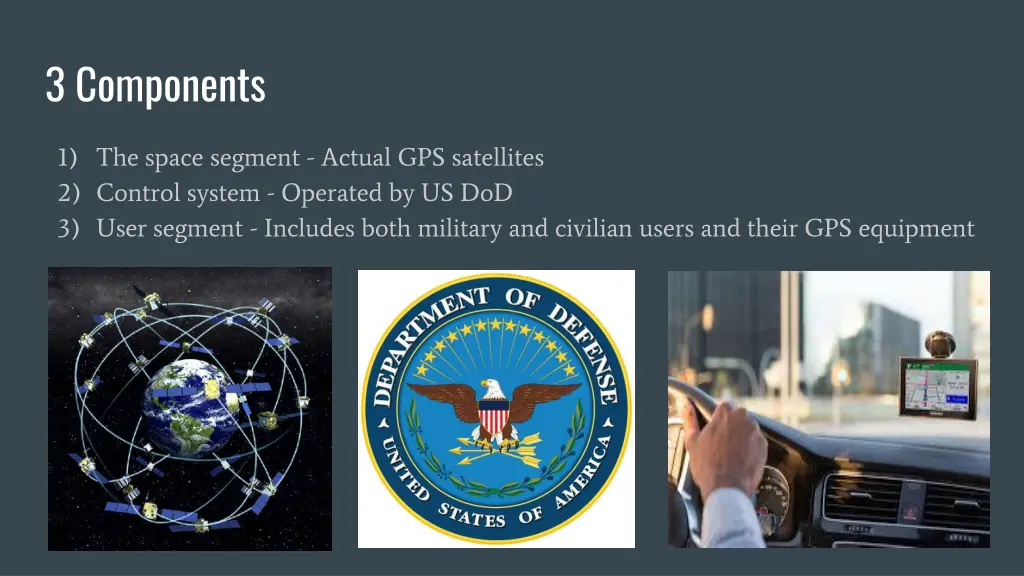

3 Components 1) The space segment - Actual GPS satellites 2) Control system - Operated by US DoD 3) User segment - Includes both military and civilian users and their GPS equipment

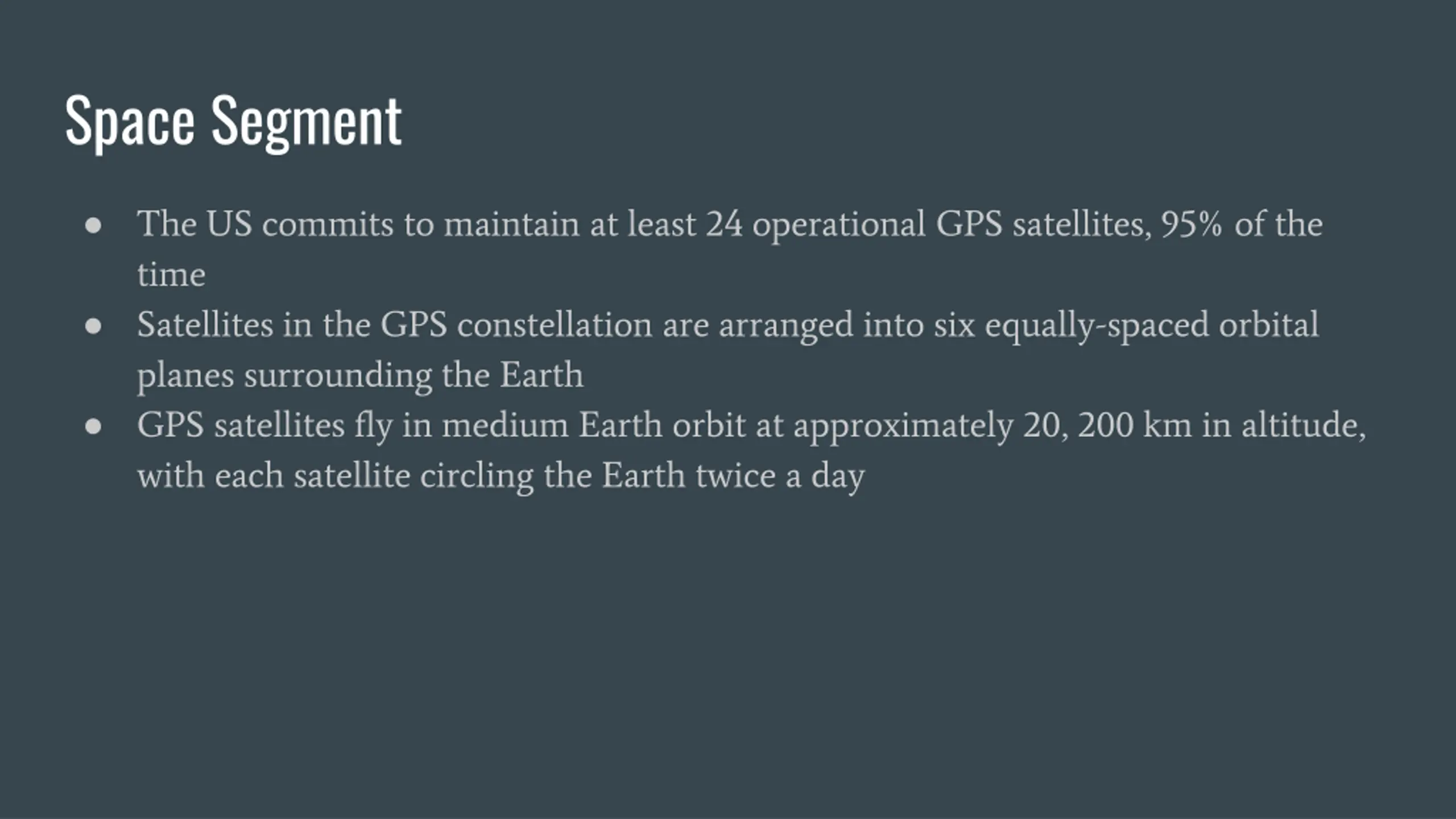

Space Segment The US commits to maintain at least 24 operational GPS satellites, 95% of the time Satellites in the GPS constellation are arranged into six equally-spaced orbital planes surrounding the Earth GPS satellites fly in medium Earth orbit at approximately 20, 200 km in altitude, with each satellite circling the Earth twice a day

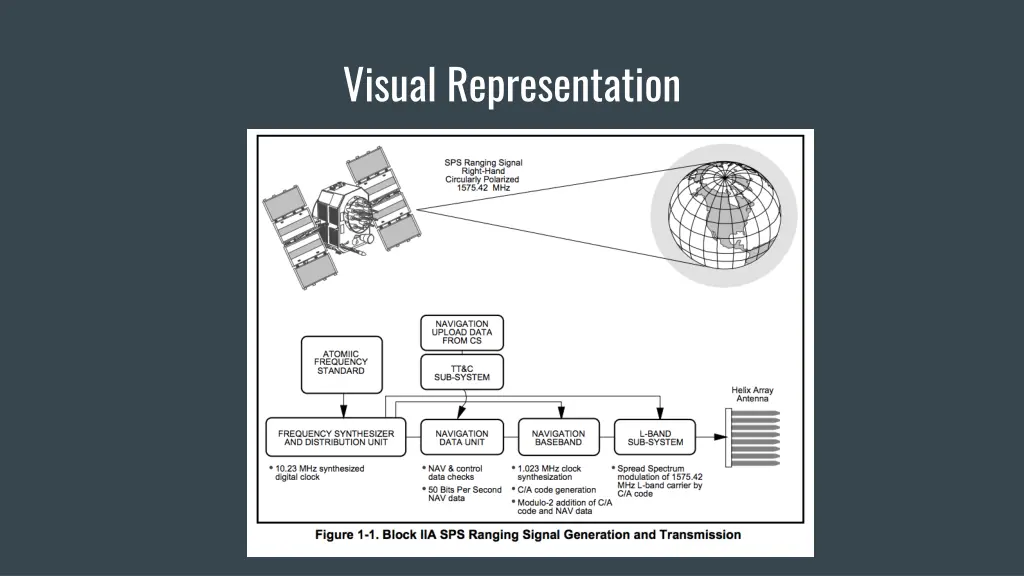

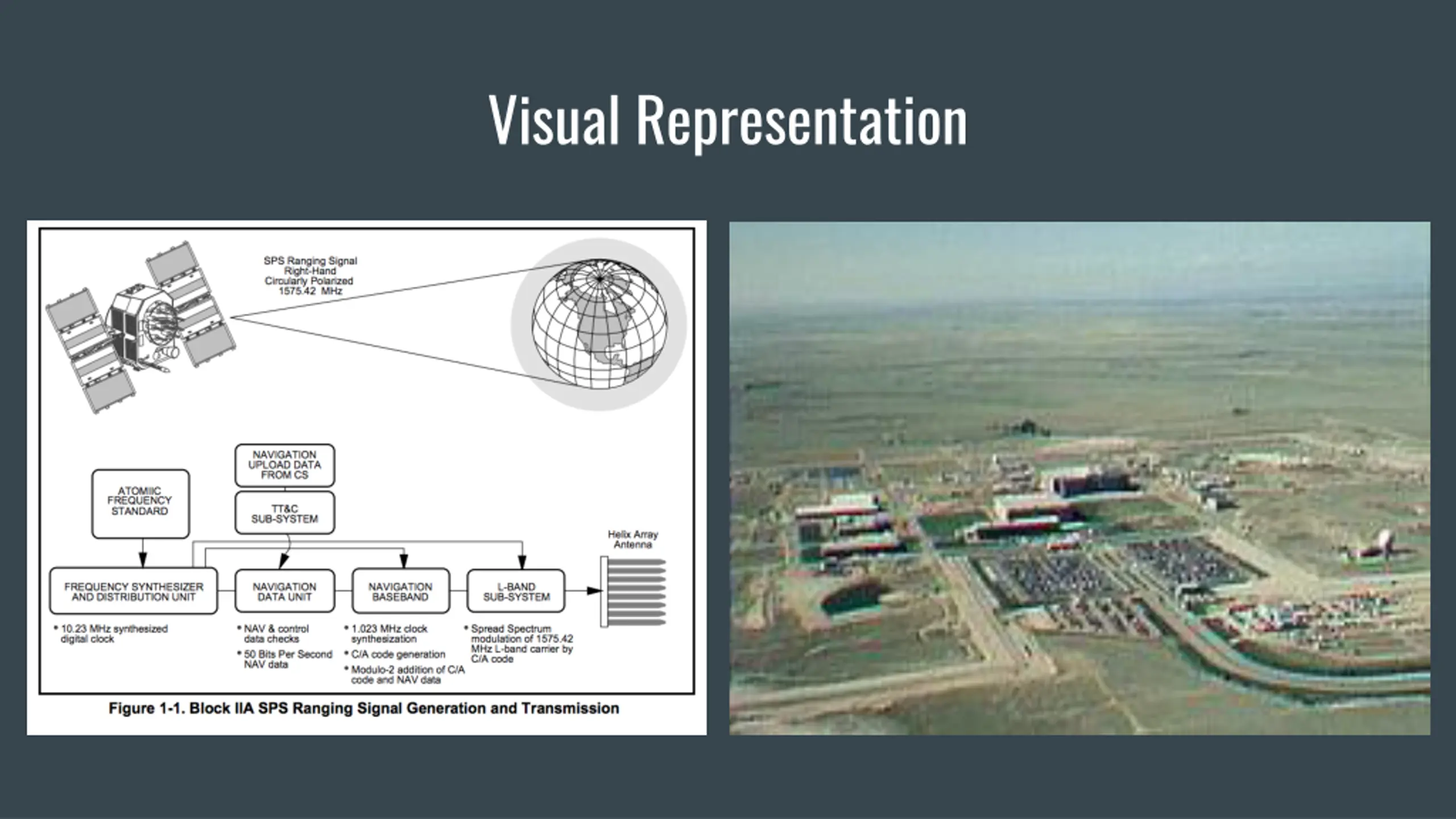

Space Segment (Continued) Each satellite broadcasts navigation message based upon data uploaded from Control Segment and adds the message to a 1.023 MHz Pseudo Random Noise (PRN) code sequence Satellite converts the code sequence onto a 1575.42 MHz L-band carrier to create a spread spectrum ranging signal L-band is range of radio signals from 1 to 2 GHz L-band waves penetrate clouds, fog, rain, storms, and vegetation - accurate signal transmission Spread Spectrum modulation is a method in which a signal generated with one bandwidth is spread in the frequency domain to create a signal with wider bandwidth
Control Segment GPS Control Segment (CS) is comprised of four major components: Master Control Station (MCS) Backup Master Control Station (BMCS) Four ground antennas Six monitor stations MCS is based in Schriever Air Force Base, Colorado - operated 24/7 Roles: Navigation data upload operations, Detection and response for service failures, satellite maintenance CS's four ground antennas provide real-time Telemetry, Tracking, and Commanding (TT&C) interface between the GPS satellites and the MCS Six monitor stations provide real-time satellite ranging measurement data to MCS
User Segment Used in everything from cell phones and wristwatches to bulldozers, shipping containers, and ATM's Critical to U.S. national security - nearly all new military assets from vehicles to munitions are equipped with GPS

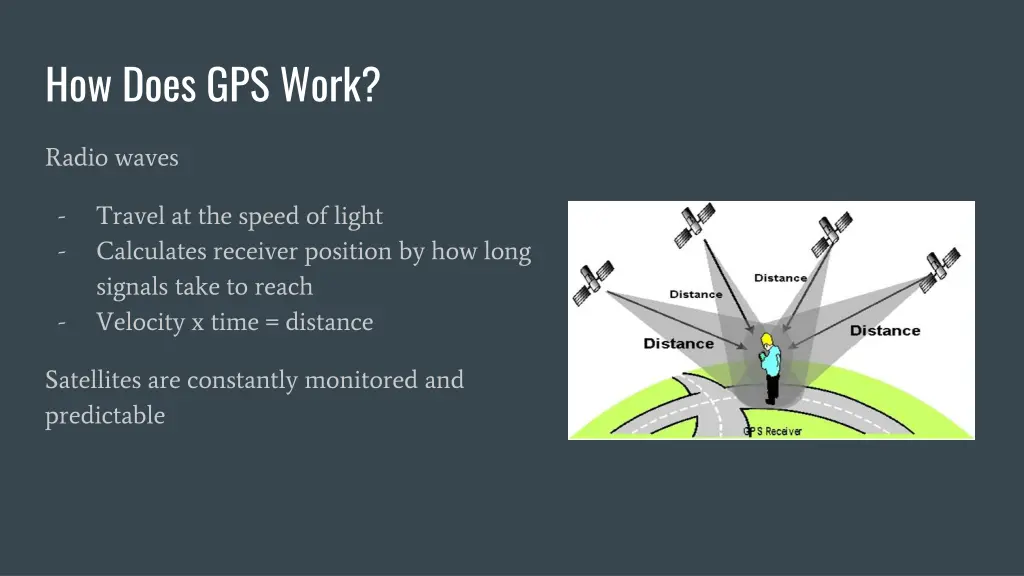

How Does GPS Work? Radio waves - - Travel at the speed of light Calculates receiver position by how long signals take to reach Velocity x time = distance - Satellites are constantly monitored and predictable

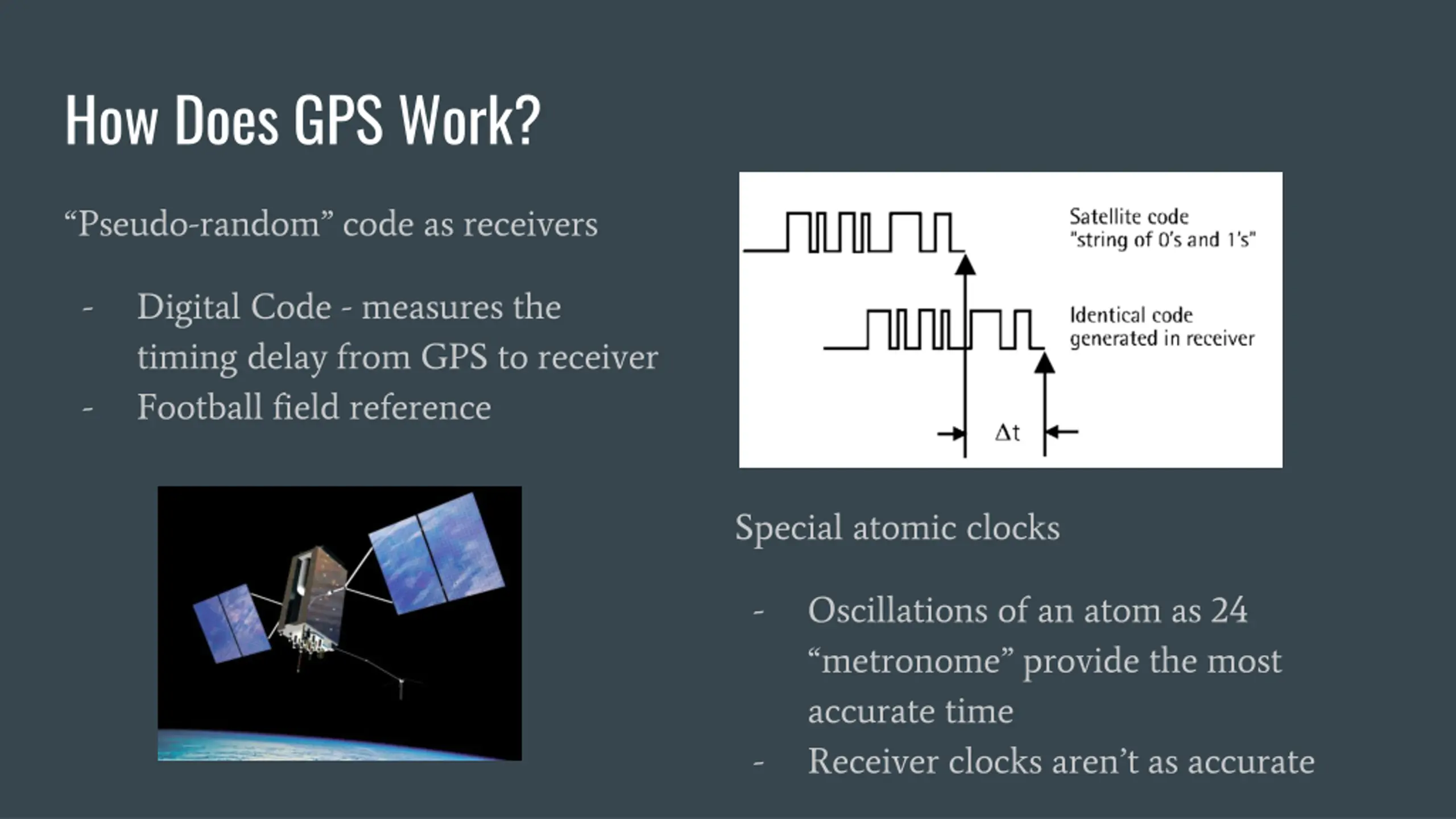

How Does GPS Work? Pseudo-random code as receivers - Digital Code - measures the timing delay from GPS to receiver Football field reference - Special atomic clocks - Oscillations of an atom as 24 metronome provide the most accurate time Receiver clocks aren t as accurate -

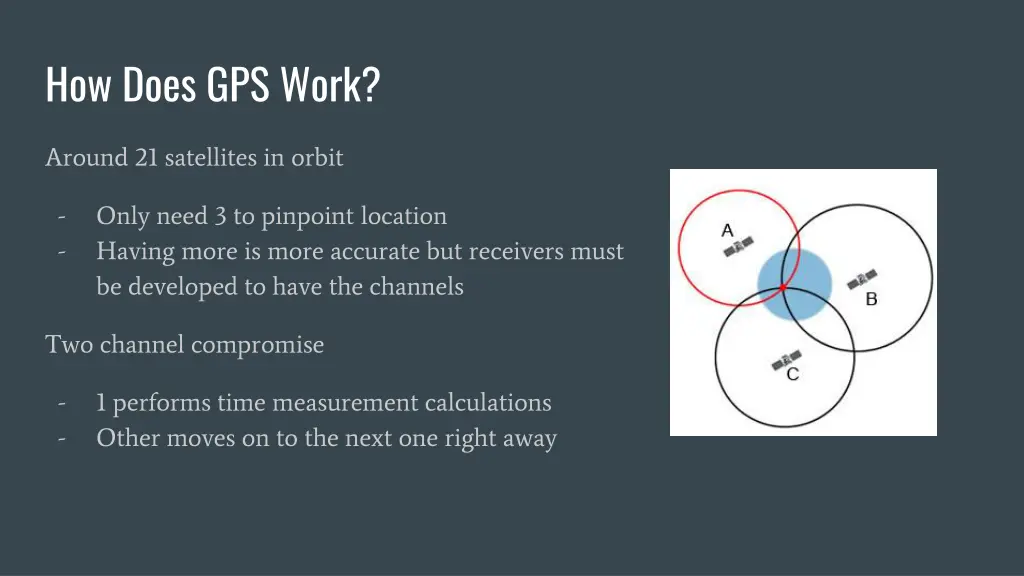

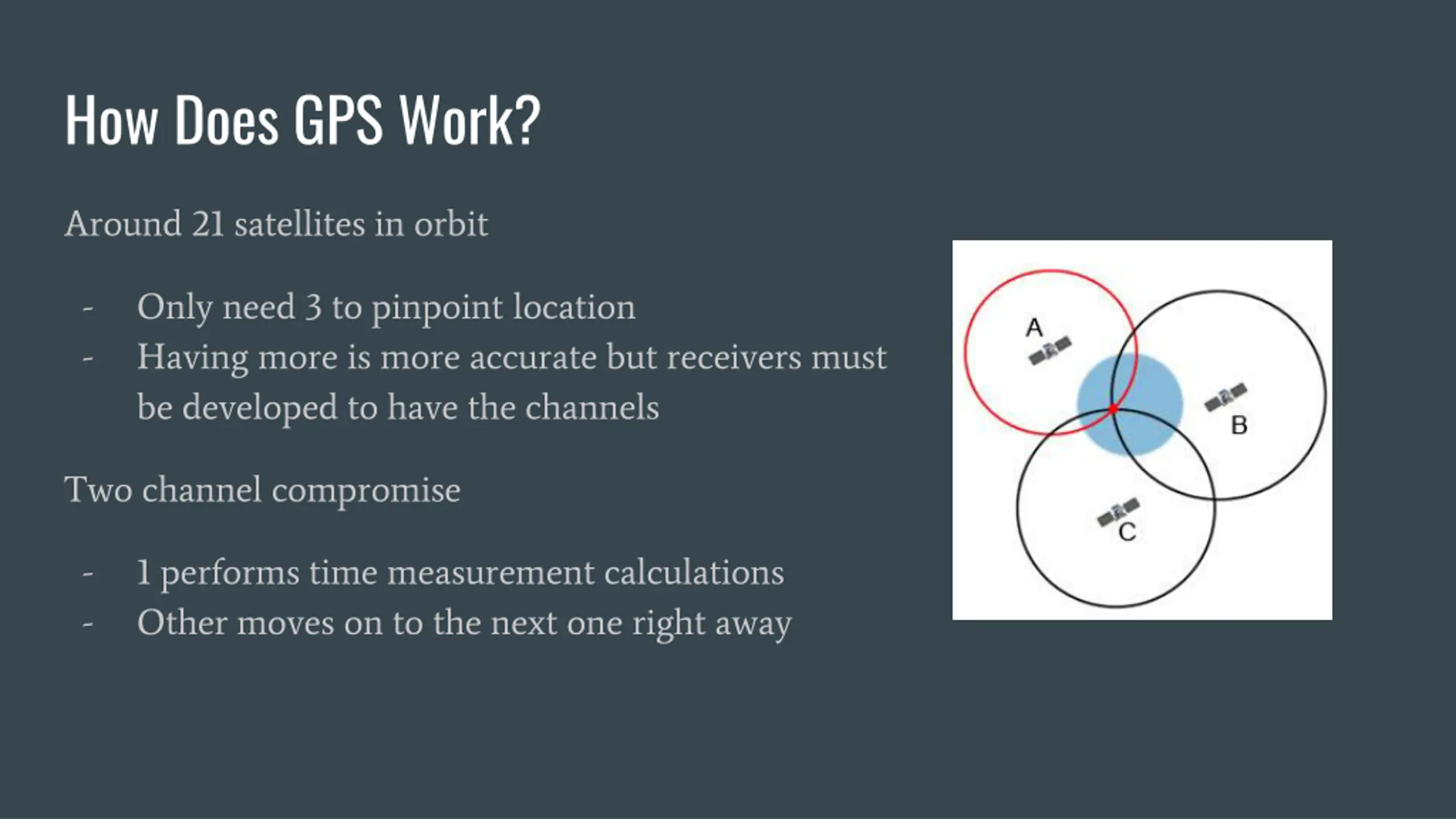

How Does GPS Work? Around 21 satellites in orbit - - Only need 3 to pinpoint location Having more is more accurate but receivers must be developed to have the channels Two channel compromise - - 1 performs time measurement calculations Other moves on to the next one right away

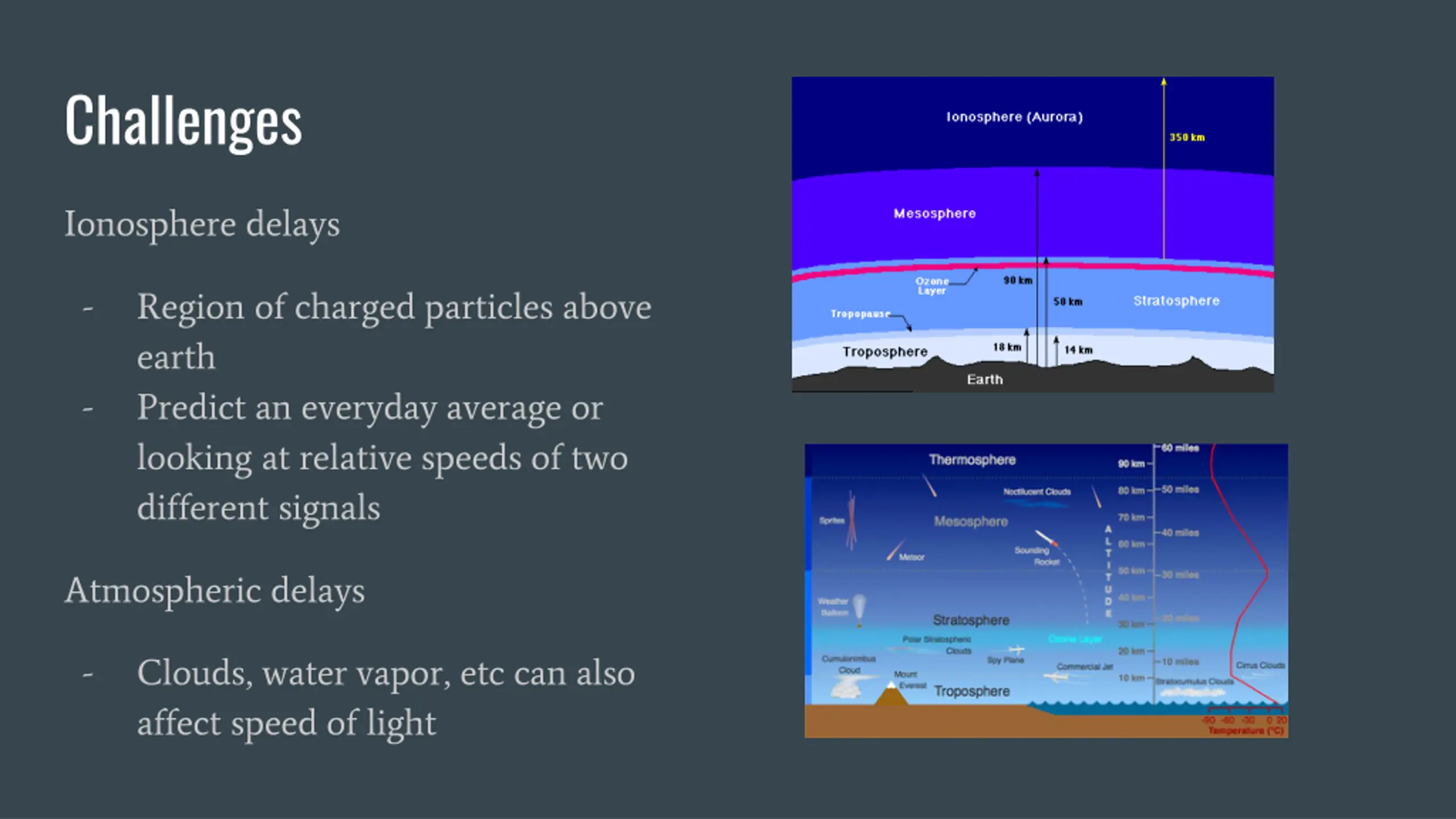

Challenges Ionosphere delays - Region of charged particles above earth Predict an everyday average or looking at relative speeds of two different signals - Atmospheric delays - Clouds, water vapor, etc can also affect speed of light

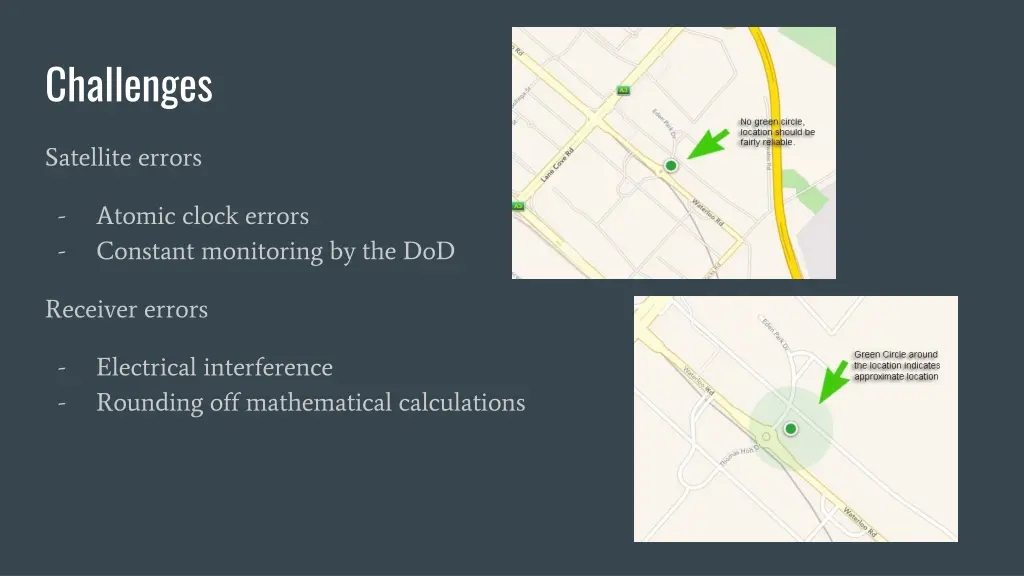

Challenges Satellite errors - - Atomic clock errors Constant monitoring by the DoD Receiver errors - - Electrical interference Rounding off mathematical calculations

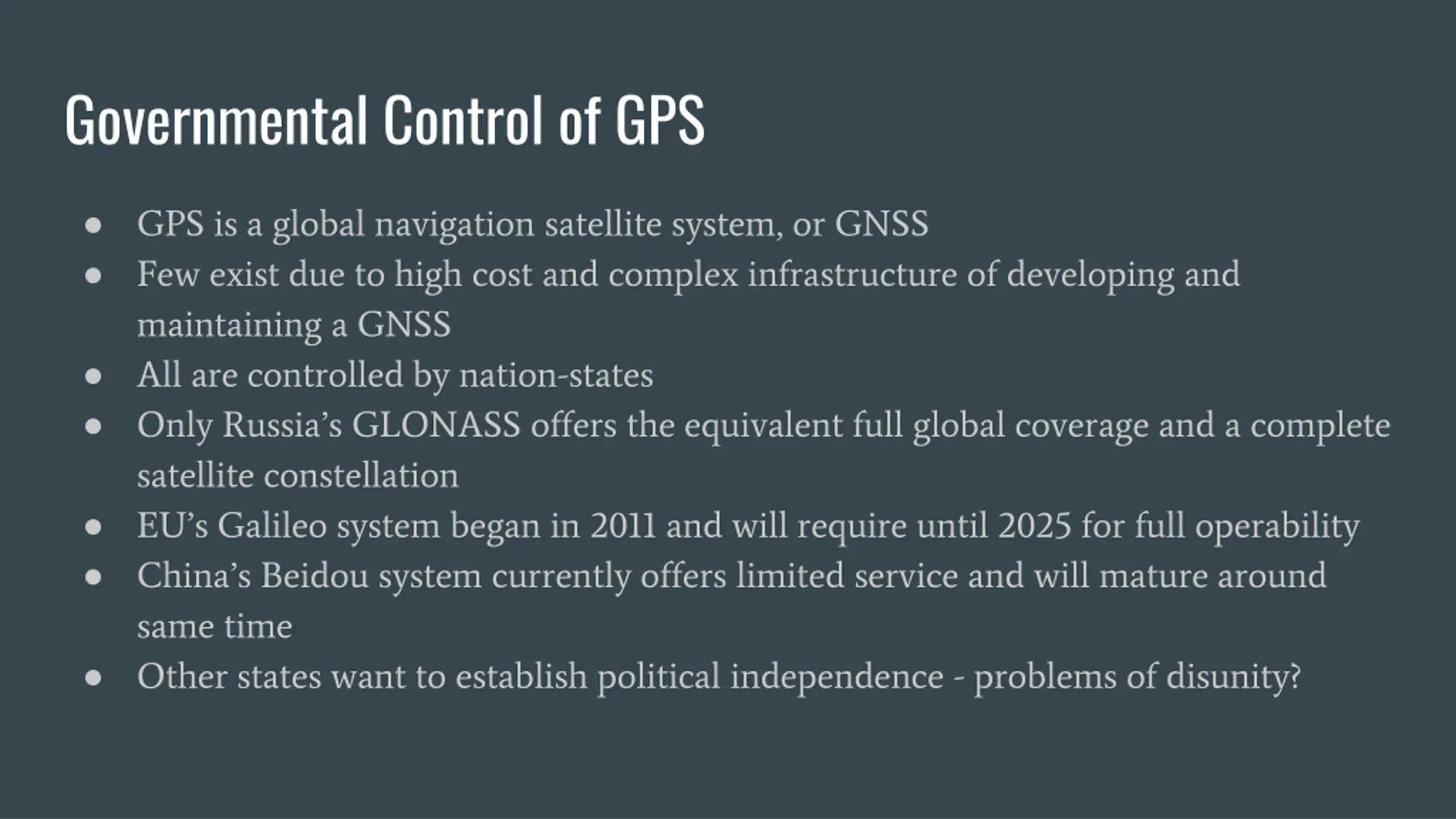

Governmental Control of GPS GPS is a global navigation satellite system, or GNSS Few exist due to high cost and complex infrastructure of developing and maintaining a GNSS All are controlled by nation-states Only Russia s GLONASS offers the equivalent full global coverage and a complete satellite constellation EU s Galileo system began in 2011 and will require until 2025 for full operability China s Beidou system currently offers limited service and will mature around same time Other states want to establish political independence - problems of disunity?
