1. TECHNOLOGY PARTNER PRESENTS INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru Amit R Bhatia / Puneeth Nayak Escalation Engineer, Microsoft Integration made easy with Azure Service Bus/APIM

2. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru Integrate legacy system Publish APIs hosted on-premise to partners Automated process to extract the text from images and store to durable storage Ensuring Scalability, Durability, Reliability 2

3. Users of today

4. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru What is Service Bus? Service Bus provides a multi-tenant service for connecting applications through the cloud. Four different communication mechanisms Relay Queue Topic Event Hub

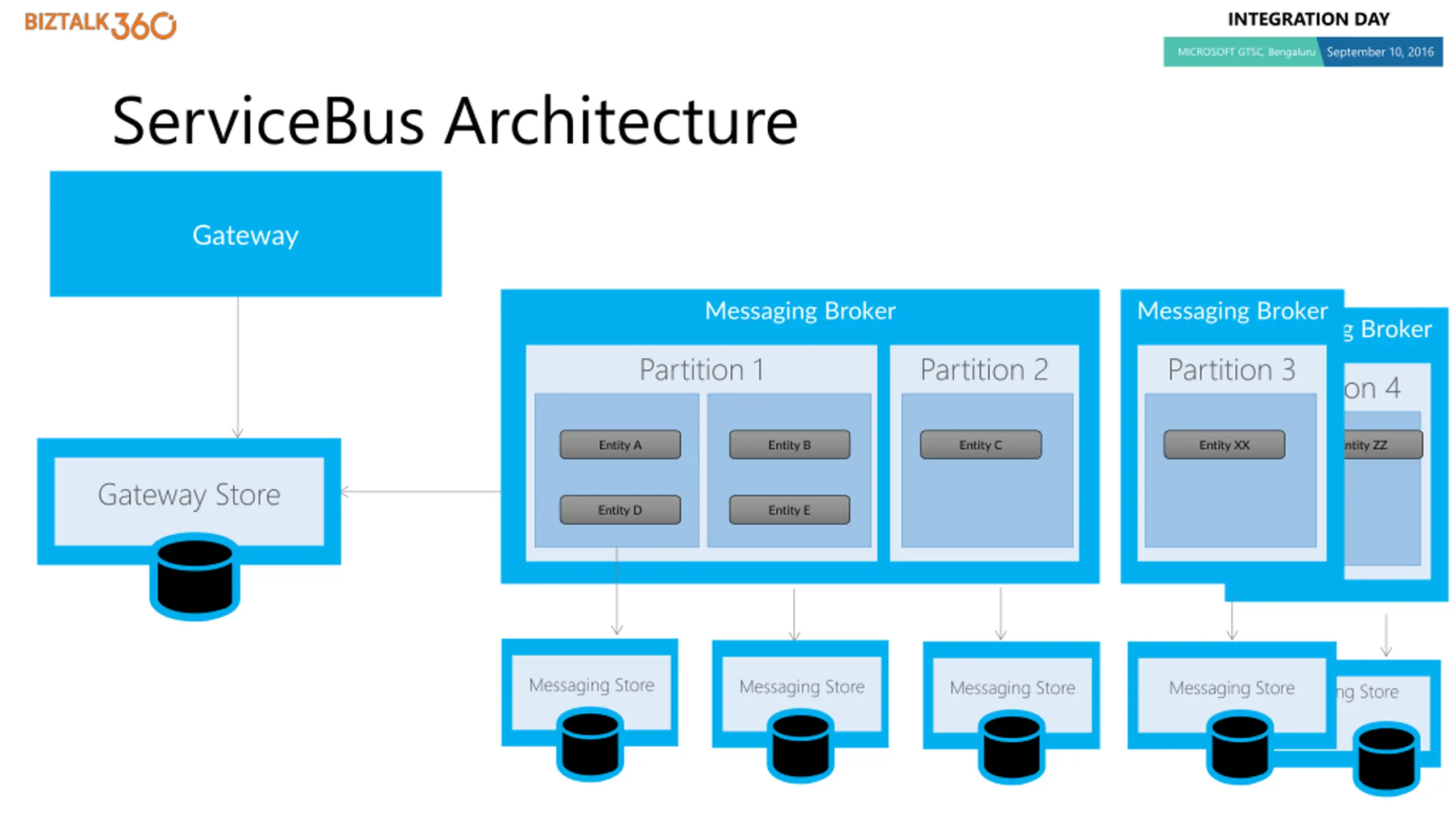

5. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru ServiceBus Architecture Gateway Messaging Broker Messaging Broker Messaging Broker Partition 3 Partition 1 Partition 2 Partition 4 Entity A Entity B Entity C Entity XX Entity ZZ Gateway Store Entity D Entity E Messaging Store Messaging Store Messaging Store Messaging Store Messaging Store

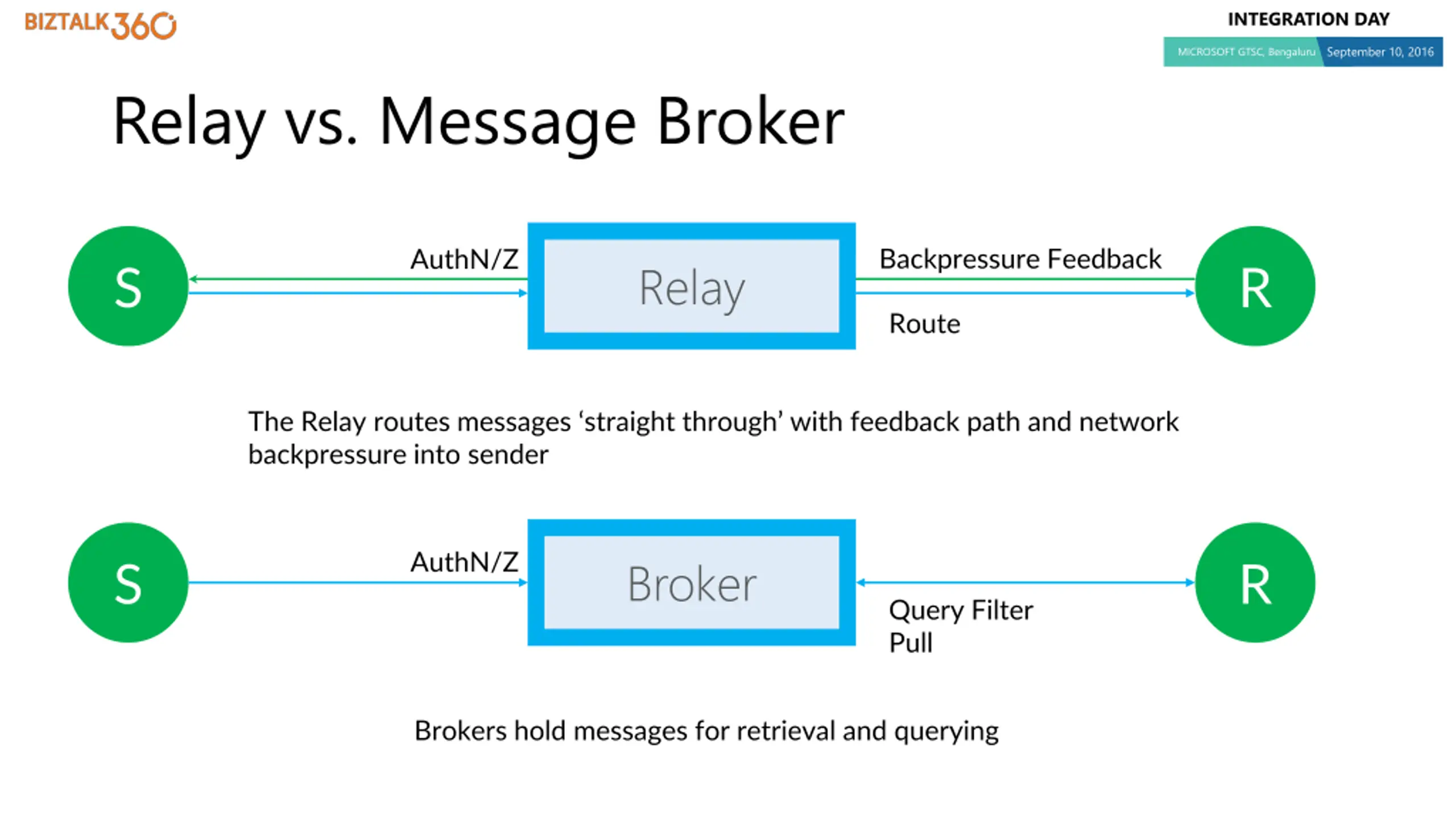

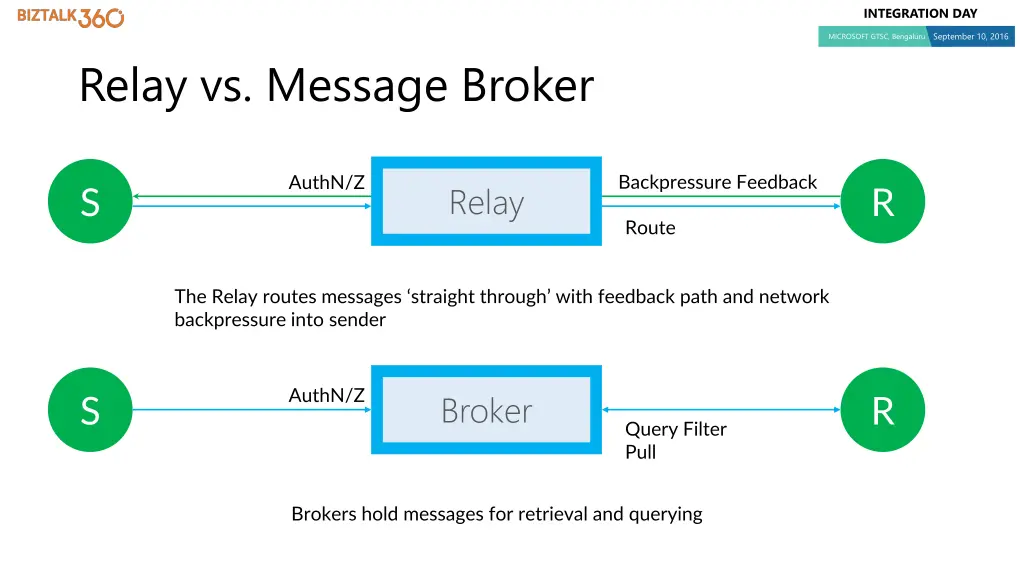

6. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru Relay vs. Message Broker Backpressure Feedback AuthN/Z Relay S R Route The Relay routes messages straight through with feedback path and network backpressure into sender AuthN/Z Broker S R Query Filter Pull Brokers hold messages for retrieval and querying

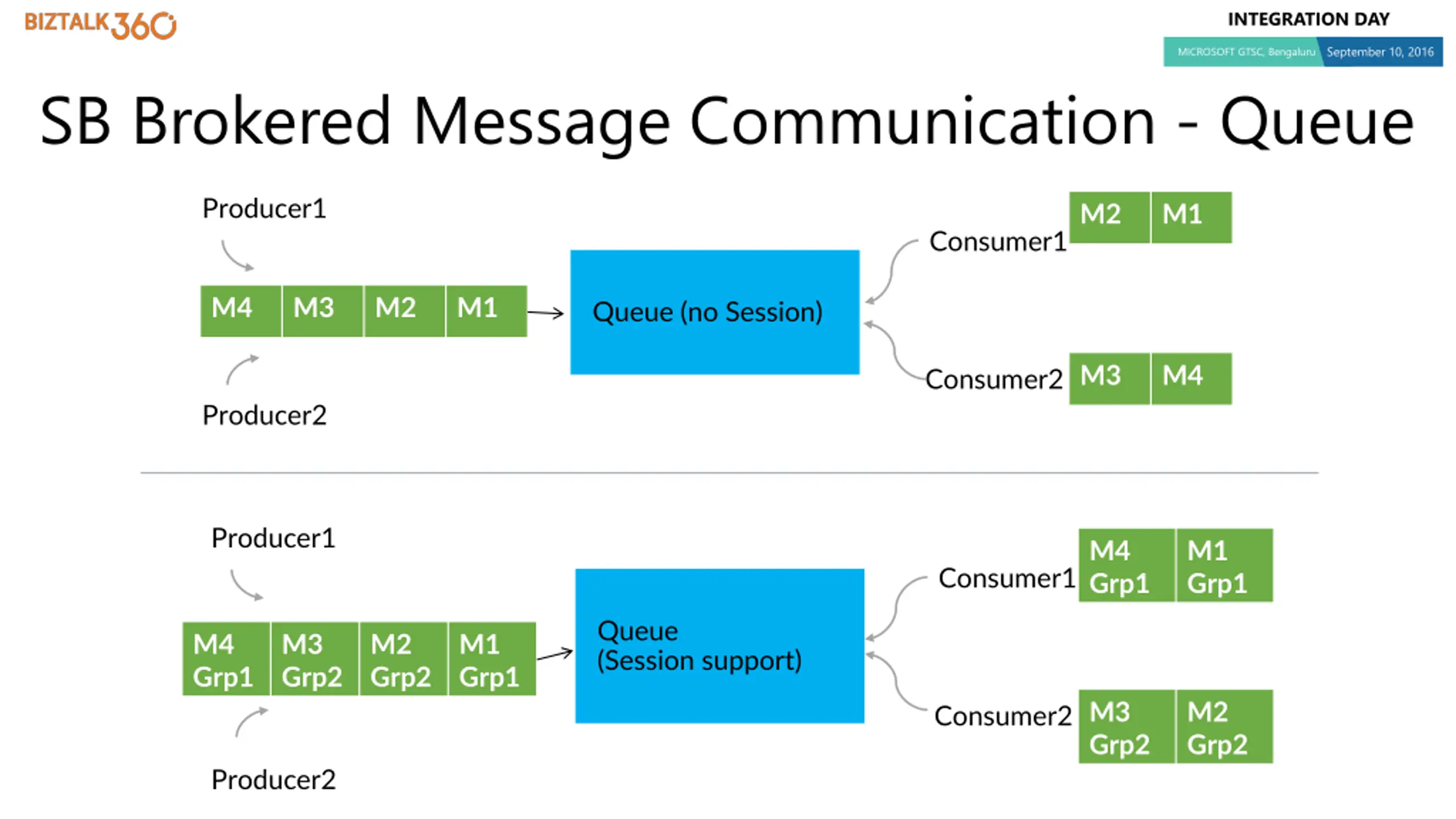

7. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru SB Brokered Message Communication - Queue Producer1 M2 M1 Consumer1 M4 M3 M2 M1 Queue (no Session) M3 M4 Consumer2 Producer2 Producer1 M4 Grp1 M1 Grp1 Consumer1 Queue (Session support) M4 Grp1 M3 Grp2 M2 Grp2 M1 Grp1 M3 Grp2 M2 Grp2 Consumer2 Producer2

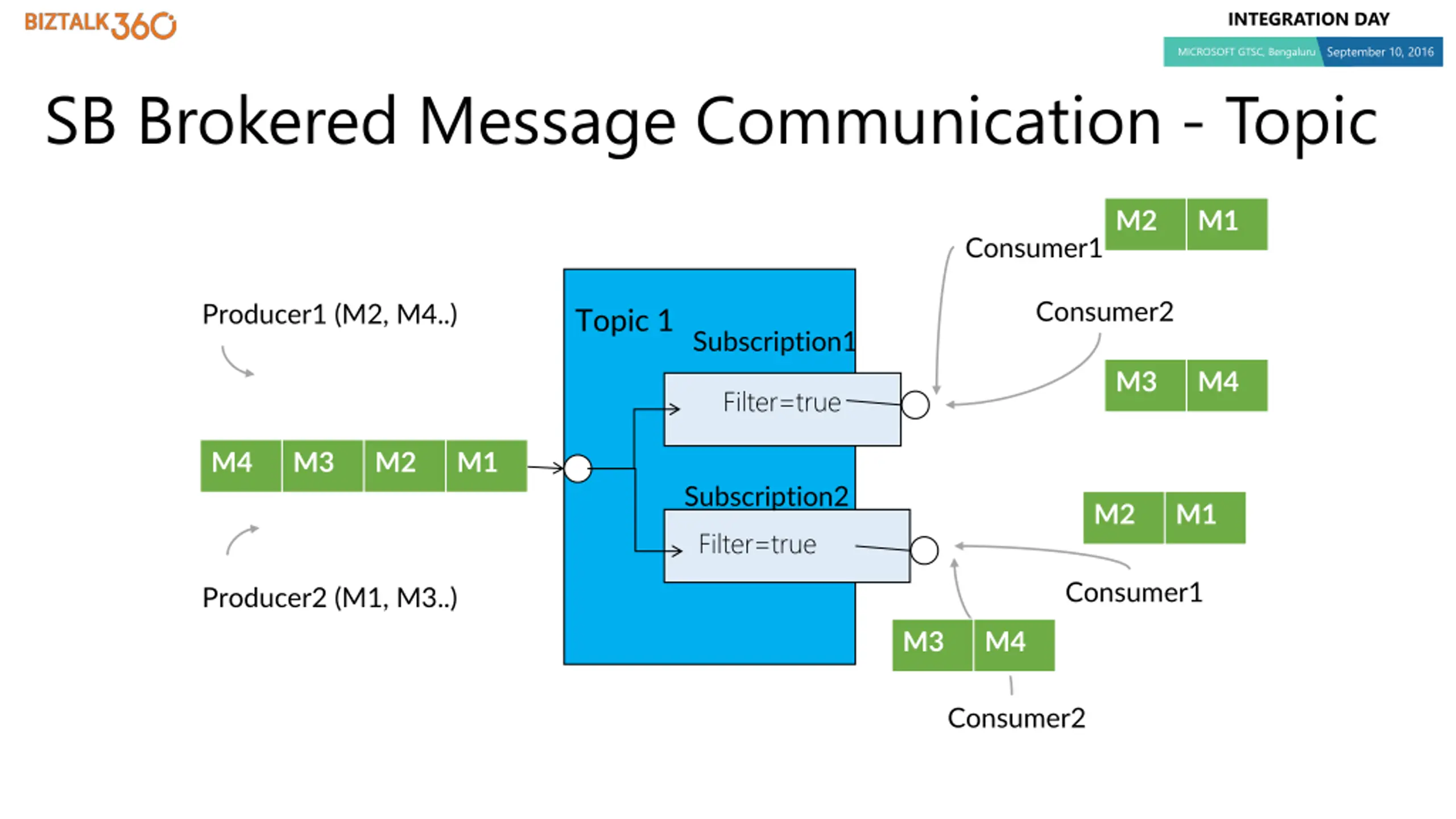

8. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru SB Brokered Message Communication - Topic M2 M1 Consumer1 Consumer2 Producer1 (M2, M4..) Topic 1 Subscription1 M3 M4 Filter=true M4 M3 M2 M1 Subscription2 Filter=true M2 M1 Consumer1 Producer2 (M1, M3..) M3 M4 Consumer2

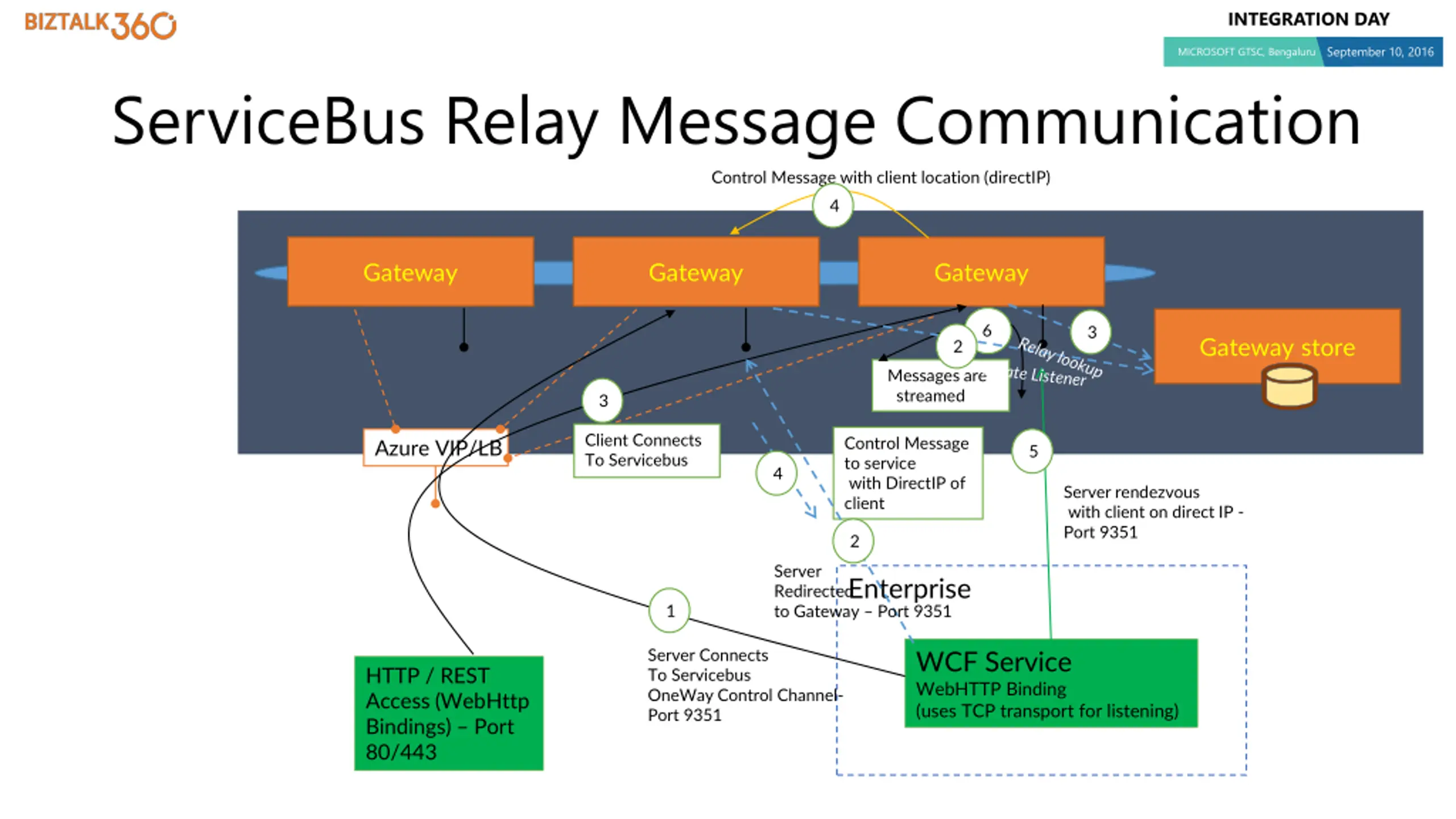

9. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru ServiceBus Relay Message Communication Control Message with client location (directIP) 4 Gateway Gateway Gateway 6 3 Gateway store 2 Messages are streamed 3 Client Connects To Servicebus Control Message to service with DirectIP of client Azure VIP/LB 5 4 Server rendezvous with client on direct IP - Port 9351 2 Server Redirected to Gateway Port 9351 Enterprise 1 Server Connects To Servicebus OneWay Control Channel- Port 9351 WCF Service WebHTTP Binding (uses TCP transport for listening) HTTP / REST Access (WebHttp Bindings) Port 80/443

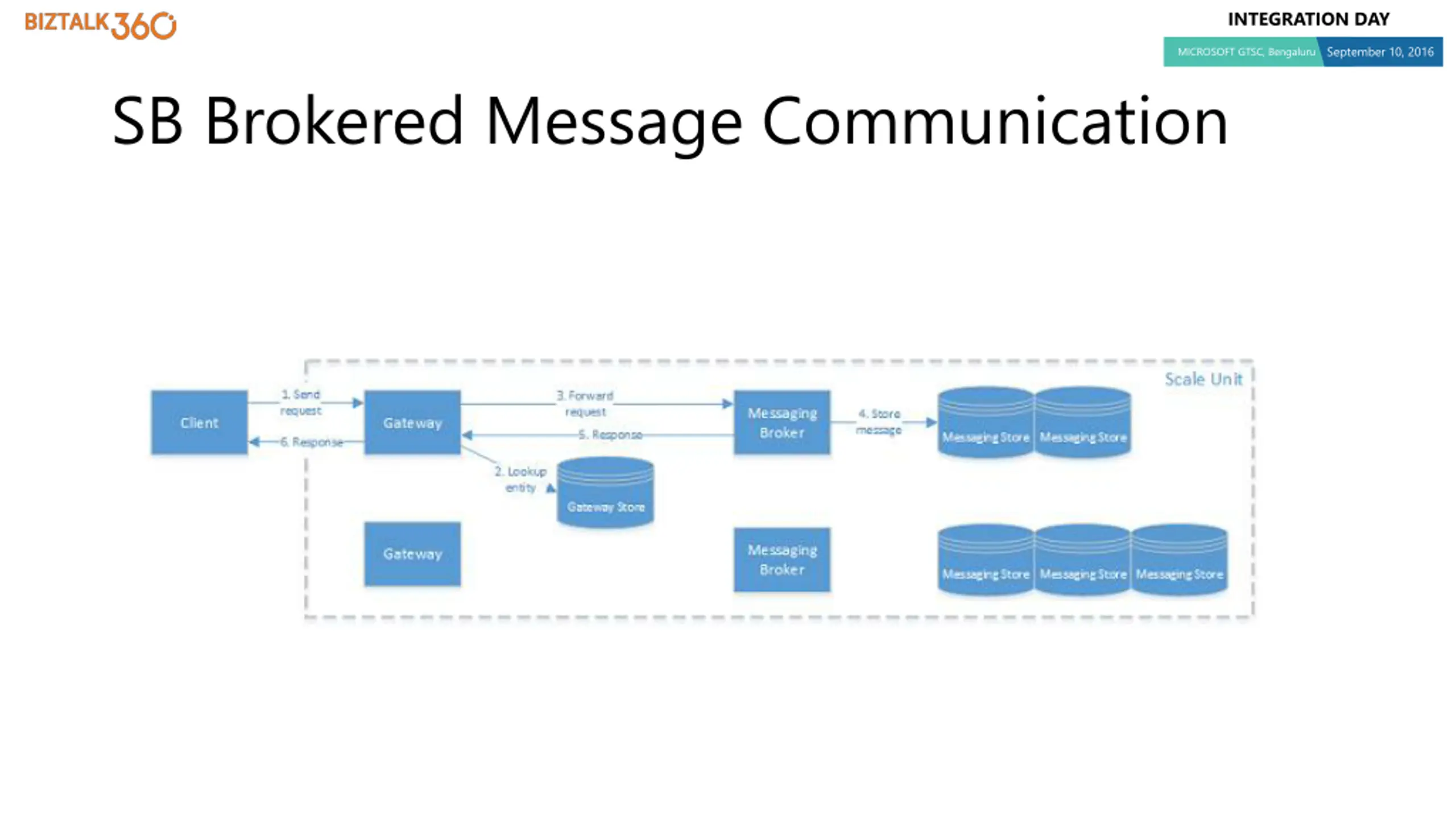

10. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru SB Brokered Message Communication

11. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru How do you engage with developers? How do you reduce TTFSC? How do you enforce your business policies? How do you make your legacy API modern? How do you understand their behavior? How do you protect your core business systems?

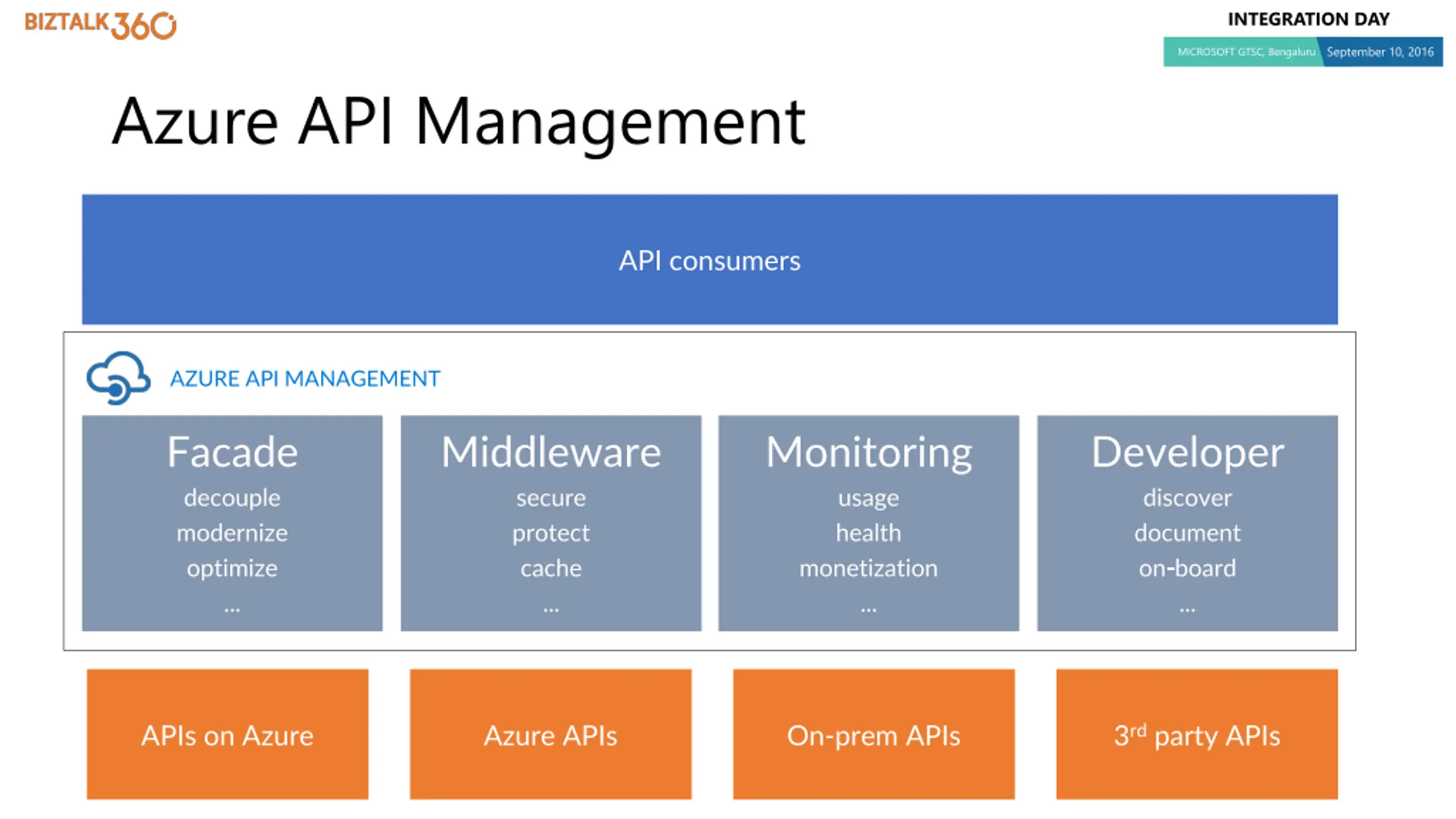

12. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru Azure API Management API consumers AZURE API MANAGEMENT Facade decouple modernize optimize ... Middleware secure protect cache ... Monitoring usage health monetization ... Developer discover document on-board ... APIs on Azure Azure APIs On-prem APIs 3rd party APIs

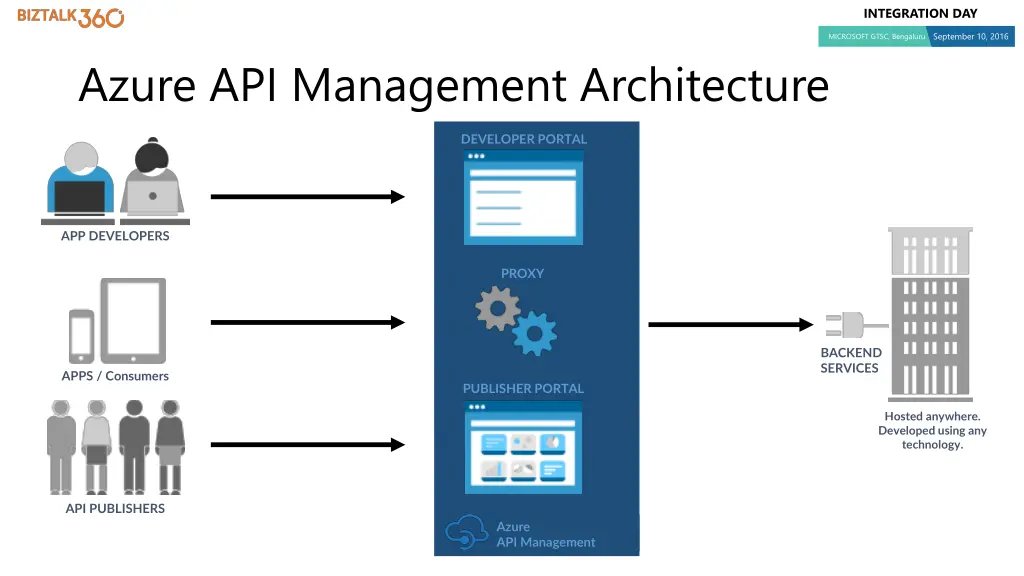

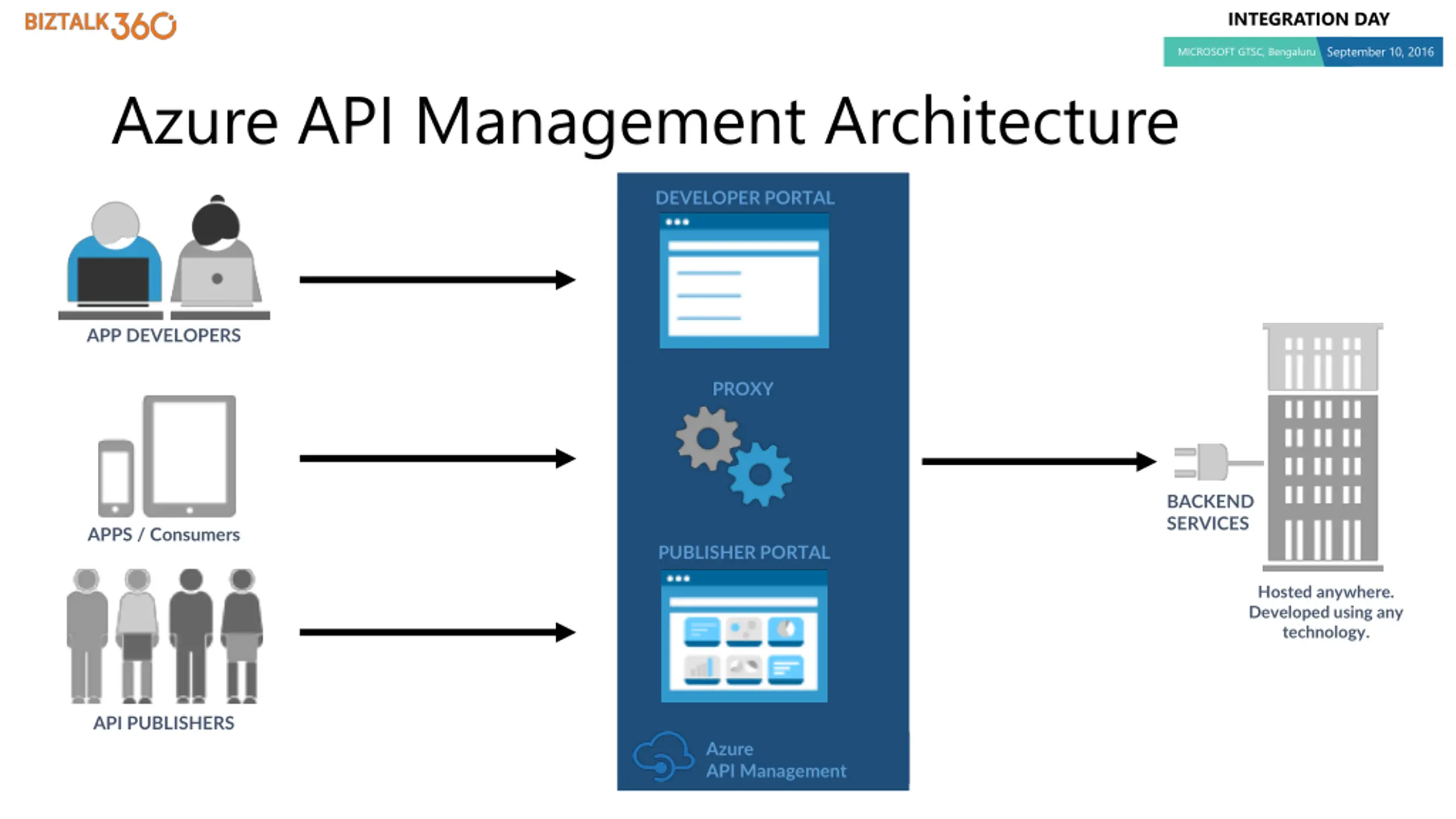

13. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru Azure API Management Architecture DEVELOPER PORTAL APP DEVELOPERS PROXY BACKEND SERVICES APPS / Consumers PUBLISHER PORTAL Hosted anywhere. Developed using any technology. API PUBLISHERS Azure API Management

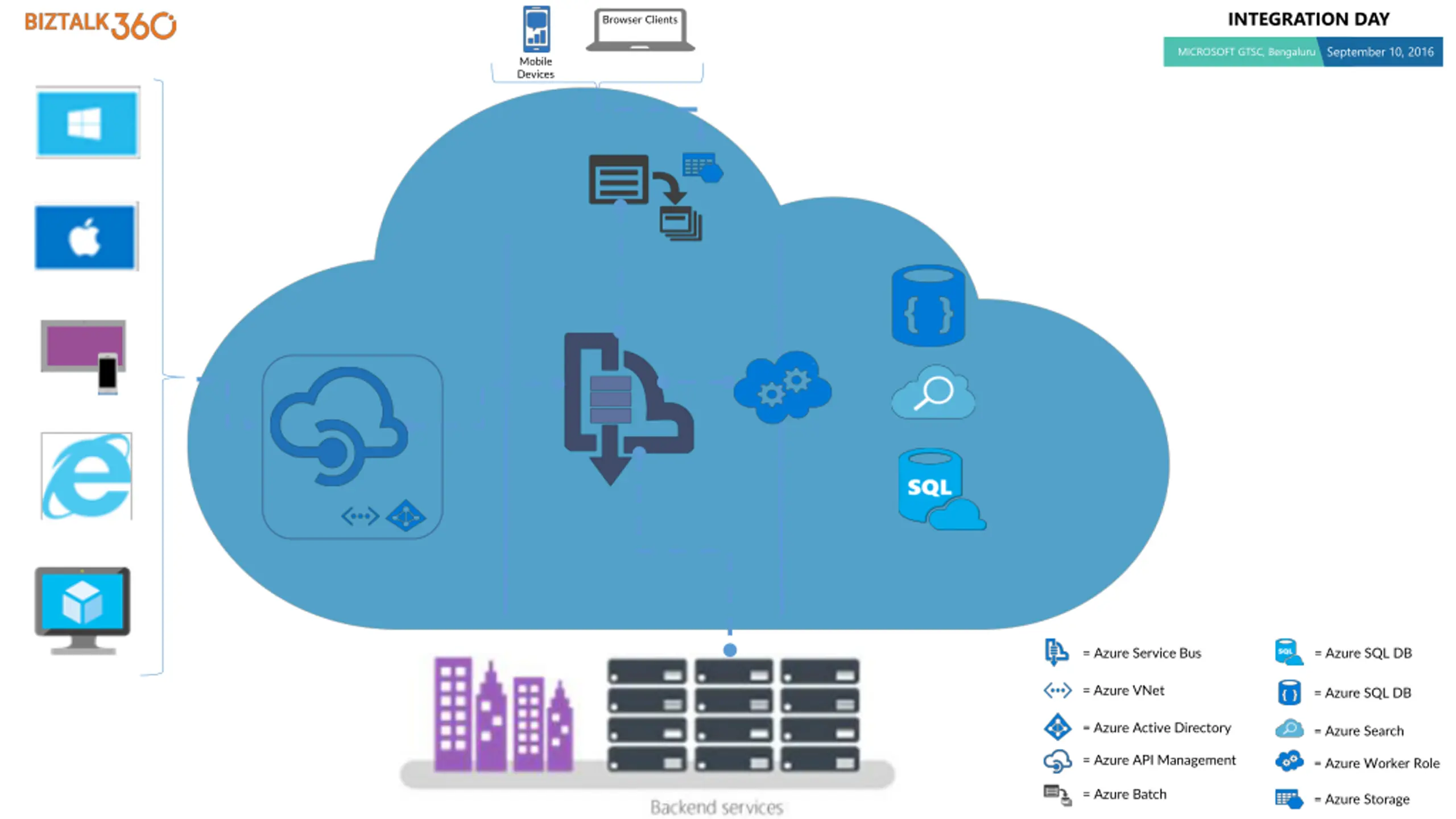

14. INTEGRATION DAY Browser Clients September 10, 2016 MICROSOFT GTSC, Bengaluru Mobile Devices = Azure Service Bus = Azure SQL DB = Azure VNet = Azure SQL DB = Azure Active Directory = Azure Search = Azure API Management = Azure Worker Role = Azure Batch = Azure Storage

15. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru Solution in action Demo

16. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru Questions?

17. INTEGRATION DAY September 10, 2016 MICROSOFT GTSC, Bengaluru Thank you! 17
