? Intelligent Signal Processing Test Angelo Ciaramella

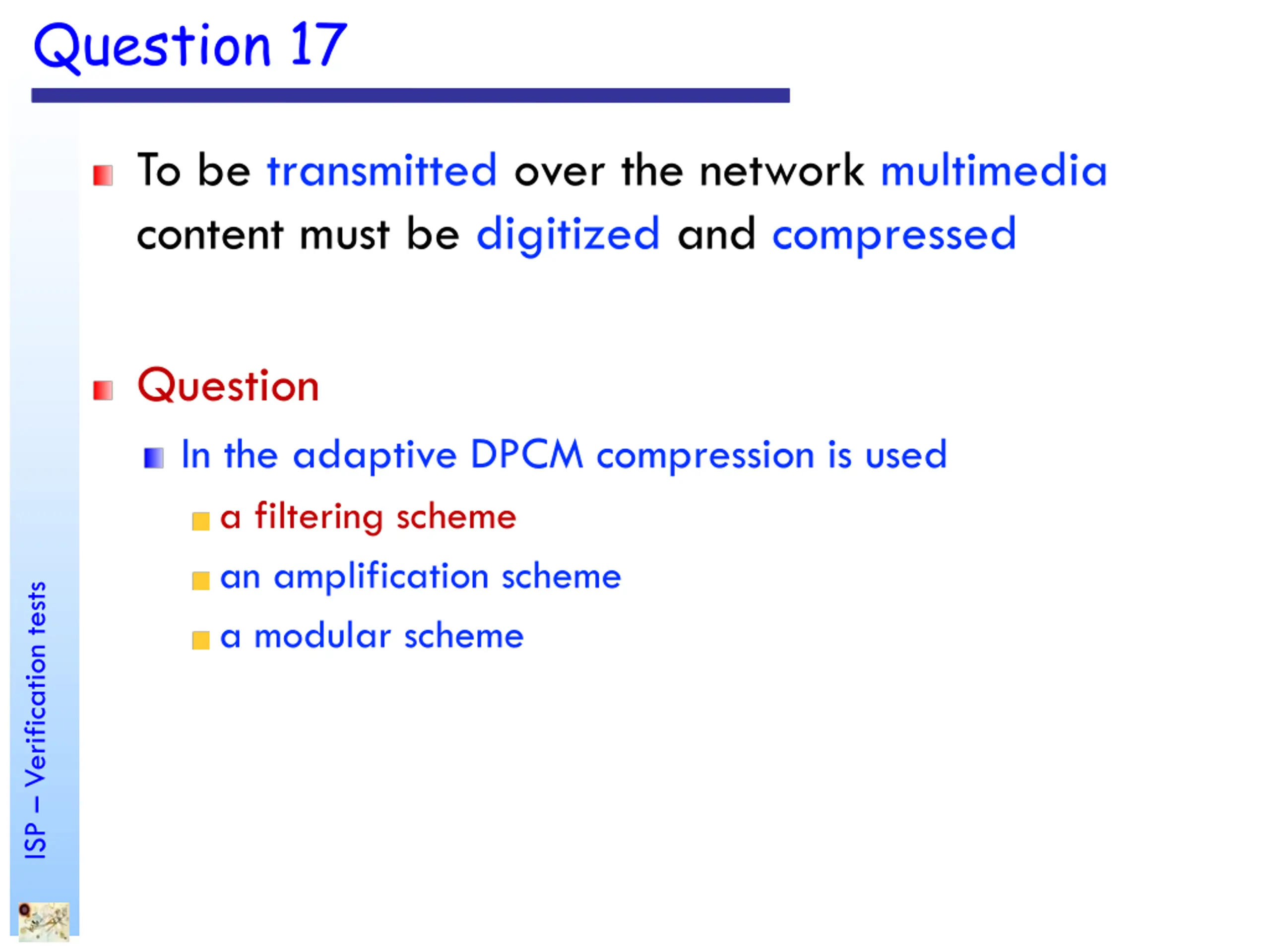

Question 17 To be transmitted over the network multimedia content must be digitized and compressed Question In the adaptive DPCM compression is used a filtering scheme an amplification scheme a modular scheme ISP Verification tests

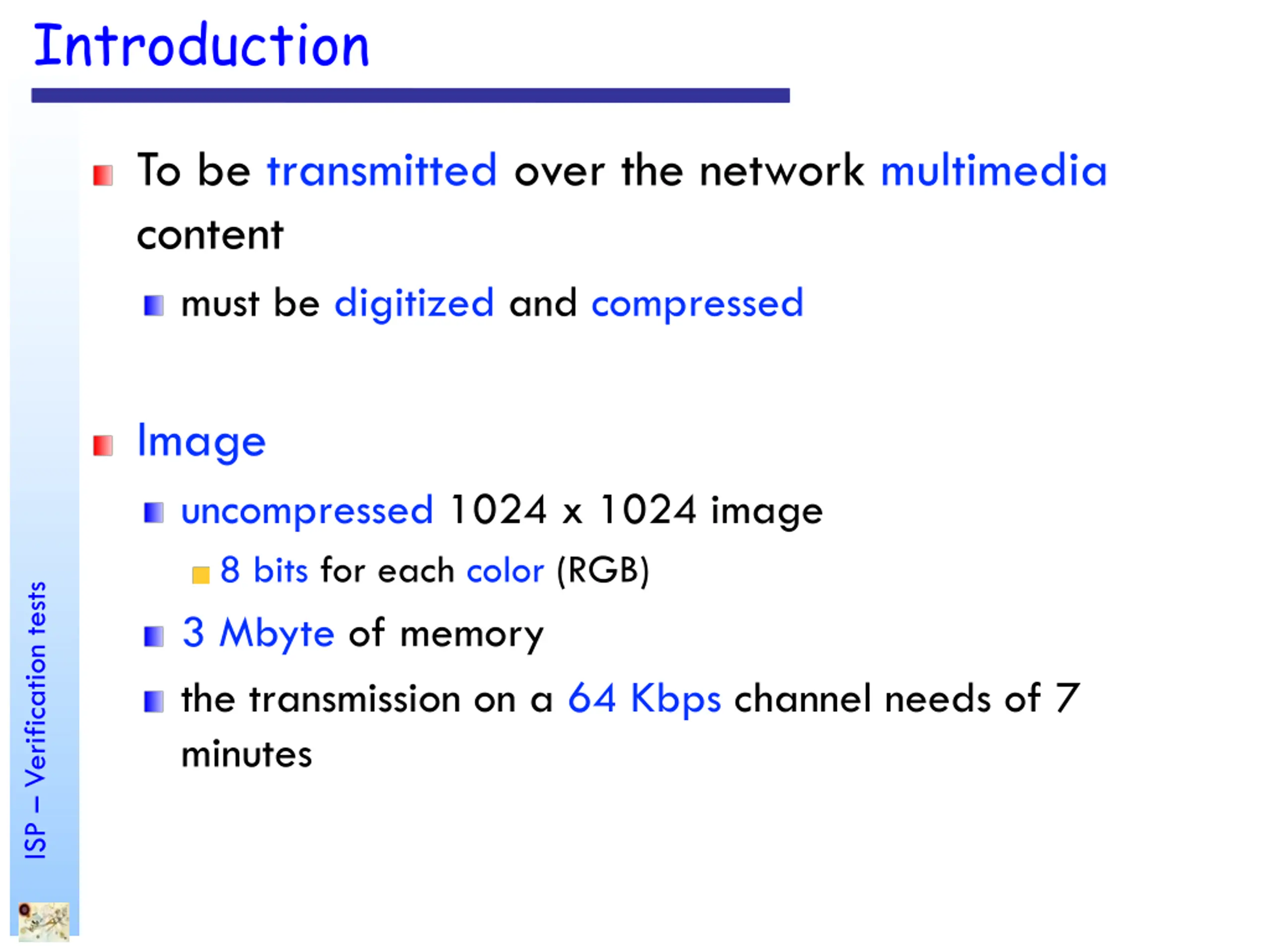

Introduction To be transmitted over the network multimedia content must be digitized and compressed Image uncompressed 1024 x 1024 image 8 bits for each color (RGB) 3 Mbyte of memory the transmission on a 64 Kbps channel needs of 7 minutes ISP Verification tests

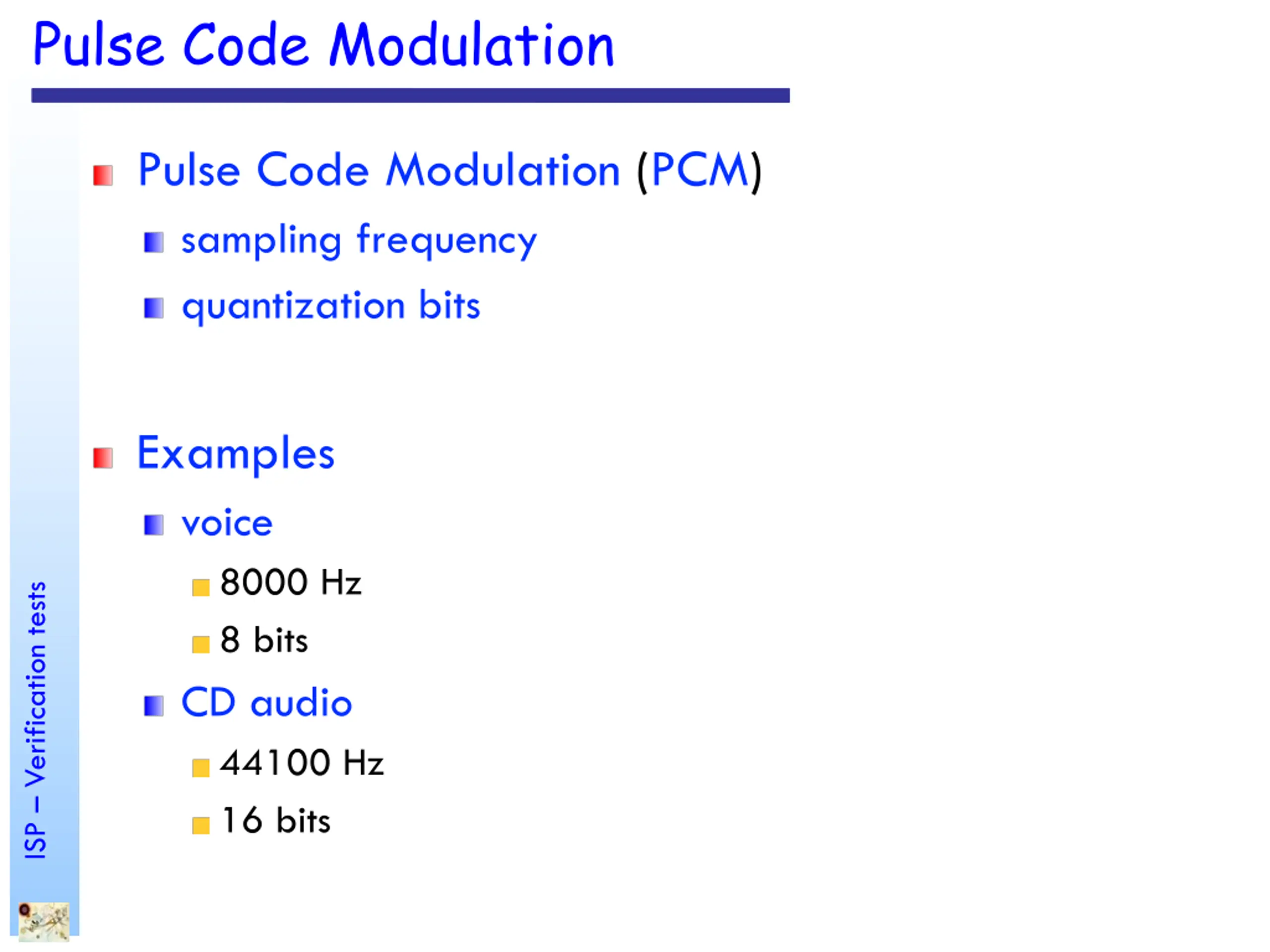

Pulse Code Modulation Pulse Code Modulation (PCM) sampling frequency quantization bits Examples voice 8000 Hz 8 bits CD audio 44100 Hz 16 bits ISP Verification tests

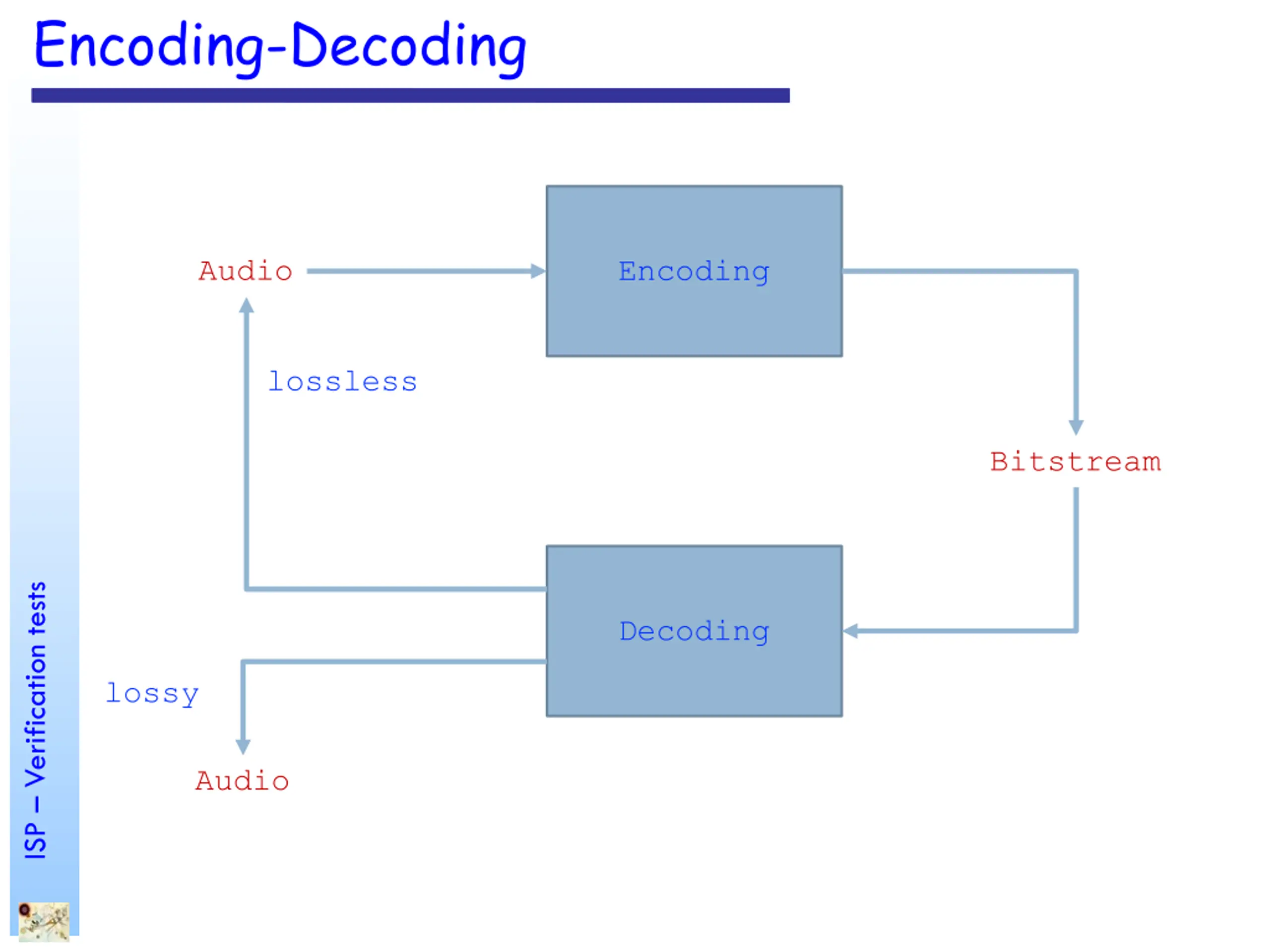

Encoding-Decoding Audio Encoding lossless Bitstream ISP Verification tests Decoding lossy Audio

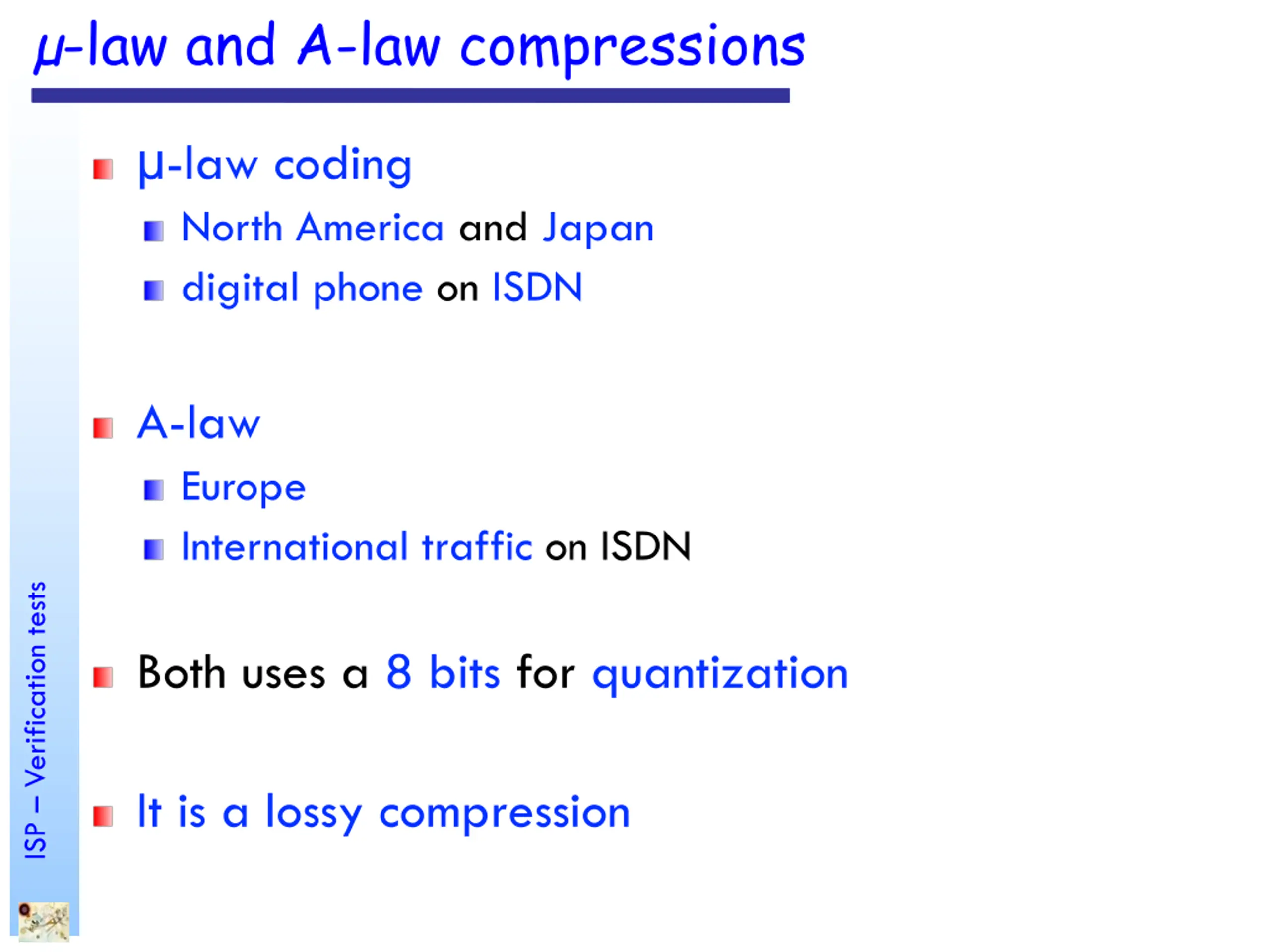

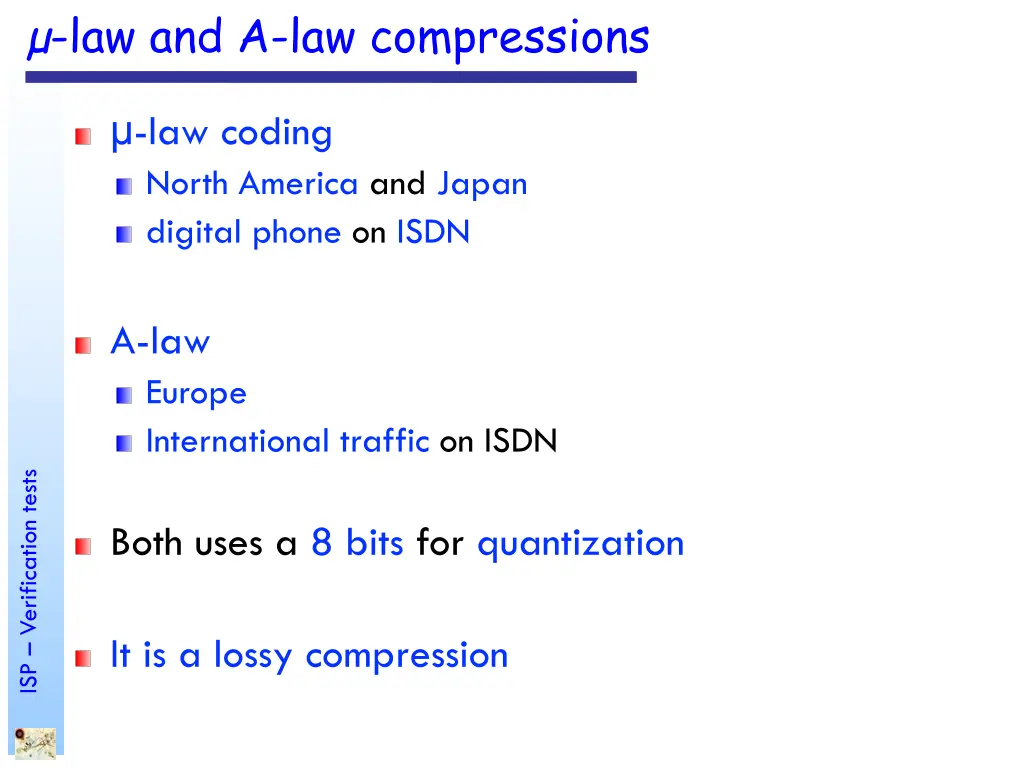

-law and A-law compressions -law coding North America and Japan digital phone on ISDN A-law Europe International traffic on ISDN ISP Verification tests Both uses a 8 bits for quantization It is a lossy compression

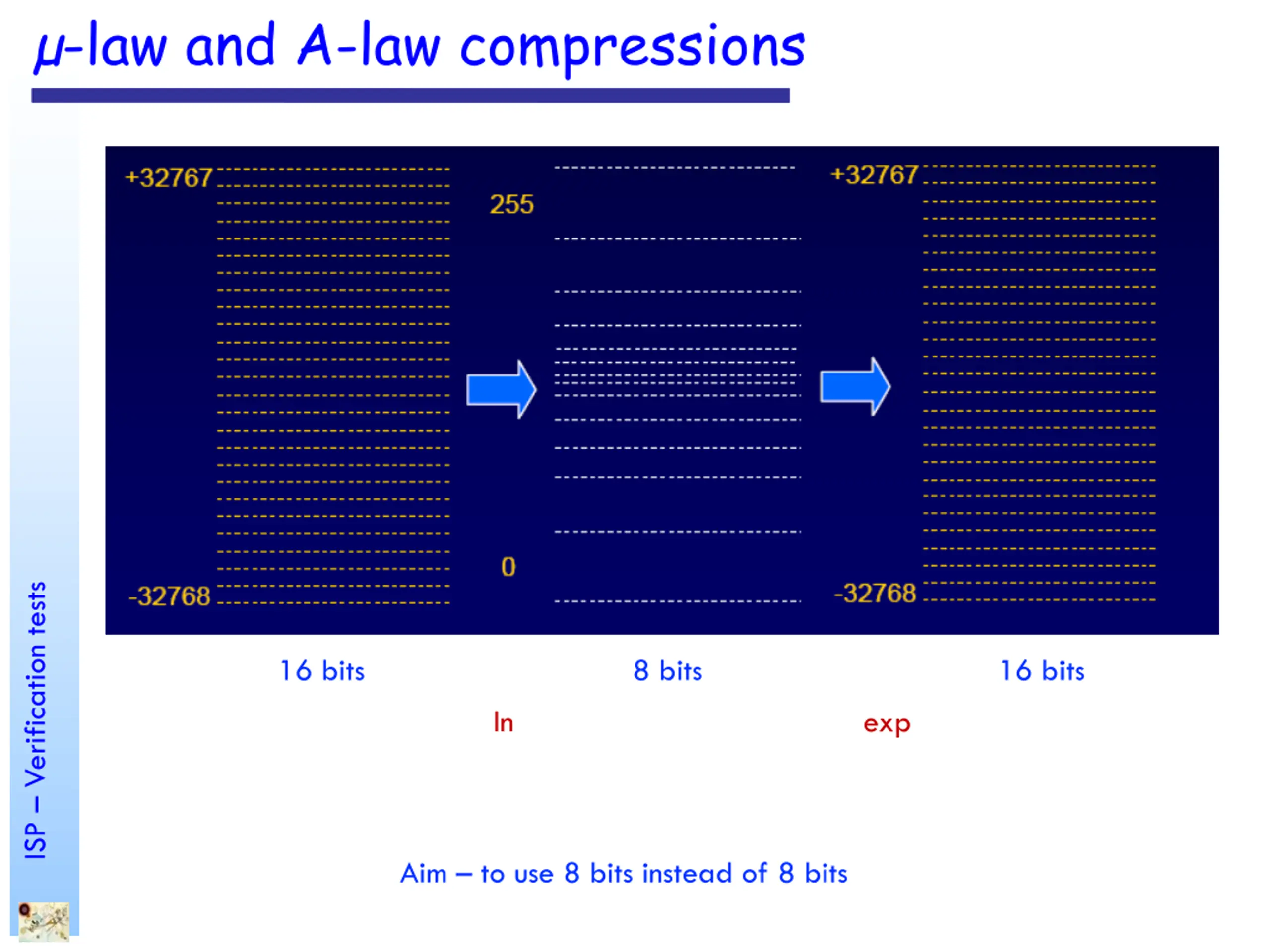

-law and A-law compressions ISP Verification tests 16 bits 8 bits 16 bits ln exp Aim to use 8 bits instead of 8 bits

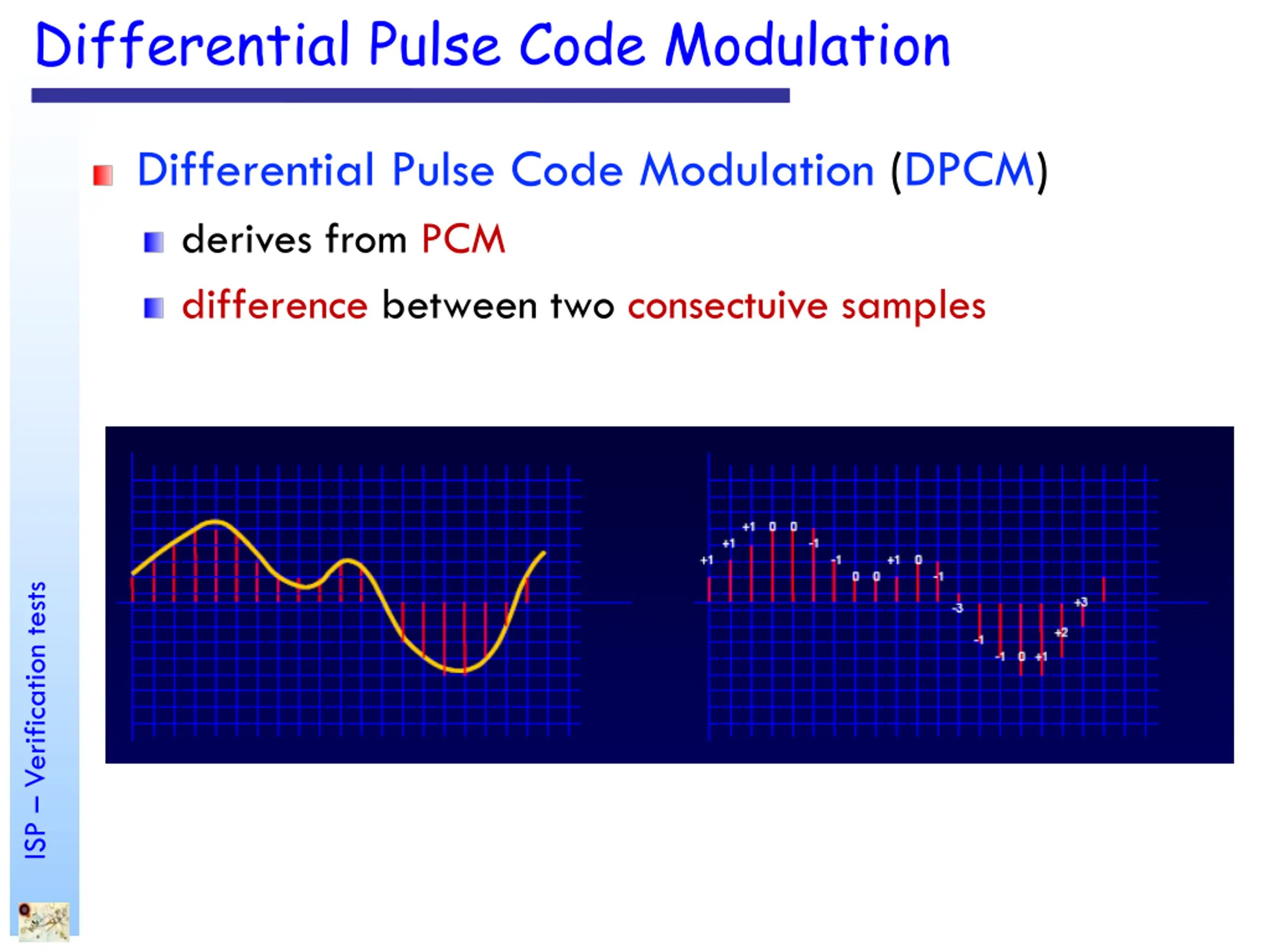

Differential Pulse Code Modulation Differential Pulse Code Modulation (DPCM) derives from PCM difference between two consectuive samples ISP Verification tests
DPCM Timing phase. Two registers are used. ISP Verification tests

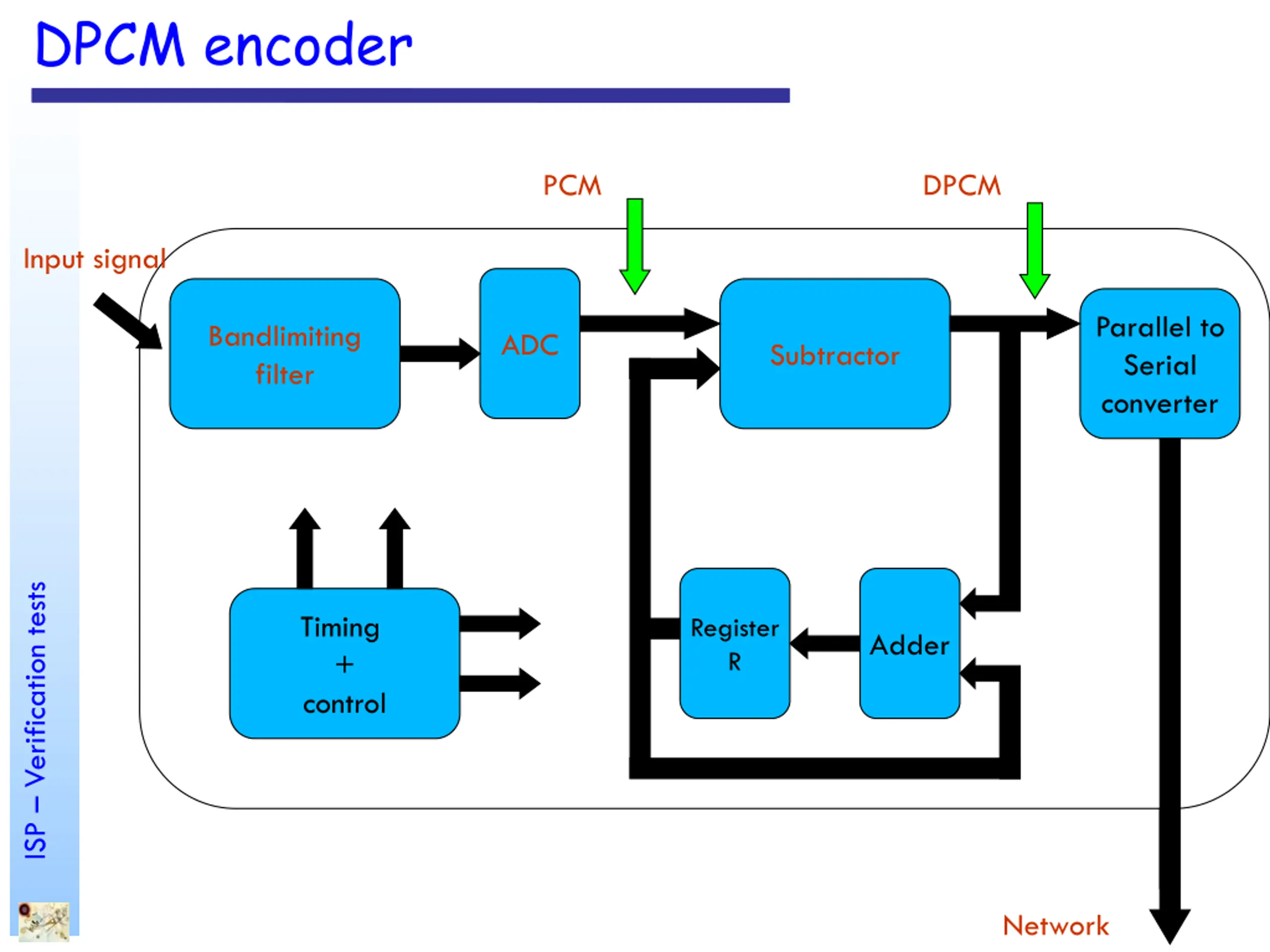

DPCM encoder PCM DPCM Input signal Parallel to Serial converter Bandlimiting filter ADC Subtractor ISP Verification tests Timing + control Register R Adder Network

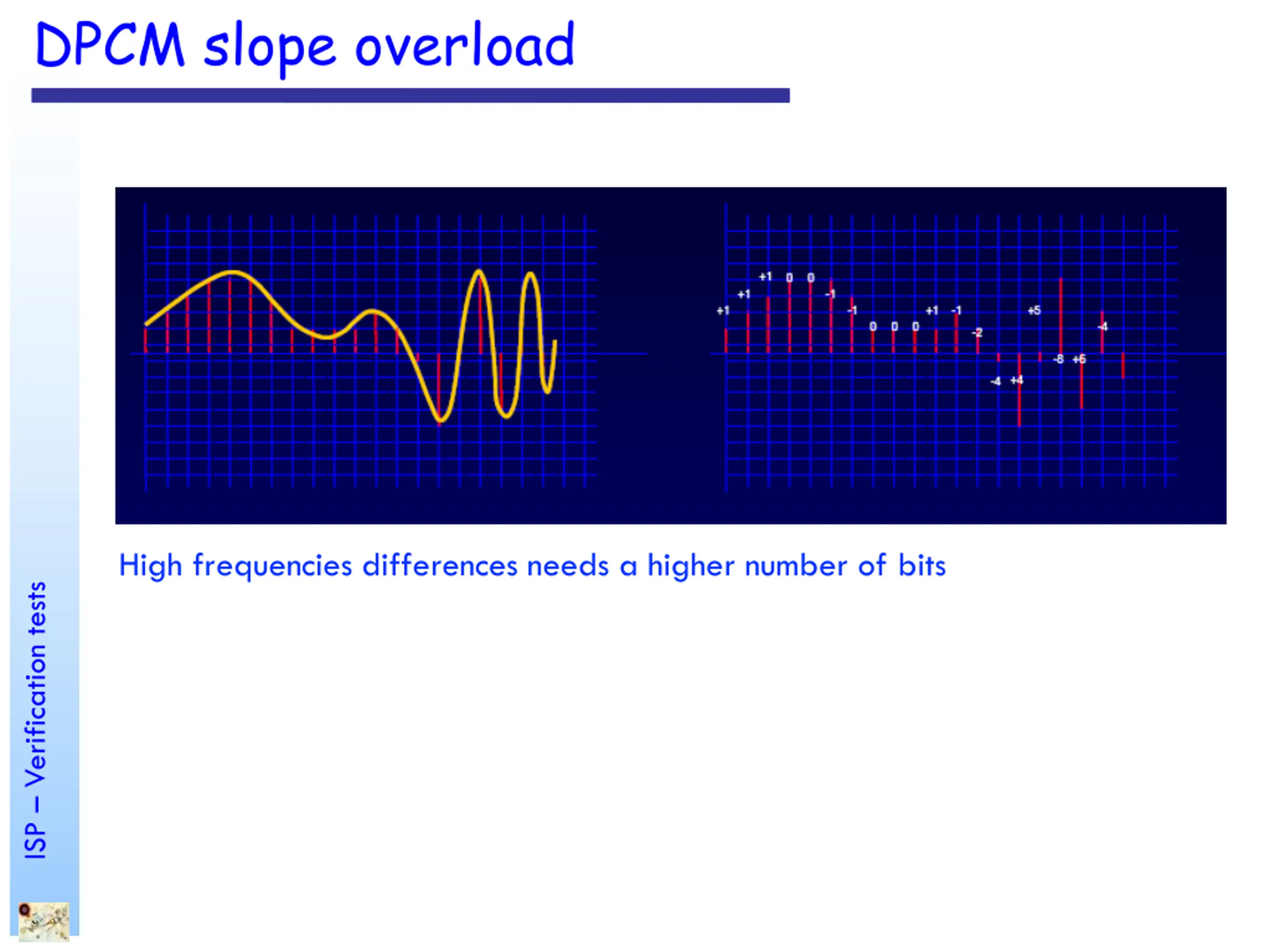

DPCM slope overload High frequencies differences needs a higher number of bits ISP Verification tests

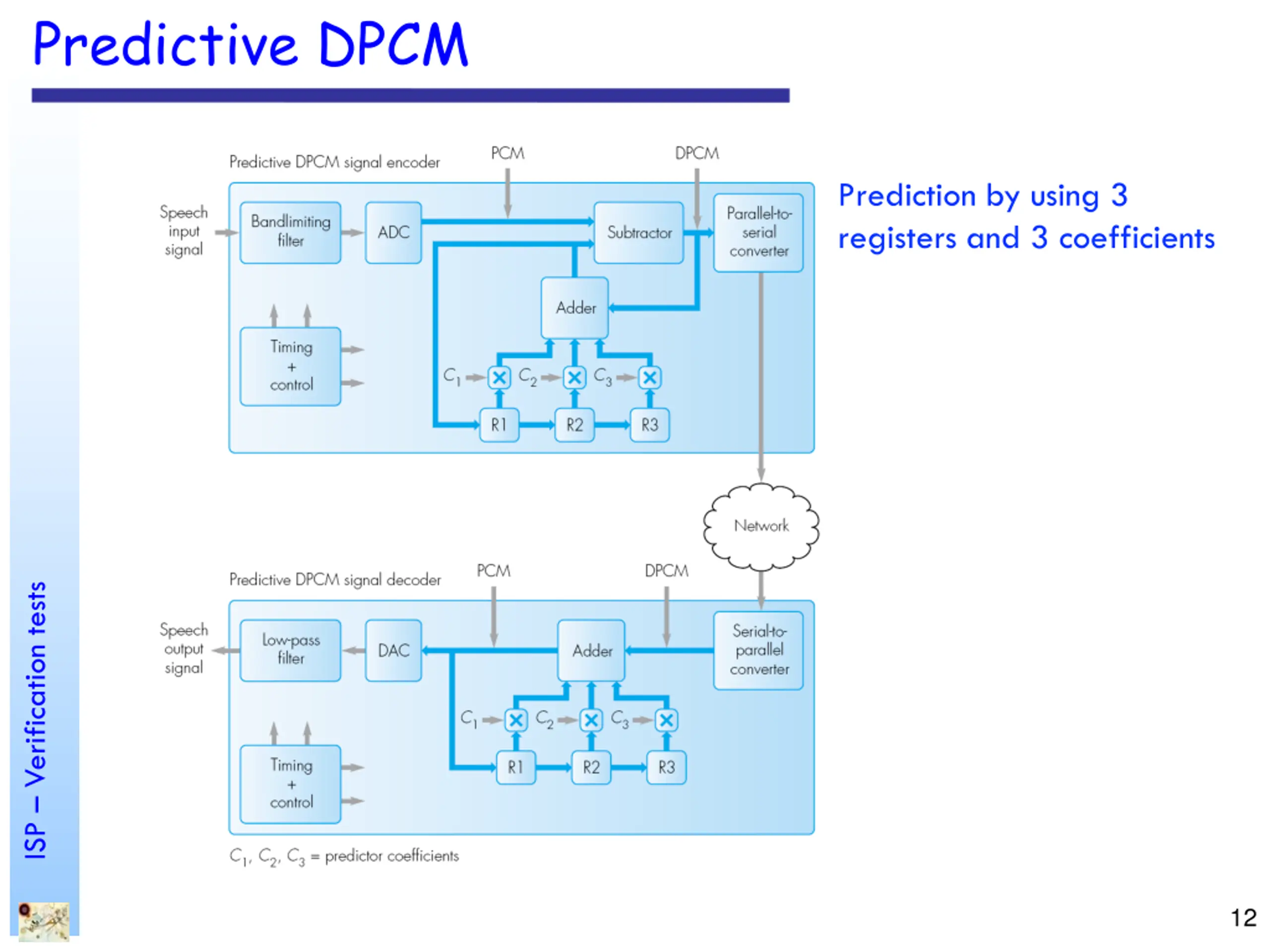

Predictive DPCM Prediction by using 3 registers and 3 coefficients ISP Verification tests 12

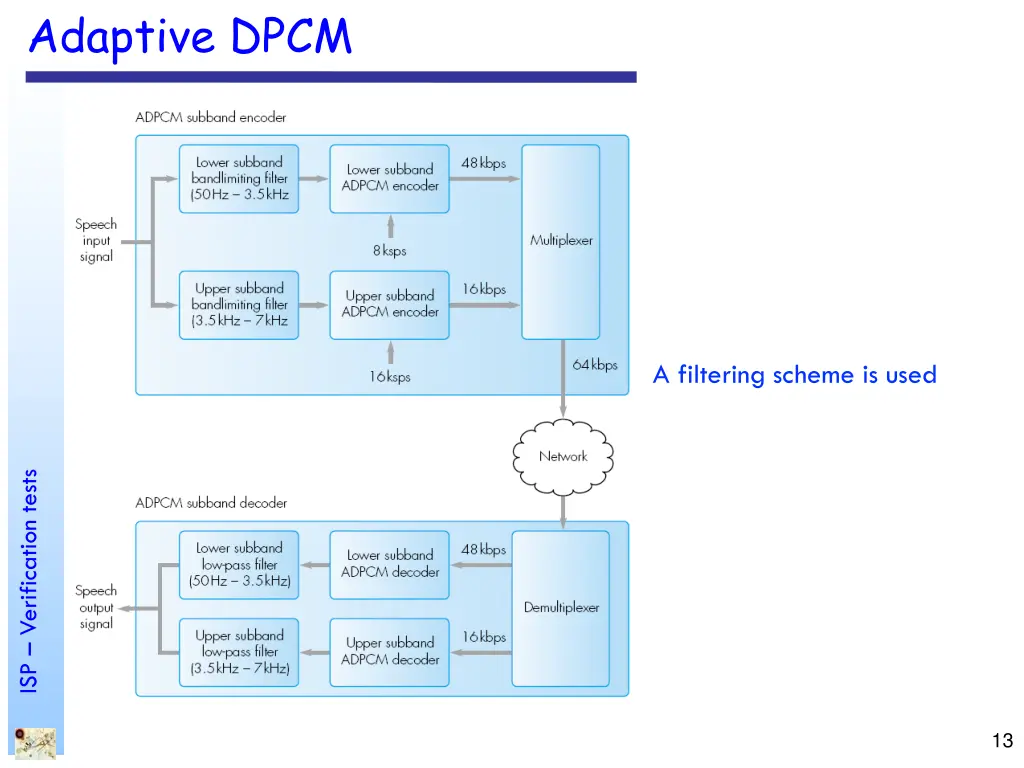

Adaptive DPCM A filtering scheme is used ISP Verification tests 13

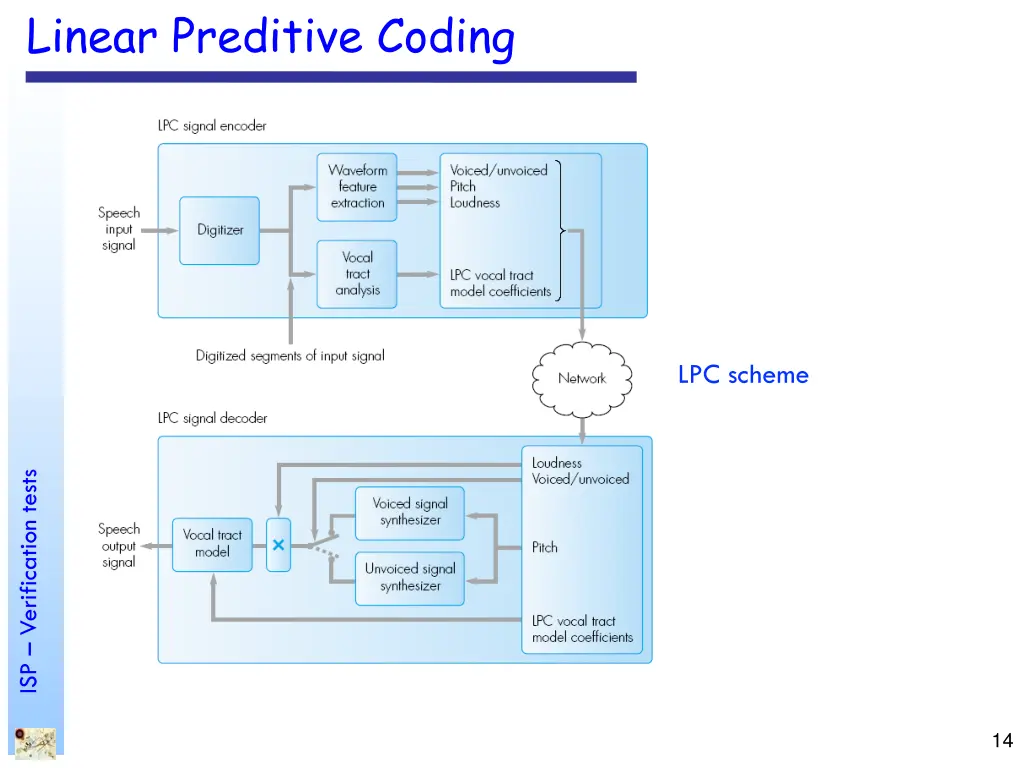

Linear Preditive Coding A LPC scheme ISP Verification tests 14

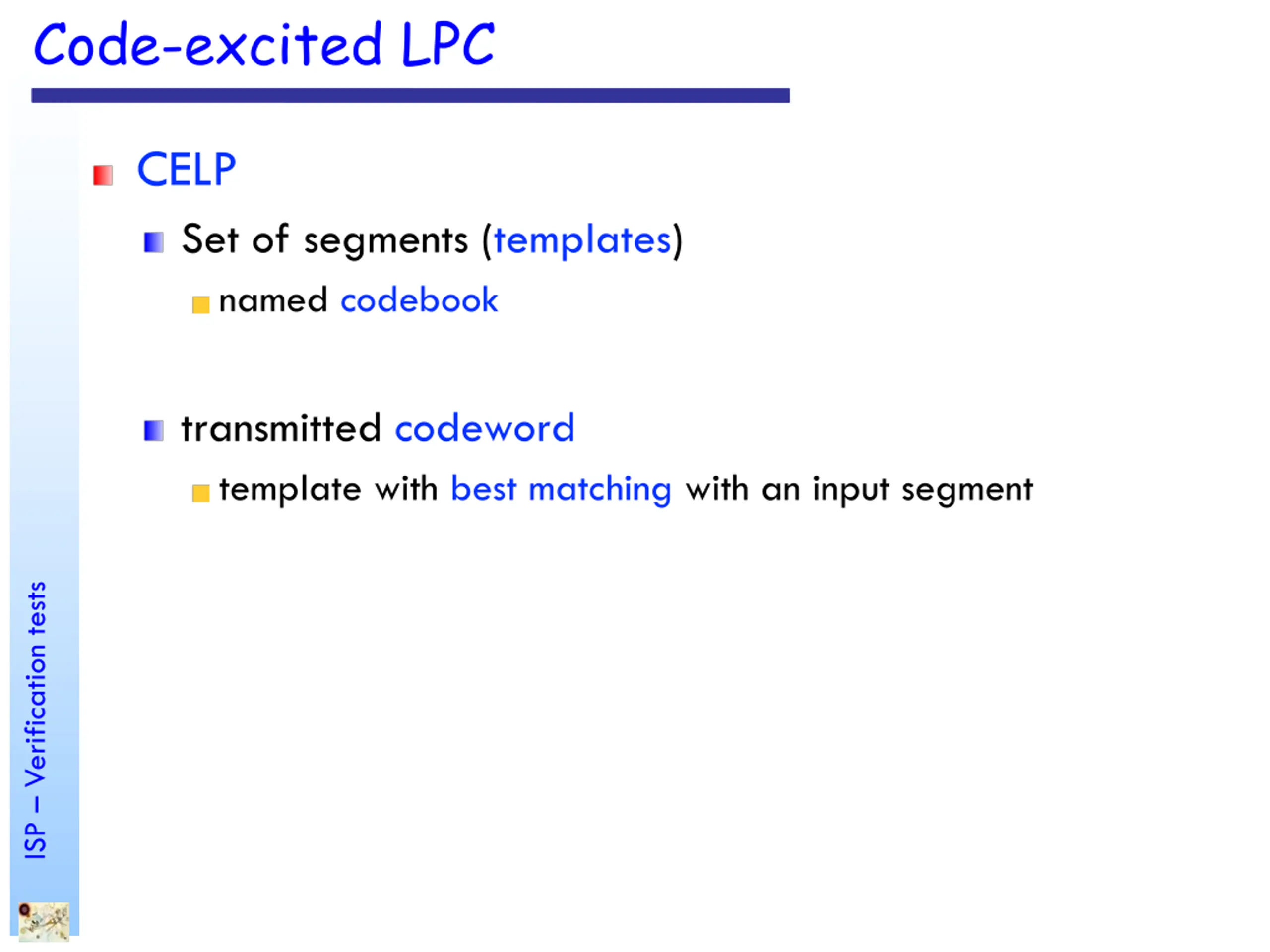

Code-excited LPC CELP Set of segments (templates) named codebook transmitted codeword template with best matching with an input segment ISP Verification tests

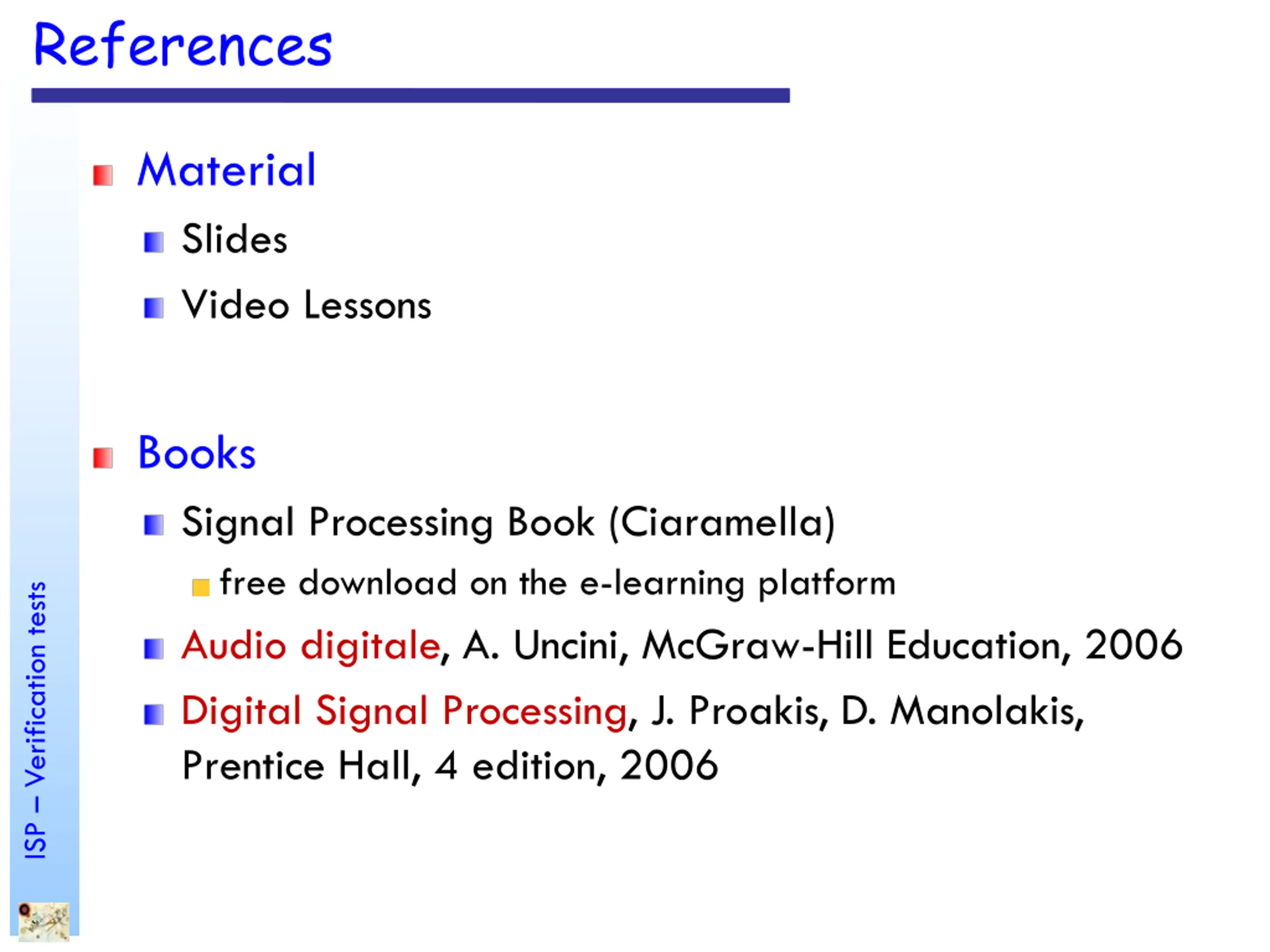

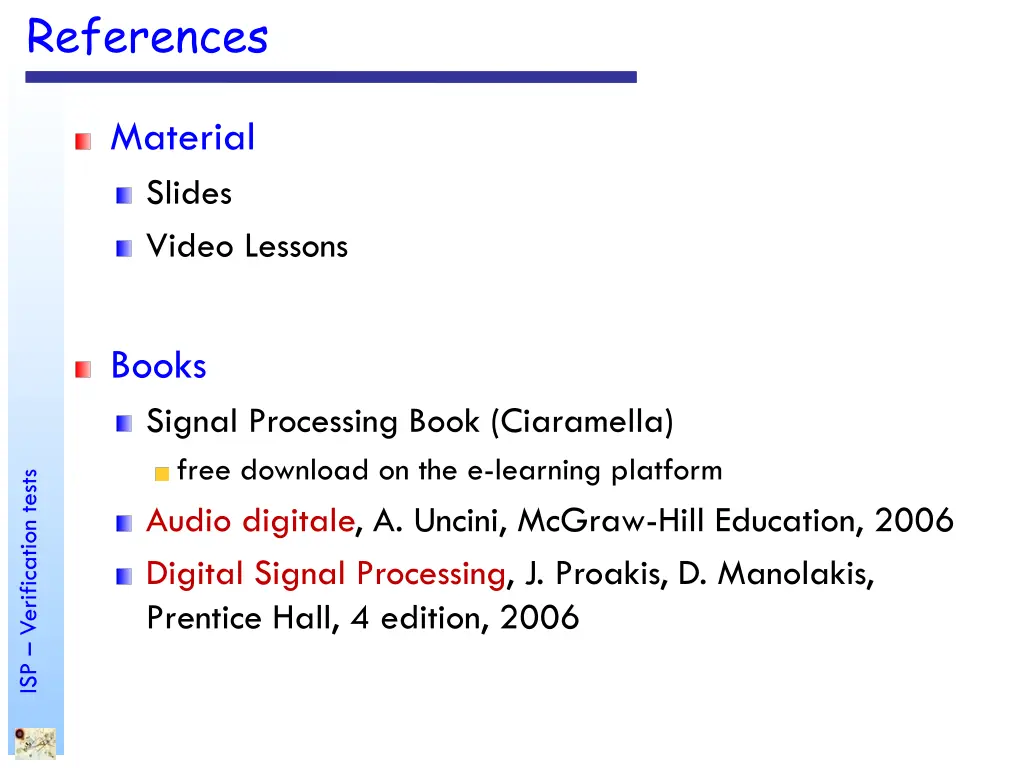

References Material Slides Video Lessons Books Signal Processing Book (Ciaramella) free download on the e-learning platform Audio digitale, A. Uncini, McGraw-Hill Education, 2006 Digital Signal Processing, J. Proakis, D. Manolakis, Prentice Hall, 4 edition, 2006 ISP Verification tests
