Intelligent Video Terminal for Small and Medium Vehicles
Discover the W5 intelligent video terminal by Aidriving, designed for small and medium-sized vehicles. This advanced 4G Ai 4CH dashcam with full-featured telematics offers high computing power, supporting ADAS and DMS functions simultaneously. Suitable for taxis, online car-hailing, and small to medium-sized logistics vehicles, the W5 features LTE Cat4 network, 512GB storage, WiFi hotspot, DMS application, loop recording, GNSS, ADAS, and more. Enhance safety and service with this innovative solution. Shenzhen Aidriving Telematics Co., Ltd. and Shenzhen Aisafer Technology Co., Ltd. provide cutting-edge technology to meet your vehicle needs.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

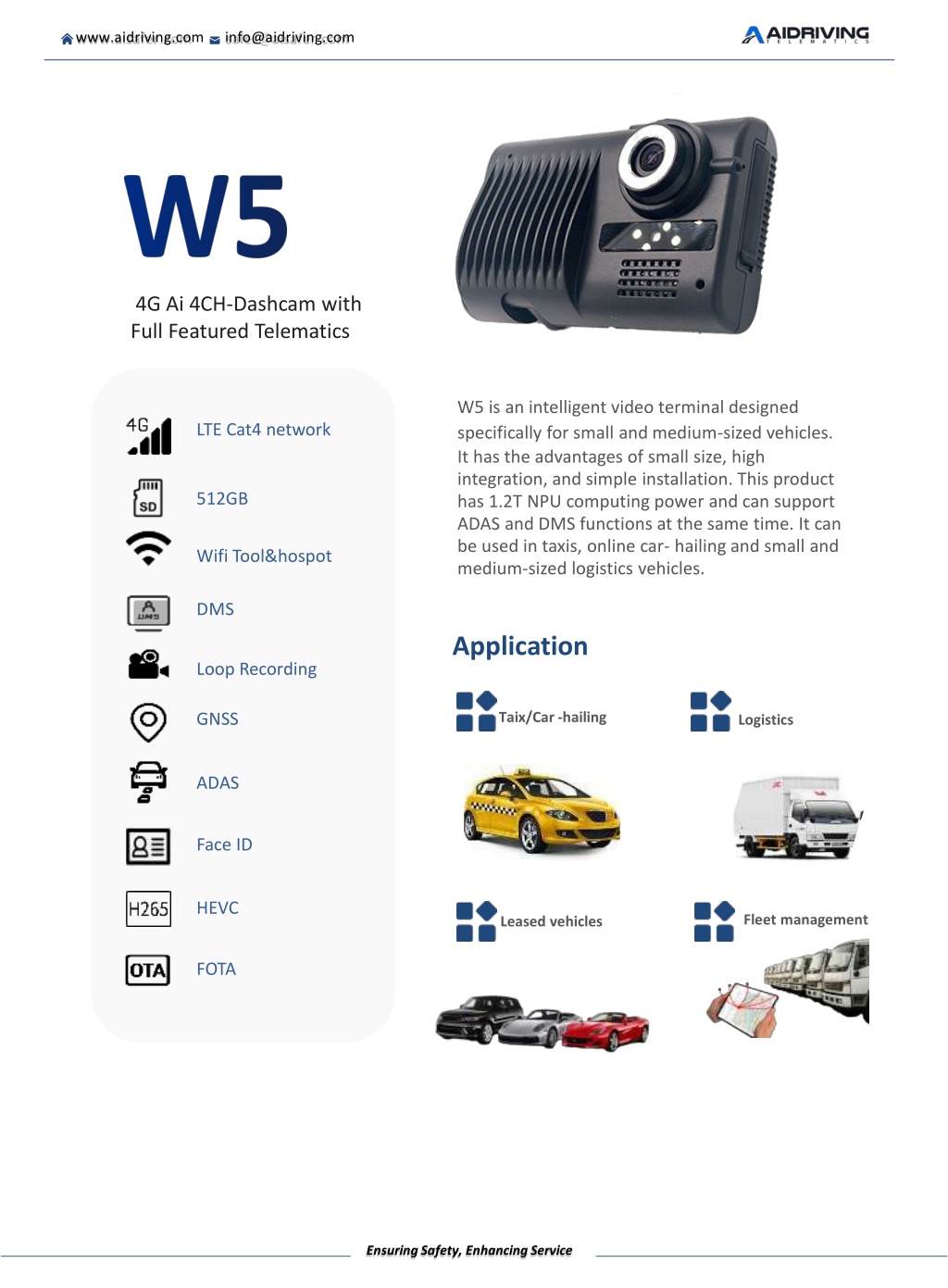

www.aidriving.com info@aidriving.com 4G Ai 4CH-Dashcam with Full Featured Telematics W5 is an intelligent video terminal designed specifically for small and medium-sized vehicles. It has the advantages of small size, high integration, and simple installation. This product has 1.2T NPU computing power and can support ADAS and DMS functions at the same time. It can be used in taxis, online car- hailing and small and medium-sized logistics vehicles. LTE Cat4 network 512GB Wifi Tool&hospot DMS Application Loop Recording Taix/Car -hailing GNSS Logistics ADAS Face ID HEVC Fleet management Leased vehicles FOTA Ensuring Safety, Enhancing Service
Shenzhen Aidriving Telematics Co., Ltd. Appearance Front view DMS Camera Infrared light Speaker Fin heat dissipation structure LED Indicator Front View Cam www.aidriving.com info@aidriving.com

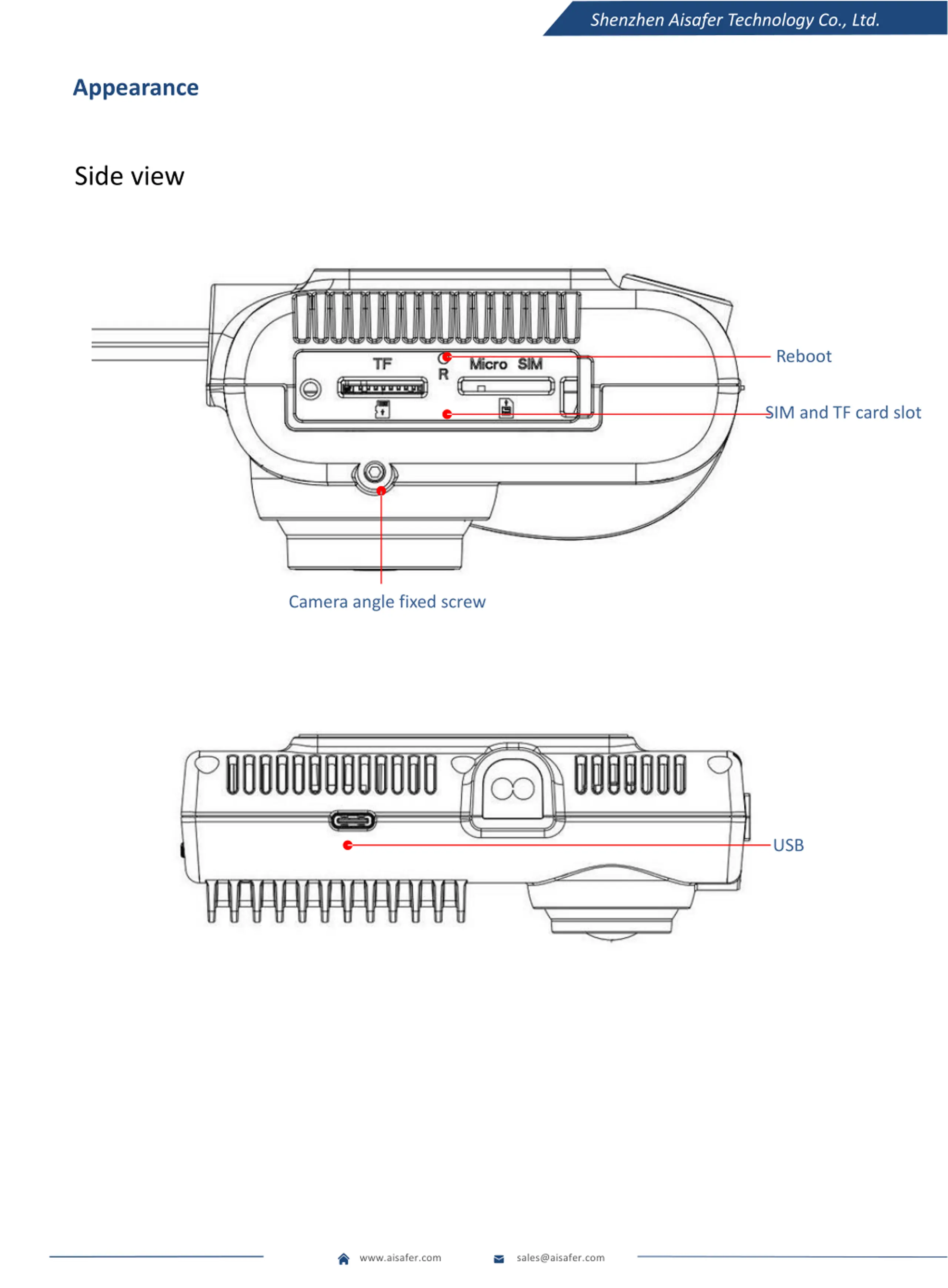

Shenzhen Aisafer Technology Co., Ltd. Appearance Side view Reboot SIM and TF card slot Camera angle fixed screw USB www.aisafer.com sales@aisafer.com

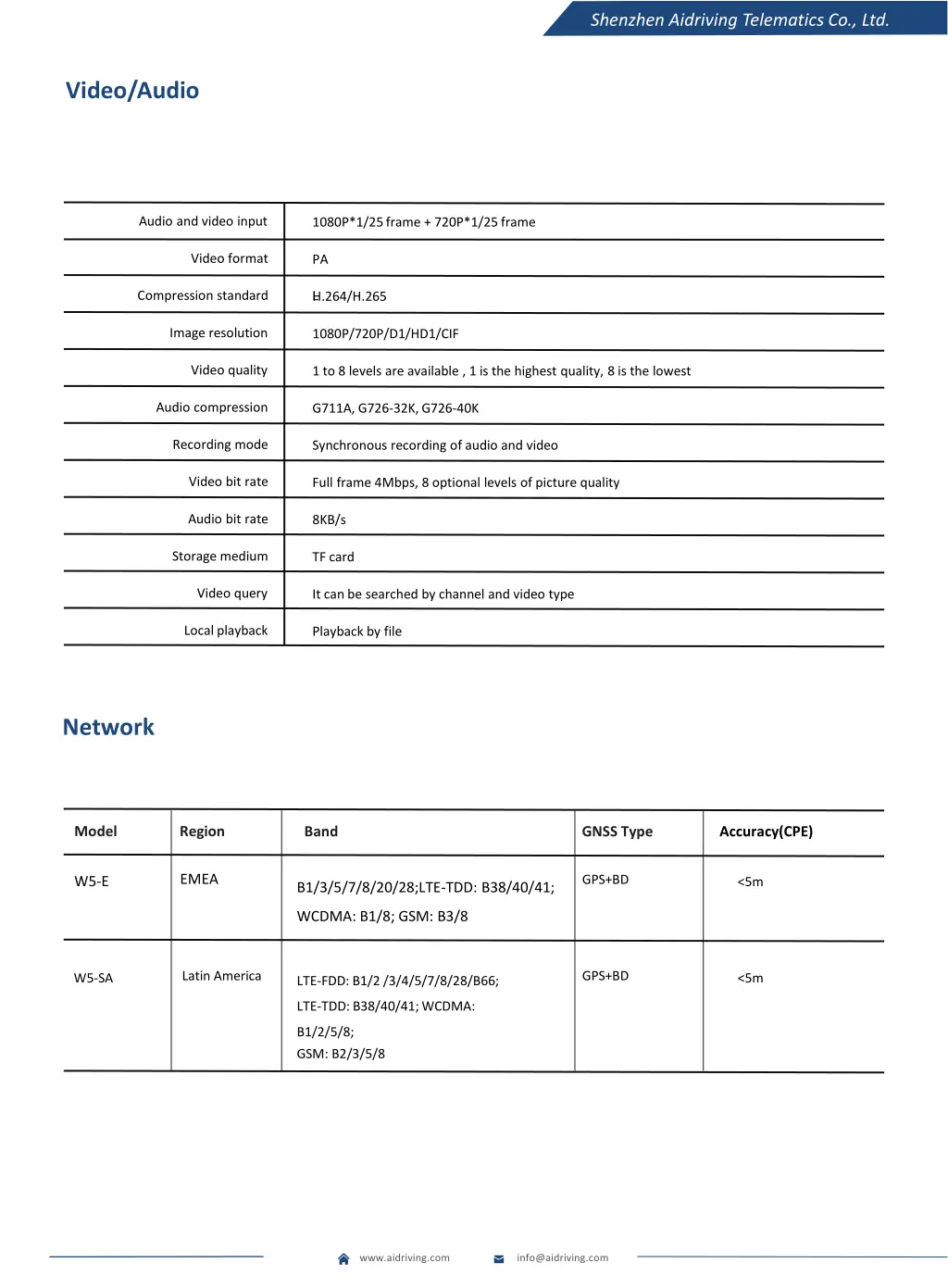

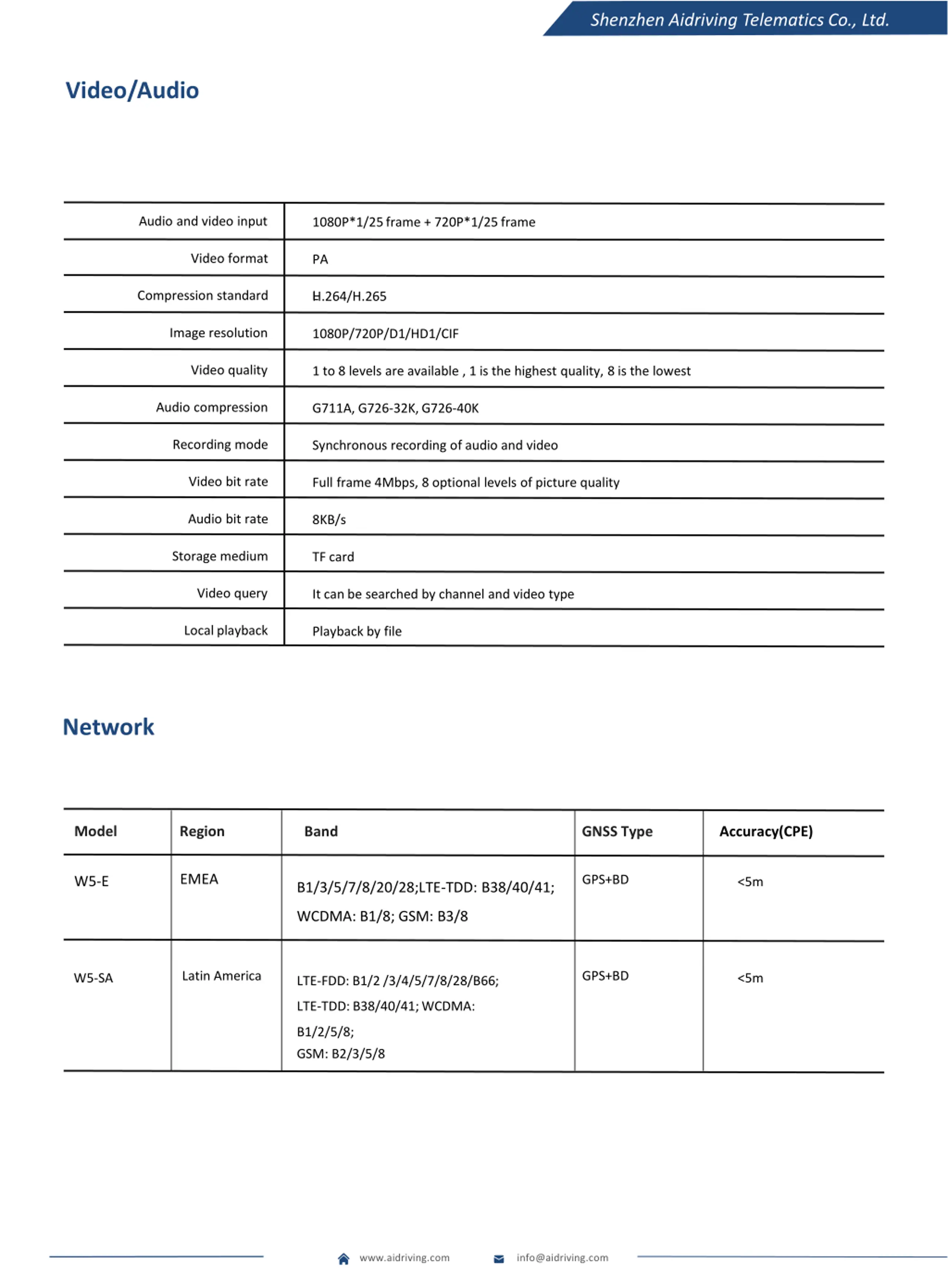

Shenzhen Aidriving Telematics Co., Ltd. Video/Audio Audio and video input 1080P*1/25 frame + 720P*1/25 frame Video format PA Compression standard L H.264/H.265 Image resolution 1080P/720P/D1/HD1/CIF Video quality 1 to 8 levels are available , 1 is the highest quality, 8 is the lowest Audio compression G711A, G726-32K, G726-40K Recording mode Synchronous recording of audio and video Video bit rate Full frame 4Mbps, 8 optional levels of picture quality Audio bit rate 8KB/s Storage medium TF card Video query It can be searched by channel and video type Local playback Playback by file Network Model Region Band GNSS Type Accuracy(CPE) EMEA GPS+BD W5-E <5m B1/3/5/7/8/20/28;LTE-TDD: B38/40/41; WCDMA: B1/8; GSM: B3/8 Latin America GPS+BD W5-SA <5m LTE-FDD: B1/2 /3/4/5/7/8/28/B66; LTE-TDD: B38/40/41; WCDMA: B1/2/5/8; GSM: B2/3/5/8 www.aidriving.com info@aidriving.com

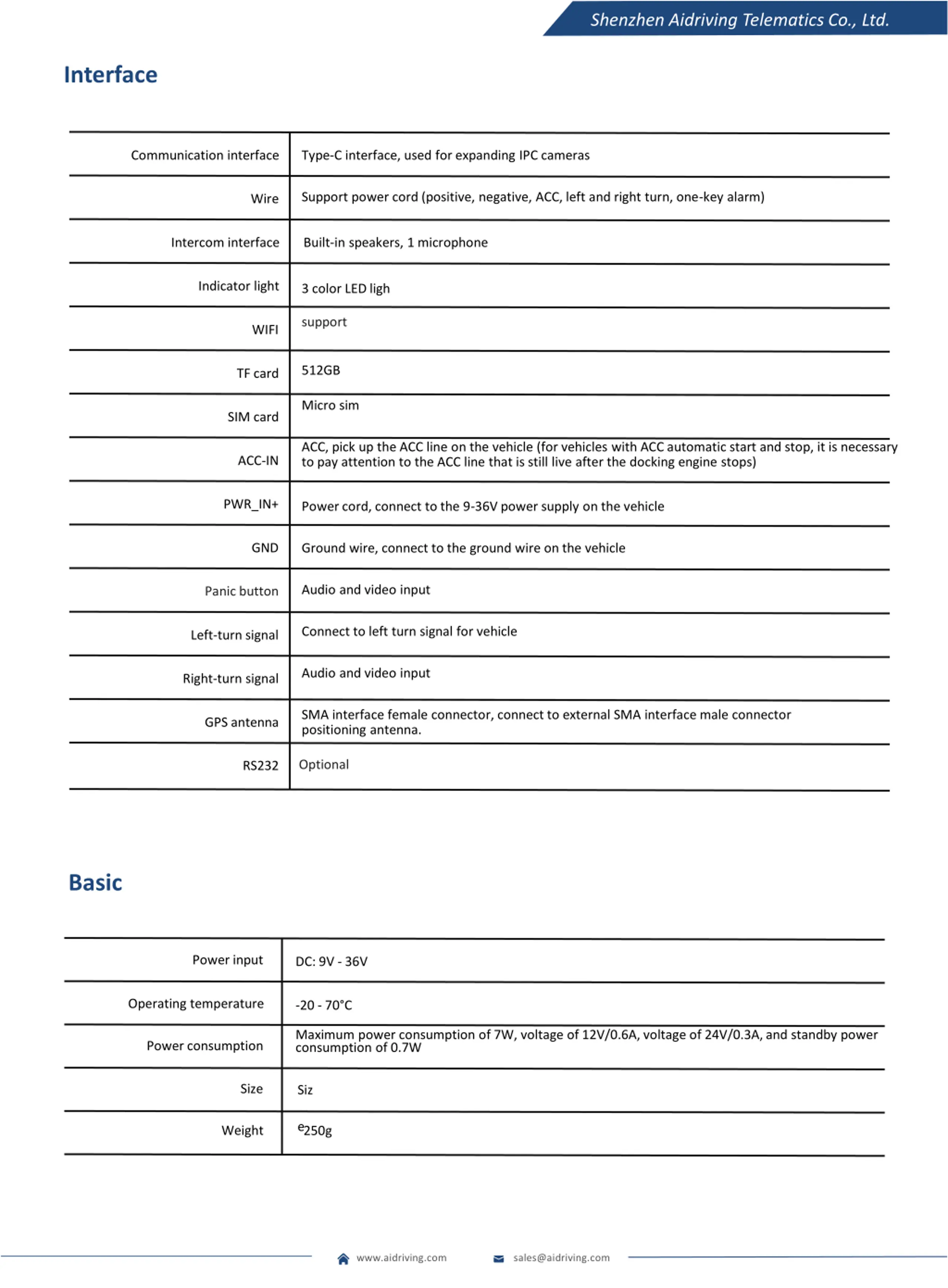

Shenzhen Aidriving Telematics Co., Ltd. Interface Type-C interface, used for expanding IPC cameras Communication interface Support power cord (positive, negative, ACC, left and right turn, one-key alarm) Wire Built-in speakers, 1 microphone Intercom interface Indicator light 3 color LED ligh support WIFI 512GB TF card Micro sim SIM card ACC, pick up the ACC line on the vehicle (for vehicles with ACC automatic start and stop, it is necessary to pay attention to the ACC line that is still live after the docking engine stops) ACC-IN PWR_IN+ Power cord, connect to the 9-36V power supply on the vehicle GND Ground wire, connect to the ground wire on the vehicle Audio and video input Panic button Connect to left turn signal for vehicle Left-turn signal Audio and video input Right-turn signal SMA interface female connector, connect to external SMA interface male connector positioning antenna. GPS antenna Optional RS232 Basic Power input DC: 9V - 36V Operating temperature -20 - 70 C Maximum power consumption of 7W, voltage of 12V/0.6A, voltage of 24V/0.3A, and standby power consumption of 0.7W Power consumption Size Siz e250g Weight www.aidriving.com sales@aidriving.com

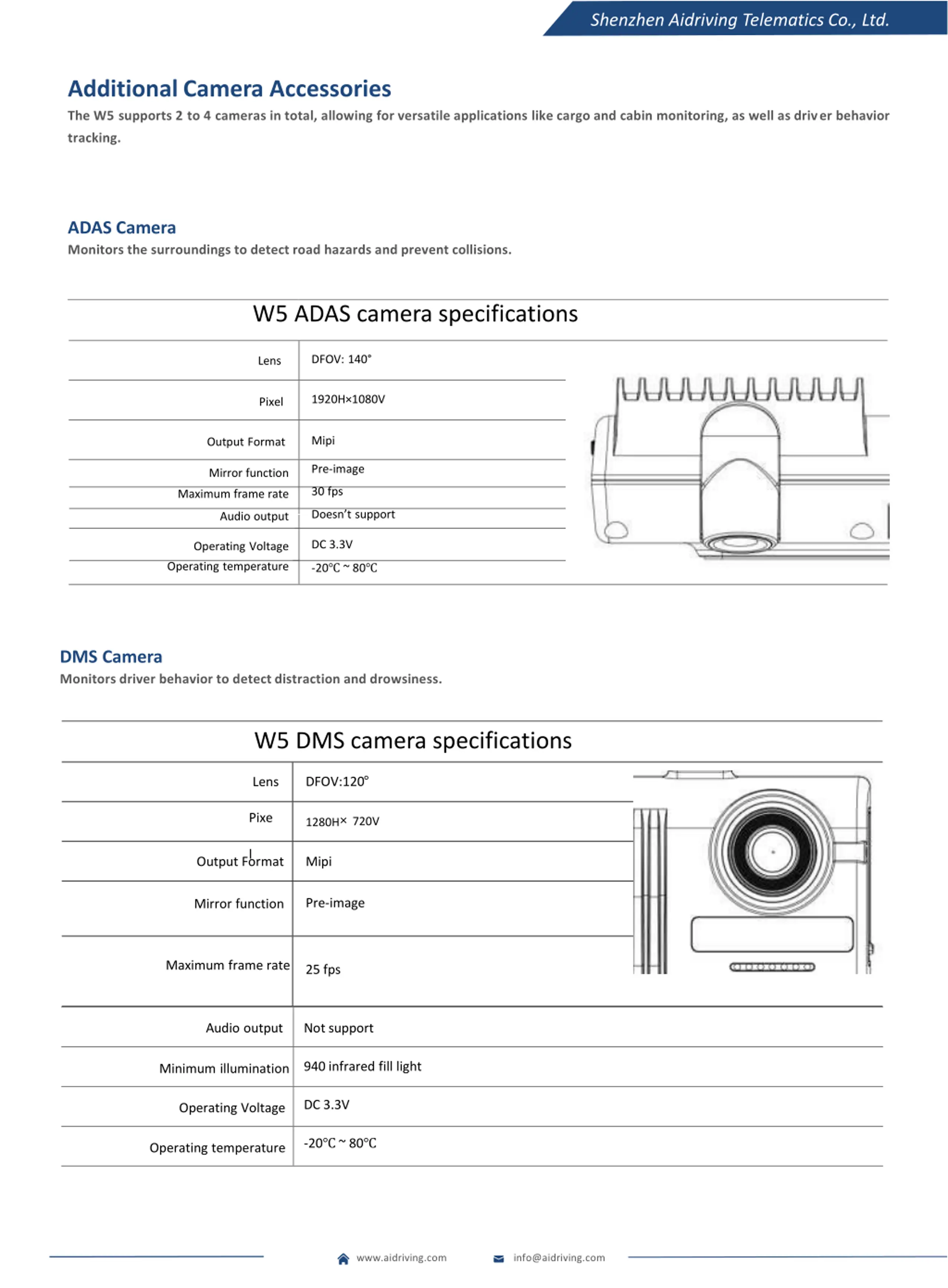

Shenzhen Aidriving Telematics Co., Ltd. Additional Camera Accessories The W5 supports 2 to 4 cameras in total, allowing for versatile applications like cargo and cabin monitoring, as well as driver behavior tracking. ADAS Camera Monitors the surroundings to detect road hazards and prevent collisions. W5 ADAS camera specifications DFOV: 140 Lens 1920H 1080V Pixel Mipi Output Format Pre-image Mirror function 30 fps Maximum frame rate Doesn t support Audio output DC 3.3V Operating Voltage Operating temperature -20 ~ 80 DMS Camera Monitors driver behavior to detect distraction and drowsiness. W5 DMS camera specifications DFOV:120 Lens Pixe 720V 1280H l Output Format Mipi Pre-image Mirror function Maximum frame rate 25 fps Audio output Not support 940 infrared fill light Minimum illumination DC 3.3V Operating Voltage -20 ~ 80 Operating temperature www.aidriving.com info@aidriving.com

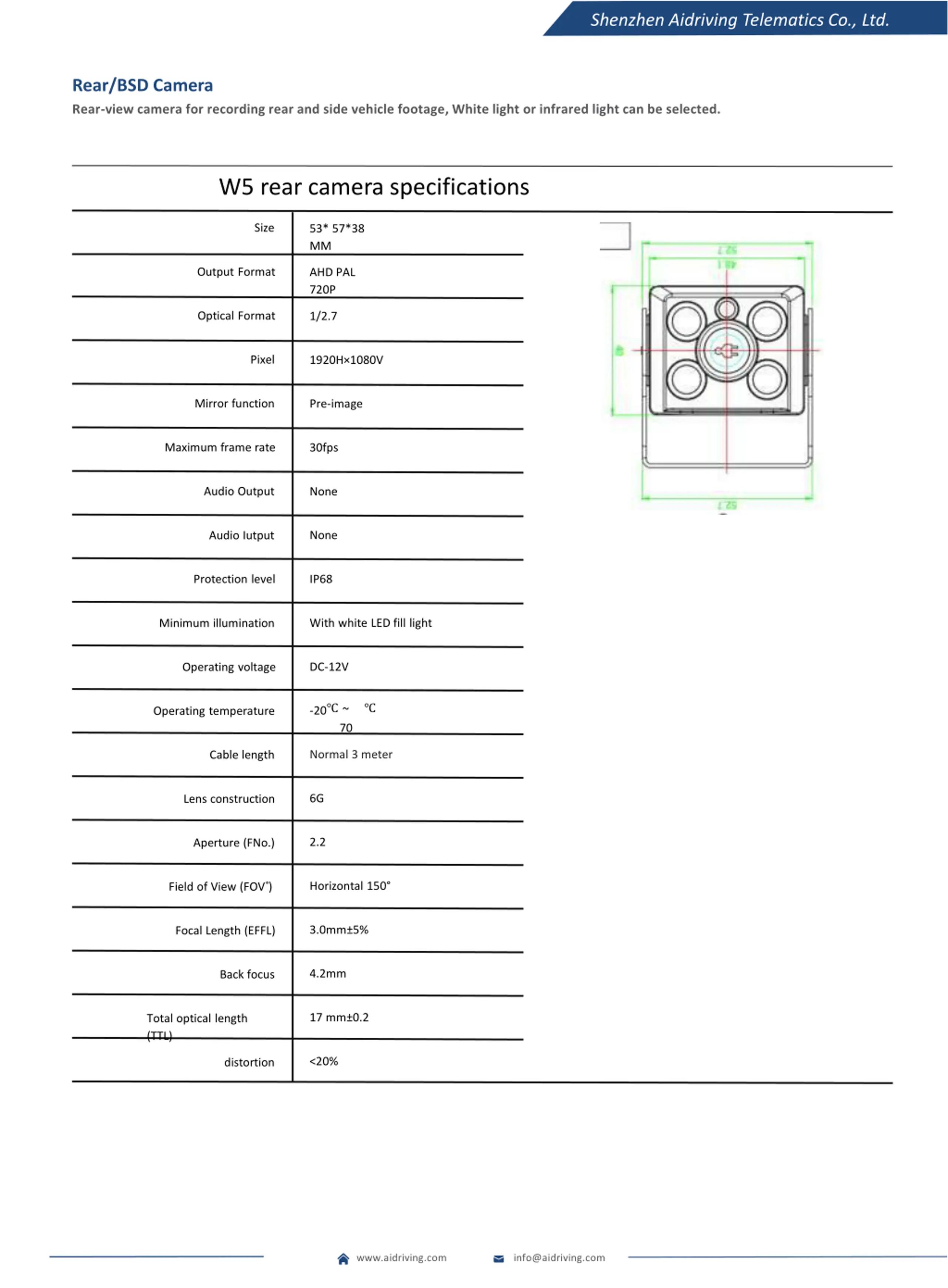

Shenzhen Aidriving Telematics Co., Ltd. Rear/BSD Camera Rear-view camera for recording rear and side vehicle footage, White light or infrared light can be selected. W5 rear camera specifications Size 53* 57*38 MM Output Format AHD PAL 720P Optical Format 1/2.7 Pixel 1920H 1080V Mirror function Pre-image Maximum frame rate 30fps Audio Output None None Audio Iutput IP68 Protection level With white LED fill light Minimum illumination DC-12V Operating voltage -20 ~ 70 Operating temperature Normal 3 meter Cable length 6G Lens construction 2.2 Aperture (FNo.) Horizontal 150 Field of View (FOV ) 3.0mm 5% Focal Length (EFFL) 4.2mm Back focus 17 mm 0.2 Total optical length (TTL) <20% distortion www.aidriving.com info@aidriving.com
