Cs288 Intensive Programming in Linux Instructor: C F Yurkoski Christopher.f.yurkoski@njit.edu Section web site: https://web.njit.edu/~yurkowsk/cs288.html Class 6 6-9-15 1

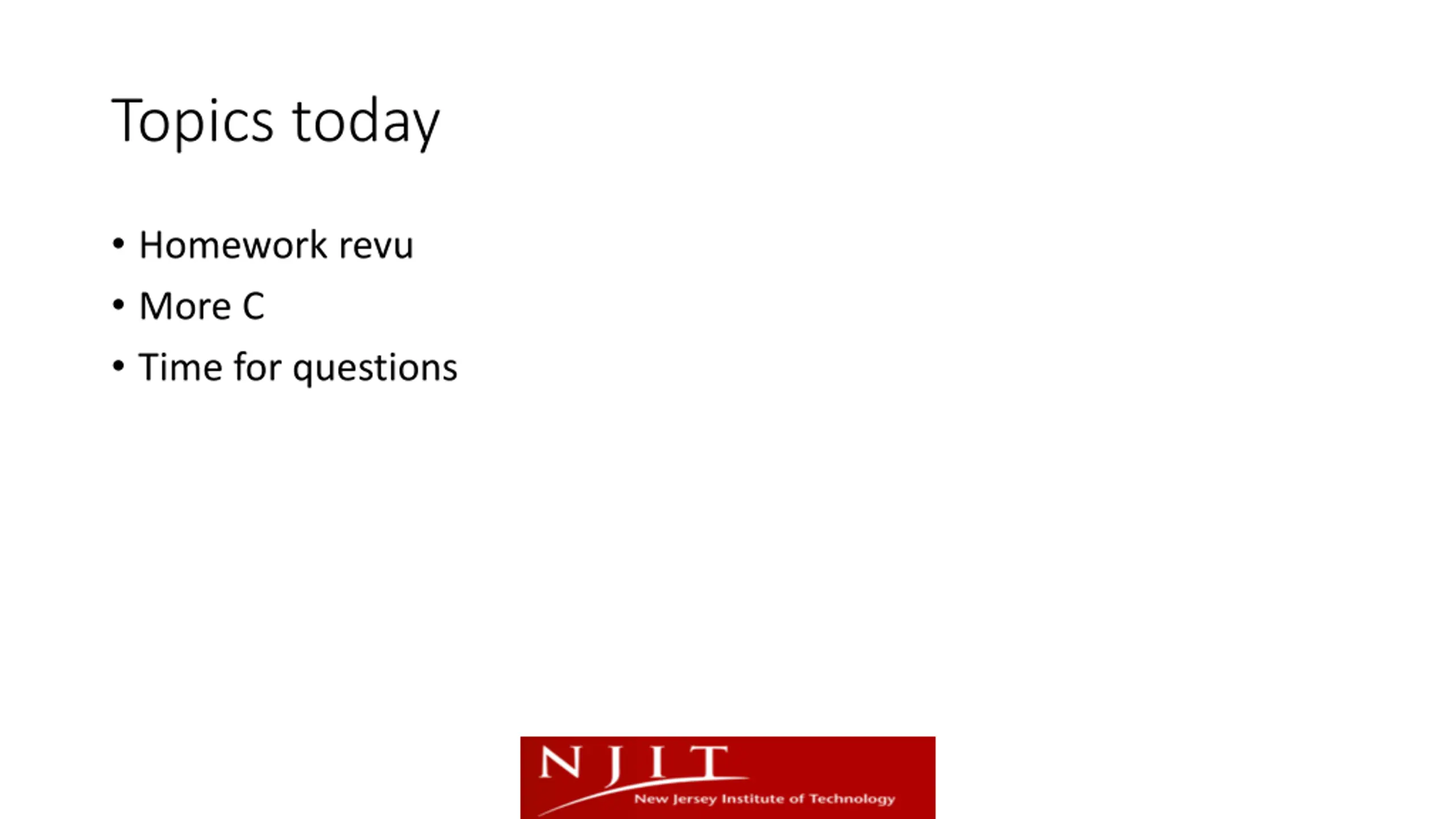

Topics today Homework revu More C Time for questions

text 6-9-15 cfy 3

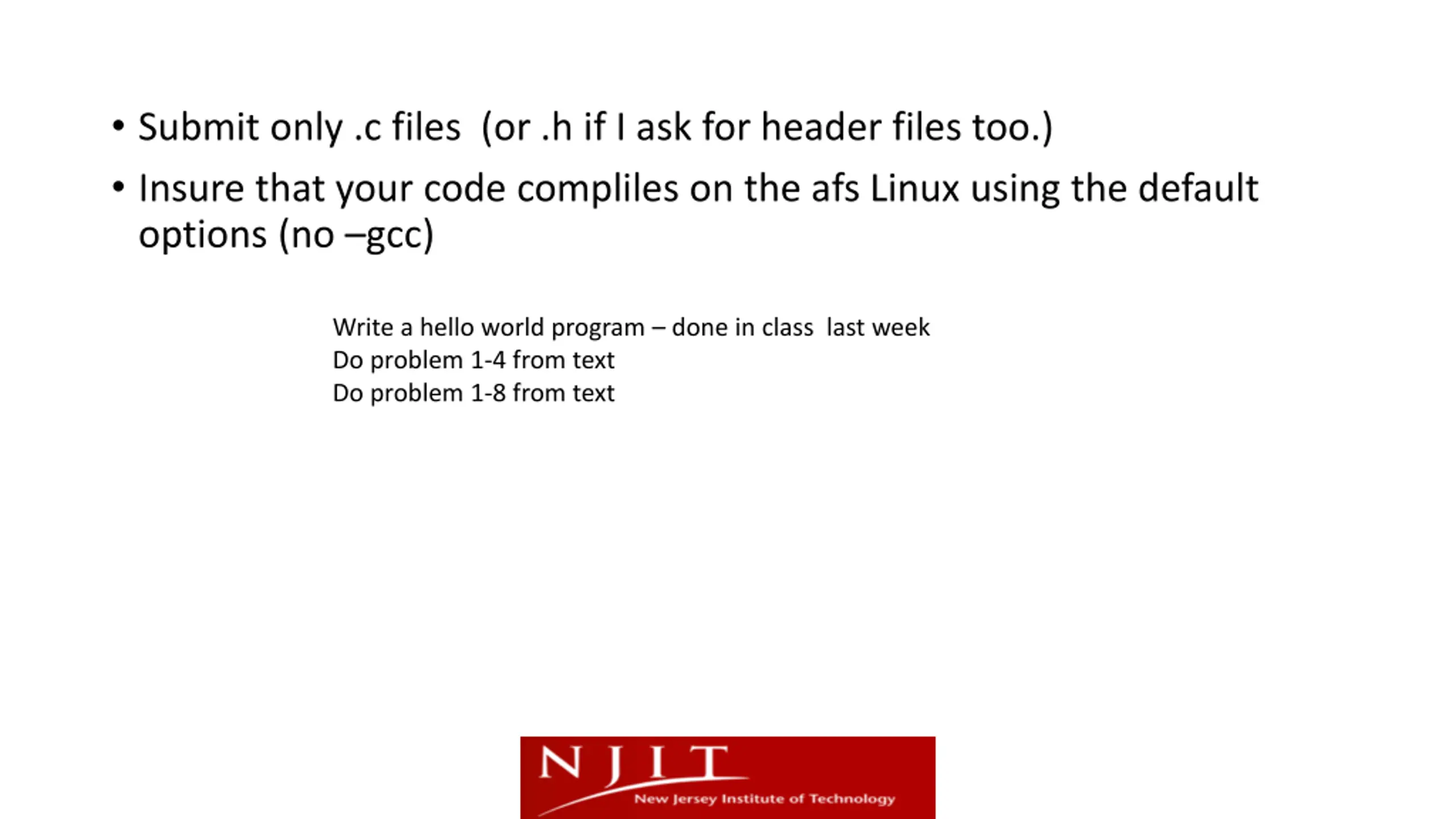

Submit only .c files (or .h if I ask for header files too.) Insure that your code compliles on the afs Linux using the default options (no gcc) Write a hello world program done in class last week Do problem 1-4 from text Do problem 1-8 from text

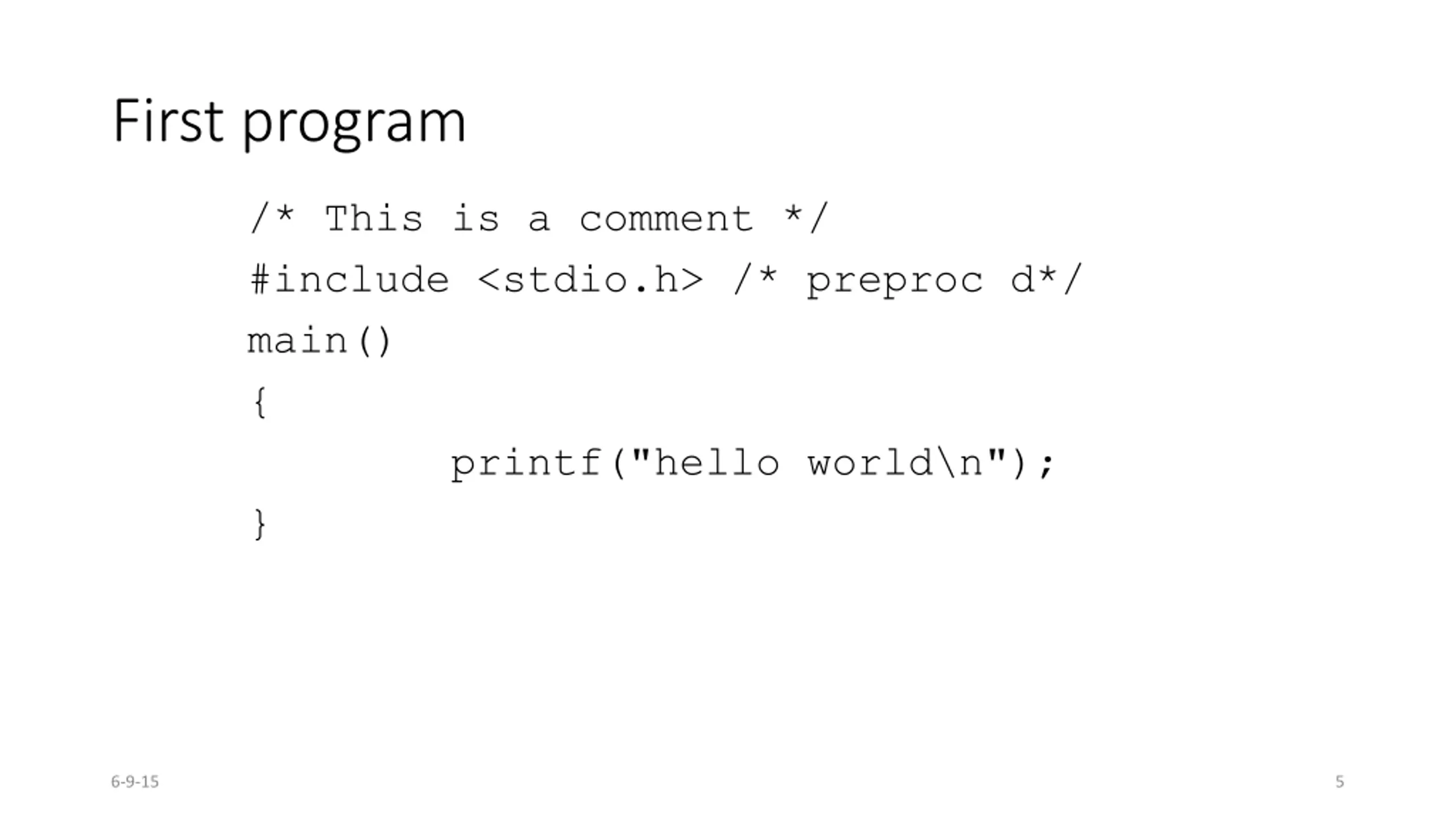

First program /* This is a comment */ #include <stdio.h> /* preproc d*/ main() { printf("hello world\n"); } 6-9-15 5

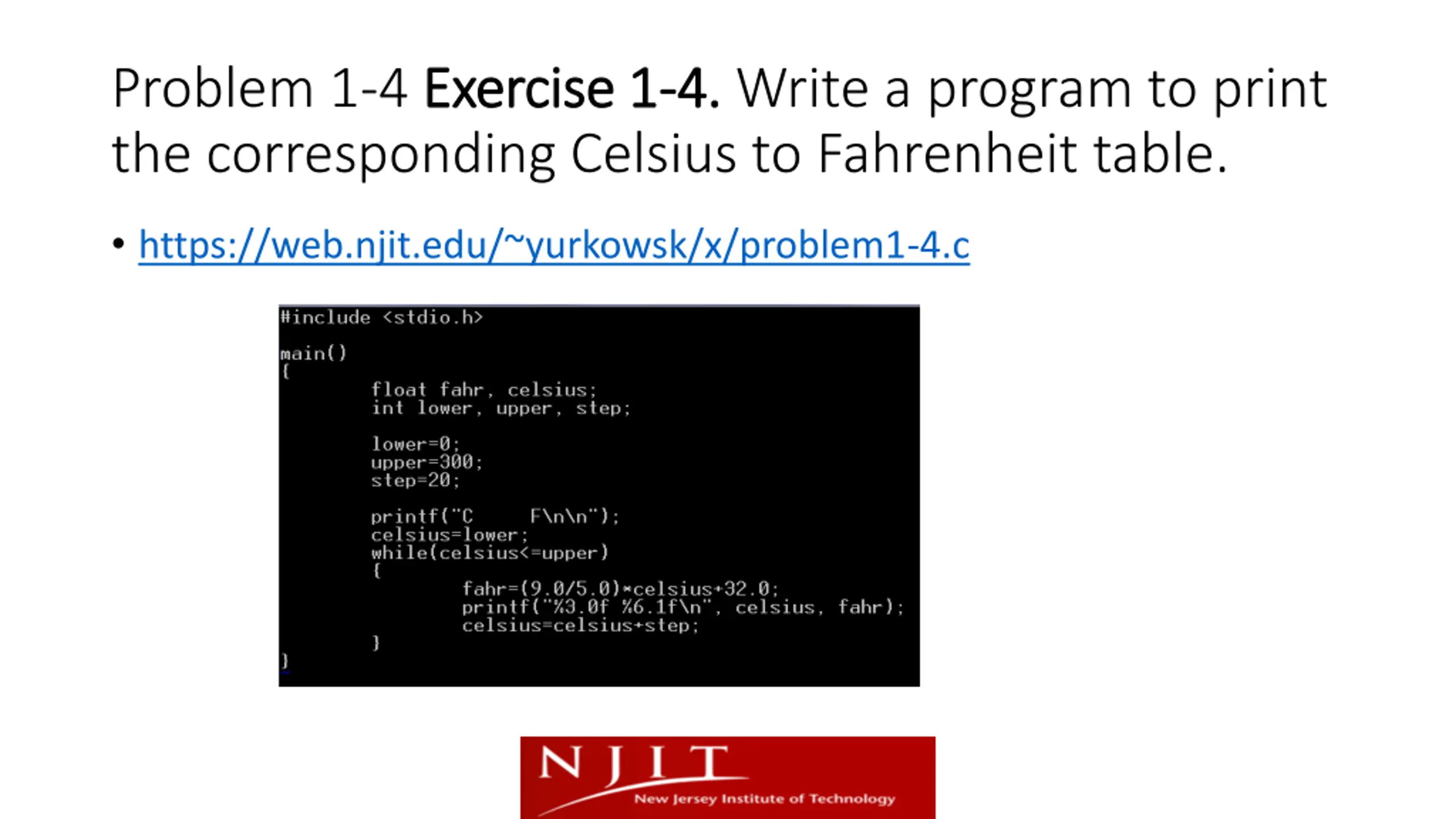

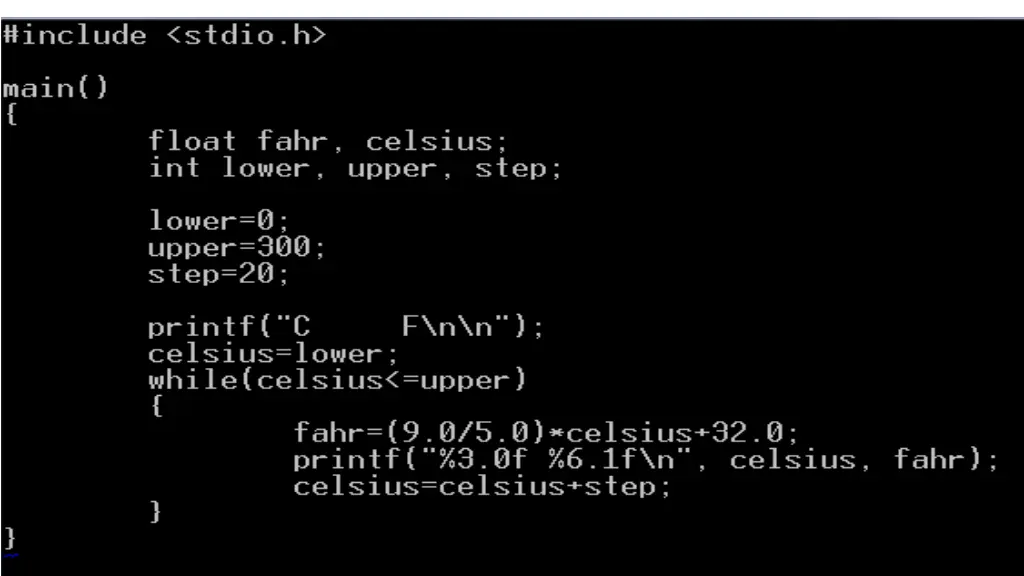

Problem 1-4 Exercise 1 the corresponding Celsius to Fahrenheit table. Exercise 1- -4. 4. Write a program to print https://web.njit.edu/~yurkowsk/x/problem1-4.c

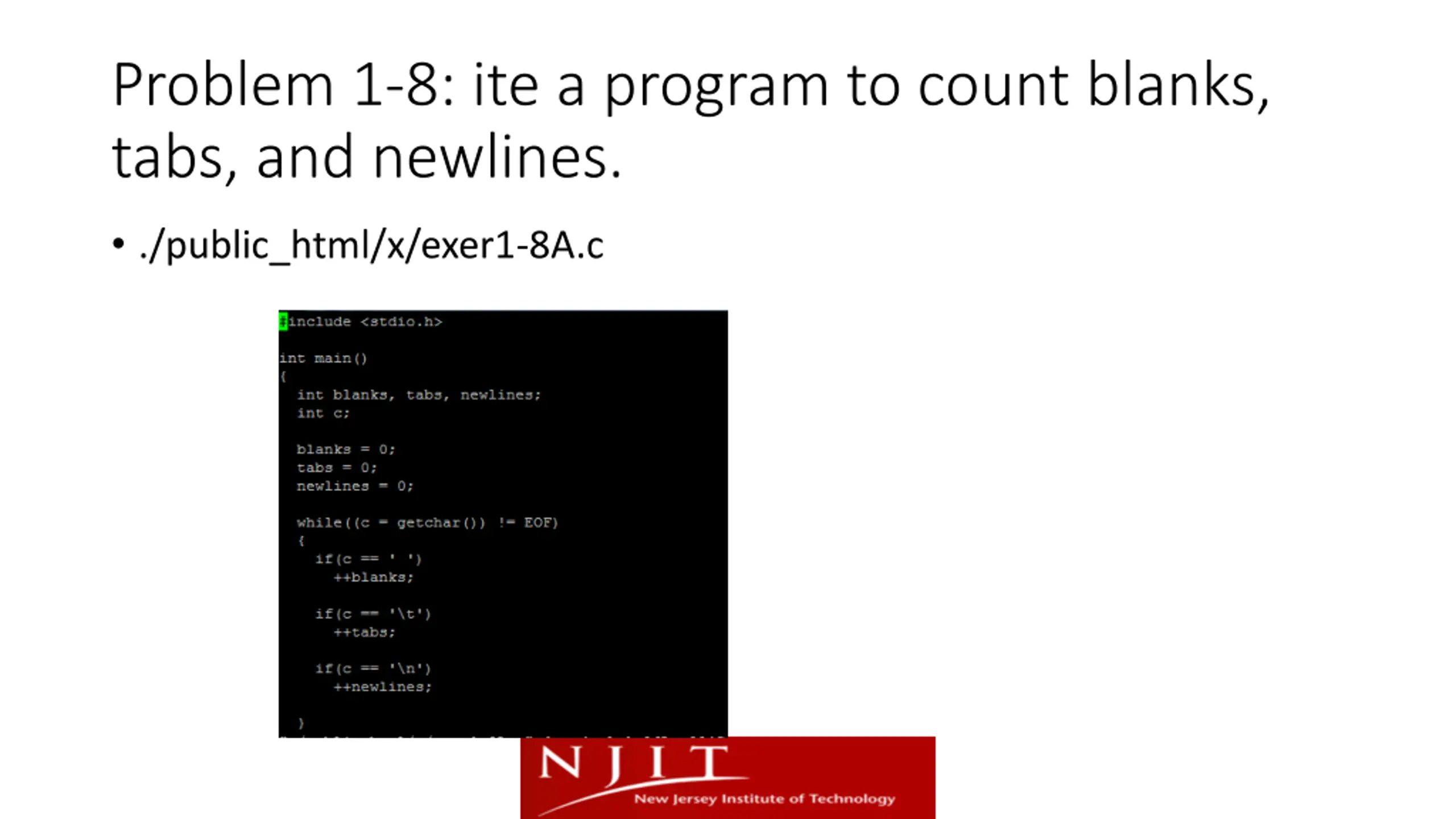

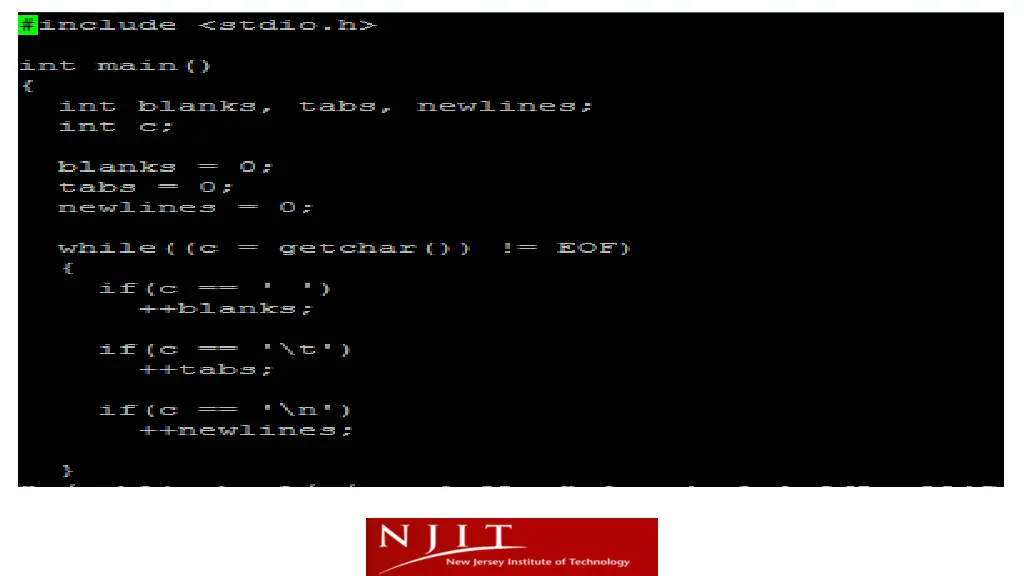

Problem 1-8: ite a program to count blanks, tabs, and newlines. ./public_html/x/exer1-8A.c

Some more Basics of C 6-9-15 10

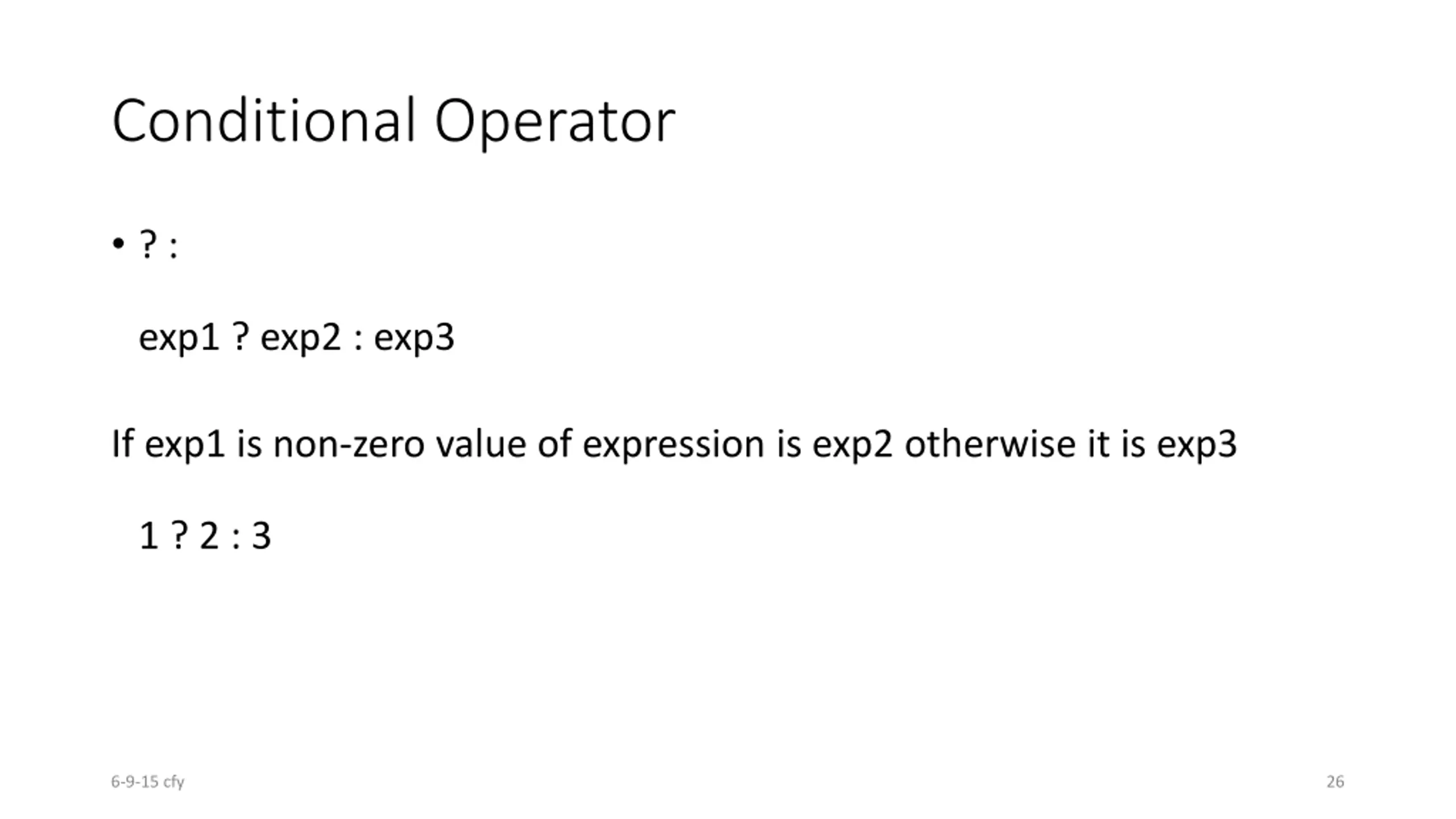

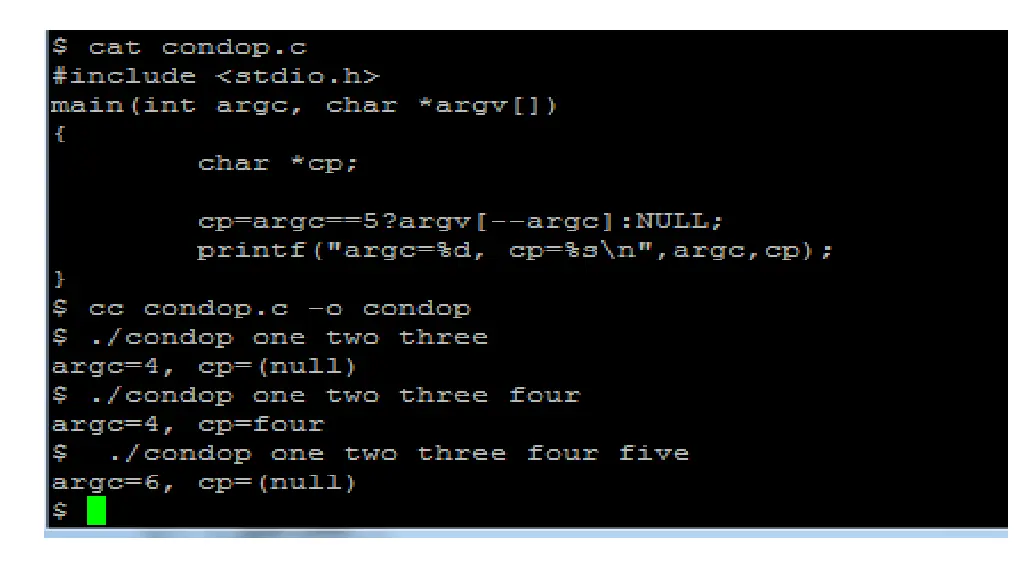

Conditional Operator ? : exp1 ? exp2 : exp3 If exp1 is non-zero value of expression is exp2 otherwise it is exp3 1 ? 2 : 3 6-9-15 cfy 26

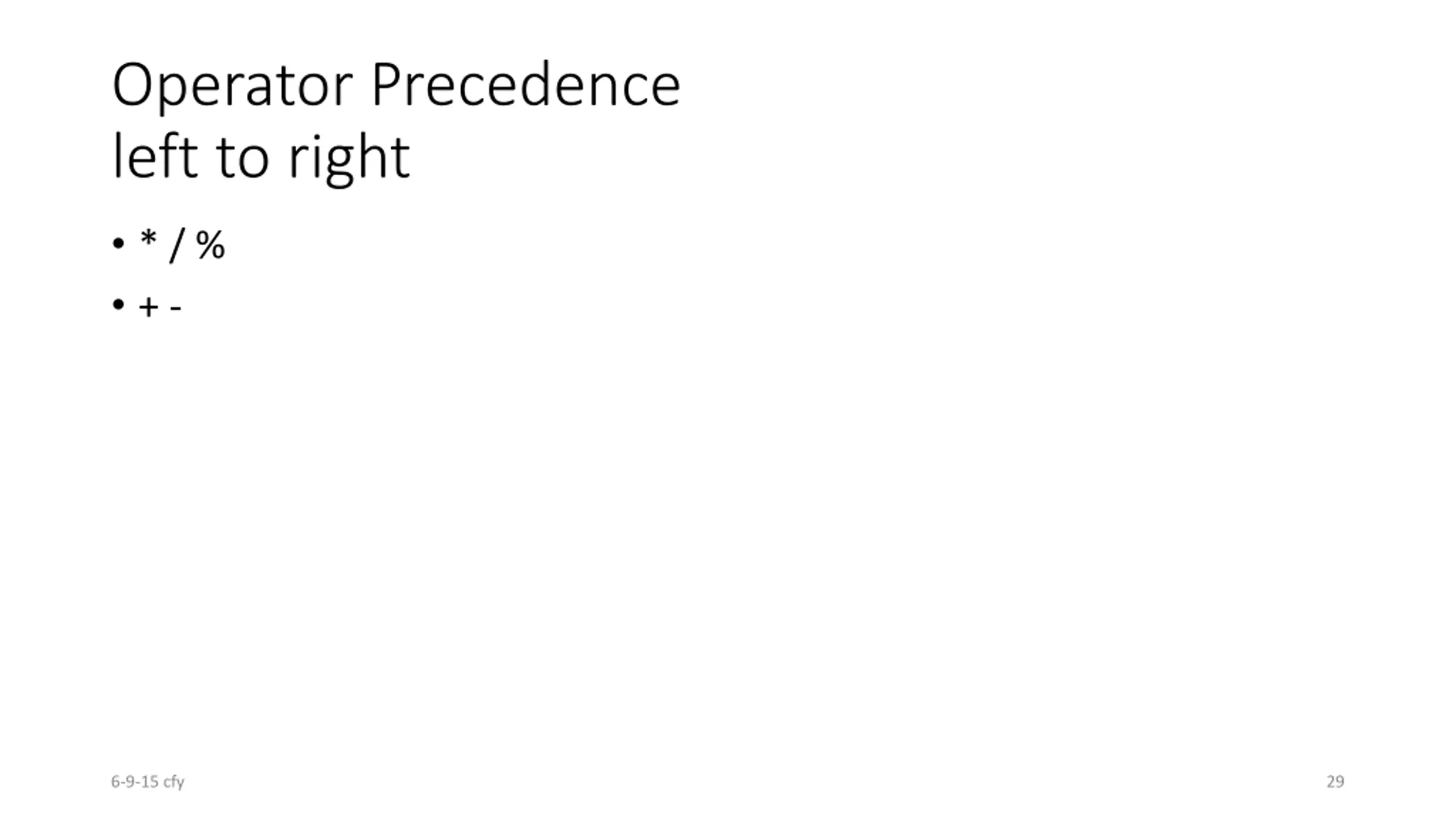

Operator Precedence left to right * / % + - 6-9-15 cfy 29

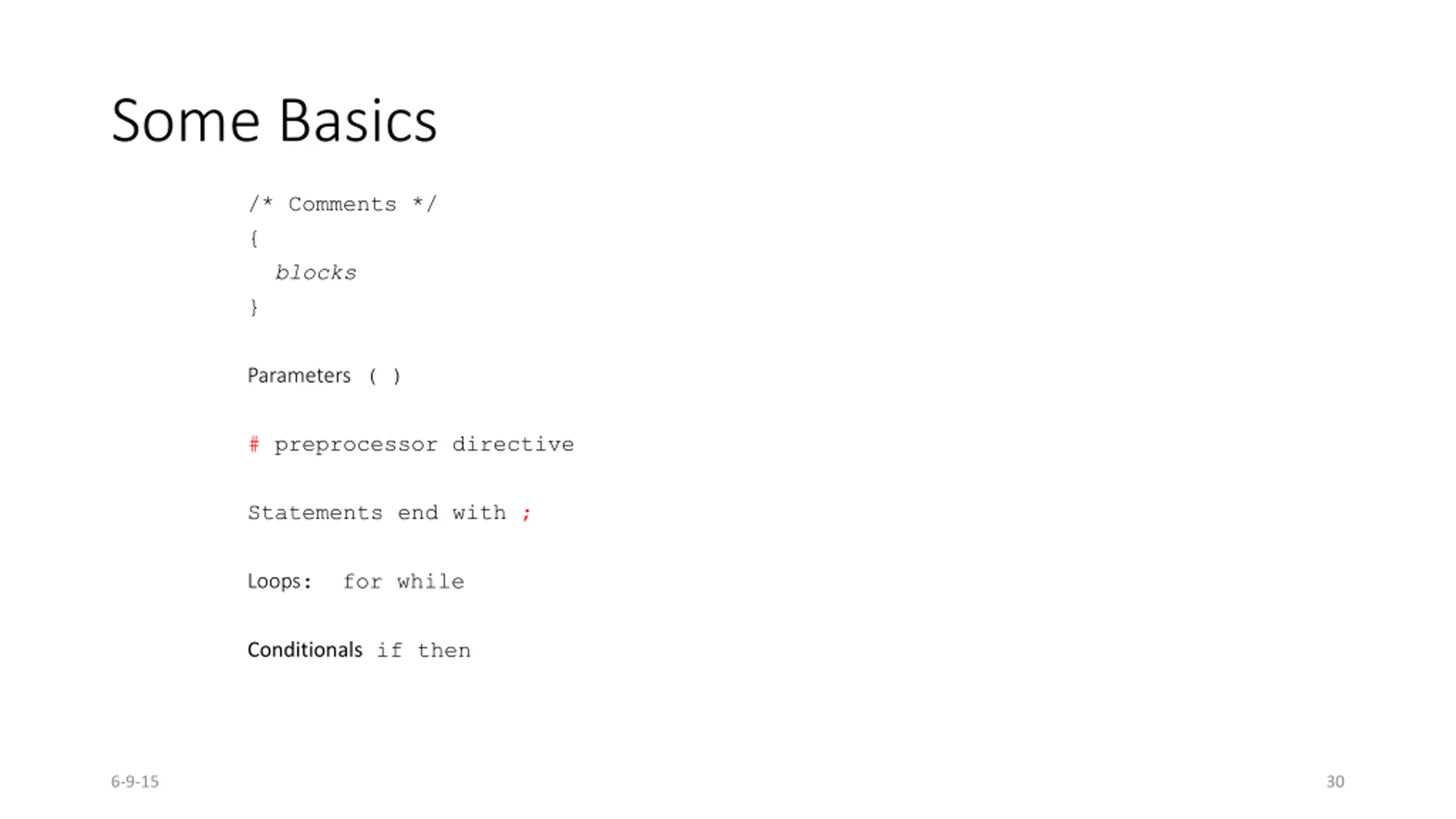

Some Basics /* Comments */ { blocks } Parameters ( ) # preprocessor directive Statements end with ; Loops: for while Conditionals if then 6-9-15 30

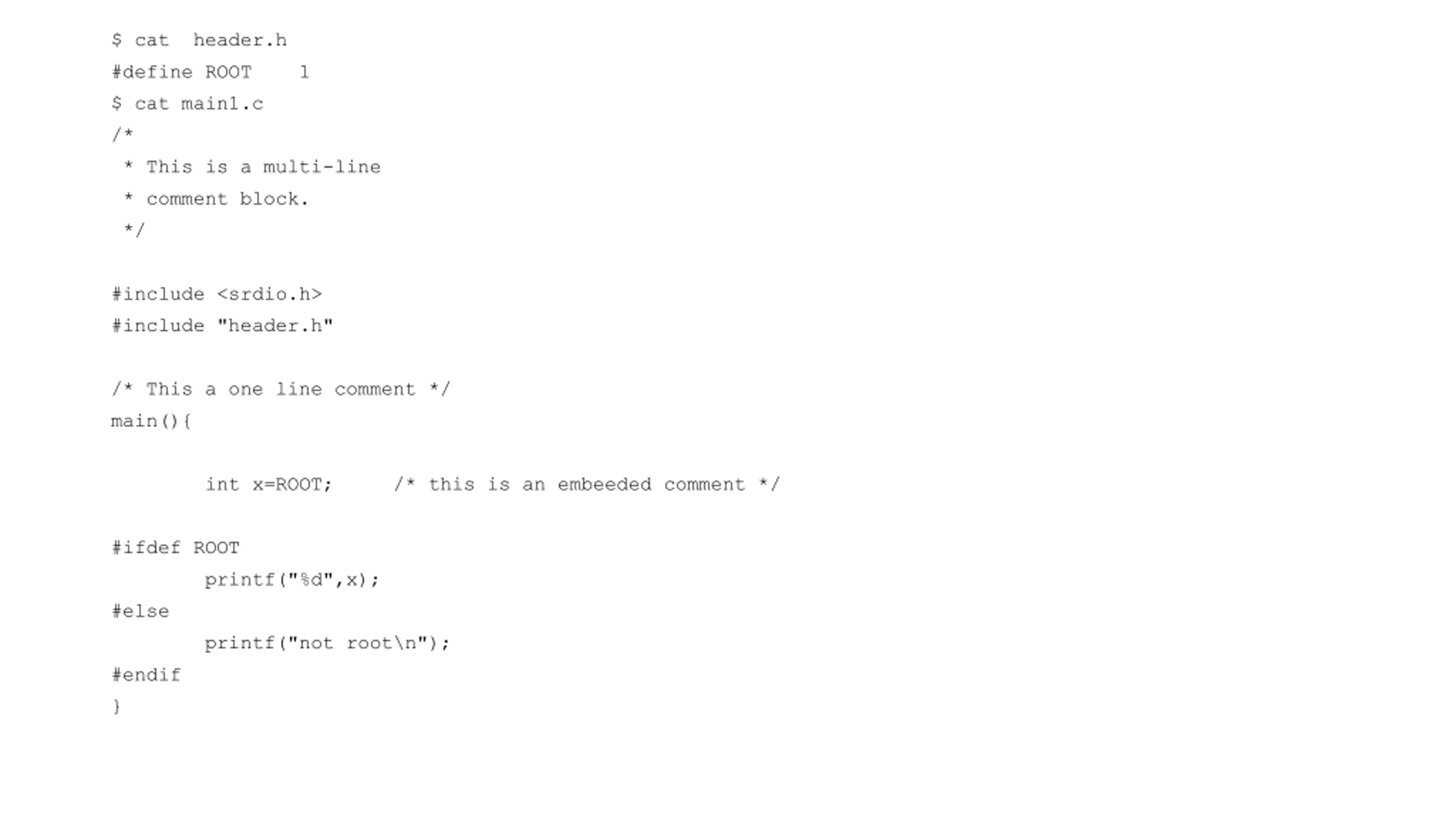

$ cat header.h #define ROOT 1 $ cat main1.c /* * This is a multi-line * comment block. */ #include <srdio.h> #include "header.h" /* This a one line comment */ main(){ int x=ROOT; /* this is an embeeded comment */ #ifdef ROOT printf("%d",x); #else printf("not root\n"); #endif }

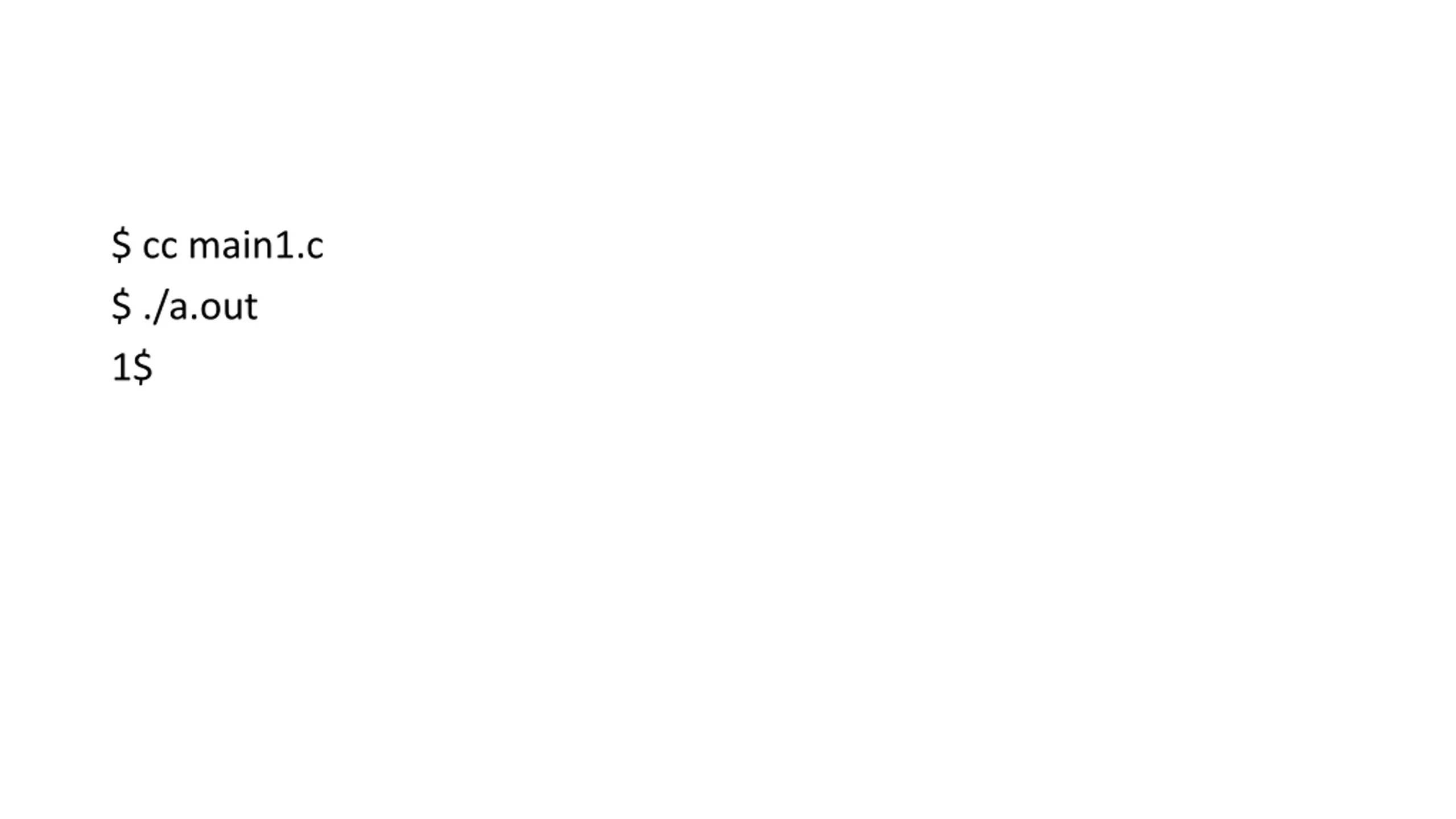

$ cc main1.c $ ./a.out 1$

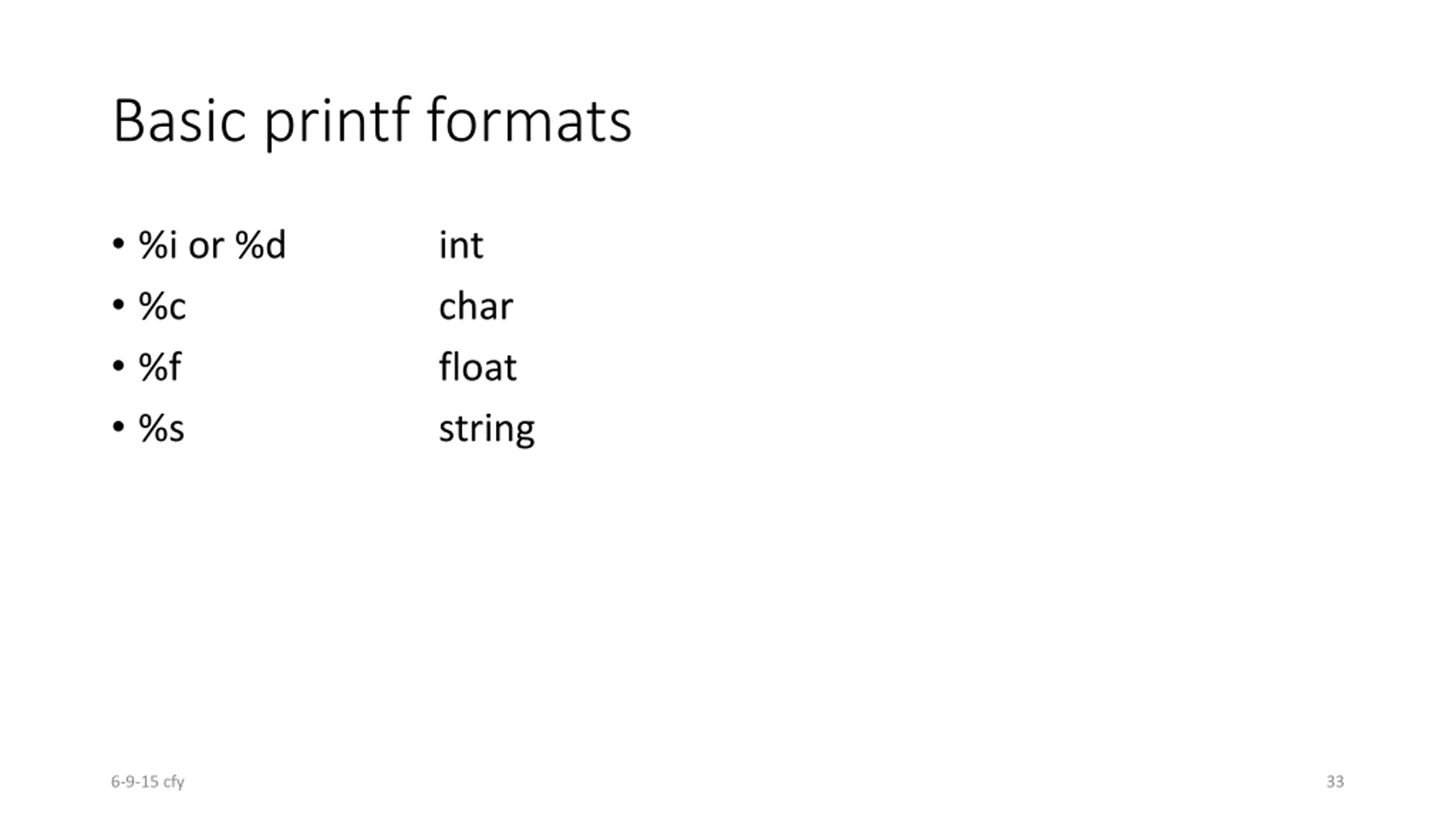

Basic printf formats %i or %d %c %f %s int char float string 6-9-15 cfy 33

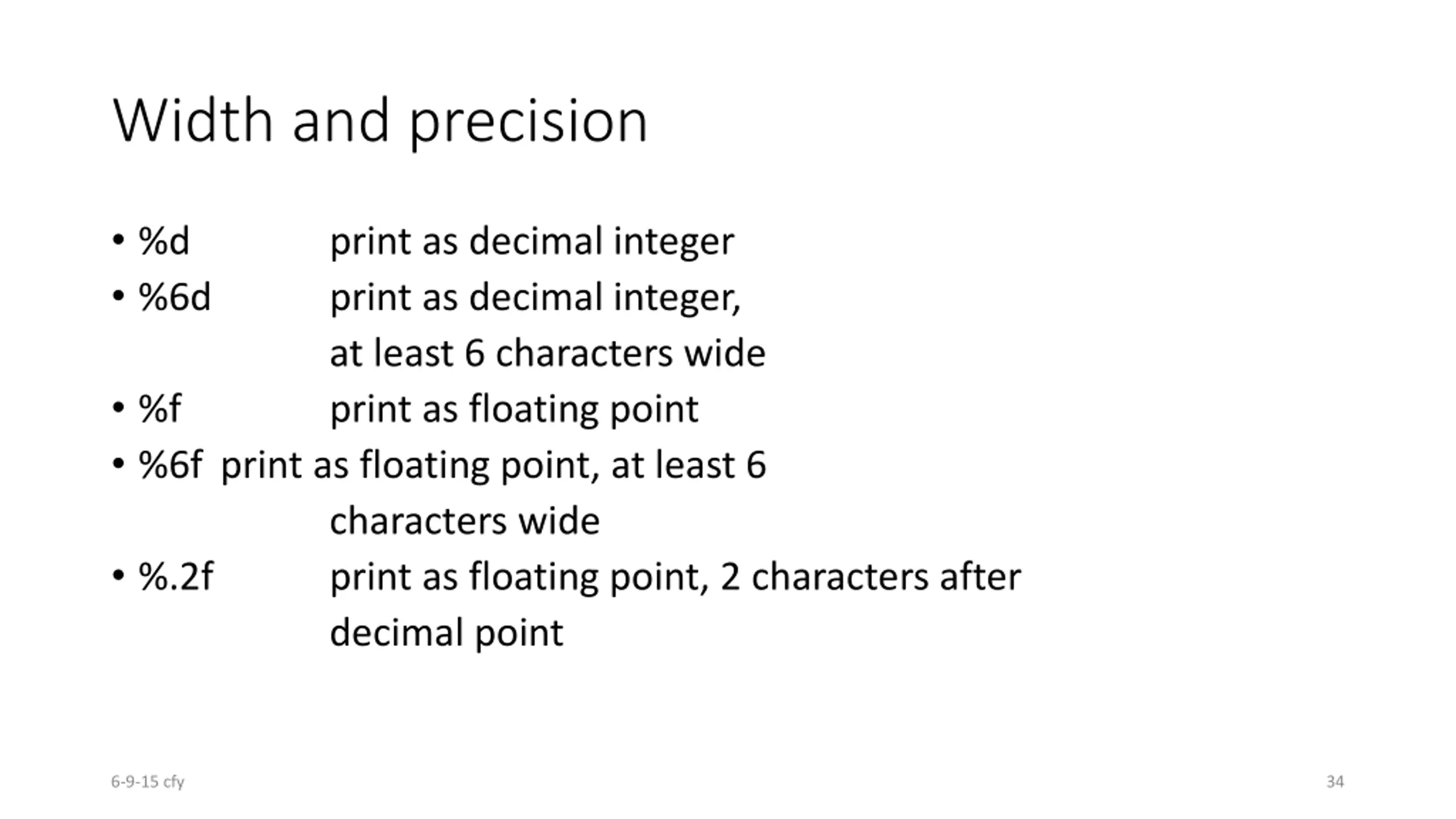

Width and precision %d %6d %f %6f print as floating point, at least 6 characters wide %.2f print as floating point, 2 characters after decimal point print as decimal integer print as decimal integer, at least 6 characters wide print as floating point 6-9-15 cfy 34

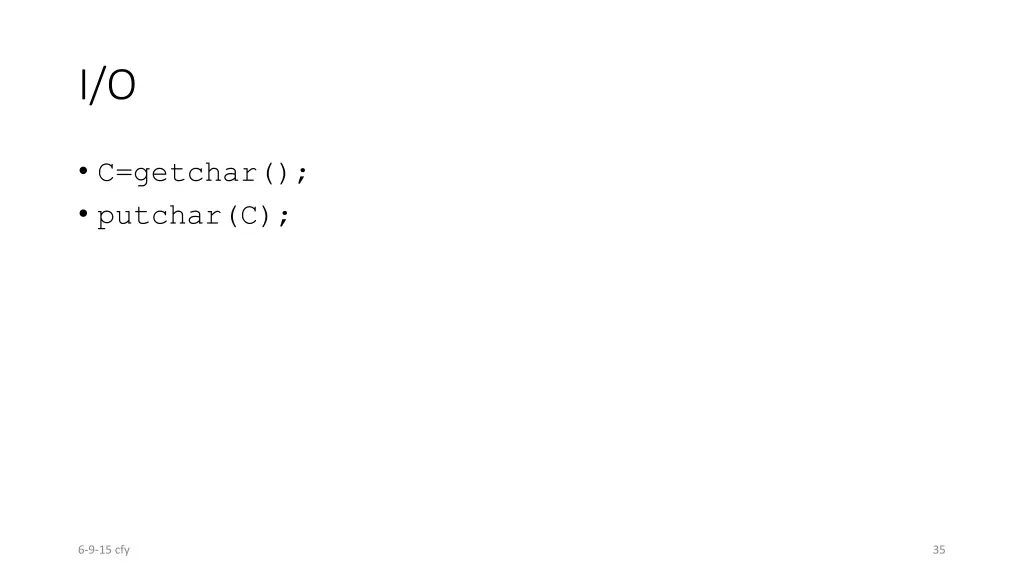

I/O C=getchar(); putchar(C); 6-9-15 cfy 35

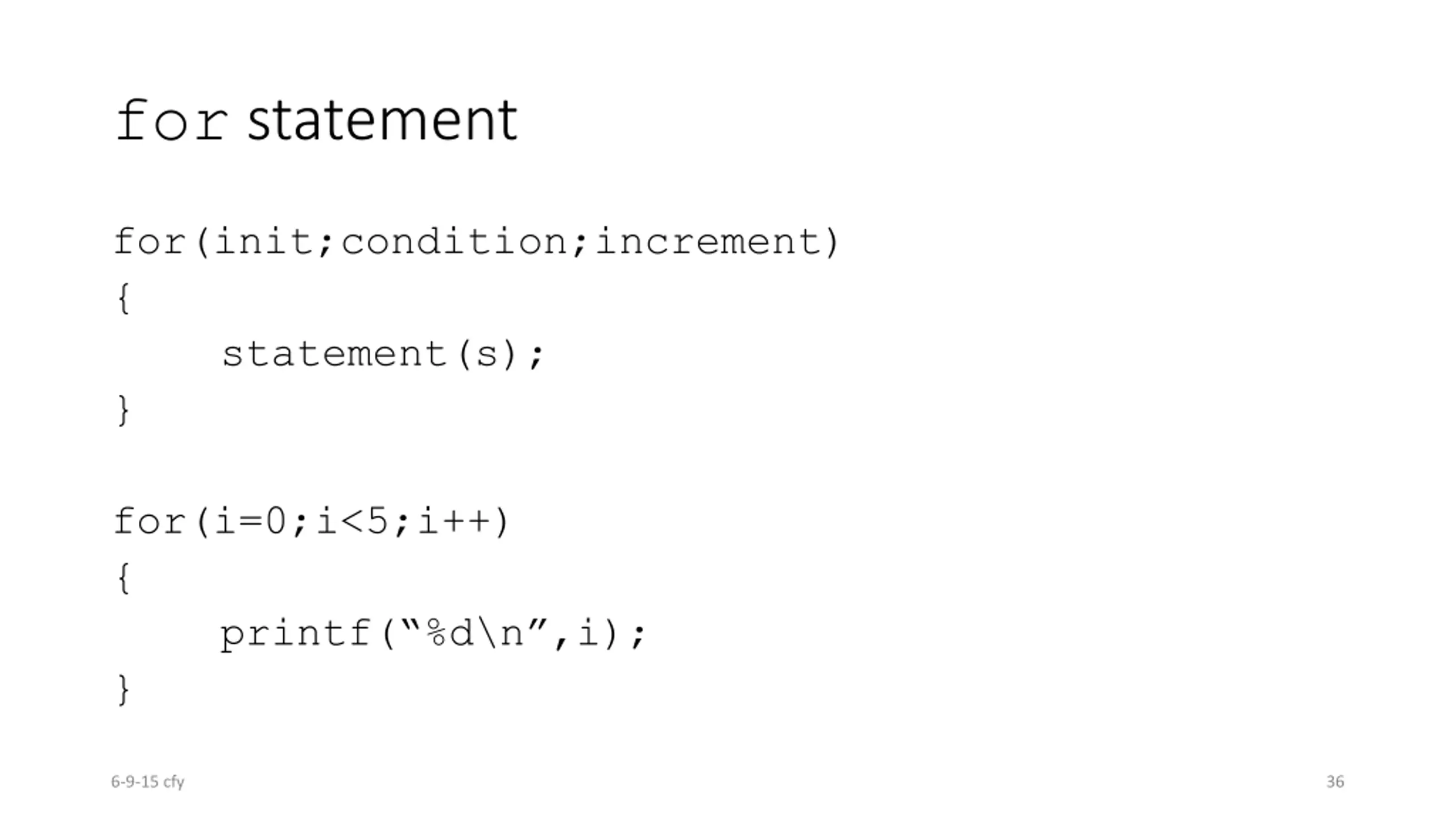

for statement for(init;condition;increment) { statement(s); } for(i=0;i<5;i++) { printf( %d\n ,i); } 6-9-15 cfy 36

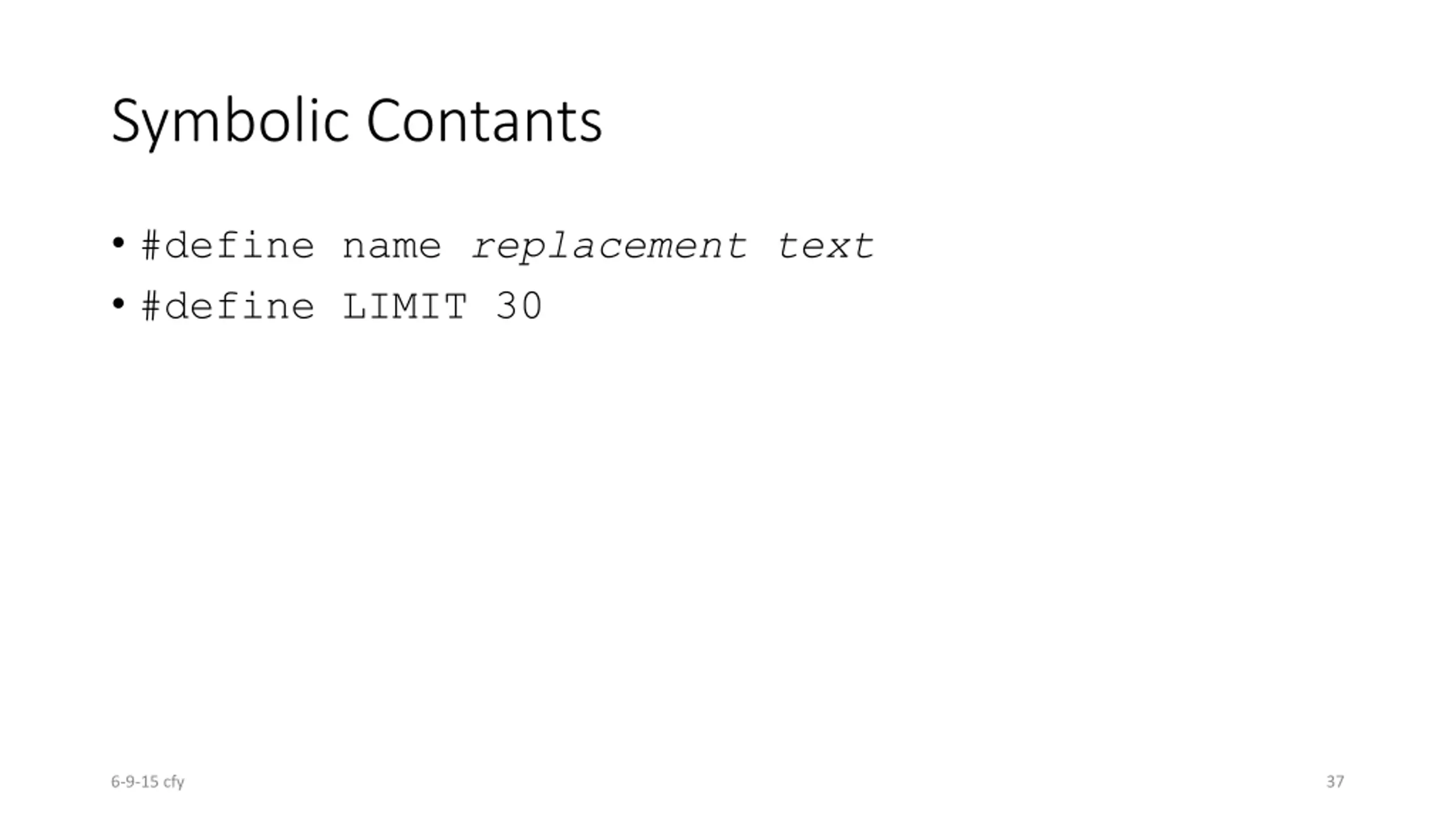

Symbolic Contants #define name replacement text #define LIMIT 30 6-9-15 cfy 37

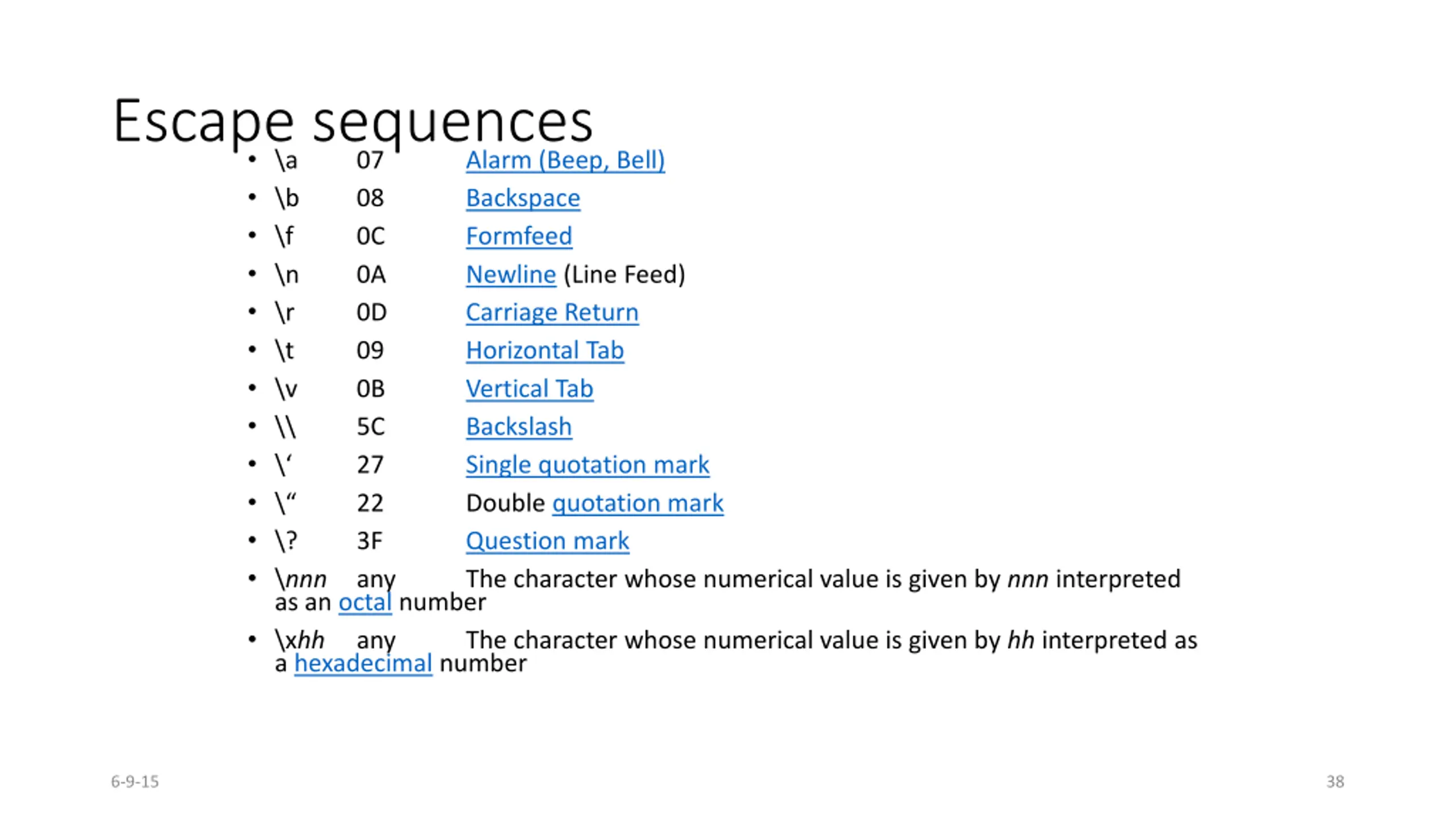

Escape sequences \a \b \f \n \r \t \v \\ \ \ \? \nnn any as an octal number \xhh a hexadecimal number 07 08 0C 0A 0D 09 0B 5C 27 22 3F Alarm (Beep, Bell) Backspace Formfeed Newline (Line Feed) Carriage Return Horizontal Tab Vertical Tab Backslash Single quotation mark Double quotation mark Question mark The character whose numerical value is given by nnn interpreted any The character whose numerical value is given by hh interpreted as 6-9-15 38

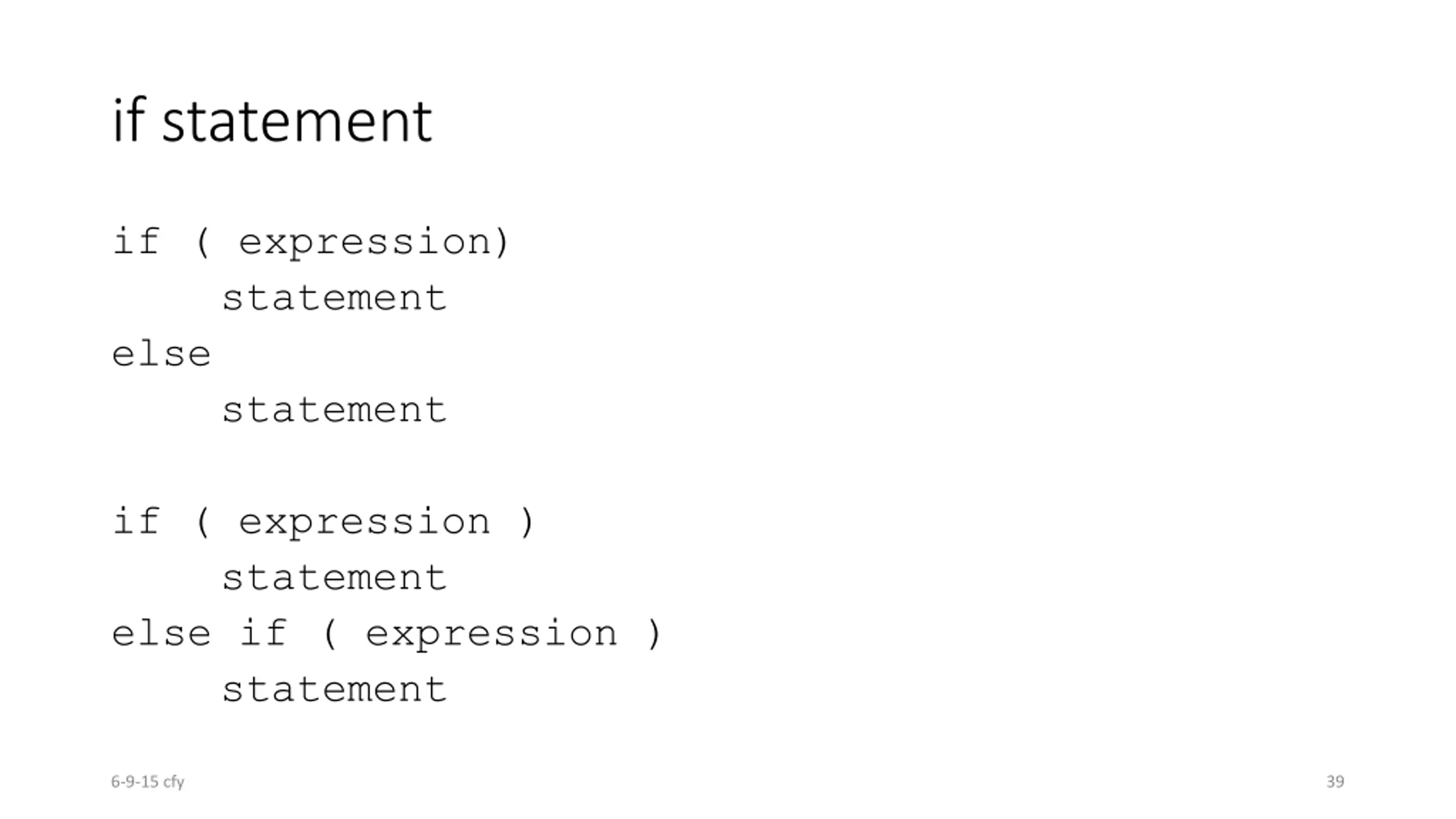

if statement if ( expression) statement else statement if ( expression ) statement else if ( expression ) statement 6-9-15 cfy 39

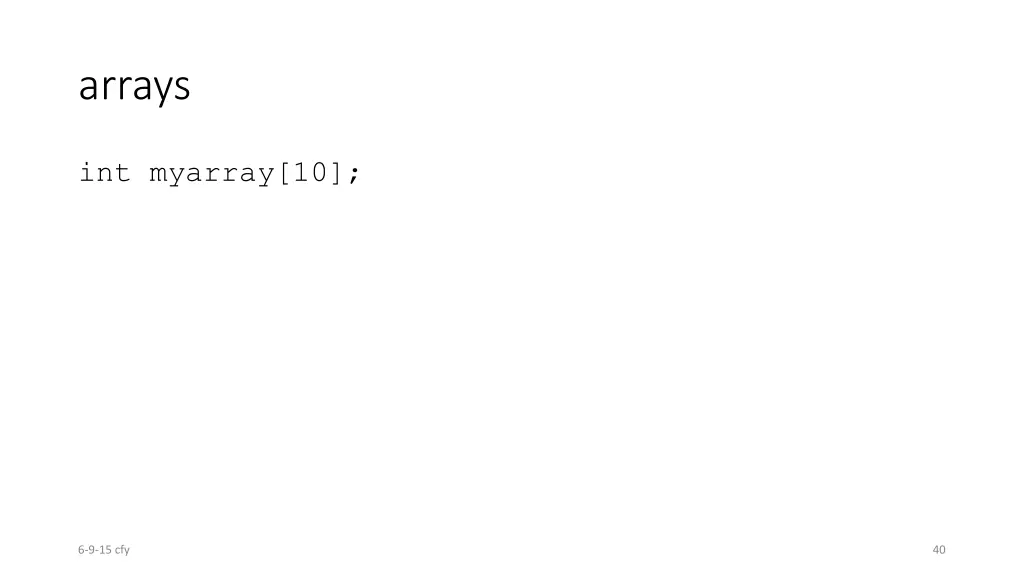

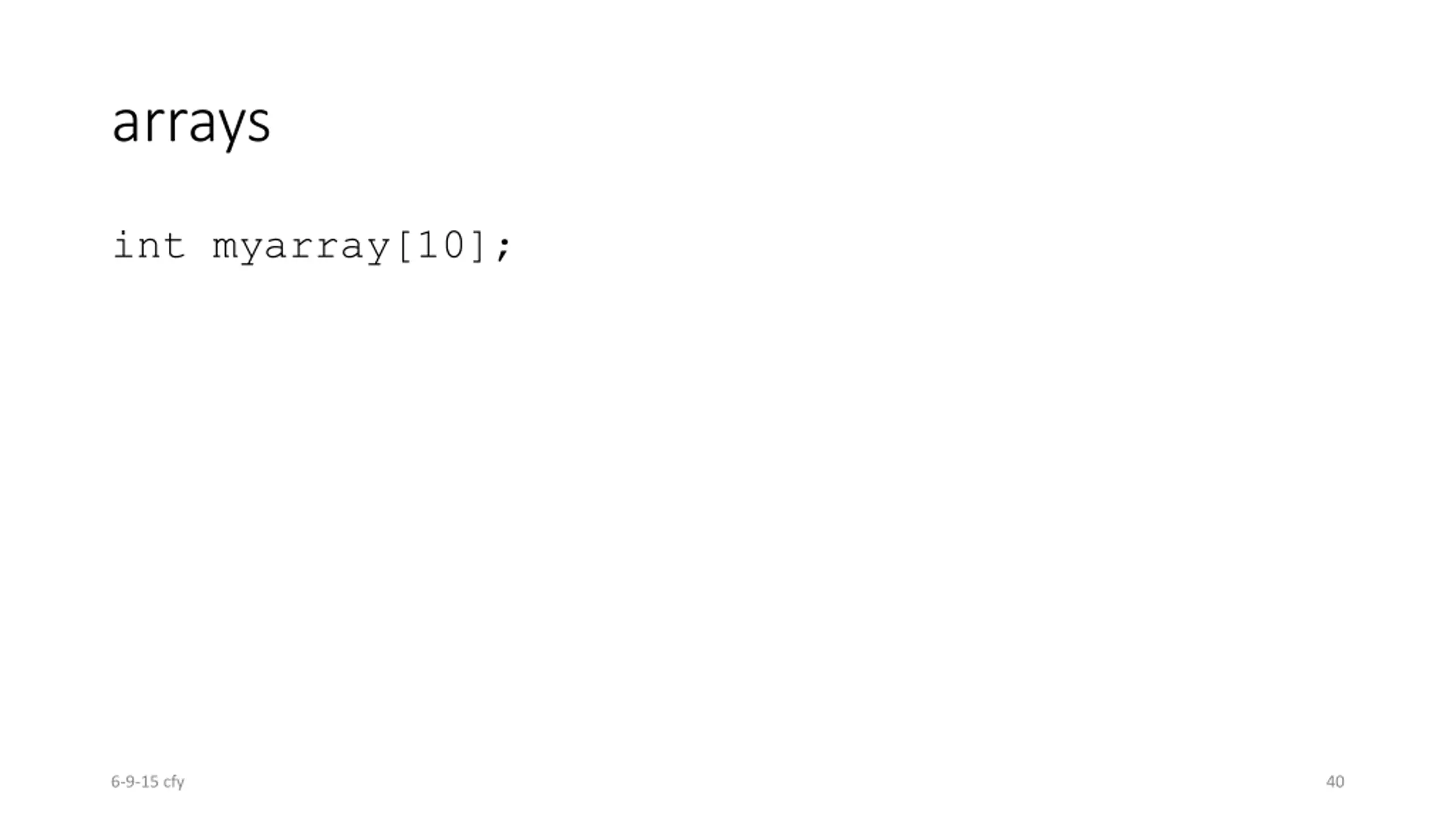

arrays int myarray[10]; 6-9-15 cfy 40

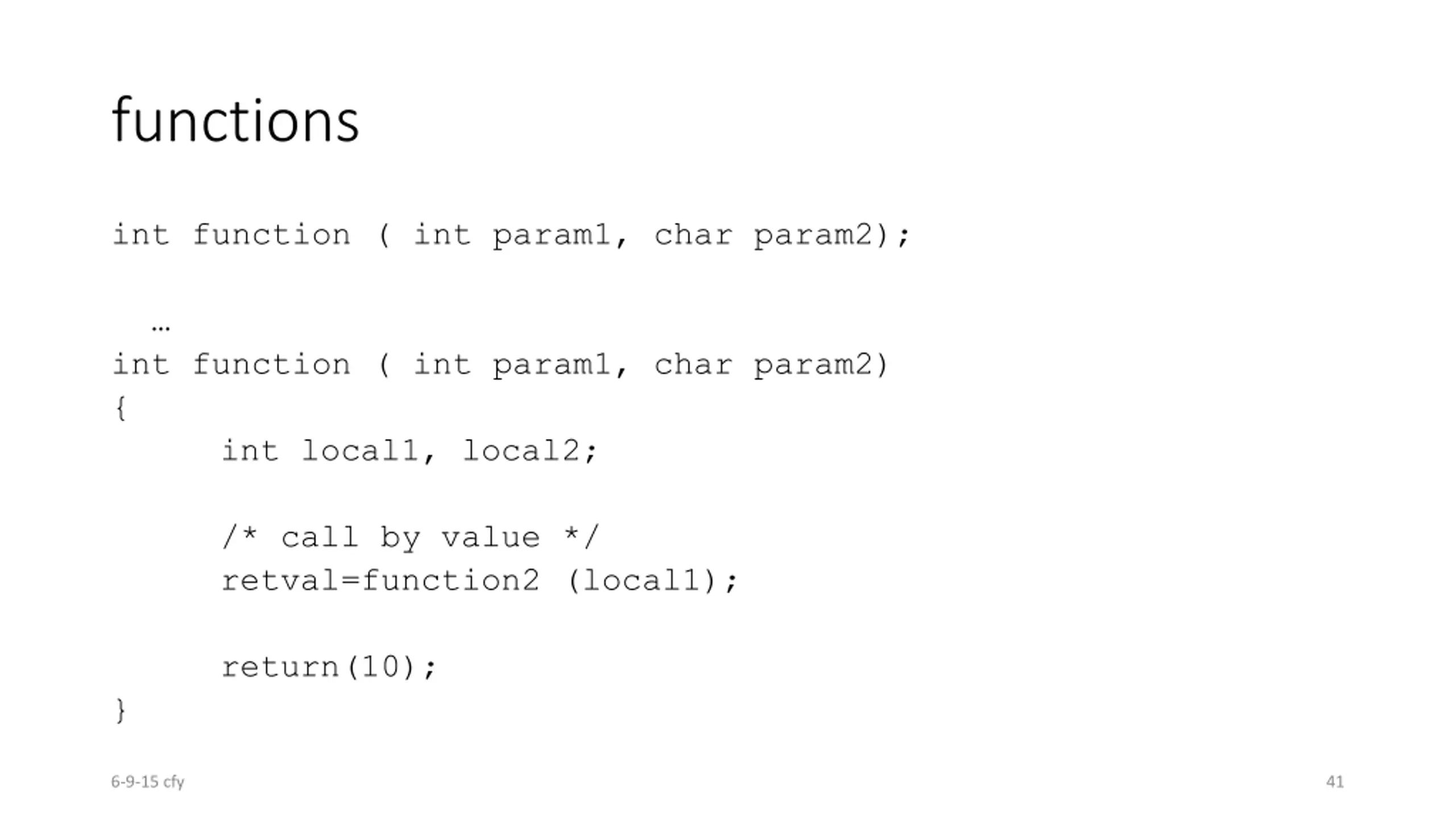

functions int function ( int param1, char param2); int function ( int param1, char param2) { int local1, local2; /* call by value */ retval=function2 (local1); } return(10); 6-9-15 cfy 41

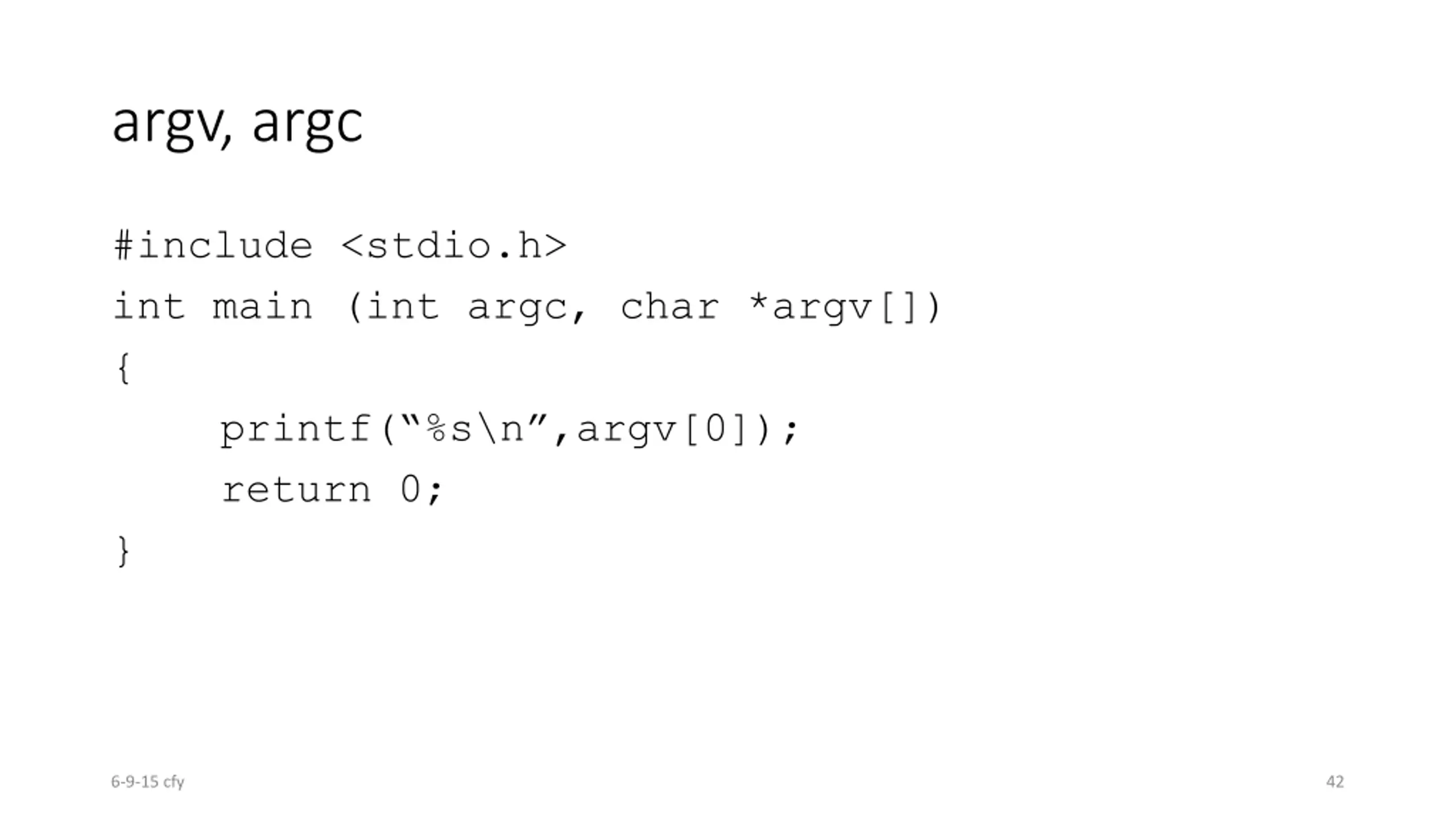

argv, argc #include <stdio.h> int main (int argc, char *argv[]) { printf( %s\n ,argv[0]); return 0; } 6-9-15 cfy 42

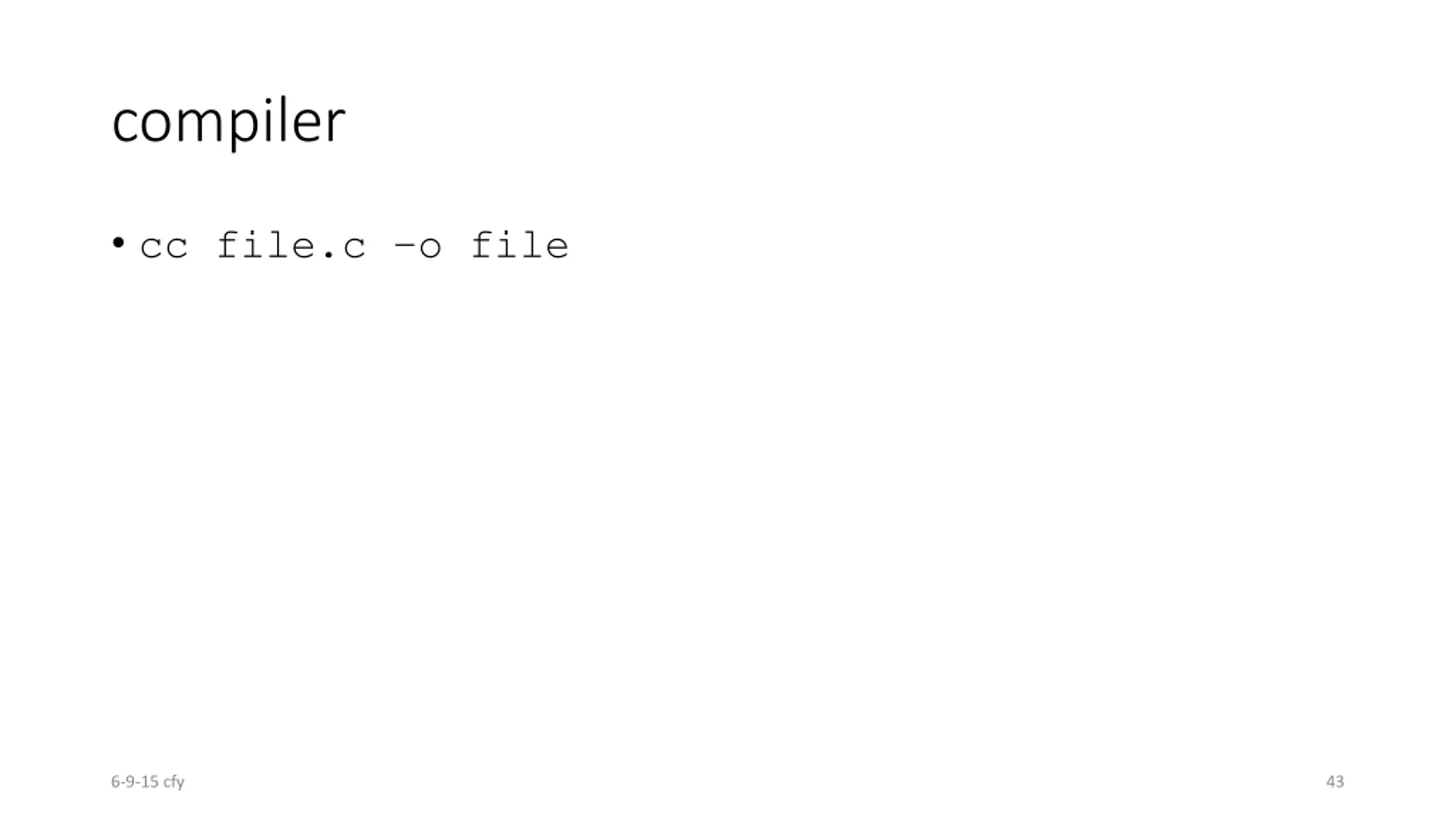

compiler cc file.c o file 6-9-15 cfy 43

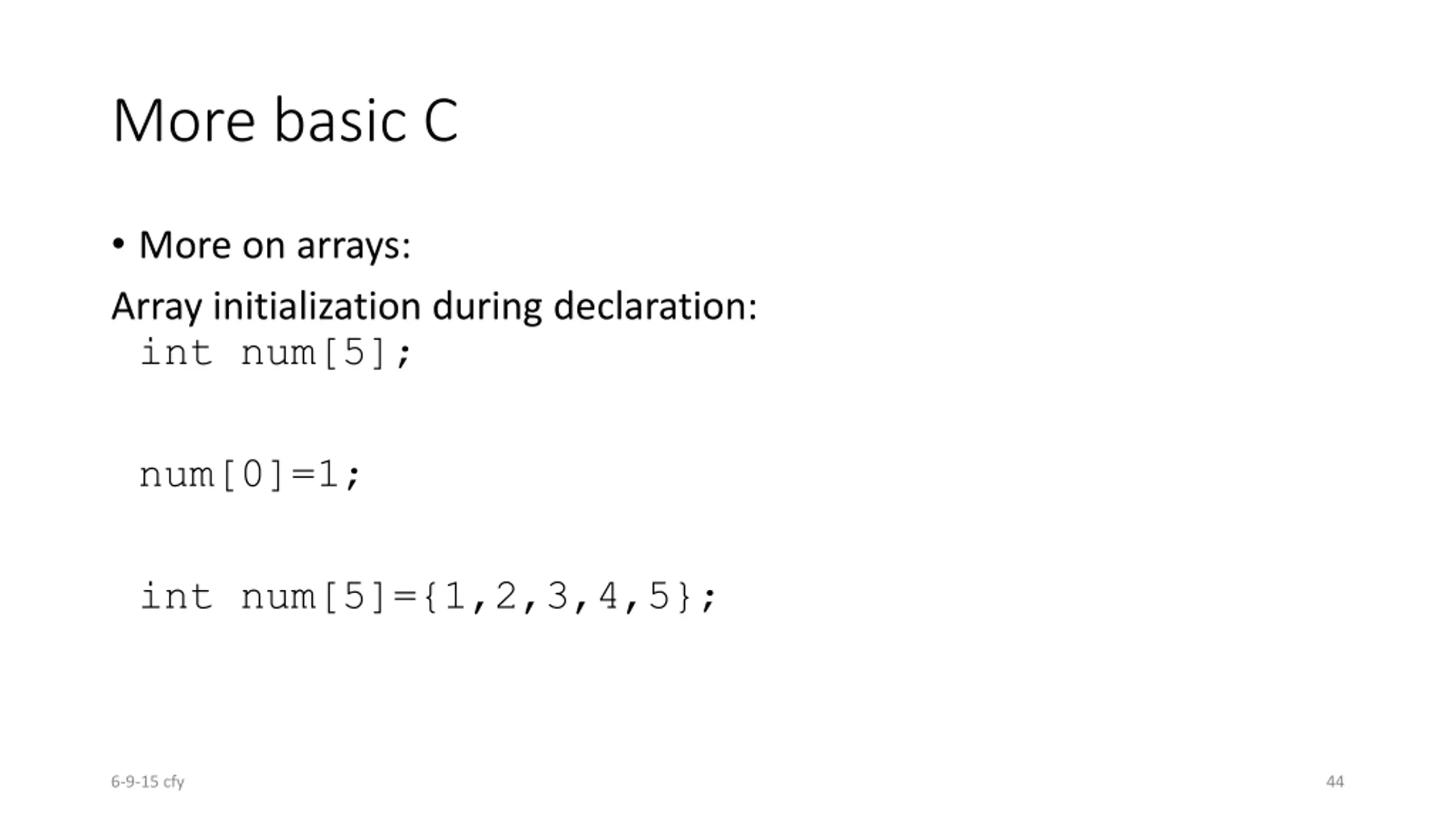

More basic C More on arrays: Array initialization during declaration: int num[5]; num[0]=1; int num[5]={1,2,3,4,5}; 6-9-15 cfy 44

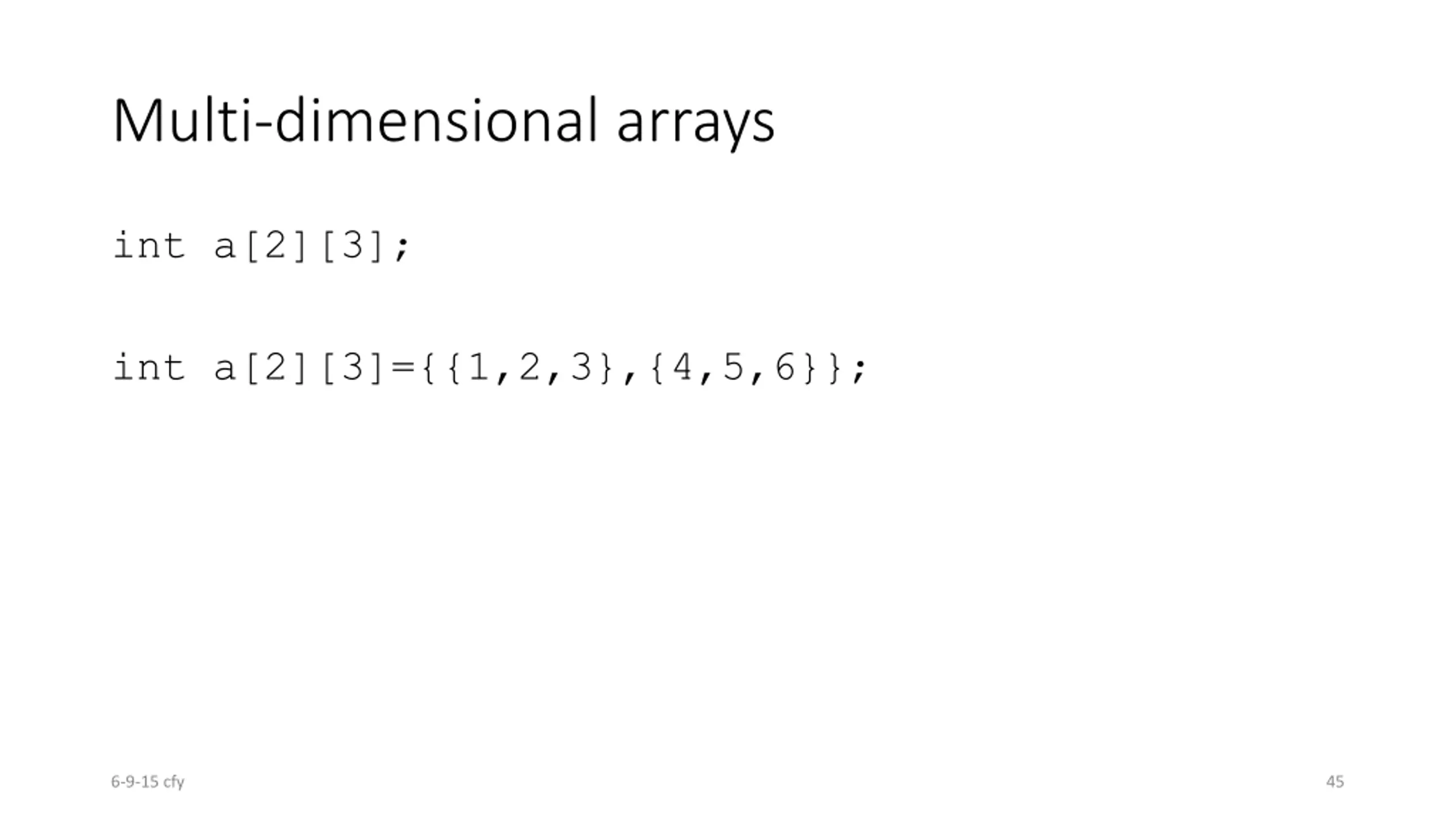

Multi-dimensional arrays int a[2][3]; int a[2][3]={{1,2,3},{4,5,6}}; 6-9-15 cfy 45

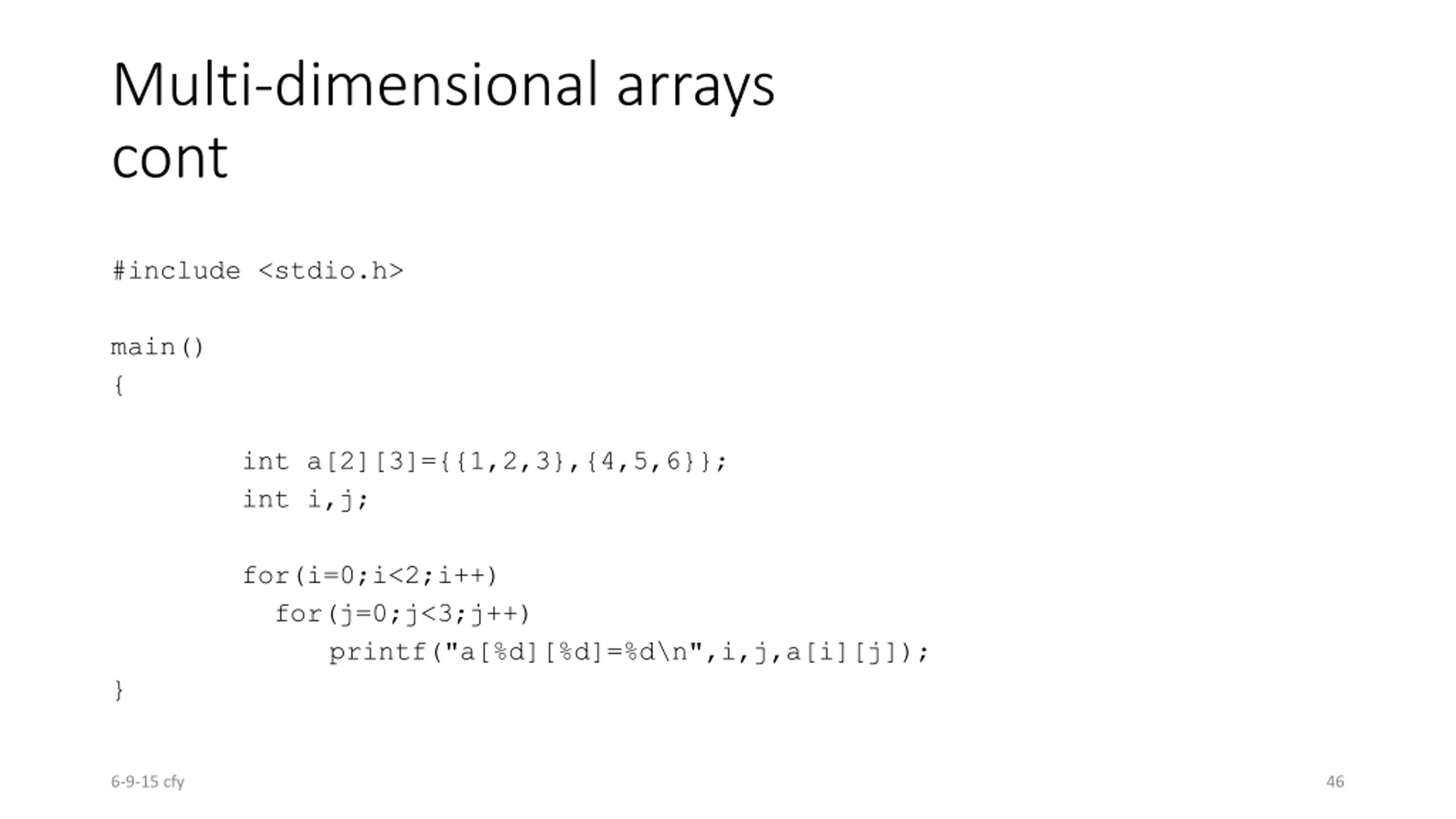

Multi-dimensional arrays cont #include <stdio.h> main() { int a[2][3]={{1,2,3},{4,5,6}}; int i,j; for(i=0;i<2;i++) for(j=0;j<3;j++) } printf("a[%d][%d]=%d\n",i,j,a[i][j]); 6-9-15 cfy 46

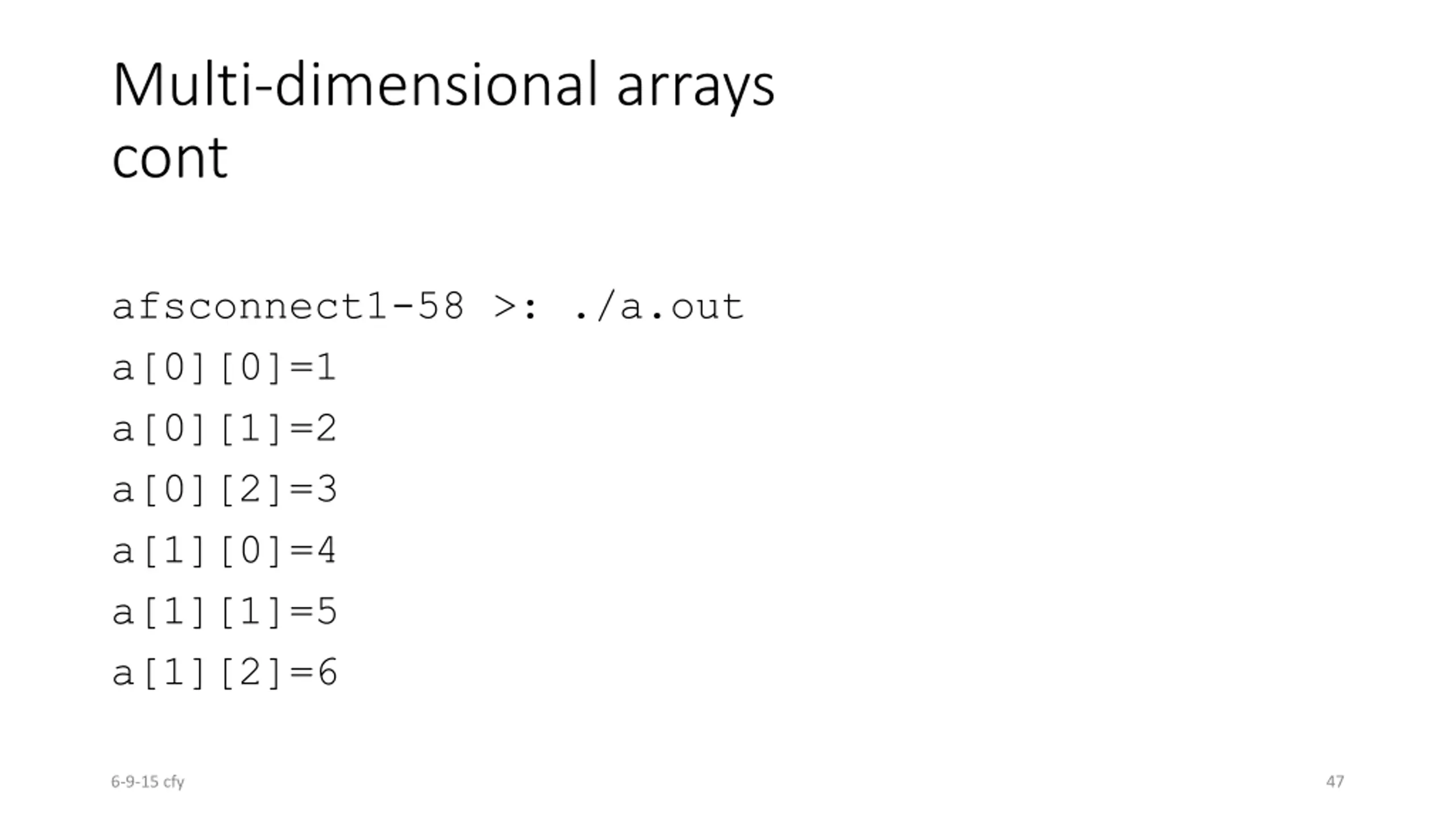

Multi-dimensional arrays cont afsconnect1-58 >: ./a.out a[0][0]=1 a[0][1]=2 a[0][2]=3 a[1][0]=4 a[1][1]=5 a[1][2]=6 6-9-15 cfy 47

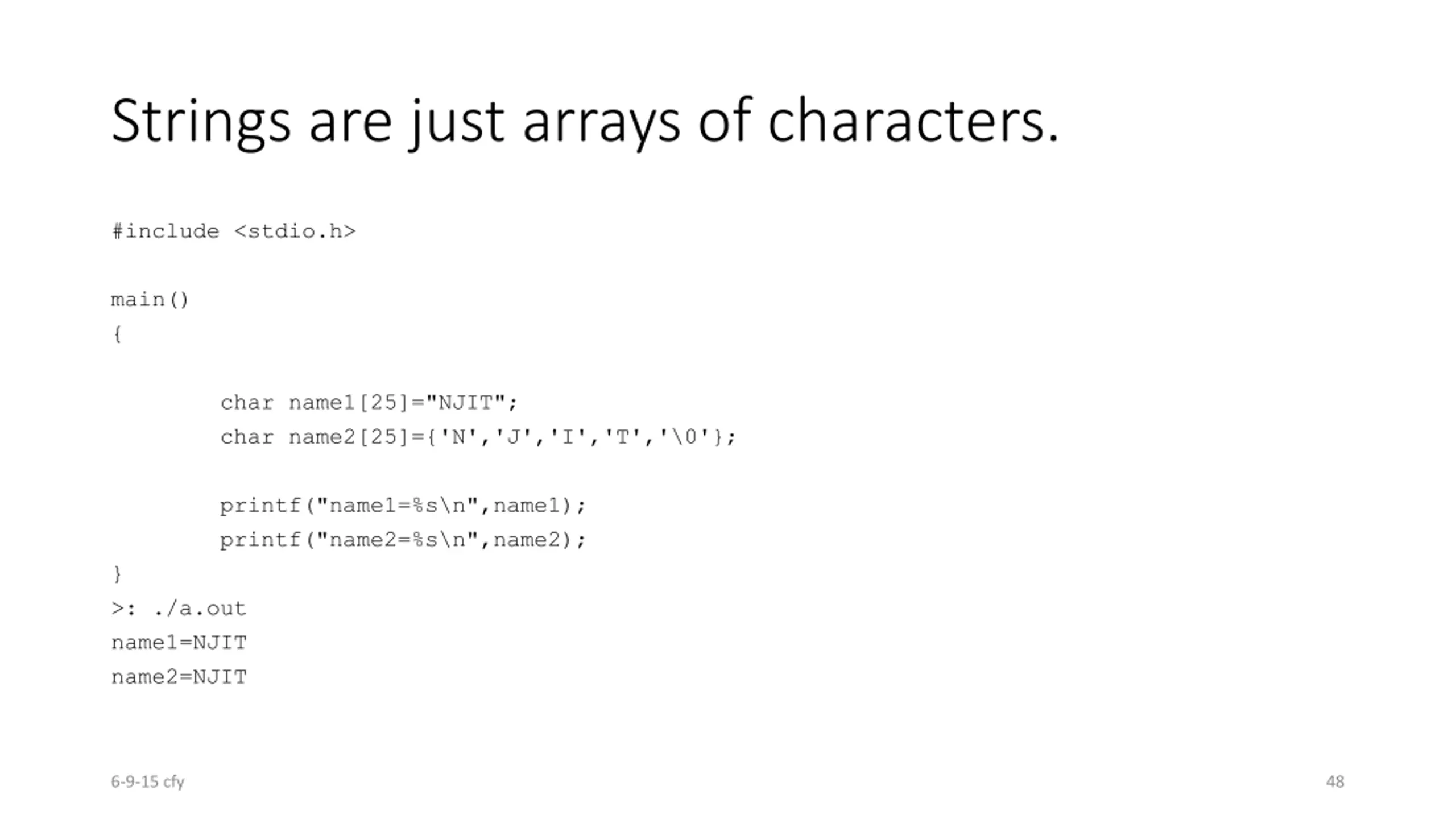

Strings are just arrays of characters. #include <stdio.h> main() { char name1[25]="NJIT"; char name2[25]={'N','J','I','T','\0'}; printf("name1=%s\n",name1); printf("name2=%s\n",name2); } >: ./a.out name1=NJIT name2=NJIT 6-9-15 cfy 48

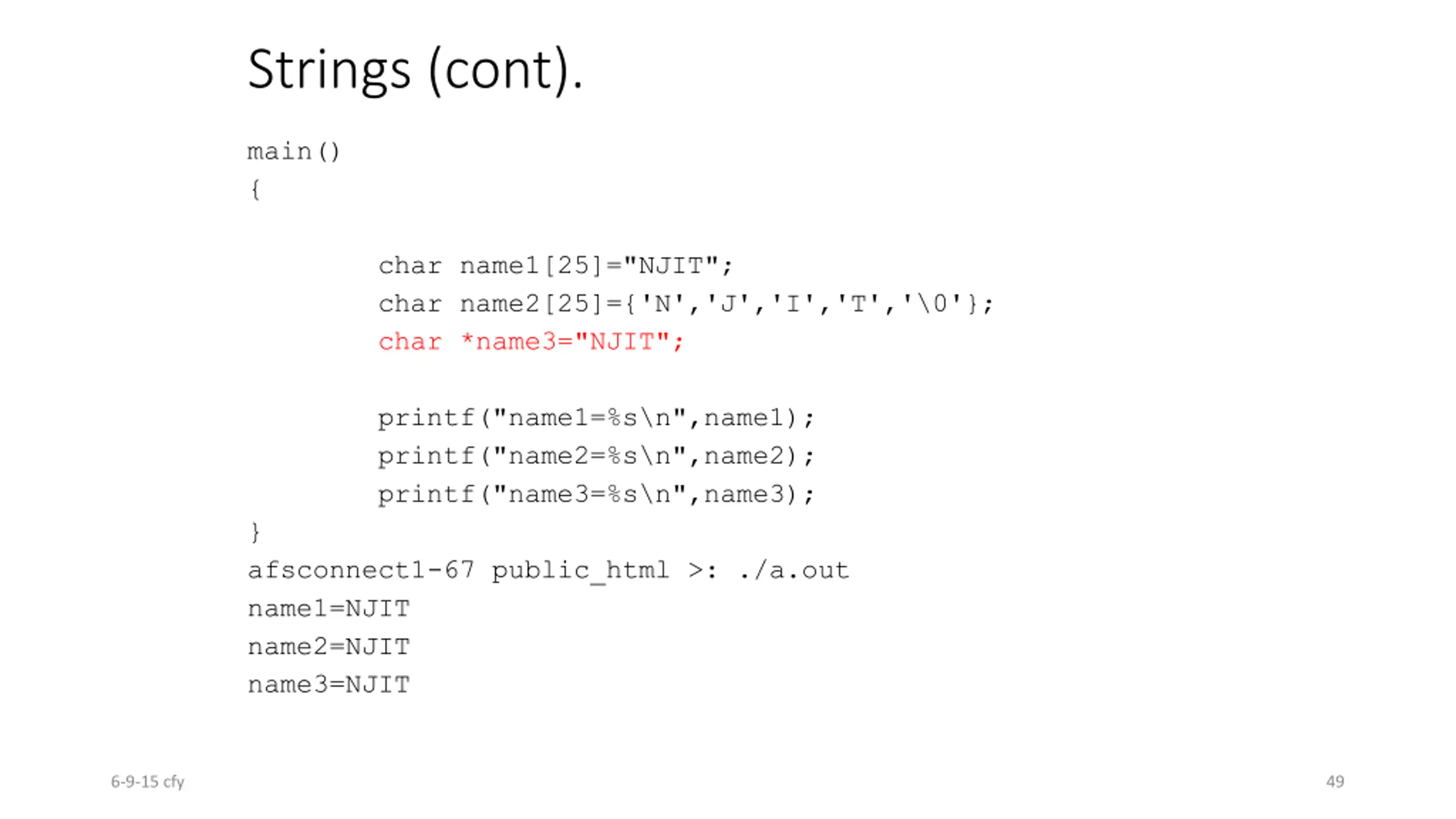

Strings (cont). main() { char name1[25]="NJIT"; char name2[25]={'N','J','I','T','\0'}; char *name3="NJIT"; printf("name1=%s\n",name1); printf("name2=%s\n",name2); printf("name3=%s\n",name3); } afsconnect1-67 public_html >: ./a.out name1=NJIT name2=NJIT name3=NJIT 6-9-15 cfy 49

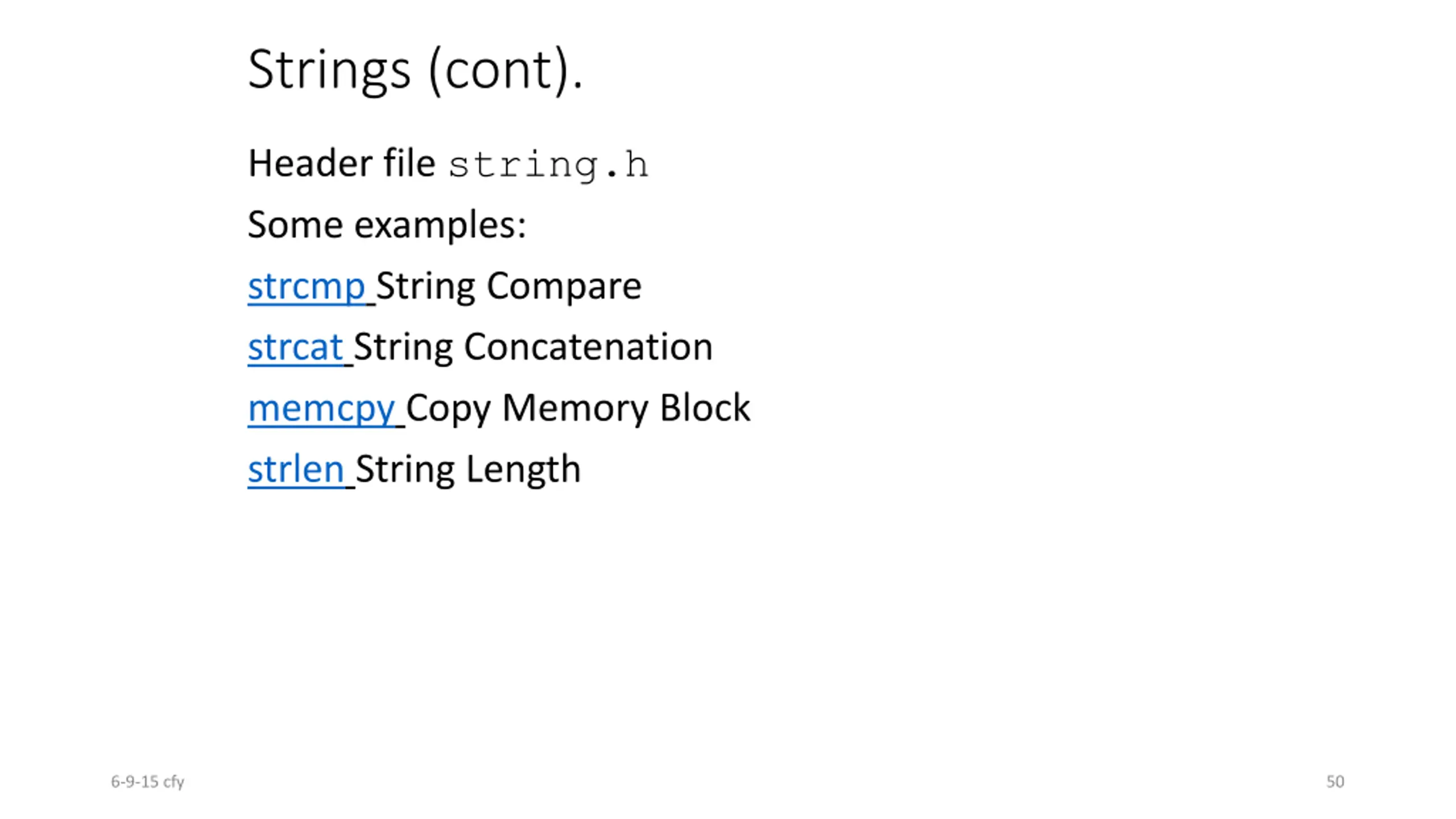

Strings (cont). Header file string.h Some examples: strcmp String Compare strcat String Concatenation memcpy Copy Memory Block strlen String Length 6-9-15 cfy 50

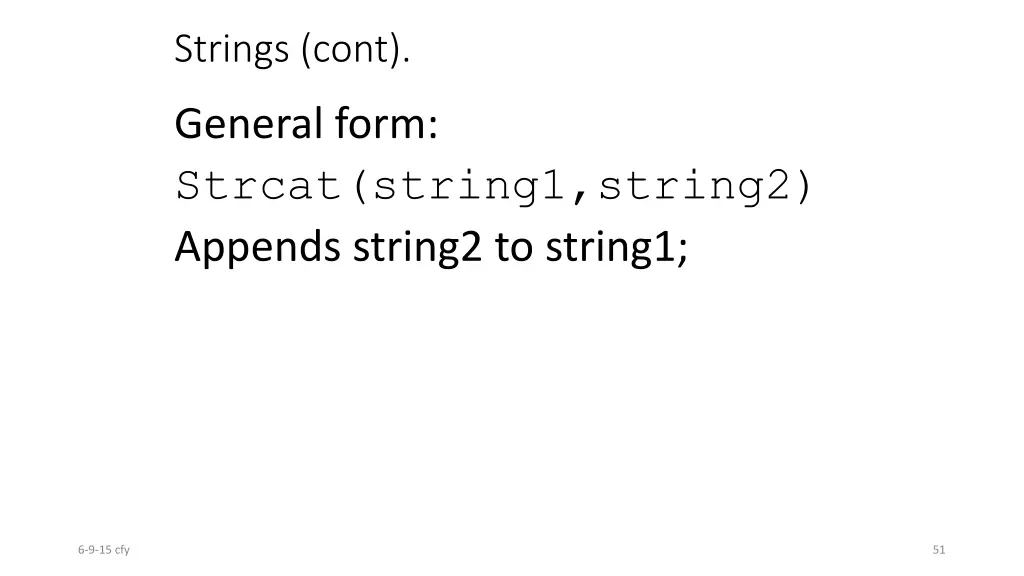

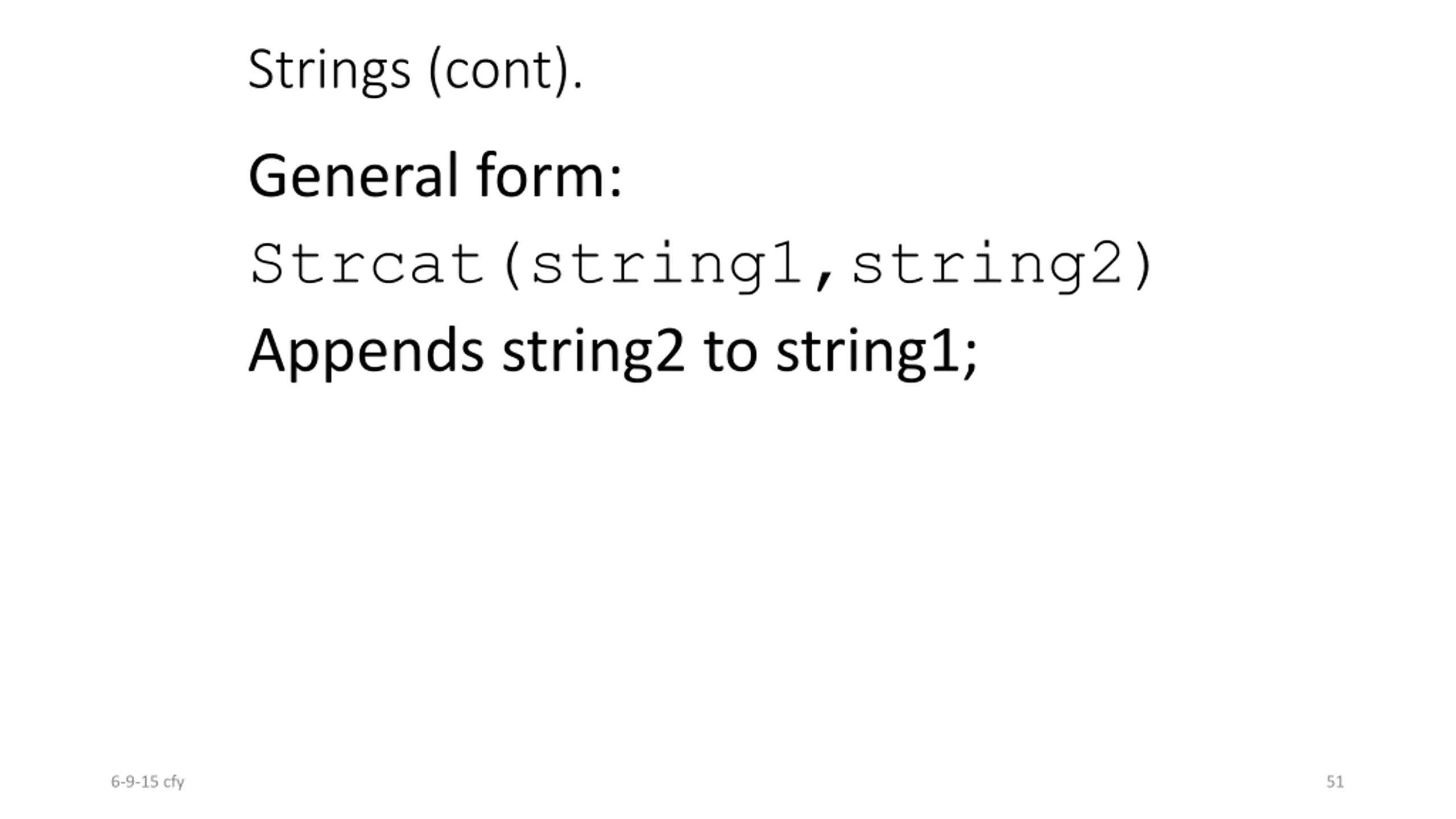

Strings (cont). General form: Strcat(string1,string2) Appends string2 to string1; 6-9-15 cfy 51

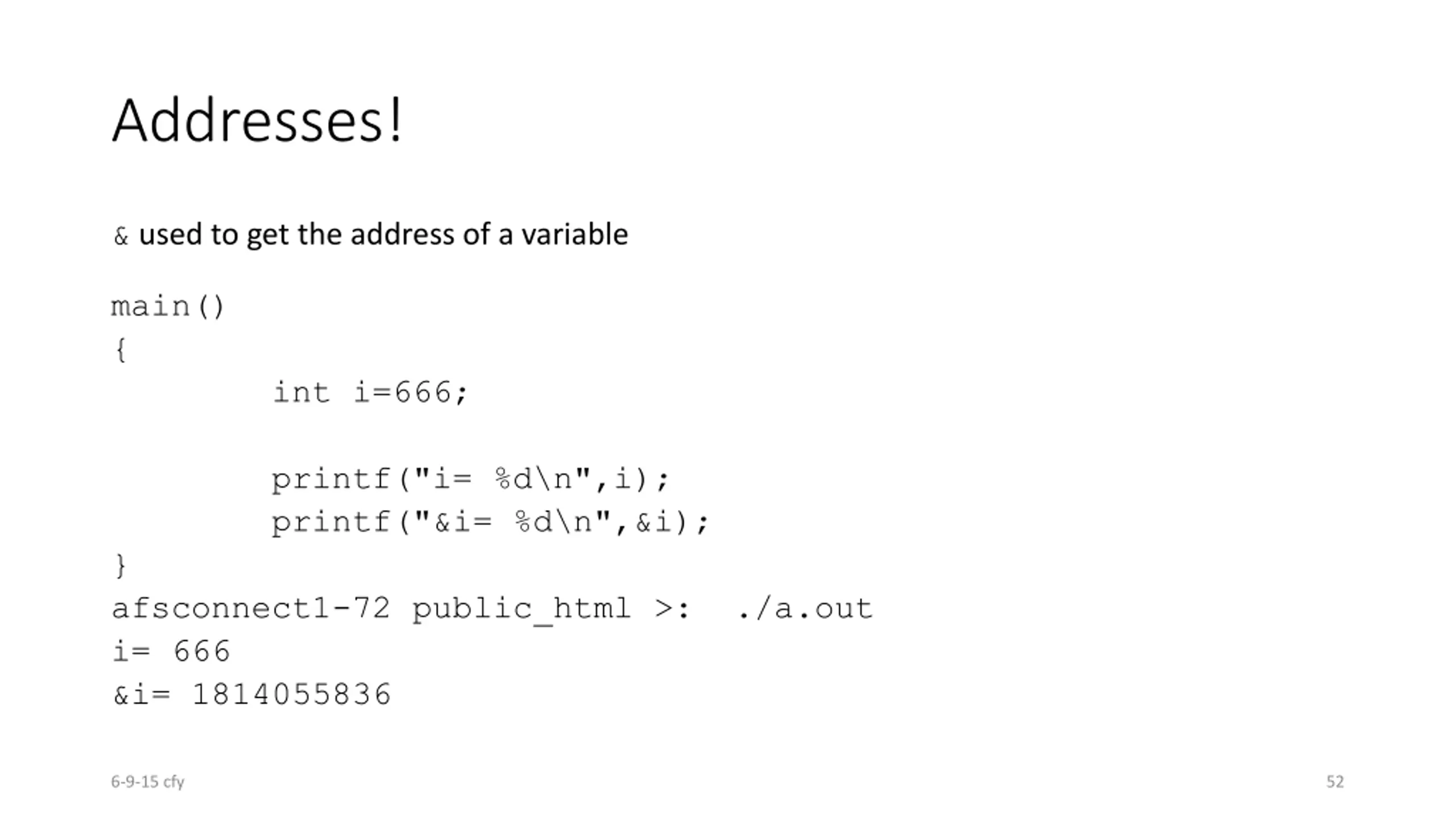

Addresses! & used to get the address of a variable main() { int i=666; printf("i= %d\n",i); printf("&i= %d\n",&i); } afsconnect1-72 public_html >: ./a.out i= 666 &i= 1814055836 6-9-15 cfy 52

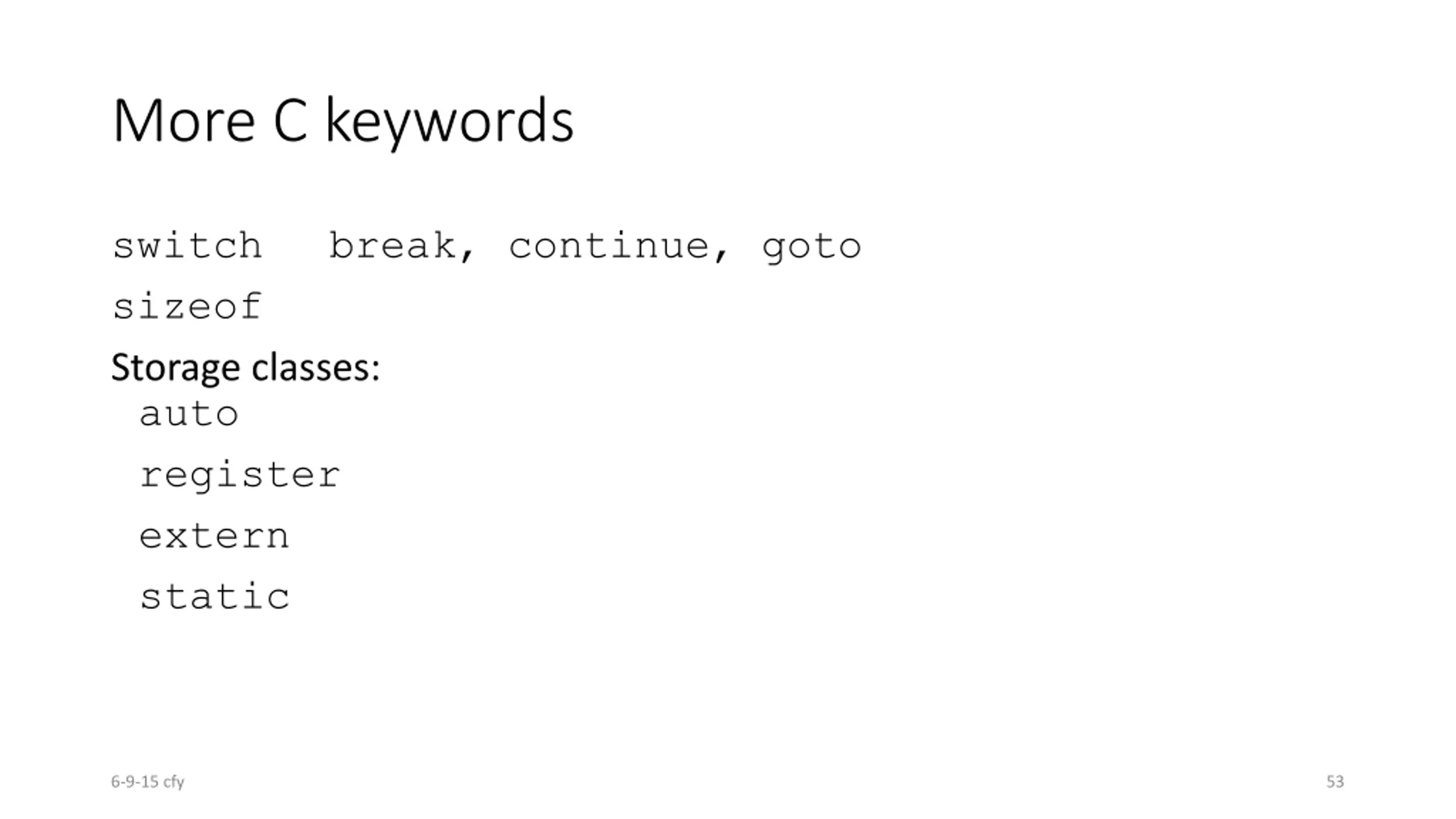

More C keywords switch sizeof Storage classes: auto register extern static break, continue, goto 6-9-15 cfy 53

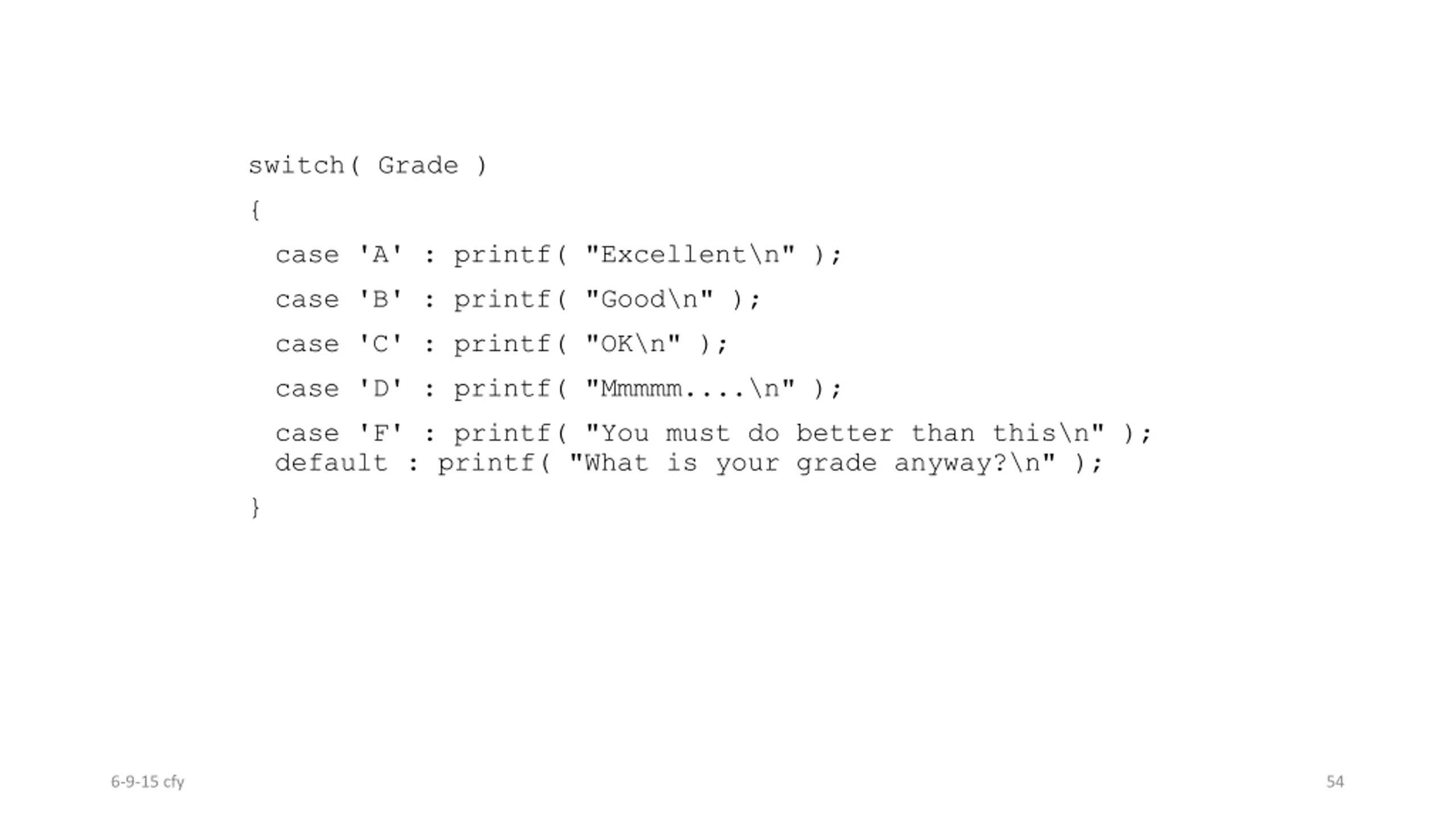

switch( Grade ) { case 'A' : printf( "Excellent\n" ); case 'B' : printf( "Good\n" ); case 'C' : printf( "OK\n" ); case 'D' : printf( "Mmmmm....\n" ); case 'F' : printf( "You must do better than this\n" ); default : printf( "What is your grade anyway?\n" ); } 6-9-15 cfy 54

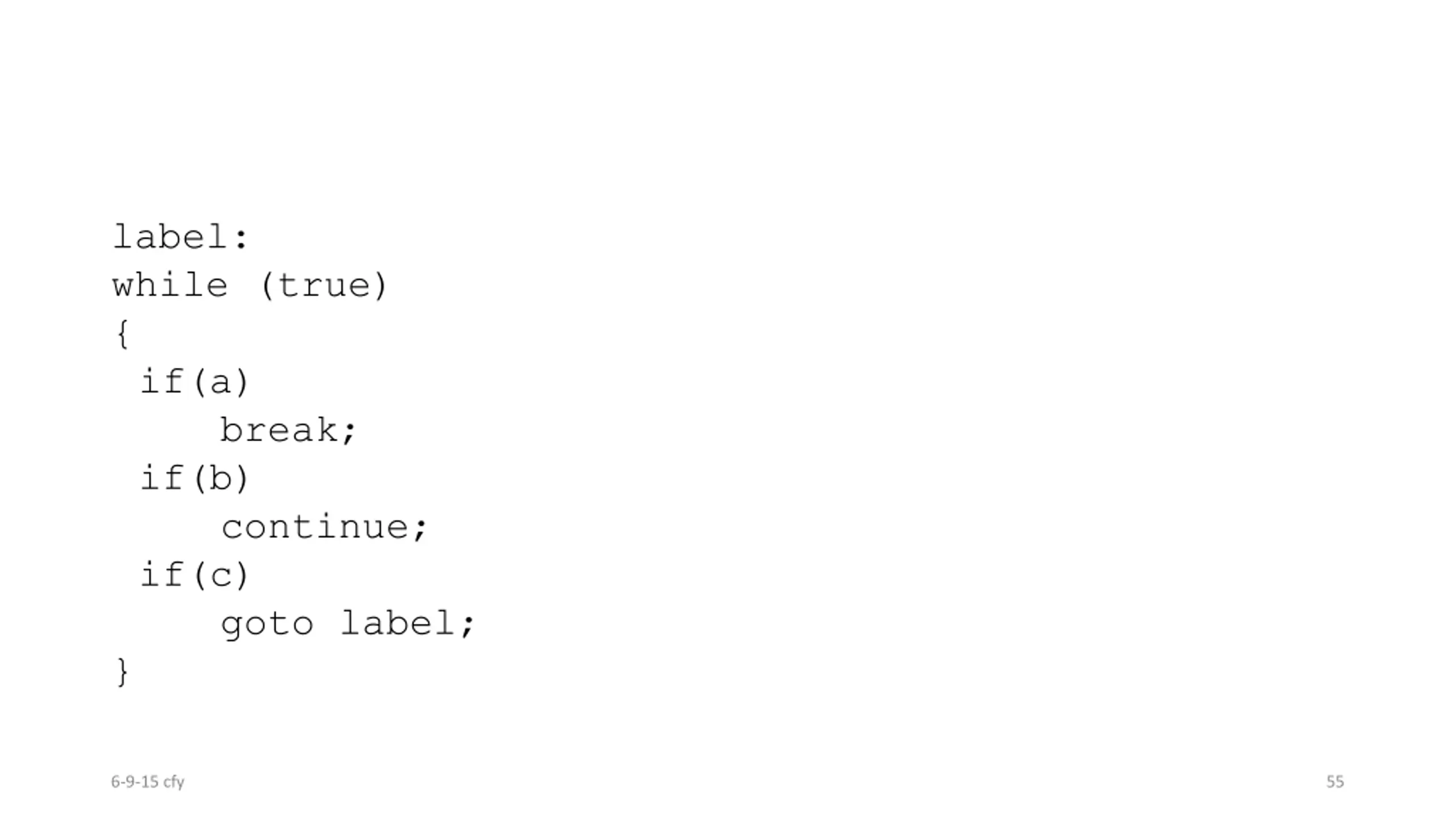

label: while (true) { if(a) break; if(b) continue; if(c) goto label; } 6-9-15 cfy 55

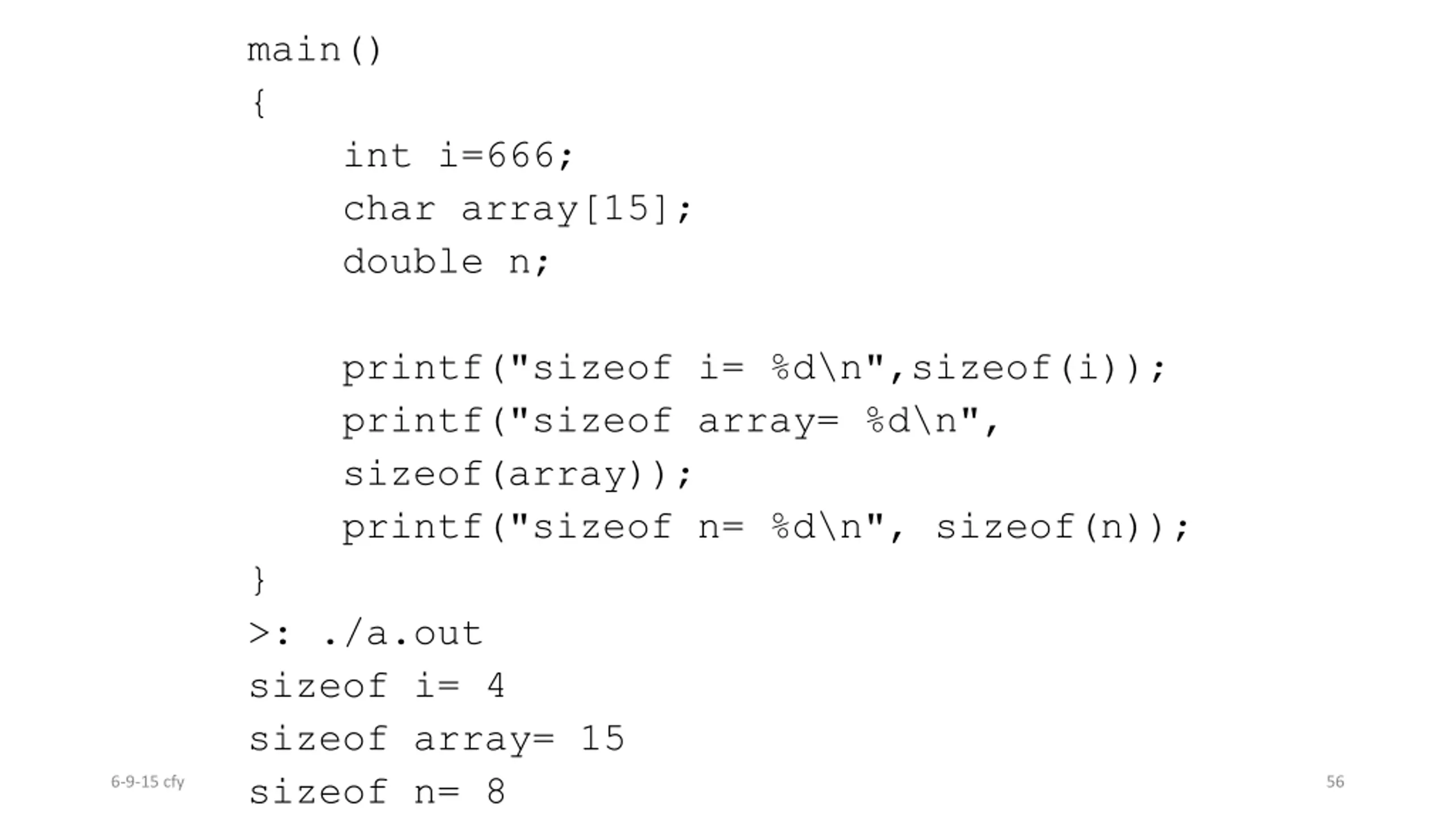

main() { int i=666; char array[15]; double n; printf("sizeof i= %d\n",sizeof(i)); printf("sizeof array= %d\n", sizeof(array)); printf("sizeof n= %d\n", sizeof(n)); } >: ./a.out sizeof i= 4 sizeof array= 15 sizeof n= 8 6-9-15 cfy 56

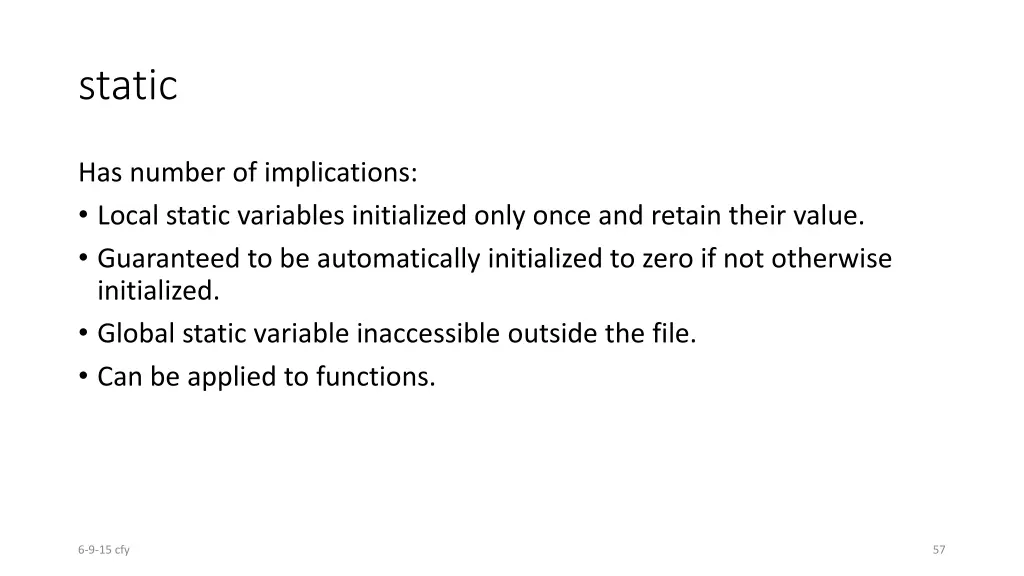

static Has number of implications: Local static variables initialized only once and retain their value. Guaranteed to be automatically initialized to zero if not otherwise initialized. Global static variable inaccessible outside the file. Can be applied to functions. 6-9-15 cfy 57

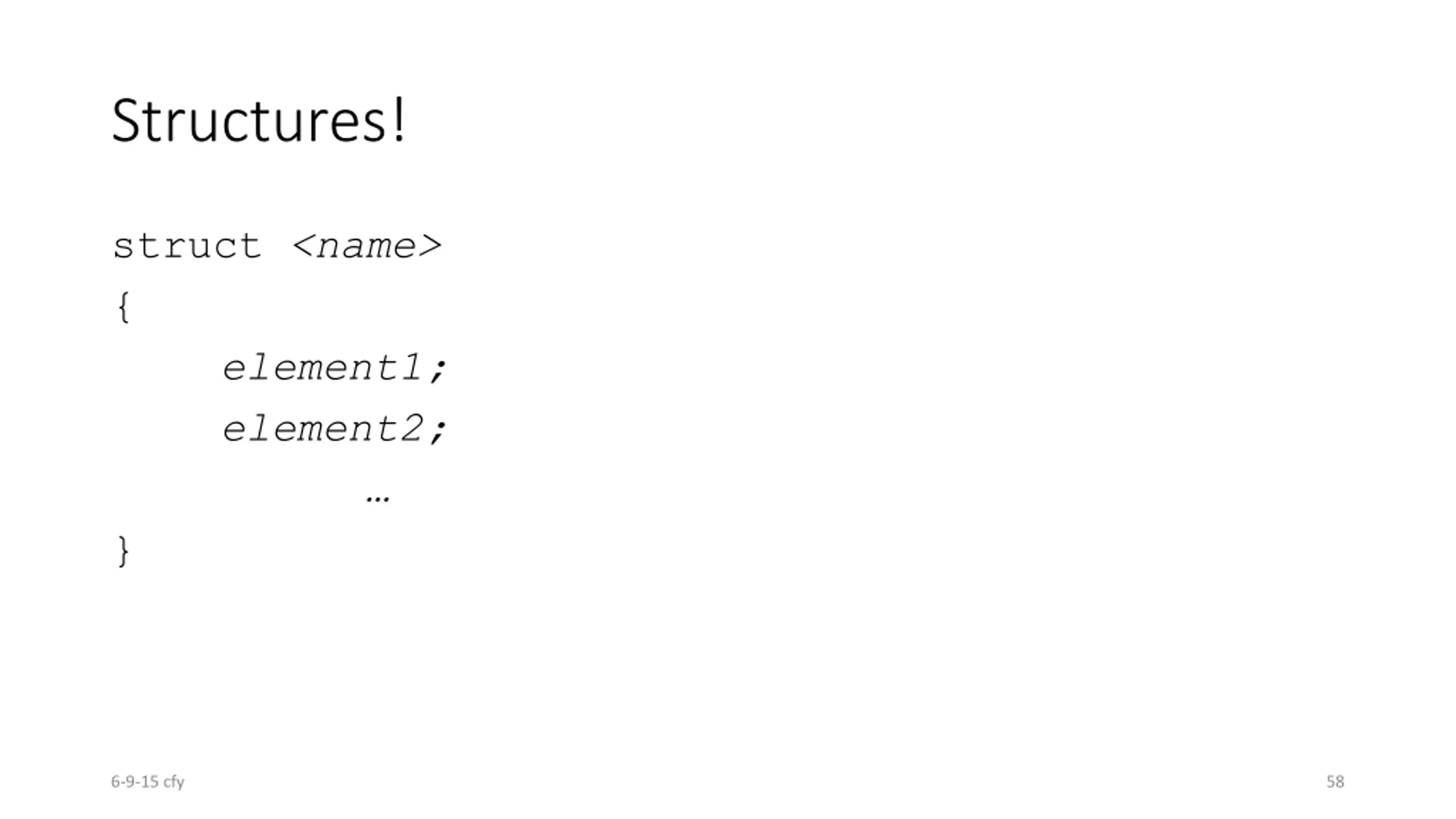

Structures! struct <name> { element1; element2; } 6-9-15 cfy 58

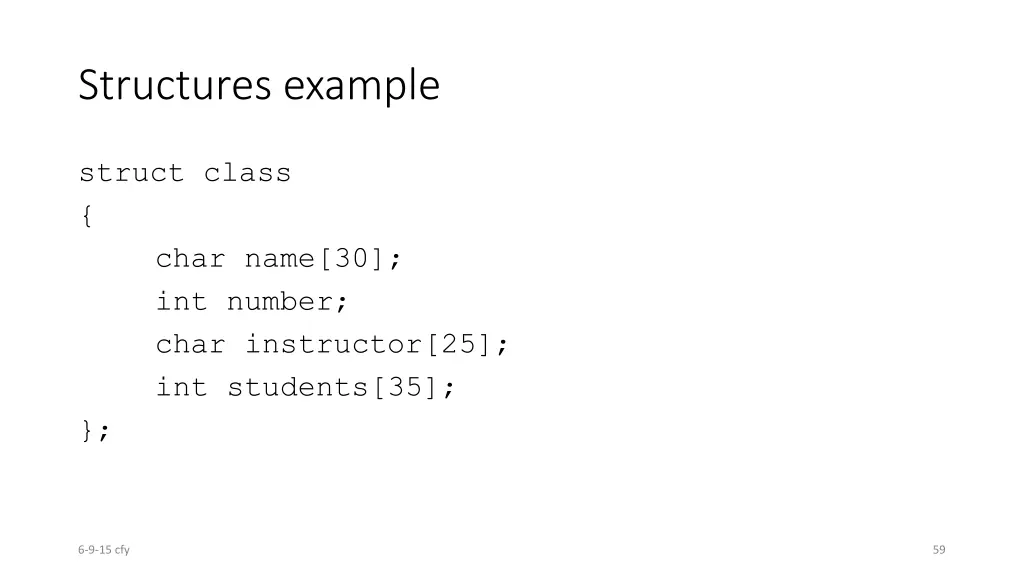

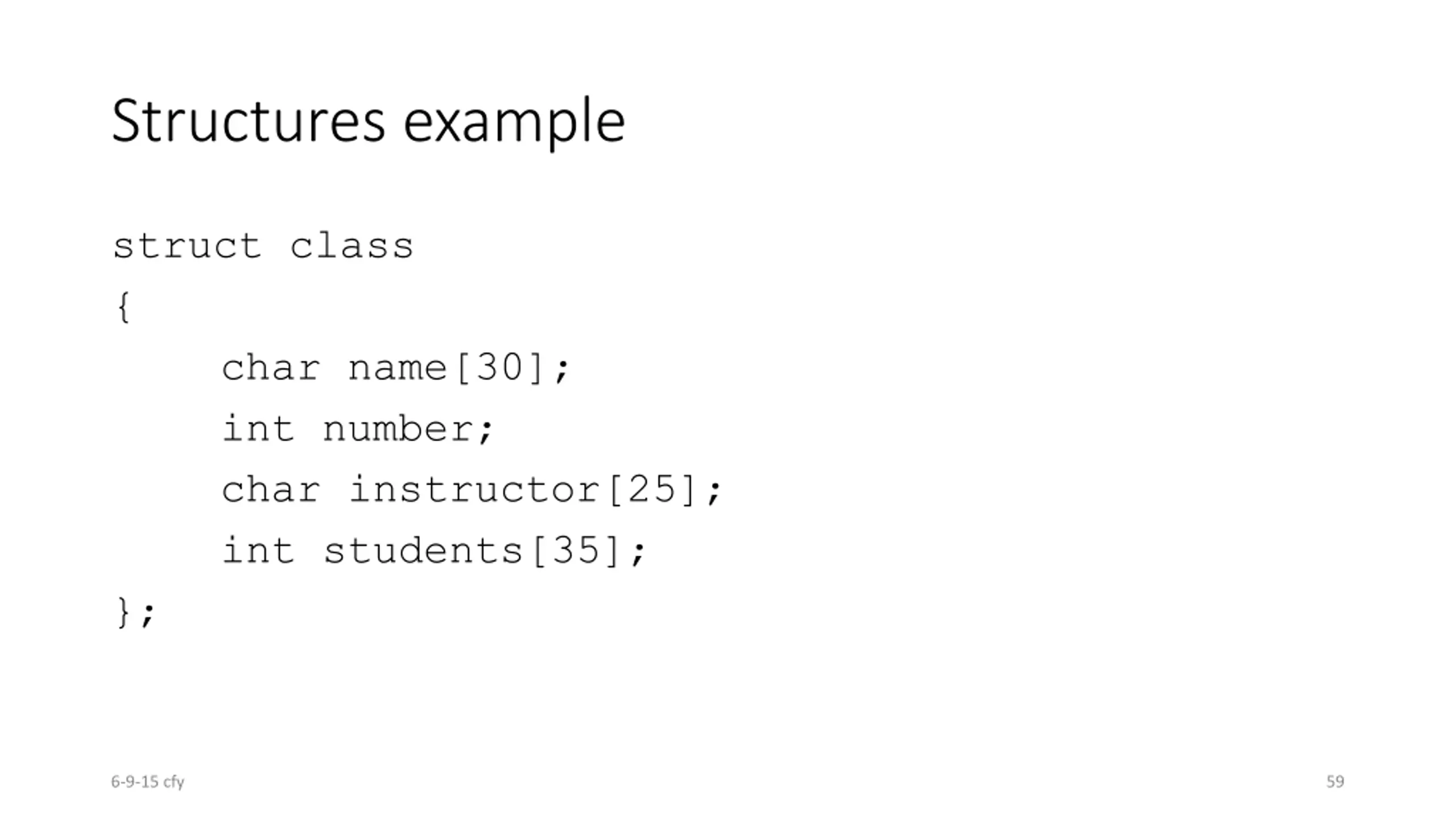

Structures example struct class { char name[30]; int number; char instructor[25]; int students[35]; }; 6-9-15 cfy 59

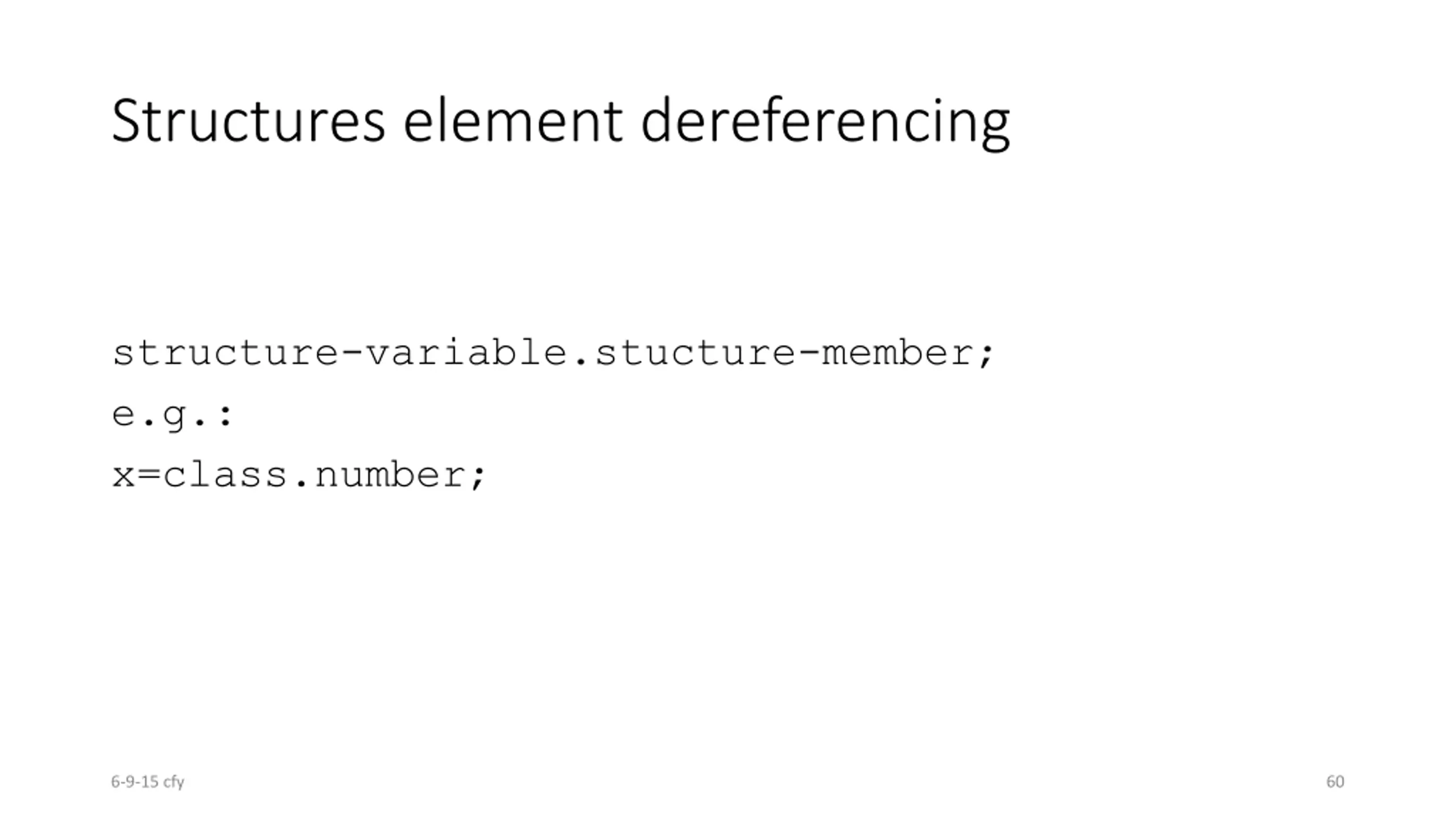

Structures element dereferencing structure-variable.stucture-member; e.g.: x=class.number; 6-9-15 cfy 60

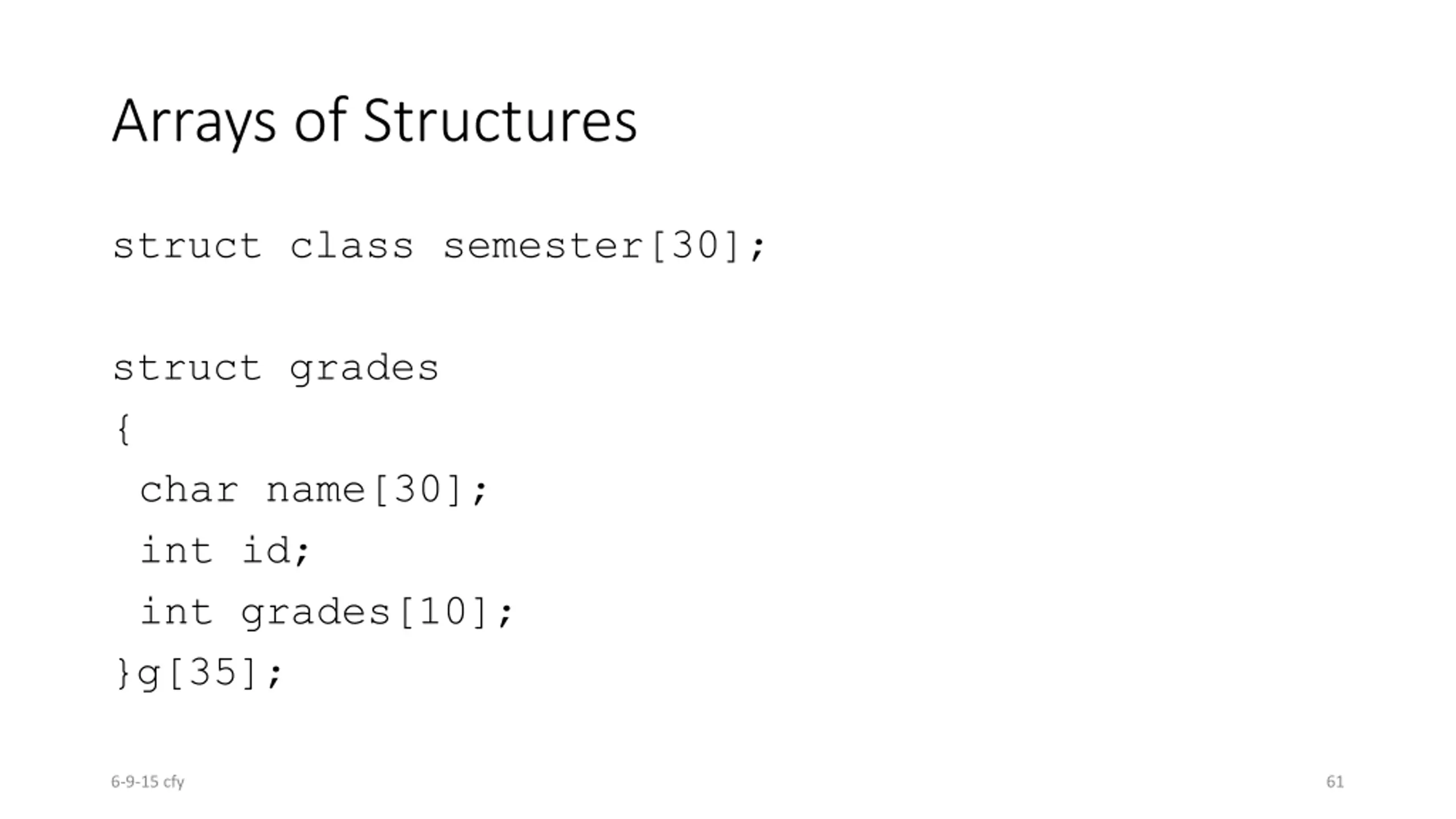

Arrays of Structures struct class semester[30]; struct grades { char name[30]; int id; int grades[10]; }g[35]; 6-9-15 cfy 61

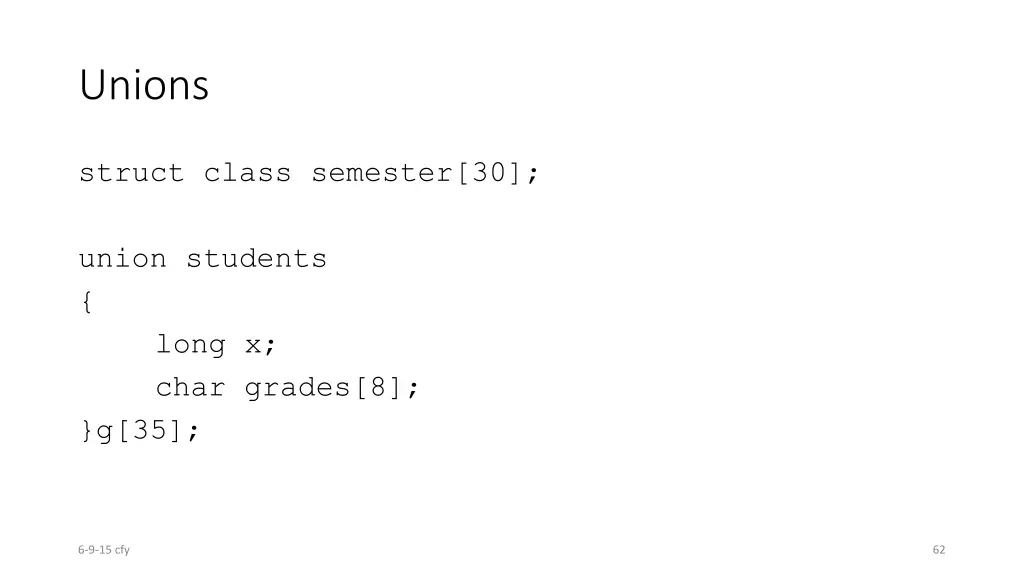

Unions struct class semester[30]; union students { long x; char grades[8]; }g[35]; 6-9-15 cfy 62

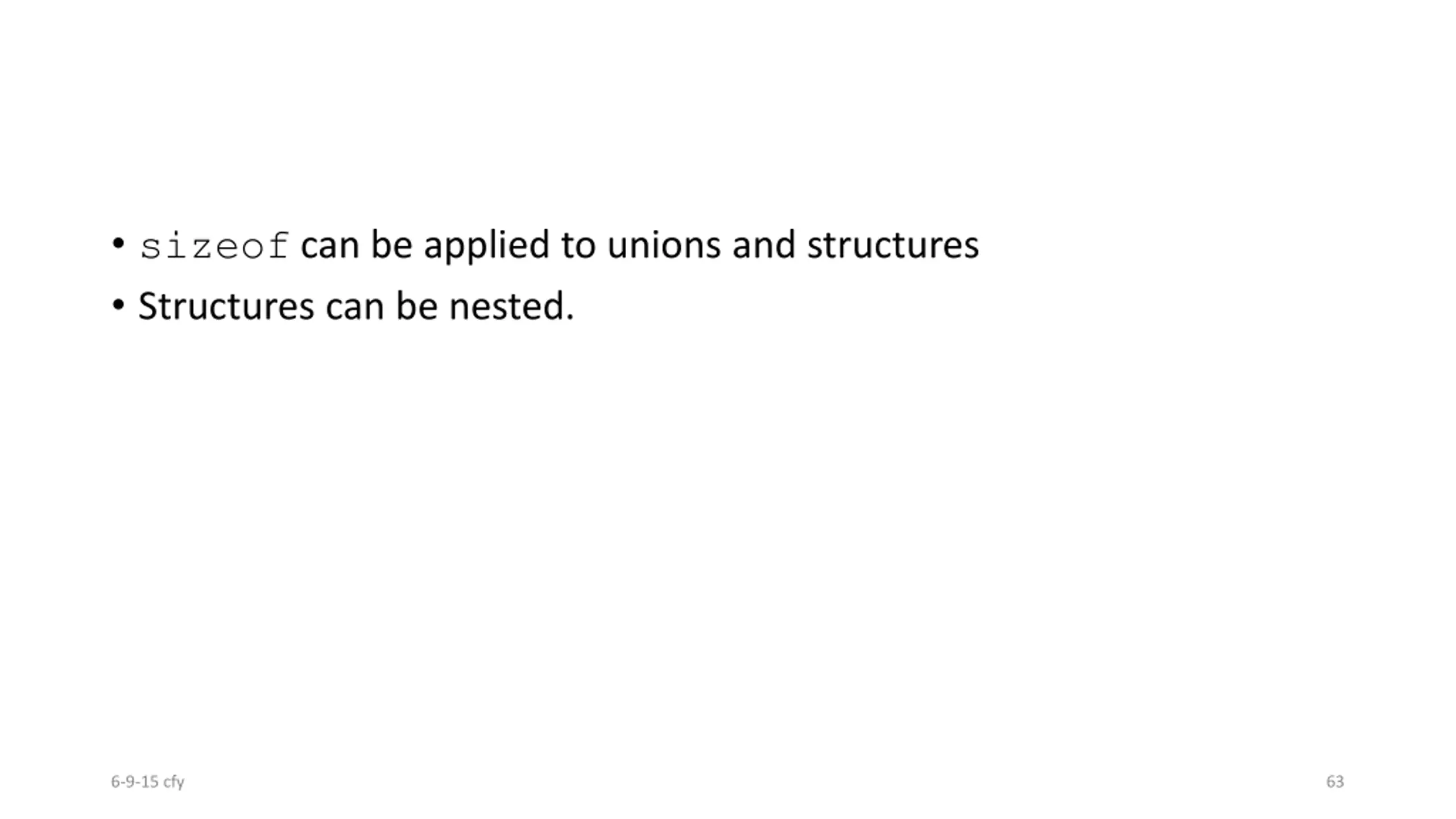

sizeof can be applied to unions and structures Structures can be nested. 6-9-15 cfy 63

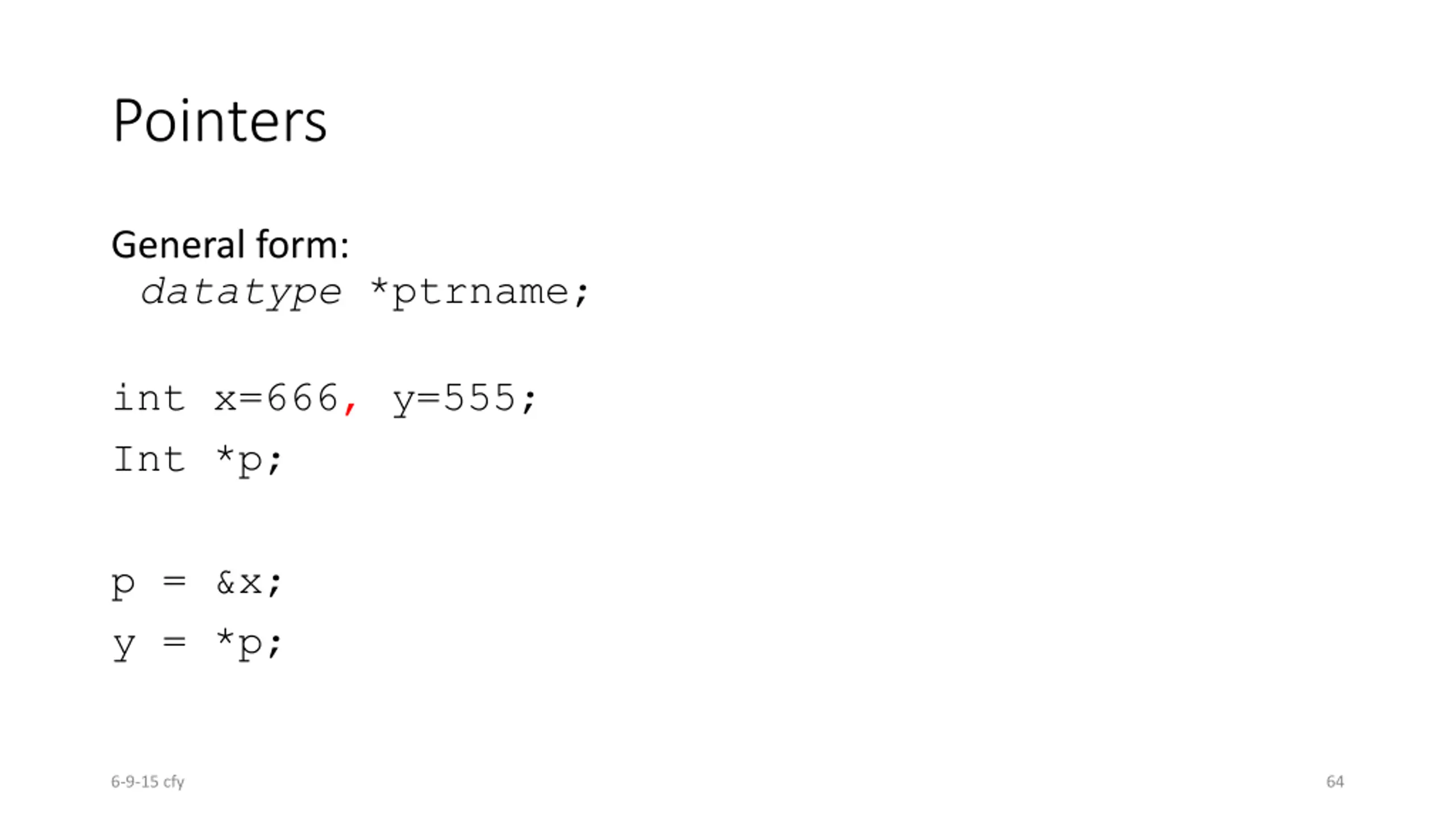

Pointers General form: datatype *ptrname; int x=666, y=555; Int *p; p = &x; y = *p; 6-9-15 cfy 64

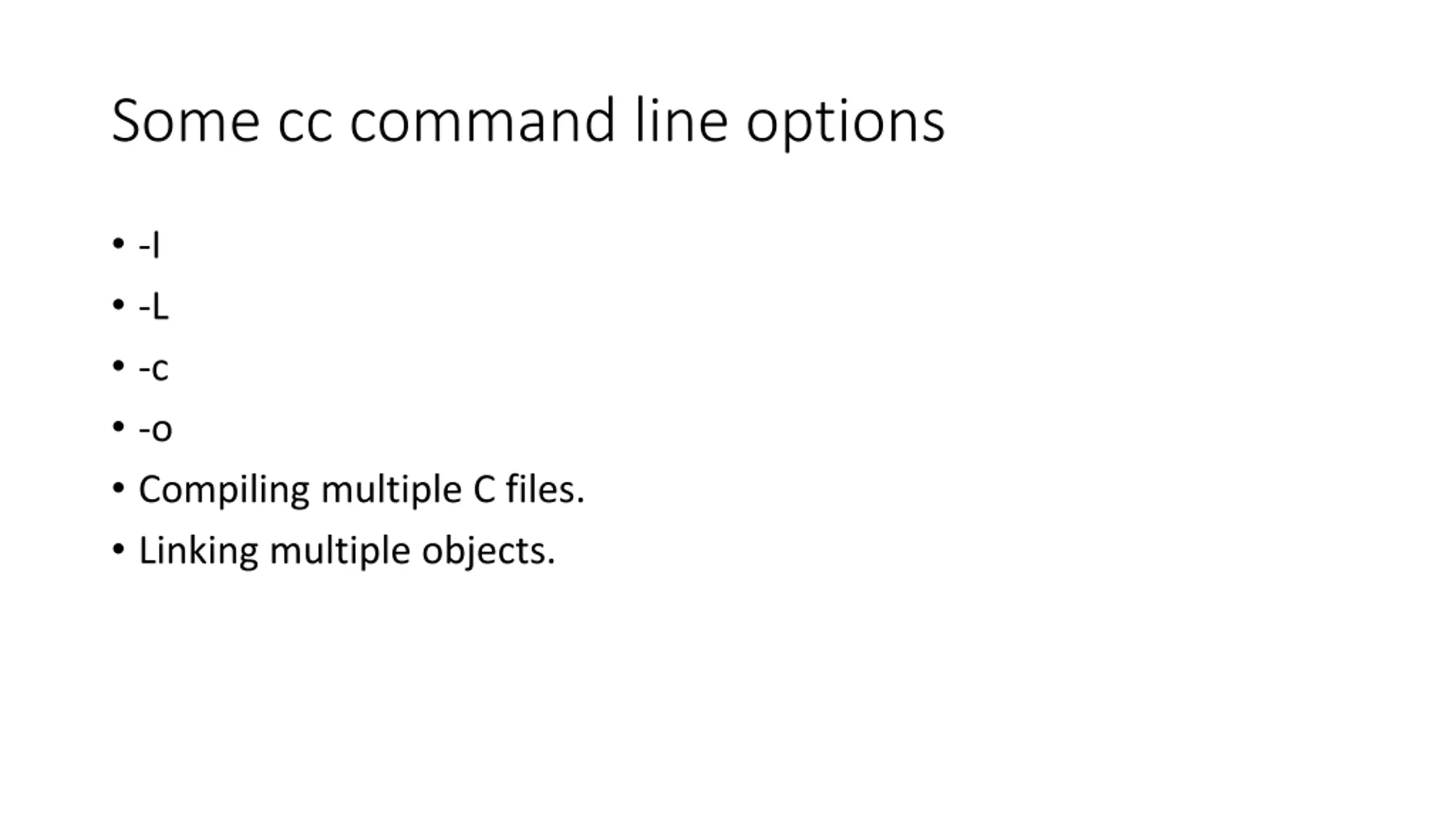

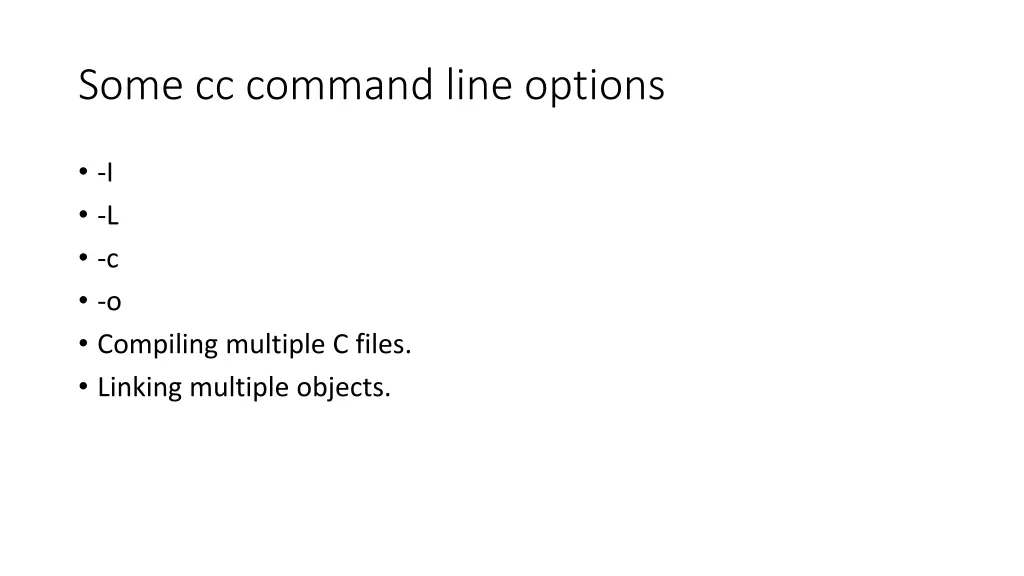

Some cc command line options -I -L -c -o Compiling multiple C files. Linking multiple objects.
