Internal DEMO Driver Board NG Analysis
One of the 4 demos shows abnormal projection on the projector screen due to re-work on the driver board causing impedance mismatch. The abnormal projection follows a fixed demo board. Further analysis reveals connection distortion and re-work traces on the DMD connector of the abnormal driver board.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Internal DEMO Driver Board NG Analysis 2021 02 07

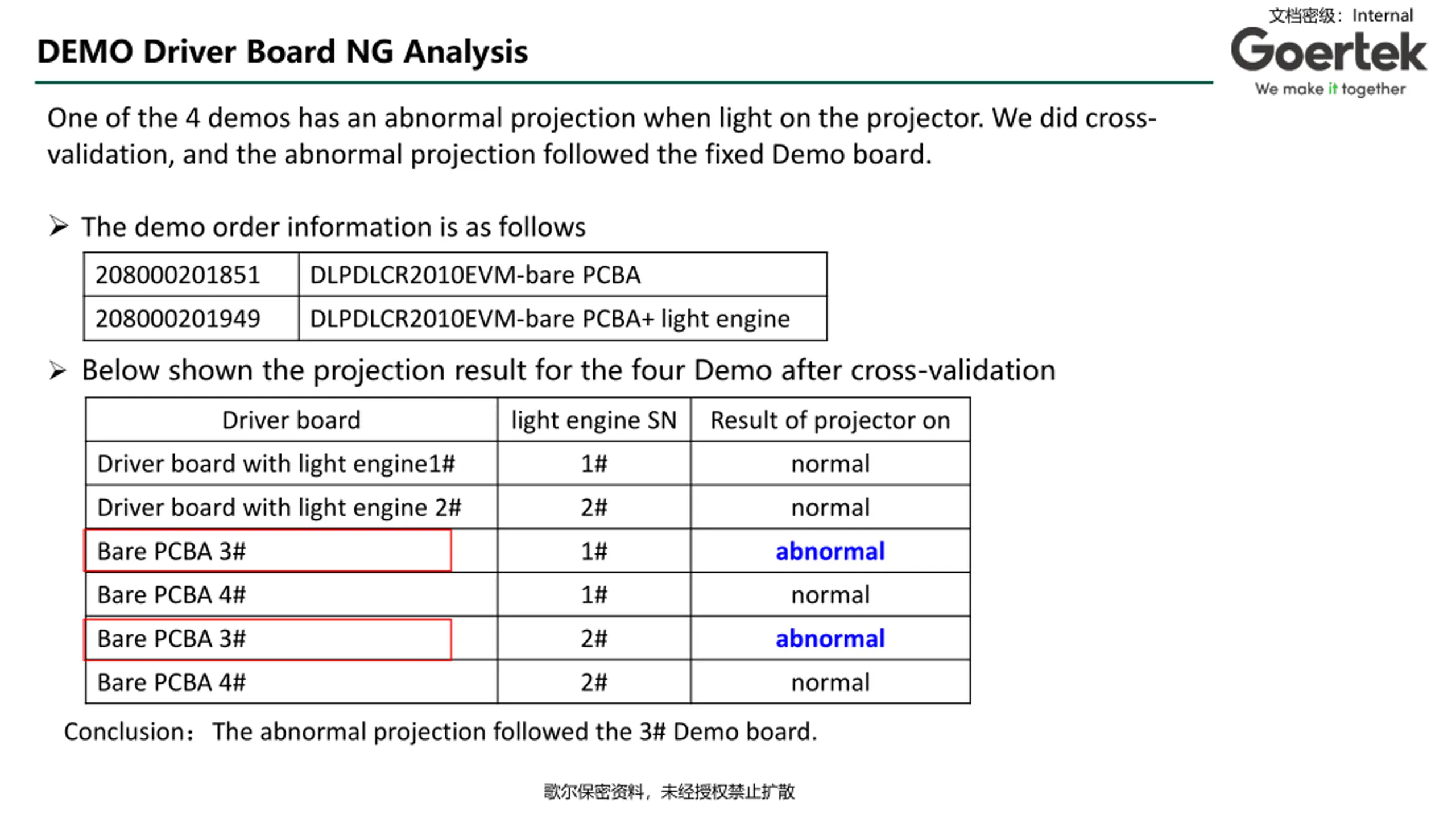

Internal DEMO Driver Board NG Analysis One of the 4 demos has an abnormal projection when light on the projector. We did cross- validation, and the abnormal projection followed the fixed Demo board. The demo order information is as follows 208000201851 DLPDLCR2010EVM-bare PCBA 208000201949 DLPDLCR2010EVM-bare PCBA+ light engine Below shown the projection result for the four Demo after cross-validation Driver board light engine SN Result of projector on Driver board with light engine1# 1# normal Driver board with light engine 2# 2# normal Bare PCBA 3# 1# abnormal Bare PCBA 4# 1# normal Bare PCBA 3# 2# abnormal Bare PCBA 4# 2# normal Conclusion The abnormal projection followed the 3# Demo board.

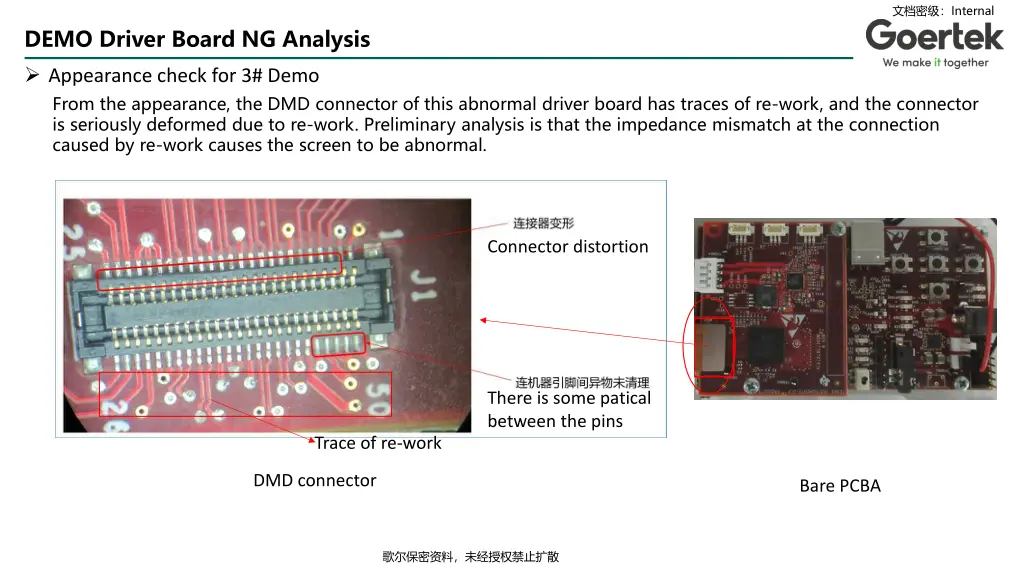

Internal DEMO Driver Board NG Analysis Appearance check for 3# Demo From the appearance, the DMD connector of this abnormal driver board has traces of re-work, and the connector is seriously deformed due to re-work. Preliminary analysis is that the impedance mismatch at the connection caused by re-work causes the screen to be abnormal. Connector distortion There is some patical between the pins Trace of re-work DMD connector Bare PCBA
