Interpreting position vs time graphs Still pretty basic stuff
One one index card draw a solid line SOLID On another, draw a dashed line DASHED
You will be asked a series of questions pertaining to a graph. On each graph, their will be two lines, a solid line and a dashed line At the top of the graph is a statement. Raise your hand with the card indicating if it is the solid line or dashed the statement is referring about.
* Ready

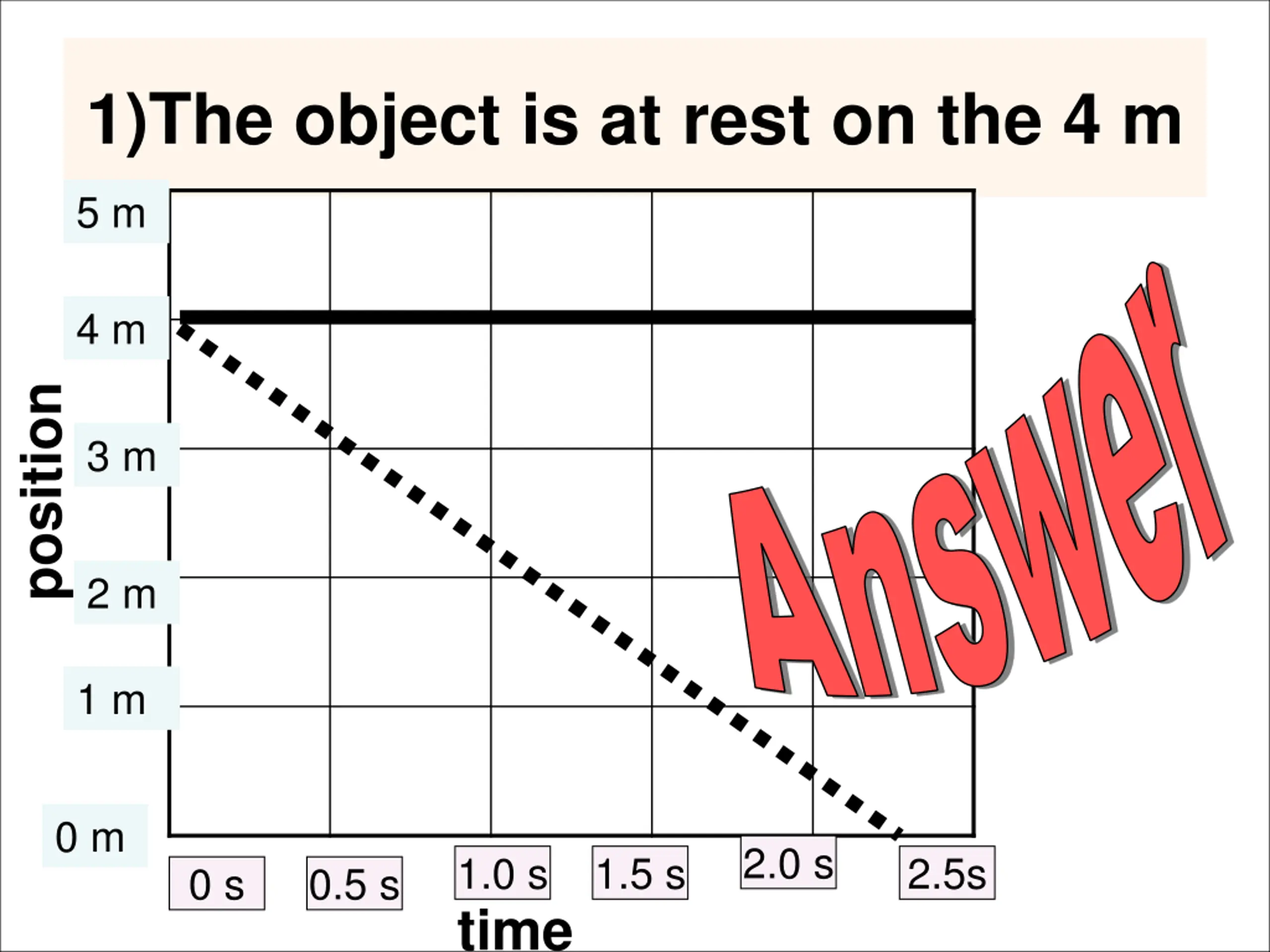

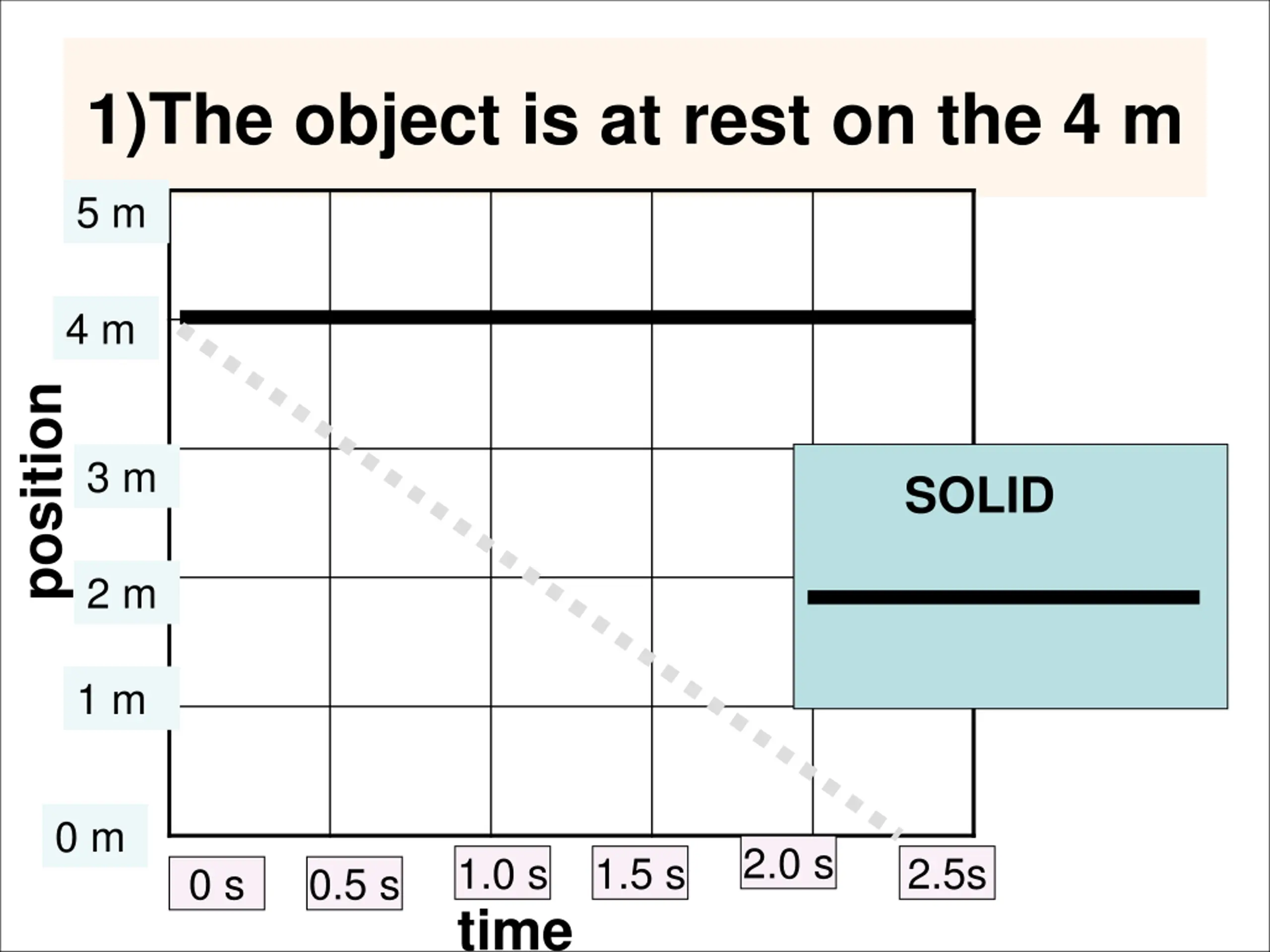

1)The object is at rest on the 4 m 5 m Answer 4 m position 3 m 2 m 1 m 0 m 2.0 s 1.0 s 1.5 s 2.5s 0 s 0.5 s time
1)The object is at rest on the 4 m 5 m 4 m position 3 m SOLID 2 m 1 m 0 m 2.0 s 1.0 s 1.5 s 2.5s 0 s 0.5 s time

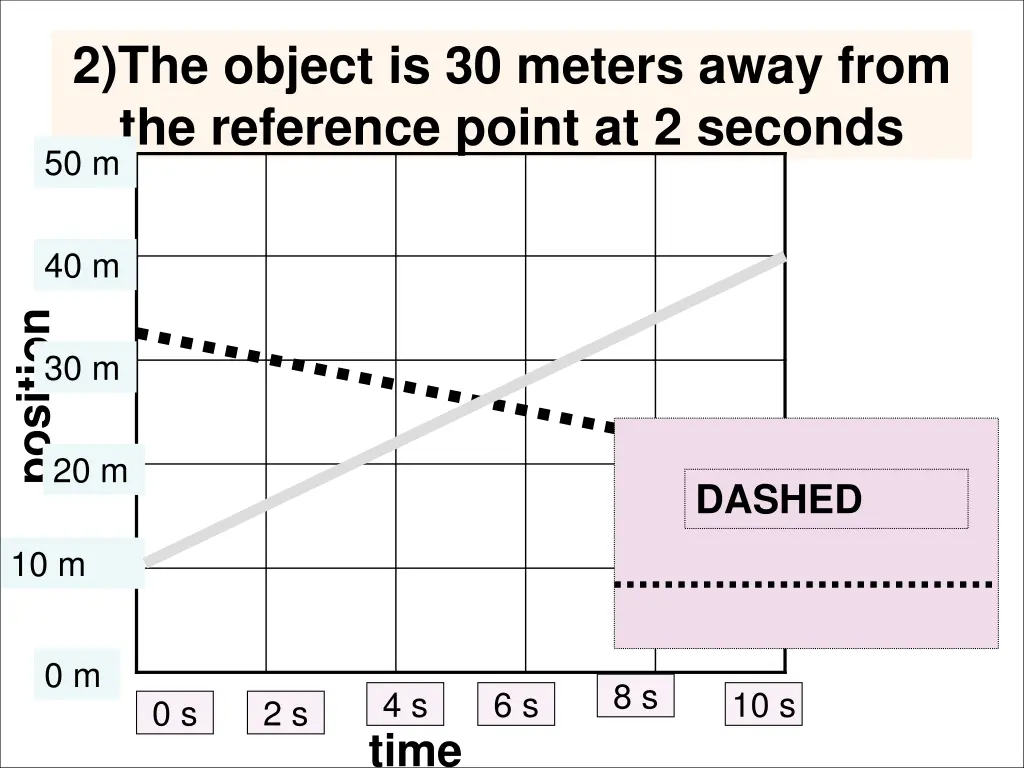

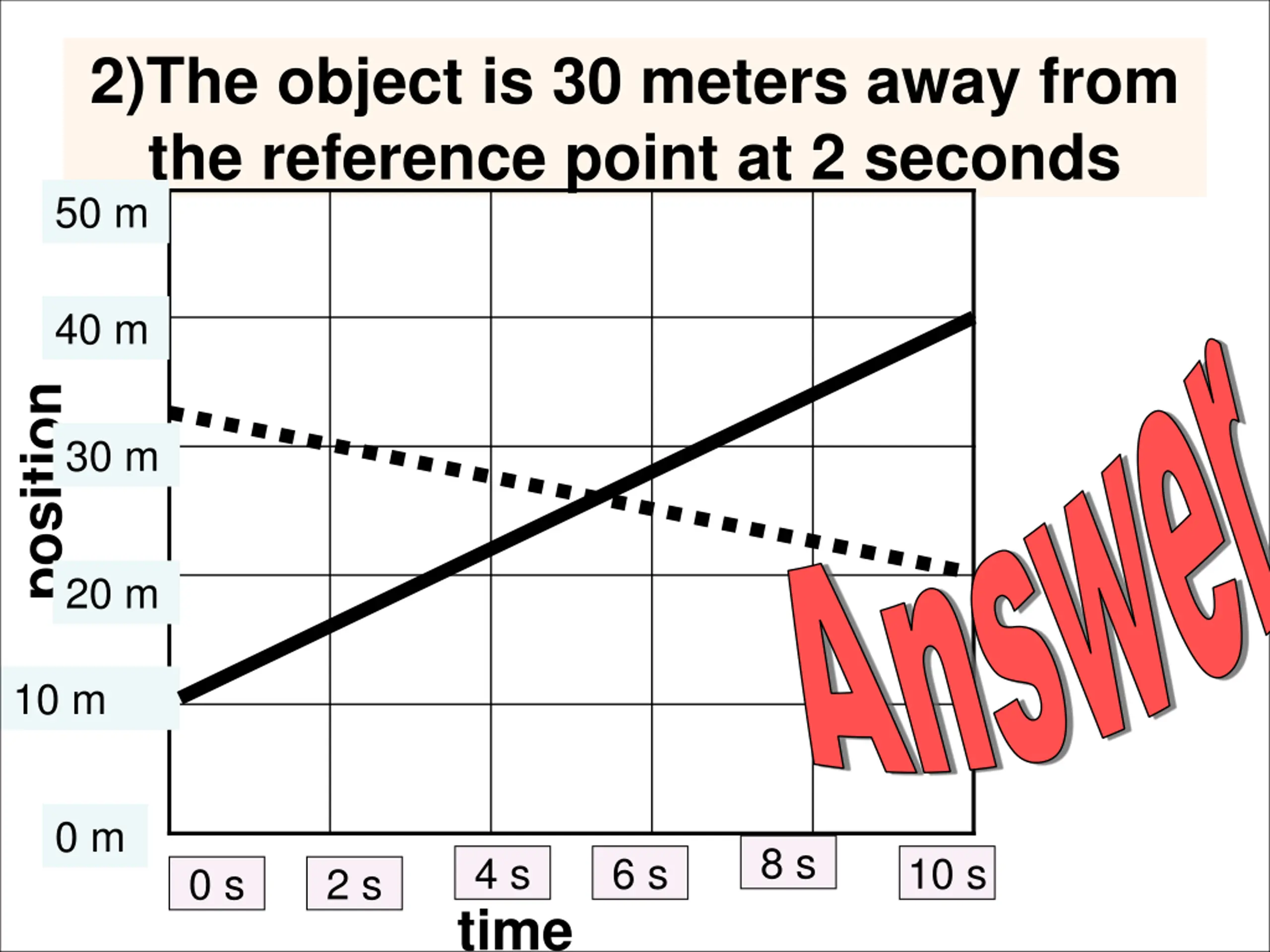

2)The object is 30 meters away from the reference point at 2 seconds 50 m Answer 40 m position 30 m 20 m 10 m 0 m 8 s 4 s 6 s 10 s 0 s 2 s time

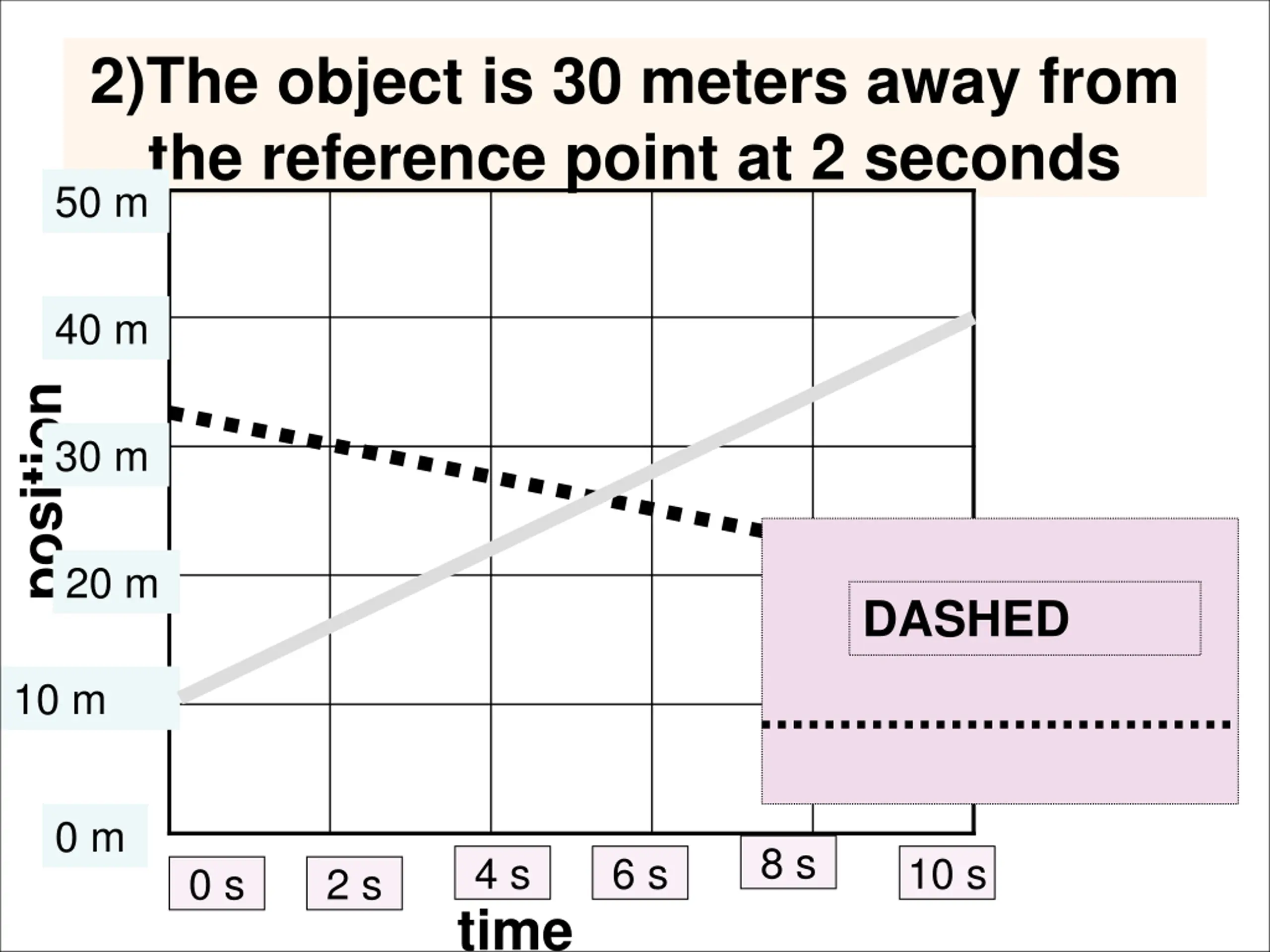

2)The object is 30 meters away from the reference point at 2 seconds 50 m 40 m position 30 m 20 m DASHED 10 m 0 m 8 s 4 s 6 s 10 s 0 s 2 s time

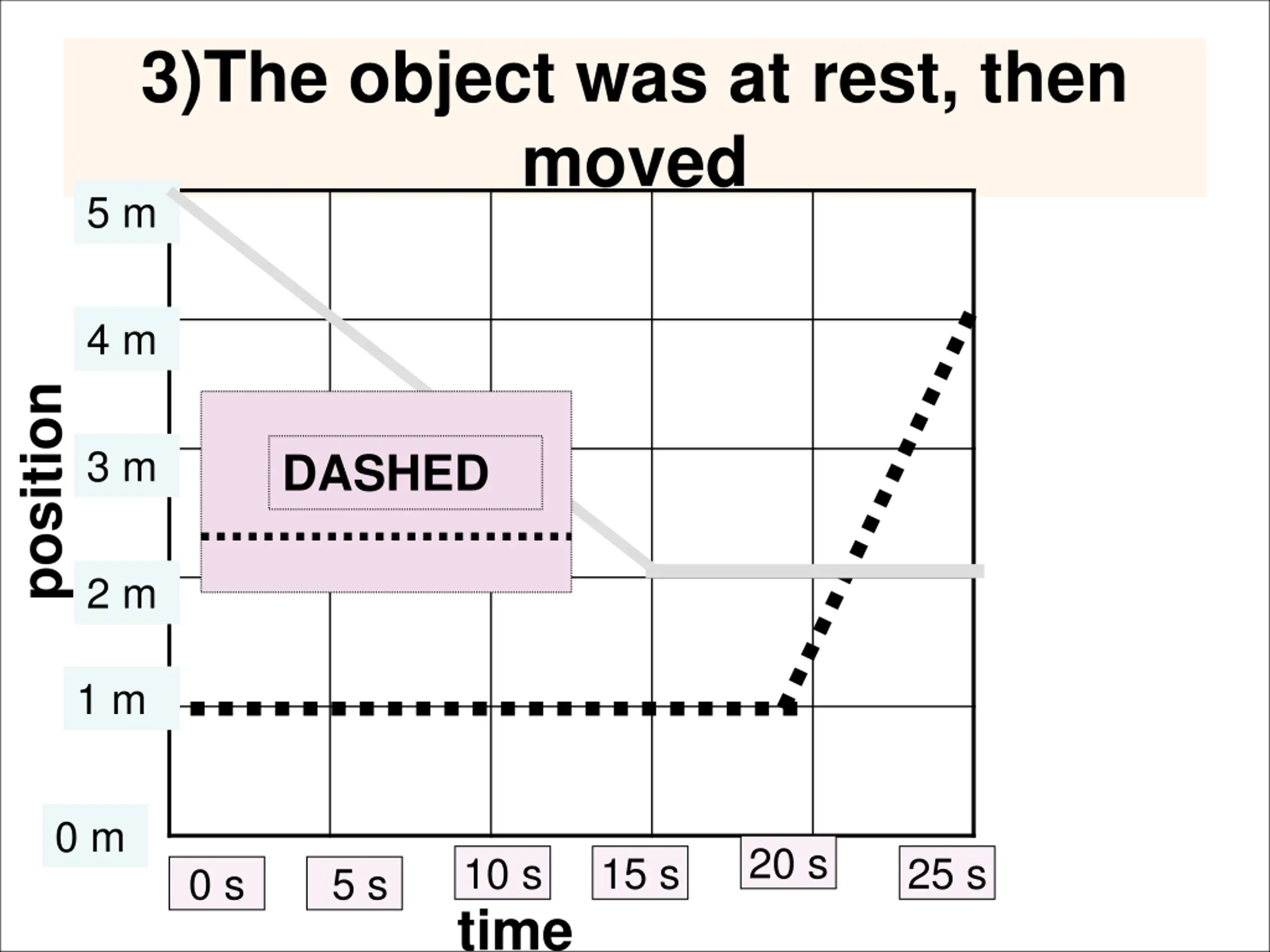

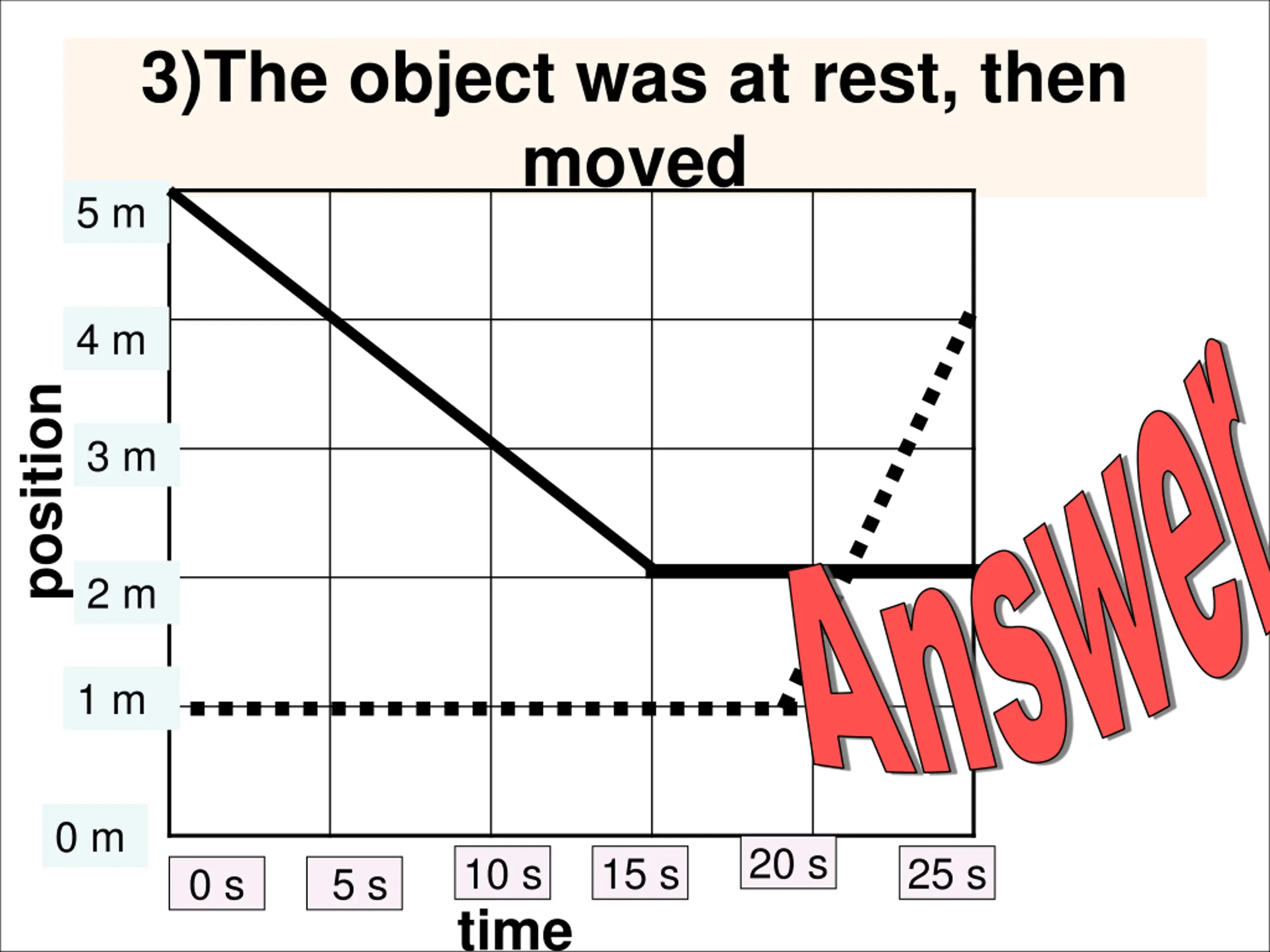

3)The object was at rest, then moved 5 m Answer 4 m position 3 m 2 m 1 m 0 m 20 s 10 s 15 s 25 s 0 s 5 s time

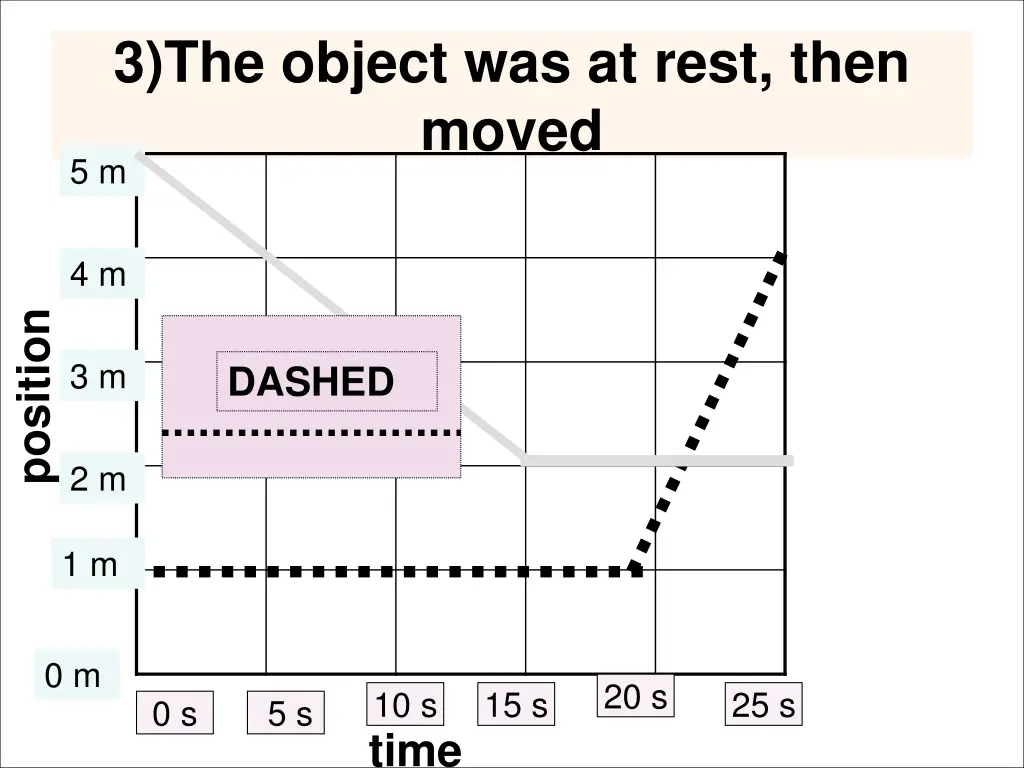

3)The object was at rest, then moved 5 m 4 m position 3 m DASHED 2 m 1 m 0 m 20 s 10 s 15 s 25 s 0 s 5 s time

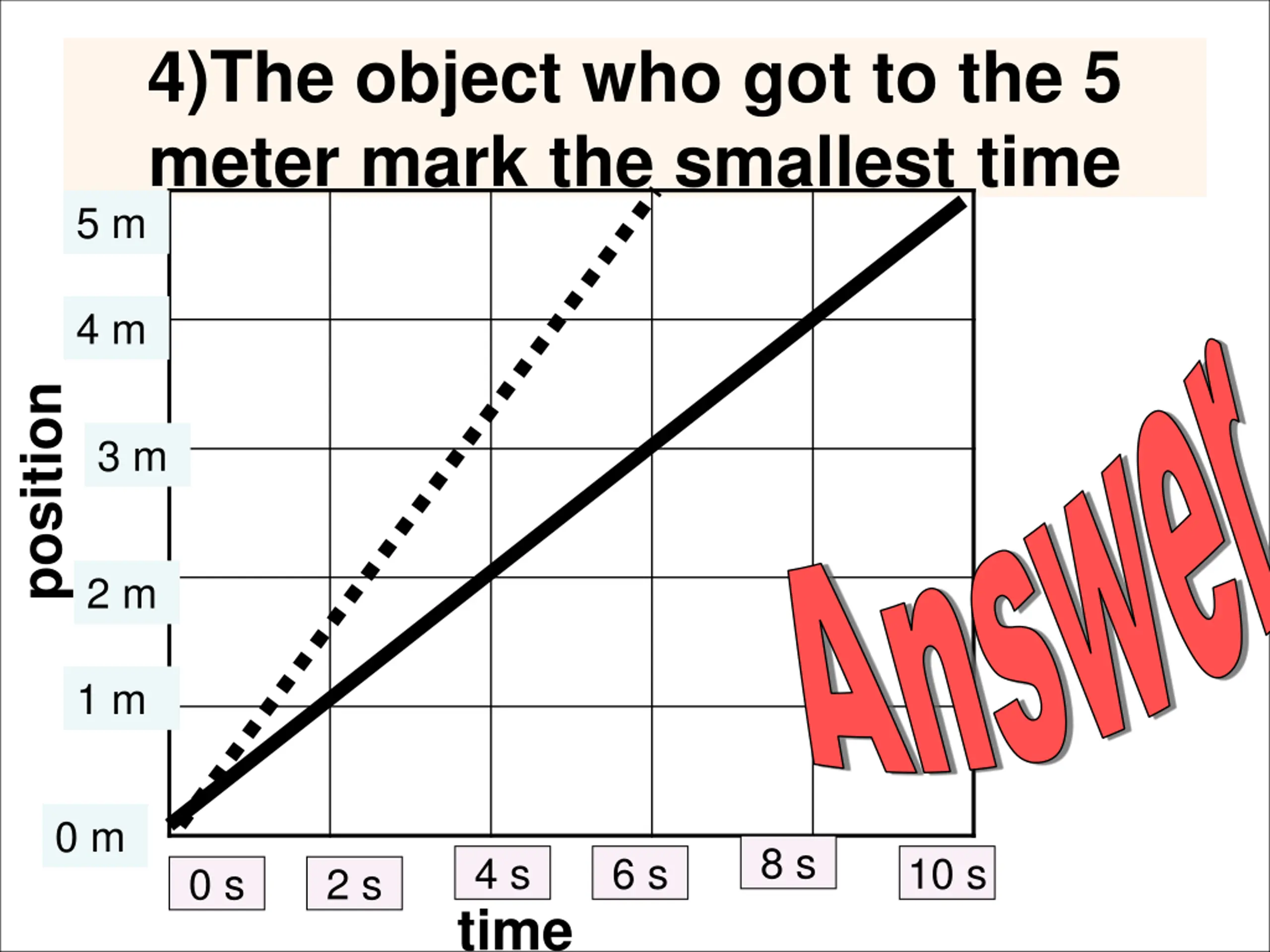

4)The object who got to the 5 meter mark the smallest time 5 m Answer 4 m position 3 m 2 m 1 m 0 m 8 s 4 s 6 s 10 s 0 s 2 s time

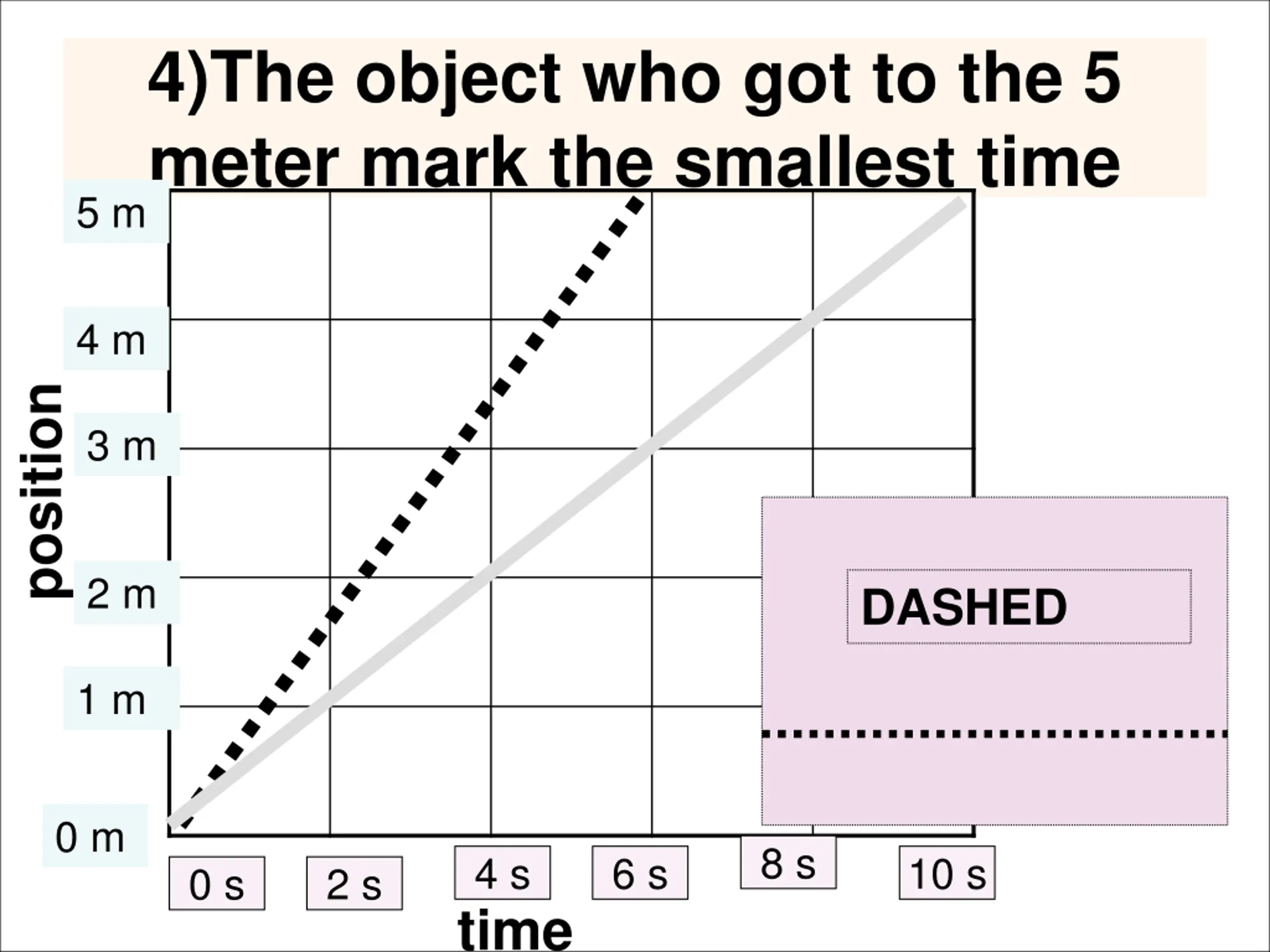

4)The object who got to the 5 meter mark the smallest time 5 m 4 m position 3 m 2 m DASHED 1 m 0 m 8 s 4 s 6 s 10 s 0 s 2 s time

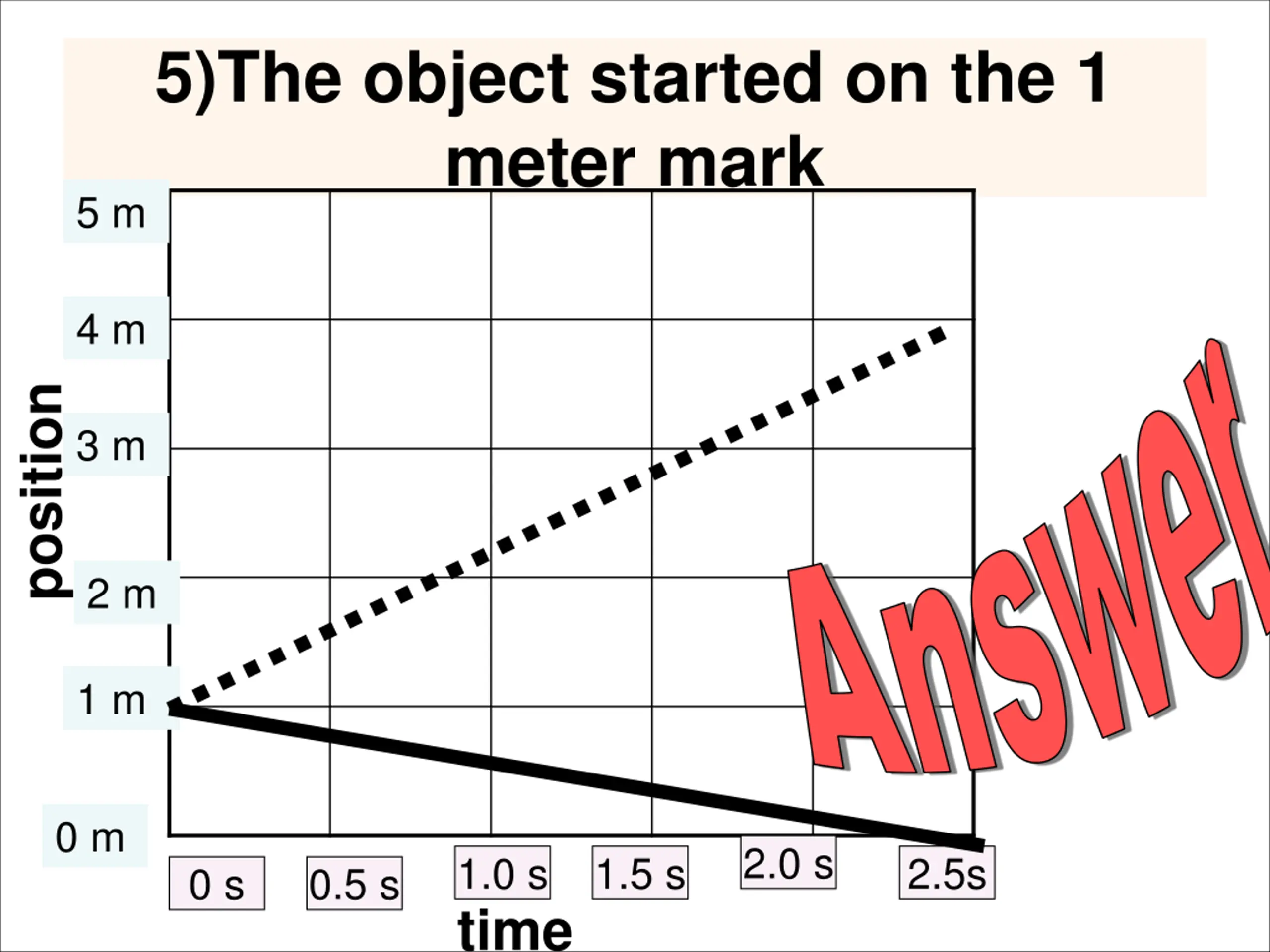

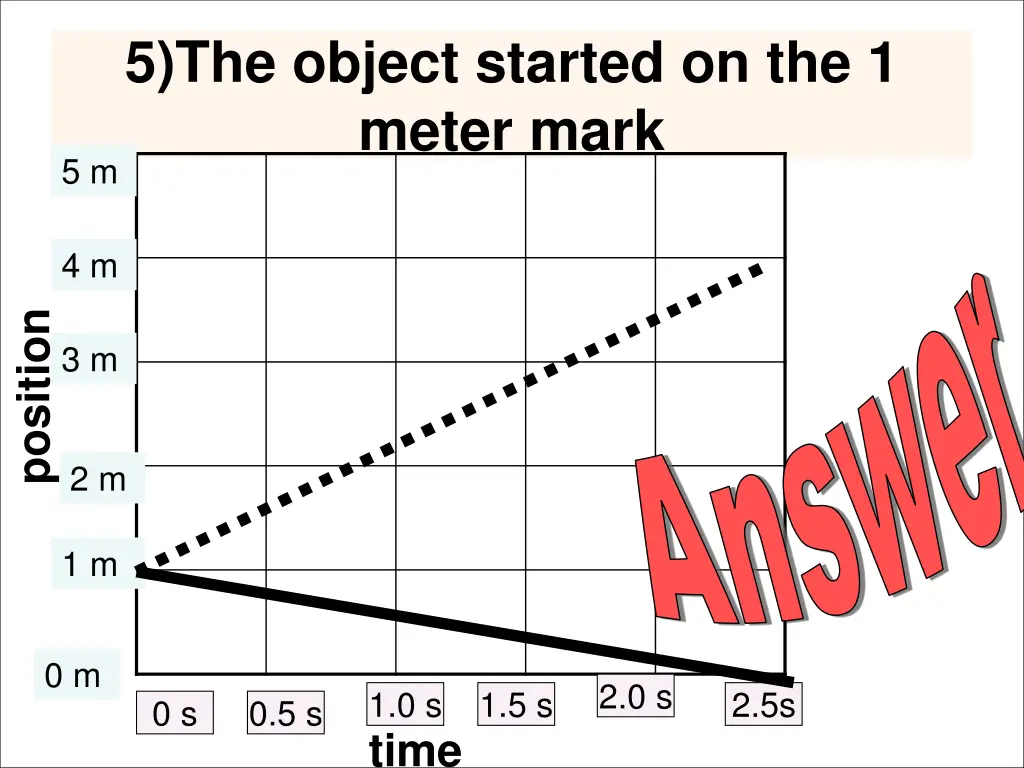

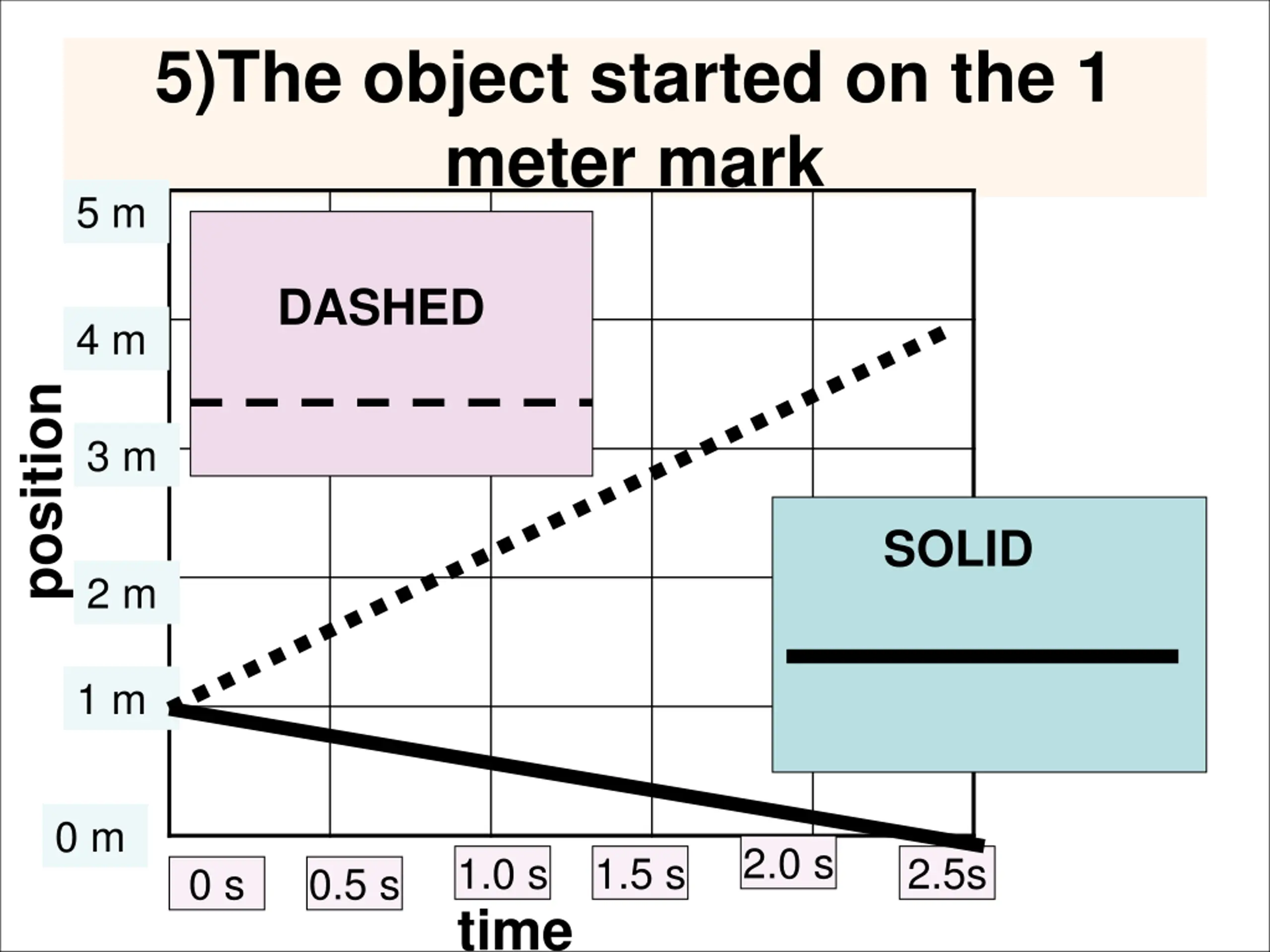

5)The object started on the 1 meter mark 5 m Answer 4 m position 3 m 2 m 1 m 0 m 2.0 s 1.0 s 1.5 s 2.5s 0 s 0.5 s time
5)The object started on the 1 meter mark 5 m DASHED 4 m position 3 m SOLID 2 m 1 m 0 m 2.0 s 1.0 s 1.5 s 2.5s 0 s 0.5 s time

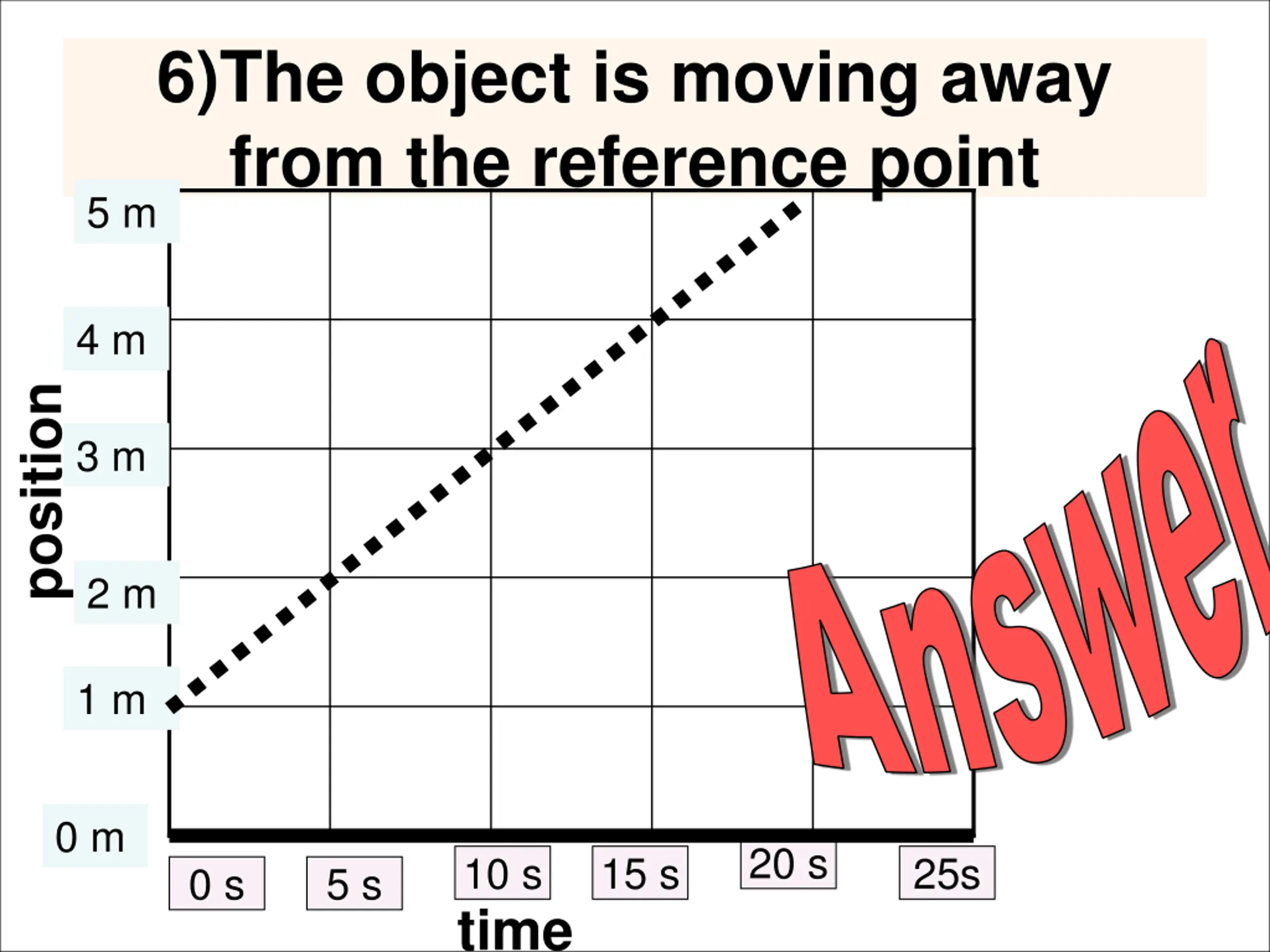

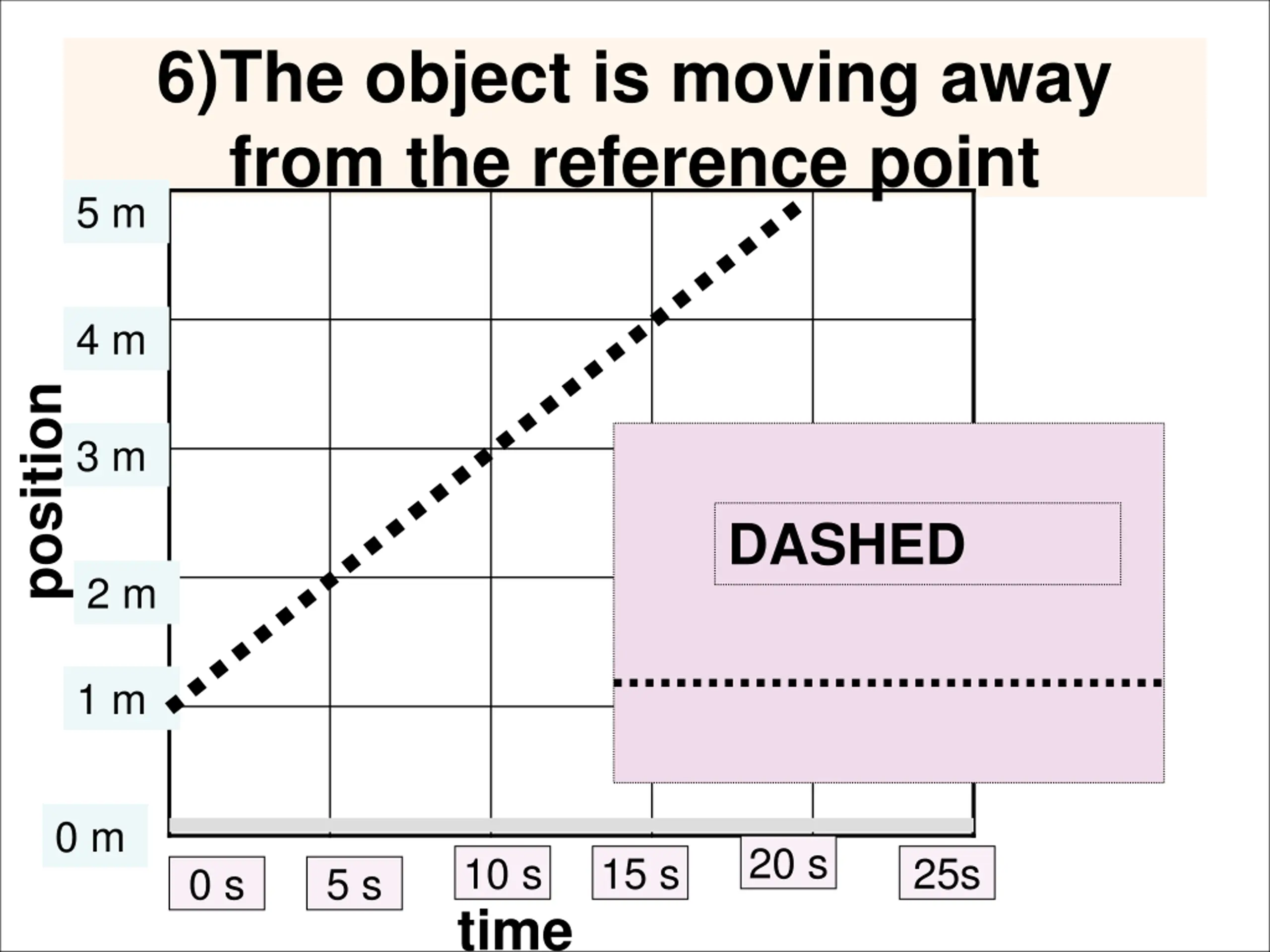

6)The object is moving away from the reference point 5 m Answer 4 m position 3 m 2 m 1 m 0 m 20 s 10 s 15 s 25s 0 s 5 s time
6)The object is moving away from the reference point 5 m 4 m position 3 m DASHED 2 m 1 m 0 m 20 s 10 s 15 s 25s 0 s 5 s time

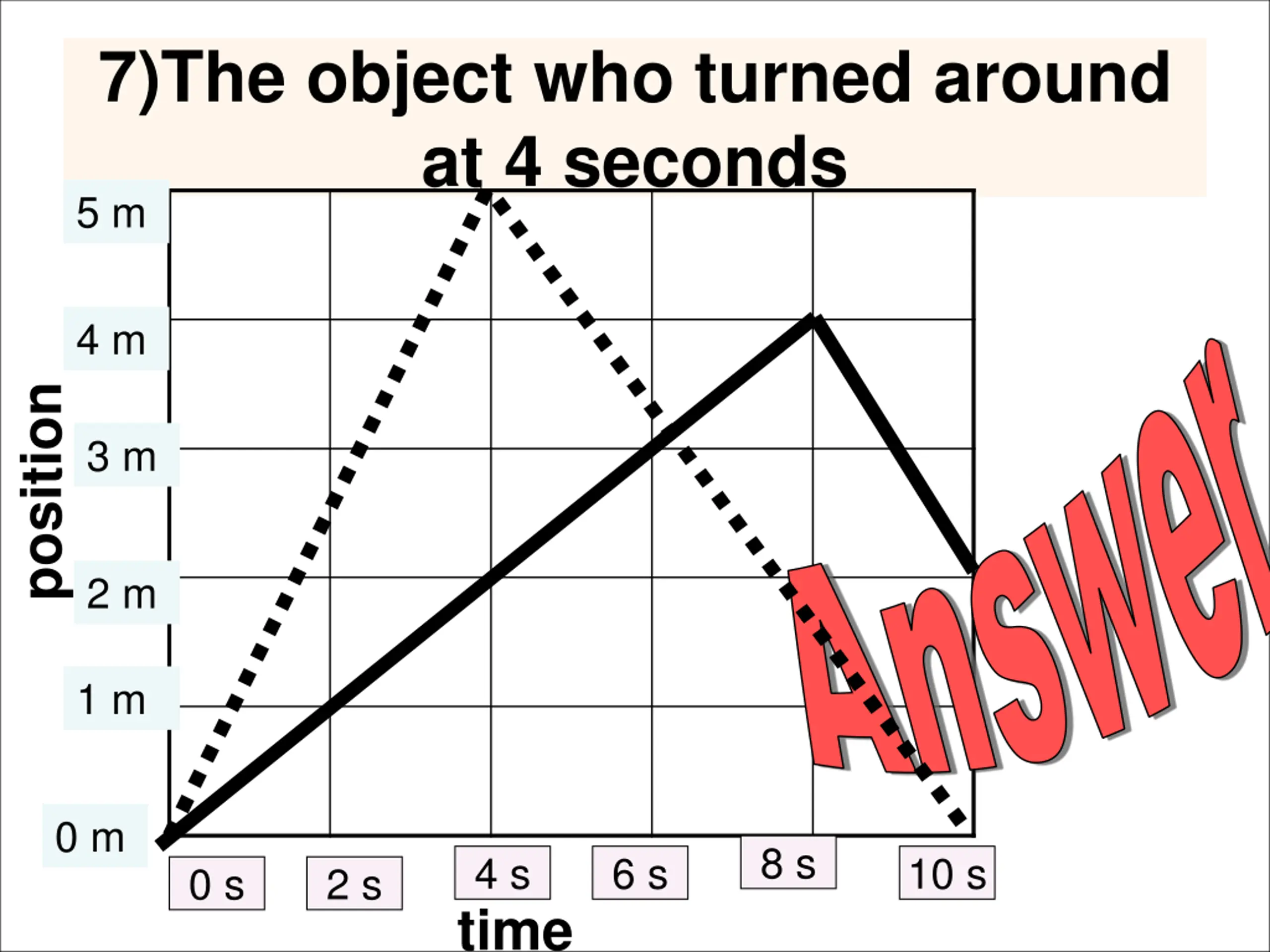

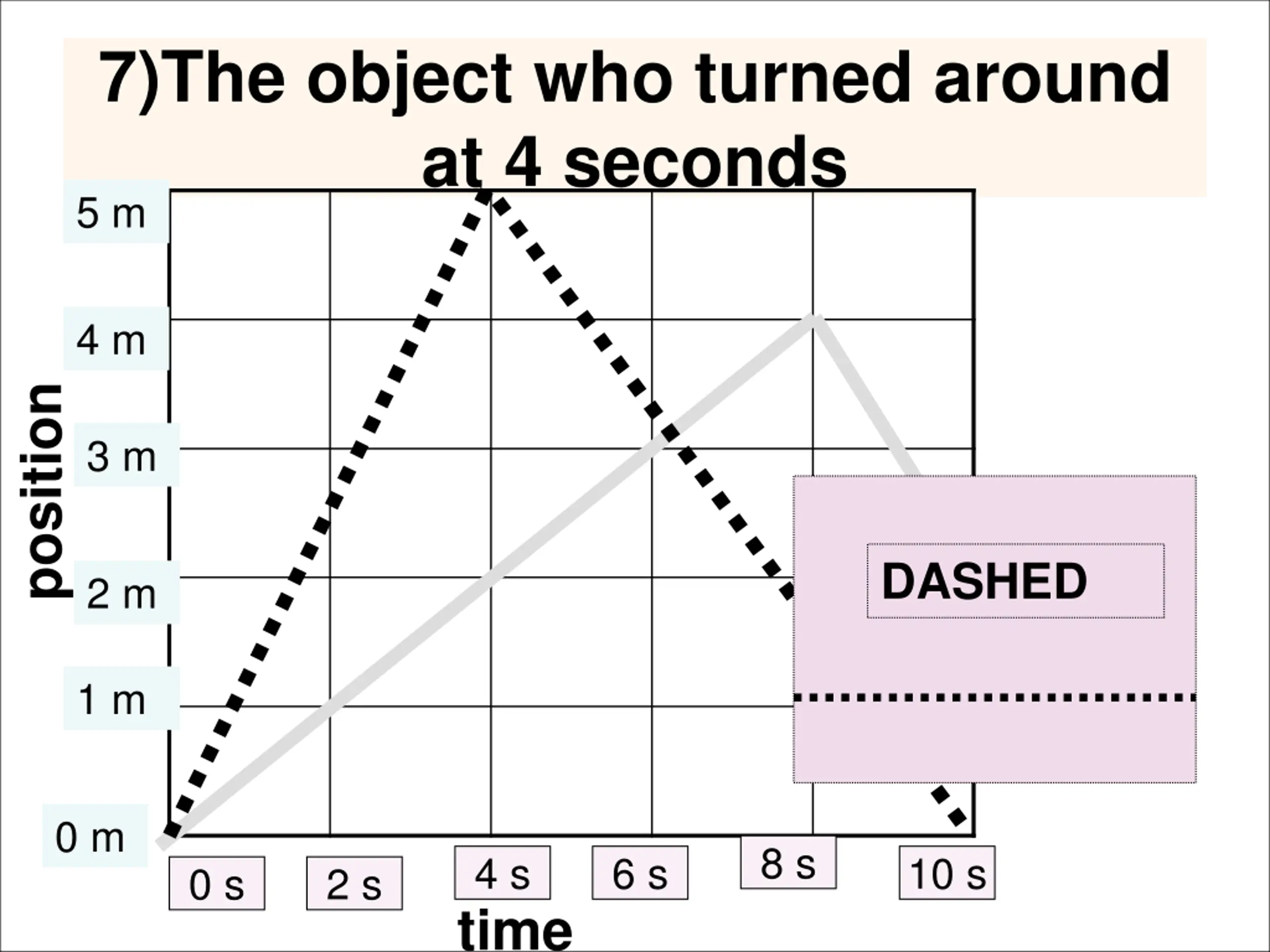

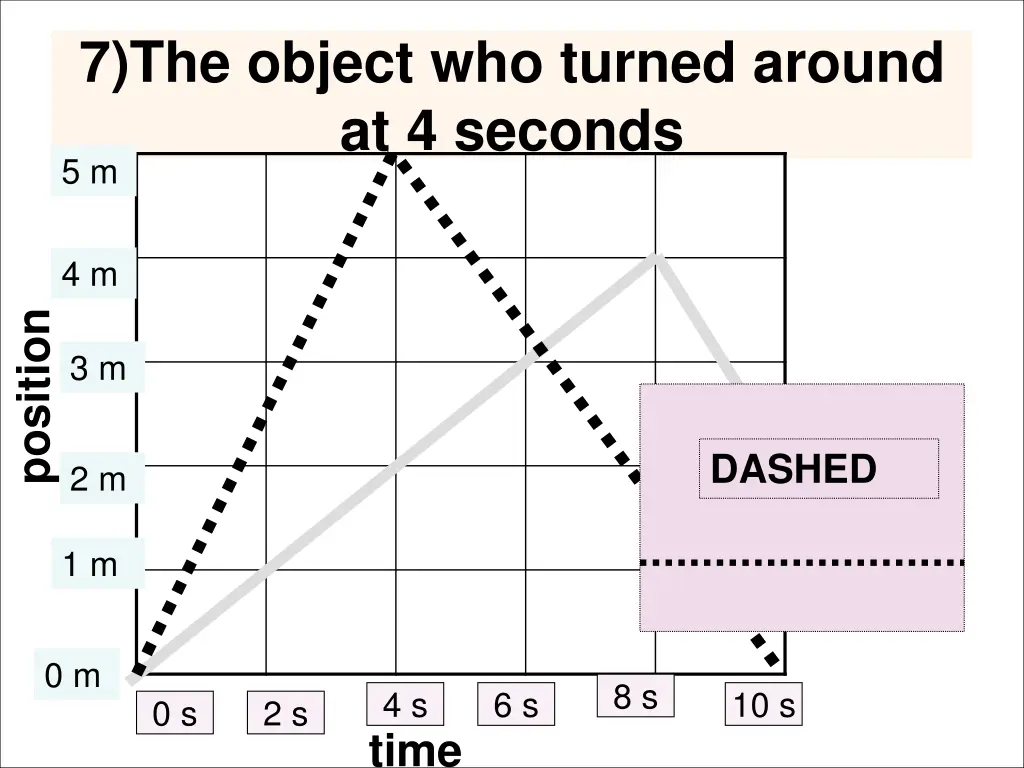

7)The object who turned around at 4 seconds 5 m Answer 4 m position 3 m 2 m 1 m 0 m 8 s 4 s 6 s 10 s 0 s 2 s time
7)The object who turned around at 4 seconds 5 m 4 m position 3 m DASHED 2 m 1 m 0 m 8 s 4 s 6 s 10 s 0 s 2 s time

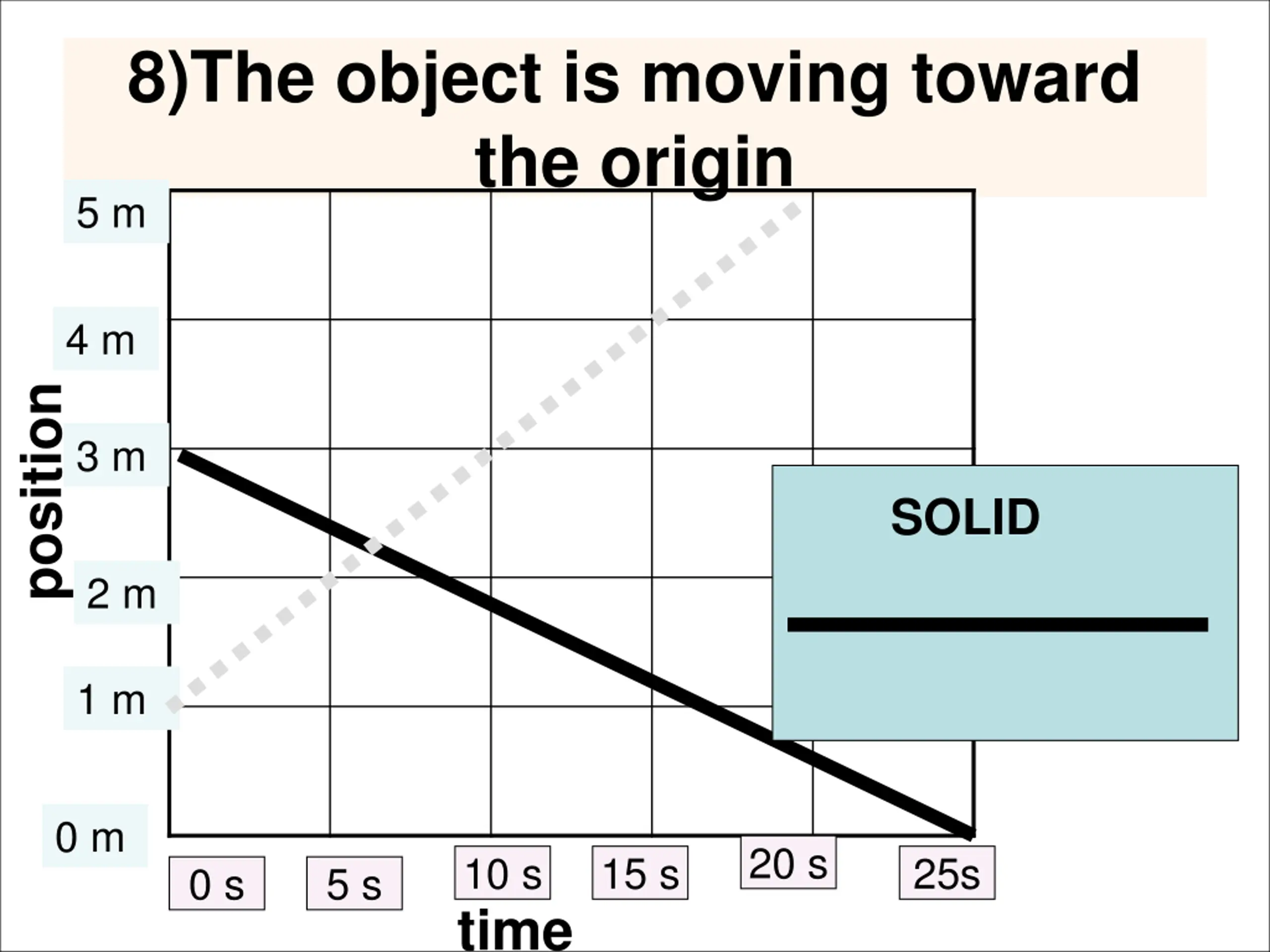

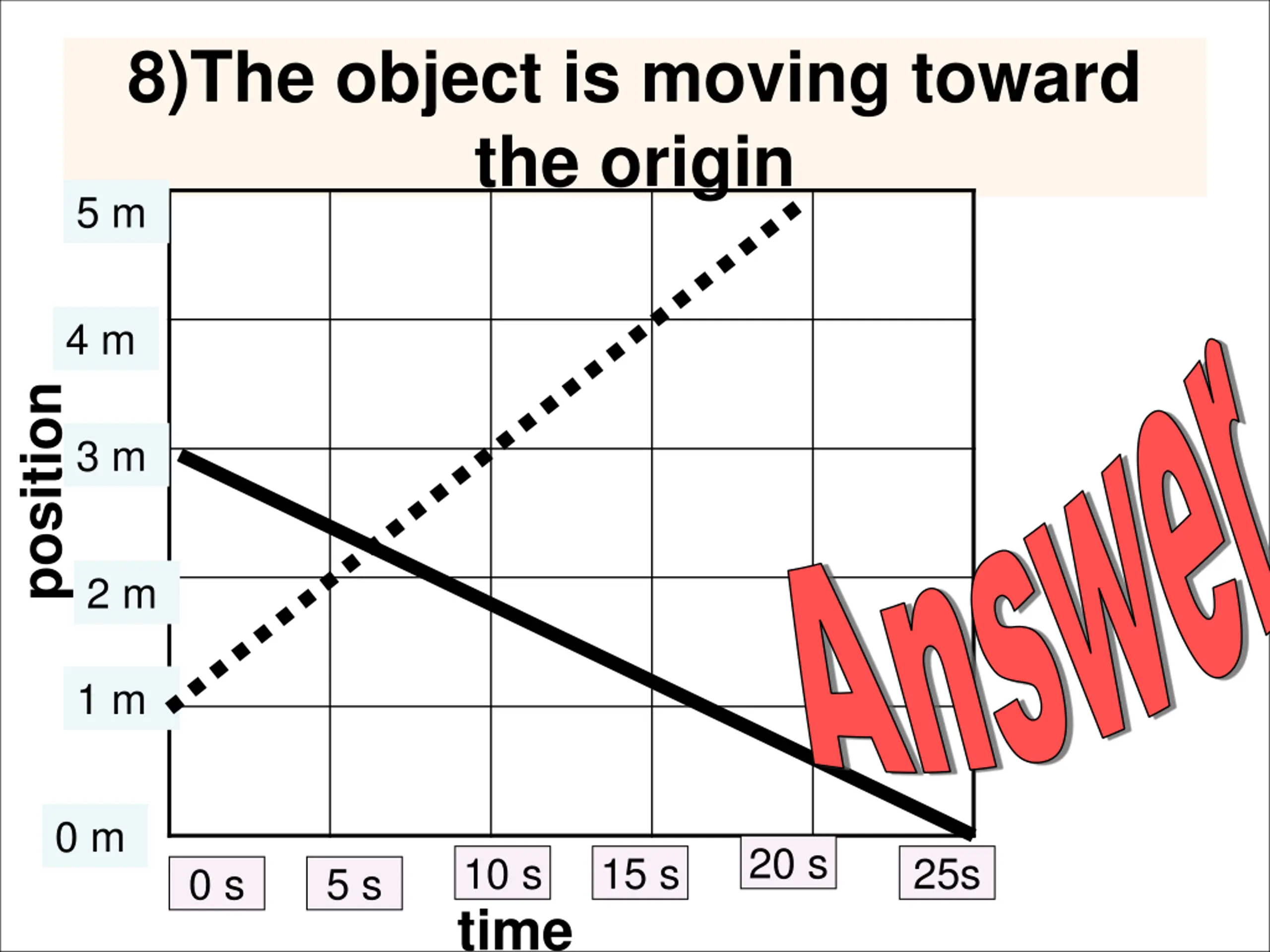

8)The object is moving toward the origin 5 m Answer 4 m position 3 m 2 m 1 m 0 m 20 s 10 s 15 s 25s 0 s 5 s time
8)The object is moving toward the origin 5 m 4 m position 3 m SOLID 2 m 1 m 0 m 20 s 10 s 15 s 25s 0 s 5 s time
9) The object ended at the same location it started 50 m Answer 40 m position 30 m 20 m 10 m 0 m 4 s 2 s 3 s 5 s 0 s 1 s time
9) The object ended at the same location it started 50 m SOLID 40 m position 30 m 20 m 10 m 0 m 4 s 2 s 3 s 5 s 0 s 1 s time

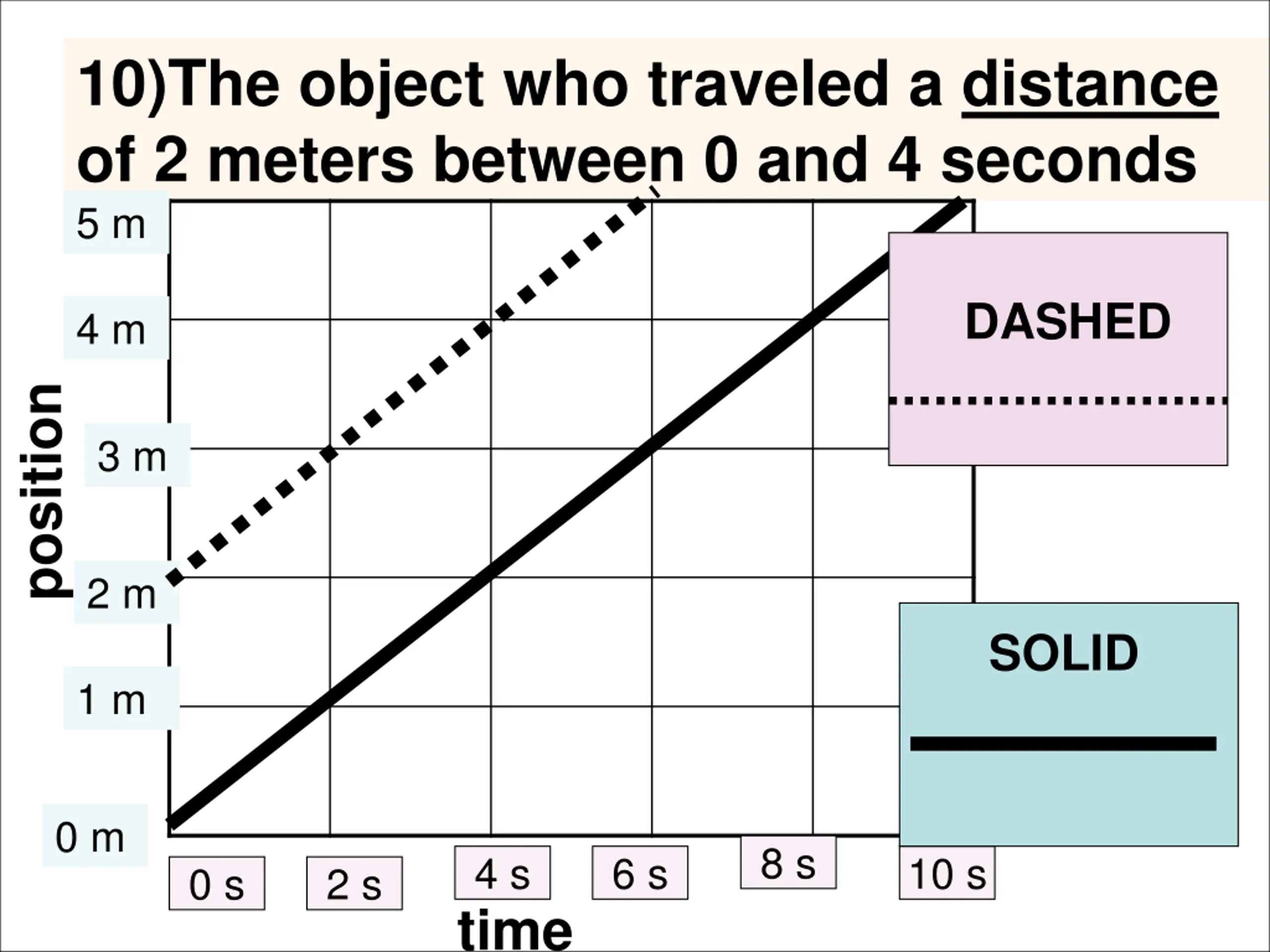

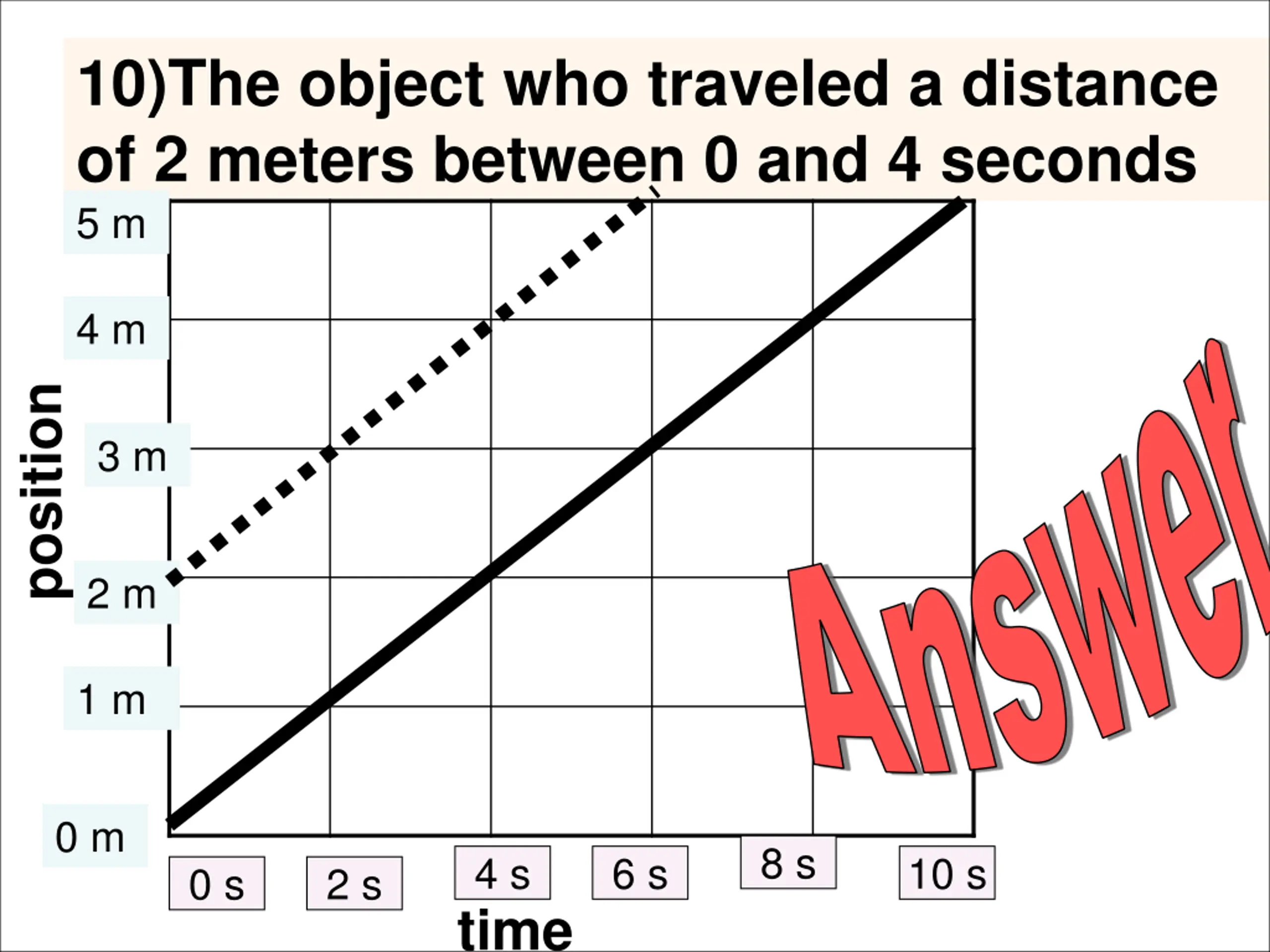

10)The object who traveled a distance of 2 meters between 0 and 4 seconds 5 m Answer 4 m position 3 m 2 m 1 m 0 m 8 s 4 s 6 s 10 s 0 s 2 s time
10)The object who traveled a distance of 2 meters between 0 and 4 seconds 5 m DASHED 4 m position 3 m 2 m SOLID 1 m 0 m 8 s 4 s 6 s 10 s 0 s 2 s time
