CSC1201: Programming Language 2 Lecture 1 Level 2 Course Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 1

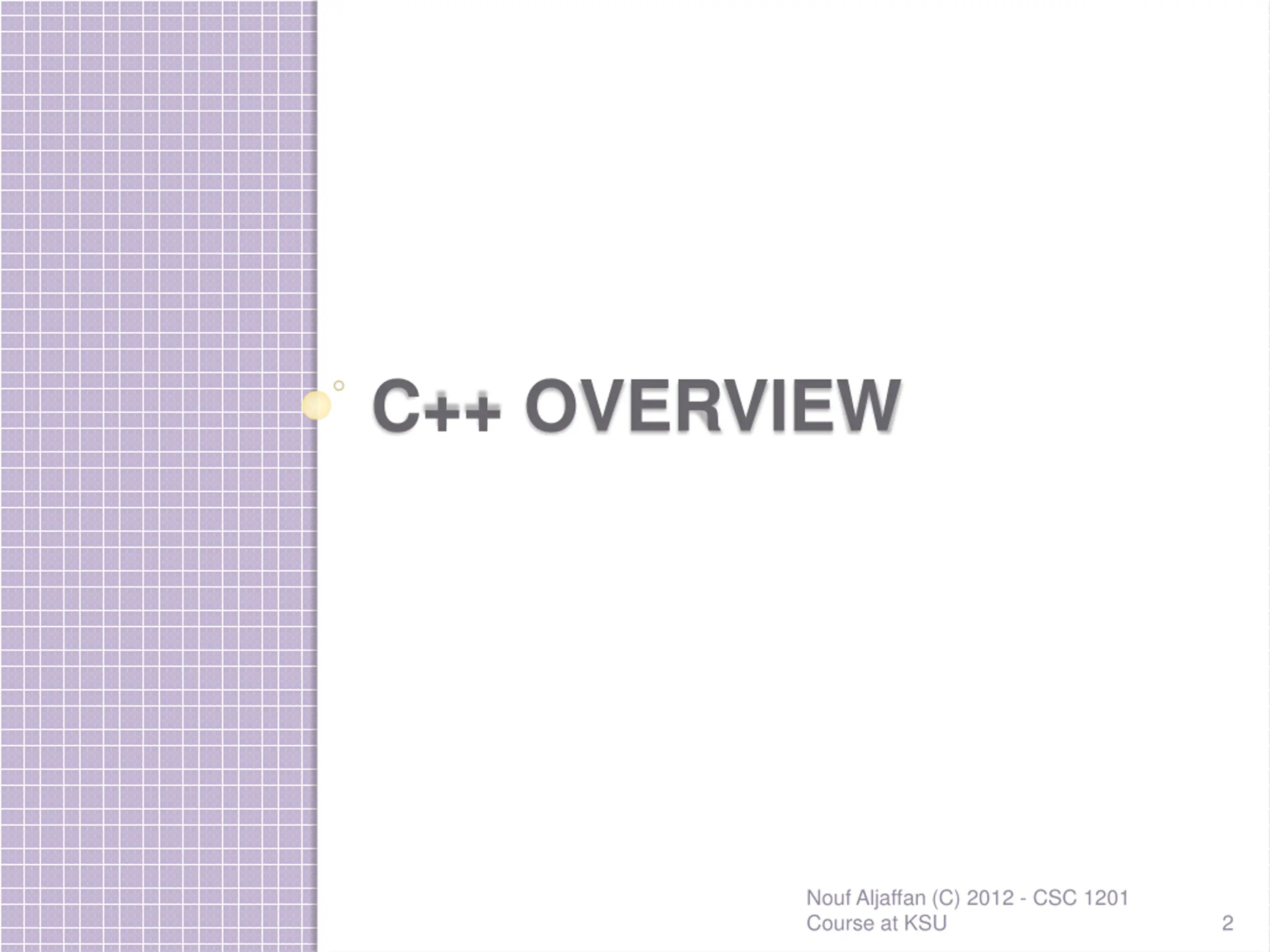

C++ OVERVIEW Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 2

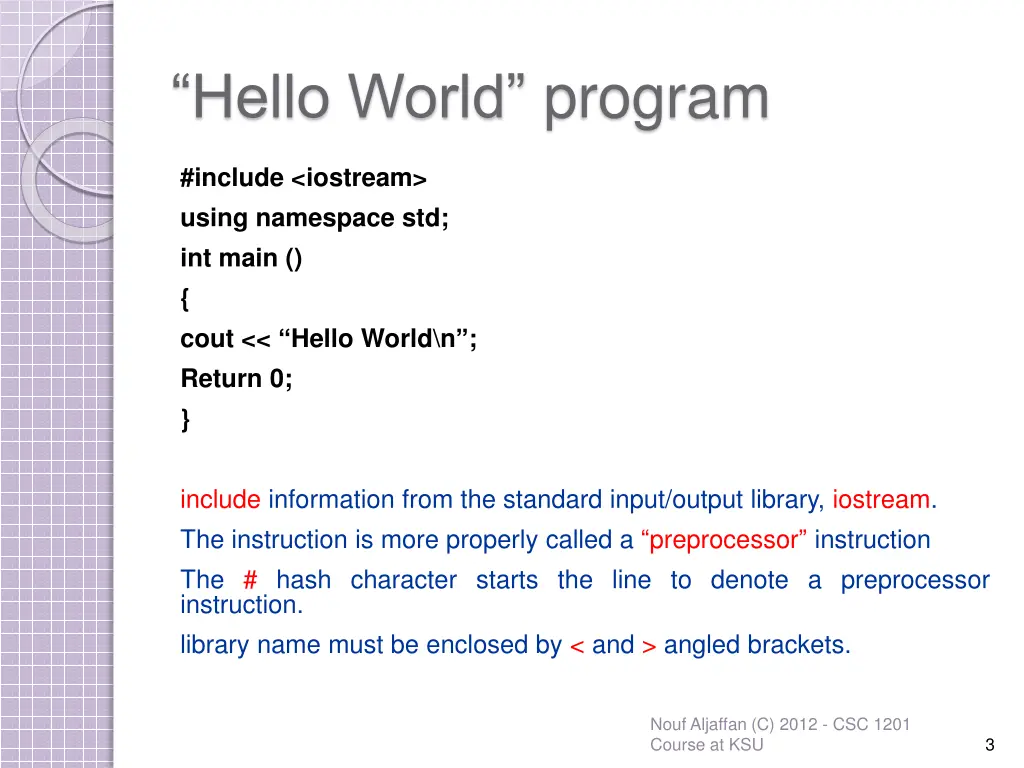

Hello World program #include <iostream> using namespace std; int main () { cout << Hello World\n ; Return 0; } include information from the standard input/output library, iostream. The instruction is more properly called a preprocessor instruction The # hash character starts the line to denote a preprocessor instruction. library name must be enclosed by < and > angled brackets. Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 3

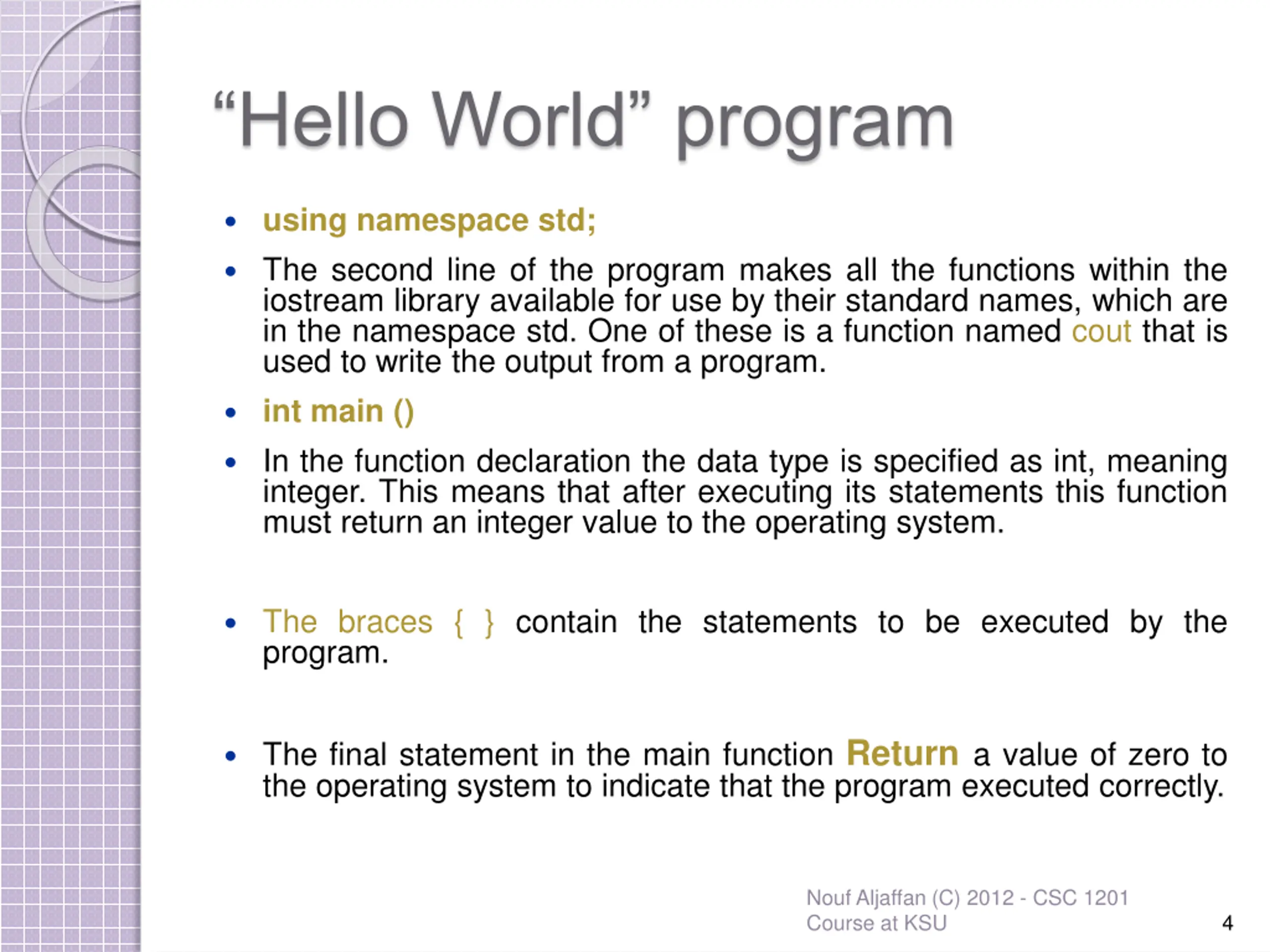

Hello World program using namespace std; The second line of the program makes all the functions within the iostream library available for use by their standard names, which are in the namespace std. One of these is a function named cout that is used to write the output from a program. int main () In the function declaration the data type is specified as int, meaning integer. This means that after executing its statements this function must return an integer value to the operating system. The braces { } contain the statements to be executed by the program. The final statement in the main function Returna value of zero to the operating system to indicate that the program executed correctly. Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 4
DATA TYPES Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 5

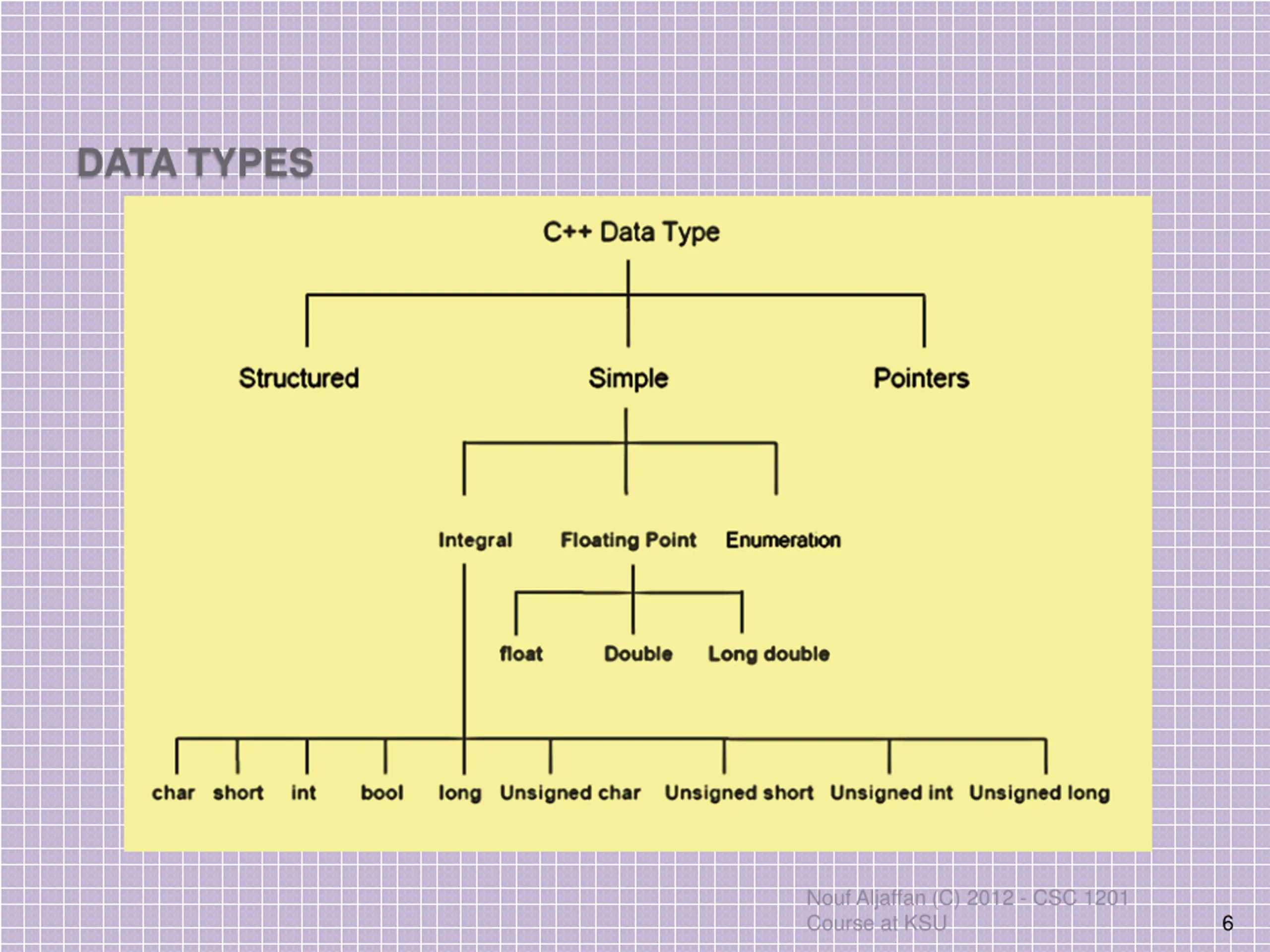

DATA TYPES Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 6

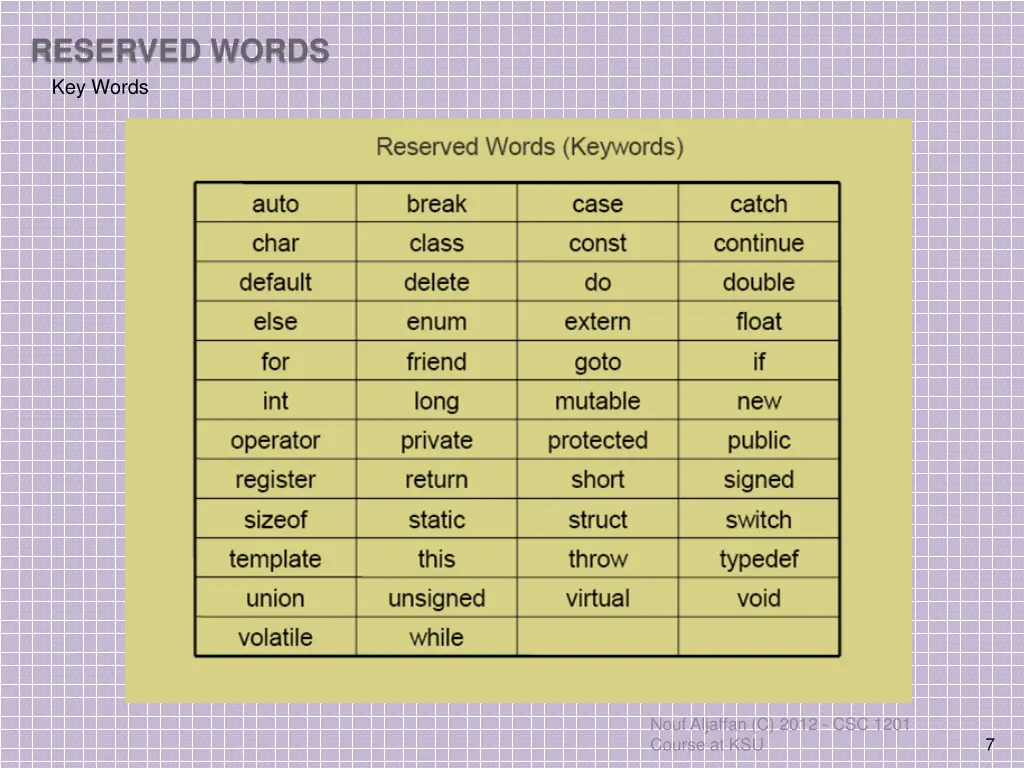

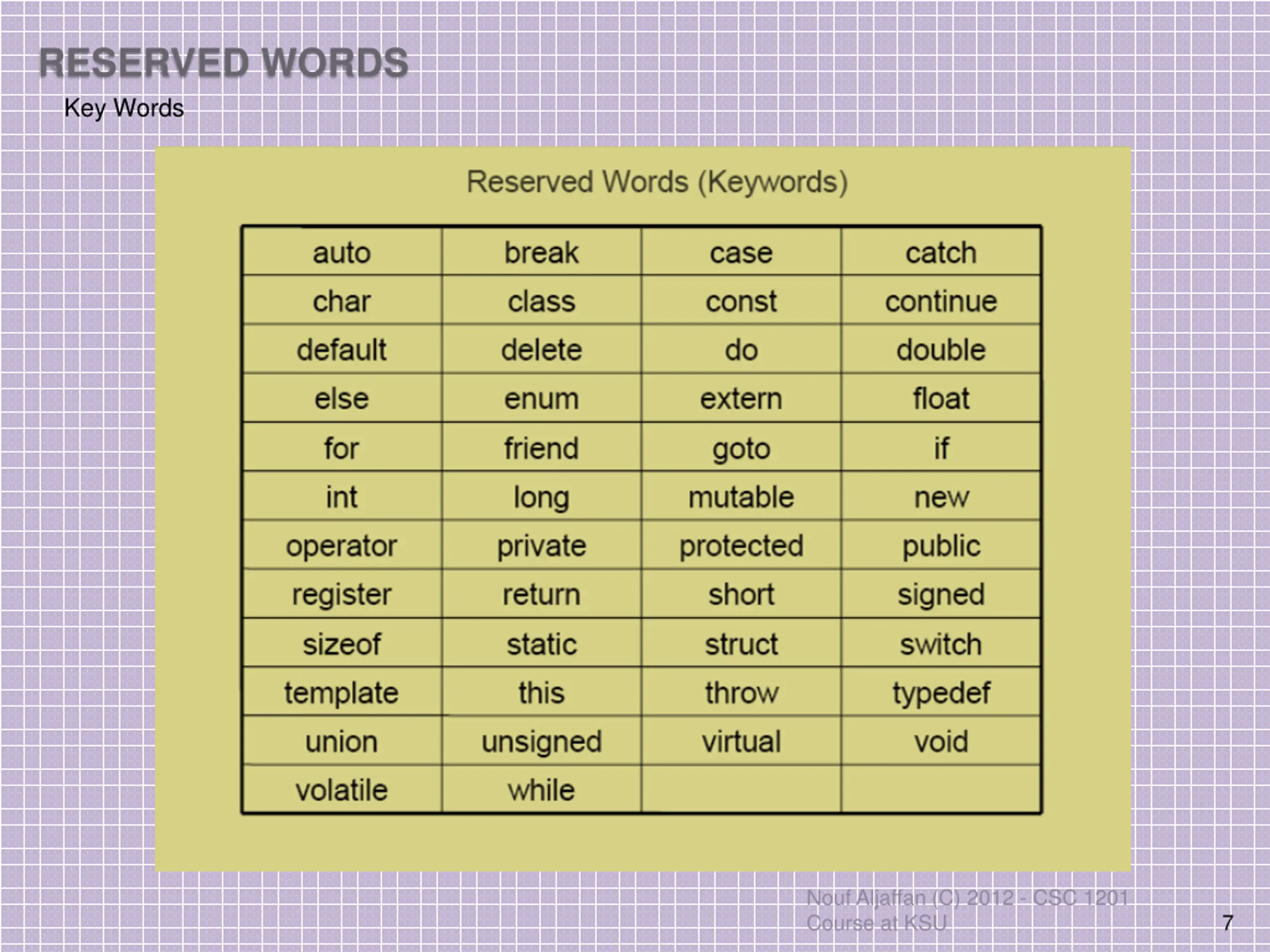

RESERVED WORDS Key Words Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 7

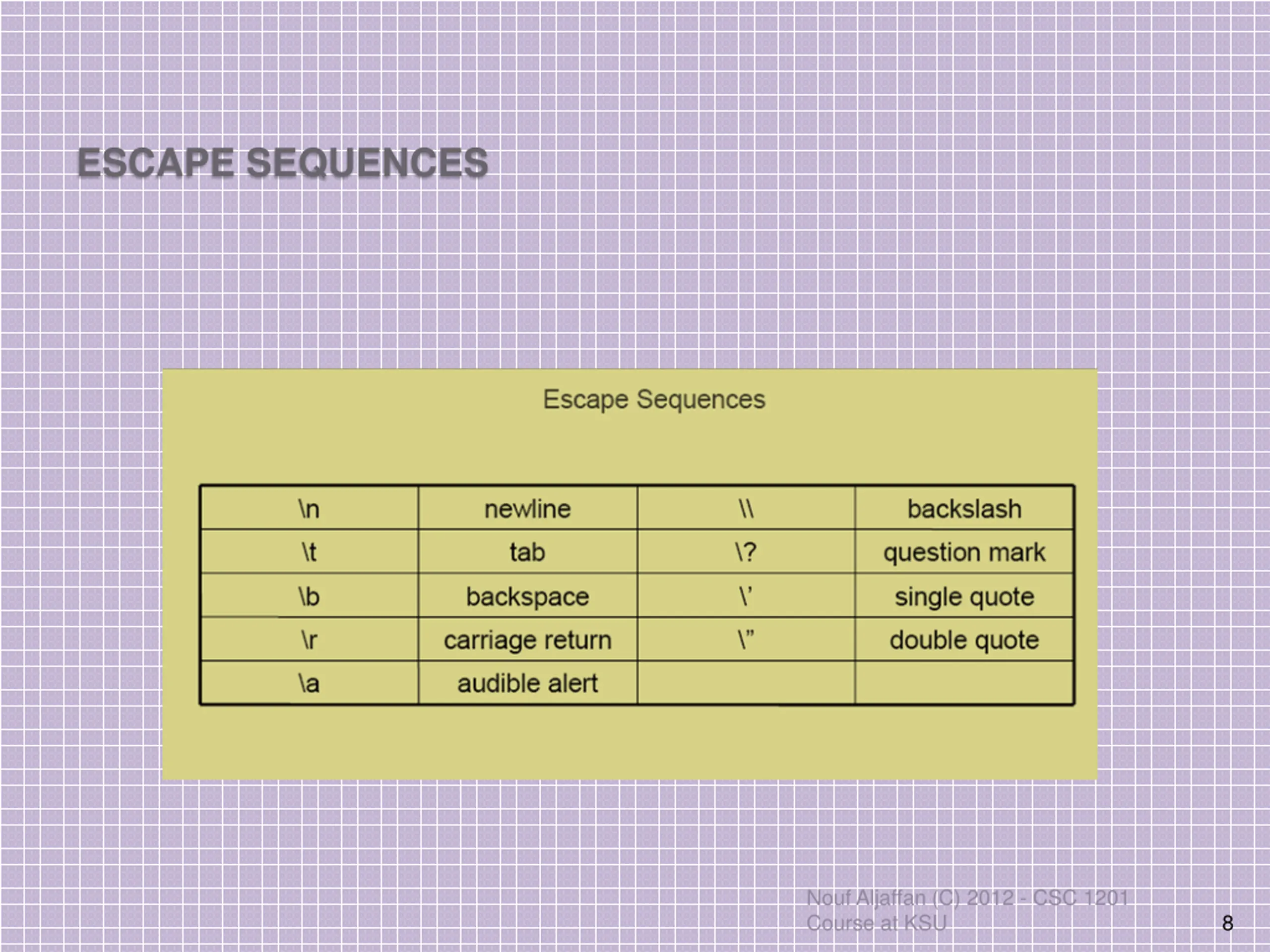

ESCAPE SEQUENCES Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 8

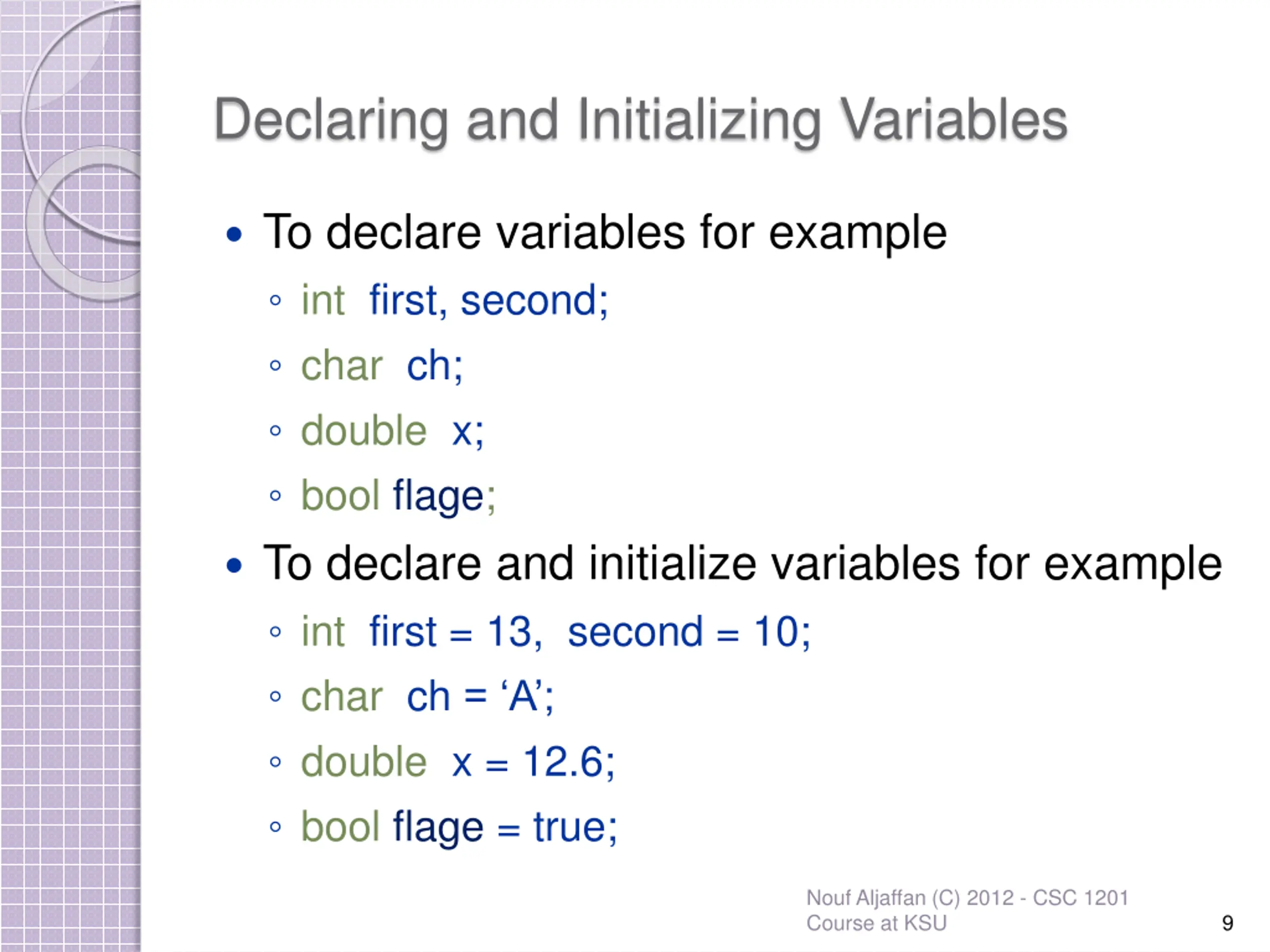

Declaring and Initializing Variables To declare variables for example int first, second; char ch; double x; bool flage; To declare and initialize variables for example int first = 13, second = 10; char ch = A ; double x = 12.6; bool flage = true; Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 9

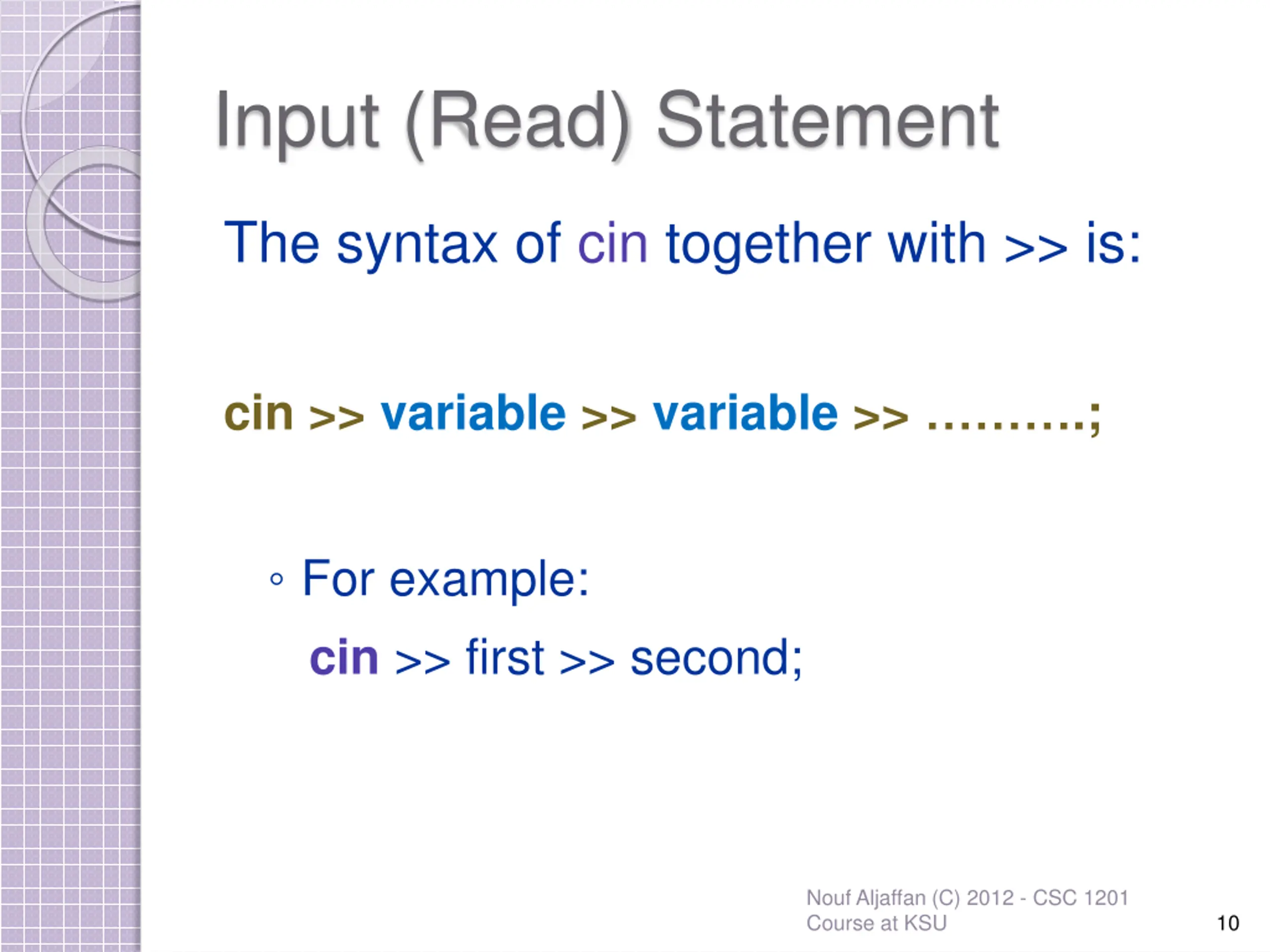

Input (Read) Statement The syntax of cin together with >> is: cin >> variable >> variable >> .; For example: cin >> first >> second; Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 10

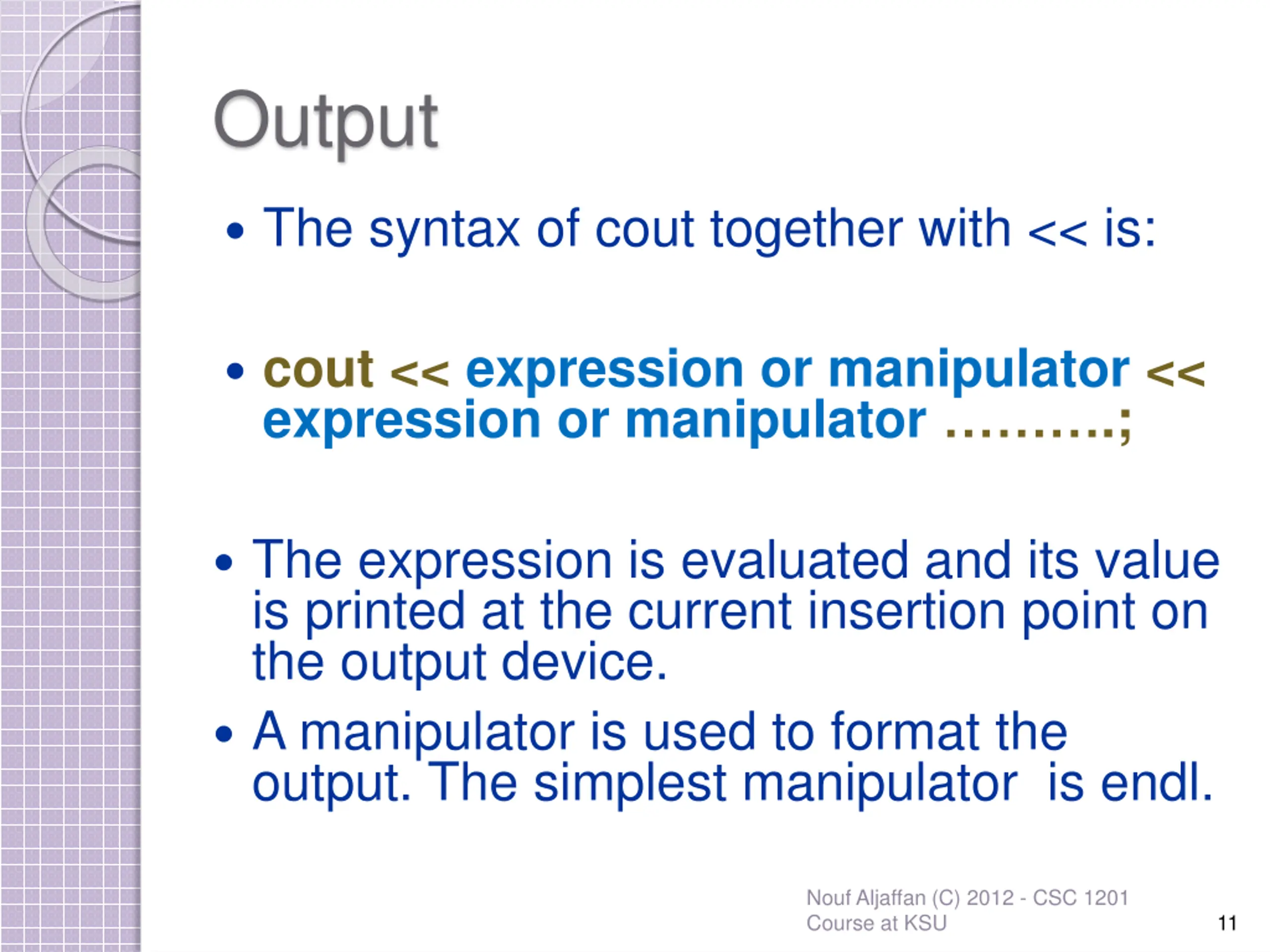

Output The syntax of cout together with << is: cout << expression or manipulator << expression or manipulator .; The expression is evaluated and its value is printed at the current insertion point on the output device. A manipulator is used to format the output. The simplest manipulator is endl. Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 11

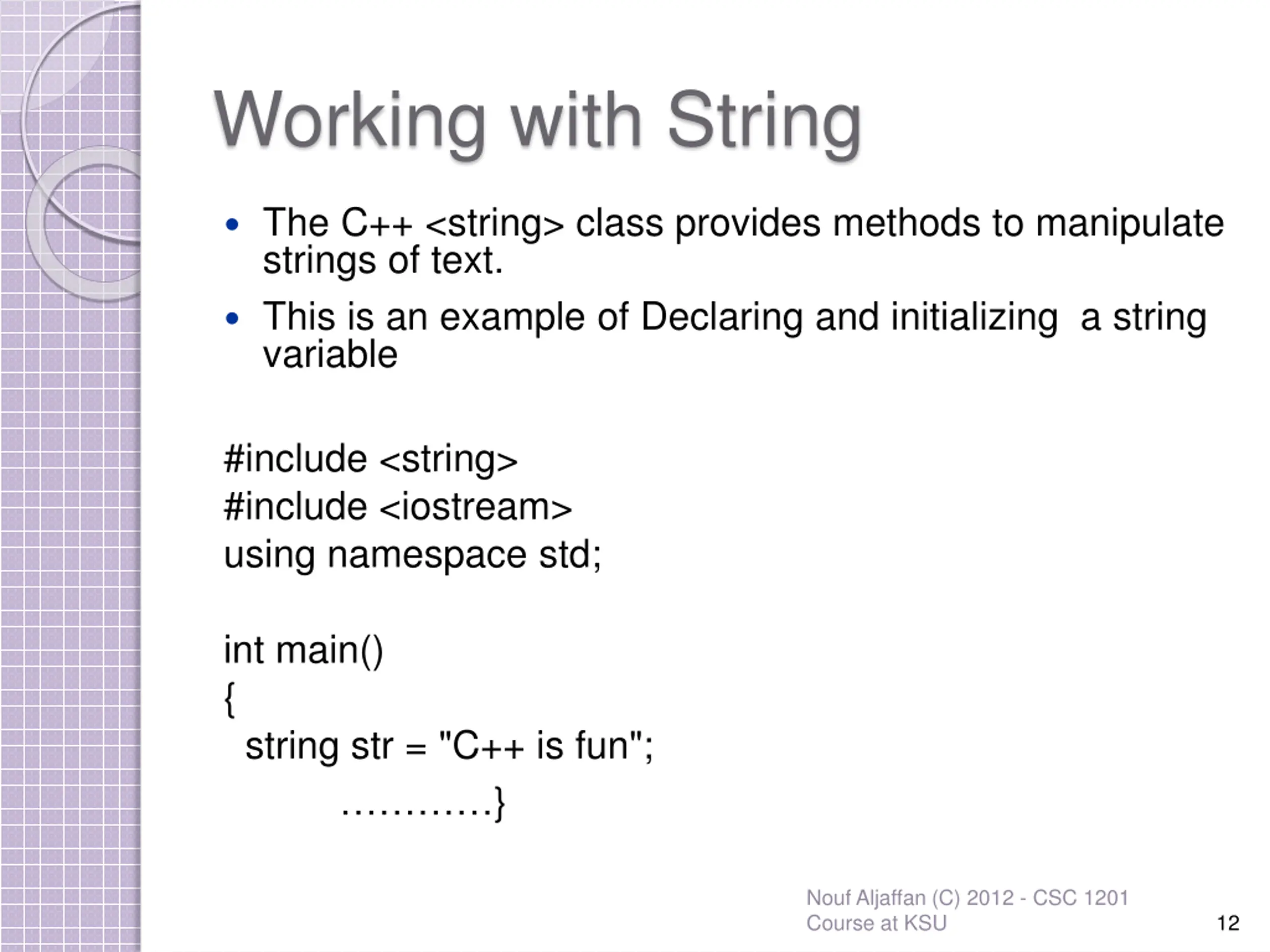

Working with String The C++ <string> class provides methods to manipulate strings of text. This is an example of Declaring and initializing a string variable #include <string> #include <iostream> using namespace std; int main() { string str = "C++ is fun"; } Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 12

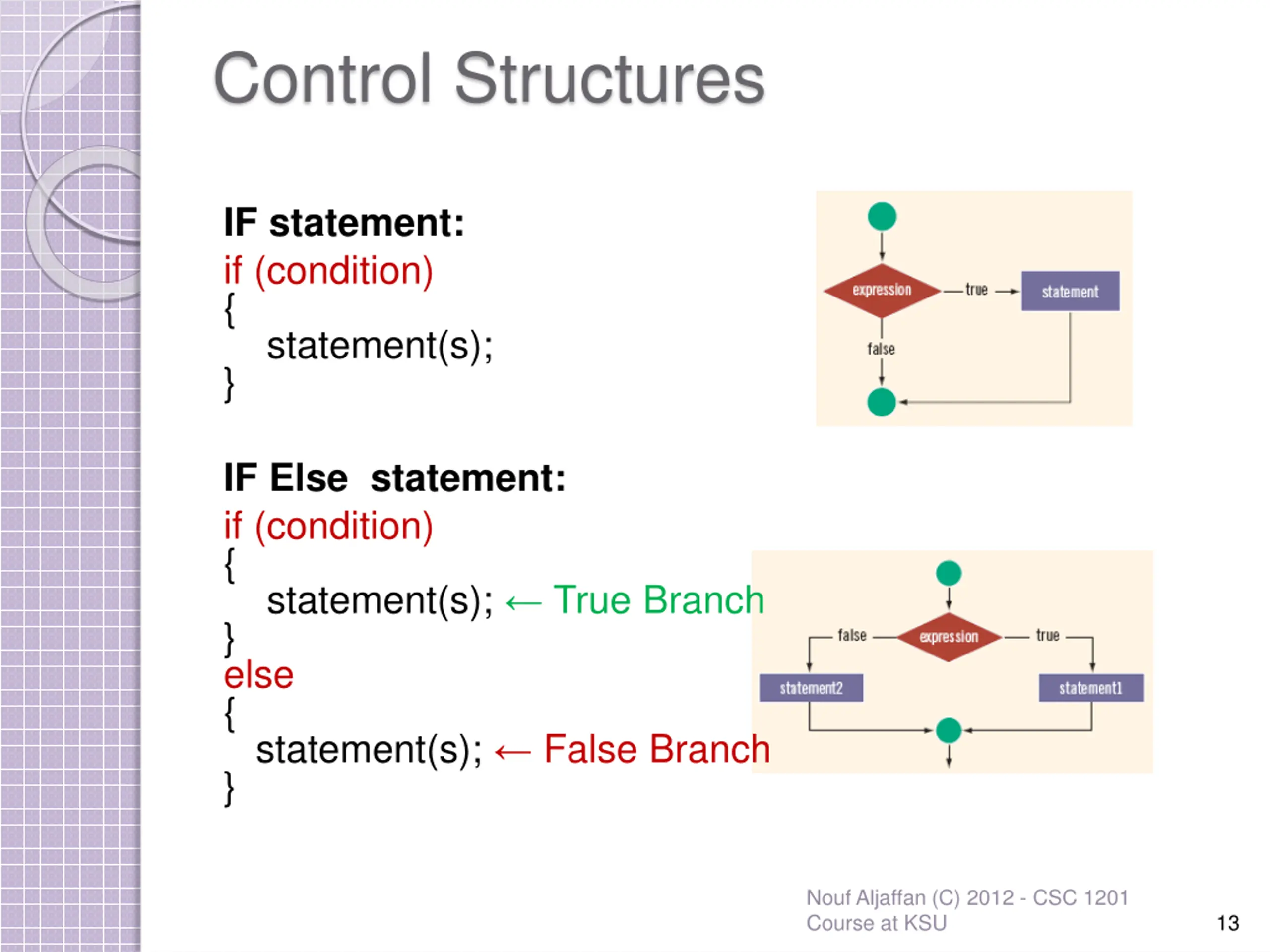

Control Structures IF statement: if (condition) { statement(s); } IF Else statement: if (condition) { statement(s); True Branch } else { statement(s); False Branch } Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 13

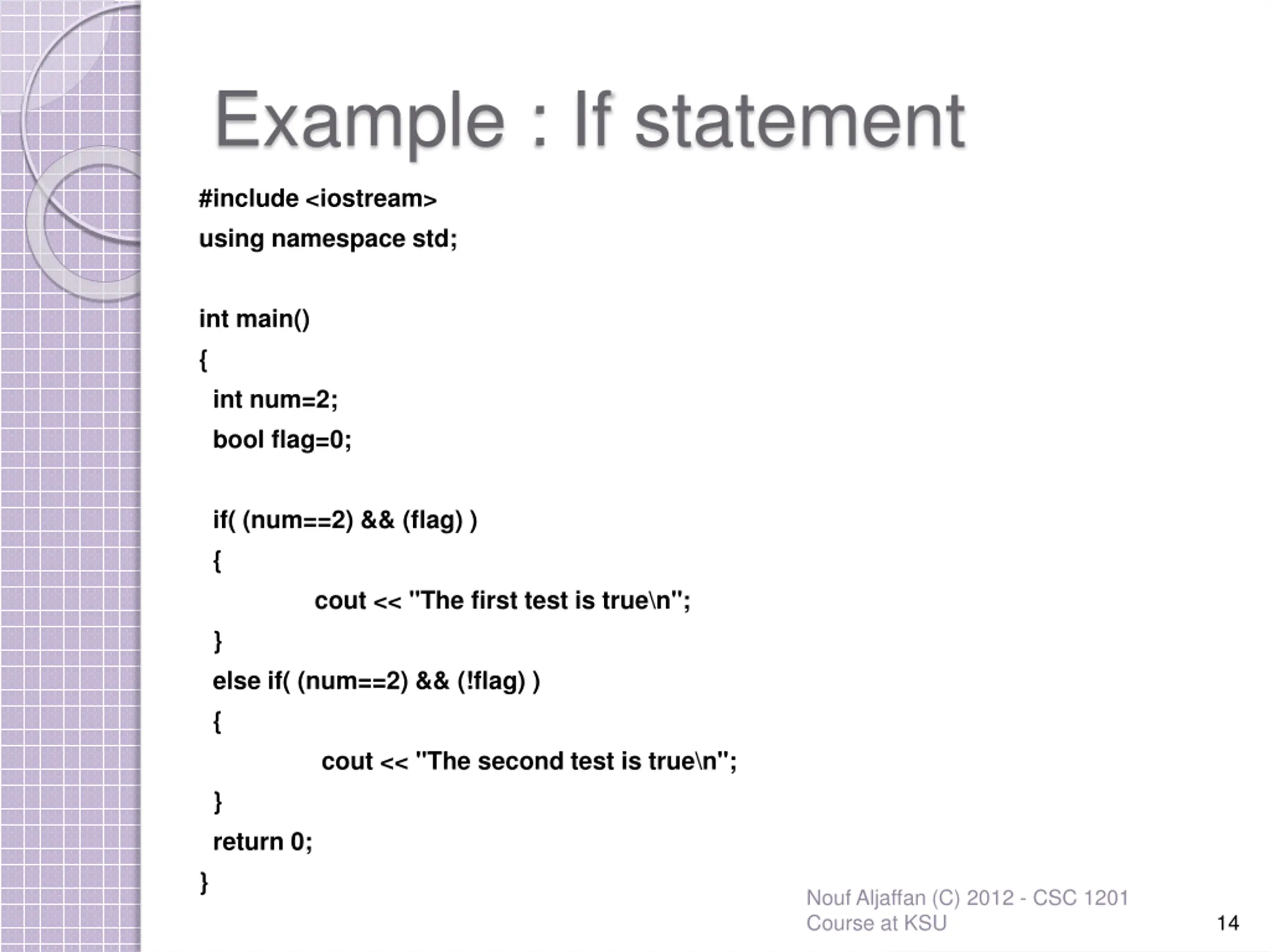

Example : If statement #include <iostream> using namespace std; int main() { int num=2; bool flag=0; if( (num==2) && (flag) ) { cout << "The first test is true\n"; } else if( (num==2) && (!flag) ) { cout << "The second test is true\n"; } return 0; } Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 14

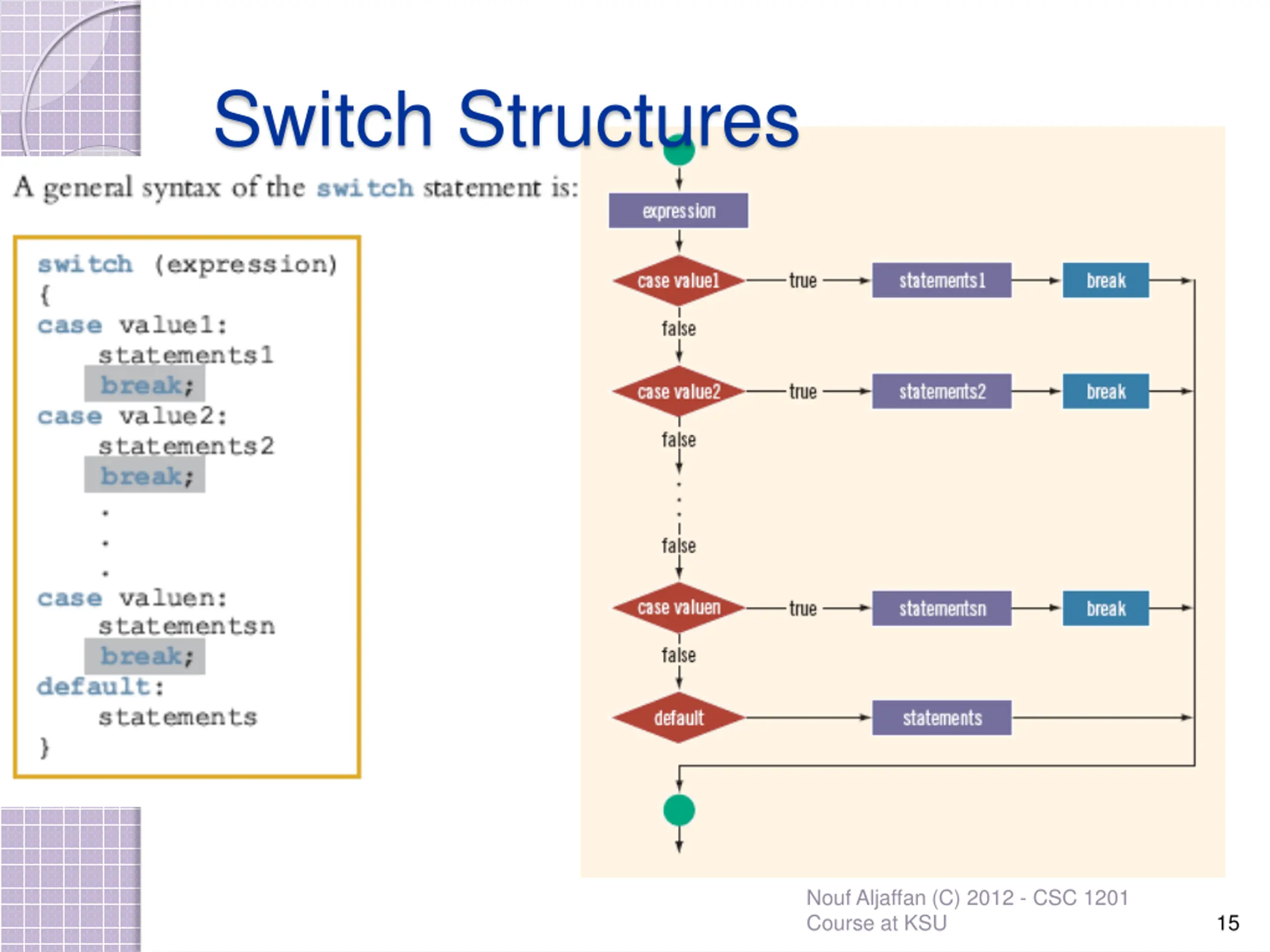

Switch Structures Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 15

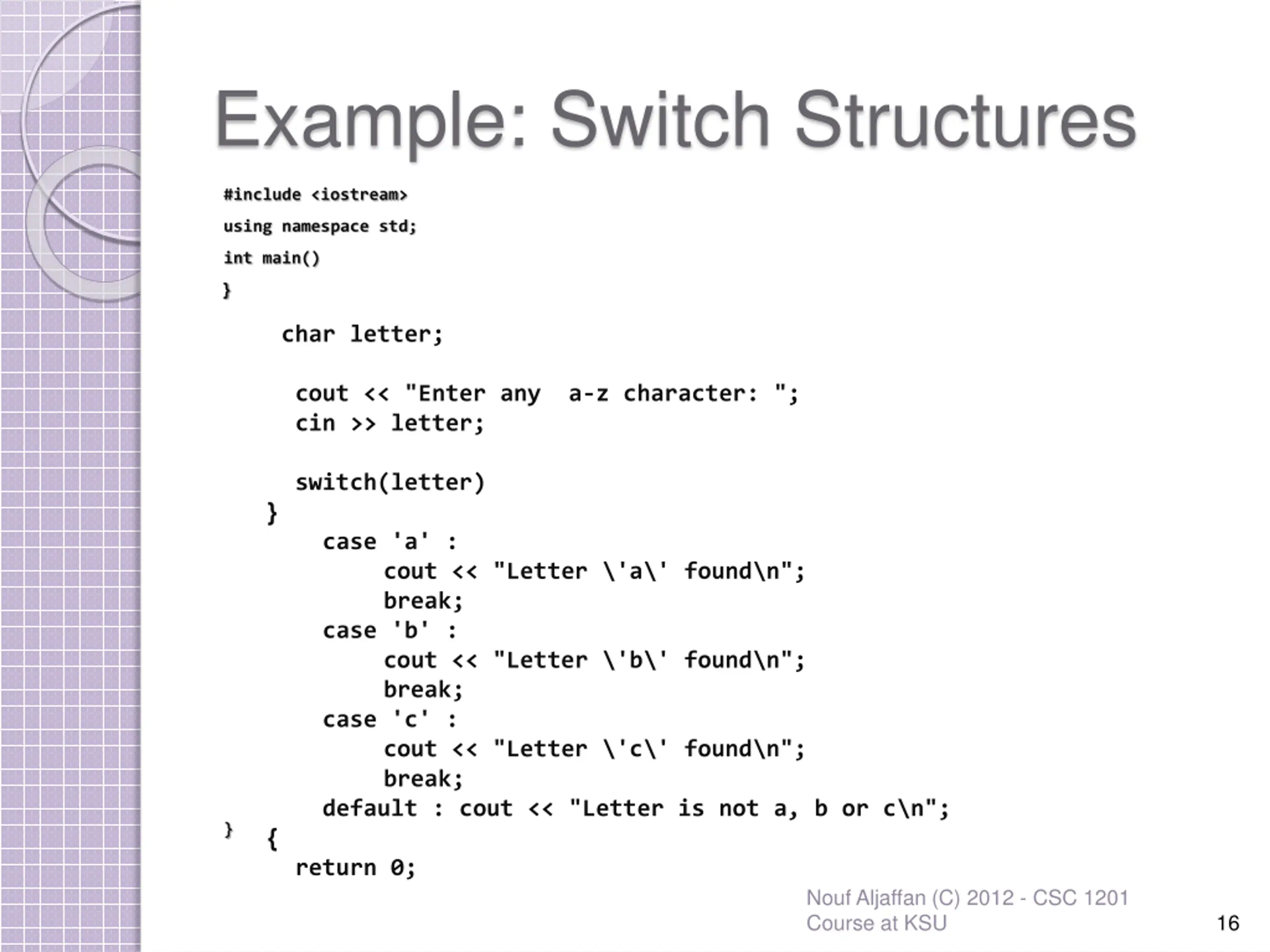

Example: Switch Structures #include <iostream> using namespace std; int main() { char letter; cout << "Enter any a-z character: "; cin >> letter; switch(letter) { case 'a' : case 'b' : case 'c' : default : cout << "Letter is not a, b or c\n"; } return 0; cout << "Letter \'a\' found\n"; break; cout << "Letter \'b\' found\n"; break; cout << "Letter \'c\' found\n"; break; } Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 16

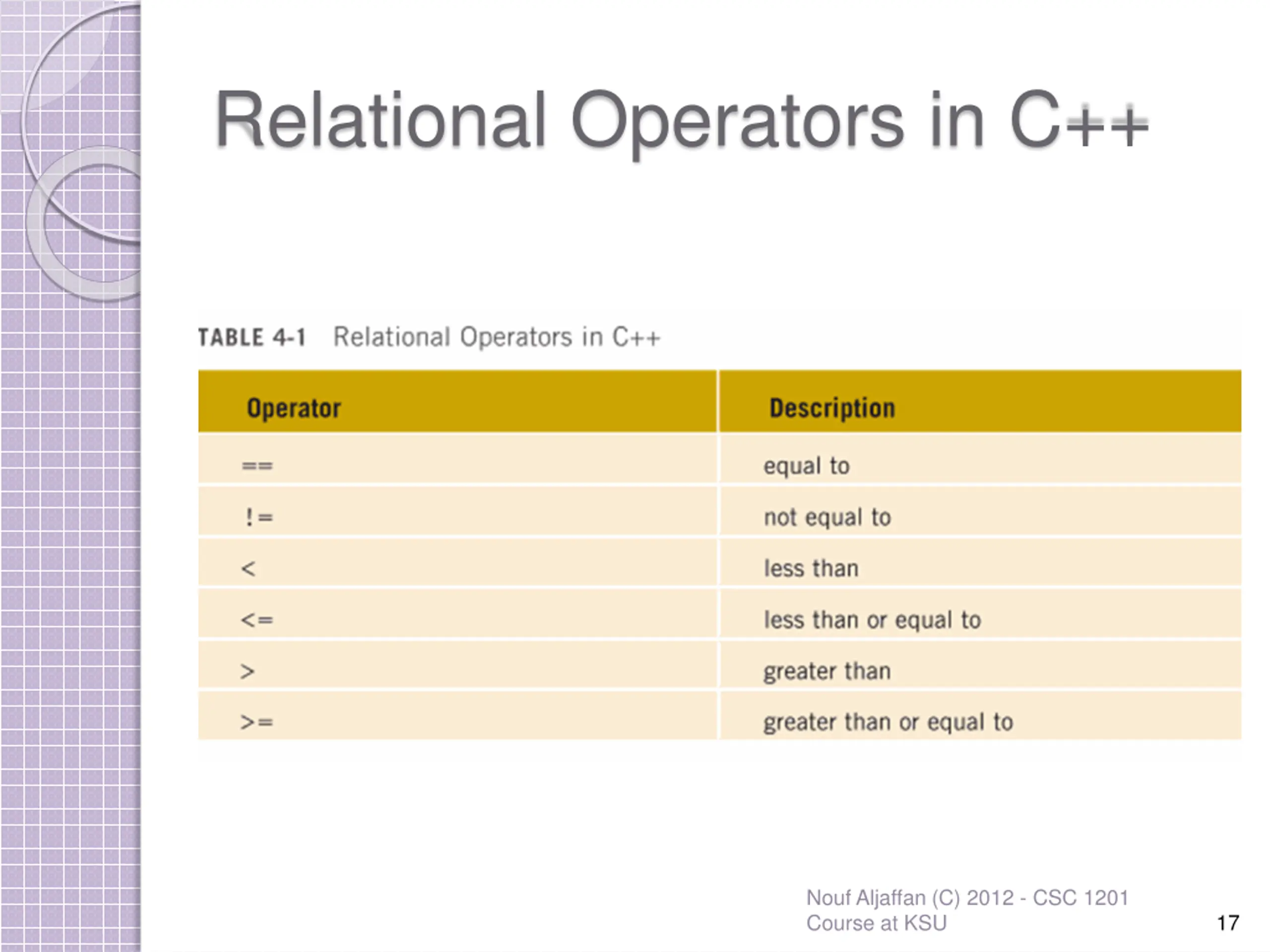

Relational Operators in C++ Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 17

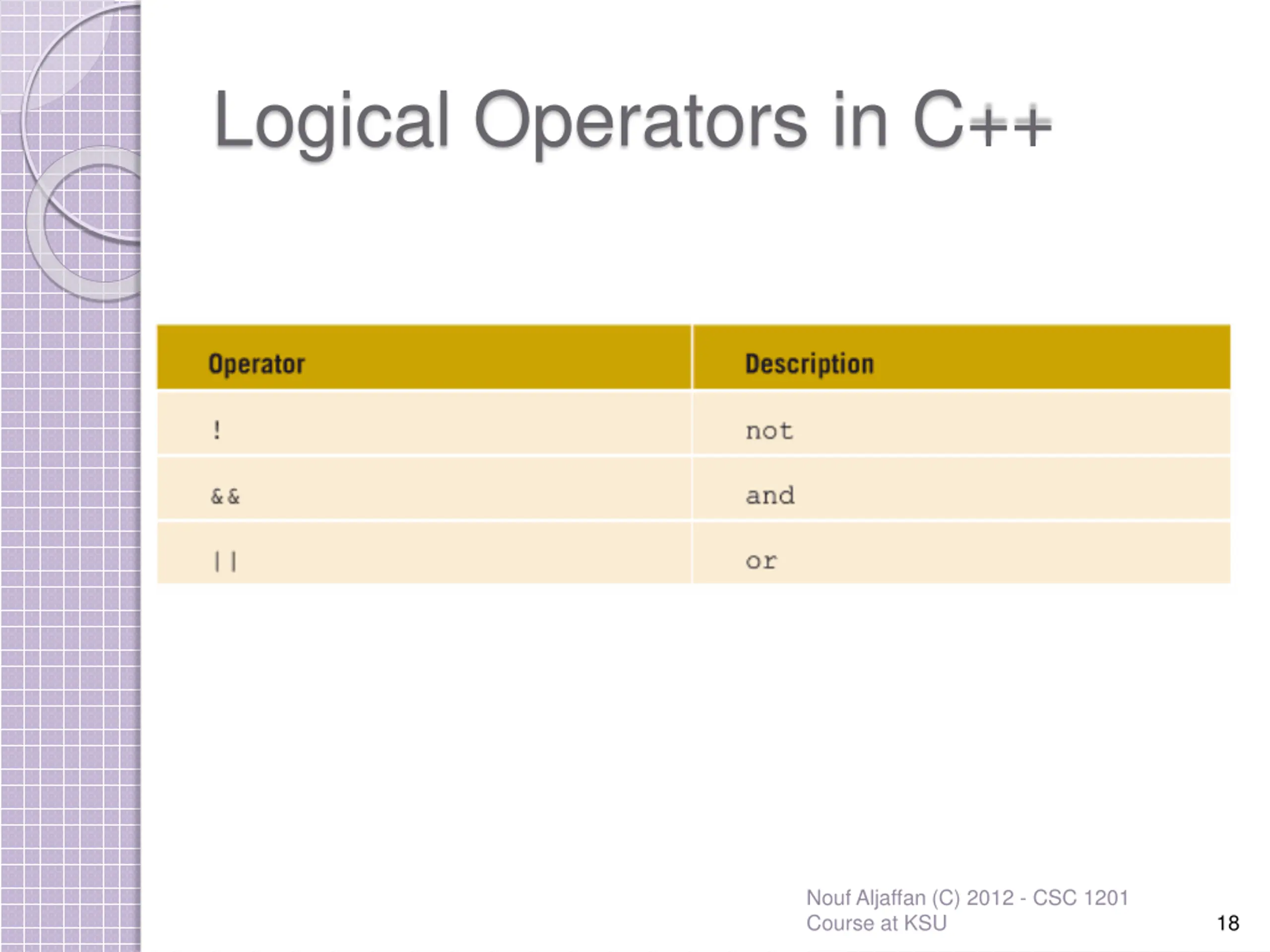

Logical Operators in C++ Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 18

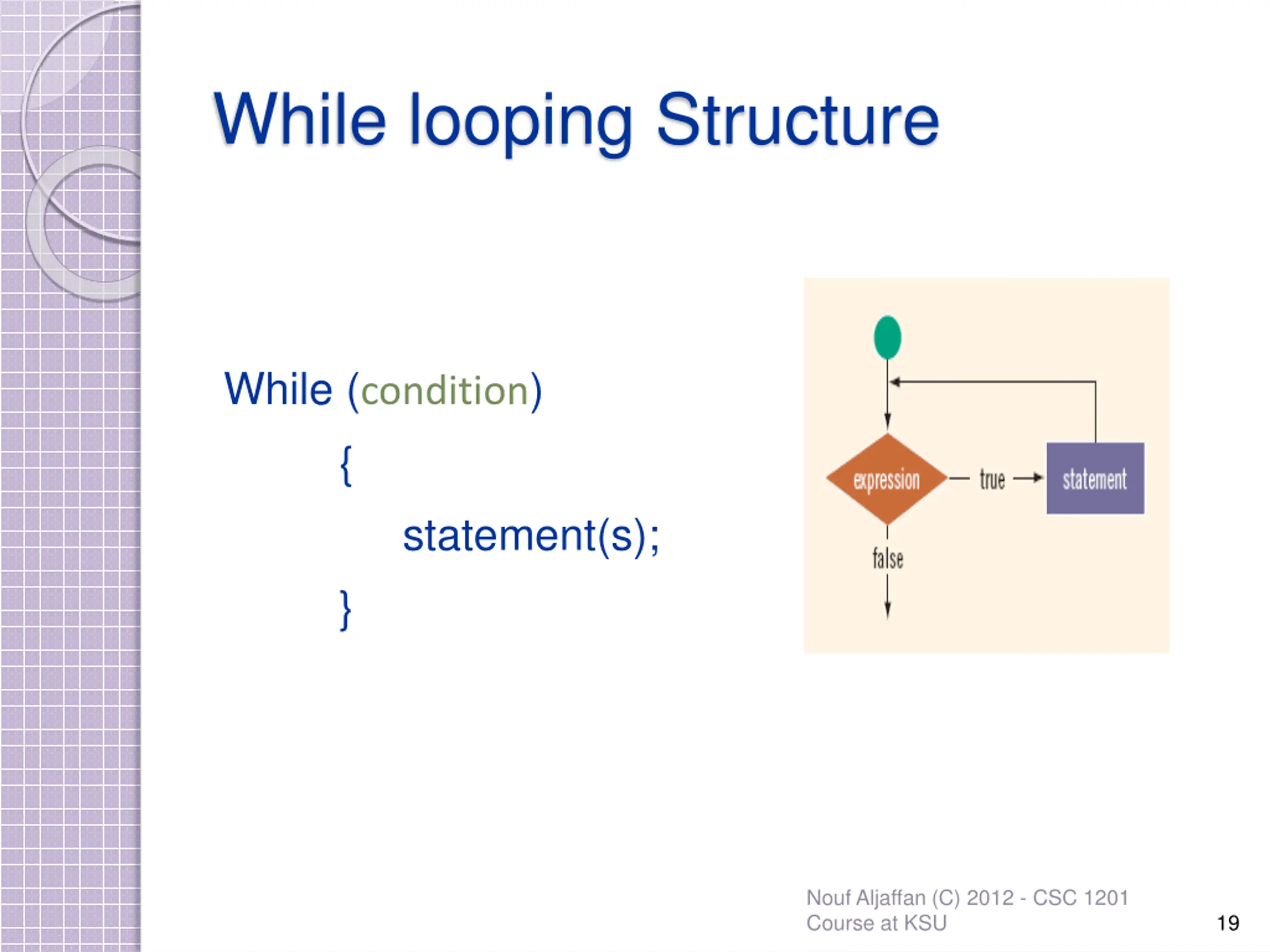

While looping Structure While (condition) { } statement(s); Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 19

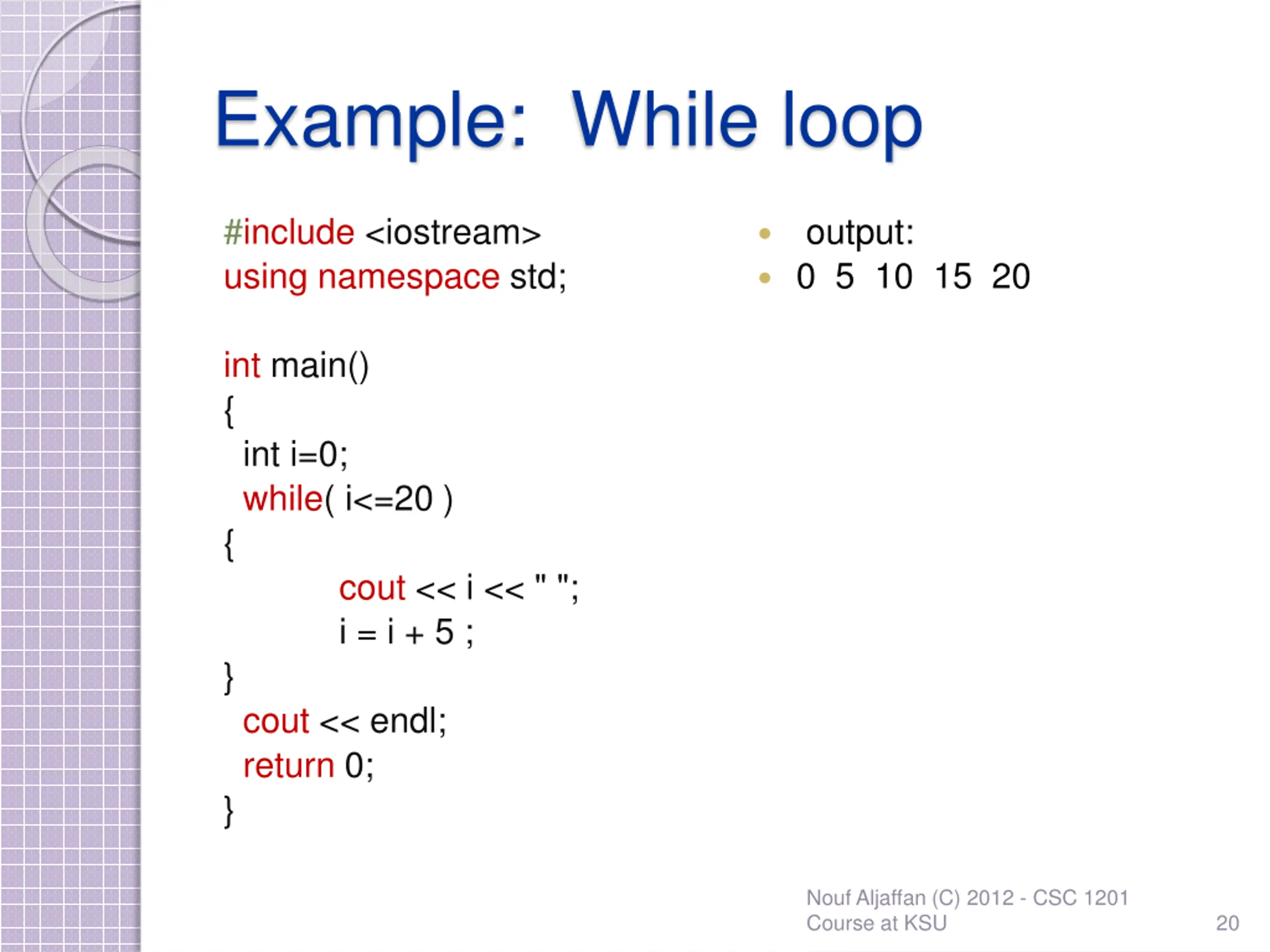

Example: While loop #include <iostream> using namespace std; output: 0 5 10 15 20 int main() { int i=0; while( i<=20 ) { } cout << endl; return 0; } cout << i << " "; i = i + 5 ; Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 20

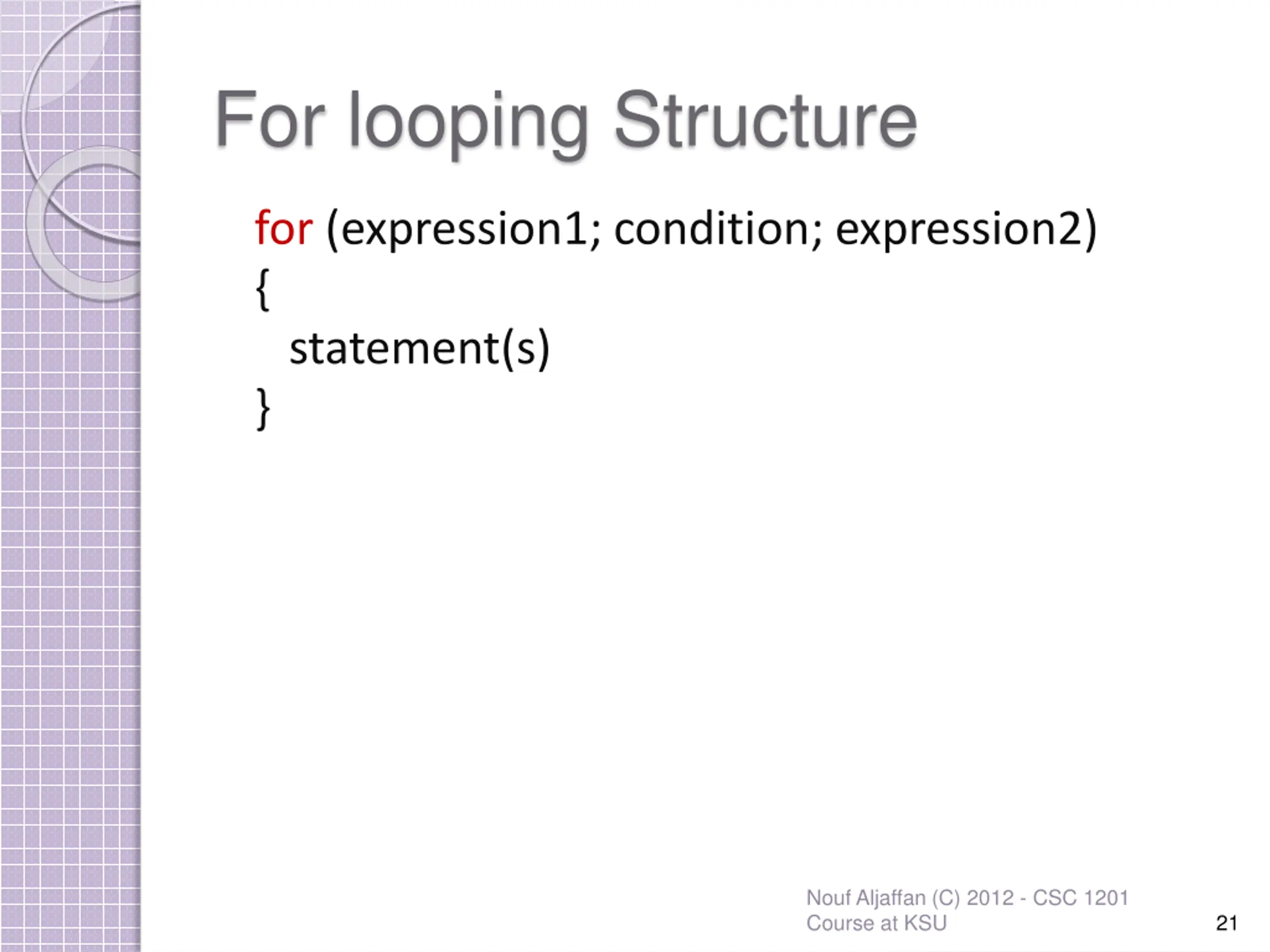

For looping Structure for (expression1; condition; expression2) { statement(s) } Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 21

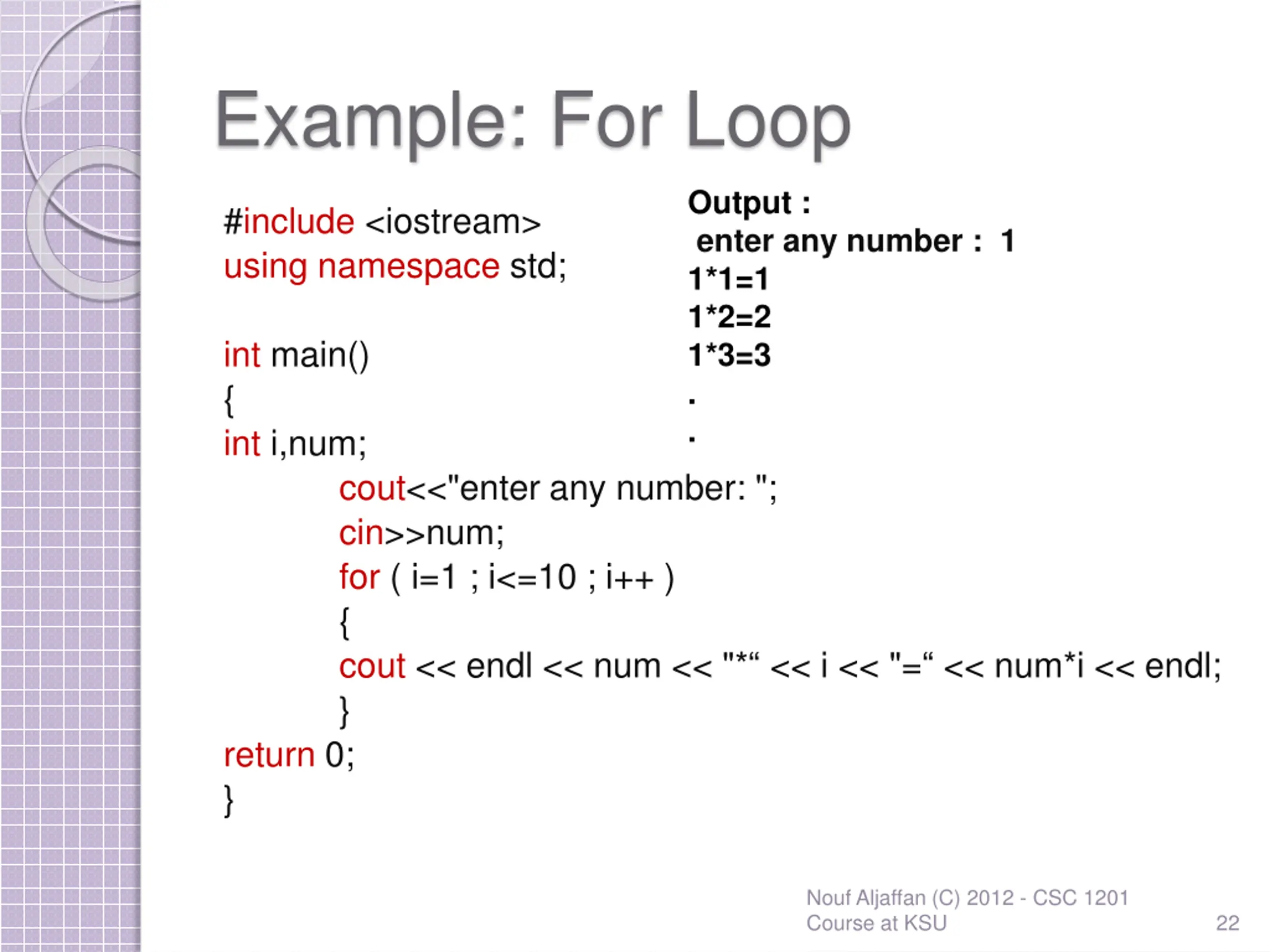

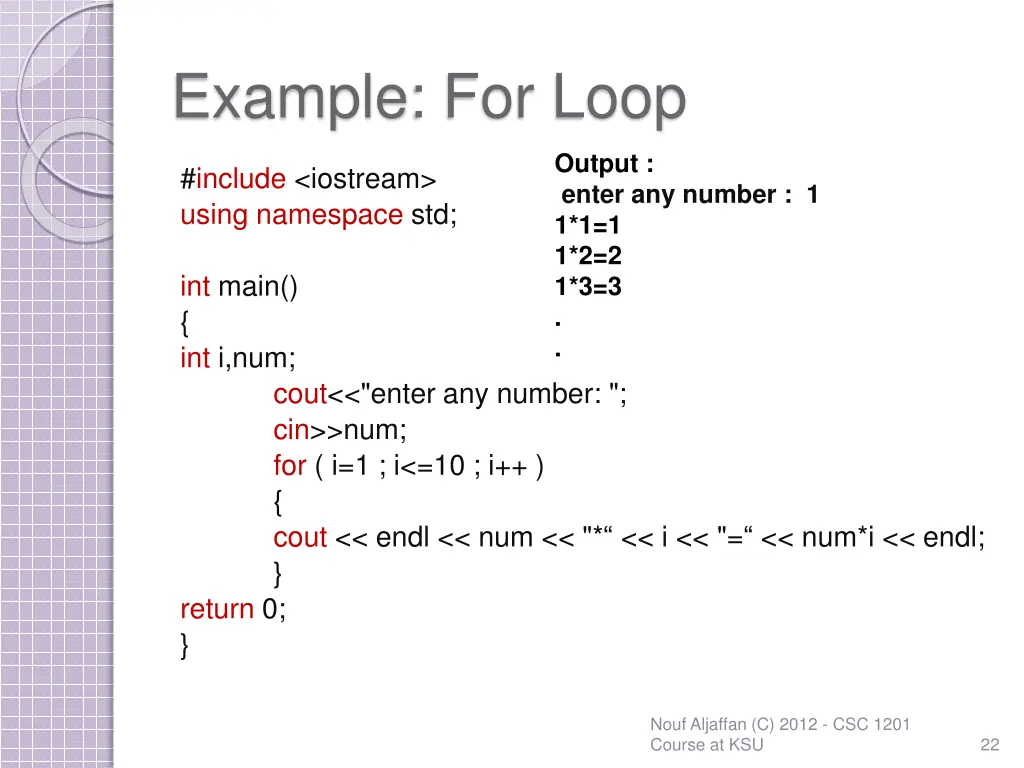

Example: For Loop Output : enter any number : 1 1*1=1 1*2=2 1*3=3 . . #include <iostream> using namespace std; int main() { int i,num; return 0; } cout<<"enter any number: "; cin>>num; for ( i=1 ; i<=10 ; i++ ) { cout << endl << num << "* << i << "= << num*i << endl; } Nouf Aljaffan (C) 2012 - CSC 1201 Course at KSU 22
