Introduction to C Programming

Introduction to C

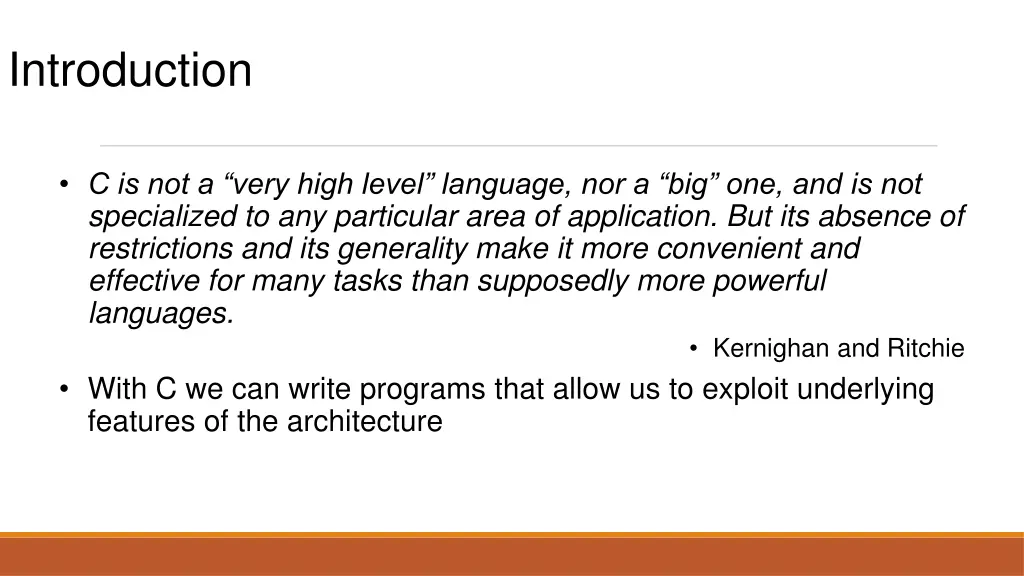

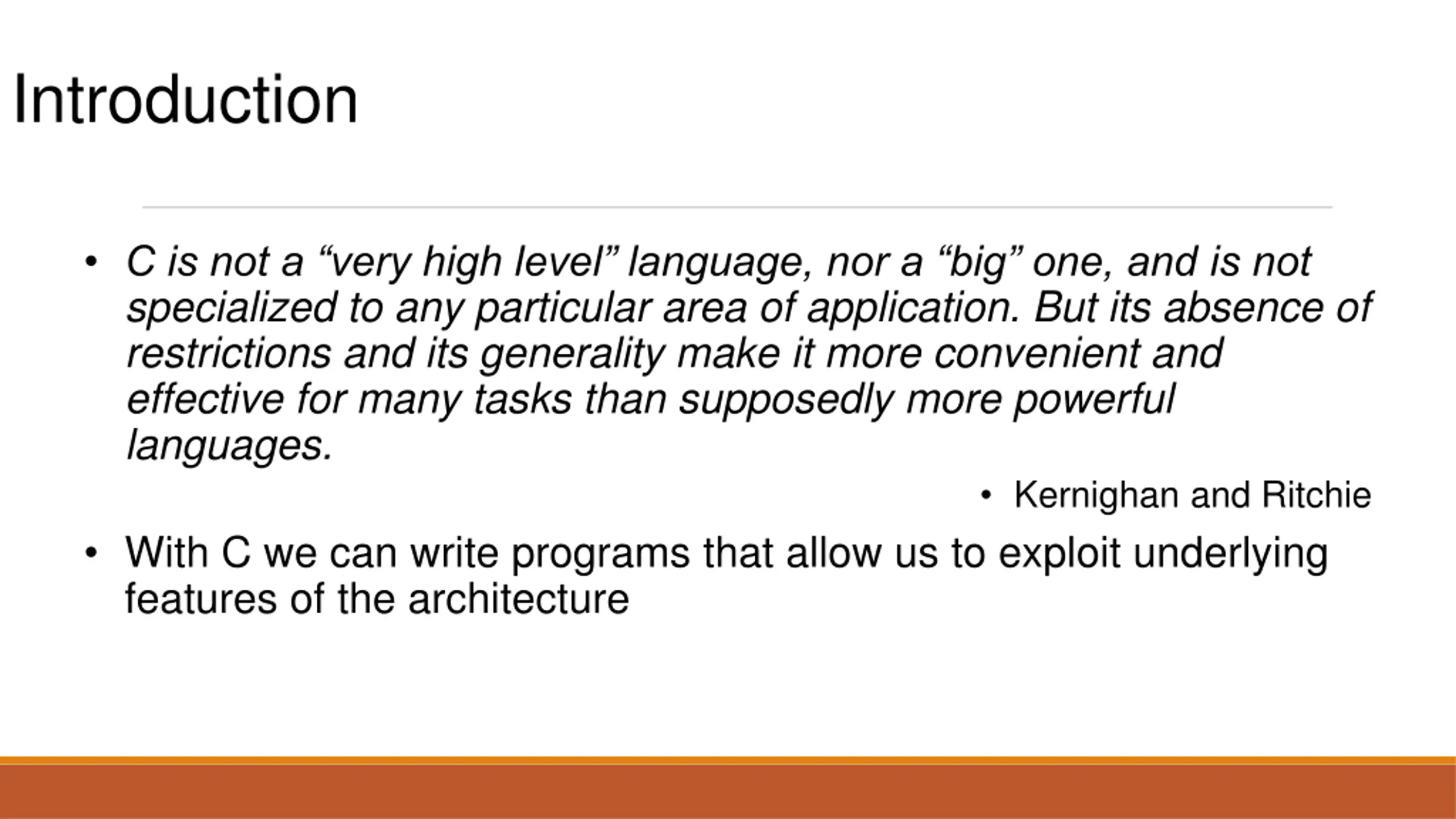

Introduction C is not a very high level language, nor a big one, and is not specialized to any particular area of application. But its absence of restrictions and its generality make it more convenient and effective for many tasks than supposedly more powerful languages. Kernighan and Ritchie With C we can write programs that allow us to exploit underlying features of the architecture

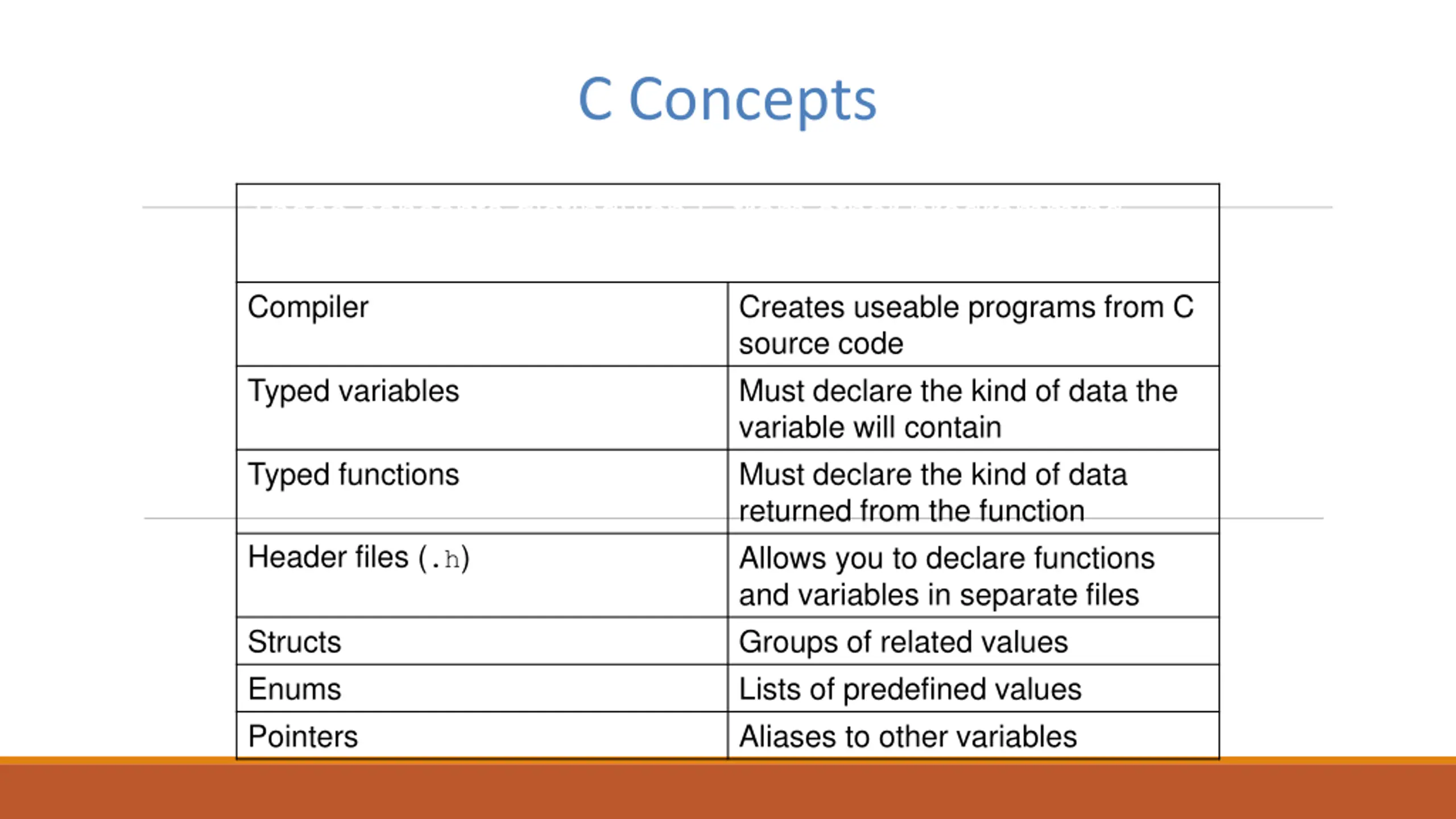

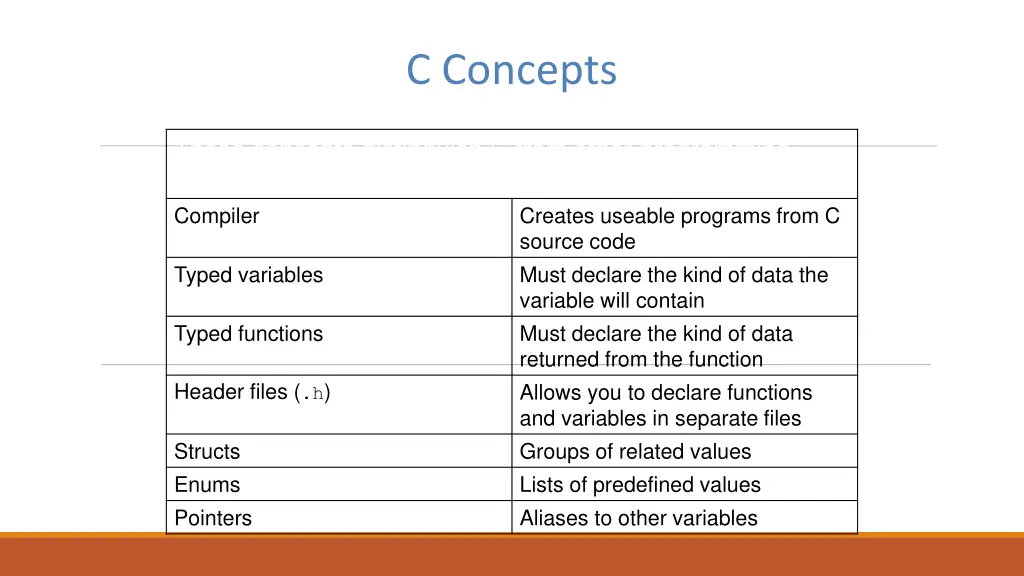

C Concepts These concepts distinguish C from other programming languages that you may know: Compiler Creates useable programs from C source code Must declare the kind of data the variable will contain Must declare the kind of data returned from the function Allows you to declare functions and variables in separate files Groups of related values Lists of predefined values Aliases to other variables Typed variables Typed functions Header files (.h) Structs Enums Pointers

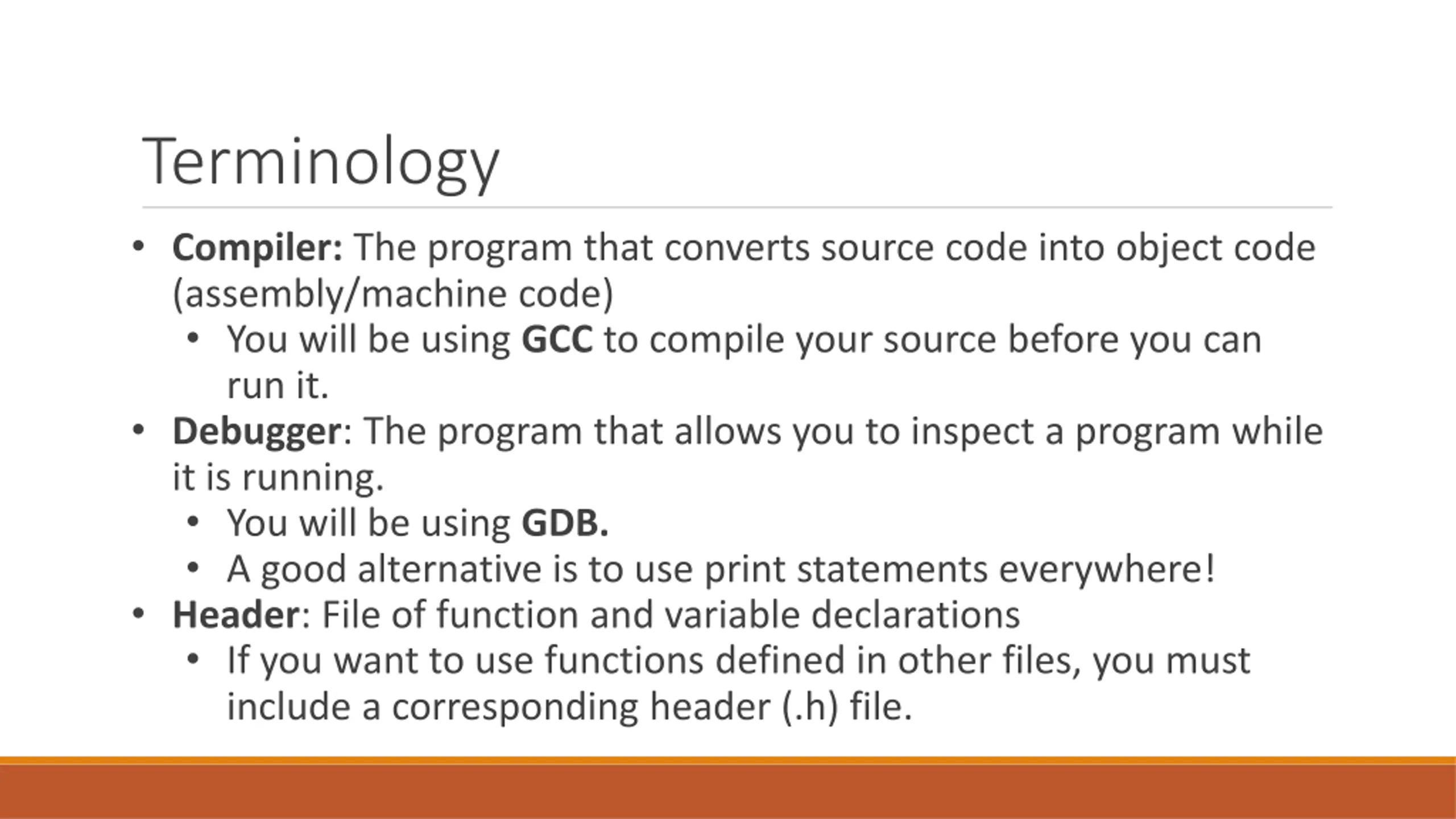

Terminology Compiler: The program that converts source code into object code (assembly/machine code) You will be using GCC to compile your source before you can run it. Debugger: The program that allows you to inspect a program while it is running. You will be using GDB. A good alternative is to use print statements everywhere! Header: File of function and variable declarations If you want to use functions defined in other files, you must include a corresponding header (.h) file.

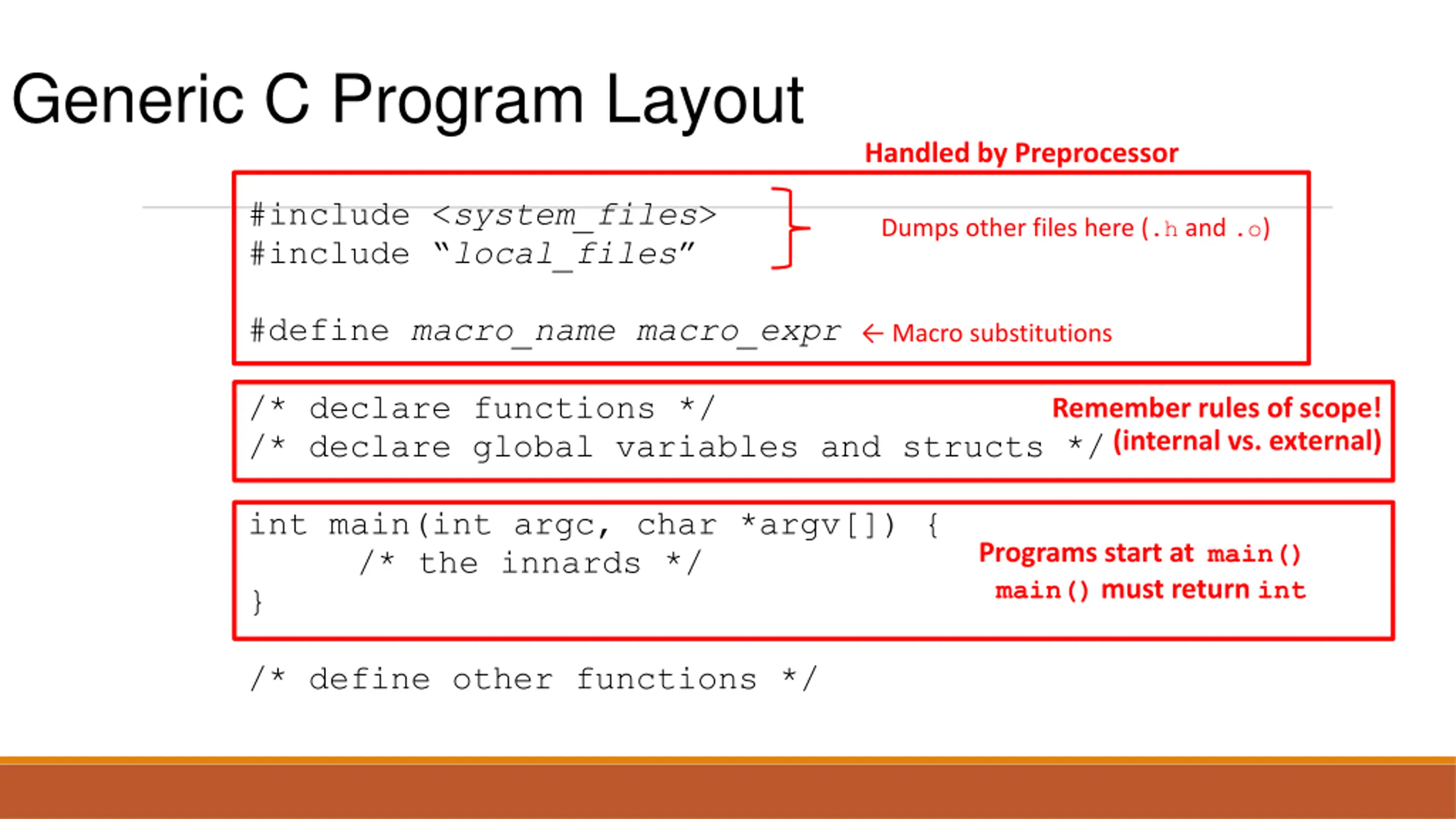

Generic C Program Layout Handled by Preprocessor #include <system_files> #include local_files Dumps other files here (.h and .o)__ #define macro_name macro_expr Macro substitutions /* declare functions */ /* declare global variables and structs */ Remember rules of scope! (internal vs. external) int main(int argc, char *argv[]) { /* the innards */ } Programs start at main() main() must return int /* define other functions */

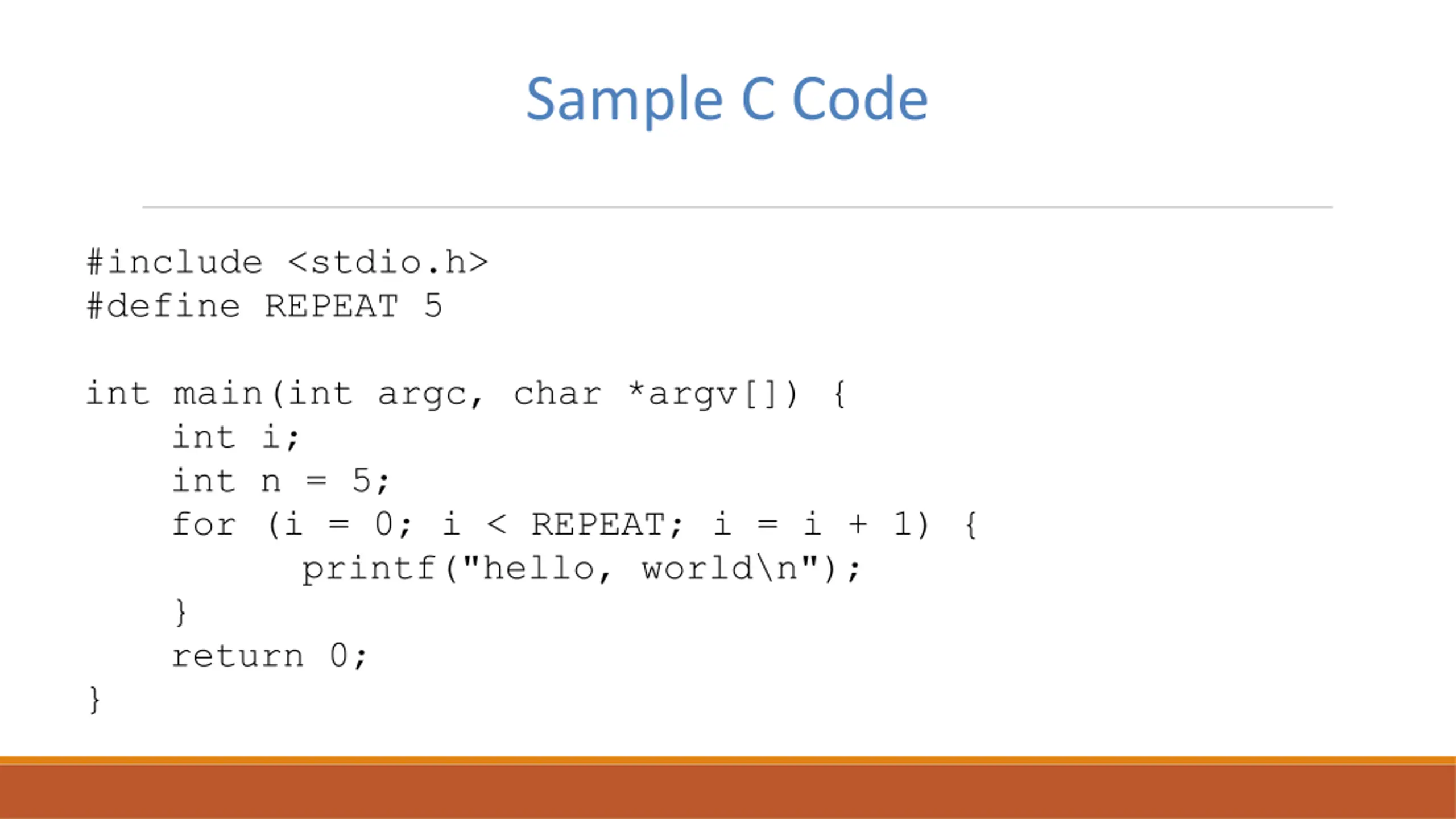

Sample C Code #include <stdio.h> #define REPEAT 5 int main(int argc, char *argv[]) { int i; int n = 5; for (i = 0; i < REPEAT; i = i + 1) { printf("hello, world\n"); } return 0; }

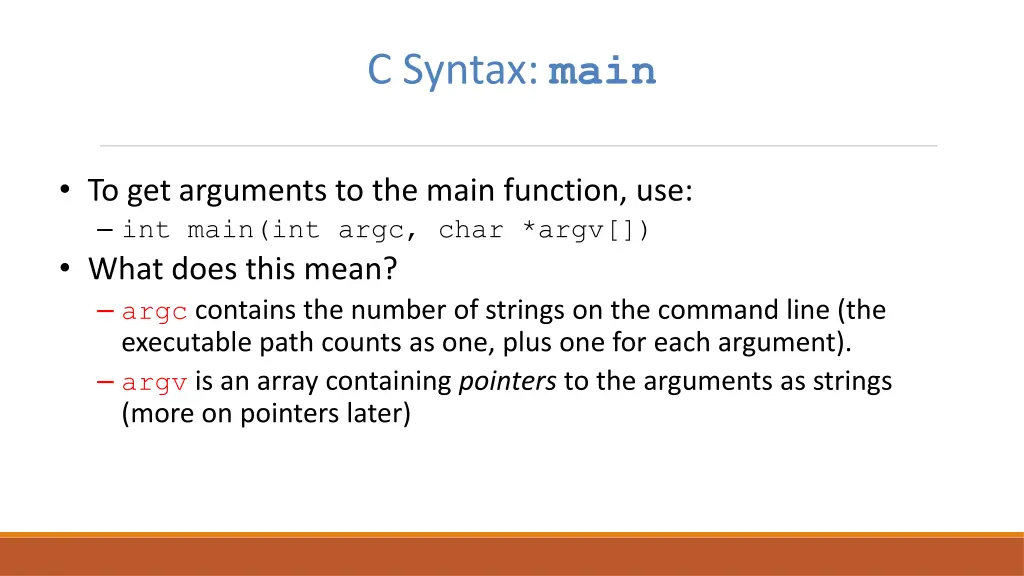

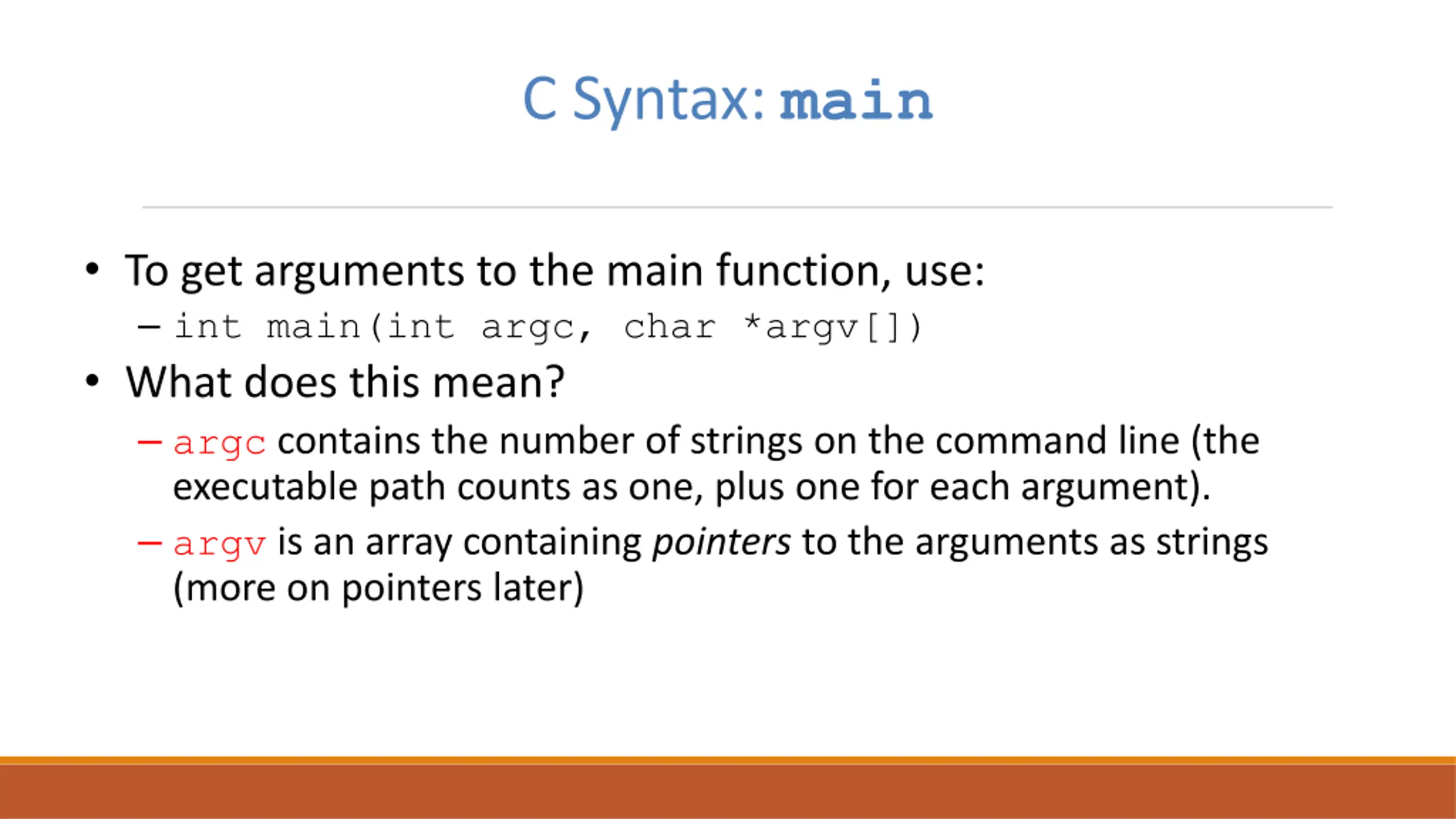

C Syntax: main To get arguments to the main function, use: int main(int argc, char *argv[]) What does this mean? argc contains the number of strings on the command line (the executable path counts as one, plus one for each argument). argv is an array containing pointers to the arguments as strings (more on pointerslater)

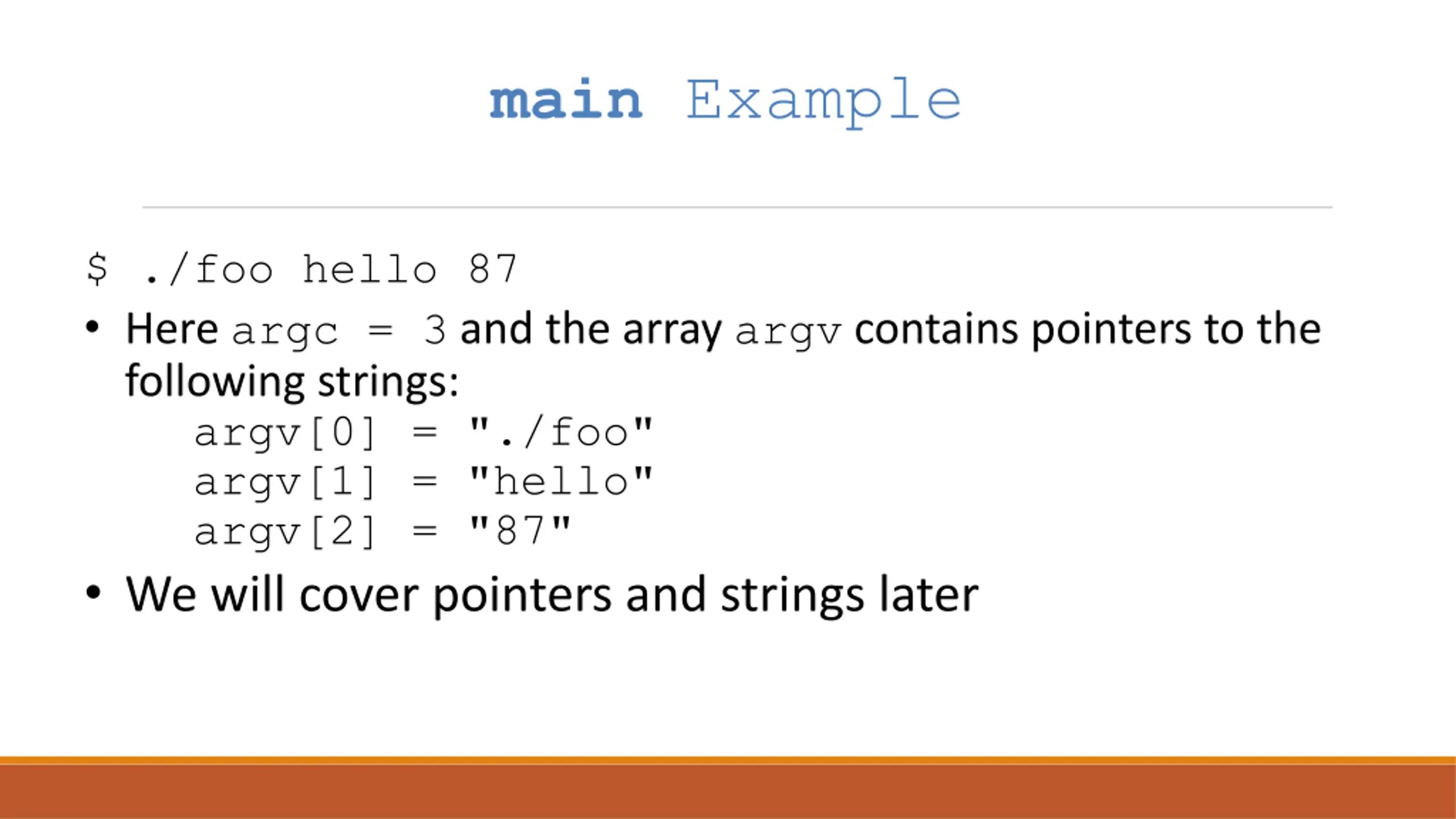

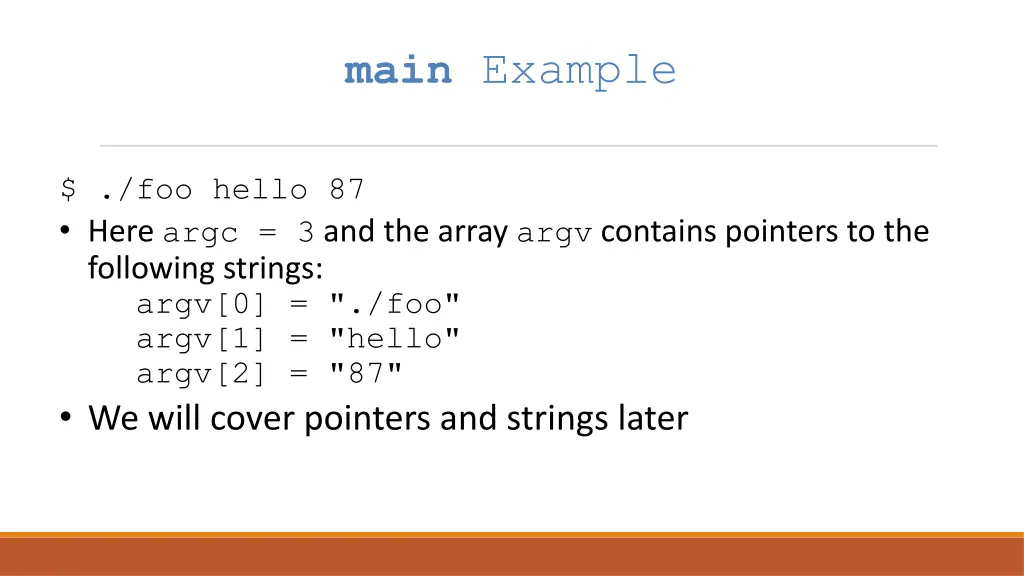

mainExample $ ./foo hello 87 Here argc = 3 and the array argv contains pointers to the following strings: argv[0] = "./foo" argv[1] = "hello" argv[2] = "87" We will cover pointers and strings later

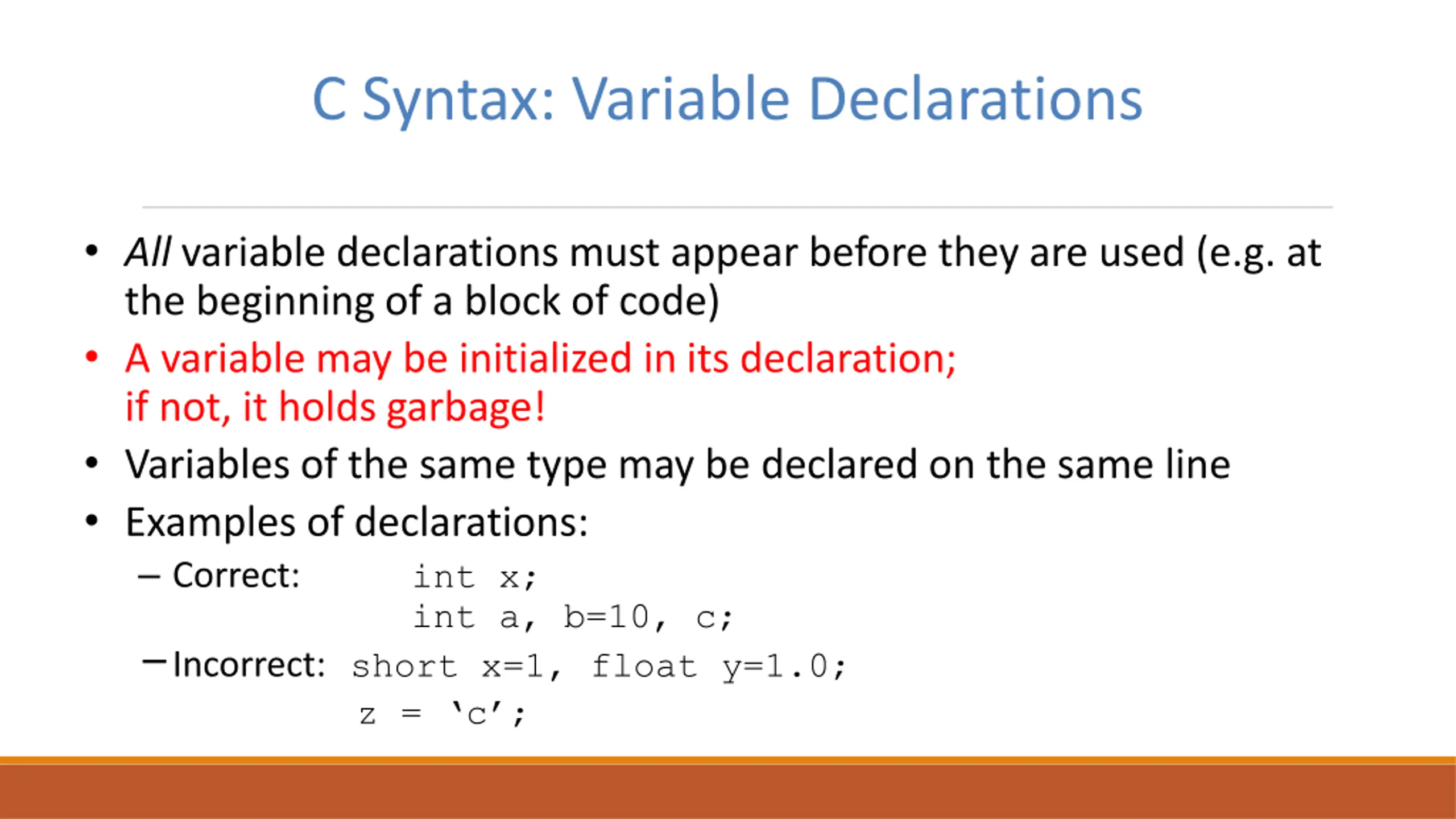

C Syntax: Variable Declarations All variable declarations must appear before they are used (e.g. at the beginning of a block of code) A variable may be initialized in its declaration; if not, it holds garbage! Variables of the same type may be declared on the same line Examples of declarations: Correct: int x; int a, b=10, c; Incorrect:short x=1, float y=1.0; z = c ;

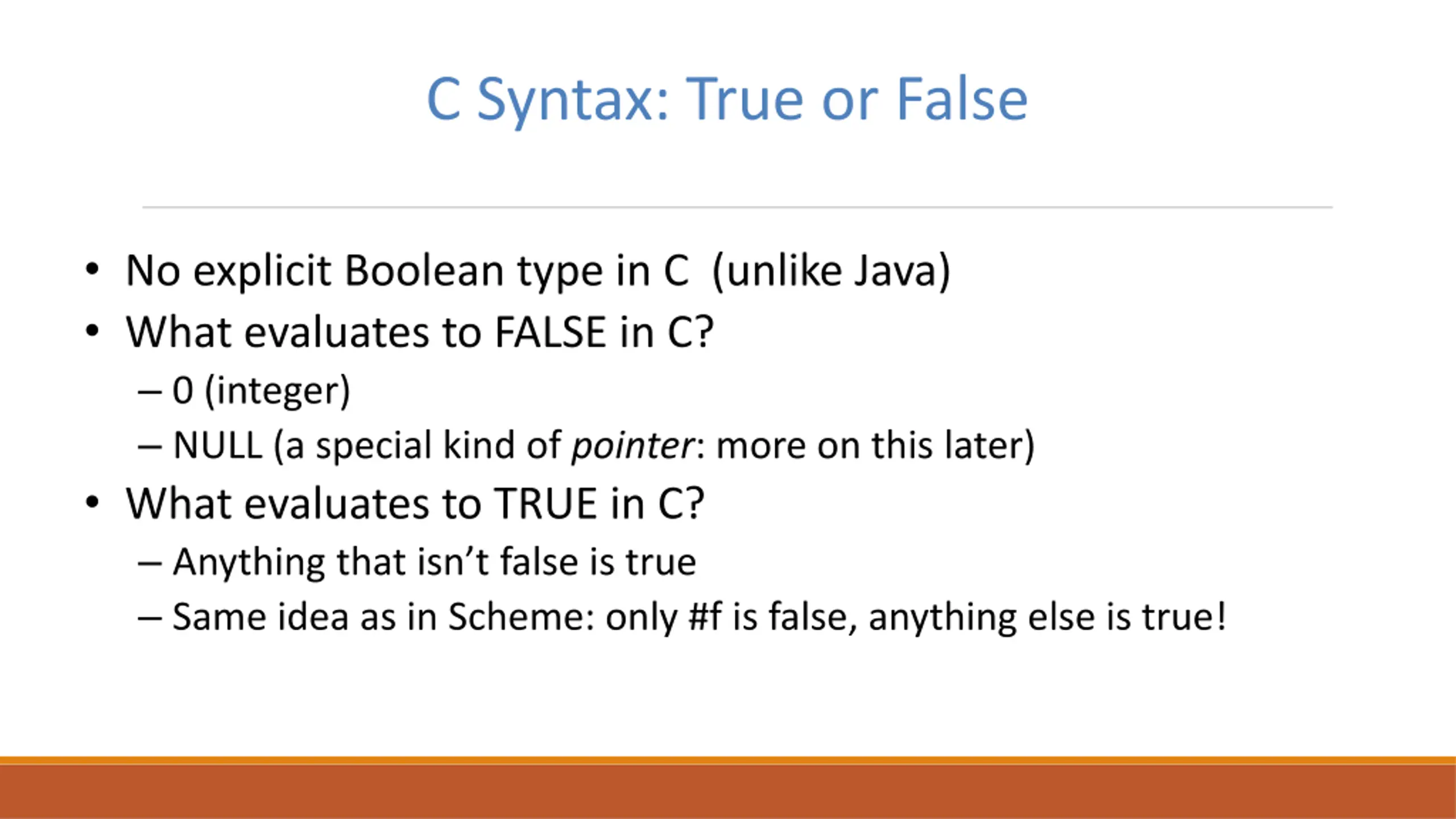

C Syntax: True or False No explicit Boolean type in C (unlike Java) What evaluates to FALSE in C? 0 (integer) NULL (a special kind of pointer: more on this later) What evaluates to TRUE in C? Anything that isn t false is true Same idea as in Scheme: only #f is false, anything else is true!

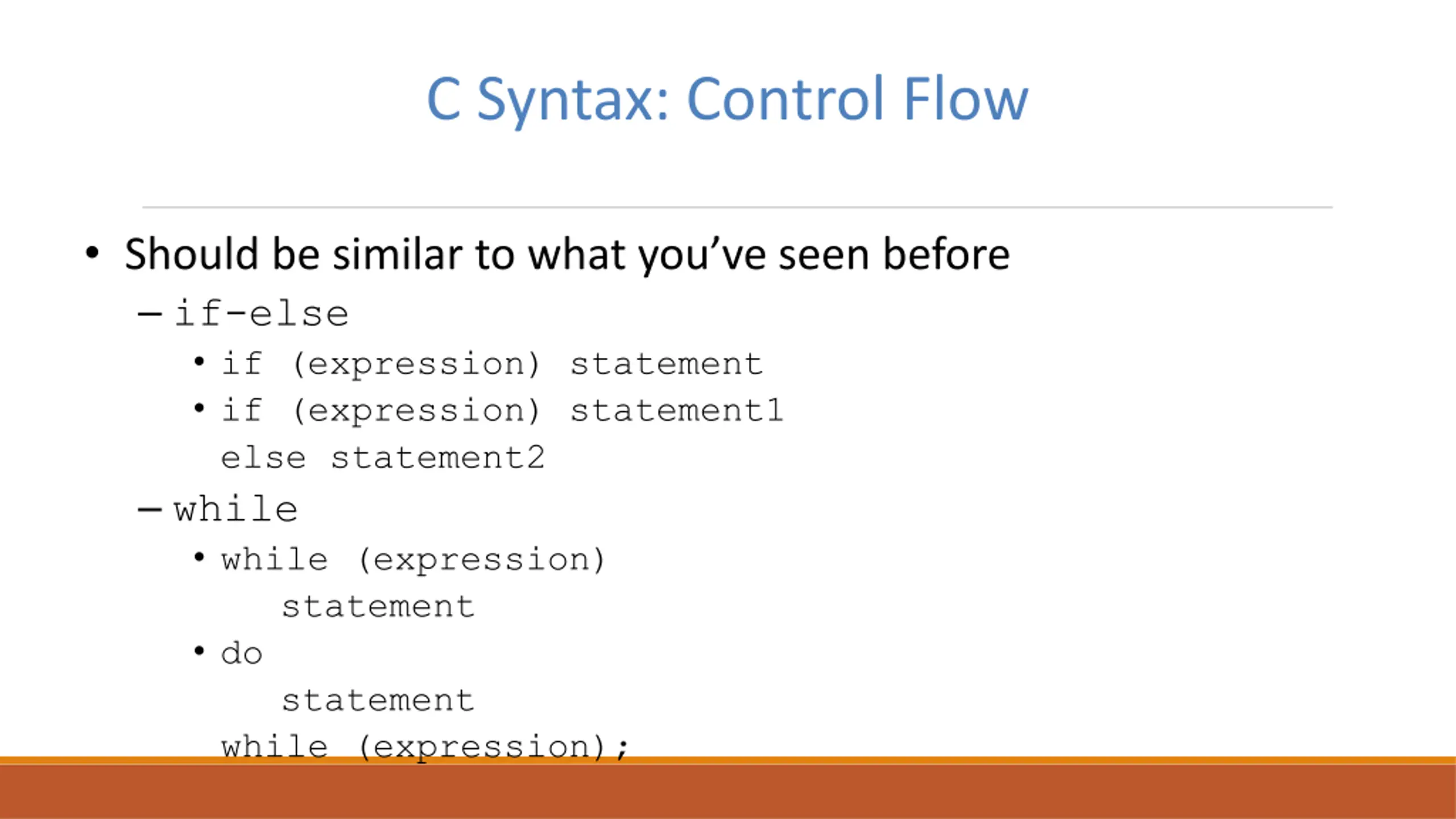

C Syntax: Control Flow Should be similar to what you ve seen before if-else if (expression) statement if (expression) statement1 else statement2 while while (expression) statement do statement while (expression);

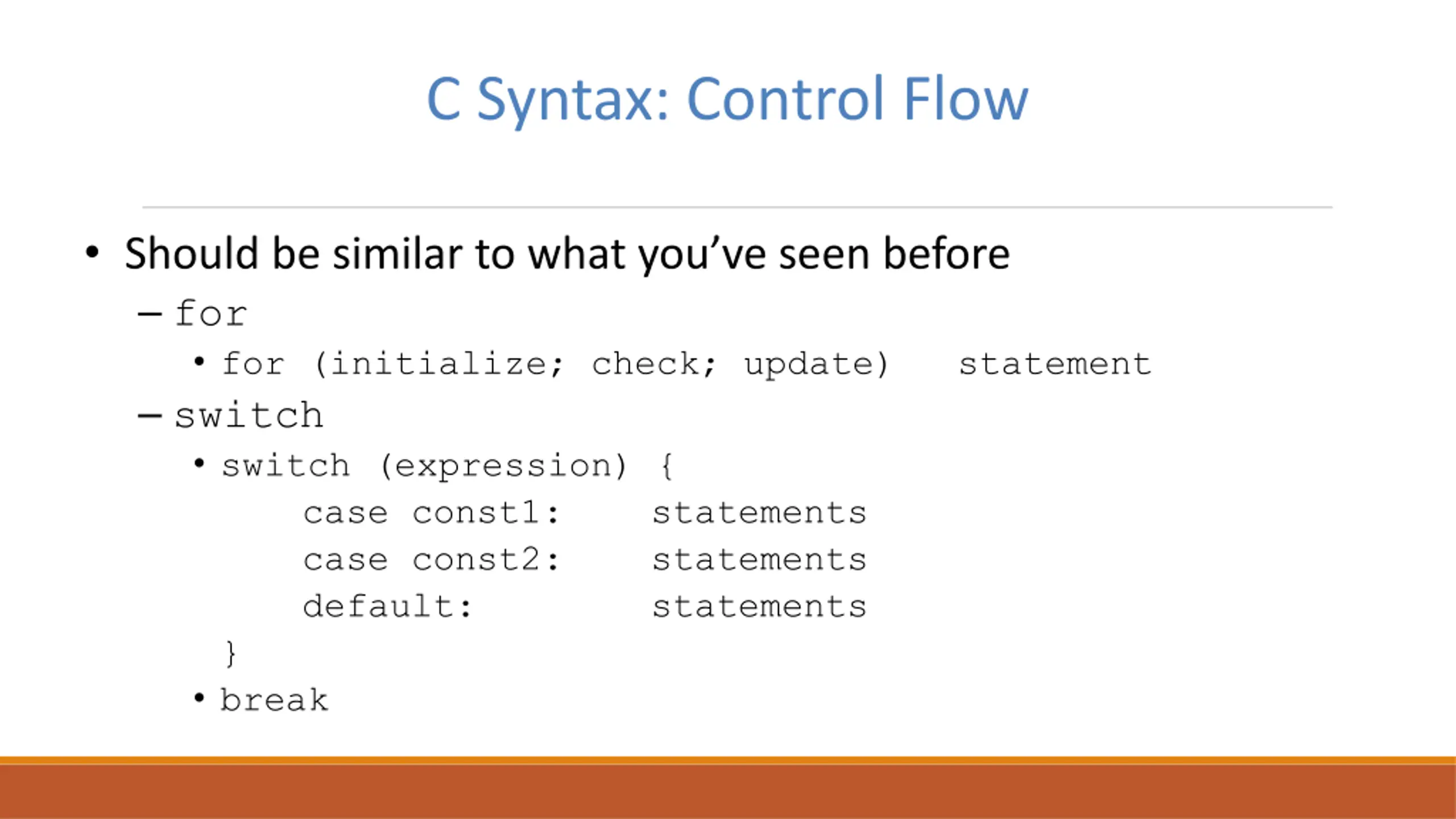

C Syntax: Control Flow Should be similar to what you ve seen before for for (initialize; check; update) switch switch (expression) { case const1: statements case const2: statements default: statements } break statement

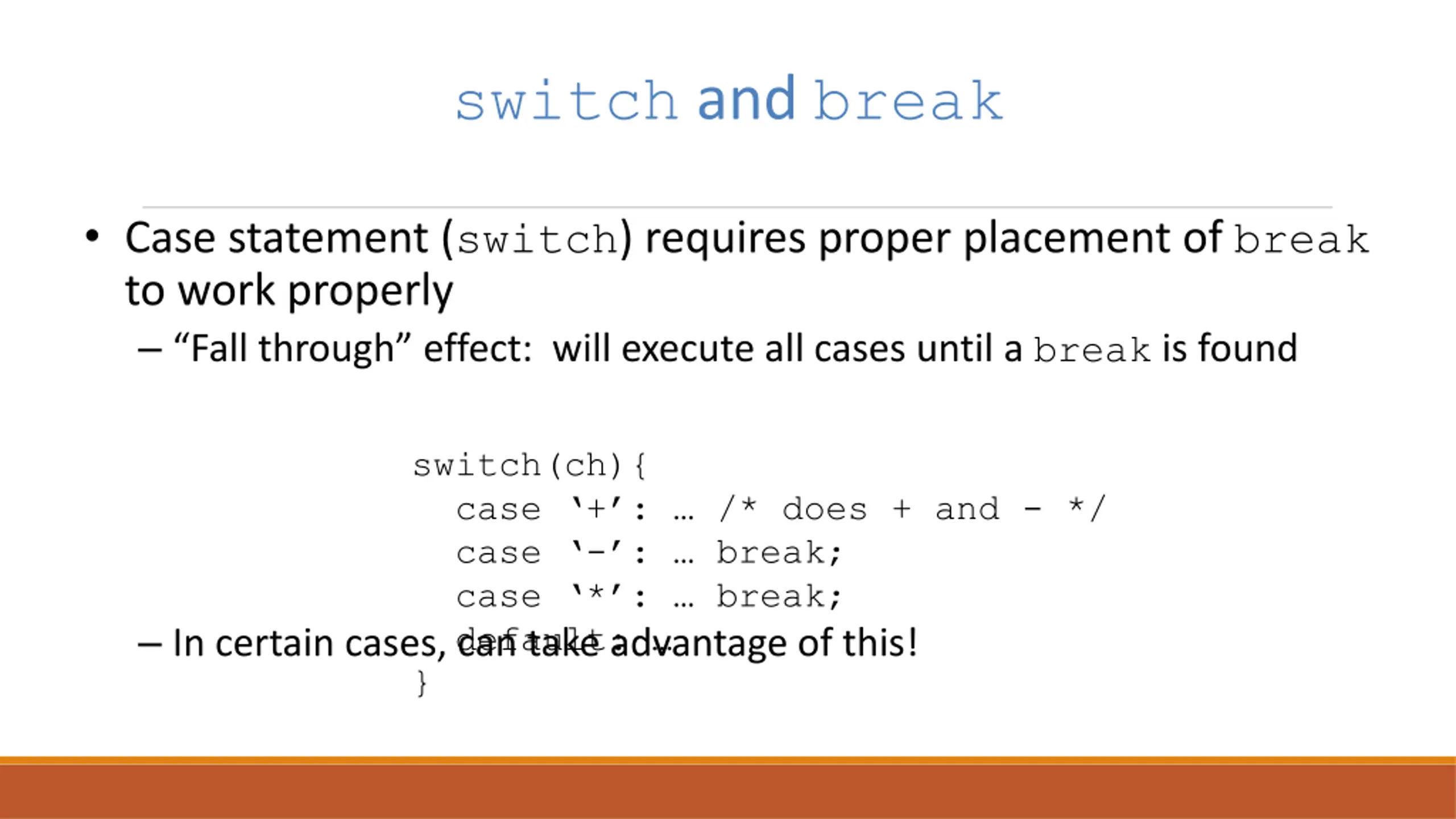

switch and break Case statement (switch) requires proper placement of break to work properly Fall through effect: will execute all cases until a break is found switch(ch){ case + : /* does + and - */ case - : break; case * : break; In certain cases, can take advantage of this! default: }

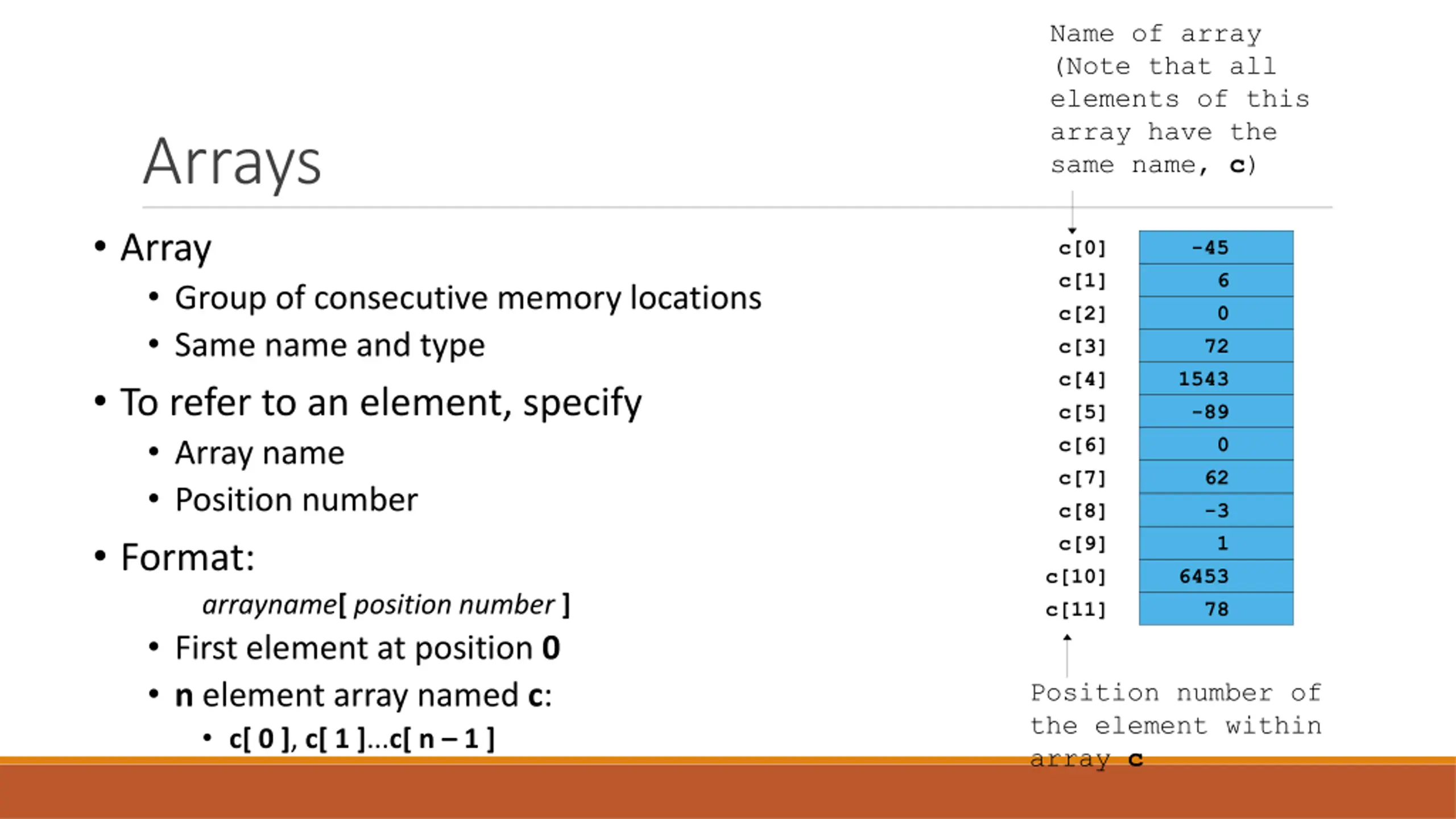

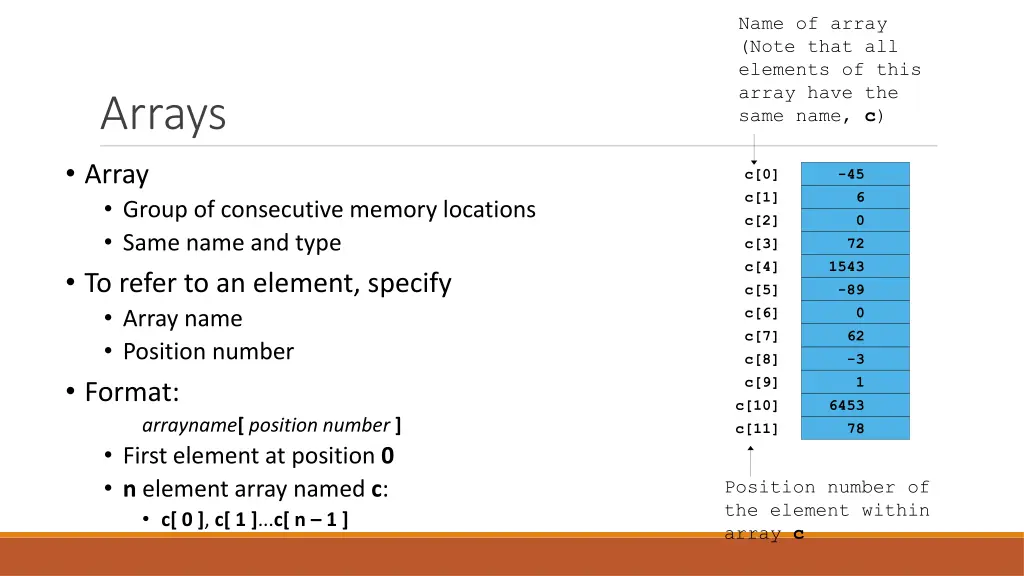

Name of array (Note that all elements of this array have the same name, c) Arrays Array Group of consecutive memory locations Same name and type To refer to an element, specify Array name Position number Format: arrayname[position number] First element at position 0 n element array named c: c[ 0 ], c[ 1 ]...c[ n 1 ] c[0] c[1] c[2] c[3] c[4] -45 6 0 72 1543 -89 c[5] c[6] c[7] 0 62 -3 1 c[8] c[9] c[10] 6453 c[11] 78 Position number of the element within array c

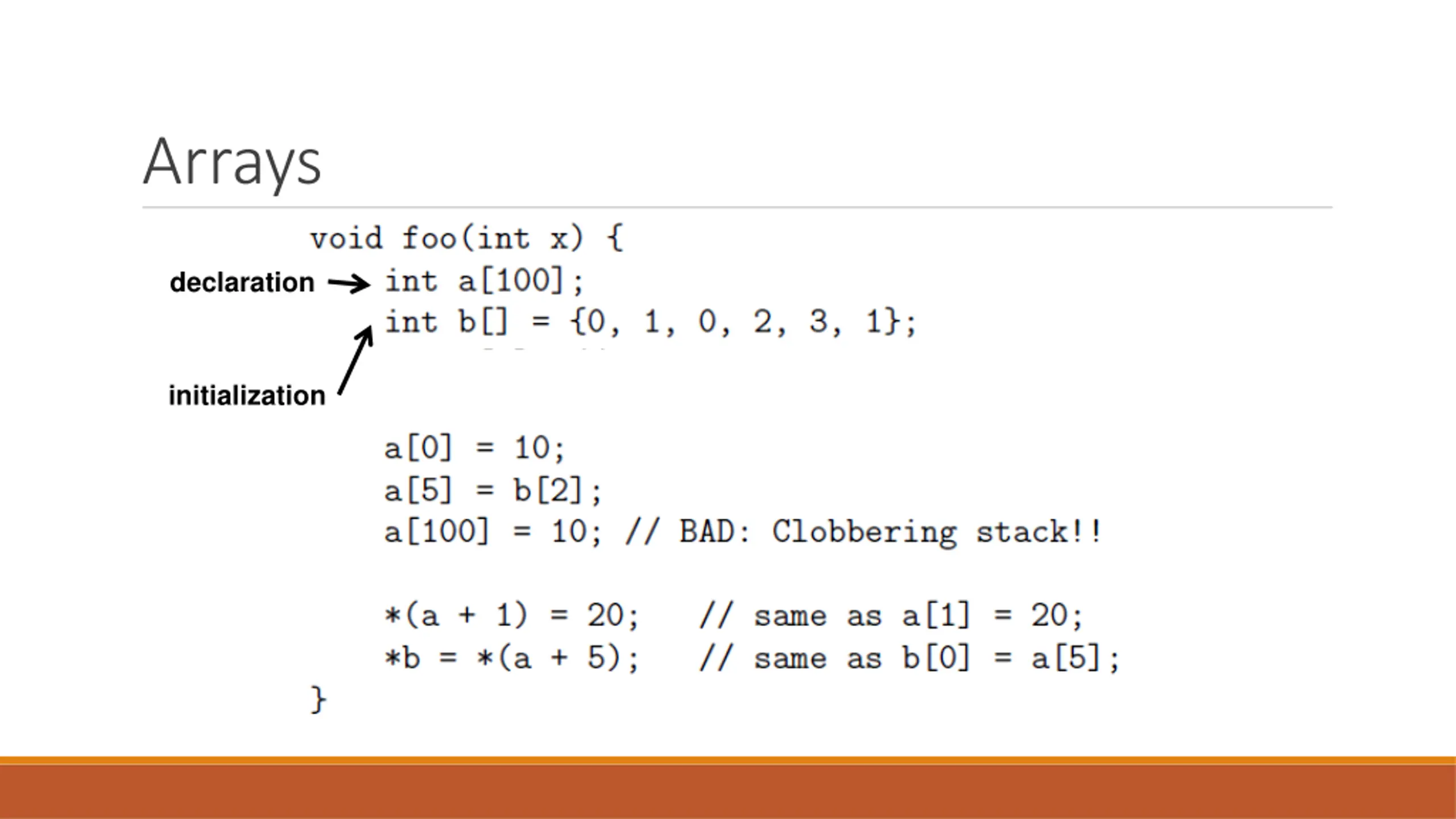

Arrays declaration initialization

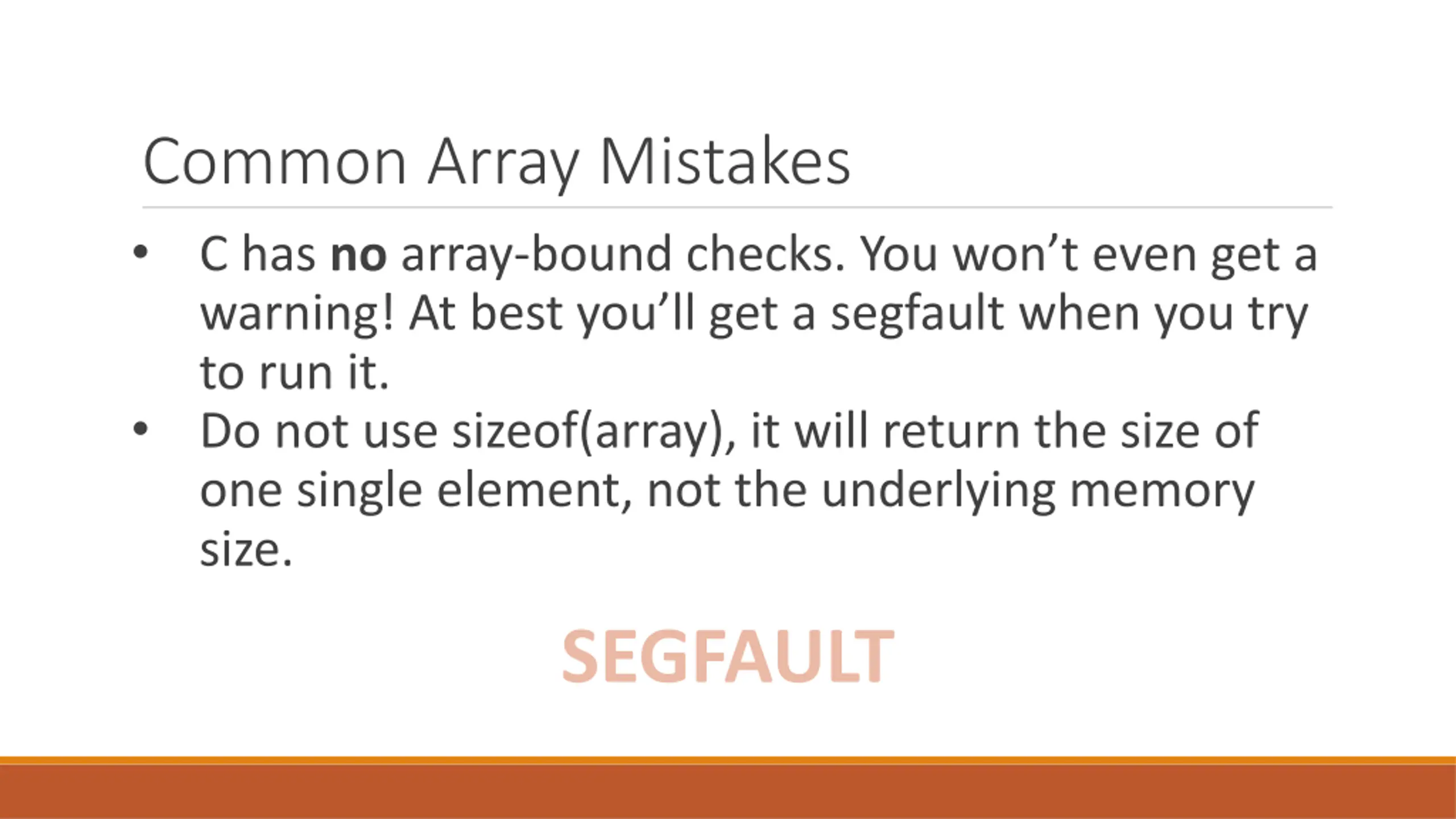

Common Array Mistakes C has no array-bound checks. You won t even get a warning! At best you ll get a segfault when you try to run it. Do not use sizeof(array), it will return the size of one single element, not the underlying memory size. SEGFAULT

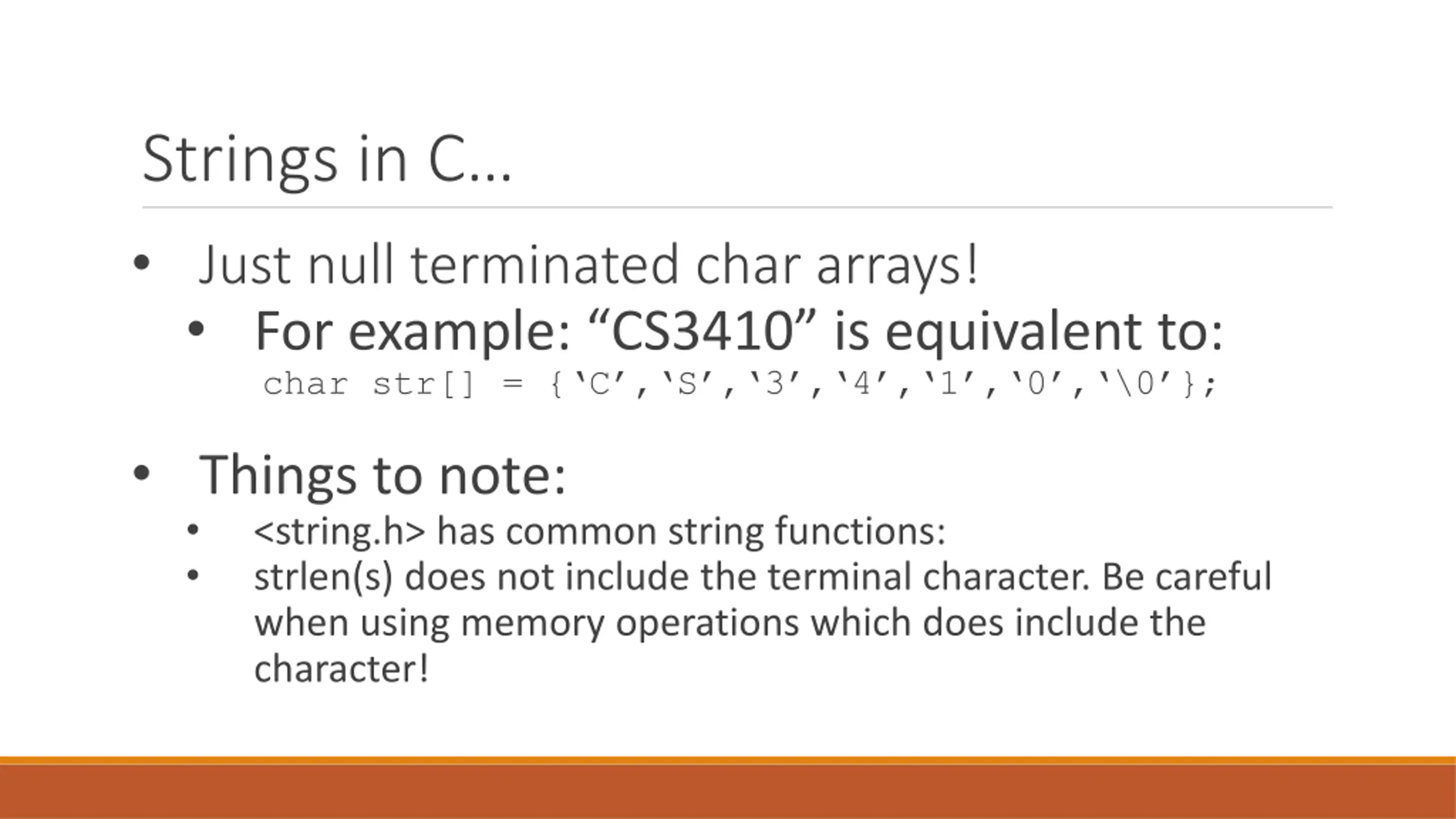

Strings in C Just null terminated char arrays! For example: CS3410 is equivalent to: char str[] = { C , S , 3 , 4 , 1 , 0 , \0 }; Things to note: <string.h> has common string functions: strlen(s) does not include the terminal character. Be careful when using memory operations which does include the character!

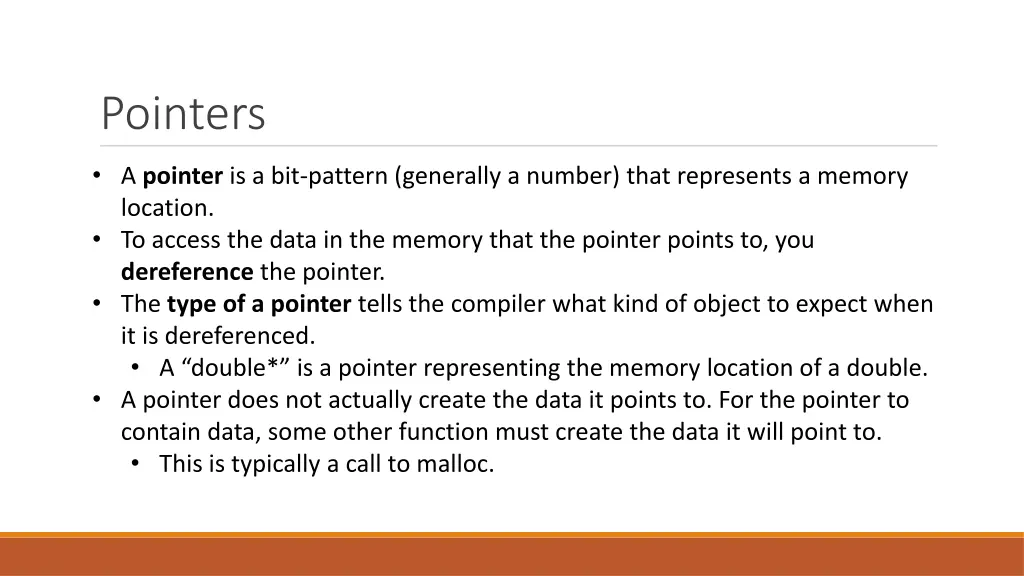

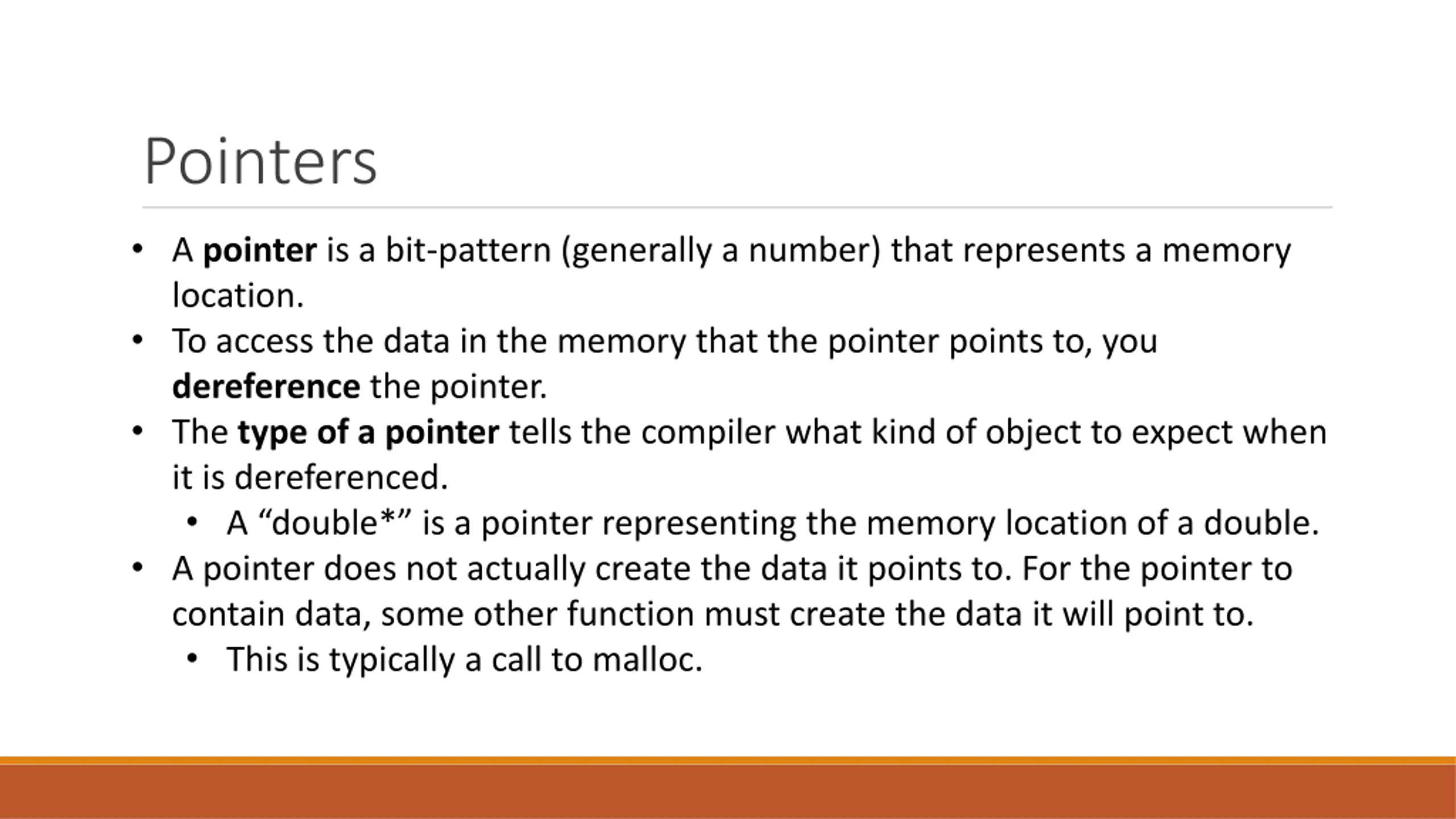

Pointers A pointer is a bit-pattern (generally a number) that represents a memory location. To access the data in the memory that the pointer points to, you dereference the pointer. The type of a pointer tells the compiler what kind of object to expect when it is dereferenced. A double* is a pointer representing the memory location of a double. A pointer does not actually create the data it points to. For the pointer to contain data, some other function must create the data it will point to. This is typically a call to malloc.

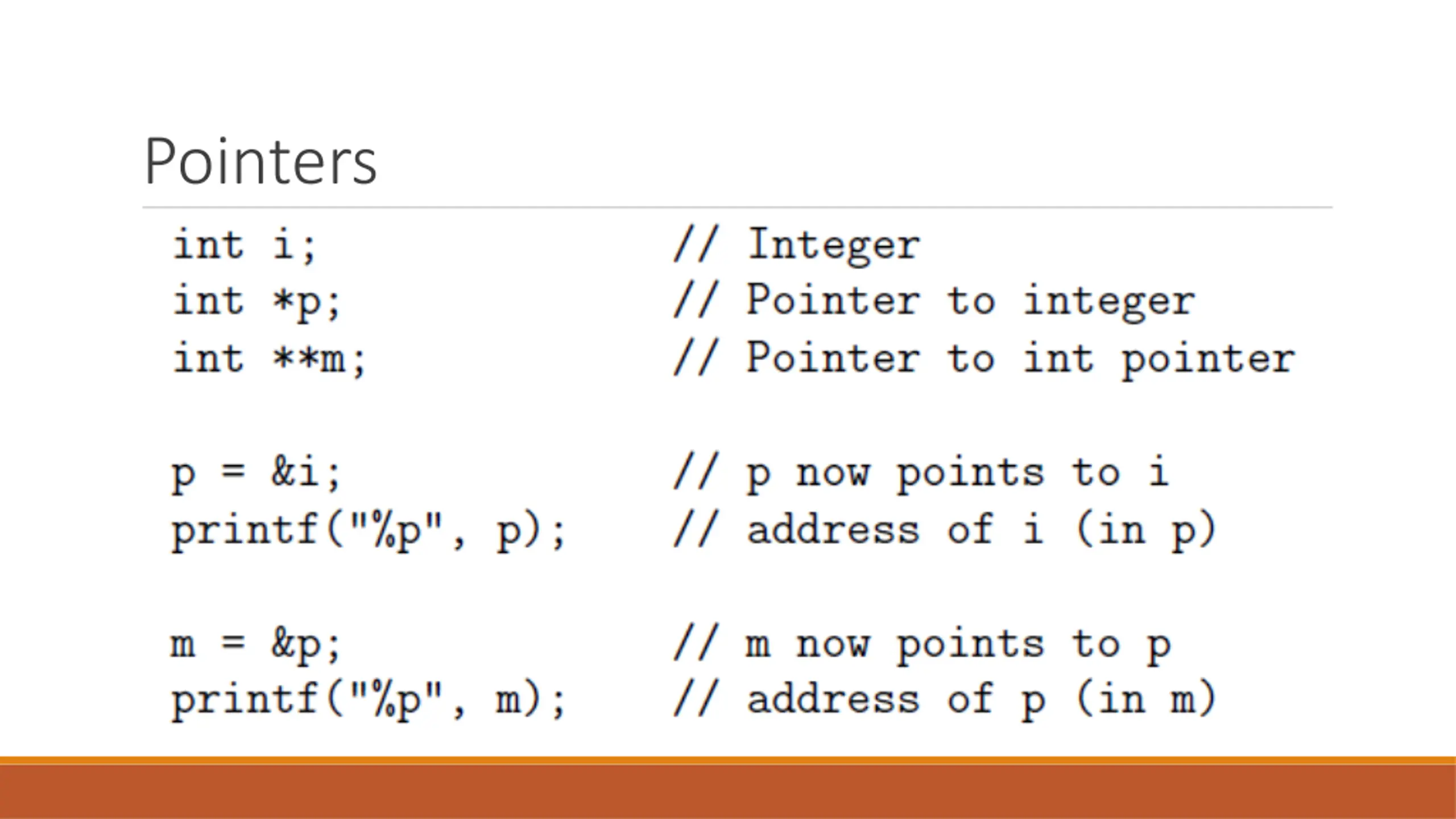

Pointers

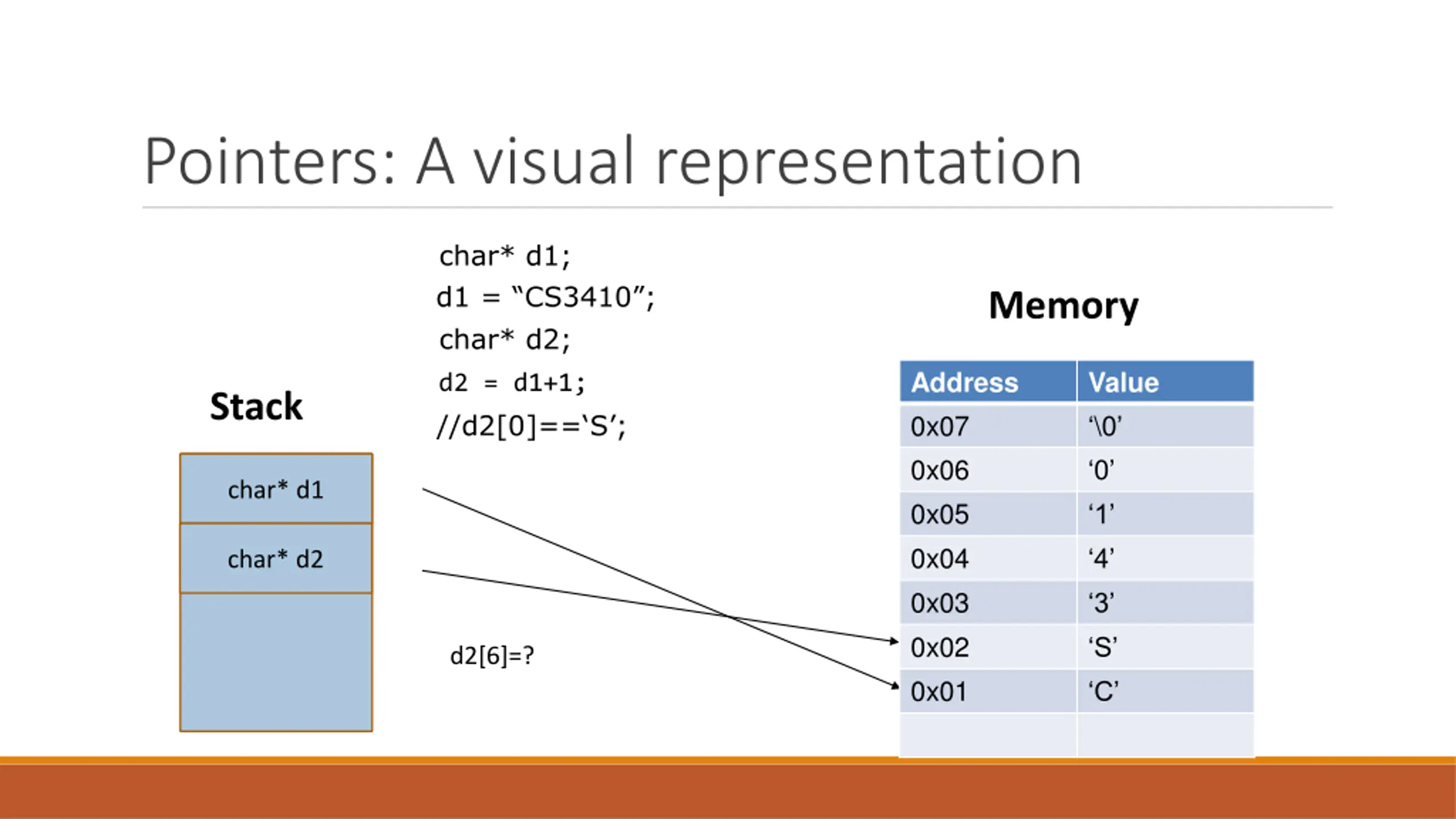

Pointers: A visual representation char* d1; d1 = CS3410 ; char* d2; Memory Address 0x07 0x06 0x05 0x04 0x03 0x02 0x01 Value \0 0 d2 = d1+1; //d2[0]== S ; Stack char* d1 1 4 char* d2 3 S d2[6]=? C

Pointers: A visual representation int* d1; d1 = {3,4,1,0,9,8,7}; int* d2; Memory Address 0x18 0x14 0x10 0x0c 0x08 0x04 0x00 Value 7 8 9 0 1 4 3 d2 = d1+1; //d2[0]==4; Stack int* d1 int* d2 d2[6]=?

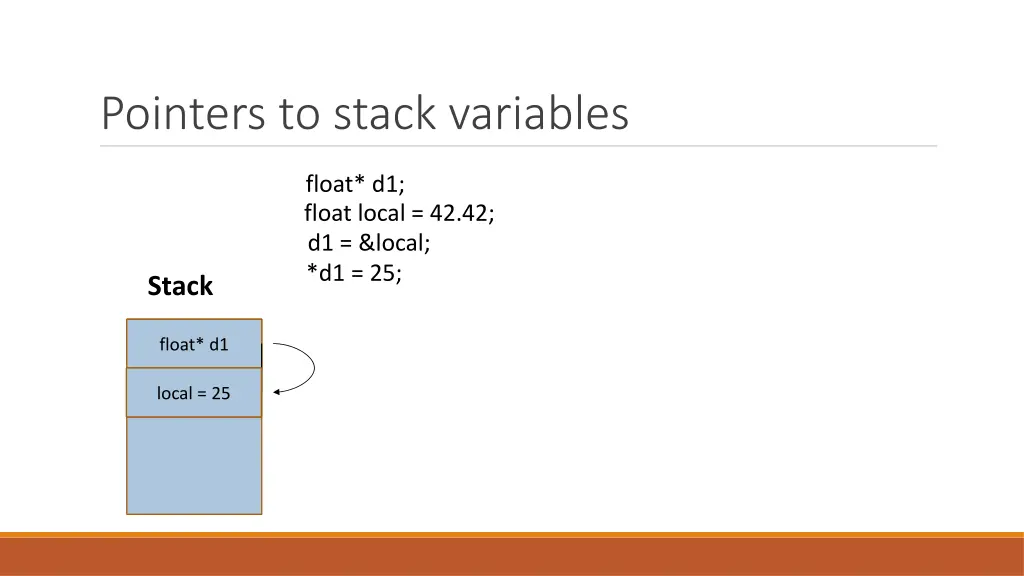

Pointers to stack variables float* d1; float local = 42.42; d1 = &local; *d1 = 25; Stack float* d1 local = 42.42 local = 25

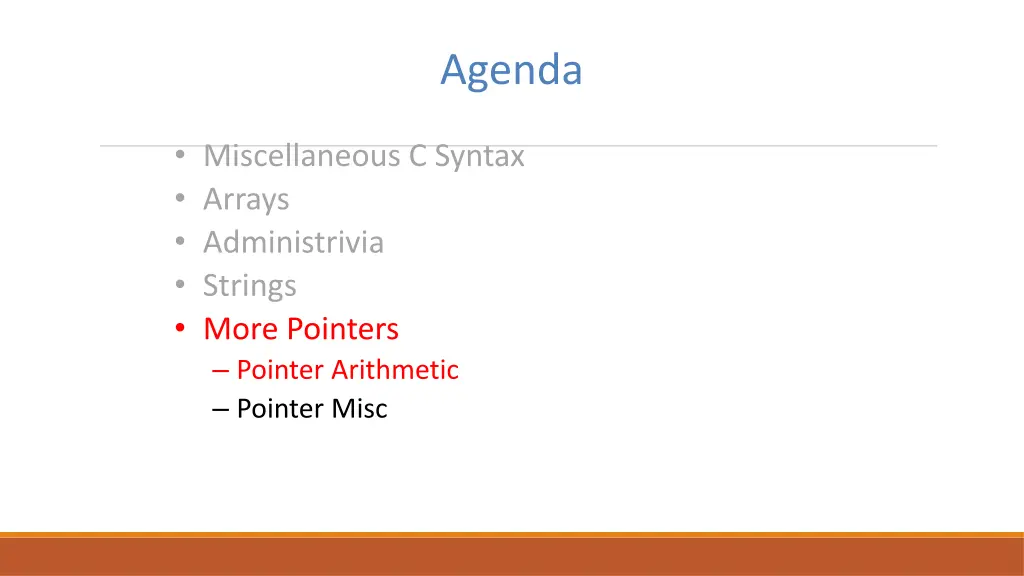

Agenda Miscellaneous C Syntax Arrays Administrivia Strings More Pointers Pointer Arithmetic Pointer Misc

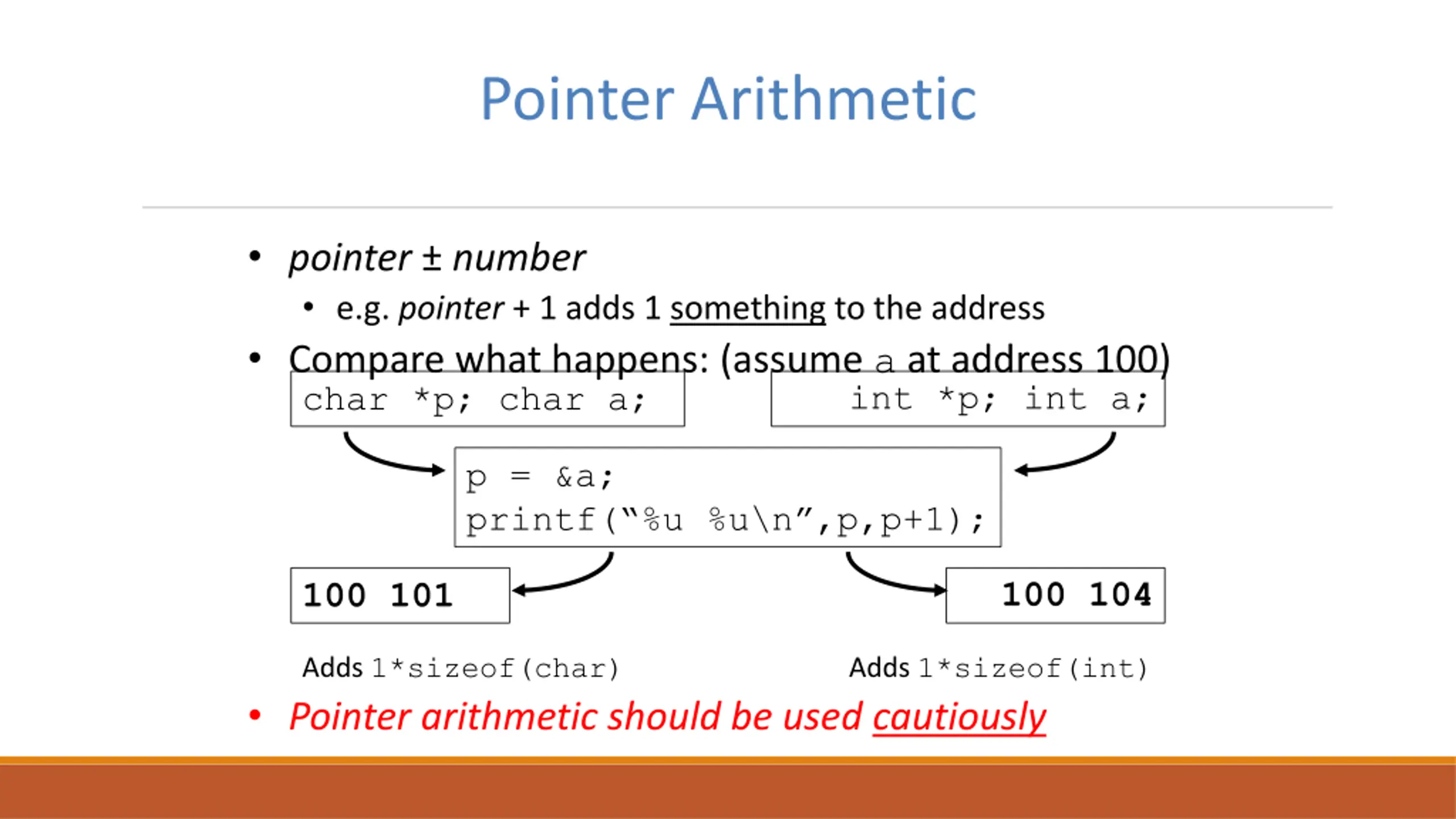

Pointer Arithmetic pointer number e.g. pointer + 1 adds 1 something to the address Compare what happens: (assume a at address 100) char *p; char a; int *p; int a; p = &a; printf( %u %u\n ,p,p+1); 100 104 100 101 Adds 1*sizeof(char) Adds 1*sizeof(int) Pointer arithmetic should be used cautiously

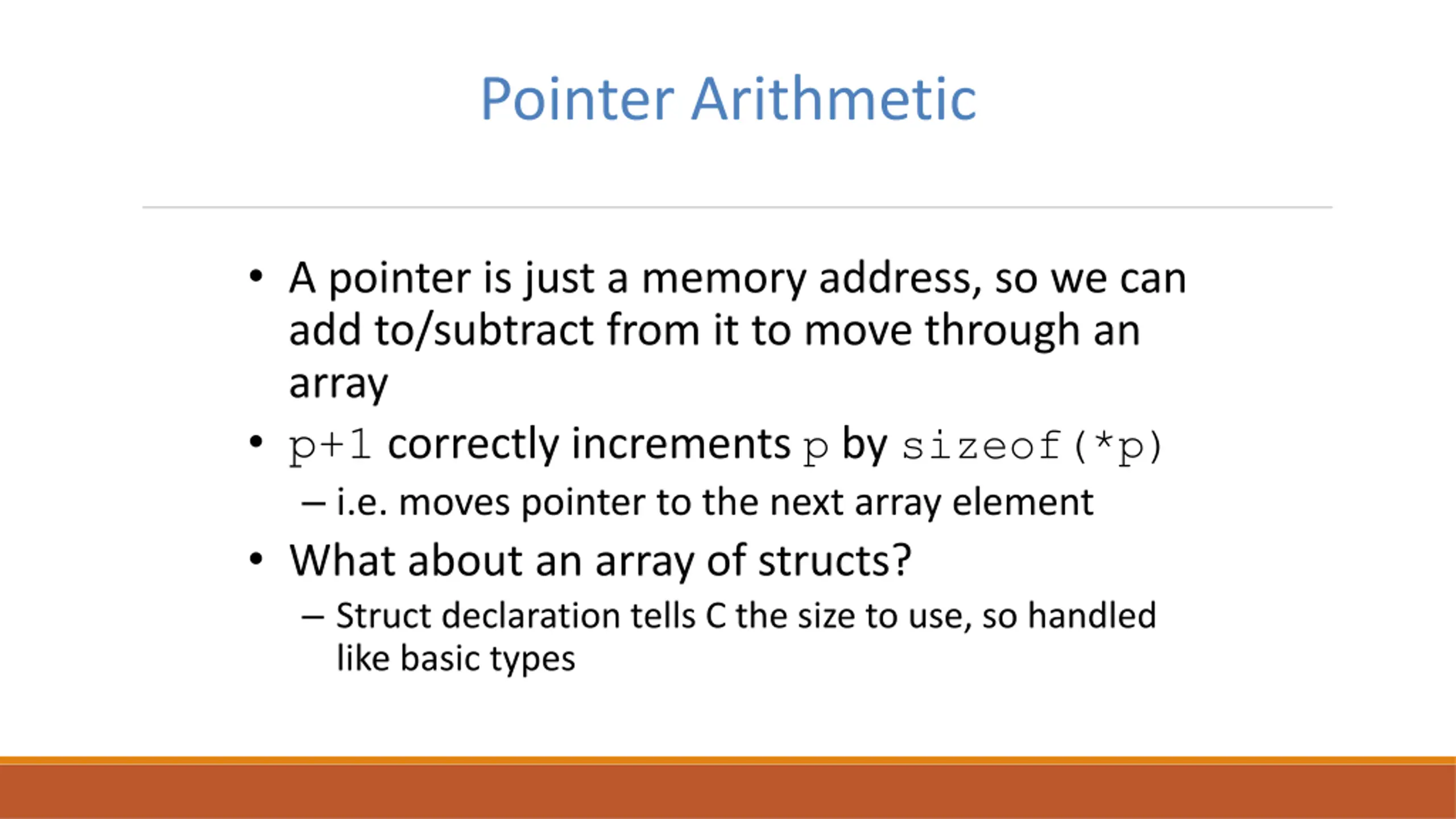

Pointer Arithmetic A pointer is just a memory address, so we can add to/subtract from it to move through an array p+1 correctly increments p by sizeof(*p) i.e. moves pointer to the next array element What about an array of structs? Struct declaration tells C the size to use, so handled like basic types

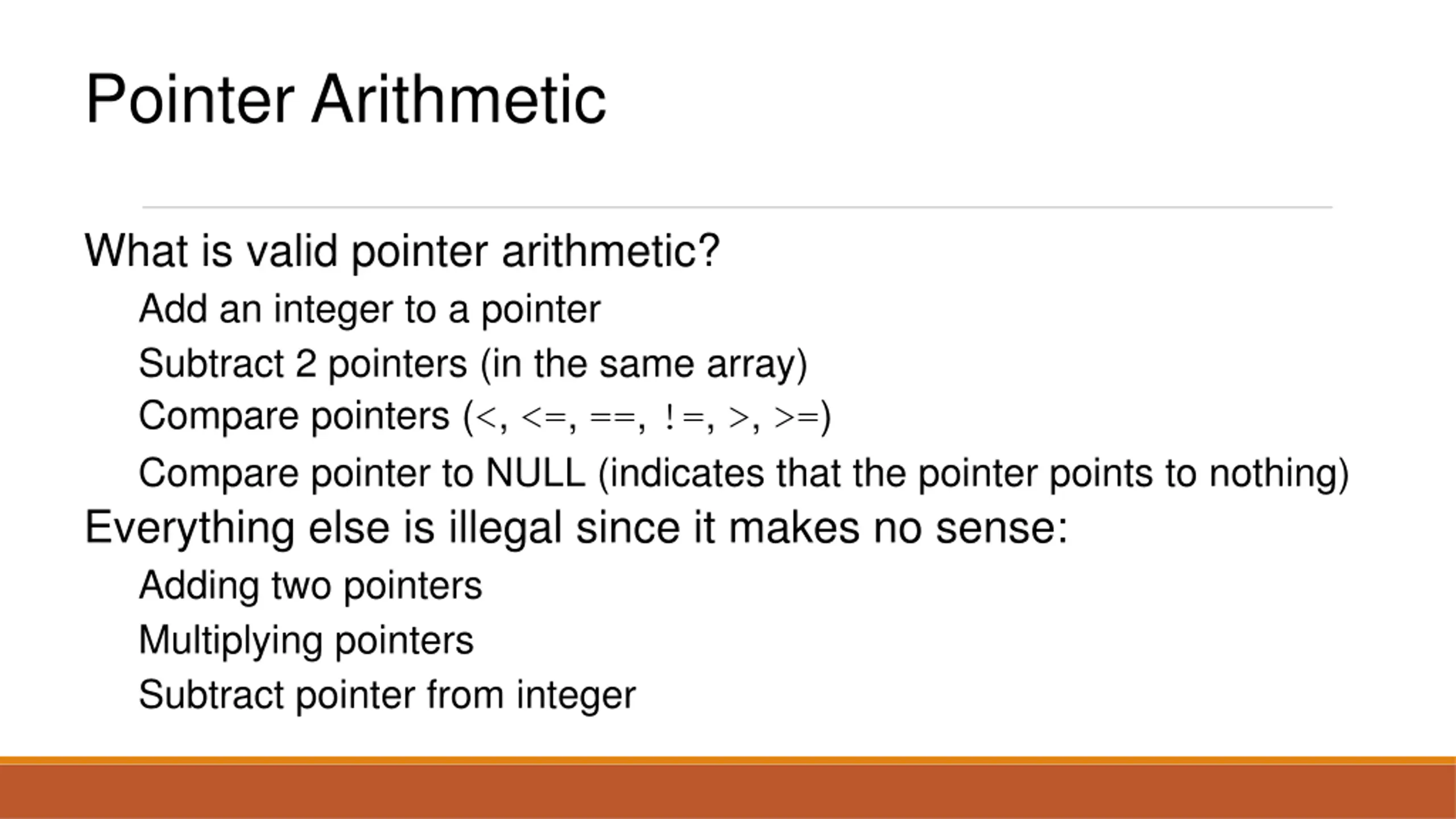

Pointer Arithmetic What is valid pointer arithmetic? Add an integer to a pointer Subtract 2 pointers (in the same array) Compare pointers (<, <=, ==, !=, >, >=) Compare pointer to NULL (indicates that the pointer points to nothing) Everything else is illegal since it makes no sense: Adding two pointers Multiplying pointers Subtract pointer from integer

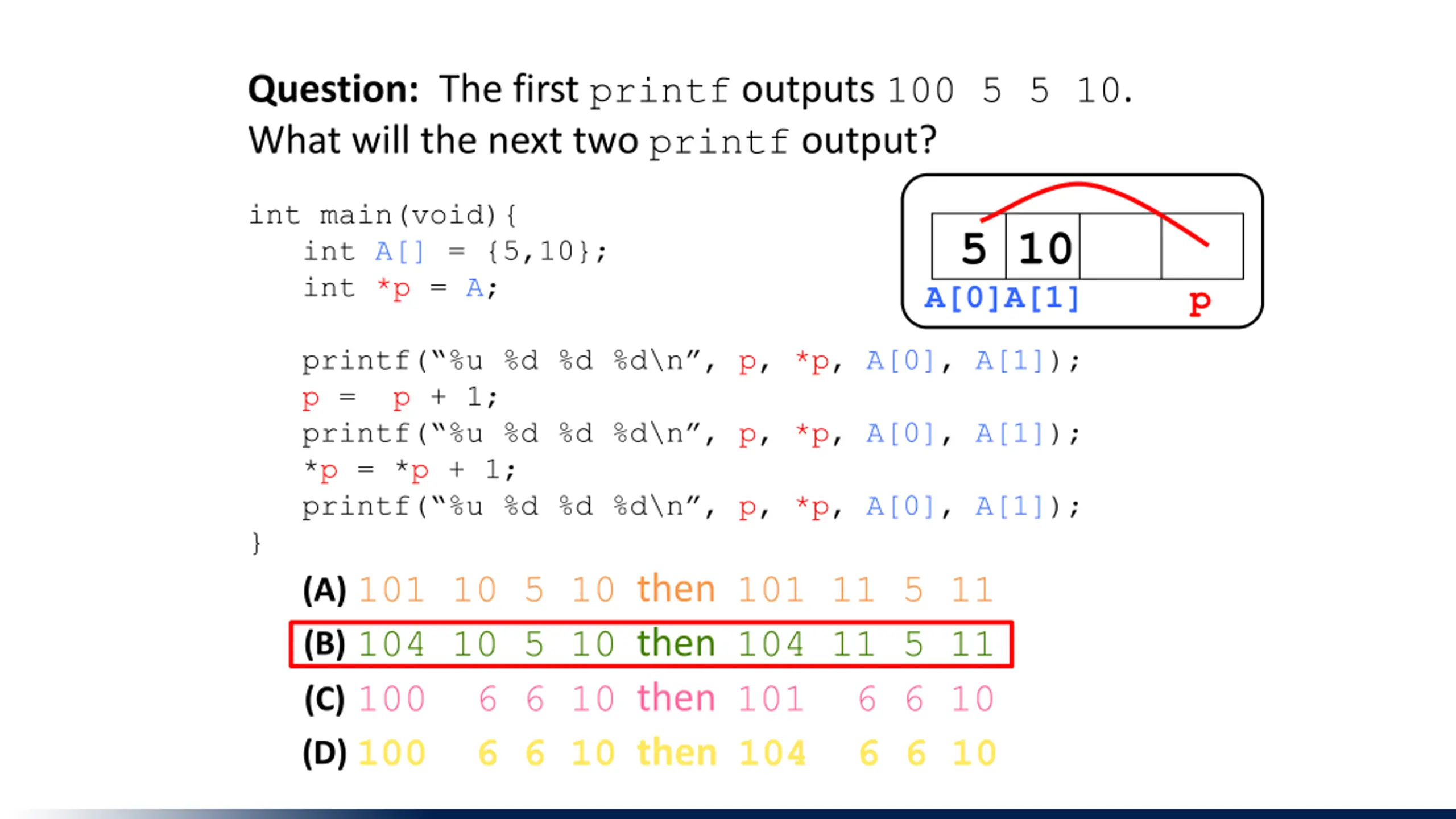

Question: The first printf outputs 100 5 5 10. What will the next two printf output? int main(void){ int A[] = {5,10}; int *p = A; 5 10 A[0] p A[1] printf( %u %d %d %d\n , p, *p, A[0], A[1]); p = p + 1; printf( %u %d %d %d\n , p, *p, A[0], A[1]); *p = *p + 1; printf( %u %d %d %d\n , p, *p, A[0], A[1]); } 101 10 5 10 then 101 11 5 11 (A) 104 10 5 10 then 104 11 5 11 (B) 100 6 6 10 then 101 6 6 10 (C) 100 6 6 10 then 104 6 6 10 (D)

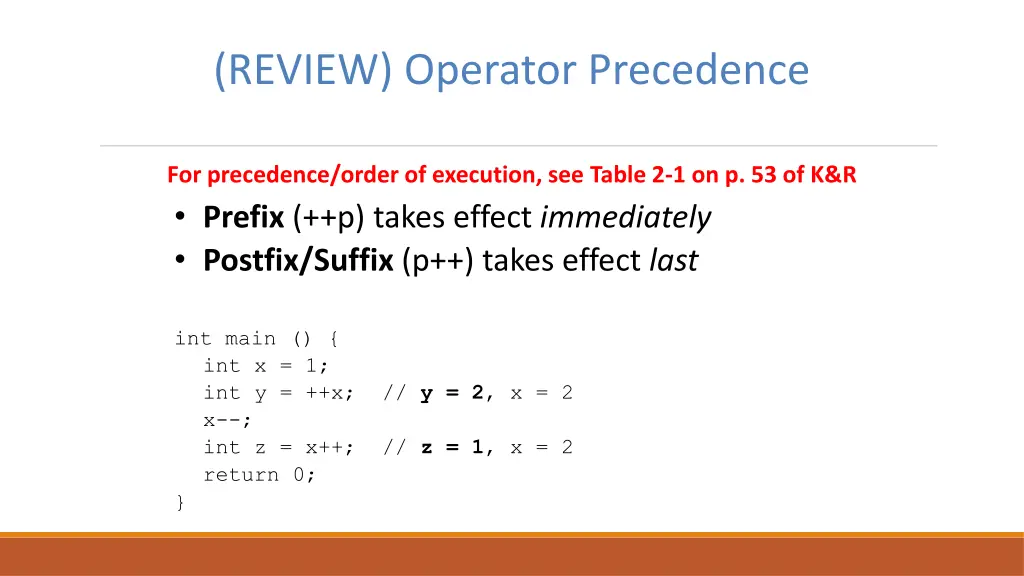

(REVIEW) Operator Precedence For precedence/order of execution, see Table 2-1 on p. 53 of K&R Prefix (++p) takes effect immediately Postfix/Suffix (p++) takes effect last int main () { int x = 1; int y = ++x; // y = 2, x = 2 x--; int z = x++; // z = 1, x = 2 return 0; }

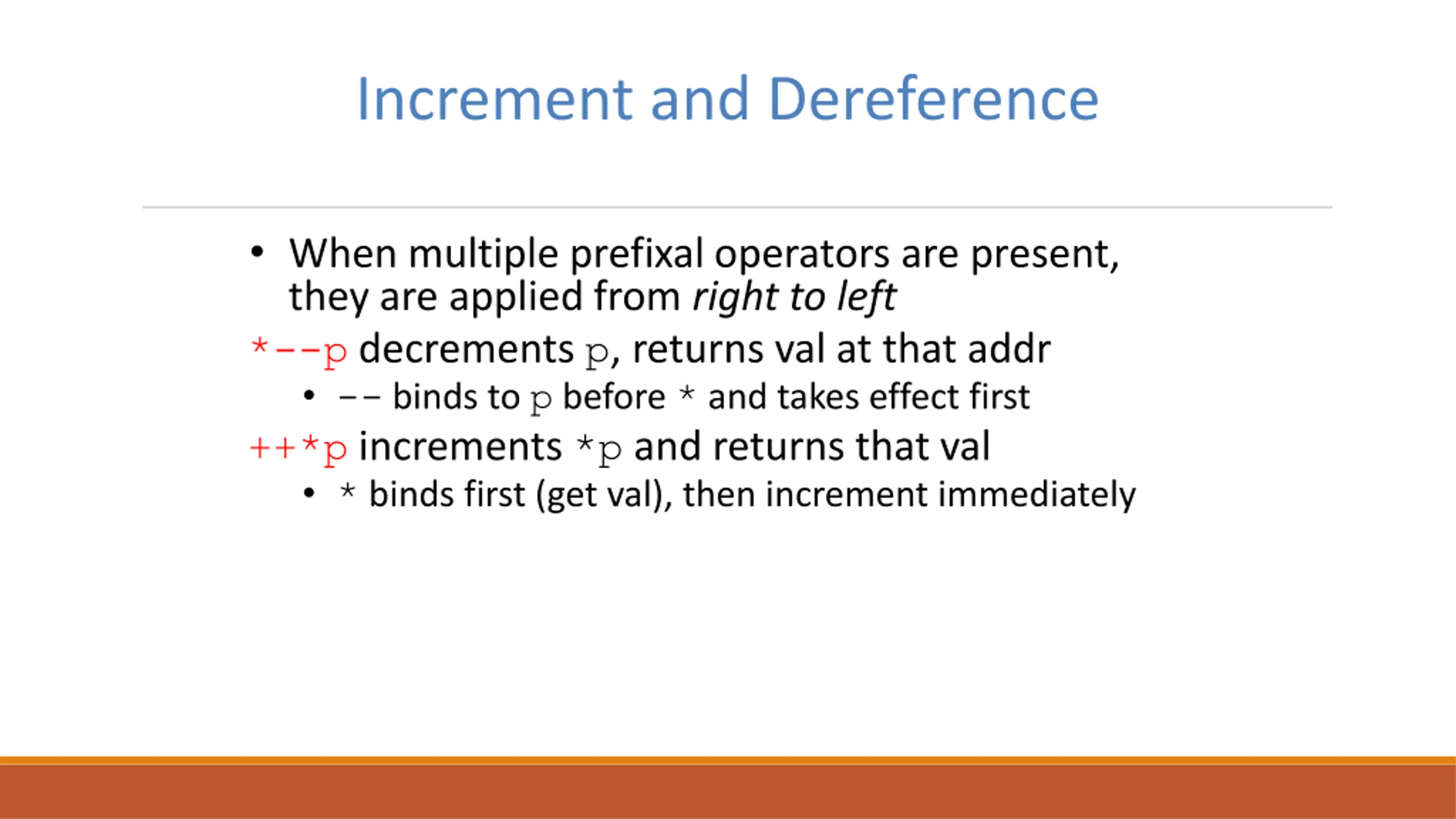

Increment and Dereference When multiple prefixal operators are present, they are applied from right to left *--p decrements p, returns val at that addr -- binds to p before * and takes effect first ++*p increments *p and returns that val * binds first (get val), then increment immediately

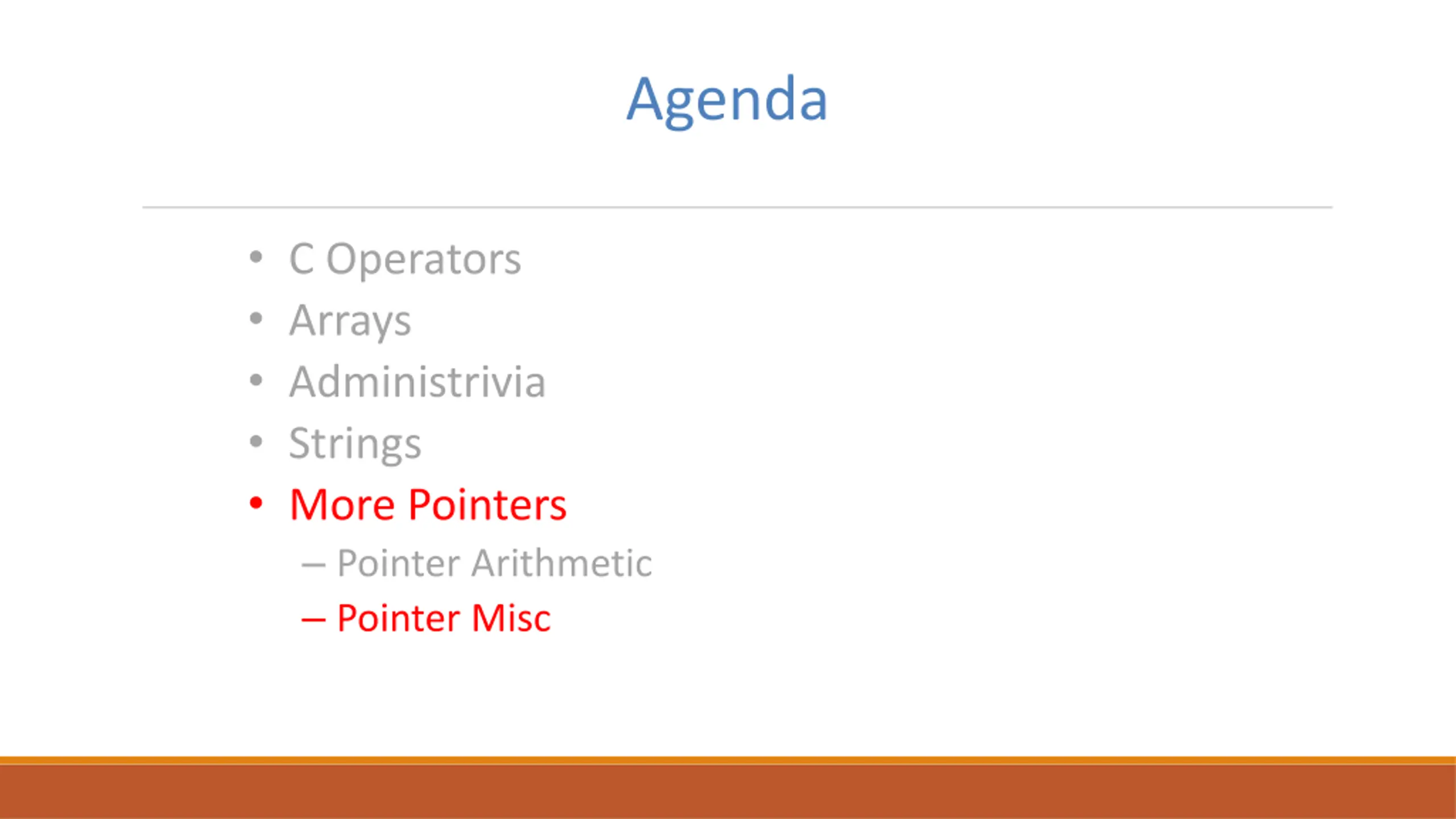

Agenda C Operators Arrays Administrivia Strings More Pointers Pointer Arithmetic Pointer Misc

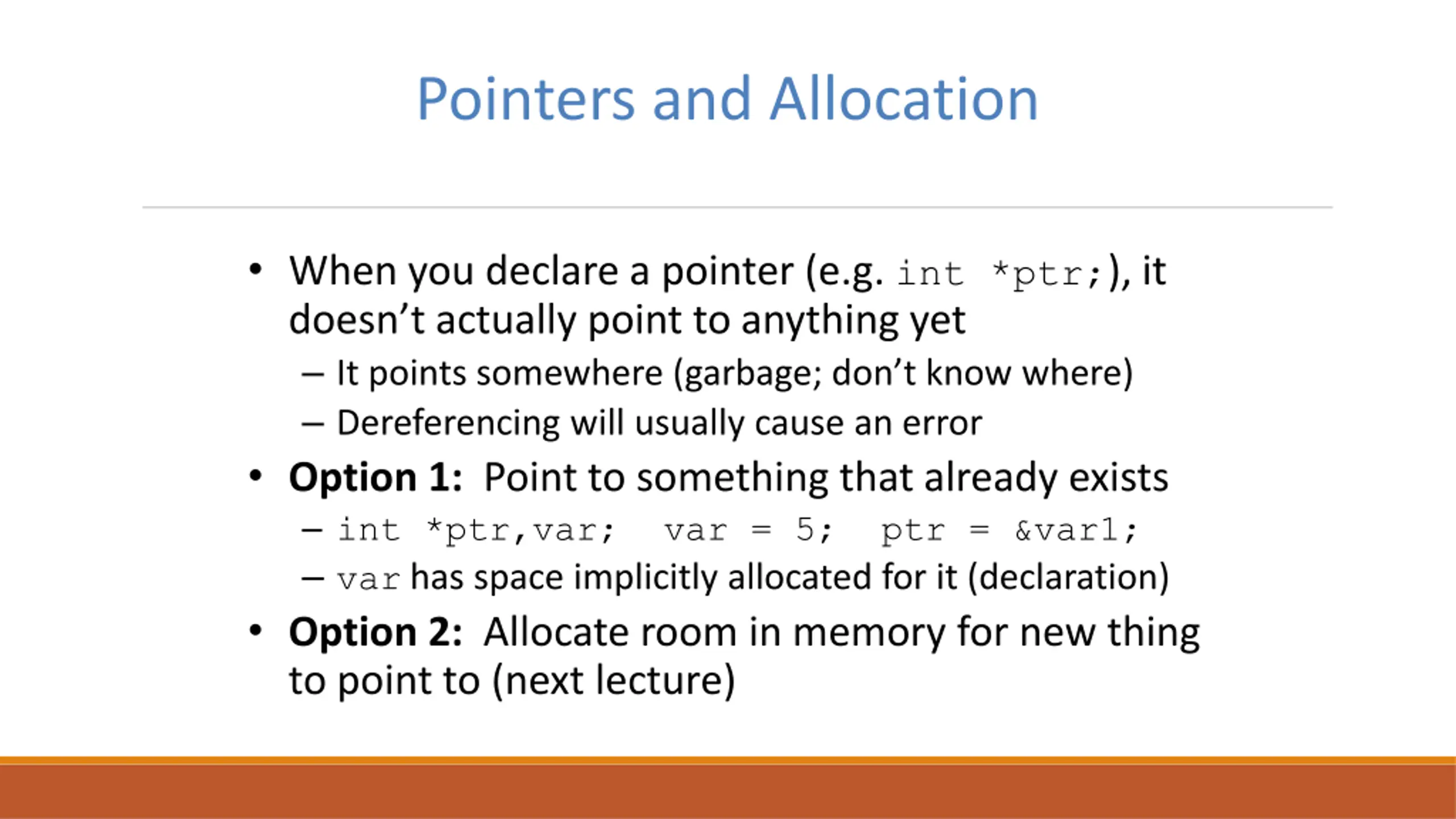

Pointers and Allocation When you declare a pointer (e.g. int *ptr;), it doesn t actually point to anything yet It points somewhere (garbage; don t know where) Dereferencing will usually cause an error Option 1: Point to something that already exists int *ptr,var; var = 5; ptr = &var1; varhas space implicitly allocated for it (declaration) Option 2: Allocate room in memory for new thing to point to (next lecture)

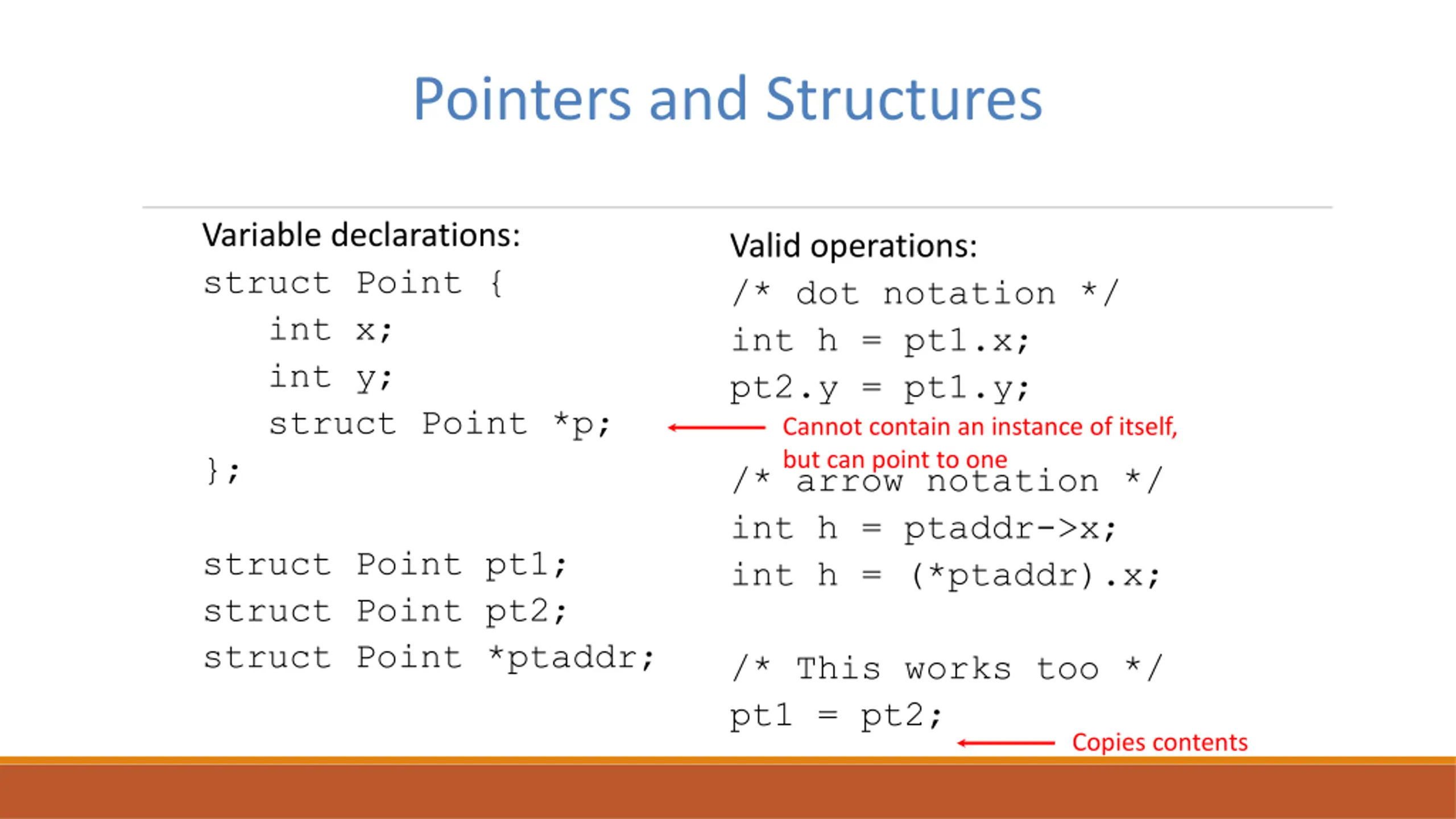

Pointers and Structures Variable declarations: struct Point { int x; int y; struct Point *p; }; Valid operations: /* dot notation */ int h = pt1.x; pt2.y = pt1.y; Cannot contain an instance of itself, but can point to one /* arrow notation */ int h = ptaddr->x; int h = (*ptaddr).x; struct Point pt1; struct Point pt2; struct Point *ptaddr; /* This works too */ pt1 = pt2; Copies contents

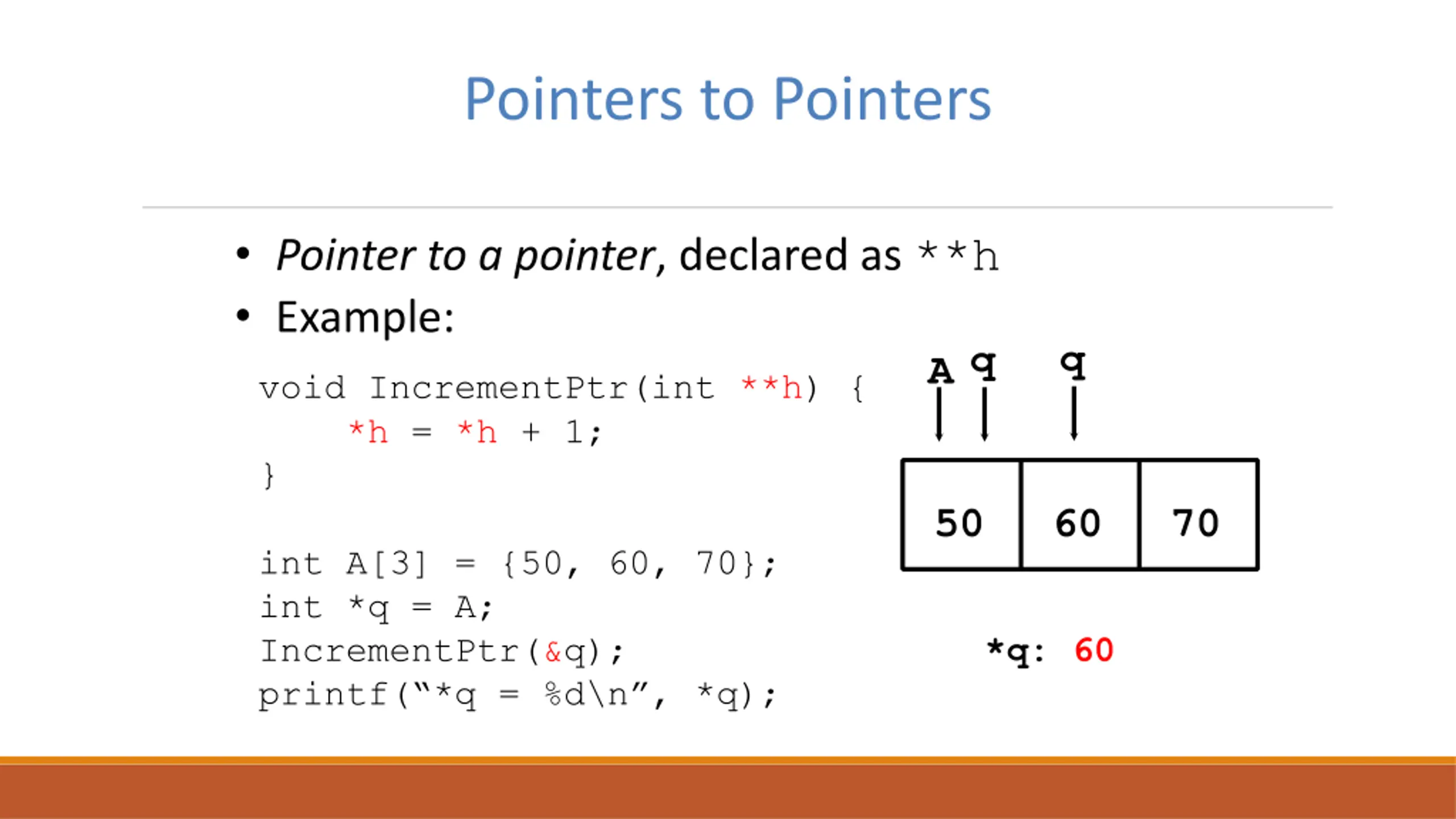

Pointers to Pointers Pointer to a pointer, declared as **h Example: q Aq void IncrementPtr(int **h) { *h = *h + 1; } 50 60 70 int A[3] = {50, 60, 70}; int *q = A; IncrementPtr(&q); printf( *q = %d\n , *q); *q: 60
