Presentation Transcript
ECE 3130 Digital Electronics and Design Lab 5: Subtractors Fall 2022 Davud Kazdal

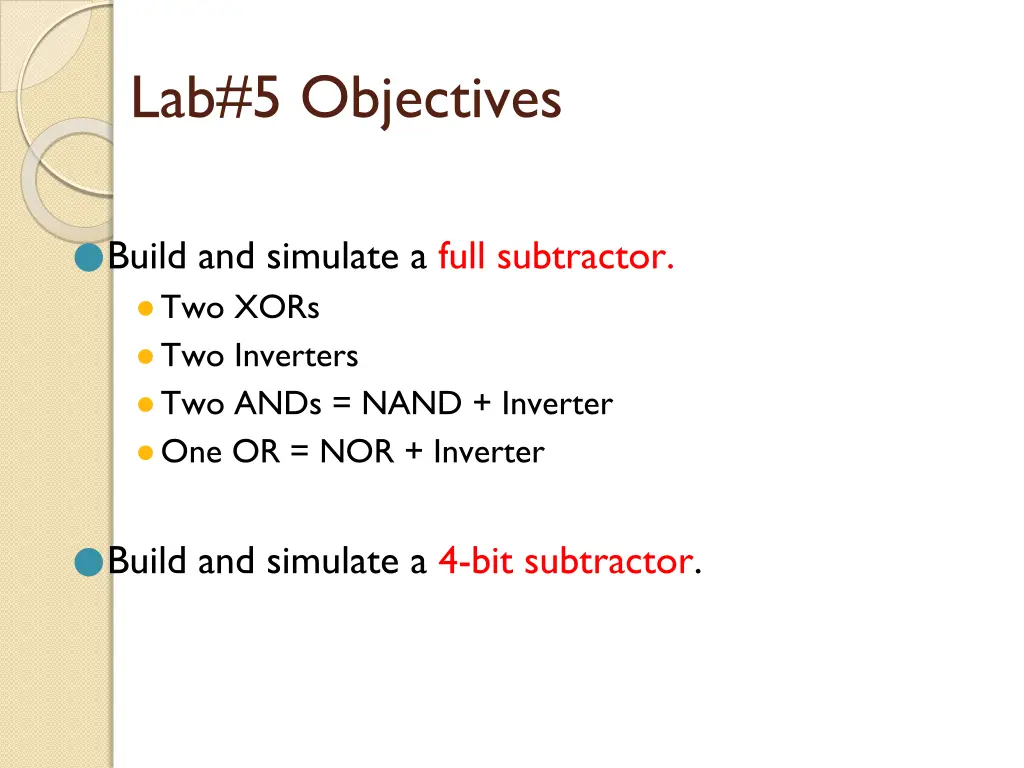

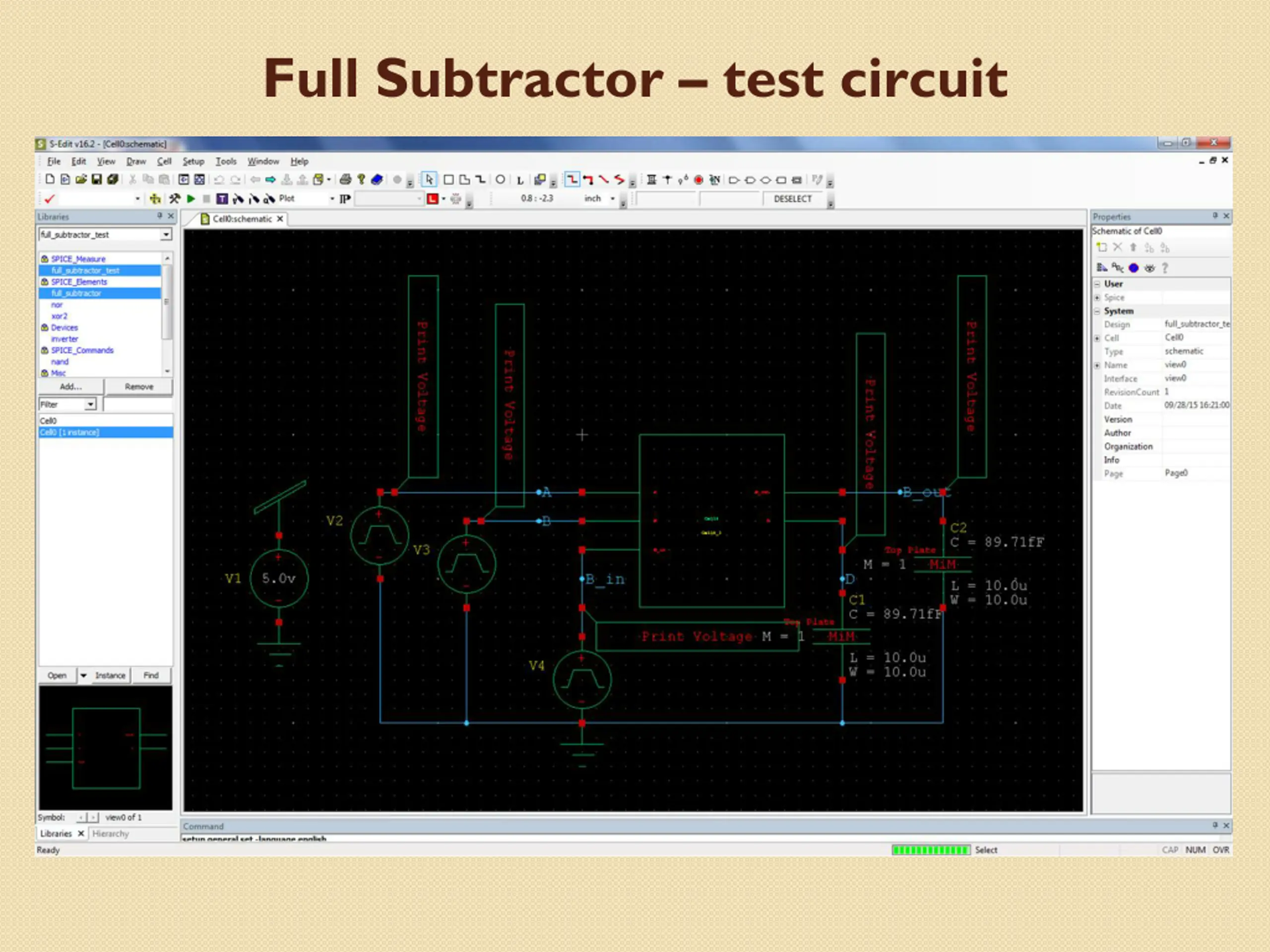

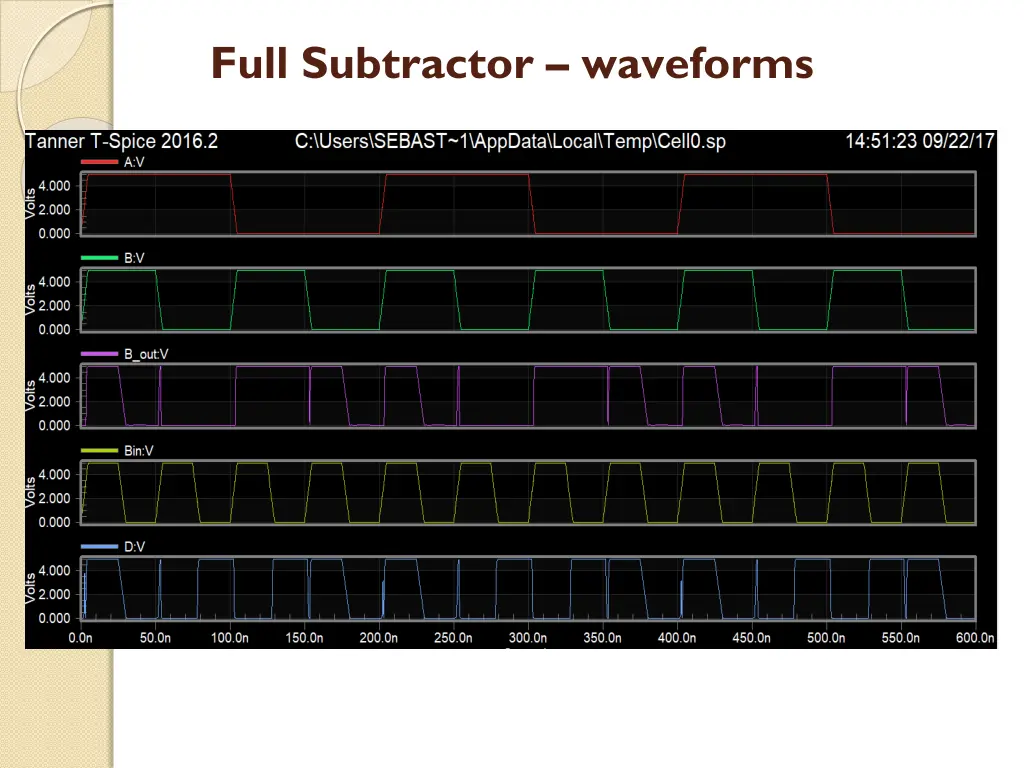

Lab#5 Objectives Build and simulate a full subtractor. Two XORs Two Inverters Two ANDs = NAND + Inverter One OR = NOR + Inverter Build and simulate a 4-bit subtractor.

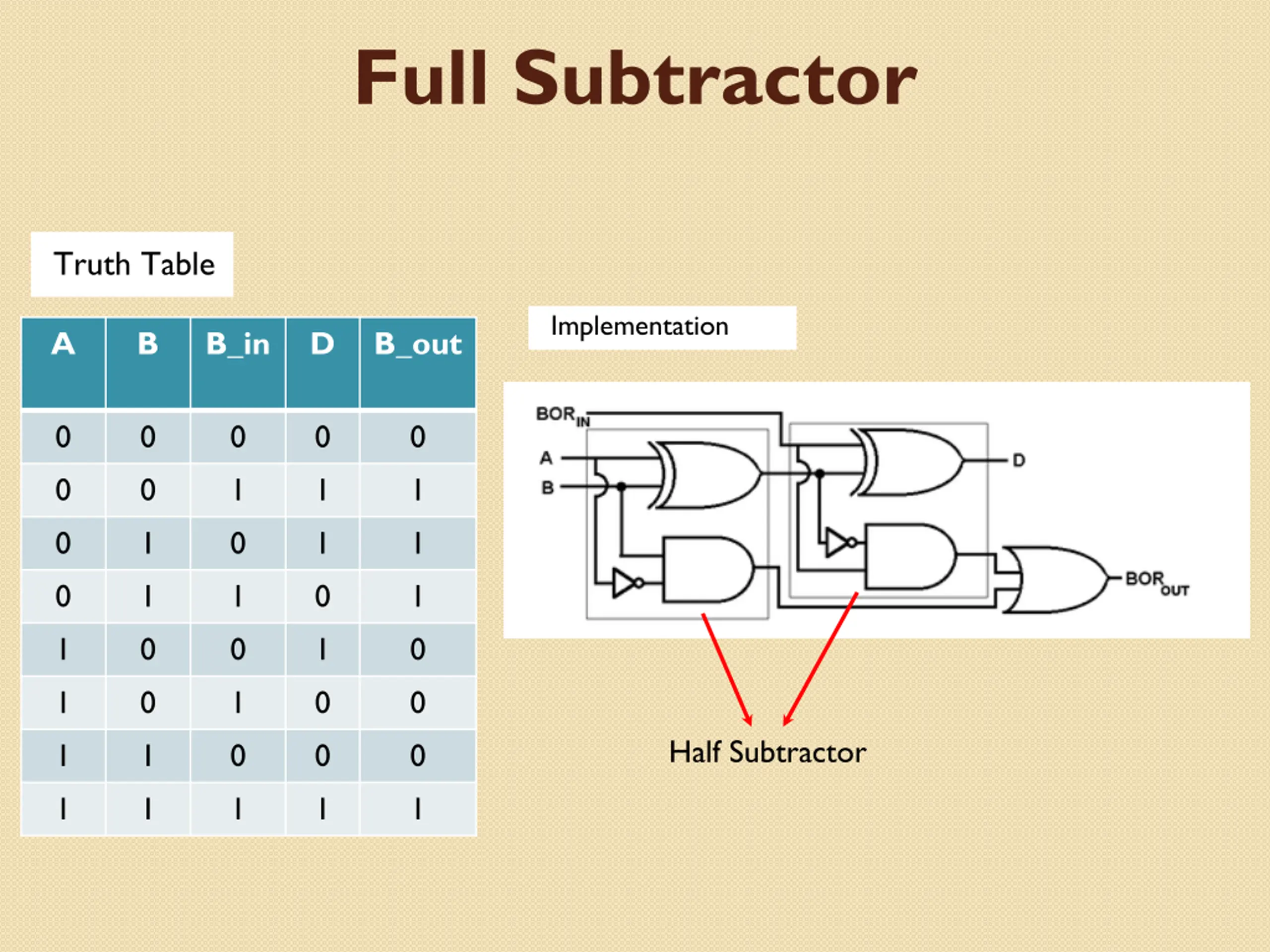

Full Subtractor Truth Table Implementation A B B_in D B_out 0 0 0 0 0 0 0 1 1 1 0 1 0 1 1 0 1 1 0 1 1 0 0 1 0 1 0 1 0 0 Half Subtractor 1 1 0 0 0 1 1 1 1 1

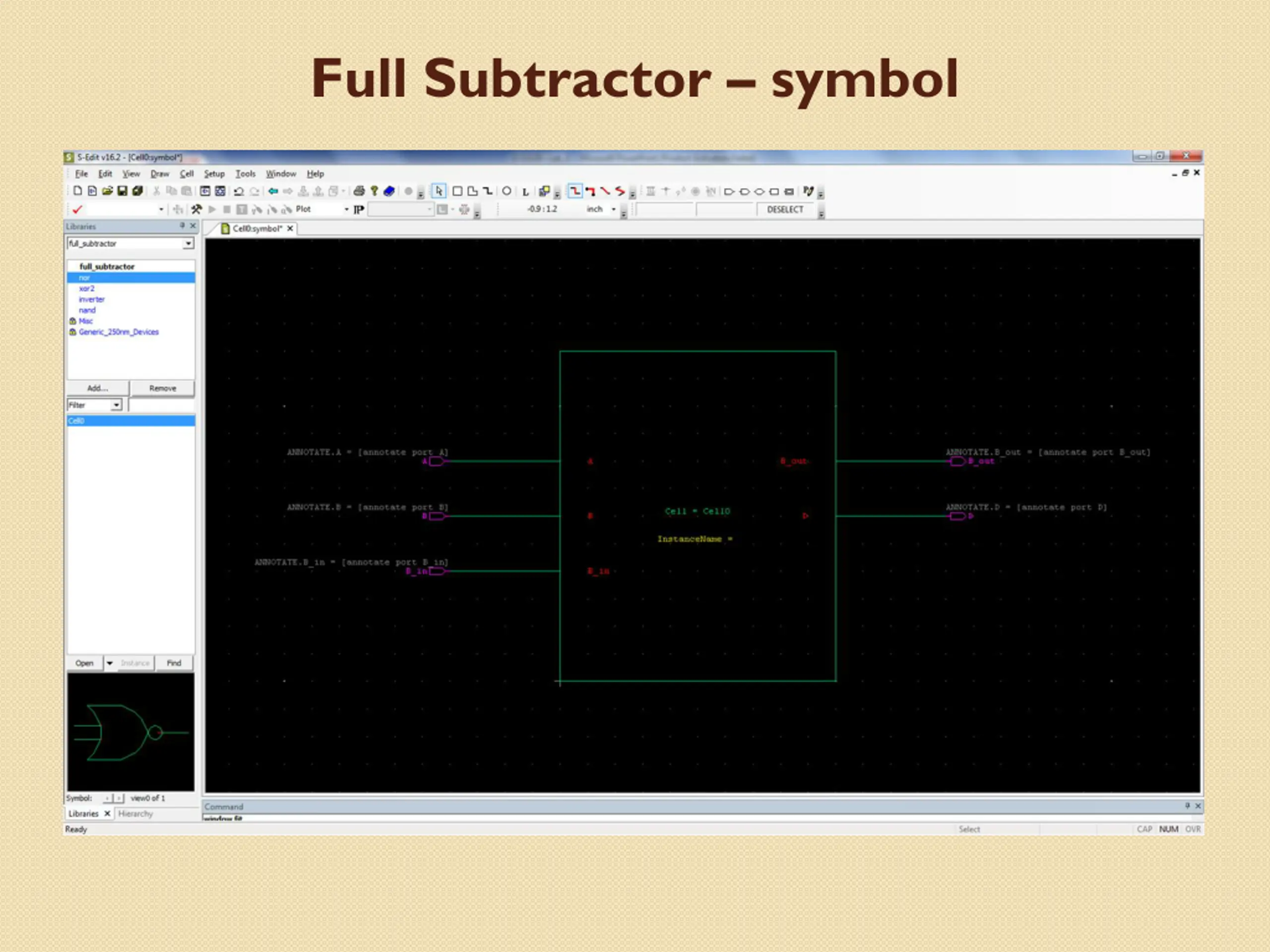

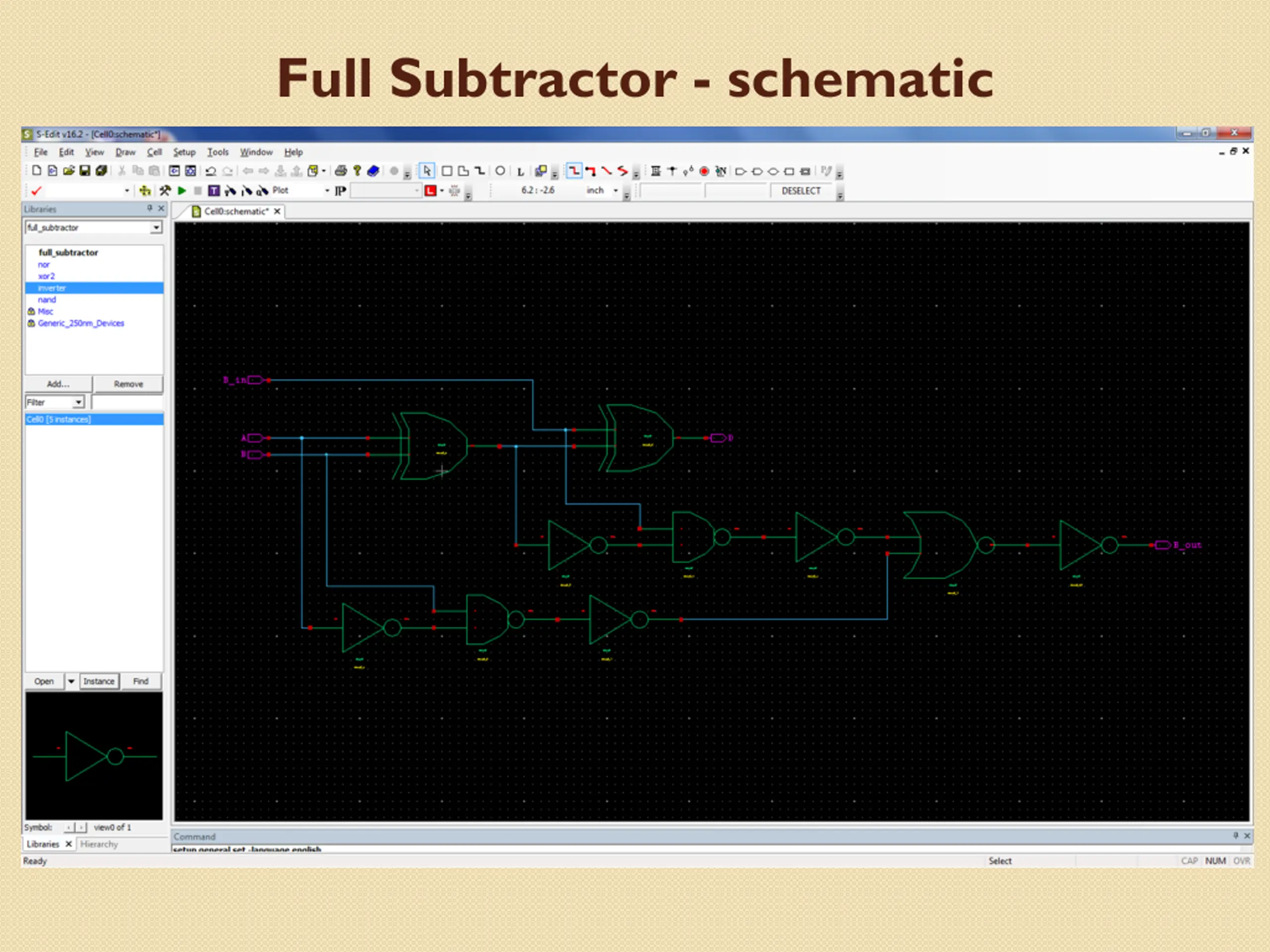

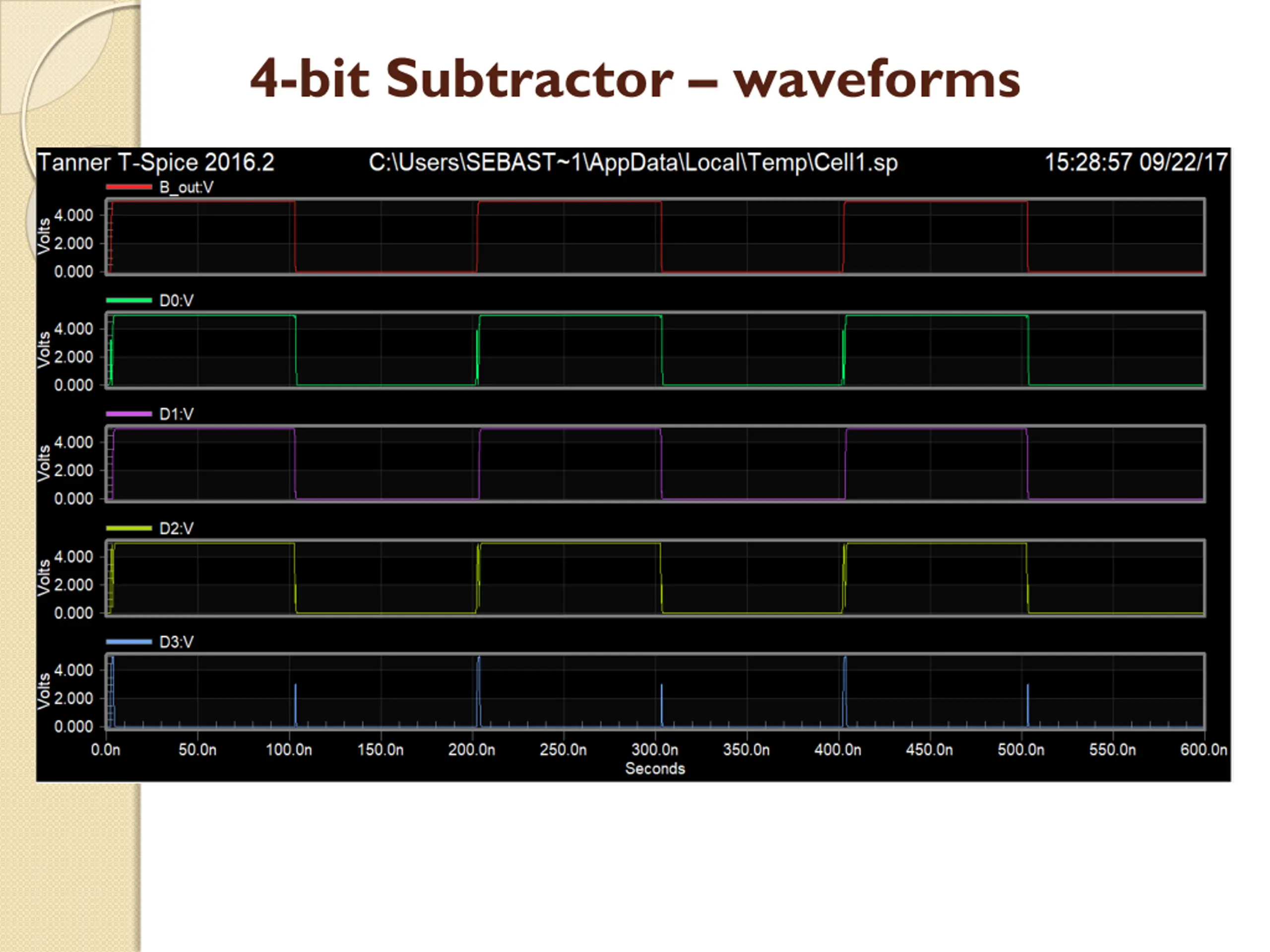

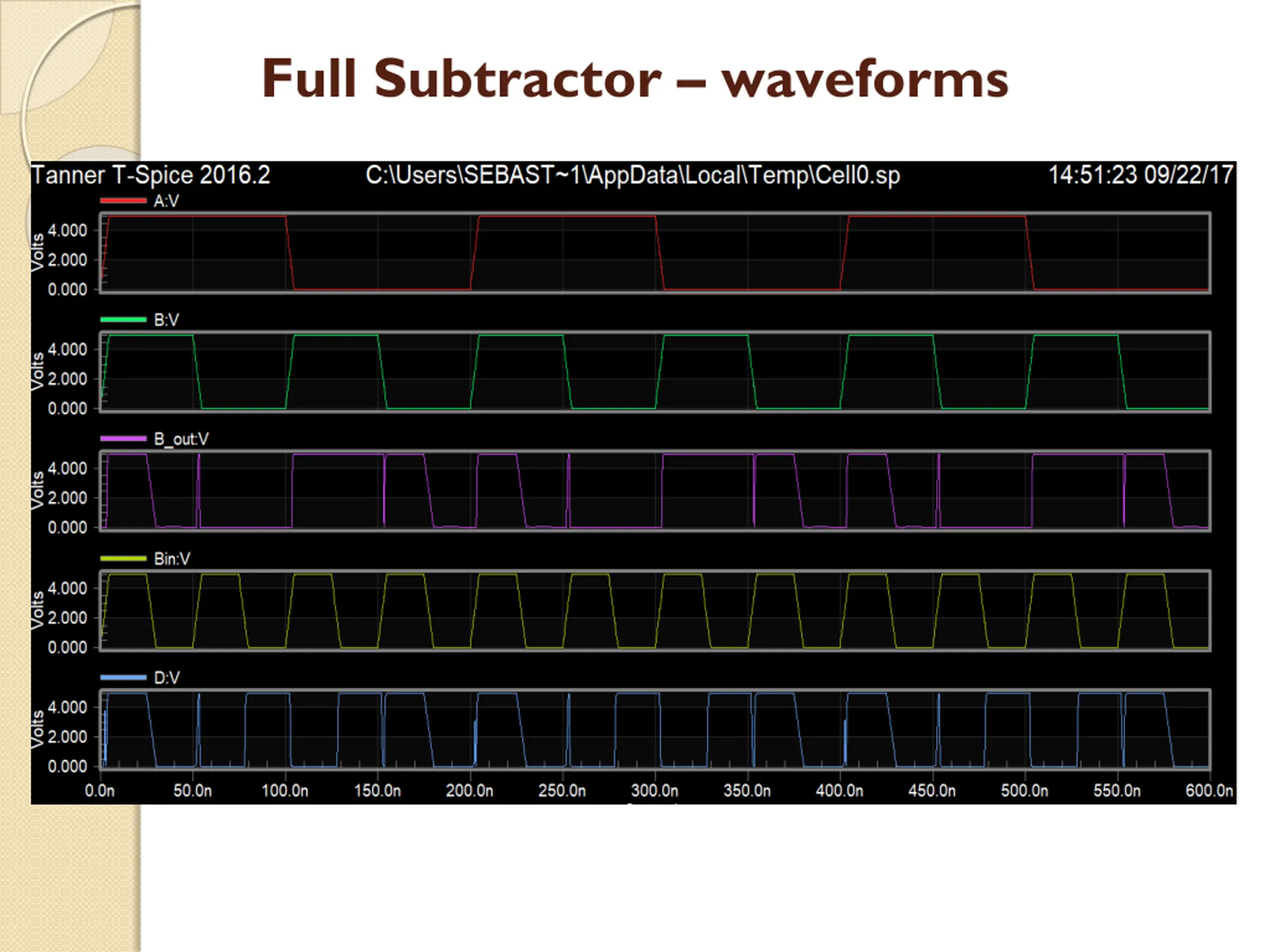

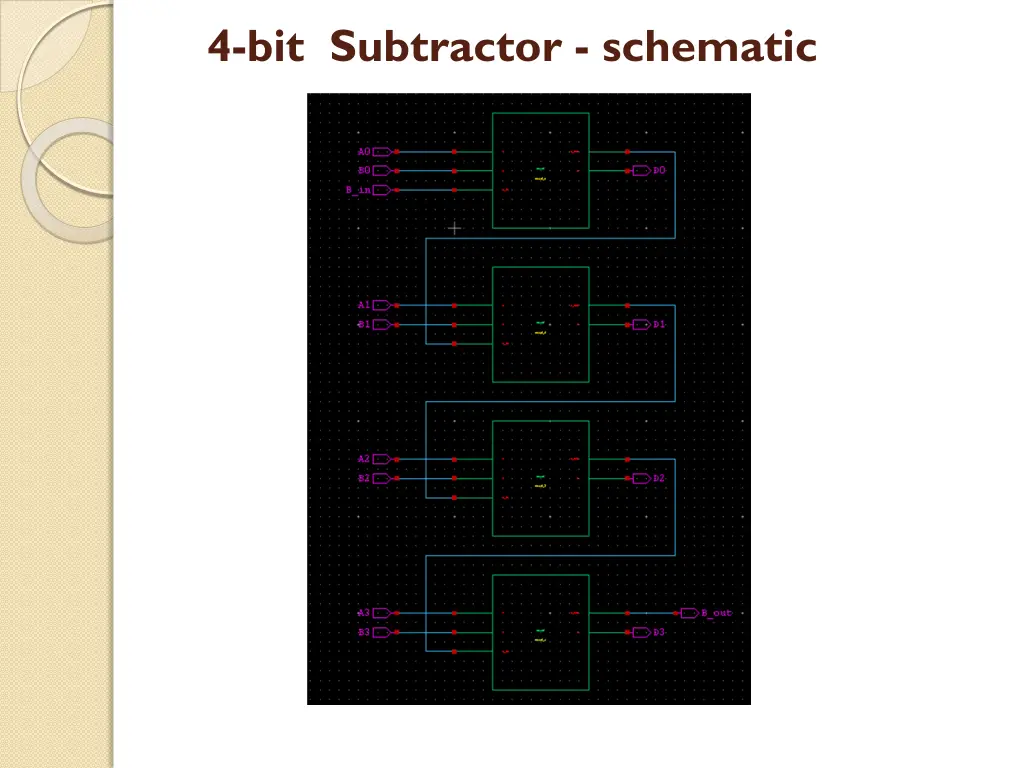

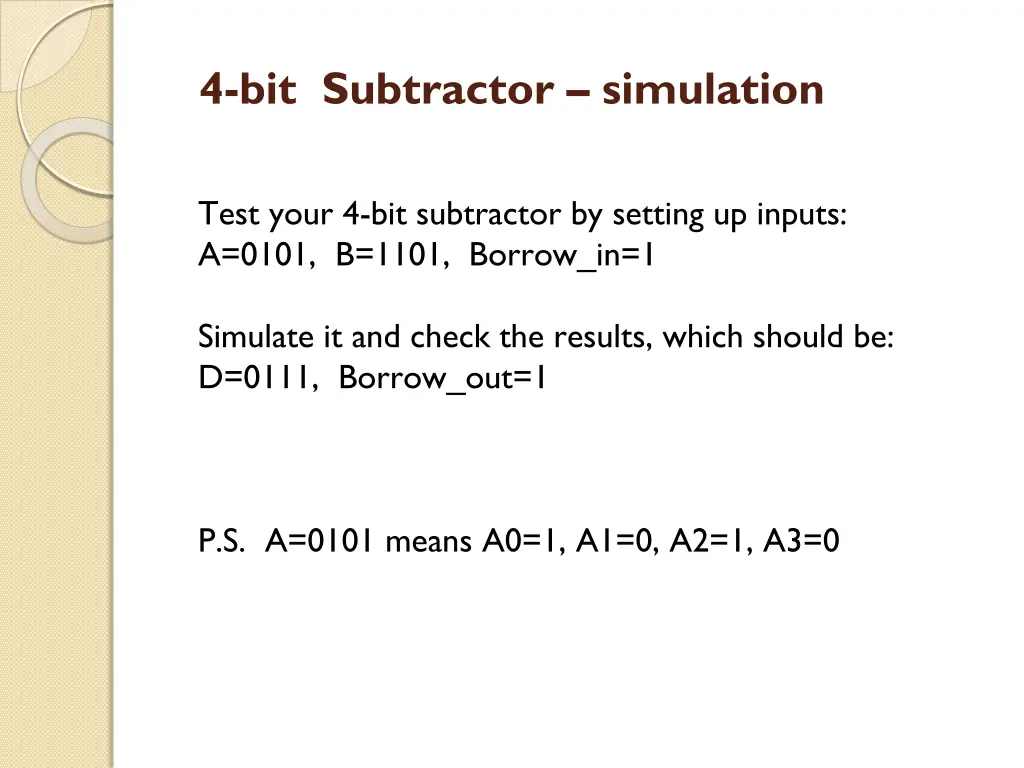

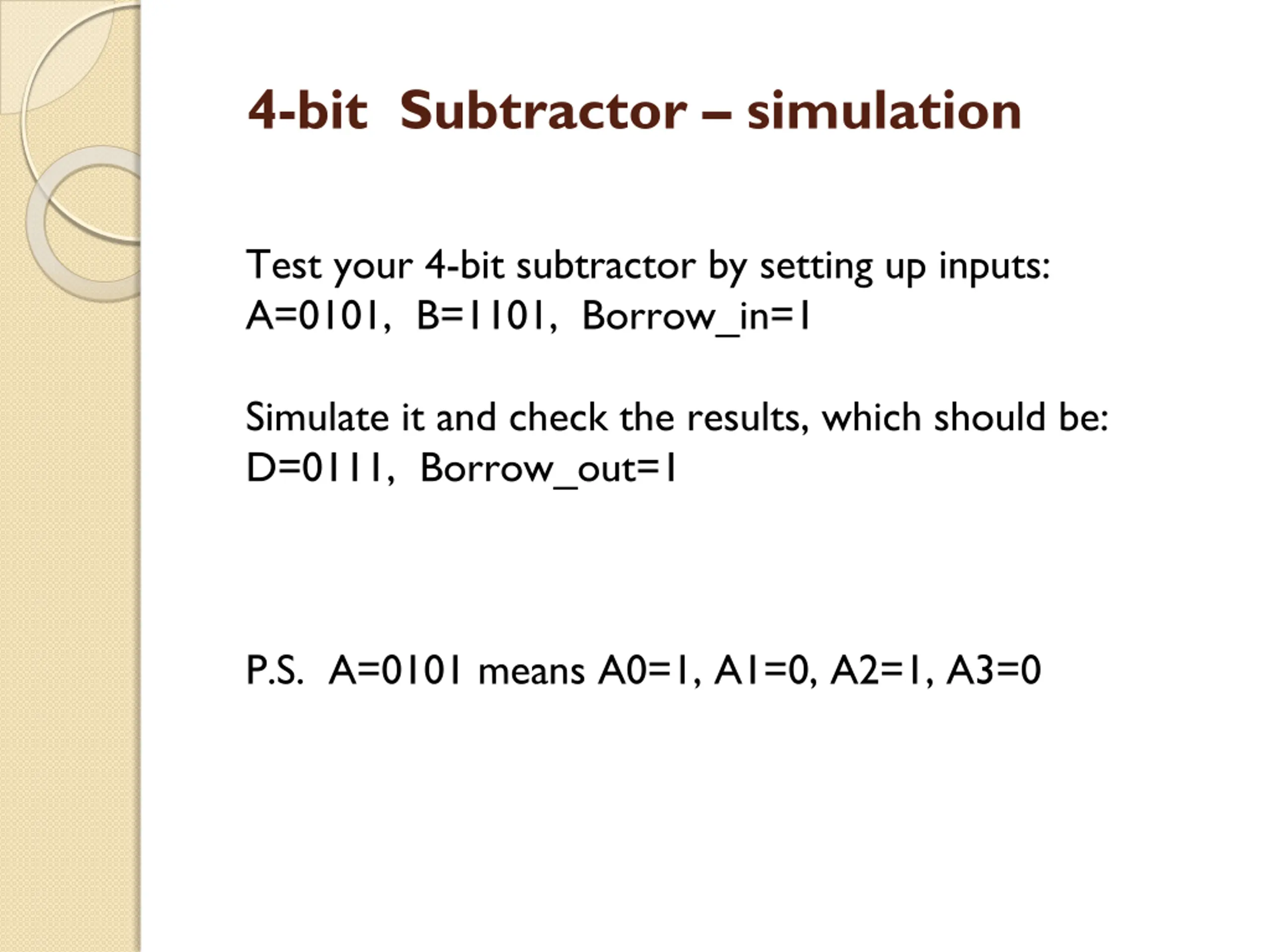

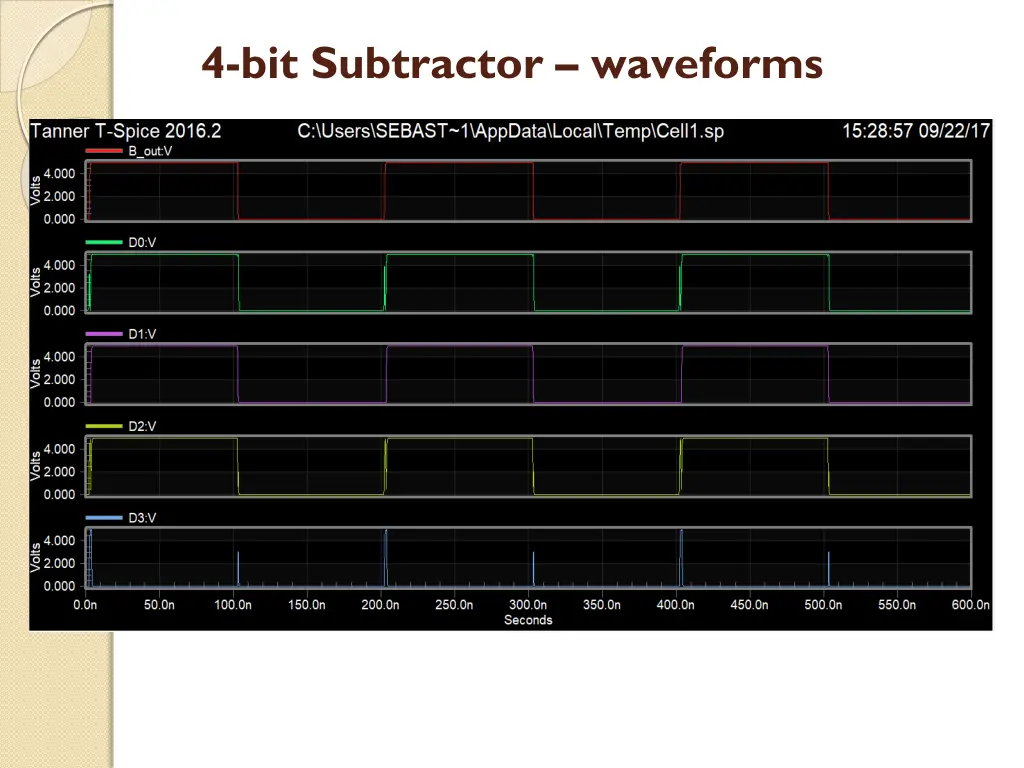

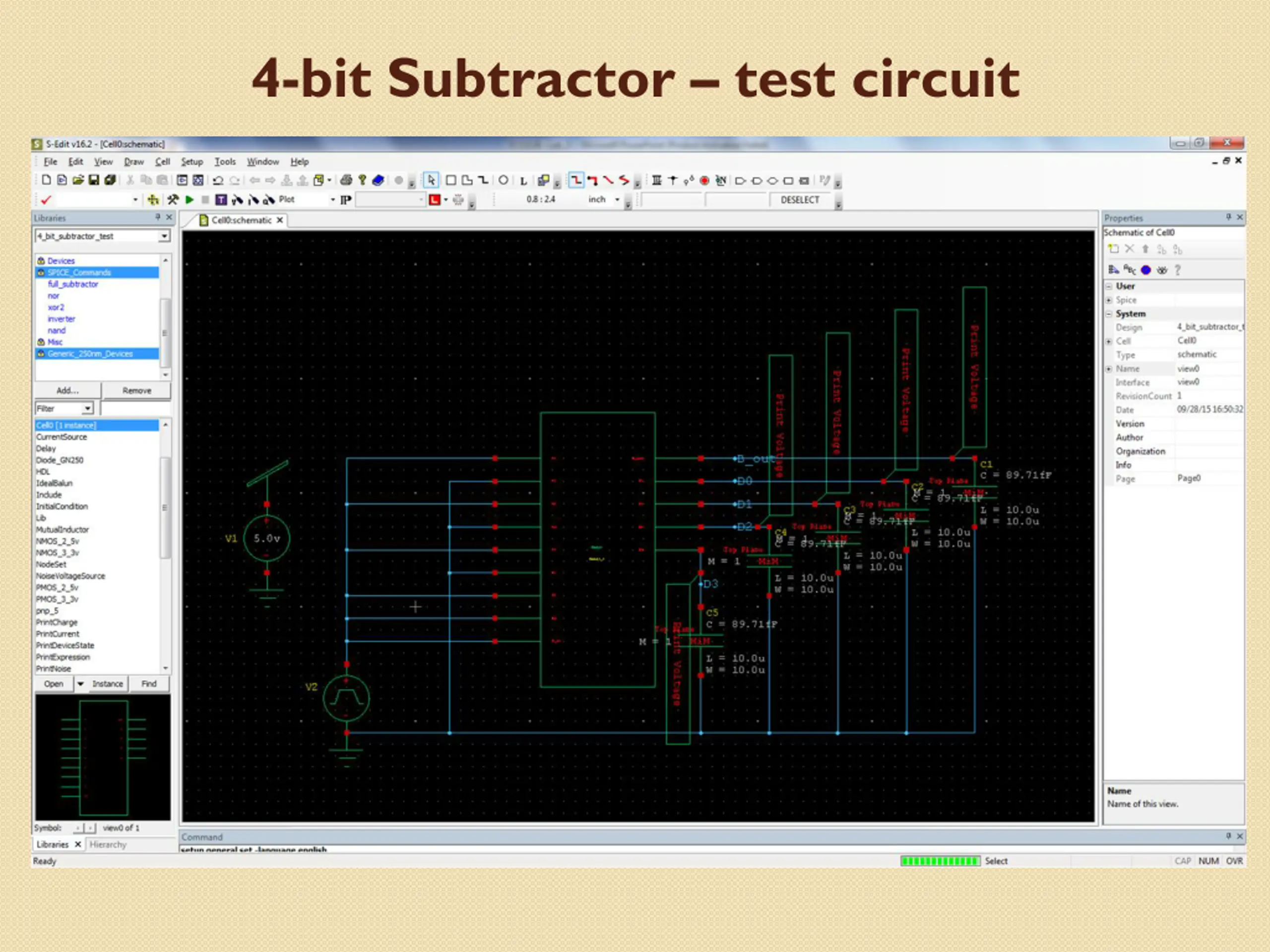

4-bit Subtractor simulation Test your 4-bit subtractor by setting up inputs: A=0101, B=1101, Borrow_in=1 Simulate it and check the results, which should be: D=0111, Borrow_out=1 P.S. A=0101 means A0=1, A1=0, A2=1, A3=0
