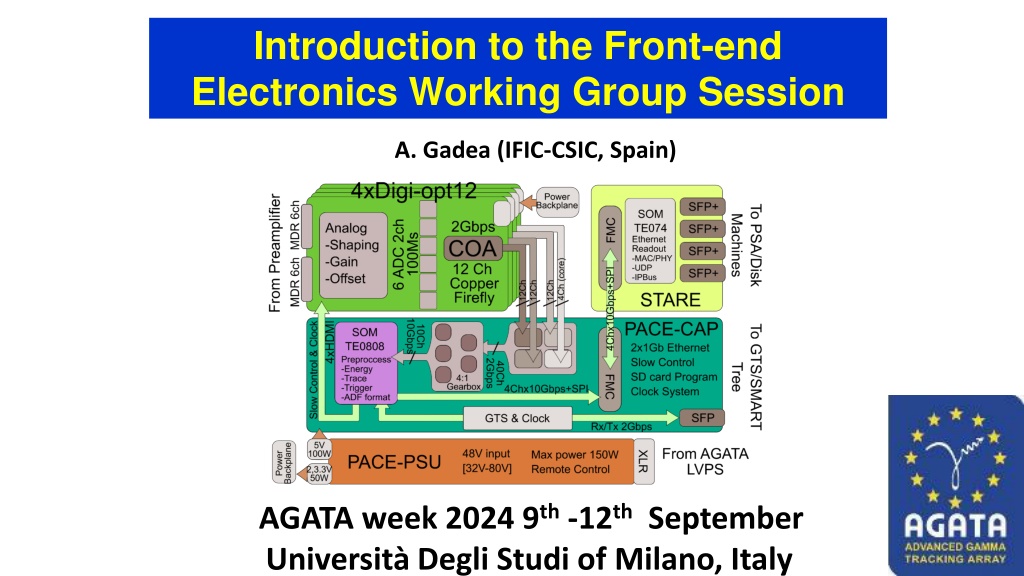

Introduction to the Front-end Electronics Working Group Session A. Gadea (IFIC-CSIC, Spain) AGATA week 2024 9th -12th September Universit Degli Studi of Milano, Italy

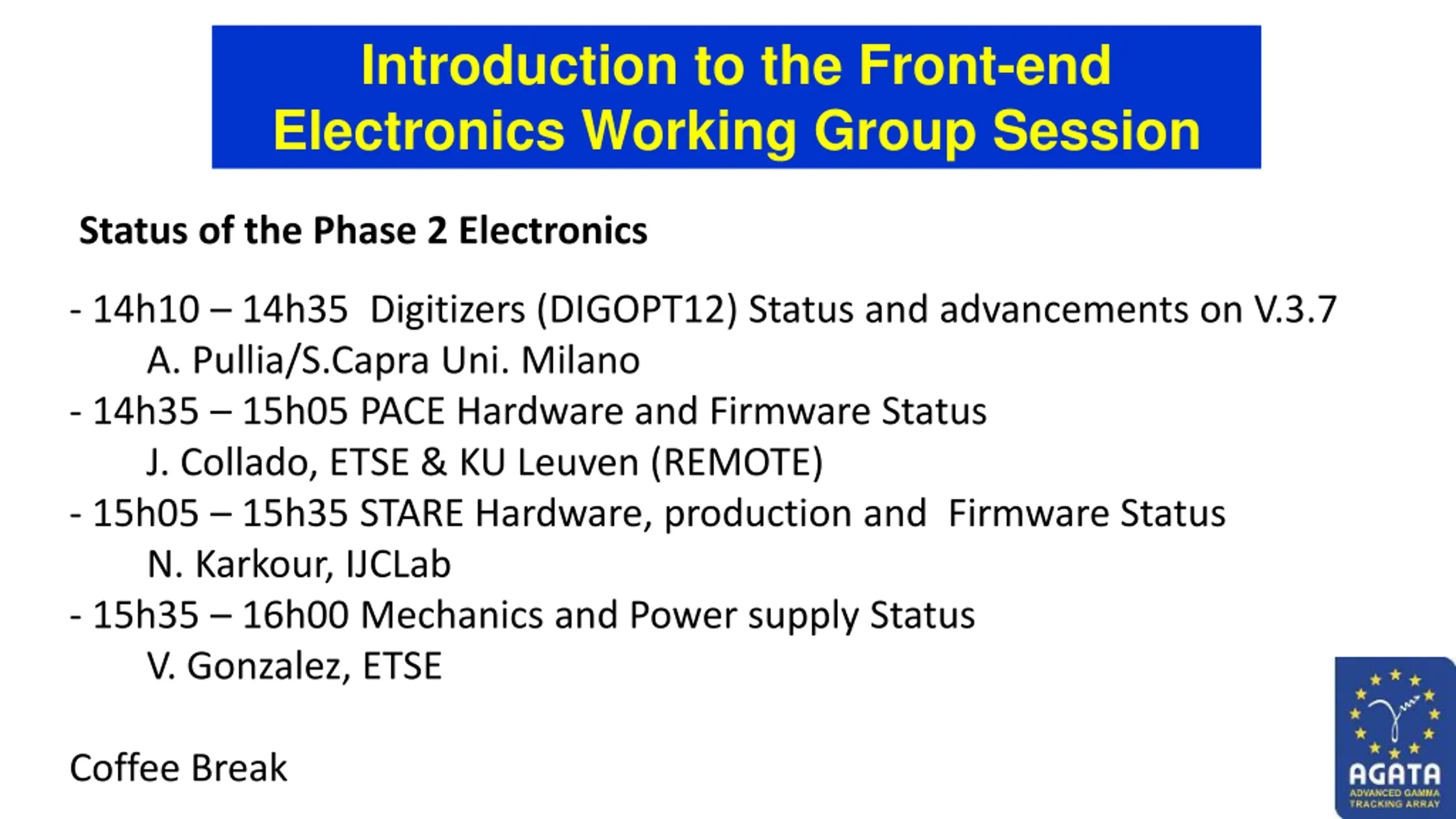

Introduction to the Front-end Electronics Working Group Session Status of the Phase 2 Electronics - 14h10 14h35 Digitizers (DIGOPT12) Status and advancements on V.3.7 A. Pullia/S.Capra Uni. Milano - 14h35 15h05 PACE Hardware and Firmware Status J. Collado, ETSE & KU Leuven (REMOTE) - 15h05 15h35 STARE Hardware, production and Firmware Status N. Karkour, IJCLab - 15h35 16h00 Mechanics and Power supply Status V. Gonzalez, ETSE Coffee Break

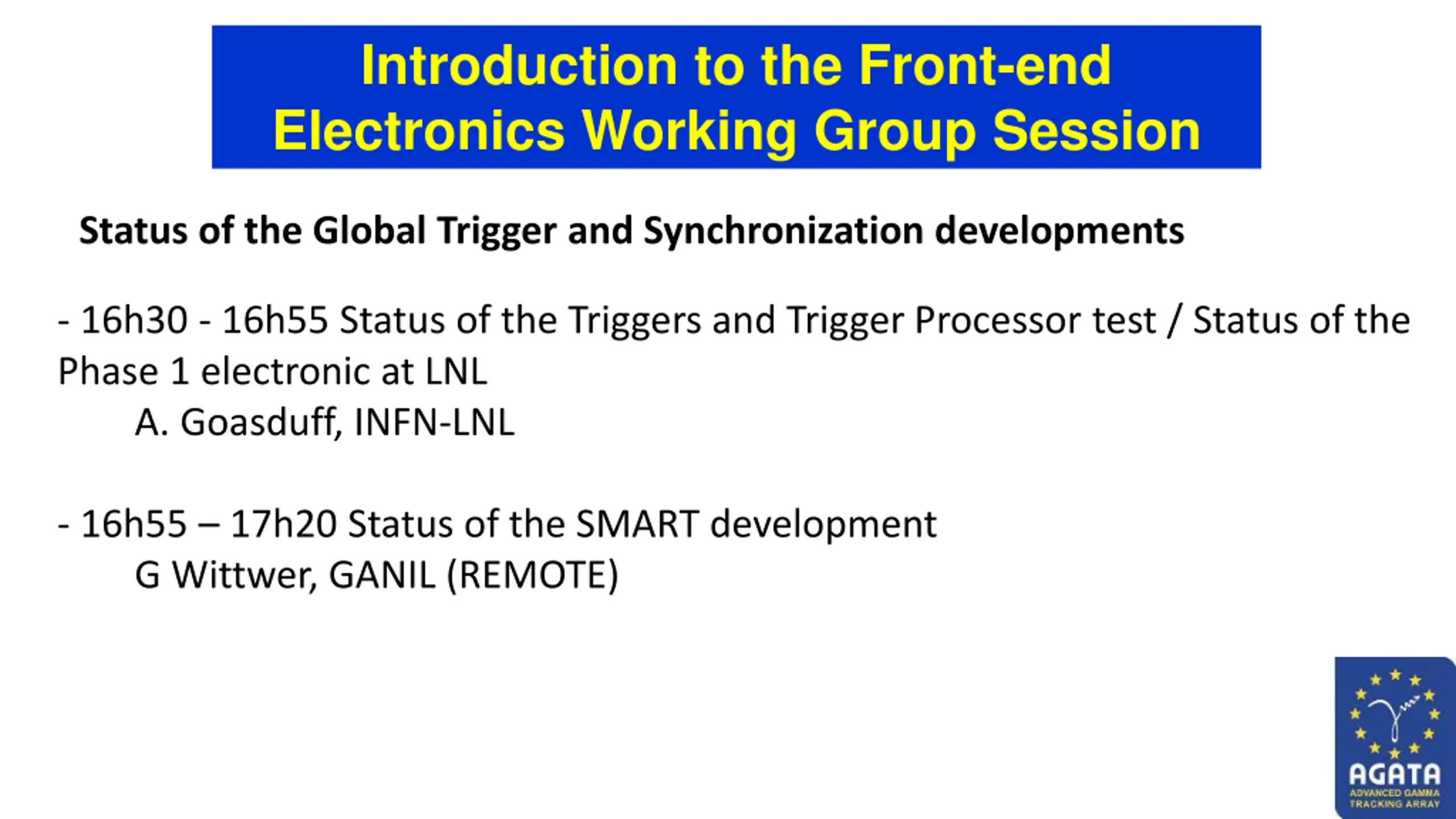

Introduction to the Front-end Electronics Working Group Session Status of the Global Trigger and Synchronization developments - 16h30 - 16h55 Status of the Triggers and Trigger Processor test / Status of the Phase 1 electronic at LNL A. Goasduff, INFN-LNL - 16h55 17h20 Status of the SMART development G Wittwer, GANIL (REMOTE)

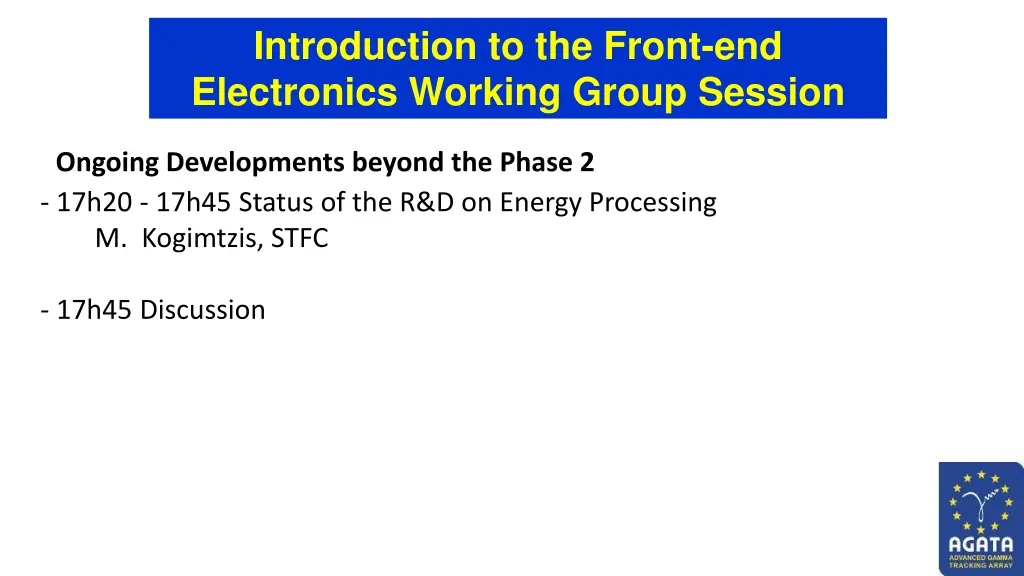

Introduction to the Front-end Electronics Working Group Session Ongoing Developments beyond the Phase 2 - 17h20 - 17h45 Status of the R&D on Energy Processing M. Kogimtzis, STFC - 17h45 Discussion

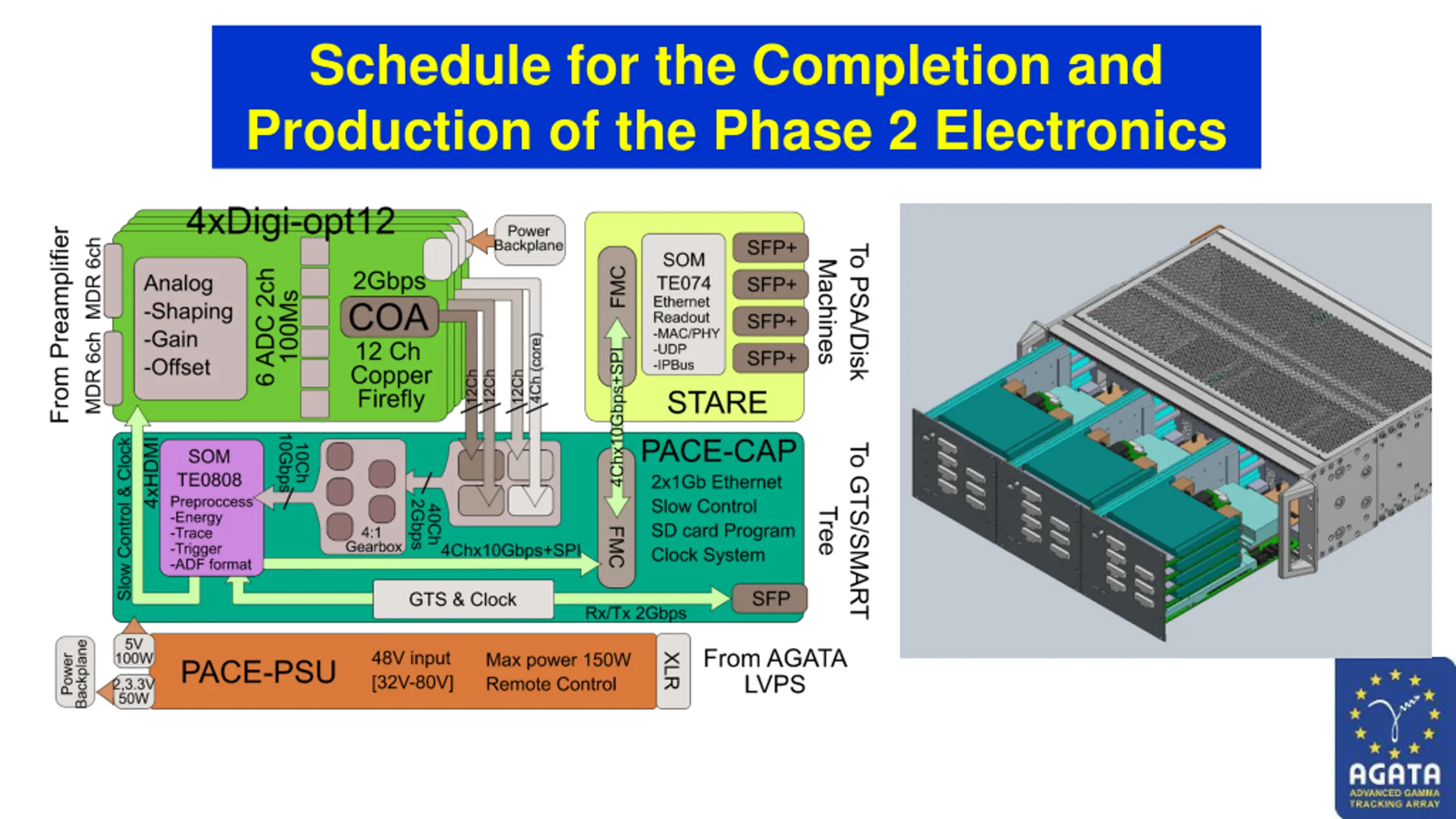

Schedule for the Completion and Production of the Phase 2 Electronics

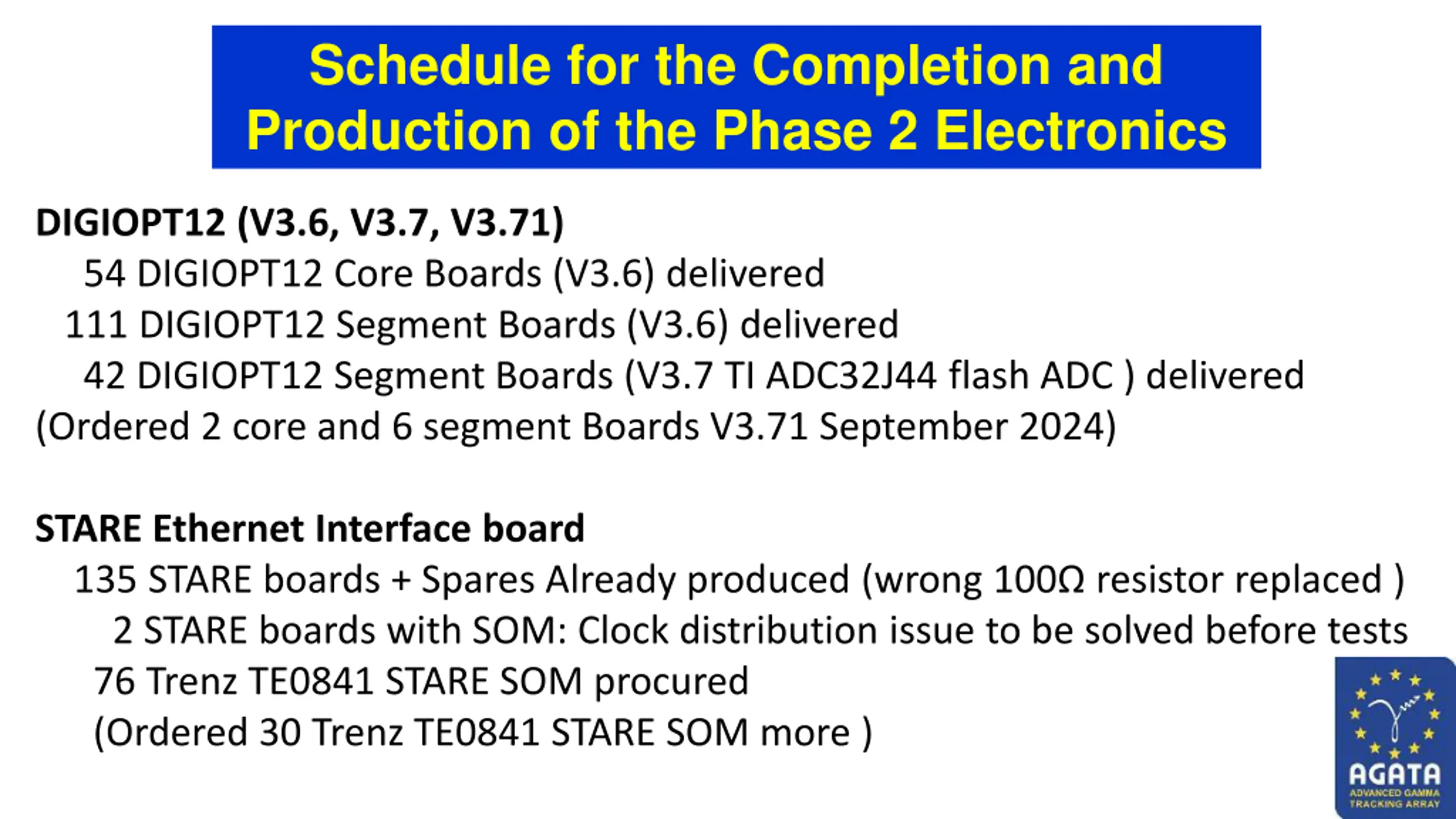

Schedule for the Completion and Production of the Phase 2 Electronics DIGIOPT12 (V3.6, V3.7, V3.71) 54 DIGIOPT12 Core Boards (V3.6) delivered 111 DIGIOPT12 Segment Boards (V3.6) delivered 42 DIGIOPT12 Segment Boards (V3.7 TI ADC32J44 flash ADC ) delivered (Ordered 2 core and 6 segment Boards V3.71 September 2024) STARE Ethernet Interface board 135 STARE boards + Spares Already produced (wrong 100 resistor replaced ) 2 STARE boards with SOM: Clock distribution issue to be solved before tests 76 Trenz TE0841 STARE SOM procured (Ordered 30 Trenz TE0841 STARE SOM more )

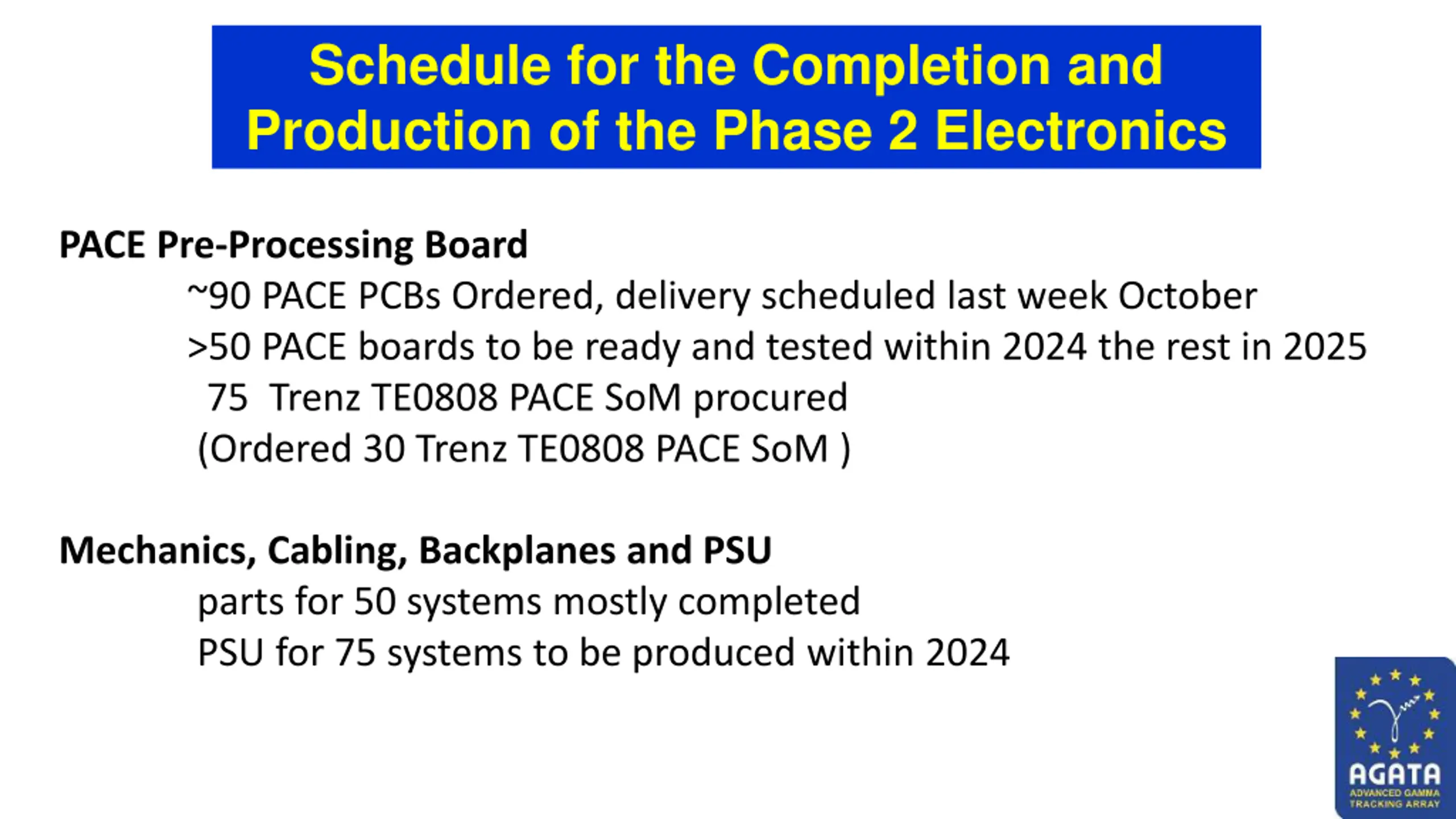

Schedule for the Completion and Production of the Phase 2 Electronics PACE Pre-Processing Board ~90 PACE PCBs Ordered, delivery scheduled last week October >50 PACE boards to be ready and tested within 2024 the rest in 2025 75 Trenz TE0808 PACE SoM procured (Ordered 30 Trenz TE0808 PACE SoM ) Mechanics, Cabling, Backplanes and PSU parts for 50 systems mostly completed PSU for 75 systems to be produced within 2024

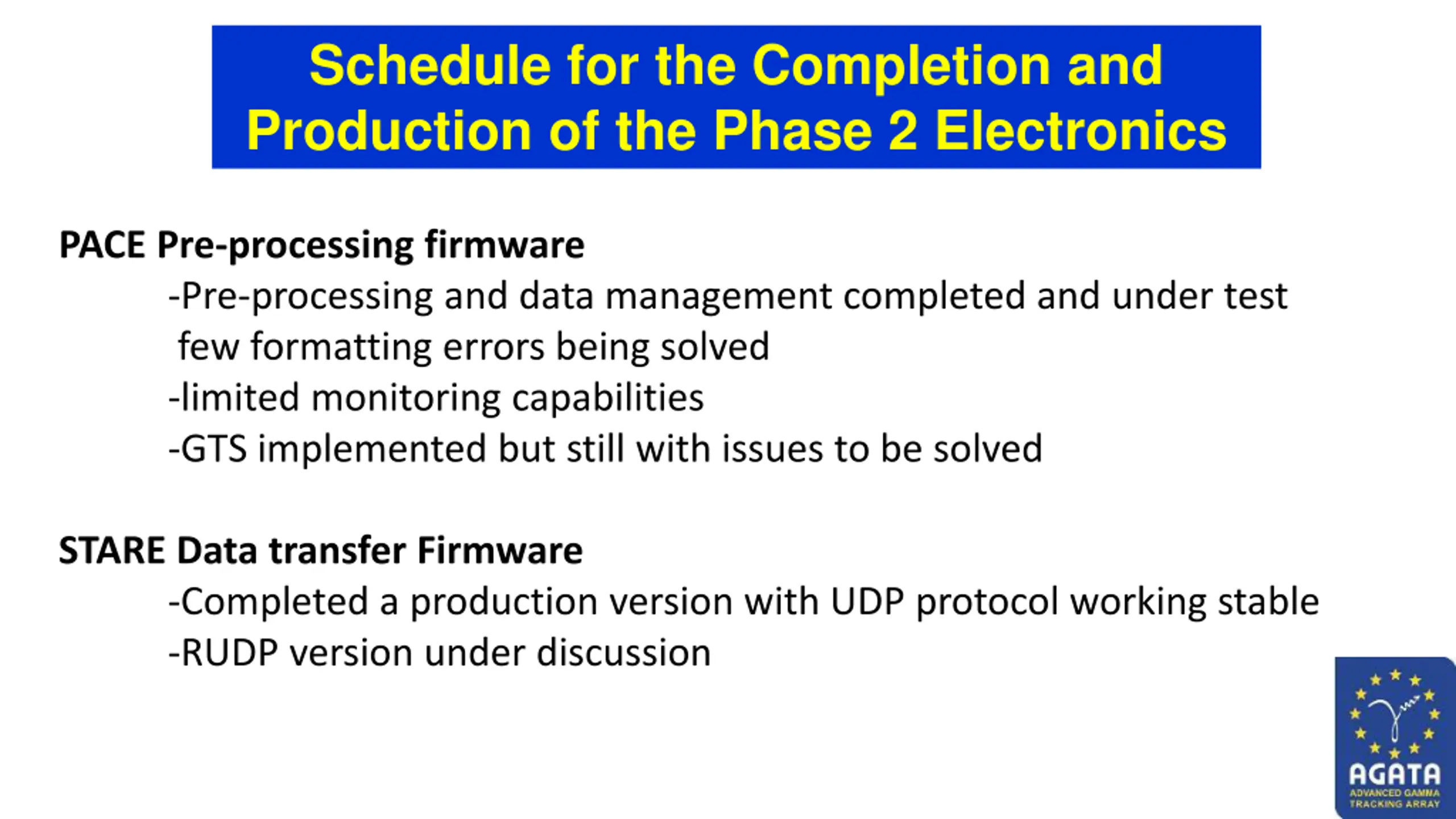

Schedule for the Completion and Production of the Phase 2 Electronics PACE Pre-processing firmware -Pre-processing and data management completed and under test few formatting errors being solved -limited monitoring capabilities -GTS implemented but still with issues to be solved STARE Data transfer Firmware -Completed a production version with UDP protocol working stable -RUDP version under discussion
