Interduction to MATLAB Manal Alotaibi Mathematics department College of science King saud university

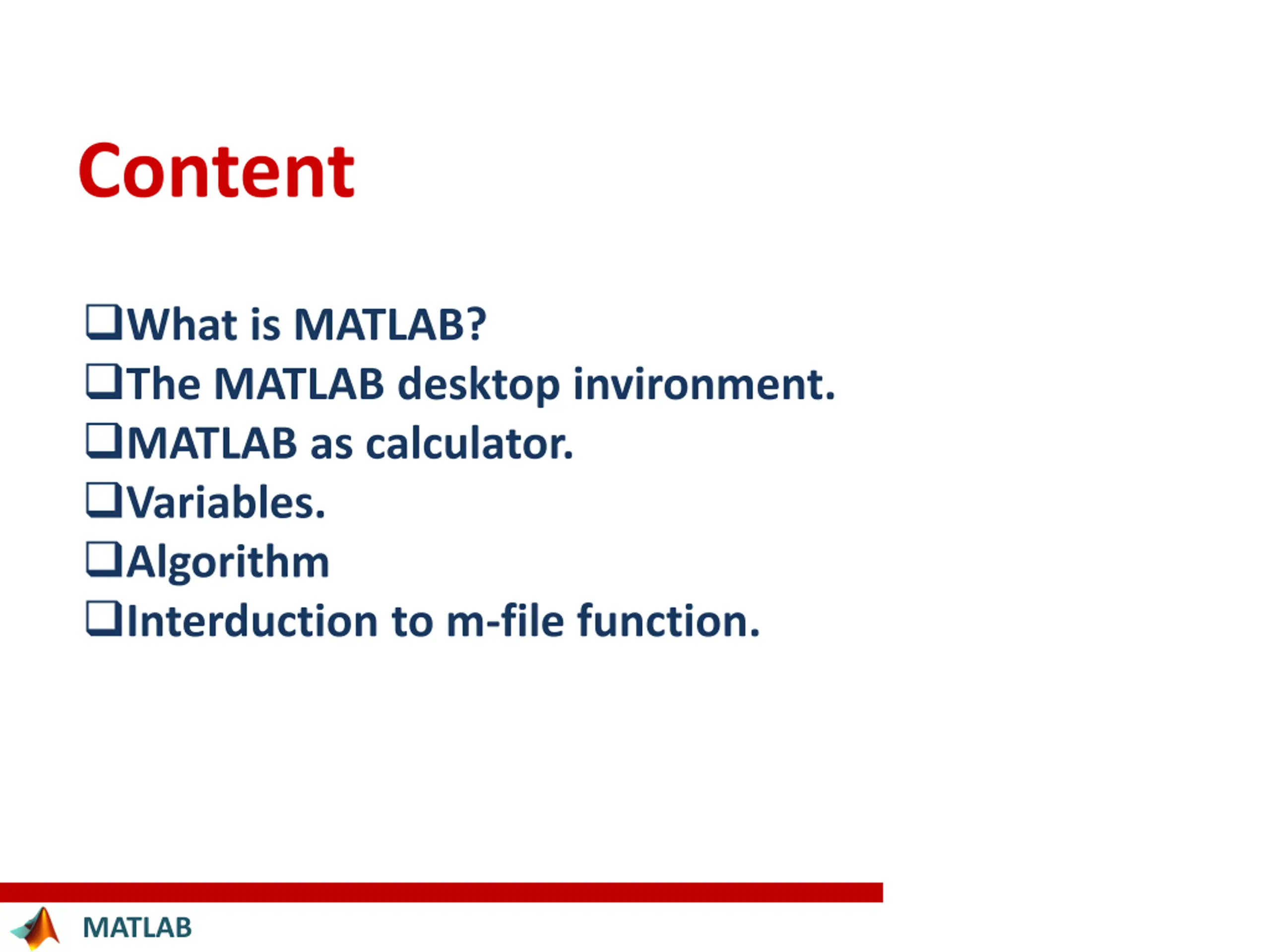

Content What is MATLAB? The MATLAB desktop invironment. MATLAB as calculator. Variables. Algorithm Interduction to m-file function. MATLAB

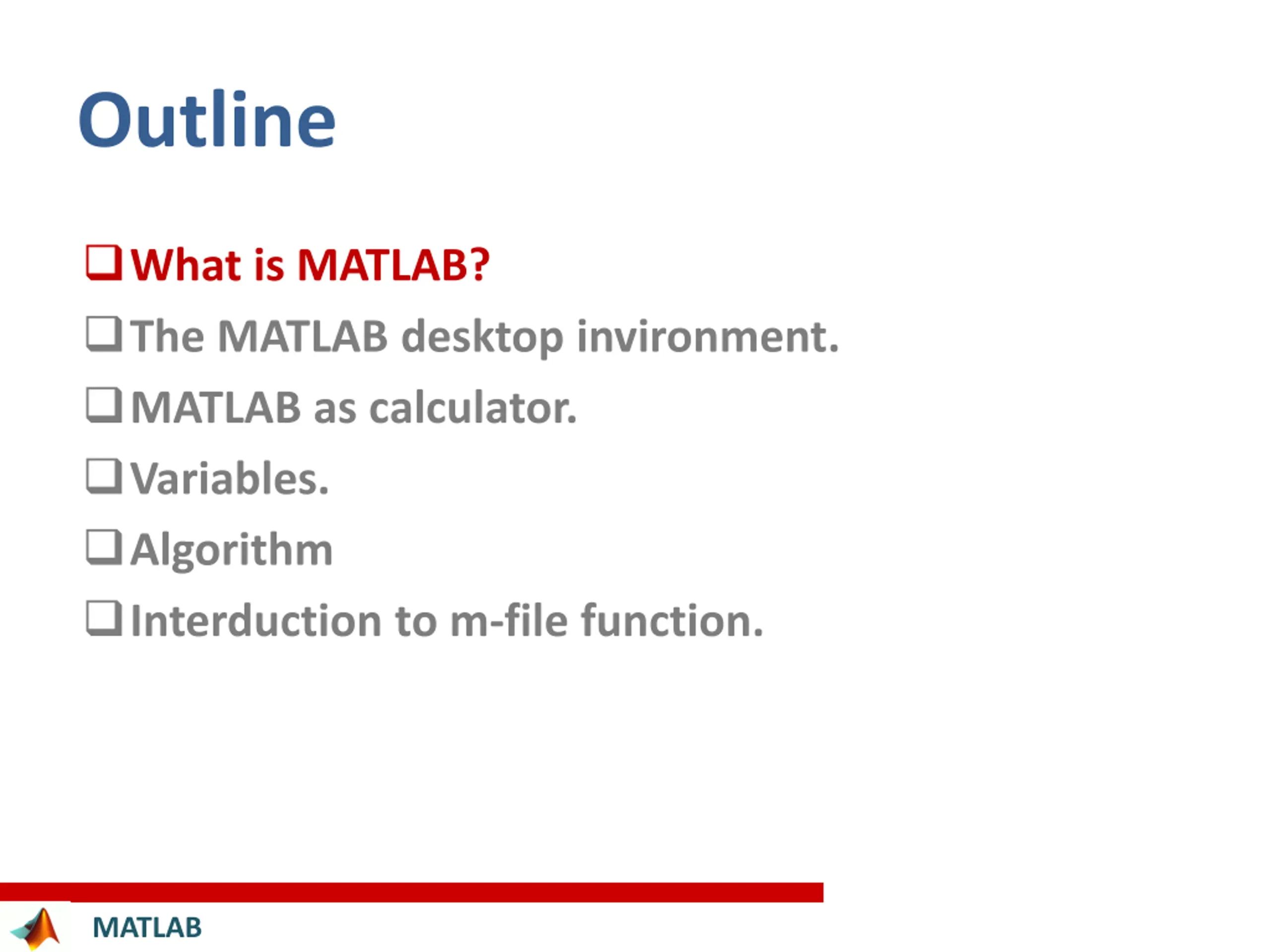

Outline What is MATLAB? The MATLAB desktop invironment. MATLAB as calculator. Variables. Algorithm Interduction to m-file function. MATLAB

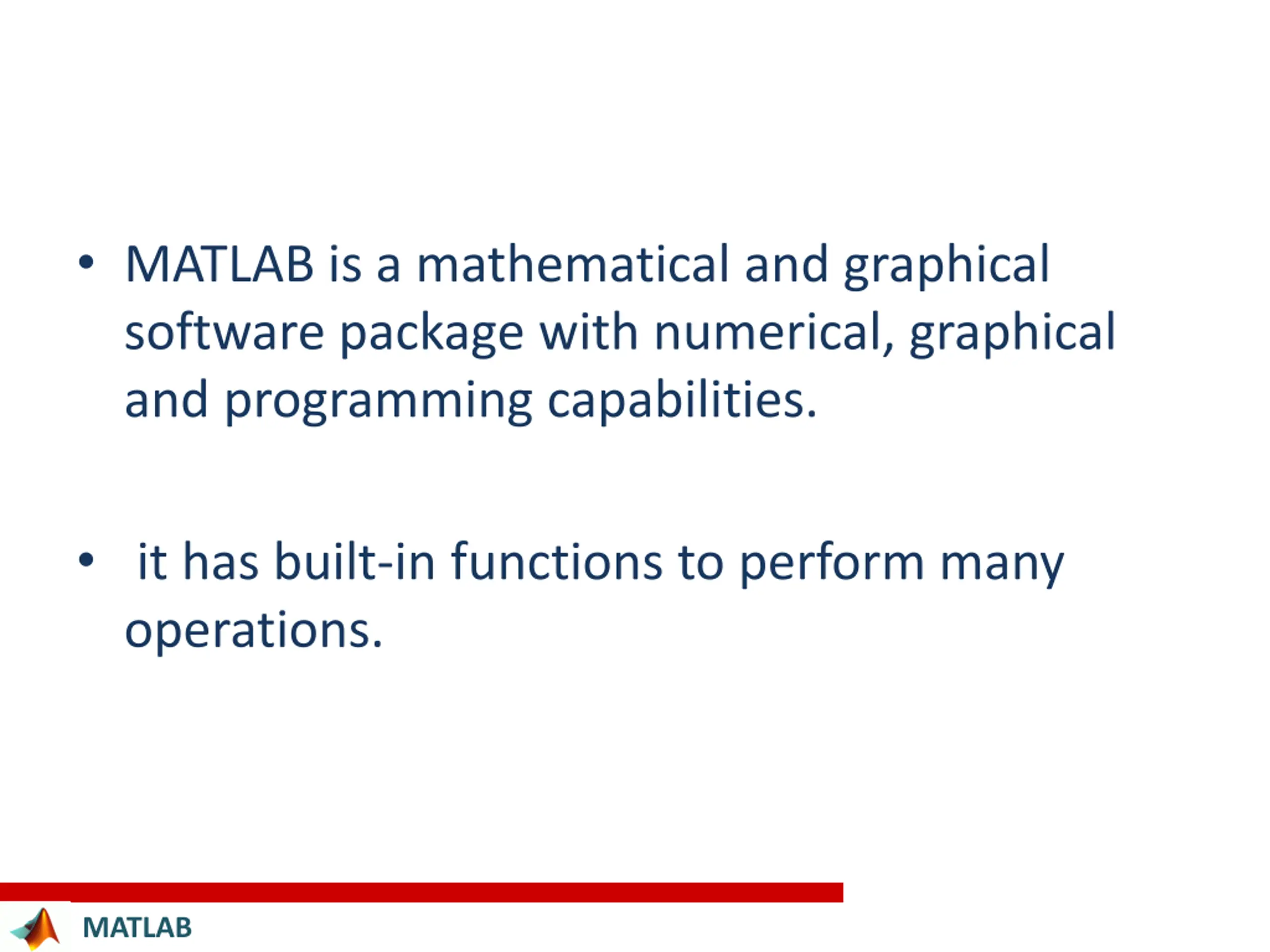

MATLAB is a mathematical and graphical software package with numerical, graphical and programming capabilities. it has built-in functions to perform many operations. MATLAB

Outline What is MATLAB? The MATLAB desktop invironment. MATLAB as calculator. Variables. Algorithm Interduction to m-file function. MATLAB

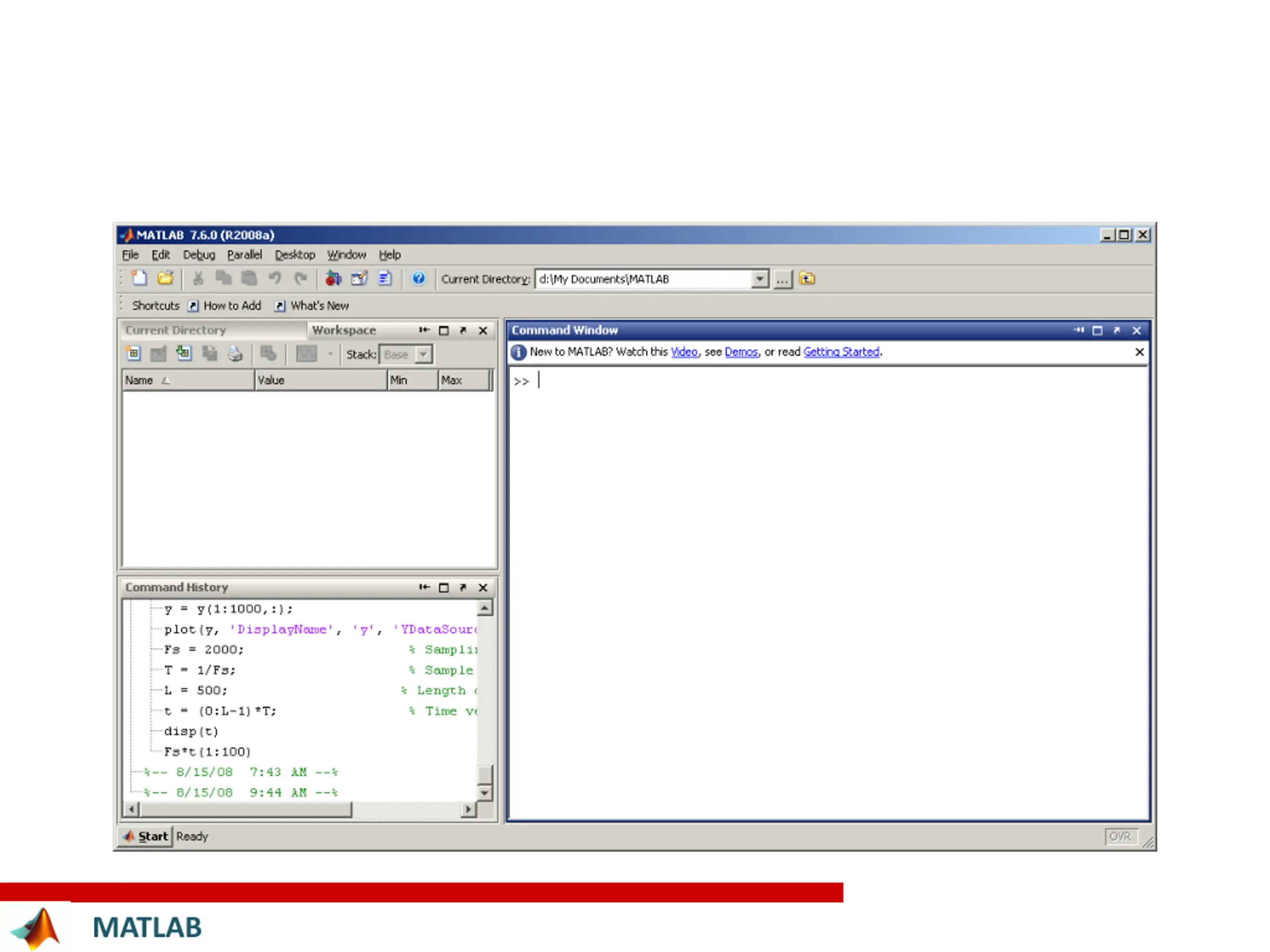

MATLAB

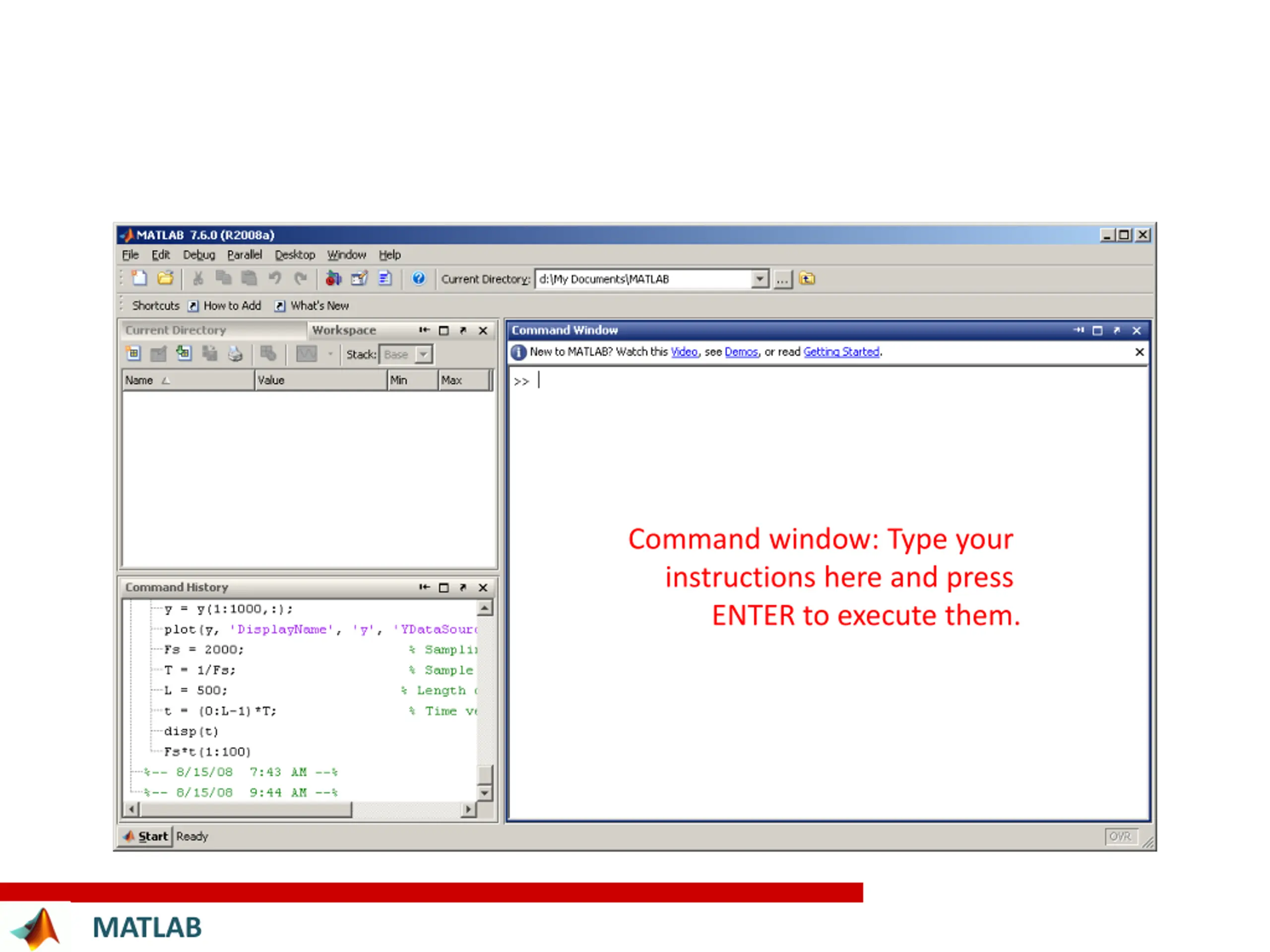

Command window: Type your instructions here and press ENTER to execute them. MATLAB

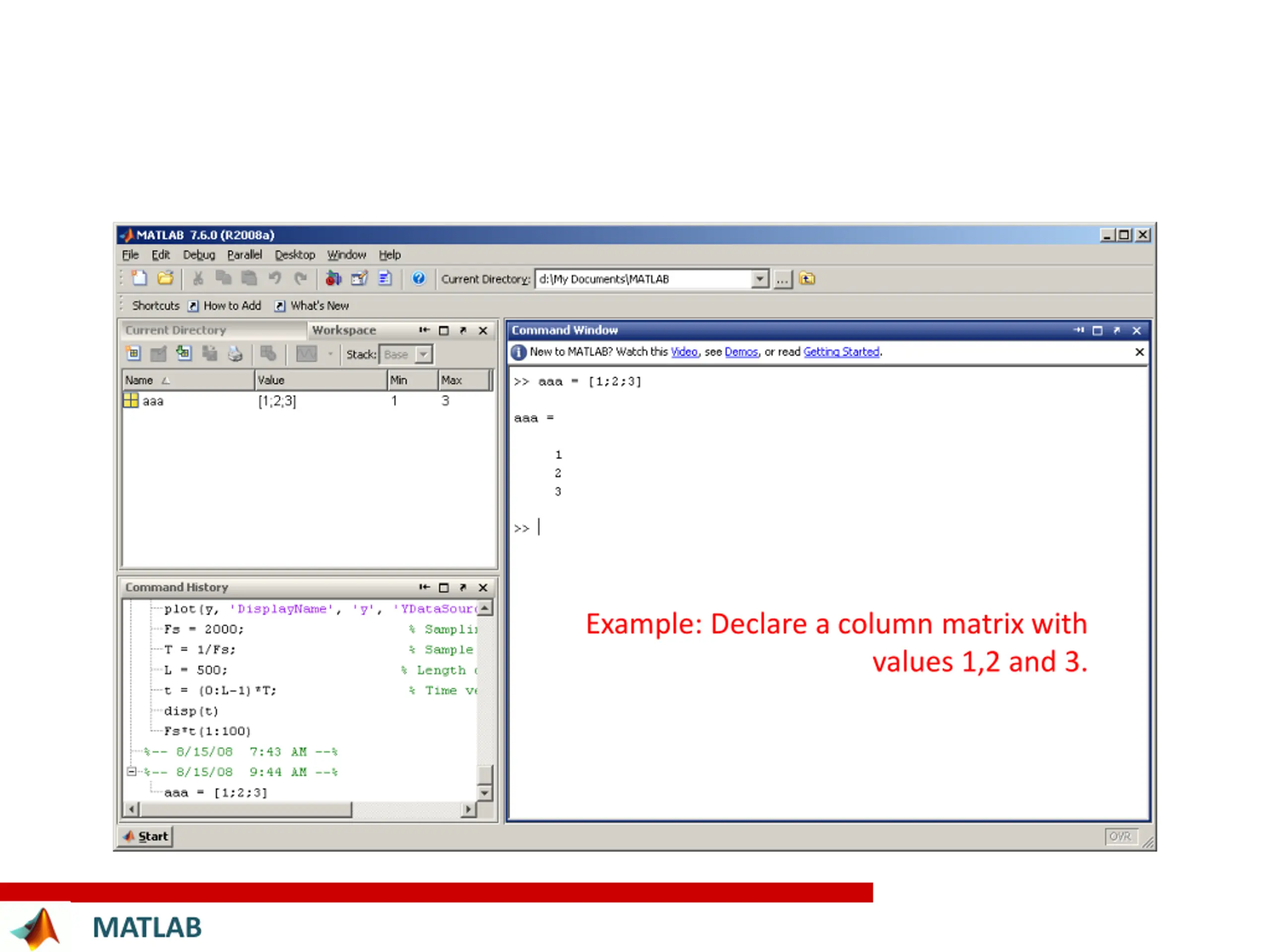

Example: Declare a column matrix with values 1,2 and 3. MATLAB

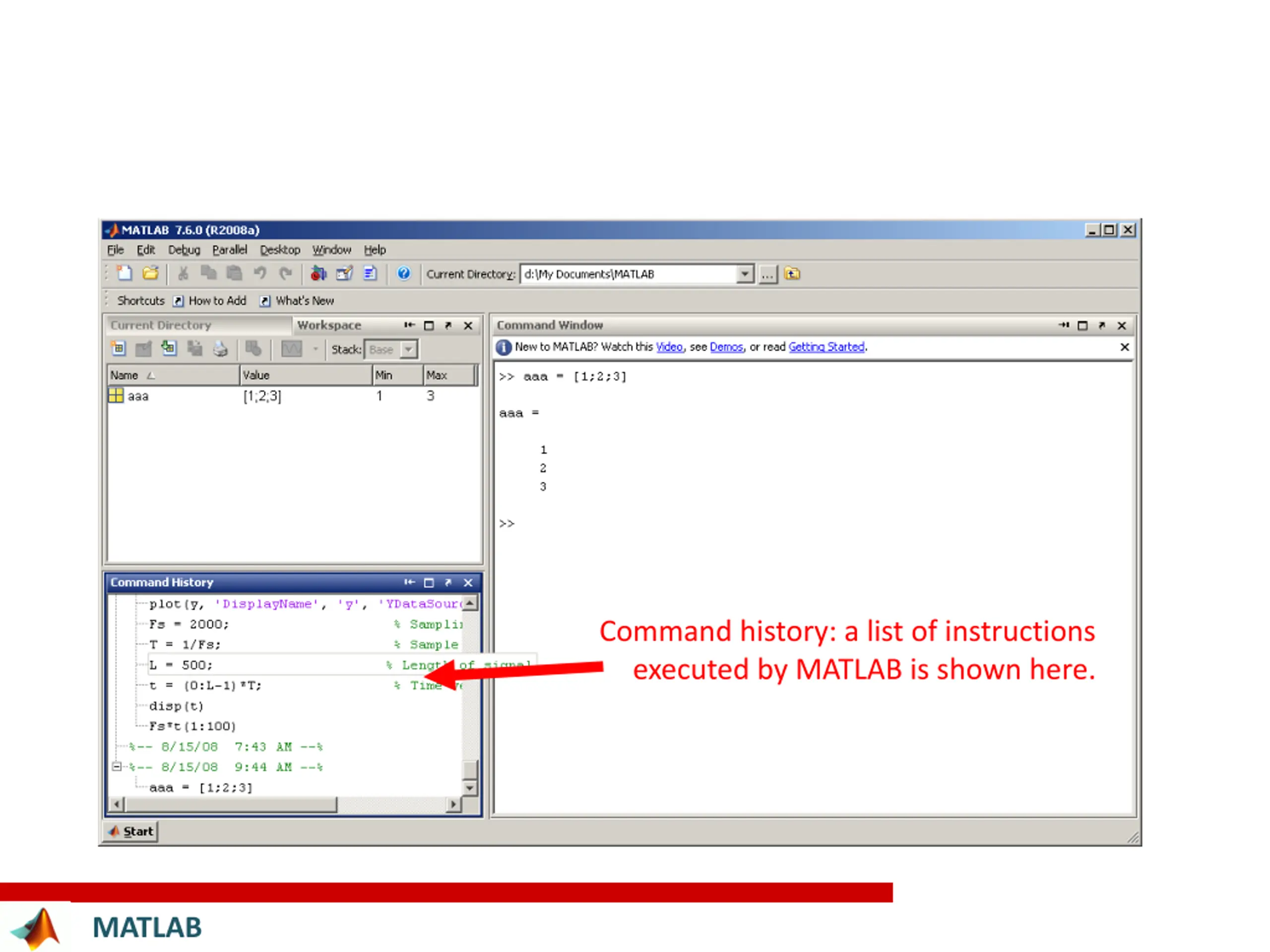

Command history: a list of instructions executed by MATLAB is shown here. MATLAB

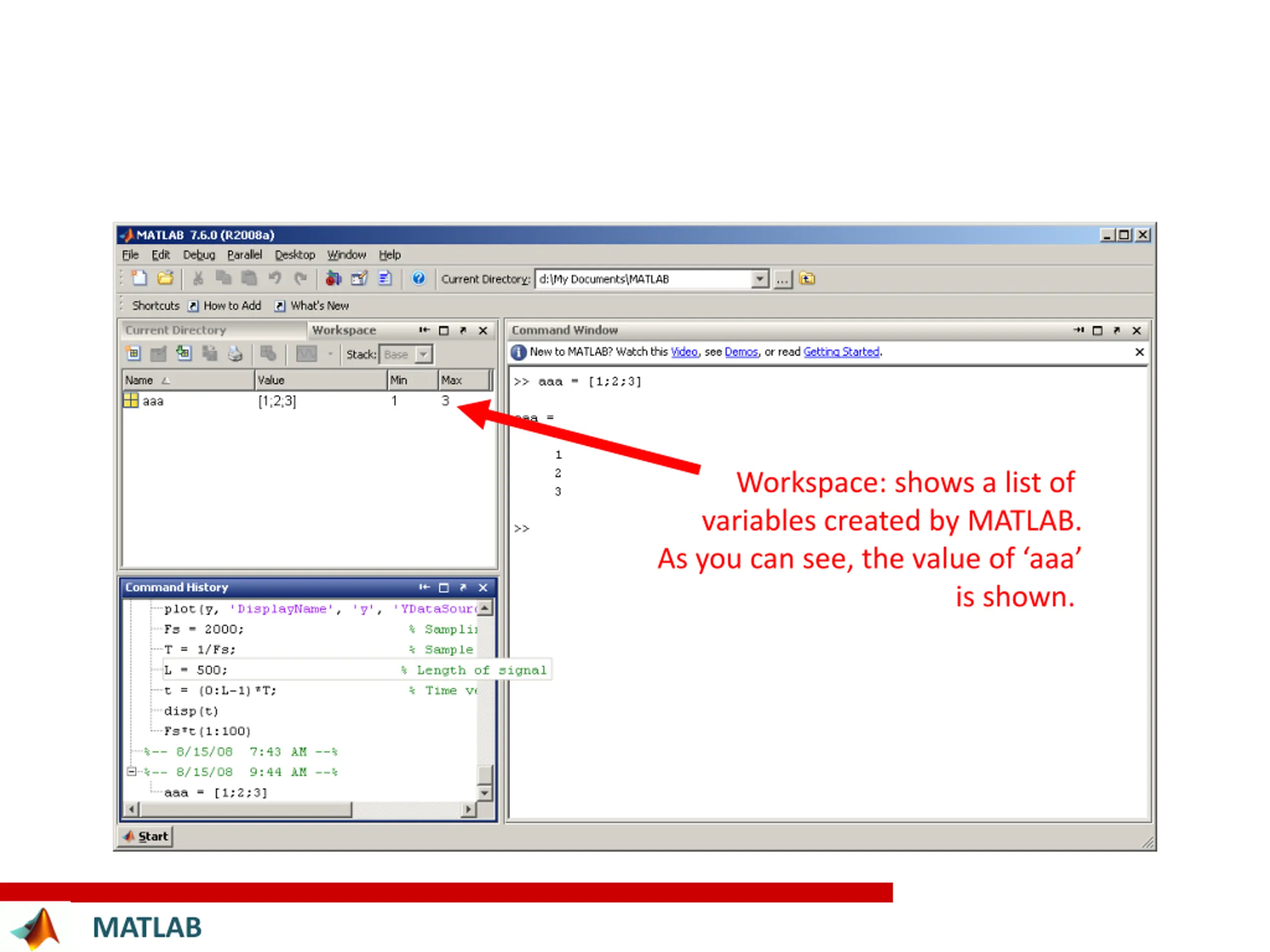

Workspace: shows a list of variables created by MATLAB. As you can see, the value of aaa is shown. MATLAB

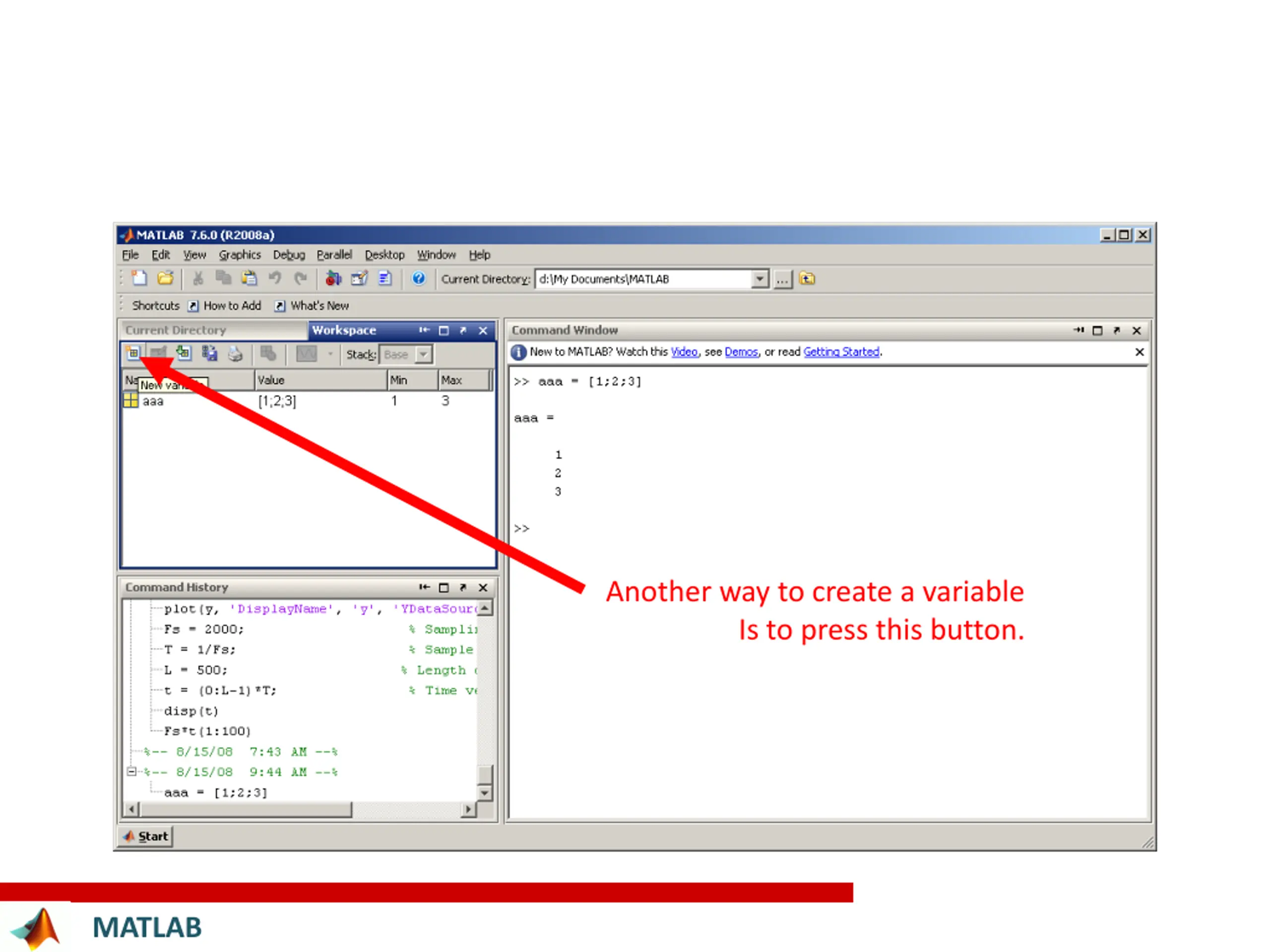

Another way to create a variable Is to press this button. MATLAB

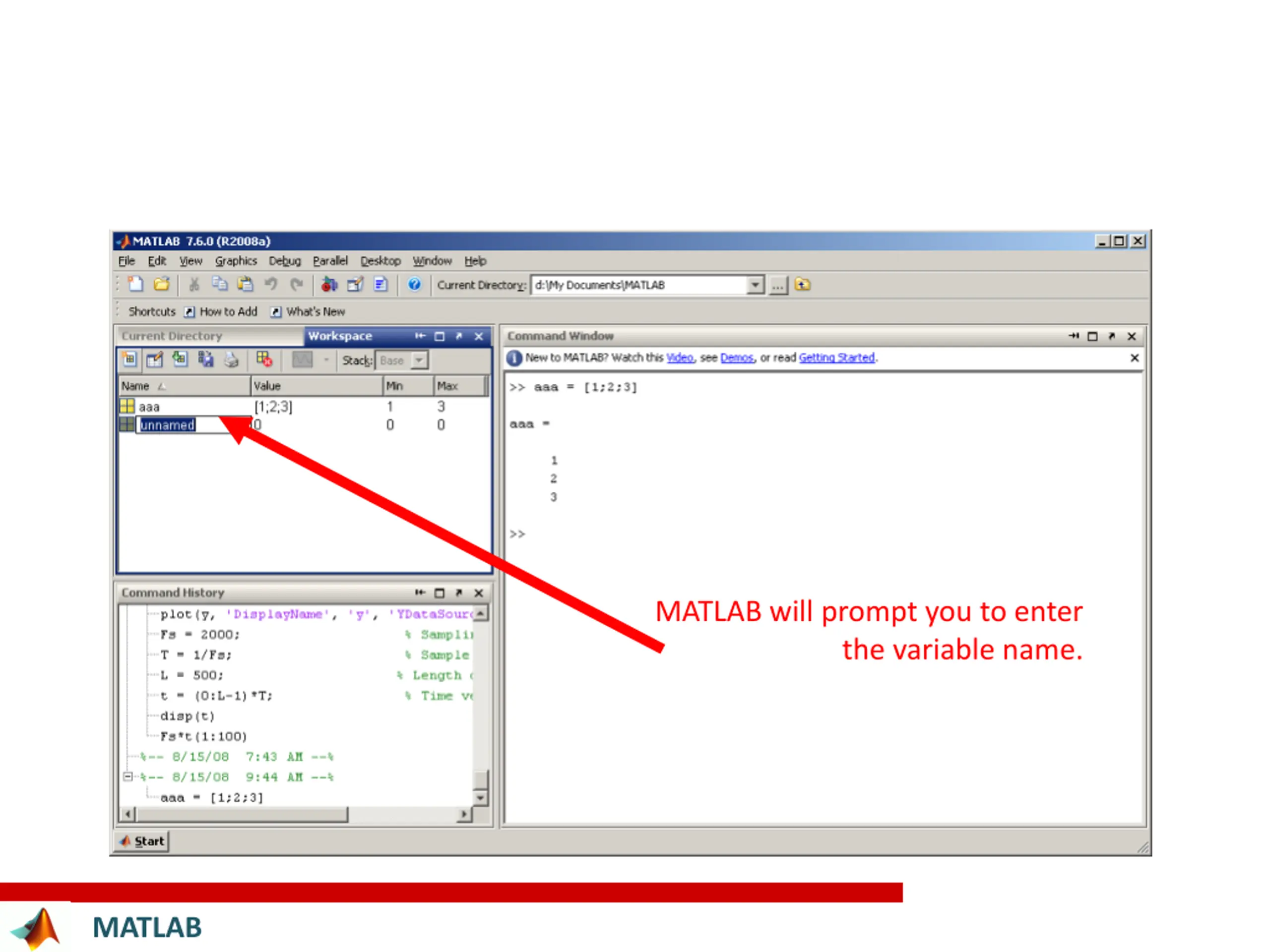

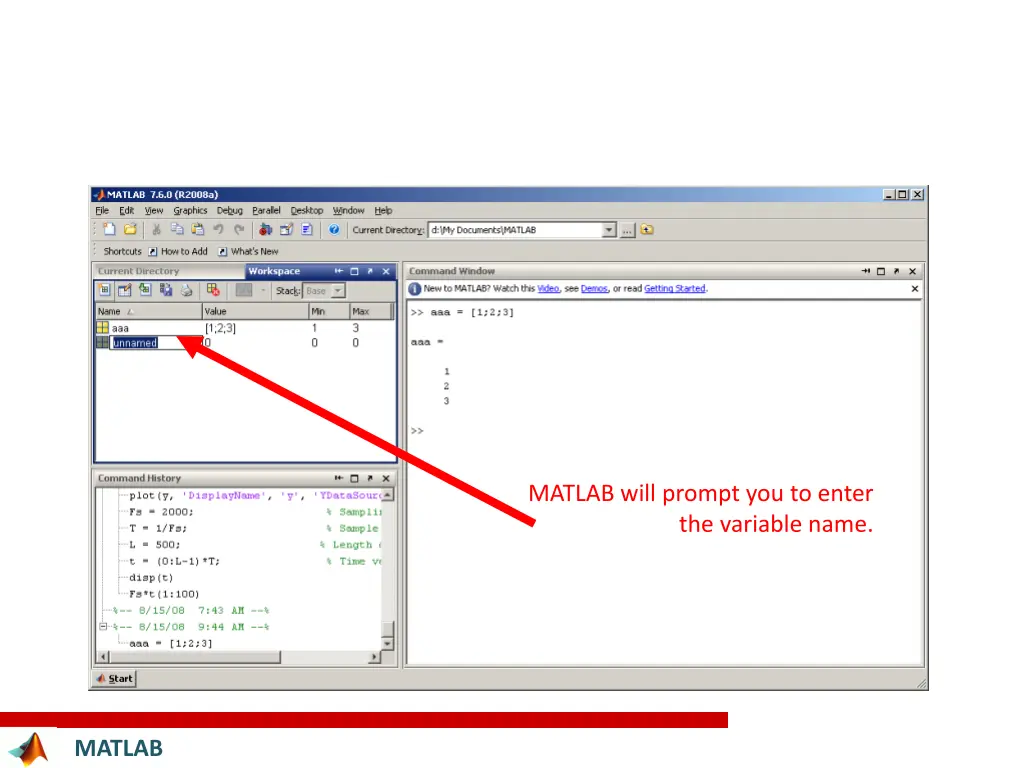

MATLAB will prompt you to enter the variable name. MATLAB

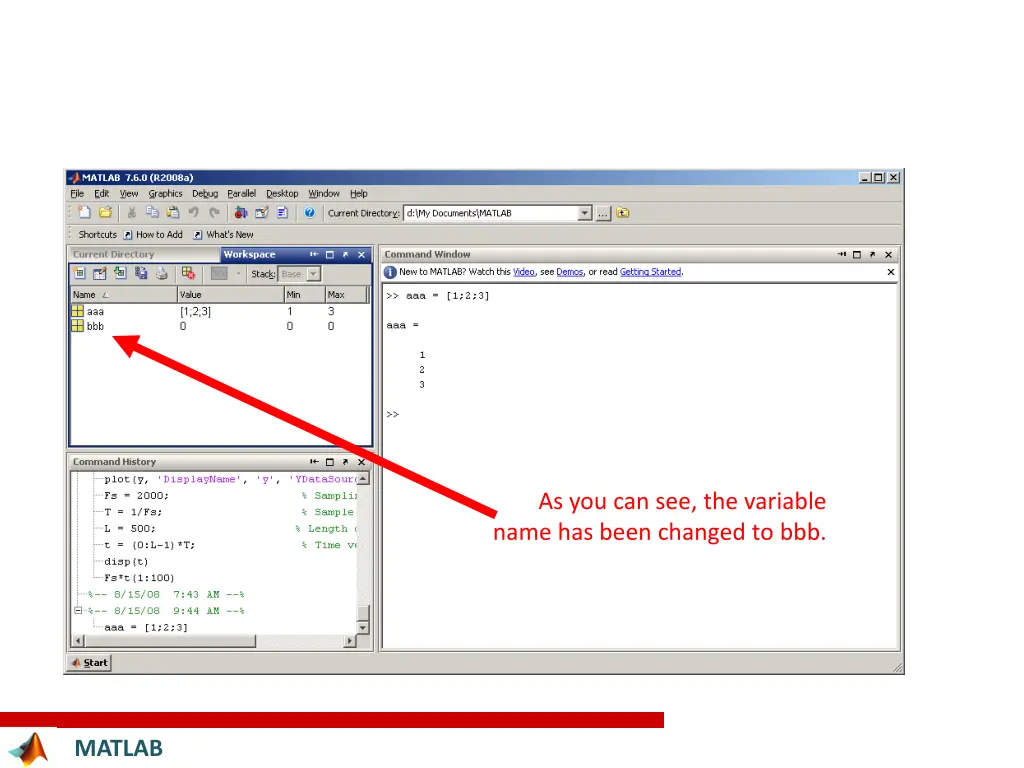

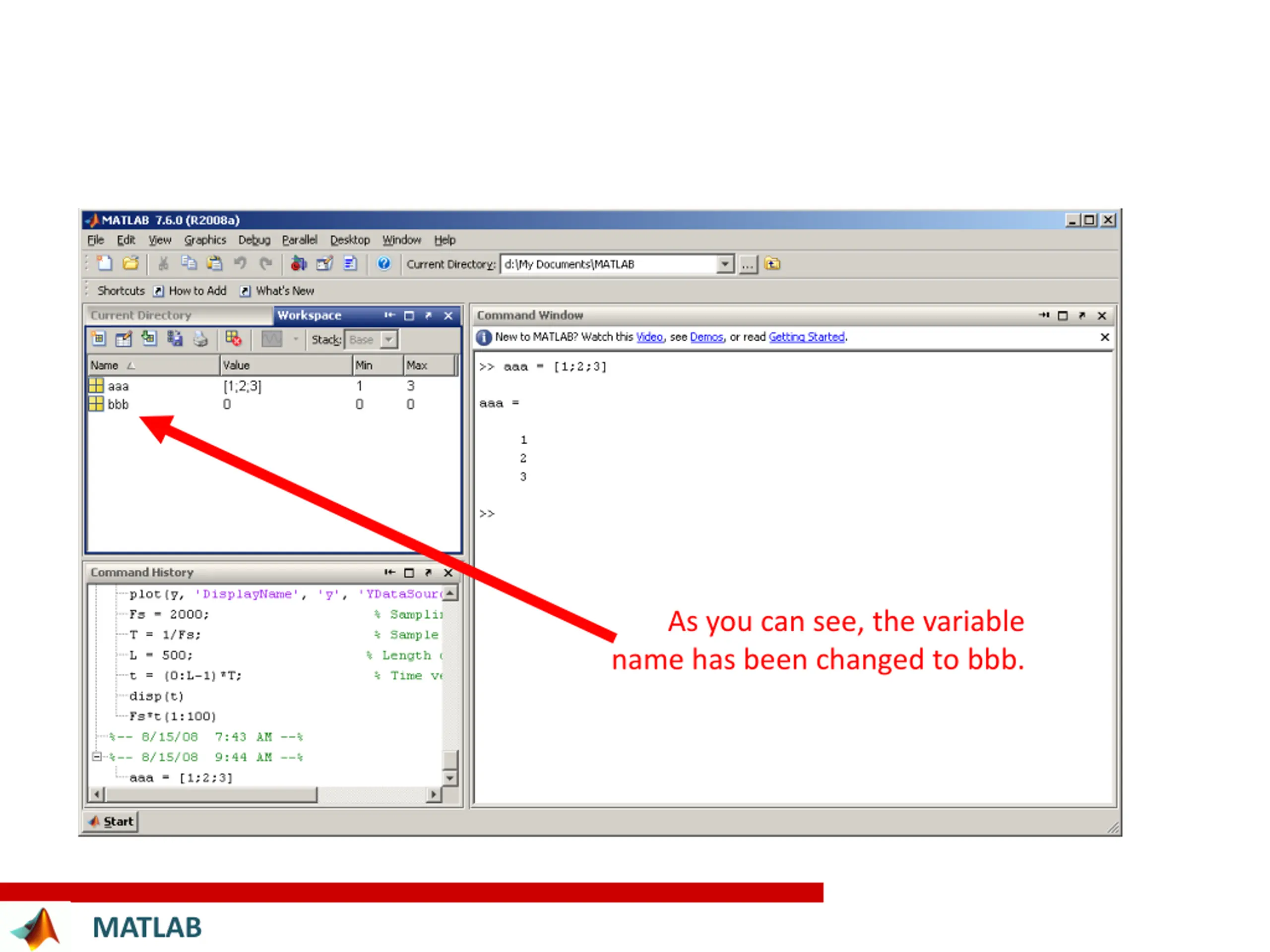

As you can see, the variable name has been changed to bbb. MATLAB

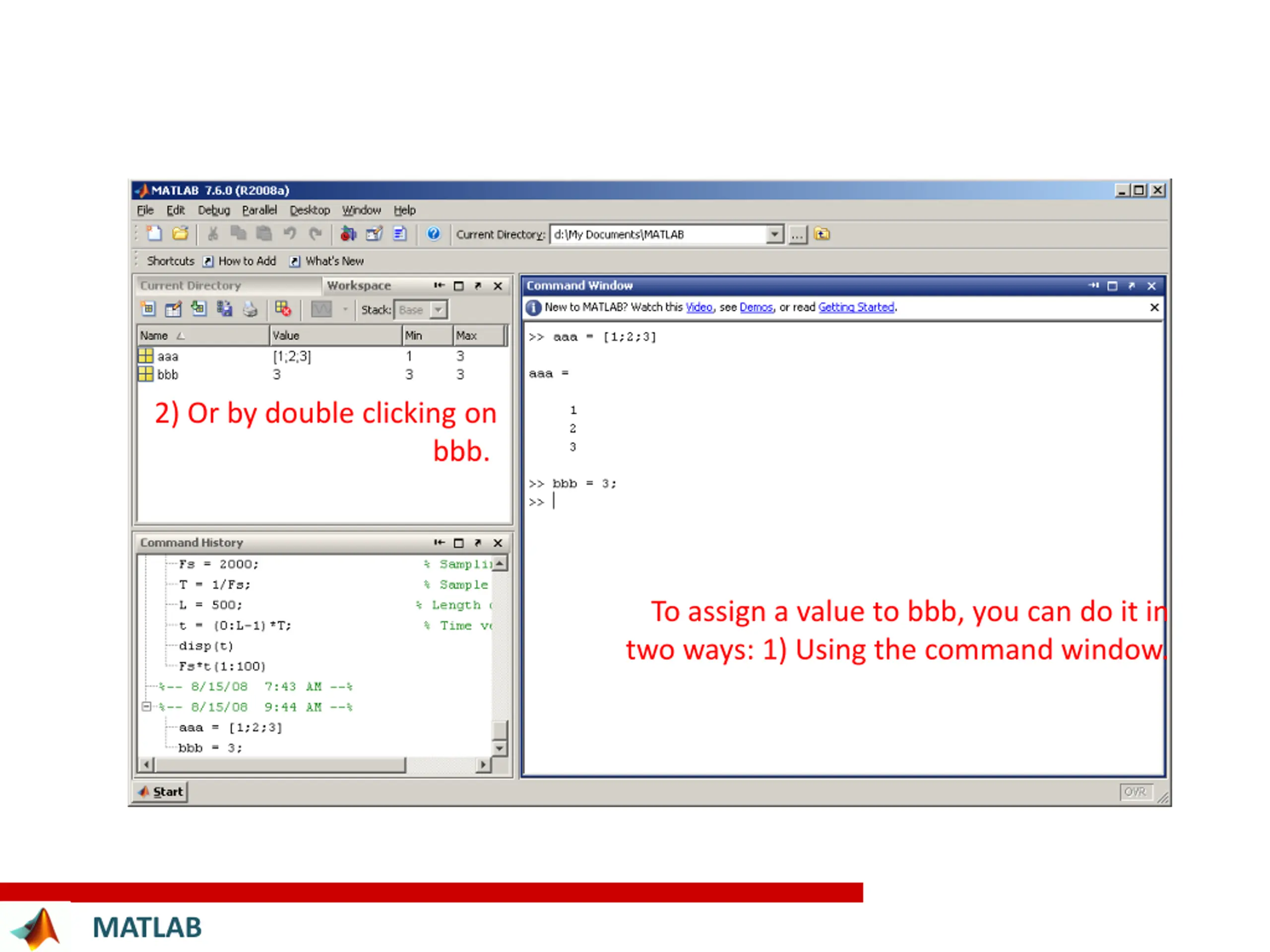

2) Or by double clicking on bbb. To assign a value to bbb, you can do it in two ways: 1) Using the command window. MATLAB

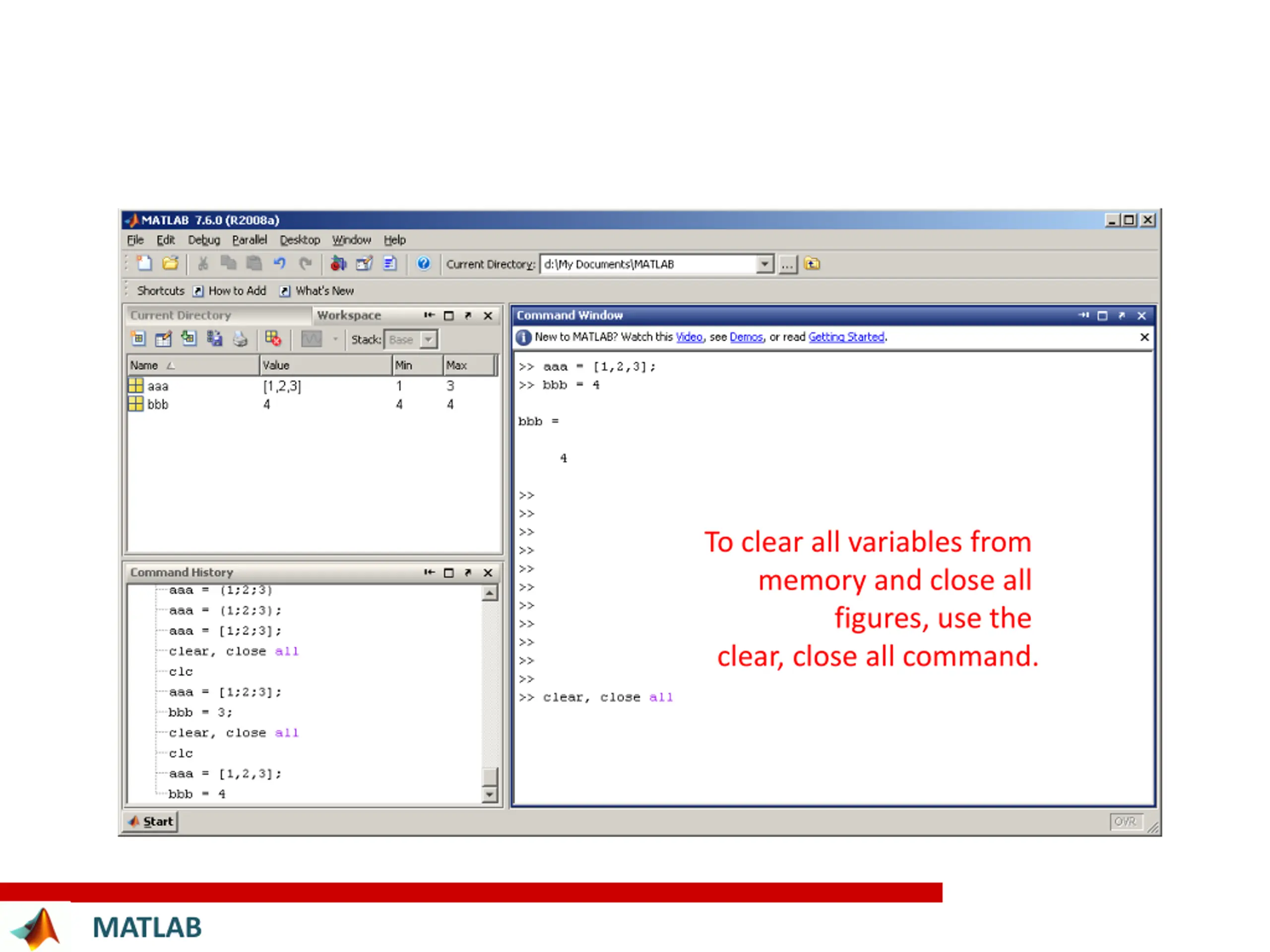

To clear all variables from memory and close all figures, use the clear, close all command. MATLAB

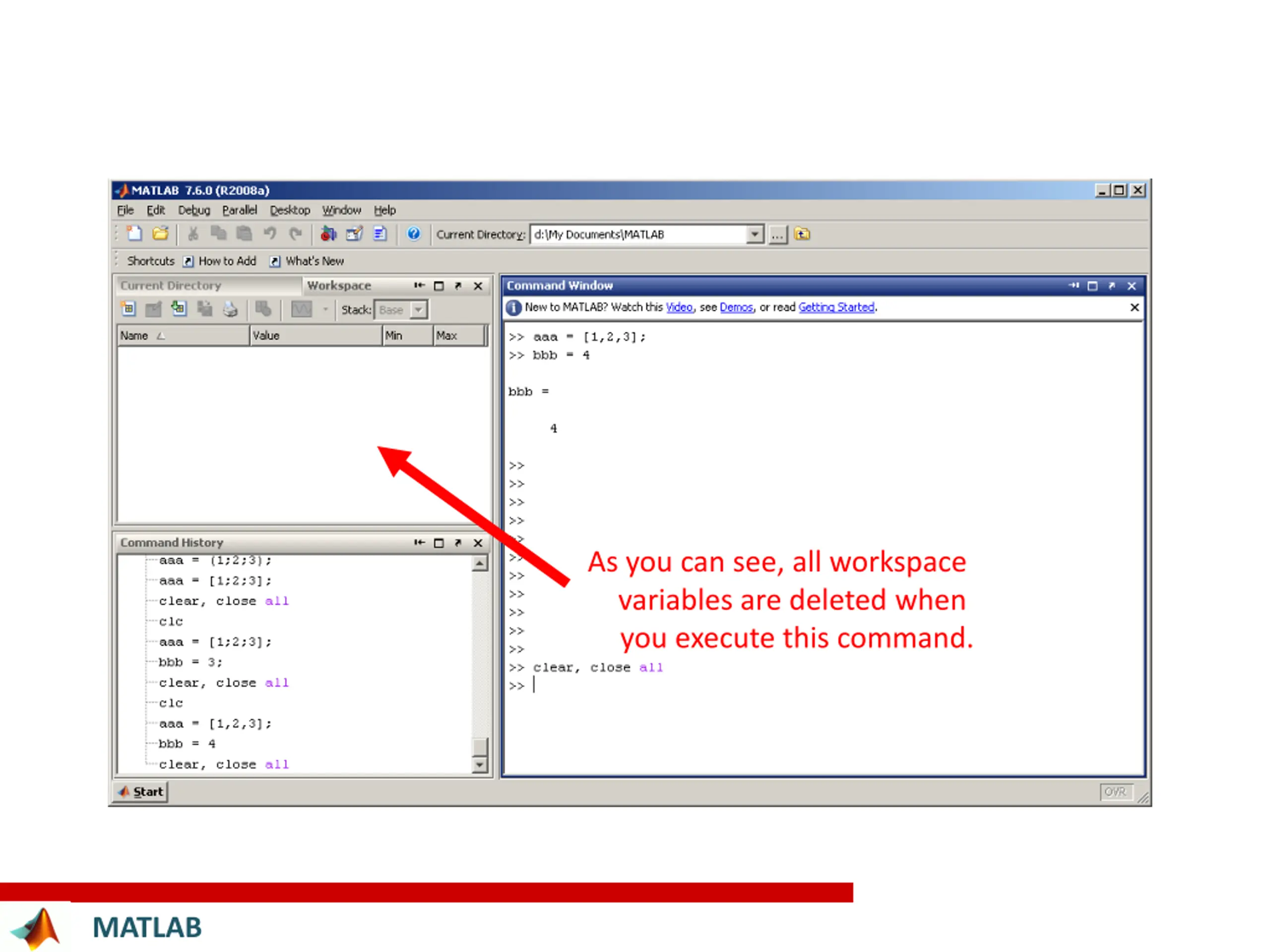

As you can see, all workspace variables are deleted when you execute this command. MATLAB

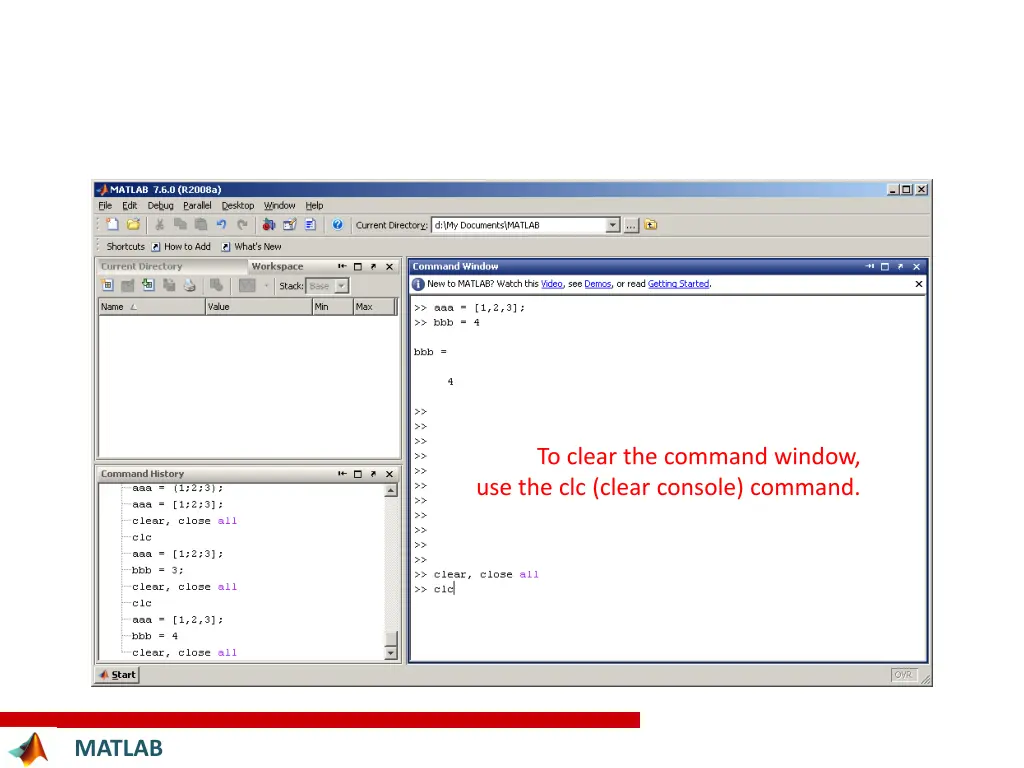

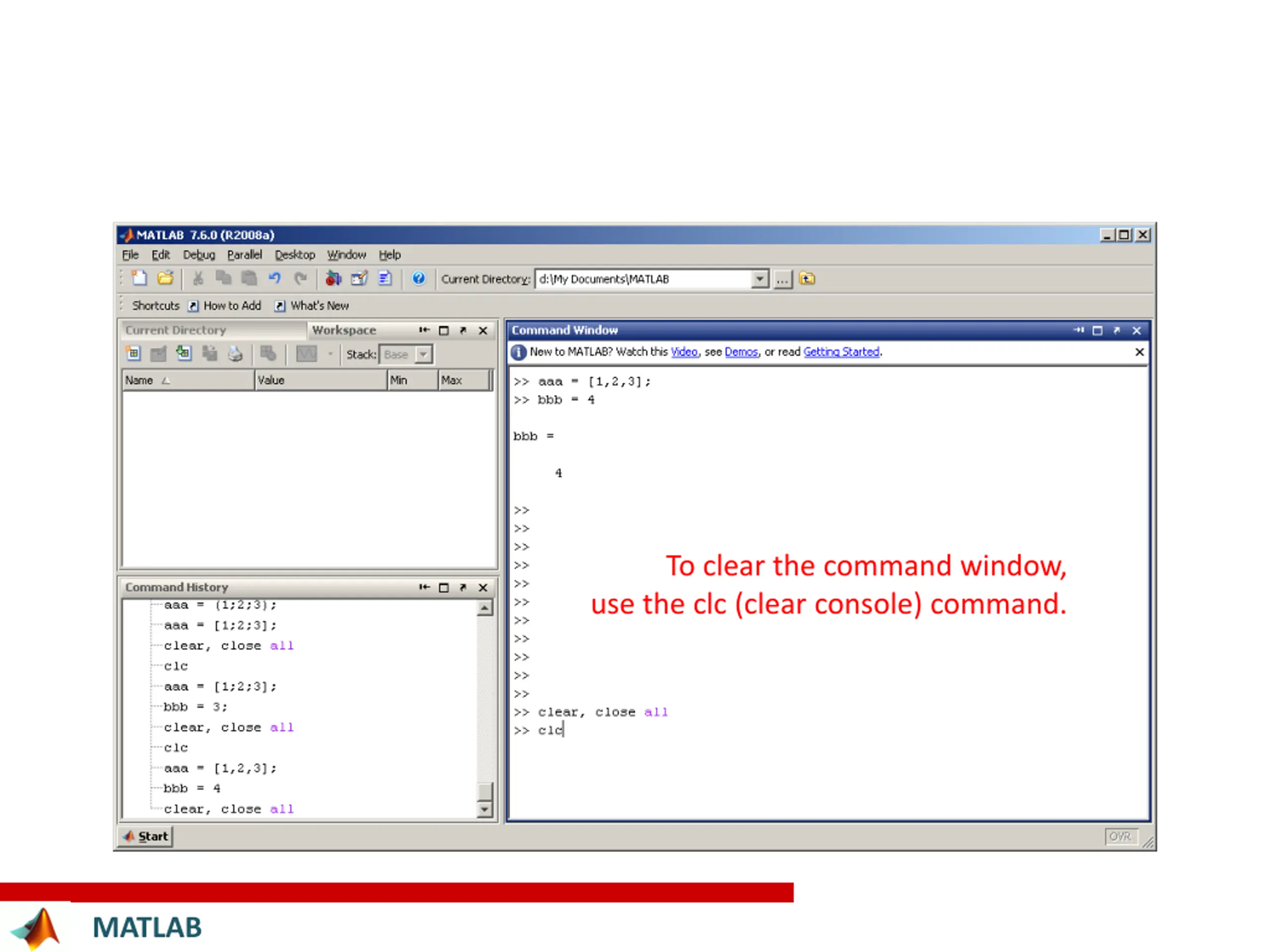

To clear the command window, use the clc (clear console) command. MATLAB

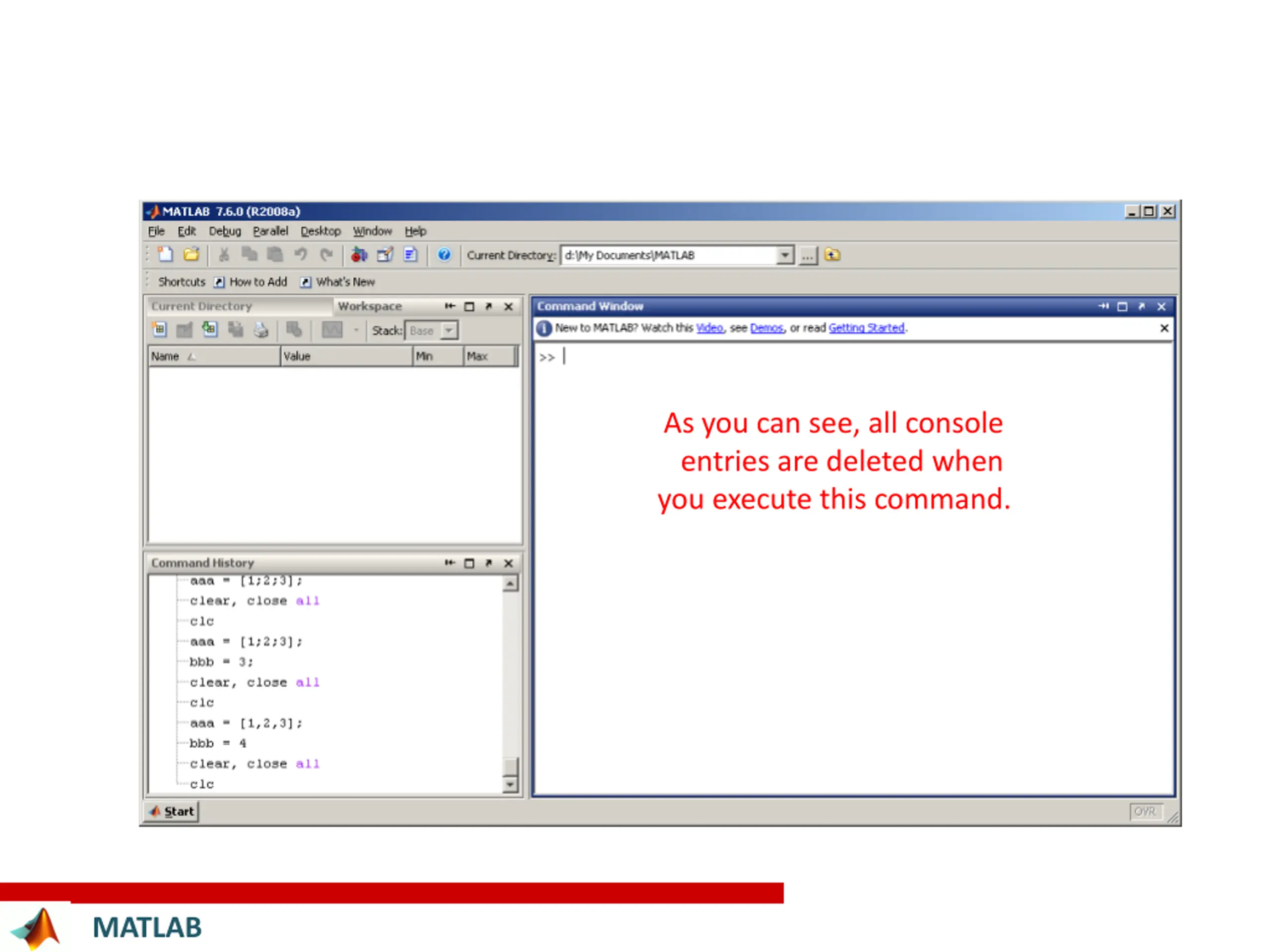

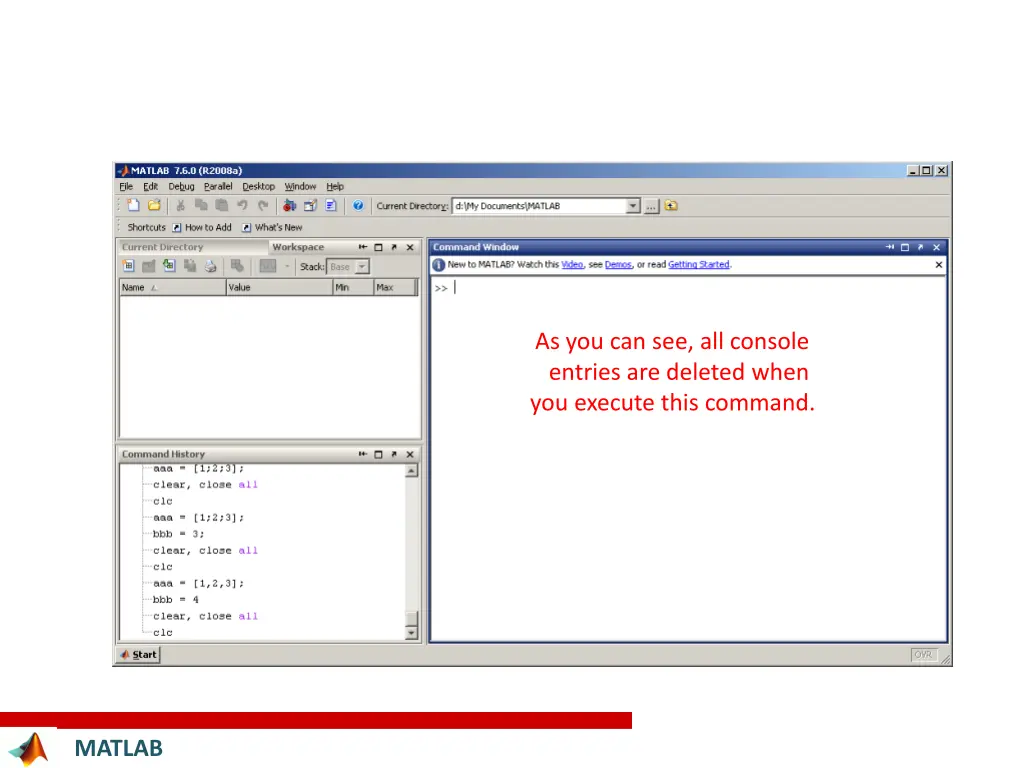

As you can see, all console entries are deleted when you execute this command. MATLAB

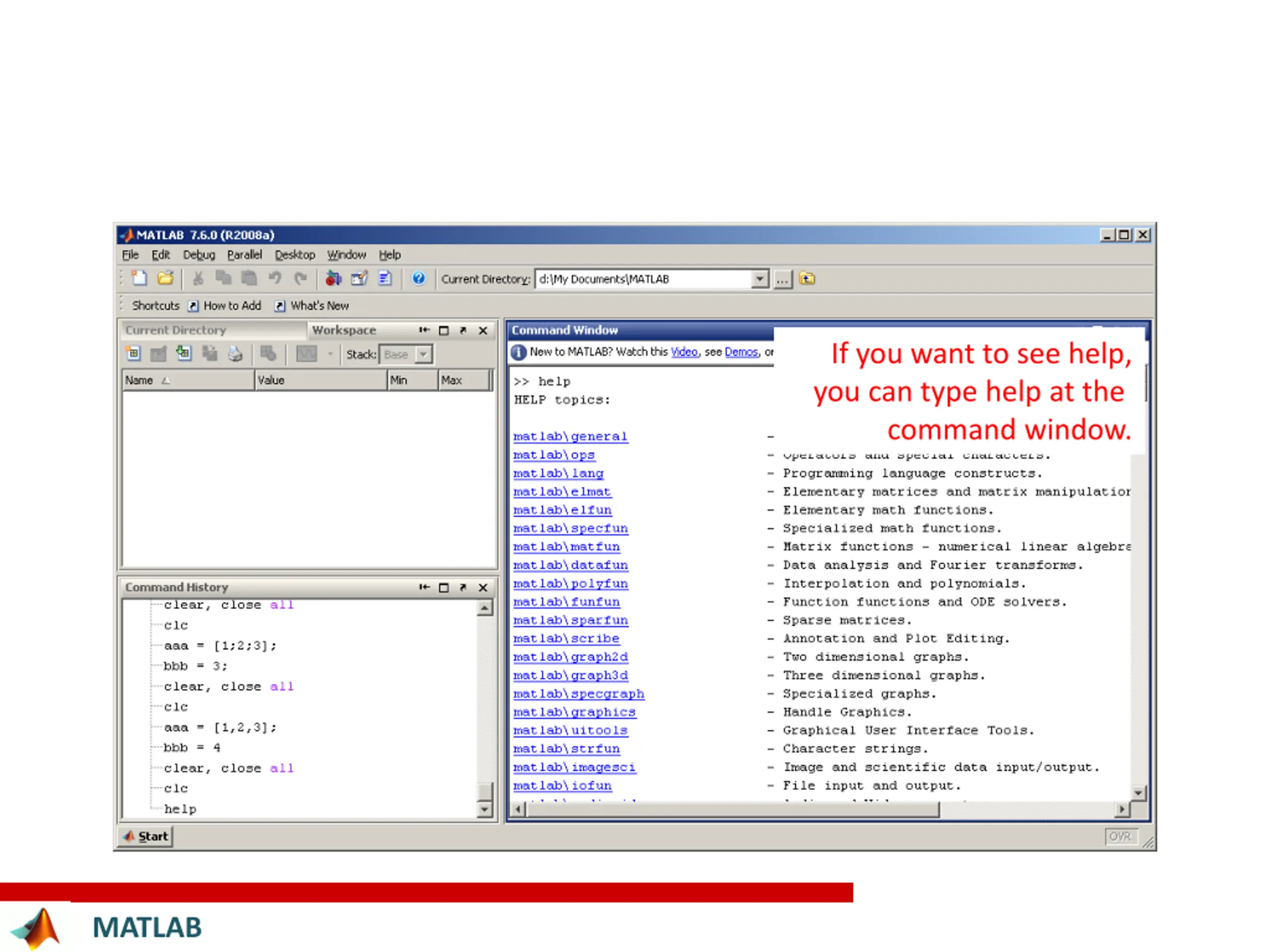

If you want to see help, you can type help at the command window. MATLAB

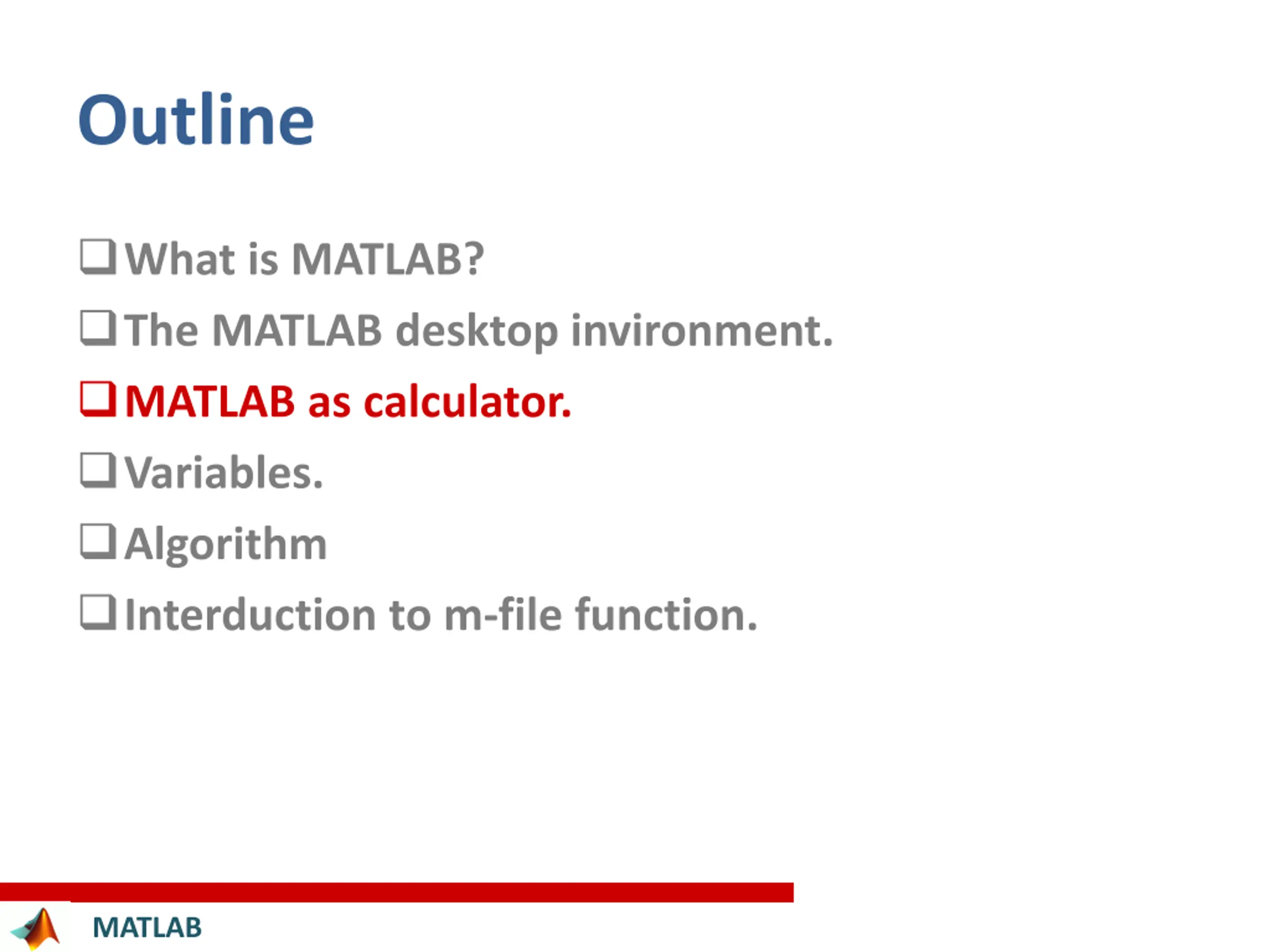

Outline What is MATLAB? The MATLAB desktop invironment. MATLAB as calculator. Variables. Algorithm Interduction to m-file function. MATLAB

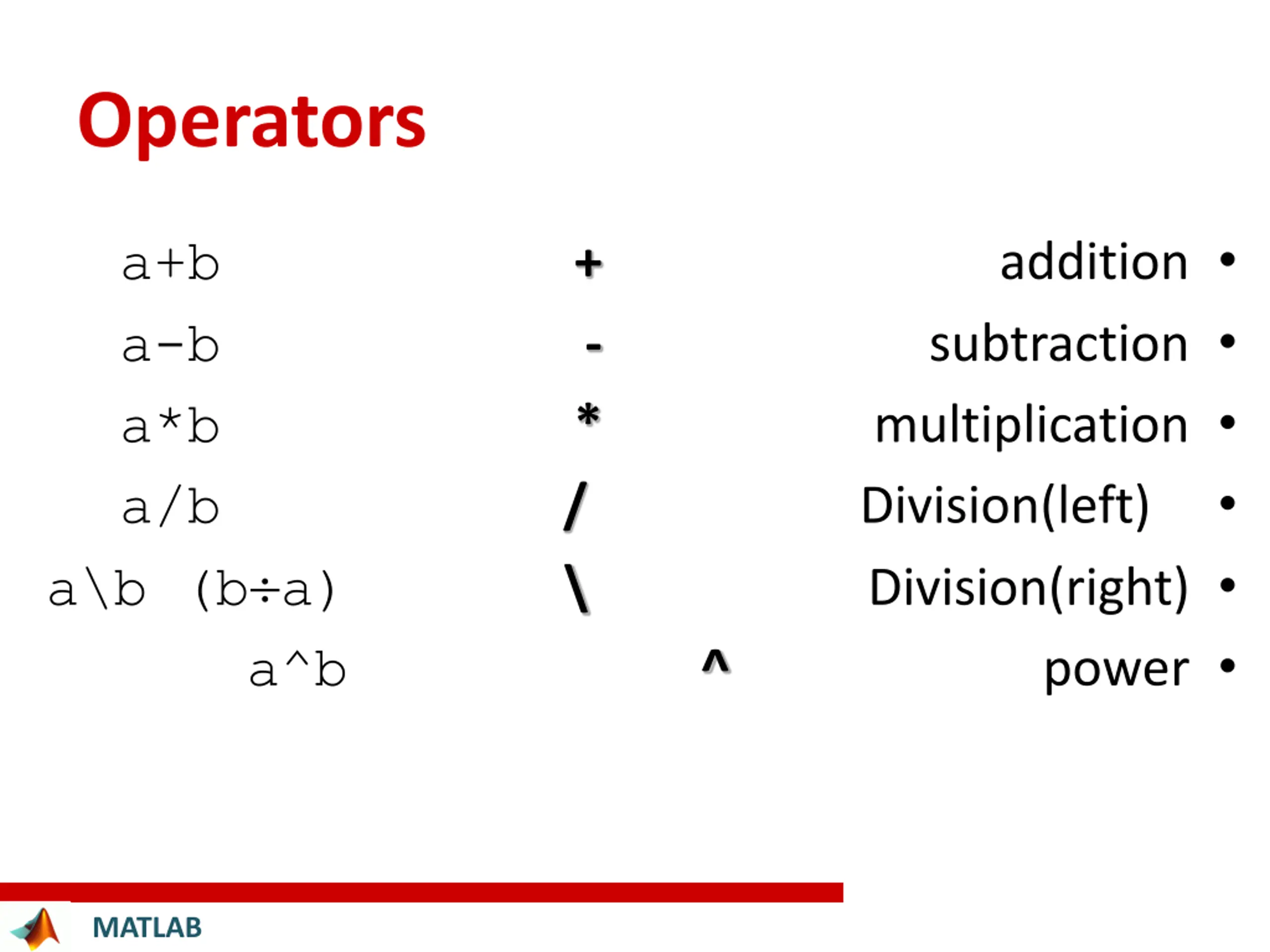

Operators a+b a-b a*b a/b + - * / \ ^ addition subtraction multiplication Division(left) Division(right) a\b (b a) a^b power MATLAB

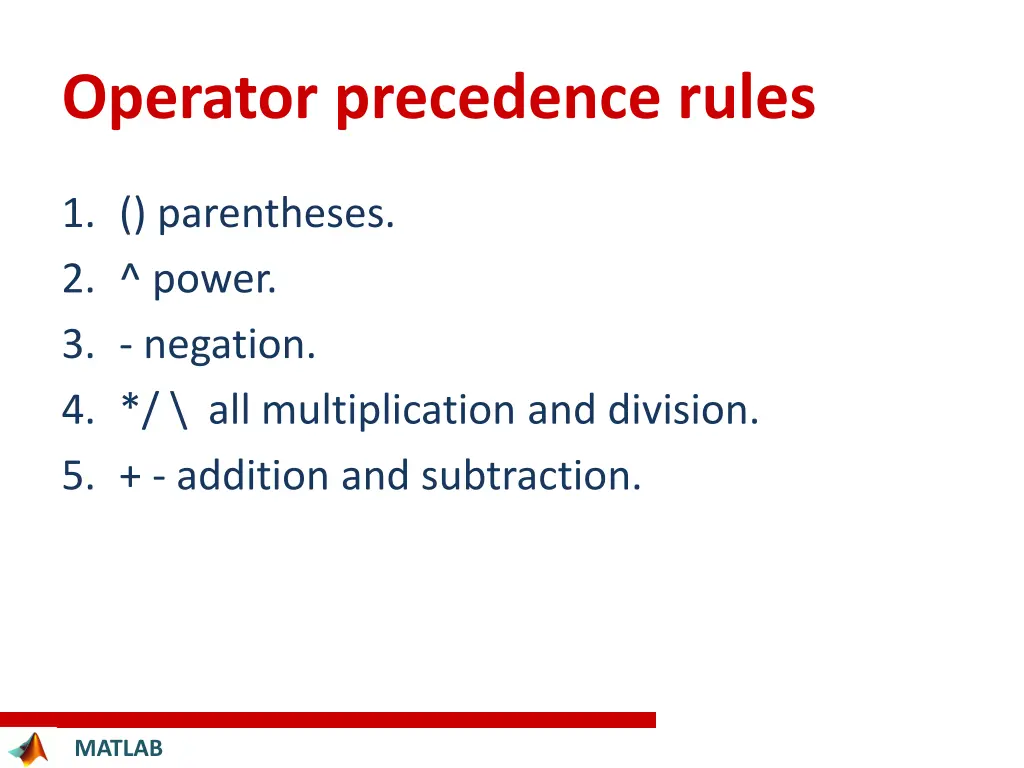

Operator precedence rules 1. () parentheses. 2. ^ power. 3. - negation. 4. */ \ all multiplication and division. 5. + - addition and subtraction. MATLAB

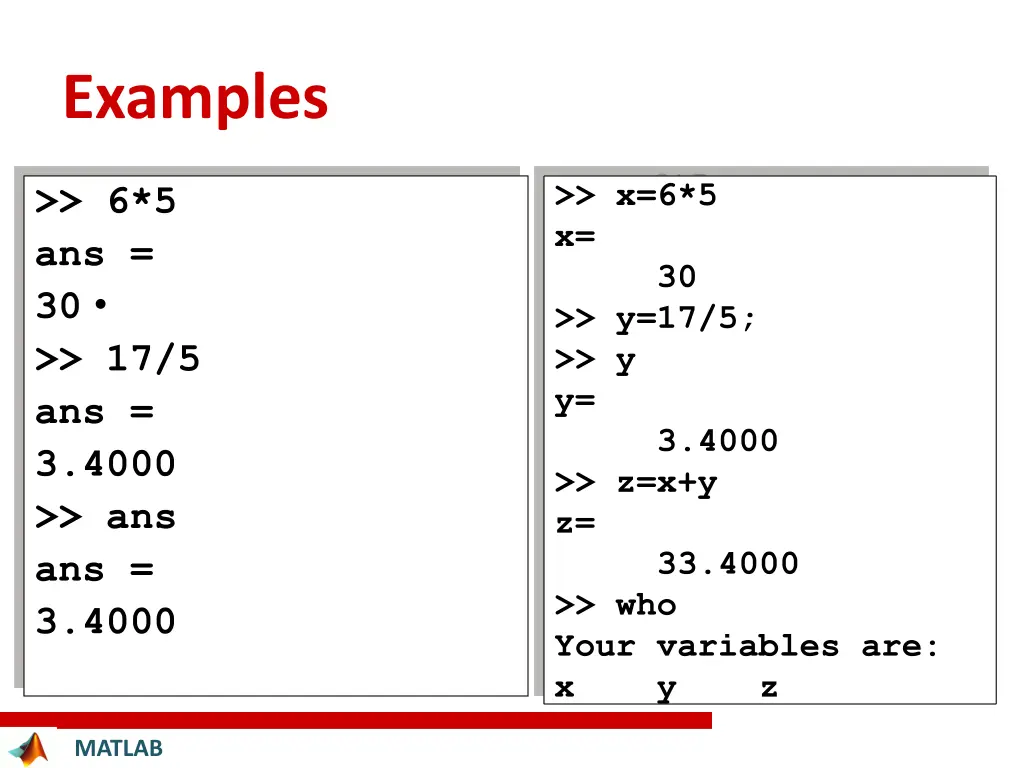

Examples >> x=6*5 x= >> 6*5 ans = 30 >> 17/5 ans = 3.4000 >> ans ans = 3.4000 30 >> y=17/5; >> y y= 3.4000 >> z=x+y z= 33.4000 >> who Your variables are: x y z MATLAB

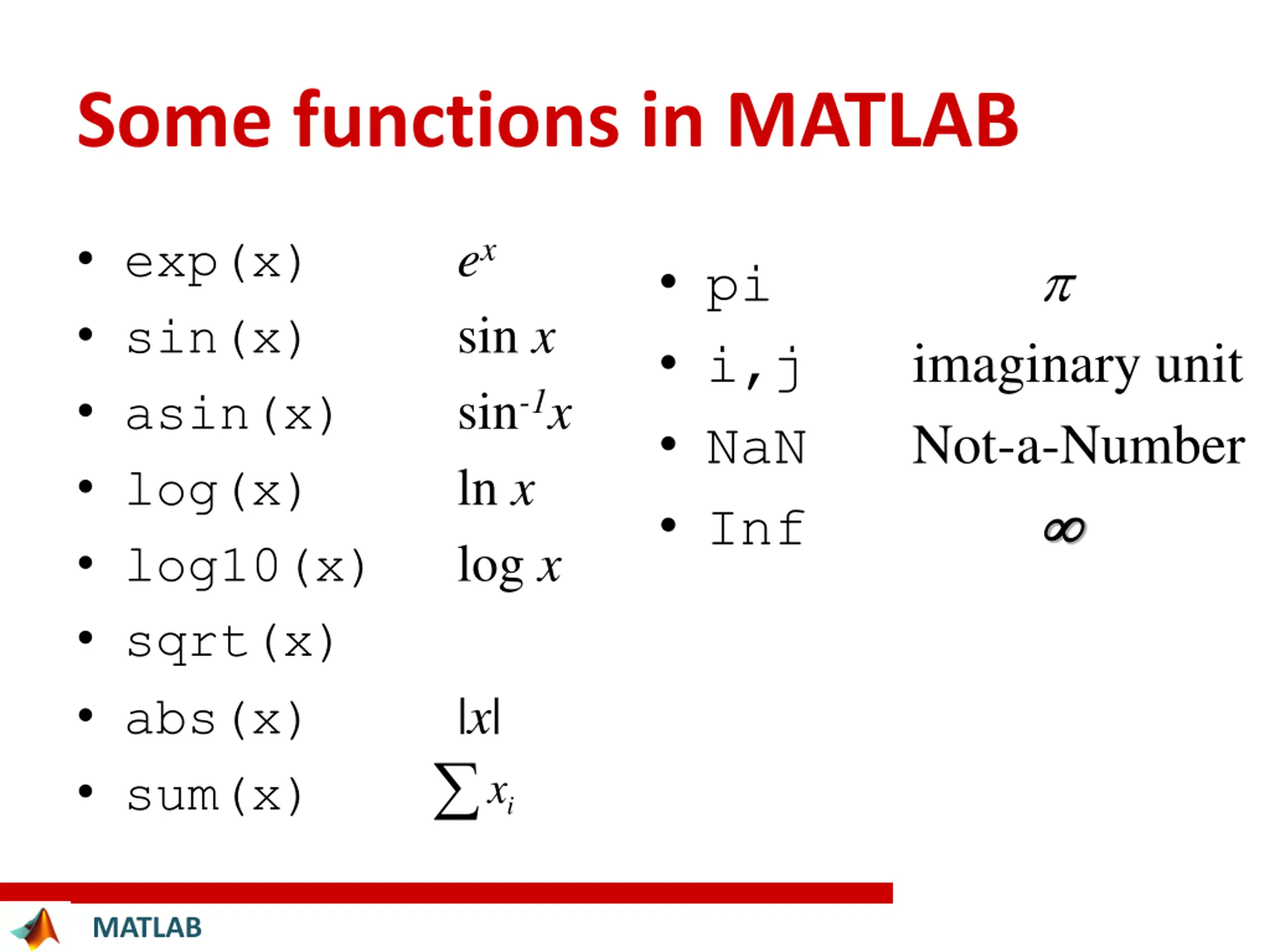

Some functions in MATLAB exp(x) sin(x) asin(x) log(x) log10(x) sqrt(x) abs(x) sum(x) ex sin x sin-1x ln x log x pi i,j NaN Inf imaginary unit Not-a-Number |x| ix MATLAB

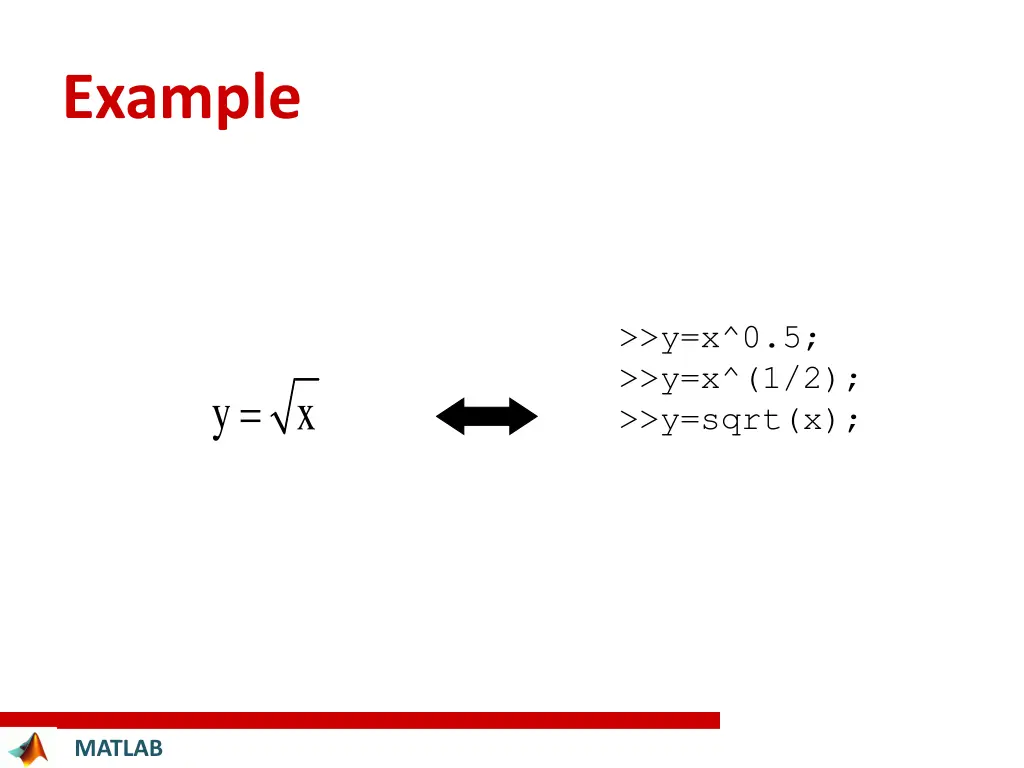

Example >>y=x^0.5; >>y=x^(1/2); >>y=sqrt(x); = y x MATLAB

Outline What is MATLAB? The MATLAB desktop invironment. MATLAB as calculator. Variables. Algorithm Interduction to m-file . MATLAB

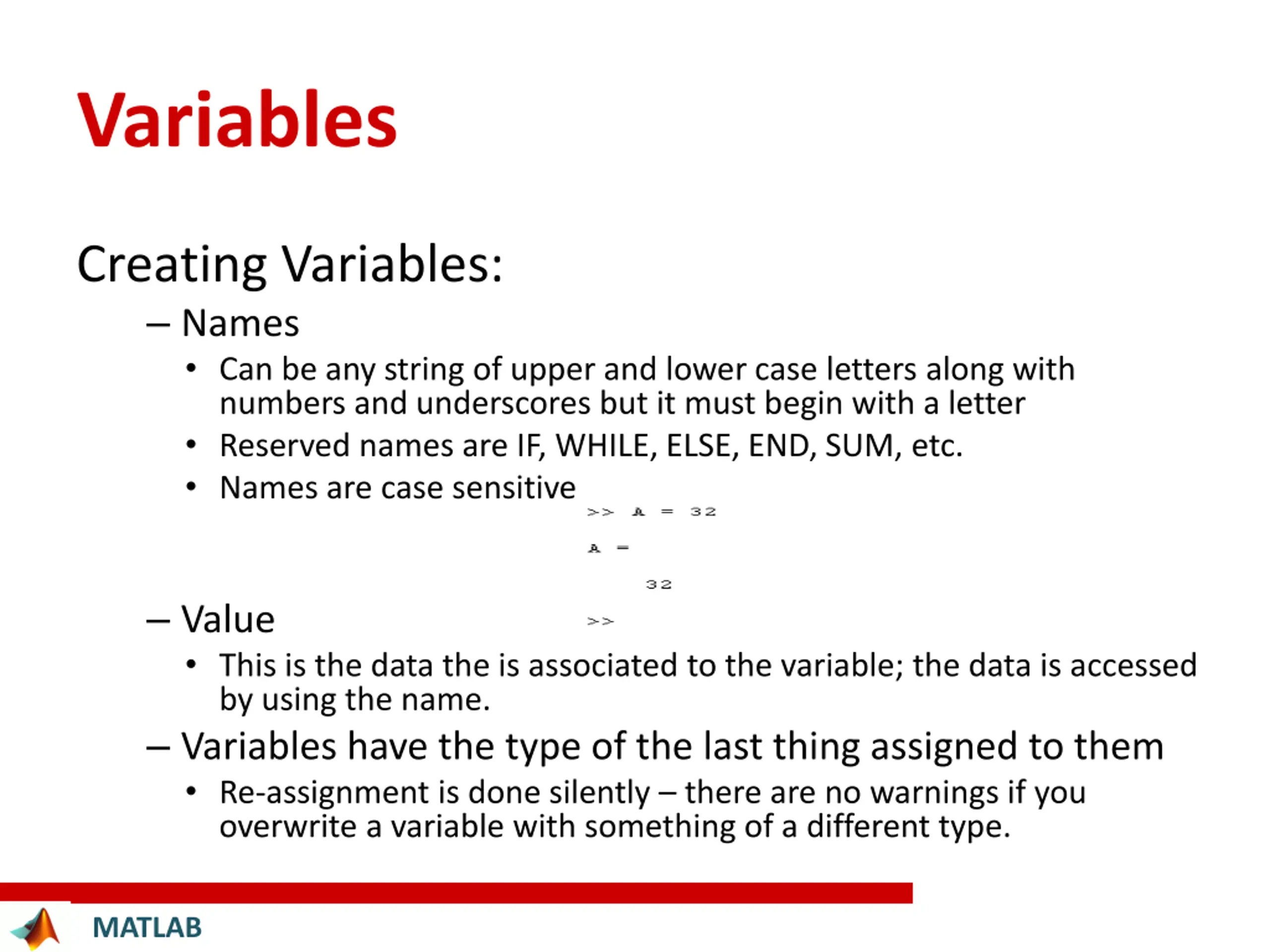

Variables Creating Variables: Names Can be any string of upper and lower case letters along with numbers and underscores but it must begin with a letter Reserved names are IF, WHILE, ELSE, END, SUM, etc. Names are case sensitive Value This is the data the is associated to the variable; the data is accessed by using the name. Variables have the type of the last thing assigned to them Re-assignment is done silently there are no warnings if you overwrite a variable with something of a different type. MATLAB
