Lecture Participation Poll #7 Log onto pollev.com/cse374 Or Text CSE374 to 22333 Lecture 7: Intro to C Programming CSE 374: Intermediate Programming Concepts and Tools 1

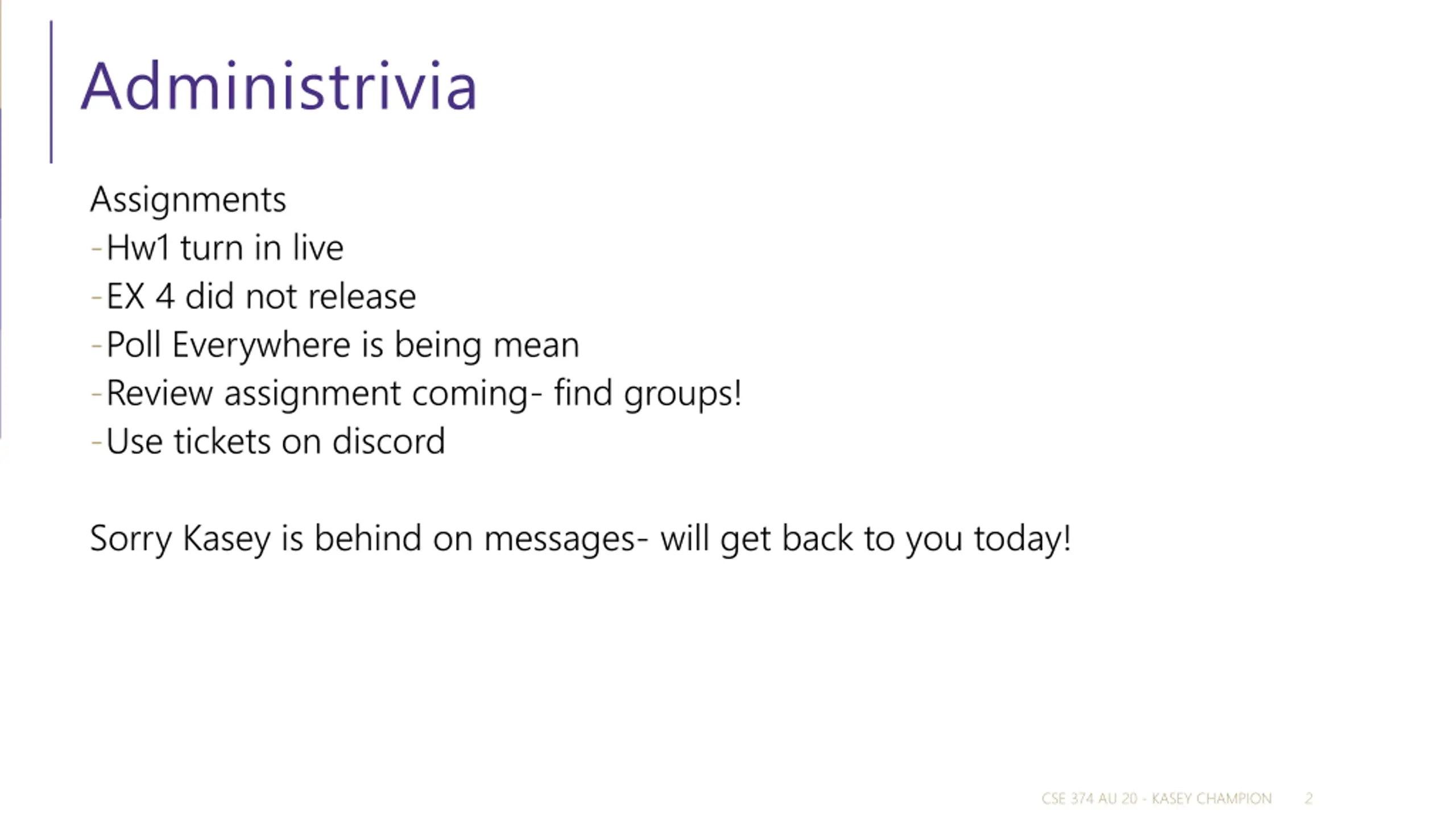

Administrivia Assignments -Hw1 turn in live -EX 4 did not release -Poll Everywhere is being mean -Review assignment coming- find groups! -Use tickets on discord Sorry Kasey is behind on messages- will get back to you today! CSE 374 AU 20 - KASEY CHAMPION 2

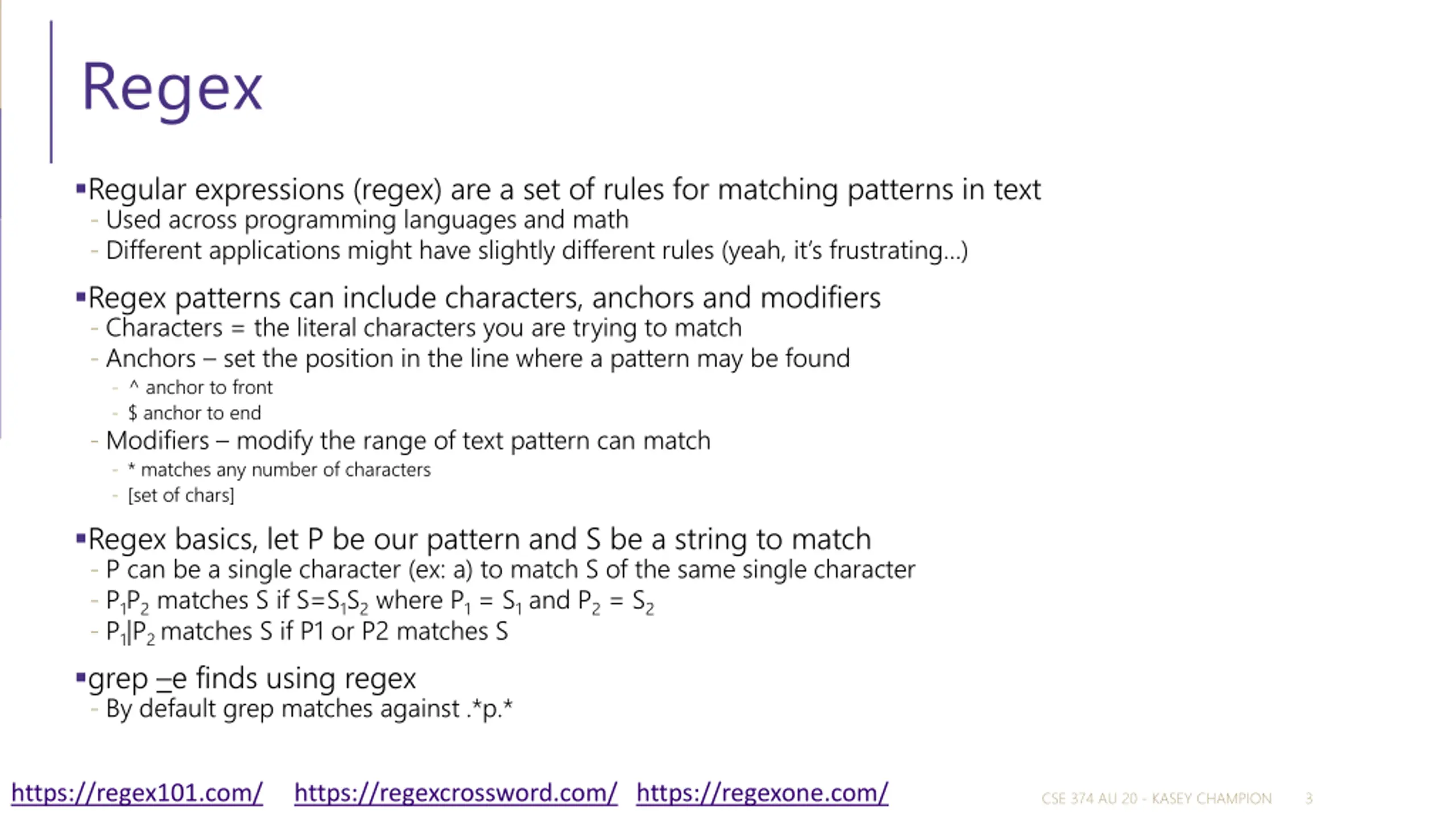

Regex Regular expressions (regex) are a set of rules for matching patterns in text - Used across programming languages and math - Different applications might have slightly different rules (yeah, it s frustrating ) Regex patterns can include characters, anchors and modifiers - Characters = the literal characters you are trying to match - Anchors set the position in the line where a pattern may be found - ^ anchor to front - $ anchor to end - Modifiers modify the range of text pattern can match - * matches any number of characters - [set of chars] Regex basics, let P be our pattern and S be a string to match - P can be a single character (ex: a) to match S of the same single character - P1P2 matches S if S=S1S2 where P1 = S1 and P2 = S2 - P1|P2 matches S if P1 or P2 matches S grep e finds using regex - By default grep matches against .*p.* https://regex101.com/ https://regexcrossword.com/ https://regexone.com/ CSE 374 AU 20 - KASEY CHAMPION 3

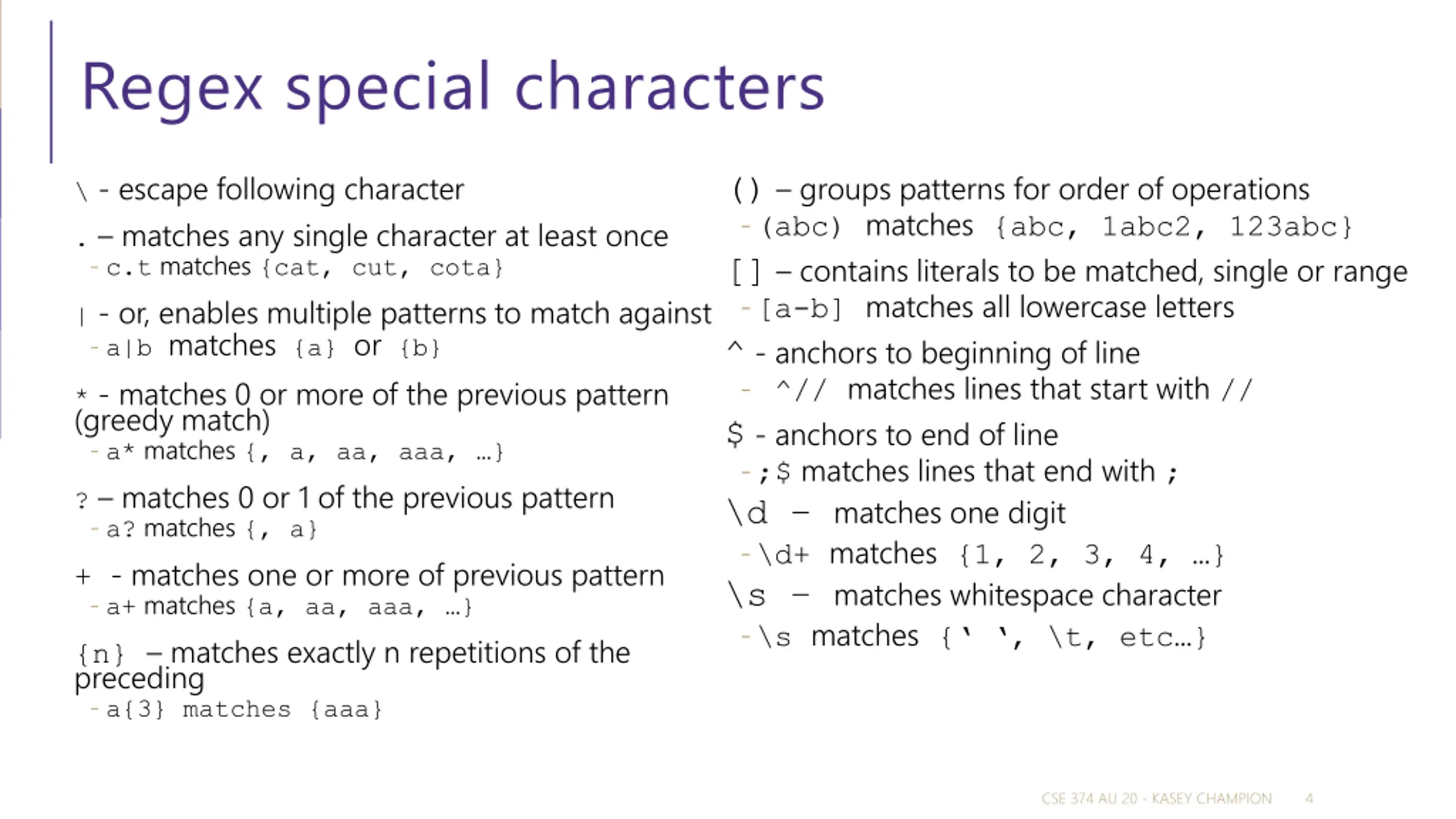

Regex special characters () groups patterns for order of operations -(abc) matches {abc, 1abc2, 123abc} [] contains literals to be matched, single or range -[a-b] matches all lowercase letters ^- anchors to beginning of line - ^// matches lines that start with // $- anchors to end of line -;$ matches lines that end with ; \d matches one digit -\d+ matches{1, 2, 3, 4, } \s matches whitespace character -\s matches{ , \t, etc } \ - escape following character . matches any single character at least once - c.t matches {cat, cut, cota} | - or, enables multiple patterns to match against - a|b matches {a} or {b} * - matches 0 or more of the previous pattern (greedy match) - a* matches {, a, aa, aaa, } ? matches 0 or 1 of the previous pattern - a? matches {, a} + - matches one or more of previous pattern - a+ matches {a, aa, aaa, } {n} matches exactly n repetitions of the preceding - a{3} matches {aaa} CSE 374 AU 20 - KASEY CHAMPION 4

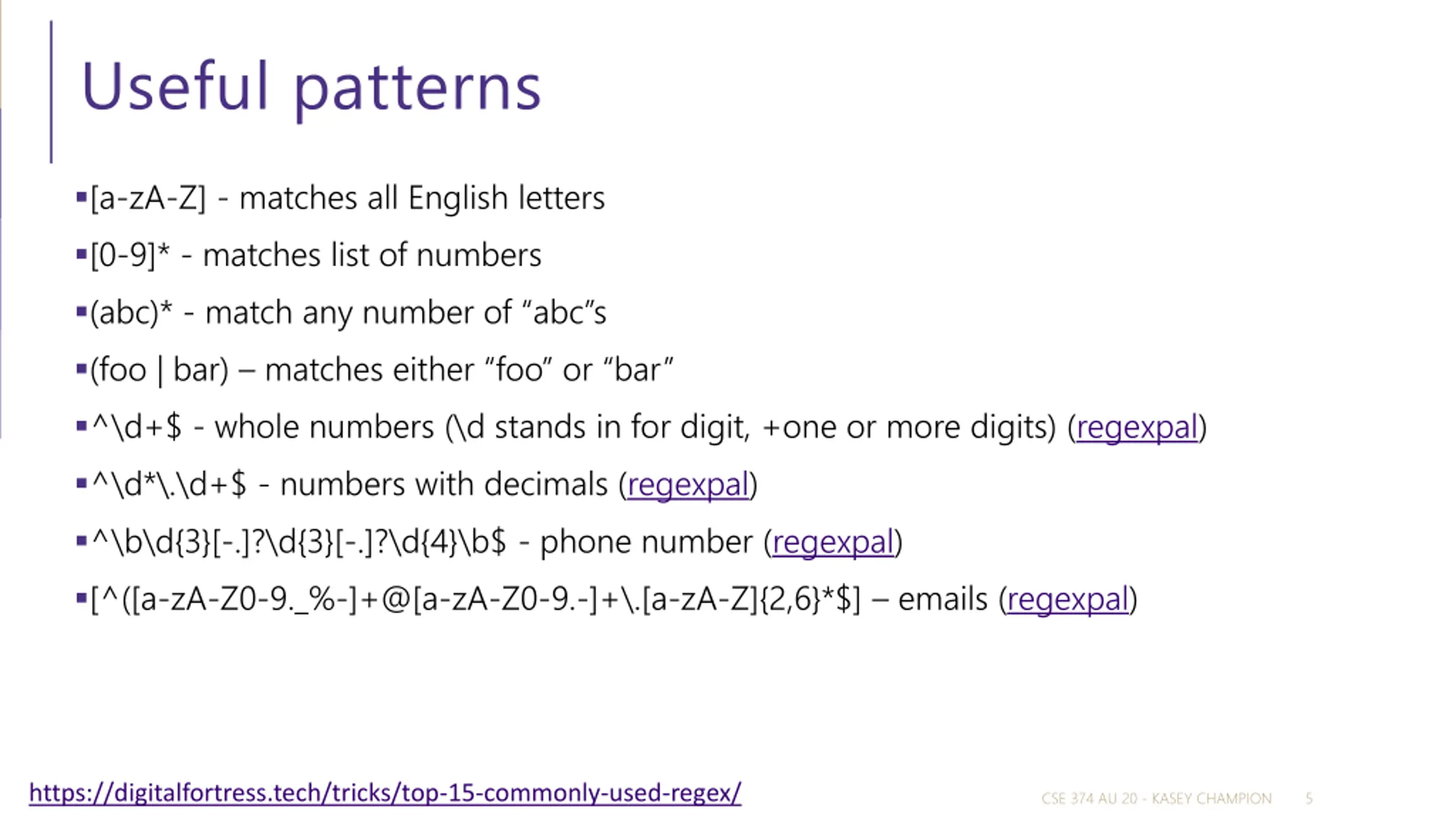

Useful patterns [a-zA-Z] - matches all English letters [0-9]* - matches list of numbers (abc)* - match any number of abc s (foo | bar) matches either foo or bar ^\d+$ - whole numbers (\d stands in for digit, +one or more digits) (regexpal) ^\d*\.\d+$ - numbers with decimals (regexpal) ^\b\d{3}[-.]?\d{3}[-.]?\d{4}\b$ - phone number (regexpal) [^([a-zA-Z0-9._%-]+@[a-zA-Z0-9.-]+\.[a-zA-Z]{2,6}*$] emails (regexpal) https://digitalfortress.tech/tricks/top-15-commonly-used-regex/ CSE 374 AU 20 - KASEY CHAMPION 5

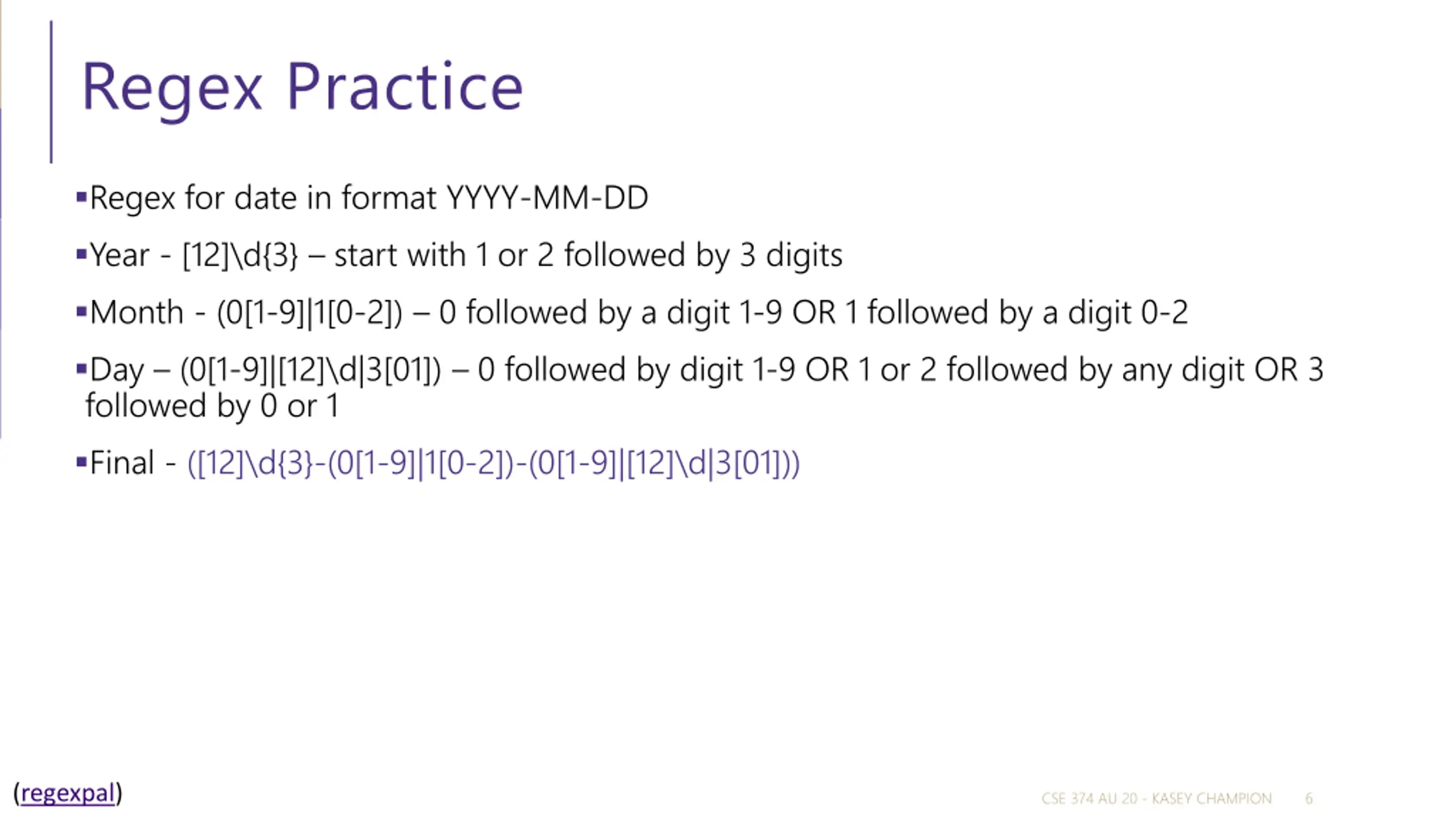

Regex Practice Regex for date in format YYYY-MM-DD Year - [12]\d{3} start with 1 or 2 followed by 3 digits Month - (0[1-9]|1[0-2]) 0 followed by a digit 1-9 OR 1 followed by a digit 0-2 Day (0[1-9]|[12]\d|3[01]) 0 followed by digit 1-9 OR 1 or 2 followed by any digit OR 3 followed by 0 or 1 Final - ([12]\d{3}-(0[1-9]|1[0-2])-(0[1-9]|[12]\d|3[01])) (regexpal) CSE 374 AU 20 - KASEY CHAMPION 6

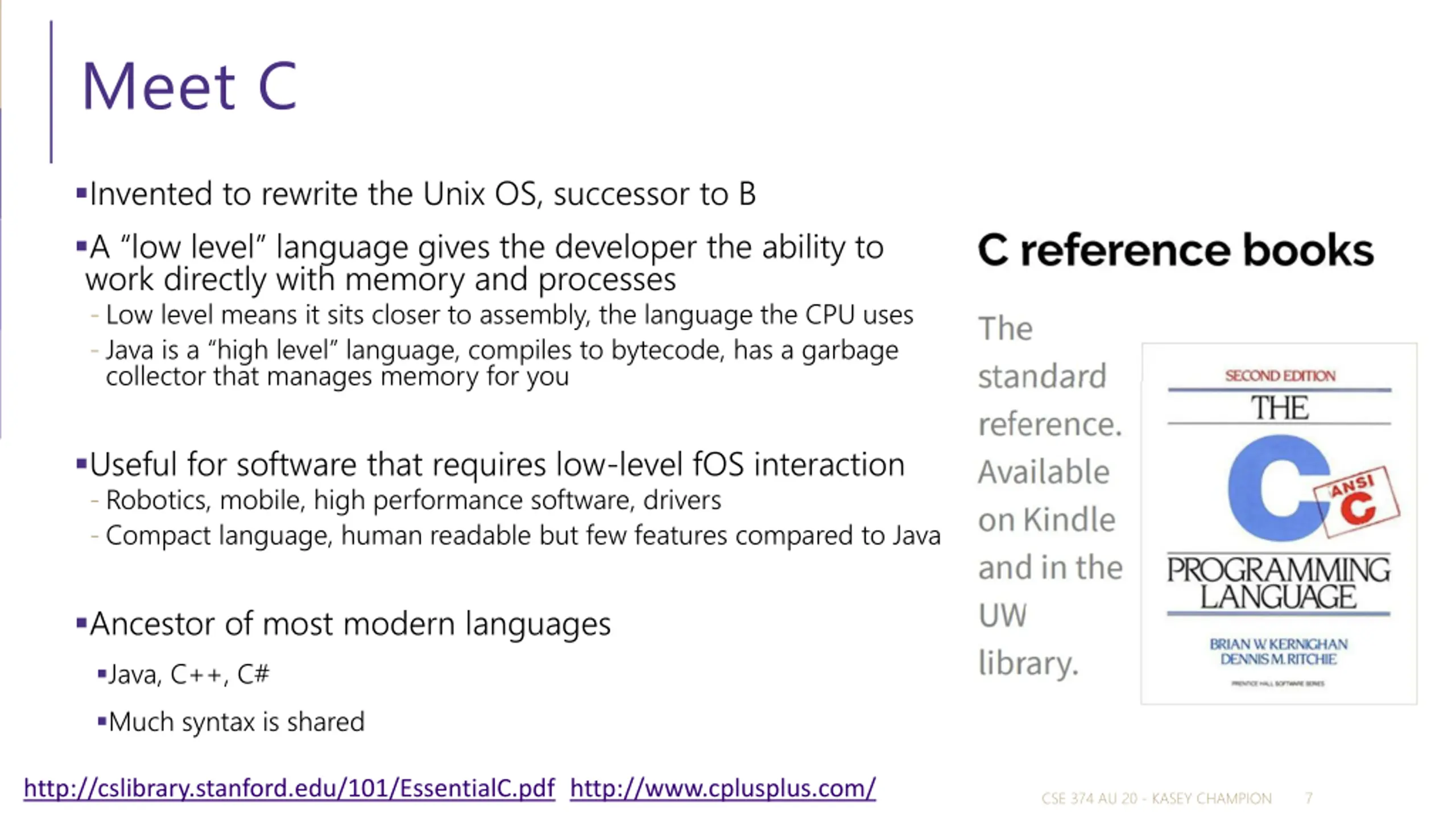

Meet C Invented to rewrite the Unix OS, successor to B A low level language gives the developer the ability to work directly with memory and processes - Low level means it sits closer to assembly, the language the CPU uses - Java is a high level language, compiles to bytecode, has a garbage collector that manages memory for you Useful for software that requires low-level fOS interaction - Robotics, mobile, high performance software, drivers - Compact language, human readable but few features compared to Java Ancestor of most modern languages Java, C++, C# Much syntax is shared http://cslibrary.stanford.edu/101/EssentialC.pdf http://www.cplusplus.com/ CSE 374 AU 20 - KASEY CHAMPION 7

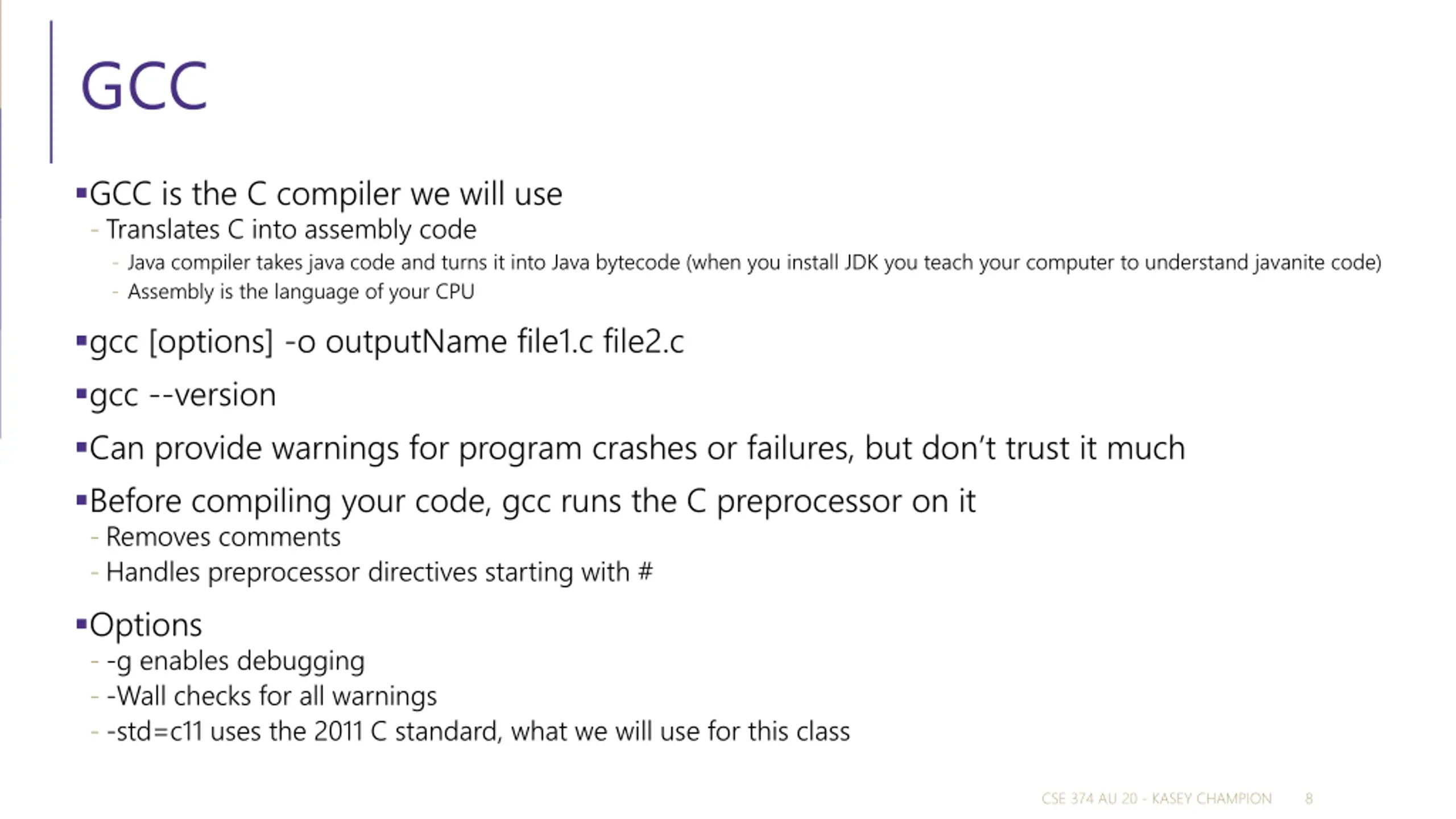

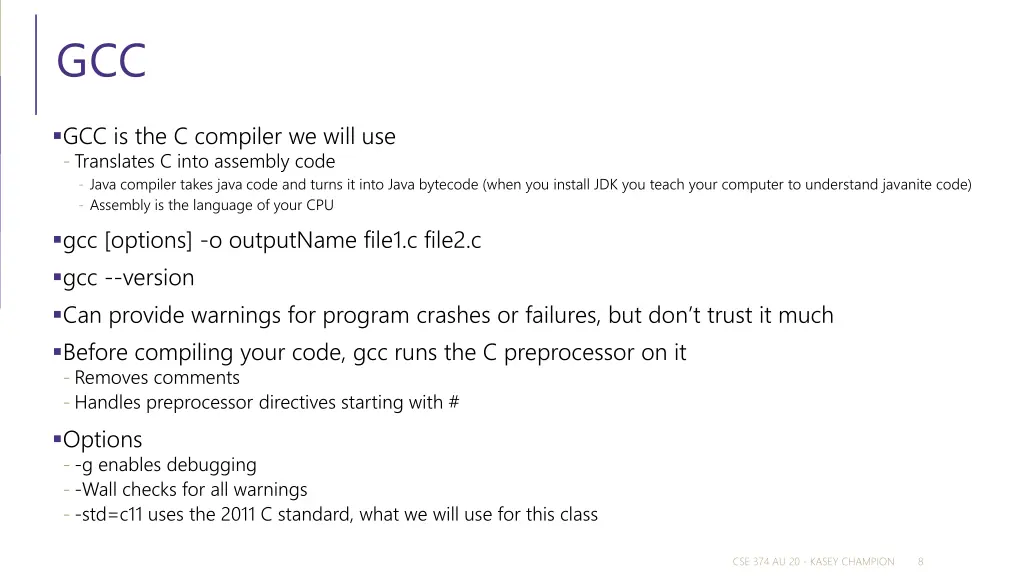

GCC GCC is the C compiler we will use - Translates C into assembly code - Java compiler takes java code and turns it into Java bytecode (when you install JDK you teach your computer to understand javanite code) - Assembly is the language of your CPU gcc [options] -o outputName file1.c file2.c gcc --version Can provide warnings for program crashes or failures, but don t trust it much Before compiling your code, gcc runs the C preprocessor on it - Removes comments - Handles preprocessor directives starting with # Options - -g enables debugging - -Wall checks for all warnings - -std=c11 uses the 2011 C standard, what we will use for this class CSE 374 AU 20 - KASEY CHAMPION 8

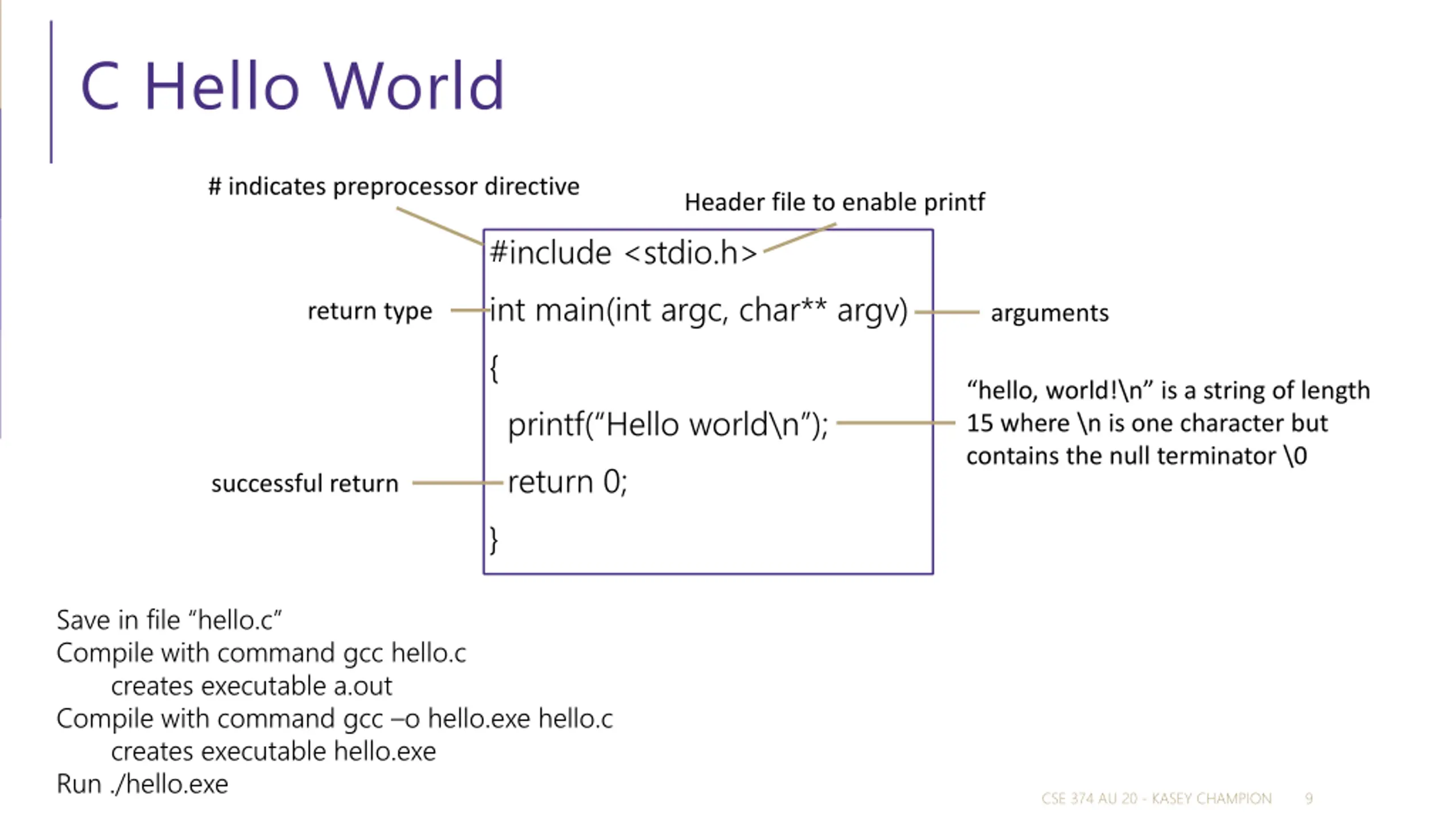

C Hello World # indicates preprocessor directive Header file to enable printf #include <stdio.h> int main(int argc, char** argv) { printf( Hello world\n ); return 0; } return type arguments hello, world!\n is a string of length 15 where \n is one character but contains the null terminator \0 successful return Save in file hello.c Compile with command gcc hello.c creates executable a.out Compile with command gcc o hello.exe hello.c creates executable hello.exe Run ./hello.exe CSE 374 AU 20 - KASEY CHAMPION 9

Hello World in C CSE 374 AU 20 - KASEY CHAMPION 10

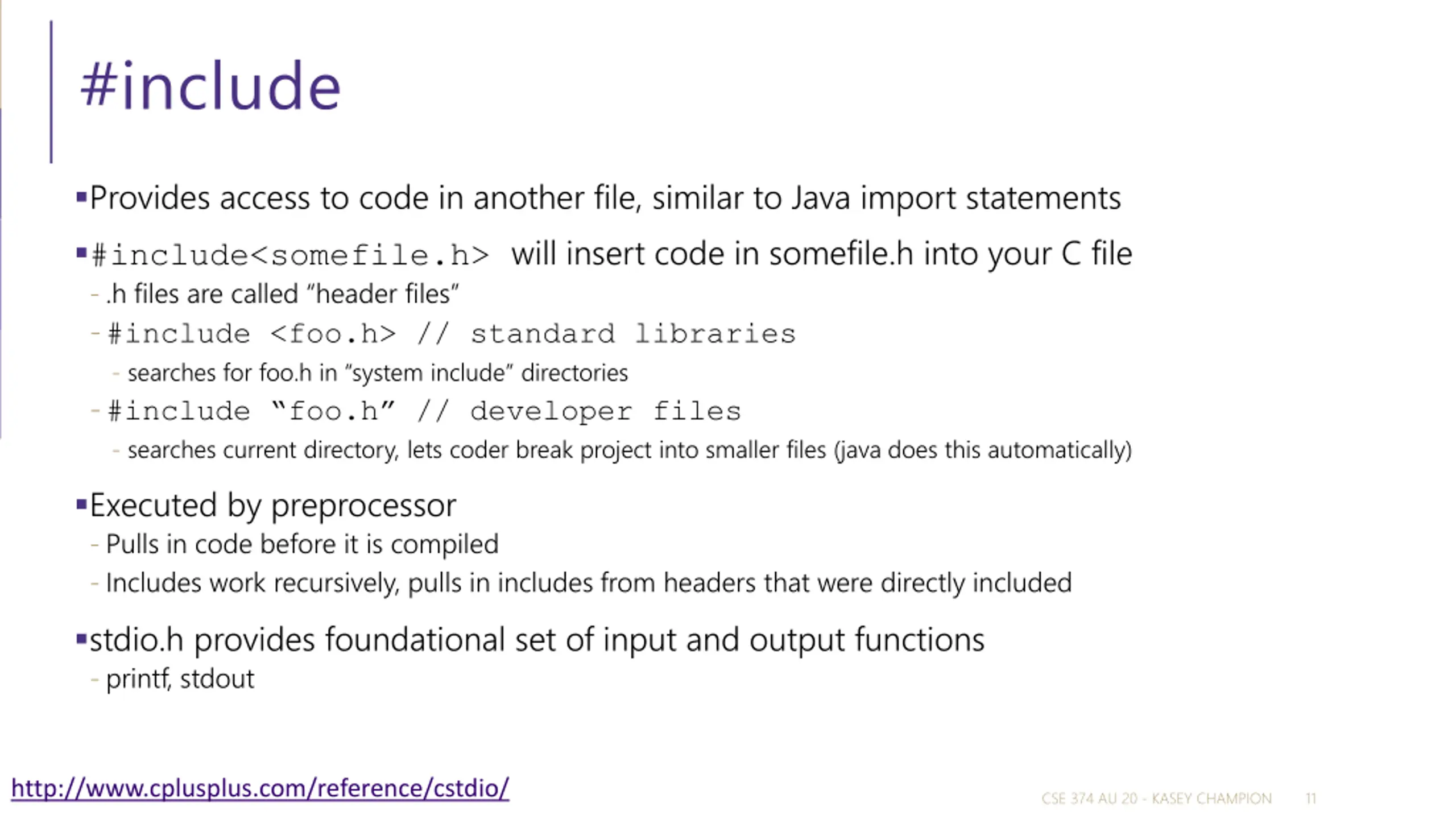

#include Provides access to code in another file, similar to Java import statements #include<somefile.h> will insert code in somefile.h into your C file - .h files are called header files -#include <foo.h> // standard libraries - searches for foo.h in system include directories -#include foo.h // developer files - searches current directory, lets coder break project into smaller files (java does this automatically) Executed by preprocessor - Pulls in code before it is compiled - Includes work recursively, pulls in includes from headers that were directly included stdio.h provides foundational set of input and output functions - printf, stdout http://www.cplusplus.com/reference/cstdio/ CSE 374 AU 20 - KASEY CHAMPION 11

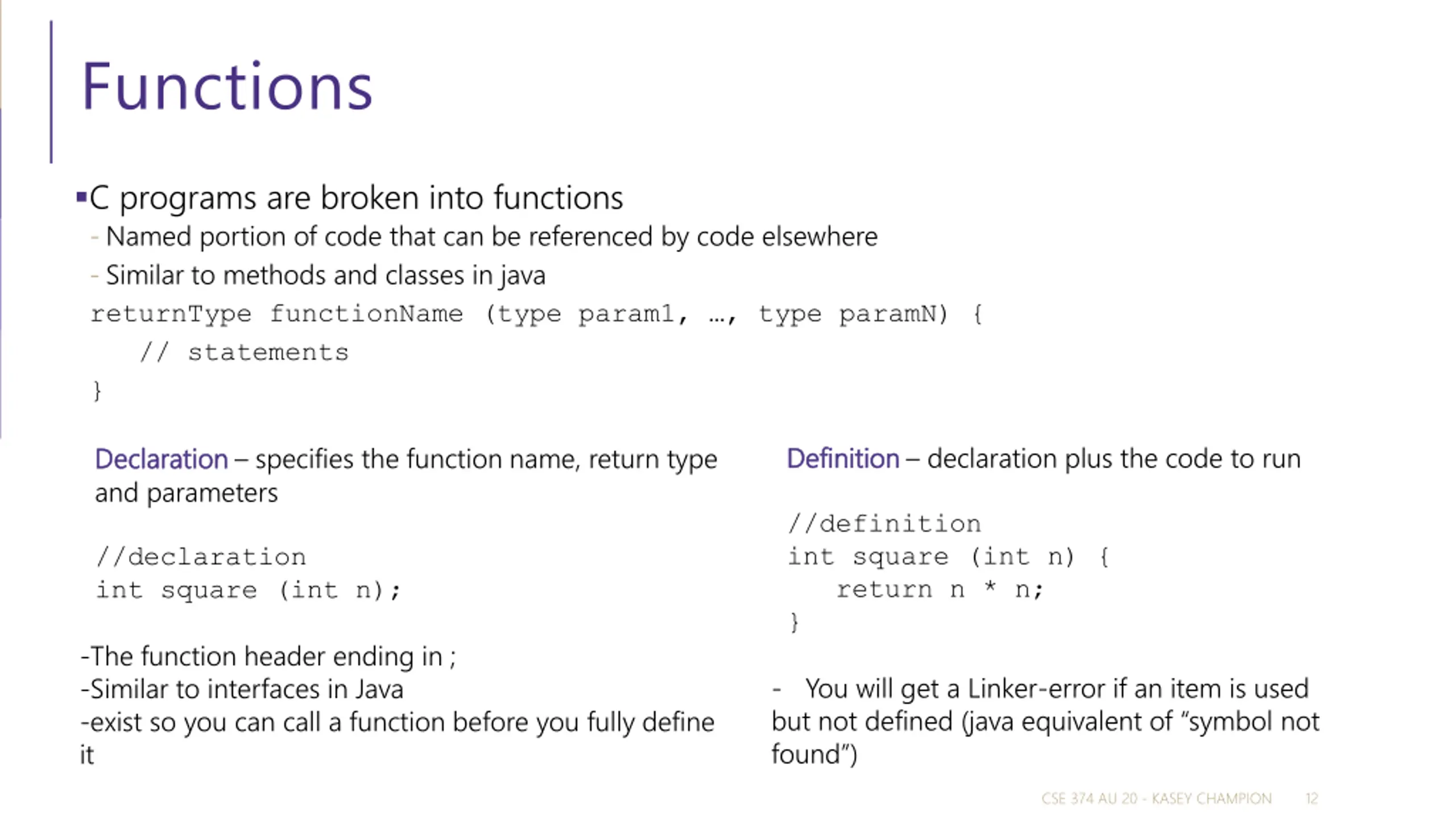

Functions C programs are broken into functions - Named portion of code that can be referenced by code elsewhere - Similar to methods and classes in java returnType functionName (type param1, , type paramN) { // statements } Definition Definition declaration plus the code to run Declaration Declaration specifies the function name, return type and parameters //definition int square (int n) { return n * n; } //declaration int square (int n); -The function header ending in ; -Similar to interfaces in Java -exist so you can call a function before you fully define it - You will get a Linker-error if an item is used but not defined (java equivalent of symbol not found ) CSE 374 AU 20 - KASEY CHAMPION 12

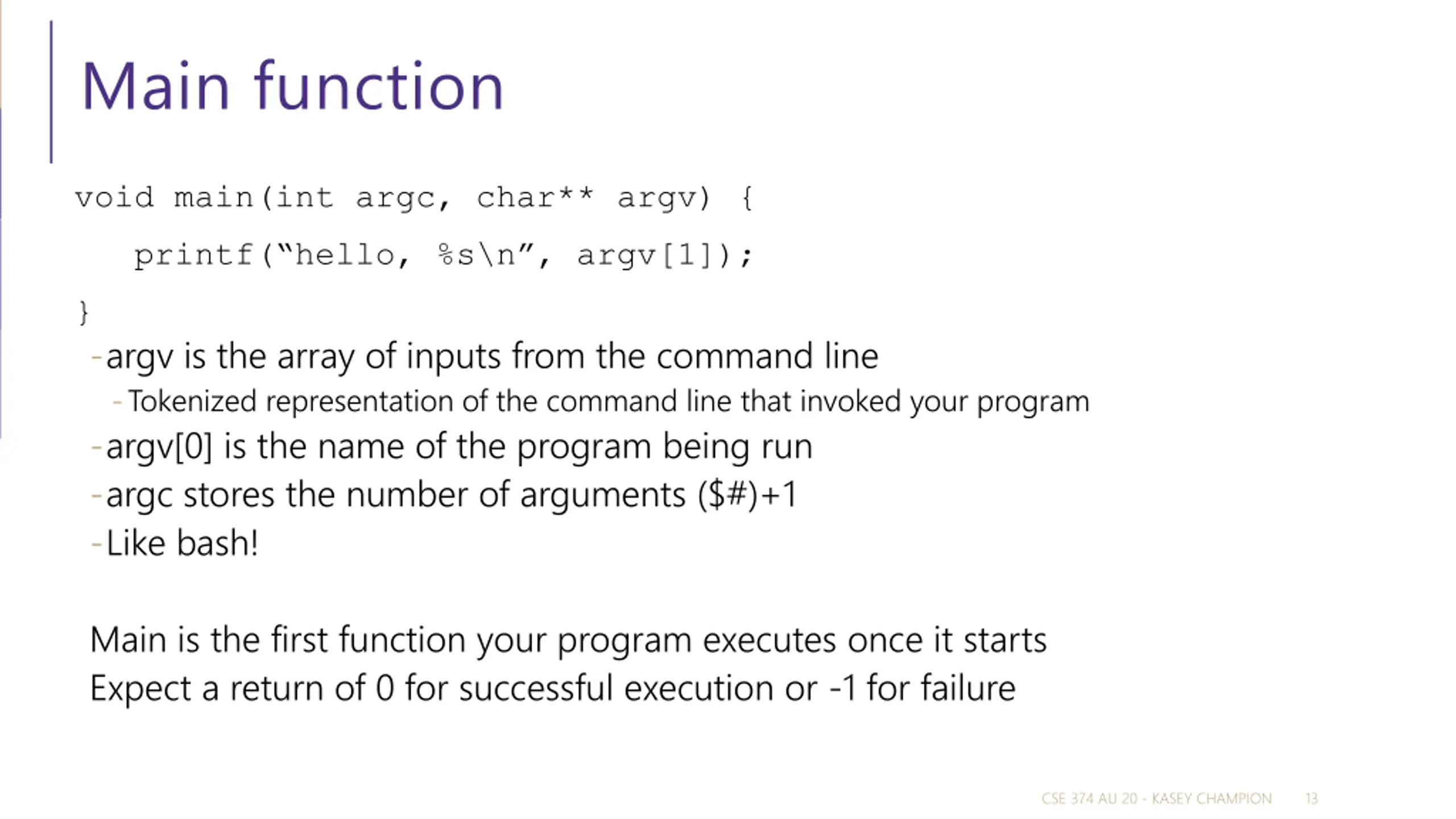

Main function void main(int argc, char** argv) { printf( hello, %s\n , argv[1]); } -argv is the array of inputs from the command line -Tokenized representation of the command line that invoked your program -argv[0] is the name of the program being run -argc stores the number of arguments ($#)+1 -Like bash! Main is the first function your program executes once it starts Expect a return of 0 for successful execution or -1 for failure CSE 374 AU 20 - KASEY CHAMPION 13

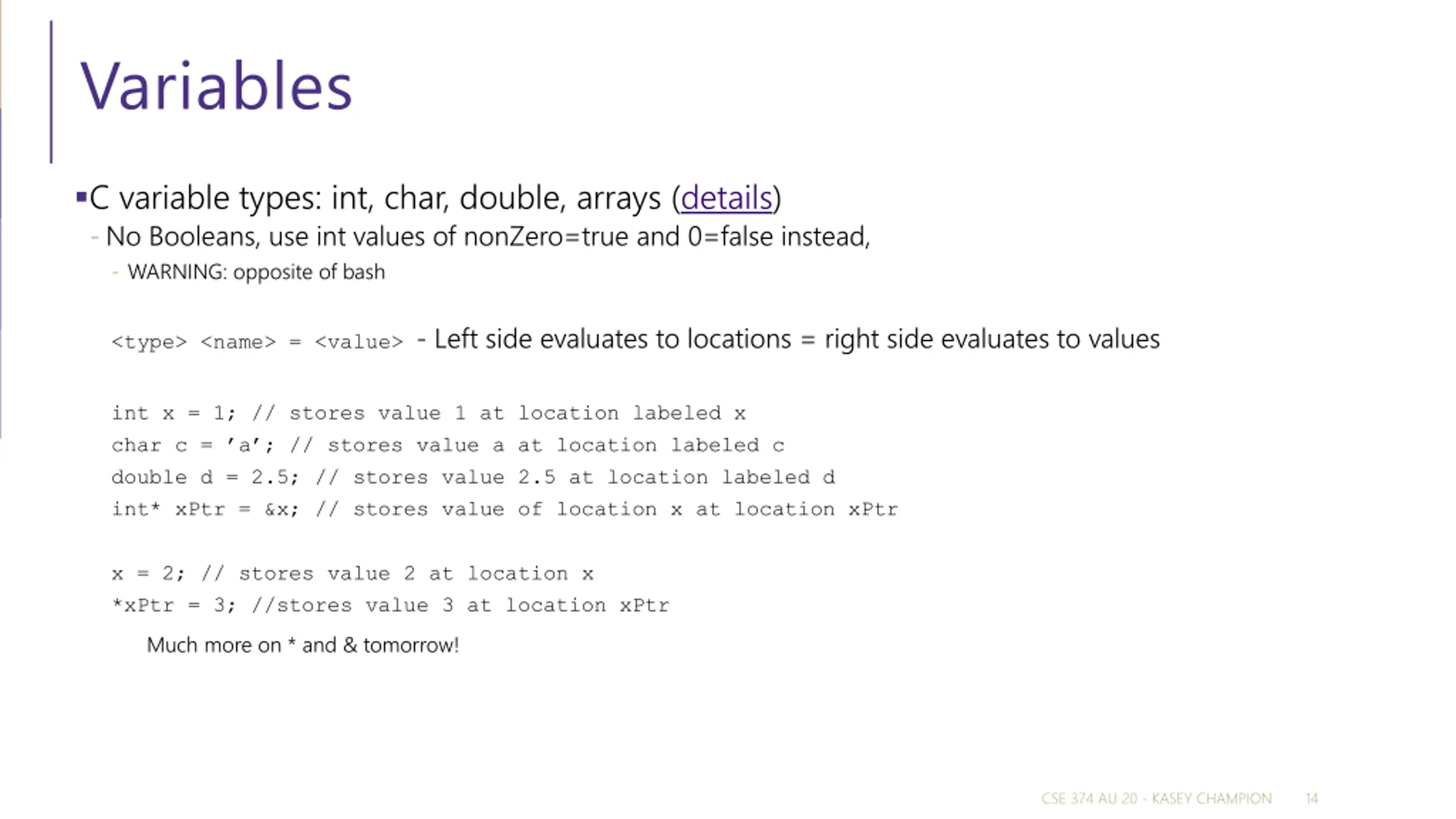

Variables C variable types: int, char, double, arrays (details) - No Booleans, use int values of nonZero=true and 0=false instead, - WARNING: opposite of bash <type> <name> = <value> - Left side evaluates to locations = right side evaluates to values int x = 1; // stores value 1 at location labeled x char c = a ; // stores value a at location labeled c double d = 2.5; // stores value 2.5 at location labeled d int* xPtr = &x; // stores value of location x at location xPtr x = 2; // stores value 2 at location x *xPtr = 3; //stores value 3 at location xPtr Much more on * and & tomorrow! CSE 374 AU 20 - KASEY CHAMPION 14

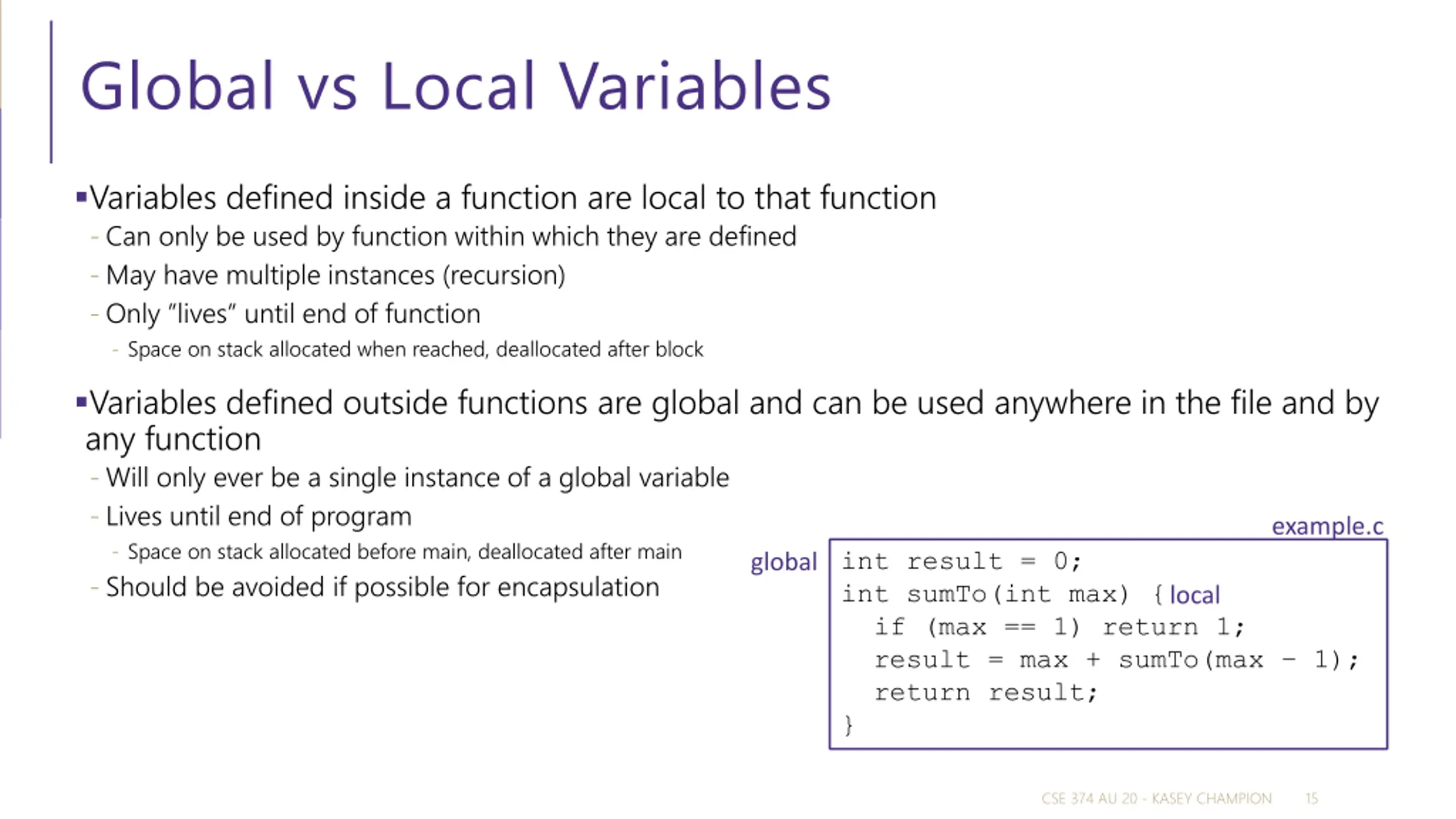

Global vs Local Variables Variables defined inside a function are local to that function - Can only be used by function within which they are defined - May have multiple instances (recursion) - Only lives until end of function - Space on stack allocated when reached, deallocated after block Variables defined outside functions are global and can be used anywhere in the file and by any function - Will only ever be a single instance of a global variable - Lives until end of program - Space on stack allocated before main, deallocated after main - Should be avoided if possible for encapsulation example.c global int result = 0; int sumTo(int max) { if (max == 1) return 1; result = max + sumTo(max 1); return result; } local CSE 374 AU 20 - KASEY CHAMPION 15

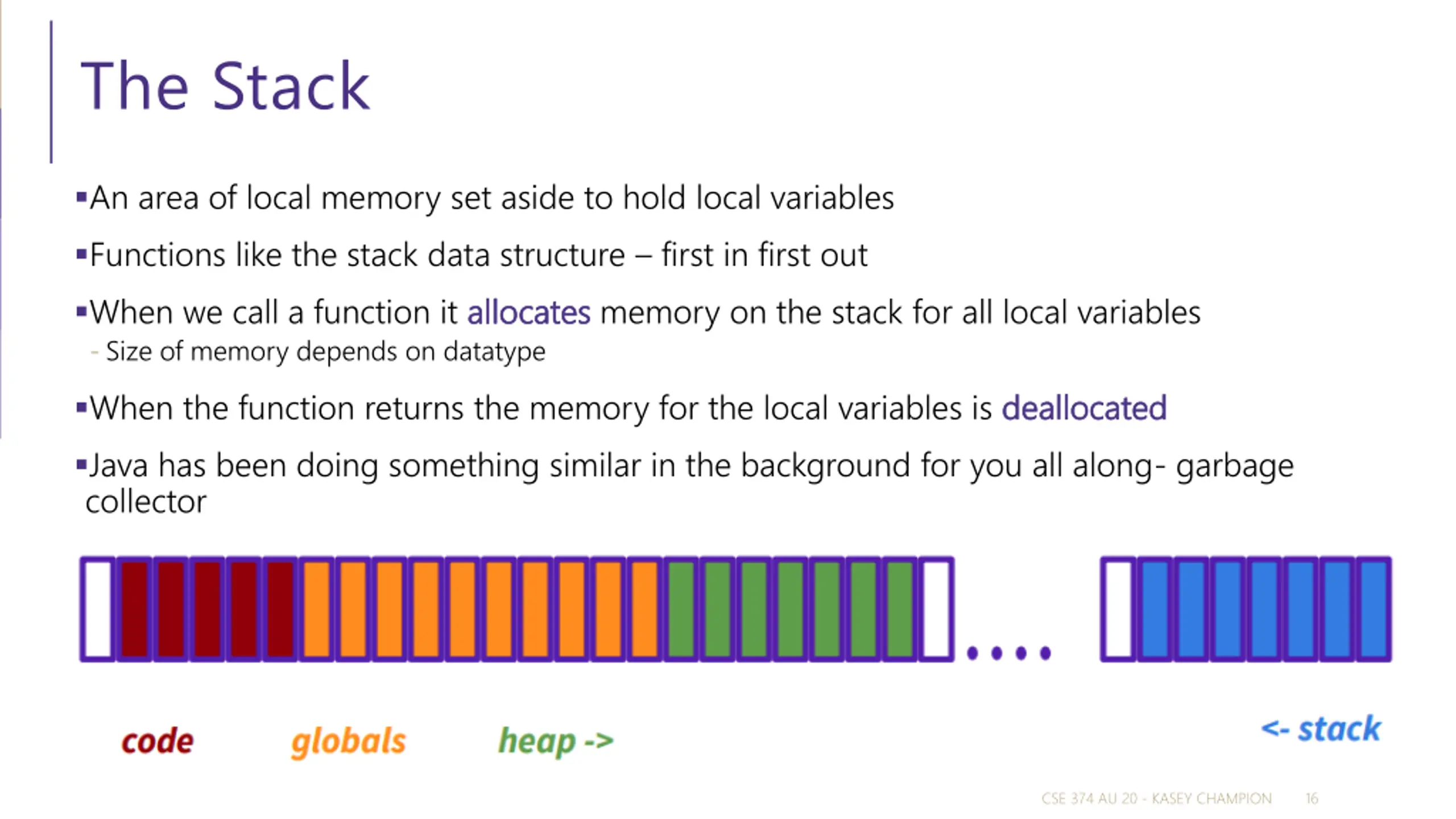

The Stack An area of local memory set aside to hold local variables Functions like the stack data structure first in first out When we call a function it allocates allocates memory on the stack for all local variables - Size of memory depends on datatype When the function returns the memory for the local variables is deallocated Java has been doing something similar in the background for you all along- garbage collector deallocated CSE 374 AU 20 - KASEY CHAMPION 16

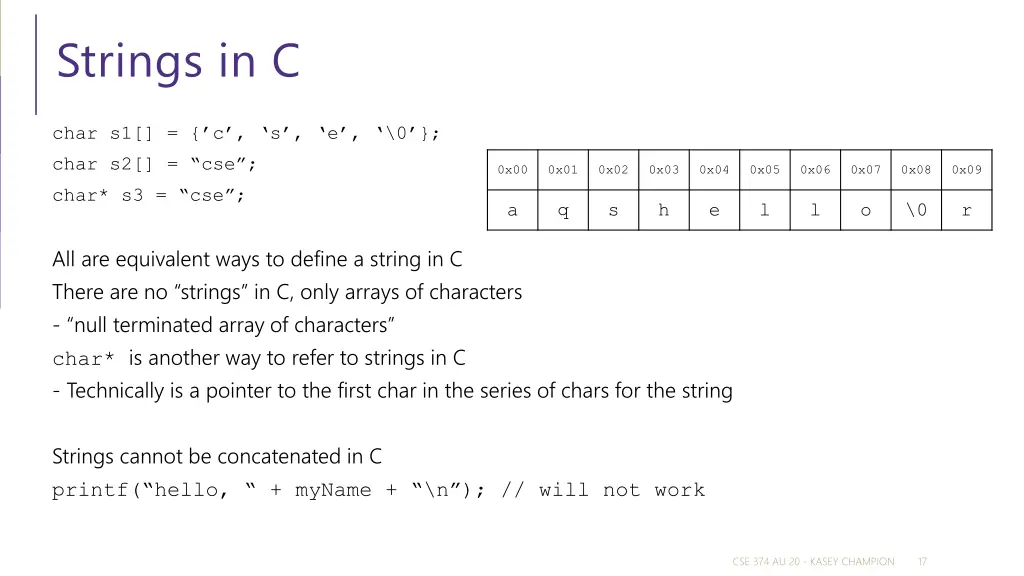

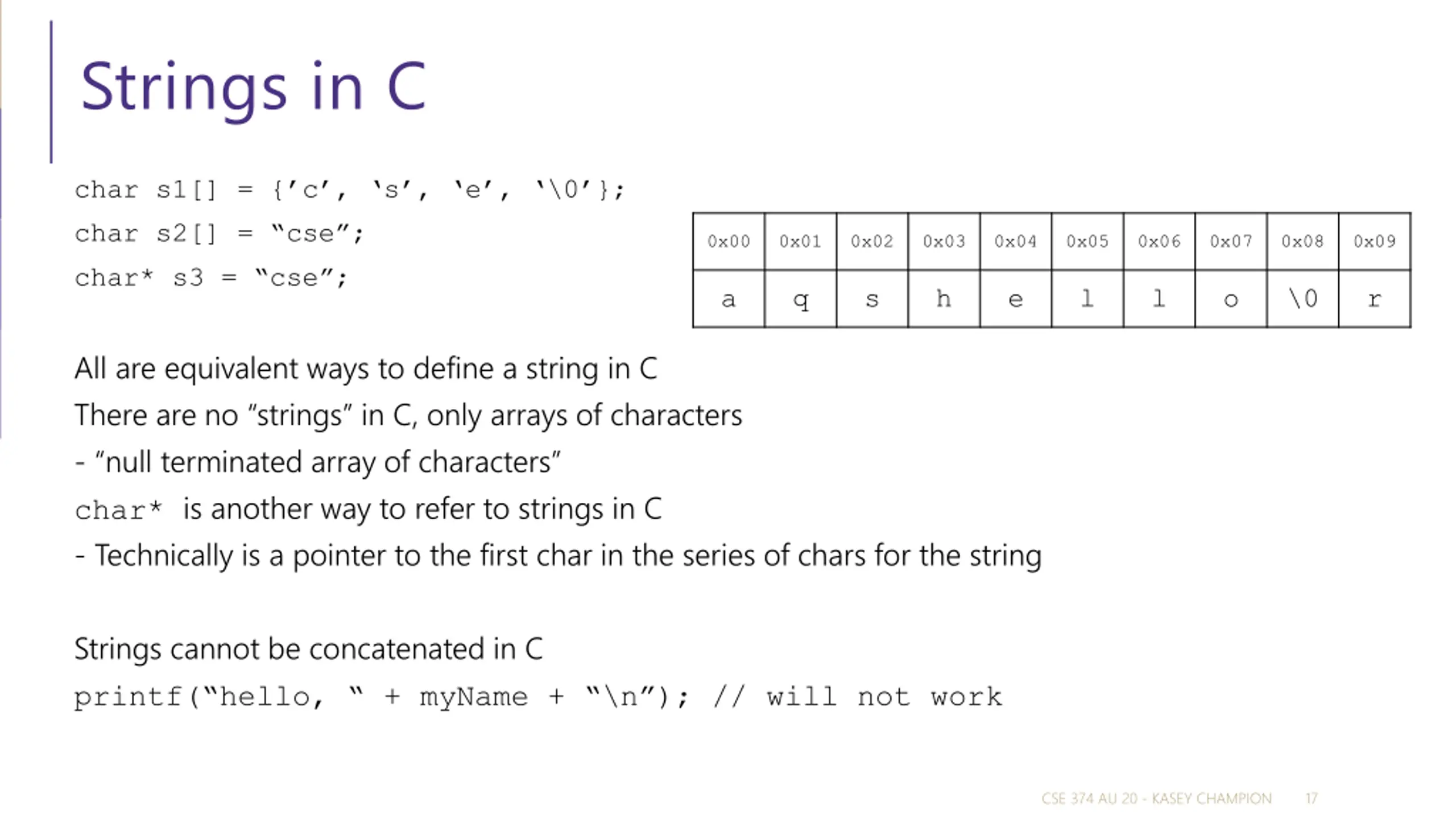

Strings in C char s1[] = { c , s , e , \0 }; char s2[] = cse ; char* s3 = cse ; 0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 a q s h e l l o \0 r All are equivalent ways to define a string in C There are no strings in C, only arrays of characters - null terminated array of characters char* is another way to refer to strings in C - Technically is a pointer to the first char in the series of chars for the string Strings cannot be concatenated in C printf( hello, + myName + \n ); // will not work CSE 374 AU 20 - KASEY CHAMPION 17

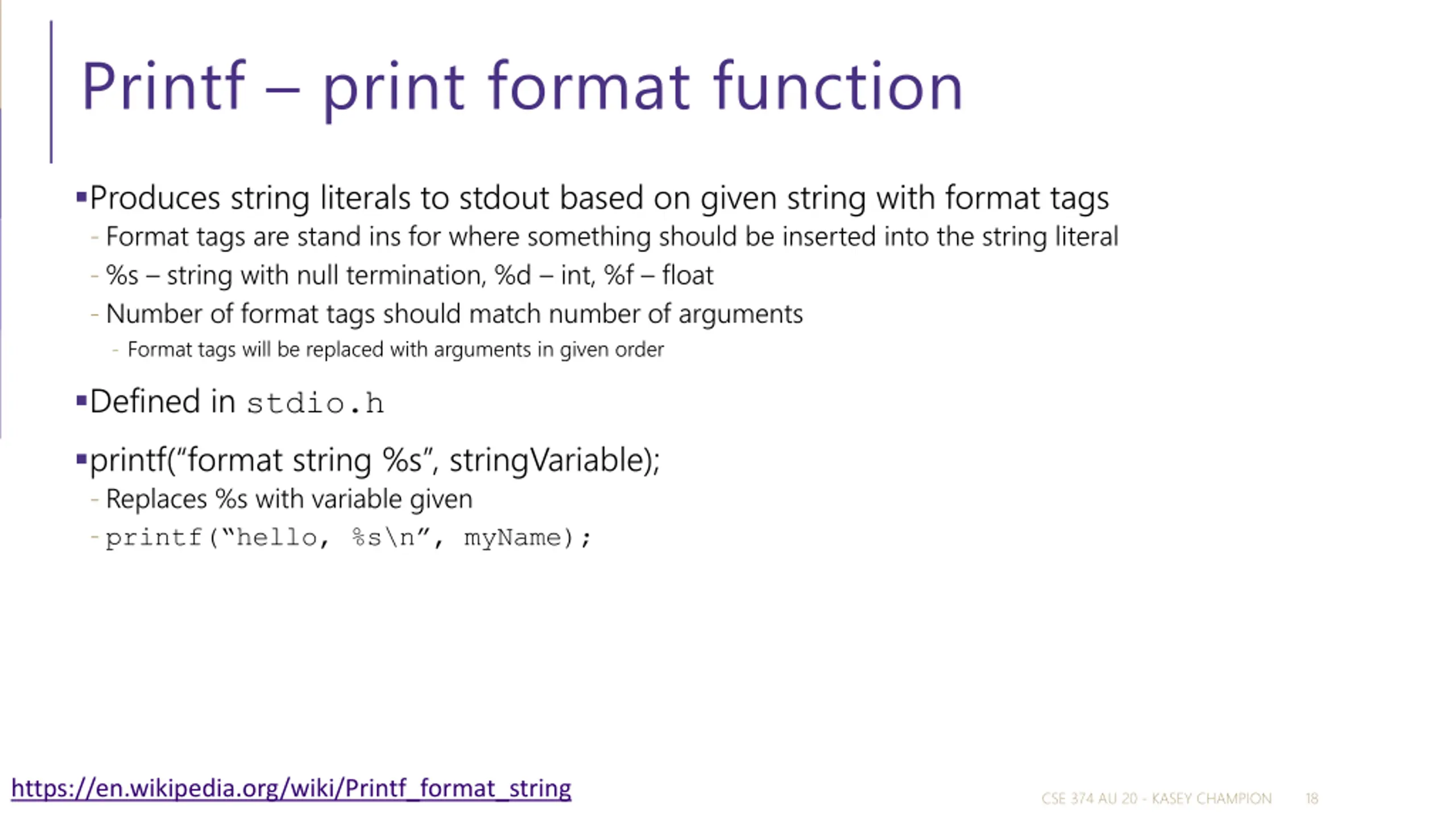

Printf print format function Produces string literals to stdout based on given string with format tags - Format tags are stand ins for where something should be inserted into the string literal - %s string with null termination, %d int, %f float - Number of format tags should match number of arguments - Format tags will be replaced with arguments in given order Defined in stdio.h printf( format string %s , stringVariable); - Replaces %s with variable given - printf( hello, %s\n , myName); https://en.wikipedia.org/wiki/Printf_format_string CSE 374 AU 20 - KASEY CHAMPION 18

Demo: echo.c CSE 374 AU 20 - KASEY CHAMPION 19

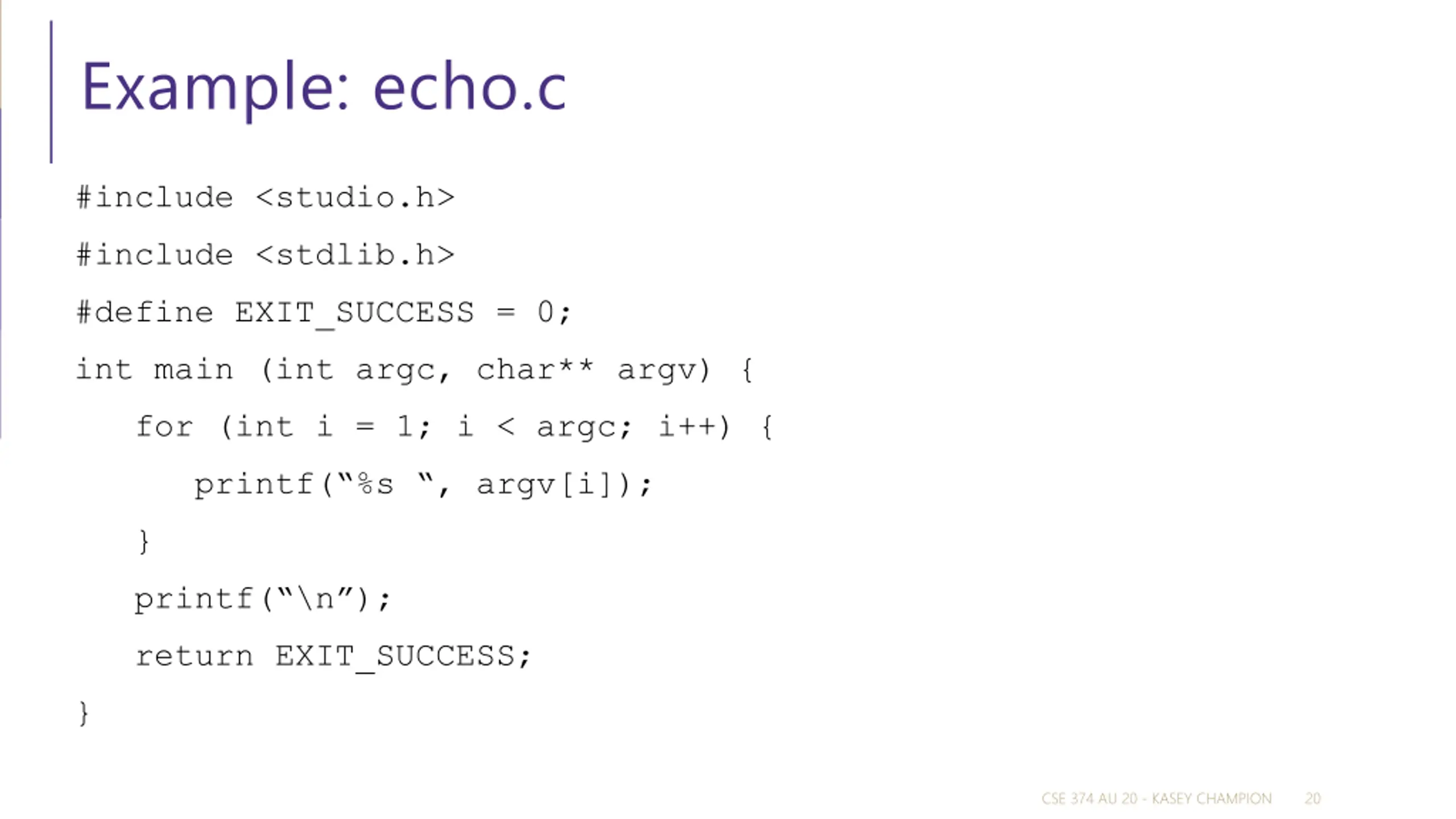

Example: echo.c #include <studio.h> #include <stdlib.h> #define EXIT_SUCCESS = 0; int main (int argc, char** argv) { for (int i = 1; i < argc; i++) { printf( %s , argv[i]); } printf( \n ); return EXIT_SUCCESS; } CSE 374 AU 20 - KASEY CHAMPION 20
