Introduction to SQL: History, Components, and Examples

UFCE8K-15-M: Data Management Introduction to the Structured Query Language (SQL)

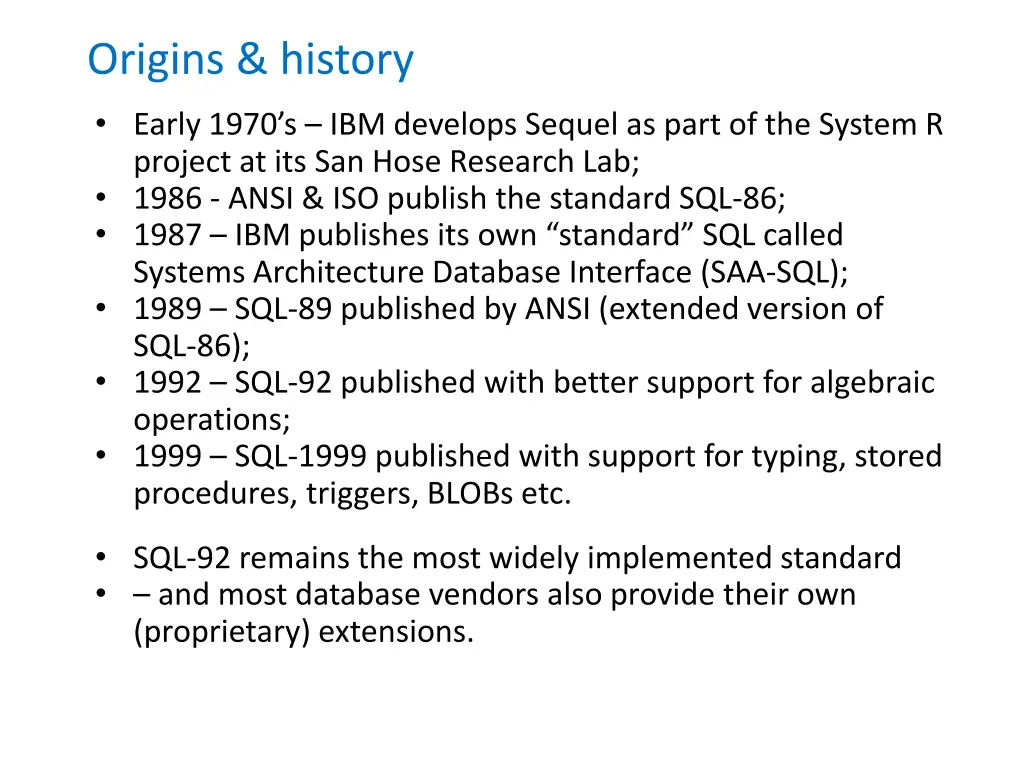

Origins & history Early 1970 s IBM develops Sequel as part of the System R project at its San Hose Research Lab; 1986 - ANSI & ISO publish the standard SQL-86; 1987 IBM publishes its own standard SQL called Systems Architecture Database Interface (SAA-SQL); 1989 SQL-89 published by ANSI (extended version of SQL-86); 1992 SQL-92 published with better support for algebraic operations; 1999 SQL-1999 published with support for typing, stored procedures, triggers, BLOBs etc. SQL-92 remains the most widely implemented standard and most database vendors also provide their own (proprietary) extensions.

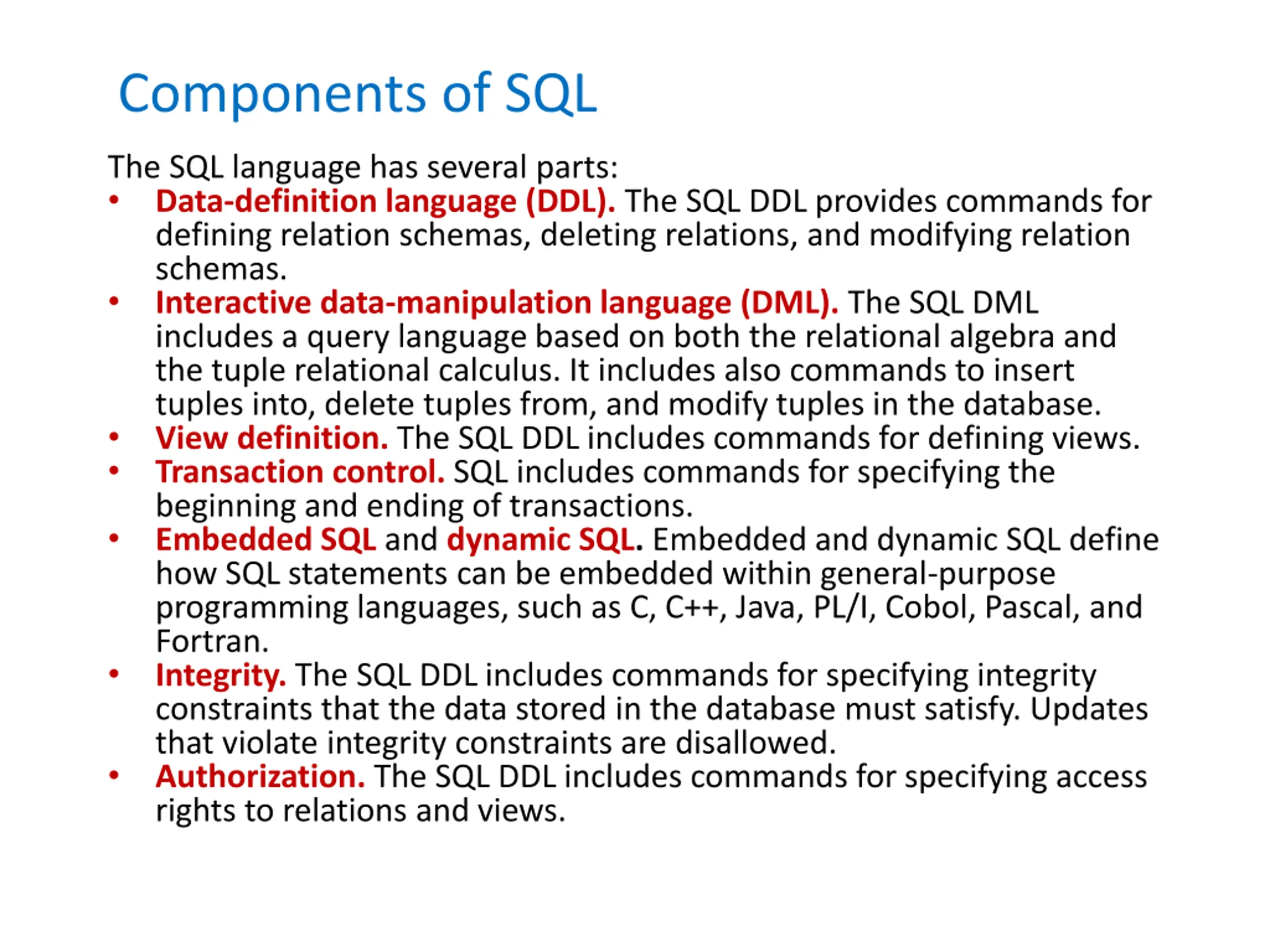

Components of SQL The SQL language has several parts: Data-definition language (DDL). The SQL DDL provides commands for defining relation schemas, deleting relations, and modifying relation schemas. Interactive data-manipulation language (DML). The SQL DML includes a query language based on both the relational algebra and the tuple relational calculus. It includes also commands to insert tuples into, delete tuples from, and modify tuples in the database. View definition. The SQL DDL includes commands for defining views. Transaction control. SQL includes commands for specifying the beginning and ending of transactions. Embedded SQL and dynamicSQL. Embedded and dynamic SQL define how SQL statements can be embedded within general-purpose programming languages, such as C, C++, Java, PL/I, Cobol, Pascal, and Fortran. Integrity. The SQL DDL includes commands for specifying integrity constraints that the data stored in the database must satisfy. Updates that violate integrity constraints are disallowed. Authorization. The SQL DDL includes commands for specifying access rights to relations and views.

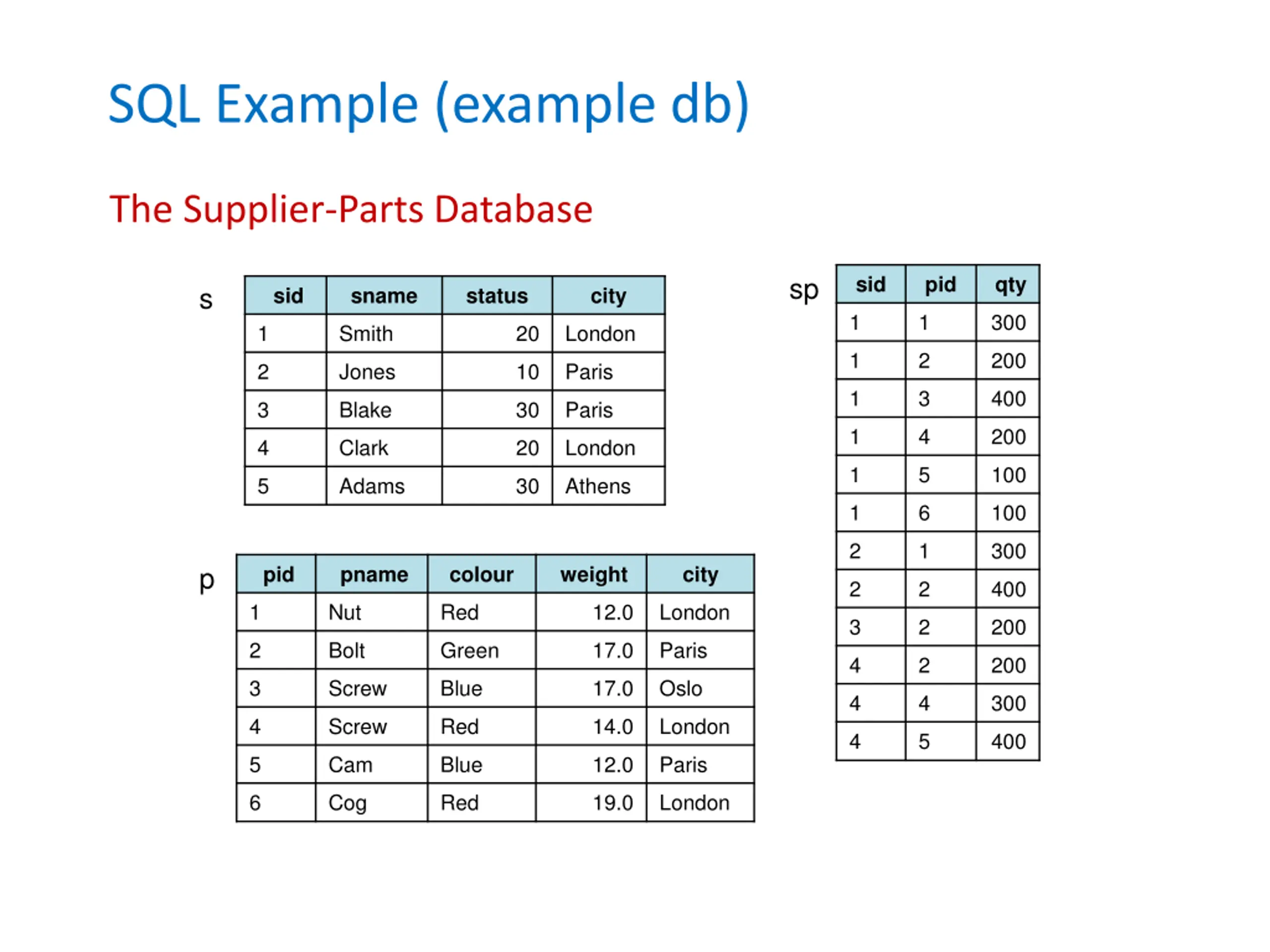

SQL Example (example db) The Supplier-Parts Database sid pid qty sp s sid sname status city 1 1 300 1 Smith 20 London 1 2 200 2 Jones 10 Paris 1 3 400 3 Blake 30 Paris 1 4 200 4 Clark 20 London 1 5 100 5 Adams 30 Athens 1 6 100 2 1 300 pid pname colour weight city p 2 2 400 1 Nut Red 12.0 London 3 2 200 2 Bolt Green 17.0 Paris 4 2 200 3 Screw Blue 17.0 Oslo 4 4 300 4 Screw Red 14.0 London 4 5 400 5 Cam Blue 12.0 Paris 6 Cog Red 19.0 London

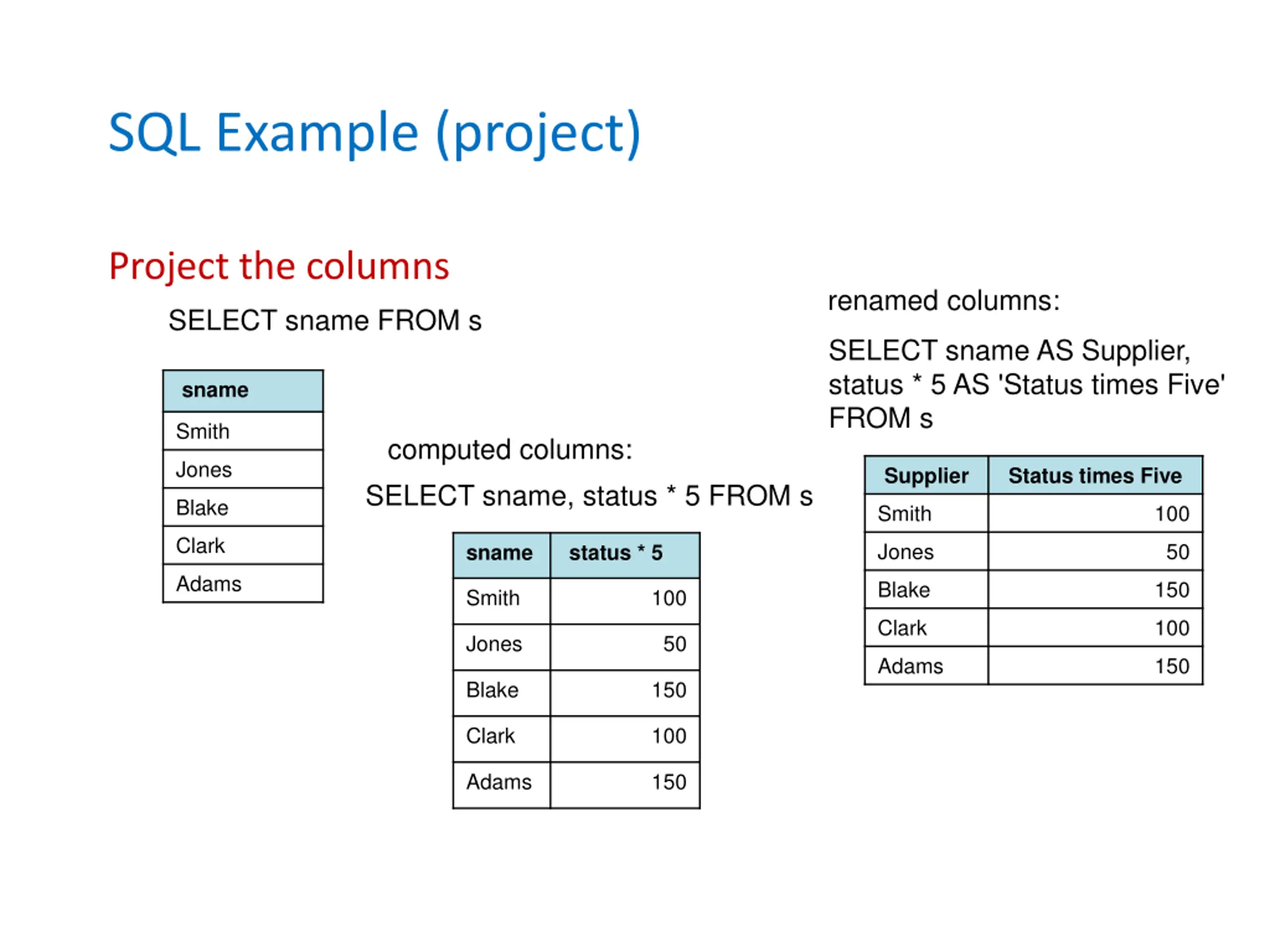

SQL Example (project) Project the columns SELECT sname FROM s renamed columns: SELECT sname AS Supplier, status * 5 AS 'Status times Five' FROM s sname Smith computed columns: SELECT sname, status * 5 FROM s Jones Supplier Status times Five Blake Smith 100 Clark Jones 50 sname status * 5 Adams Blake 150 Smith 100 Clark 100 Jones 50 Adams 150 Blake 150 Clark 100 Adams 150

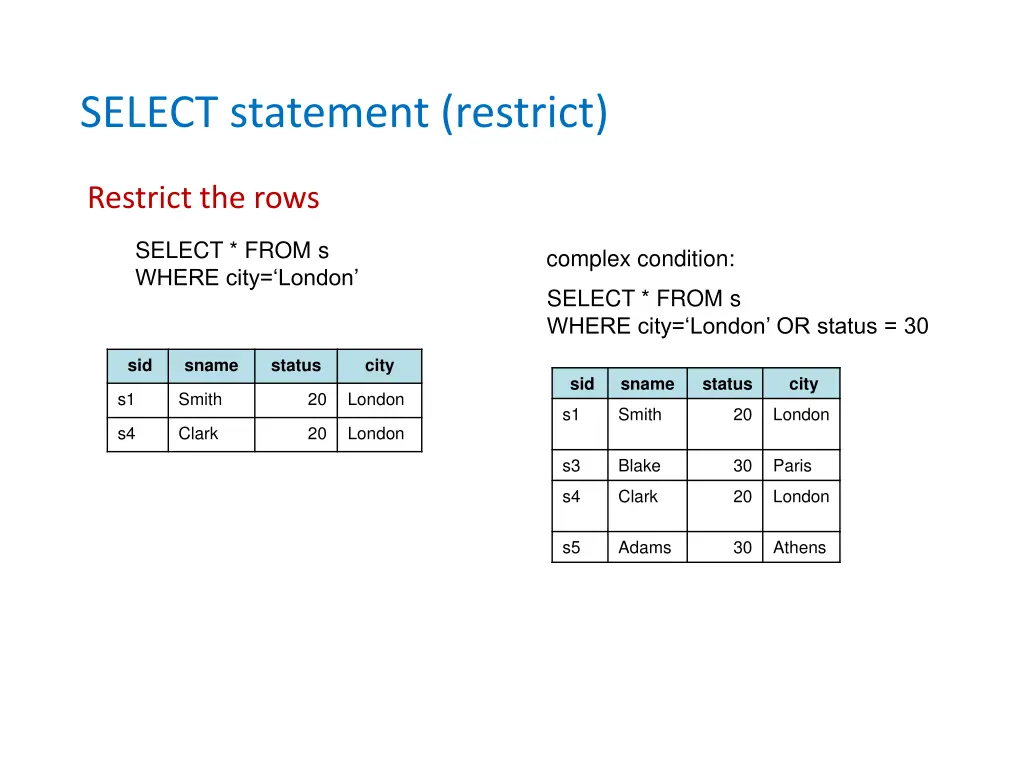

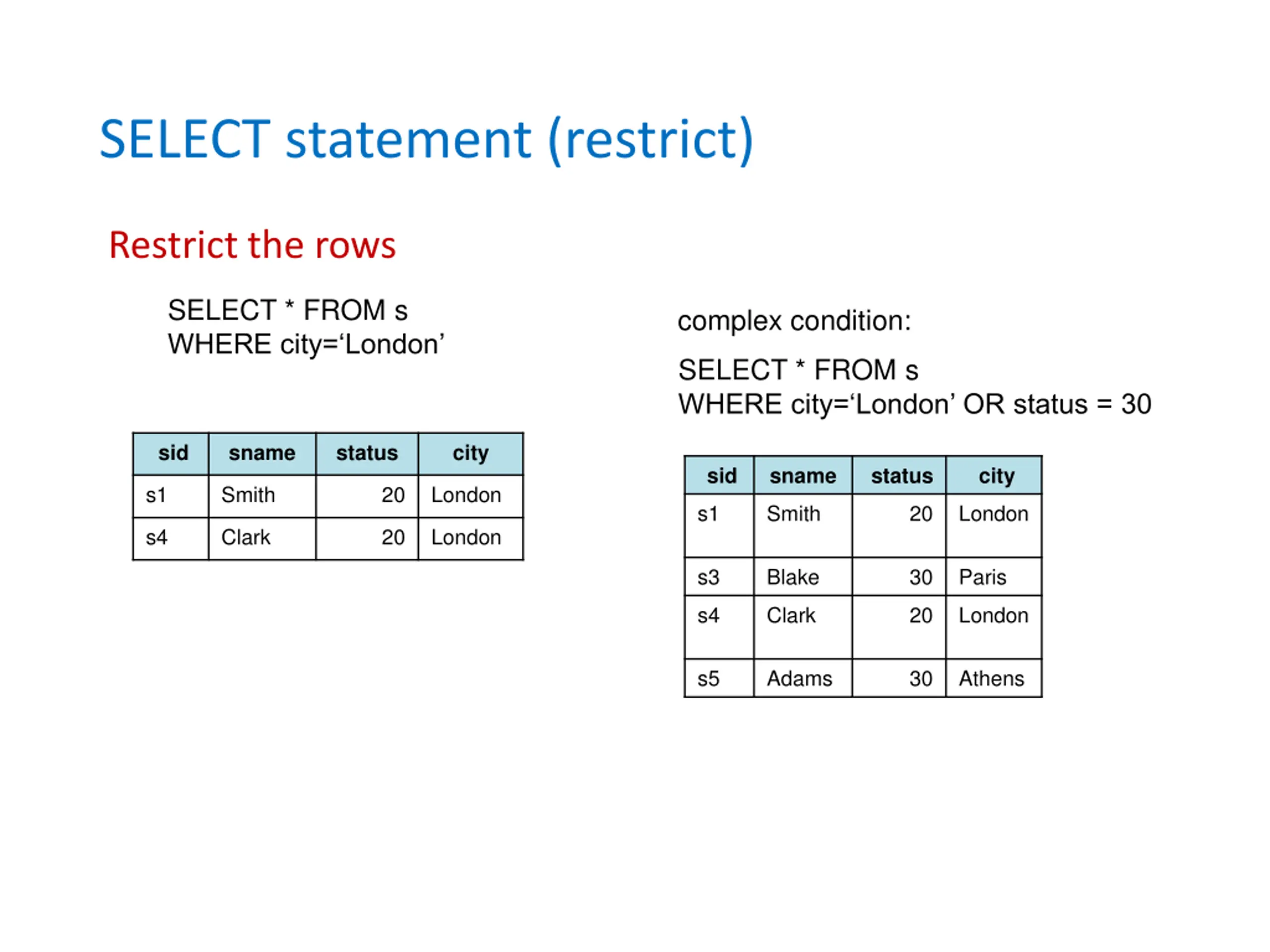

SELECT statement (restrict) Restrict the rows SELECT * FROM s WHERE city= London complex condition: SELECT * FROM s WHERE city= London OR status = 30 sid sname status city sid sname status city s1 Smith 20 London s1 Smith 20 London s4 Clark 20 London s3 Blake 30 Paris s4 Clark 20 London s5 Adams 30 Athens

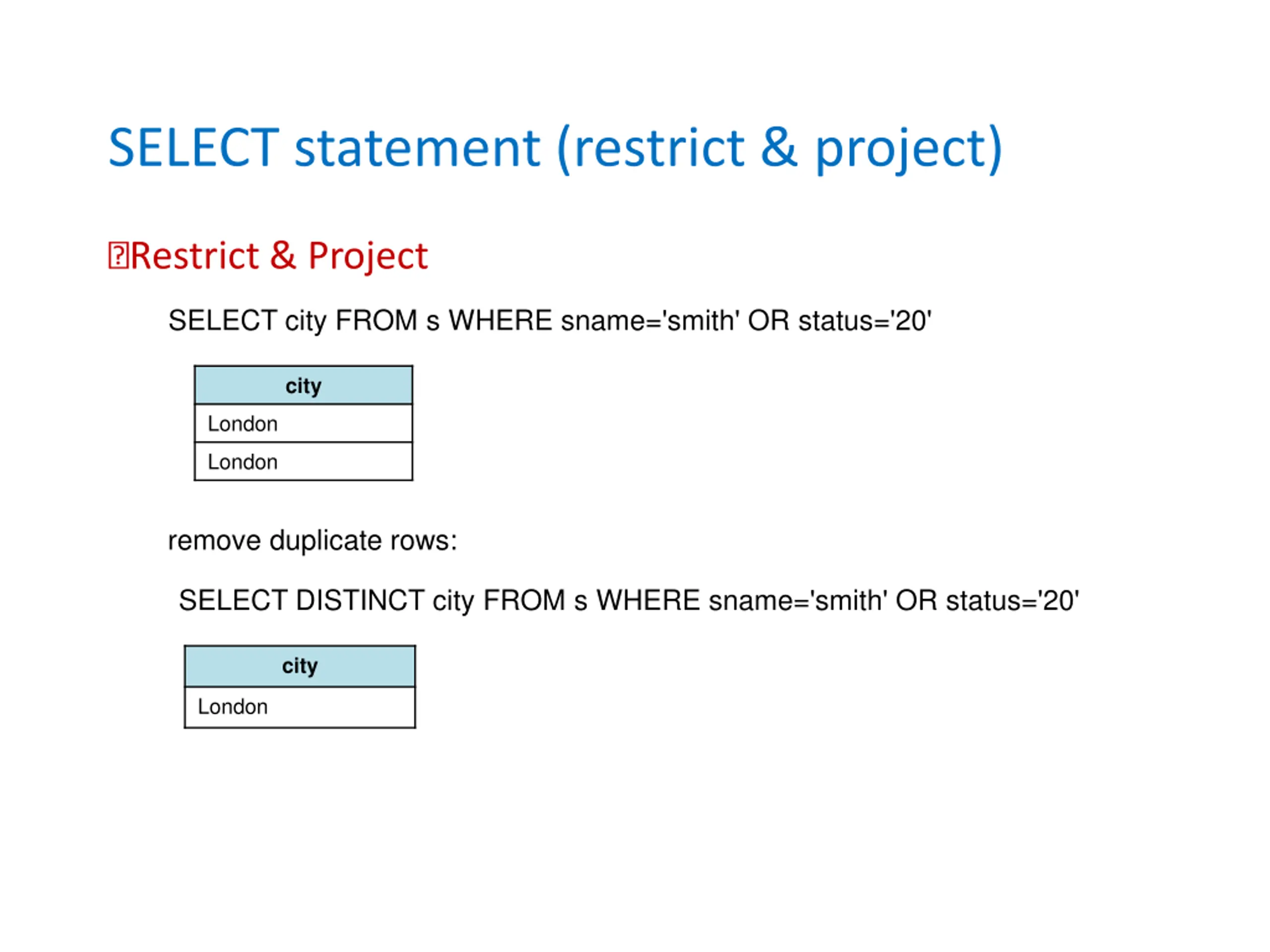

SELECT statement (restrict & project) Restrict & Project SELECT city FROM s WHERE sname='smith' OR status='20' city London London remove duplicate rows: SELECT DISTINCT city FROM s WHERE sname='smith' OR status='20' city London

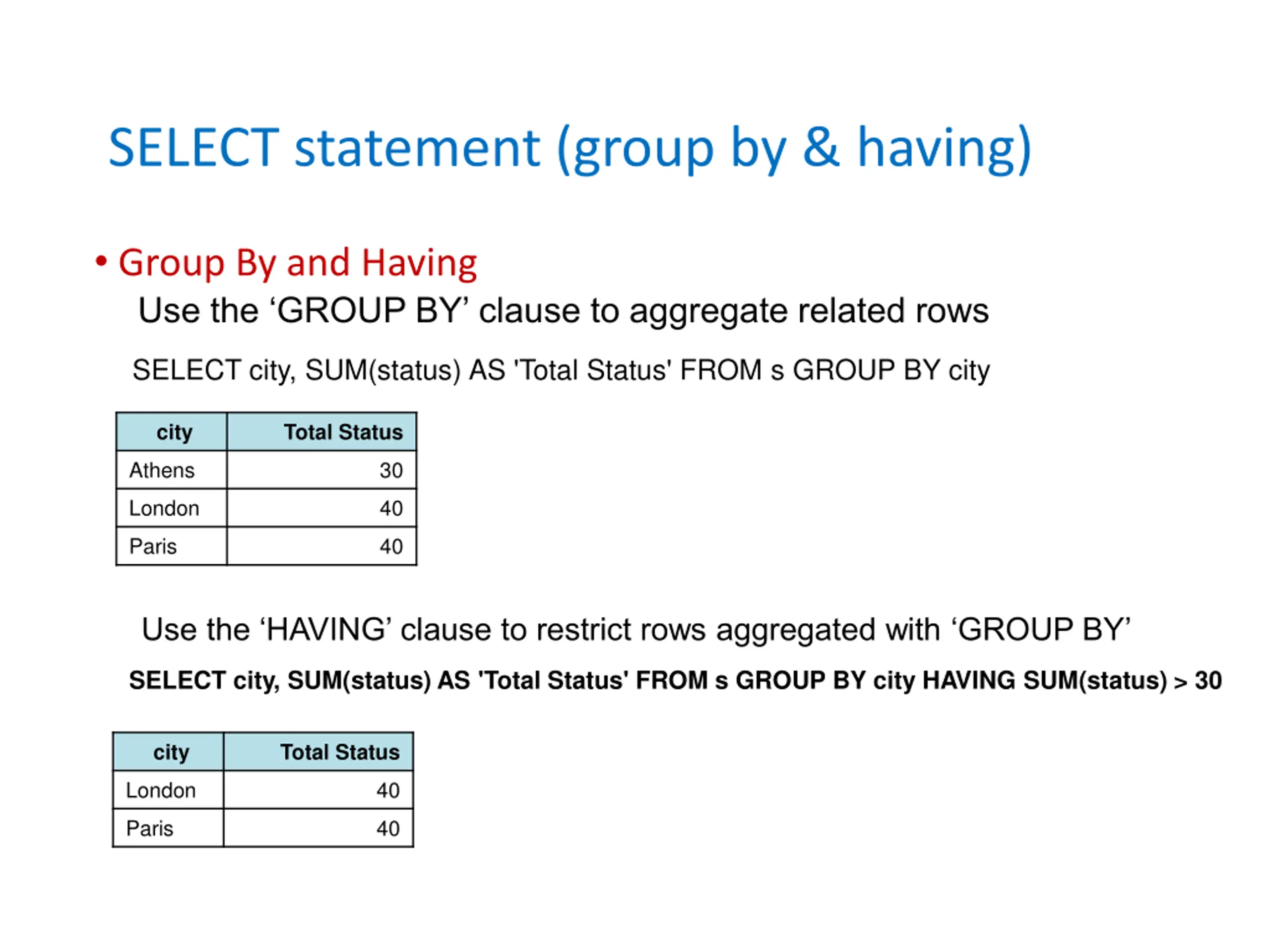

SELECT statement (group by & having) Group By and Having Use the GROUP BY clause to aggregate related rows SELECT city, SUM(status) AS 'Total Status' FROM s GROUP BY city city Total Status Athens 30 London 40 Paris 40 Use the HAVING clause to restrict rows aggregated with GROUP BY SELECT city, SUM(status) AS 'Total Status' FROM s GROUP BY city HAVING SUM(status) > 30 city Total Status London 40 Paris 40

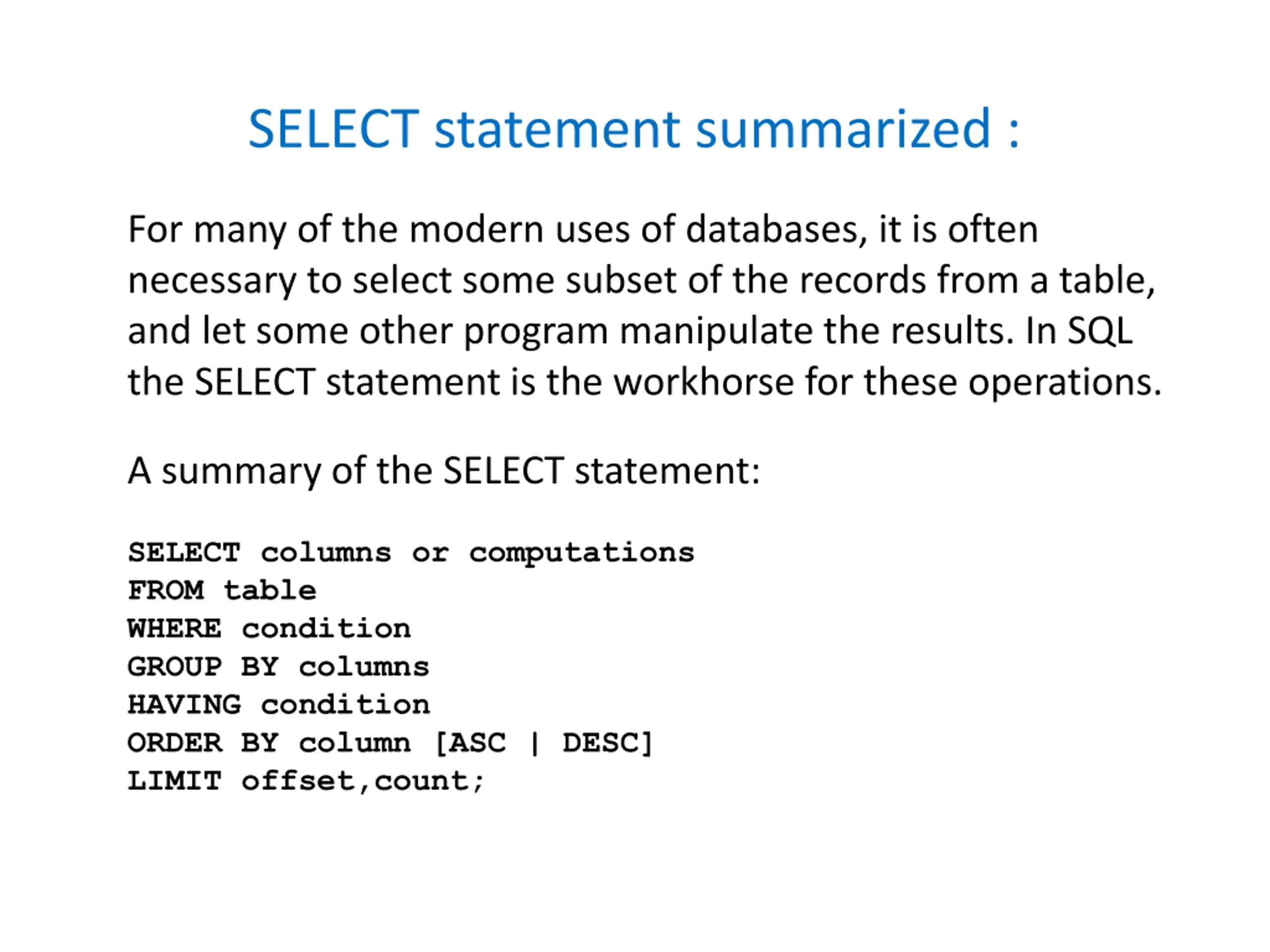

SELECT statement summarized : For many of the modern uses of databases, it is often necessary to select some subset of the records from a table, and let some other program manipulate the results. In SQL the SELECT statement is the workhorse for these operations. A summary of the SELECT statement: SELECT columns or computations FROM table WHERE condition GROUP BY columns HAVING condition ORDER BY column [ASC | DESC] LIMIT offset,count;

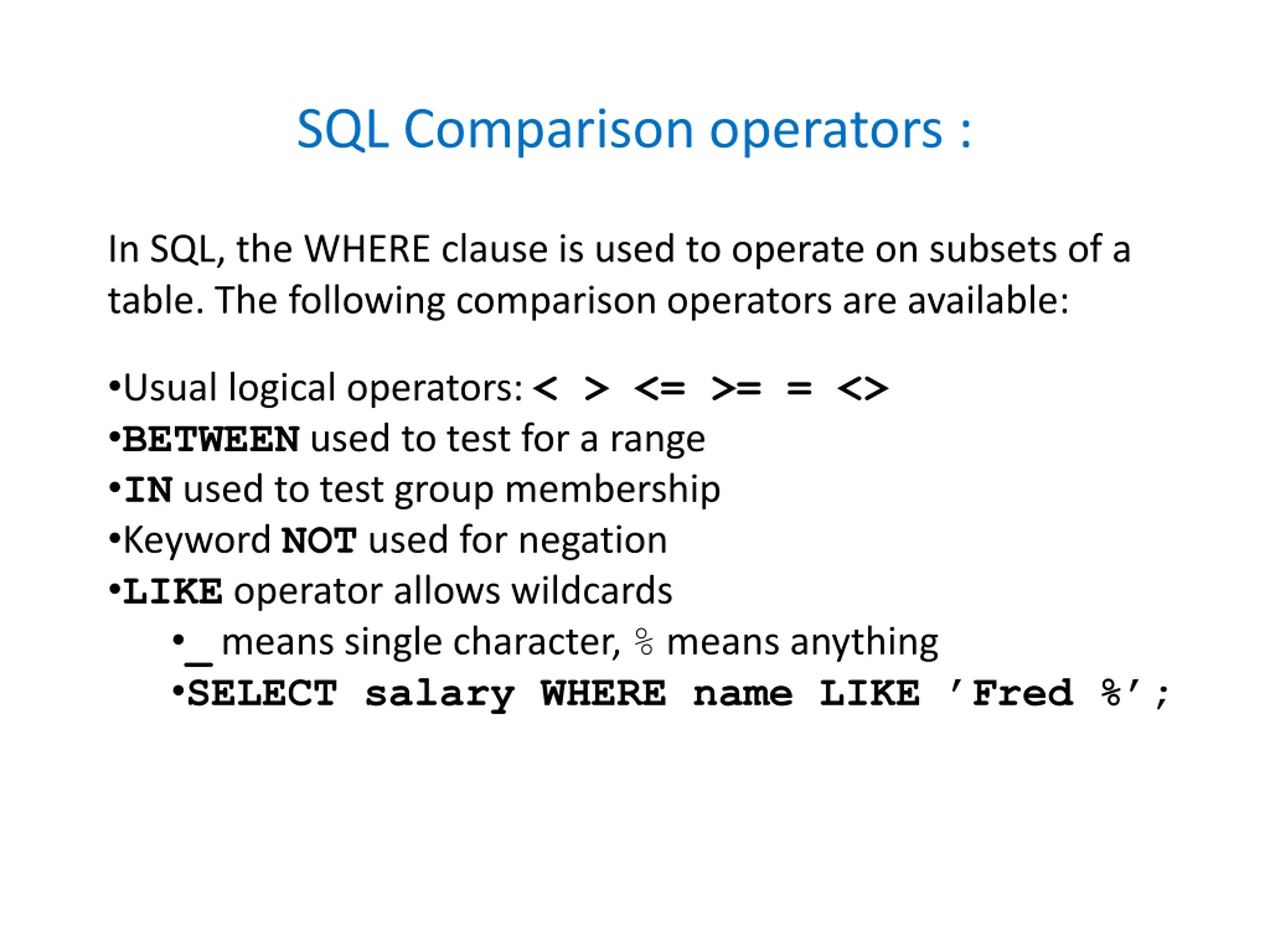

SQL Comparison operators : In SQL, the WHERE clause is used to operate on subsets of a table. The following comparison operators are available: Usual logical operators: < > <= >= = <> BETWEEN used to test for a range IN used to test group membership Keyword NOT used for negation LIKE operator allows wildcards _ means single character, % means anything SELECT salary WHERE name LIKE Fred % ;

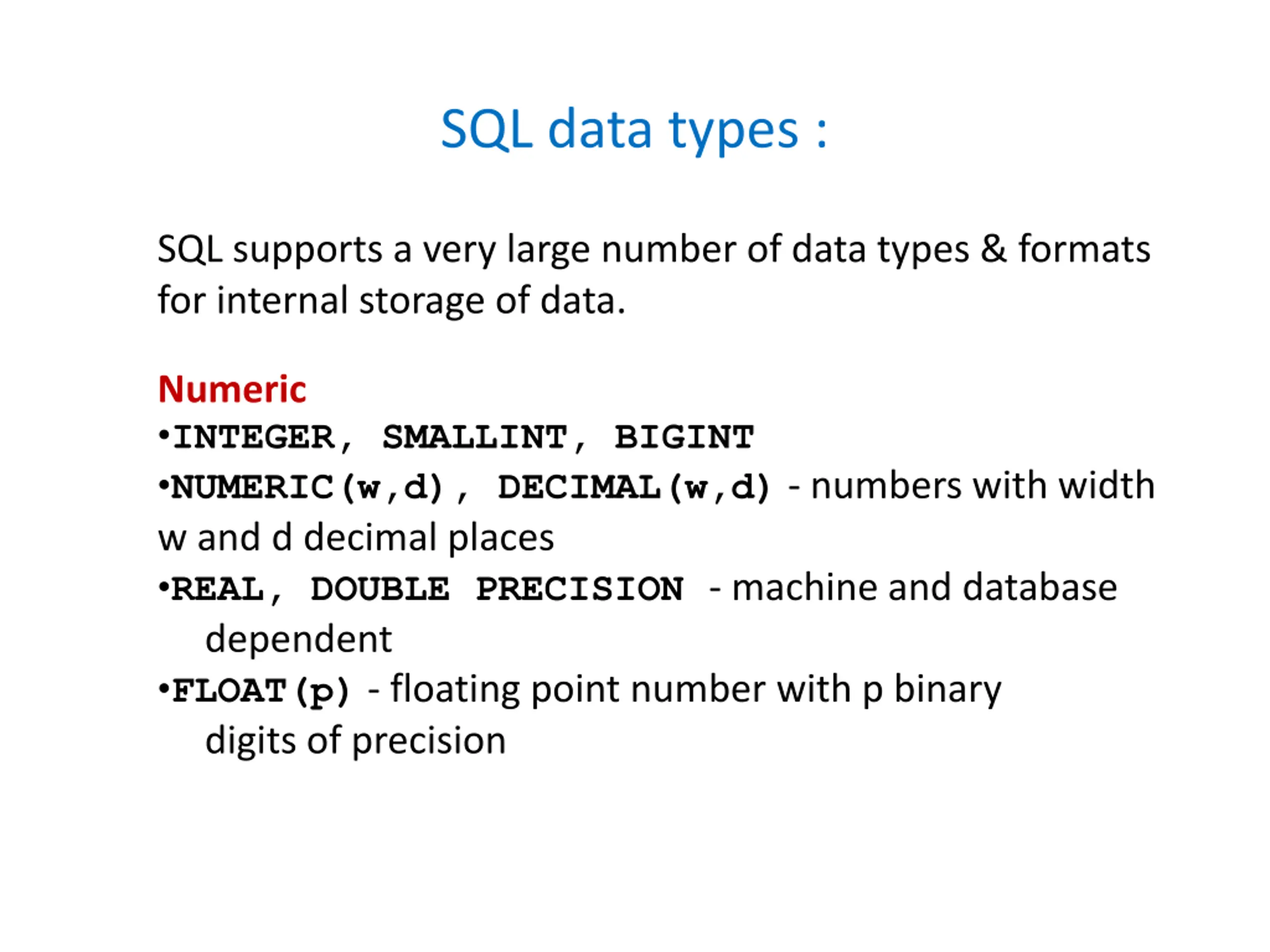

SQL data types : SQL supports a very large number of data types & formats for internal storage of data. Numeric INTEGER, SMALLINT, BIGINT NUMERIC(w,d), DECIMAL(w,d)- numbers with width w and d decimal places REAL, DOUBLE PRECISION - machine and database dependent FLOAT(p) - floating point number with p binary digits of precision

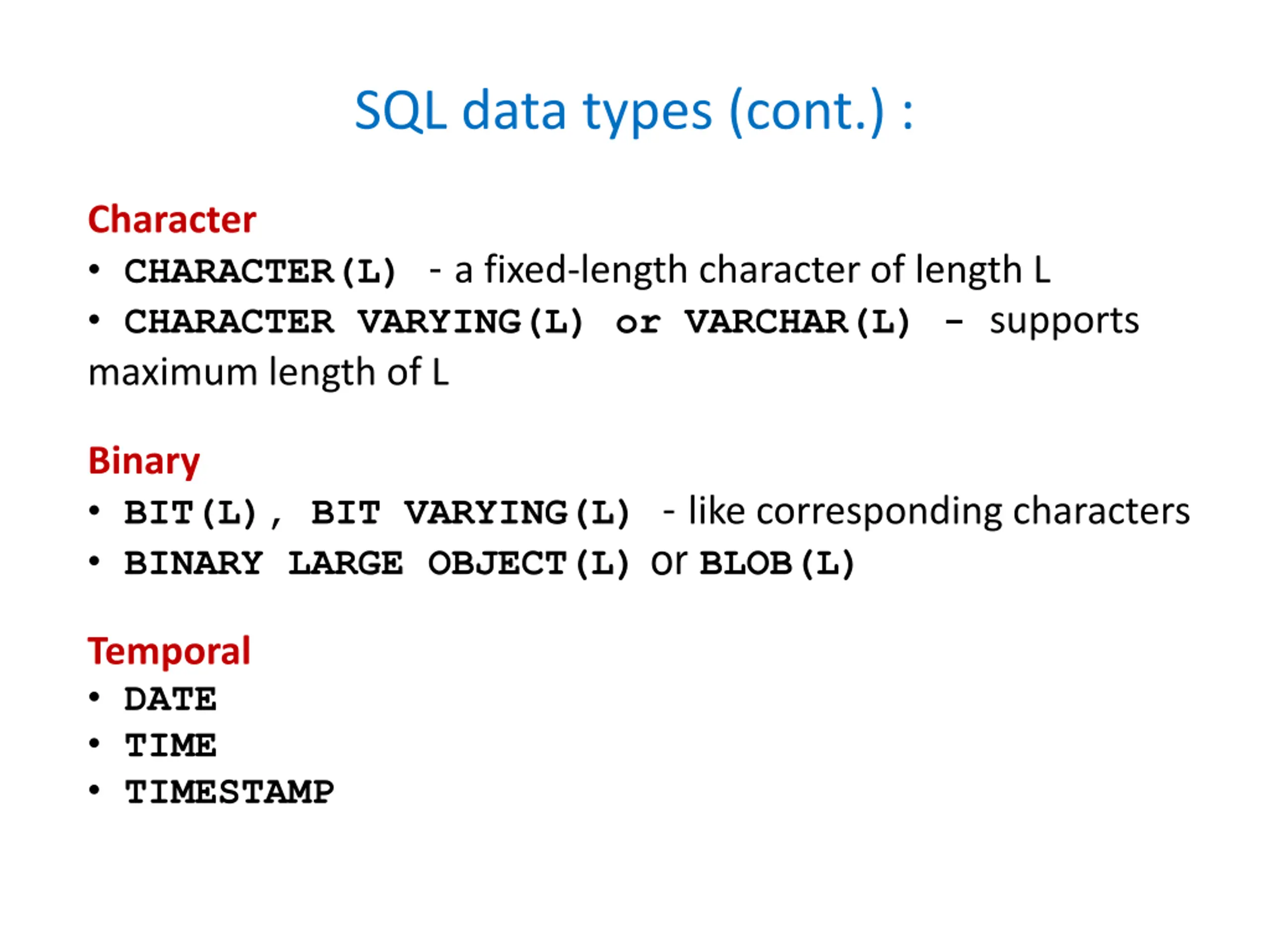

SQL data types (cont.) : Character CHARACTER(L) - a fixed-length character of length L CHARACTER VARYING(L) or VARCHAR(L) - supports maximum length of L Binary BIT(L), BIT VARYING(L) - like corresponding characters BINARY LARGE OBJECT(L) or BLOB(L) Temporal DATE TIME TIMESTAMP

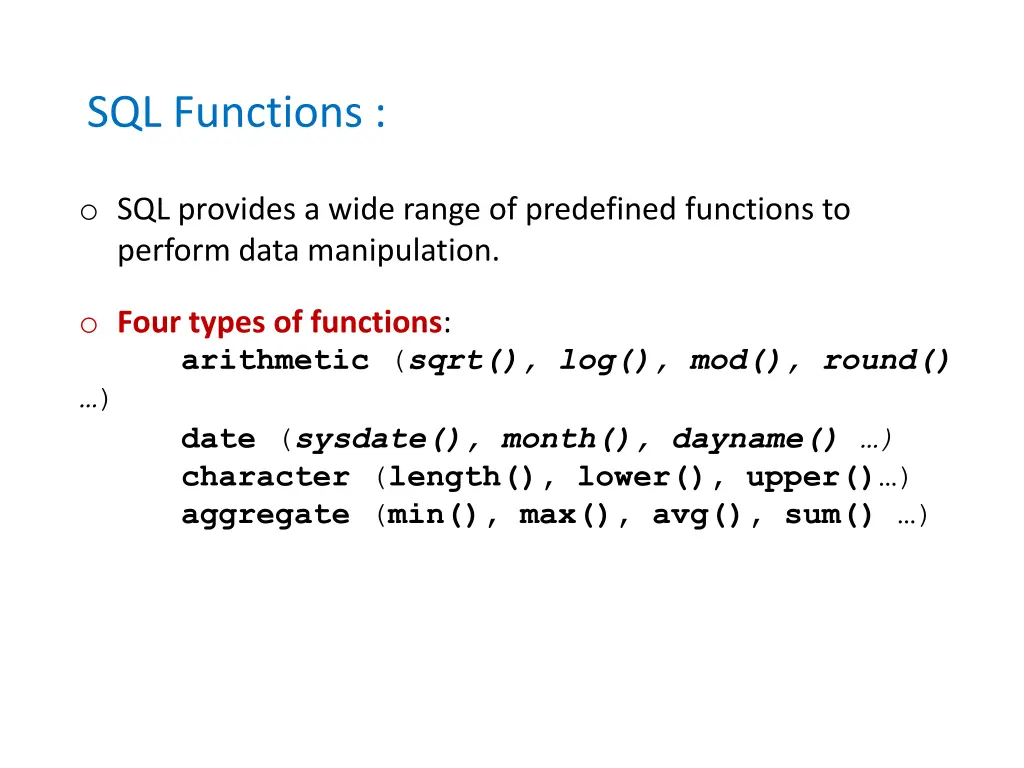

SQL Functions : o SQL provides a wide range of predefined functions to perform data manipulation. o Four types of functions: arithmetic (sqrt(), log(), mod(), round() ) date (sysdate(), month(), dayname() ) character (length(), lower(), upper() ) aggregate (min(), max(), avg(), sum() )

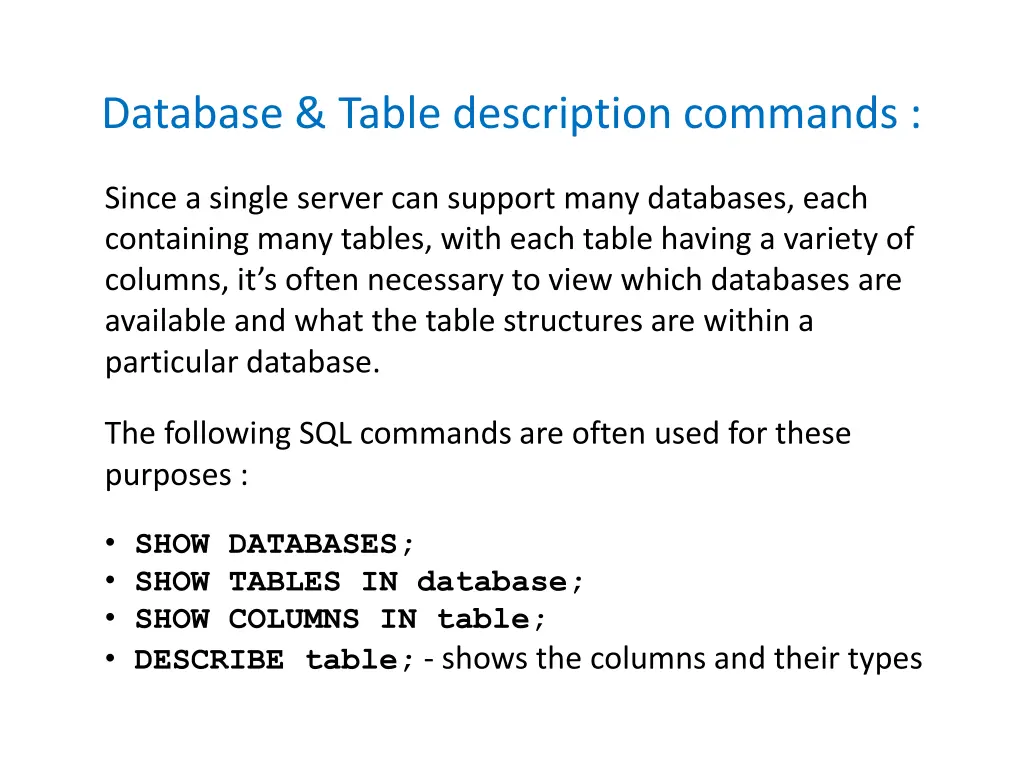

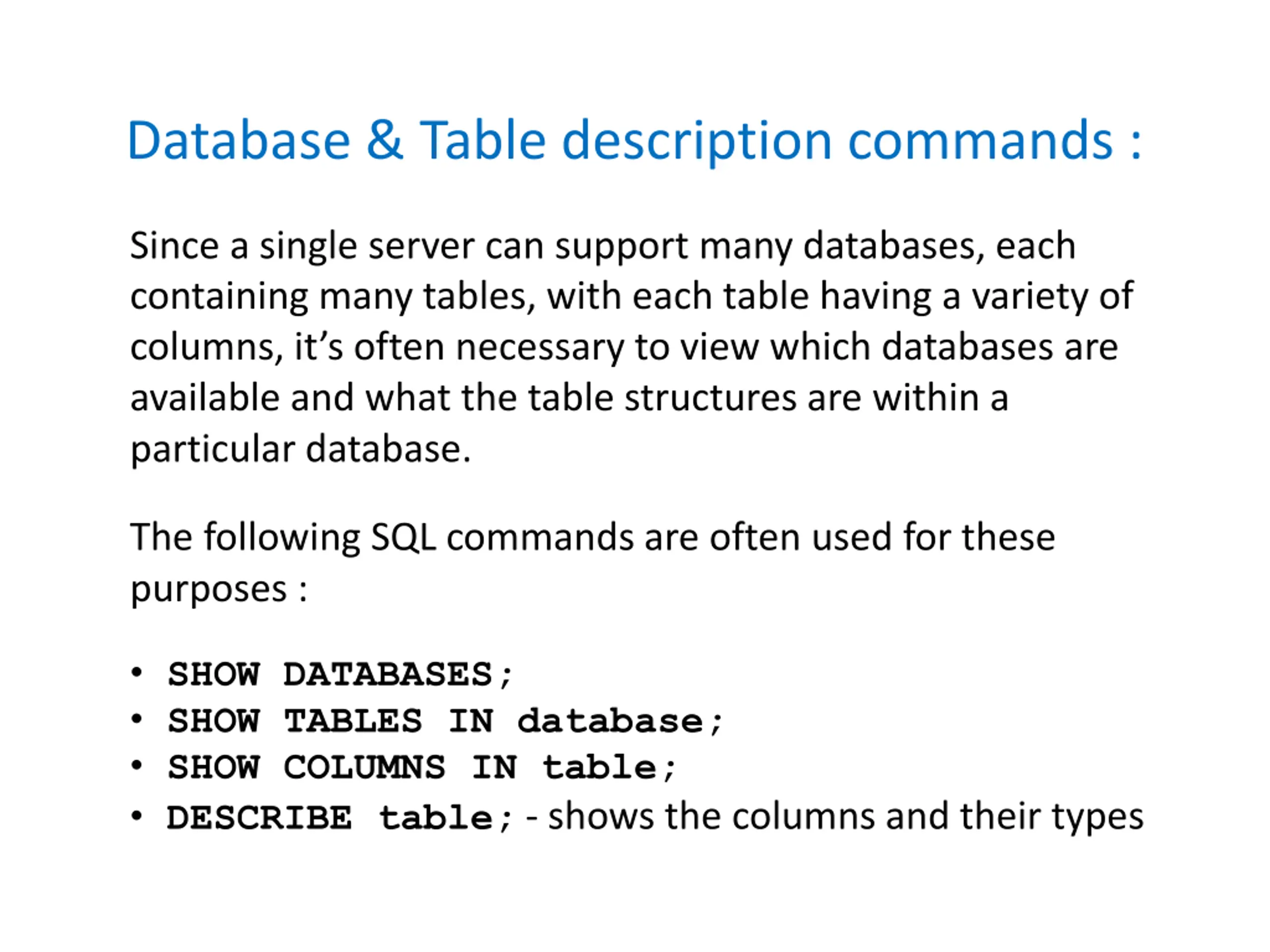

Database & Table description commands : Since a single server can support many databases, each containing many tables, with each table having a variety of columns, it s often necessary to view which databases are available and what the table structures are within a particular database. The following SQL commands are often used for these purposes : SHOW DATABASES; SHOW TABLES IN database; SHOW COLUMNS IN table; DESCRIBE table;- shows the columns and their types

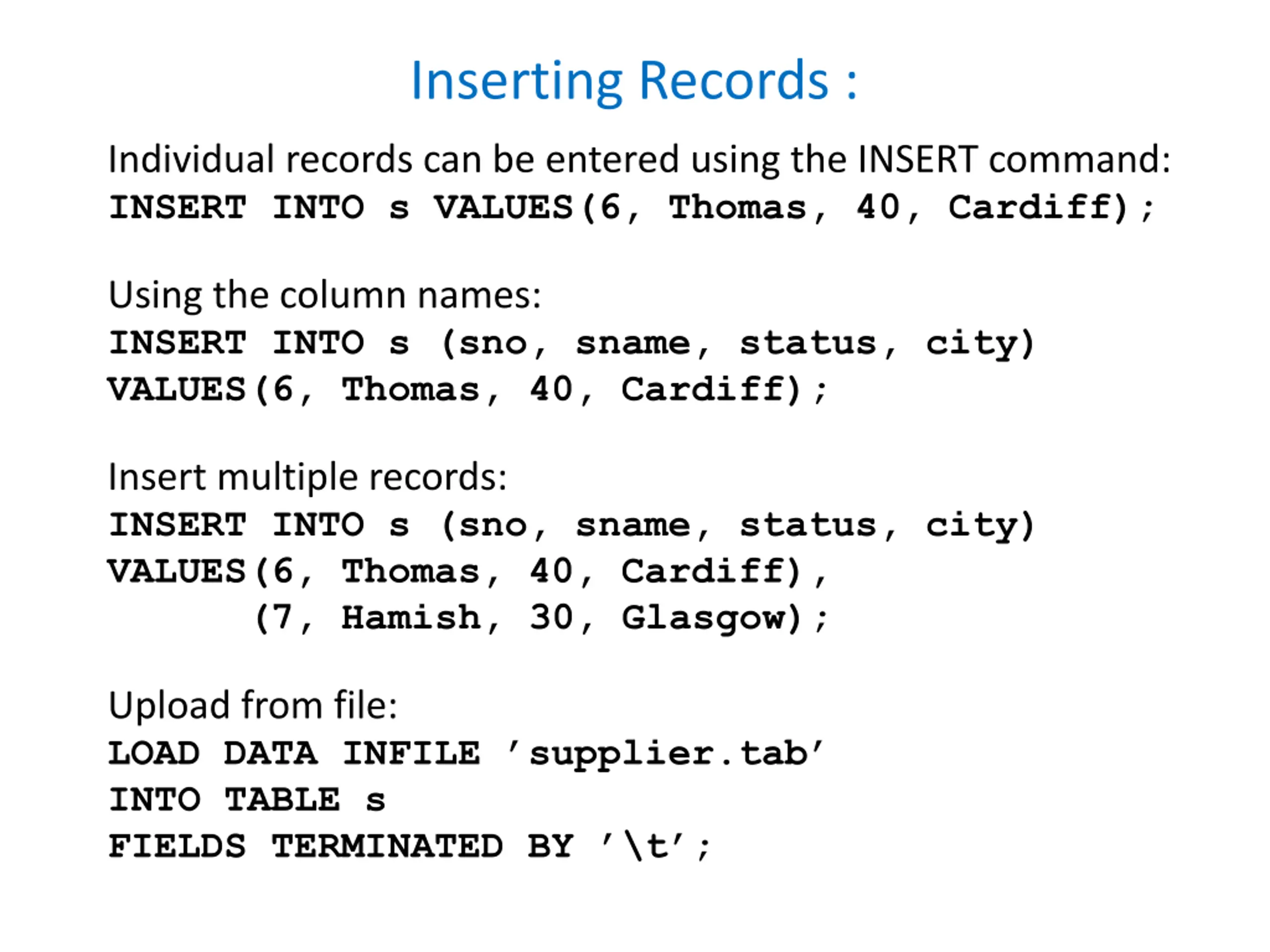

Inserting Records : Individual records can be entered using the INSERT command: INSERT INTO s VALUES(6, Thomas, 40, Cardiff); Using the column names: INSERT INTO s (sno, sname, status, city) VALUES(6, Thomas, 40, Cardiff); Insert multiple records: INSERT INTO s (sno, sname, status, city) VALUES(6, Thomas, 40, Cardiff), (7, Hamish, 30, Glasgow); Upload from file: LOAD DATA INFILE supplier.tab INTO TABLE s FIELDS TERMINATED BY \t ;

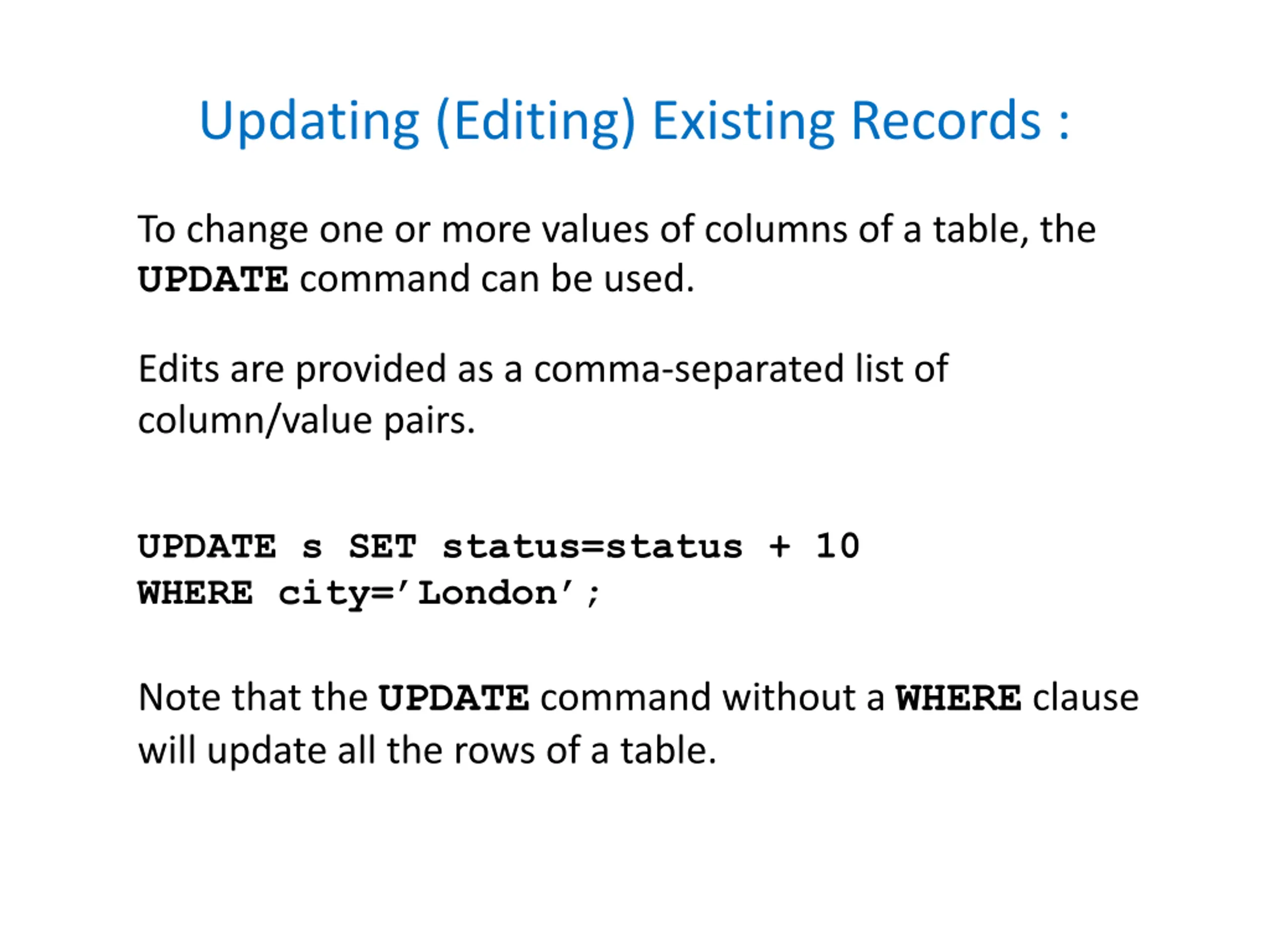

Updating (Editing) Existing Records : To change one or more values of columns of a table, the UPDATE command can be used. Edits are provided as a comma-separated list of column/value pairs. UPDATE s SET status=status + 10 WHERE city= London ; Note that the UPDATE command without a WHERE clause will update all the rows of a table.

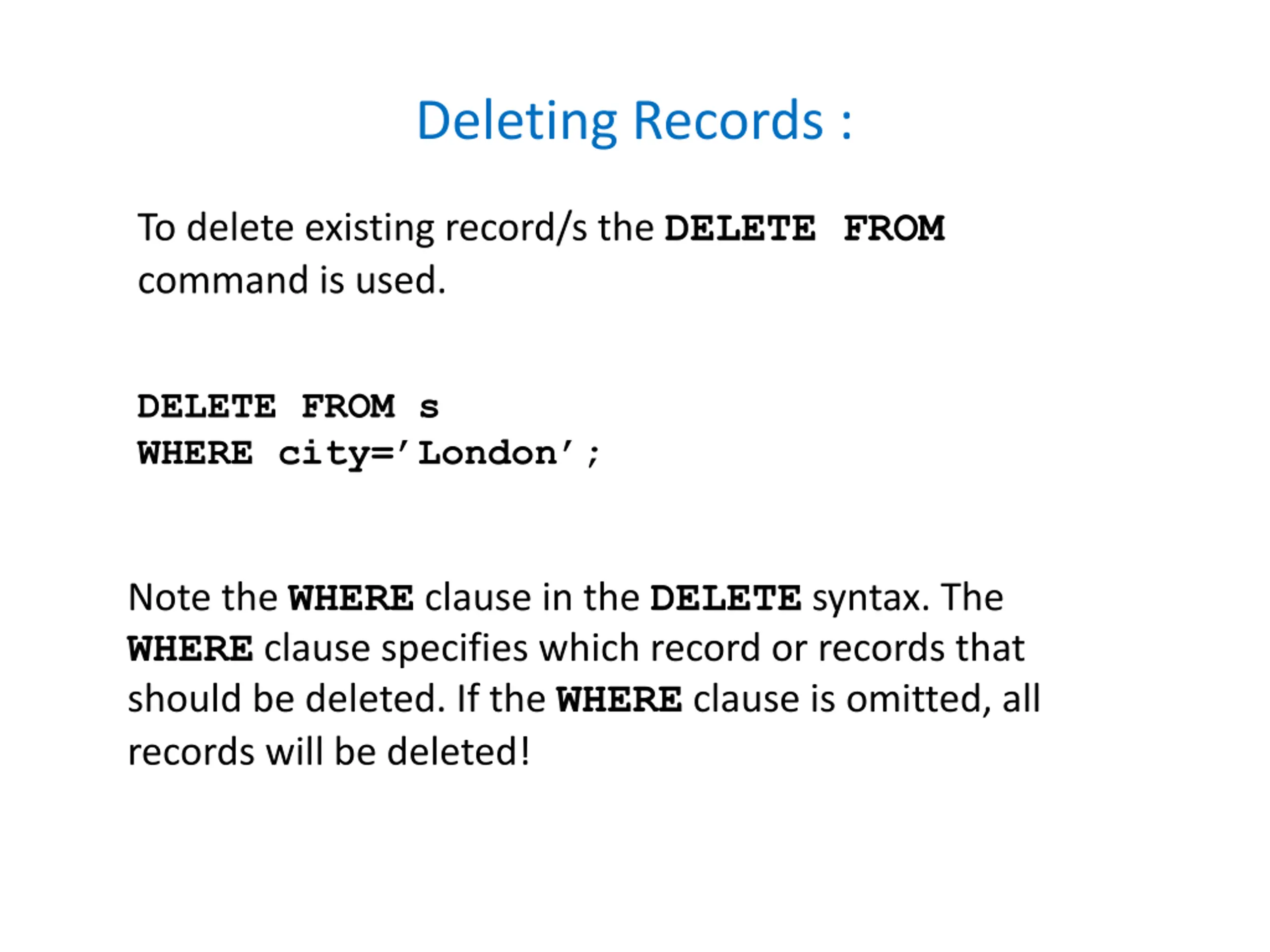

Deleting Records : To delete existing record/s the DELETE FROM command is used. DELETE FROM s WHERE city= London ; Note the WHERE clause in the DELETE syntax. The WHERE clause specifies which record or records that should be deleted. If the WHERE clause is omitted, all records will be deleted!

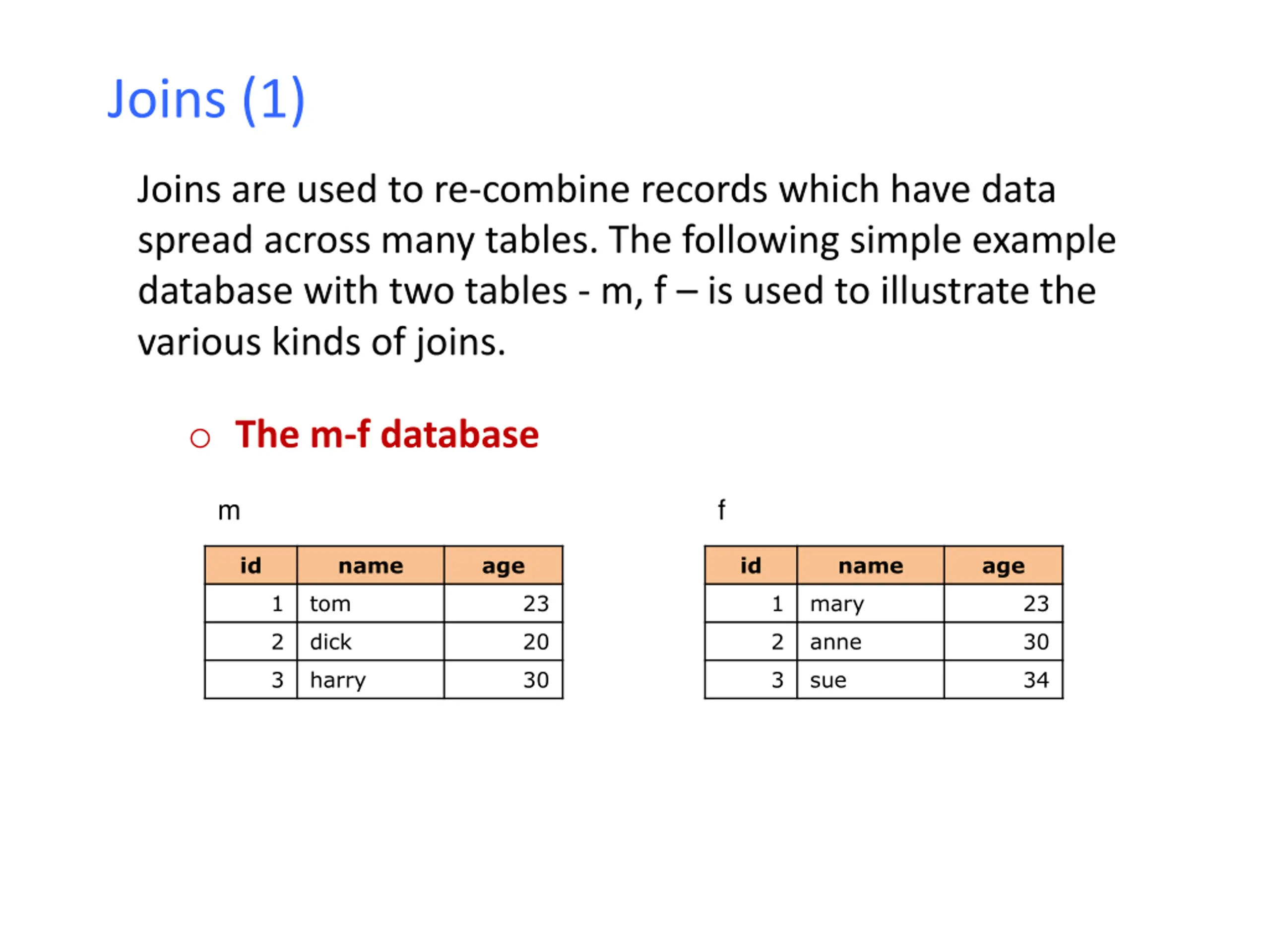

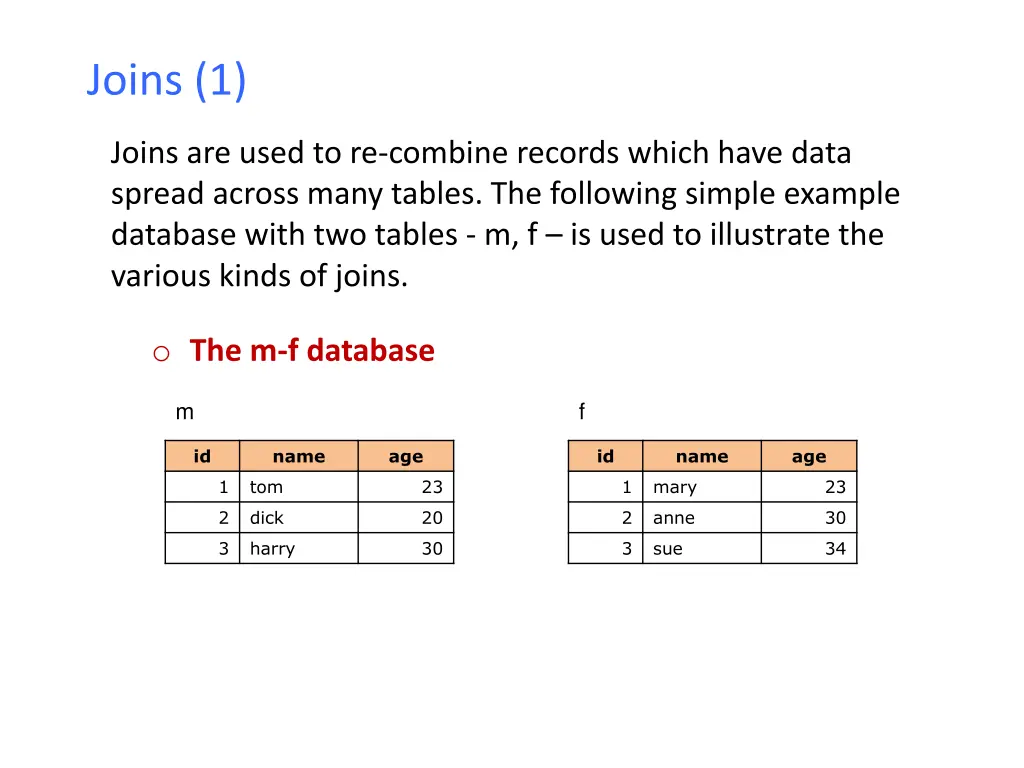

Joins (1) Joins are used to re-combine records which have data spread across many tables. The following simple example database with two tables - m, f is used to illustrate the various kinds of joins. o The m-f database m f id name age id name age 1 tom 23 1 mary 23 2 dick 20 2 anne 30 3 harry 30 3 sue 34

Joins (2) Product (or Cartesian Product) SELECT * FROM m, f id name age id name age 1 tom 23 1 mary 23 2 dick 20 1 mary 23 3 harry 30 1 mary 23 1 tom 23 2 anne 30 2 dick 20 2 anne 30 3 harry 30 2 anne 30 1 tom 23 3 sue 34 2 dick 20 3 sue 34 3 harry 30 3 sue 34 Synonymous with the CROSS JOIN, hence: SELECT * FROM m CROSS JOIN f; would return the same result. This is not very useful but is the basis for all other joins.

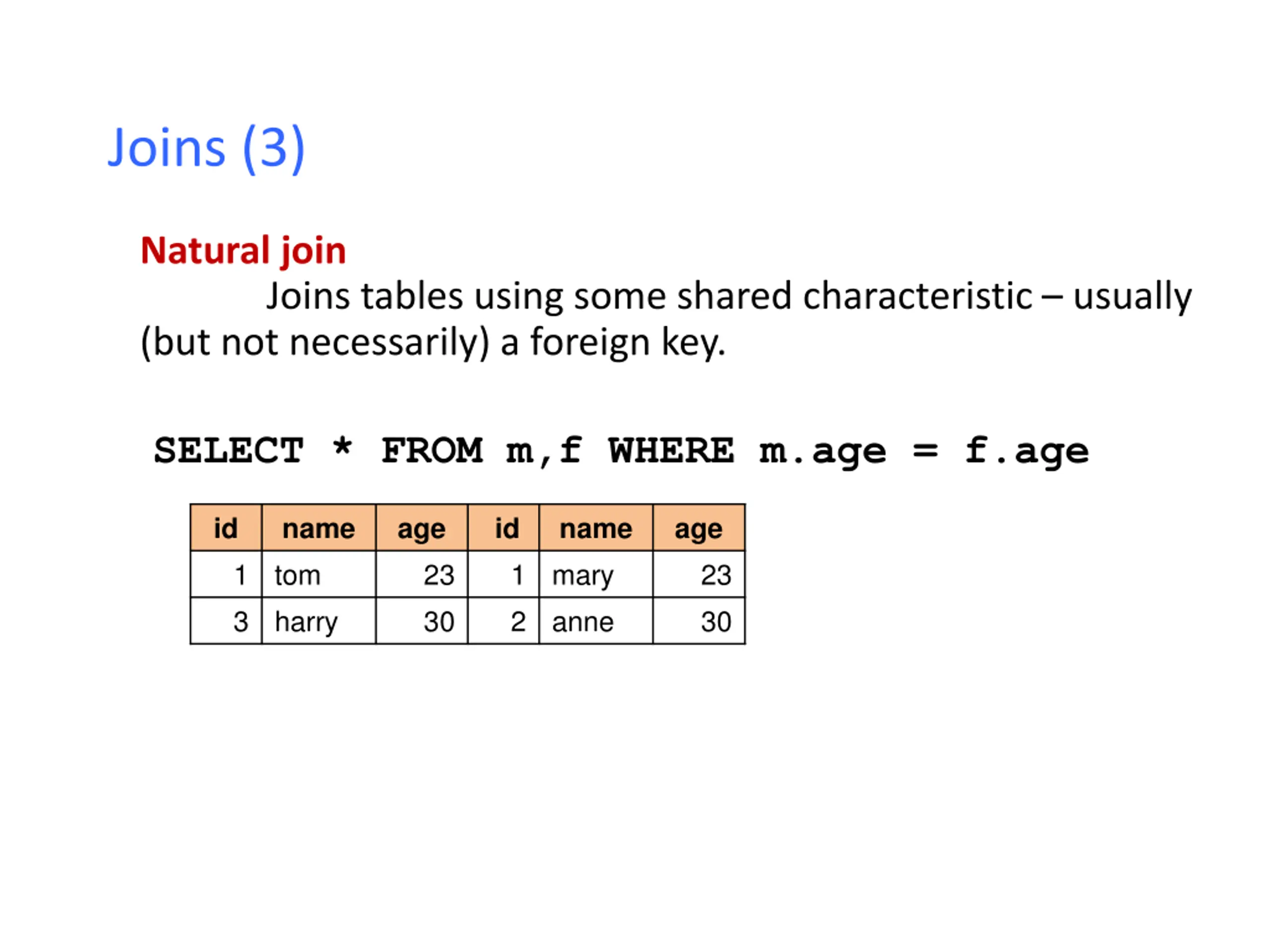

Joins (3) Natural join (but not necessarily) a foreign key. Joins tables using some shared characteristic usually SELECT * FROM m,f WHERE m.age = f.age id name tom harry age 23 30 id name mary anne age 23 30 1 3 1 2

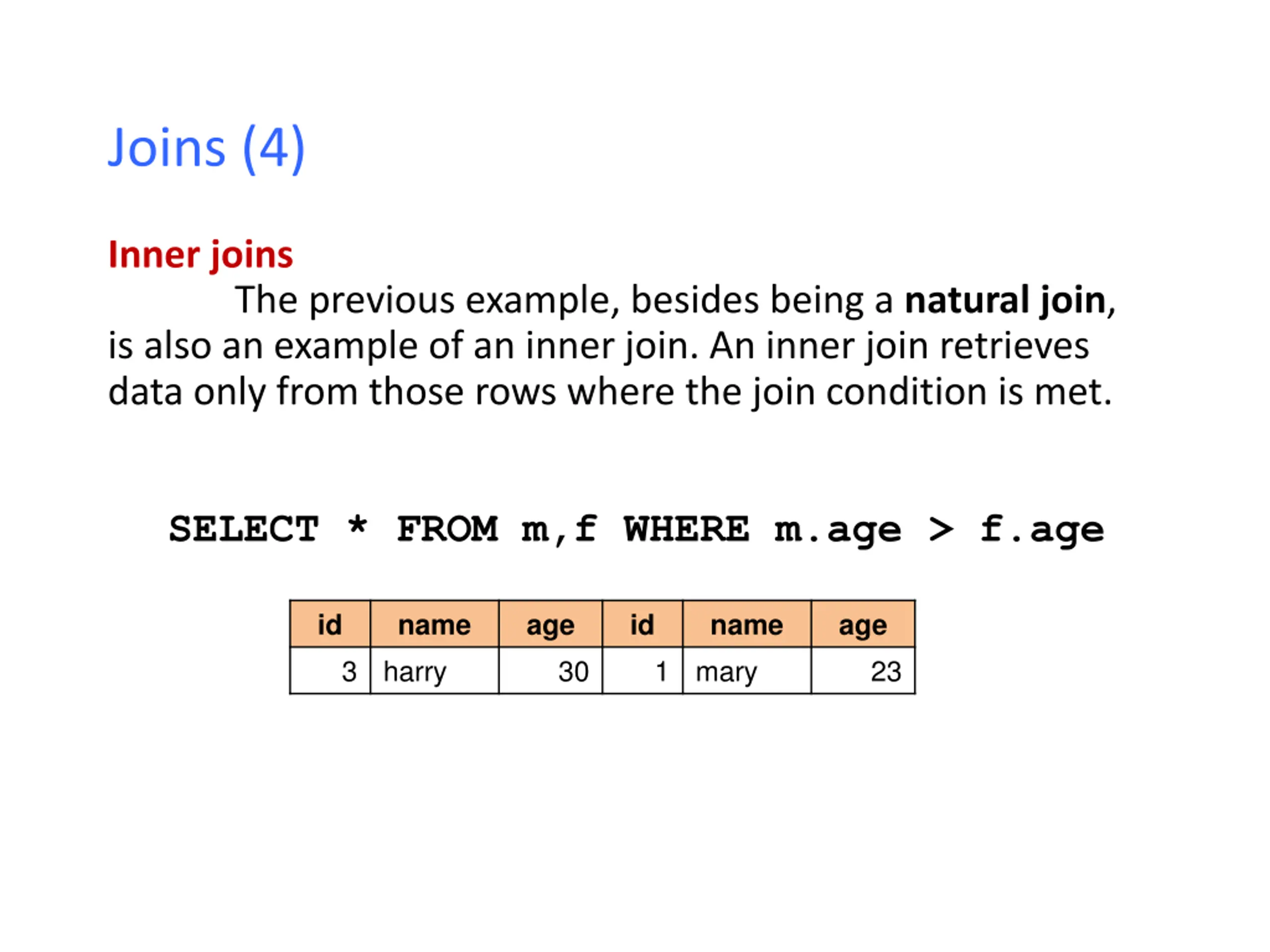

Joins (4) Inner joins is also an example of an inner join. An inner join retrieves data only from those rows where the join condition is met. The previous example, besides being a natural join, SELECT * FROM m,f WHERE m.age > f.age id name harry age id name mary age 3 30 1 23

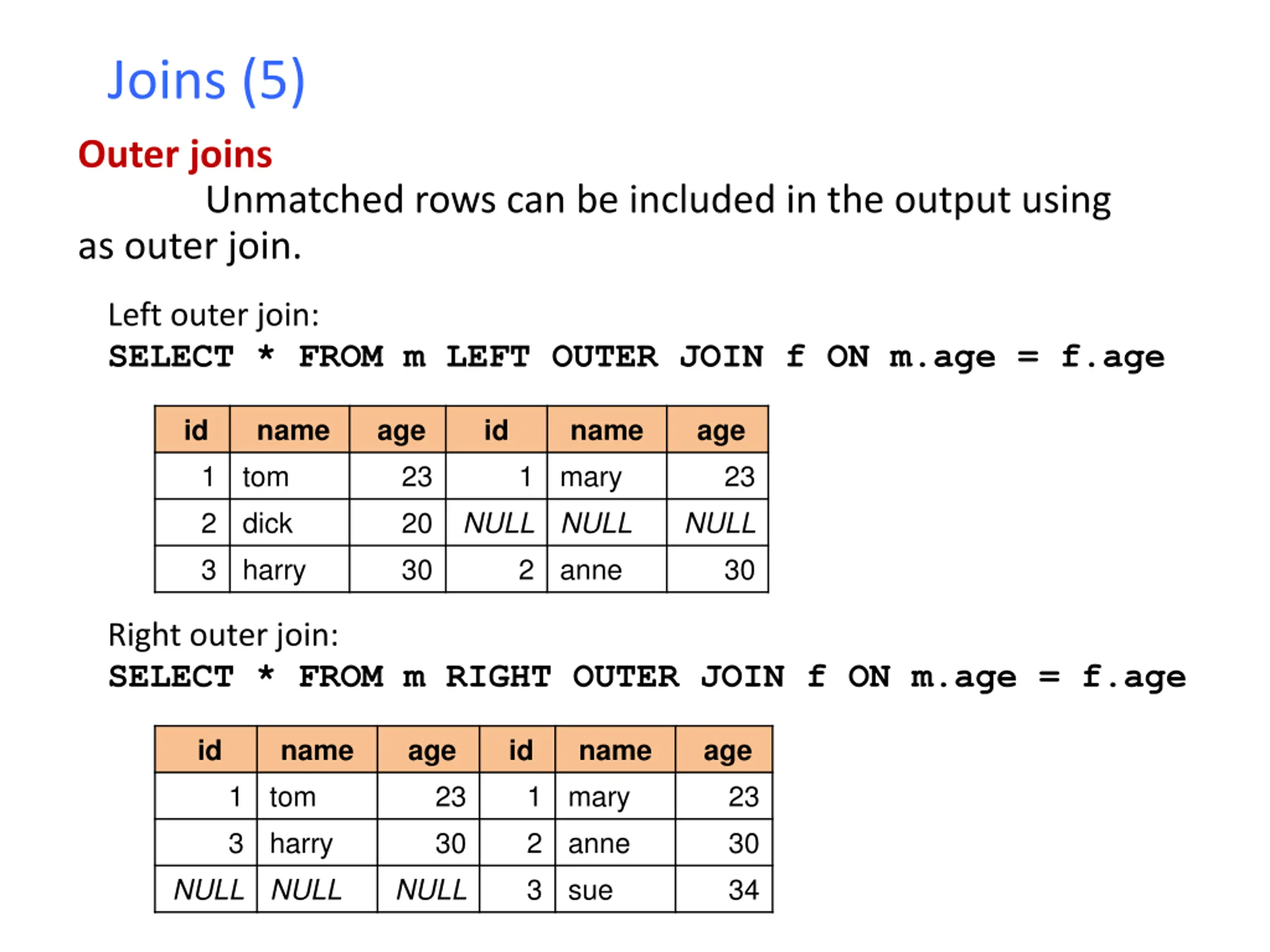

Joins (5) Outer joins as outer join. Unmatched rows can be included in the output using Left outer join: SELECT * FROM m LEFT OUTER JOIN f ON m.age = f.age id name tom dick harry age id name mary NULL anne age 1 2 3 23 20 30 1 23 NULL NULL 2 30 Right outer join: SELECT * FROM m RIGHT OUTER JOIN f ON m.age = f.age id name tom harry NULL age id name age 1 3 23 30 1 mary 2 anne 3 sue 23 30 34 NULL NULL

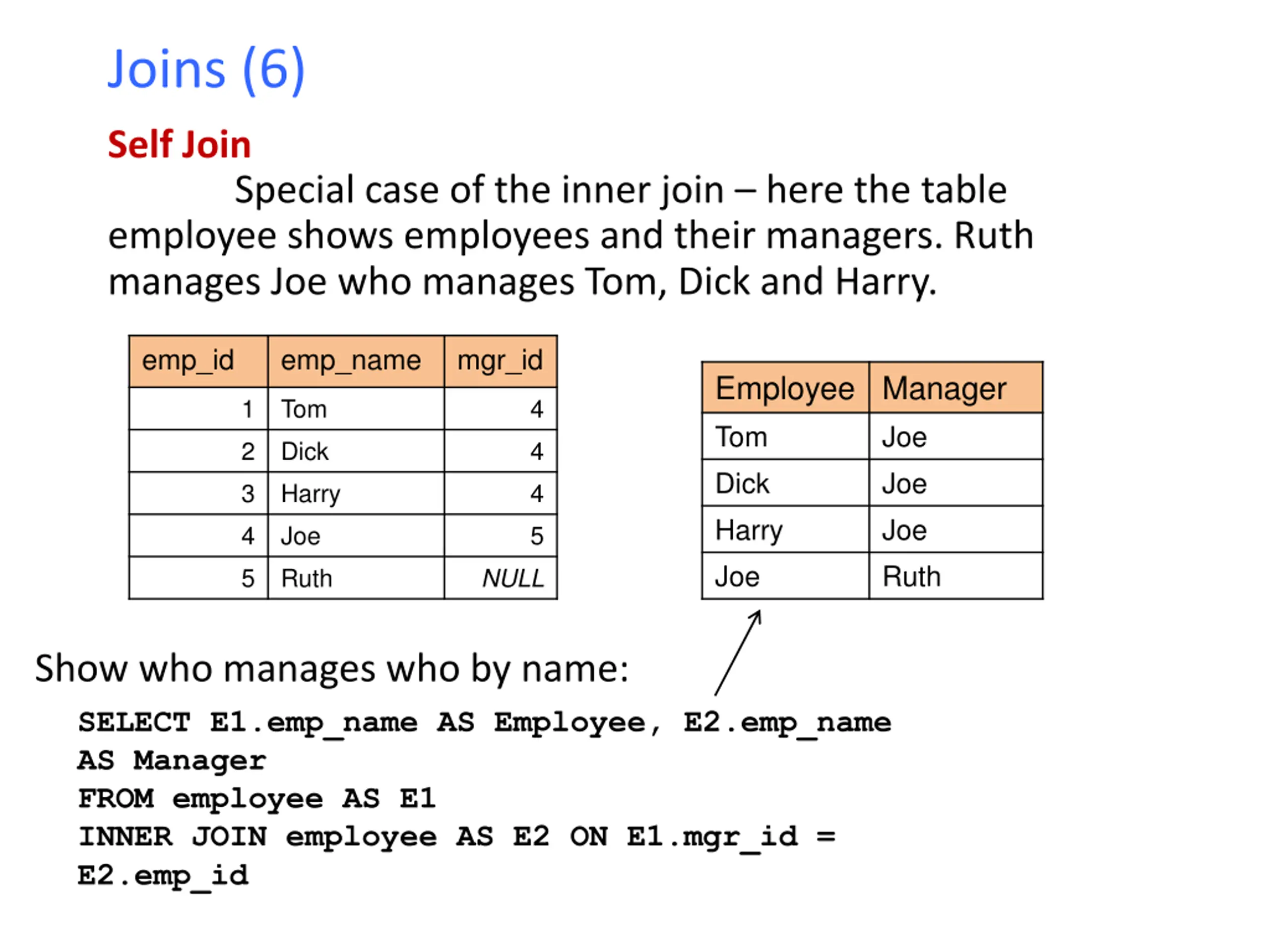

Joins (6) Self Join employee shows employees and their managers. Ruth manages Joe who manages Tom, Dick and Harry. Special case of the inner join here the table emp_id emp_name mgr_id Employee Manager Tom Dick Harry Joe 1 Tom 4 Joe Joe Joe Ruth 2 Dick 4 3 Harry 4 4 Joe 5 5 Ruth NULL Show who manages who by name: SELECT E1.emp_name AS Employee, E2.emp_name AS Manager FROM employee AS E1 INNER JOIN employee AS E2 ON E1.mgr_id = E2.emp_id

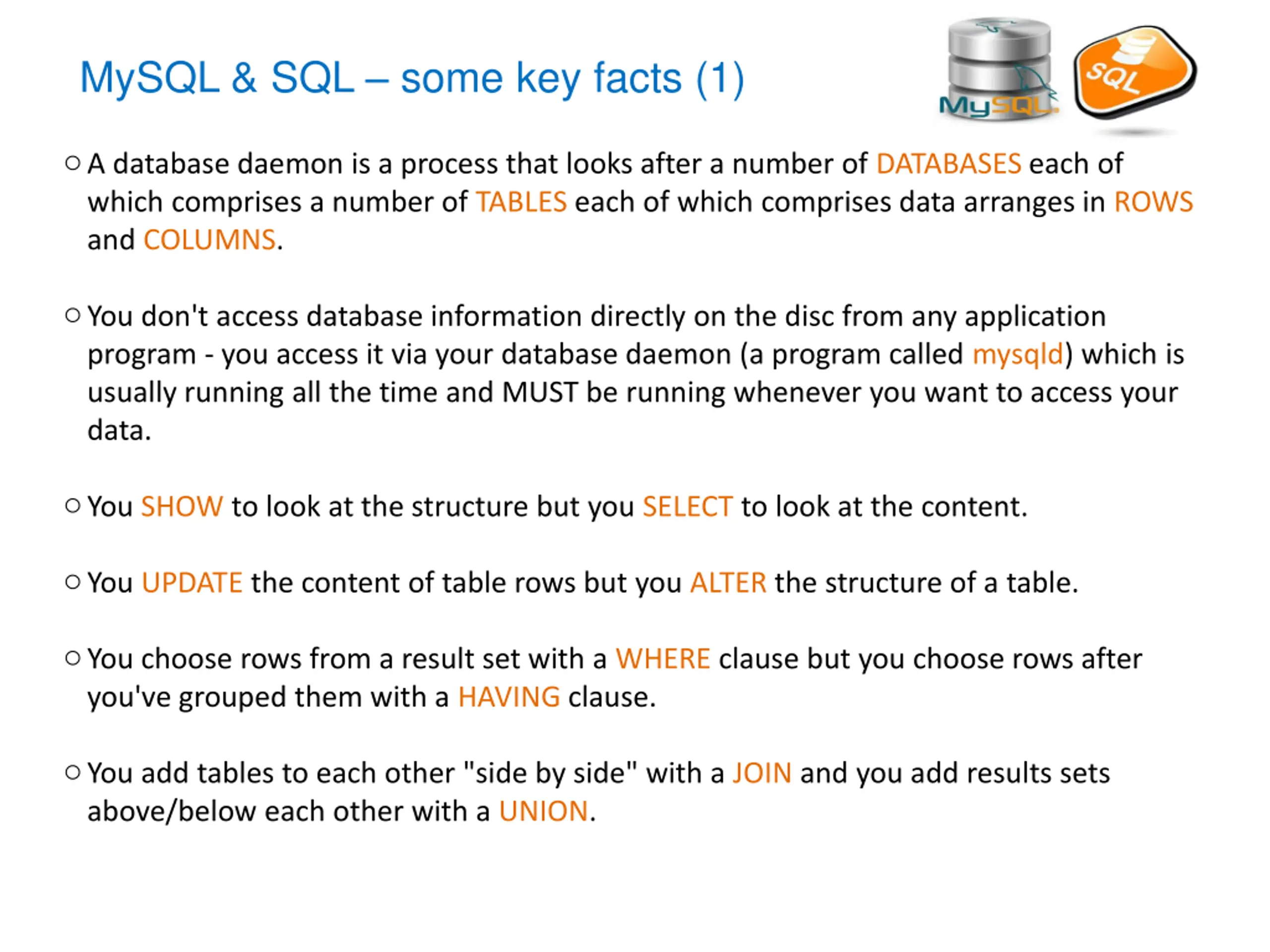

MySQL & SQL some key facts (1) oA database daemon is a process that looks after a number of DATABASES each of which comprises a number of TABLES each of which comprises data arranges in ROWS and COLUMNS. oYou don't access database information directly on the disc from any application program - you access it via your database daemon (a program called mysqld) which is usually running all the time and MUST be running whenever you want to access your data. oYou SHOW to look at the structure but you SELECT to look at the content. oYou UPDATE the content of table rows but you ALTER the structure of a table. oYou choose rows from a result set with a WHERE clause but you choose rows after you've grouped them with a HAVING clause. oYou add tables to each other "side by side" with a JOIN and you add results sets above/below each other with a UNION.

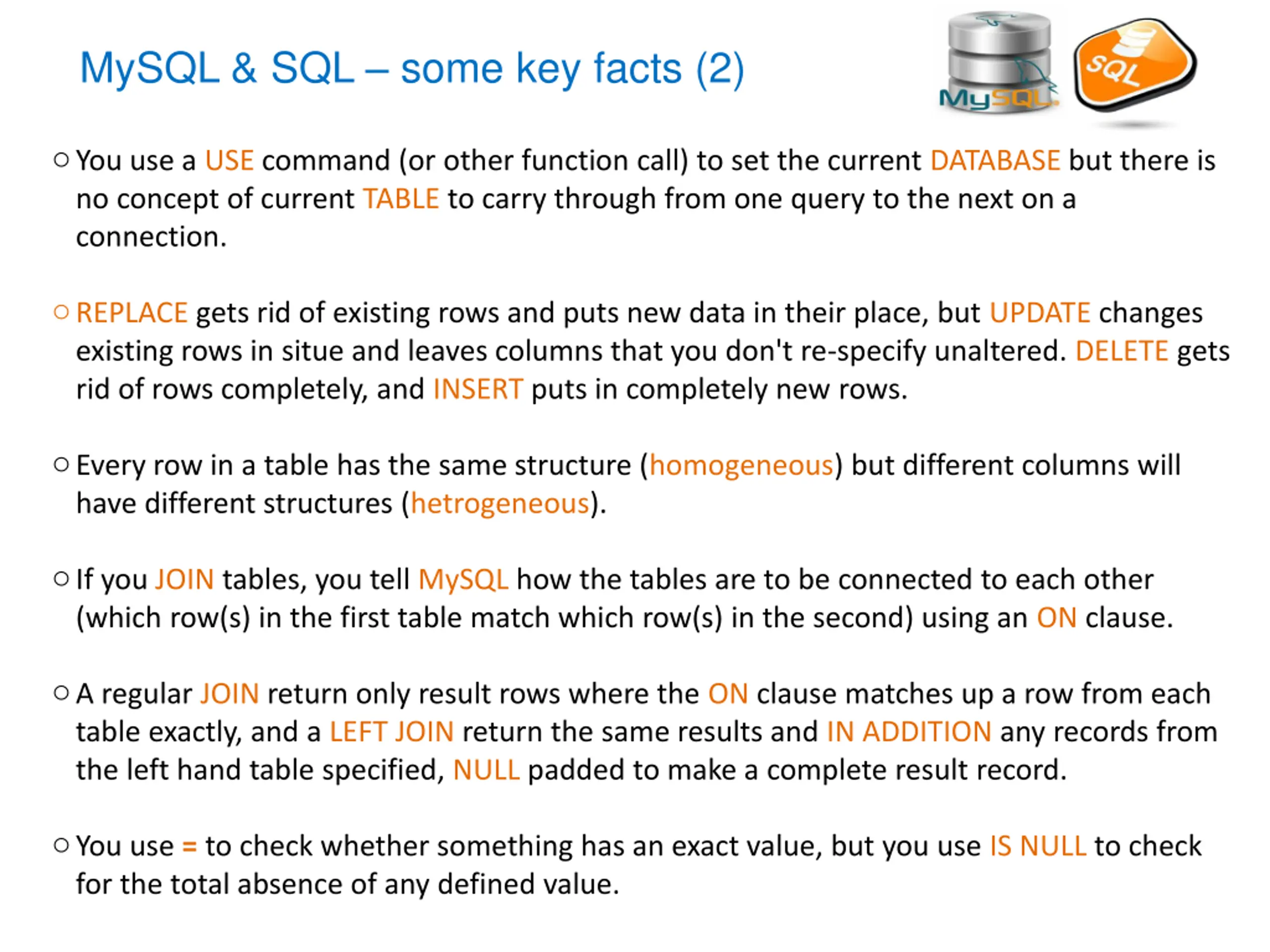

MySQL & SQL some key facts (2) oYou use a USE command (or other function call) to set the current DATABASE but there is no concept of current TABLE to carry through from one query to the next on a connection. oREPLACE gets rid of existing rows and puts new data in their place, but UPDATE changes existing rows in situe and leaves columns that you don't re-specify unaltered. DELETE gets rid of rows completely, and INSERT puts in completely new rows. oEvery row in a table has the same structure (homogeneous) but different columns will have different structures (hetrogeneous). oIf you JOIN tables, you tell MySQL how the tables are to be connected to each other (which row(s) in the first table match which row(s) in the second) using an ON clause. oA regular JOIN return only result rows where the ON clause matches up a row from each table exactly, and a LEFT JOIN return the same results and IN ADDITION any records from the left hand table specified, NULL padded to make a complete result record. oYou use = to check whether something has an exact value, but you use IS NULL to check for the total absence of any defined value.
