SQL Workshop University of California, Berkeley School of Information IS 257: Database Management IS 257 Fall 2015 2015-09-10 SLIDE 1

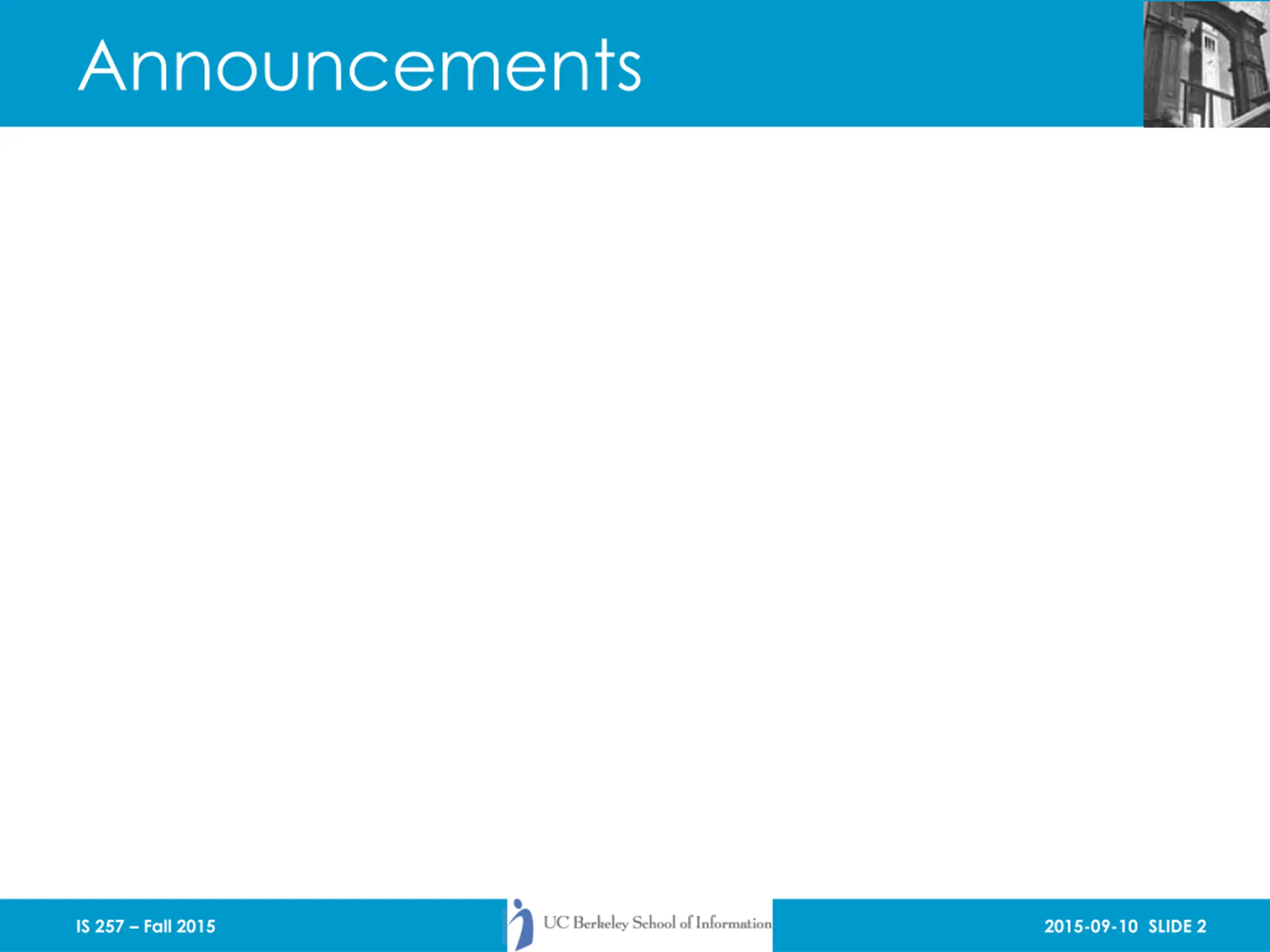

Announcements IS 257 Fall 2015 2015-09-10 SLIDE 2

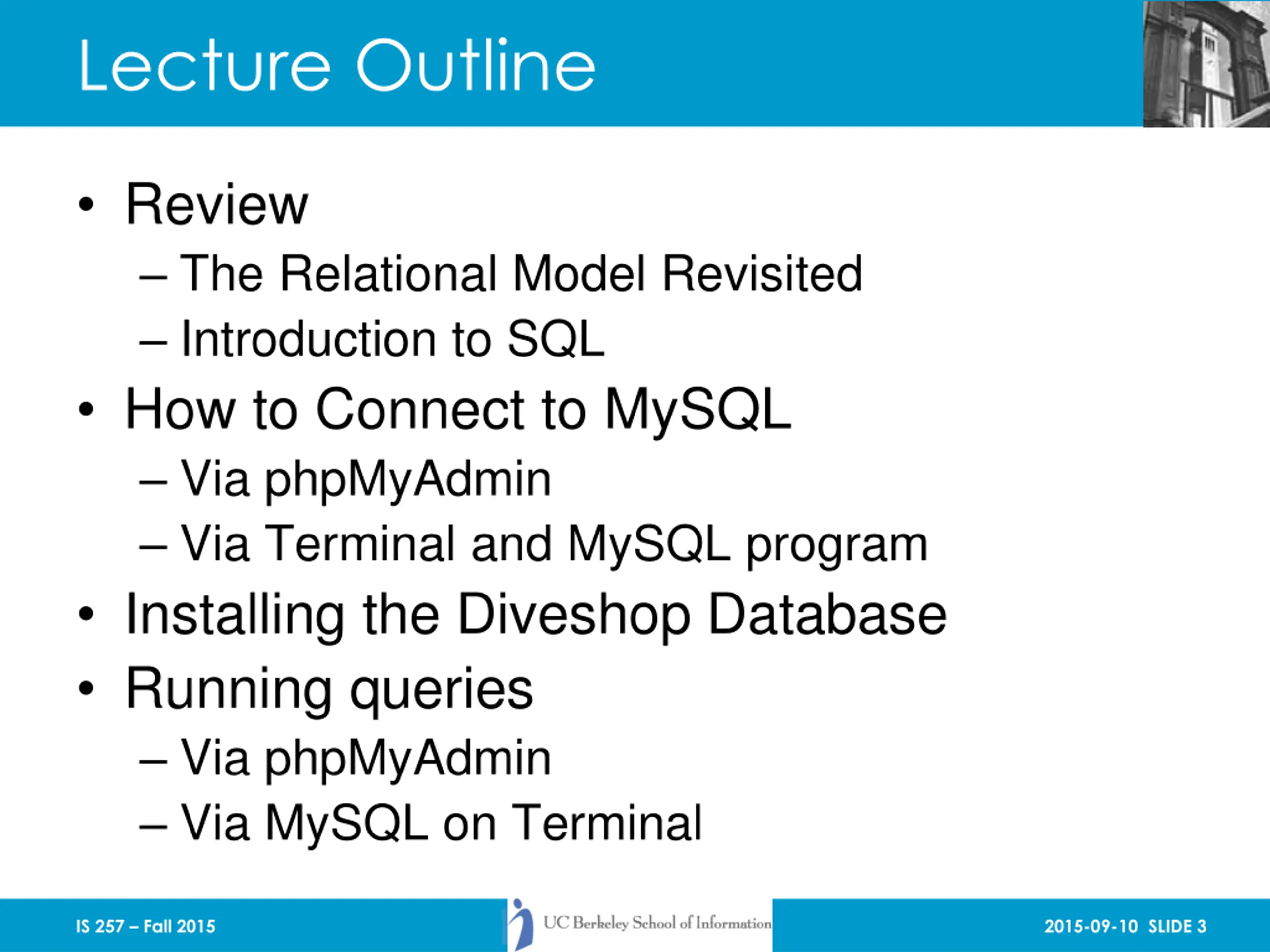

Lecture Outline Review The Relational Model Revisited Introduction to SQL How to Connect to MySQL Via phpMyAdmin Via Terminal and MySQL program Installing the Diveshop Database Running queries Via phpMyAdmin Via MySQL on Terminal IS 257 Fall 2015 2015-09-10 SLIDE 3

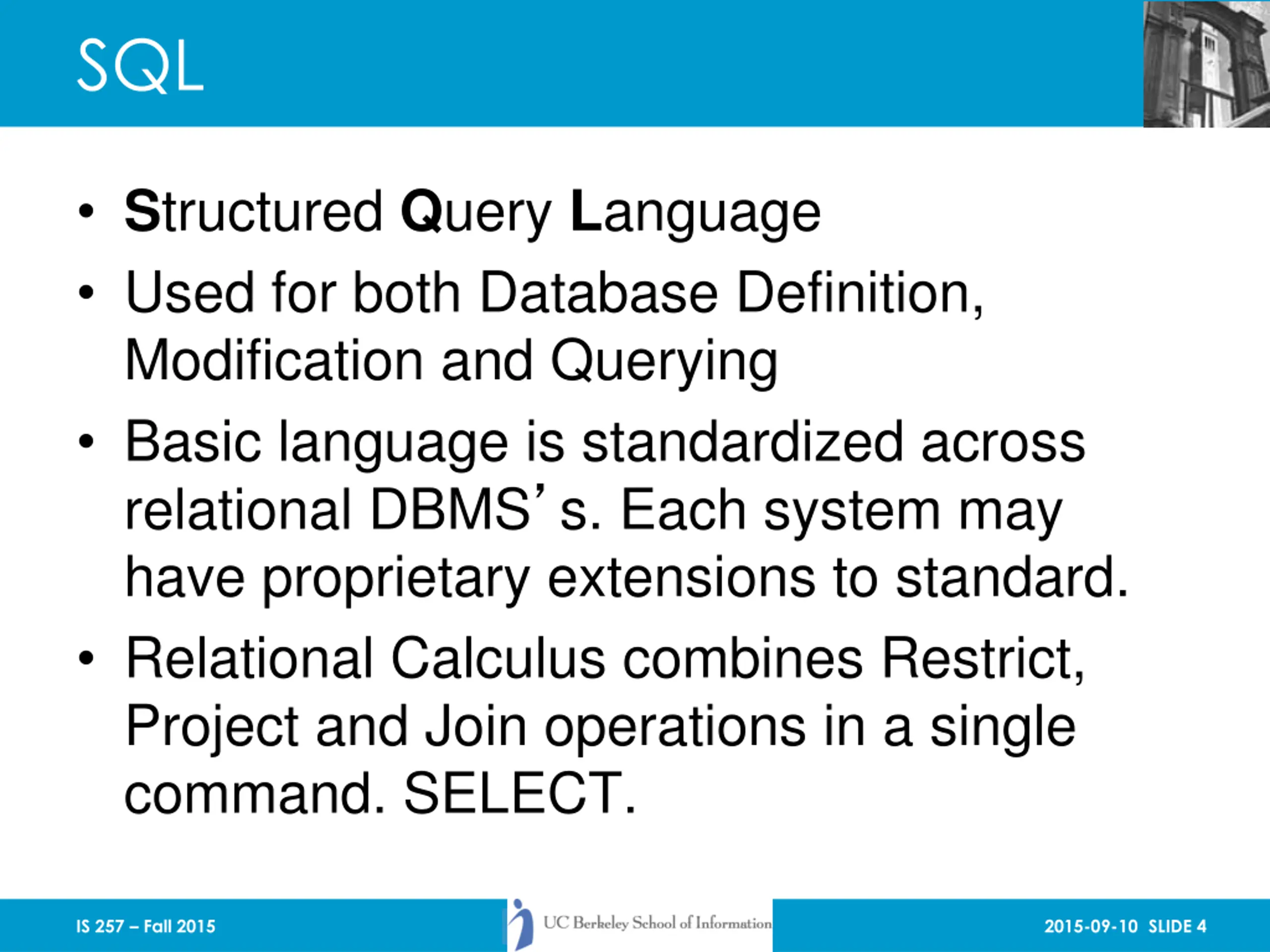

SQL Structured Query Language Used for both Database Definition, Modification and Querying Basic language is standardized across relational DBMS s. Each system may have proprietary extensions to standard. Relational Calculus combines Restrict, Project and Join operations in a single command. SELECT. IS 257 Fall 2015 2015-09-10 SLIDE 4

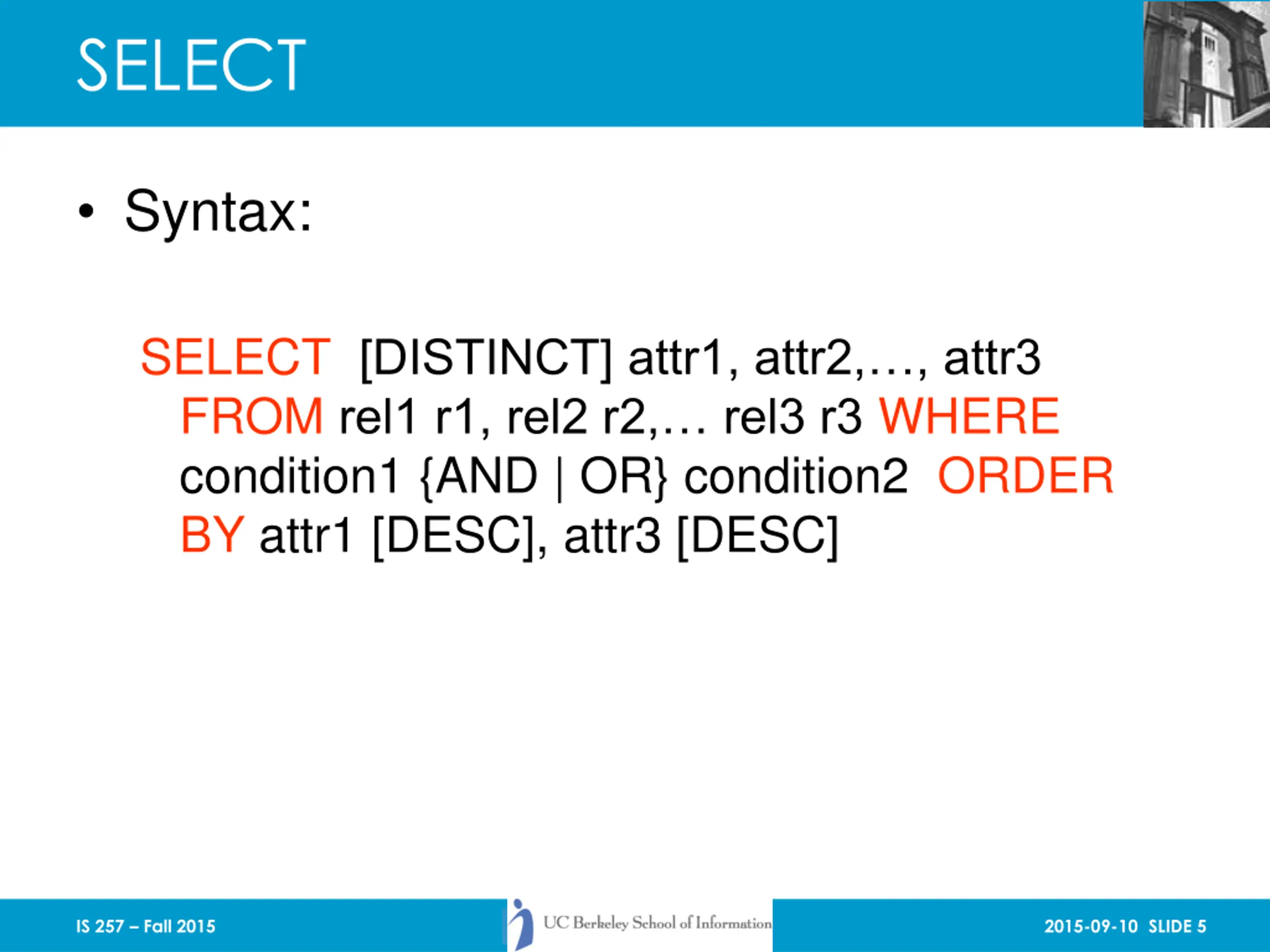

SELECT Syntax: SELECT [DISTINCT] attr1, attr2, , attr3 FROM rel1 r1, rel2 r2, rel3 r3 WHERE condition1 {AND | OR} condition2 ORDER BY attr1 [DESC], attr3 [DESC] IS 257 Fall 2015 2015-09-10 SLIDE 5

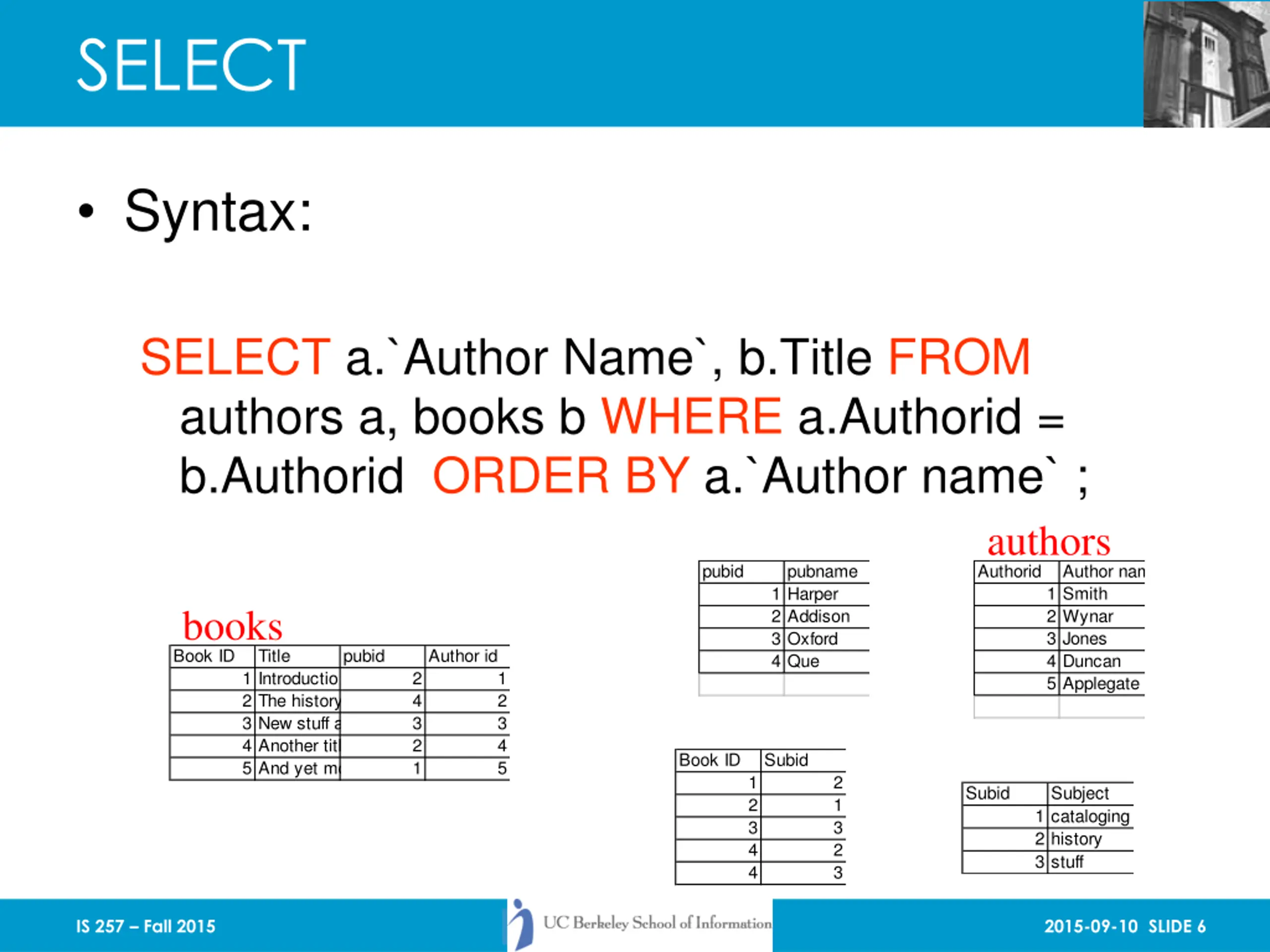

SELECT Syntax: SELECT a.`Author Name`, b.Title FROM authors a, books b WHERE a.Authorid = b.Authorid ORDER BY a.`Author name` ; authors pubid pubname 1 Harper 2 Addison 3 Oxford 4 Que Authorid Author nam 1 Smith 2 Wynar 3 Jones 4 Duncan 5 Applegate books Book ID Title 1 Introductio 2 The history 3 New stuff a 4 Another titl 5 And yet mo pubid Author id 2 4 3 2 1 1 2 3 4 5 Book ID Subid 1 2 3 4 4 2 1 3 2 3 Subid Subject 1 cataloging 2 history 3 stuff IS 257 Fall 2015 2015-09-10 SLIDE 6

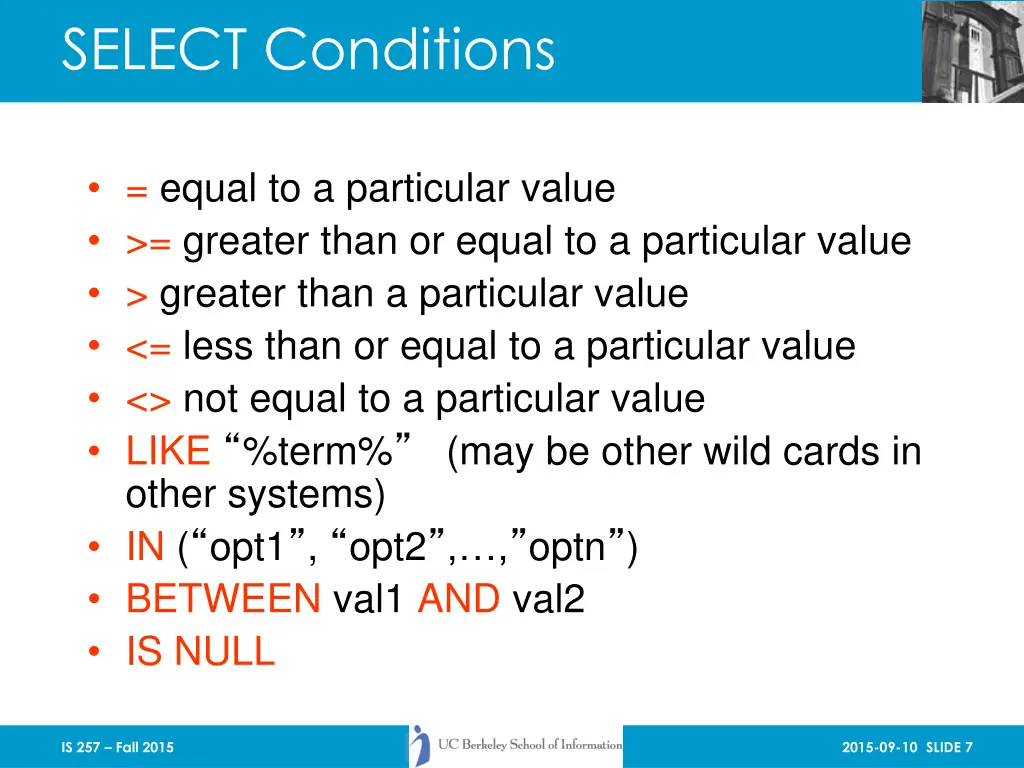

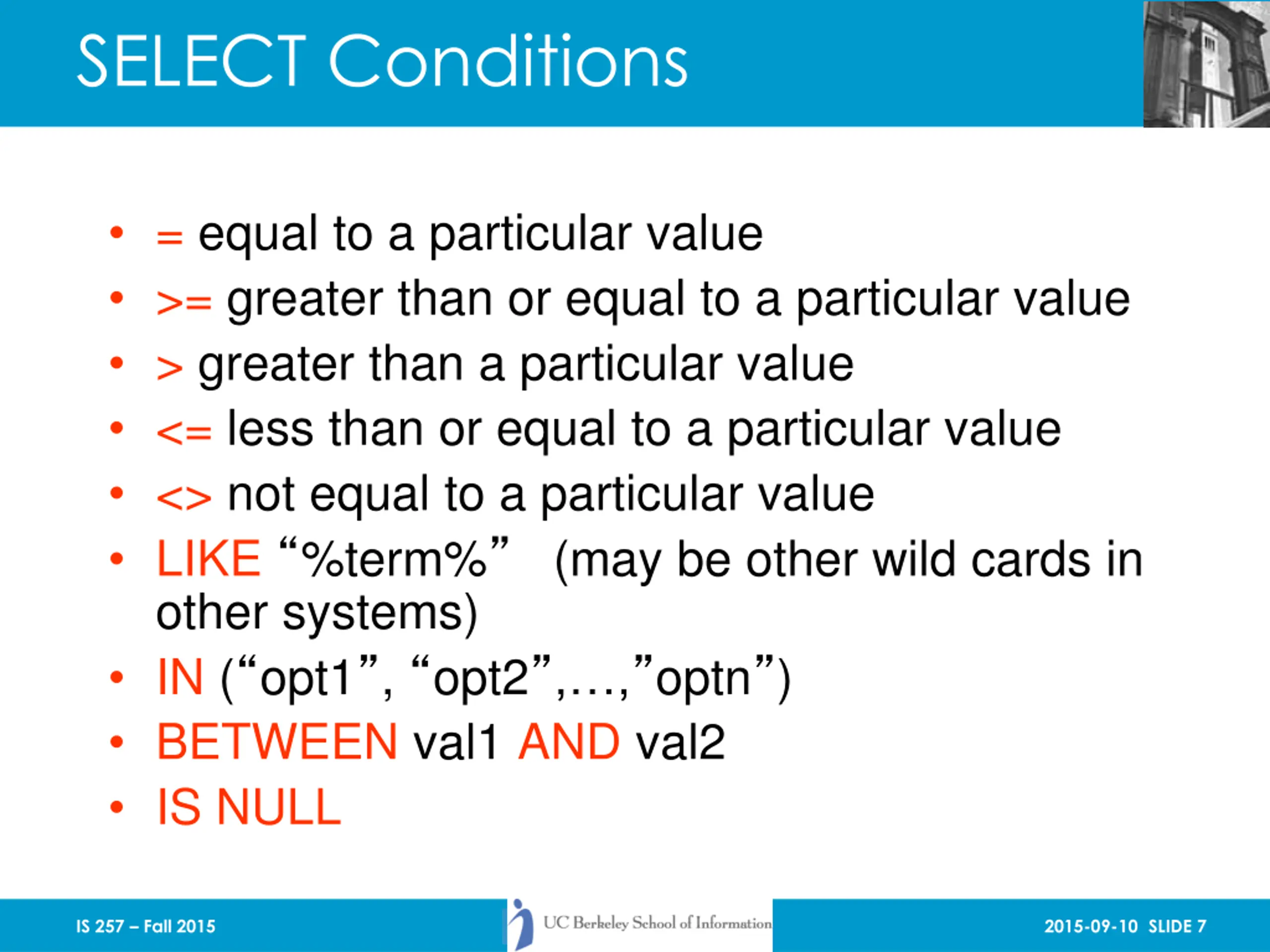

SELECT Conditions = equal to a particular value >= greater than or equal to a particular value > greater than a particular value <= less than or equal to a particular value <> not equal to a particular value LIKE %term% (may be other wild cards in other systems) IN ( opt1 , opt2 , , optn ) BETWEEN val1 AND val2 IS NULL IS 257 Fall 2015 2015-09-10 SLIDE 7

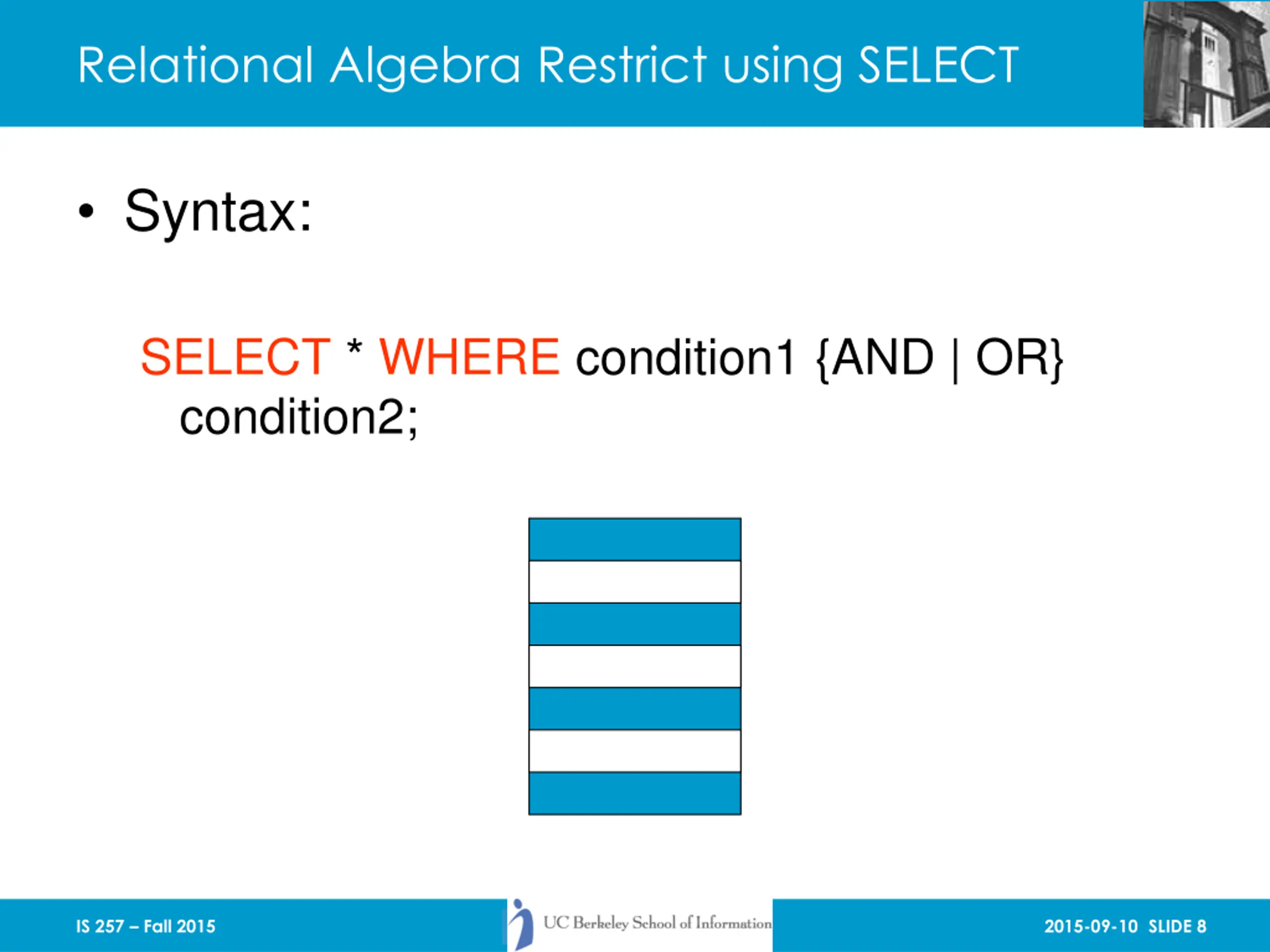

Relational Algebra Restrict using SELECT Syntax: SELECT * WHERE condition1 {AND | OR} condition2; IS 257 Fall 2015 2015-09-10 SLIDE 8

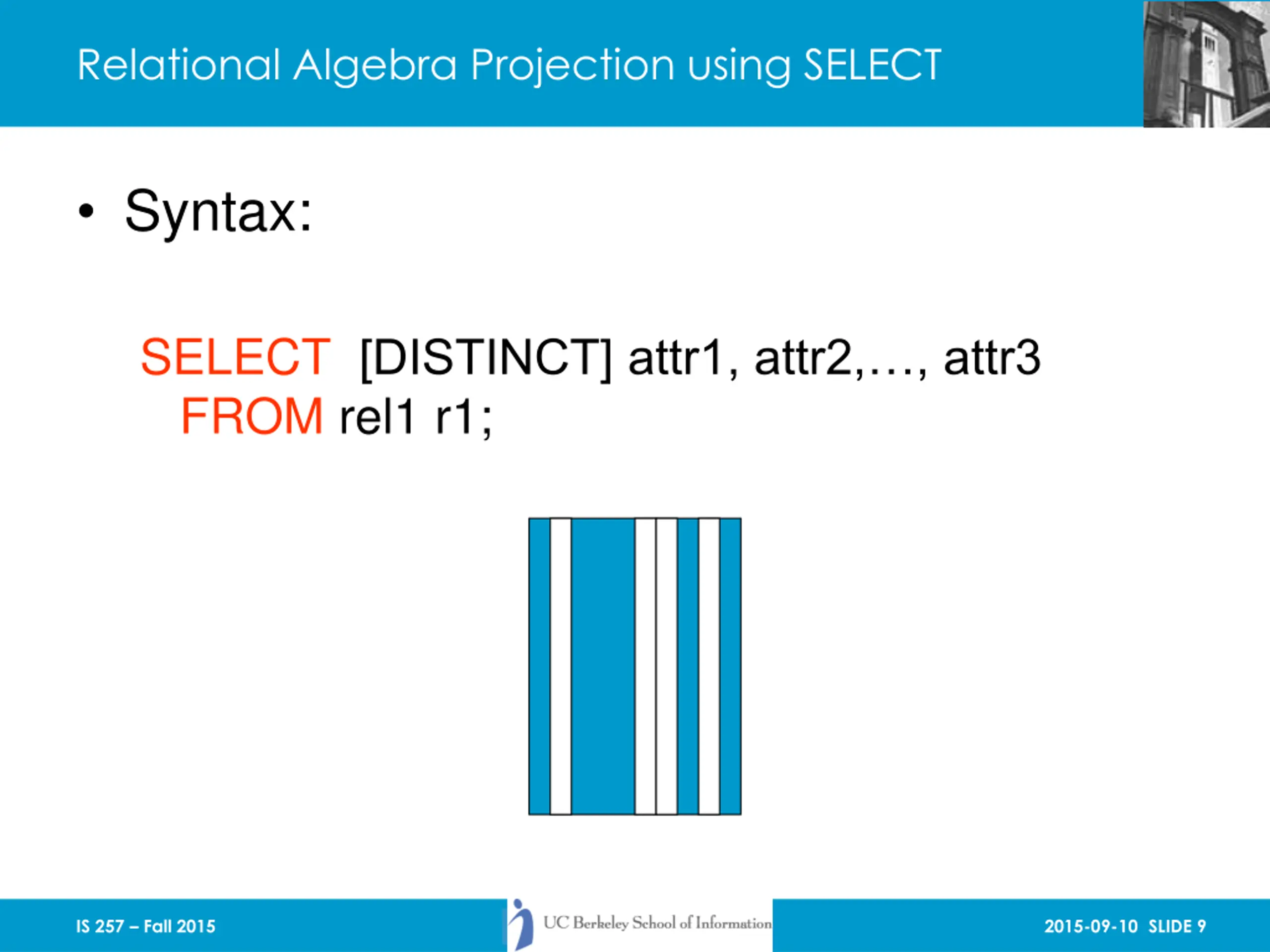

Relational Algebra Projection using SELECT Syntax: SELECT [DISTINCT] attr1, attr2, , attr3 FROM rel1 r1; IS 257 Fall 2015 2015-09-10 SLIDE 9

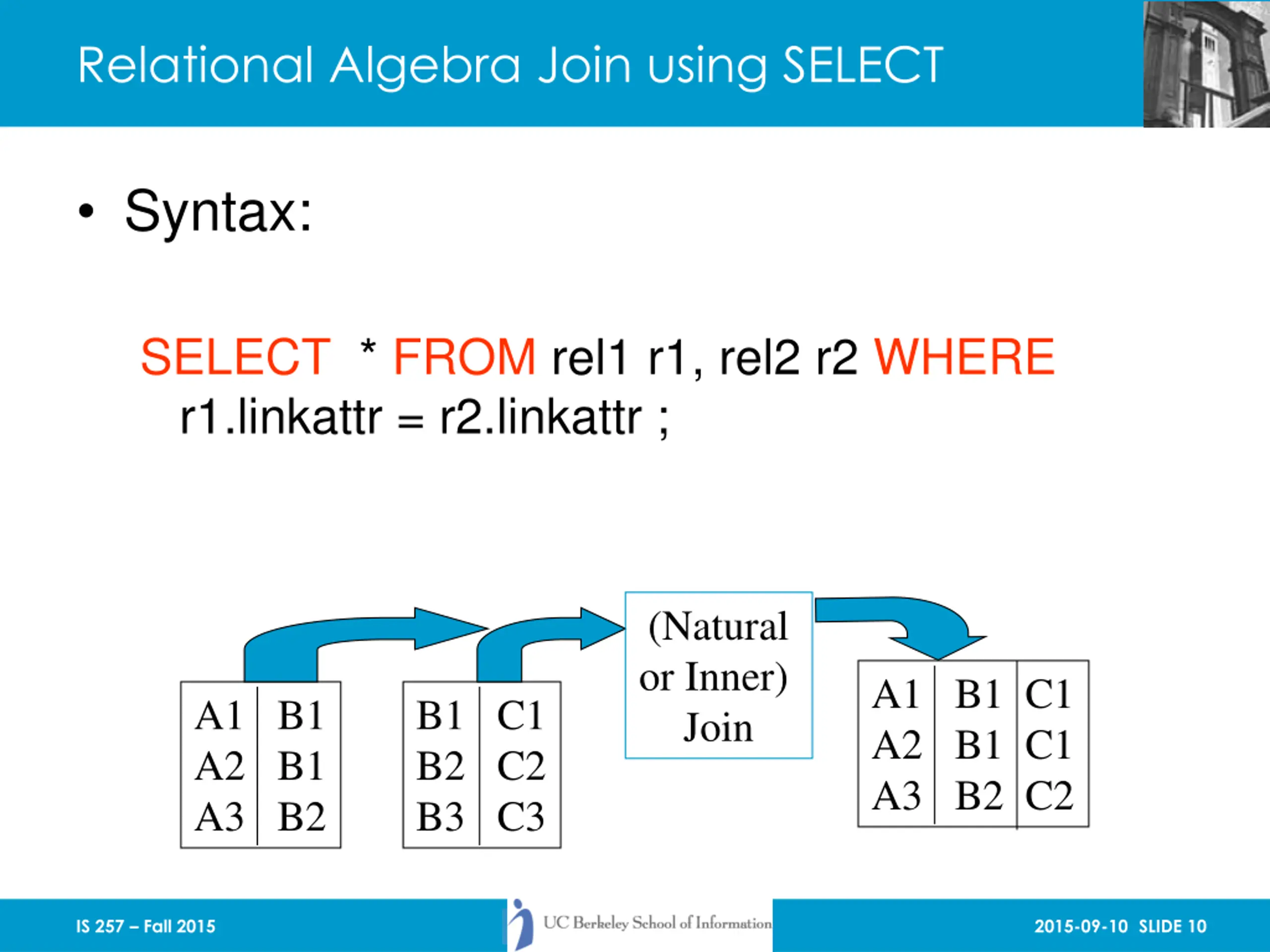

Relational Algebra Join using SELECT Syntax: SELECT * FROM rel1 r1, rel2 r2 WHERE r1.linkattr = r2.linkattr ; (Natural or Inner) Join A1 B1 C1 A2 B1 C1 A3 B2 C2 A1 B1 A2 B1 A3 B2 B1 C1 B2 C2 B3 C3 IS 257 Fall 2015 2015-09-10 SLIDE 10

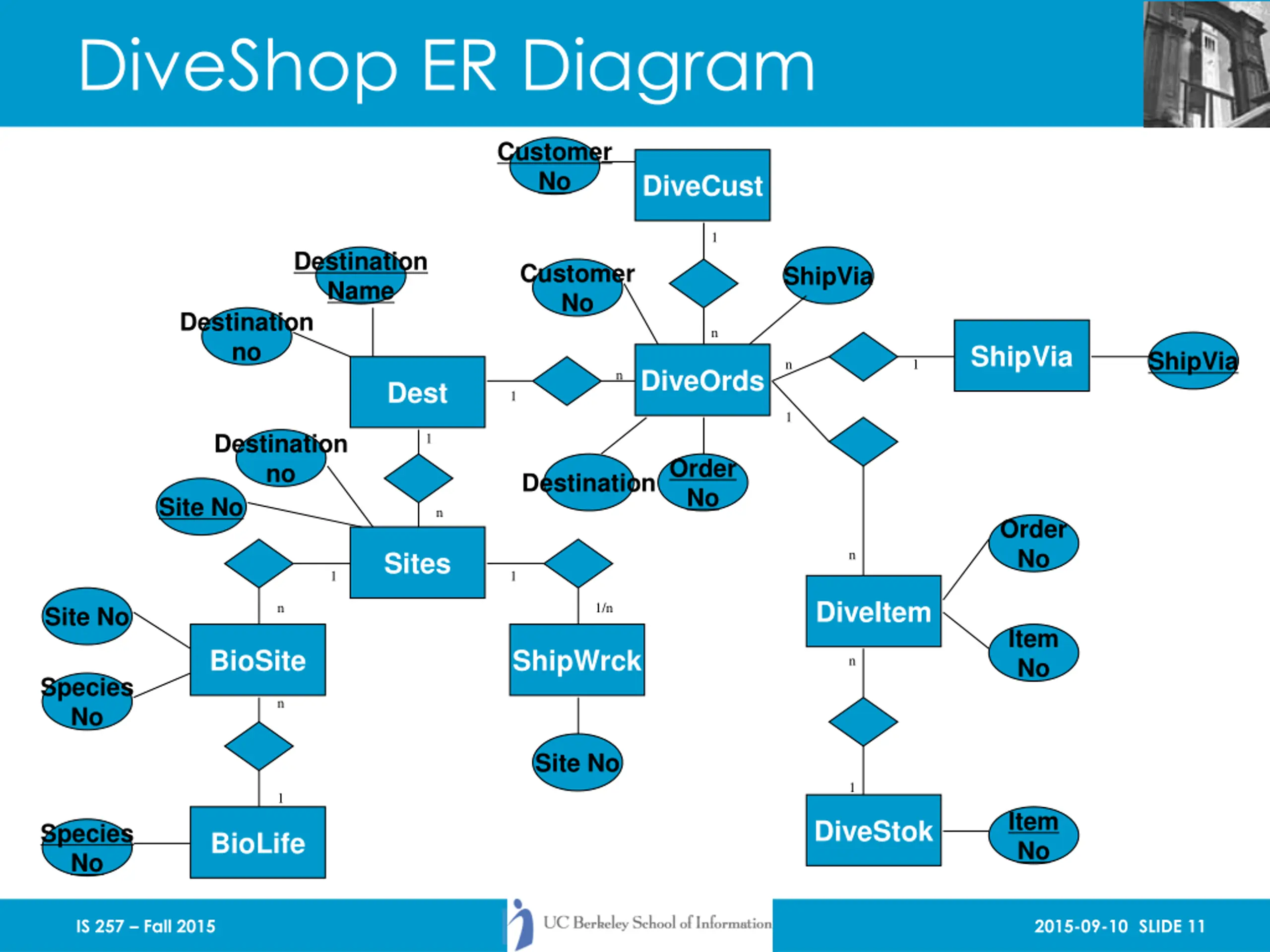

DiveShop ER Diagram Customer No DiveCust 1 Destination Name Customer No ShipVia Destination no n ShipVia ShipVia n 1 DiveOrds n Dest 1 1 Destination no 1 Order No Destination Site No n Order No Sites n 1 1 DiveItem n 1/n Site No Item No BioSite ShipWrck n Species No n Site No 1 1 Item No DiveStok Species No BioLife IS 257 Fall 2015 2015-09-10 SLIDE 11

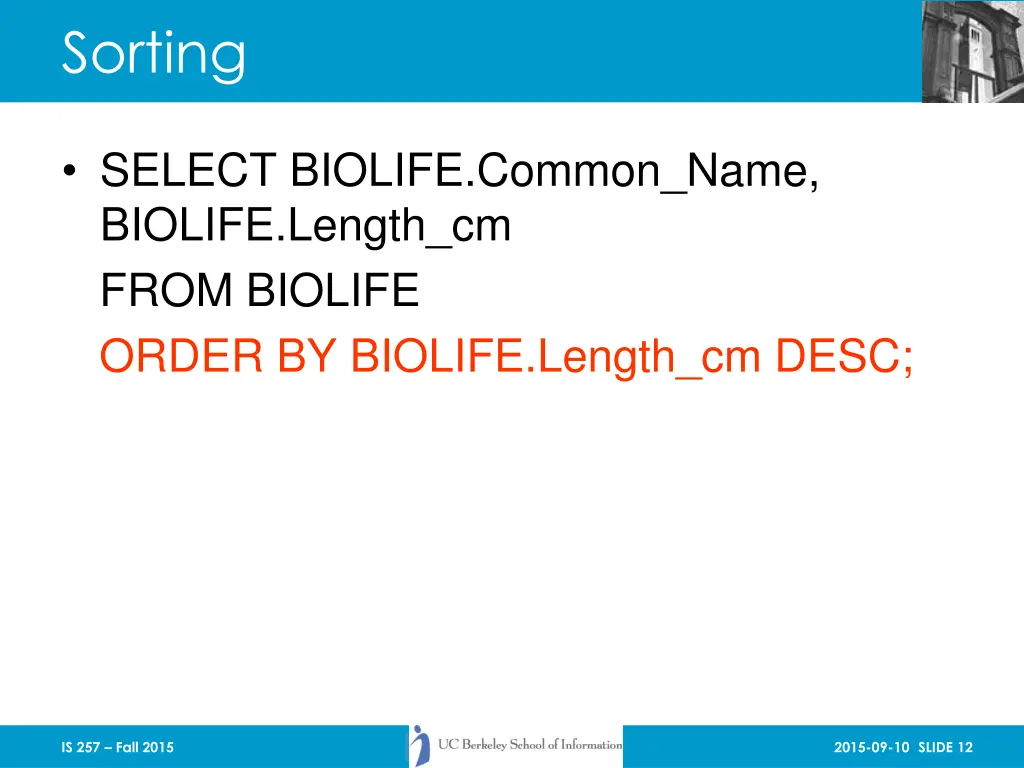

Sorting SELECT BIOLIFE.Common_Name, BIOLIFE.Length_cm FROM BIOLIFE ORDER BY BIOLIFE.Length_cm DESC; IS 257 Fall 2015 2015-09-10 SLIDE 12

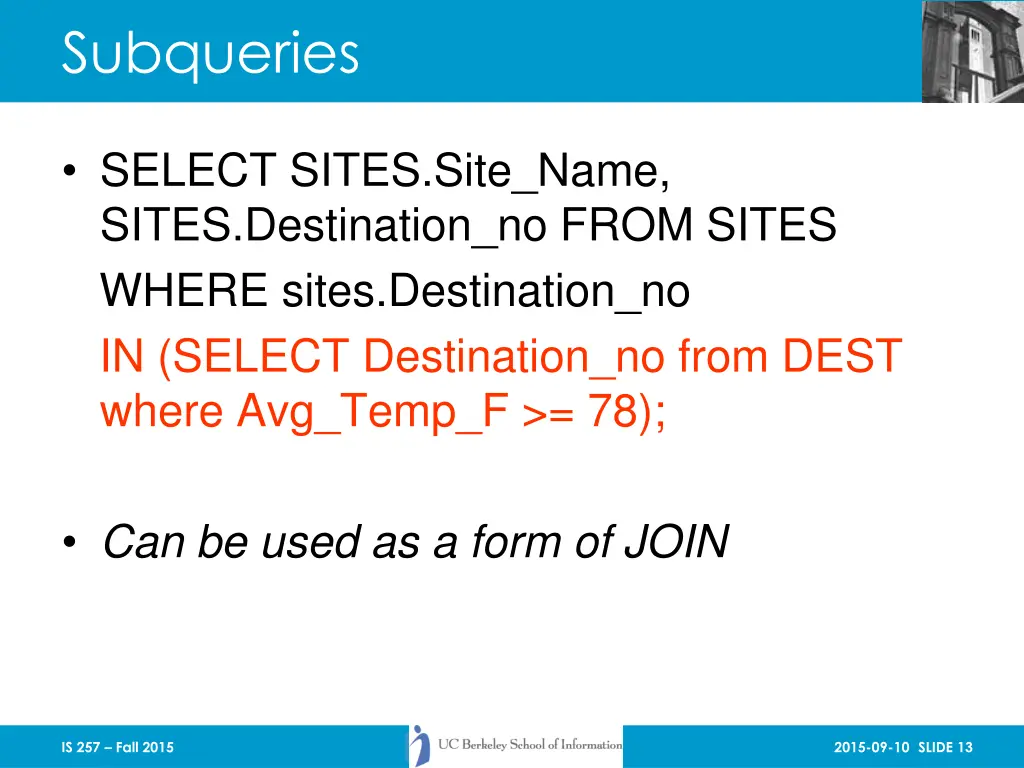

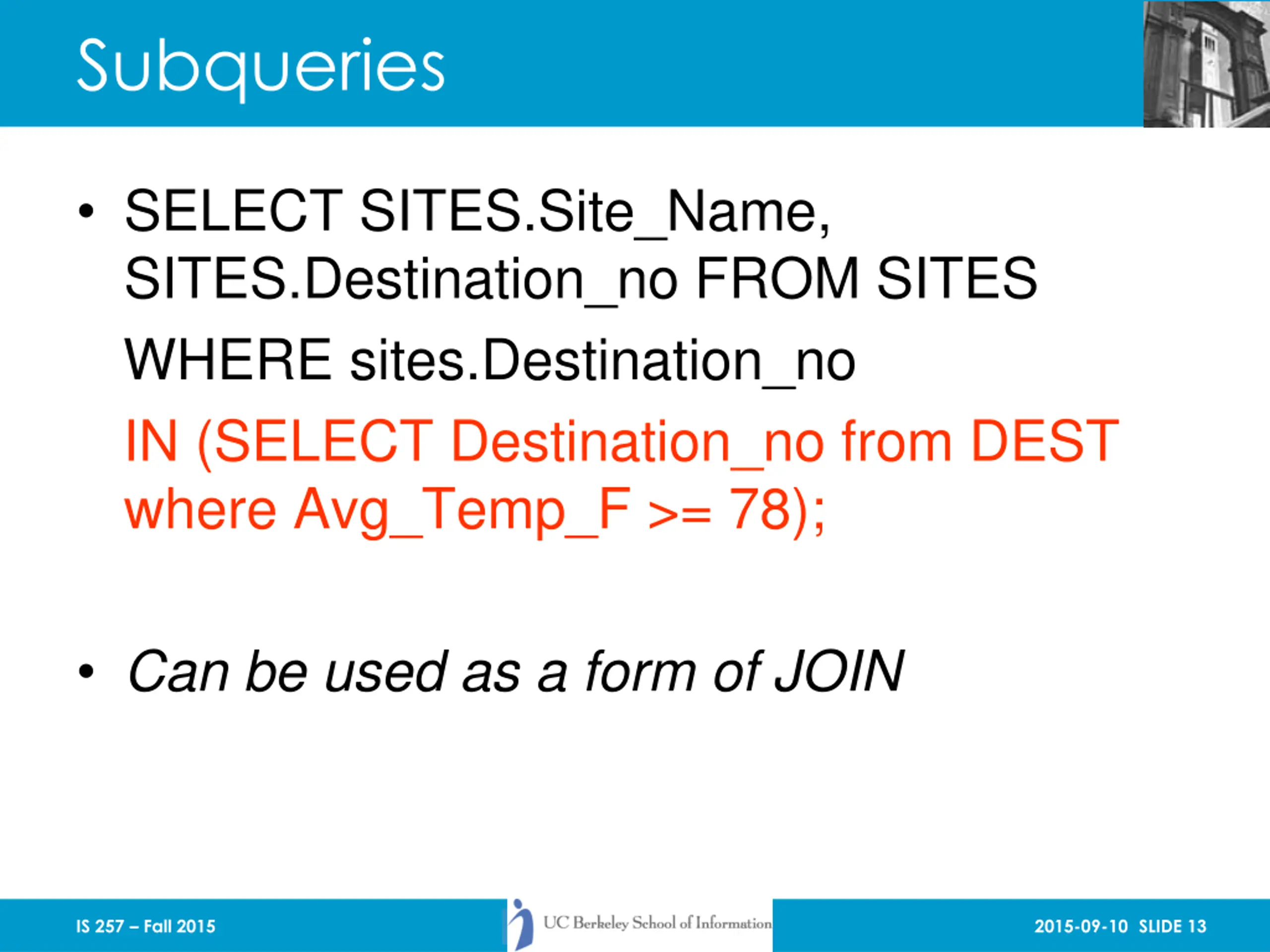

Subqueries SELECT SITES.Site_Name, SITES.Destination_no FROM SITES WHERE sites.Destination_no IN (SELECT Destination_no from DEST where Avg_Temp_F >= 78); Can be used as a form of JOIN IS 257 Fall 2015 2015-09-10 SLIDE 13

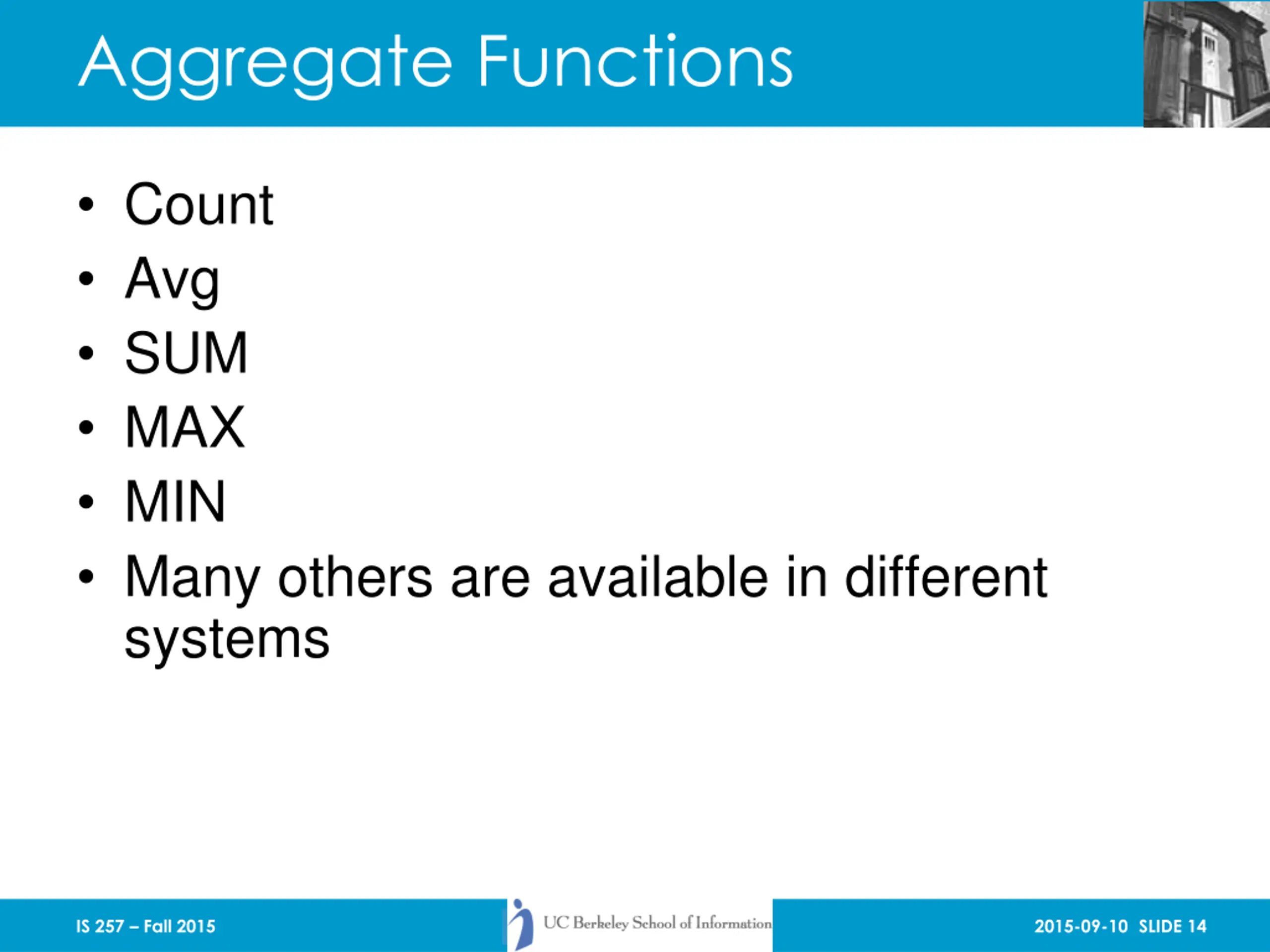

Aggregate Functions Count Avg SUM MAX MIN Many others are available in different systems IS 257 Fall 2015 2015-09-10 SLIDE 14

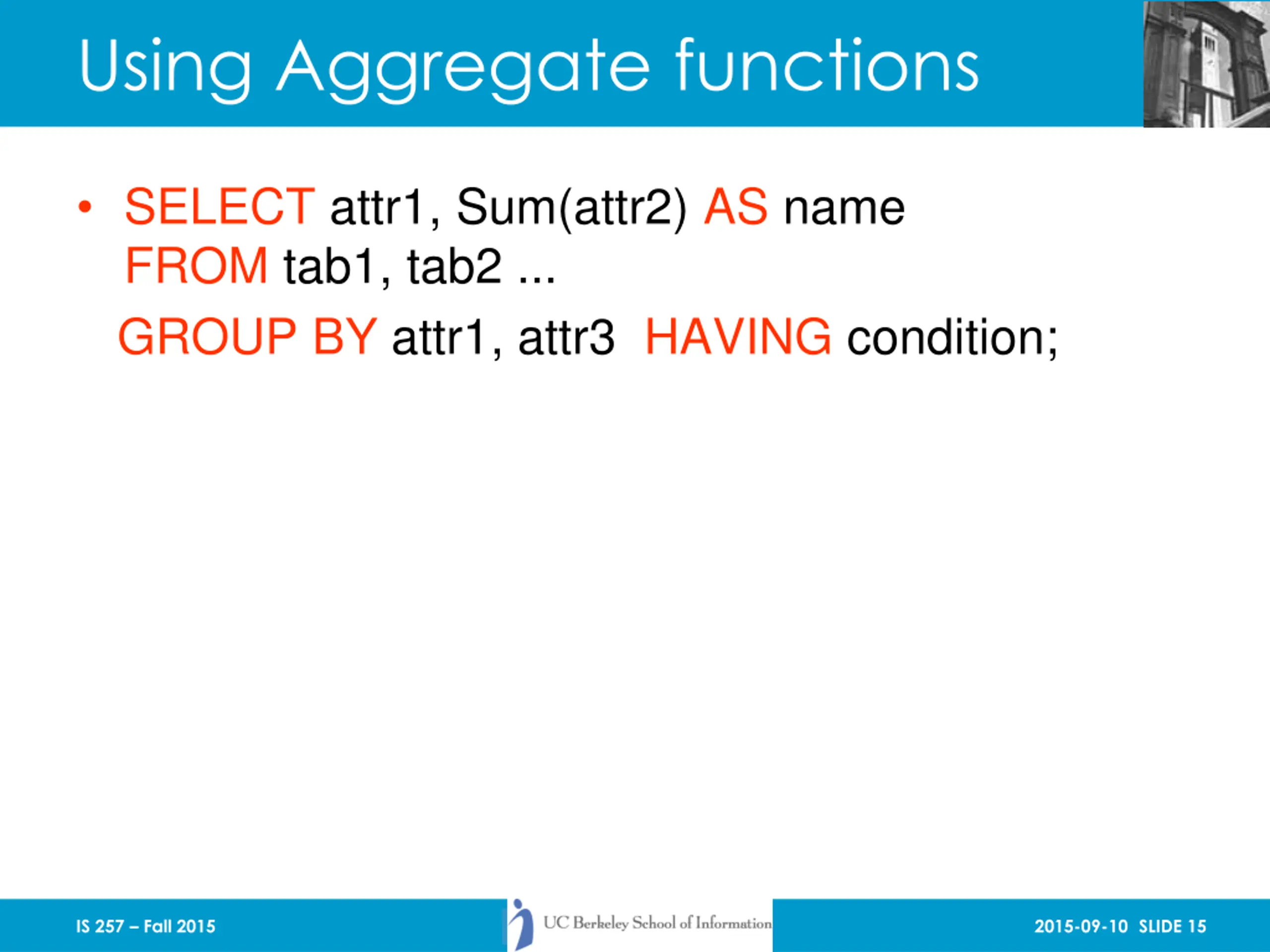

Using Aggregate functions SELECT attr1, Sum(attr2) AS name FROM tab1, tab2 ... GROUP BY attr1, attr3 HAVING condition; IS 257 Fall 2015 2015-09-10 SLIDE 15

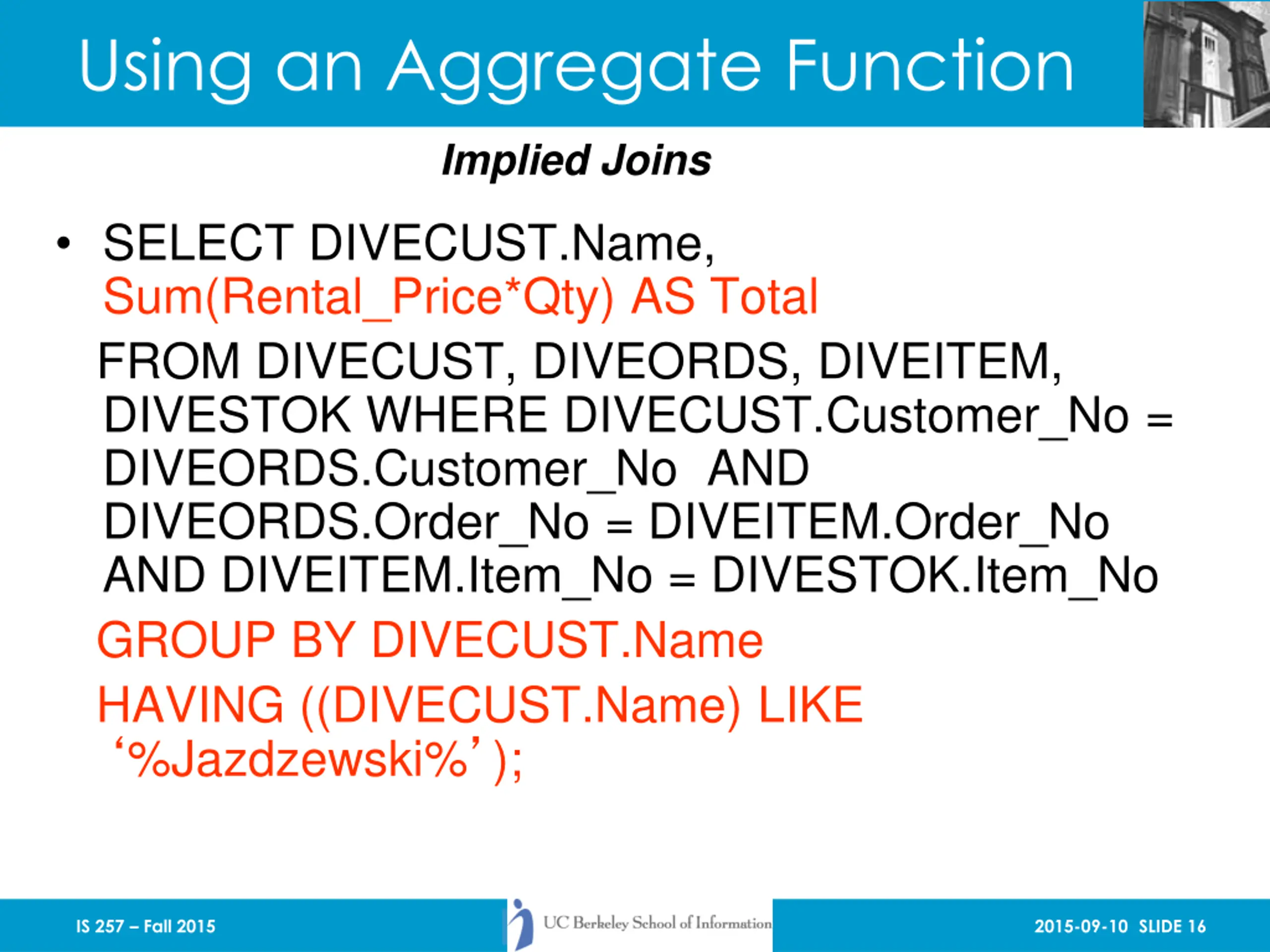

Using an Aggregate Function Implied Joins SELECT DIVECUST.Name, Sum(Rental_Price*Qty) AS Total FROM DIVECUST, DIVEORDS, DIVEITEM, DIVESTOK WHERE DIVECUST.Customer_No = DIVEORDS.Customer_No AND DIVEORDS.Order_No = DIVEITEM.Order_No AND DIVEITEM.Item_No = DIVESTOK.Item_No GROUP BY DIVECUST.Name HAVING ((DIVECUST.Name) LIKE %Jazdzewski% ); IS 257 Fall 2015 2015-09-10 SLIDE 16

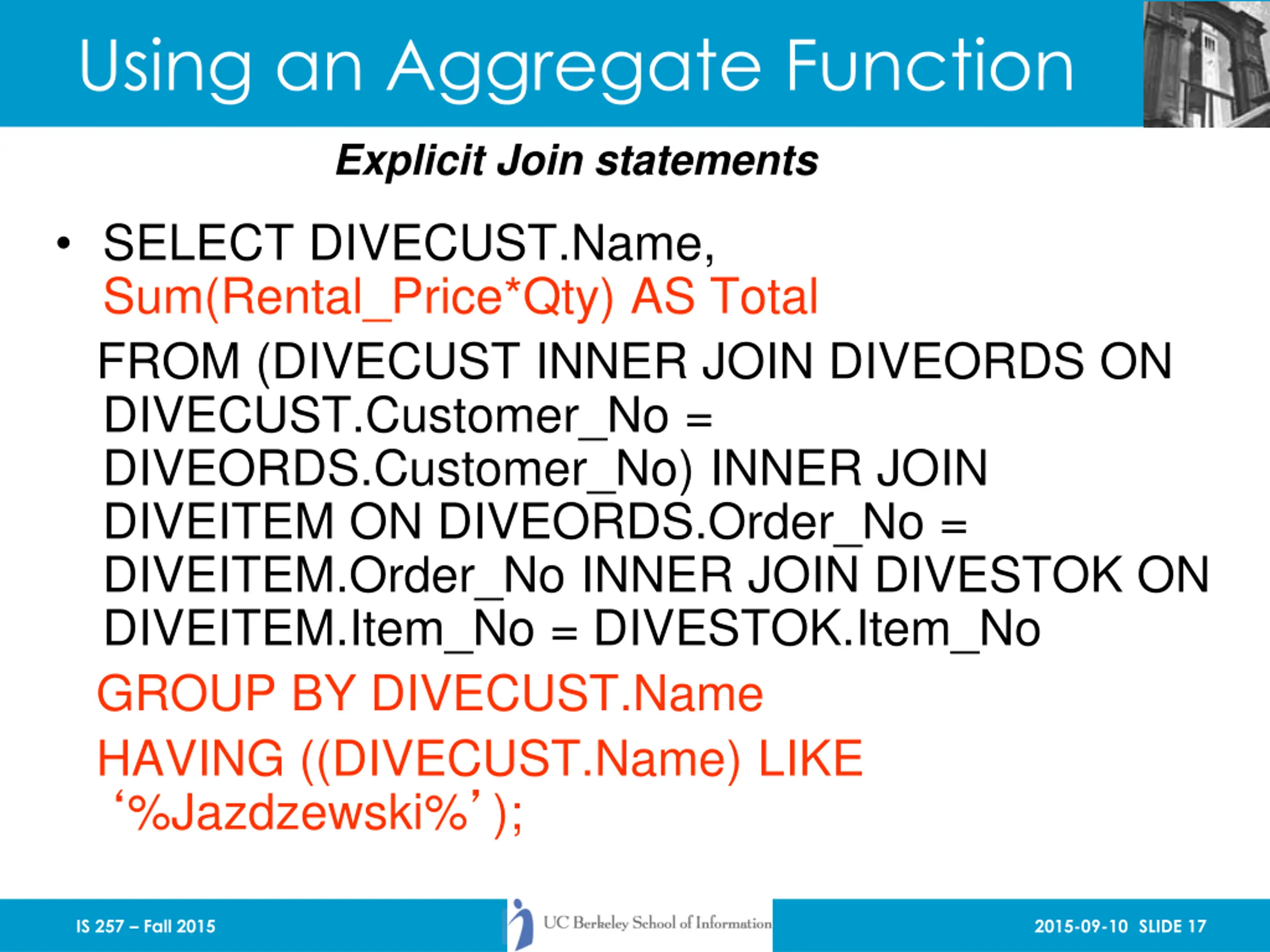

Using an Aggregate Function Explicit Join statements SELECT DIVECUST.Name, Sum(Rental_Price*Qty) AS Total FROM (DIVECUST INNER JOIN DIVEORDS ON DIVECUST.Customer_No = DIVEORDS.Customer_No) INNER JOIN DIVEITEM ON DIVEORDS.Order_No = DIVEITEM.Order_No INNER JOIN DIVESTOK ON DIVEITEM.Item_No = DIVESTOK.Item_No GROUP BY DIVECUST.Name HAVING ((DIVECUST.Name) LIKE %Jazdzewski% ); IS 257 Fall 2015 2015-09-10 SLIDE 17

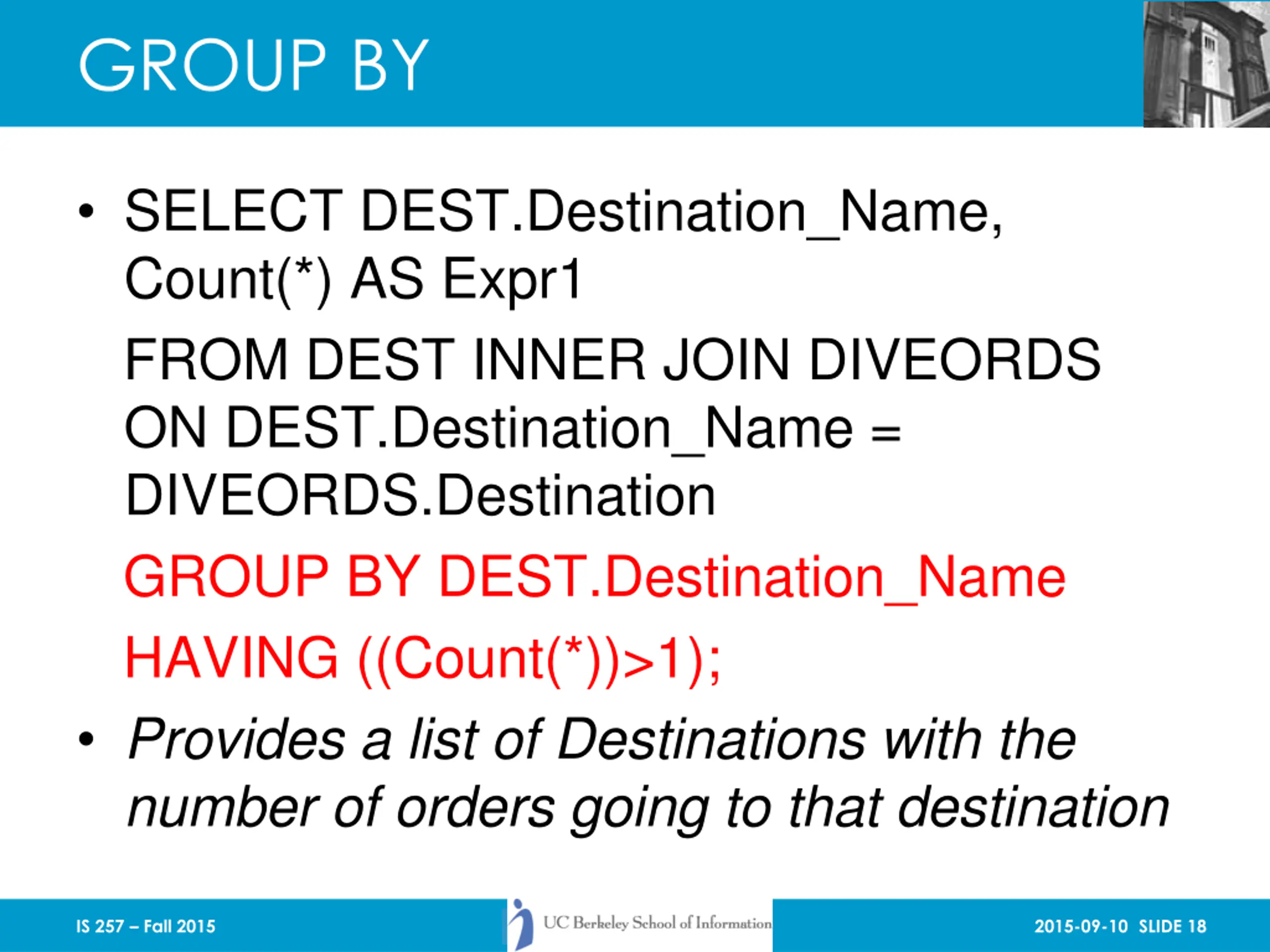

GROUP BY SELECT DEST.Destination_Name, Count(*) AS Expr1 FROM DEST INNER JOIN DIVEORDS ON DEST.Destination_Name = DIVEORDS.Destination GROUP BY DEST.Destination_Name HAVING ((Count(*))>1); Provides a list of Destinations with the number of orders going to that destination IS 257 Fall 2015 2015-09-10 SLIDE 18

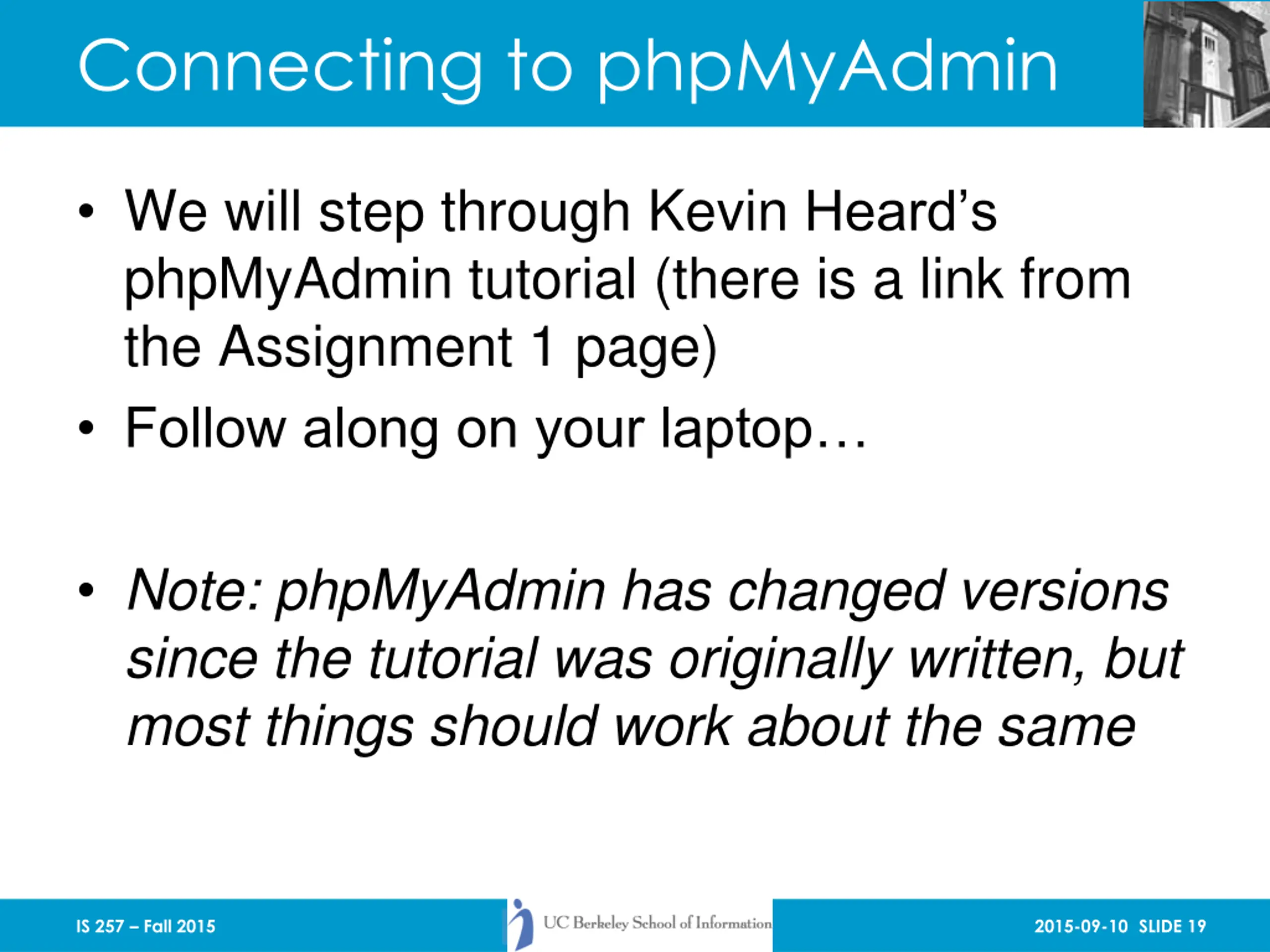

Connecting to phpMyAdmin We will step through Kevin Heard s phpMyAdmin tutorial (there is a link from the Assignment 1 page) Follow along on your laptop Note: phpMyAdmin has changed versions since the tutorial was originally written, but most things should work about the same IS 257 Fall 2015 2015-09-10 SLIDE 19
