Introduction to Apple mobile technologies- I393 IT College, Andres K ver, 2016-2017 Spring Web: http://enos.itcollege.ee/~akaver/apple Skype: akaver Email: akaver@itcollege.ee

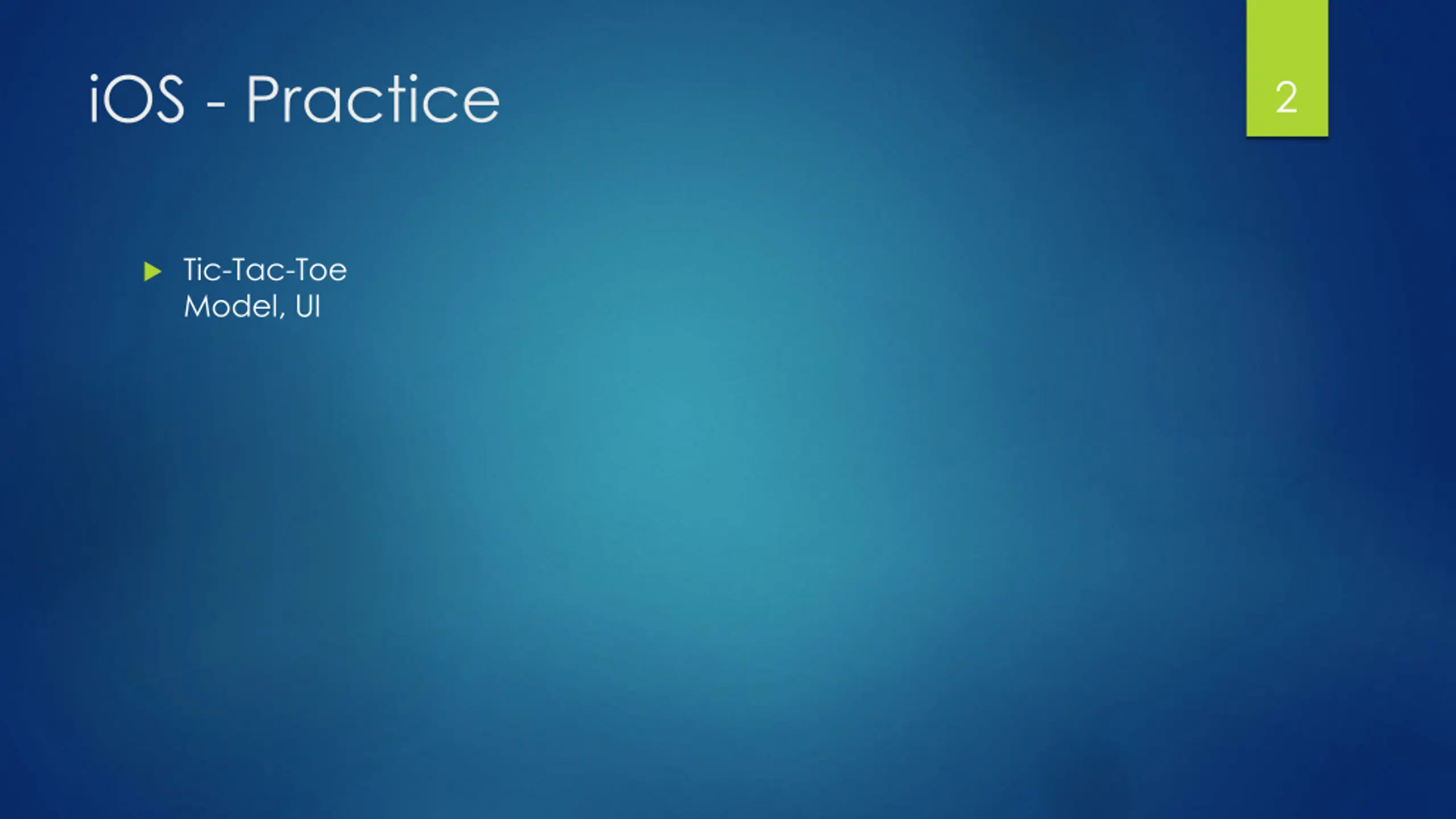

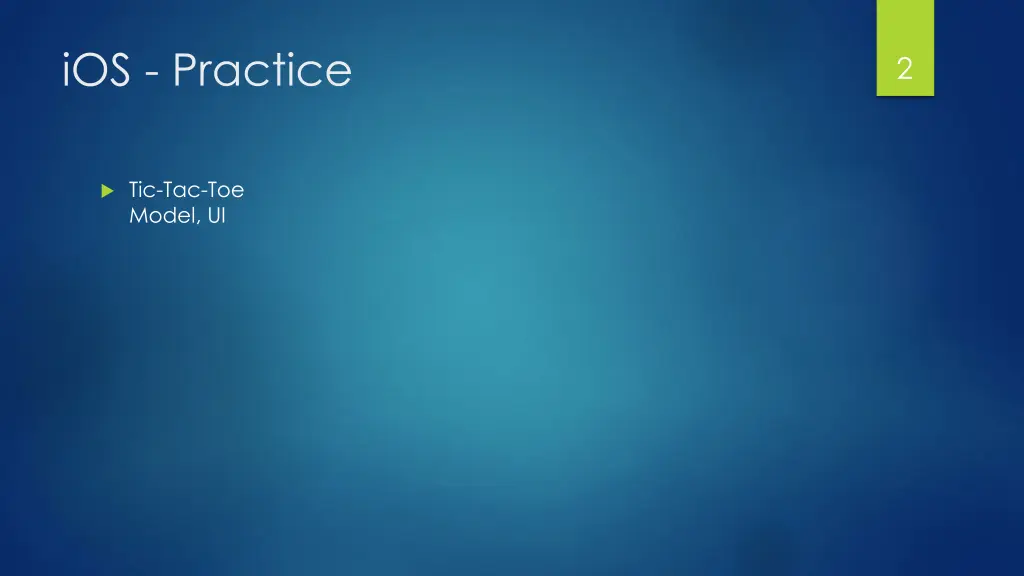

iOS - Practice 2 Tic-Tac-Toe Model, UI

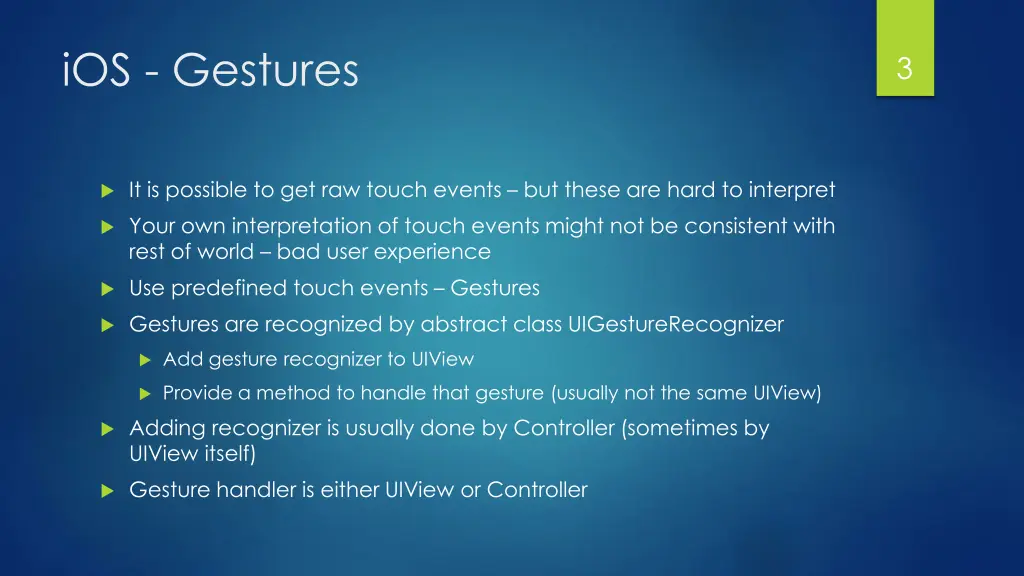

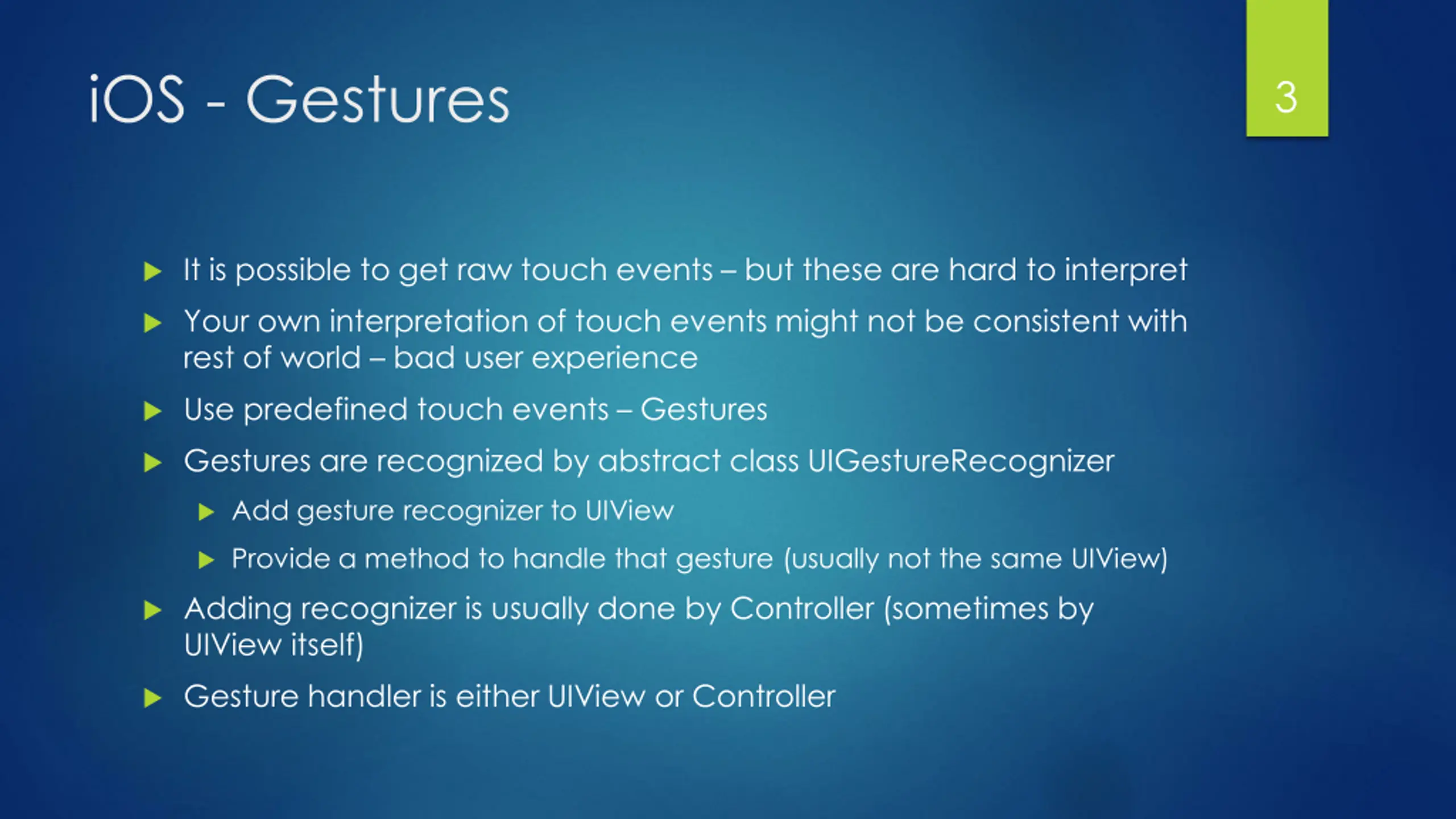

iOS - Gestures 3 It is possible to get raw touch events but these are hard to interpret Your own interpretation of touch events might not be consistent with rest of world bad user experience Use predefined touch events Gestures Gestures are recognized by abstract class UIGestureRecognizer Add gesture recognizer to UIView Provide a method to handle that gesture (usually not the same UIView) Adding recognizer is usually done by Controller (sometimes by UIView itself) Gesture handler is either UIView or Controller

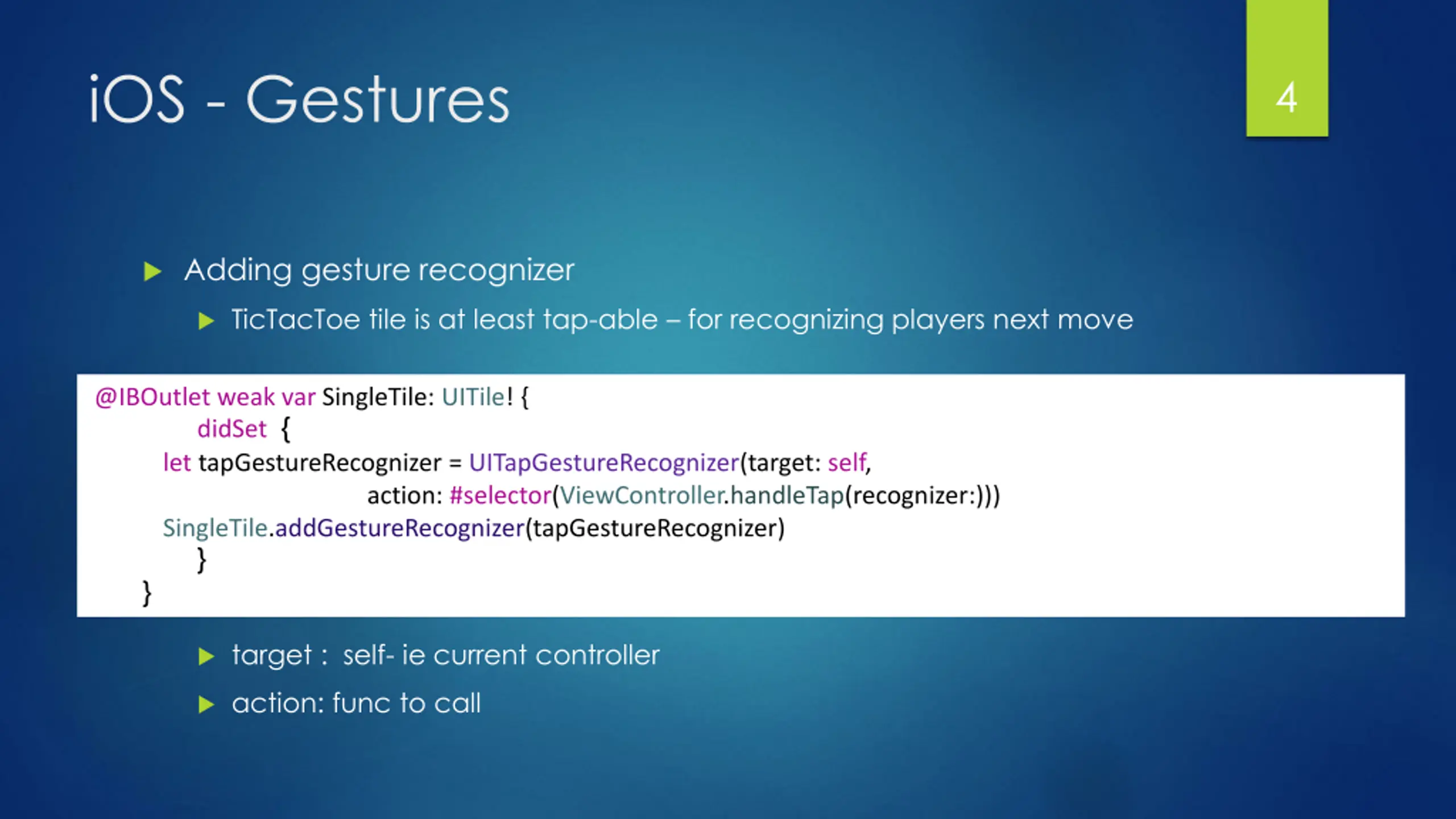

iOS - Gestures 4 Adding gesture recognizer TicTacToe tile is at least tap-able for recognizing players next move @IBOutlet weak var SingleTile: UITile! { didSet { let tapGestureRecognizer = UITapGestureRecognizer(target: self, action: #selector(ViewController.handleTap(recognizer:))) SingleTile.addGestureRecognizer(tapGestureRecognizer) } } target : self- ie current controller action: func to call

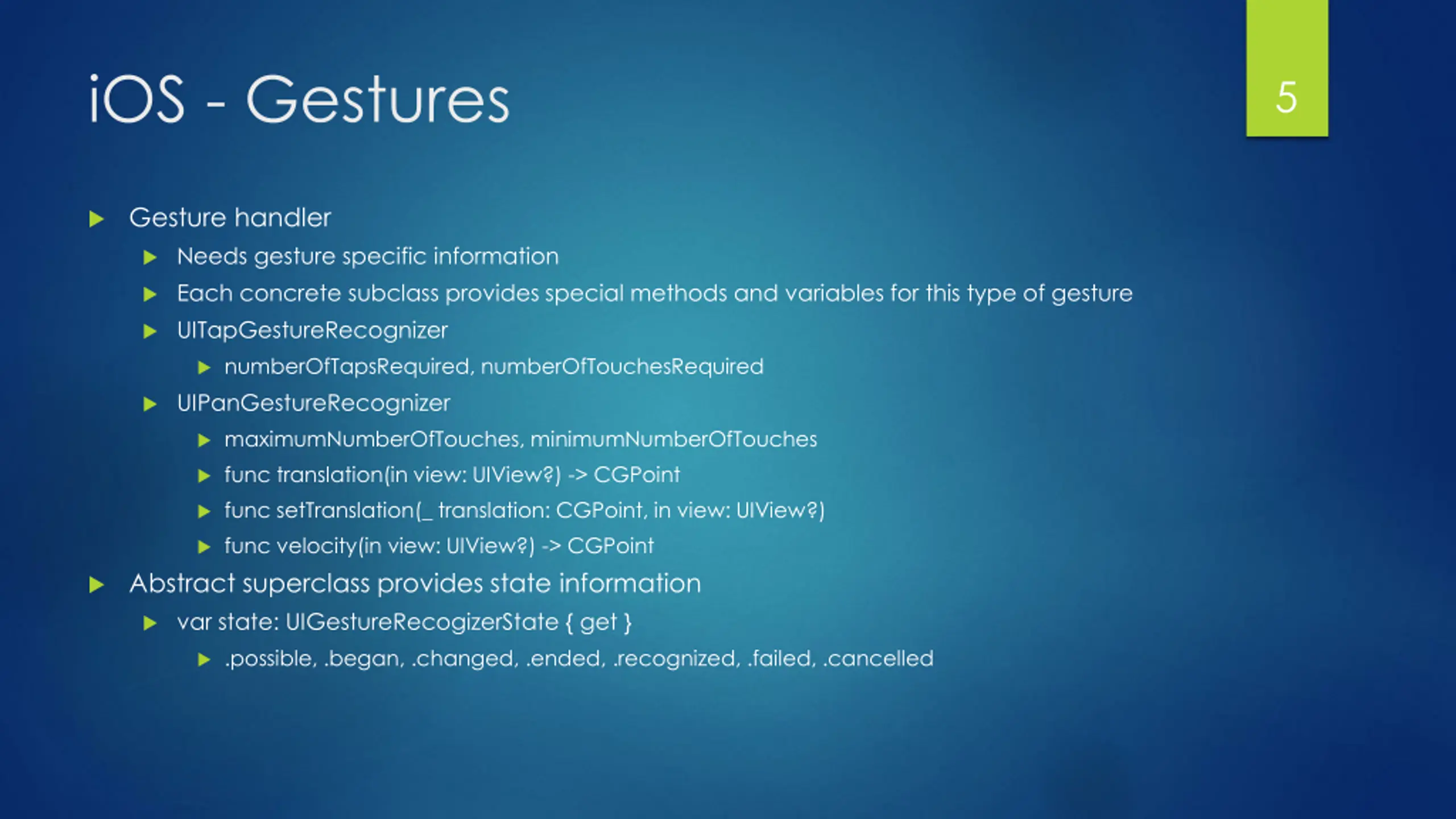

iOS - Gestures 5 Gesture handler Needs gesture specific information Each concrete subclass provides special methods and variables for this type of gesture UITapGestureRecognizer numberOfTapsRequired, numberOfTouchesRequired UIPanGestureRecognizer maximumNumberOfTouches, minimumNumberOfTouches func translation(in view: UIView?) -> CGPoint func setTranslation(_ translation: CGPoint, in view: UIView?) func velocity(in view: UIView?) -> CGPoint Abstract superclass provides state information var state: UIGestureRecogizerState { get } .possible, .began, .changed, .ended, .recognized, .failed, .cancelled

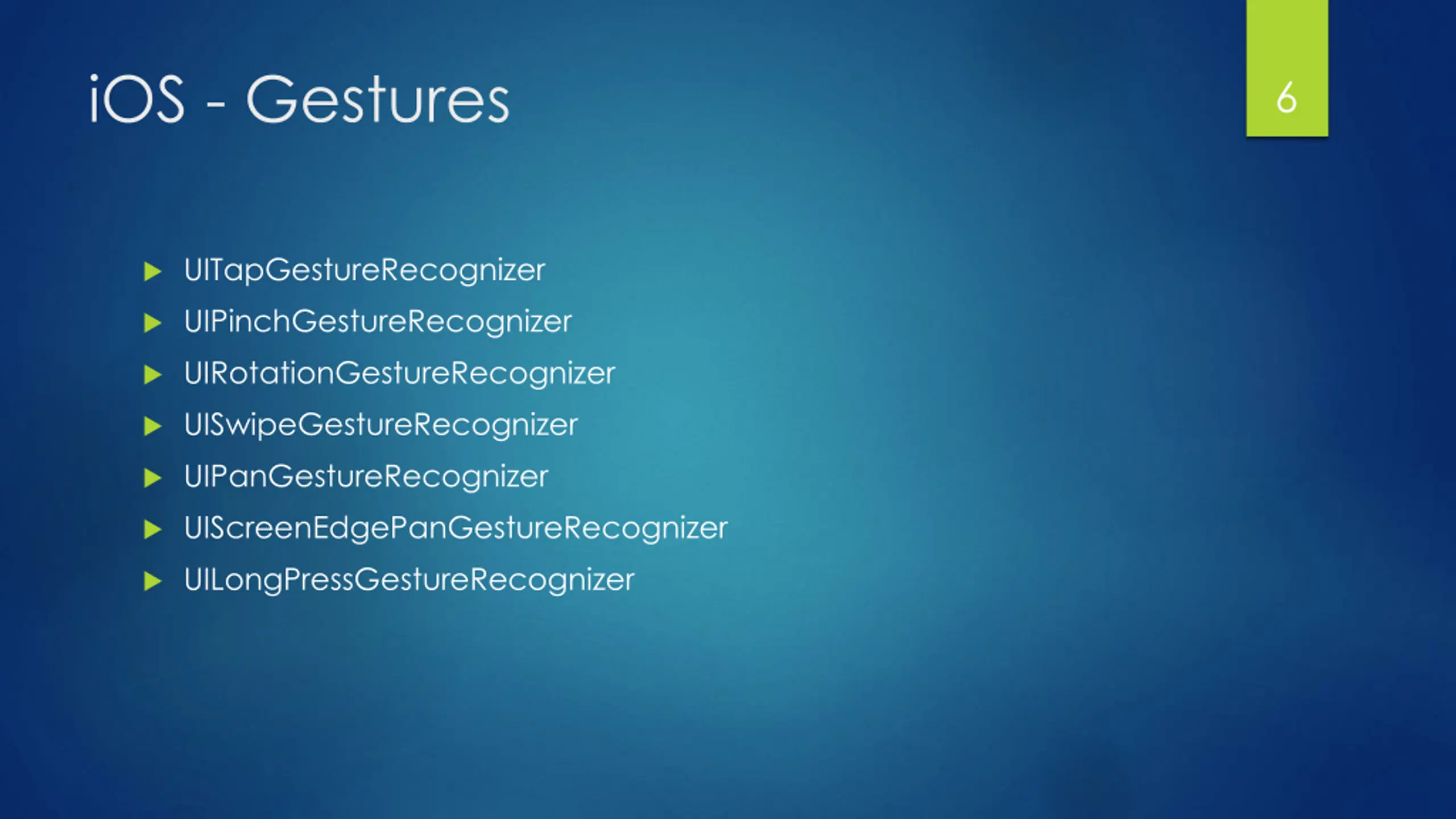

iOS - Gestures 6 UITapGestureRecognizer UIPinchGestureRecognizer UIRotationGestureRecognizer UISwipeGestureRecognizer UIPanGestureRecognizer UIScreenEdgePanGestureRecognizer UILongPressGestureRecognizer

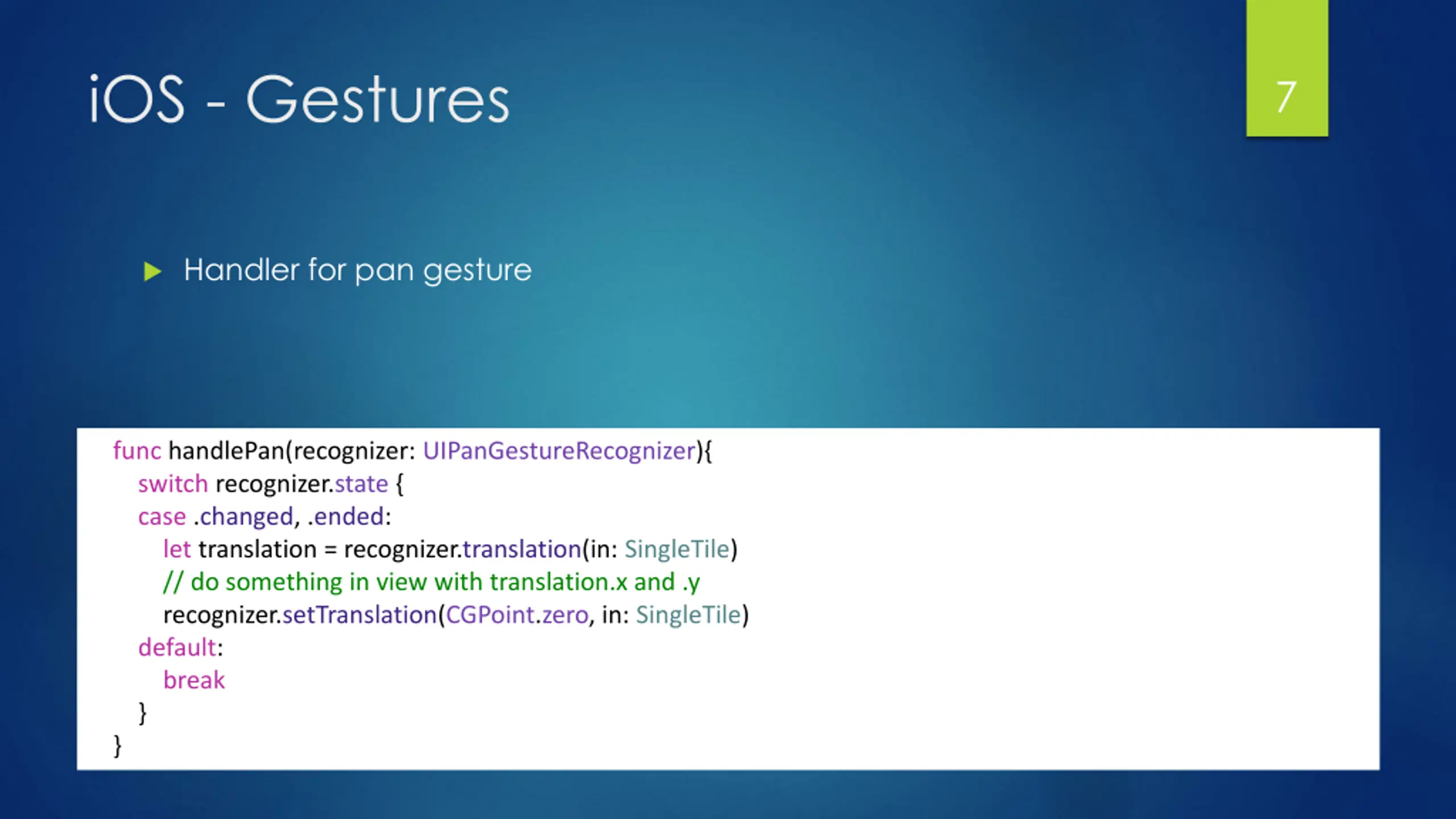

iOS - Gestures 7 Handler for pan gesture func handlePan(recognizer: UIPanGestureRecognizer){ switch recognizer.state { case .changed, .ended: let translation = recognizer.translation(in: SingleTile) // do something in view with translation.x and .y recognizer.setTranslation(CGPoint.zero, in: SingleTile) default: break } }
