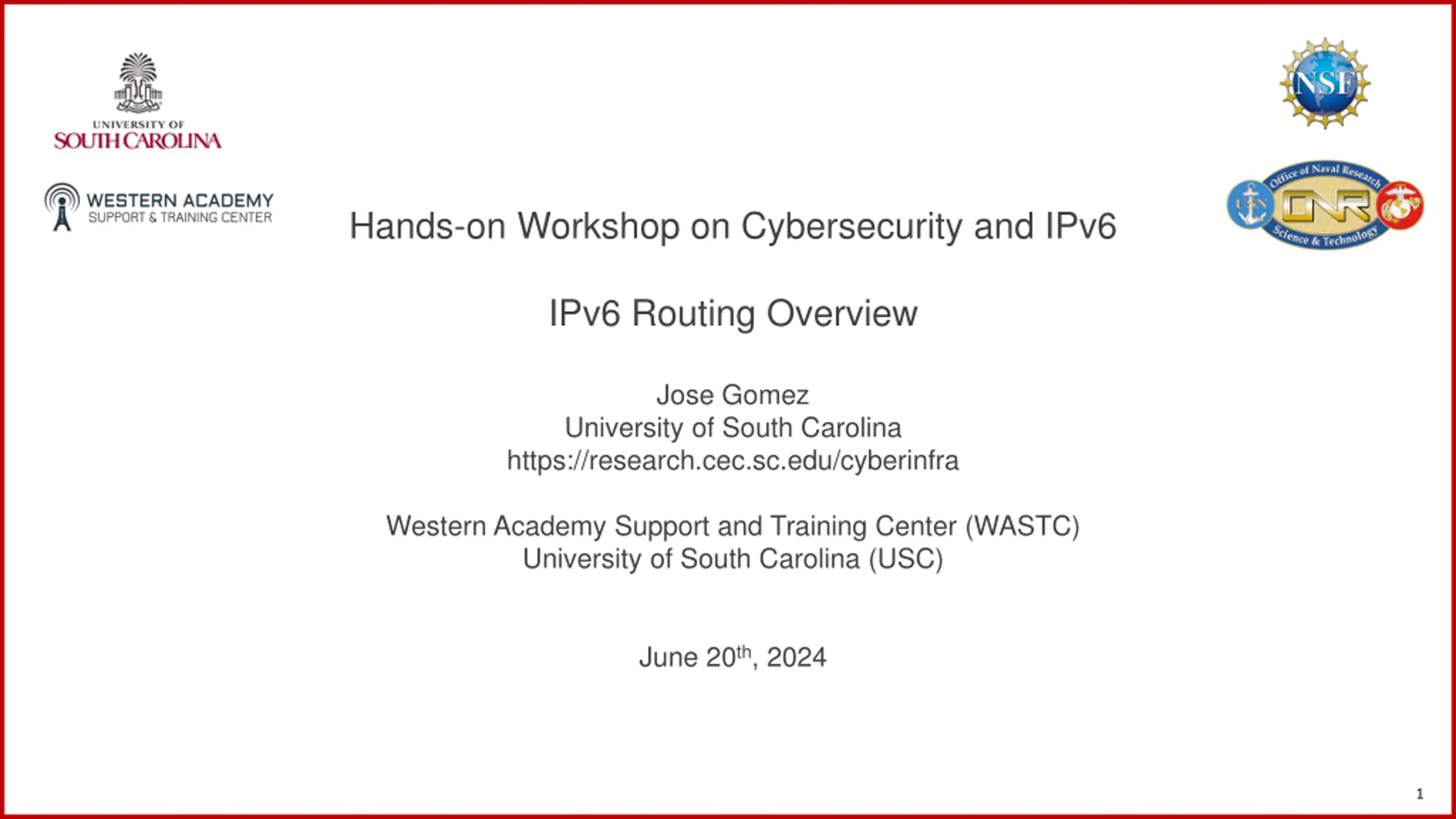

Hands-on Workshop on Cybersecurity and IPv6 IPv6 Routing Overview Jose Gomez University of South Carolina https://research.cec.sc.edu/cyberinfra Western Academy Support and Training Center (WASTC) University of South Carolina (USC) June 20th, 2024 1
Static routing In static routing, network administrators manually define and configure the routing table on routers or network devices The paths of the data packets is explicitly specified to reach specific destinations Static routes remain unchanged unless modified manually by administrators Suitable for small, simple networks with relatively stable configurations ::10 ::1 ::1 ::2 ::1 ::2 ::1 ::10 r1 r2 r3 2001:db8:abcd:1::/64 2001:db8:abcd:12::/64 2001:db8:abcd:23::/64 2001:db8:abcd:2::/64 2

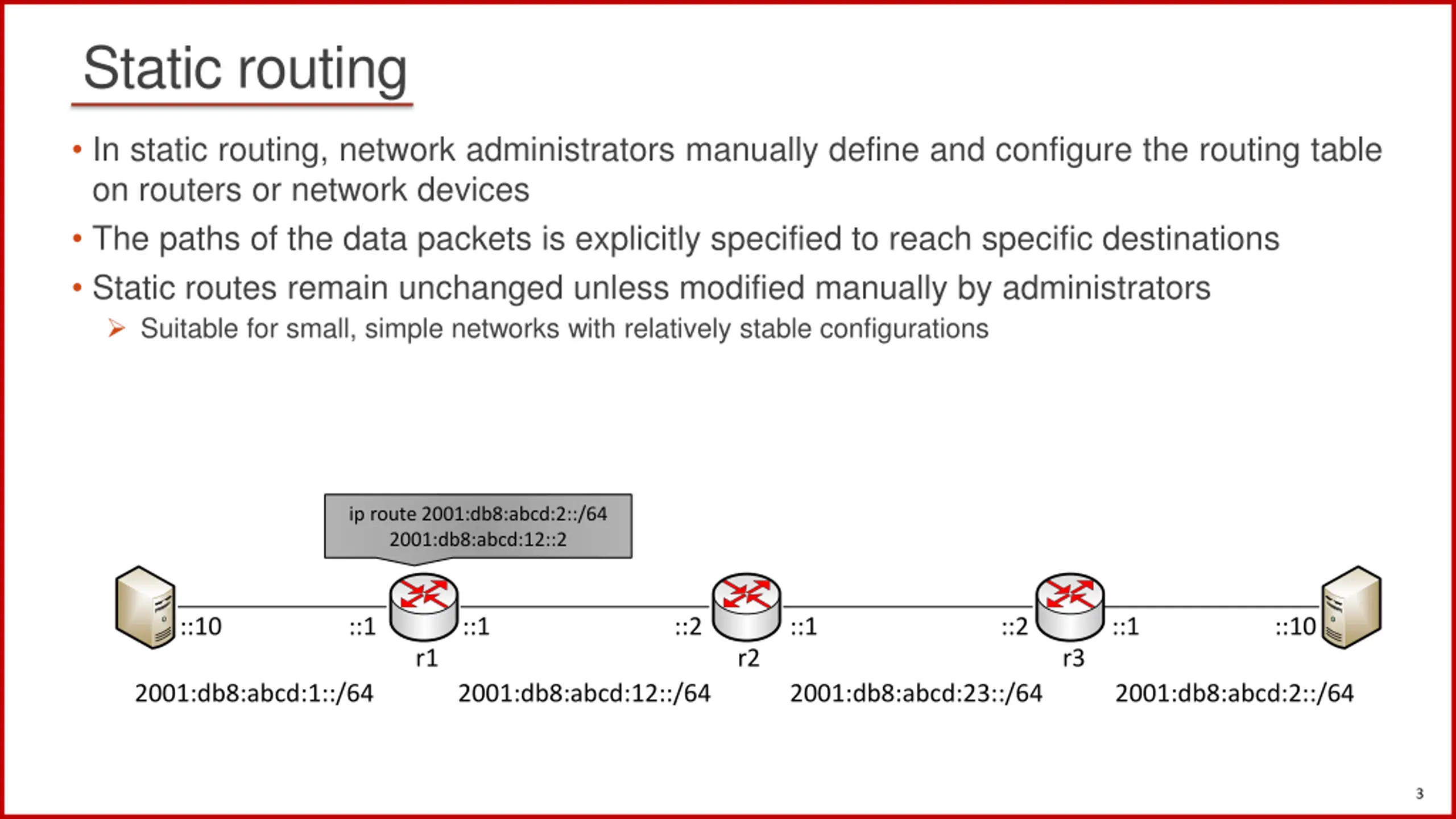

Static routing In static routing, network administrators manually define and configure the routing table on routers or network devices The paths of the data packets is explicitly specified to reach specific destinations Static routes remain unchanged unless modified manually by administrators Suitable for small, simple networks with relatively stable configurations ip route 2001:db8:abcd:2::/64 2001:db8:abcd:12::2 ::10 ::1 ::1 ::2 ::1 ::2 ::1 ::10 r1 r2 r3 2001:db8:abcd:1::/64 2001:db8:abcd:12::/64 2001:db8:abcd:23::/64 2001:db8:abcd:2::/64 3

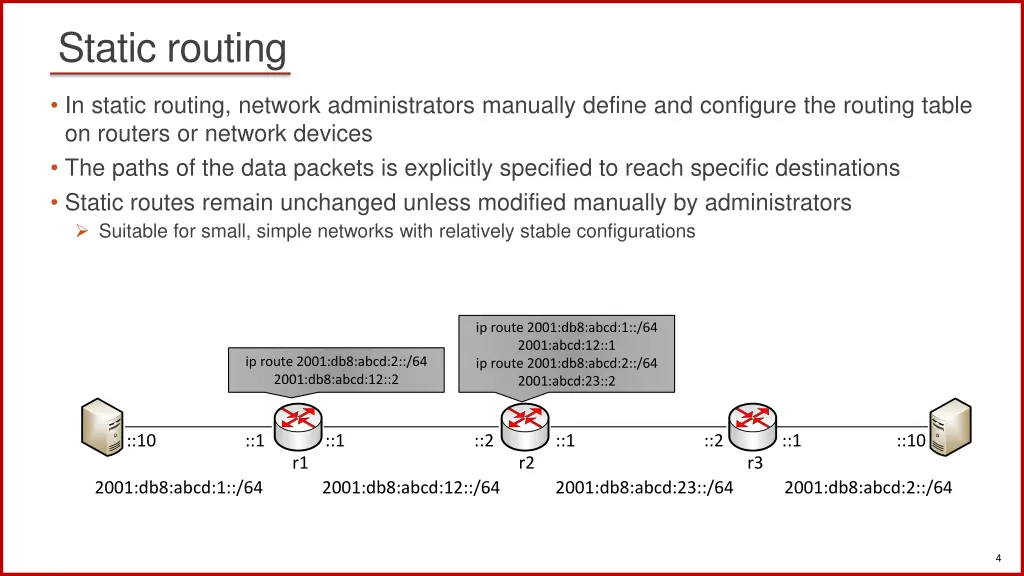

Static routing In static routing, network administrators manually define and configure the routing table on routers or network devices The paths of the data packets is explicitly specified to reach specific destinations Static routes remain unchanged unless modified manually by administrators Suitable for small, simple networks with relatively stable configurations ip route 2001:db8:abcd:1::/64 2001:abcd:12::1 ip route 2001:db8:abcd:2::/64 2001:abcd:23::2 ip route 2001:db8:abcd:2::/64 2001:db8:abcd:12::2 ::10 ::1 ::1 ::2 ::1 ::2 ::1 ::10 r1 r2 r3 2001:db8:abcd:1::/64 2001:db8:abcd:12::/64 2001:db8:abcd:23::/64 2001:db8:abcd:2::/64 4

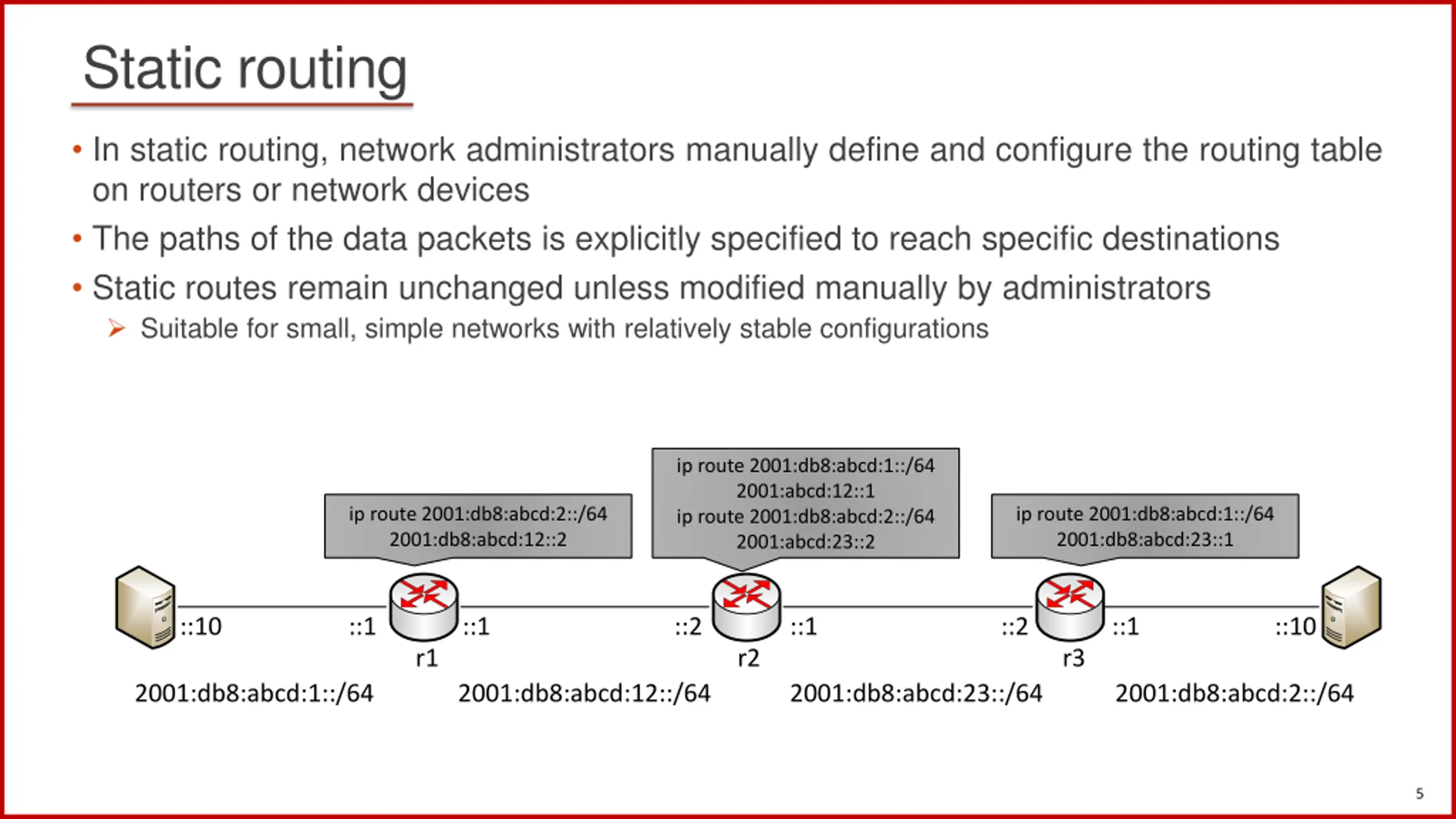

Static routing In static routing, network administrators manually define and configure the routing table on routers or network devices The paths of the data packets is explicitly specified to reach specific destinations Static routes remain unchanged unless modified manually by administrators Suitable for small, simple networks with relatively stable configurations ip route 2001:db8:abcd:1::/64 2001:abcd:12::1 ip route 2001:db8:abcd:2::/64 2001:abcd:23::2 ip route 2001:db8:abcd:2::/64 2001:db8:abcd:12::2 ip route 2001:db8:abcd:1::/64 2001:db8:abcd:23::1 ::10 ::1 ::1 ::2 ::1 ::2 ::1 ::10 r1 r2 r3 2001:db8:abcd:1::/64 2001:db8:abcd:12::/64 2001:db8:abcd:23::/64 2001:db8:abcd:2::/64 5
