Presentation Transcript

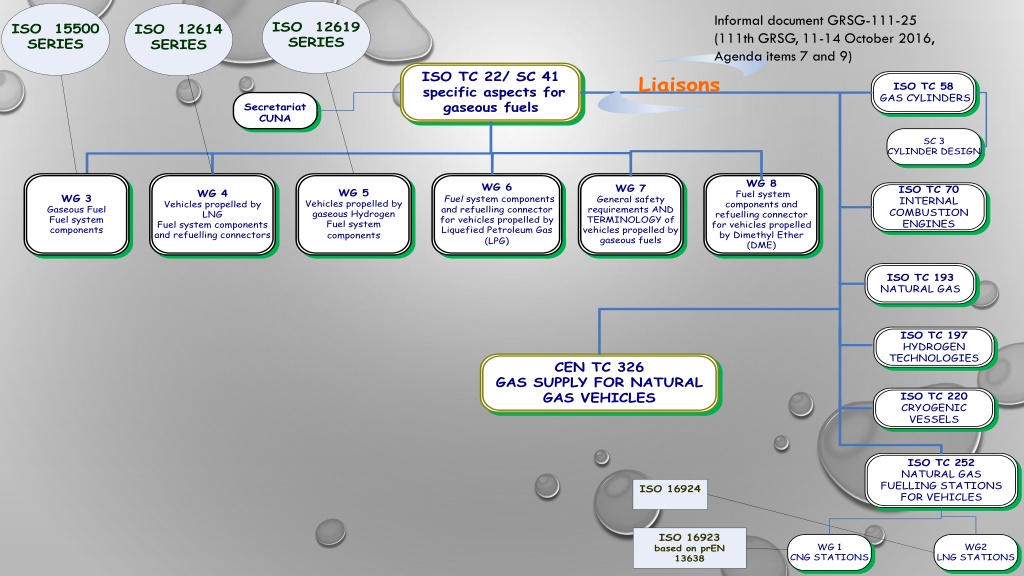

Informal document GRSG-111-25 (111th GRSG, 11-14 October 2016, Agenda items 7 and 9) ISO 12619 SERIES ISO 15500 SERIES ISO 12614 SERIES Liaisons ISO TC 22/ SC 41 specific aspects for gaseous fuels ISO TC 58 GAS CYLINDERS Secretariat CUNA SC 3 CYLINDER DESIGN WG 8 Fuel system components and refuelling connector for vehicles propelled by Dimethyl Ether (DME) WG 6 WG 7 ISO TC 70 INTERNAL COMBUSTION ENGINES WG 5 WG 4 WG 3 Gaseous Fuel Fuel system components Fuel system components and refuelling connector for vehicles propelled by Liquefied Petroleum Gas (LPG) General safety requirements AND TERMINOLOGY of vehicles propelled by gaseous fuels Vehicles propelled by gaseous Hydrogen Fuel system components Vehicles propelled by LNG Fuel system components and refuelling connectors ISO TC 193 NATURAL GAS ISO TC 197 HYDROGEN TECHNOLOGIES CEN TC 326 GAS SUPPLY FOR NATURAL GAS VEHICLES ISO TC 220 CRYOGENIC VESSELS ISO TC 252 NATURAL GAS FUELLING STATIONS FOR VEHICLES ISO 16924 ISO 16923 based on prEN 13638 WG 1 WG2 CNG STATIONS LNG STATIONS

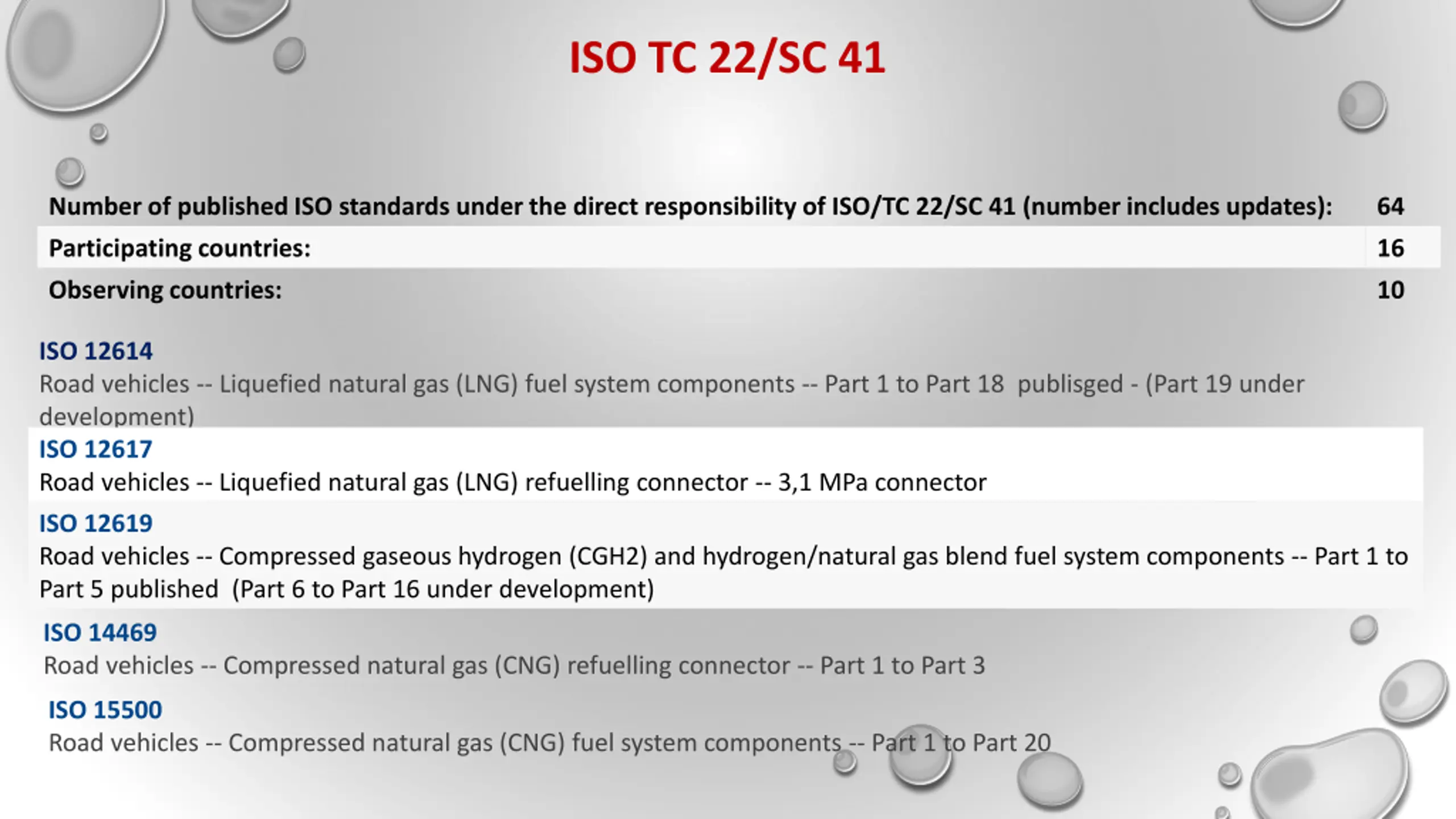

ISO TC 22/SC 41 Number of published ISO standards under the direct responsibility of ISO/TC 22/SC 41 (number includes updates): 64 Participating countries: 16 Observing countries: 10 ISO 12614 Road vehicles -- Liquefied natural gas (LNG) fuel system components -- Part 1 to Part 18 publisged - (Part 19 under development) ISO 12617 Road vehicles -- Liquefied natural gas (LNG) refuelling connector -- 3,1 MPa connector ISO 12619 Road vehicles -- Compressed gaseous hydrogen (CGH2) and hydrogen/natural gas blend fuel system components -- Part 1 to Part 5 published (Part 6 to Part 16 under development) ISO 14469 Road vehicles -- Compressed natural gas (CNG) refuelling connector -- Part 1 to Part 3 ISO 15500 Road vehicles -- Compressed natural gas (CNG) fuel system components -- Part 1 to Part 20

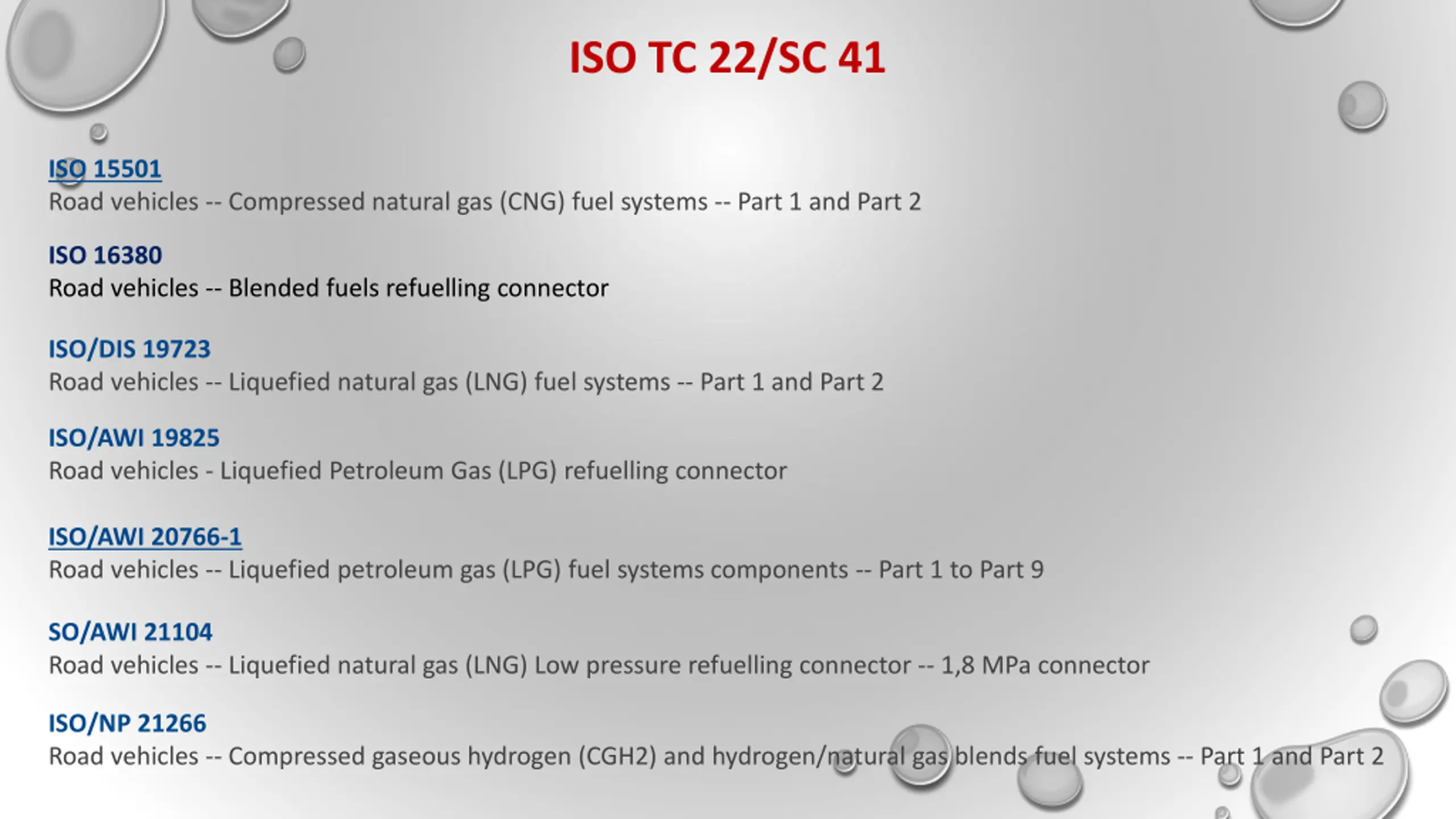

ISO TC 22/SC 41 ISO 15501 Road vehicles -- Compressed natural gas (CNG) fuel systems -- Part 1 and Part 2 ISO 16380 Road vehicles -- Blended fuels refuelling connector ISO/DIS 19723 Road vehicles -- Liquefied natural gas (LNG) fuel systems -- Part 1 and Part 2 ISO/AWI 19825 Road vehicles - Liquefied Petroleum Gas (LPG) refuelling connector ISO/AWI 20766-1 Road vehicles -- Liquefied petroleum gas (LPG) fuel systems components -- Part 1 to Part 9 SO/AWI 21104 Road vehicles -- Liquefied natural gas (LNG) Low pressure refuelling connector -- 1,8 MPa connector ISO/NP 21266 Road vehicles -- Compressed gaseous hydrogen (CGH2) and hydrogen/natural gas blends fuel systems -- Part 1 and Part 2

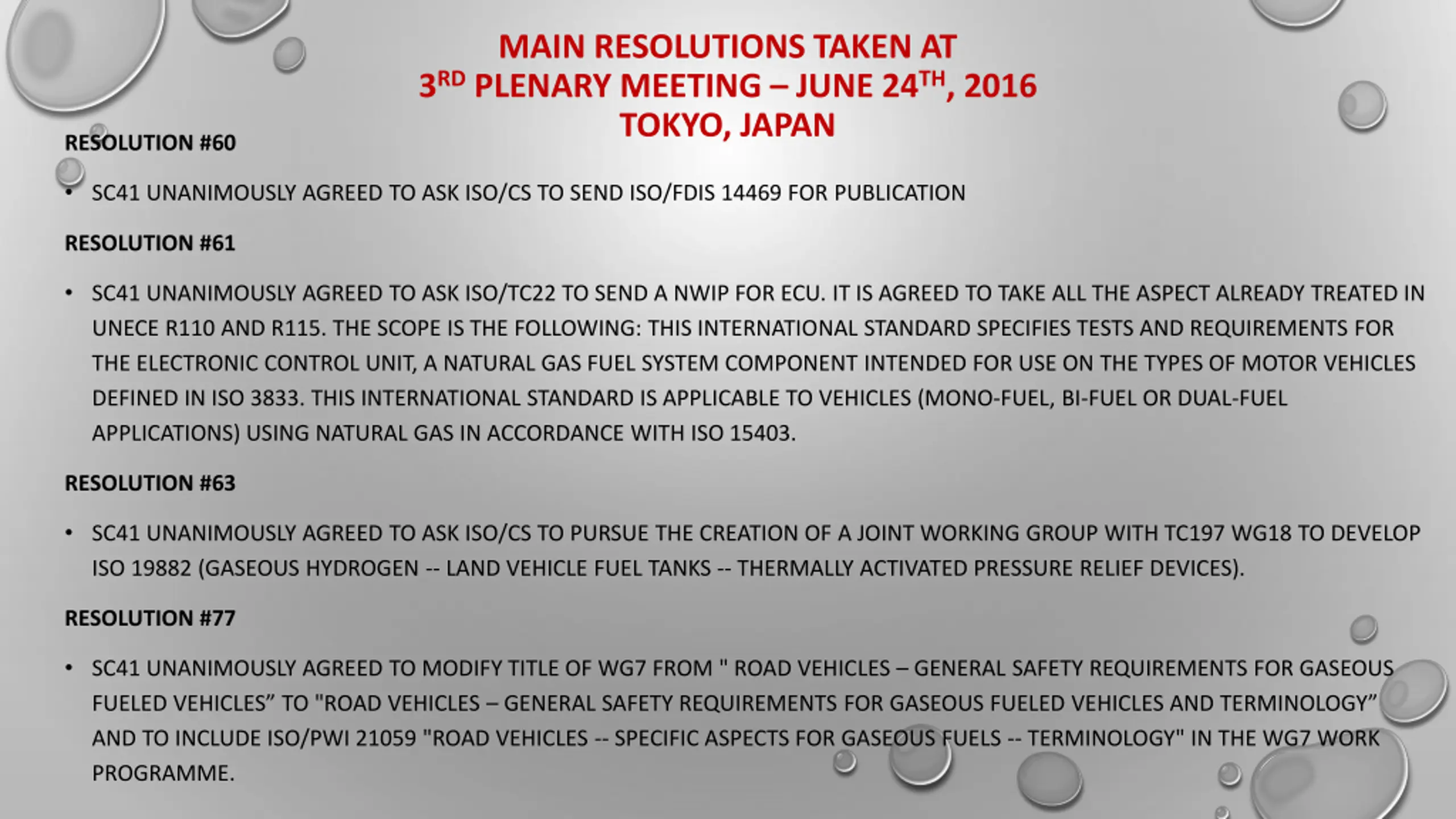

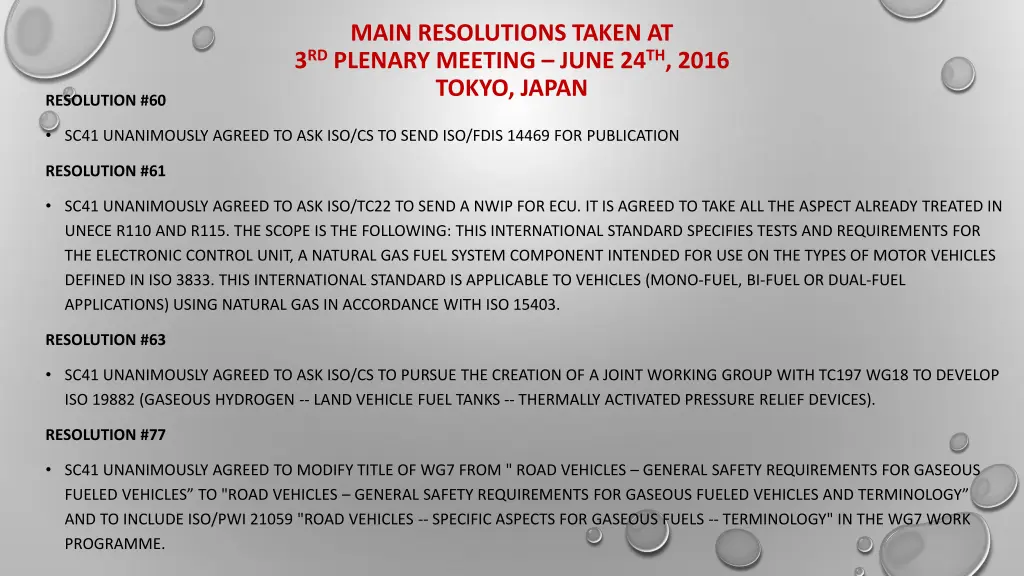

MAIN RESOLUTIONS TAKEN AT 3RD PLENARY MEETING JUNE 24TH, 2016 TOKYO, JAPAN RESOLUTION #60 SC41 UNANIMOUSLY AGREED TO ASK ISO/CS TO SEND ISO/FDIS 14469 FOR PUBLICATION RESOLUTION #61 SC41 UNANIMOUSLY AGREED TO ASK ISO/TC22 TO SEND A NWIP FOR ECU. IT IS AGREED TO TAKE ALL THE ASPECT ALREADY TREATED IN UNECE R110 AND R115. THE SCOPE IS THE FOLLOWING: THIS INTERNATIONAL STANDARD SPECIFIES TESTS AND REQUIREMENTS FOR THE ELECTRONIC CONTROL UNIT, A NATURAL GAS FUEL SYSTEM COMPONENT INTENDED FOR USE ON THE TYPES OF MOTOR VEHICLES DEFINED IN ISO 3833. THIS INTERNATIONAL STANDARD IS APPLICABLE TO VEHICLES (MONO-FUEL, BI-FUEL OR DUAL-FUEL APPLICATIONS) USING NATURAL GAS IN ACCORDANCE WITH ISO 15403. RESOLUTION #63 SC41 UNANIMOUSLY AGREED TO ASK ISO/CS TO PURSUE THE CREATION OF A JOINT WORKING GROUP WITH TC197 WG18 TO DEVELOP ISO 19882 (GASEOUS HYDROGEN -- LAND VEHICLE FUEL TANKS -- THERMALLY ACTIVATED PRESSURE RELIEF DEVICES). RESOLUTION #77 SC41 UNANIMOUSLY AGREED TO MODIFY TITLE OF WG7 FROM " ROAD VEHICLES GENERAL SAFETY REQUIREMENTS FOR GASEOUS FUELED VEHICLES TO "ROAD VEHICLES GENERAL SAFETY REQUIREMENTS FOR GASEOUS FUELED VEHICLES AND TERMINOLOGY AND TO INCLUDE ISO/PWI 21059 "ROAD VEHICLES -- SPECIFIC ASPECTS FOR GASEOUS FUELS -- TERMINOLOGY" IN THE WG7 WORK PROGRAMME.

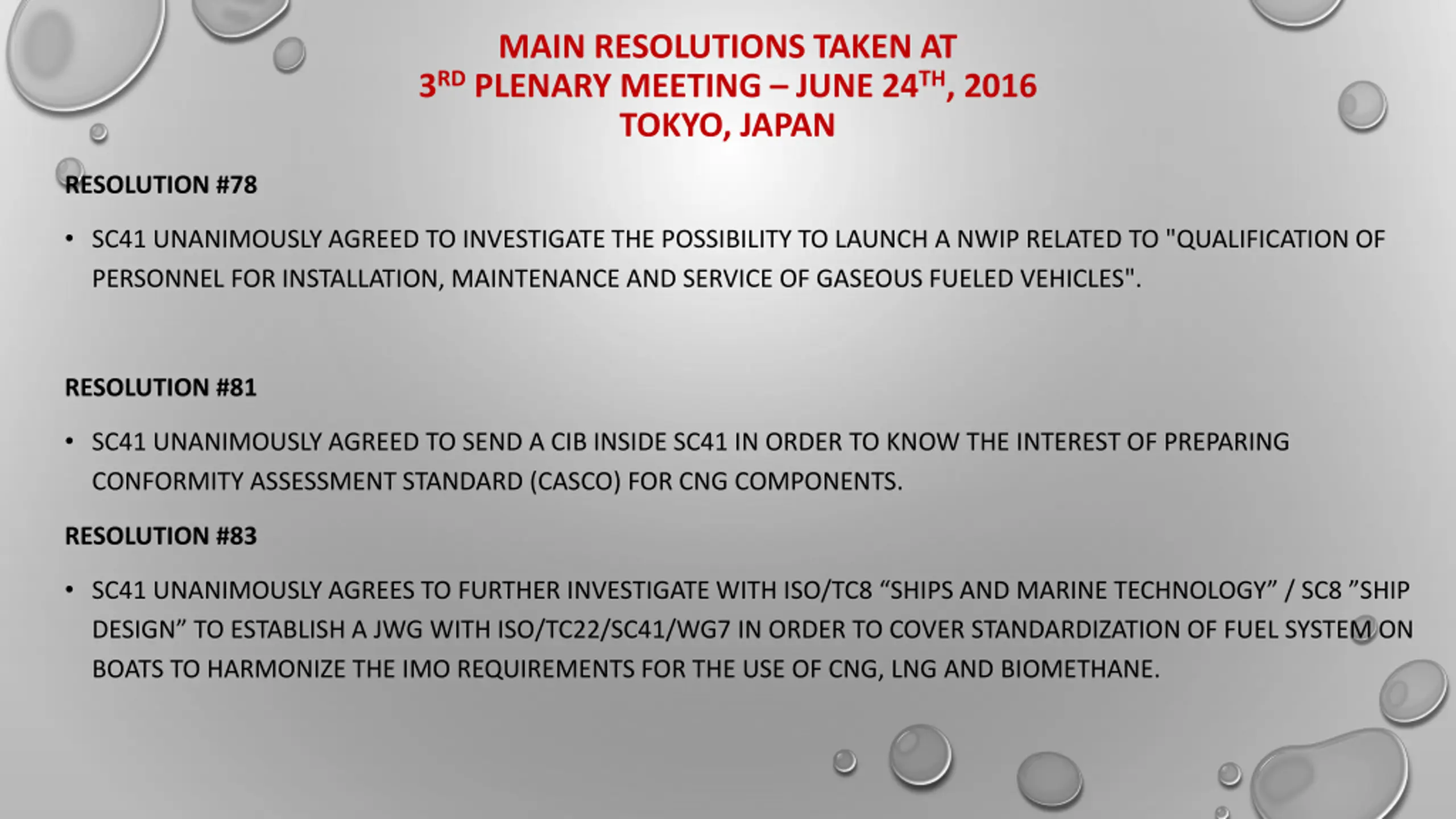

MAIN RESOLUTIONS TAKEN AT 3RD PLENARY MEETING JUNE 24TH, 2016 TOKYO, JAPAN RESOLUTION #78 SC41 UNANIMOUSLY AGREED TO INVESTIGATE THE POSSIBILITY TO LAUNCH A NWIP RELATED TO "QUALIFICATION OF PERSONNEL FOR INSTALLATION, MAINTENANCE AND SERVICE OF GASEOUS FUELED VEHICLES". RESOLUTION #81 SC41 UNANIMOUSLY AGREED TO SEND A CIB INSIDE SC41 IN ORDER TO KNOW THE INTEREST OF PREPARING CONFORMITY ASSESSMENT STANDARD (CASCO) FOR CNG COMPONENTS. RESOLUTION #83 SC41 UNANIMOUSLY AGREES TO FURTHER INVESTIGATE WITH ISO/TC8 SHIPS AND MARINE TECHNOLOGY / SC8 SHIP DESIGN TO ESTABLISH A JWG WITH ISO/TC22/SC41/WG7 IN ORDER TO COVER STANDARDIZATION OF FUEL SYSTEM ON BOATS TO HARMONIZE THE IMO REQUIREMENTS FOR THE USE OF CNG, LNG AND BIOMETHANE.
