The Isotope Harvesting Program at FRIB Greg Severin and Chirag Vyas This material is based upon work supported by the U.S. Department of Energy s Isotope Program, Award# DE-SC0021193, DE-SC0021220, and Michigan State University. Michigan State University designed and established Isotope Harvesting Program at FRIB in support of the mission of the U.S. Department of Energy s Isotope Program.
FRIB is Located at Michigan State University, USA Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

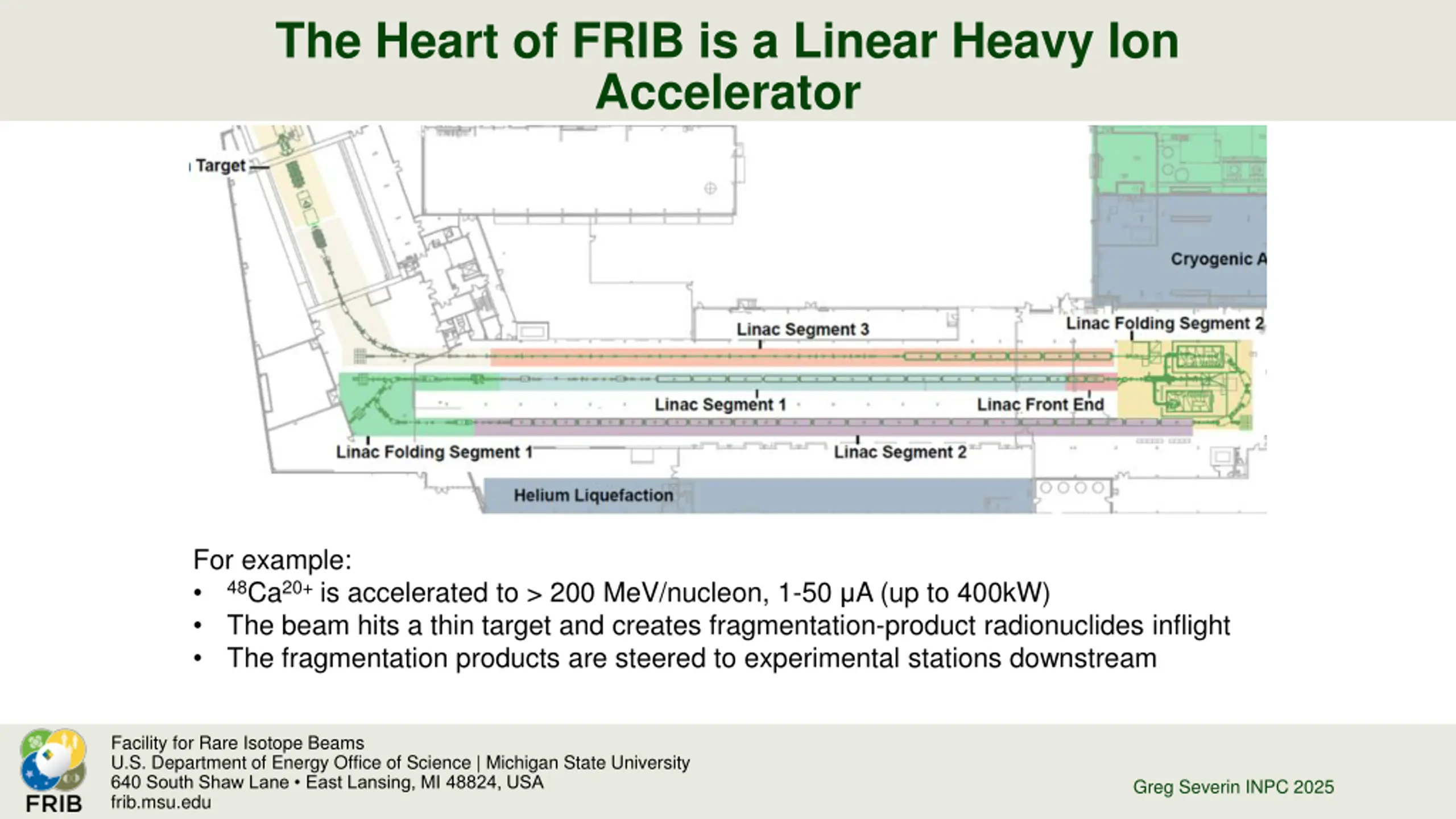

The Heart of FRIB is a Linear Heavy Ion Accelerator For example: The beam hits a thin target and creates fragmentation-product radionuclides inflight The fragmentation products are steered to experimental stations downstream 48Ca20+ is accelerated to > 200 MeV/nucleon, 1-50 A (up to 400kW) Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

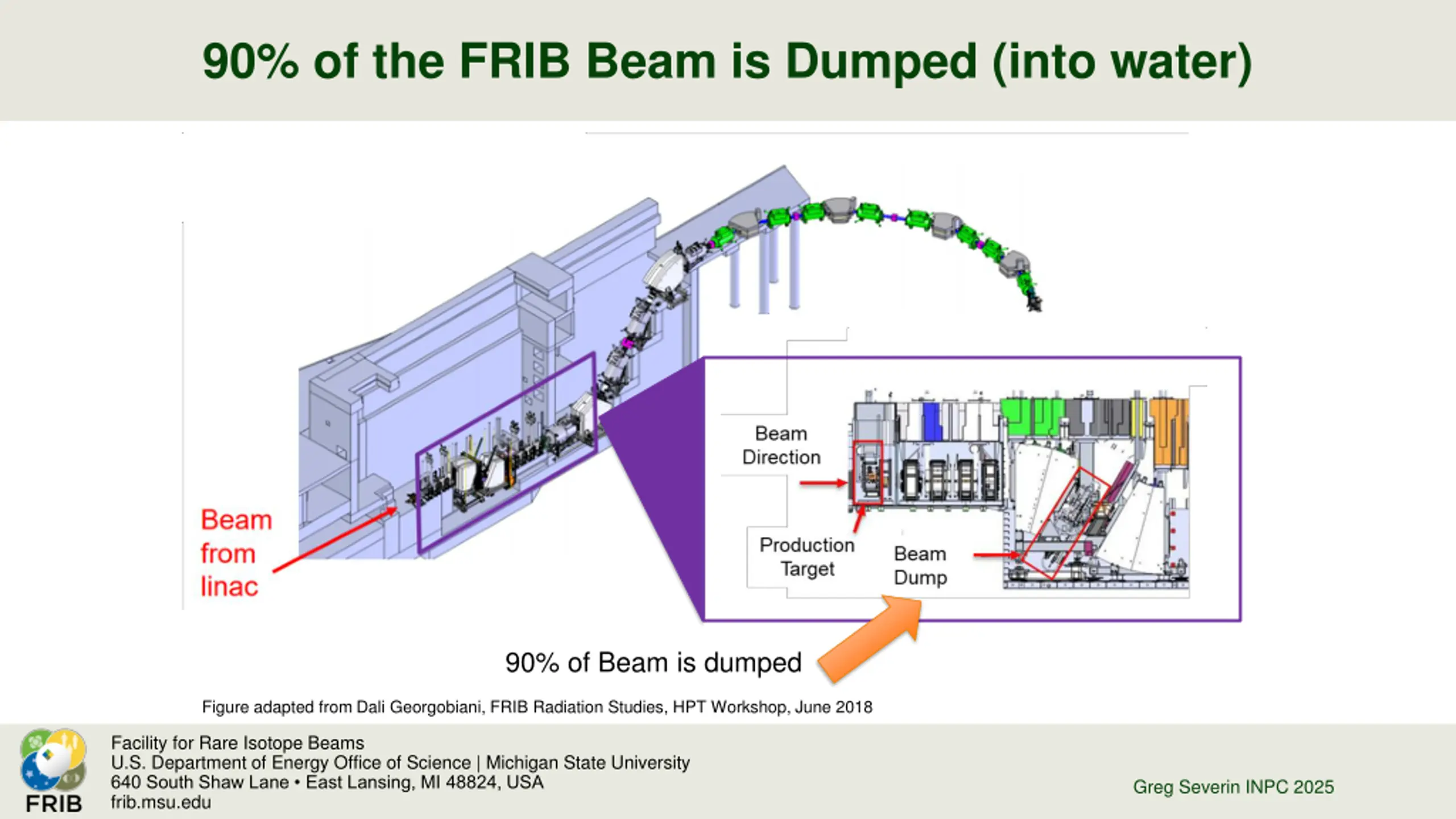

90% of the FRIB Beam is Dumped (into water) 90% of Beam is dumped Figure adapted from Dali Georgobiani, FRIB Radiation Studies, HPT Workshop, June 2018 Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

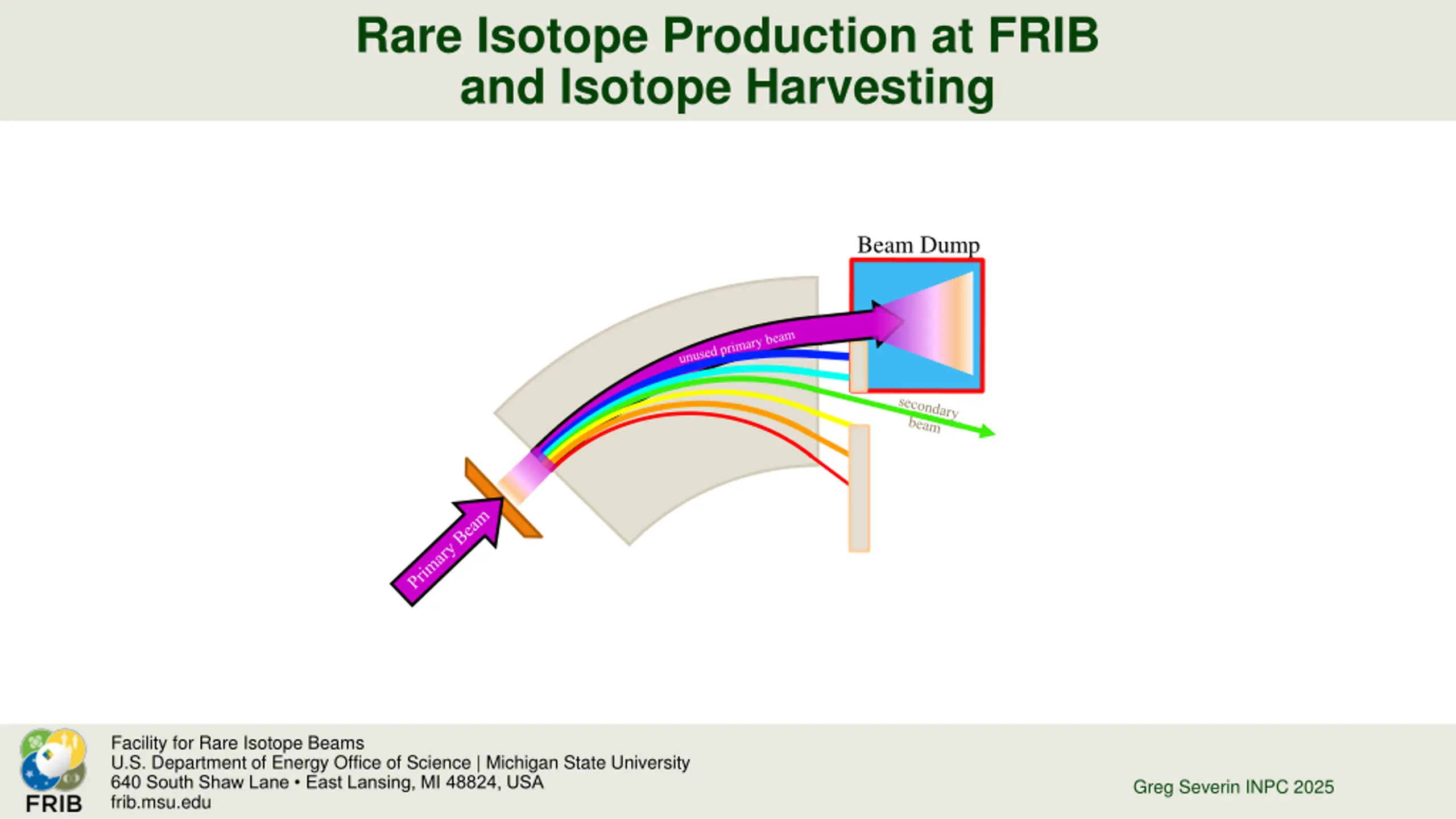

Rare Isotope Production at FRIB and Isotope Harvesting Beam Dump Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

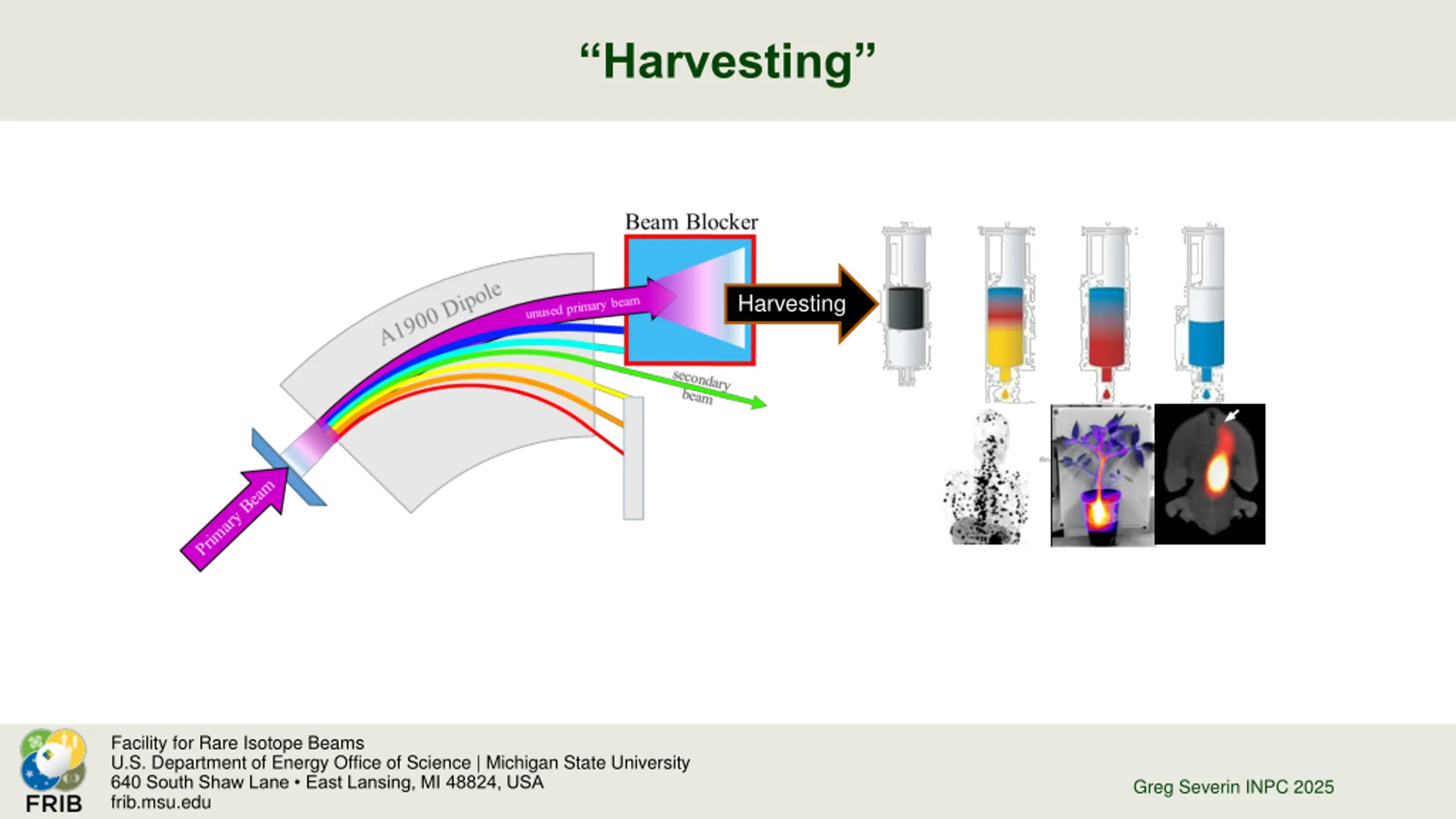

Harvesting Harvesting Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

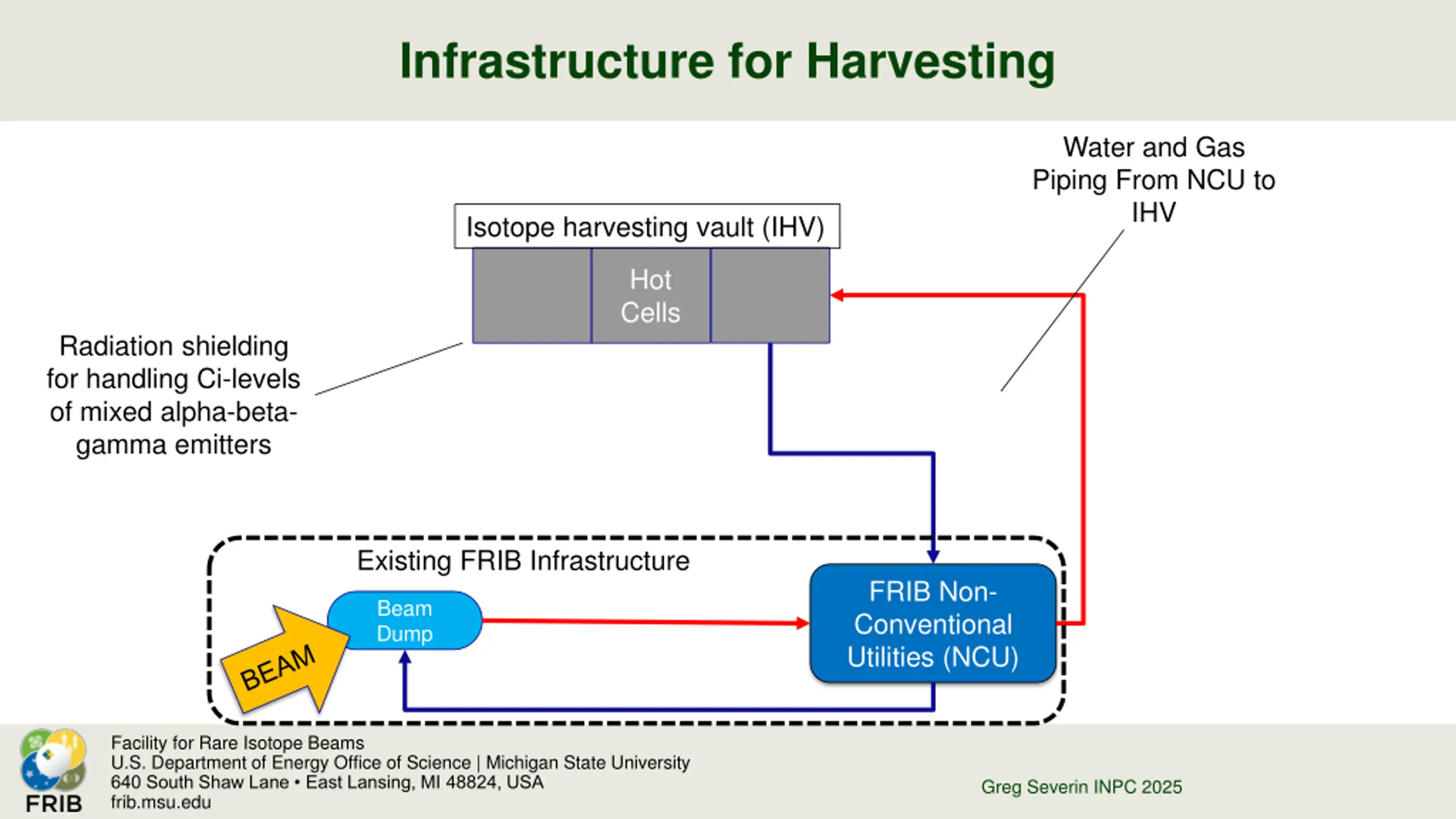

Infrastructure for Harvesting Water and Gas Piping From NCU to IHV Isotope harvesting vault (IHV) Hot Cells Radiation shielding for handling Ci-levels of mixed alpha-beta- gamma emitters Existing FRIB Infrastructure FRIB Non- Conventional Utilities (NCU) Beam Dump Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

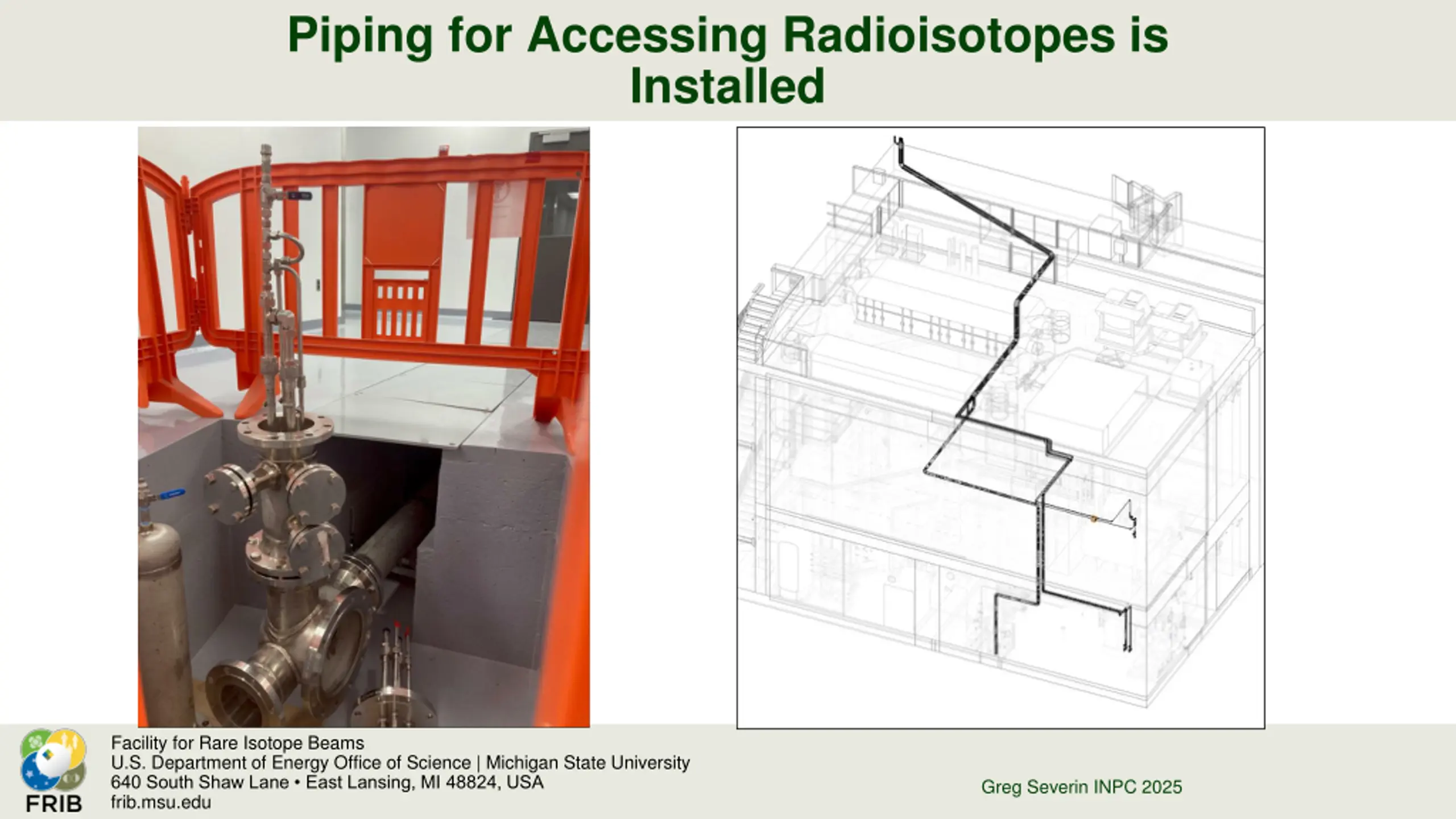

Piping for Accessing Radioisotopes is Installed Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

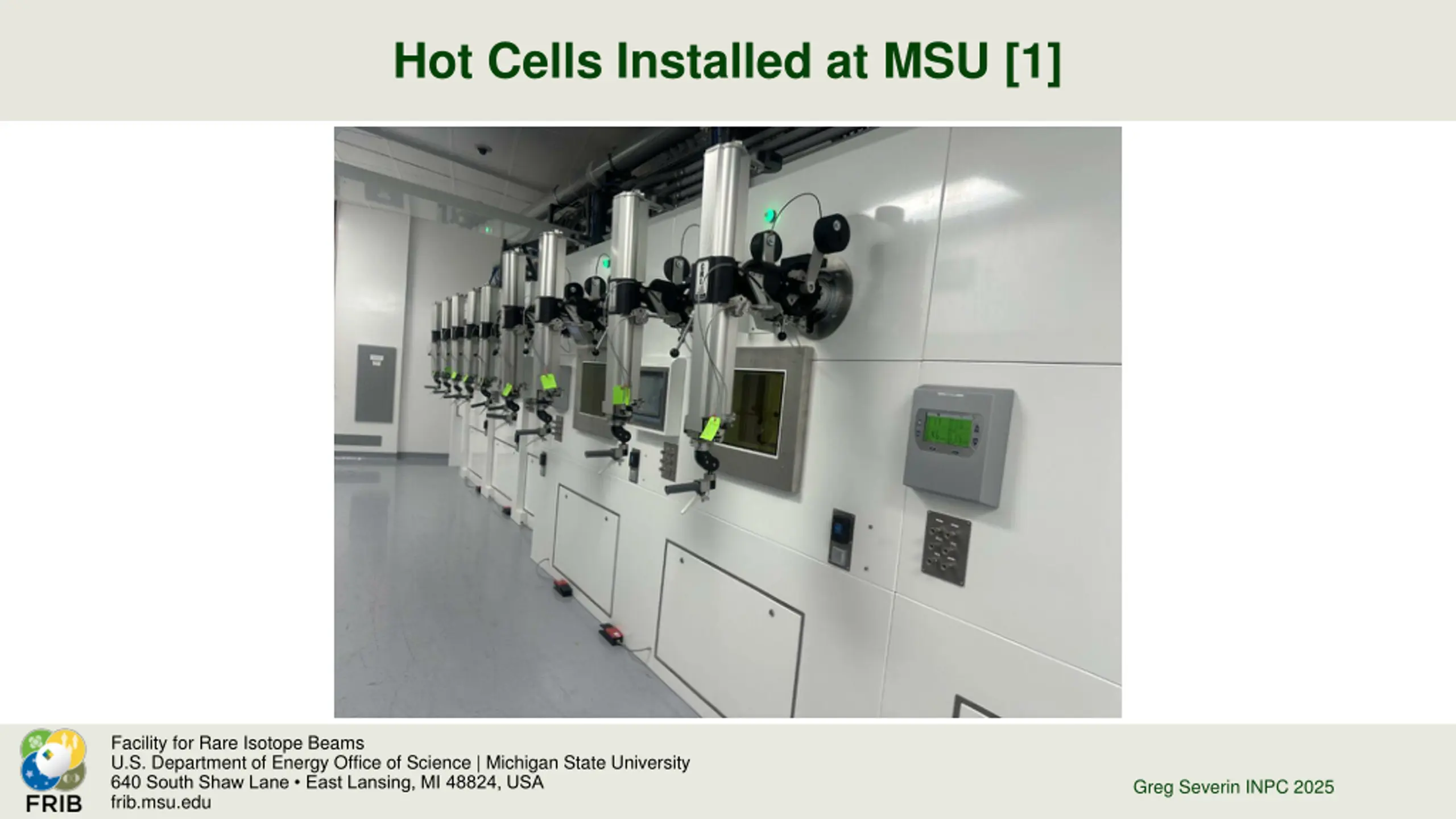

Hot Cells Installed at MSU [1] Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

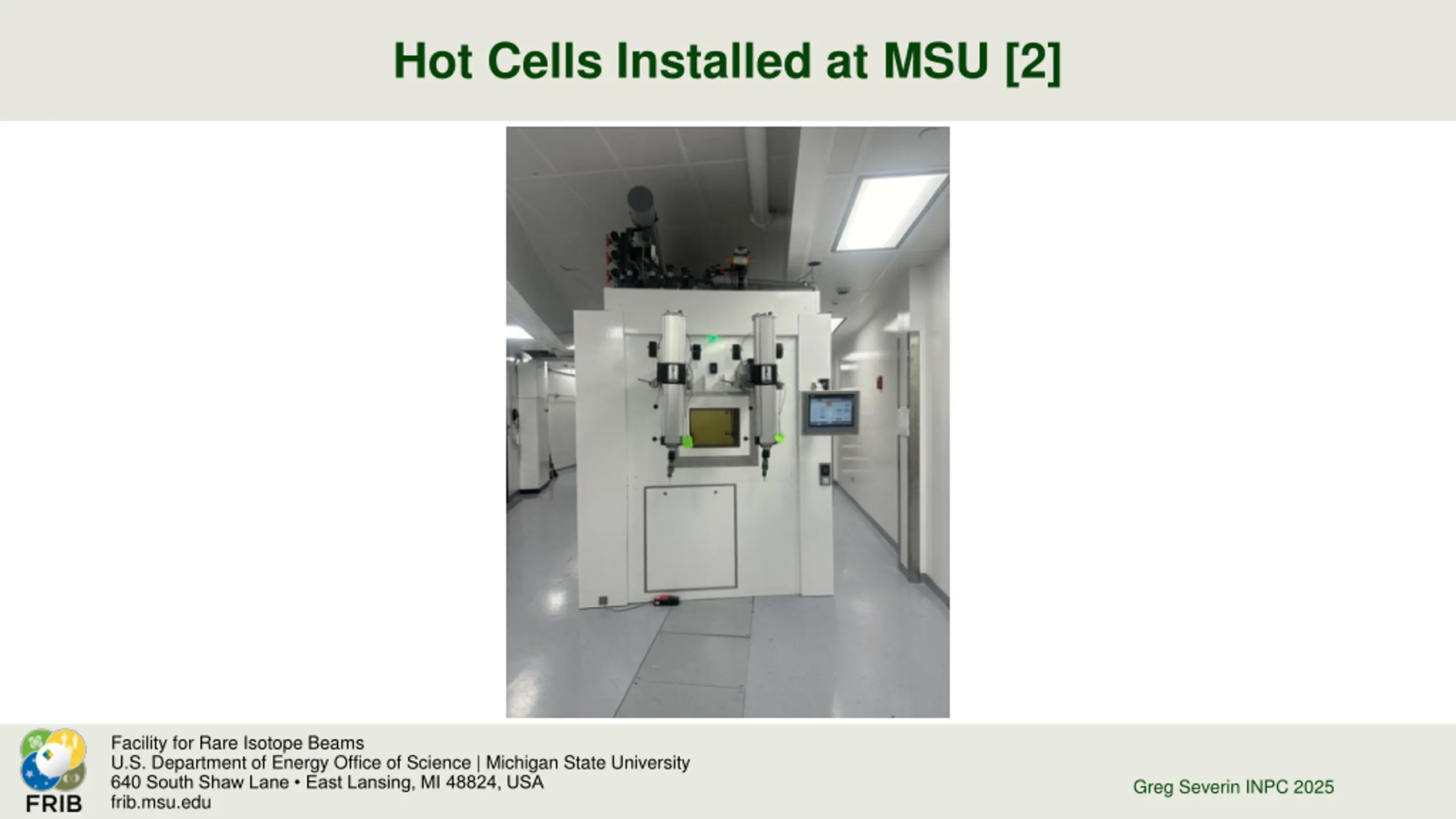

Hot Cells Installed at MSU [2] Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

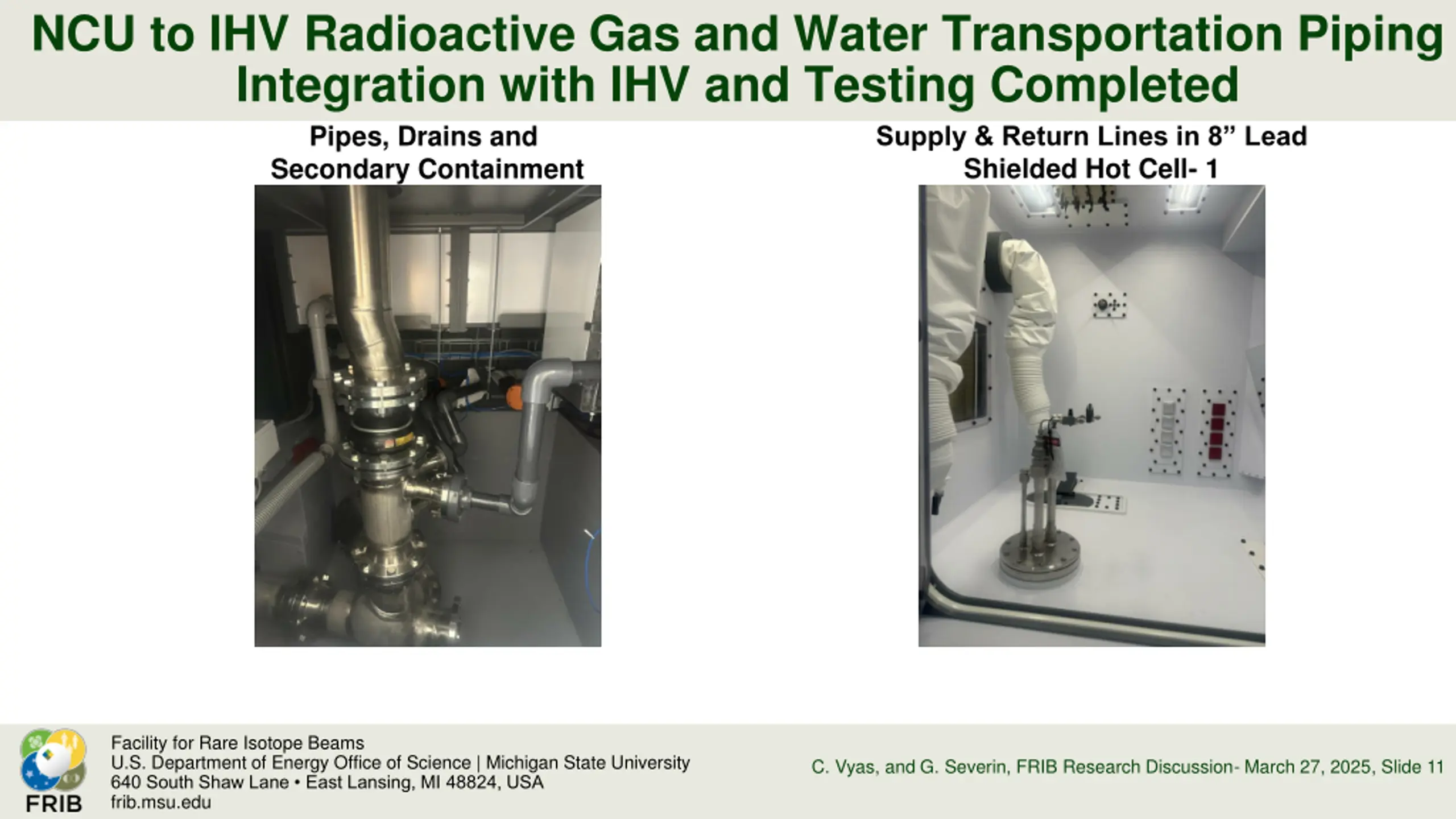

NCU to IHV Radioactive Gas and Water Transportation Piping Integration with IHV and Testing Completed Pipes, Drains and Secondary Containment Supply & Return Lines in 8 Lead Shielded Hot Cell- 1 Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu C. Vyas, and G. Severin, FRIB Research Discussion- March 27, 2025 , Slide 11

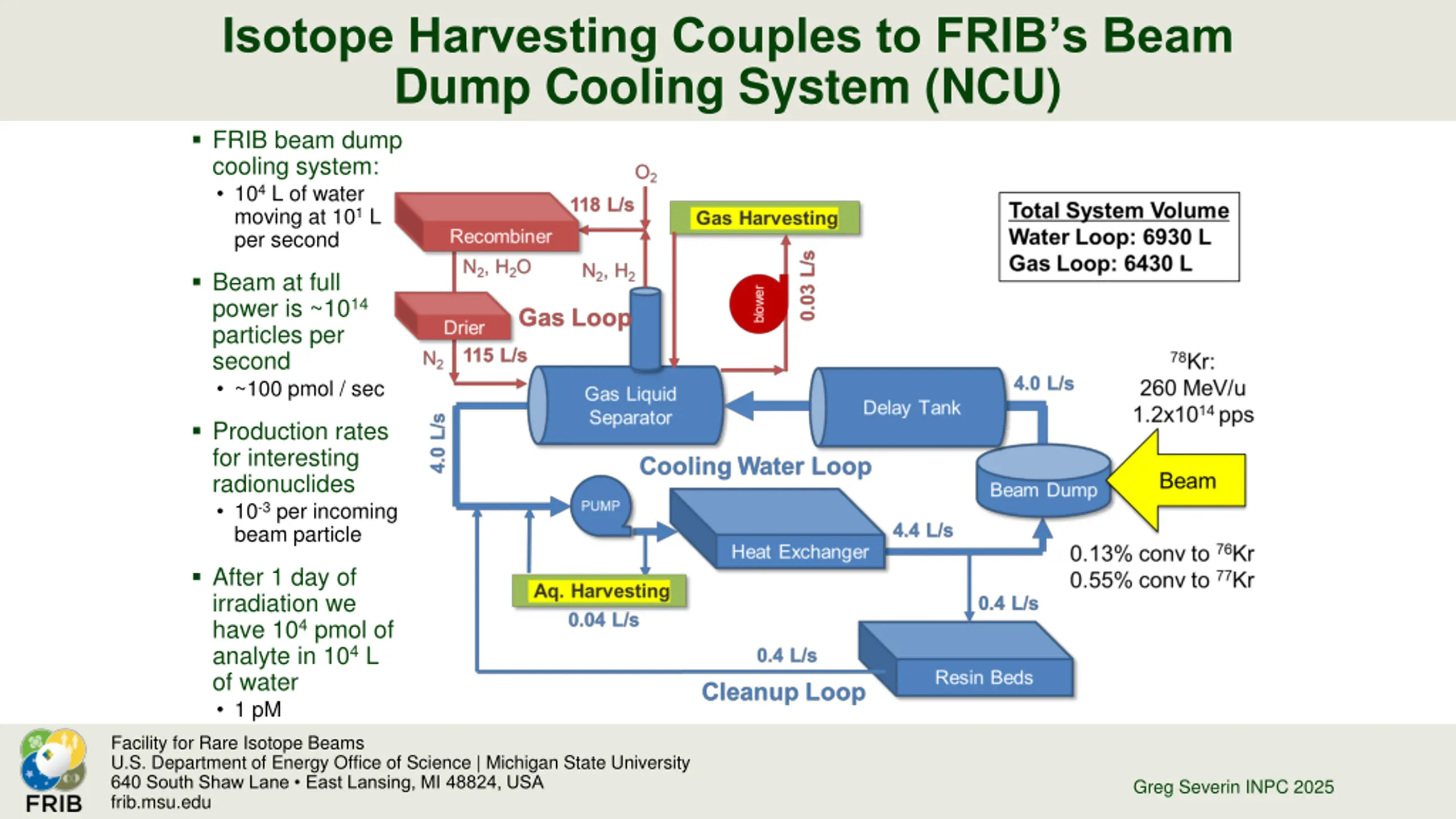

Isotope Harvesting Couples to FRIBs Beam Dump Cooling System (NCU) FRIB beam dump cooling system: 104 L of water moving at 101 L per second Beam at full power is ~1014 particles per second ~100 pmol / sec Production rates for interesting radionuclides 10-3 per incoming beam particle After 1 day of irradiation we have 104 pmol of analyte in 104 L of water 1 pM Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

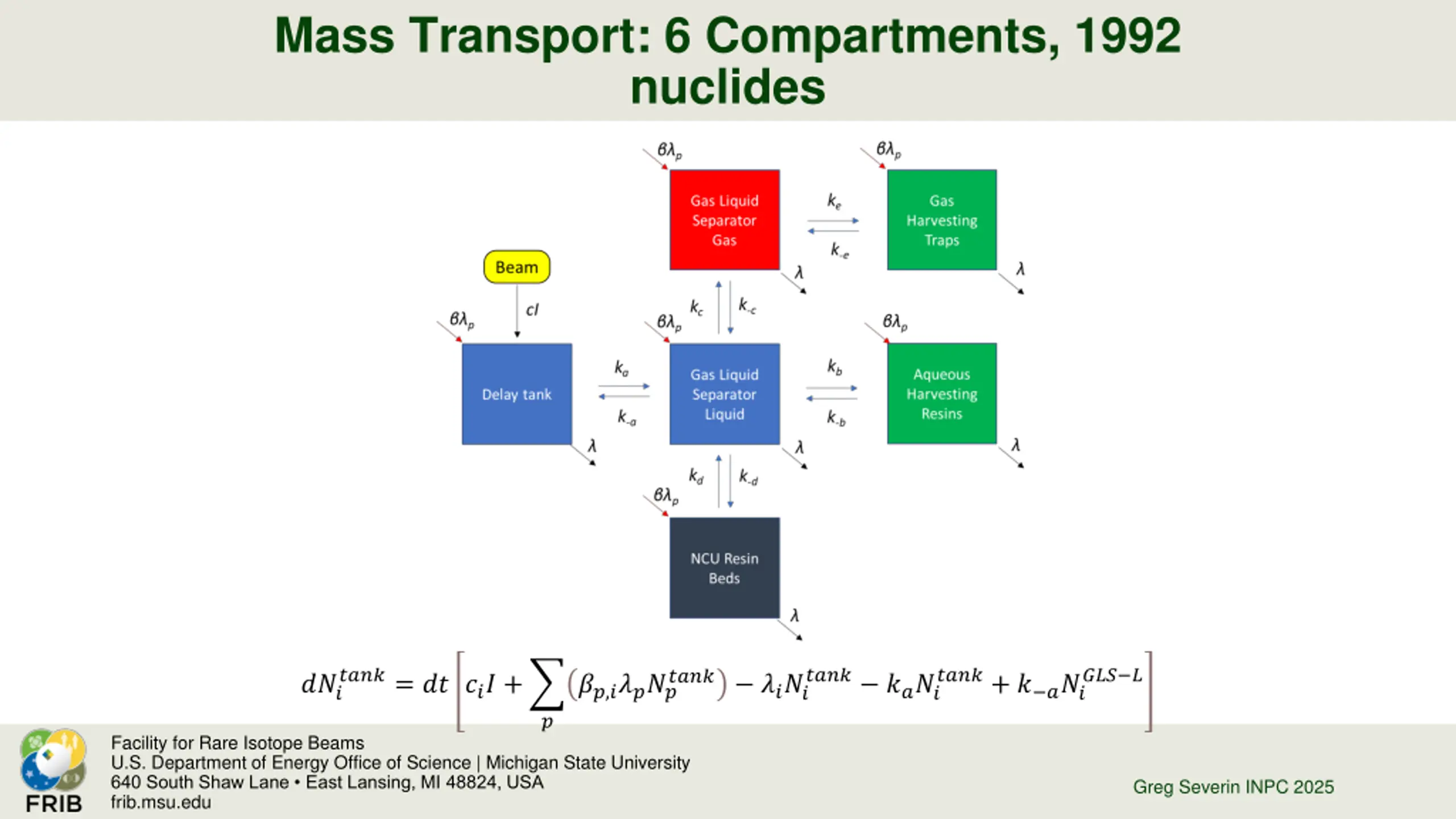

Mass Transport: 6 Compartments, 1992 nuclides ????= ?? ??? + ???? ???? ????+ ? ??? ??? ? ??,????????? ???? ??? ? Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

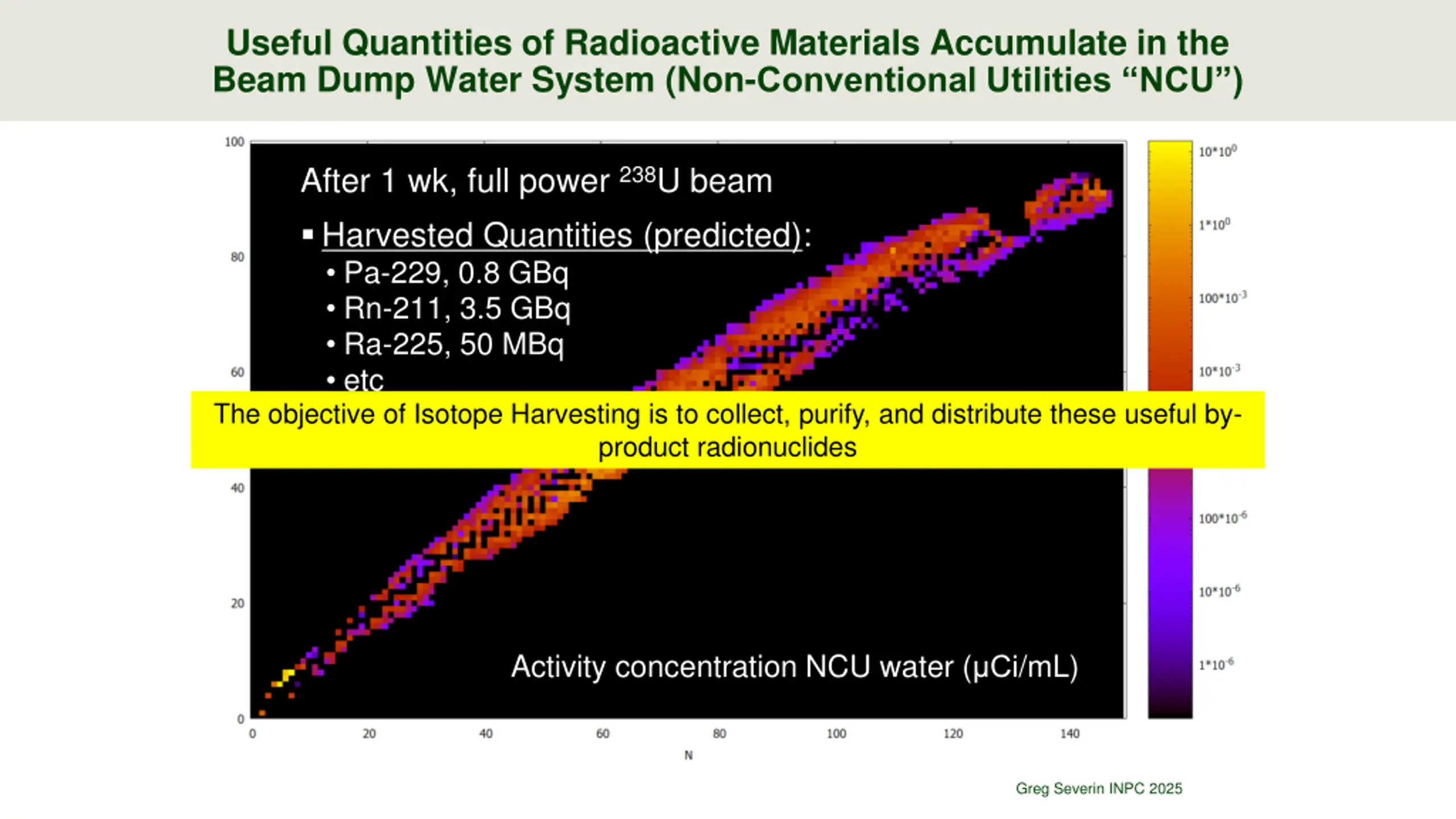

Useful Quantities of Radioactive Materials Accumulate in the Beam Dump Water System (Non-Conventional Utilities NCU ) After 1 wk, full power 238U beam Harvested Quantities (predicted): Pa-229, 0.8 GBq Rn-211, 3.5 GBq Ra-225, 50 MBq etc The objective of Isotope Harvesting is to collect, purify, and distribute these useful by- product radionuclides Activity concentration NCU water ( Ci/mL) Greg Severin INPC 2025

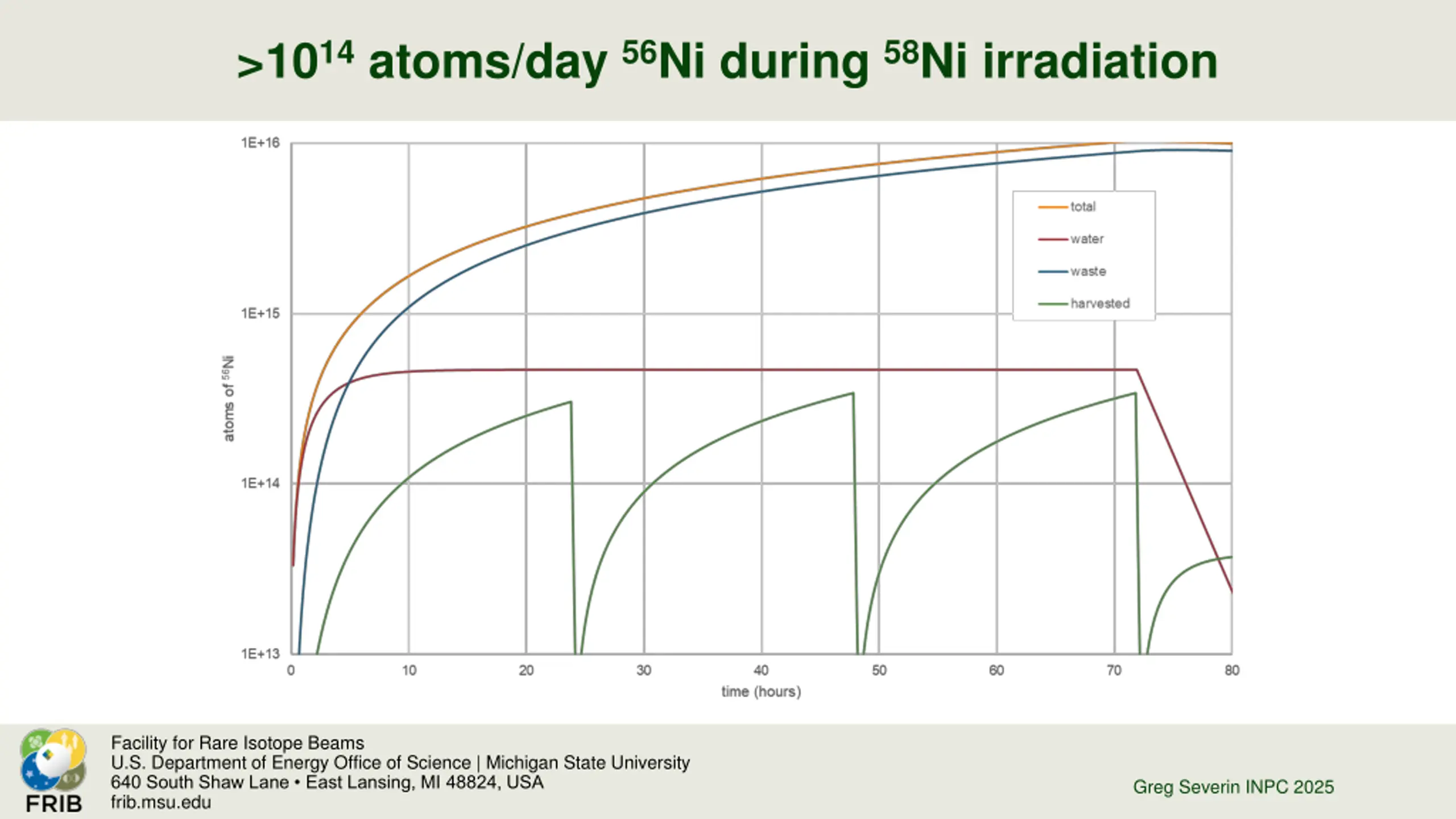

>1014 atoms/day 56Ni during 58Ni irradiation Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

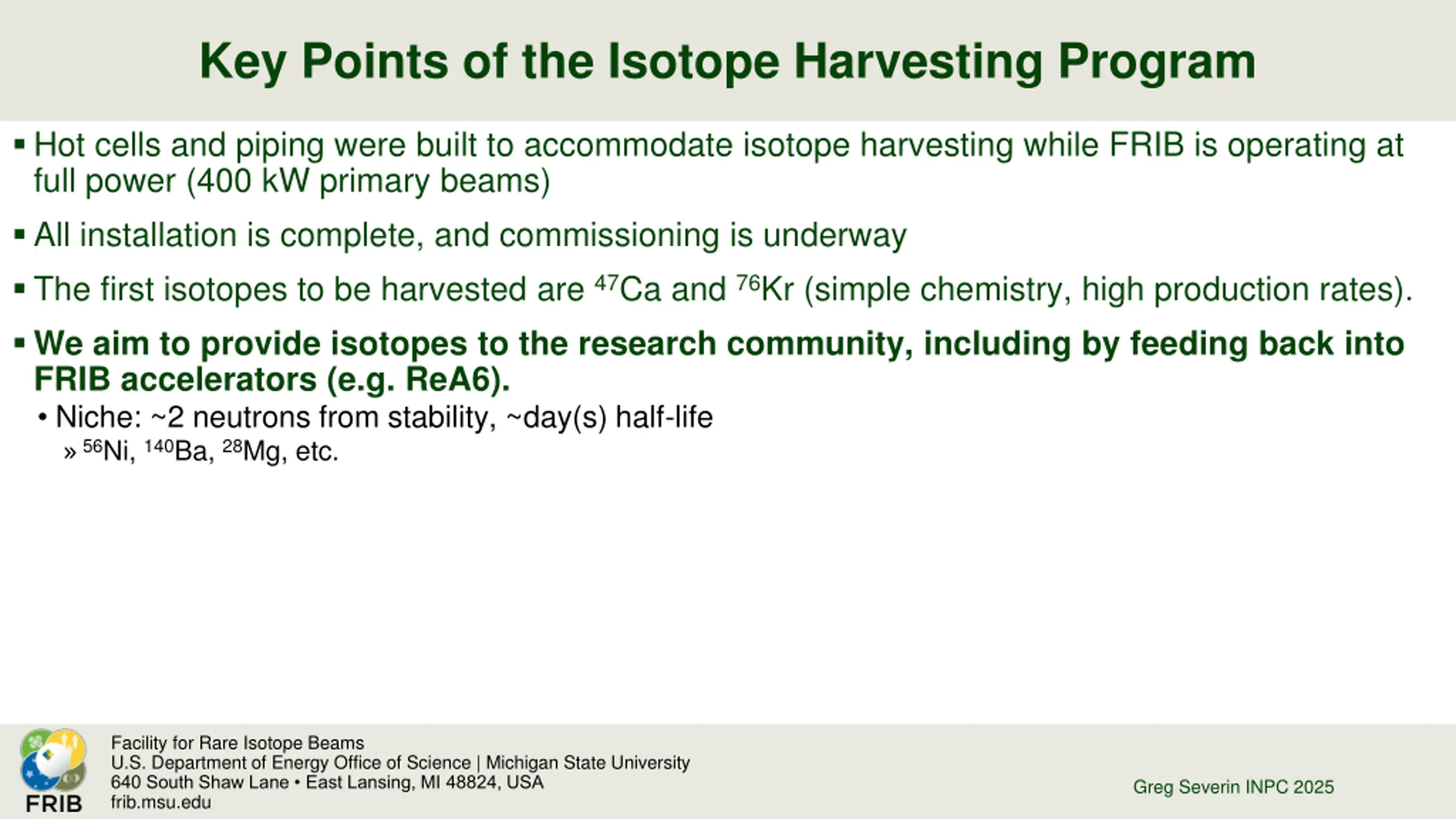

Key Points of the Isotope Harvesting Program Hot cells and piping were built to accommodate isotope harvesting while FRIB is operating at full power (400 kW primary beams) All installation is complete, and commissioning is underway The first isotopes to be harvested are 47Ca and 76Kr (simple chemistry, high production rates). We aim to provide isotopes to the research community, including by feeding back into FRIB accelerators (e.g. ReA6). Niche: ~2 neutrons from stability, ~day(s) half-life 56Ni, 140Ba, 28Mg, etc. Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025

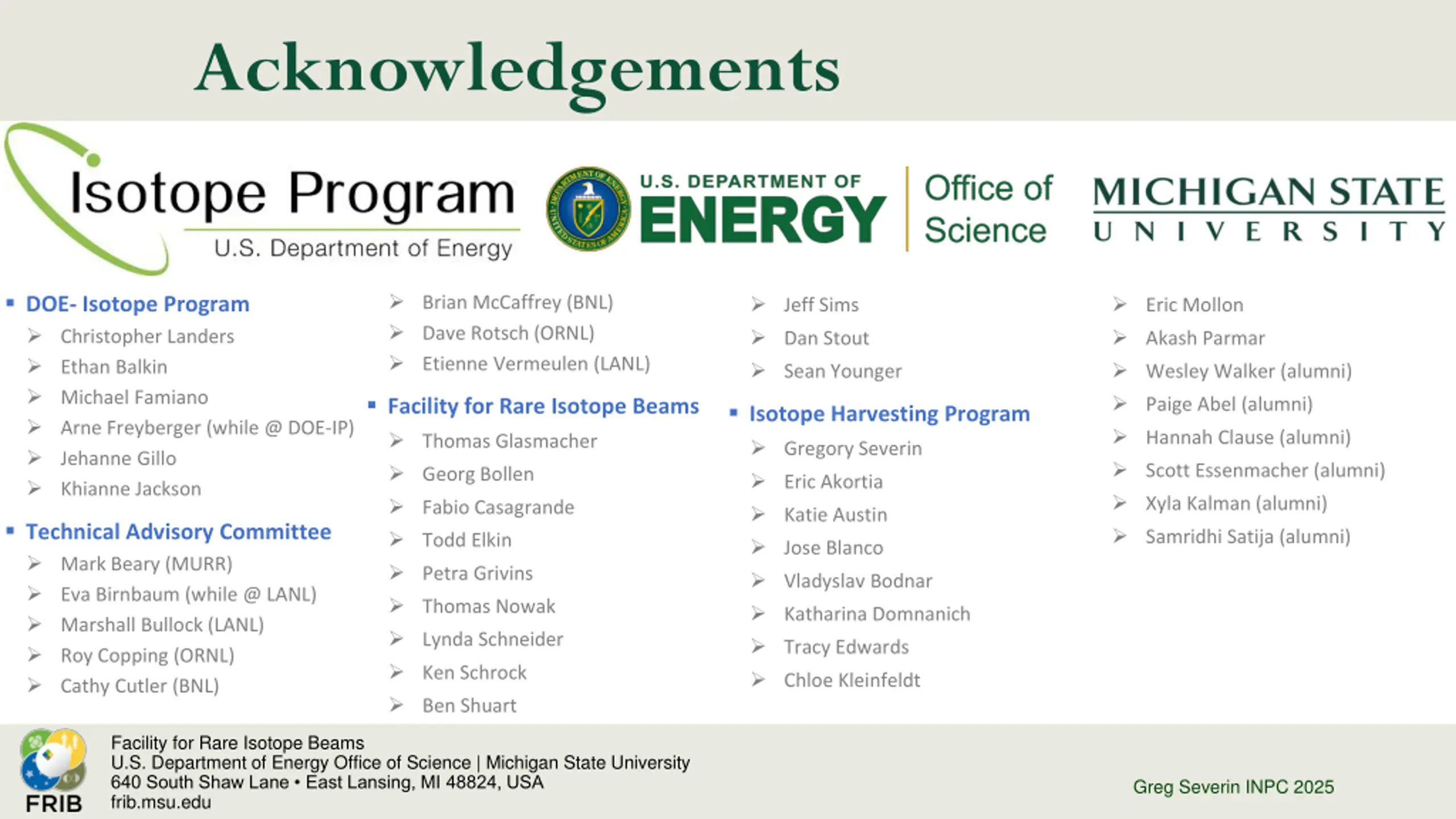

Acknowledgements DOE- Isotope Program Christopher Landers Ethan Balkin Michael Famiano Arne Freyberger (while @ DOE-IP) Jehanne Gillo Khianne Jackson Brian McCaffrey (BNL) Dave Rotsch (ORNL) Etienne Vermeulen (LANL) Jeff Sims Dan Stout Sean Younger Eric Mollon Akash Parmar Wesley Walker (alumni) Paige Abel (alumni) Hannah Clause (alumni) Scott Essenmacher (alumni) Xyla Kalman (alumni) Samridhi Satija (alumni) Facility for Rare Isotope Beams Thomas Glasmacher Georg Bollen Fabio Casagrande Todd Elkin Petra Grivins Thomas Nowak Lynda Schneider Ken Schrock Ben Shuart Isotope Harvesting Program Gregory Severin Eric Akortia Katie Austin Jose Blanco Vladyslav Bodnar Katharina Domnanich Tracy Edwards Chloe Kleinfeldt Technical Advisory Committee Mark Beary (MURR) Eva Birnbaum (while @ LANL) Marshall Bullock (LANL) Roy Copping (ORNL) Cathy Cutler (BNL) Facility for Rare Isotope Beams U.S. Department of Energy Office of Science | Michigan State University 640 South Shaw Lane East Lansing, MI 48824, USA frib.msu.edu Greg Severin INPC 2025
