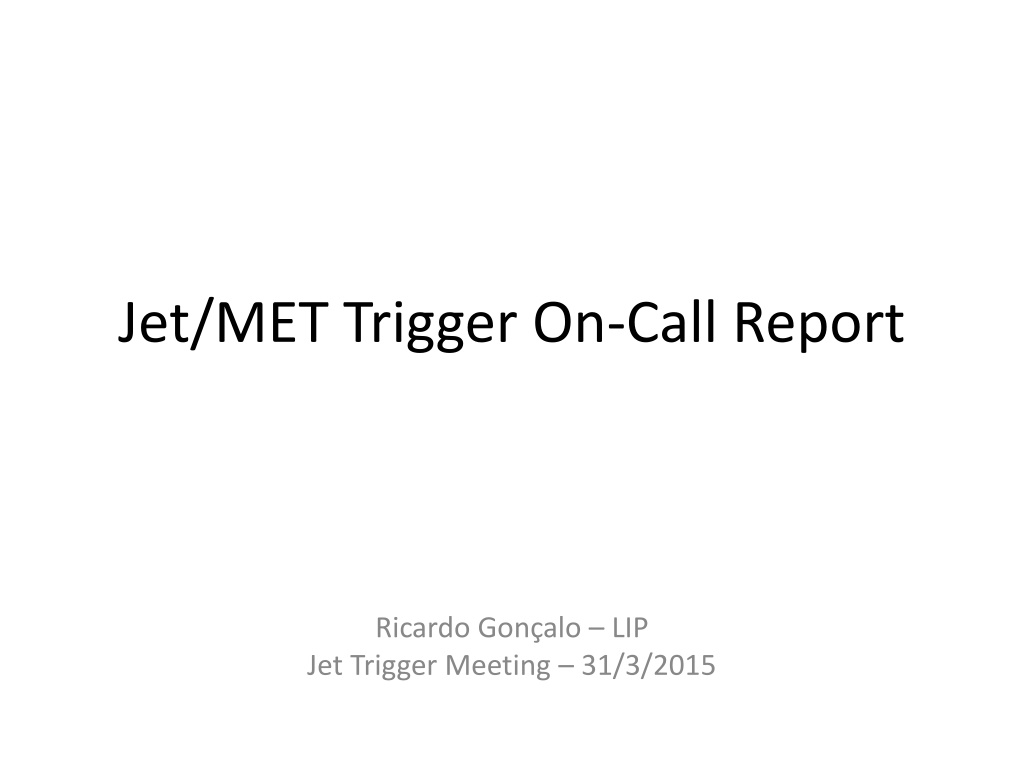

Jet/MET Trigger On-Call Report Ricardo Gon alo LIP Jet Trigger Meeting 31/3/2015

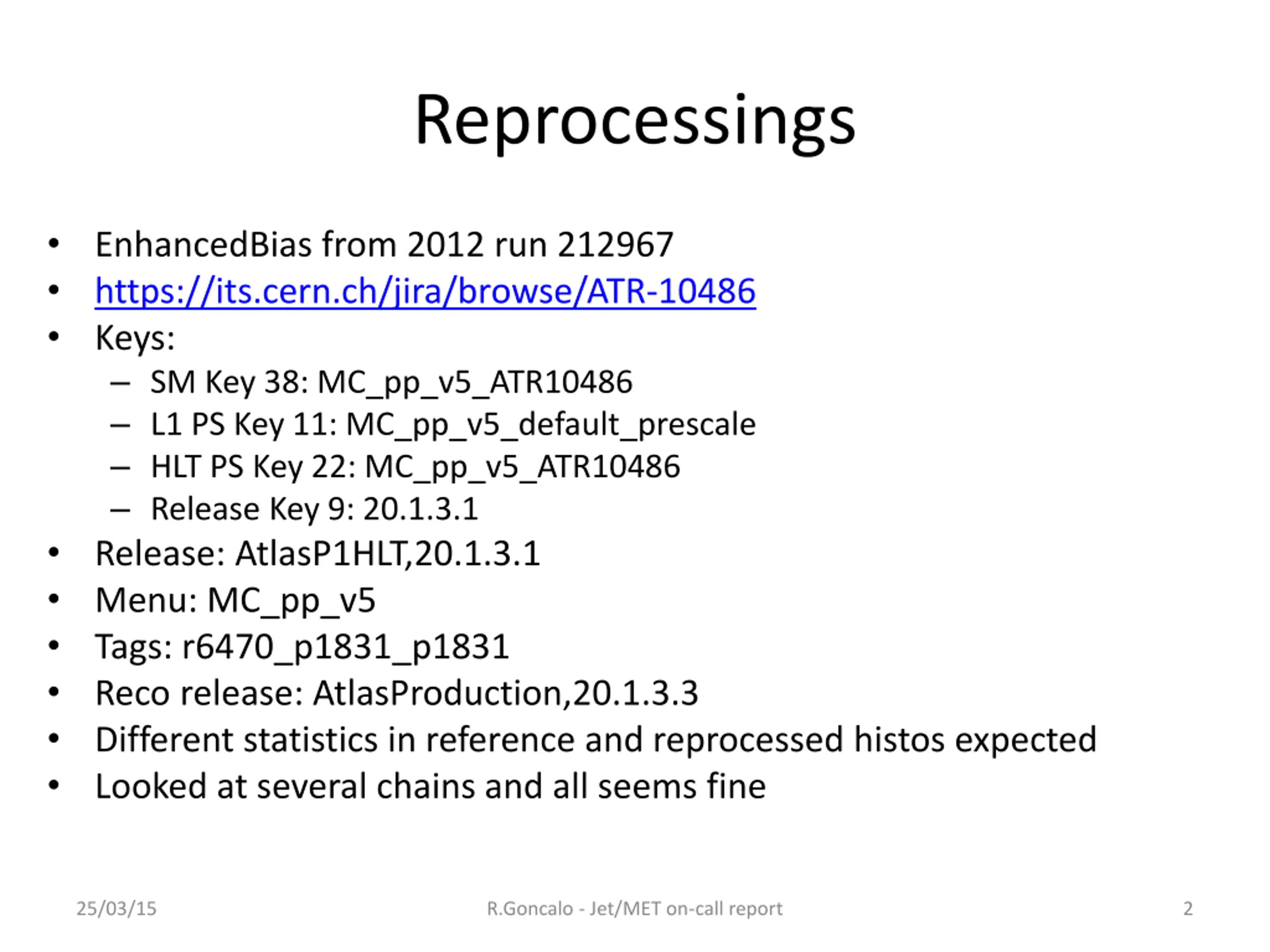

Reprocessings EnhancedBias from 2012 run 212967 https://its.cern.ch/jira/browse/ATR-10486 Keys: SM Key 38: MC_pp_v5_ATR10486 L1 PS Key 11: MC_pp_v5_default_prescale HLT PS Key 22: MC_pp_v5_ATR10486 Release Key 9: 20.1.3.1 Release: AtlasP1HLT,20.1.3.1 Menu: MC_pp_v5 Tags: r6470_p1831_p1831 Reco release: AtlasProduction,20.1.3.3 Different statistics in reference and reprocessed histos expected Looked at several chains and all seems fine 25/03/15 R.Goncalo - Jet/MET on-call report 2
data12_8TeV.00212967.physics_EnhancedBias.merge.HIST_HLTMON.r6470_p1831_p1831_tid04987459_00/HIST_HLTMON.04987459._000001.pool.root.1data12_8TeV.00212967.physics_EnhancedBias.merge.HIST_HLTMON.r6470_p1831_p1831_tid04987459_00/HIST_HLTMON.04987459._000001.pool.root.1 data12_8TeV.00212967.physics_EnhancedBias.merge.HIST_HLTMON.r6470_p1831_p1831_tid04987459_00/HIST_HLTMON.04987459._000001.pool.root.1 data12_8TeV.00212967.physics_EnhancedBias.merge.HIST_HLTMON.r6470_p1831_p1831_tid04987459_00/HIST_HLTMON.04987459._000001.pool.root.1 data12_8TeV.00212967.physics_EnhancedBias.merge.HIST_HLTMON.r6470_p1831_p1831_tid04987459_00/HIST_HLTMON.04987459._000001.pool.root.1 nevents 3000 1000 1500 2000 2500 EFJetHypo Et 500 nevents 2200 1000 1200 1400 1600 1800 2000 2400 EFJetHypo NJet 0 200 400 600 800 0 0 0 50 100 150 200 250 300 350 400 450 500 2 4 6 8 EFCentFullScanMultiJetHypo_1_0eta320_100_2_0eta320_55_a4_tc_em_subjes_FS/NJet 10 12 14 16 18 20 Overflow Overflow Underflow 2.165e+04 Underflow 2.165e+04 RMS 3.624e+04 RMS 3.624e+04 Mean 1.409e+05 Mean 1.409e+05 Entries Entries Overflow 0 Overflow 0 Underflow 0 Underflow 0 RMS 1.472 RMS 1.472 Mean 1.786 Mean 1.786 Entries Entries EFJetHypo_j110000_0eta320_a4_tc_em_subjes_FS/Et Et Et r6490/HIST_HLTMON.05181160._000001.pool.root.1 NJet NJet r6490/HIST_HLTMON.05181160._000001.pool.root.1 24005 24005 1 1 Number of jets 514 514 Et [MeV] Overflow Overflow Underflow 1.631e+05 Underflow 1.631e+05 RMS 3.481e+04 RMS 3.481e+04 Mean 1.399e+05 Mean 1.399e+05 Entries Entries Overflow 0 Overflow 0 Underflow 0 Underflow 0 RMS RMS Mean Mean Entries Entries Et Et NJet NJet 10 181628 181628 10 10 1.799 1.799 1.47 1.47 3899 3899 3 page 600 page 318 nevents 2500 1000 1500 2000 nevents 1800 2000 500 1000 1200 1400 1600 200 400 600 800 0 0 0 0 50 100 150 200 250 300 350 400 450 500 2 4 EFJetHypo NJet (diff) EFJetHypo Et (diff) 6 8 10 12 14 16 18 20 Number of jets Et [MeV] Overflow Overflow Underflow 1.414e+05 Underflow 1.414e+05 RMS 3.455e+04 RMS 3.455e+04 Mean 1.398e+05 Mean 1.398e+05 Entries Entries Overflow 0 Overflow 0 Underflow 0 Underflow 0 RMS RMS Mean Mean Entries Entries NJet (diff) NJet (diff) Et (diff) Et (diff) 10 2.301 2.301 1.47 1.47 16191 16191 3385 3385 9 9 3 Significance Significance Missing E Missing E No MET obj No MET obj T T Hypo cuts Hypo cuts Rejected Rejected MET MET SumET SumET Hypo_MET_cuts Hypo_MET_cuts Overflow 0 Overflow 0 Underflow 0 Underflow 0 RMS RMS Mean Mean Entries 100527 Entries 100527 Hypo_MET_cuts Hypo_MET_cuts Overflow 0 Overflow 0 Underflow 0 Underflow 0 RMS 0.4119 RMS 0.4119 Mean 0.7834 Mean 0.7834 Entries Entries r6490/HIST_HLTMON.05181160._000001.pool.root.1 EFMetHypo_Jets_xe35_tclcw_wMu/Hypo_MET_cuts Both r6490/HIST_HLTMON.05181160._000001.pool.root.1 0.4804 0.4804 0.6386 0.6386 Both EFMetHypo_Jets_xe0_tclcw/Hypo_MET_cuts 4187 4187 Hypo_MET_cuts Hypo_MET_cuts Overflow 0 Overflow 0 Underflow 0 Underflow 0 RMS RMS Mean Mean Entries 743176 Entries 743176 Forward Hypo_MET_cuts Hypo_MET_cuts Overflow 0 Overflow 0 Underflow 0 Underflow 0 RMS RMS Mean Mean Entries 27016 Entries 27016 Forward 0.8363 0.8363 0.37 0.37 0.4469 0.4469 0.7243 0.7243 page 1057 page 1060 Significance Significance No MET obj No MET obj Missing E Missing E Rejected Rejected MET T Hypo cuts (diff) MET T Hypo cuts (diff) SumET SumET Both Both Hypo_MET_cuts (diff) Hypo_MET_cuts (diff) Overflow 0 Overflow 0 Underflow 0 Underflow 0 RMS RMS Mean Mean Entries 642649 Entries 642649 Forward Hypo_MET_cuts (diff) Hypo_MET_cuts (diff) Overflow 0 Overflow 0 Underflow 0 Underflow 0 RMS RMS Mean Mean Entries 22829 Entries 22829 Forward 0.3959 0.3959 1.262 1.262 0.5275 0.5275 1.082 1.082 25/03/15 R.Goncalo - Jet/MET on-call report 3

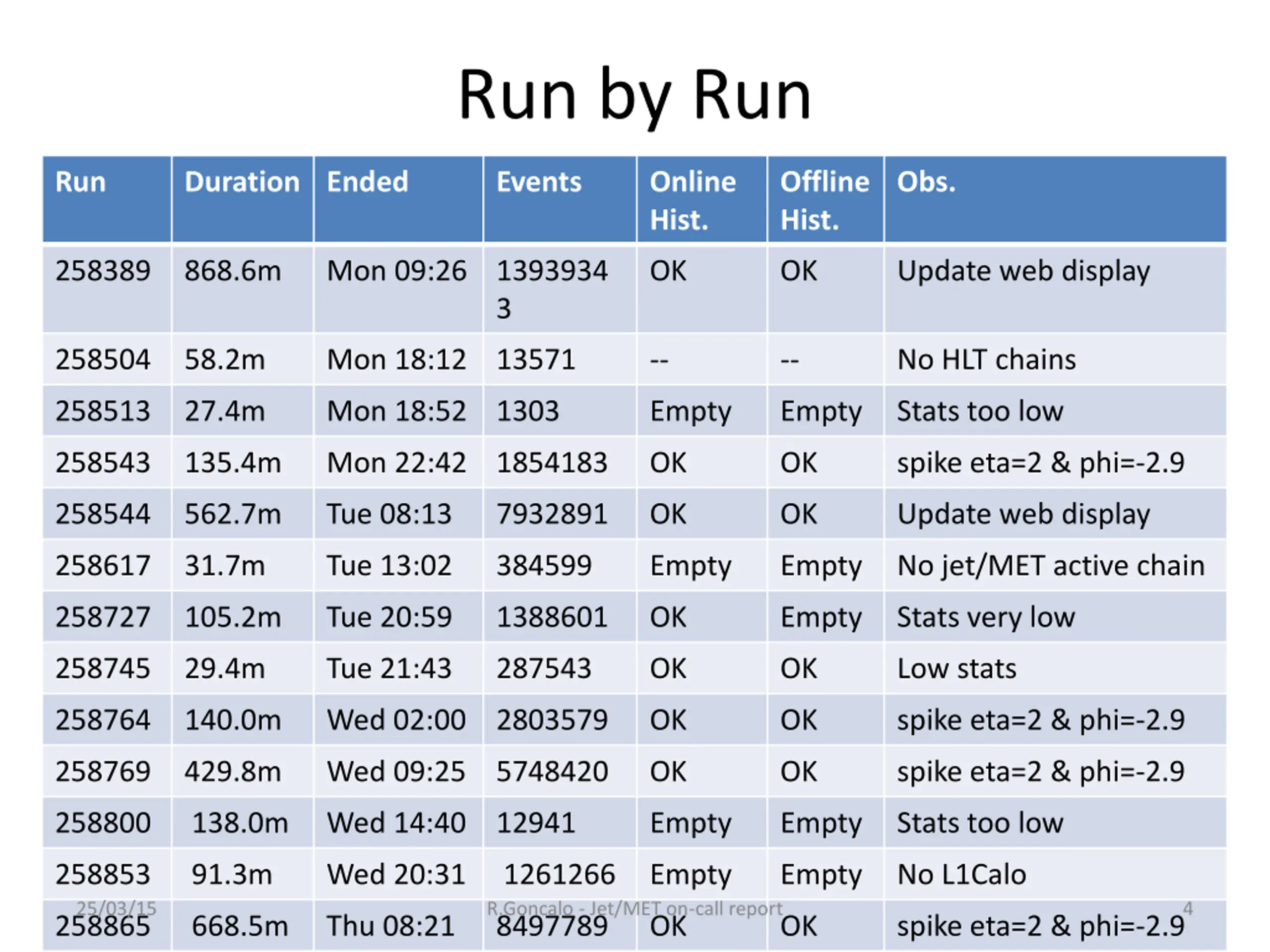

Run by Run Run Duration Ended Events Online Hist. Offline Hist. Obs. 258389 868.6m Mon 09:26 1393934 3 OK OK Update web display 258504 58.2m Mon 18:12 13571 -- -- No HLT chains 258513 27.4m Mon 18:52 1303 Empty Empty Stats too low 258543 135.4m Mon 22:42 1854183 OK OK spike eta=2 & phi=-2.9 258544 562.7m Tue 08:13 7932891 OK OK Update web display 258617 31.7m Tue 13:02 384599 Empty Empty No jet/MET active chain 258727 105.2m Tue 20:59 1388601 OK Empty Stats very low 258745 29.4m Tue 21:43 287543 OK OK Low stats 258764 140.0m Wed 02:00 2803579 OK OK spike eta=2 & phi=-2.9 258769 429.8m Wed 09:25 5748420 OK OK spike eta=2 & phi=-2.9 258800 138.0m Wed 14:40 12941 Empty Empty Stats too low 258853 25/03/15 91.3m Wed 20:31 1261266 R.Goncalo - Jet/MET on-call report Empty Empty No L1Calo 4 258865 668.5m Thu 08:21 8497789 OK OK spike eta=2 & phi=-2.9

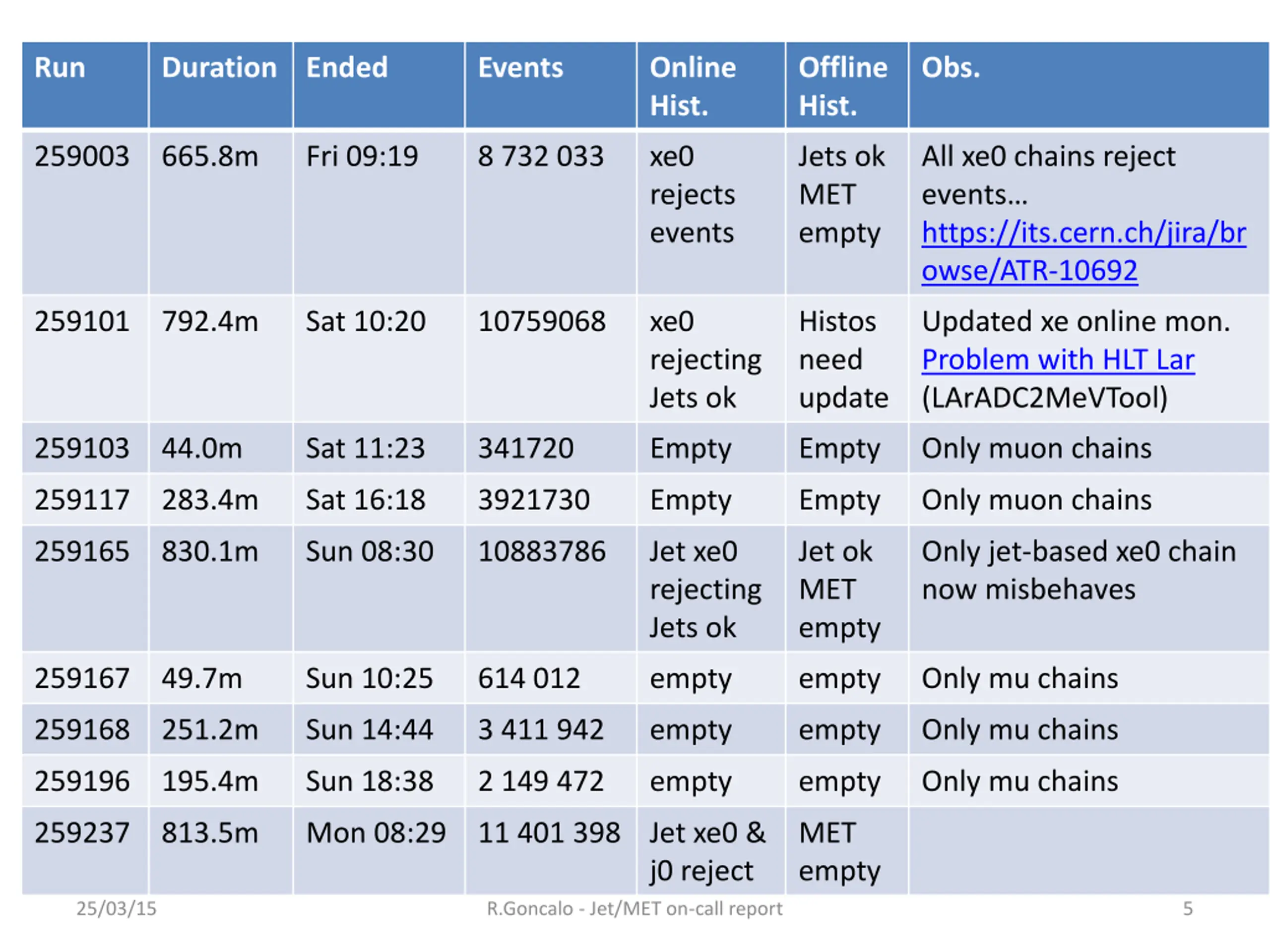

Run Duration Ended Events Online Hist. Offline Hist. Obs. 259003 665.8m Fri 09:19 8 732 033 xe0 rejects events Jets ok MET empty All xe0 chains reject events https://its.cern.ch/jira/br owse/ATR-10692 259101 792.4m Sat 10:20 10759068 xe0 rejecting Jets ok Histos need update Updated xe online mon. Problem with HLT Lar (LArADC2MeVTool) 259103 44.0m Sat 11:23 341720 Empty Empty Only muon chains 259117 283.4m Sat 16:18 3921730 Empty Empty Only muon chains 259165 830.1m Sun 08:30 10883786 Jet xe0 rejecting Jets ok Jet ok MET empty Only jet-based xe0 chain now misbehaves 259167 49.7m Sun 10:25 614 012 empty empty Only mu chains 259168 251.2m Sun 14:44 3 411 942 empty empty Only mu chains 259196 195.4m Sun 18:38 2 149 472 empty empty Only mu chains 259237 813.5m Mon 08:29 11 401 398 Jet xe0 & MET empty j0 reject 25/03/15 R.Goncalo - Jet/MET on-call report 5

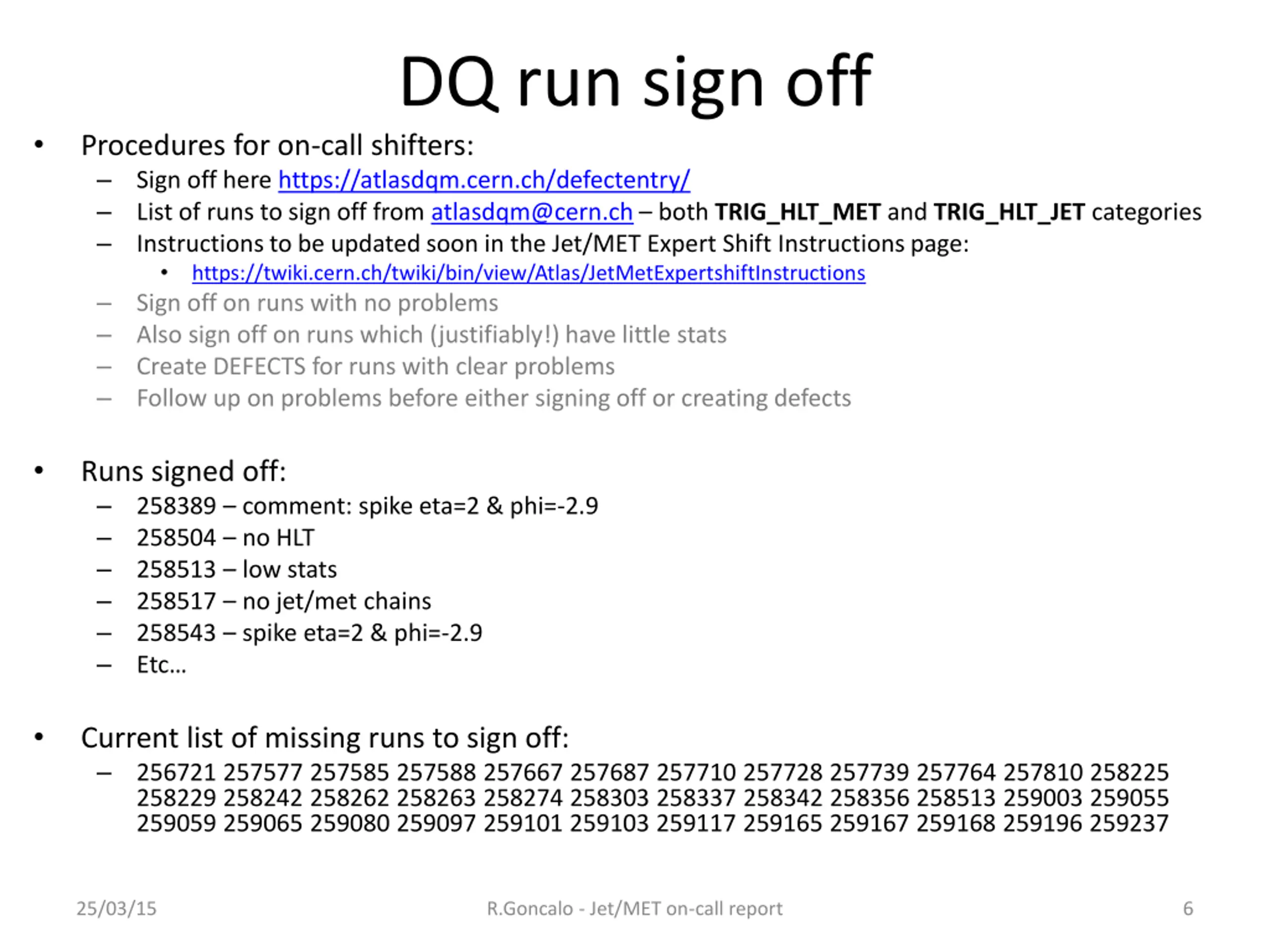

DQ run sign off Procedures for on-call shifters: Sign off here https://atlasdqm.cern.ch/defectentry/ List of runs to sign off from atlasdqm@cern.ch both TRIG_HLT_MET and TRIG_HLT_JET categories Instructions to be updated soon in the Jet/MET Expert Shift Instructions page: https://twiki.cern.ch/twiki/bin/view/Atlas/JetMetExpertshiftInstructions Sign off on runs with no problems Also sign off on runs which (justifiably!) have little stats Create DEFECTS for runs with clear problems Follow up on problems before either signing off or creating defects Runs signed off: 258389 comment: spike eta=2 & phi=-2.9 258504 no HLT 258513 low stats 258517 no jet/met chains 258543 spike eta=2 & phi=-2.9 Etc Current list of missing runs to sign off: 256721 257577 257585 257588 257667 257687 257710 257728 257739 257764 257810 258225 258229 258242 258262 258263 258274 258303 258337 258342 258356 258513 259003 259055 259059 259065 259080 259097 259101 259103 259117 259165 259167 259168 259196 259237 25/03/15 R.Goncalo - Jet/MET on-call report 6

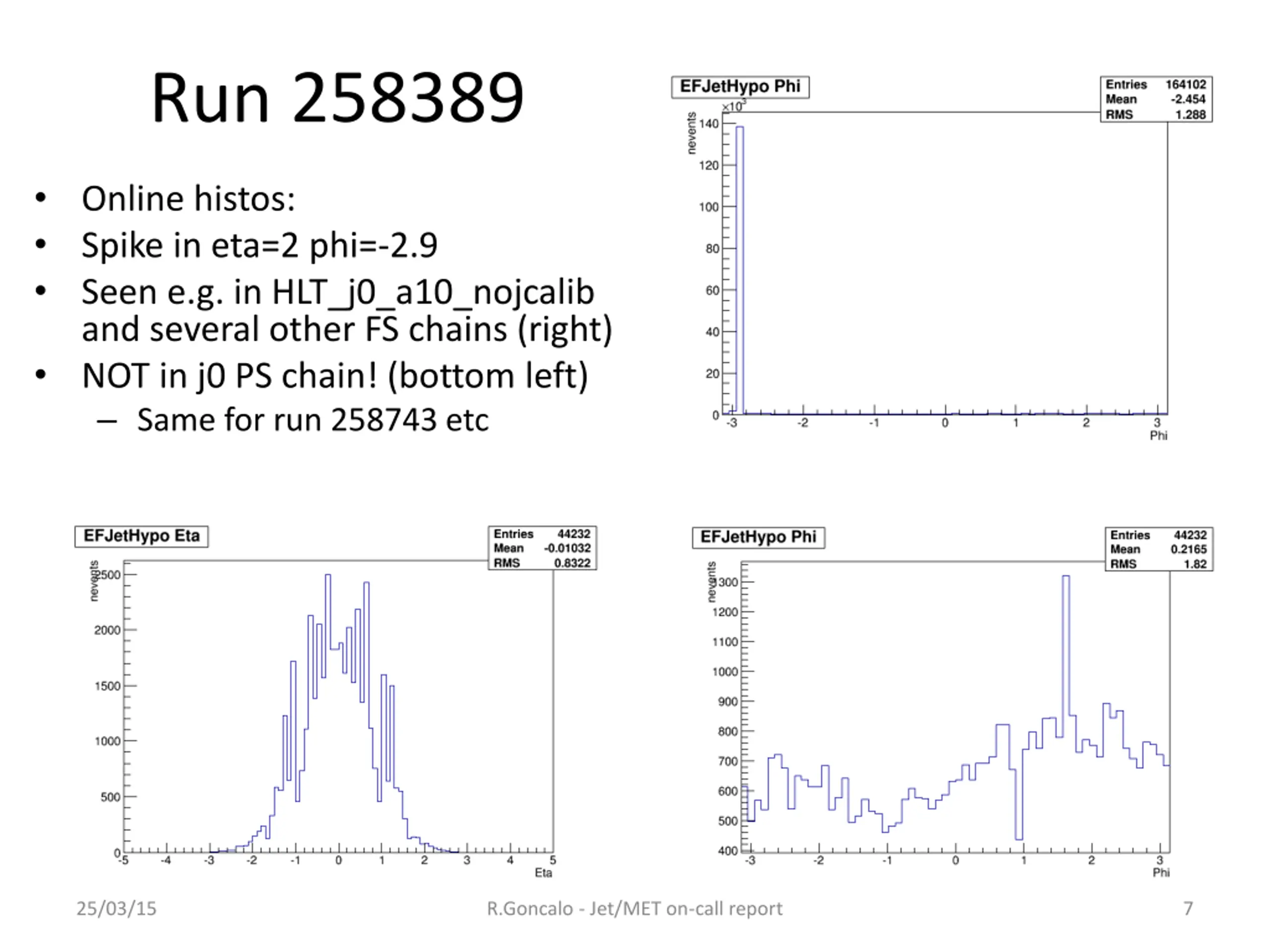

Run 258389 Online histos: Spike in eta=2 phi=-2.9 Seen e.g. in HLT_j0_a10_nojcalib and several other FS chains (right) NOT in j0 PS chain! (bottom left) Same for run 258743 etc 25/03/15 R.Goncalo - Jet/MET on-call report 7

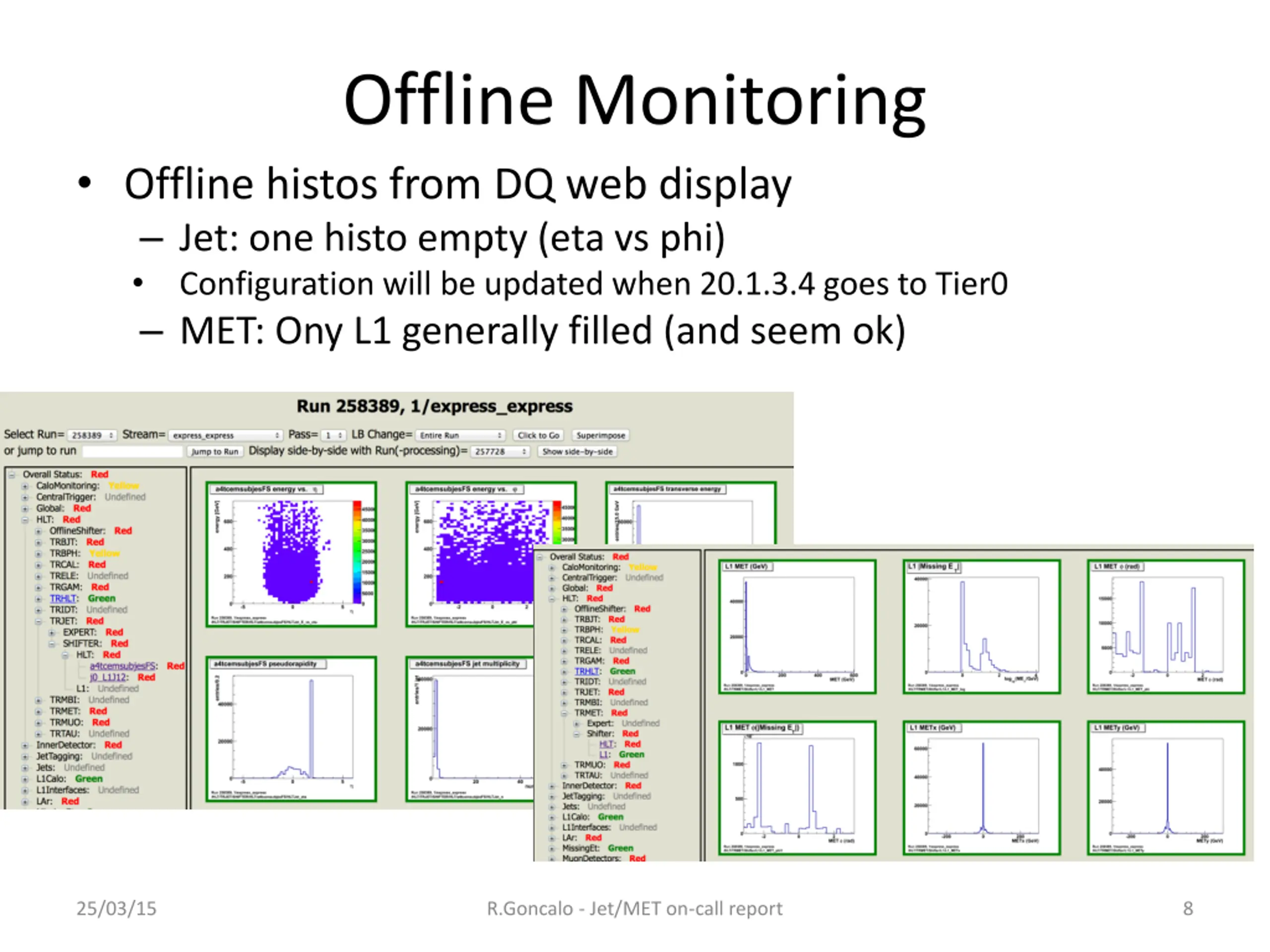

Offline Monitoring Offline histos from DQ web display Jet: one histo empty (eta vs phi) Configuration will be updated when 20.1.3.4 goes to Tier0 MET: Ony L1 generally filled (and seem ok) 25/03/15 R.Goncalo - Jet/MET on-call report 8

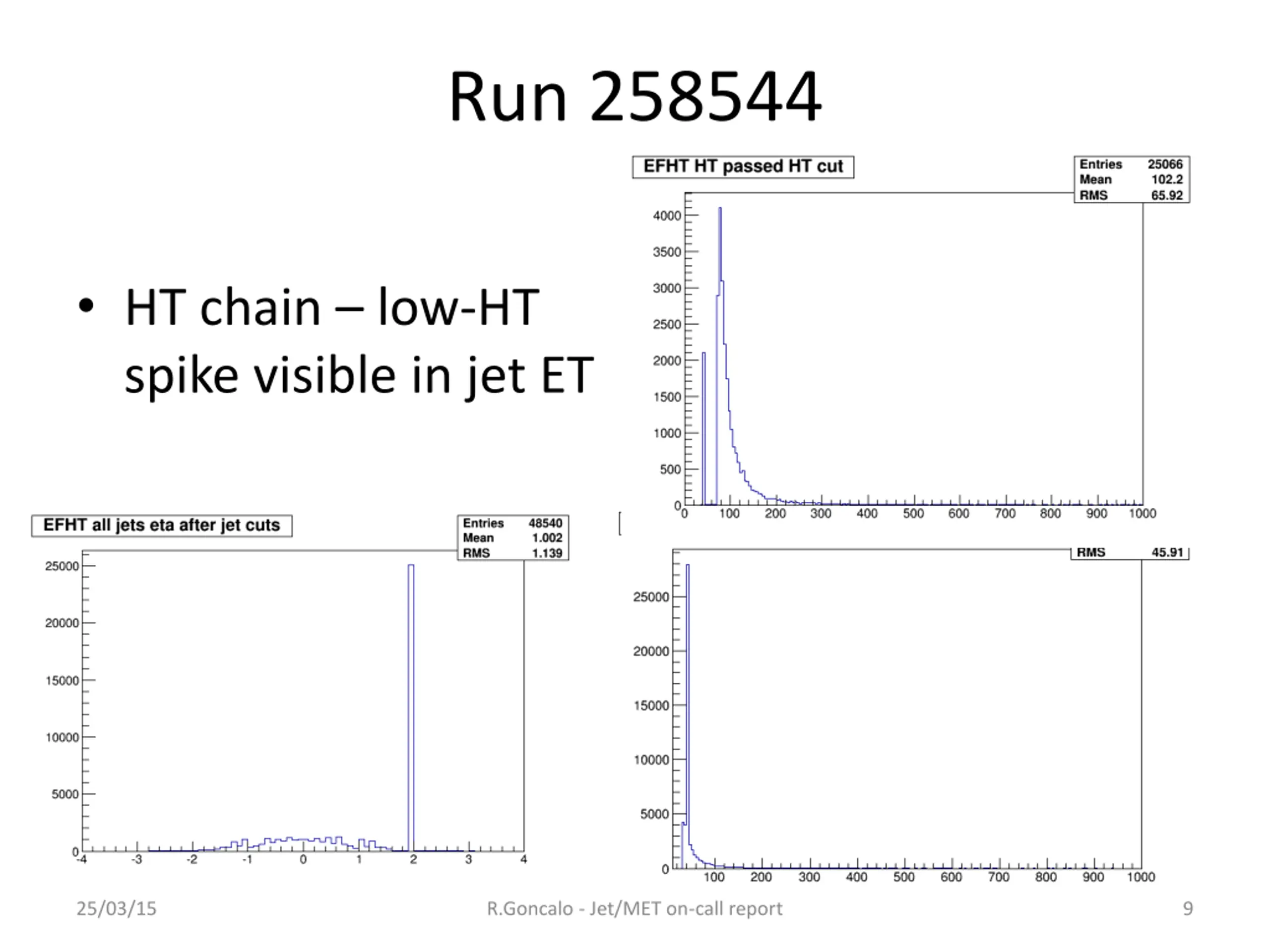

Run 258544 HT chain low-HT spike visible in jet ET 25/03/15 R.Goncalo - Jet/MET on-call report 9

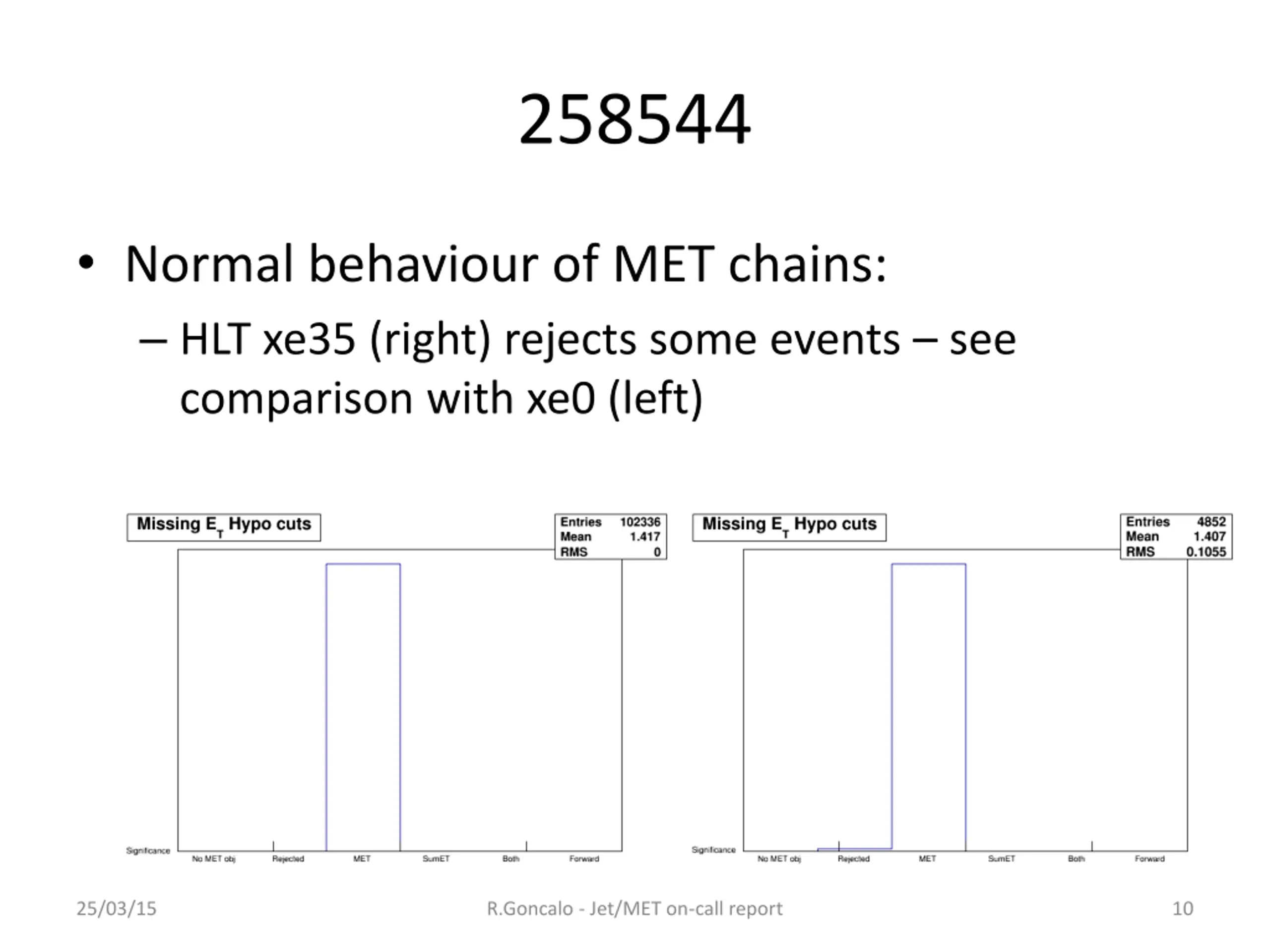

258544 Normal behaviour of MET chains: HLT xe35 (right) rejects some events see comparison with xe0 (left) 25/03/15 R.Goncalo - Jet/MET on-call report 10

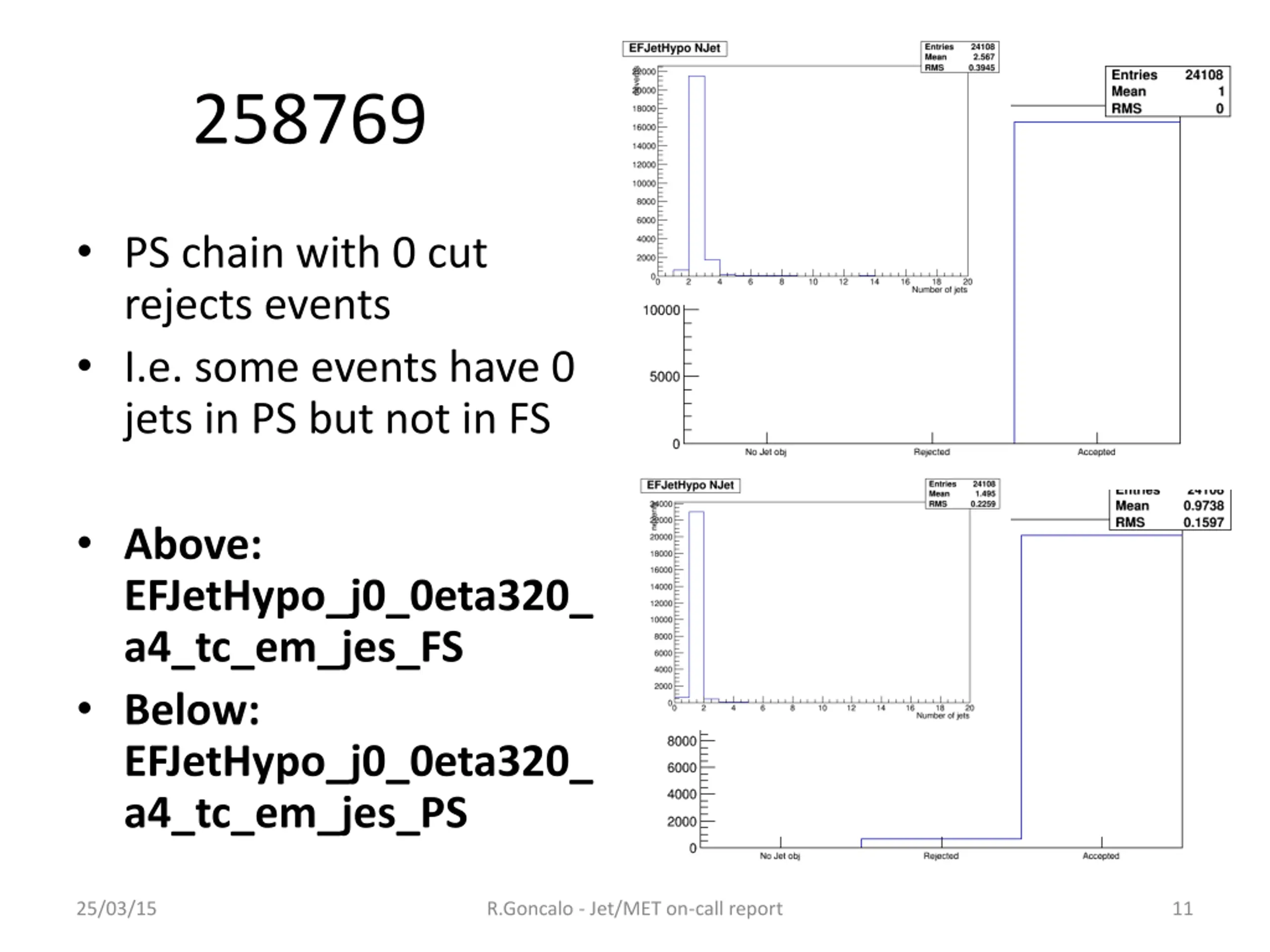

258769 PS chain with 0 cut rejects events I.e. some events have 0 jets in PS but not in FS Above: EFJetHypo_j0_0eta320_ a4_tc_em_jes_FS Below: EFJetHypo_j0_0eta320_ a4_tc_em_jes_PS 25/03/15 R.Goncalo - Jet/MET on-call report 11

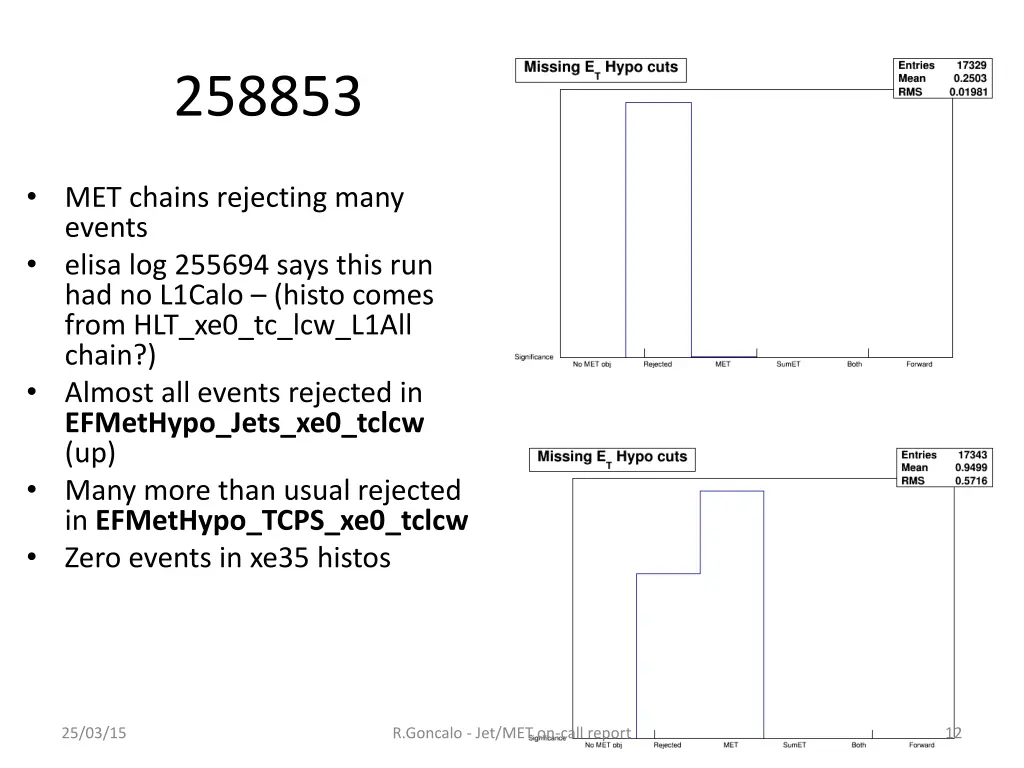

258853 MET chains rejecting many events elisa log 255694 says this run had no L1Calo (histo comes from HLT_xe0_tc_lcw_L1All chain?) Almost all events rejected in EFMetHypo_Jets_xe0_tclcw (up) Many more than usual rejected in EFMetHypo_TCPS_xe0_tclcw Zero events in xe35 histos 25/03/15 R.Goncalo - Jet/MET on-call report 12

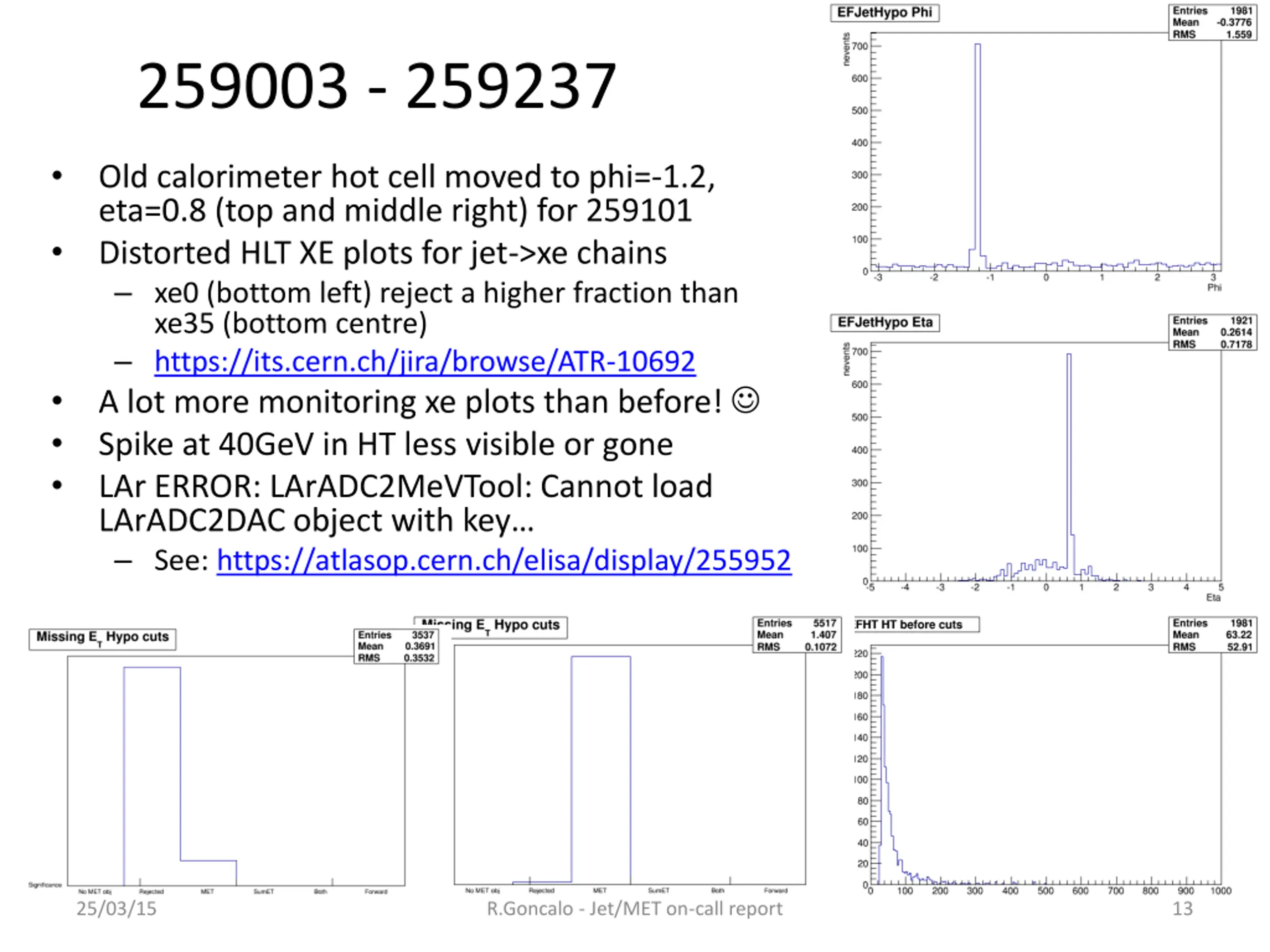

259003 - 259237 Old calorimeter hot cell moved to phi=-1.2, eta=0.8 (top and middle right) for 259101 Distorted HLT XE plots for jet->xe chains xe0 (bottom left) reject a higher fraction than xe35 (bottom centre) https://its.cern.ch/jira/browse/ATR-10692 A lot more monitoring xe plots than before! Spike at 40GeV in HT less visible or gone LAr ERROR: LArADC2MeVTool: Cannot load LArADC2DAC object with key See: https://atlasop.cern.ch/elisa/display/255952 25/03/15 R.Goncalo - Jet/MET on-call report 13

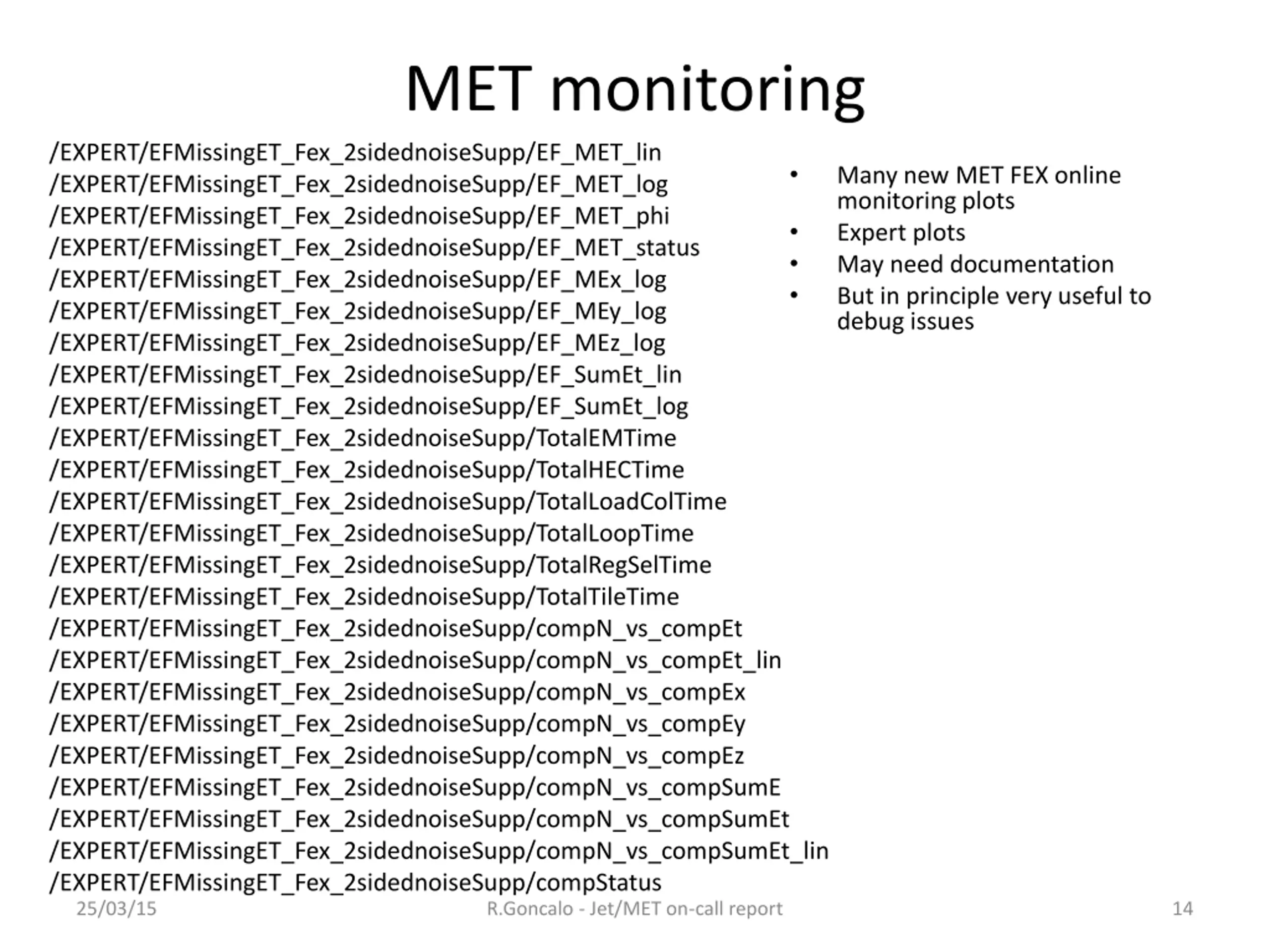

MET monitoring /EXPERT/EFMissingET_Fex_2sidednoiseSupp/EF_MET_lin /EXPERT/EFMissingET_Fex_2sidednoiseSupp/EF_MET_log /EXPERT/EFMissingET_Fex_2sidednoiseSupp/EF_MET_phi /EXPERT/EFMissingET_Fex_2sidednoiseSupp/EF_MET_status /EXPERT/EFMissingET_Fex_2sidednoiseSupp/EF_MEx_log /EXPERT/EFMissingET_Fex_2sidednoiseSupp/EF_MEy_log /EXPERT/EFMissingET_Fex_2sidednoiseSupp/EF_MEz_log /EXPERT/EFMissingET_Fex_2sidednoiseSupp/EF_SumEt_lin /EXPERT/EFMissingET_Fex_2sidednoiseSupp/EF_SumEt_log /EXPERT/EFMissingET_Fex_2sidednoiseSupp/TotalEMTime /EXPERT/EFMissingET_Fex_2sidednoiseSupp/TotalHECTime /EXPERT/EFMissingET_Fex_2sidednoiseSupp/TotalLoadColTime /EXPERT/EFMissingET_Fex_2sidednoiseSupp/TotalLoopTime /EXPERT/EFMissingET_Fex_2sidednoiseSupp/TotalRegSelTime /EXPERT/EFMissingET_Fex_2sidednoiseSupp/TotalTileTime /EXPERT/EFMissingET_Fex_2sidednoiseSupp/compN_vs_compEt /EXPERT/EFMissingET_Fex_2sidednoiseSupp/compN_vs_compEt_lin /EXPERT/EFMissingET_Fex_2sidednoiseSupp/compN_vs_compEx /EXPERT/EFMissingET_Fex_2sidednoiseSupp/compN_vs_compEy /EXPERT/EFMissingET_Fex_2sidednoiseSupp/compN_vs_compEz /EXPERT/EFMissingET_Fex_2sidednoiseSupp/compN_vs_compSumE /EXPERT/EFMissingET_Fex_2sidednoiseSupp/compN_vs_compSumEt /EXPERT/EFMissingET_Fex_2sidednoiseSupp/compN_vs_compSumEt_lin /EXPERT/EFMissingET_Fex_2sidednoiseSupp/compStatus 25/03/15 Many new MET FEX online monitoring plots Expert plots May need documentation But in principle very useful to debug issues R.Goncalo - Jet/MET on-call report 14

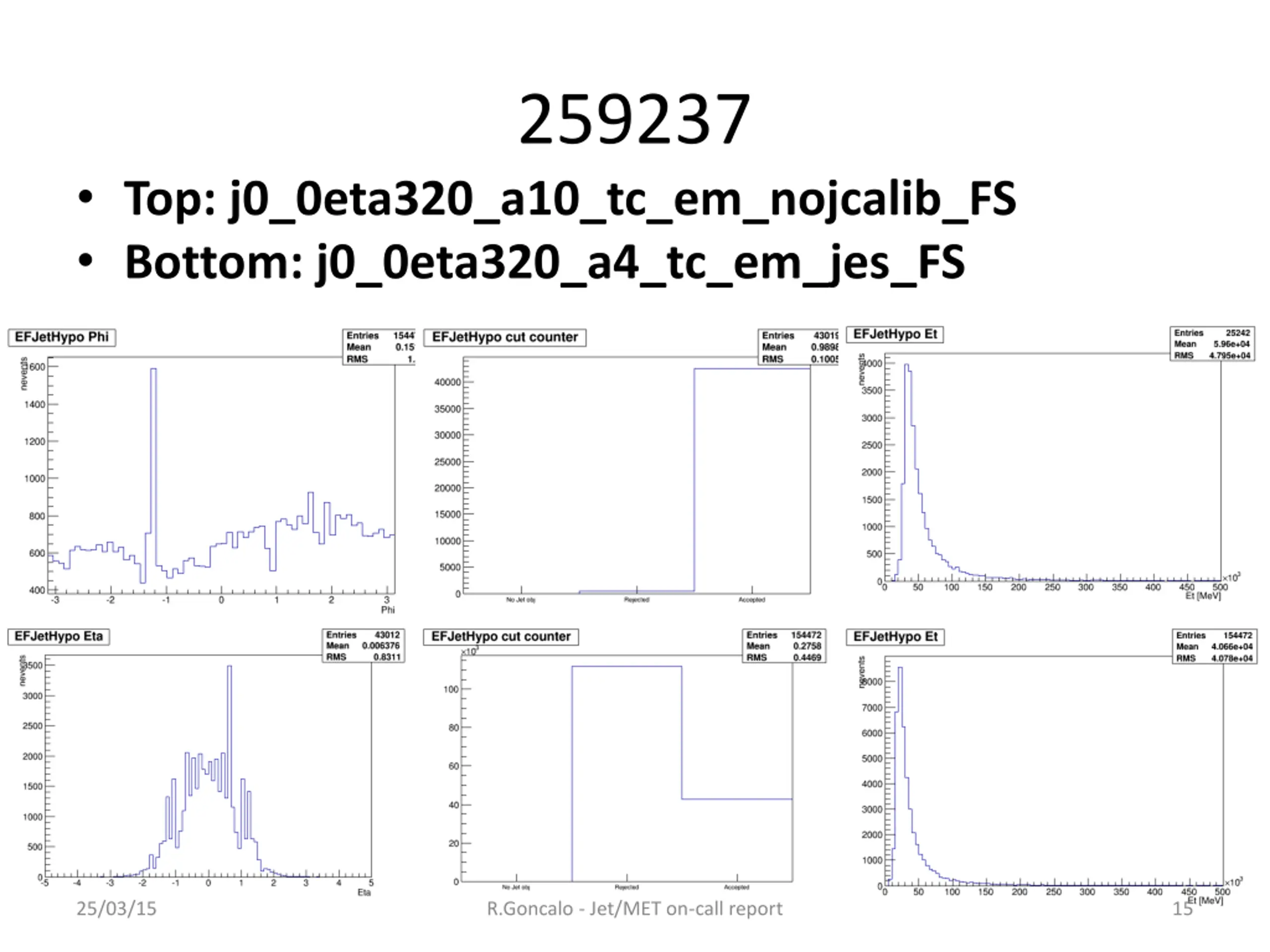

259237 Top: j0_0eta320_a10_tc_em_nojcalib_FS Bottom: j0_0eta320_a4_tc_em_jes_FS 25/03/15 R.Goncalo - Jet/MET on-call report 15

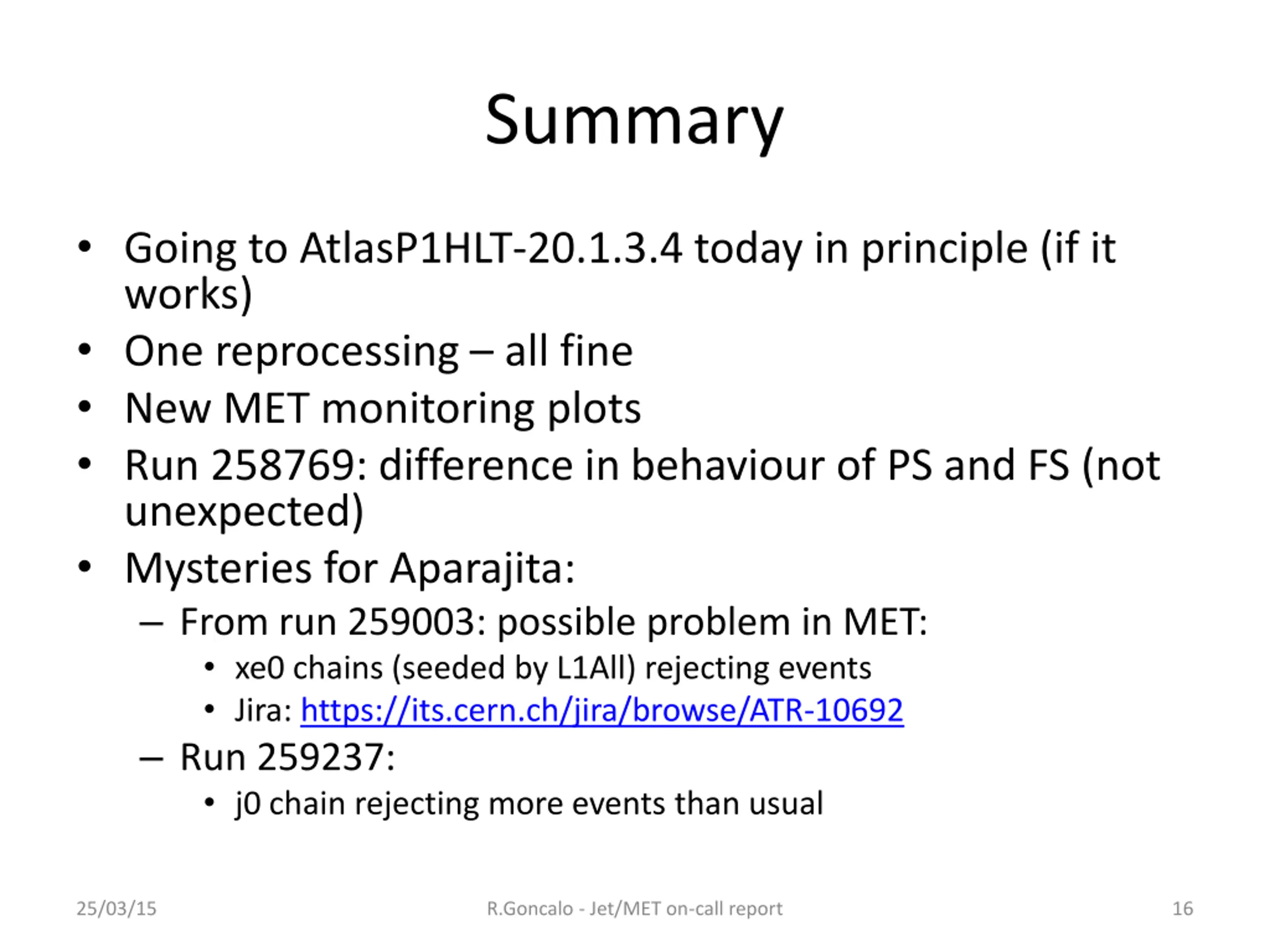

Summary Going to AtlasP1HLT-20.1.3.4 today in principle (if it works) One reprocessing all fine New MET monitoring plots Run 258769: difference in behaviour of PS and FS (not unexpected) Mysteries for Aparajita: From run 259003: possible problem in MET: xe0 chains (seeded by L1All) rejecting events Jira: https://its.cern.ch/jira/browse/ATR-10692 Run 259237: j0 chain rejecting more events than usual 25/03/15 R.Goncalo - Jet/MET on-call report 16
