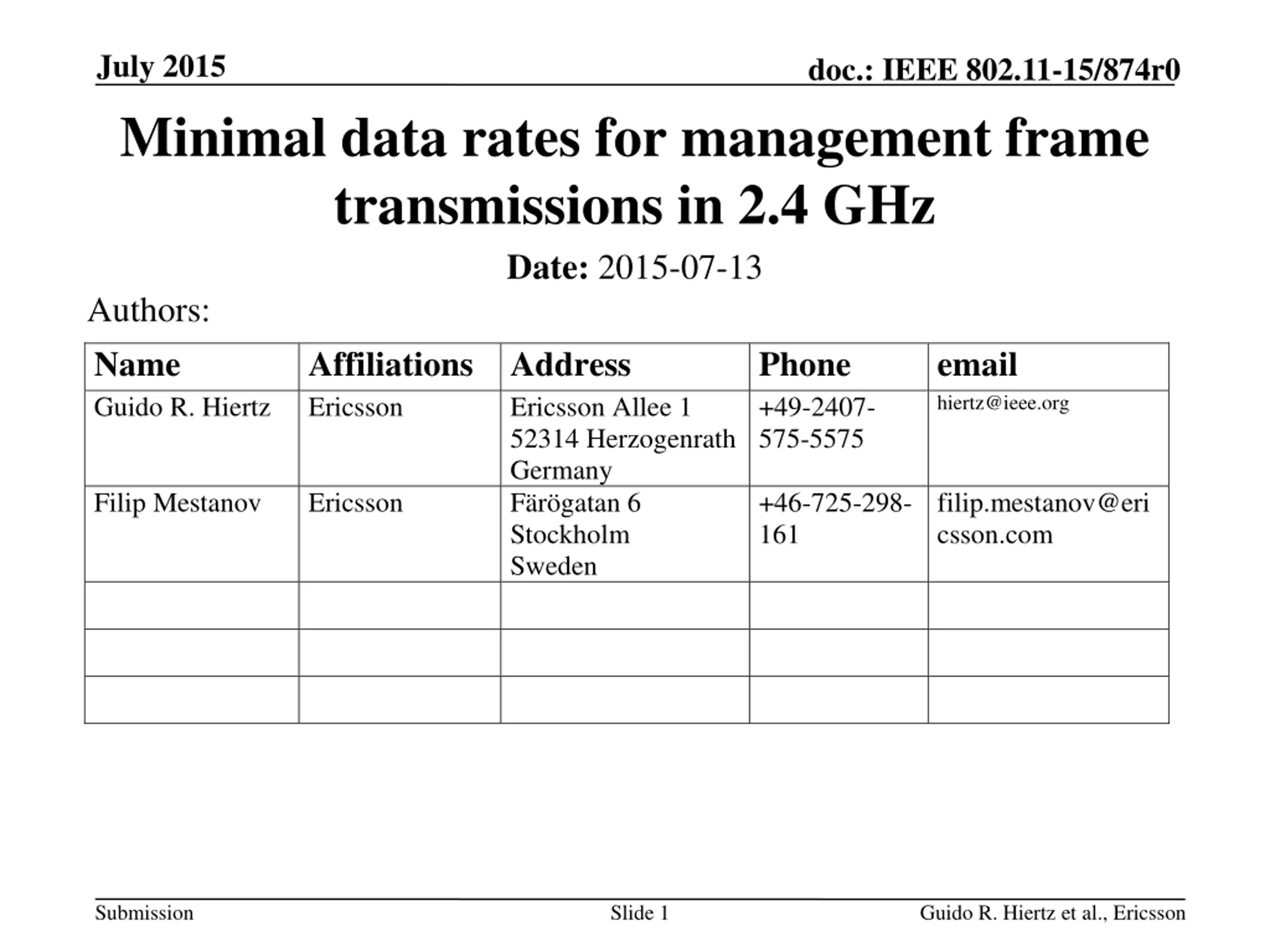

July 2015 Minimal data rates for management frame transmissions in 2.4 GHz Date: 2015-07-13 Authors: doc.: IEEE 802.11-15/874r0 Name Guido R. Hiertz Affiliations Address Ericsson Phone +49-2407- 575-5575 email hiertz@ieee.org Ericsson Allee 1 52314 Herzogenrath Germany F r gatan 6 Stockholm Sweden Filip Mestanov Ericsson +46-725-298- 161 filip.mestanov@eri csson.com Submission Slide 1 Guido R. Hiertz et al., Ericsson

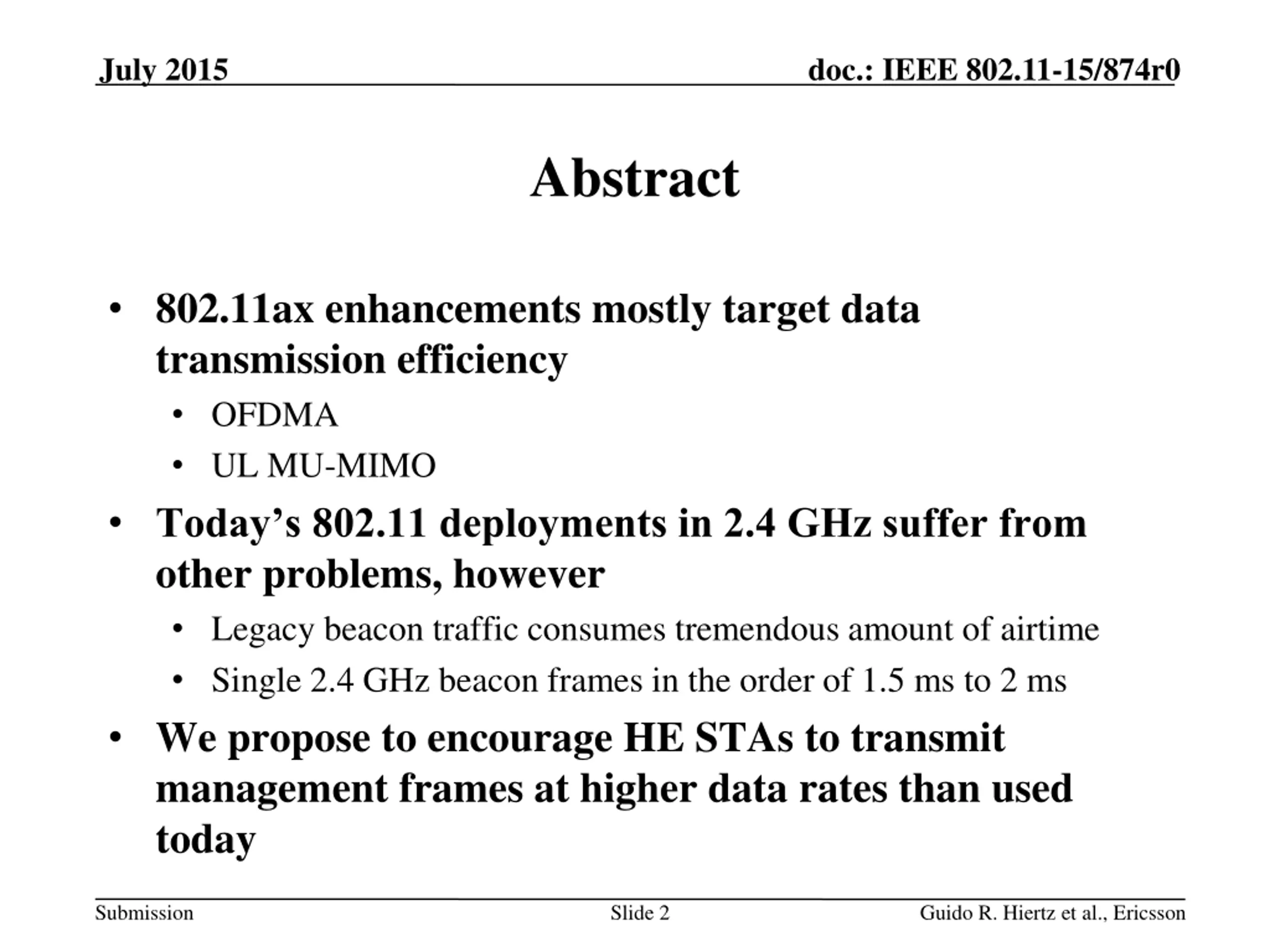

July 2015 doc.: IEEE 802.11-15/874r0 Abstract 802.11ax enhancements mostly target data transmission efficiency OFDMA UL MU-MIMO Today s 802.11 deployments in 2.4 GHz suffer from other problems, however Legacy beacon traffic consumes tremendous amount of airtime Single 2.4 GHz beacon frames in the order of 1.5 ms to 2 ms We propose to encourage HE STAs to transmit management frames at higher data rates than used today Submission Slide 2 Guido R. Hiertz et al., Ericsson

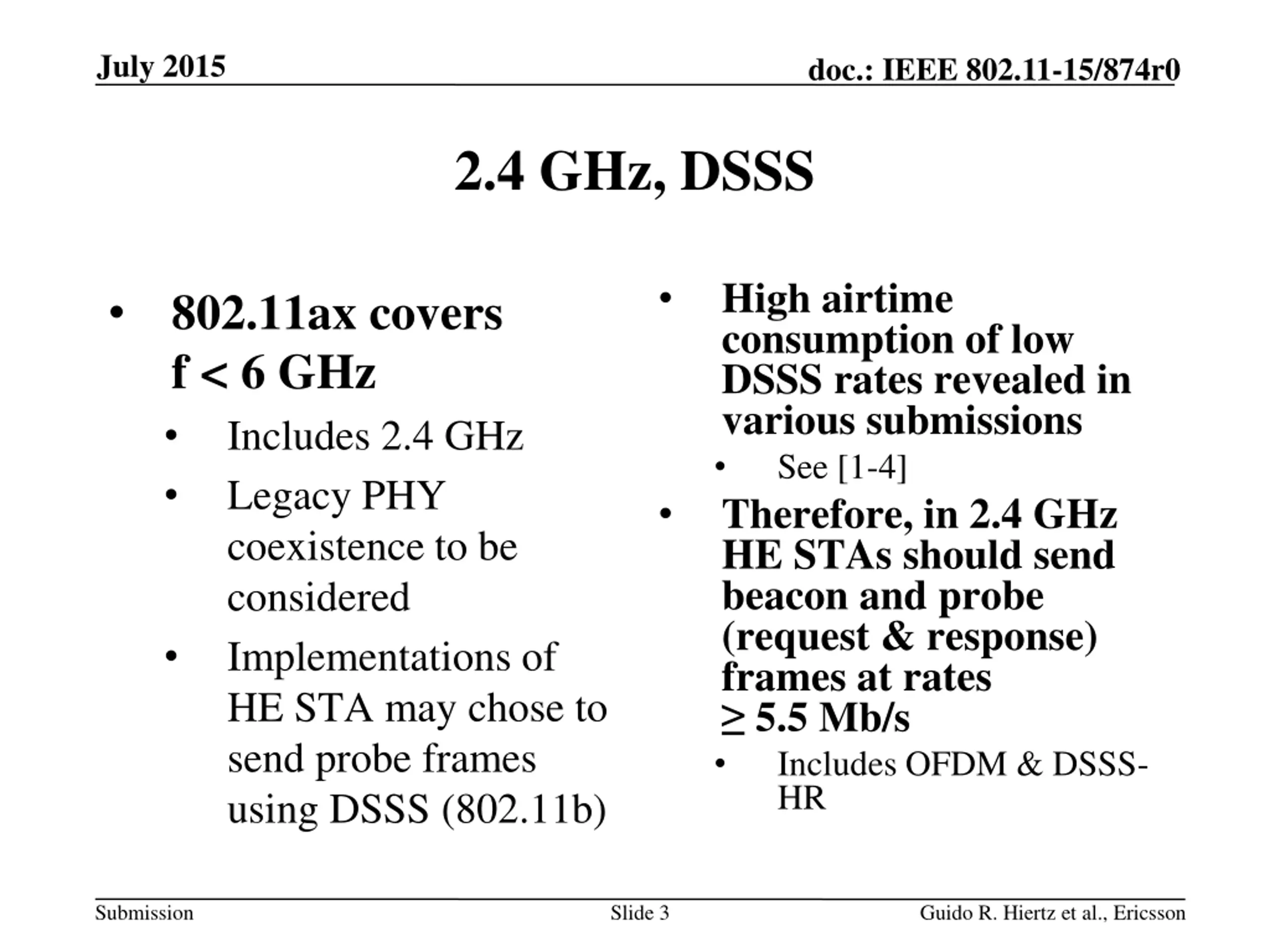

July 2015 doc.: IEEE 802.11-15/874r0 2.4 GHz, DSSS High airtime consumption of low DSSS rates revealed in various submissions See [1-4] Therefore, in 2.4 GHz HE STAs should send beacon and probe (request & response) frames at rates 5.5 Mb/s Includes OFDM & DSSS- HR 802.11ax covers f < 6 GHz Includes 2.4 GHz Legacy PHY coexistence to be considered Implementations of HE STA may chose to send probe frames using DSSS (802.11b) Submission Slide 3 Guido R. Hiertz et al., Ericsson

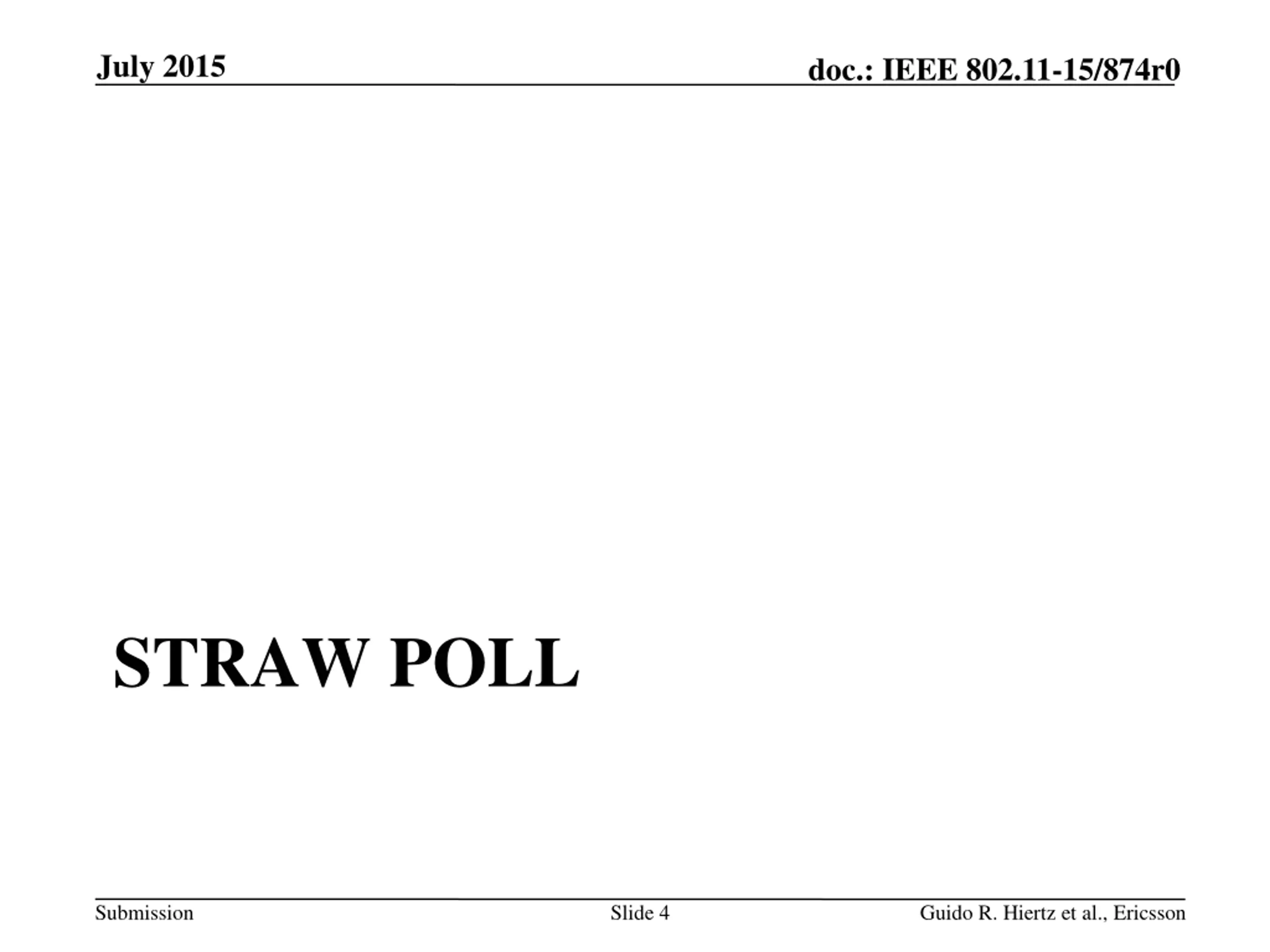

July 2015 doc.: IEEE 802.11-15/874r0 STRAW POLL Submission Slide 4 Guido R. Hiertz et al., Ericsson

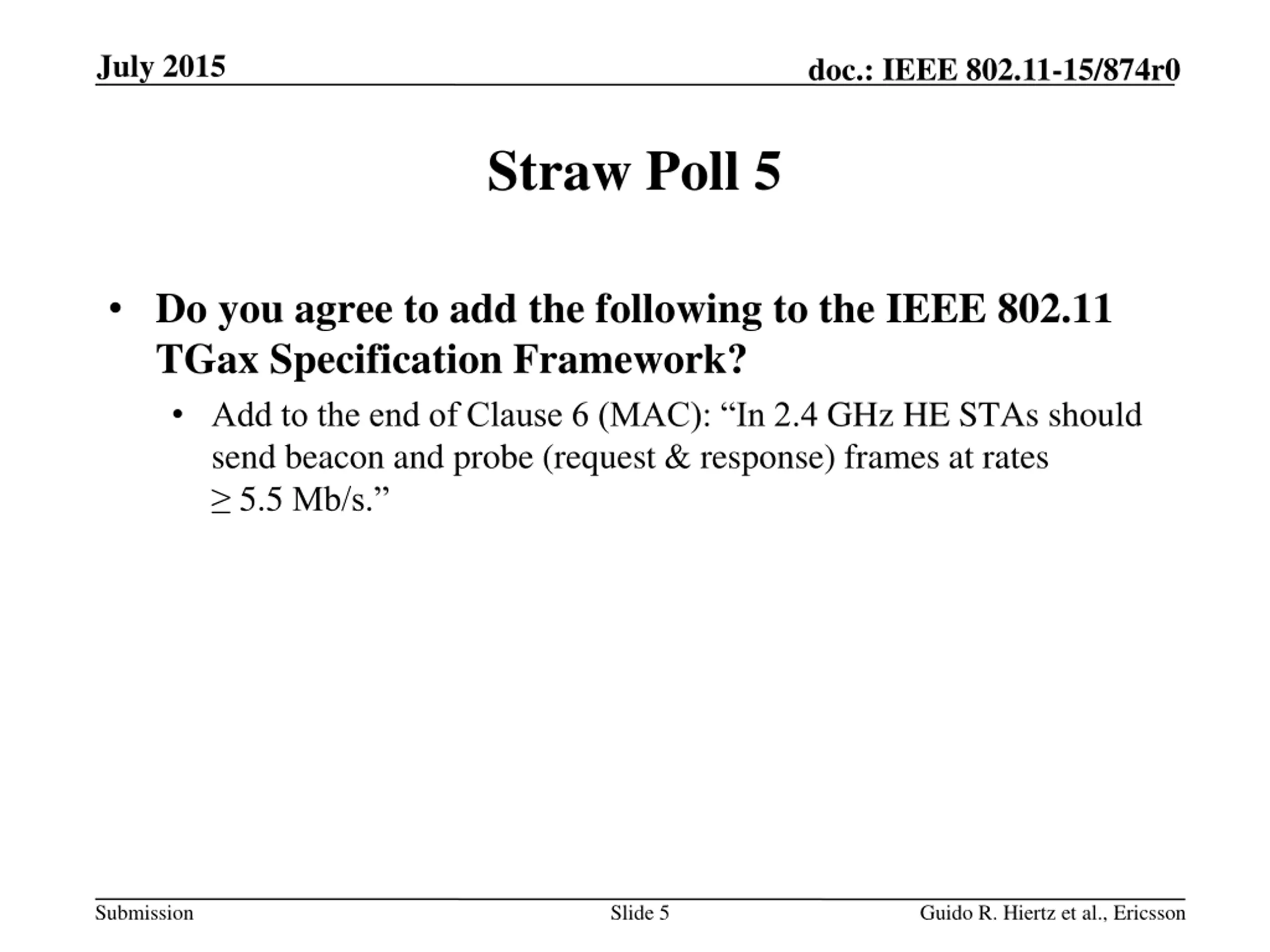

July 2015 doc.: IEEE 802.11-15/874r0 Straw Poll 5 Do you agree to add the following to the IEEE 802.11 TGax Specification Framework? Add to the end of Clause 6 (MAC): In 2.4 GHz HE STAs should send beacon and probe (request & response) frames at rates 5.5 Mb/s. Submission Slide 5 Guido R. Hiertz et al., Ericsson

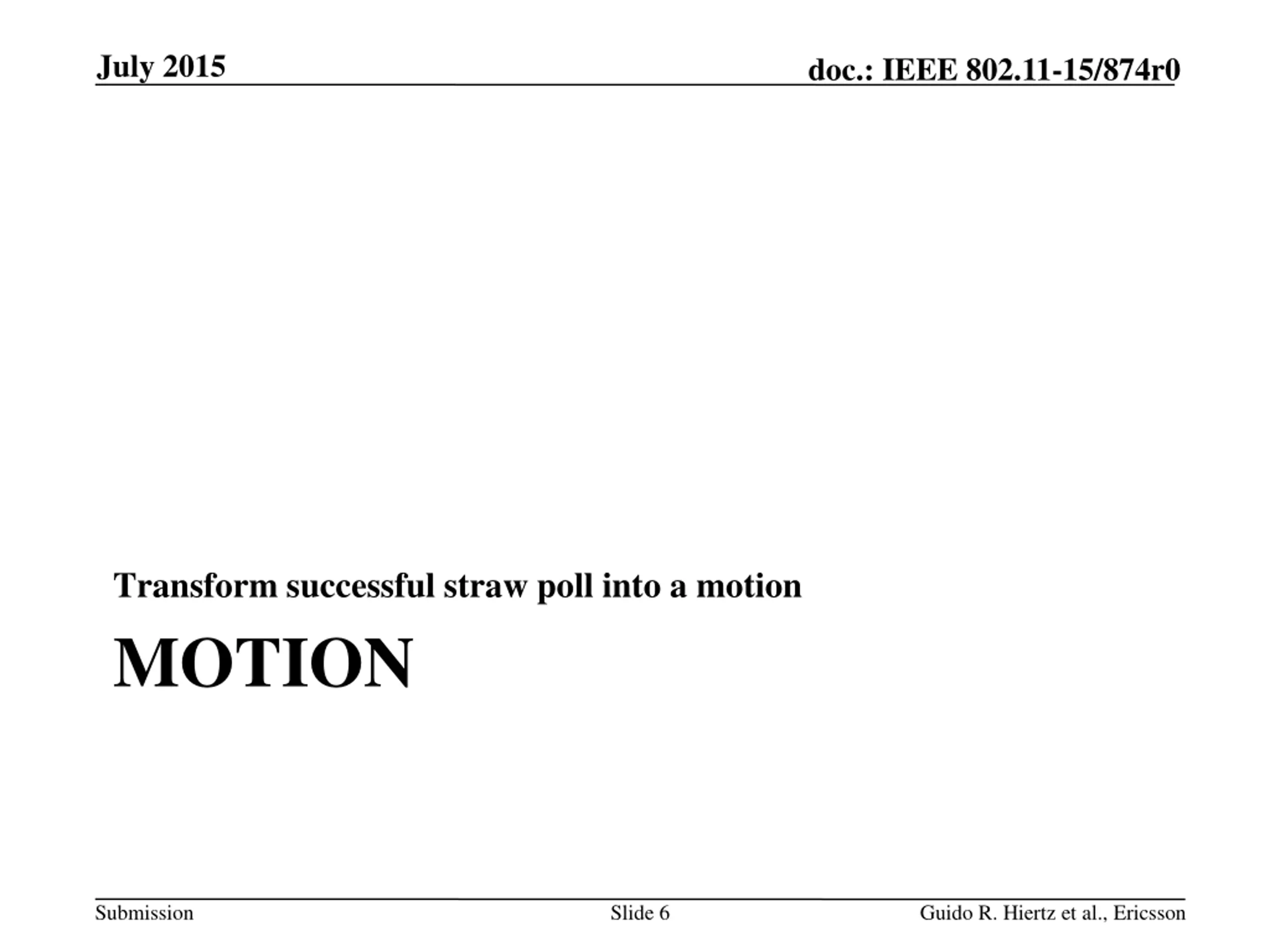

July 2015 doc.: IEEE 802.11-15/874r0 Transform successful straw poll into a motion MOTION Submission Slide 6 Guido R. Hiertz et al., Ericsson

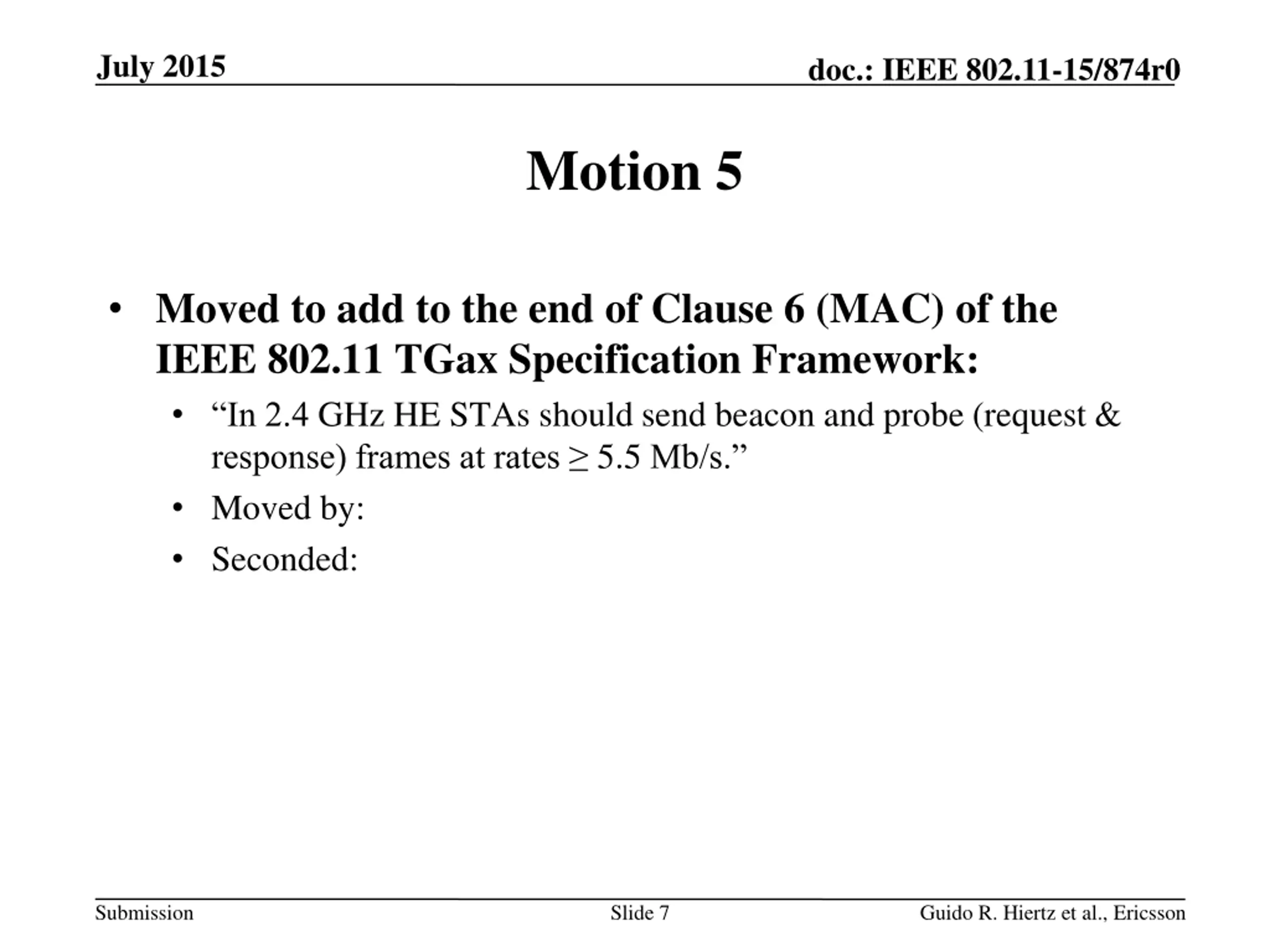

July 2015 doc.: IEEE 802.11-15/874r0 Motion 5 Moved to add to the end of Clause 6 (MAC) of the IEEE 802.11 TGax Specification Framework: In 2.4 GHz HE STAs should send beacon and probe (request & response) frames at rates 5.5 Mb/s. Moved by: Seconded: Submission Slide 7 Guido R. Hiertz et al., Ericsson

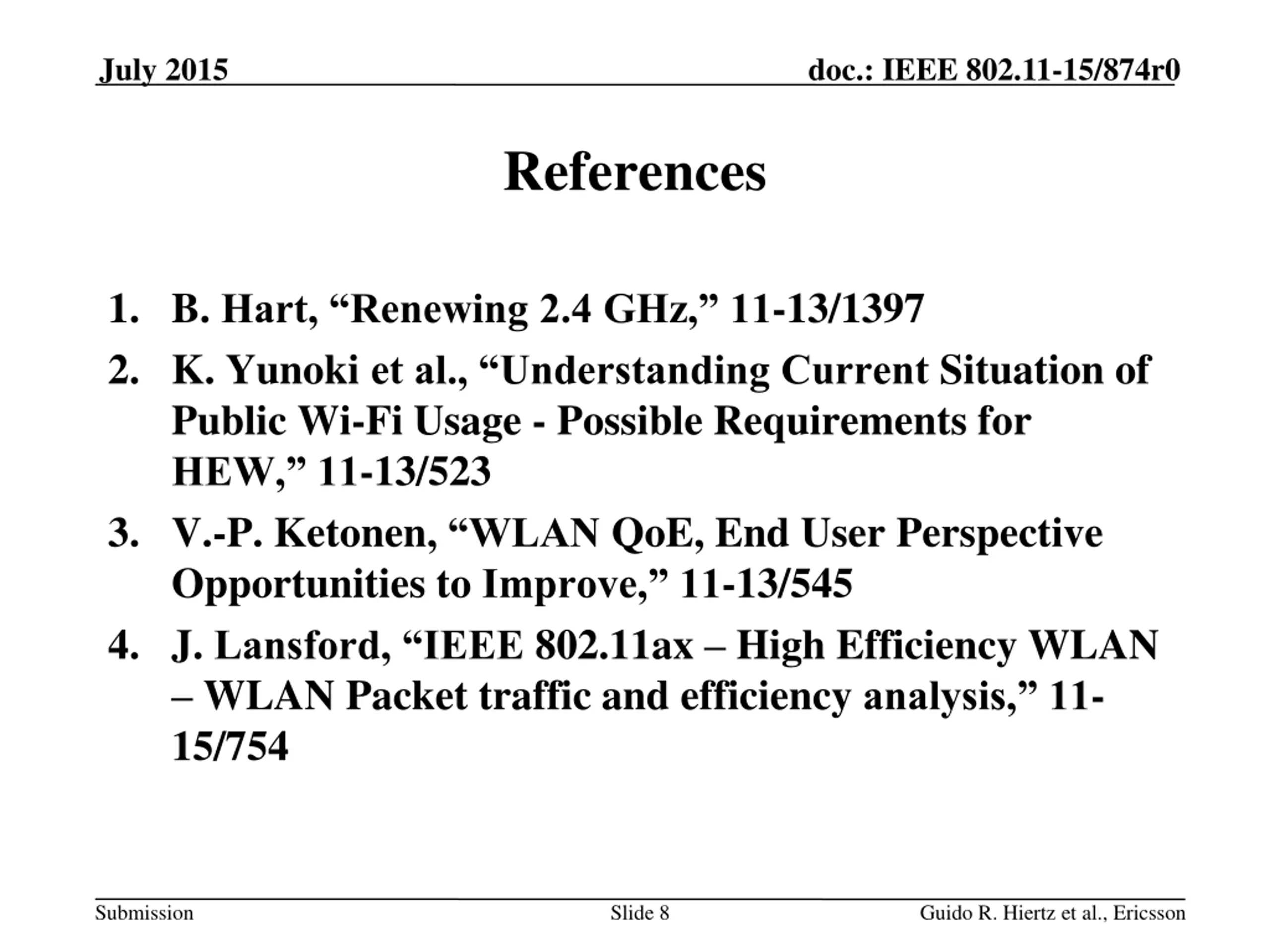

July 2015 doc.: IEEE 802.11-15/874r0 References 1. B. Hart, Renewing 2.4 GHz, 11-13/1397 2. K. Yunoki et al., Understanding Current Situation of Public Wi-Fi Usage - Possible Requirements for HEW, 11-13/523 3. V.-P. Ketonen, WLAN QoE, End User Perspective Opportunities to Improve, 11-13/545 4. J. Lansford, IEEE 802.11ax High Efficiency WLAN WLAN Packet traffic and efficiency analysis, 11- 15/754 Submission Slide 8 Guido R. Hiertz et al., Ericsson
