Presentation Transcript
Kernel OFI repro layout and naming Frank Yang, Chen Zhao Netapp PPG Stan Smith Intel SSG/DPD May, 2015

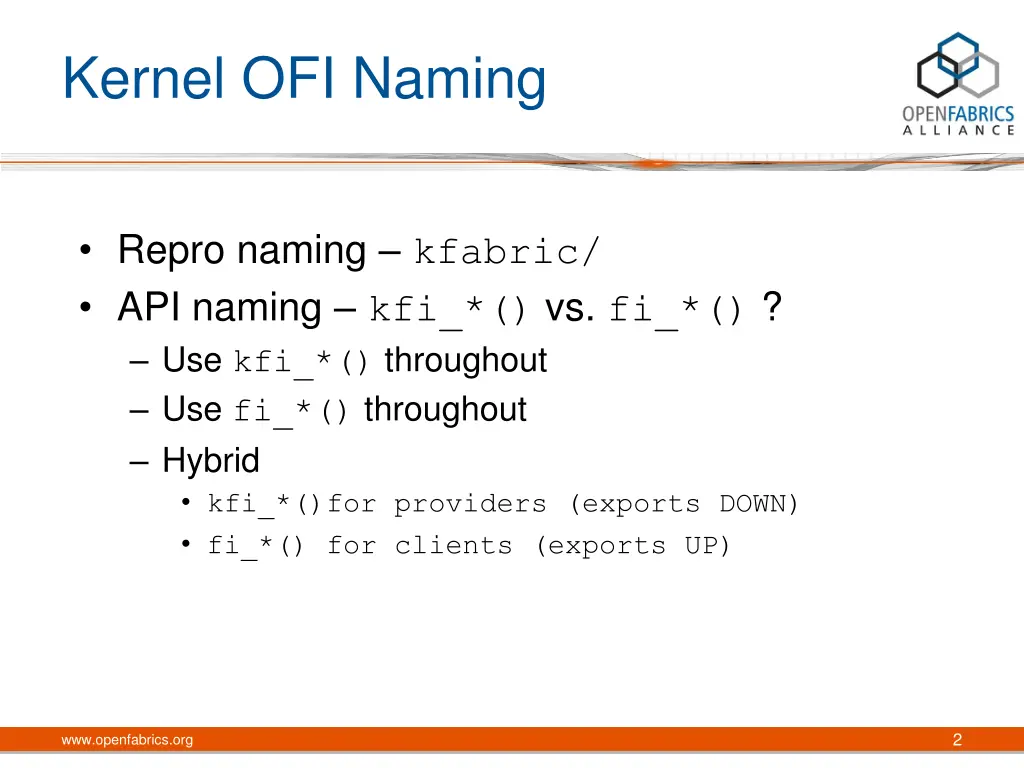

Kernel OFI Naming Repro naming kfabric/ API naming kfi_*() vs. fi_*() ? Use kfi_*() throughout Use fi_*() throughout Hybrid kfi_*()for providers (exports DOWN) fi_*() for clients (exports UP) 2 www.openfabrics.org

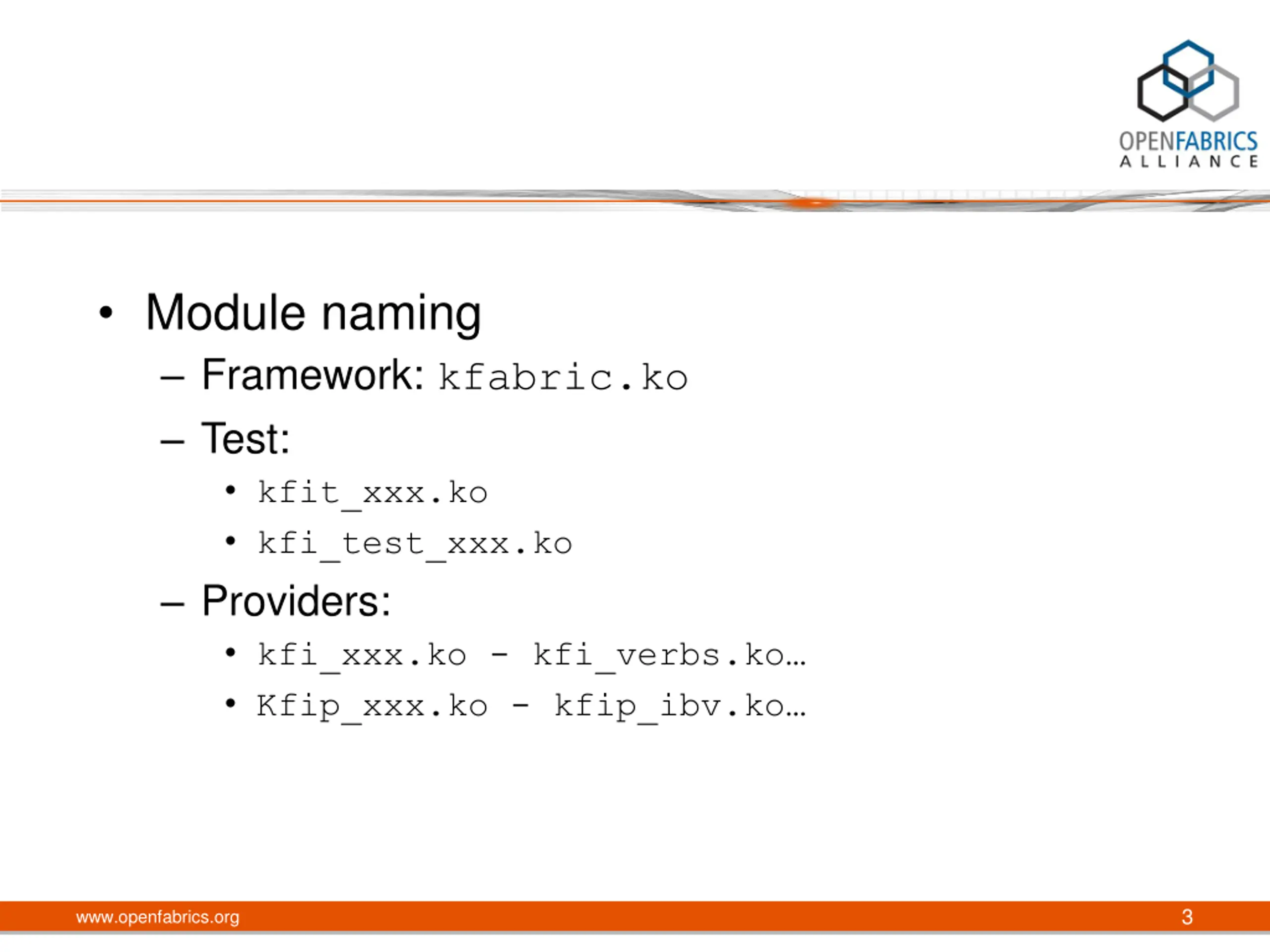

Module naming Framework: kfabric.ko Test: kfit_xxx.ko kfi_test_xxx.ko Providers: kfi_xxx.ko - kfi_verbs.ko Kfip_xxx.ko - kfip_ibv.ko 3 www.openfabrics.org

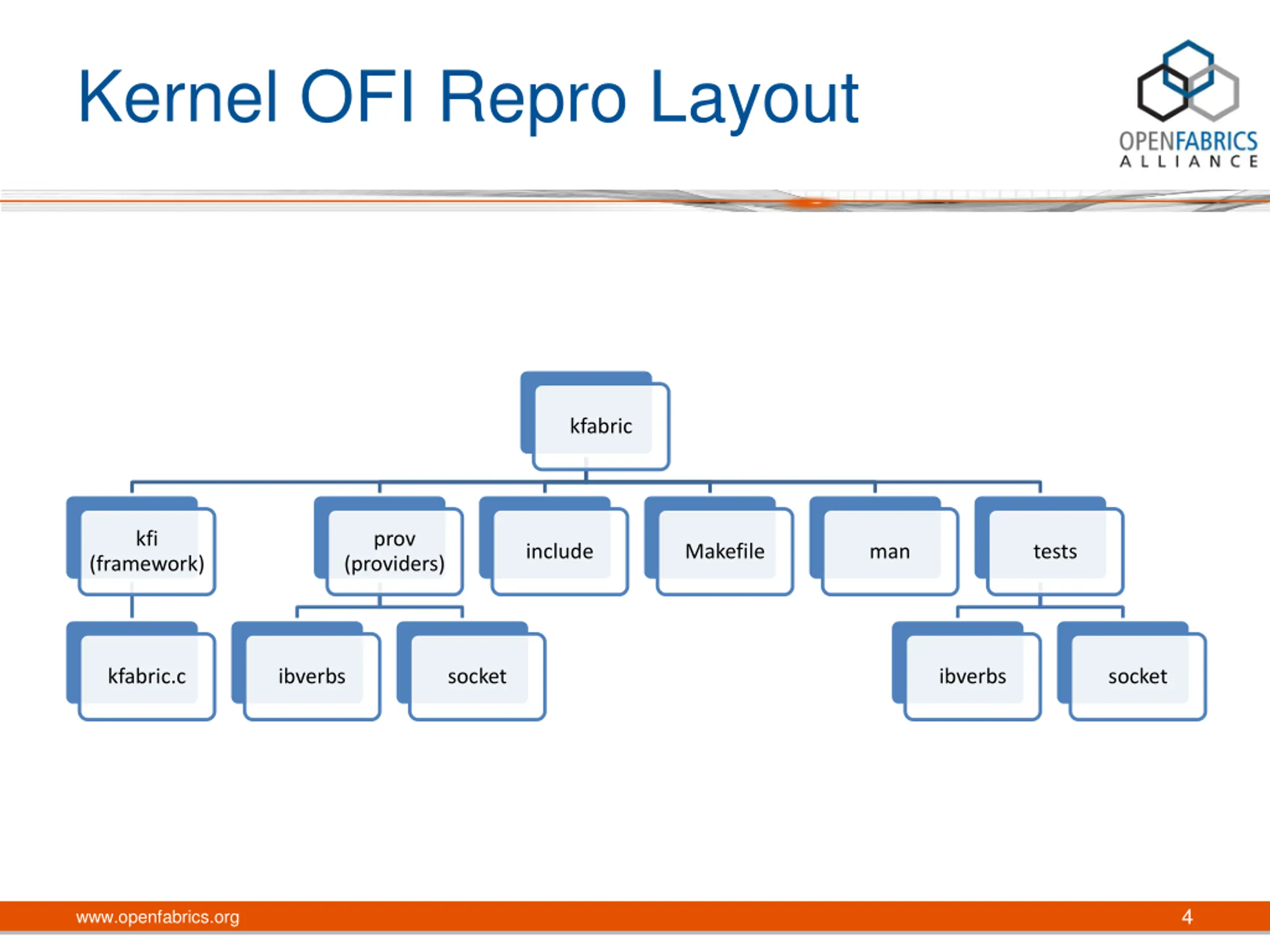

Kernel OFI Repro Layout kfabric kfi prov include Makefile man tests (framework) (providers) kfabric.c ibverbs socket ibverbs socket 4 www.openfabrics.org

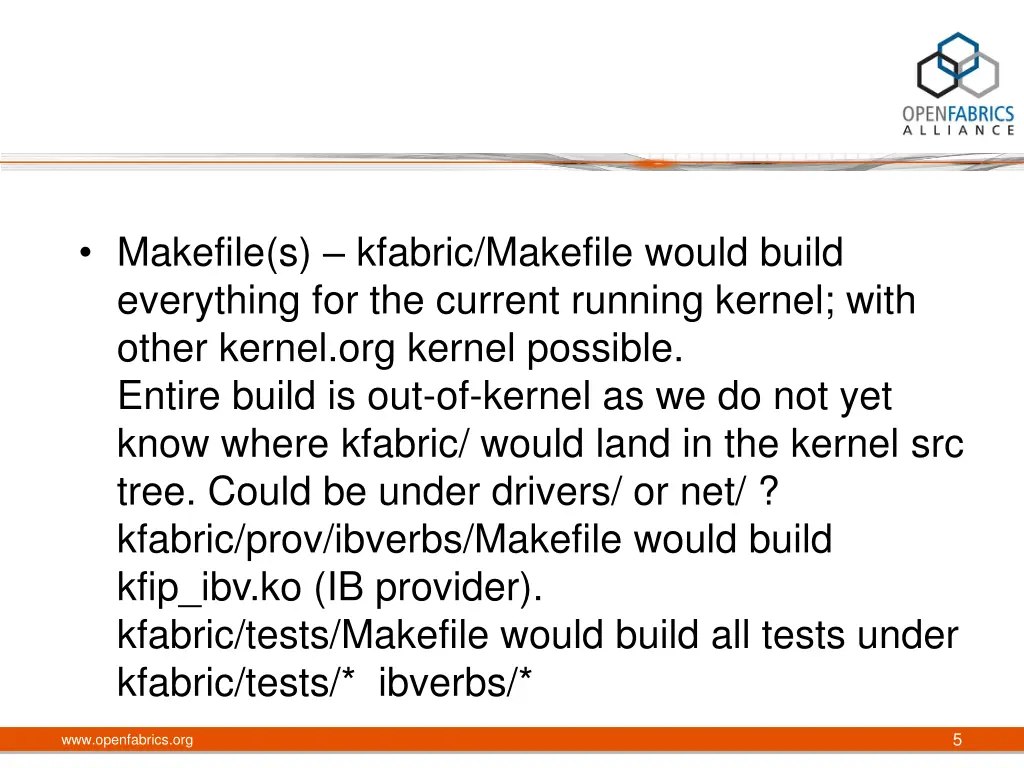

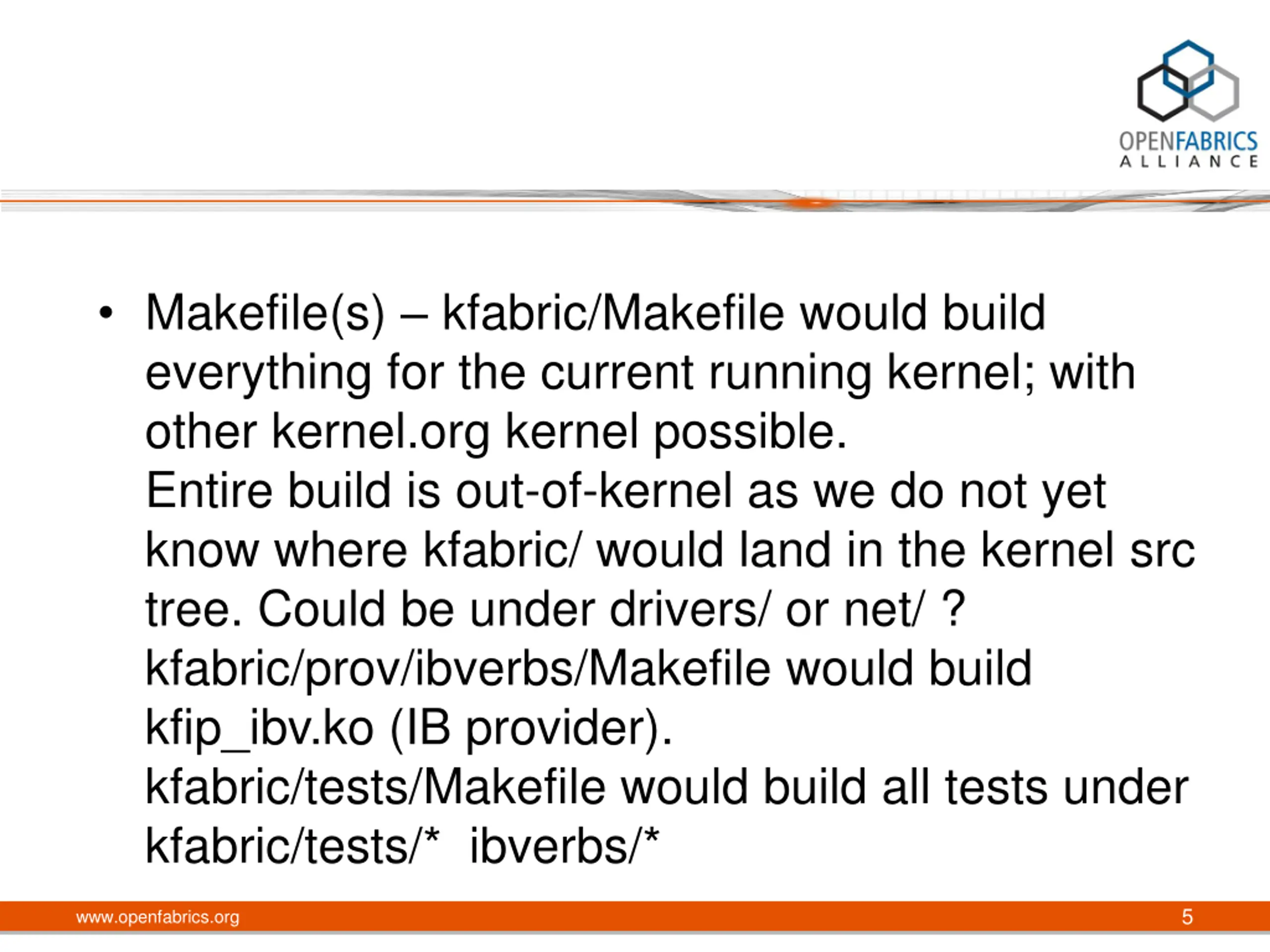

Makefile(s) kfabric/Makefile would build everything for the current running kernel; with other kernel.org kernel possible. Entire build is out-of-kernel as we do not yet know where kfabric/ would land in the kernel src tree. Could be under drivers/ or net/ ? kfabric/prov/ibverbs/Makefile would build kfip_ibv.ko (IB provider). kfabric/tests/Makefile would build all tests under kfabric/tests/* ibverbs/* 5 www.openfabrics.org

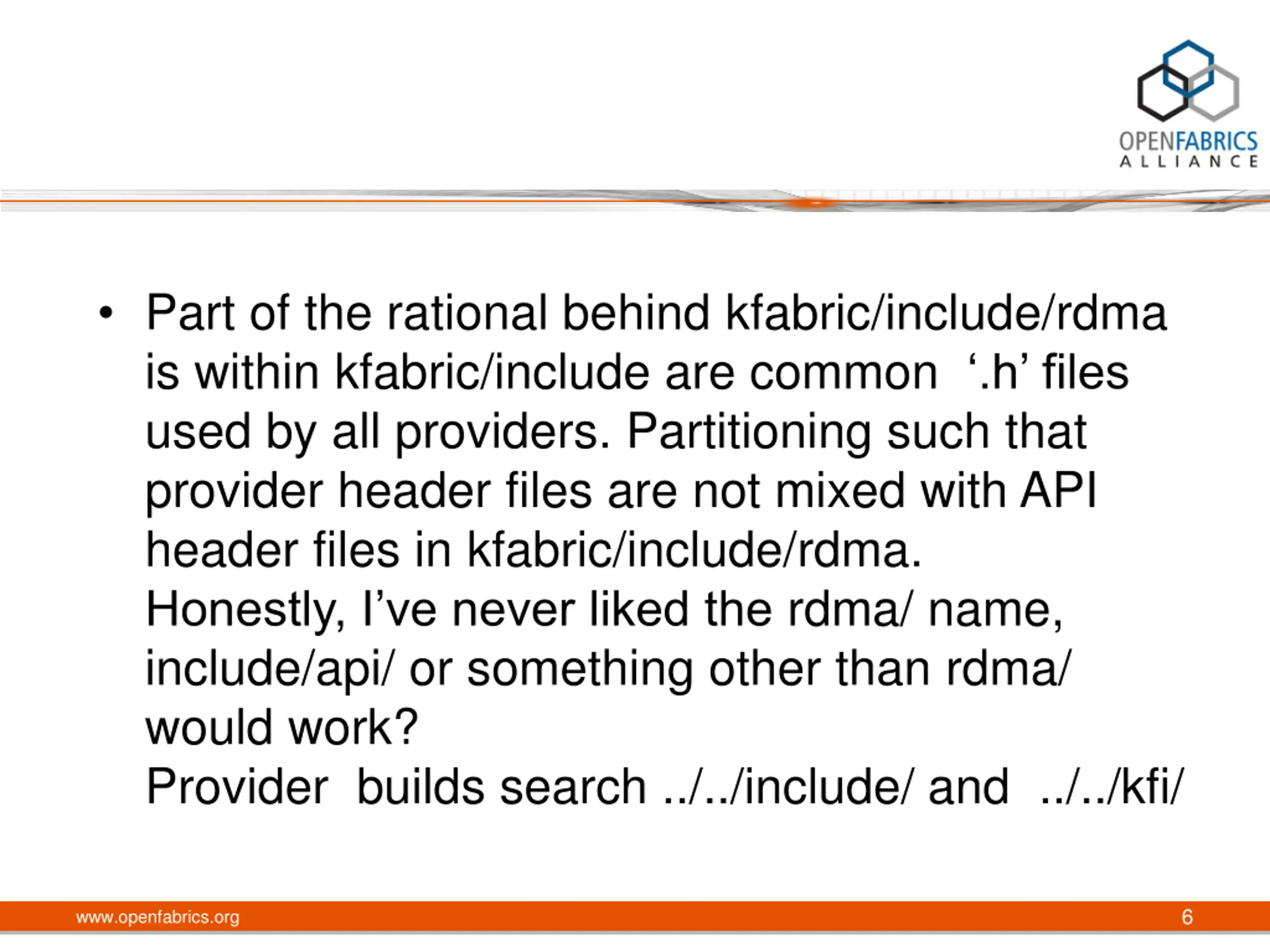

Part of the rational behind kfabric/include/rdma is within kfabric/include are common .h files used by all providers. Partitioning such that provider header files are not mixed with API header files in kfabric/include/rdma. Honestly, I ve never liked the rdma/ name, include/api/ or something other than rdma/ would work? Provider builds search ../../include/ and ../../kfi/ 6 www.openfabrics.org
