KLM Crate Utilization Belle Crate Configuration Overview
The KLM Crate Utilization Belle Crate Configuration involves reusing locations with specific changes: removal of endcap 6U crates, installation of new 9U (COPPER) crates for endcap and barrel scintillators, and relocation of ARICH and TOP FTSW to 8 crates each. Check out the detailed changes and configurations in the images provided.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

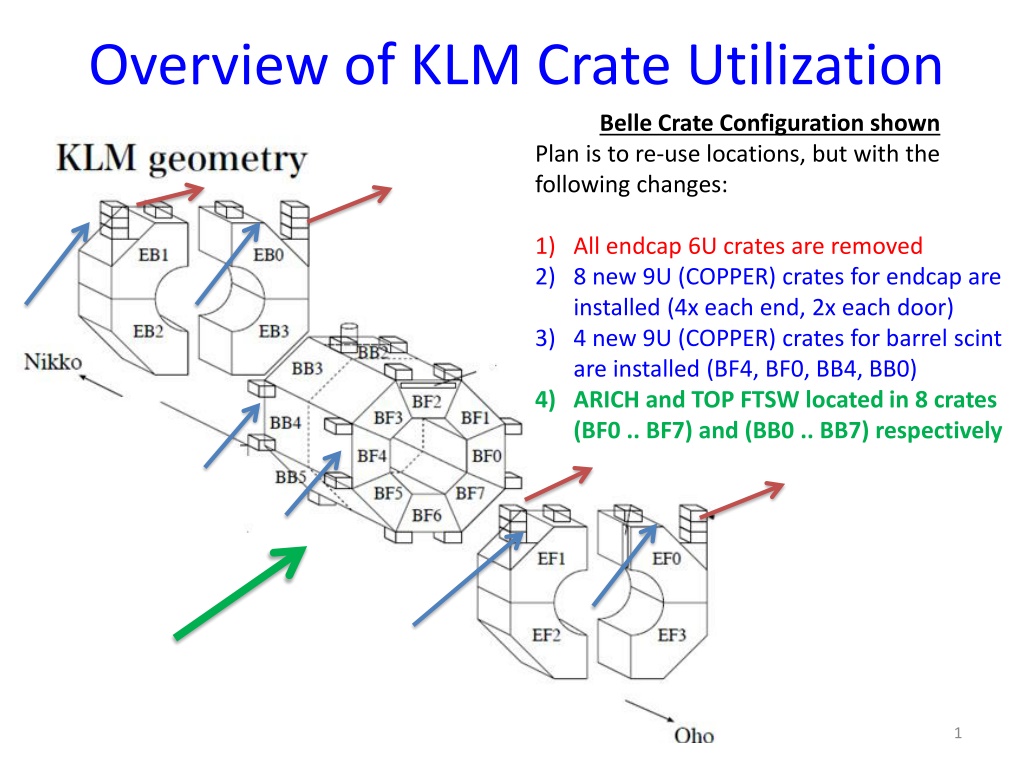

Overview of KLM Crate Utilization Belle Crate Configuration shown Plan is to re-use locations, but with the following changes: 1) All endcap 6U crates are removed 2) 8 new 9U (COPPER) crates for endcap are installed (4x each end, 2x each door) 3) 4 new 9U (COPPER) crates for barrel scint are installed (BF4, BF0, BB4, BB0) 4) ARICH and TOP FTSW located in 8 crates (BF0 .. BF7) and (BB0 .. BB7) respectively 1
Forward Endcap (Scintillator) KLM 2
Backward Endcap (Scintillator) KLM 3
Forward Barrel KLM Octant BF2_left Octant BF2_right 4
Backward Barrel KLM Octant BB2_right Octant BB2_left 5
