A Knowledge Graph Based Paper Review System Structure Information Extraction & Knowledge Graph Construction for Academic Paper ZHONGYE WANG, 517030910353 YICHEN XIE, 517030910355 XINYU ZHAN, 517030910358
Content 1. Introduction 2. Structural Information Extraction 3. Two-stage Refinement of Knowledge Graph 4. Conclusions

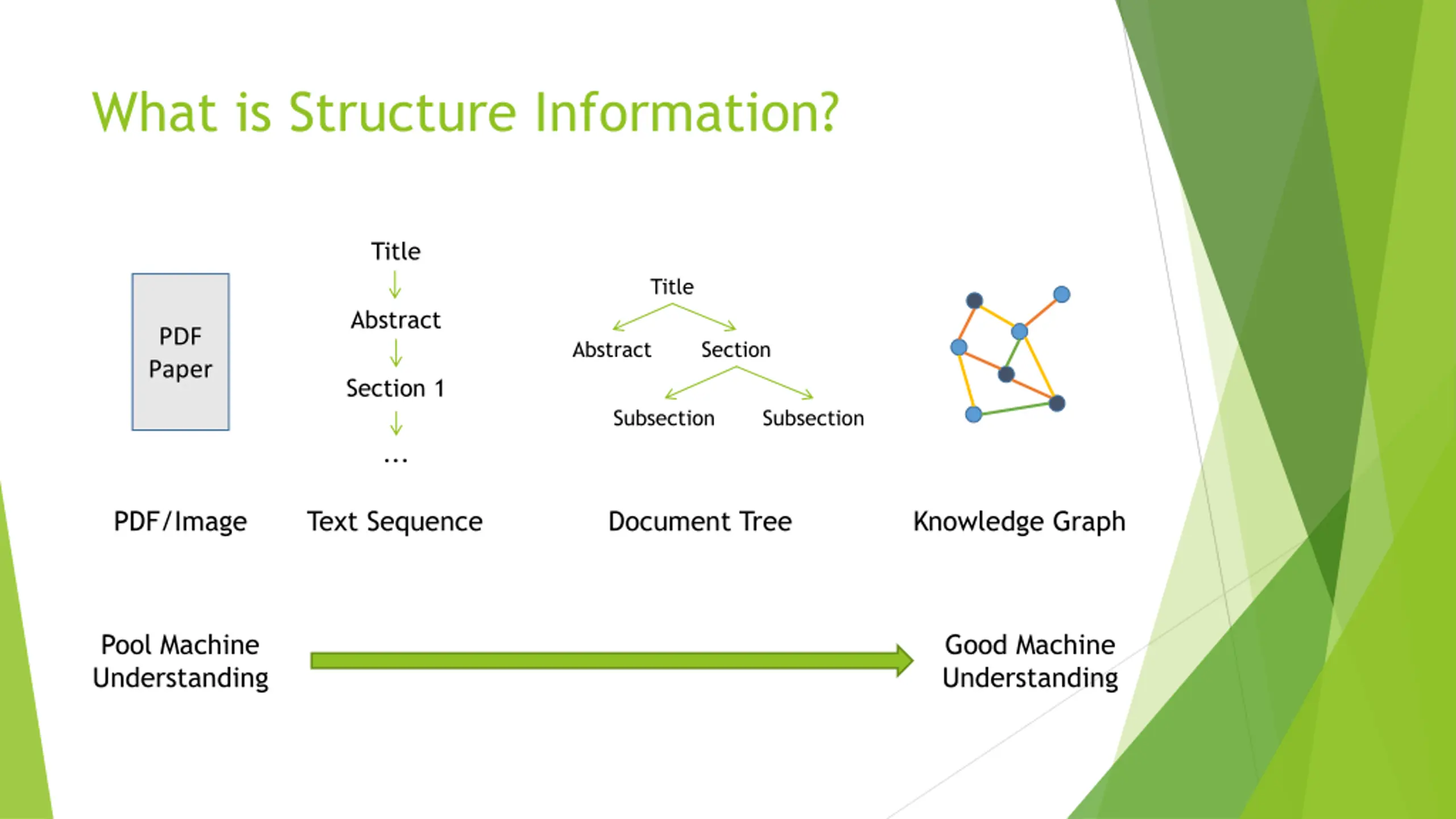

What is Structure Information? Title Title Abstract PDF Paper Abstract Section Section 1 Subsection Subsection ... PDF/Image Text Sequence Document Tree Knowledge Graph Pool Machine Understanding Good Machine Understanding

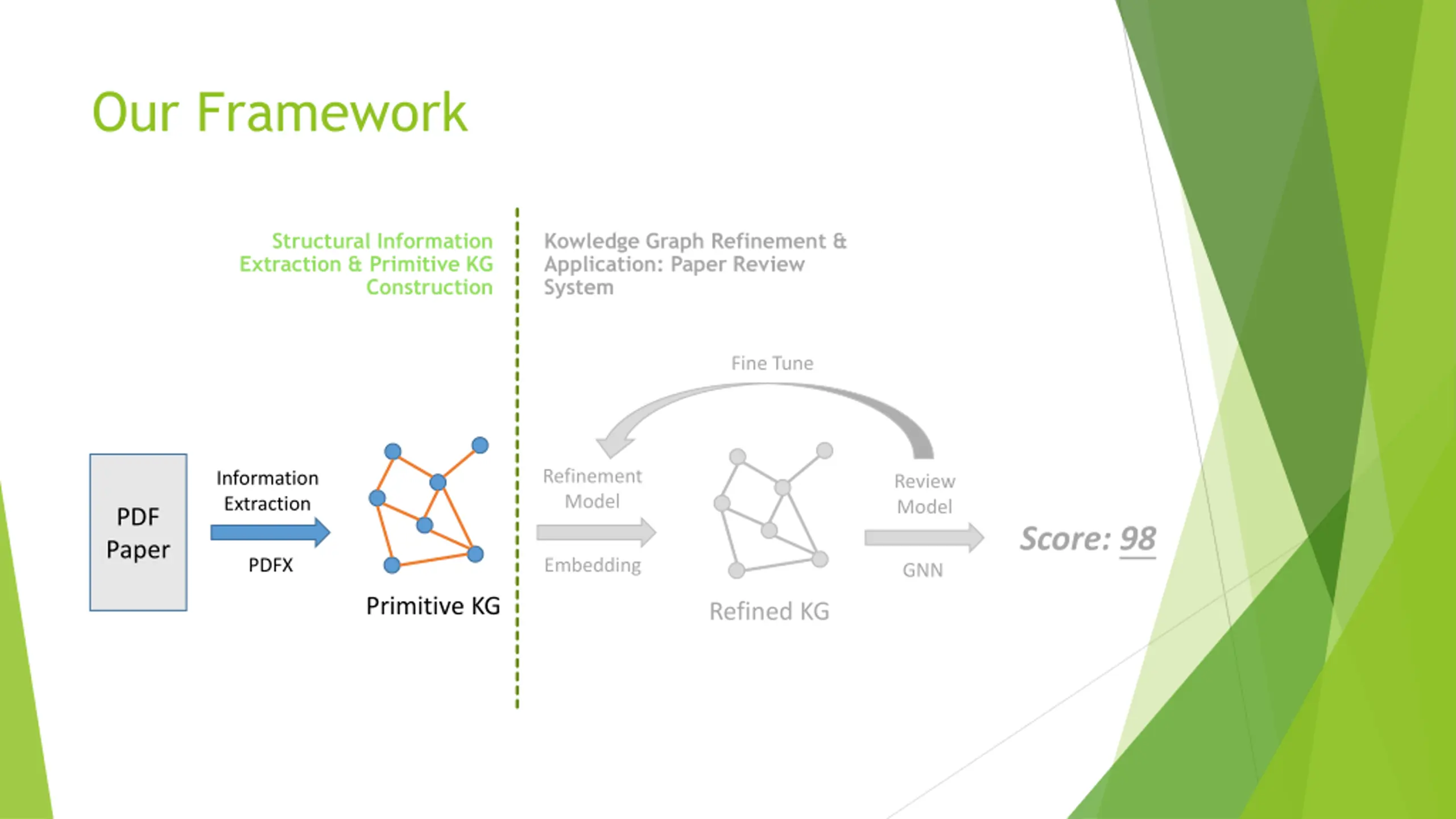

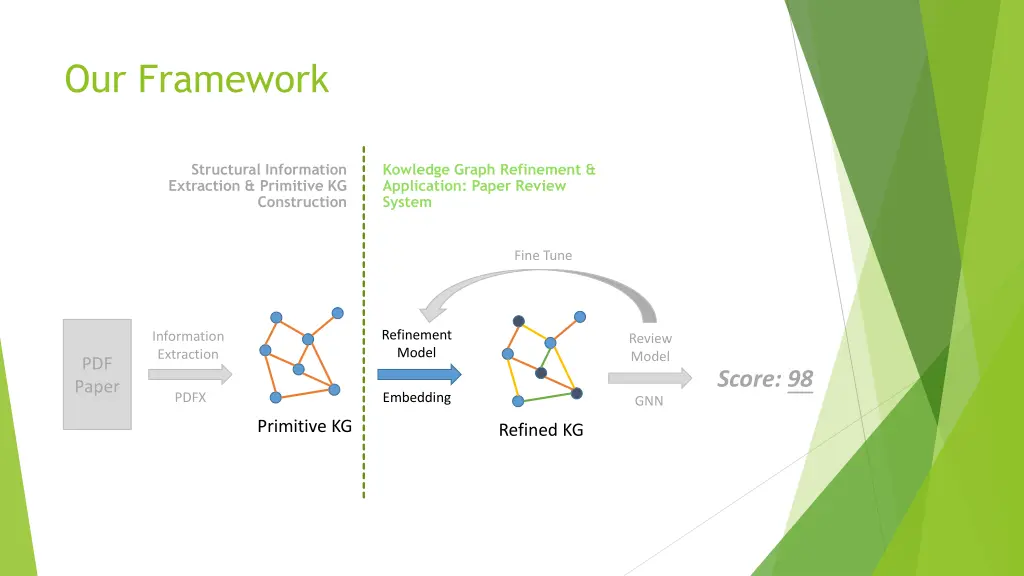

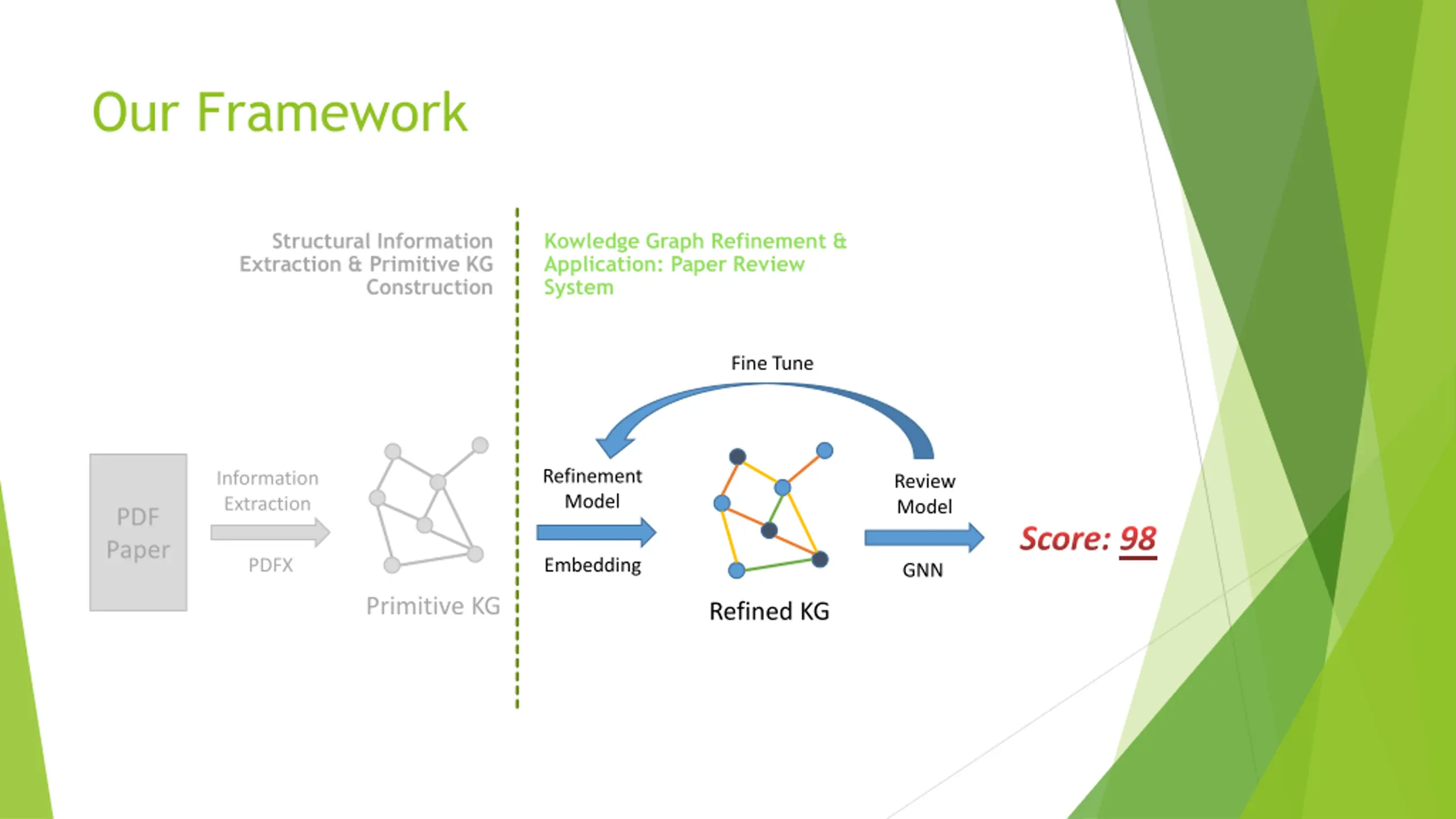

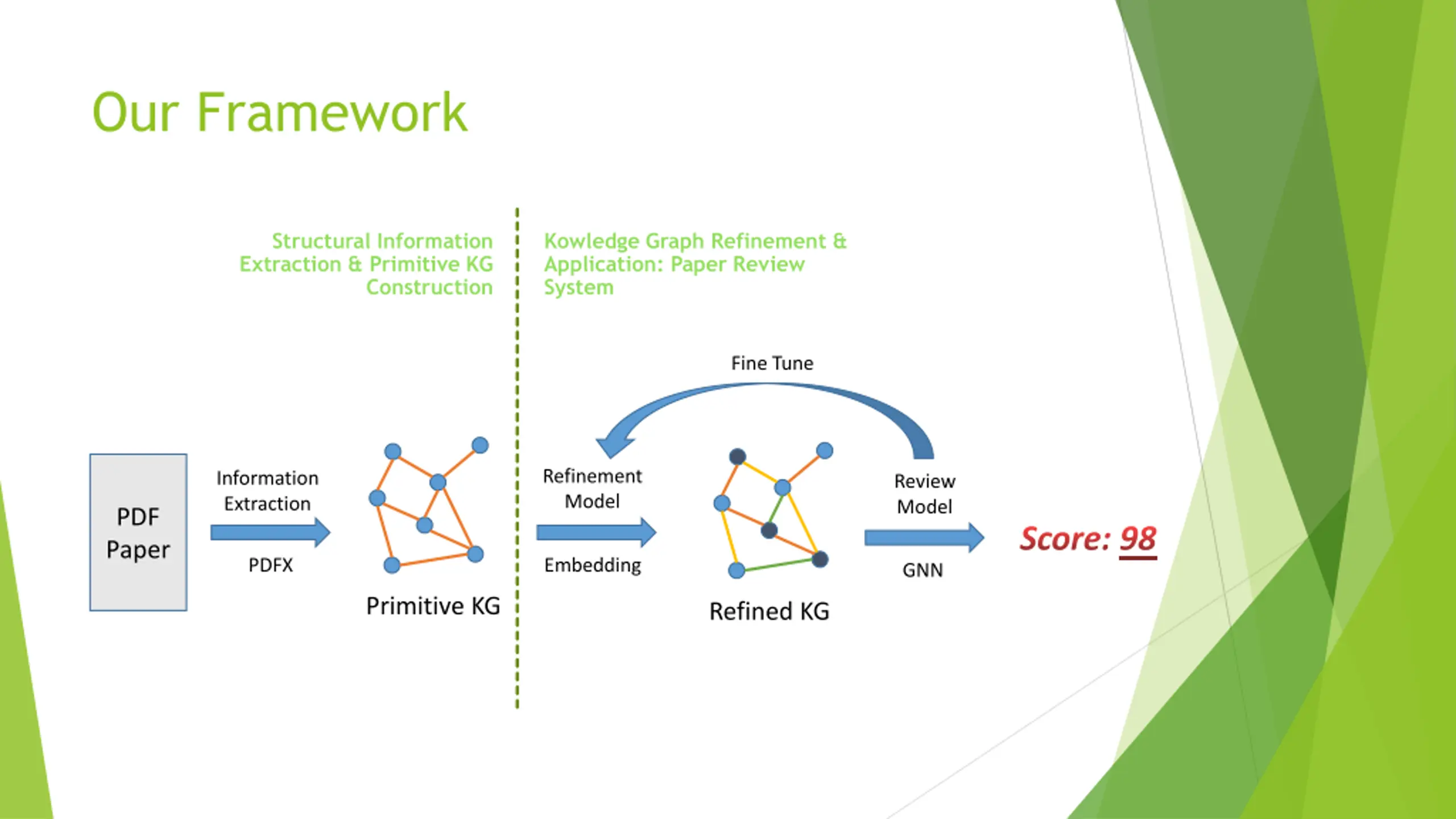

Our Framework Structural Information Extraction & Primitive KG Construction Kowledge Graph Refinement & Application: Paper Review System Fine Tune Refinement Model Information Extraction Review Model PDF Paper Score: 98 PDFX Embedding GNN Primitive KG Refined KG
Our Framework Structural Information Extraction & Primitive KG Construction Kowledge Graph Refinement & Application: Paper Review System Fine Tune Refinement Model Information Extraction Review Model PDF Paper Score: 98 PDFX Embedding GNN Primitive KG Refined KG
Our Framework Structural Information Extraction & Primitive KG Construction Kowledge Graph Refinement & Application: Paper Review System Fine Tune Refinement Model Information Extraction Review Model PDF Paper Score: 98 PDFX Embedding GNN Primitive KG Refined KG
Our Framework Structural Information Extraction & Primitive KG Construction Kowledge Graph Refinement & Application: Paper Review System Fine Tune Refinement Model Information Extraction Review Model PDF Paper Score: 98 PDFX Embedding GNN Primitive KG Refined KG
Content 1. Introduction 2. Structural Information Extraction 3. Two-stage Refinement of Knowledge Graph 4. Conclusions

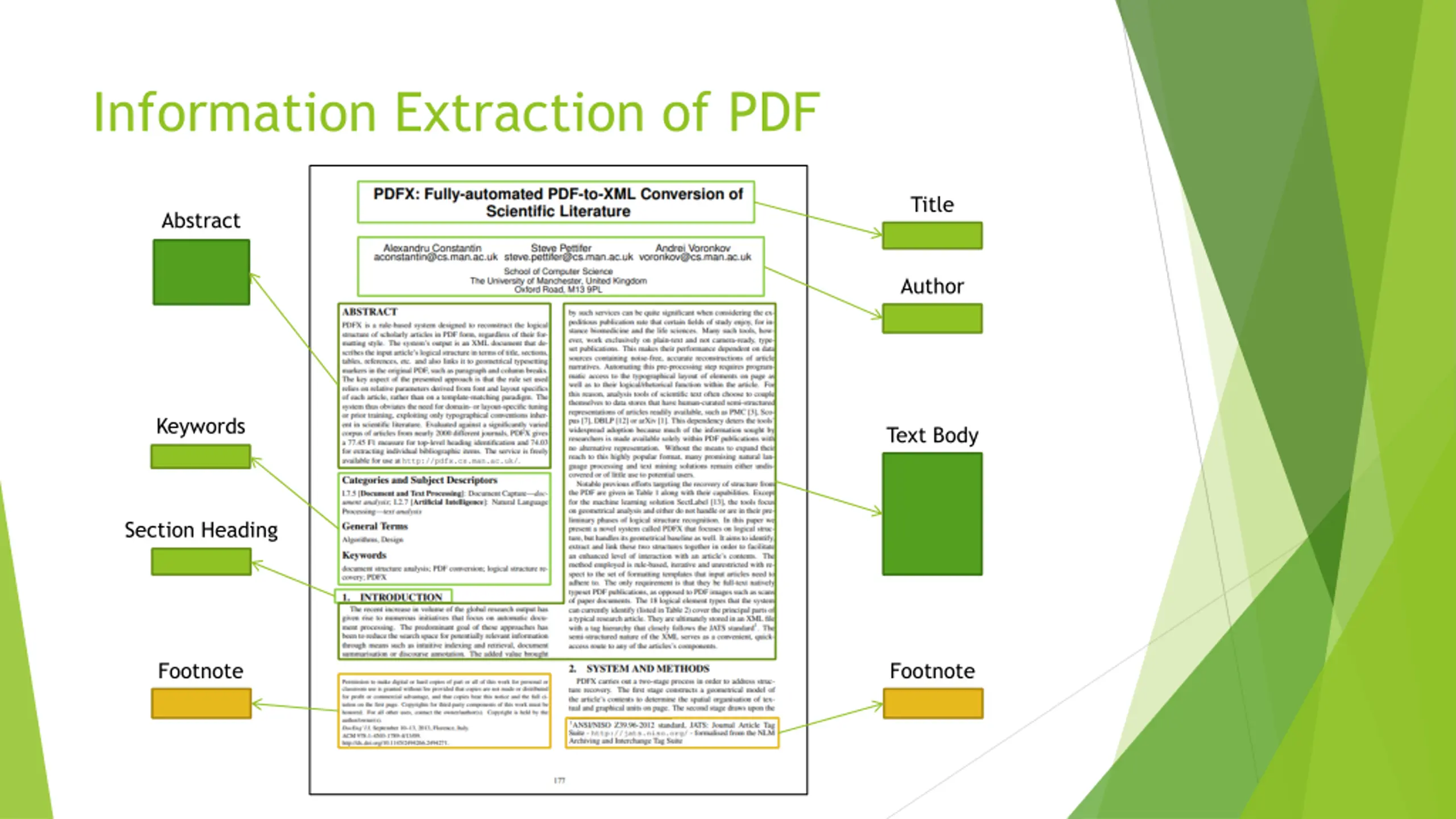

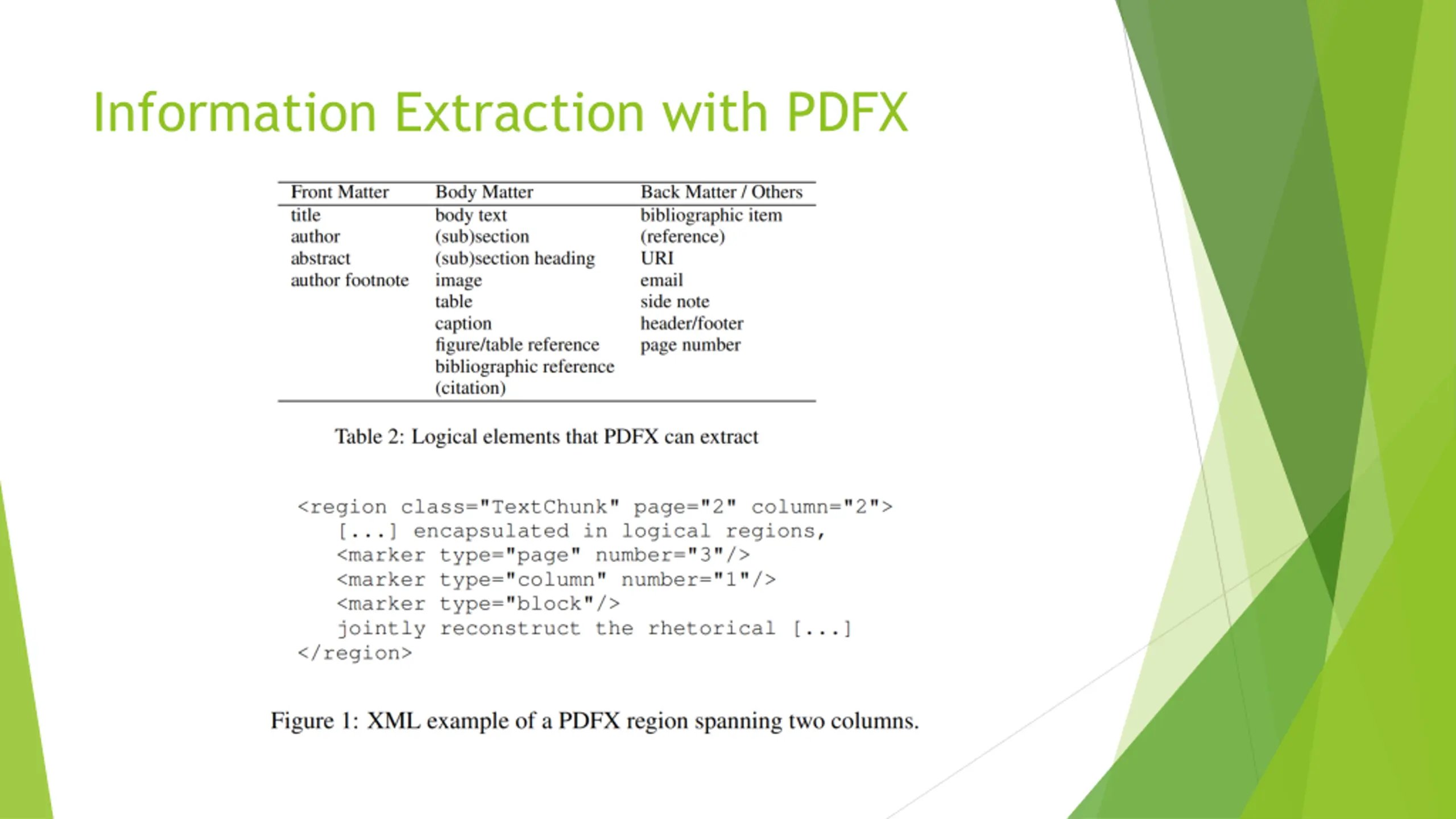

Information Extraction of PDF Title Abstract Author Keywords Text Body Section Heading Footnote Footnote

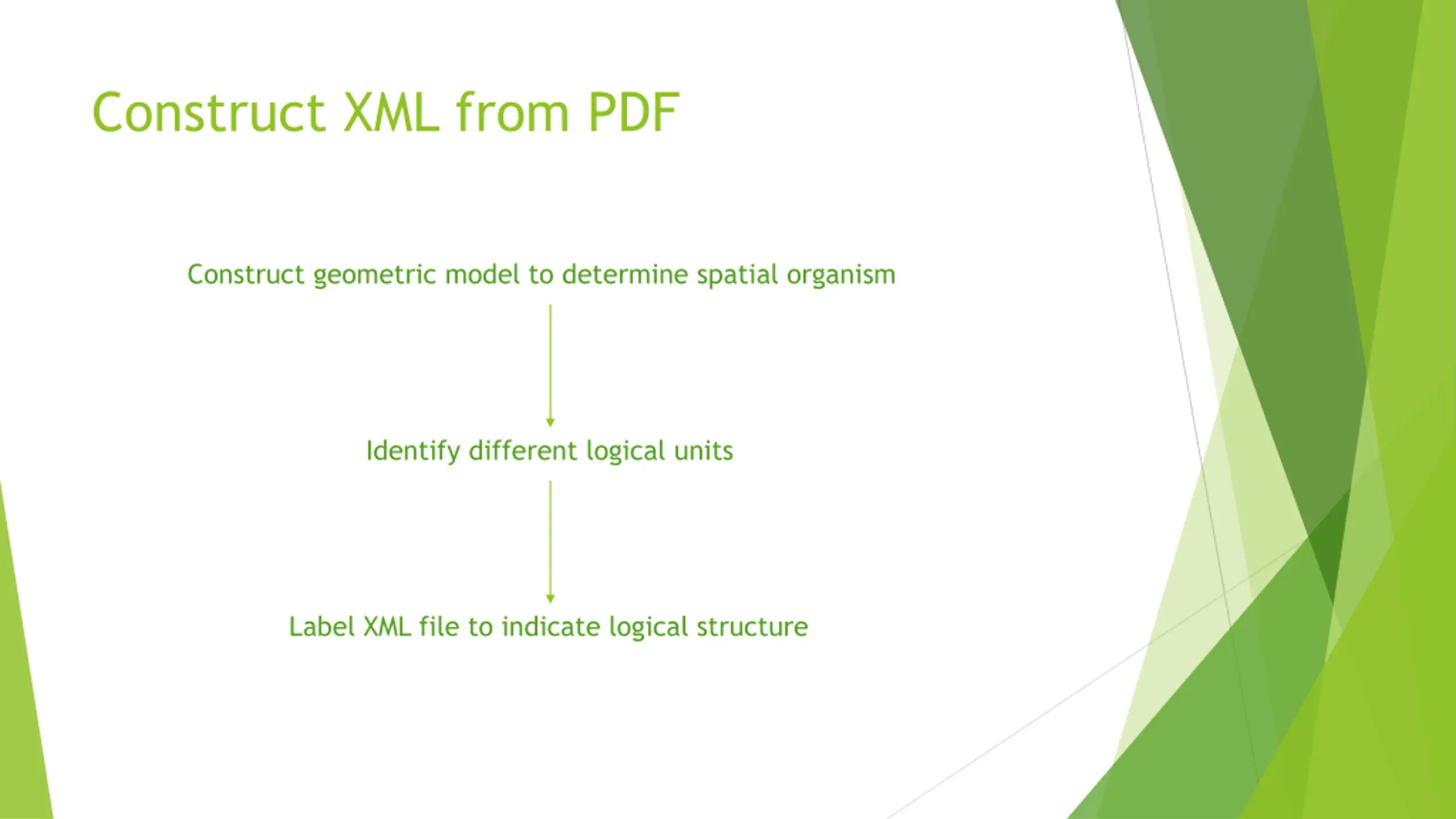

Construct XML from PDF Construct geometric model to determine spatial organism Identify different logical units Label XML file to indicate logical structure

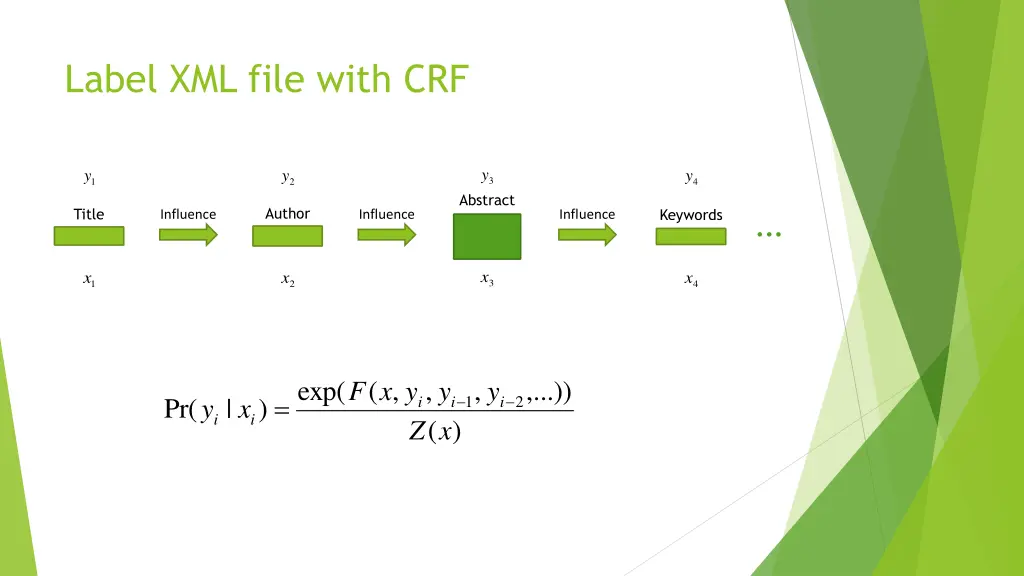

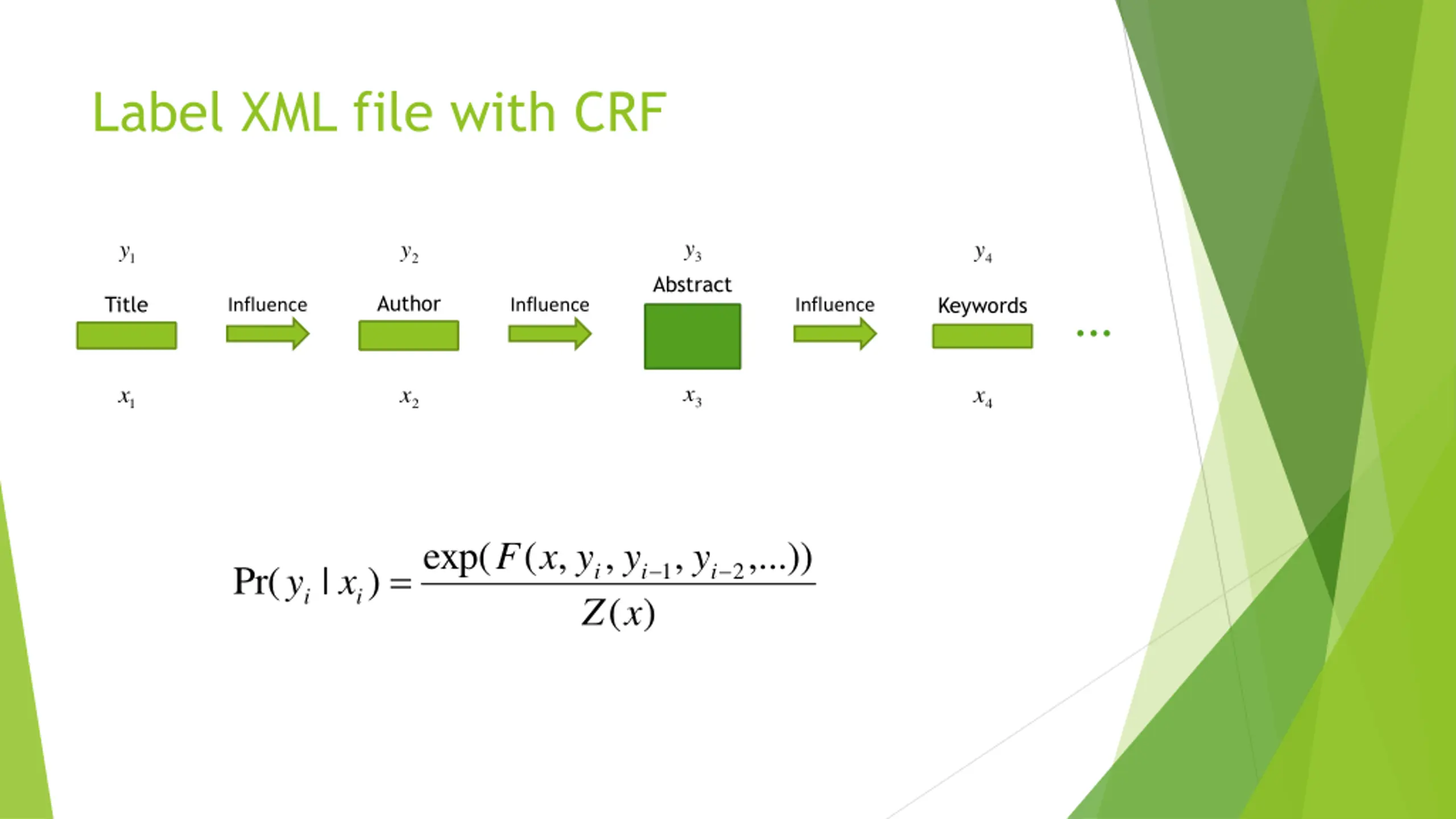

Label XML file with CRF 3y 1y 2y 4y Abstract Author Title Keywords Influence Influence Influence ... 3 x 1x 2 x 4 x exp( ( , , , ,...)) F x y y y = 1 2 Pr( | ) i i i y x i i ( ) Z x

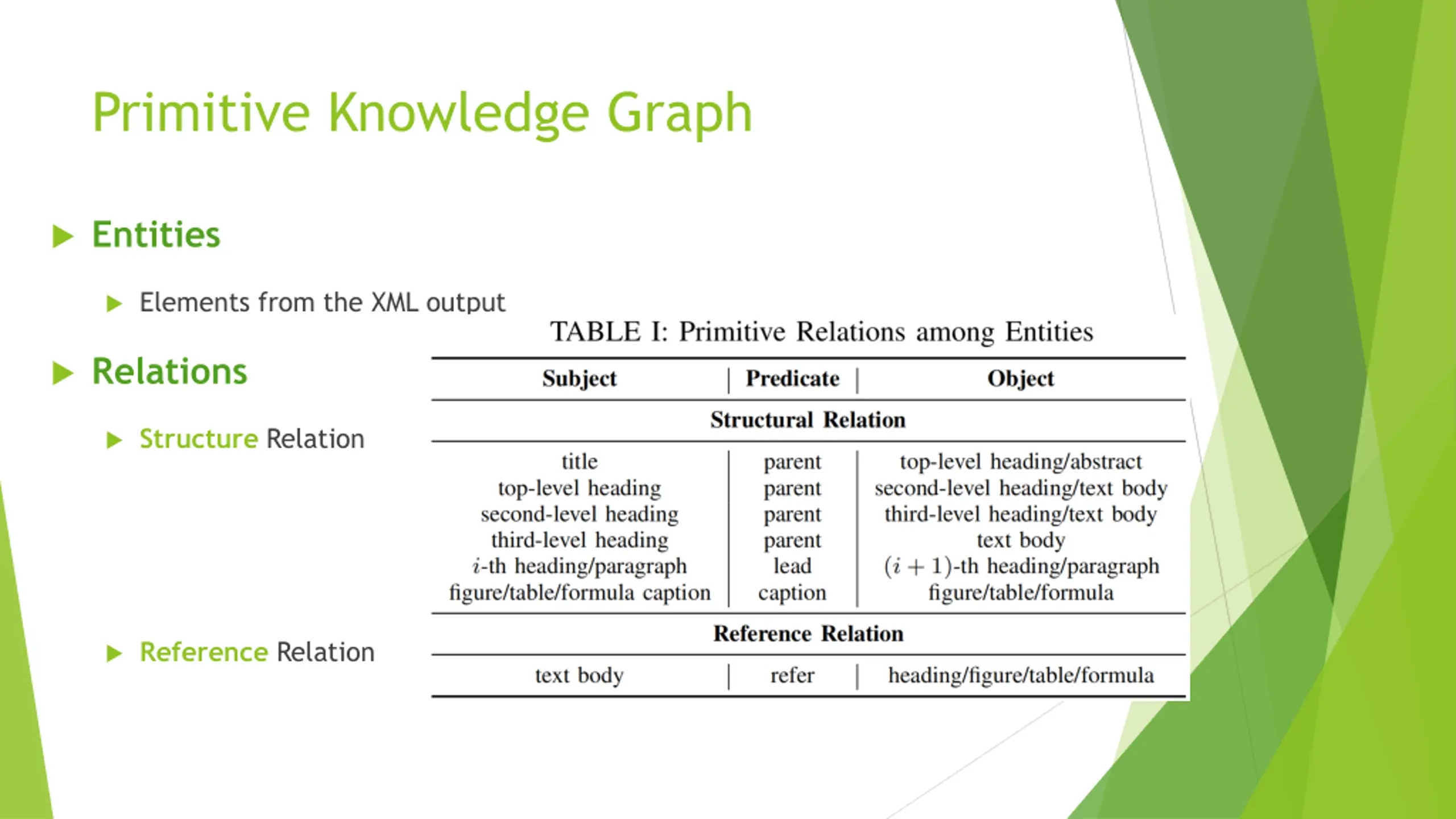

Primitive Knowledge Graph Entities Elements from the XML output Relations Structure Relation Reference Relation

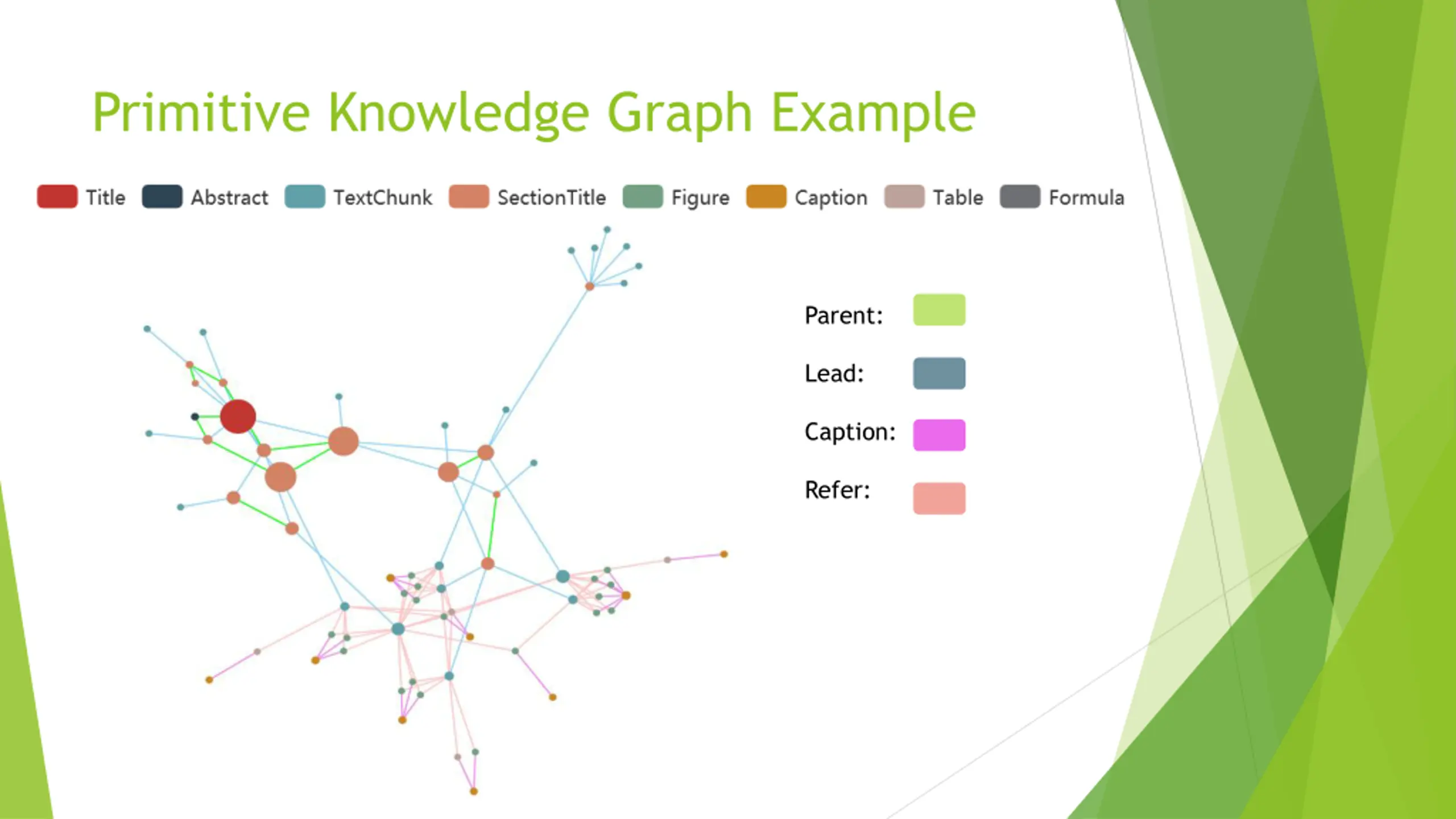

Primitive Knowledge Graph Example Parent: Lead: Caption: Refer:
Content 1. Introduction 2. Structural Information Extraction 3. Two-stage Refinement of Knowledge Graph 4. Conclusions

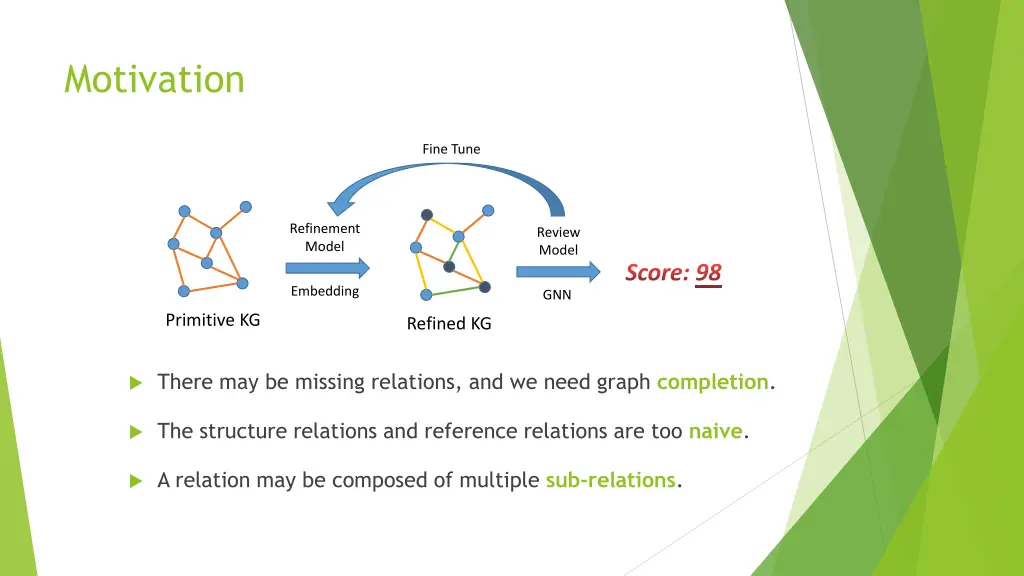

Motivation Fine Tune Refinement Model Review Model Score: 98 Embedding GNN Primitive KG Refined KG There may be missing relations, and we need graph completion. The structure relations and reference relations are too naive. A relation may be composed of multiple sub-relations.

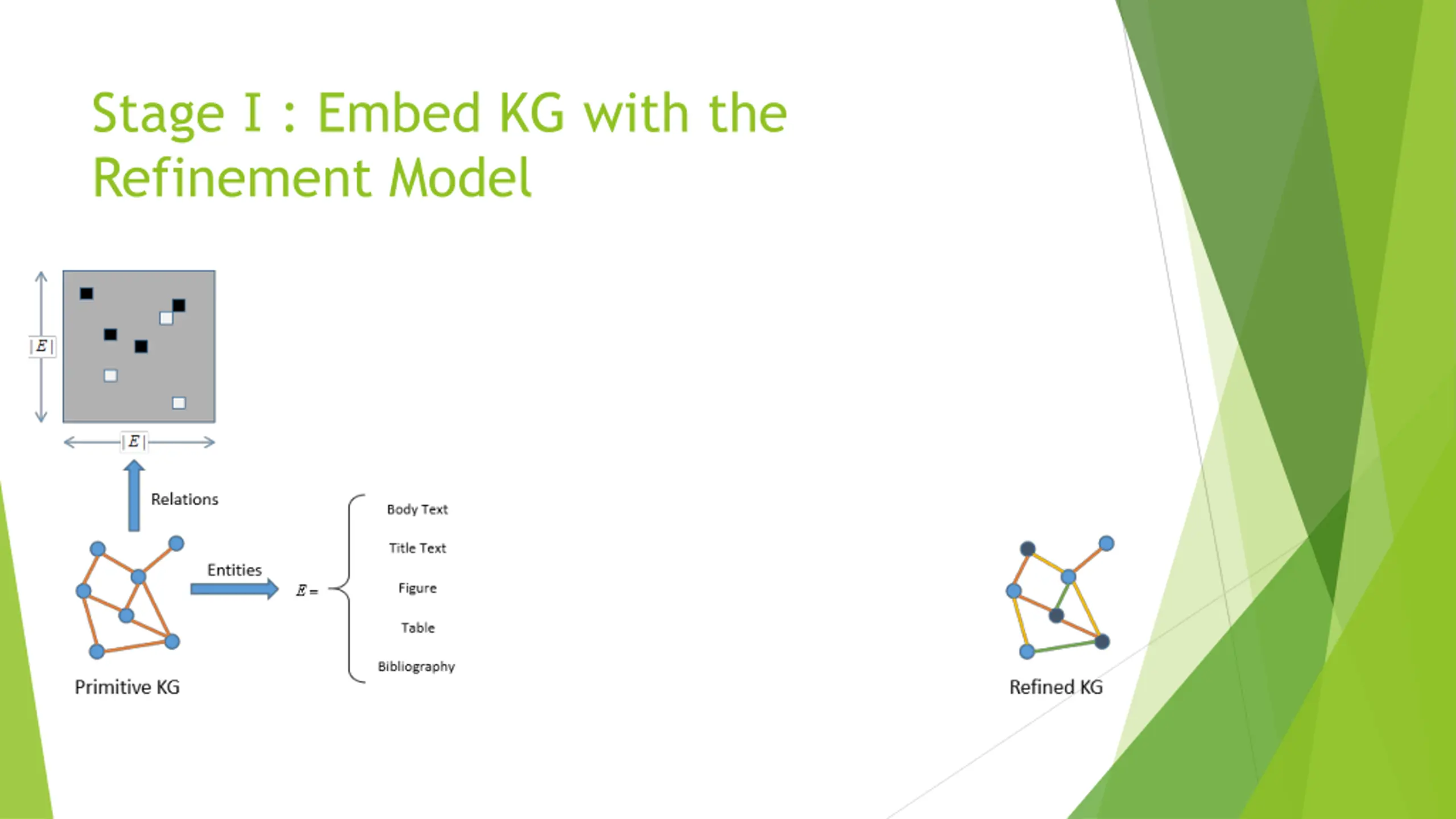

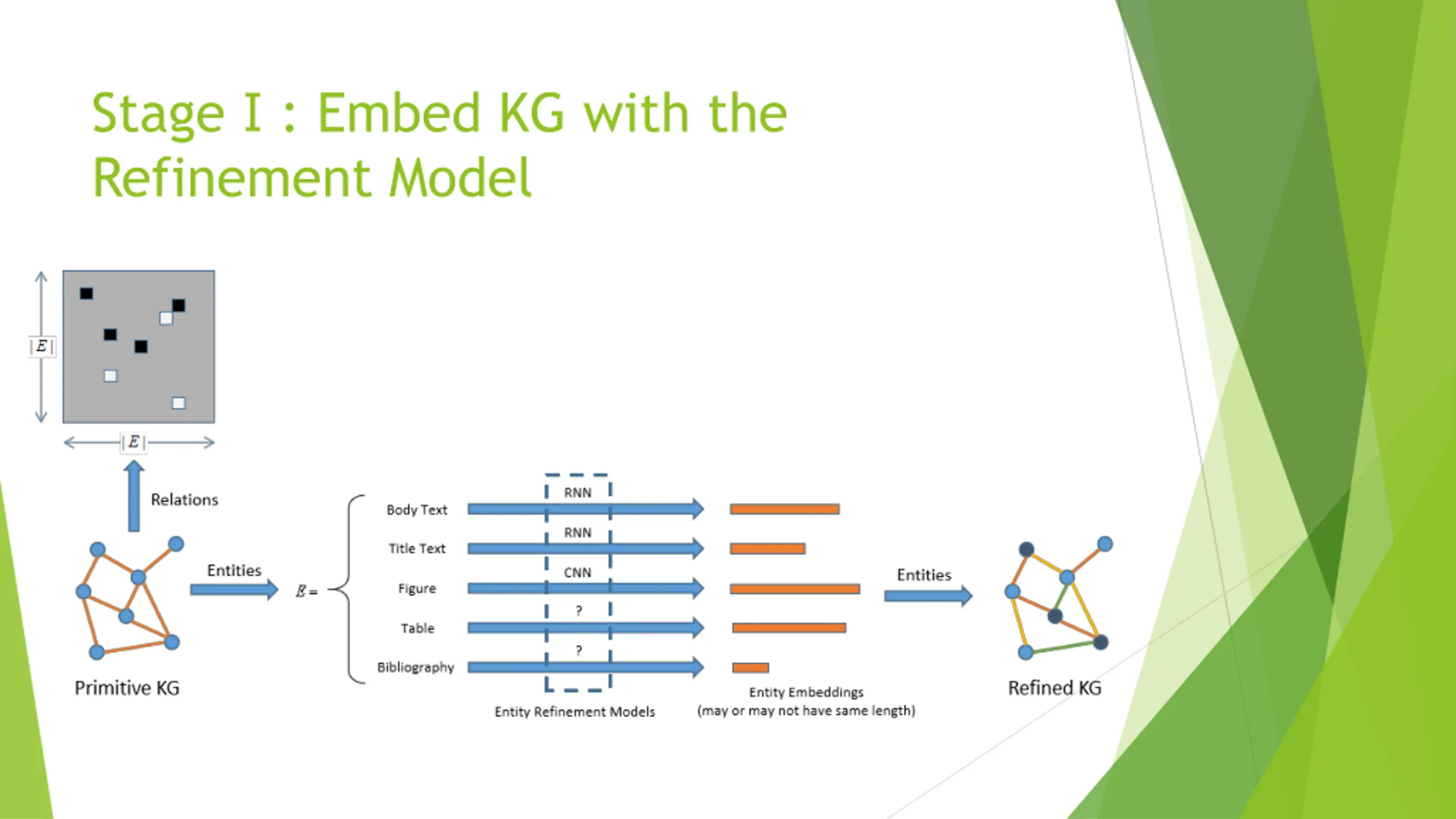

Stage: Embed KG with the Refinement Model
Stage: Embed KG with the Refinement Model
Stage: Embed KG with the Refinement Model

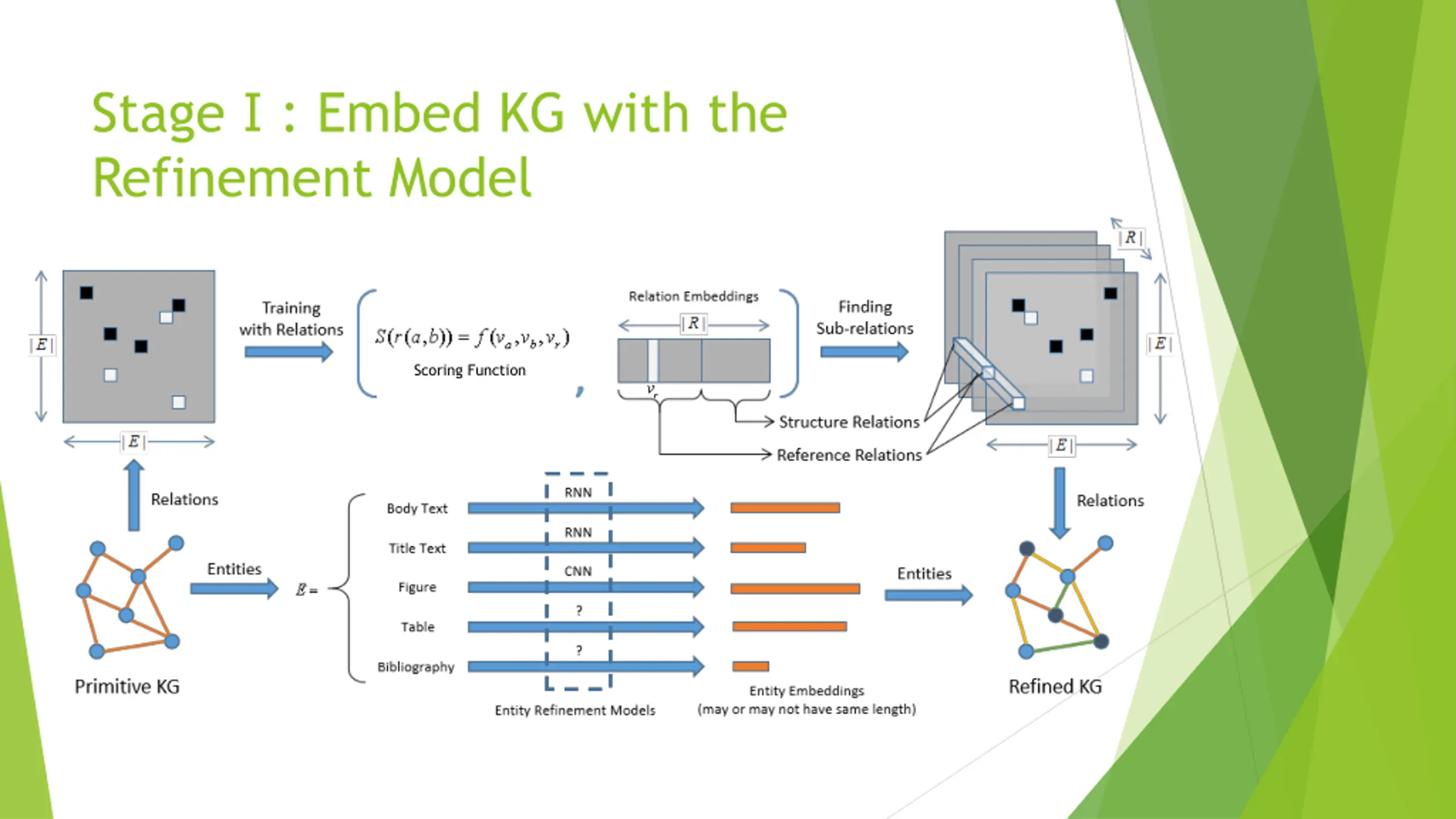

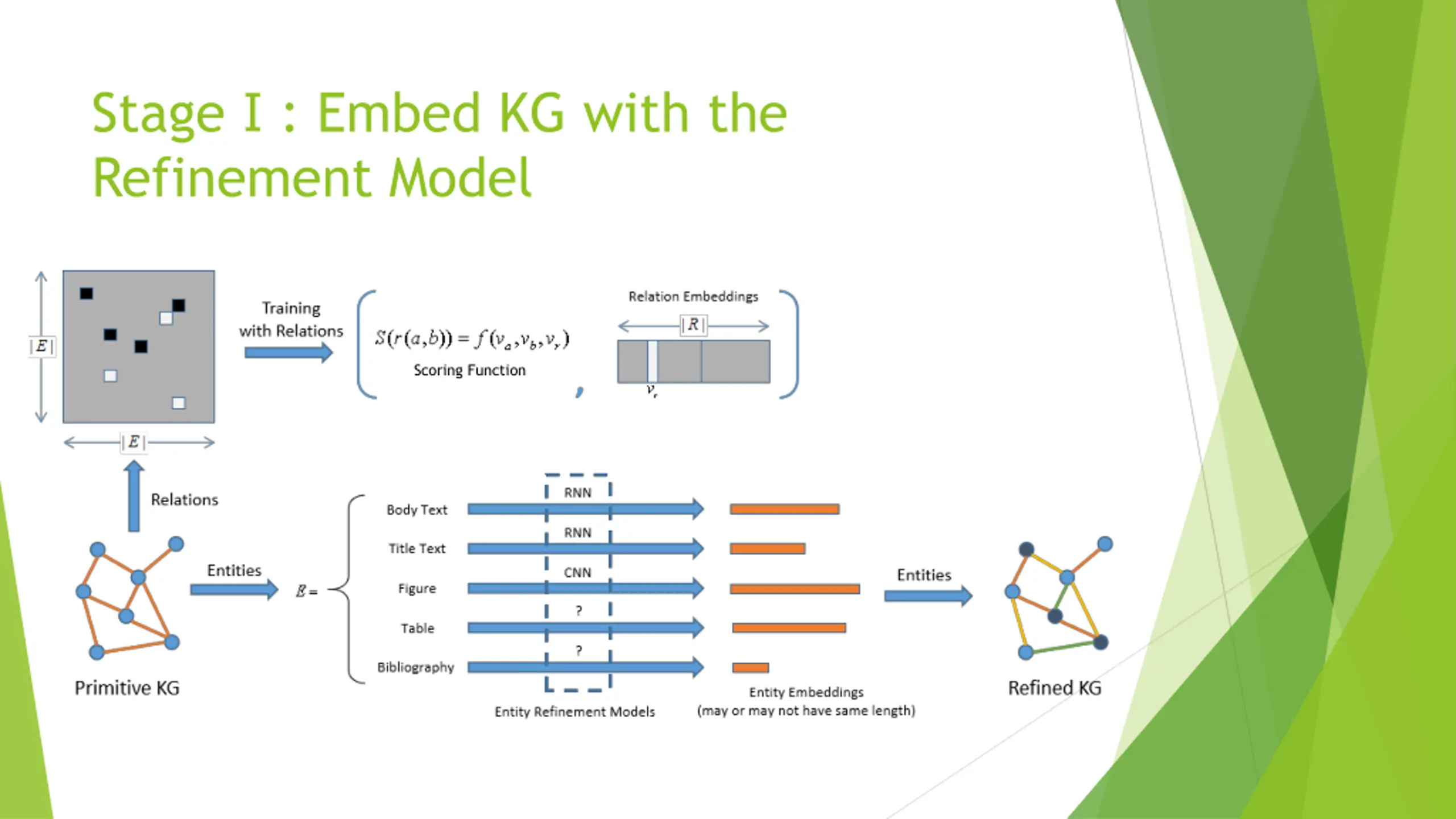

Stage: Embed KG with the Refinement Model Scoring Function
Stage: Embed KG with the Refinement Model Scoring Function

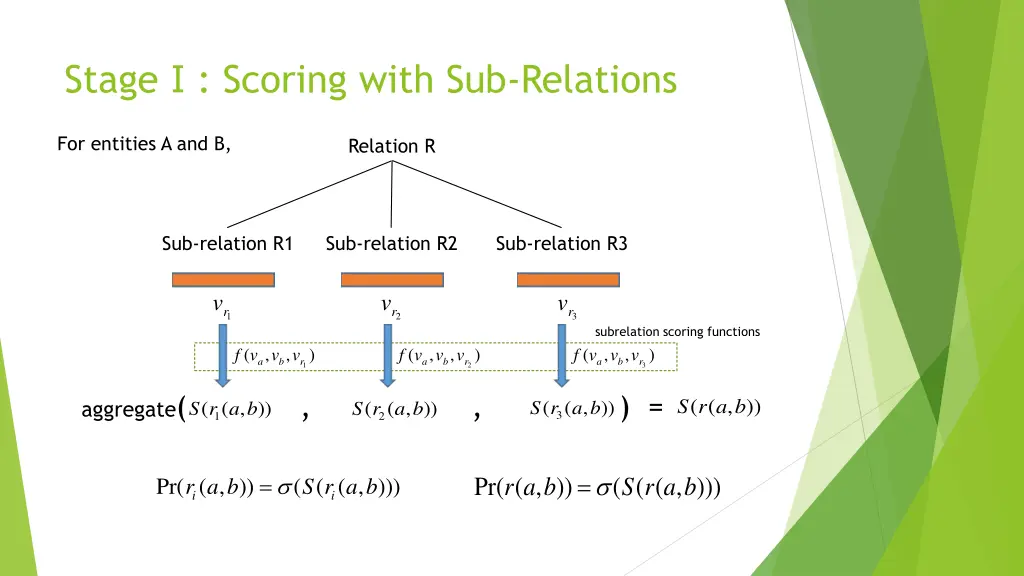

Stage: Scoring with Sub-Relations For entities A and B, Relation R Sub-relation R1 Sub-relation R2 Sub-relation R3 1rv 2rv 3rv subrelation scoring functions ( , , ) ( , , ) ( , , ) f v v v f v v v f v v v a b 1r a b 2r a b 3r aggregate( , S ( , )) (3 r , ) = ( ( , )) S r a b ( )) S a b (1 r ( , )) (2 r , S a b a b = = Pr( ( , )) ( ( ( , ))) r a b S r a b Pr( ( , )) ( ( ( , ))) r a b S r a b i i

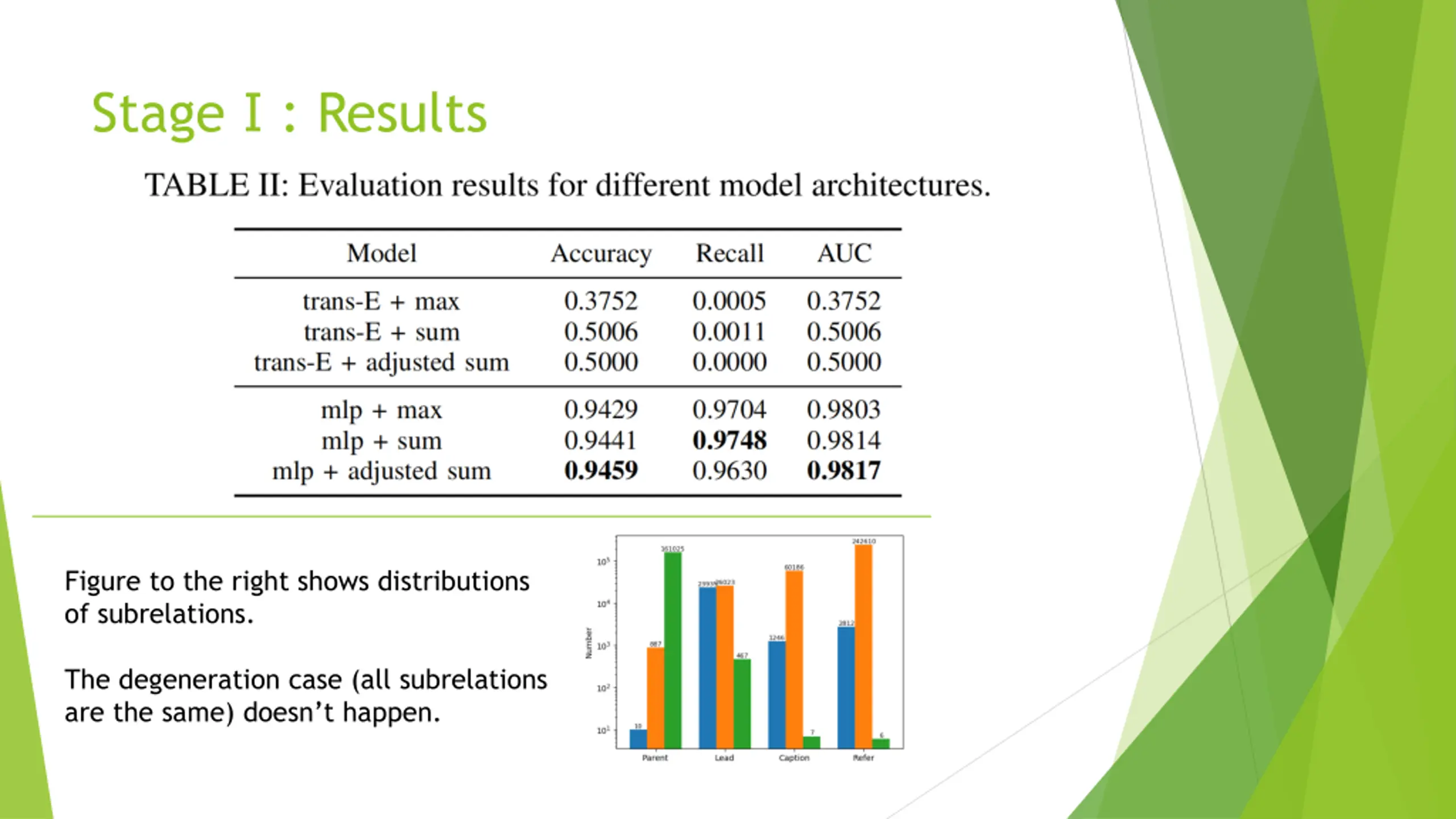

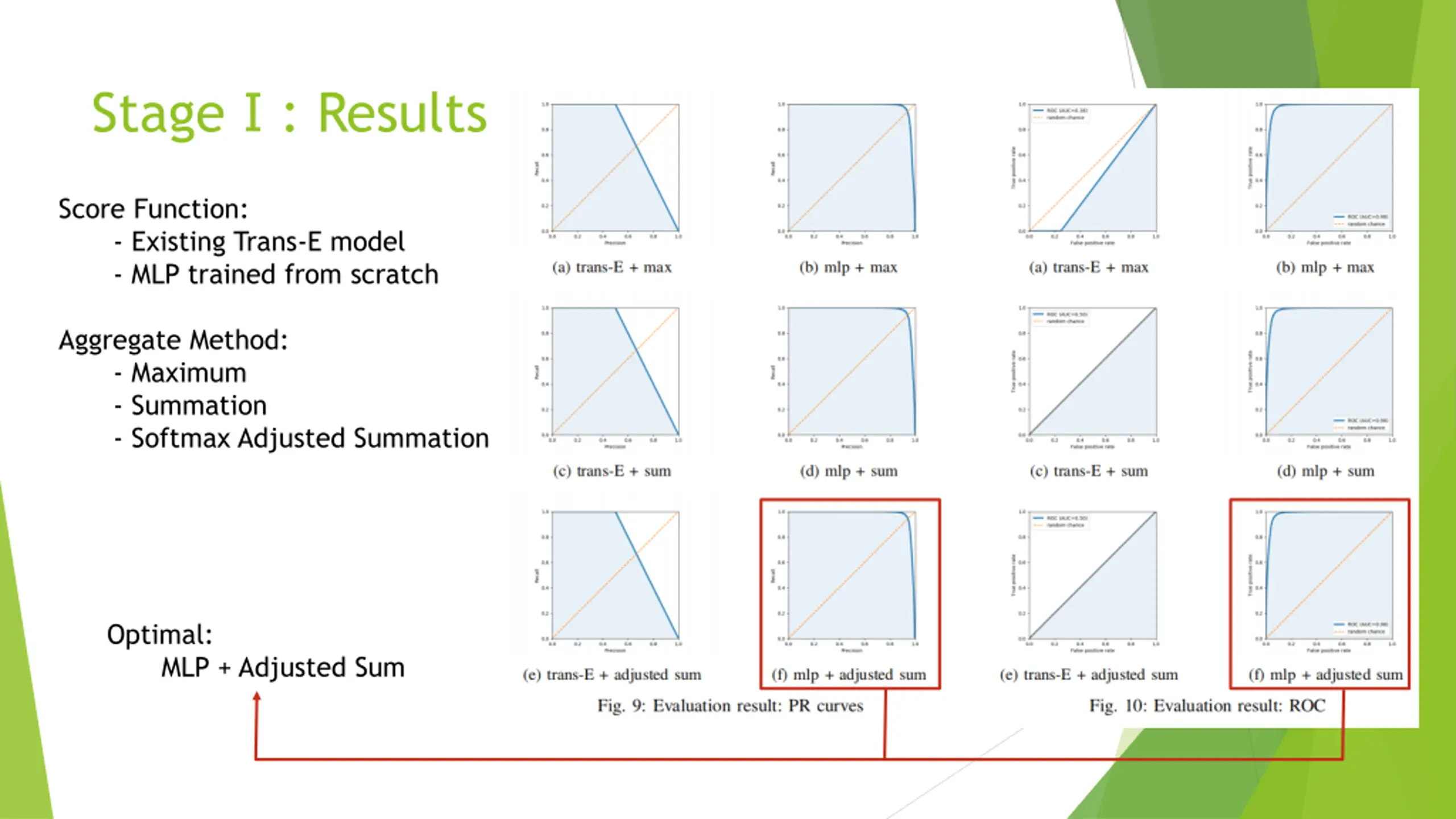

Stage: Results Score Function: - Existing Trans-E model - MLP trained from scratch Aggregate Method: - Maximum - Summation - Softmax Adjusted Summation Optimal: MLP + Adjusted Sum
Stage: Results Figure to the right shows distributions of subrelations. The degeneration case (all subrelations are the same) doesn t happen.

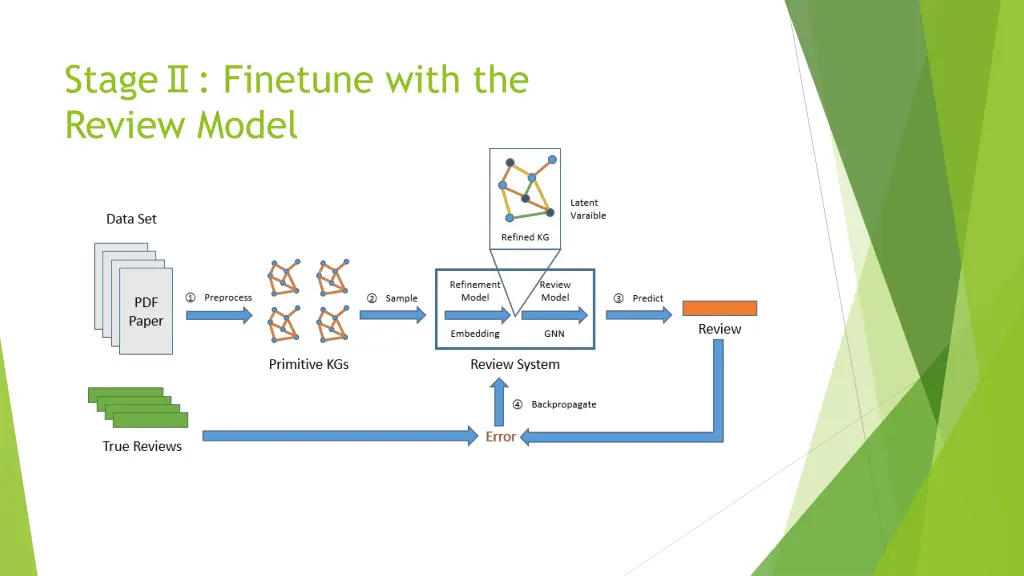

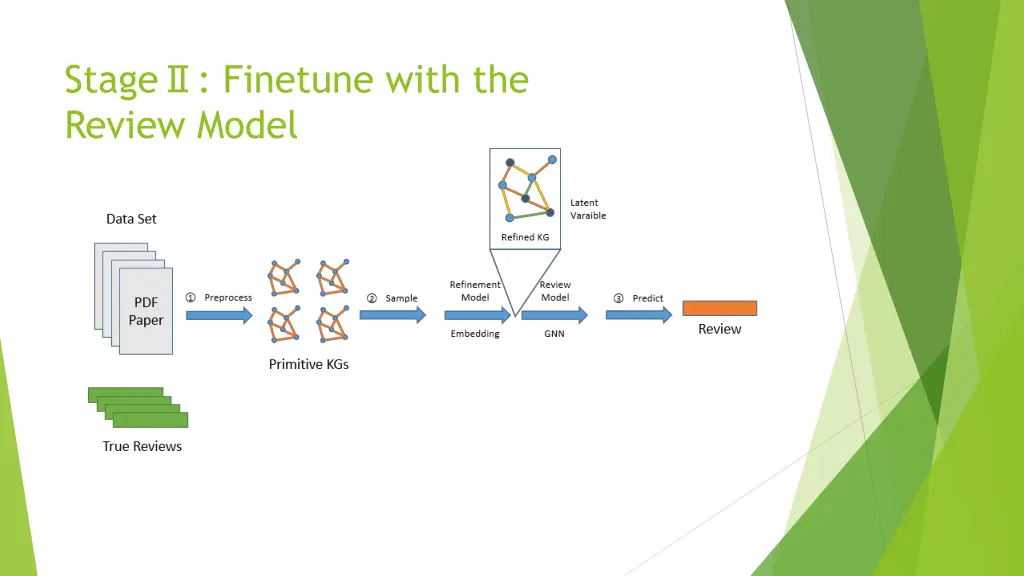

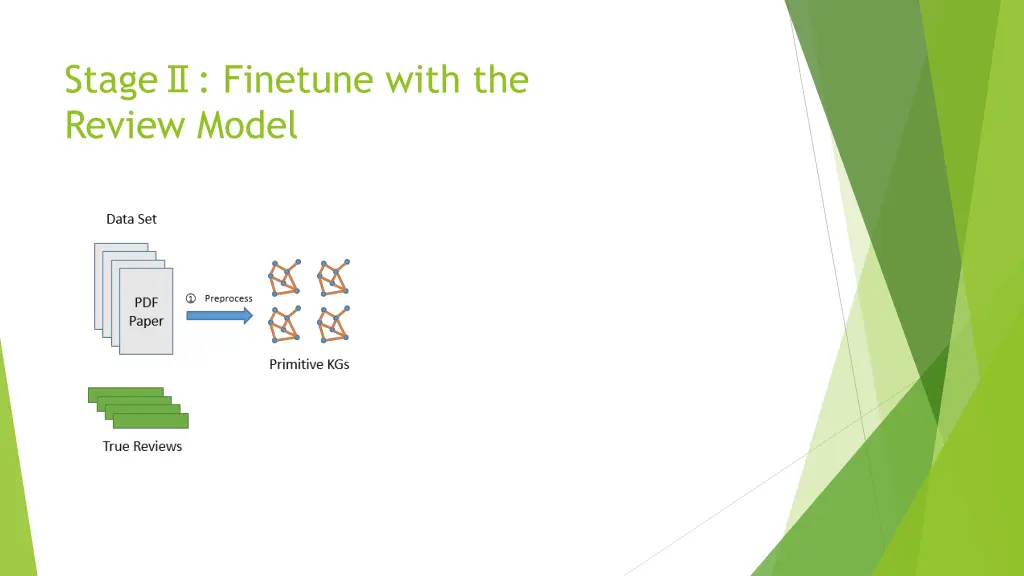

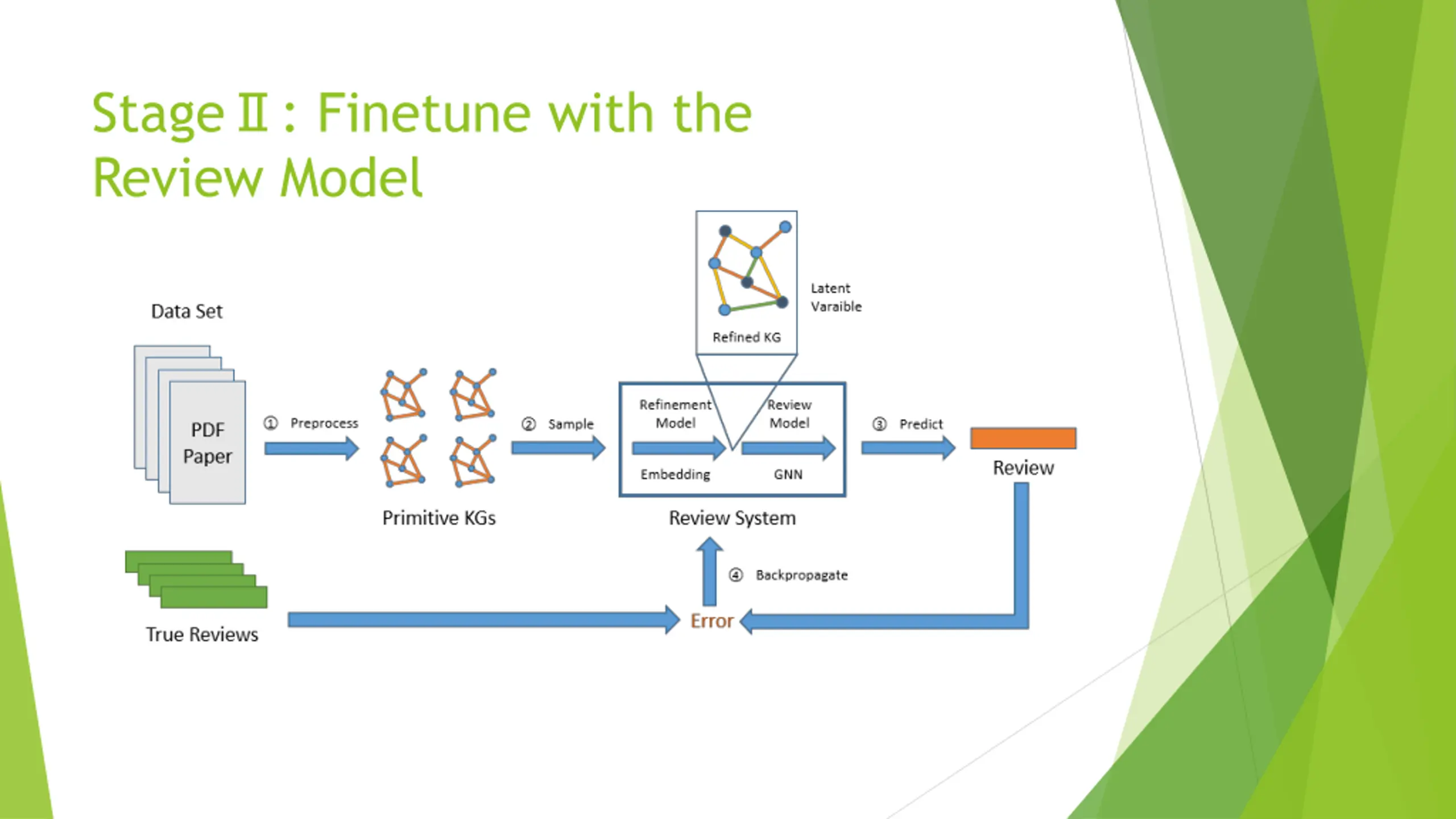

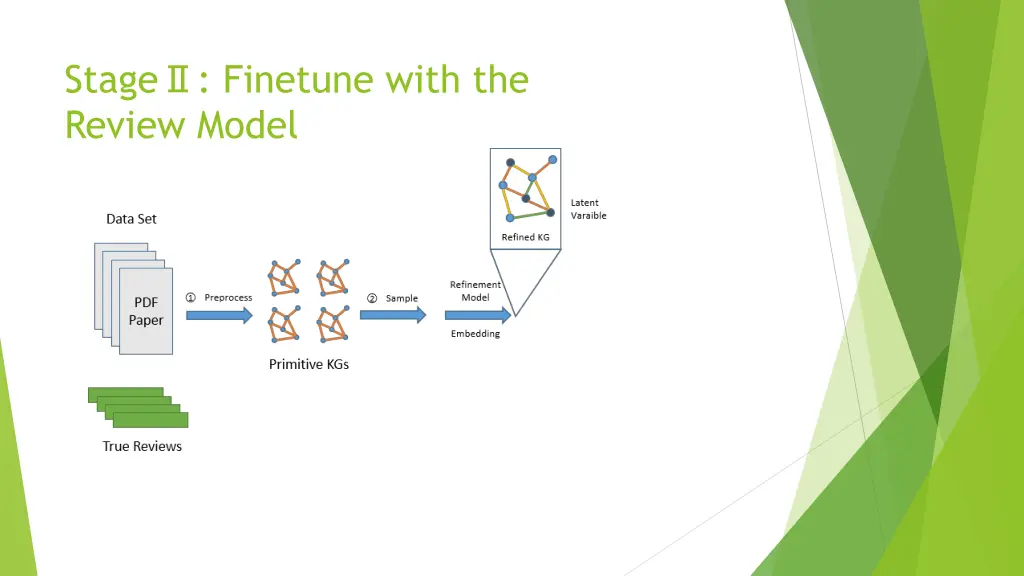

Stage: Finetune with the Review Model Unsupervised Learning Sub-Relations Lacks INFORMATION! Introduce More INFORMATION!!

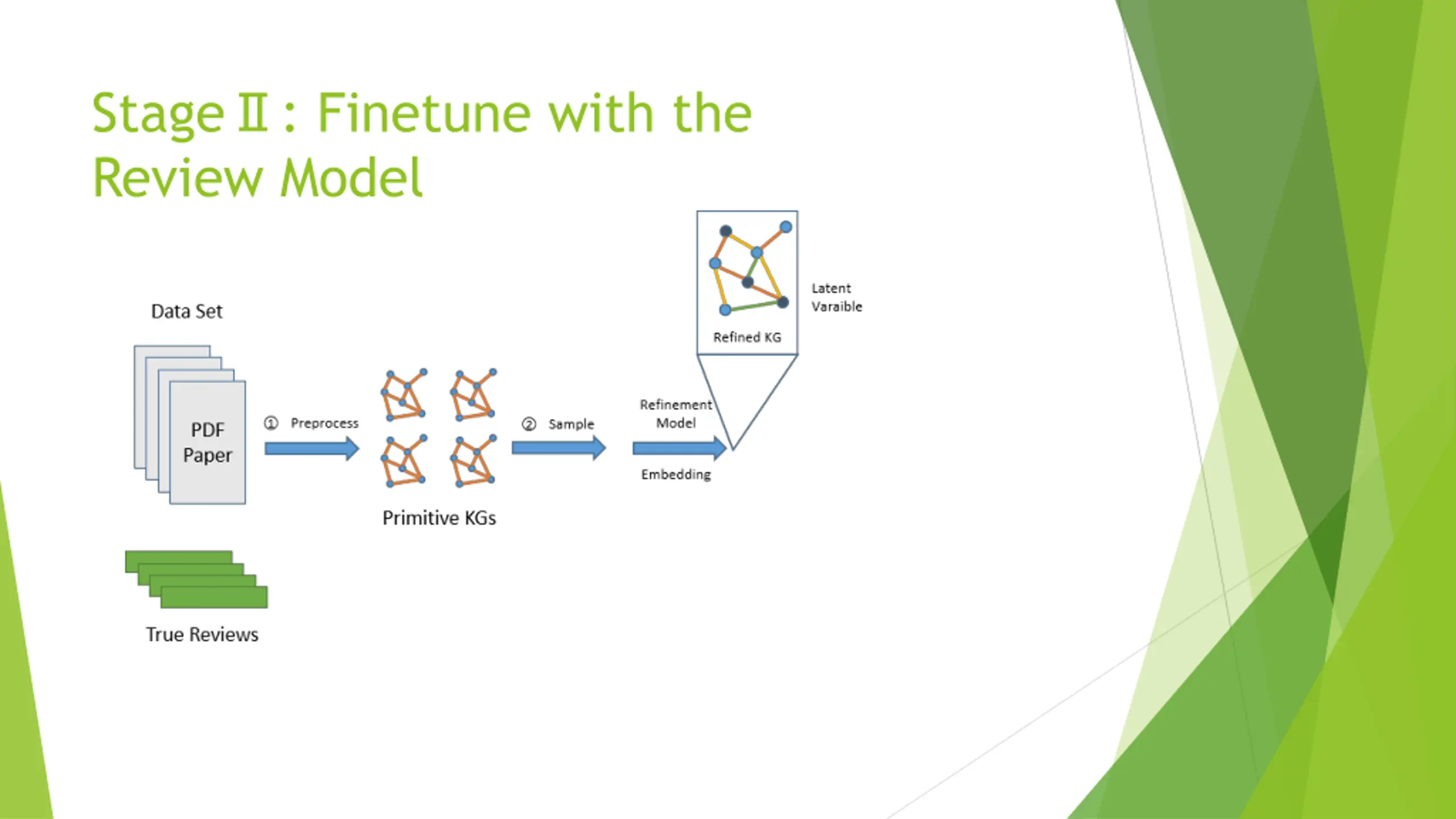

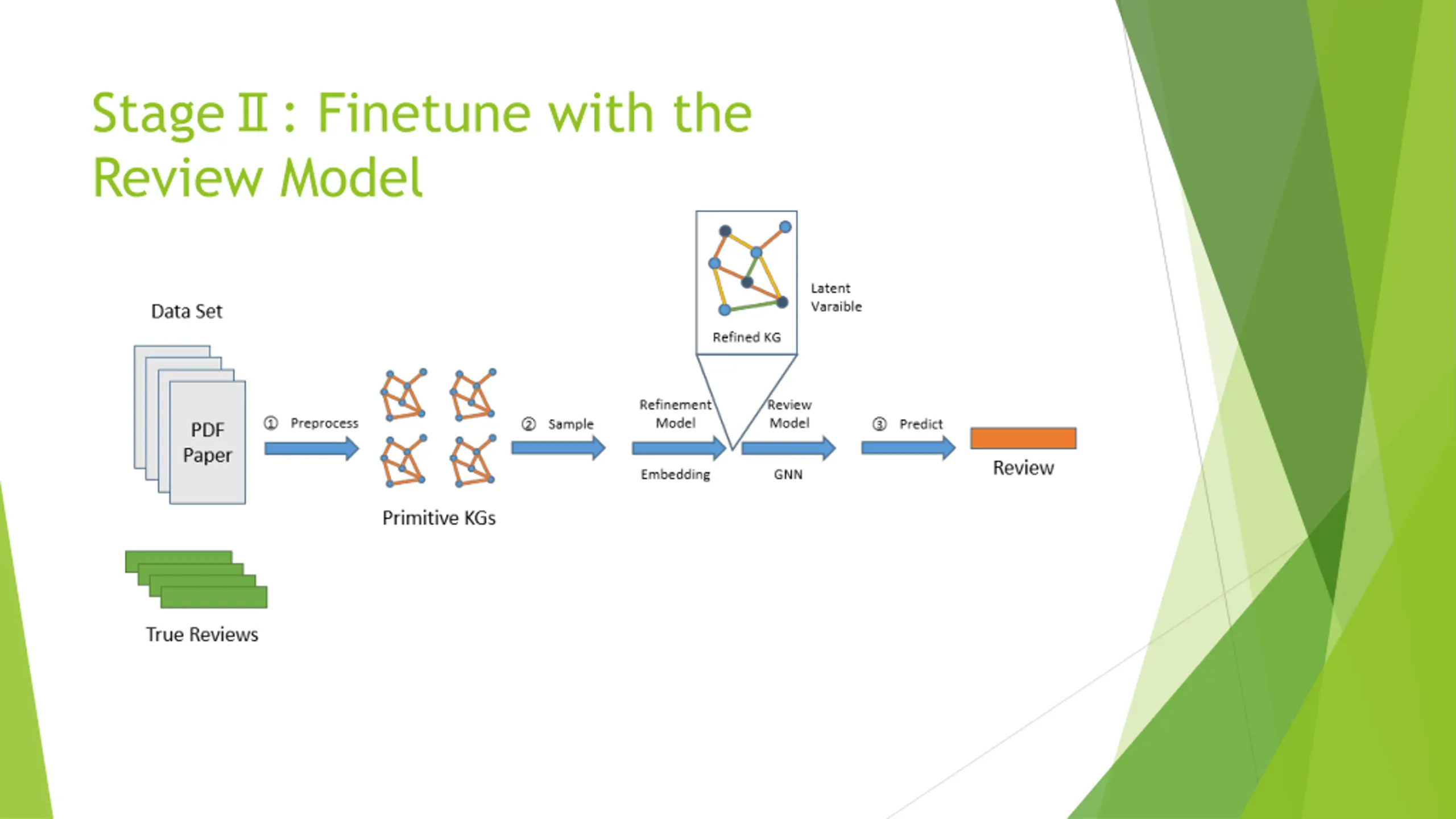

Stage: Finetune with the Review Model
Stage: Finetune with the Review Model
Stage: Finetune with the Review Model
Stage: Finetune with the Review Model
Stage: Finetune with the Review Model
Content 1. Introduction 2. Structural Information Extraction 3. Two-stage Refinement of Knowledge Graph 4. Conclusions

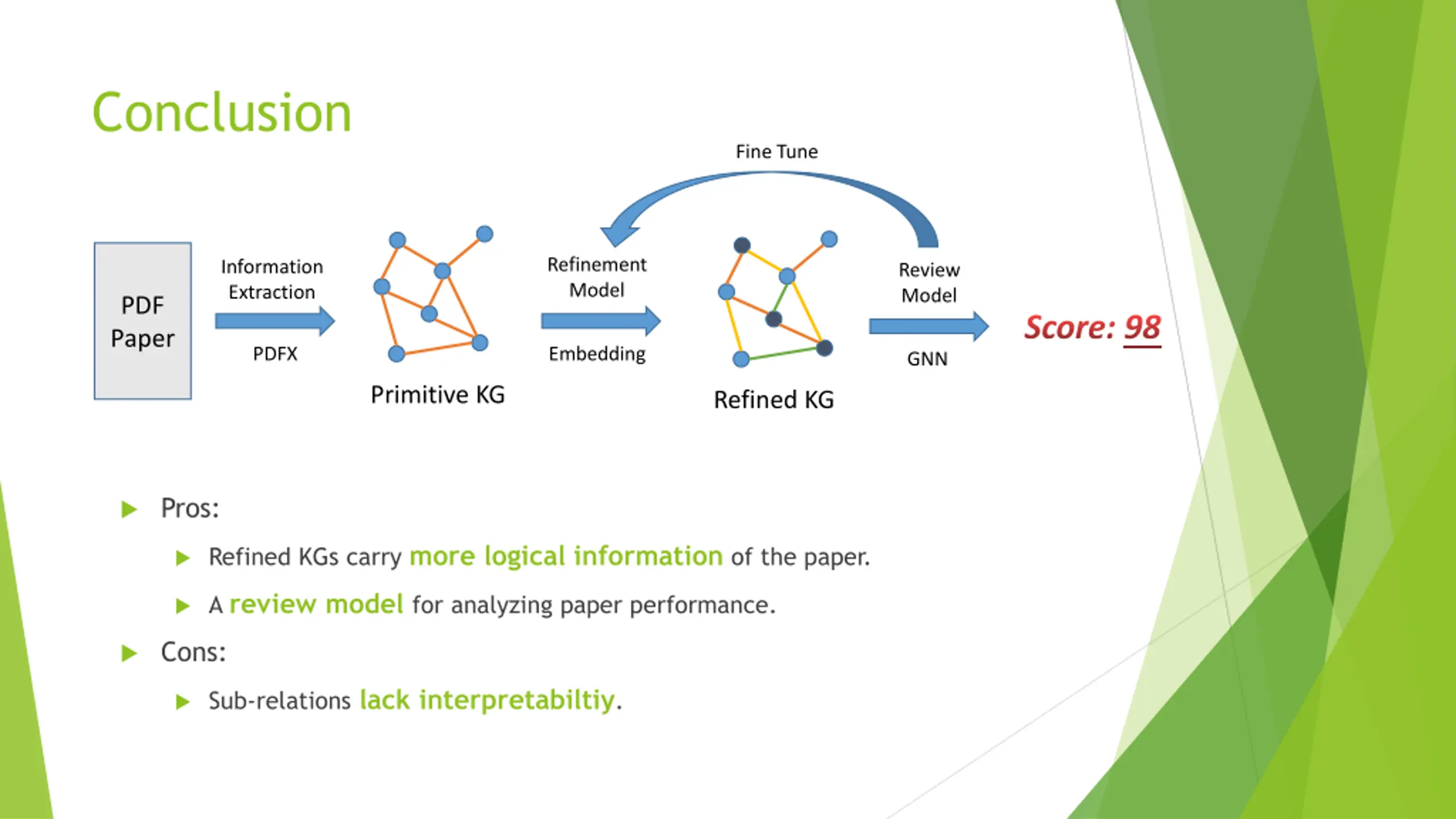

Conclusion Fine Tune Refinement Model Information Extraction Review Model PDF Paper Score: 98 PDFX Embedding GNN Primitive KG Refined KG Pros: Refined KGs carry more logical information of the paper. A review model for analyzing paper performance. Cons: Sub-relations lack interpretabiltiy.
