KS Series RF intell.

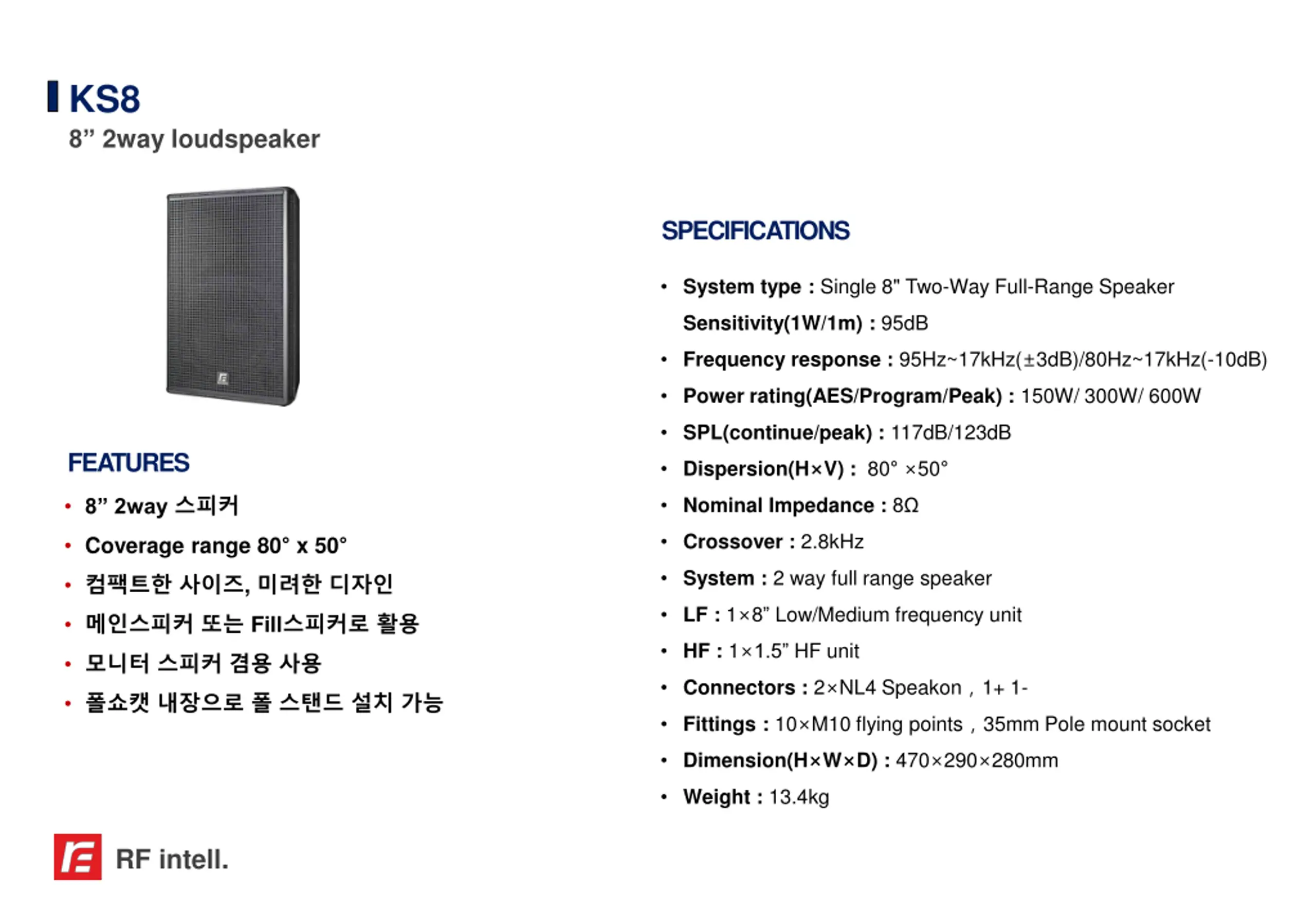

KS8 8 2way loudspeaker SPECIFICATIONS System type : Single 8" Two-Way Full-Range Speaker Sensitivity(1W/1m) : 95dB Frequency response : 95Hz~17kHz( 3dB)/80Hz~17kHz(-10dB) Power rating(AES/Program/Peak) : 150W/ 300W/ 600W SPL(continue/peak) : 117dB/123dB Dispersion(H V) : 80 50 FEATURES 8 2way Coverage range 80 x 50 , Fill Nominal Impedance : 8 Crossover : 2.8kHz System : 2 way full range speaker LF : 1 8 Low/Medium frequency unit HF : 1 1.5 HF unit Connectors : 2 NL4 Speakon 1+ 1- Fittings : 10 M10 flying points 35mm Pole mount socket Dimension(H W D) : 470 290 280mm Weight : 13.4kg RF intell.

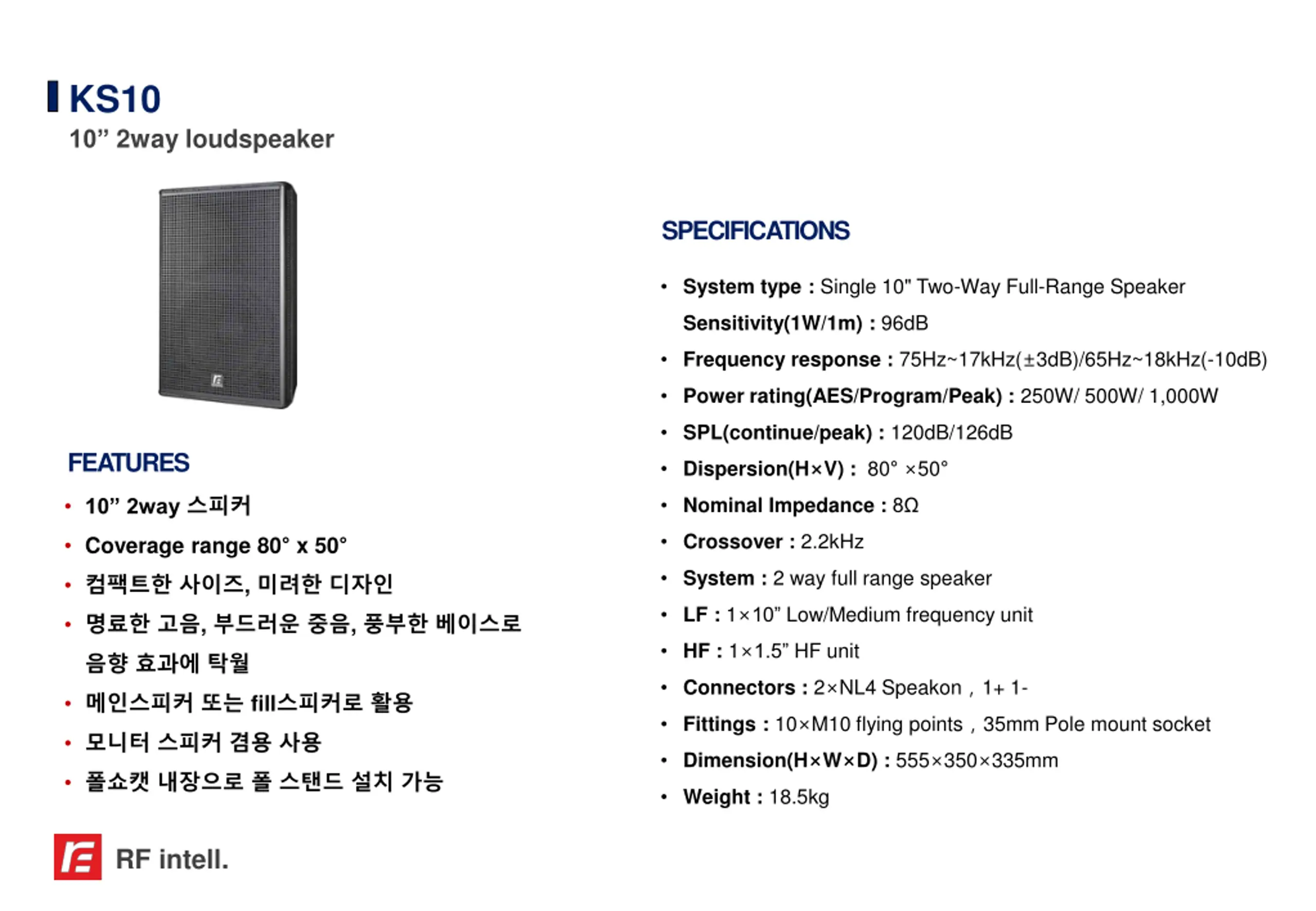

KS10 10 2way loudspeaker SPECIFICATIONS System type : Single 10" Two-Way Full-Range Speaker Sensitivity(1W/1m) : 96dB Frequency response : 75Hz~17kHz( 3dB)/65Hz~18kHz(-10dB) Power rating(AES/Program/Peak) : 250W/ 500W/ 1,000W SPL(continue/peak) : 120dB/126dB Dispersion(H V) : 80 50 FEATURES 10 2way Coverage range 80 x 50 , , , fill Nominal Impedance : 8 Crossover : 2.2kHz System : 2 way full range speaker LF : 1 10 Low/Medium frequency unit HF : 1 1.5 HF unit Connectors : 2 NL4 Speakon 1+ 1- Fittings : 10 M10 flying points 35mm Pole mount socket Dimension(H W D) : 555 350 335mm Weight : 18.5kg RF intell.

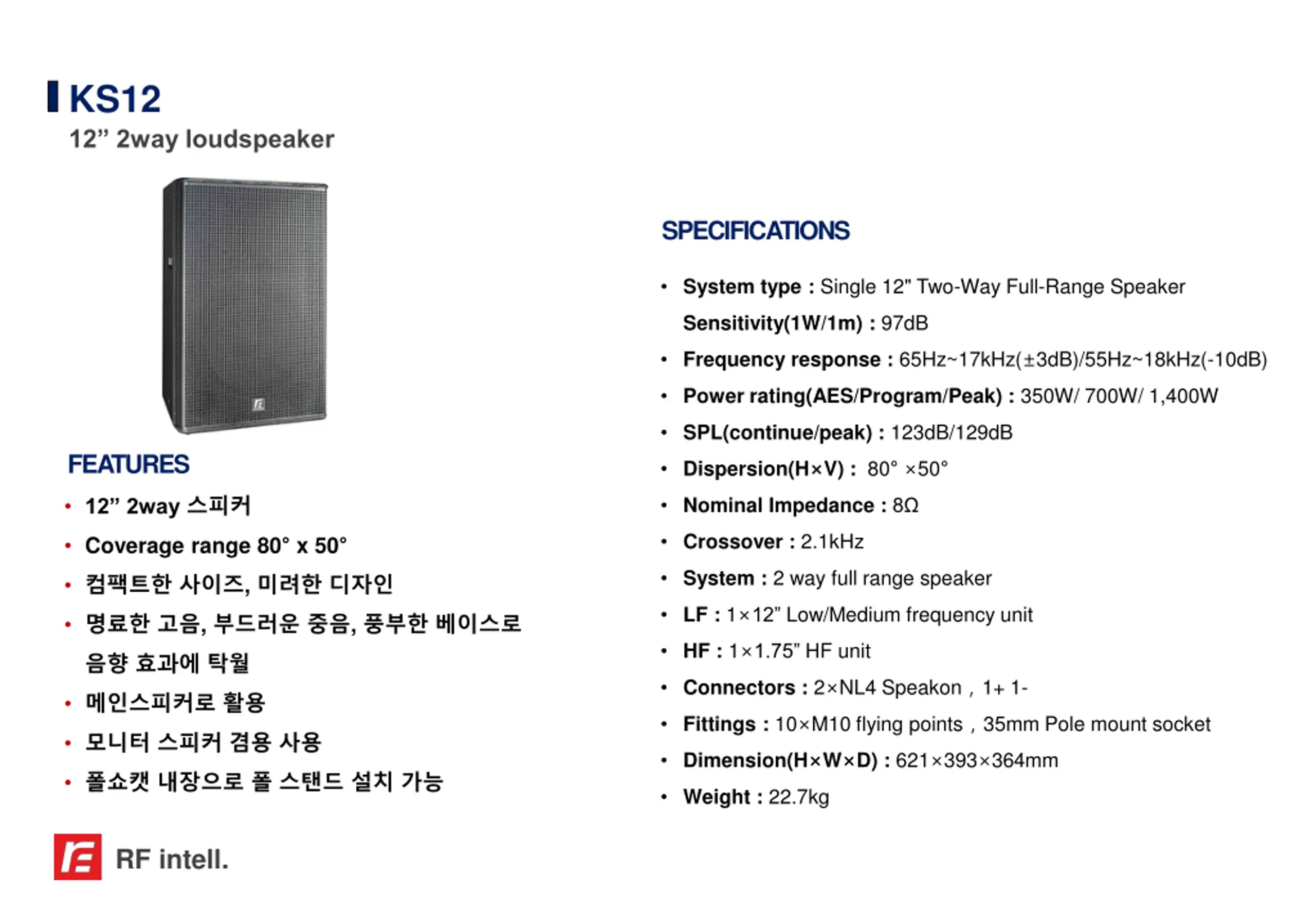

KS12 12 2way loudspeaker SPECIFICATIONS System type : Single 12" Two-Way Full-Range Speaker Sensitivity(1W/1m) : 97dB Frequency response : 65Hz~17kHz( 3dB)/55Hz~18kHz(-10dB) Power rating(AES/Program/Peak) : 350W/ 700W/ 1,400W SPL(continue/peak) : 123dB/129dB Dispersion(H V) : 80 50 FEATURES 12 2way Coverage range 80 x 50 , , , Nominal Impedance : 8 Crossover : 2.1kHz System : 2 way full range speaker LF : 1 12 Low/Medium frequency unit HF : 1 1.75 HF unit Connectors : 2 NL4 Speakon 1+ 1- Fittings : 10 M10 flying points 35mm Pole mount socket Dimension(H W D) : 621 393 364mm Weight : 22.7kg RF intell.

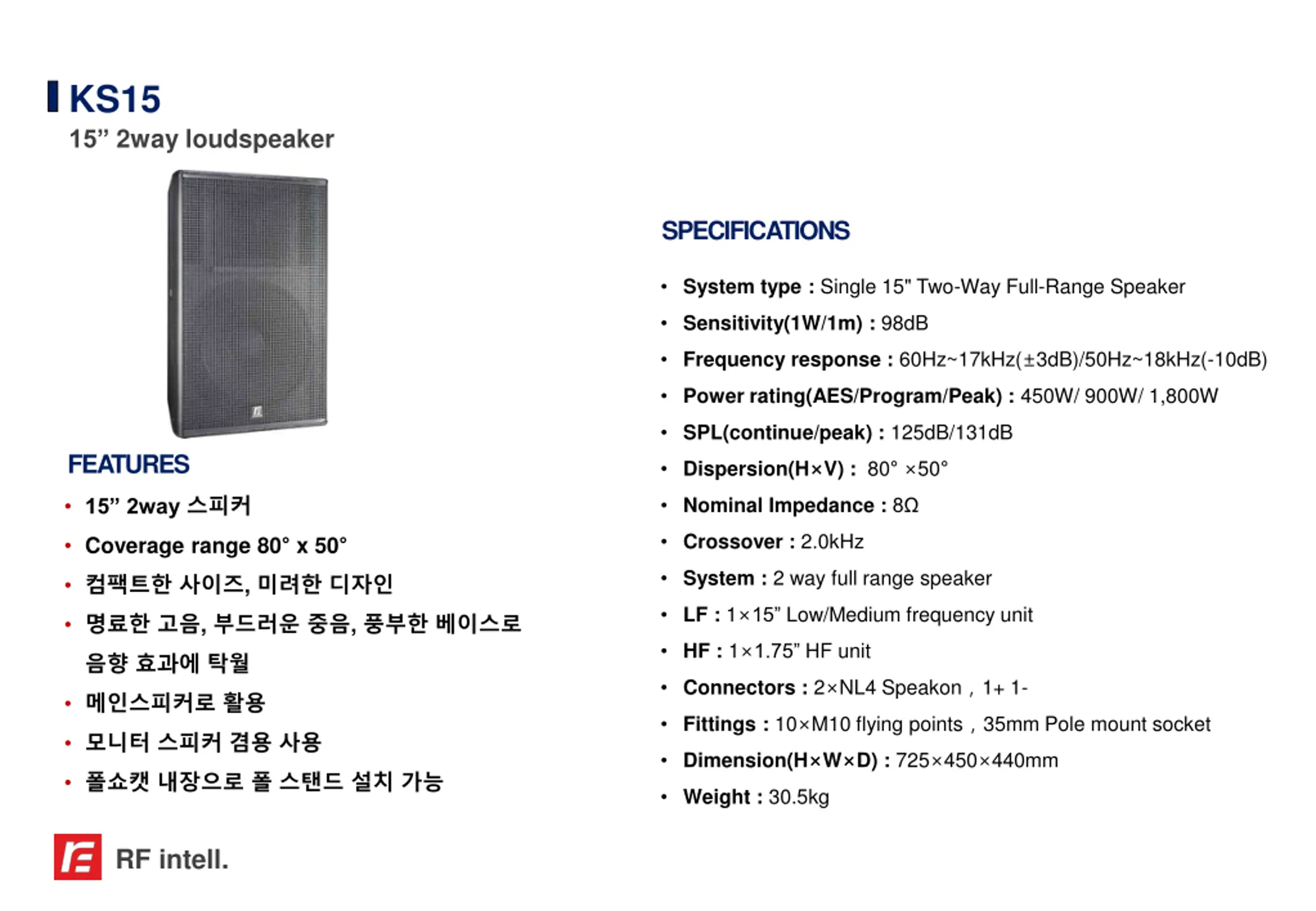

KS15 15 2way loudspeaker SPECIFICATIONS System type : Single 15" Two-Way Full-Range Speaker Sensitivity(1W/1m) : 98dB Frequency response : 60Hz~17kHz( 3dB)/50Hz~18kHz(-10dB) Power rating(AES/Program/Peak) : 450W/ 900W/ 1,800W SPL(continue/peak) : 125dB/131dB Dispersion(H V) : 80 50 FEATURES 15 2way Coverage range 80 x 50 , , , Nominal Impedance : 8 Crossover : 2.0kHz System : 2 way full range speaker LF : 1 15 Low/Medium frequency unit HF : 1 1.75 HF unit Connectors : 2 NL4 Speakon 1+ 1- Fittings : 10 M10 flying points 35mm Pole mount socket Dimension(H W D) : 725 450 440mm Weight : 30.5kg RF intell.
L Series RF intell.

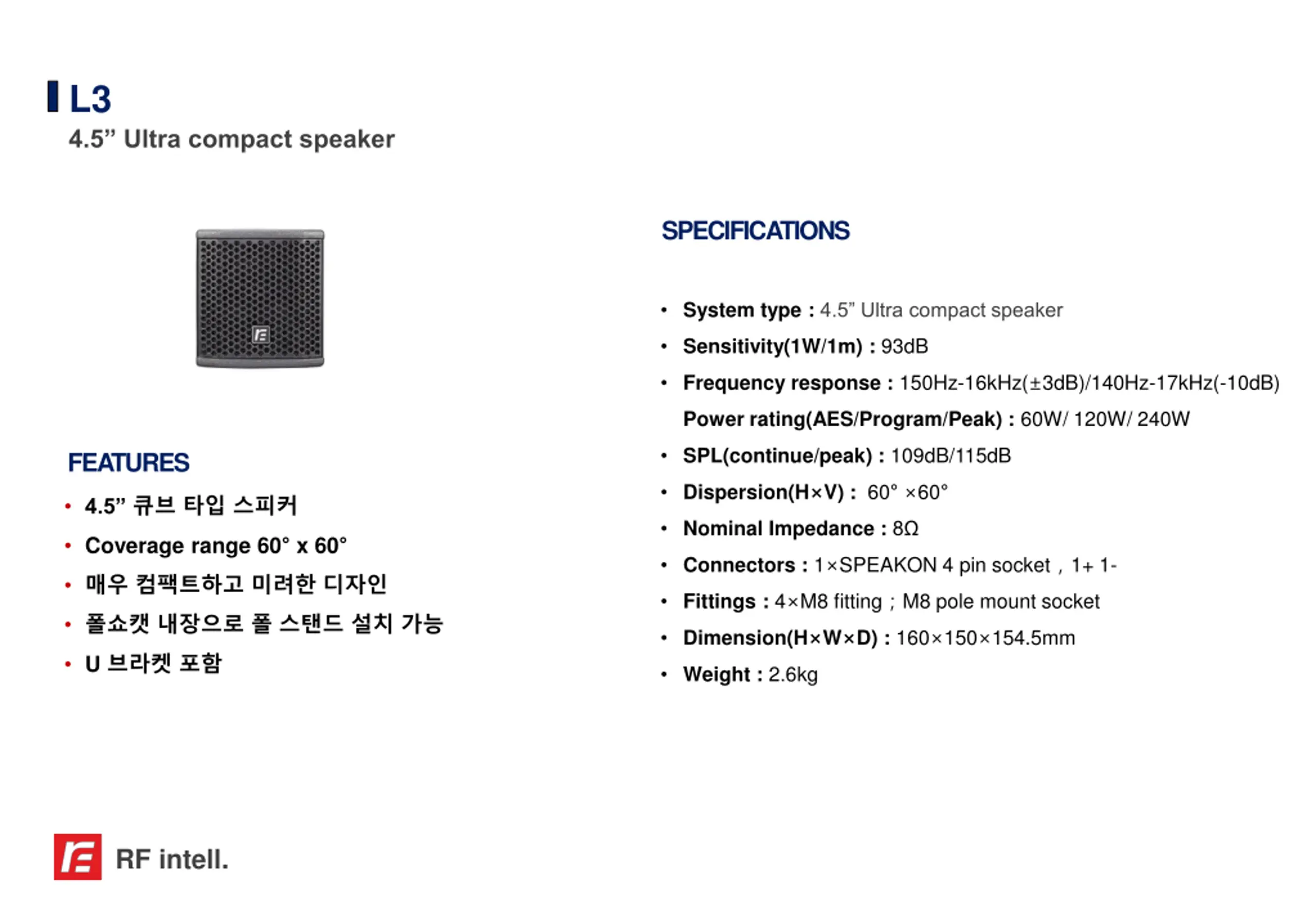

L3 4.5 Ultra compact speaker SPECIFICATIONS System type : 4.5 Ultra compact speaker Sensitivity(1W/1m) : 93dB Frequency response : 150Hz-16kHz( 3dB)/140Hz-17kHz(-10dB) Power rating(AES/Program/Peak) : 60W/ 120W/ 240W SPL(continue/peak) : 109dB/115dB Dispersion(H V) : 60 60 FEATURES 4.5 Coverage range 60 x 60 U Nominal Impedance : 8 Connectors : 1 SPEAKON 4 pin socket 1+ 1- Fittings : 4 M8 fitting M8 pole mount socket Dimension(H W D) : 160 150 154.5mm Weight : 2.6kg RF intell.

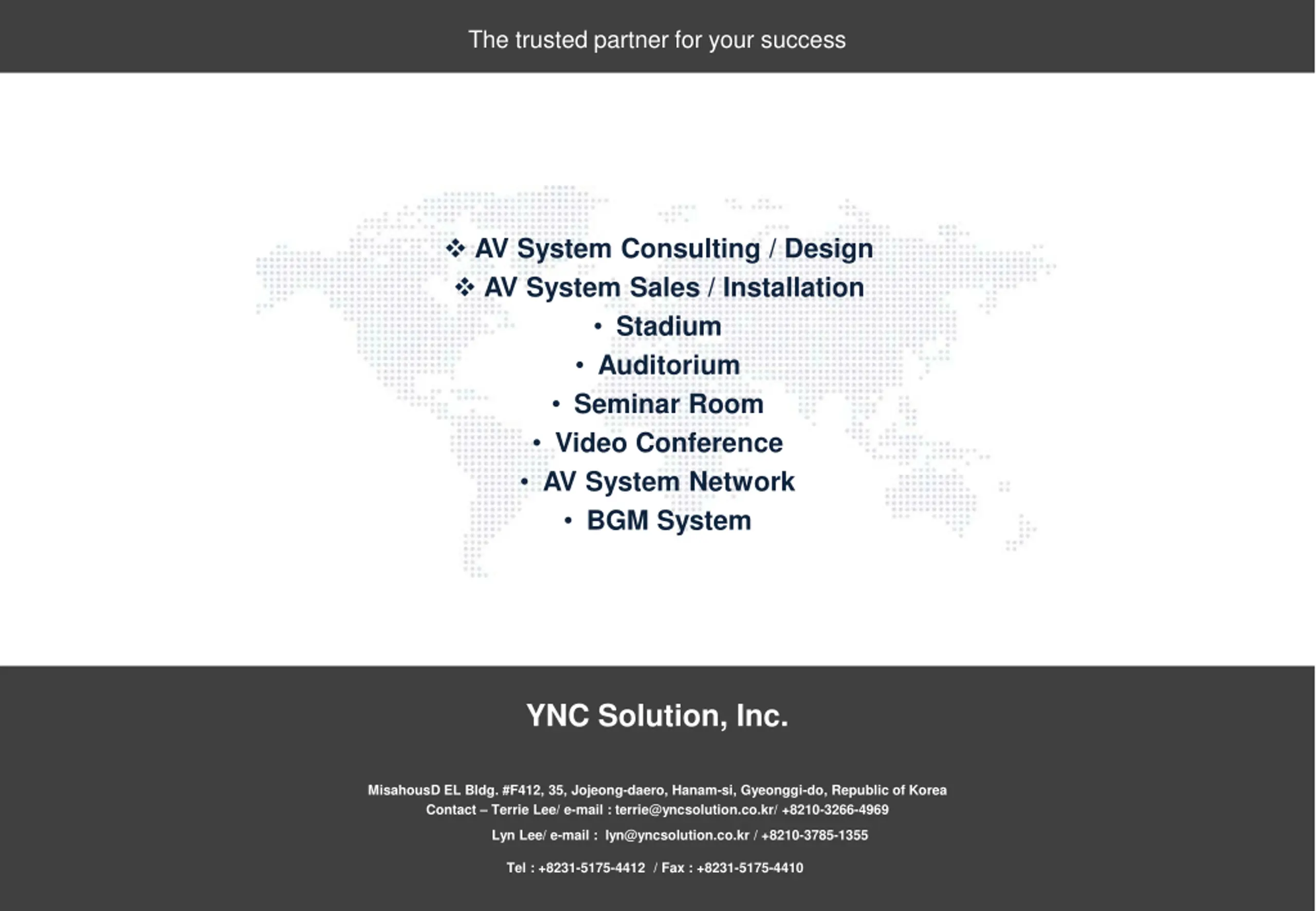

The trusted partner for your success AV System Consulting / Design AV System Sales / Installation Stadium Auditorium Seminar Room Video Conference AV System Network BGM System YNC Solution, Inc. MisahousD EL Bldg. #F412, 35, Jojeong-daero, Hanam-si, Gyeonggi-do, Republic of Korea Contact Terrie Lee/ e-mail : terrie@yncsolution.co.kr/ +8210-3266-4969 Lyn Lee/ e-mail : lyn@yncsolution.co.kr / +8210-3785-1355 Tel : +8231-5175-4412 / Fax : +8231-5175-4410
