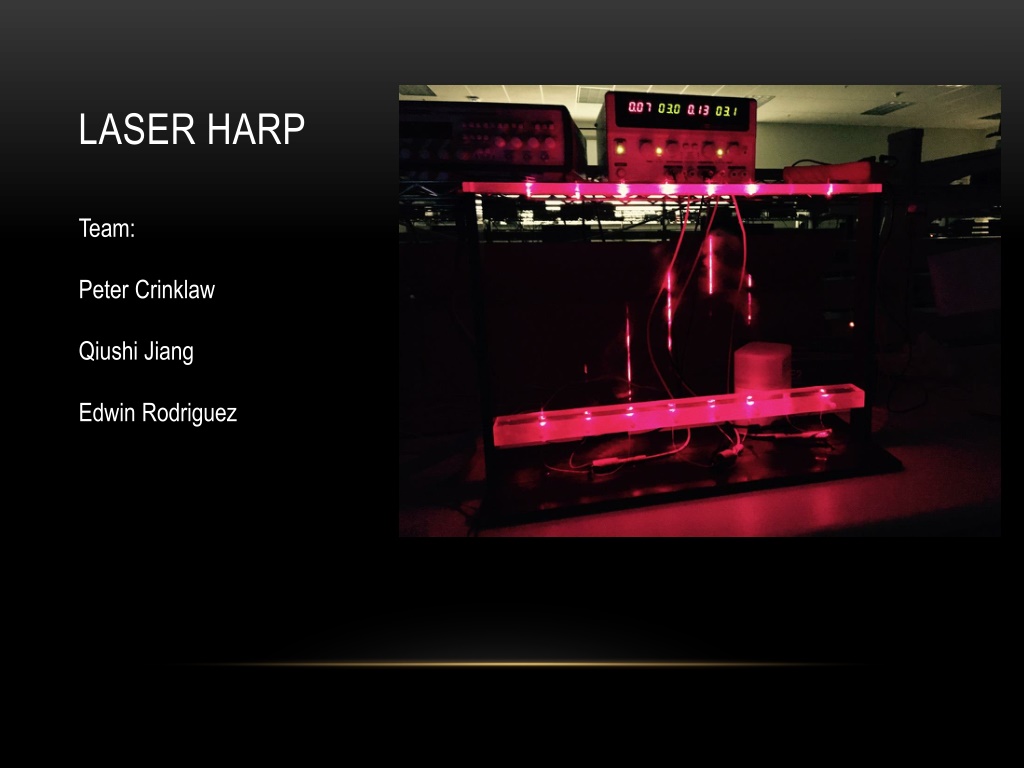

LASER HARP Team: Peter Crinklaw Qiushi Jiang Edwin Rodriguez

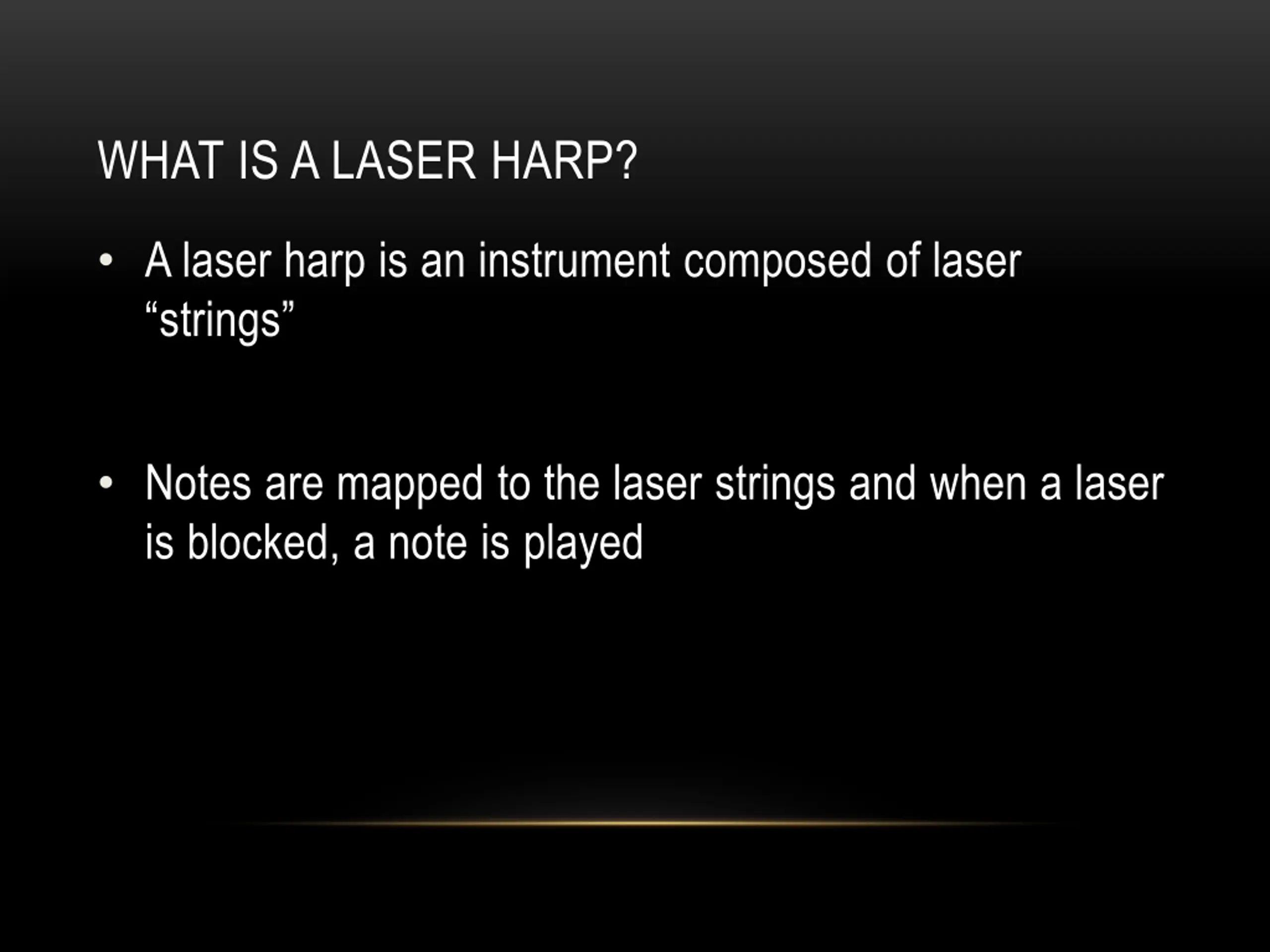

WHAT IS A LASER HARP? A laser harp is an instrument composed of laser strings Notes are mapped to the laser strings and when a laser is blocked, a note is played

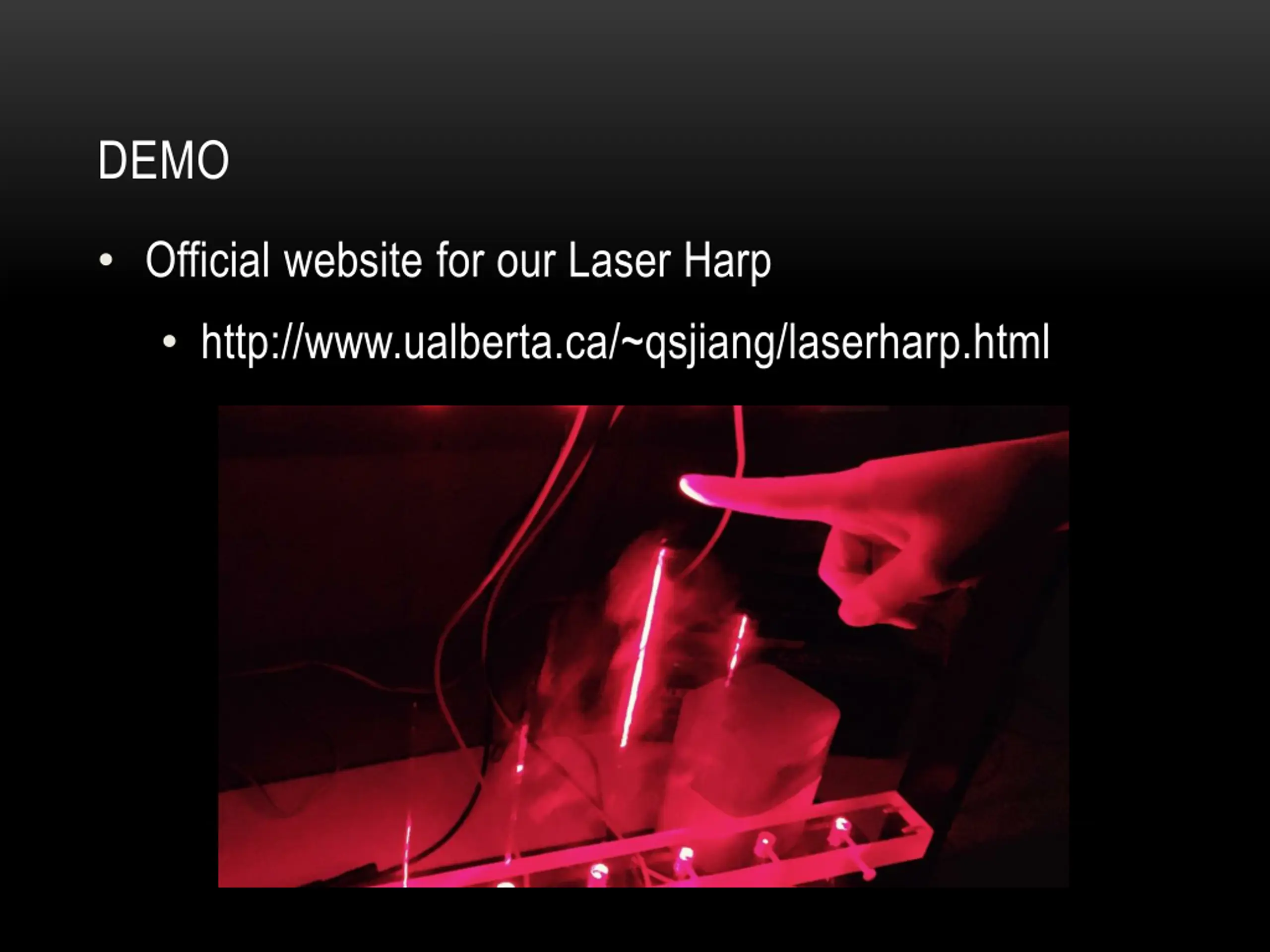

DEMO Official website for our Laser Harp http://www.ualberta.ca/~qsjiang/laserharp.html

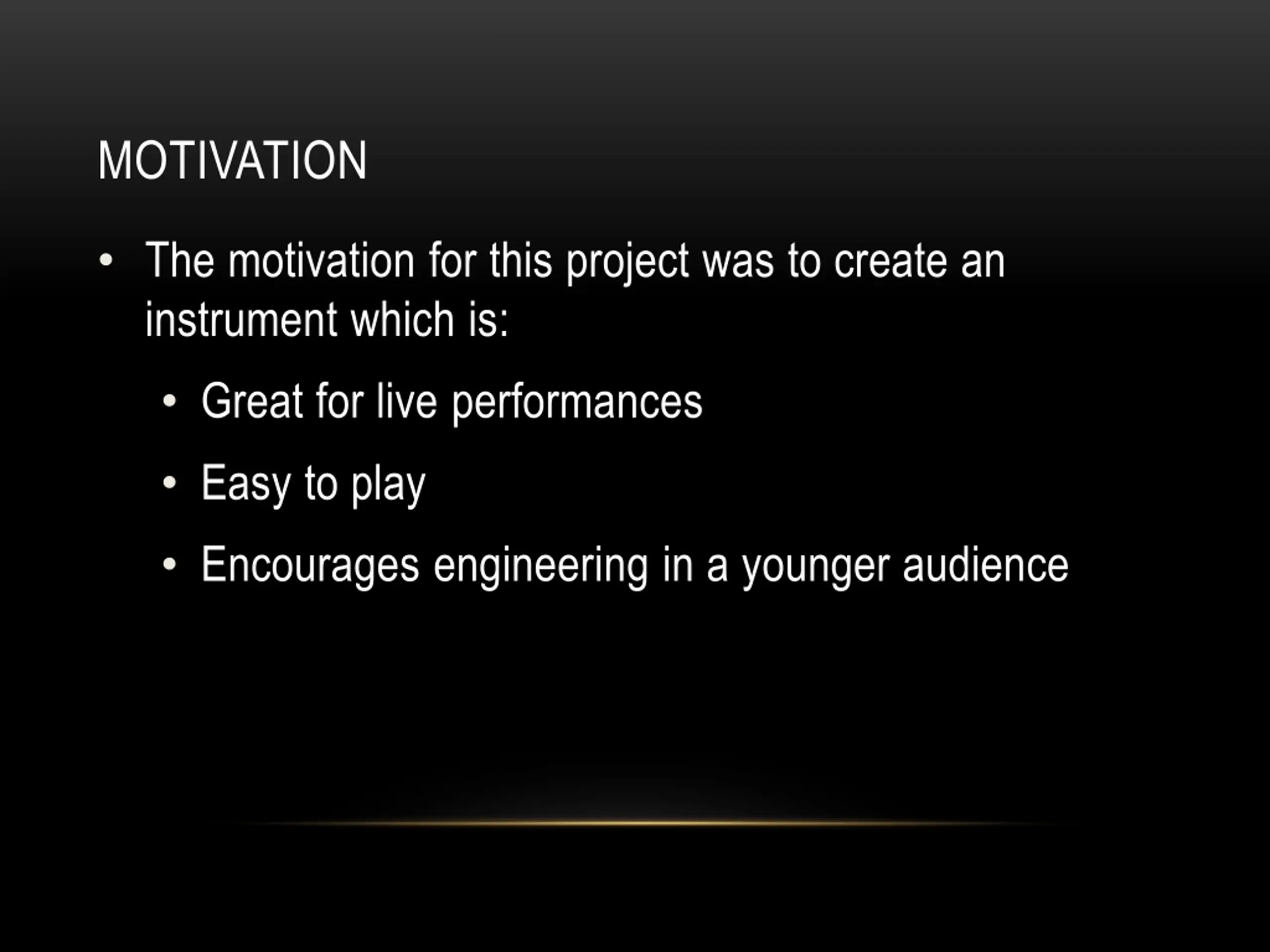

MOTIVATION The motivation for this project was to create an instrument which is: Great for live performances Easy to play Encourages engineering in a younger audience

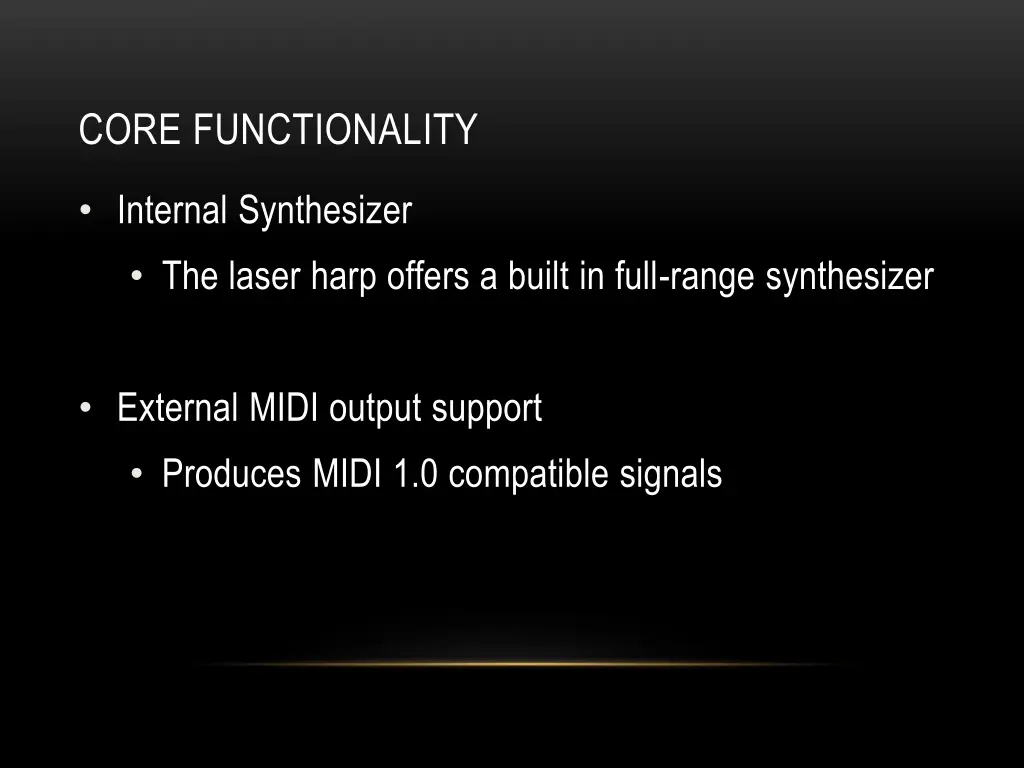

CORE FUNCTIONALITY Internal Synthesizer The laser harp offers a built in full-range synthesizer External MIDI output support Produces MIDI 1.0 compatible signals

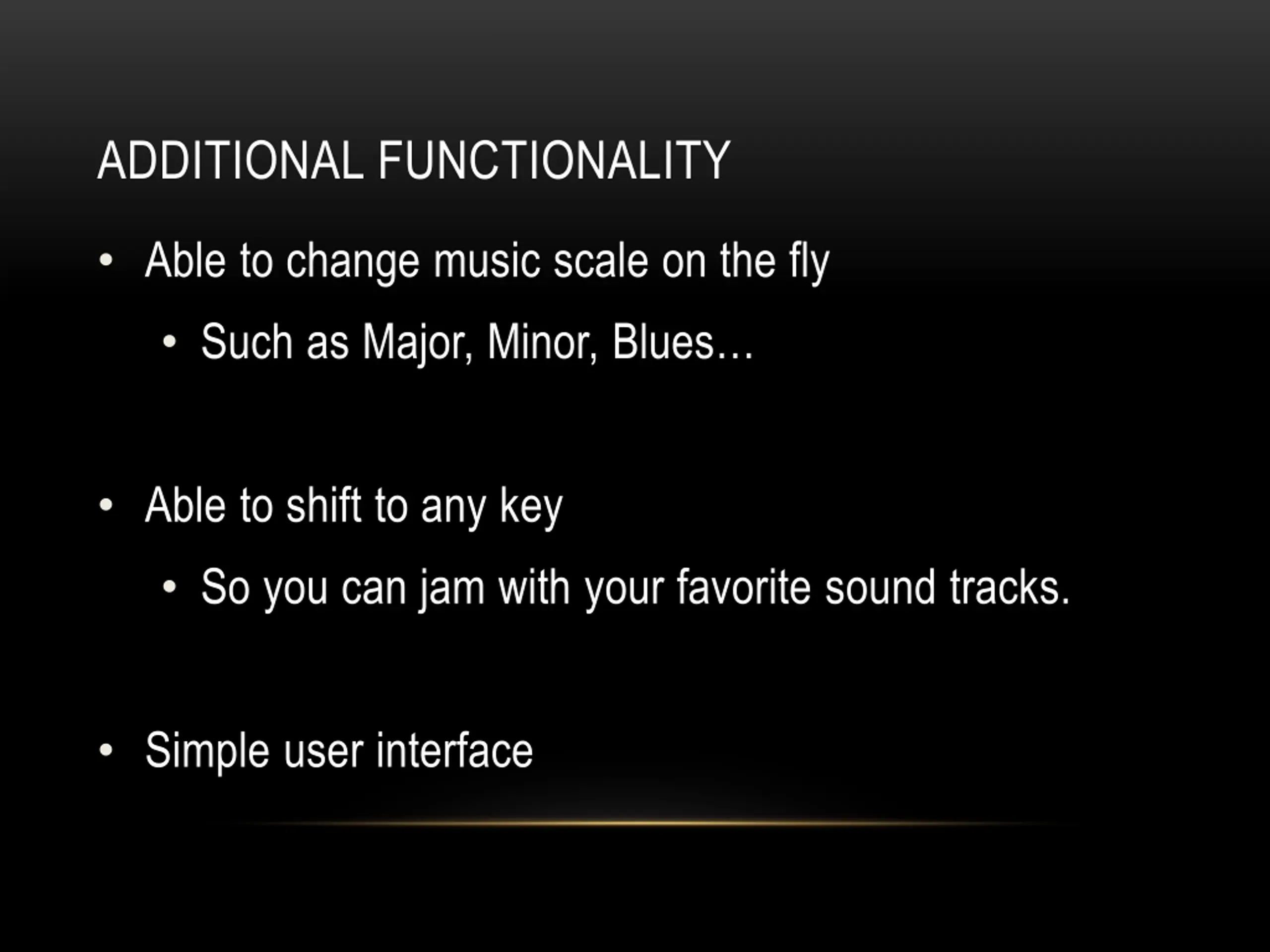

ADDITIONAL FUNCTIONALITY Able to change music scale on the fly Such as Major, Minor, Blues Able to shift to any key So you can jam with your favorite sound tracks. Simple user interface

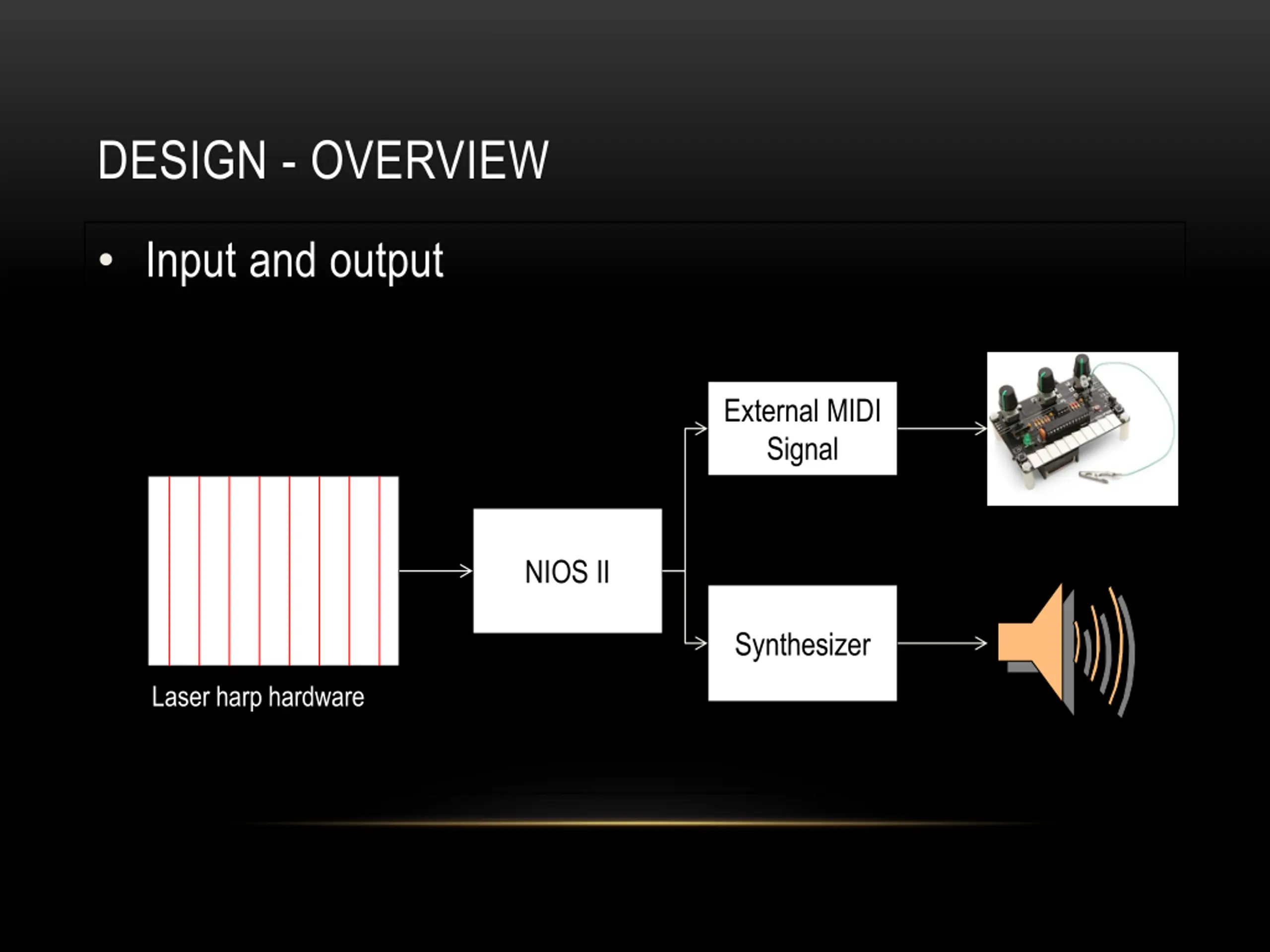

DESIGN - OVERVIEW Input and output External MIDI Signal NIOS II Synthesizer Laser harp hardware

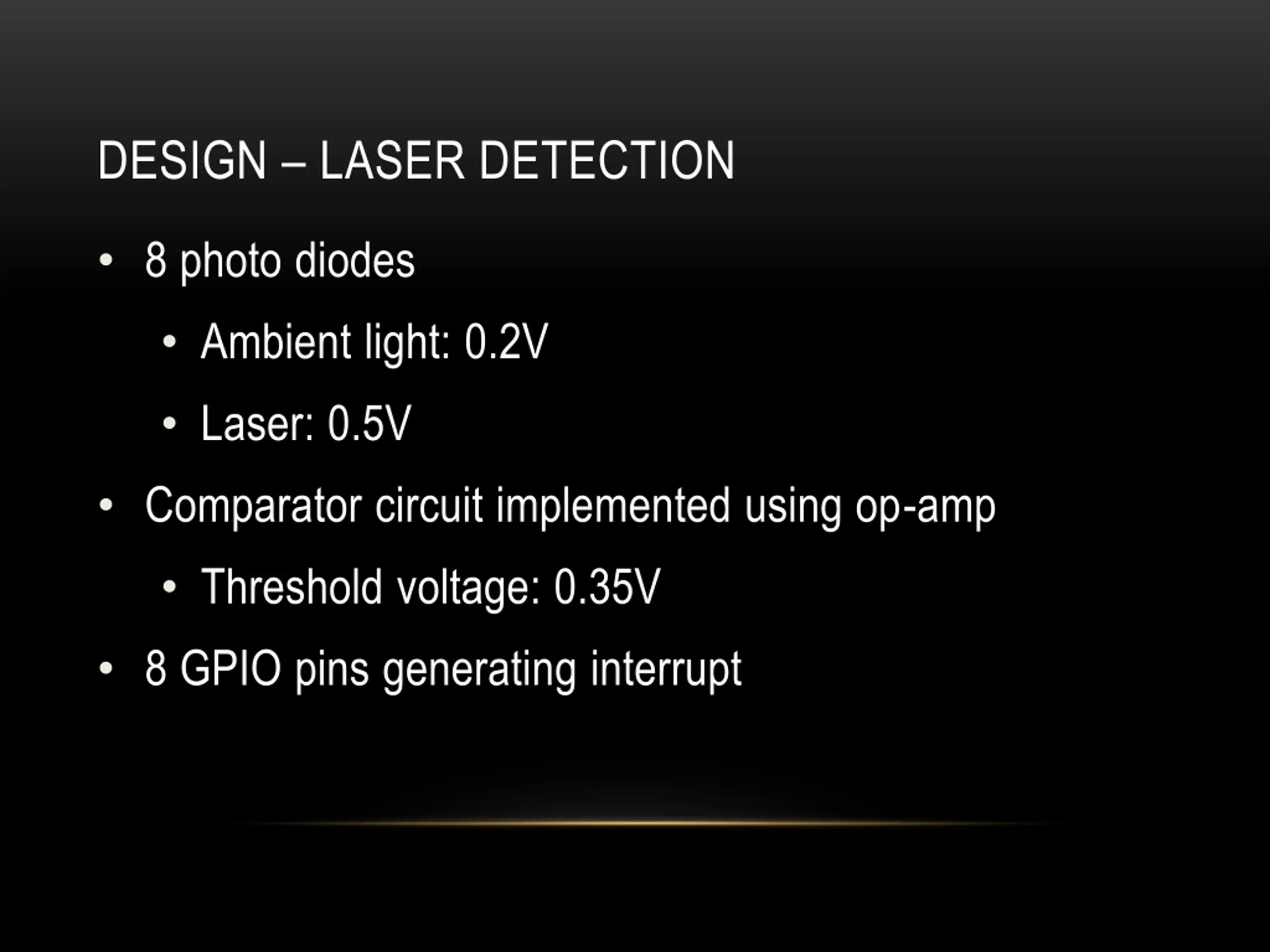

DESIGN LASER DETECTION 8 photo diodes Ambient light: 0.2V Laser: 0.5V Comparator circuit implemented using op-amp Threshold voltage: 0.35V 8 GPIO pins generating interrupt

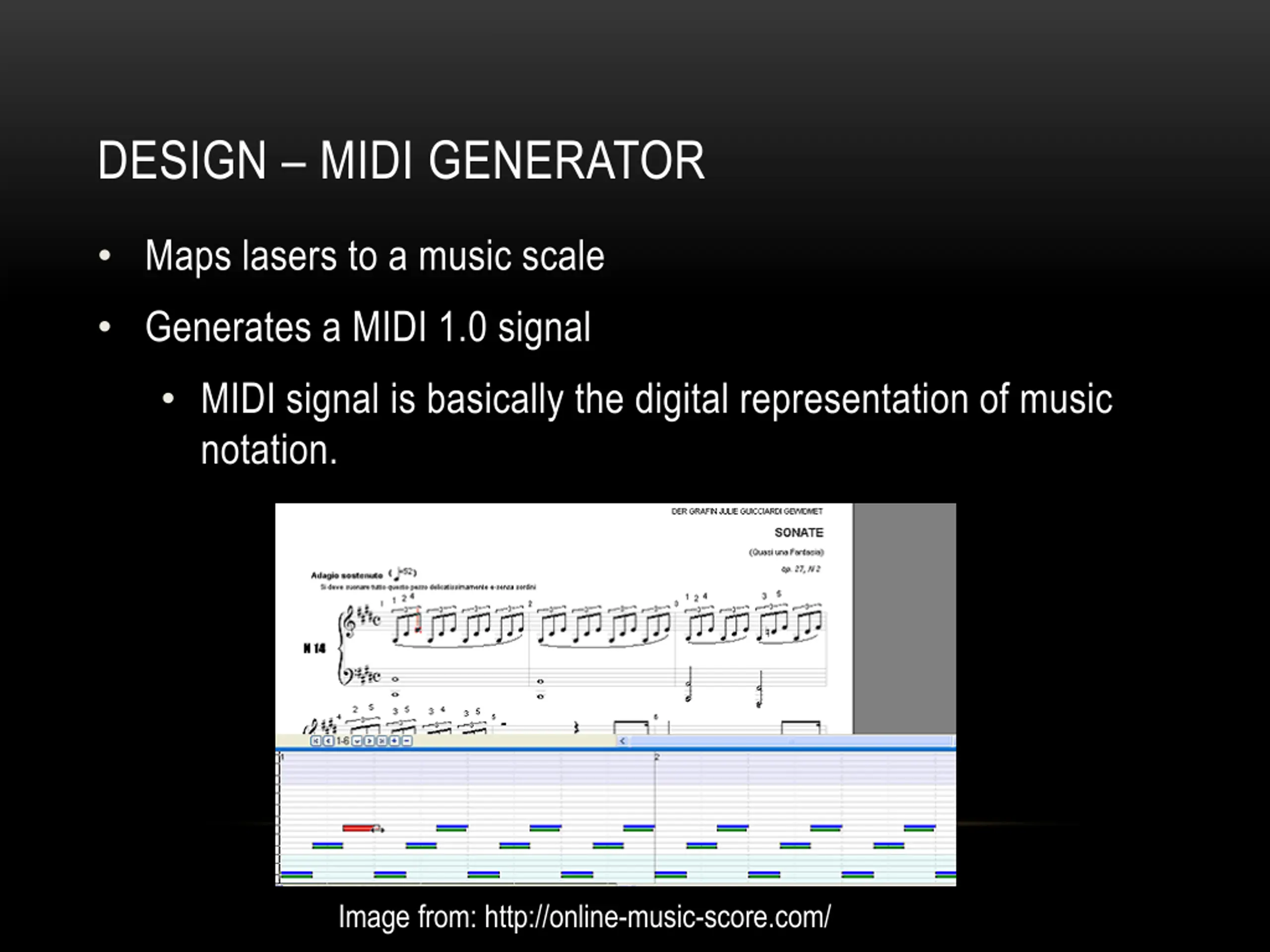

DESIGN MIDI GENERATOR Maps lasers to a music scale Generates a MIDI 1.0 signal MIDI signal is basically the digital representation of music notation. Image from: http://online-music-score.com/

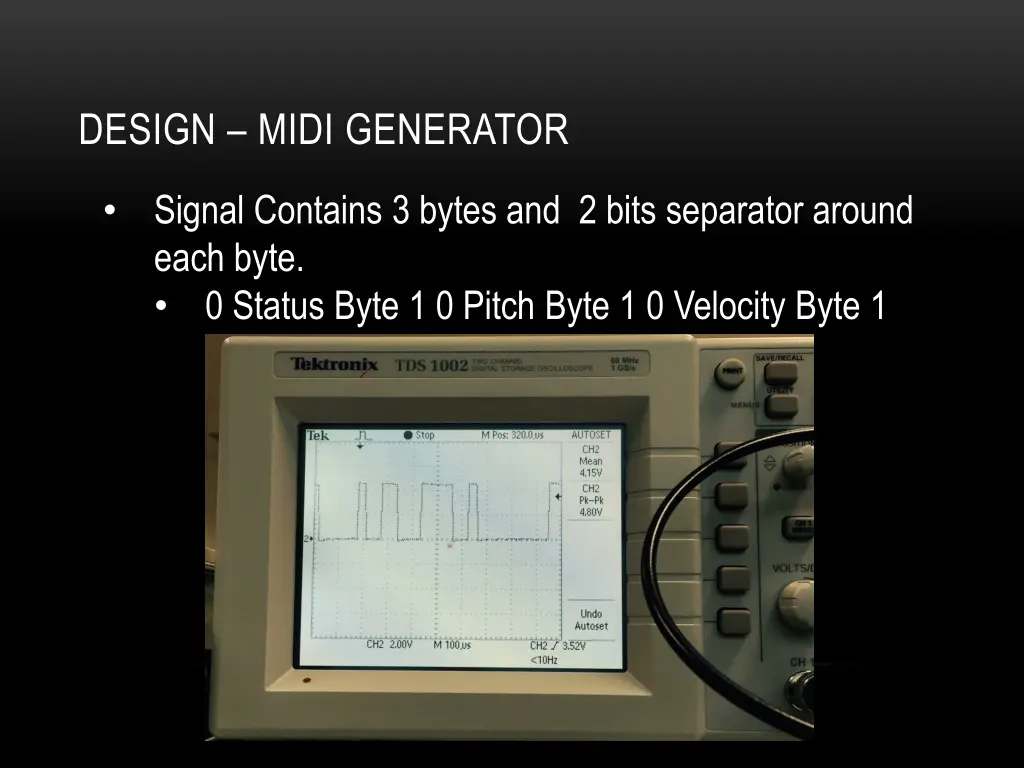

DESIGN MIDI GENERATOR Signal Contains 3 bytes and 2 bits separator around each byte. 0 Status Byte 1 0 Pitch Byte 1 0 Velocity Byte 1

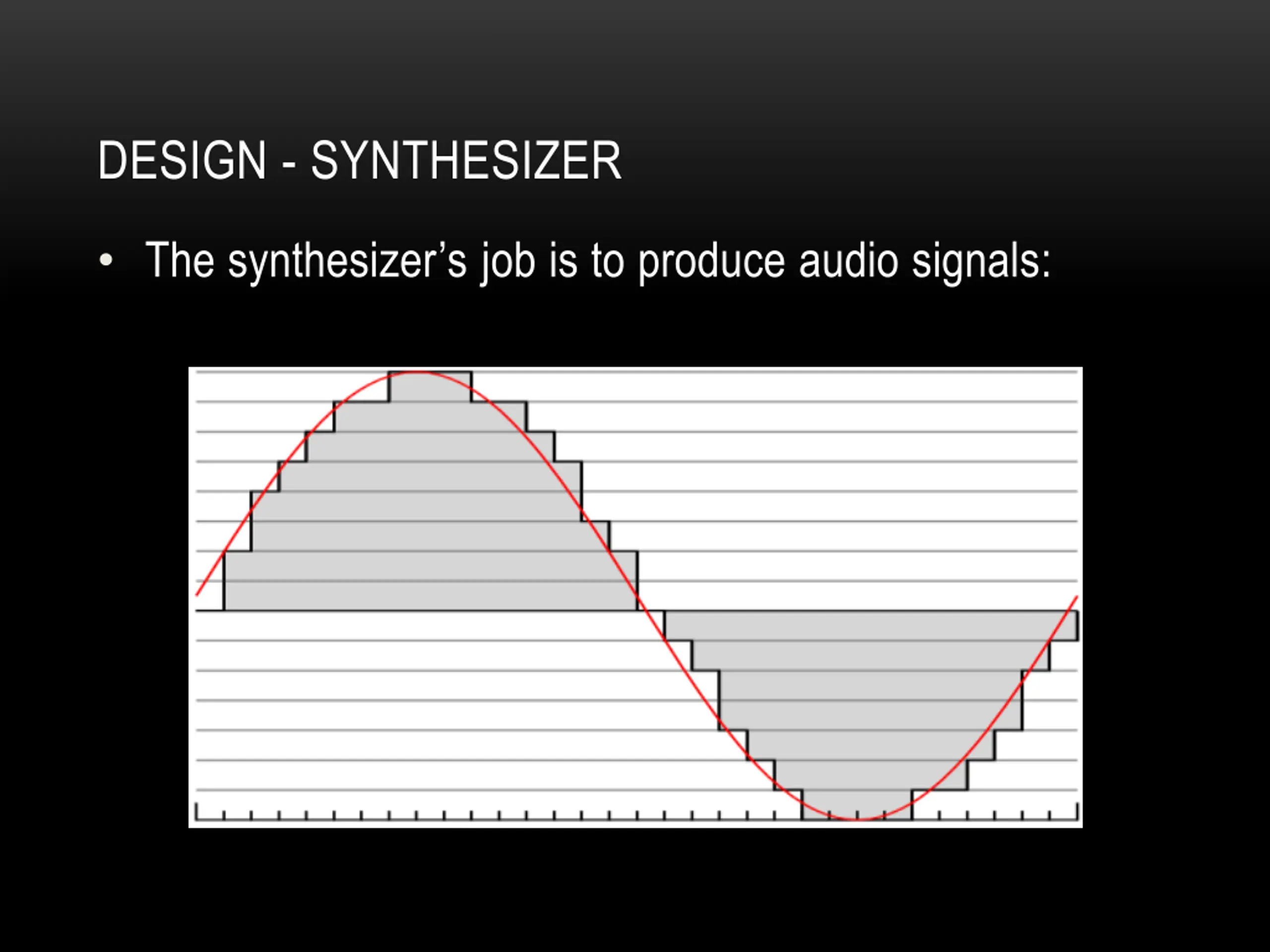

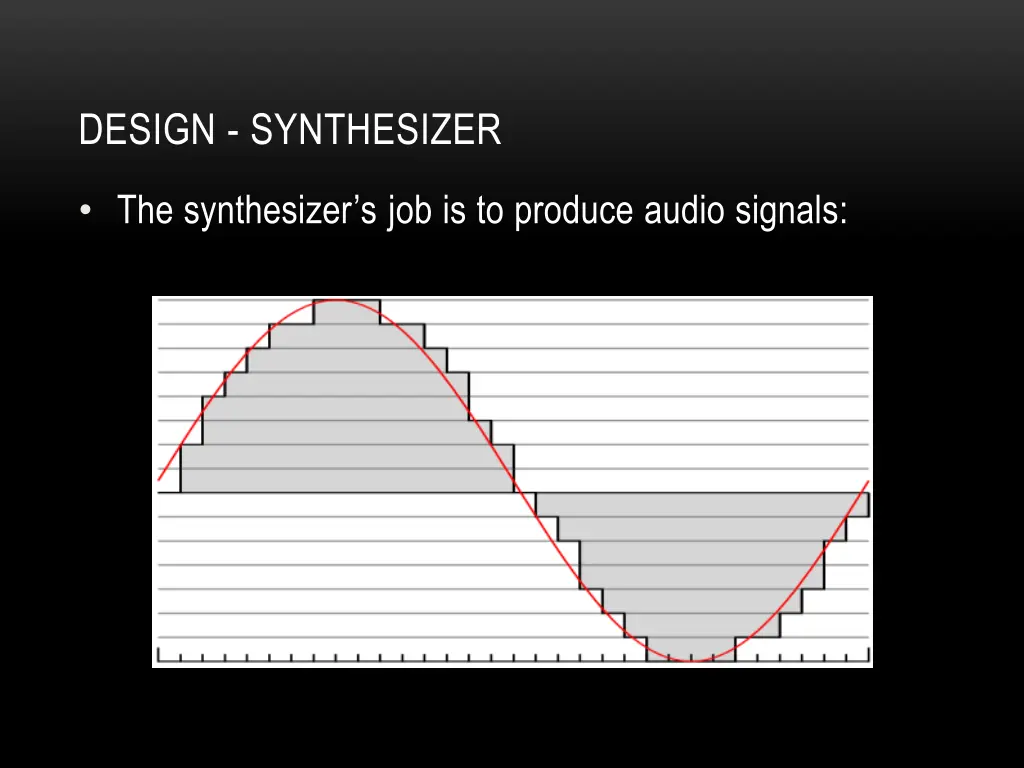

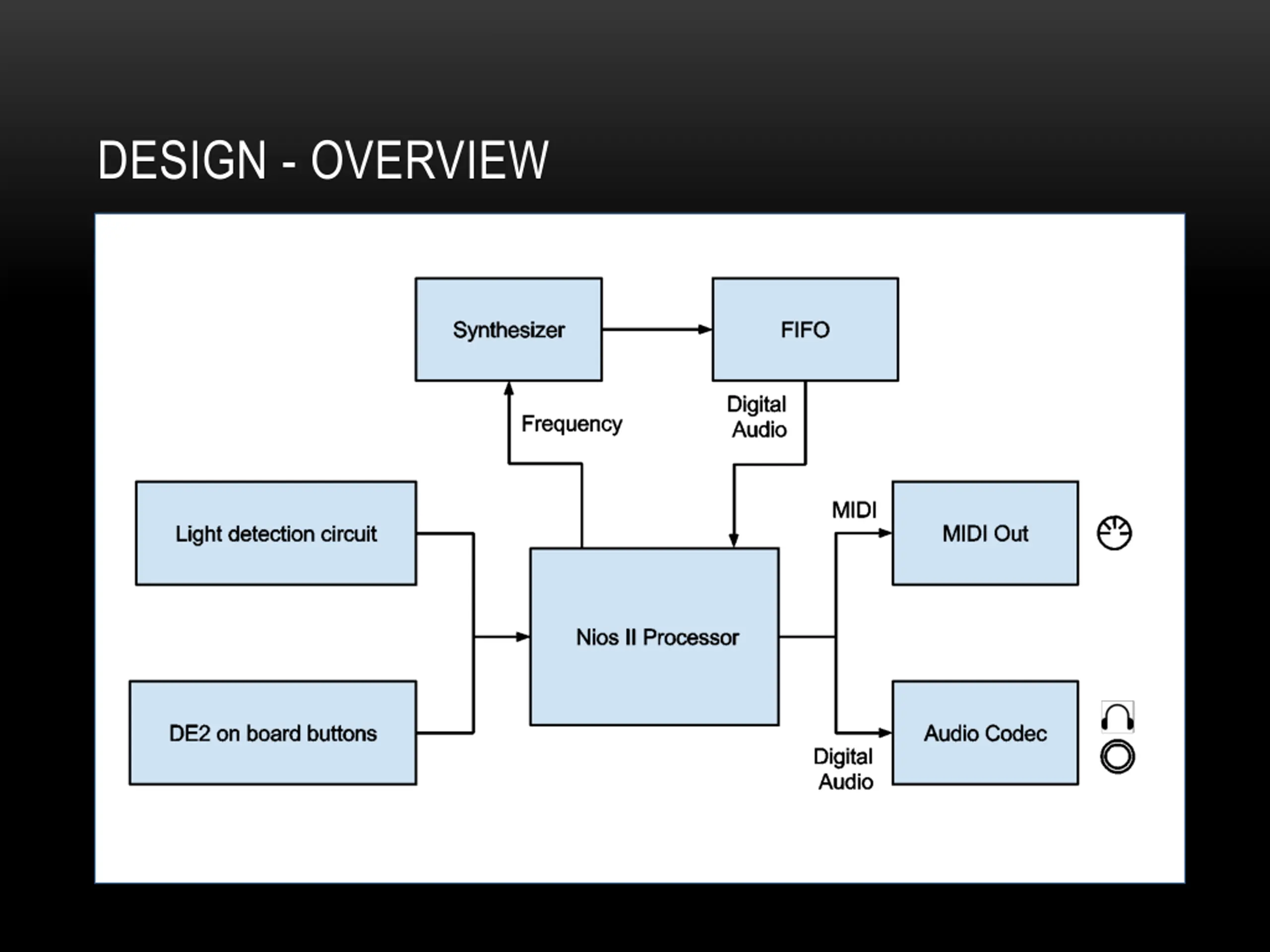

DESIGN - SYNTHESIZER The synthesizer s job is to produce audio signals:

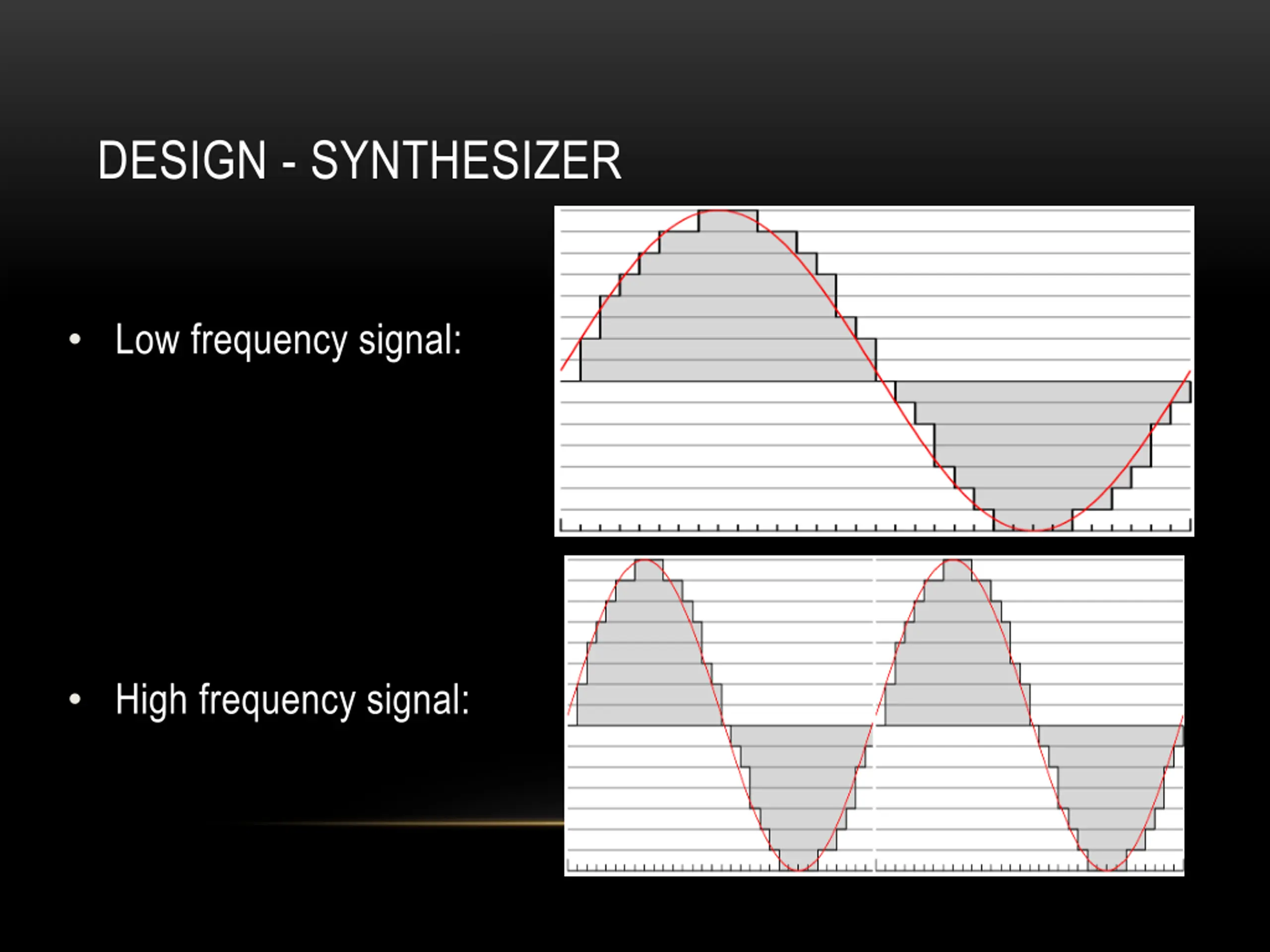

DESIGN - SYNTHESIZER Low frequency signal: High frequency signal:

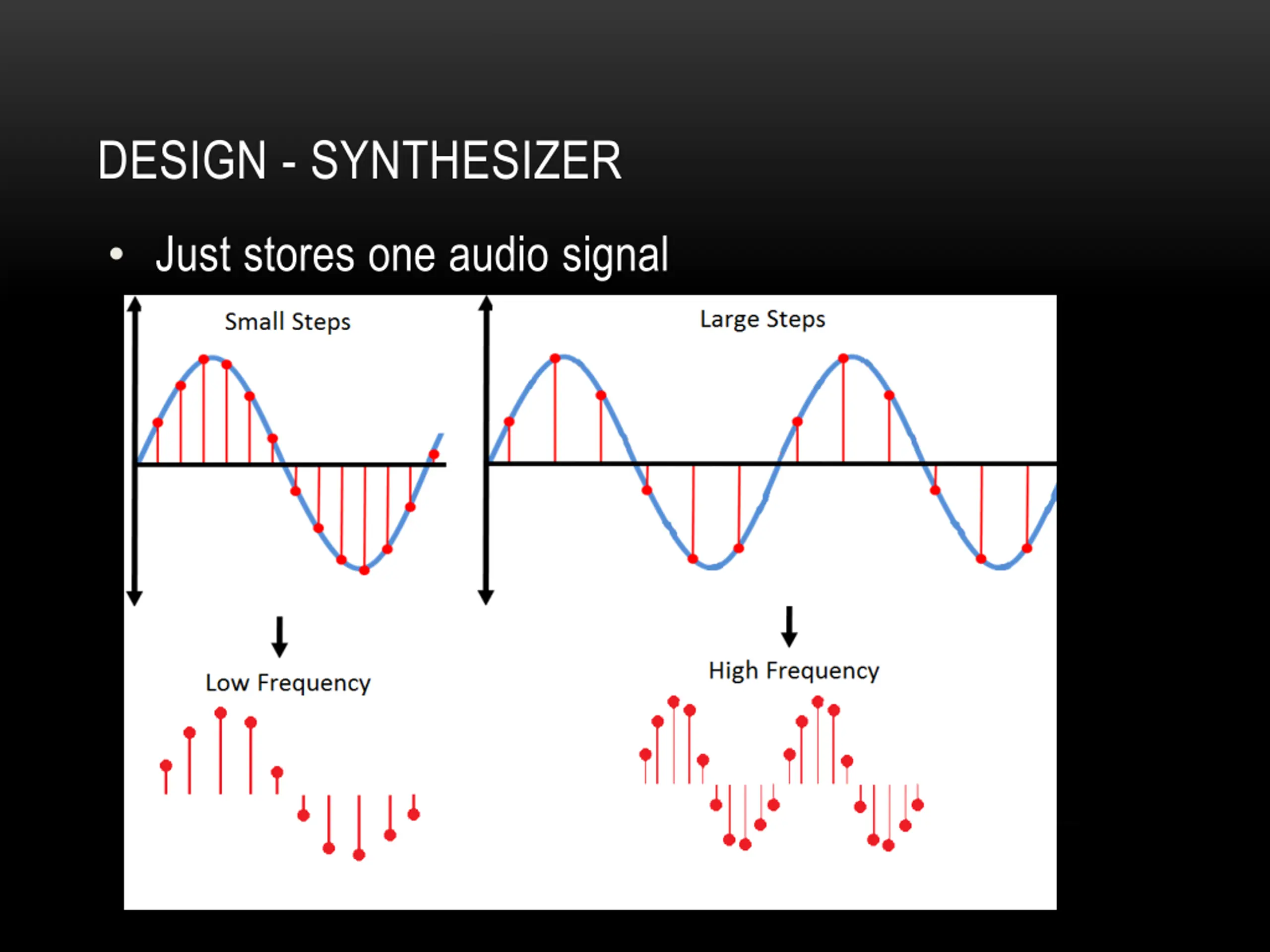

DESIGN - SYNTHESIZER Just stores one audio signal

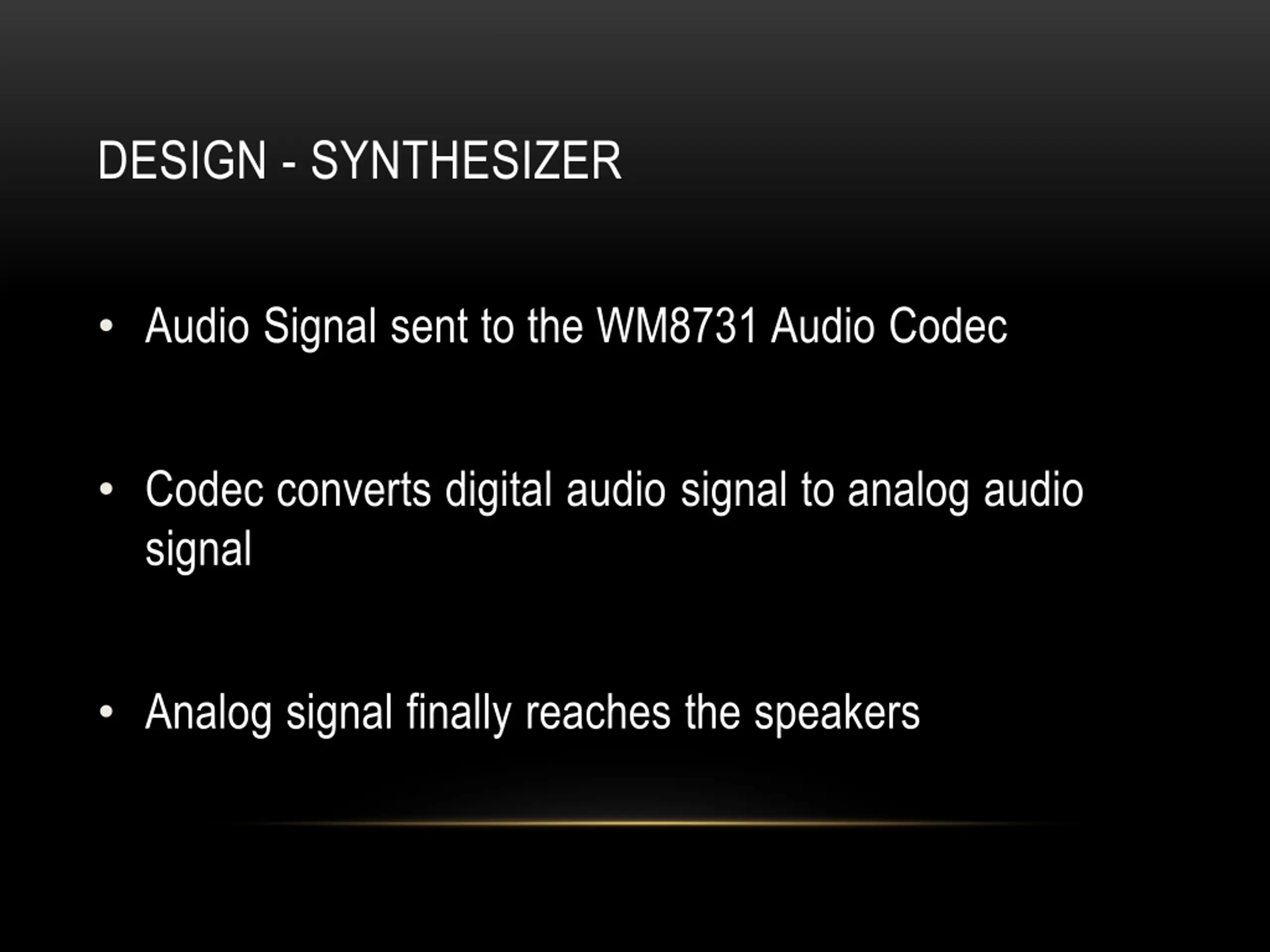

DESIGN - SYNTHESIZER Audio Signal sent to the WM8731 Audio Codec Codec converts digital audio signal to analog audio signal Analog signal finally reaches the speakers

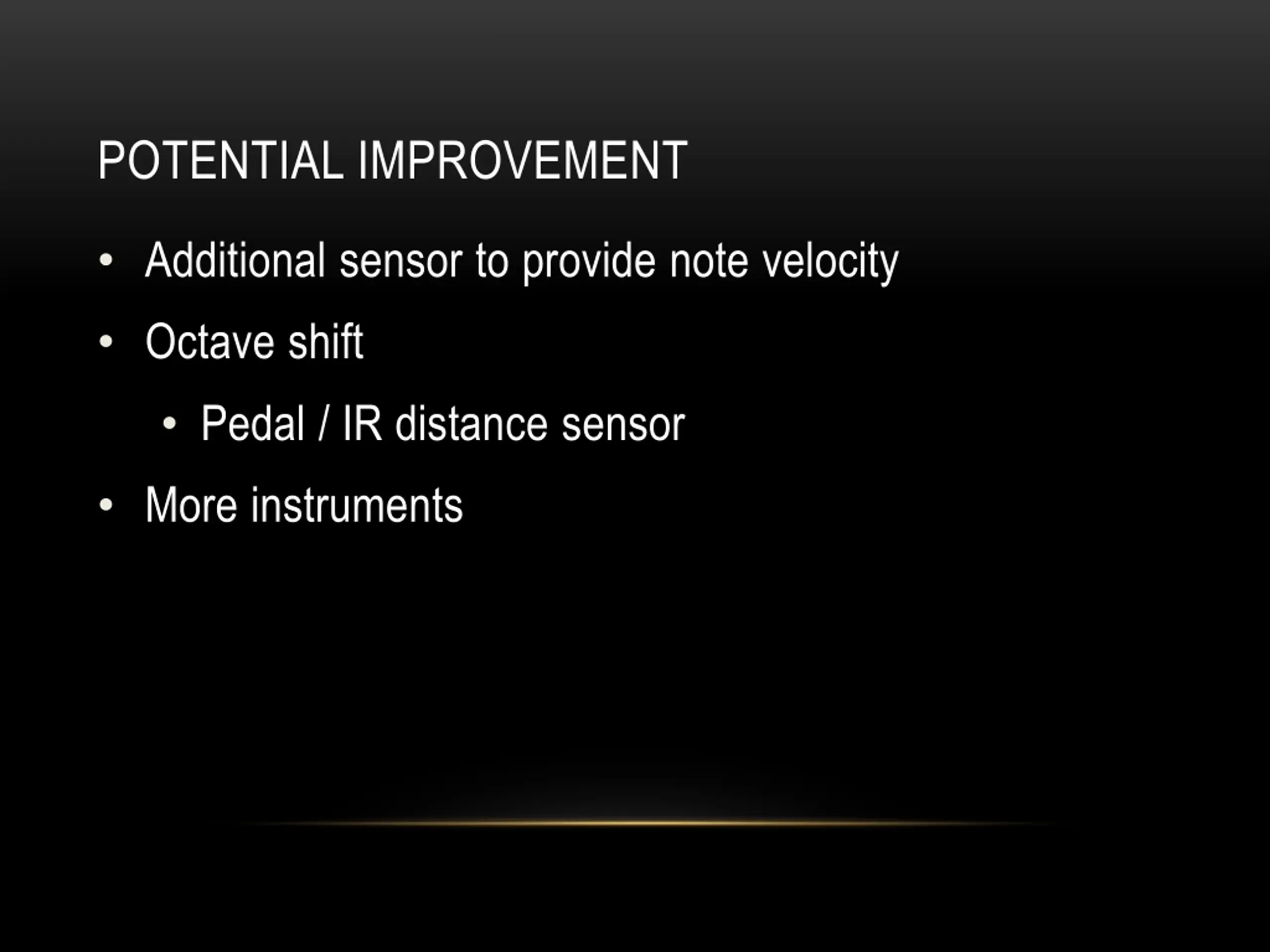

POTENTIAL IMPROVEMENT Additional sensor to provide note velocity Octave shift Pedal / IR distance sensor More instruments
