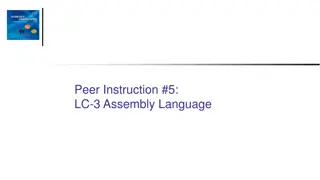

Peer Instruction #5: LC-3 Assembly Language

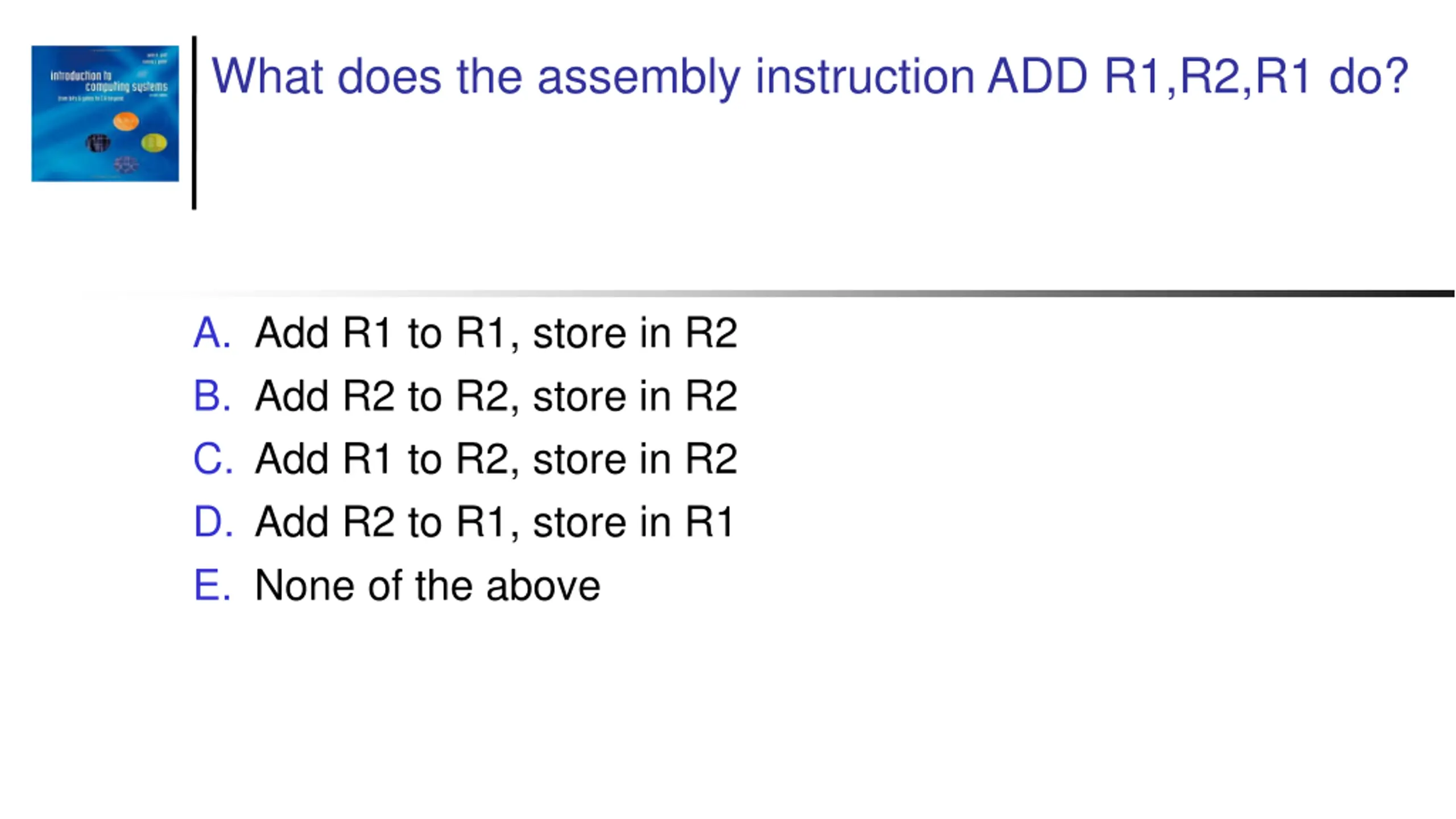

What does the assembly instruction ADD R1,R2,R1 do? A. Add R1 to R1, store in R2 B. Add R2 to R2, store in R2 C. Add R1 to R2, store in R2 D. Add R2 to R1, store in R1 E. None of the above

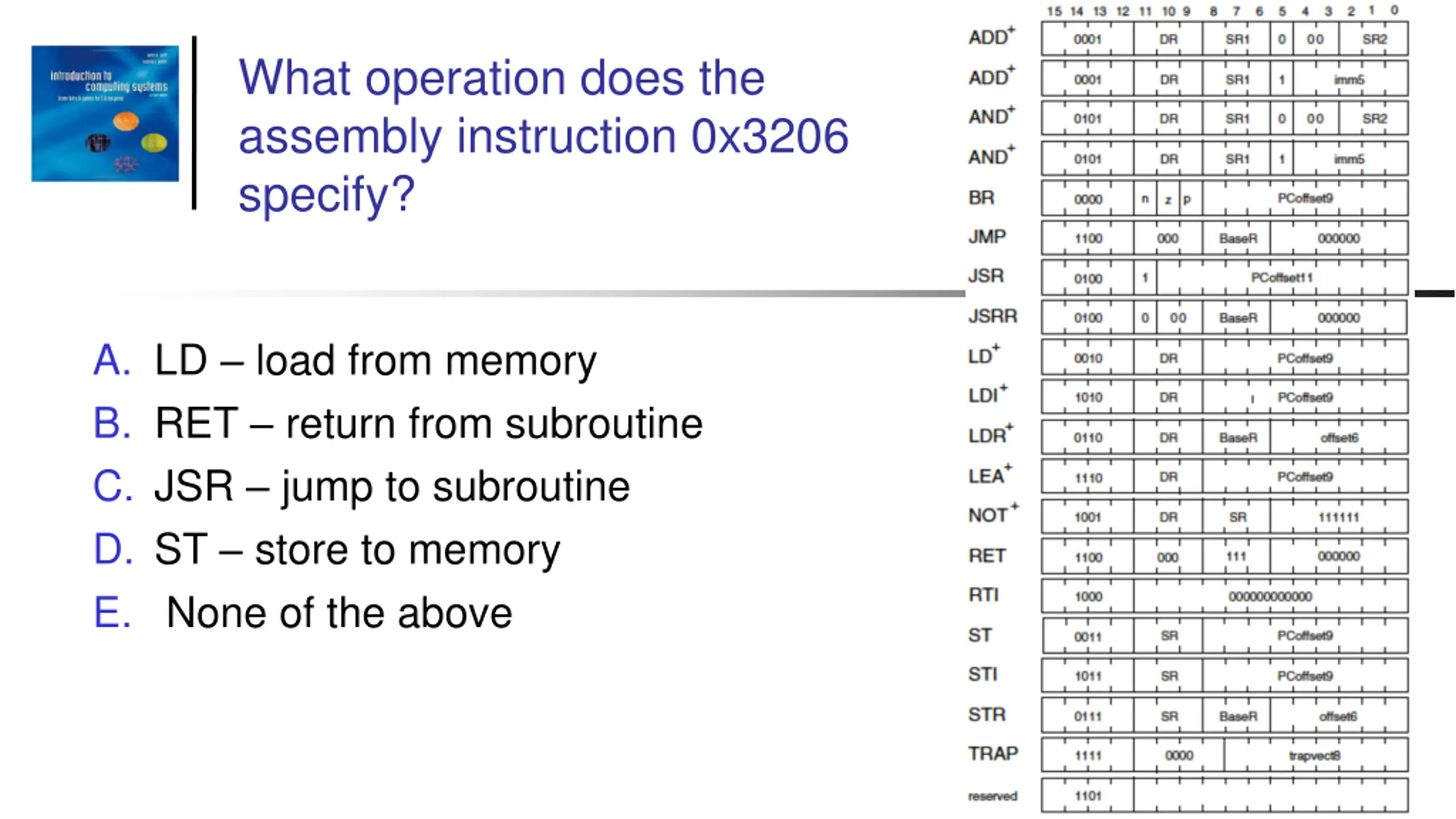

What operation does the assembly instruction 0x3206 specify? A. LD load from memory B. RET return from subroutine C. JSR jump to subroutine D. ST store to memory E. None of the above

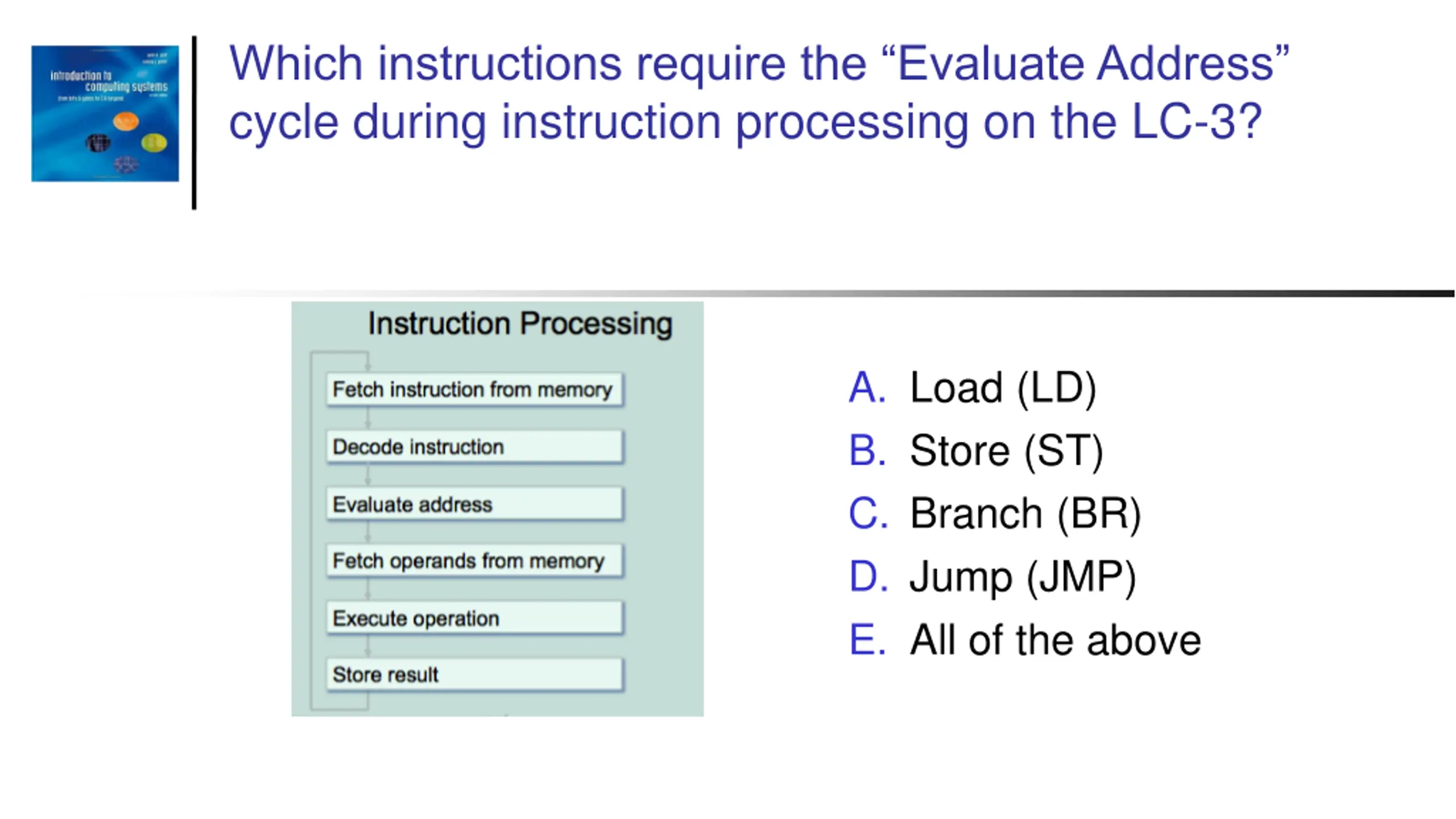

Which instructions require the Evaluate Address cycle during instruction processing on the LC-3? A. Load (LD) B. Store (ST) C. Branch (BR) D. Jump (JMP) E. All of the above

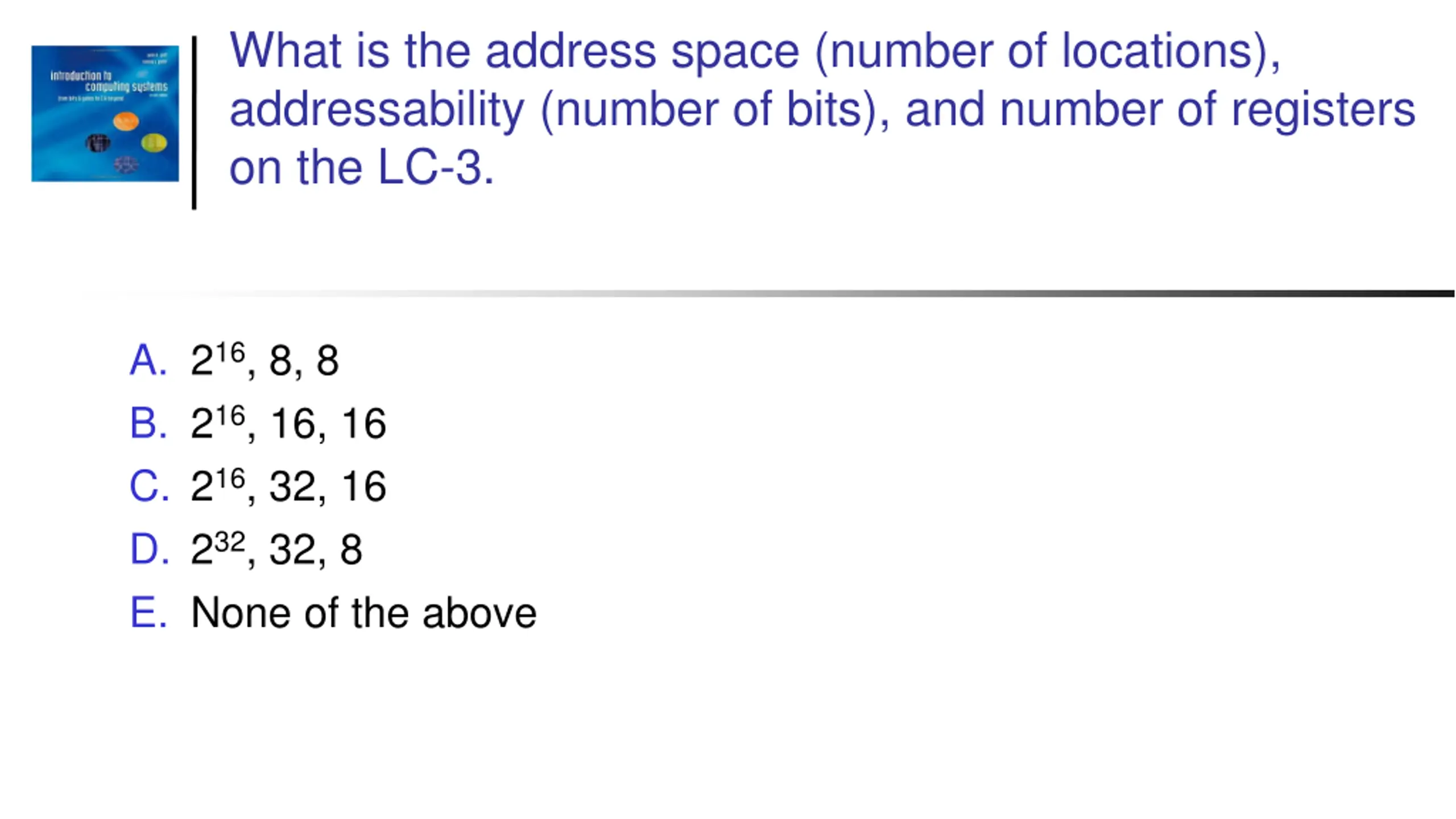

What is the address space (number of locations), addressability (number of bits), and number of registers on the LC-3. A. 216, 8, 8 B. 216, 16, 16 C. 216, 32, 16 D. 232, 32, 8 E. None of the above

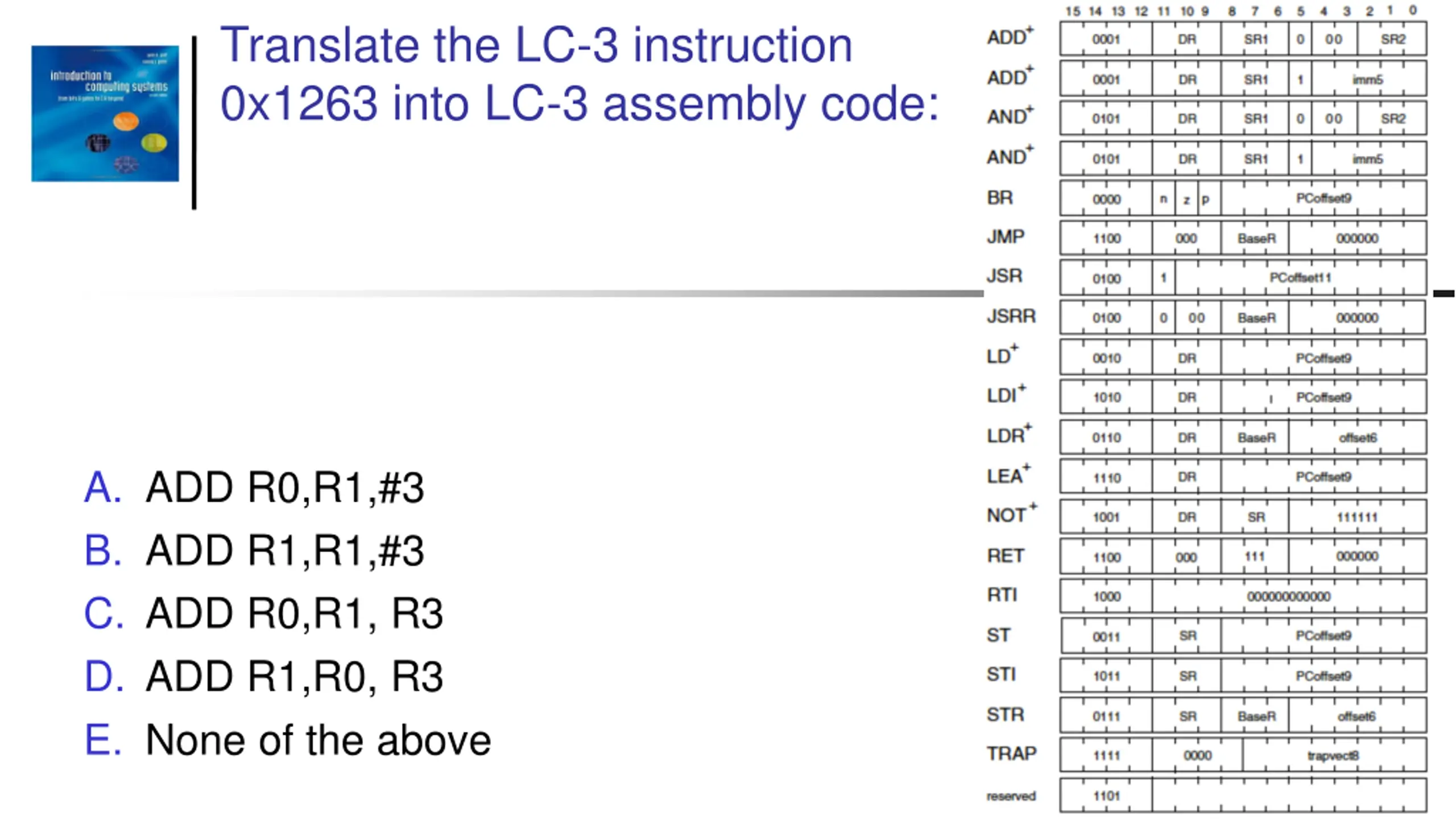

Translate the LC-3 instruction 0x1263 into LC-3 assembly code: A. ADD R0,R1,#3 B. ADD R1,R1,#3 C. ADD R0,R1, R3 D. ADD R1,R0, R3 E. None of the above

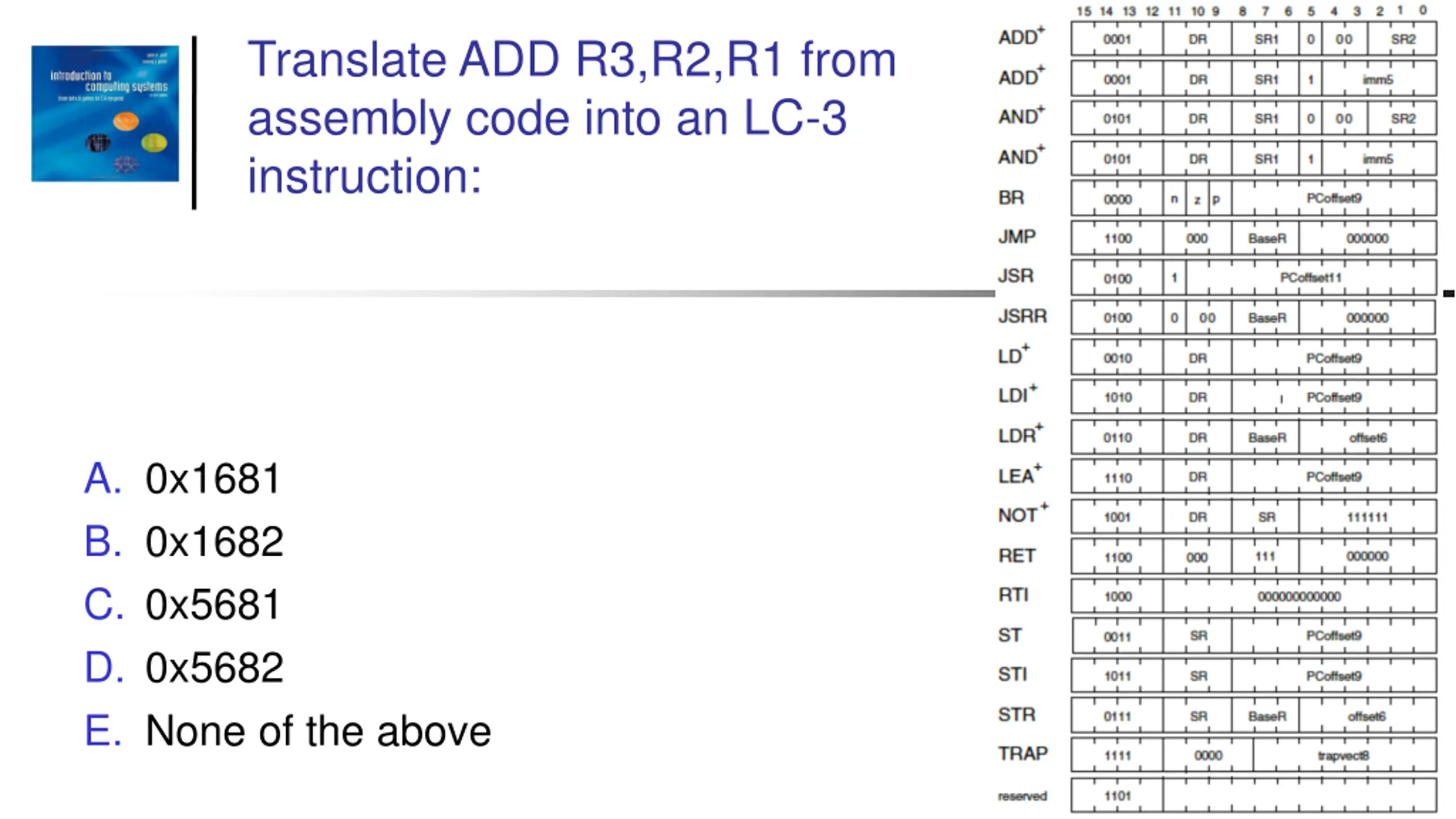

Translate ADD R3,R2,R1 from assembly code into an LC-3 instruction: A. 0x1681 B. 0x1682 C. 0x5681 D. 0x5682 E. None of the above

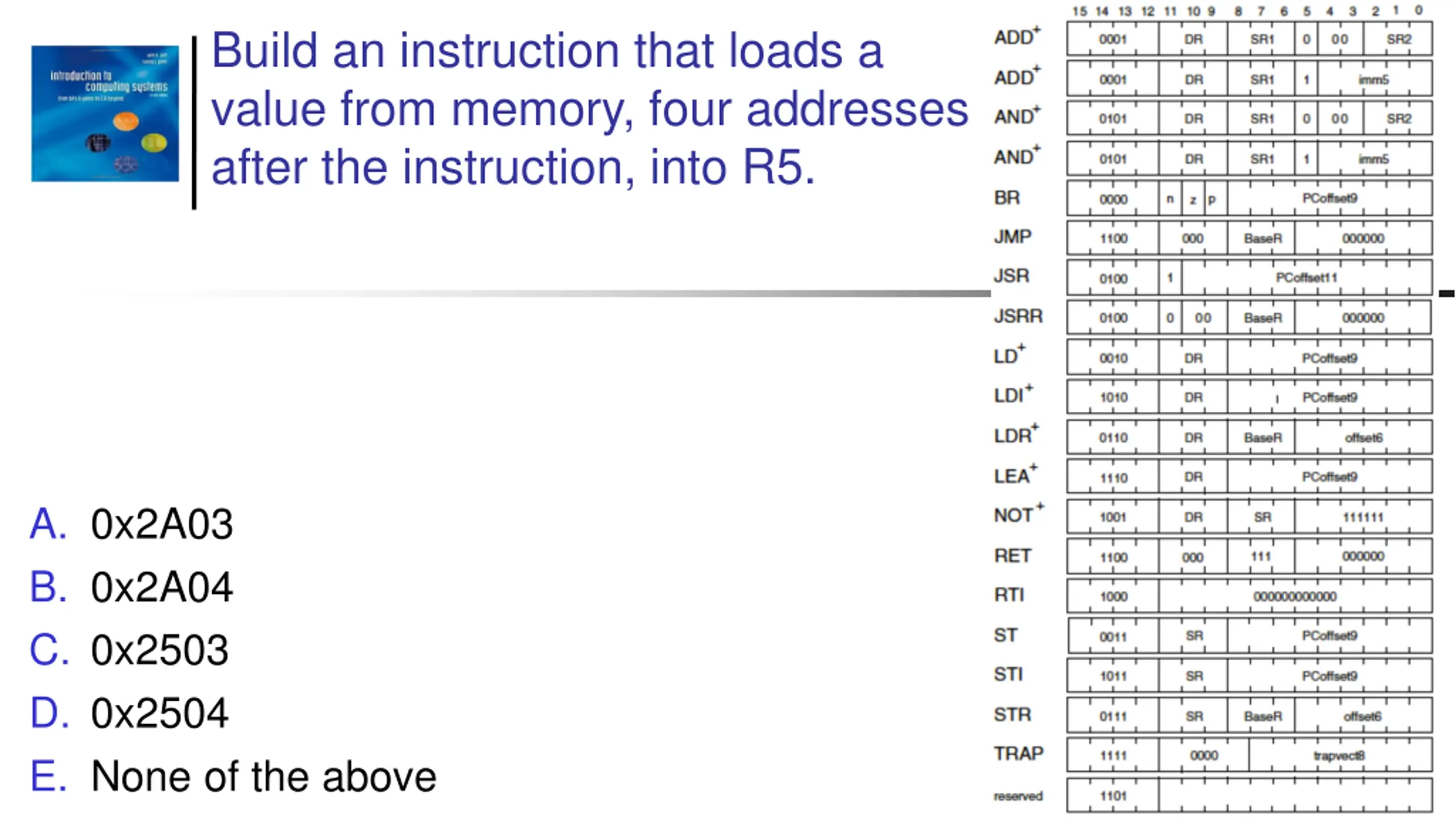

Build an instruction that loads a value from memory, four addresses after the instruction, into R5. A. 0x2A03 B. 0x2A04 C. 0x2503 D. 0x2504 E. None of the above
