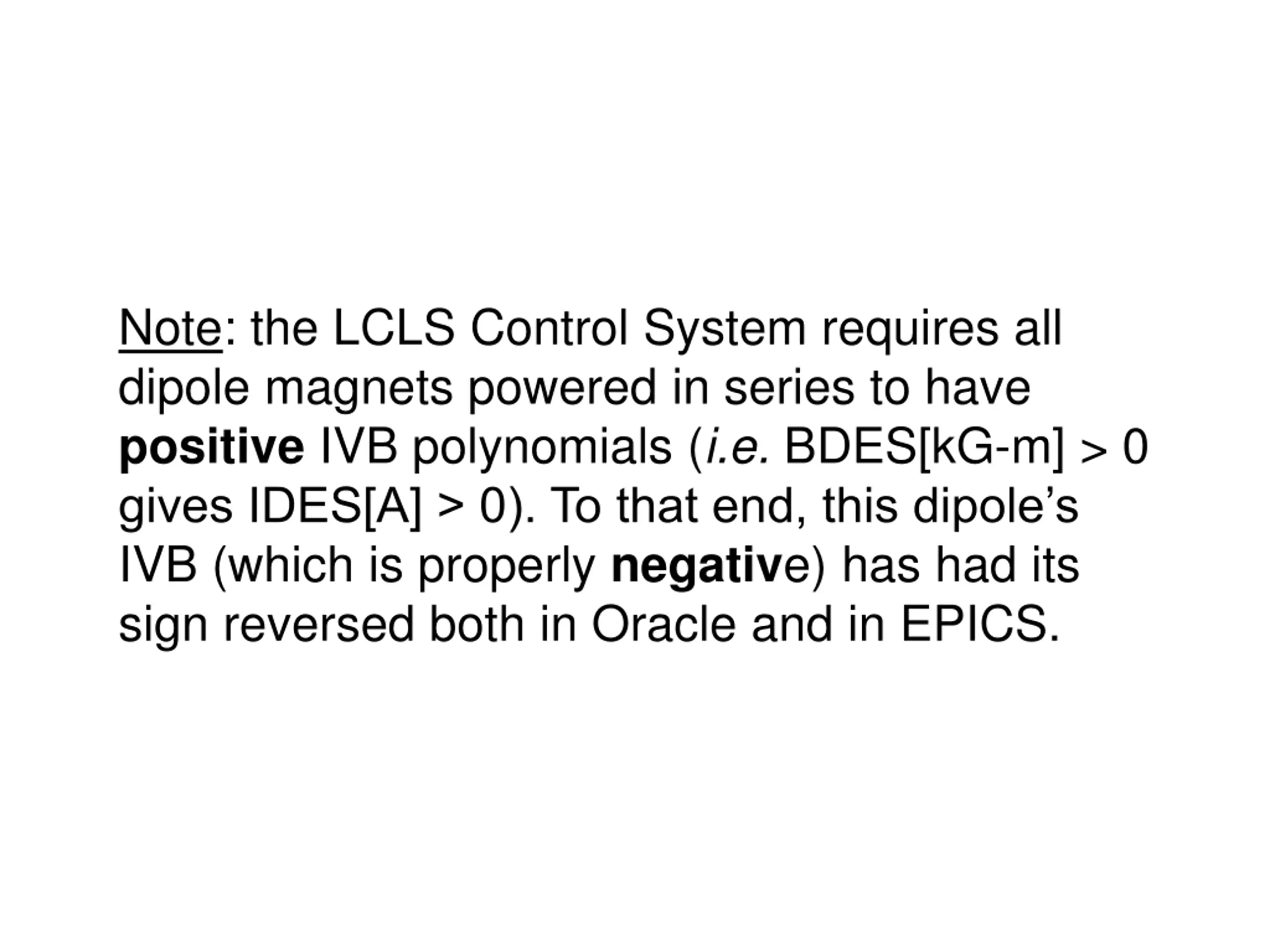

Note: the LCLS Control System requires all dipole magnets powered in series to have positive IVB polynomials (i.e. BDES[kG-m] > 0 gives IDES[A] > 0). To that end, this dipole s IVB (which is properly negative) has had its sign reversed both in Oracle and in EPICS.

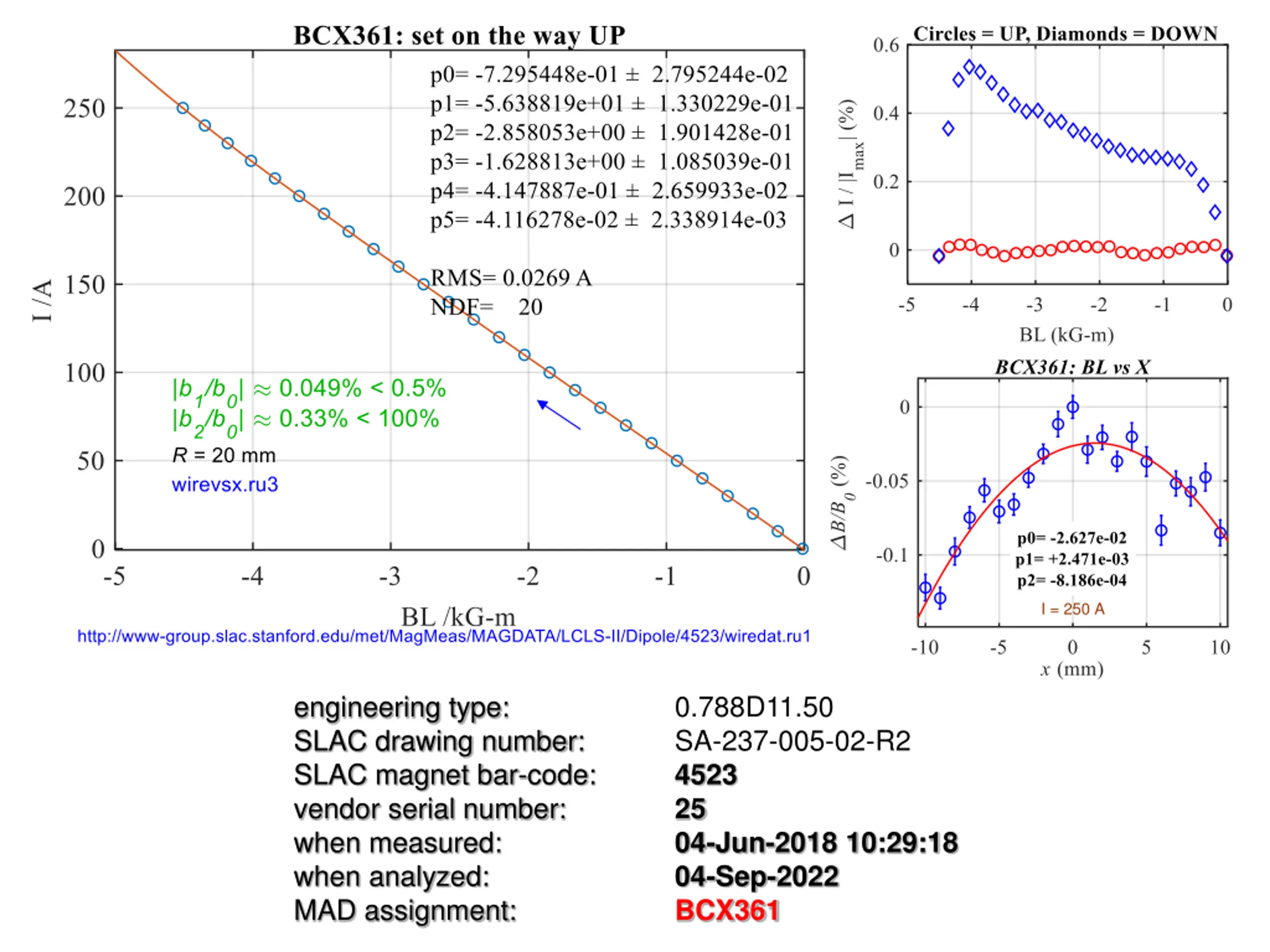

I = 250 A engineering type: SLAC drawing number: SLAC magnet bar-code: vendor serial number: when measured: when analyzed: MAD assignment: 0.788D11.50 SA-237-005-02-R2 4523 25 04-Jun-2018 10:29:18 04-Sep-2022 BCX361

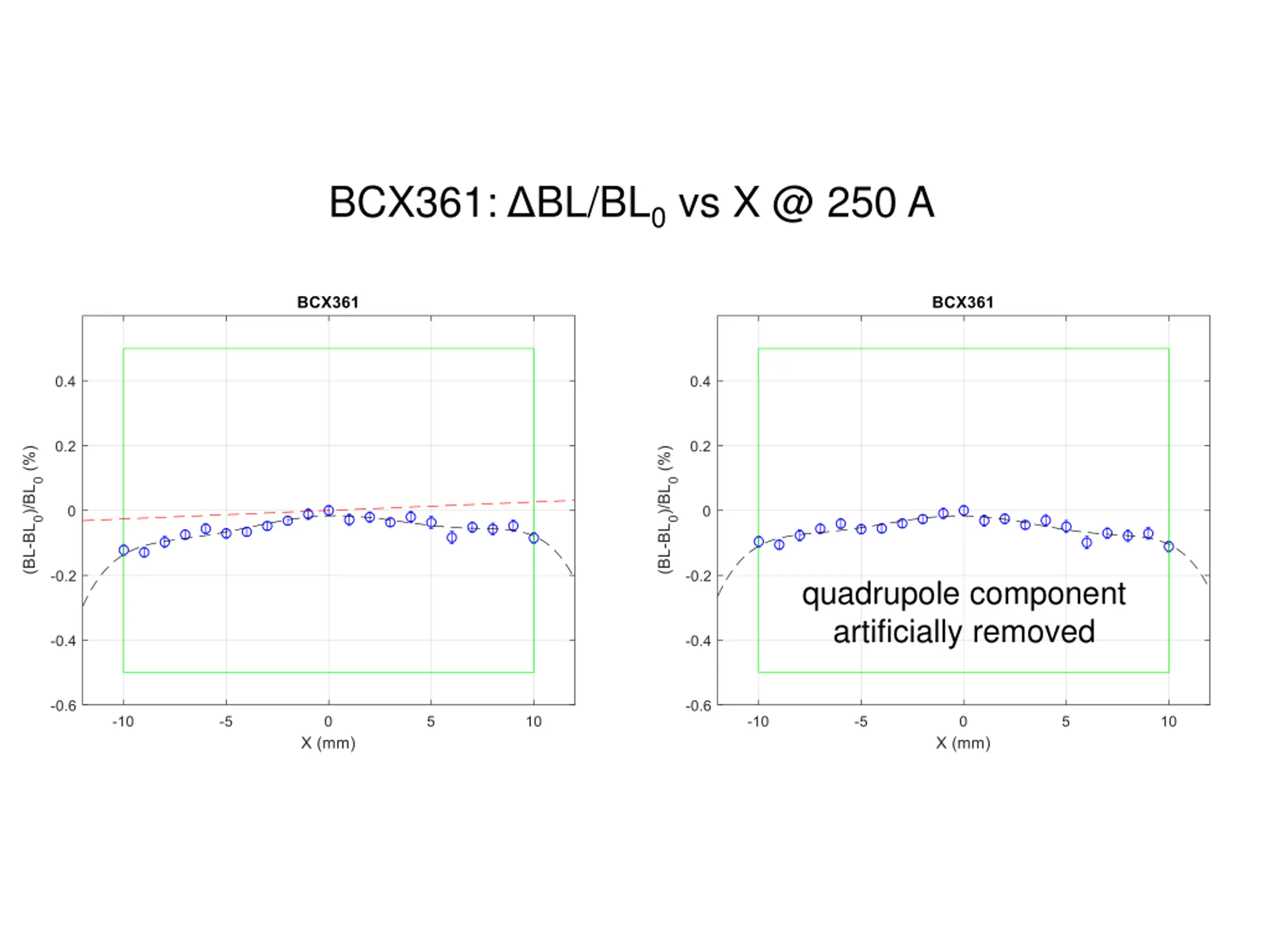

BCX361: BL/BL0 vs X @ 250 A quadrupole component artificially removed

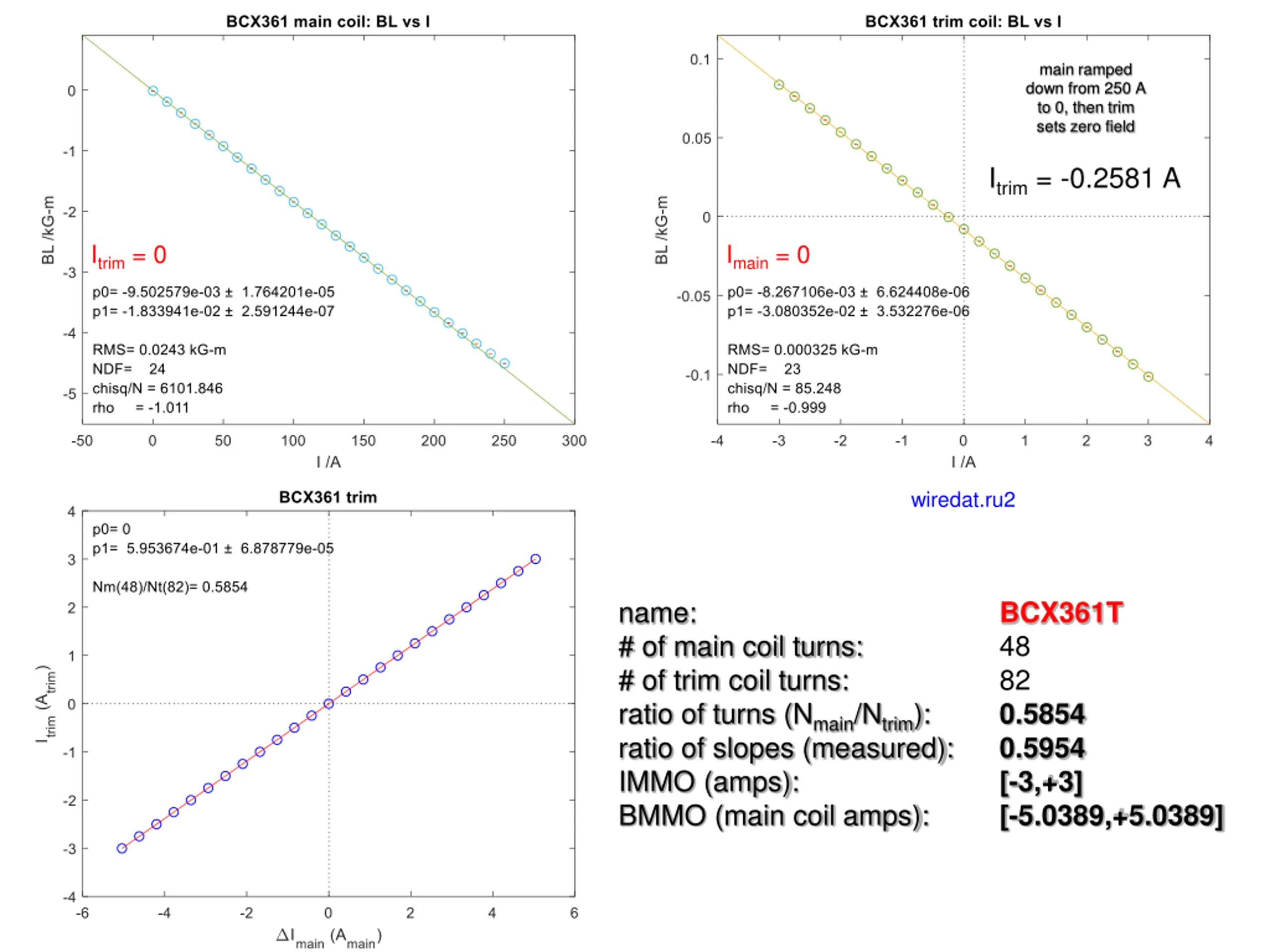

main ramped down from 250 A to 0, then trim sets zero field Itrim = -0.2581 A Itrim = 0 Imain = 0 wiredat.ru2 name: # of main coil turns: # of trim coil turns: ratio of turns (Nmain/Ntrim): ratio of slopes (measured): IMMO (amps): BMMO (main coil amps): BCX361T 48 82 0.5854 0.5954 [-3,+3] [-5.0389,+5.0389]
