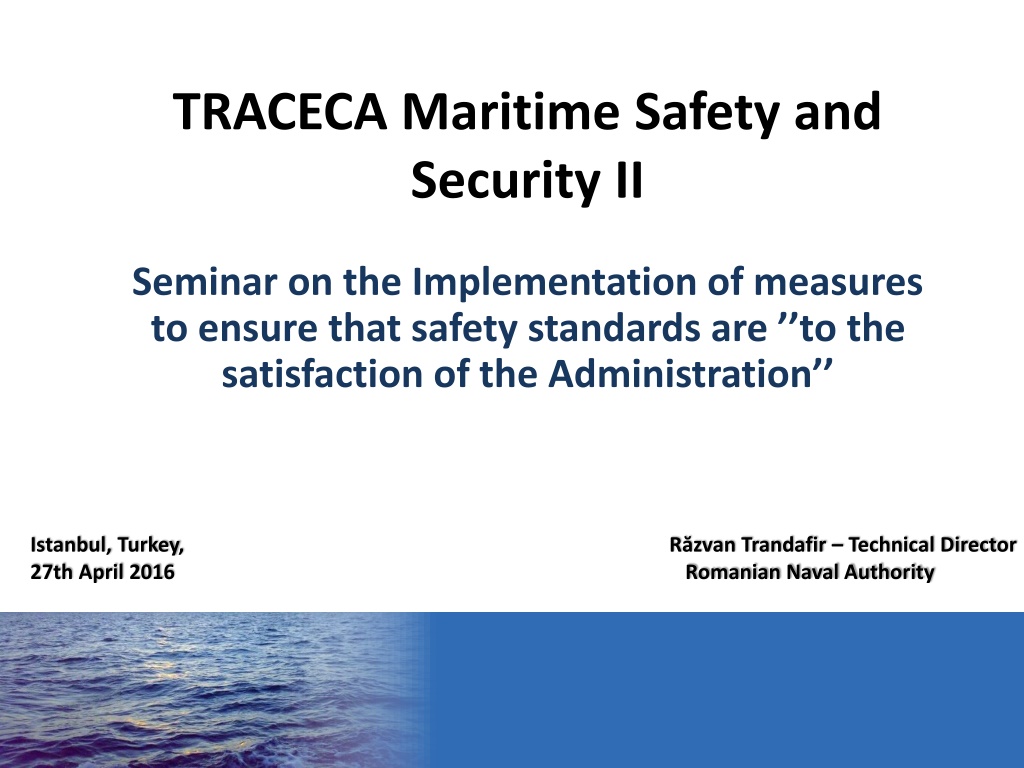

TRACECA Maritime Safety and Security II Seminar on the Implementation of measures to ensure that safety standards are to the satisfaction of the Administration Istanbul, Turkey, 27th April 2016 Romanian Naval Authority R zvan Trandafir Technical Director

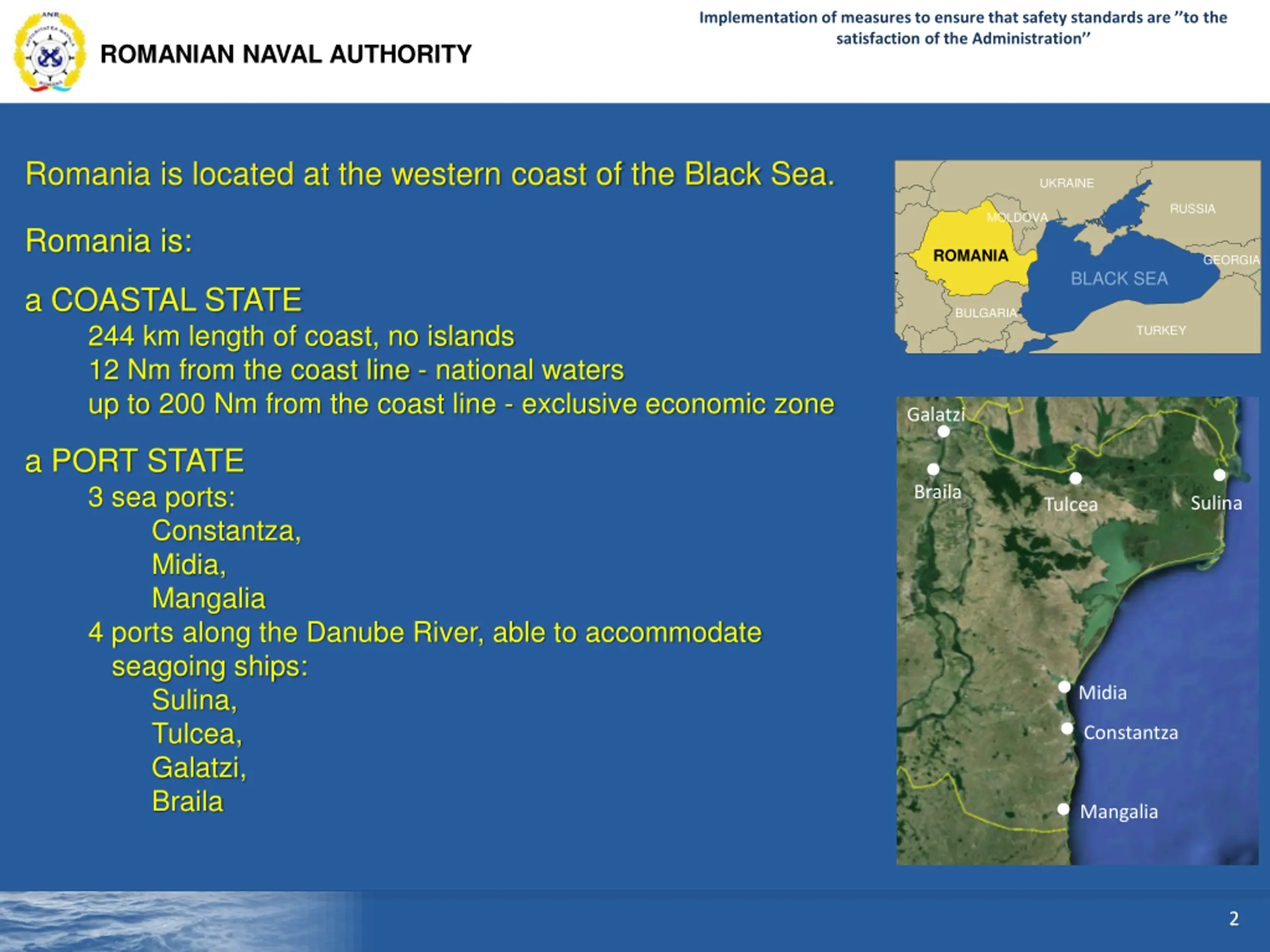

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY Romania is located at the western coast of the Black Sea. UKRAINE RUSSIA MOLDOVA Romania is: ROMANIA GEORGIA BLACK SEA a COASTAL STATE 244 km length of coast, no islands 12 Nm from the coast line - national waters up to 200 Nm from the coast line - exclusive economic zone BULGARIA TURKEY Galatzi a PORT STATE 3 sea ports: Braila Sulina Tulcea Constantza, Midia, Mangalia 4 ports along the Danube River, able to accommodate seagoing ships: Sulina, Tulcea, Galatzi, Braila Midia Constantza Mangalia 2

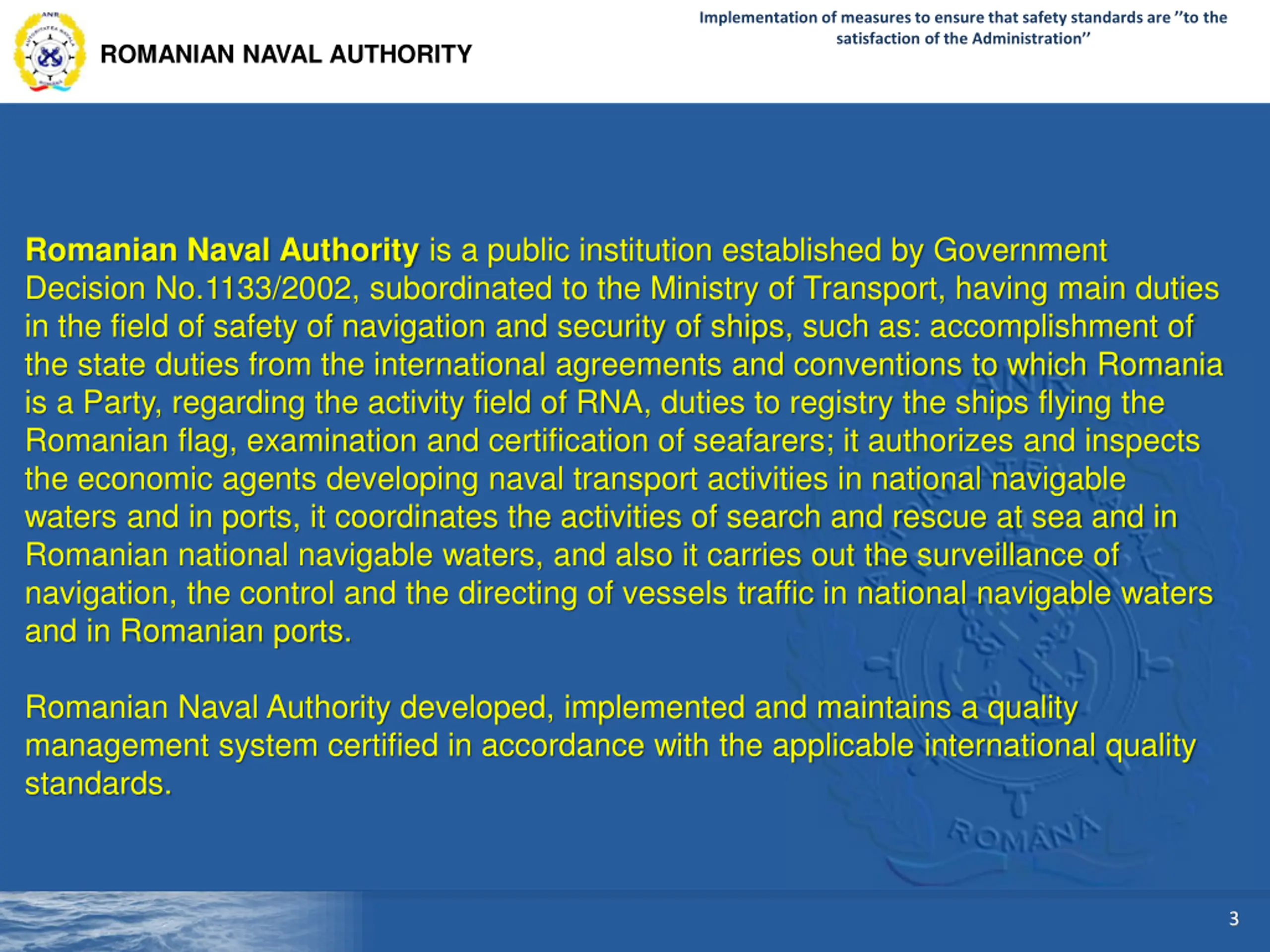

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY Romanian Naval Authority is a public institution established by Government Decision No.1133/2002, subordinated to the Ministry of Transport, having main duties in the field of safety of navigation and security of ships, such as: accomplishment of the state duties from the international agreements and conventions to which Romania is a Party, regarding the activity field of RNA, duties to registry the ships flying the Romanian flag, examination and certification of seafarers; it authorizes and inspects the economic agents developing naval transport activities in national navigable waters and in ports, it coordinates the activities of search and rescue at sea and in Romanian national navigable waters, and also it carries out the surveillance of navigation, the control and the directing of vessels traffic in national navigable waters and in Romanian ports. Romanian Naval Authority developed, implemented and maintains a quality management system certified in accordance with the applicable international quality standards. 3

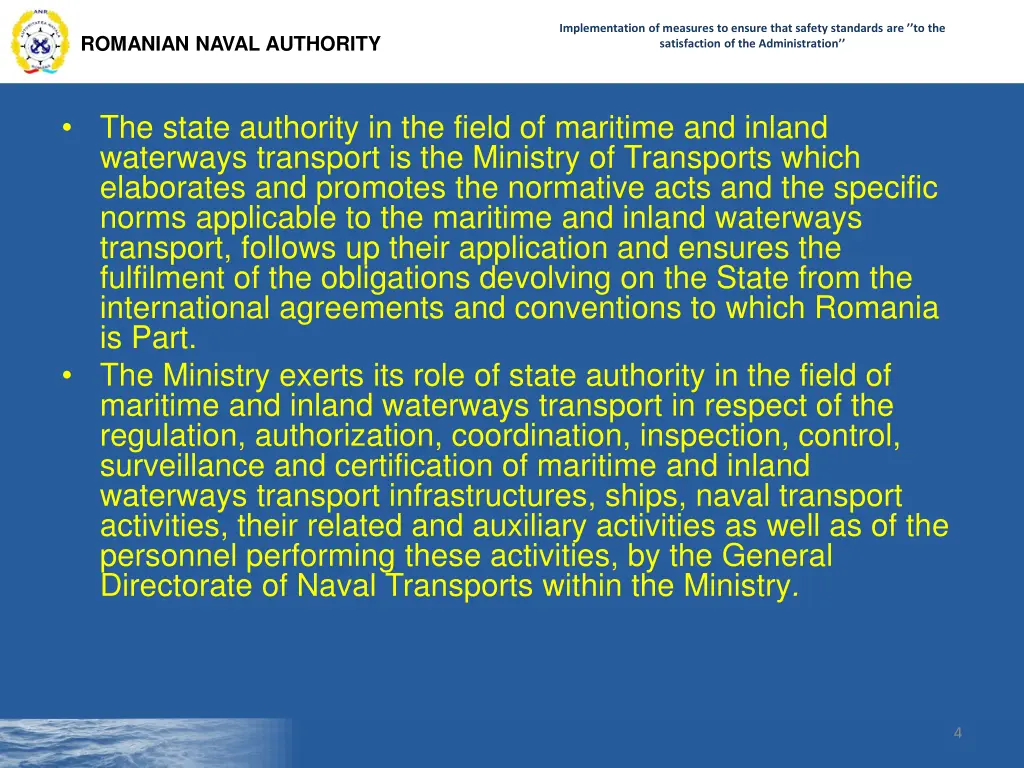

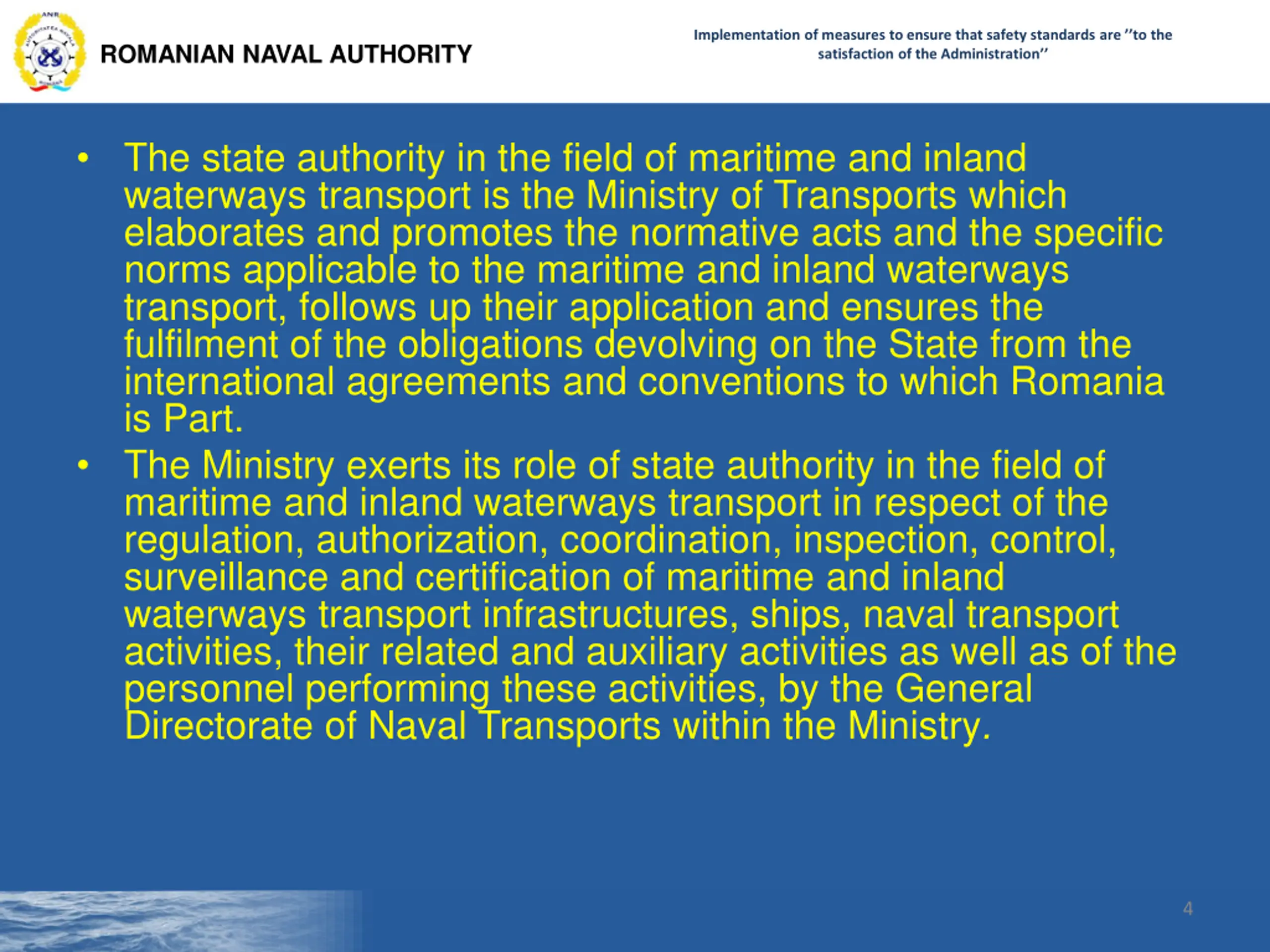

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY The state authority in the field of maritime and inland waterways transport is the Ministry of Transports which elaborates and promotes the normative acts and the specific norms applicable to the maritime and inland waterways transport, follows up their application and ensures the fulfilment of the obligations devolving on the State from the international agreements and conventions to which Romania is Part. The Ministry exerts its role of state authority in the field of maritime and inland waterways transport in respect of the regulation, authorization, coordination, inspection, control, surveillance and certification of maritime and inland waterways transport infrastructures, ships, naval transport activities, their related and auxiliary activities as well as of the personnel performing these activities, by the General Directorate of Naval Transports within the Ministry. 4

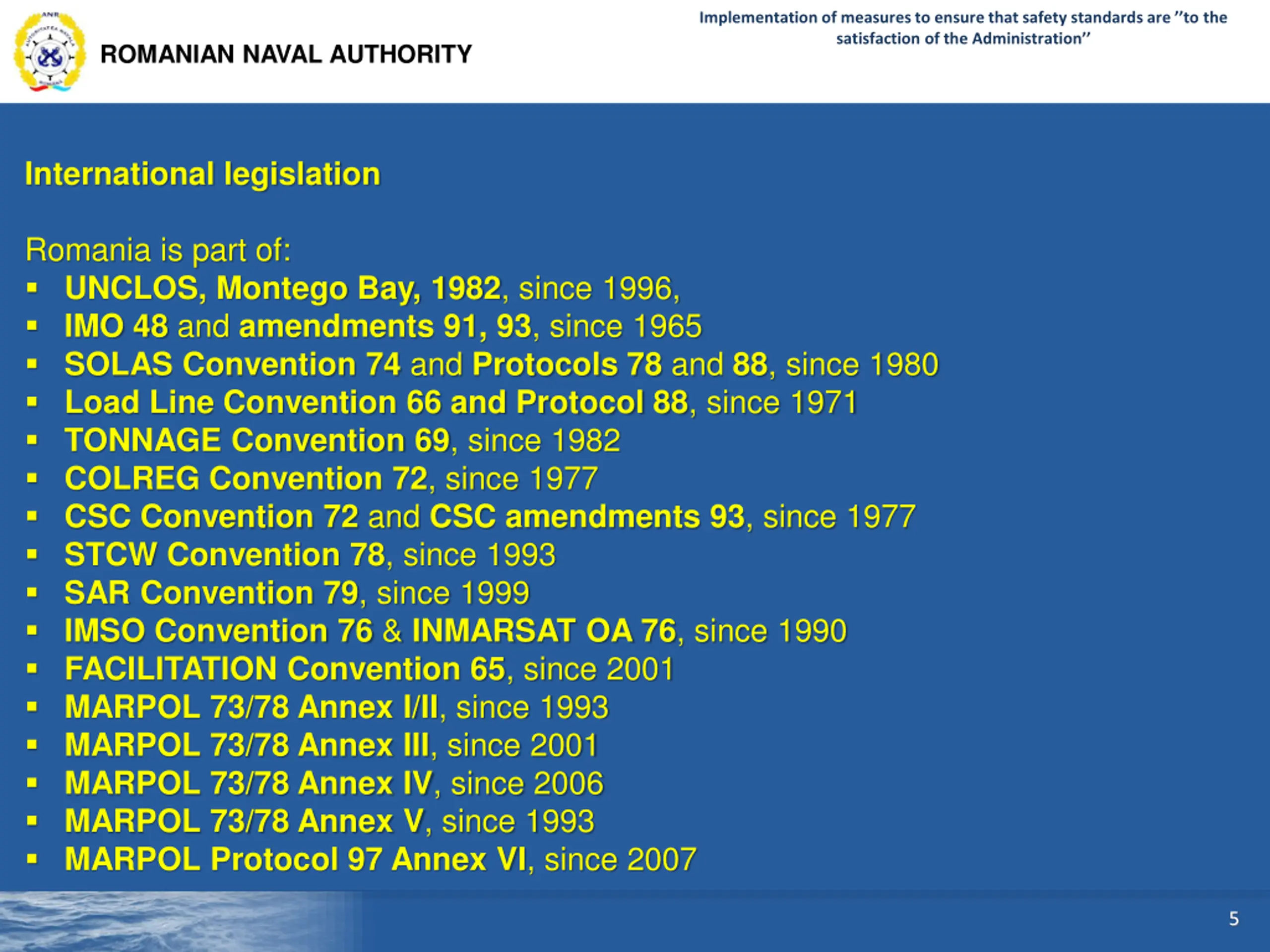

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY International legislation Romania is part of: UNCLOS, Montego Bay, 1982, since 1996, IMO 48 and amendments 91, 93, since 1965 SOLAS Convention 74 and Protocols 78 and 88, since 1980 Load Line Convention 66 and Protocol 88, since 1971 TONNAGE Convention 69, since 1982 COLREG Convention 72, since 1977 CSC Convention 72 and CSC amendments 93, since 1977 STCW Convention 78, since 1993 SAR Convention 79, since 1999 IMSO Convention 76 & INMARSAT OA 76, since 1990 FACILITATION Convention 65, since 2001 MARPOL 73/78 Annex I/II, since 1993 MARPOL 73/78 Annex III, since 2001 MARPOL 73/78 Annex IV, since 2006 MARPOL 73/78 Annex V, since 1993 MARPOL Protocol 97 Annex VI, since 2007 5

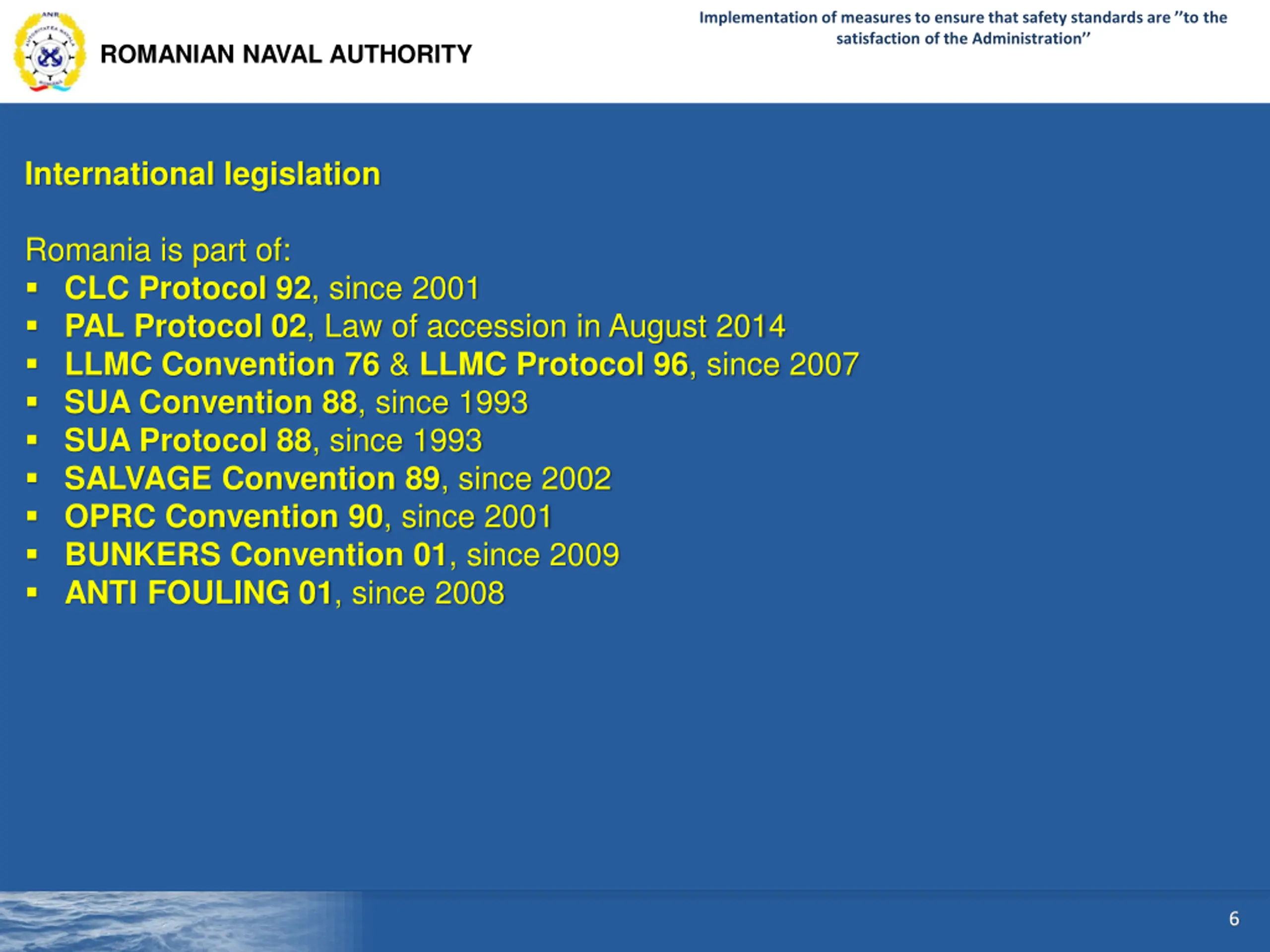

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY International legislation Romania is part of: CLC Protocol 92, since 2001 PAL Protocol 02, Law of accession in August 2014 LLMC Convention 76 & LLMC Protocol 96, since 2007 SUA Convention 88, since 1993 SUA Protocol 88, since 1993 SALVAGE Convention 89, since 2002 OPRC Convention 90, since 2001 BUNKERS Convention 01, since 2009 ANTI FOULING 01, since 2008 6

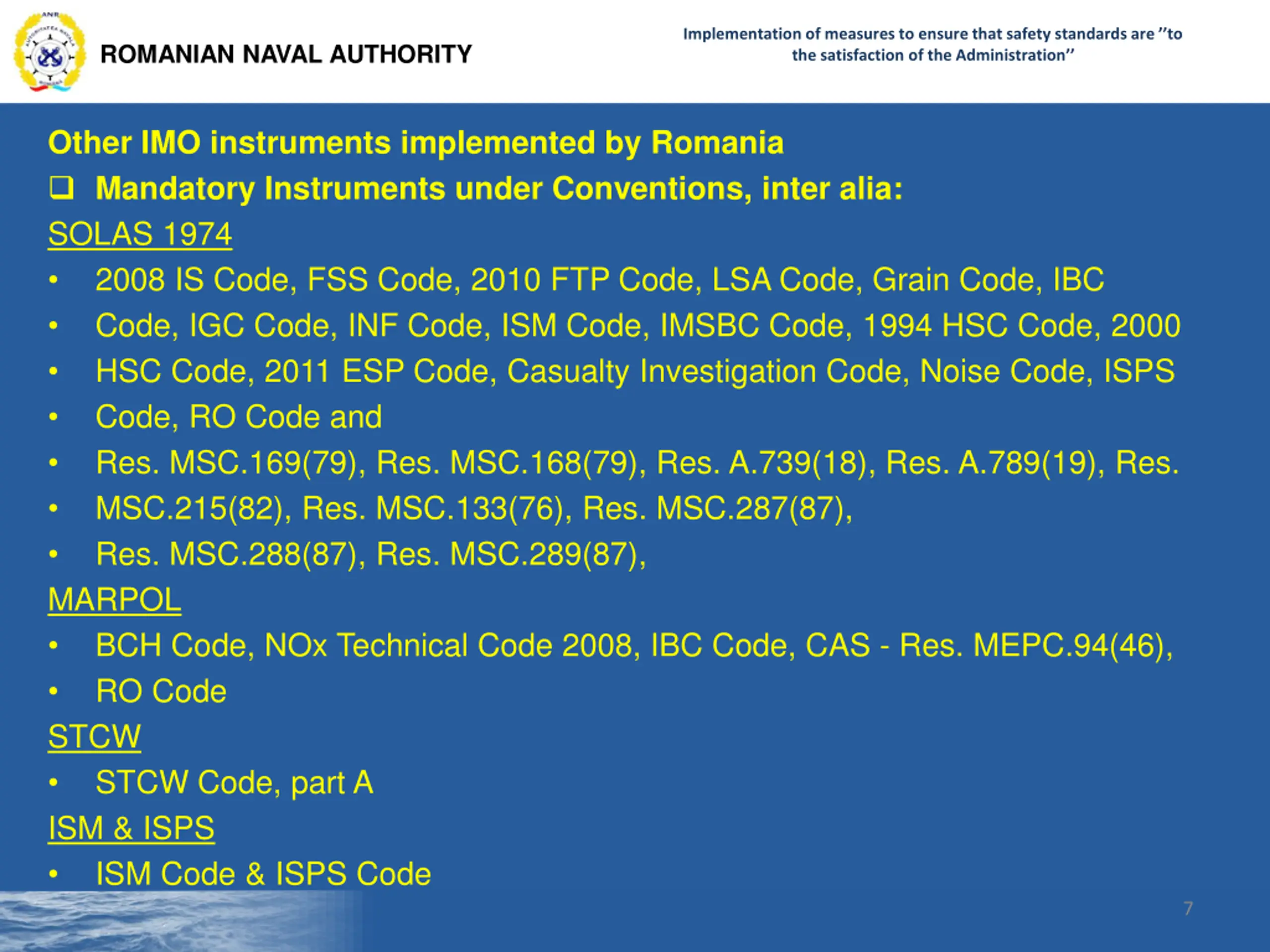

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY Other IMO instruments implemented by Romania Mandatory Instruments under Conventions, inter alia: SOLAS 1974 2008 IS Code, FSS Code, 2010 FTP Code, LSA Code, Grain Code, IBC Code, IGC Code, INF Code, ISM Code, IMSBC Code, 1994 HSC Code, 2000 HSC Code, 2011 ESP Code, Casualty Investigation Code, Noise Code, ISPS Code, RO Code and Res. MSC.169(79), Res. MSC.168(79), Res. A.739(18), Res. A.789(19), Res. MSC.215(82), Res. MSC.133(76), Res. MSC.287(87), Res. MSC.288(87), Res. MSC.289(87), MARPOL BCH Code, NOx Technical Code 2008, IBC Code, CAS - Res. MEPC.94(46), RO Code STCW STCW Code, part A ISM & ISPS ISM Code & ISPS Code 7

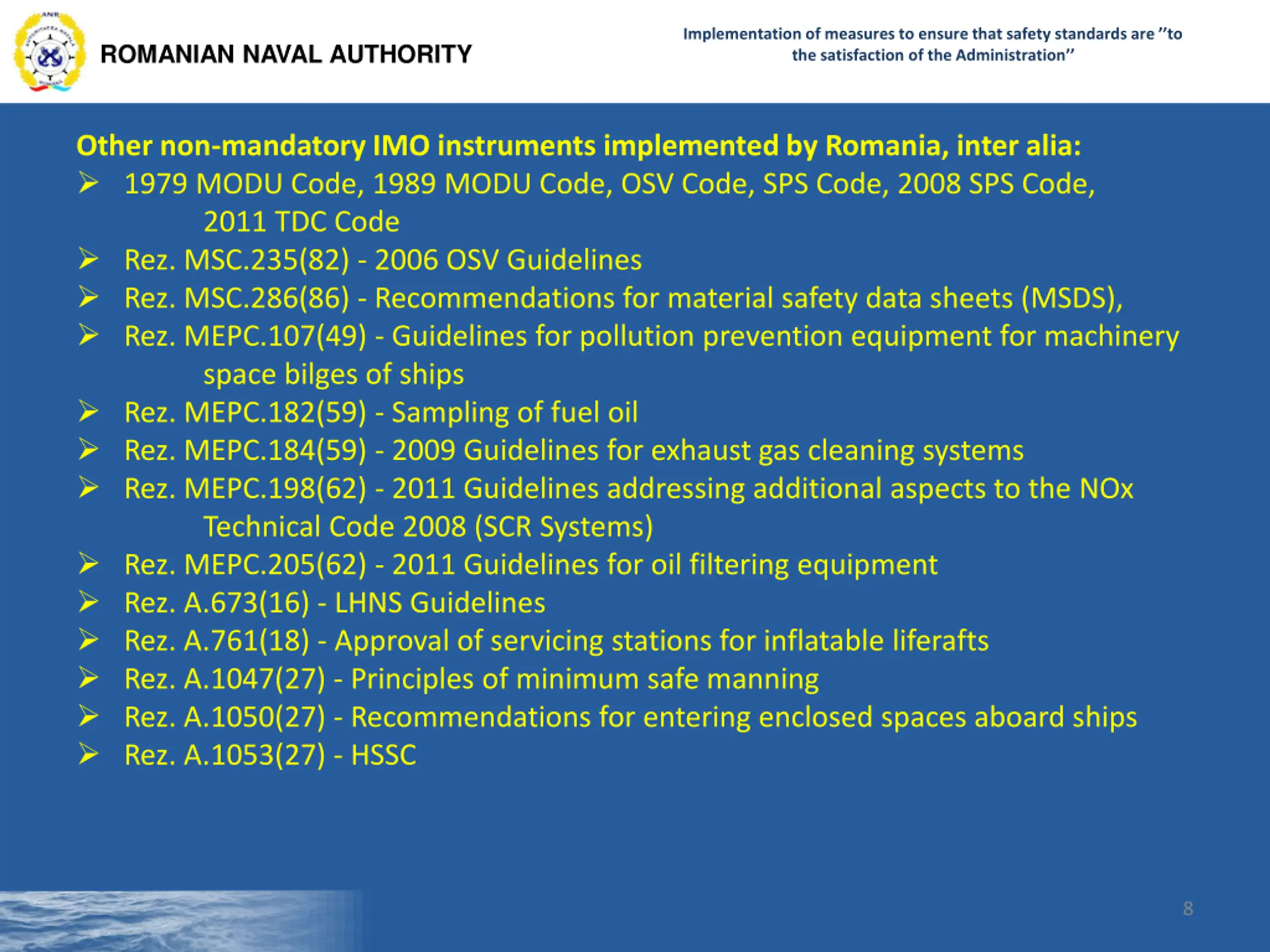

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY Other non-mandatory IMO instruments implemented by Romania, inter alia: 1979 MODU Code, 1989 MODU Code, OSV Code, SPS Code, 2008 SPS Code, 2011 TDC Code Rez. MSC.235(82) - 2006 OSV Guidelines Rez. MSC.286(86) - Recommendations for material safety data sheets (MSDS), Rez. MEPC.107(49) - Guidelines for pollution prevention equipment for machinery space bilges of ships Rez. MEPC.182(59) - Sampling of fuel oil Rez. MEPC.184(59) - 2009 Guidelines for exhaust gas cleaning systems Rez. MEPC.198(62) - 2011 Guidelines addressing additional aspects to the NOx Technical Code 2008 (SCR Systems) Rez. MEPC.205(62) - 2011 Guidelines for oil filtering equipment Rez. A.673(16) - LHNS Guidelines Rez. A.761(18) - Approval of servicing stations for inflatable liferafts Rez. A.1047(27) - Principles of minimum safe manning Rez. A.1050(27) - Recommendations for entering enclosed spaces aboard ships Rez. A.1053(27) - HSSC 8

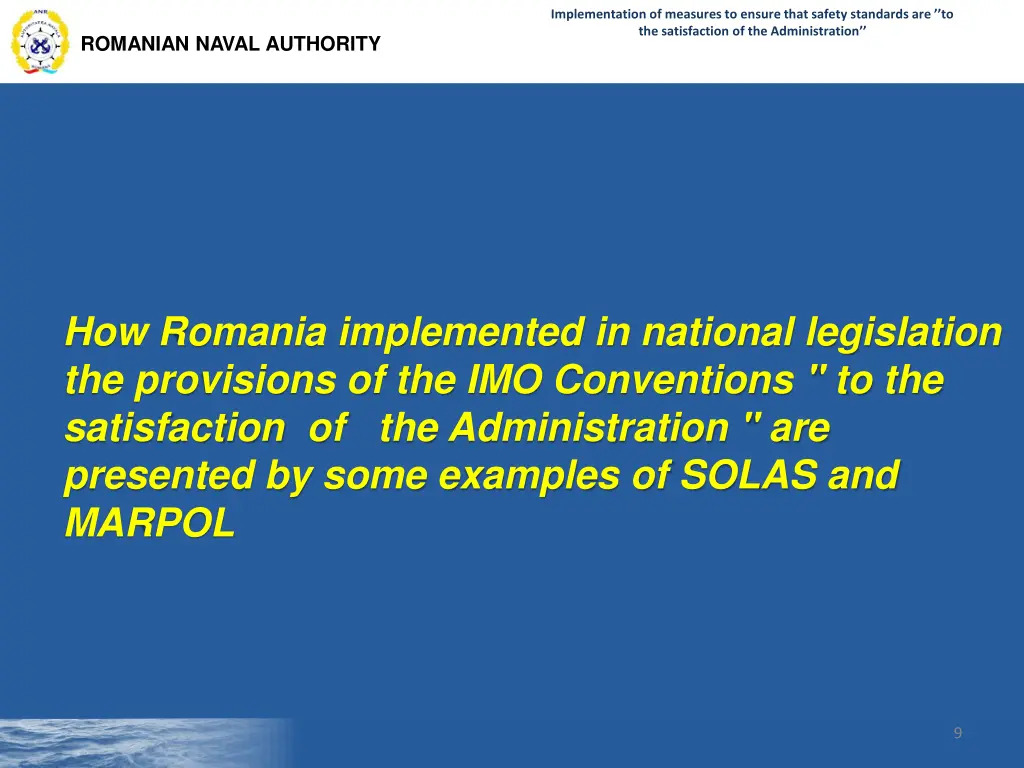

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY How Romania implemented in national legislation the provisions of the IMO Conventions " to the satisfaction of the Administration " are presented by some examples of SOLAS and MARPOL 9

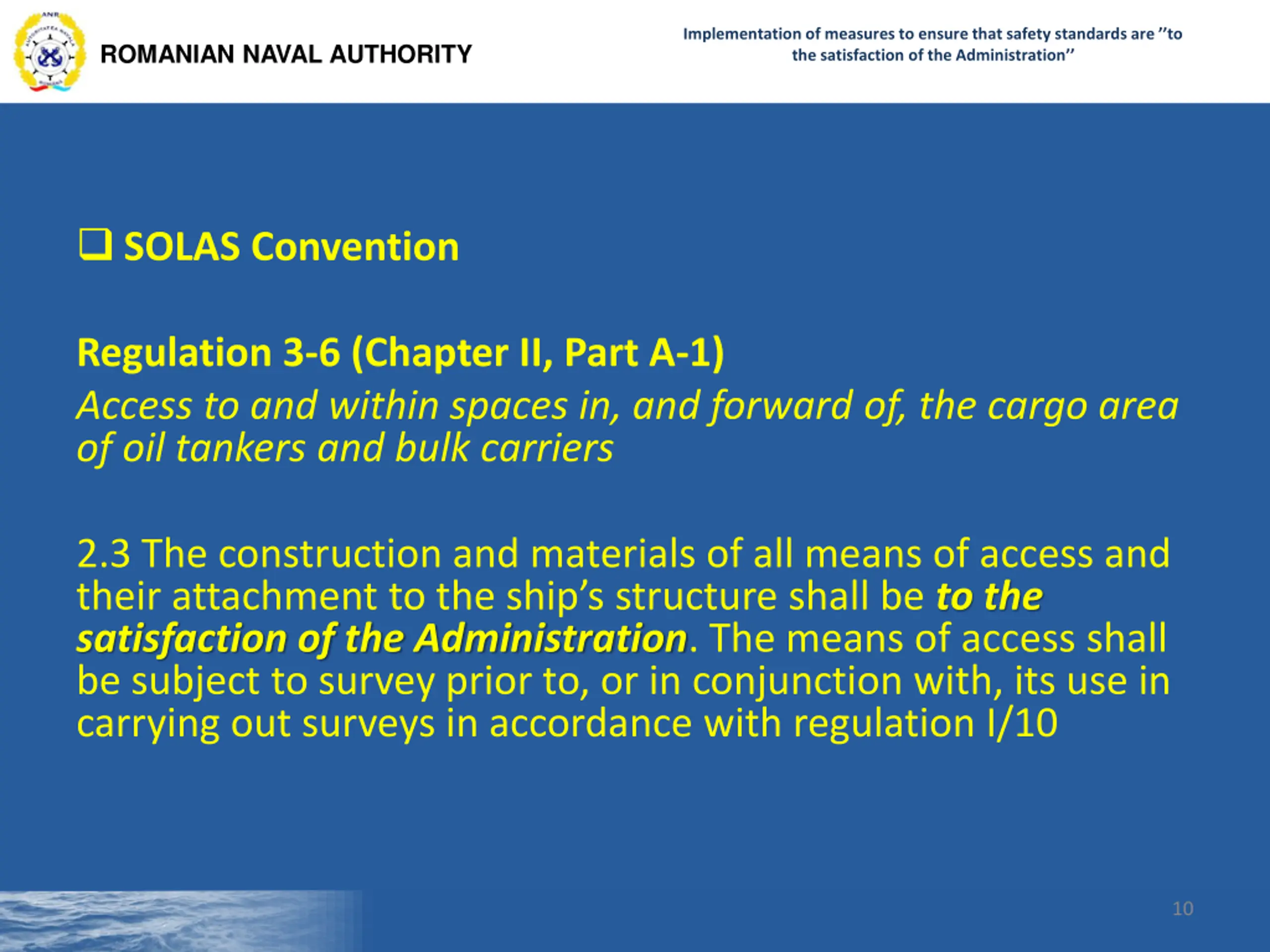

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY SOLAS Convention Regulation 3-6 (Chapter II, Part A-1) Access to and within spaces in, and forward of, the cargo area of oil tankers and bulk carriers 2.3 The construction and materials of all means of access and their attachment to the ship s structure shall be to the satisfaction of the Administration. The means of access shall be subject to survey prior to, or in conjunction with, its use in carrying out surveys in accordance with regulation I/10 10

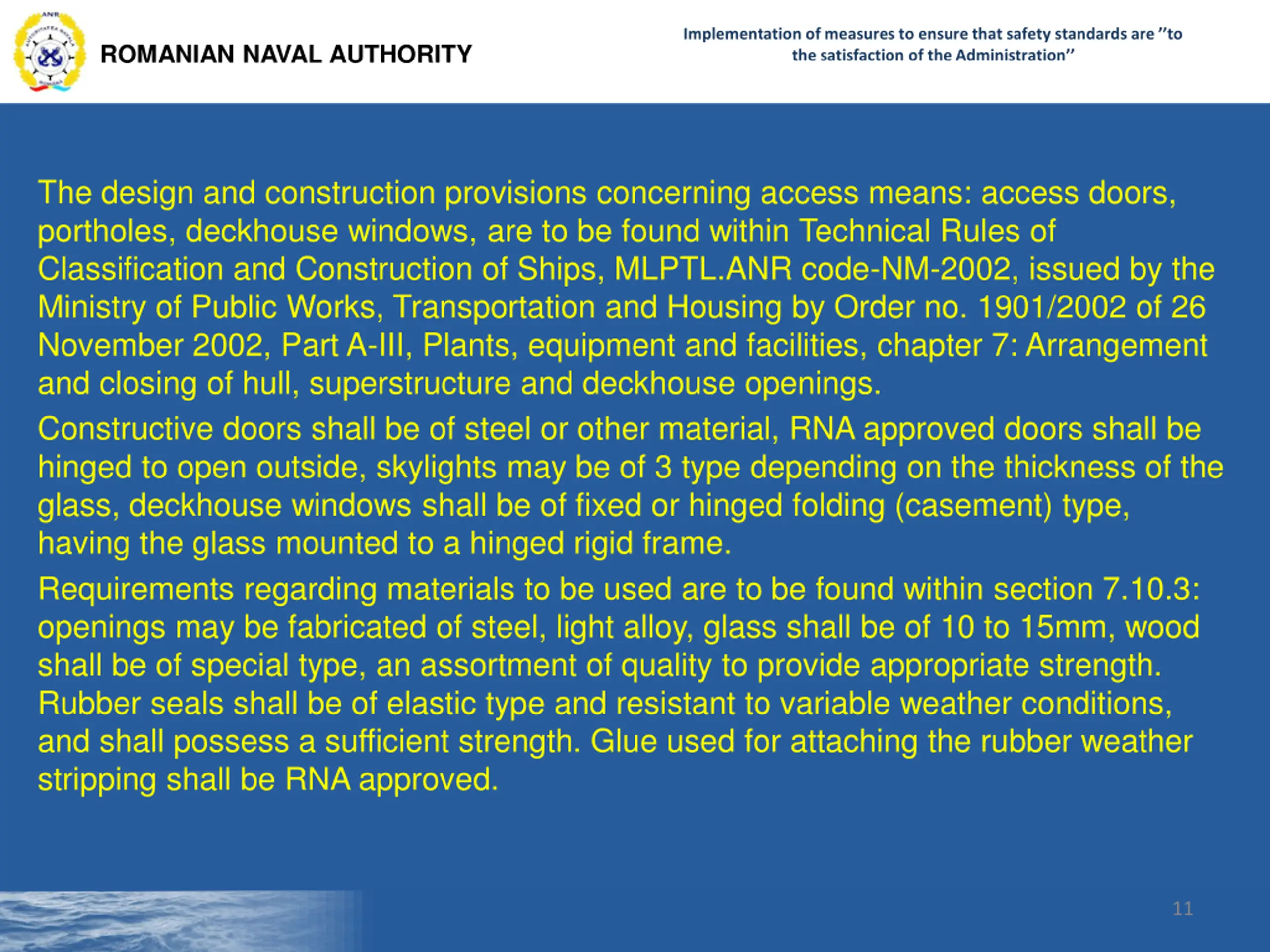

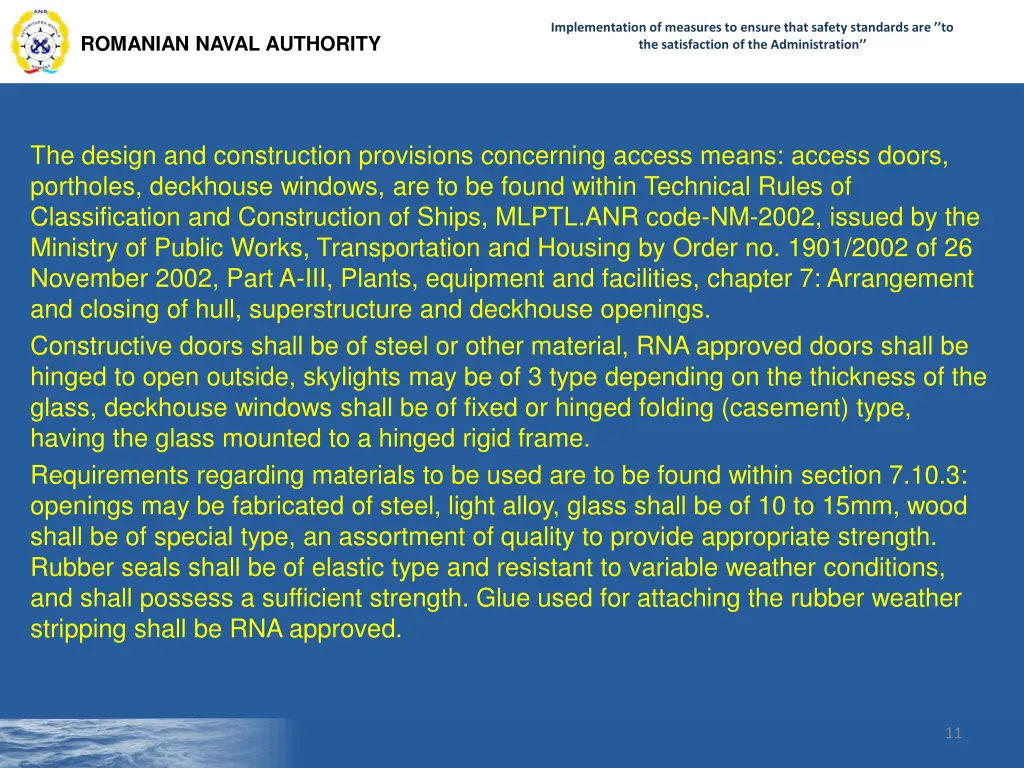

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY The design and construction provisions concerning access means: access doors, portholes, deckhouse windows, are to be found within Technical Rules of Classification and Construction of Ships, MLPTL.ANR code-NM-2002, issued by the Ministry of Public Works, Transportation and Housing by Order no. 1901/2002 of 26 November 2002, Part A-III, Plants, equipment and facilities, chapter 7: Arrangement and closing of hull, superstructure and deckhouse openings. Constructive doors shall be of steel or other material, RNA approved doors shall be hinged to open outside, skylights may be of 3 type depending on the thickness of the glass, deckhouse windows shall be of fixed or hinged folding (casement) type, having the glass mounted to a hinged rigid frame. Requirements regarding materials to be used are to be found within section 7.10.3: openings may be fabricated of steel, light alloy, glass shall be of 10 to 15mm, wood shall be of special type, an assortment of quality to provide appropriate strength. Rubber seals shall be of elastic type and resistant to variable weather conditions, and shall possess a sufficient strength. Glue used for attaching the rubber weather stripping shall be RNA approved. 11

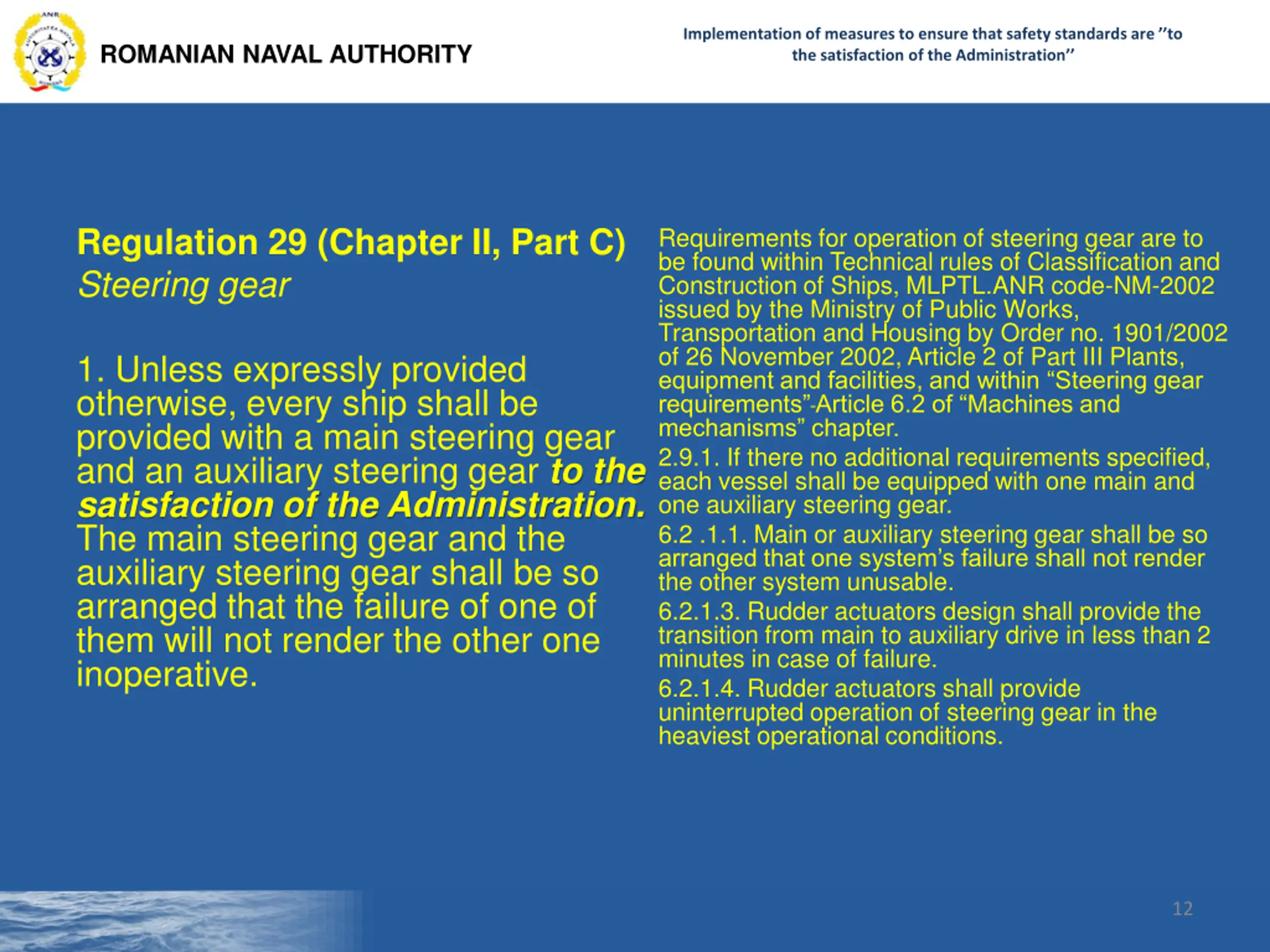

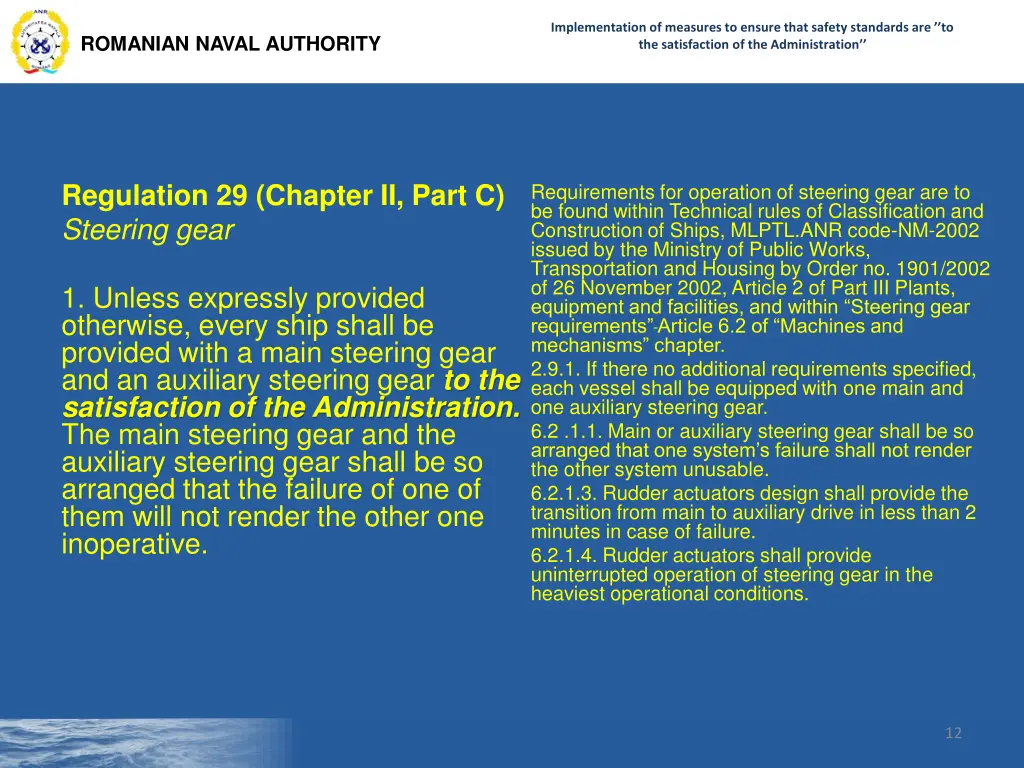

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY Regulation 29 (Chapter II, Part C) Steering gear Requirements for operation of steering gear are to be found within Technical rules of Classification and Construction of Ships, MLPTL.ANR code-NM-2002 issued by the Ministry of Public Works, Transportation and Housing by Order no. 1901/2002 of 26 November 2002, Article 2 of Part III Plants, equipment and facilities, and within Steering gear requirements Article 6.2 of Machines and mechanisms chapter. 2.9.1. If there no additional requirements specified, each vessel shall be equipped with one main and one auxiliary steering gear. 6.2 .1.1. Main or auxiliary steering gear shall be so arranged that one system s failure shall not render the other system unusable. 6.2.1.3. Rudder actuators design shall provide the transition from main to auxiliary drive in less than 2 minutes in case of failure. 6.2.1.4. Rudder actuators shall provide uninterrupted operation of steering gear in the heaviest operational conditions. 1. Unless expressly provided otherwise, every ship shall be provided with a main steering gear and an auxiliary steering gear to the satisfaction of the Administration. The main steering gear and the auxiliary steering gear shall be so arranged that the failure of one of them will not render the other one inoperative. 12

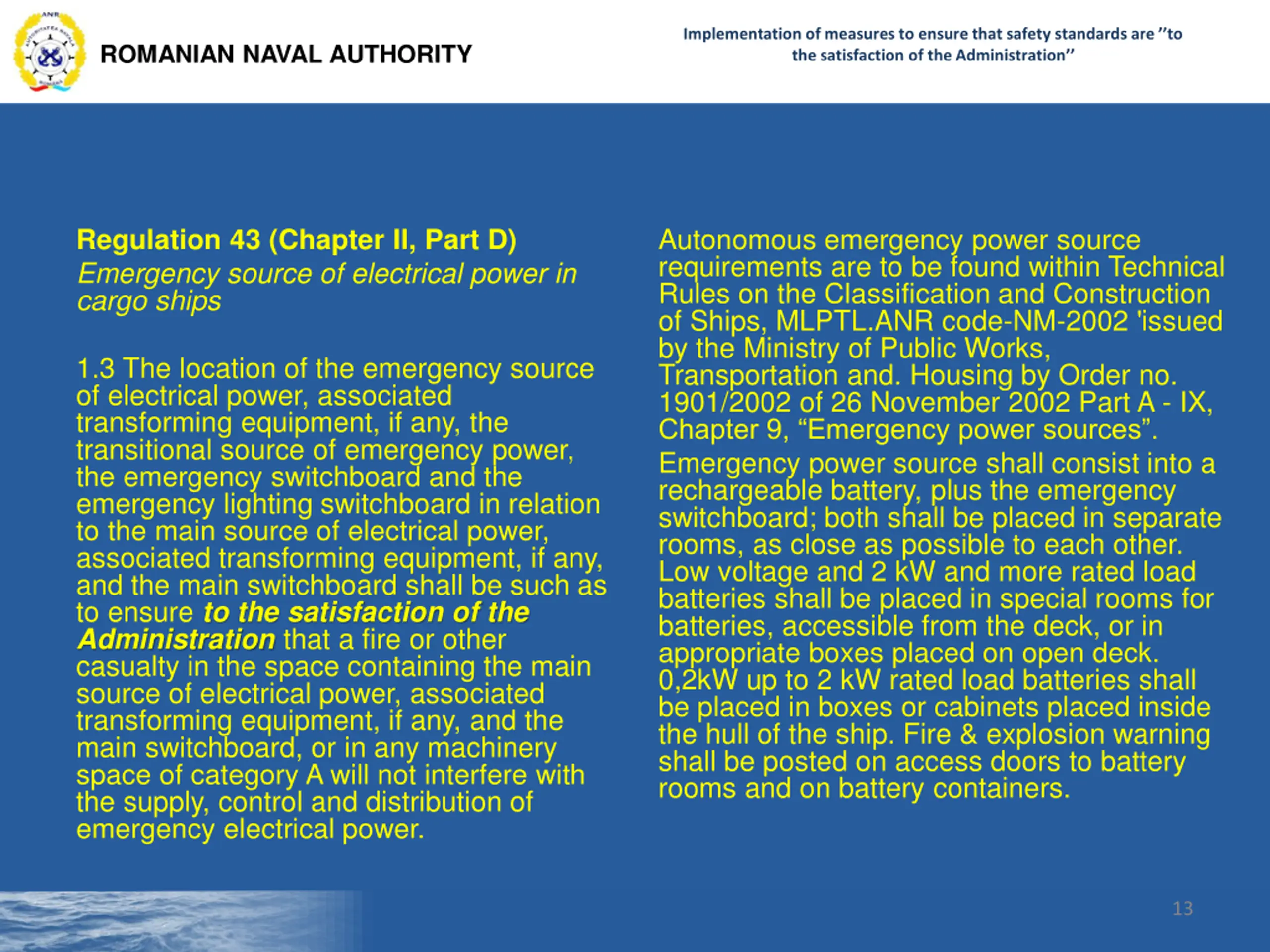

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY Autonomous emergency power source requirements are to be found within Technical Rules on the Classification and Construction of Ships, MLPTL.ANR code-NM-2002 'issued by the Ministry of Public Works, Transportation and. Housing by Order no. 1901/2002 of 26 November 2002 Part A - IX, Chapter 9, Emergency power sources . Emergency power source shall consist into a rechargeable battery, plus the emergency switchboard; both shall be placed in separate rooms, as close as possible to each other. Low voltage and 2 kW and more rated load batteries shall be placed in special rooms for batteries, accessible from the deck, or in appropriate boxes placed on open deck. 0,2kW up to 2 kW rated load batteries shall be placed in boxes or cabinets placed inside the hull of the ship. Fire & explosion warning shall be posted on access doors to battery rooms and on battery containers. Regulation 43 (Chapter II, Part D) Emergency source of electrical power in cargo ships 1.3 The location of the emergency source of electrical power, associated transforming equipment, if any, the transitional source of emergency power, the emergency switchboard and the emergency lighting switchboard in relation to the main source of electrical power, associated transforming equipment, if any, and the main switchboard shall be such as to ensure to the satisfaction of the Administration that a fire or other casualty in the space containing the main source of electrical power, associated transforming equipment, if any, and the main switchboard, or in any machinery space of category A will not interfere with the supply, control and distribution of emergency electrical power. 13

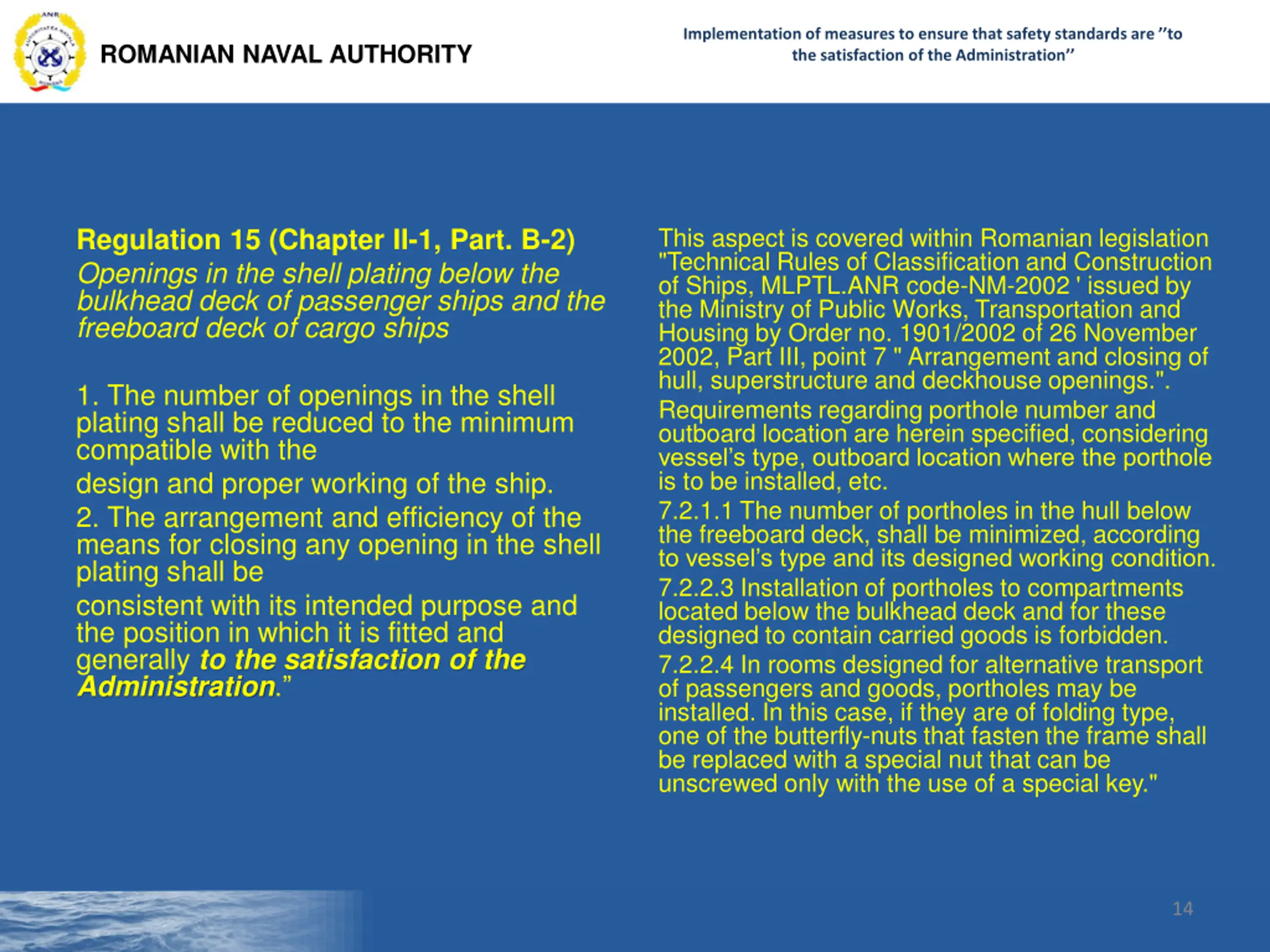

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY Regulation 15(Chapter II-1, Part. B-2) Openings in the shell plating below the bulkhead deck of passenger ships and the freeboard deck of cargo ships This aspect is covered within Romanian legislation "Technical Rules of Classification and Construction of Ships, MLPTL.ANR code-NM-2002 ' issued by the Ministry of Public Works, Transportation and Housing by Order no. 1901/2002 of 26 November 2002, Part III, point 7 " Arrangement and closing of hull, superstructure and deckhouse openings.". Requirements regarding porthole number and outboard location are herein specified, considering vessel s type, outboard location where the porthole is to be installed, etc. 7.2.1.1 The number of portholes in the hull below the freeboard deck, shall be minimized, according to vessel s type and its designed working condition. 7.2.2.3 Installation of portholes to compartments located below the bulkhead deck and for these designed to contain carried goods is forbidden. 7.2.2.4 In rooms designed for alternative transport of passengers and goods, portholes may be installed. In this case, if they are of folding type, one of the butterfly-nuts that fasten the frame shall be replaced with a special nut that can be unscrewed only with the use of a special key." 1. The number of openings in the shell plating shall be reduced to the minimum compatible with the design and proper working of the ship. 2. The arrangement and efficiency of the means for closing any opening in the shell plating shall be consistent with its intended purpose and the position in which it is fitted and generally to the satisfaction of the Administration. 14

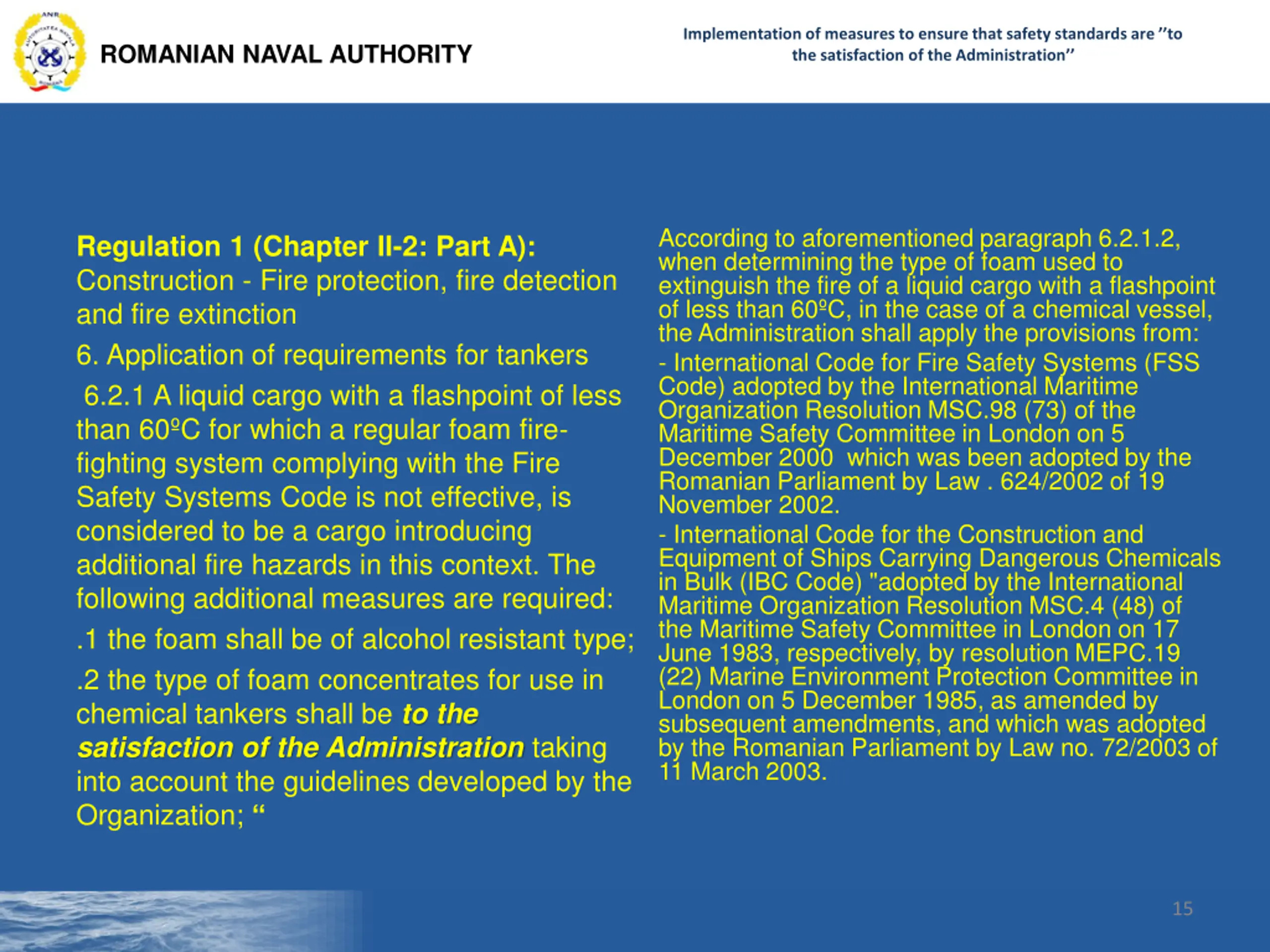

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY According to aforementioned paragraph 6.2.1.2, when determining the type of foam used to extinguish the fire of a liquid cargo with a flashpoint of less than 60 C, in the case of a chemical vessel, the Administration shall apply the provisions from: - International Code for Fire Safety Systems (FSS Code) adopted by the International Maritime Organization Resolution MSC.98 (73) of the Maritime Safety Committee in London on 5 December 2000 which was been adopted by the Romanian Parliament by Law . 624/2002 of 19 November 2002. - International Code for the Construction and Equipment of Ships Carrying Dangerous Chemicals in Bulk (IBC Code) "adopted by the International Maritime Organization Resolution MSC.4 (48) of the Maritime Safety Committee in London on 17 June 1983, respectively, by resolution MEPC.19 (22) Marine Environment Protection Committee in London on 5 December 1985, as amended by subsequent amendments, and which was adopted by the Romanian Parliament by Law no. 72/2003 of 11 March 2003. Regulation 1 (Chapter II-2: Part A): Construction - Fire protection, fire detection and fire extinction 6. Application of requirements for tankers 6.2.1 A liquid cargo with a flashpoint of less than 60 C for which a regular foam fire- fighting system complying with the Fire Safety Systems Code is not effective, is considered to be a cargo introducing additional fire hazards in this context. The following additional measures are required: .1 the foam shall be of alcohol resistant type; .2 the type of foam concentrates for use in chemical tankers shall be to the satisfaction of the Administration taking into account the guidelines developed by the Organization; 15

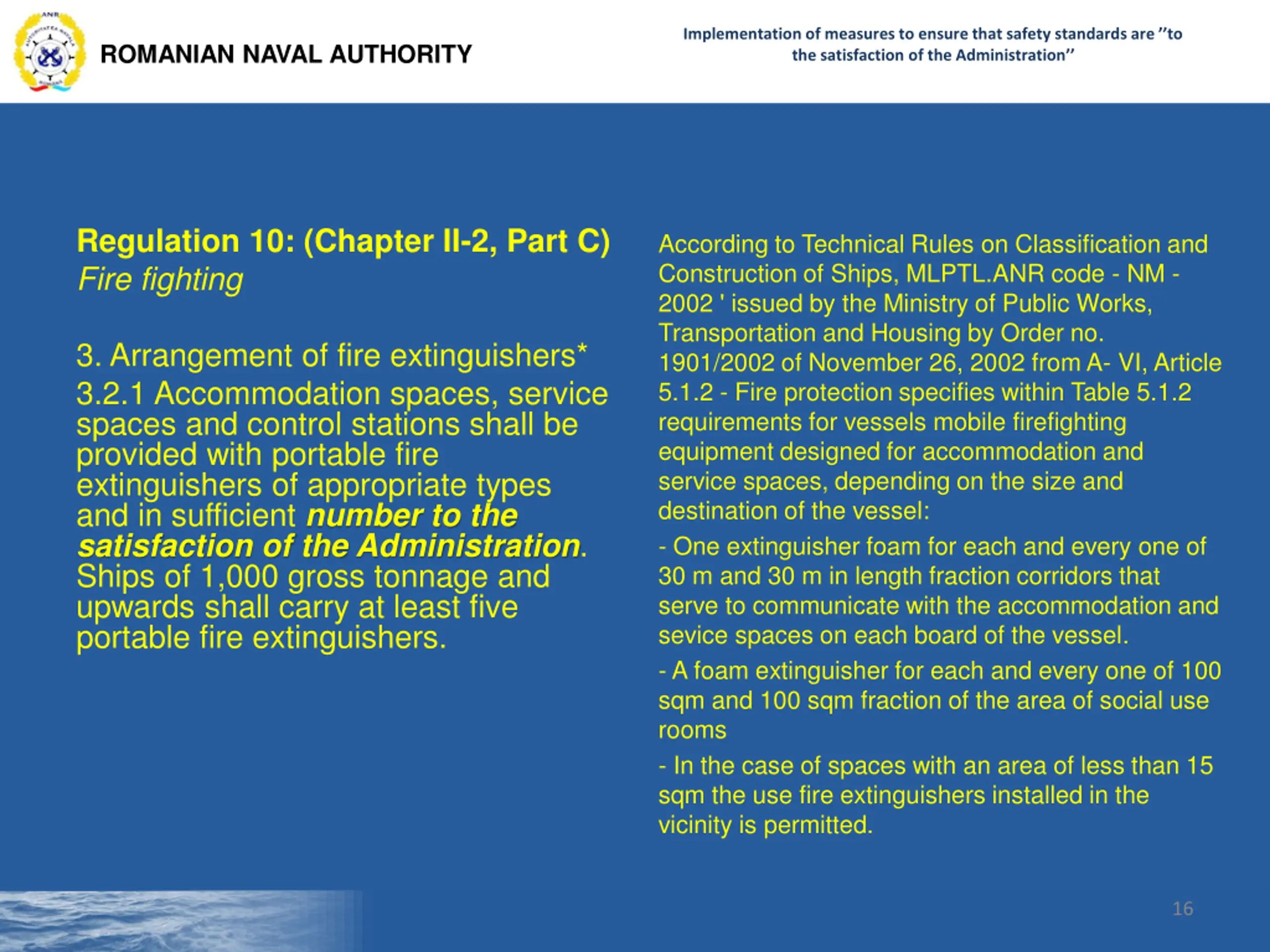

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY Regulation 10: (Chapter II-2, Part C) Fire fighting According to Technical Rules on Classification and Construction of Ships, MLPTL.ANR code - NM - 2002 ' issued by the Ministry of Public Works, Transportation and Housing by Order no. 1901/2002 of November 26, 2002 from A- VI, Article 5.1.2 - Fire protection specifies within Table 5.1.2 requirements for vessels mobile firefighting equipment designed for accommodation and service spaces, depending on the size and destination of the vessel: - One extinguisher foam for each and every one of 30 m and 30 m in length fraction corridors that serve to communicate with the accommodation and sevice spaces on each board of the vessel. - A foam extinguisher for each and every one of 100 sqm and 100 sqm fraction of the area of social use rooms - In the case of spaces with an area of less than 15 sqm the use fire extinguishers installed in the vicinity is permitted. 3. Arrangement of fire extinguishers* 3.2.1 Accommodation spaces, service spaces and control stations shall be provided with portable fire extinguishers of appropriate types and in sufficient number to the satisfaction of the Administration. Ships of 1,000 gross tonnage and upwards shall carry at least five portable fire extinguishers. 16

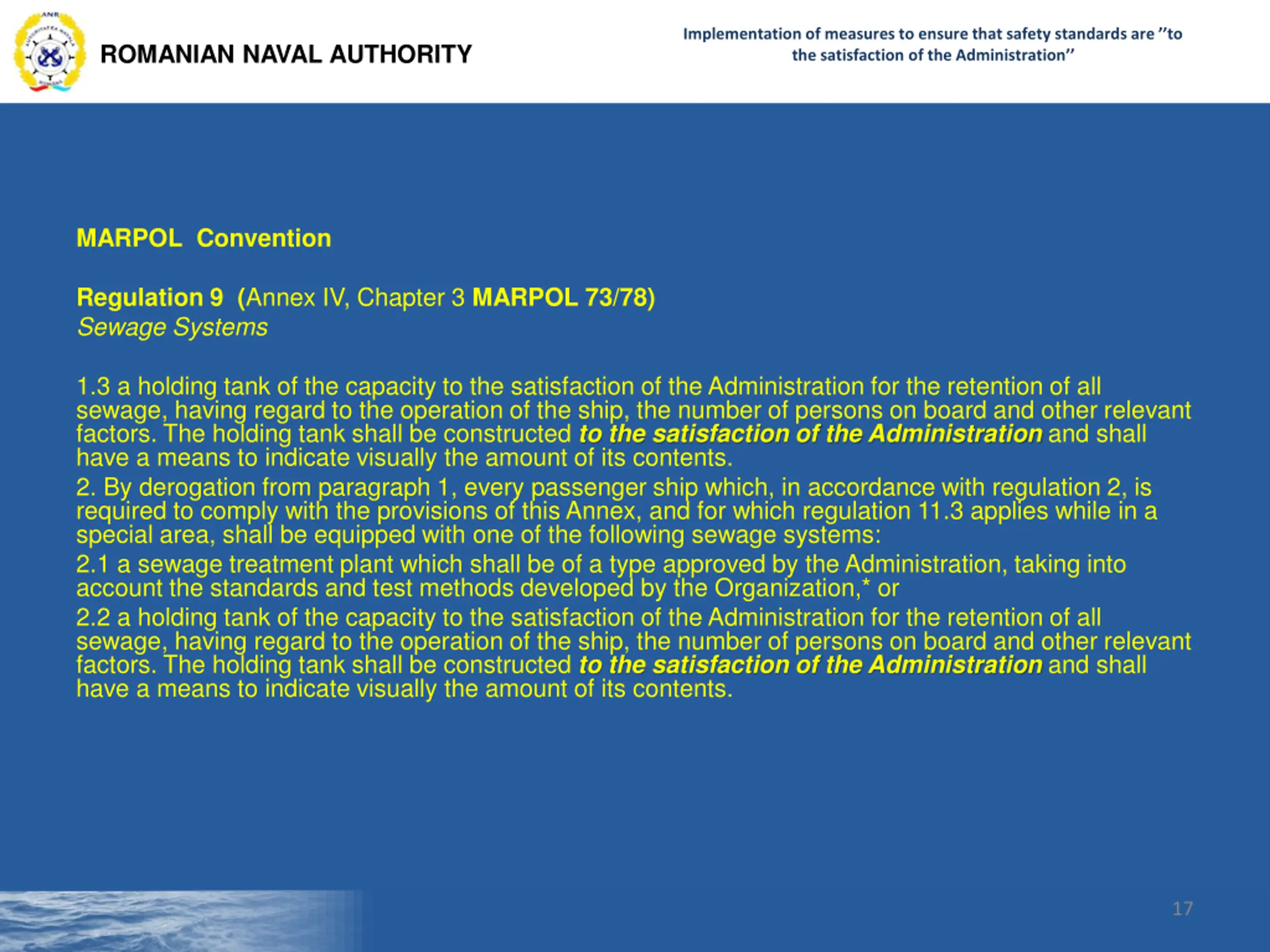

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY MARPOL Convention Regulation 9 (Annex IV, Chapter 3 MARPOL 73/78) Sewage Systems 1.3 a holding tank of the capacity to the satisfaction of the Administration for the retention of all sewage, having regard to the operation of the ship, the number of persons on board and other relevant factors. The holding tank shall be constructed to the satisfaction of the Administration and shall have a means to indicate visually the amount of its contents. 2. By derogation from paragraph 1, every passenger ship which, in accordance with regulation 2, is required to comply with the provisions of this Annex, and for which regulation 11.3 applies while in a special area, shall be equipped with one of the following sewage systems: 2.1 a sewage treatment plant which shall be of a type approved by the Administration, taking into account the standards and test methods developed by the Organization,* or 2.2 a holding tank of the capacity to the satisfaction of the Administration for the retention of all sewage, having regard to the operation of the ship, the number of persons on board and other relevant factors. The holding tank shall be constructed to the satisfaction of the Administration and shall have a means to indicate visually the amount of its contents. 17

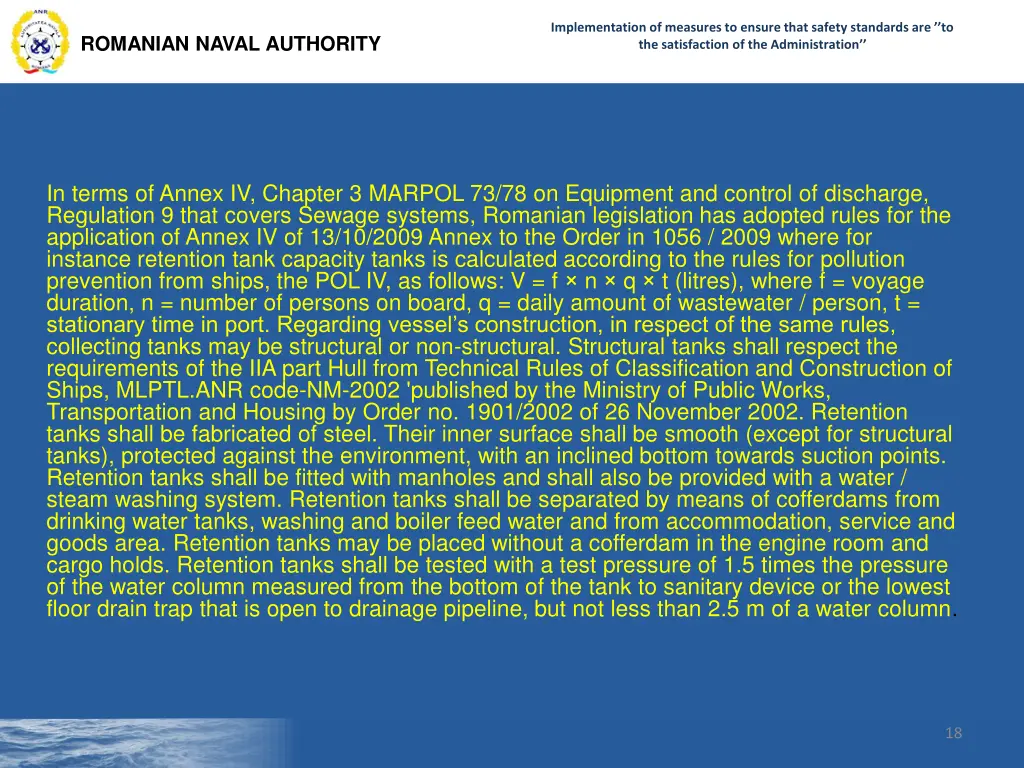

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY In terms of Annex IV, Chapter 3 MARPOL 73/78 on Equipment and control of discharge, Regulation 9 that covers Sewage systems, Romanian legislation has adopted rules for the application of Annex IV of 13/10/2009 Annex to the Order in 1056 / 2009 where for instance retention tank capacity tanks is calculated according to the rules for pollution prevention from ships, the POL IV, as follows: V = f n q t (litres), where f = voyage duration, n = number of persons on board, q = daily amount of wastewater / person, t = stationary time in port. Regarding vessel s construction, in respect of the same rules, collecting tanks may be structural or non-structural. Structural tanks shall respect the requirements of the IIA part Hull from Technical Rules of Classification and Construction of Ships, MLPTL.ANR code-NM-2002 'published by the Ministry of Public Works, Transportation and Housing by Order no. 1901/2002 of 26 November 2002. Retention tanks shall be fabricated of steel. Their inner surface shall be smooth (except for structural tanks), protected against the environment, with an inclined bottom towards suction points. Retention tanks shall be fitted with manholes and shall also be provided with a water / steam washing system. Retention tanks shall be separated by means of cofferdams from drinking water tanks, washing and boiler feed water and from accommodation, service and goods area. Retention tanks may be placed without a cofferdam in the engine room and cargo holds. Retention tanks shall be tested with a test pressure of 1.5 times the pressure of the water column measured from the bottom of the tank to sanitary device or the lowest floor drain trap that is open to drainage pipeline, but not less than 2.5 m of a water column. 18

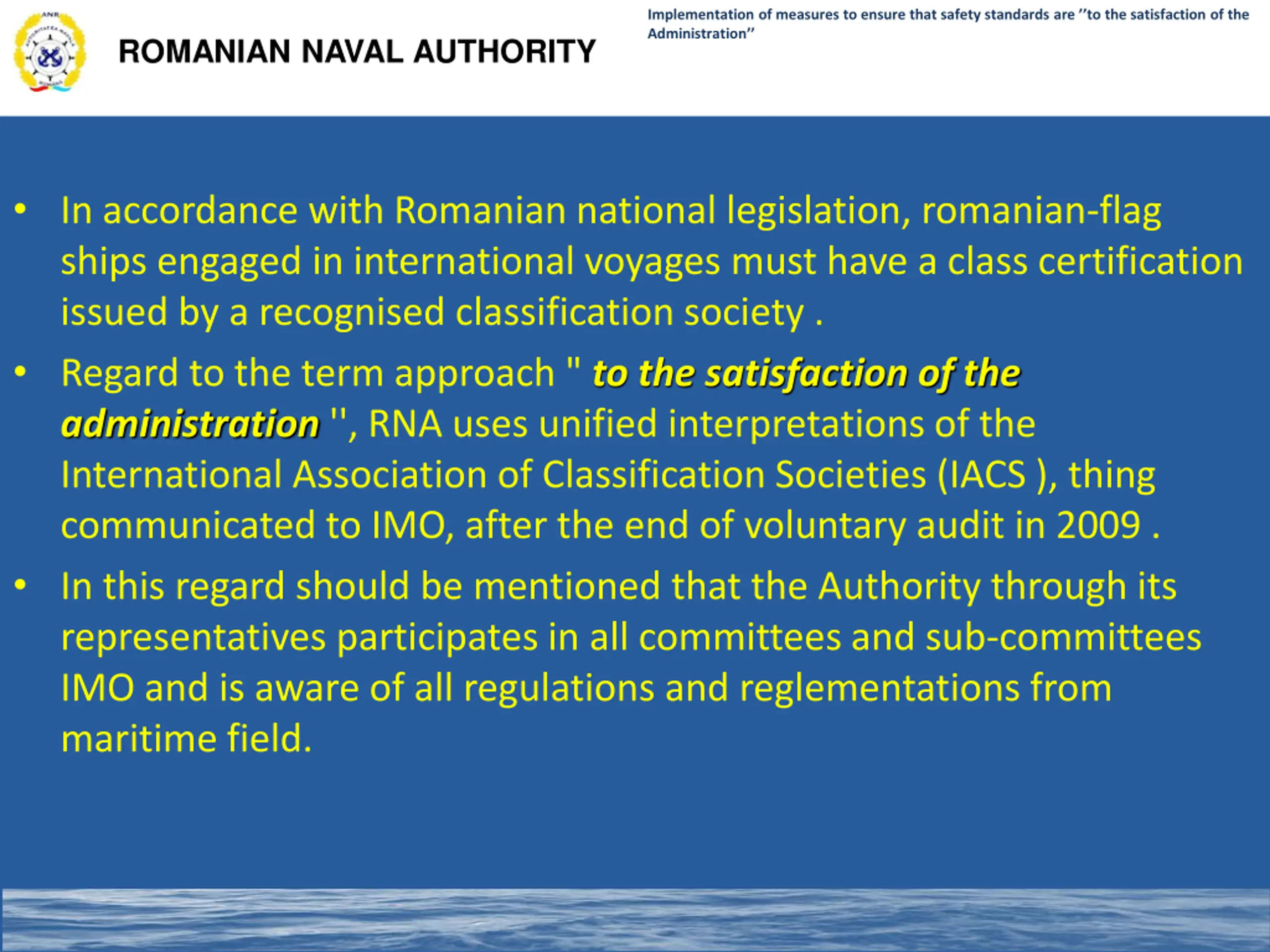

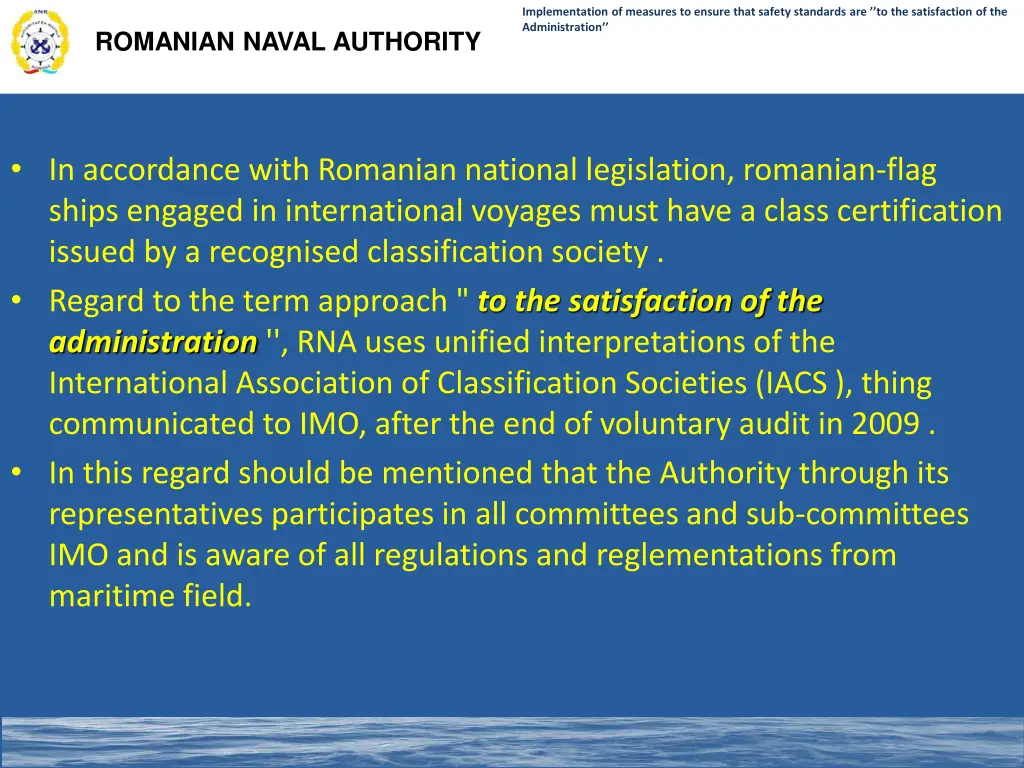

Implementation of measures to ensure that safety standards are to the satisfaction of the Administration ROMANIAN NAVAL AUTHORITY In accordance with Romanian national legislation, romanian-flag ships engaged in international voyages must have a class certification issued by a recognised classification society . Regard to the term approach " to the satisfaction of the administration '', RNA uses unified interpretations of the International Association of Classification Societies (IACS ), thing communicated to IMO, after the end of voluntary audit in 2009 . In this regard should be mentioned that the Authority through its representatives participates in all committees and sub-committees IMO and is aware of all regulations and reglementations from maritime field. 19
ROMANIAN NAVAL AUTHORITY Thank you for your attention! 20
