HTML5 tables Oscar Gabriel Camarena Martinez 09-08-2021 Taken from: Paul S. Wang, Dynamic Web Programming and HTML 5, CRC Press 2013. ISBN 978-1- 4398-7182-9

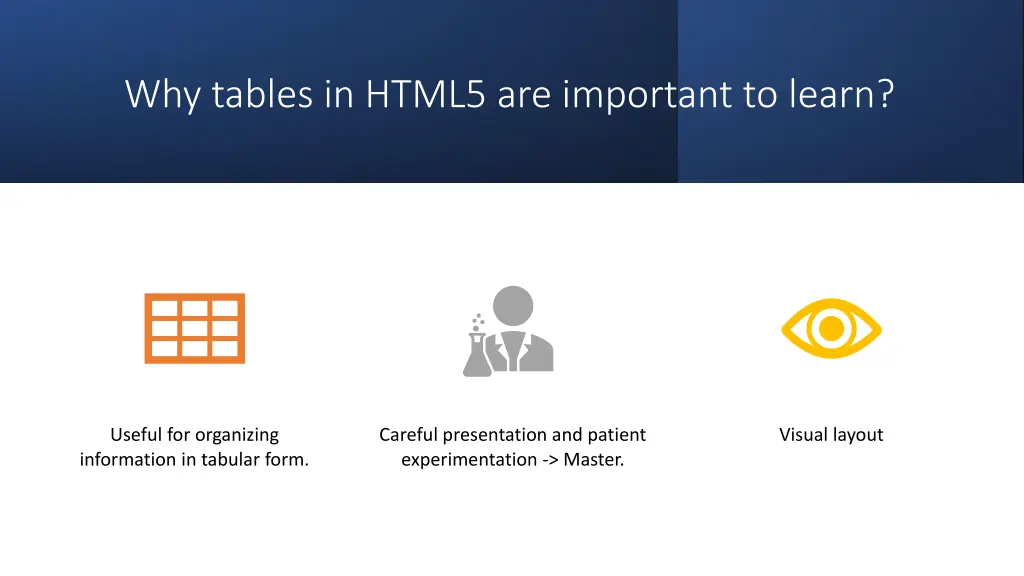

Why tables in HTML5 are important to learn? Useful for organizing information in tabular form. Careful presentation and patient experimentation -> Master. Visual layout

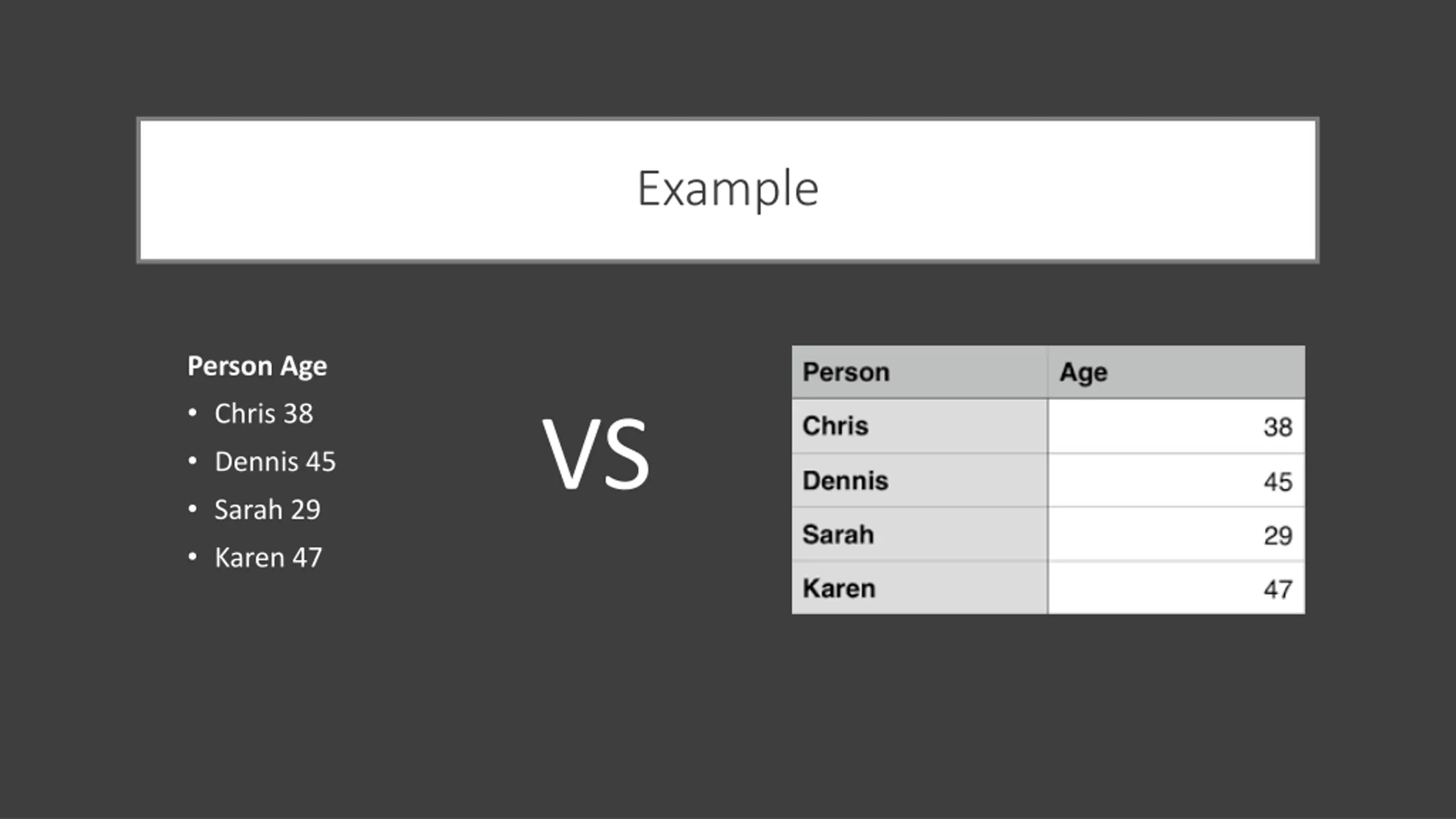

Example Person Age Chris 38 Dennis 45 Sarah 29 Karen 47 VS

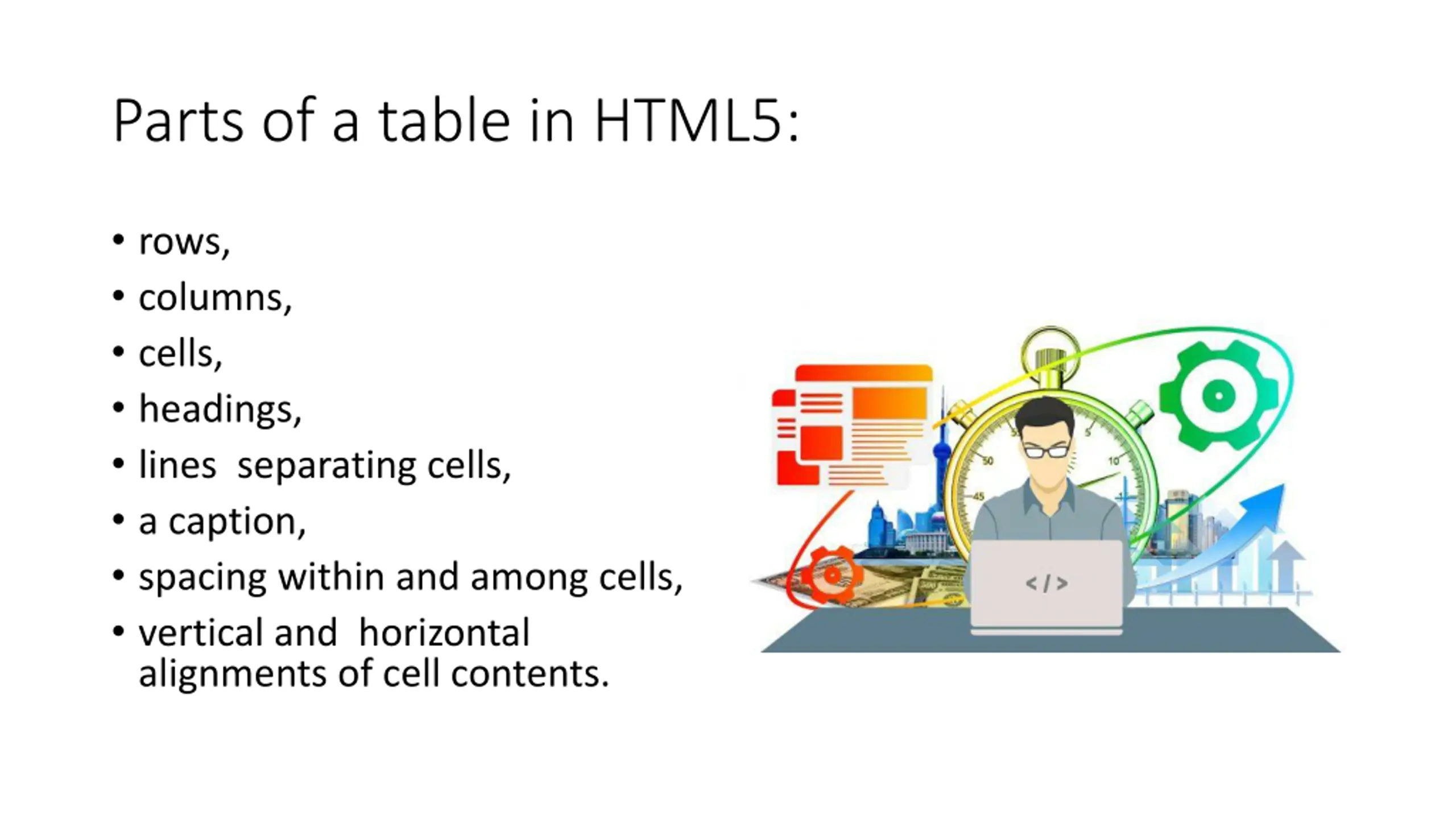

Parts of a table in HTML5: rows, columns, cells, headings, lines separating cells, a caption, spacing within and among cells, vertical and horizontal alignments of cell contents.

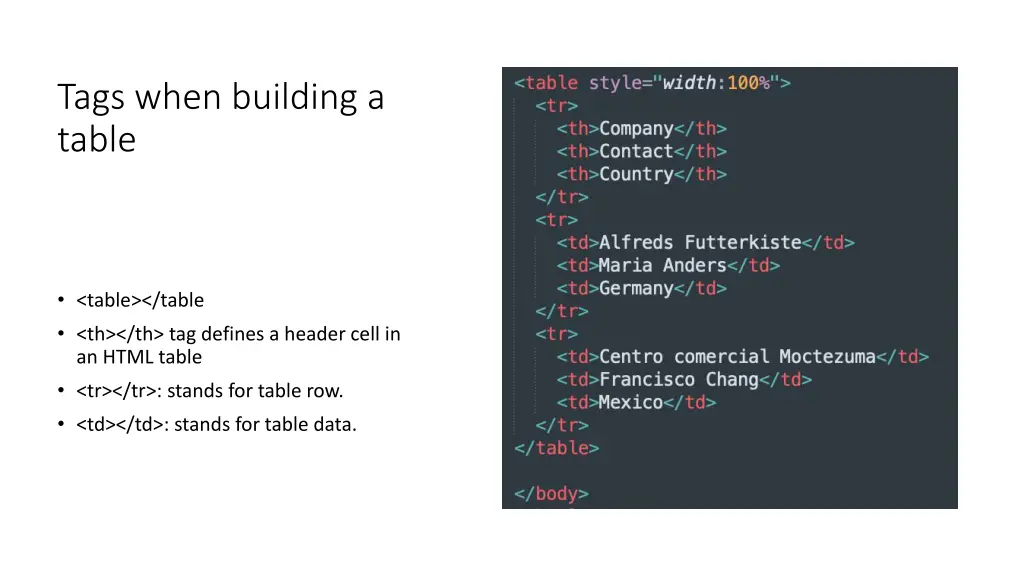

Tags when building a table <table></table <th></th> tag defines a header cell in an HTML table <tr></tr>: stands for table row. <td></td>: stands for table data.

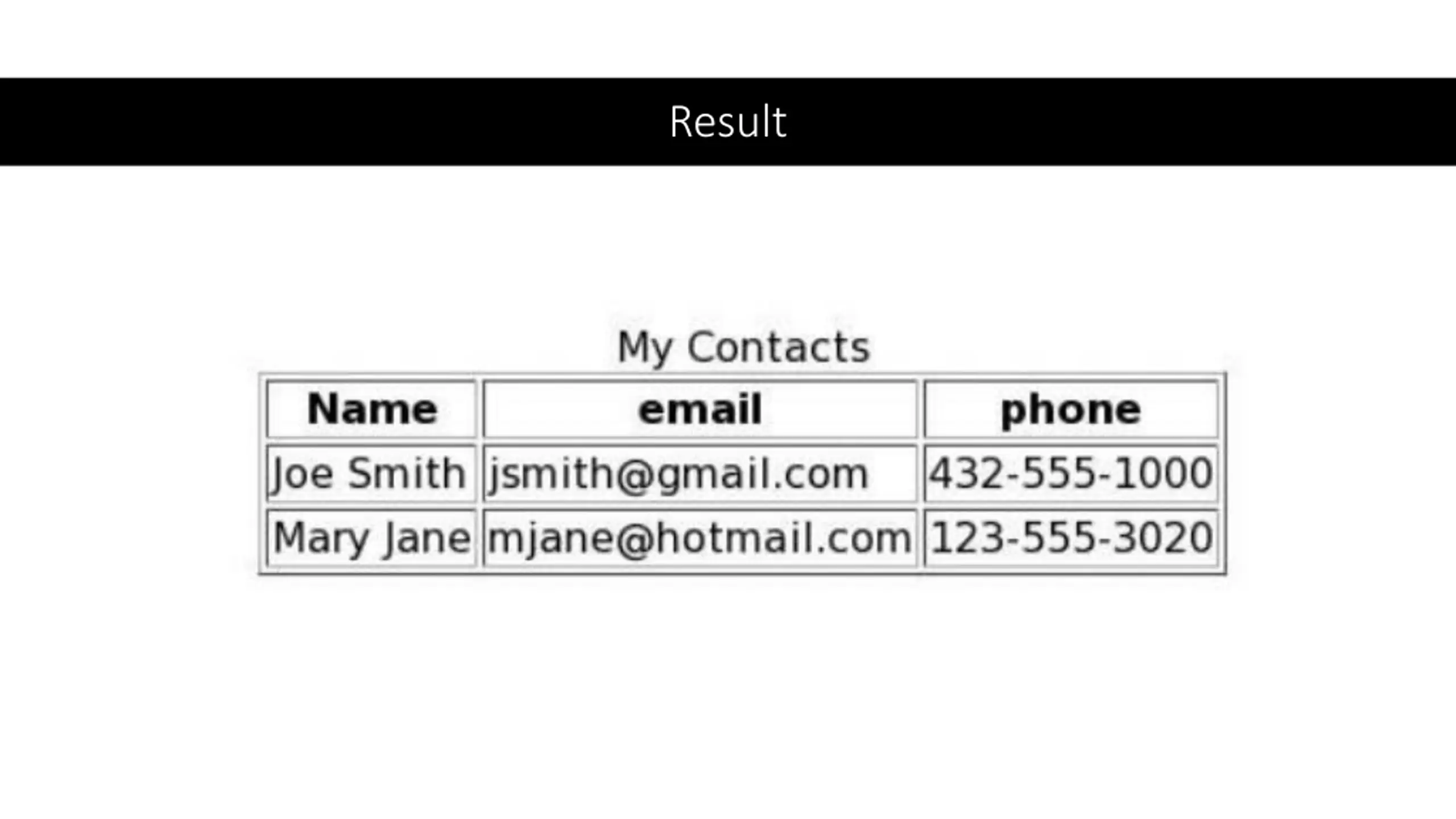

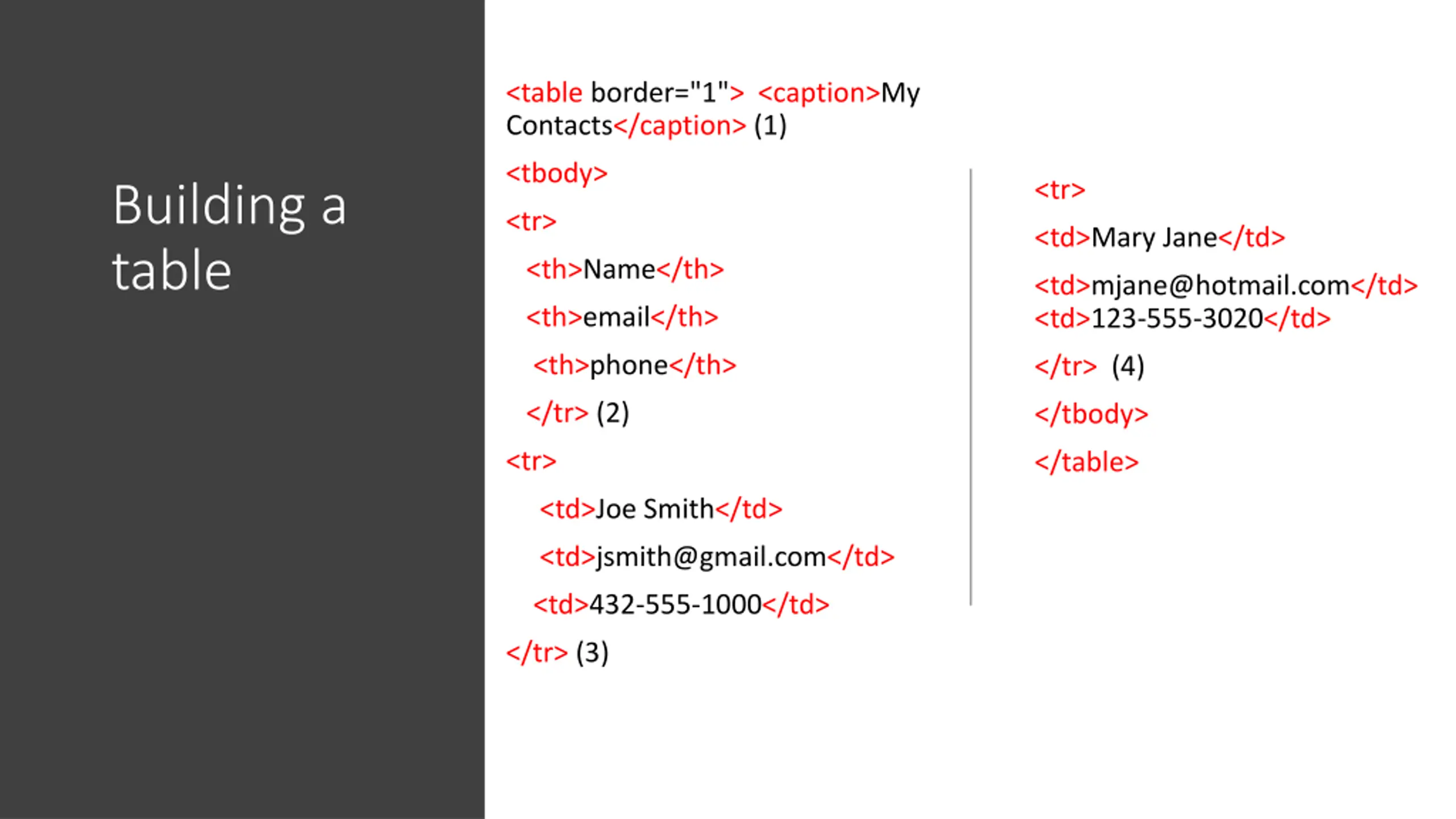

<table border="1"> <caption>My Contacts</caption> (1) <tbody> <tr> Building a table <tr> <td>Mary Jane</td> <th>Name</th> <td>mjane@hotmail.com</td> <td>123-555-3020</td> <th>email</th> <th>phone</th> </tr> (4) </tr> (2) </tbody> <tr> </table> <td>Joe Smith</td> <td>jsmith@gmail.com</td> <td>432-555-1000</td> </tr> (3)

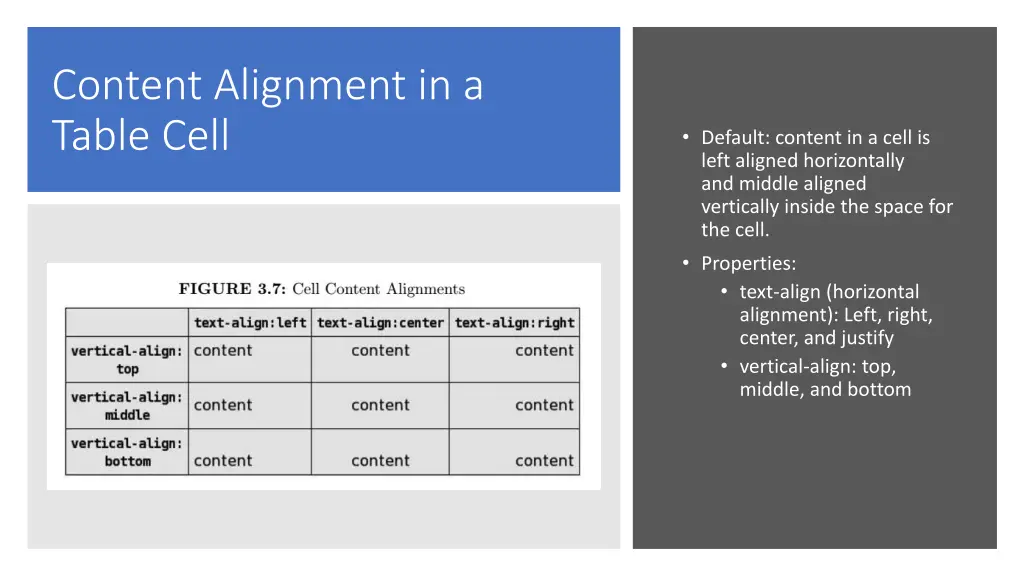

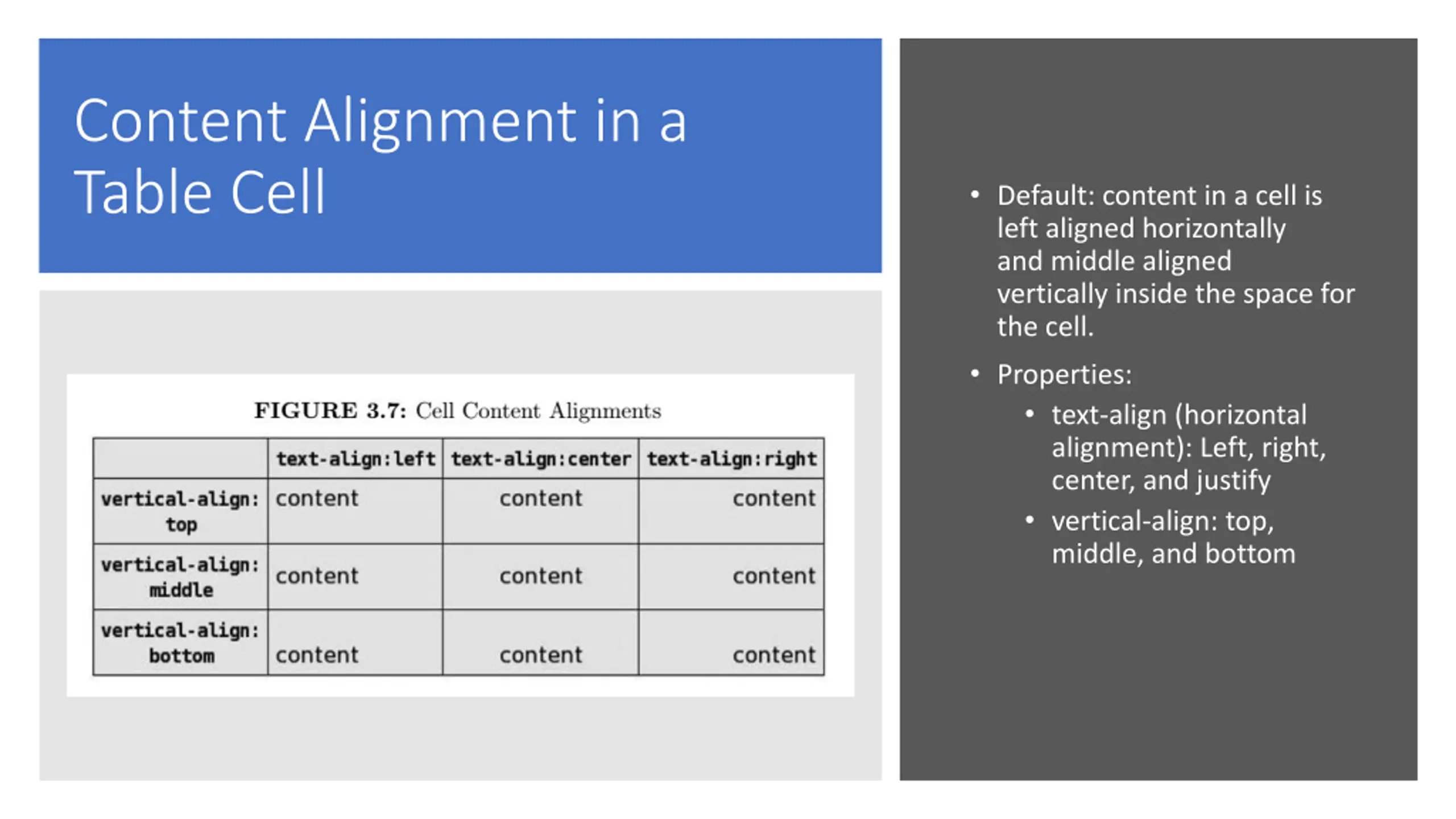

Content Alignment in a Table Cell Default: content in a cell is left aligned horizontally and middle aligned vertically inside the space for the cell. Properties: text-align (horizontal alignment): Left, right, center, and justify vertical-align: top, middle, and bottom

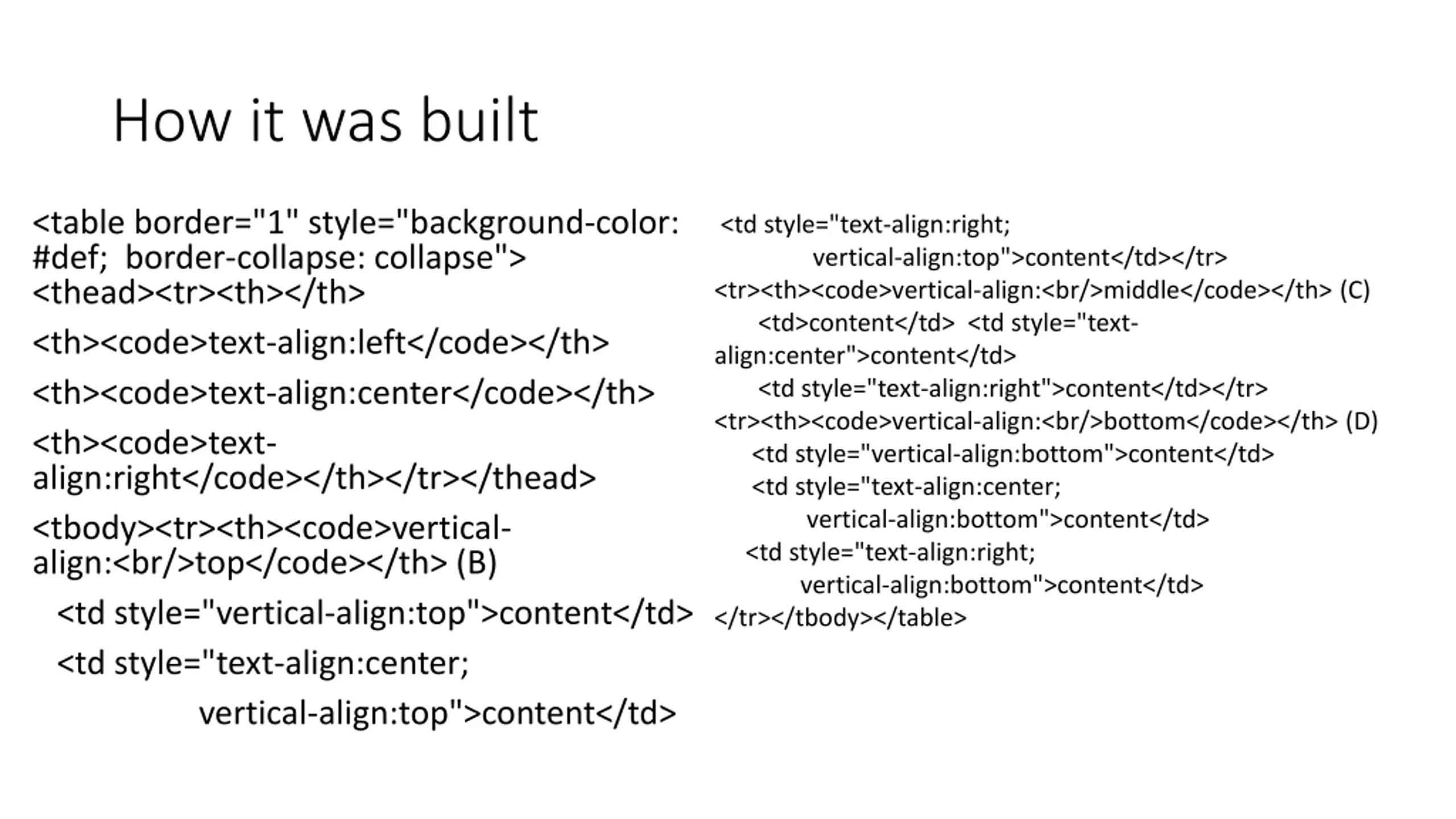

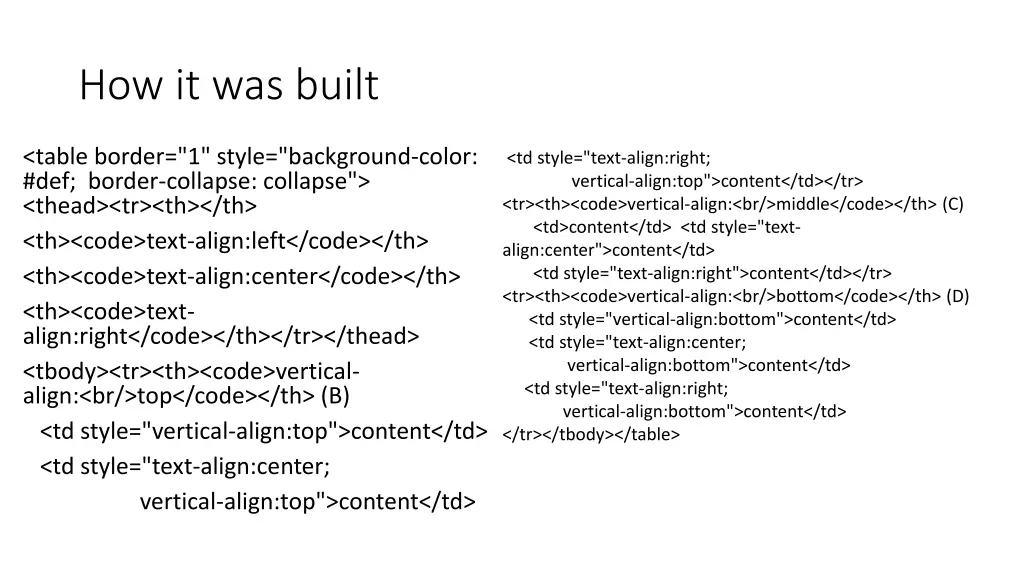

How it was built <table border="1" style="background-color: #def; border-collapse: collapse"> <thead><tr><th></th> <th><code>text-align:left</code></th> <th><code>text-align:center</code></th> <th><code>text- align:right</code></th></tr></thead> <tbody><tr><th><code>vertical- align:<br/>top</code></th> (B) <td style="vertical-align:top">content</td> <td style="text-align:center; vertical-align:top">content</td> <td style="text-align:right; vertical-align:top">content</td></tr> <tr><th><code>vertical-align:<br/>middle</code></th> (C) <td>content</td> <td style="text- align:center">content</td> <td style="text-align:right">content</td></tr> <tr><th><code>vertical-align:<br/>bottom</code></th> (D) <td style="vertical-align:bottom">content</td> <td style="text-align:center; vertical-align:bottom">content</td> <td style="text-align:right; vertical-align:bottom">content</td> </tr></tbody></table>

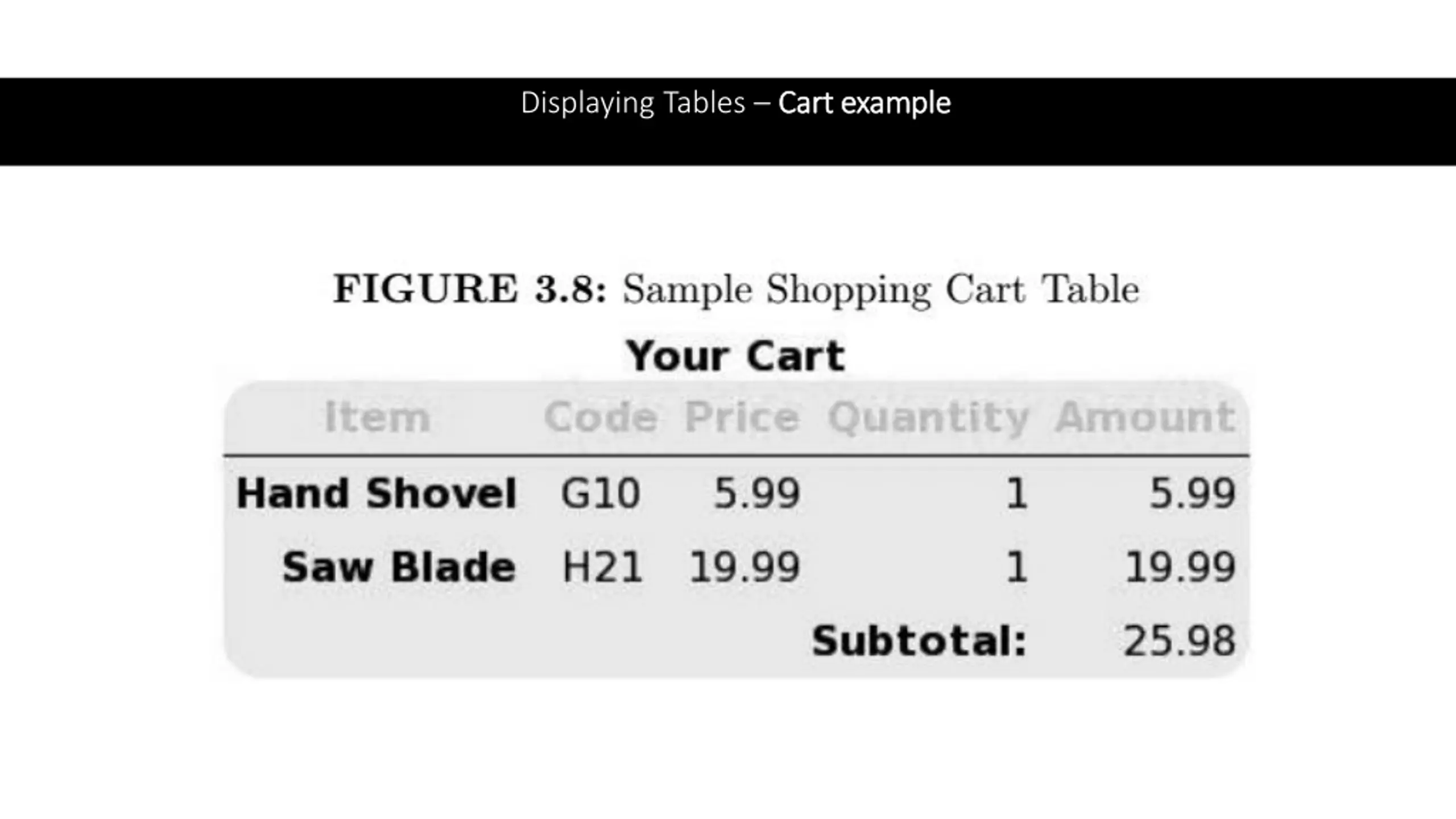

Displaying Tables Cart example Cart example

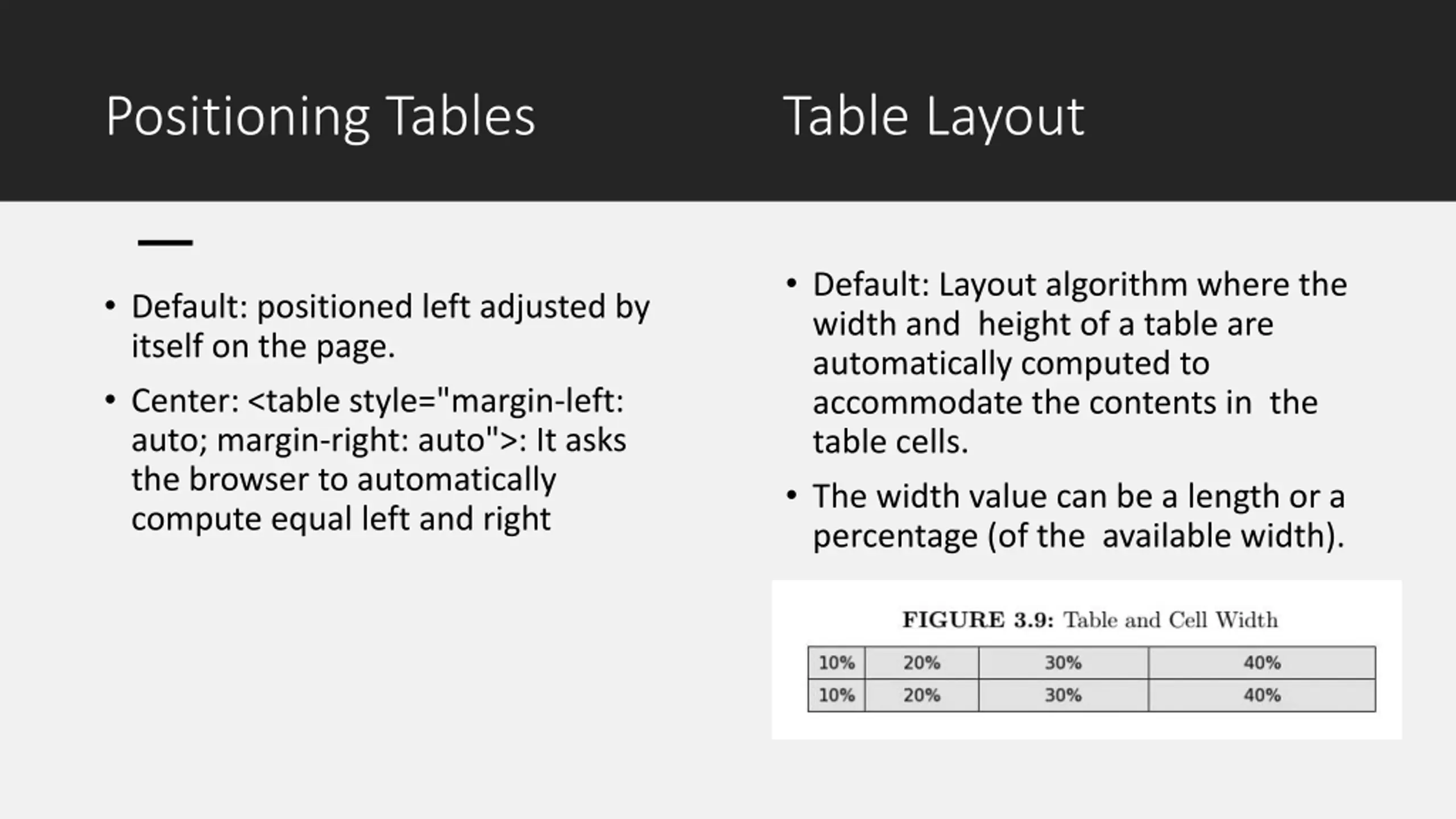

Positioning Tables Table Layout Default: Layout algorithm where the width and height of a table are automatically computed to accommodate the contents in the table cells. The width value can be a length or a percentage (of the available width). Default: positioned left adjusted by itself on the page. Center: <table style="margin-left: auto; margin-right: auto">: It asks the browser to automatically compute equal left and right

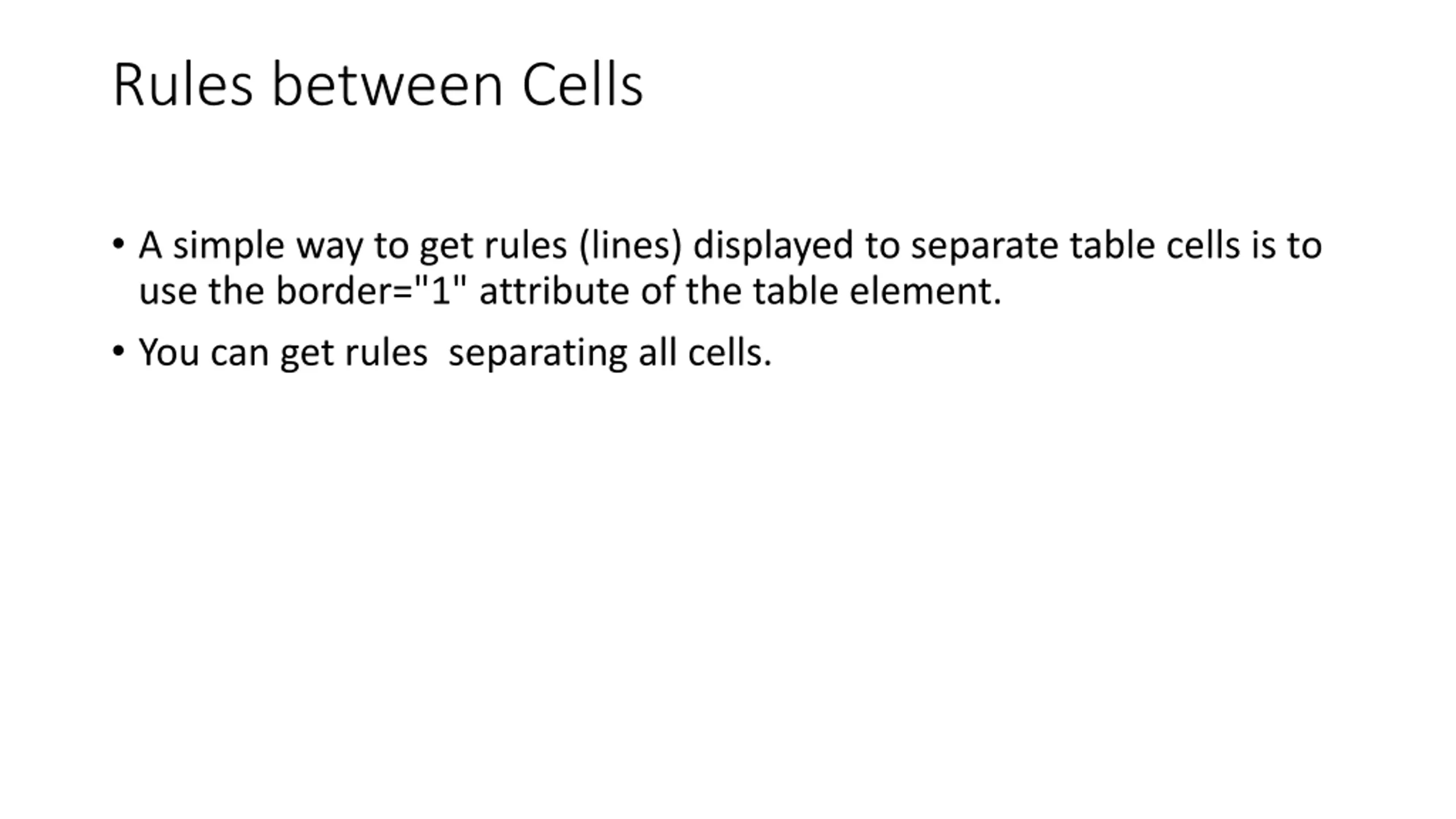

Rules between Cells A simple way to get rules (lines) displayed to separate table cells is to use the border="1" attribute of the table element. You can get rules separating all cells.

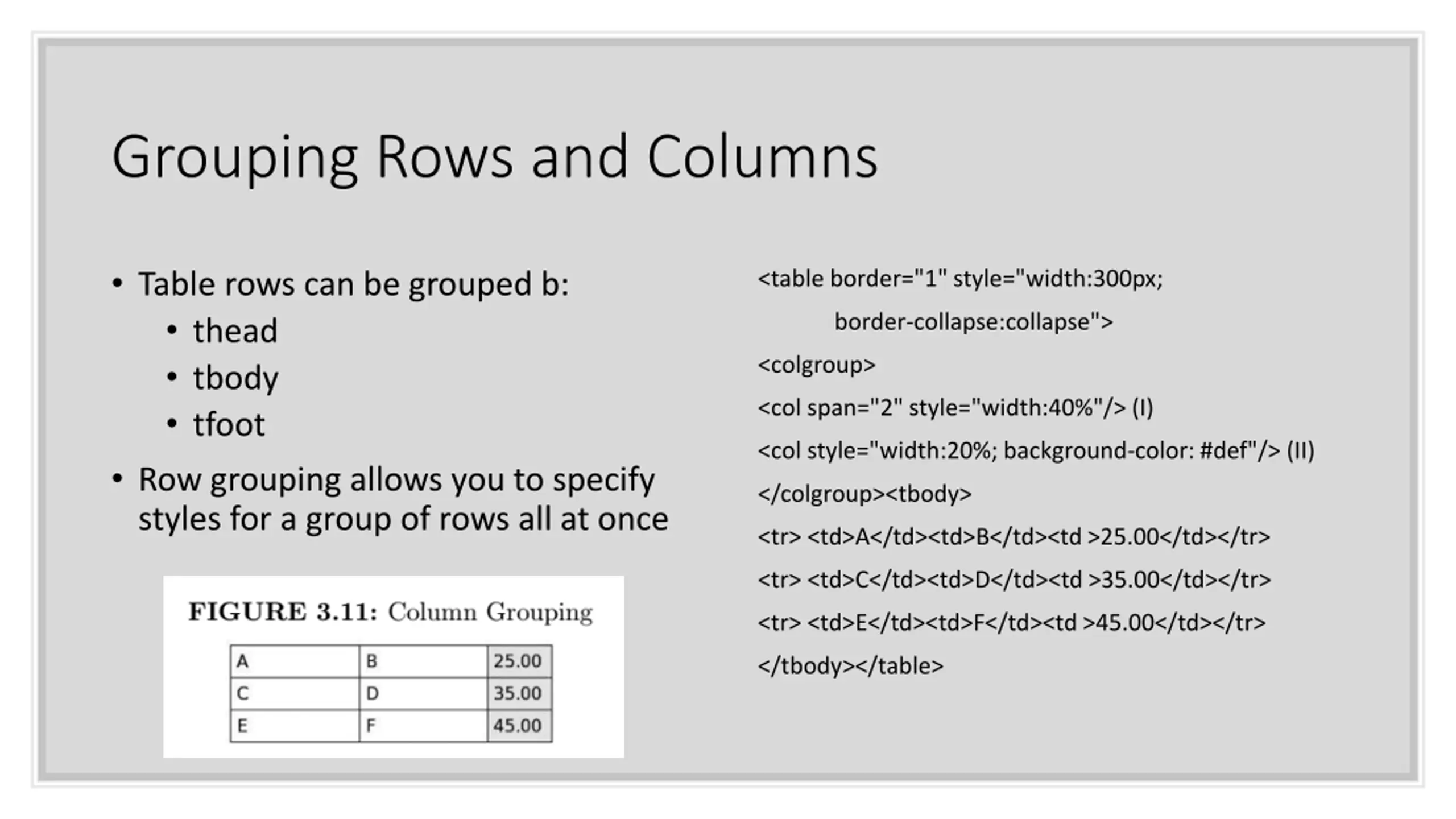

Grouping Rows and Columns Table rows can be grouped b: thead tbody tfoot Row grouping allows you to specify styles for a group of rows all at once <table border="1" style="width:300px; border-collapse:collapse"> <colgroup> <col span="2" style="width:40%"/> (I) <col style="width:20%; background-color: #def"/> (II) </colgroup><tbody> <tr> <td>A</td><td>B</td><td >25.00</td></tr> <tr> <td>C</td><td>D</td><td >35.00</td></tr> <tr> <td>E</td><td>F</td><td >45.00</td></tr> </tbody></table>

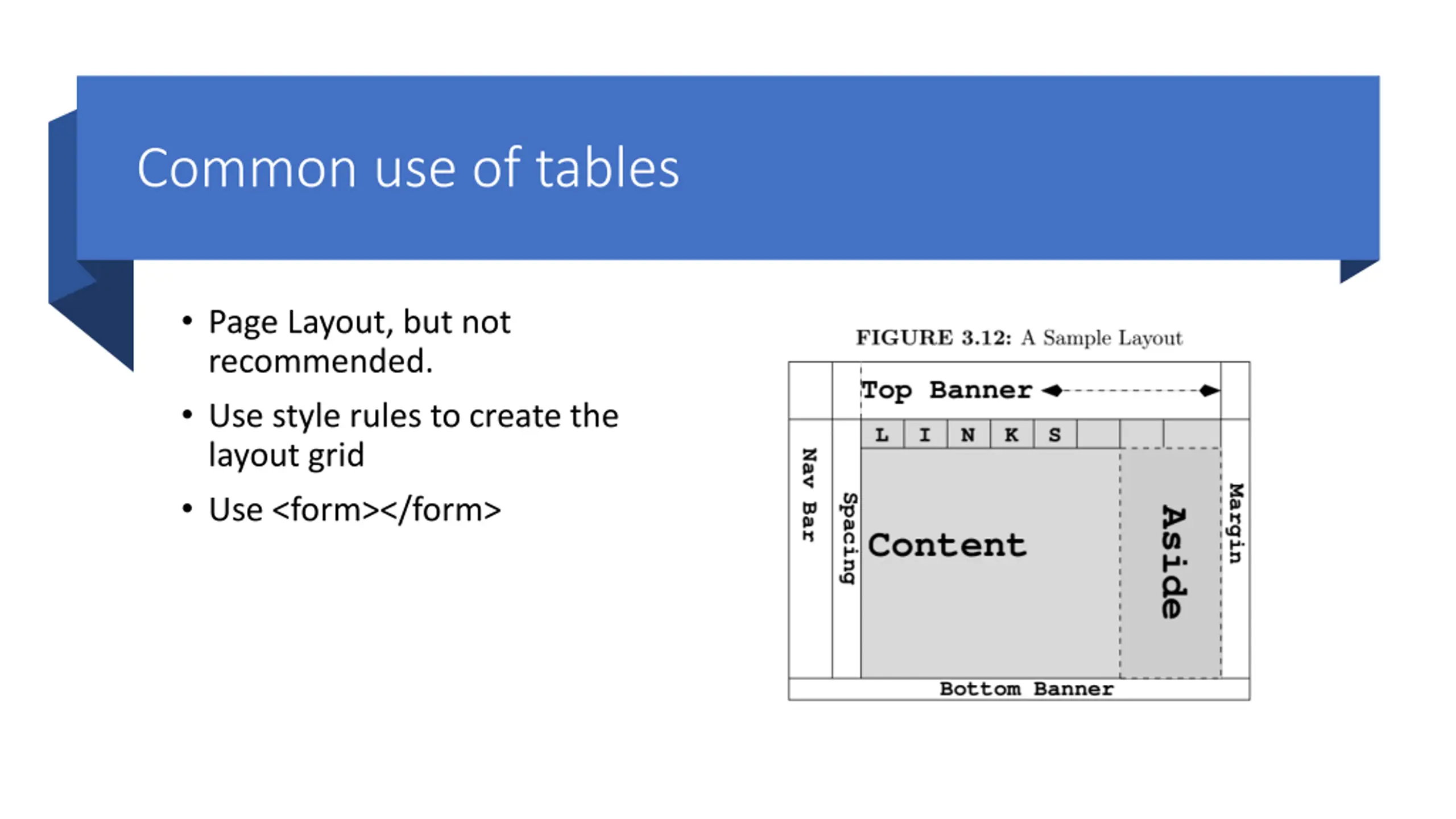

Common use of tables Page Layout, but not recommended. Use style rules to create the layout grid Use <form></form>

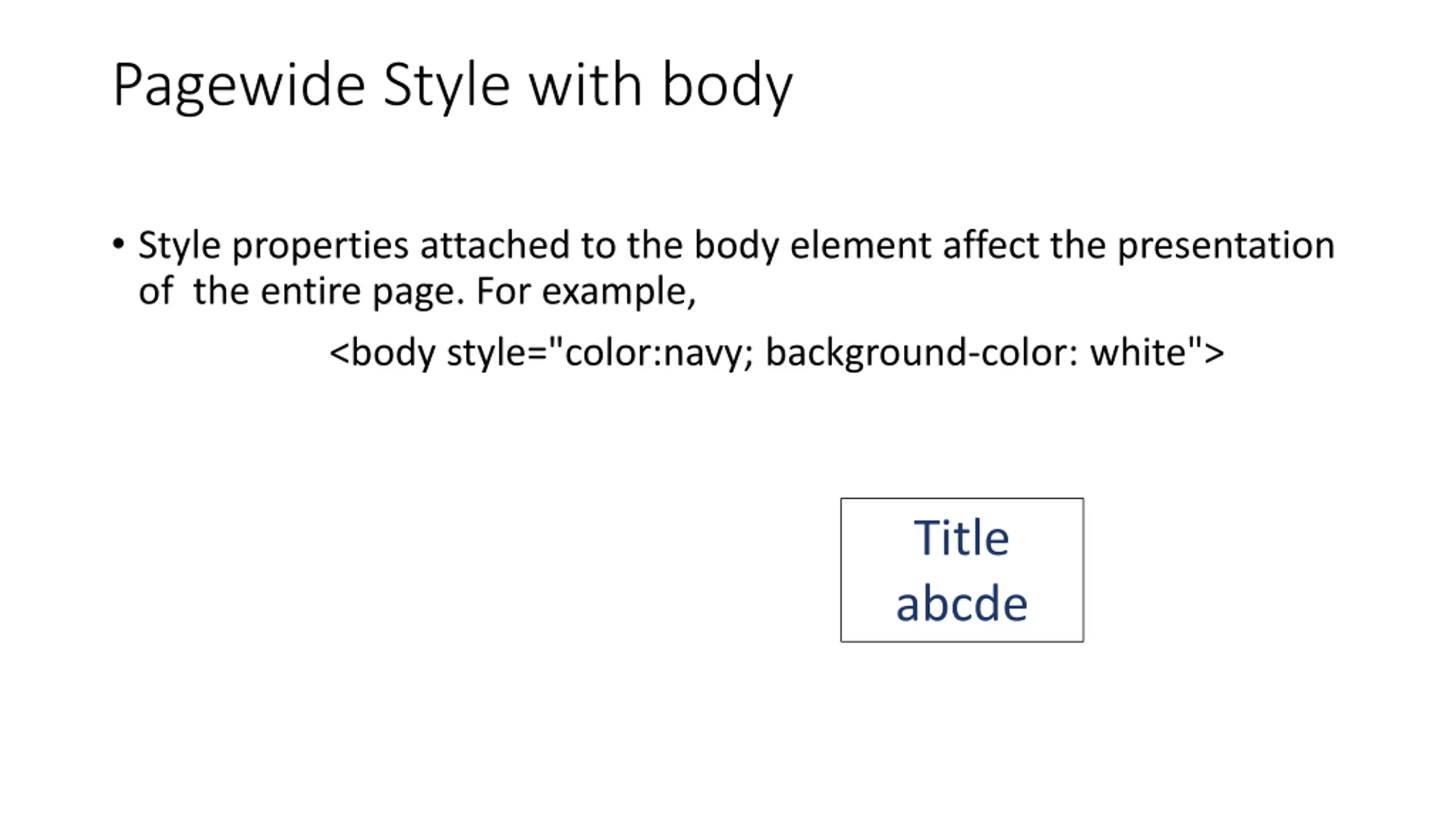

Pagewide Style with body Style properties attached to the body element affect the presentation of the entire page. For example, <body style="color:navy; background-color: white"> Title abcde

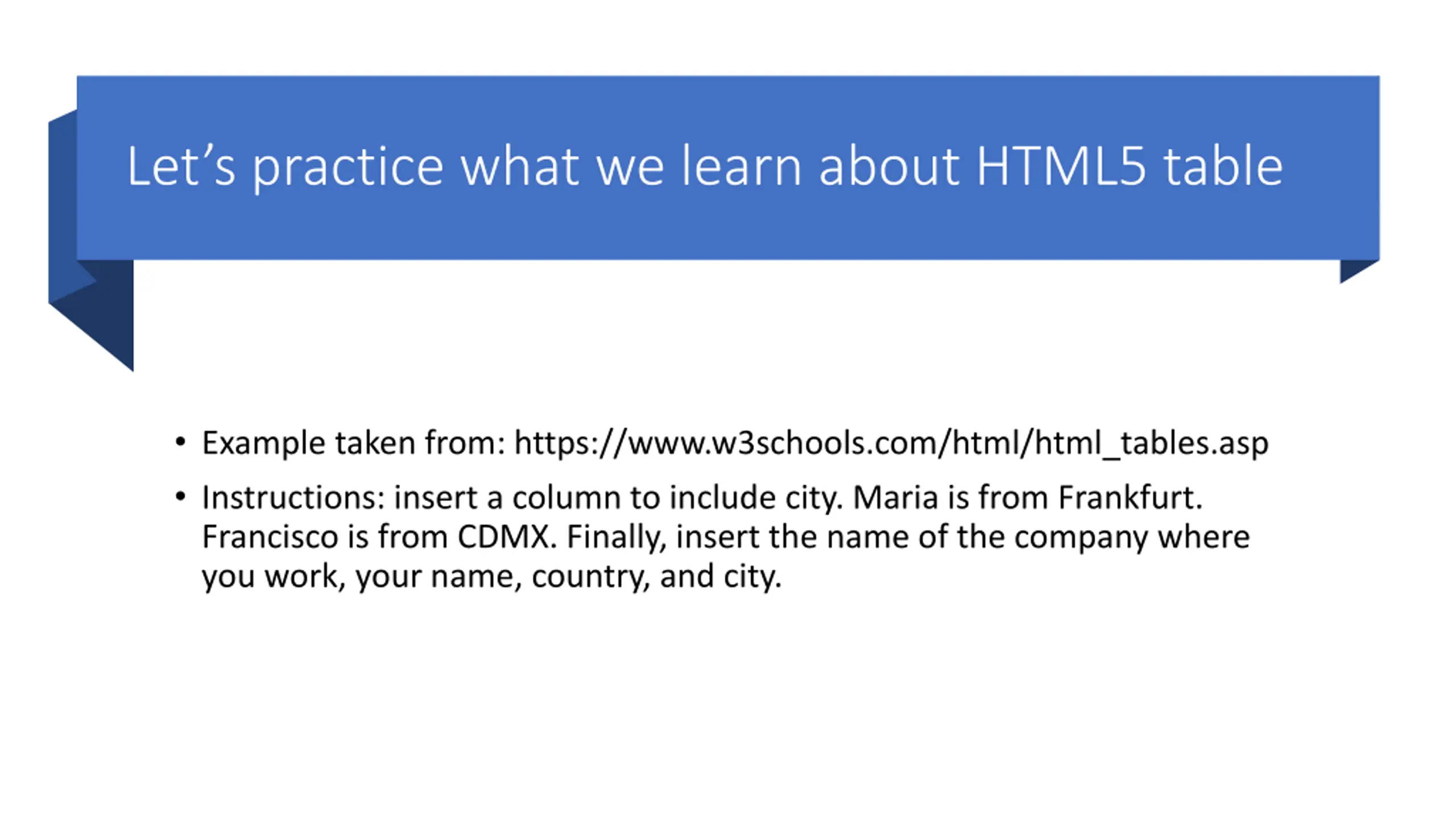

Lets practice what we learn about HTML5 table Example taken from: https://www.w3schools.com/html/html_tables.asp Instructions: insert a column to include city. Maria is from Frankfurt. Francisco is from CDMX. Finally, insert the name of the company where you work, your name, country, and city.
Comments & Feedback Thank you!

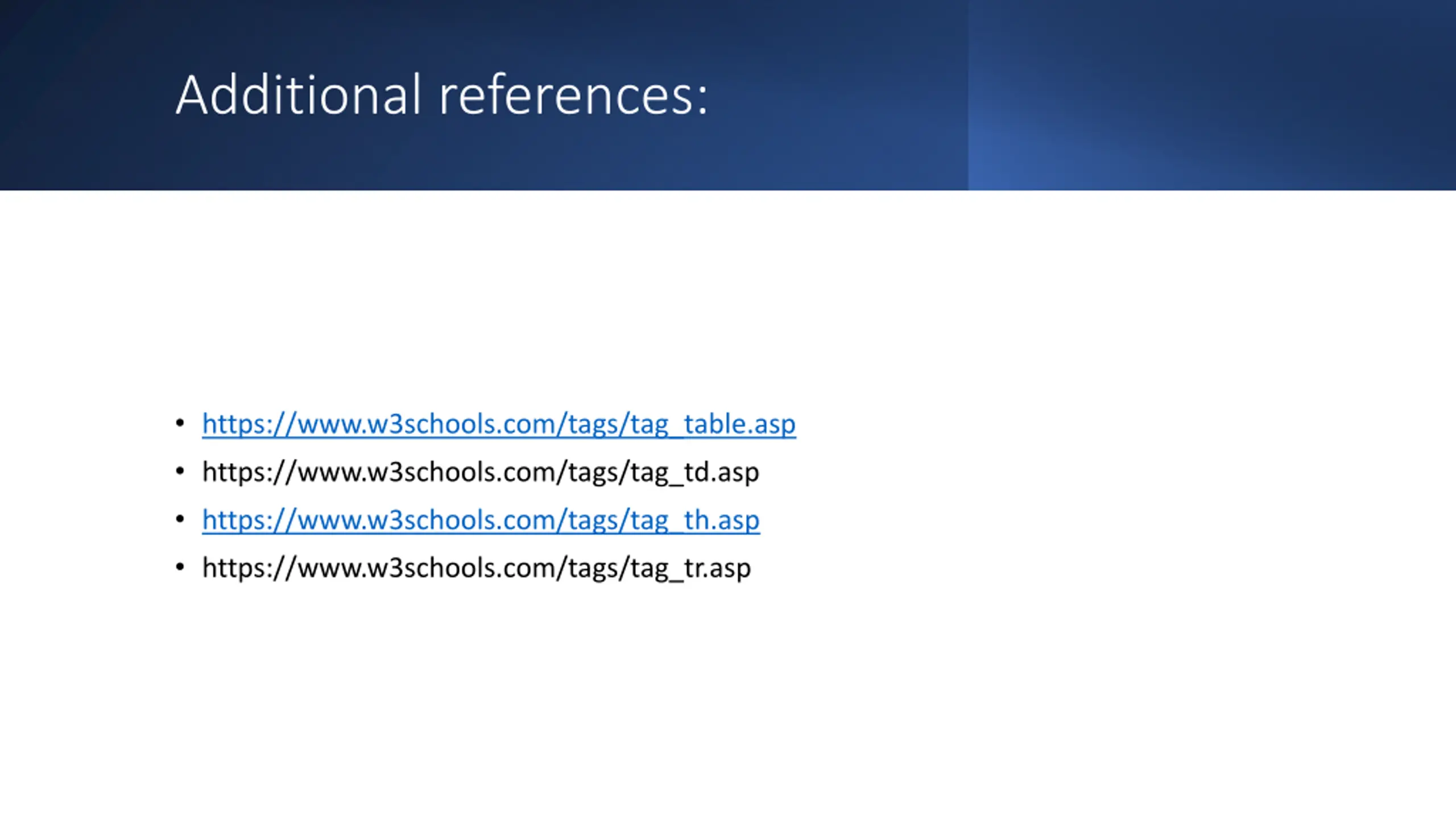

Additional references: https://www.w3schools.com/tags/tag_table.asp https://www.w3schools.com/tags/tag_td.asp https://www.w3schools.com/tags/tag_th.asp https://www.w3schools.com/tags/tag_tr.asp
