LED Circuit for Temperature Monitoring and Compensation
Discover how to create a circuit for LED status indication, temperature monitoring, and compensation. Learn about the schematic view of the LED circuit, temperature monitoring setup, and plans for improving the circuit with ND filter and temperature compensation.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

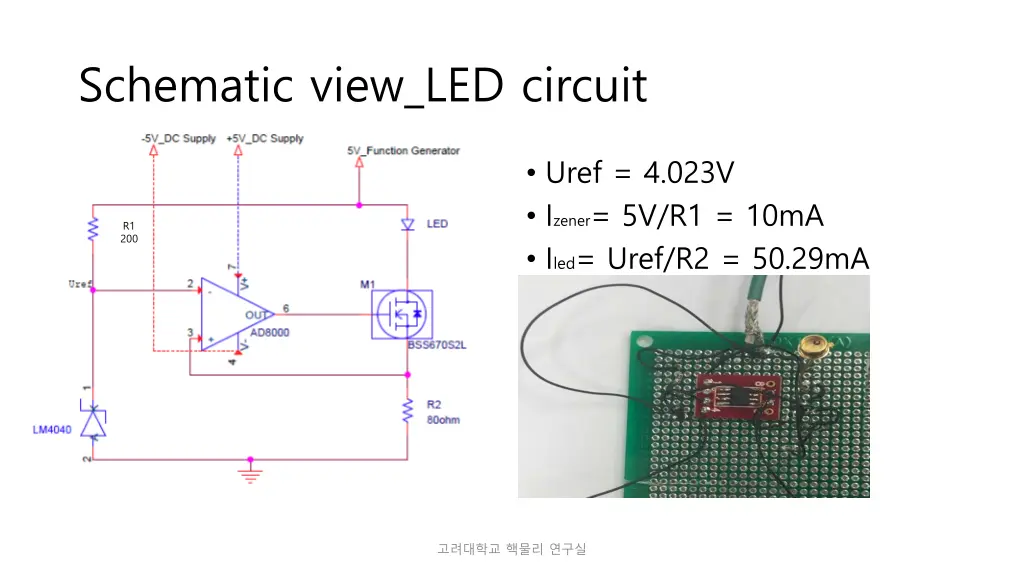

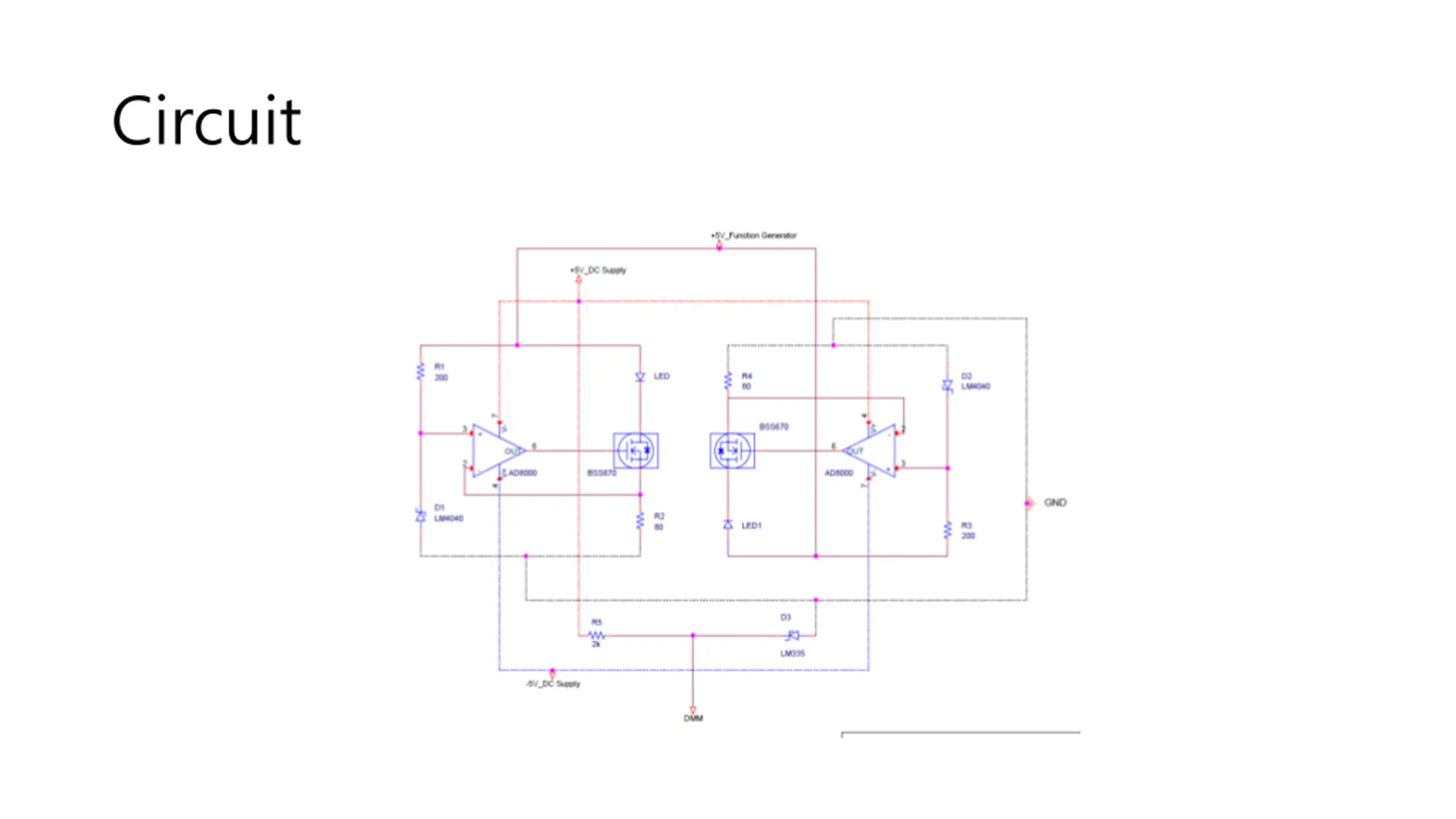

Schematic view_LED circuit Uref = 4.023V Izener= 5V/R1 = 10mA Iled= Uref/R2 = 50.29mA R1 200

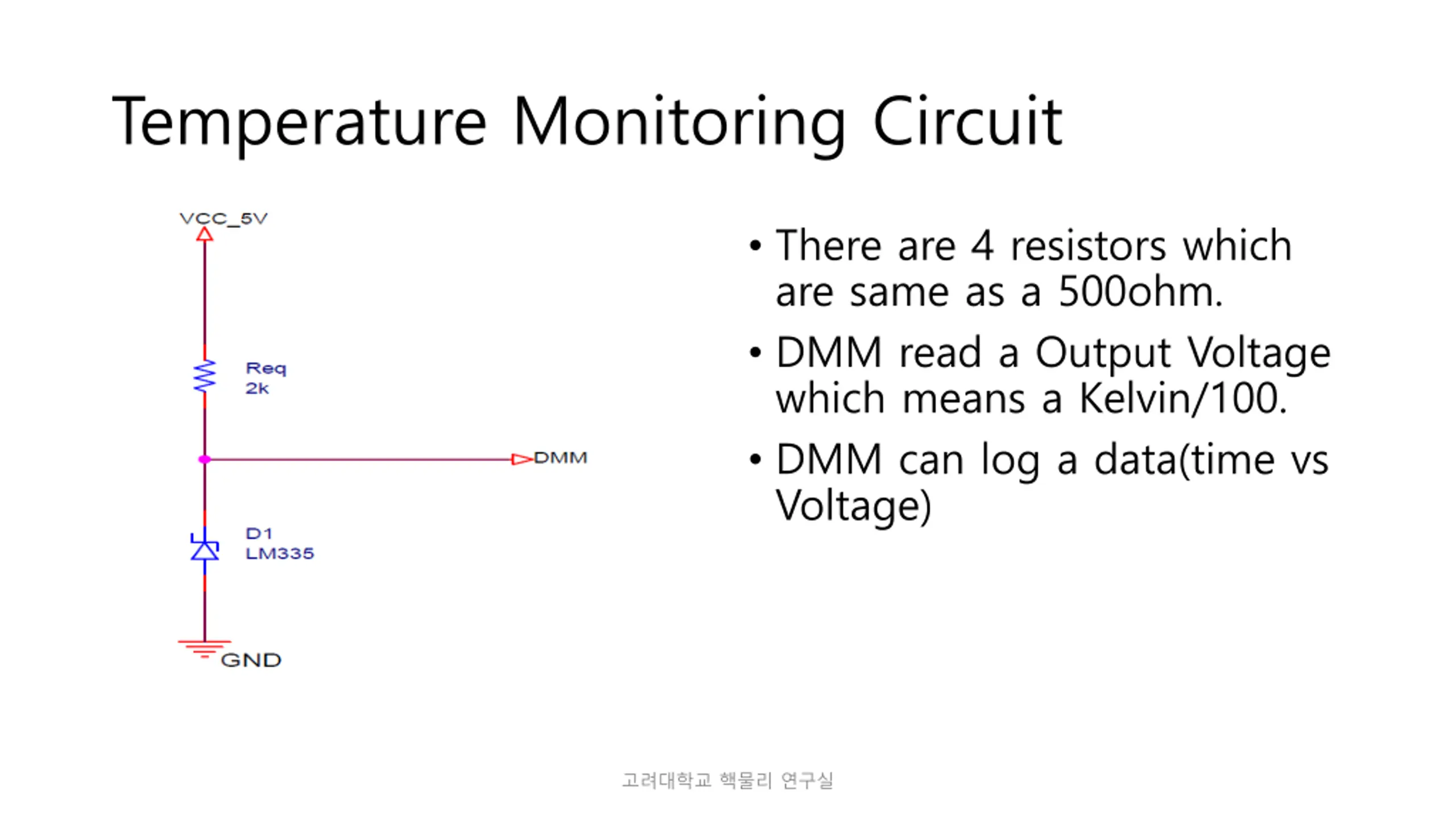

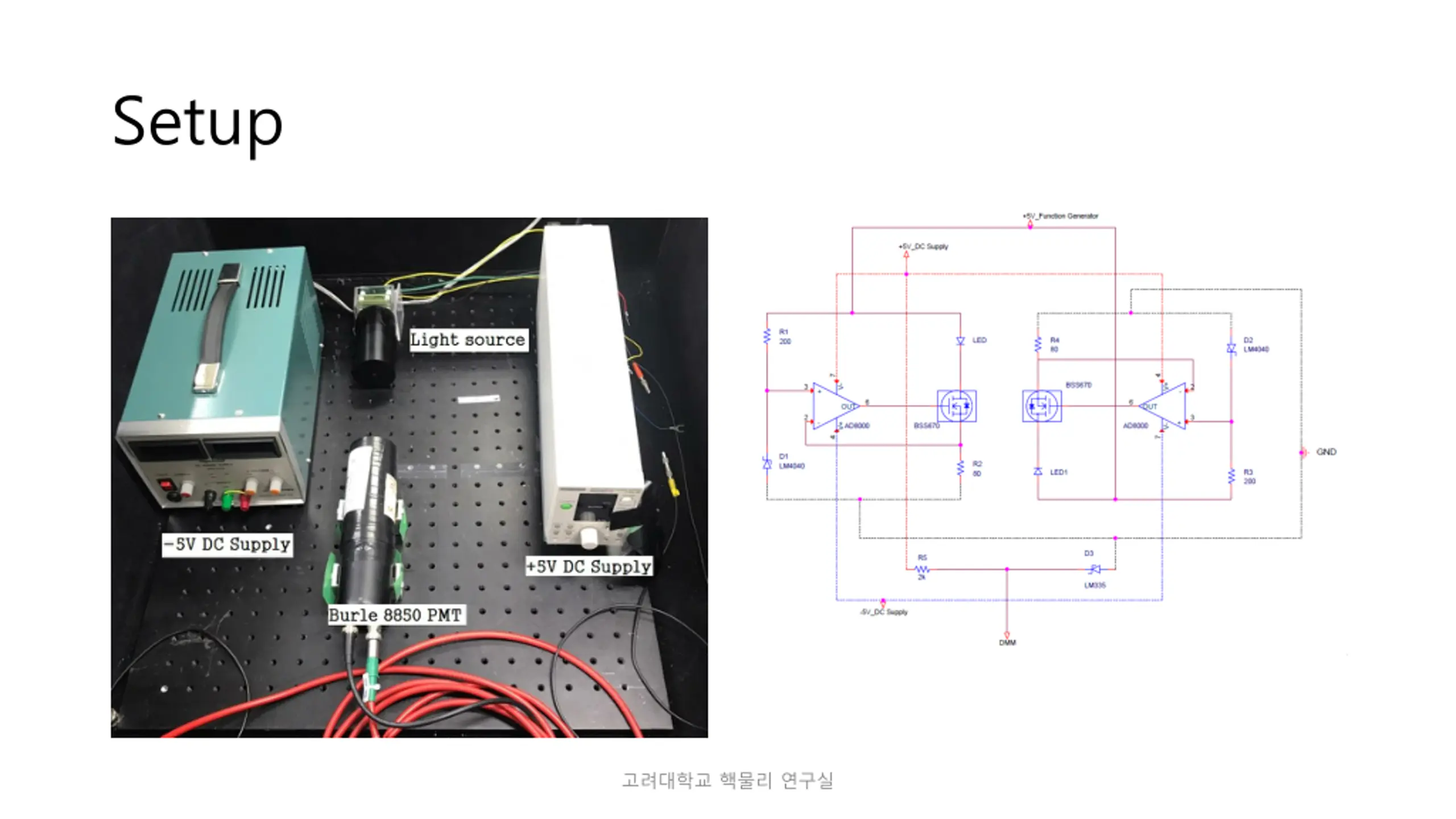

Temperature Monitoring Circuit There are 4 resistors which are same as a 500ohm. DMM read a Output Voltage which means a Kelvin/100. DMM can log a data(time vs Voltage)

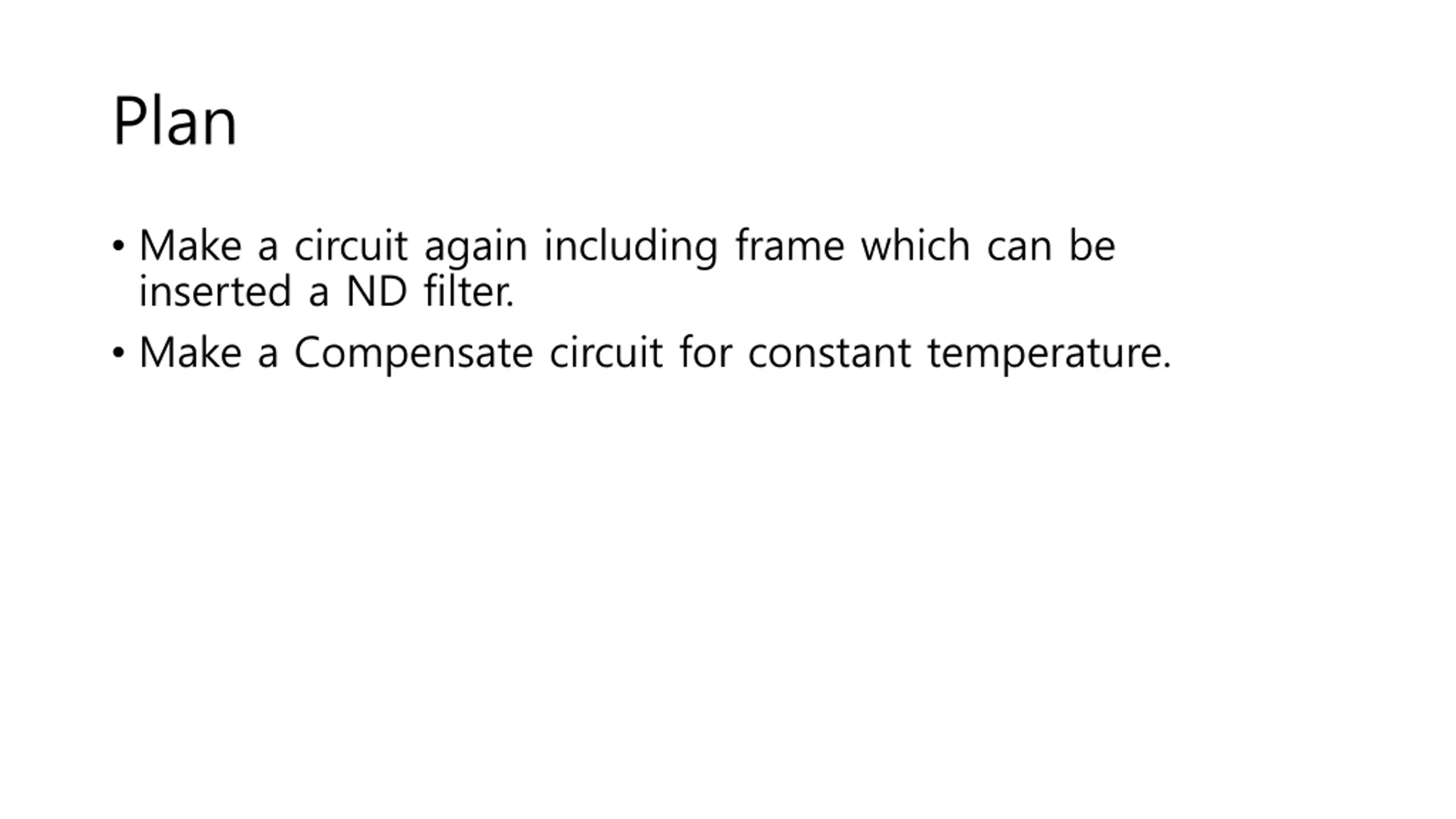

Plan Make a circuit again including frame which can be inserted a ND filter. Make a Compensate circuit for constant temperature.
