LED Traffic Light Circuit Project
Learn how to design and build a traffic light using LEDs, resistors, capacitors, timers, and counters. This project emulates a UK traffic light system and is controlled by a potentiometer for adjustable timing. Explore the circuit diagram, components used, and the working principles behind this DIY electronics project.
Download Presentation

Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

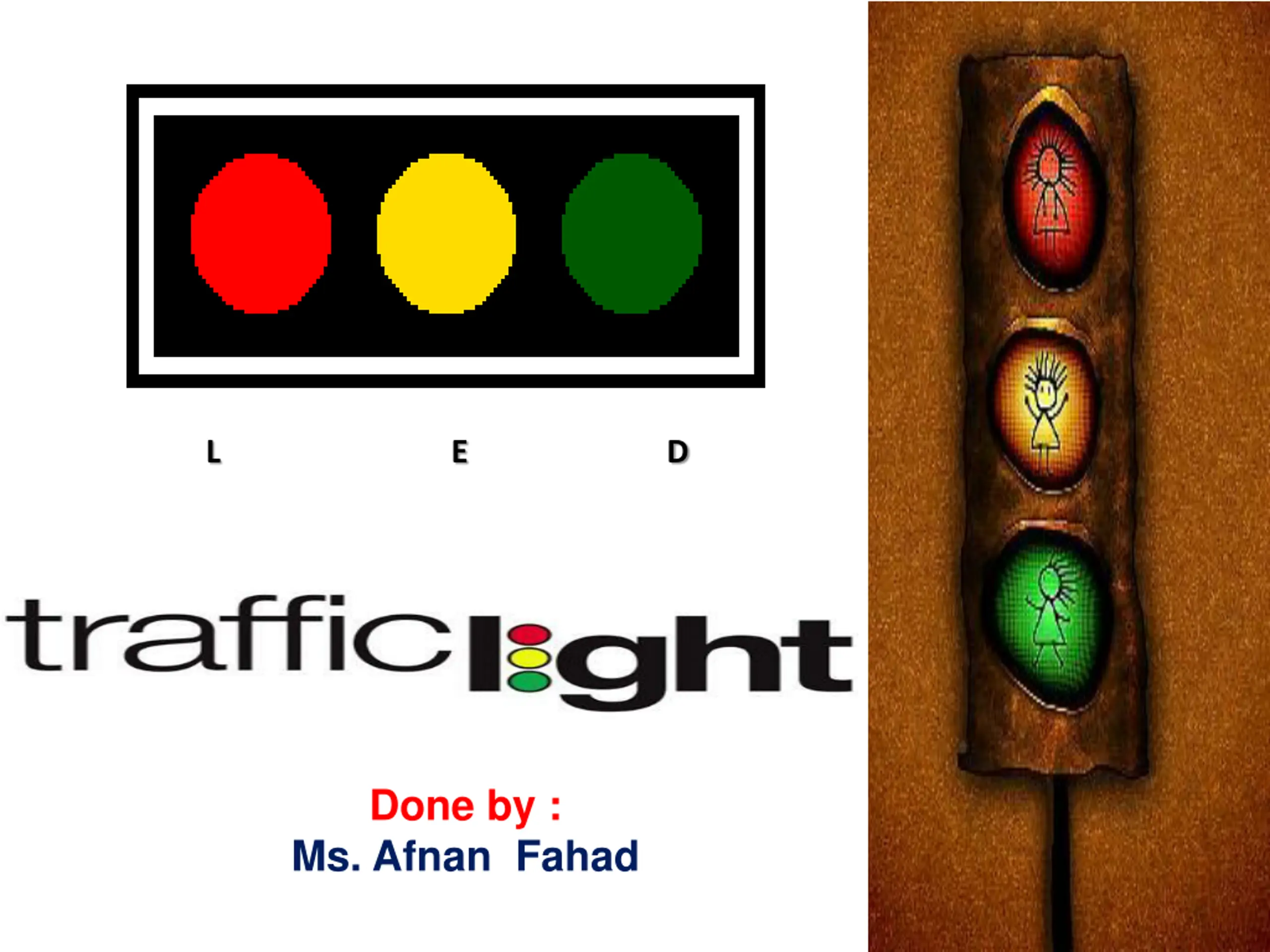

L E D Done by : Ms. Afnan Fahad

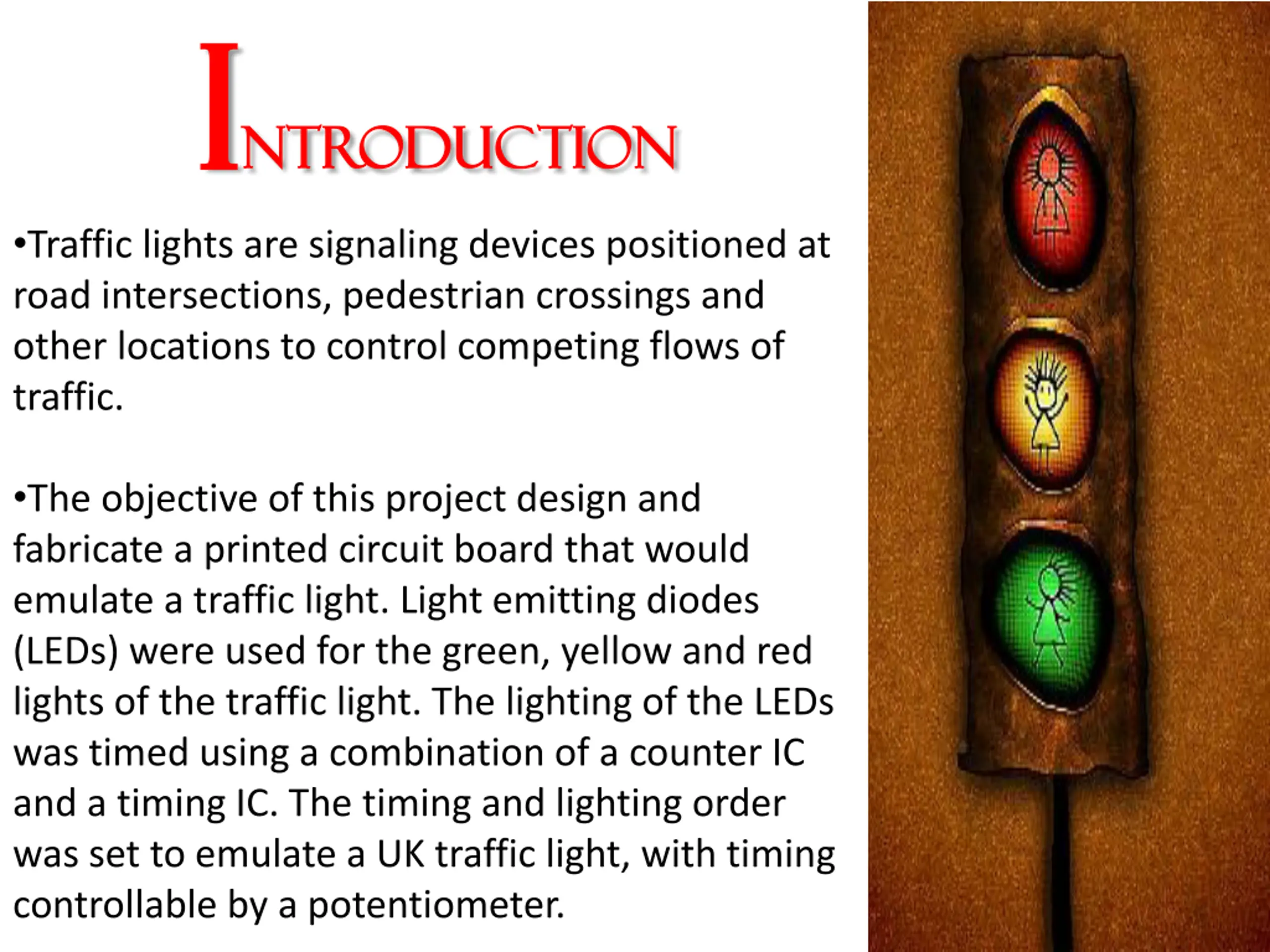

I Introduction Traffic lights are signaling devices positioned at road intersections, pedestrian crossings and other locations to control competing flows of traffic. ntroduction The objective of this project design and fabricate a printed circuit board that would emulate a traffic light. Light emitting diodes (LEDs) were used for the green, yellow and red lights of the traffic light. The lighting of the LEDs was timed using a combination of a counter IC and a timing IC. The timing and lighting order was set to emulate a UK traffic light, with timing controllable by a potentiometer.

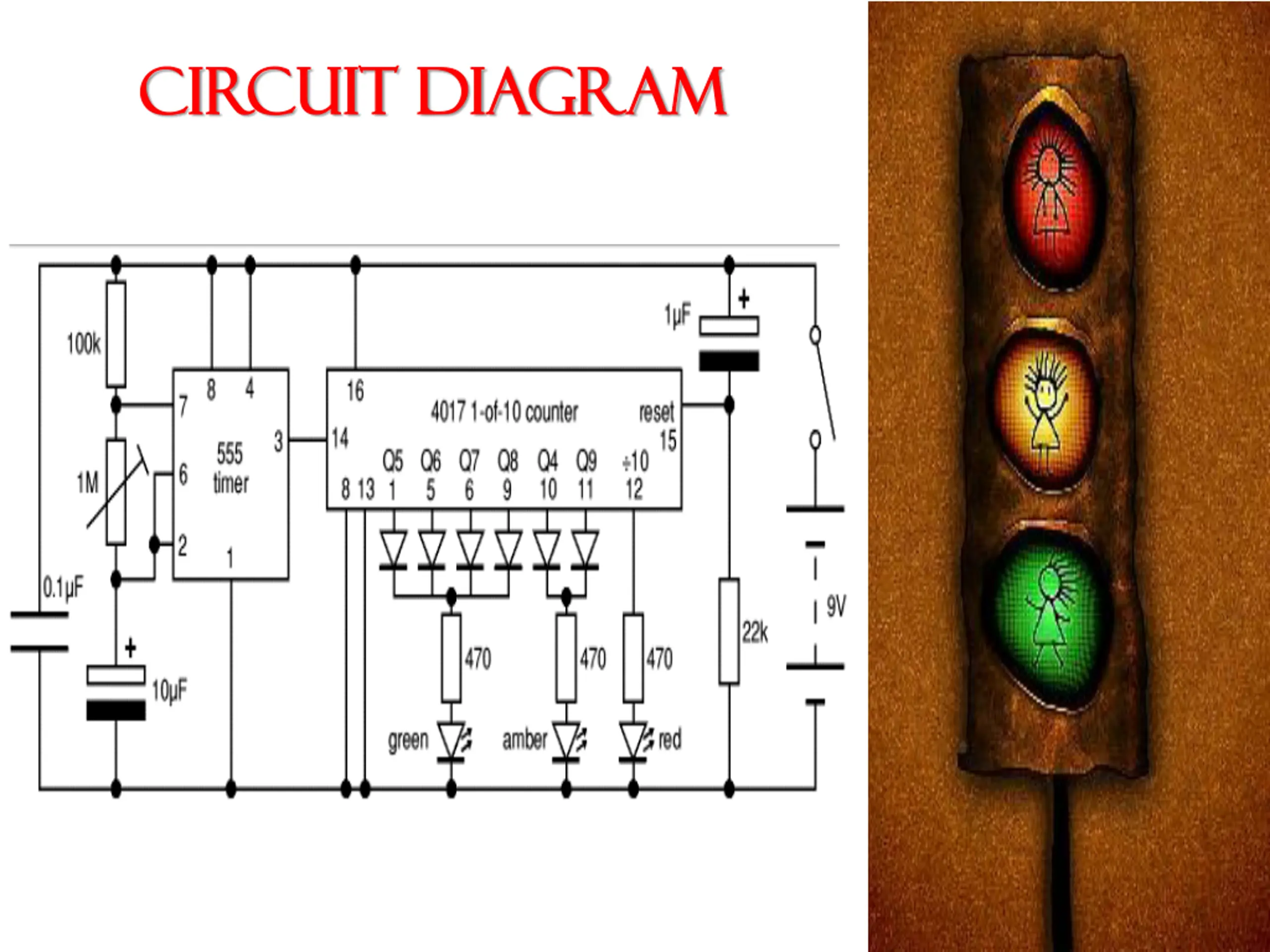

Circuit diagram Circuit diagram

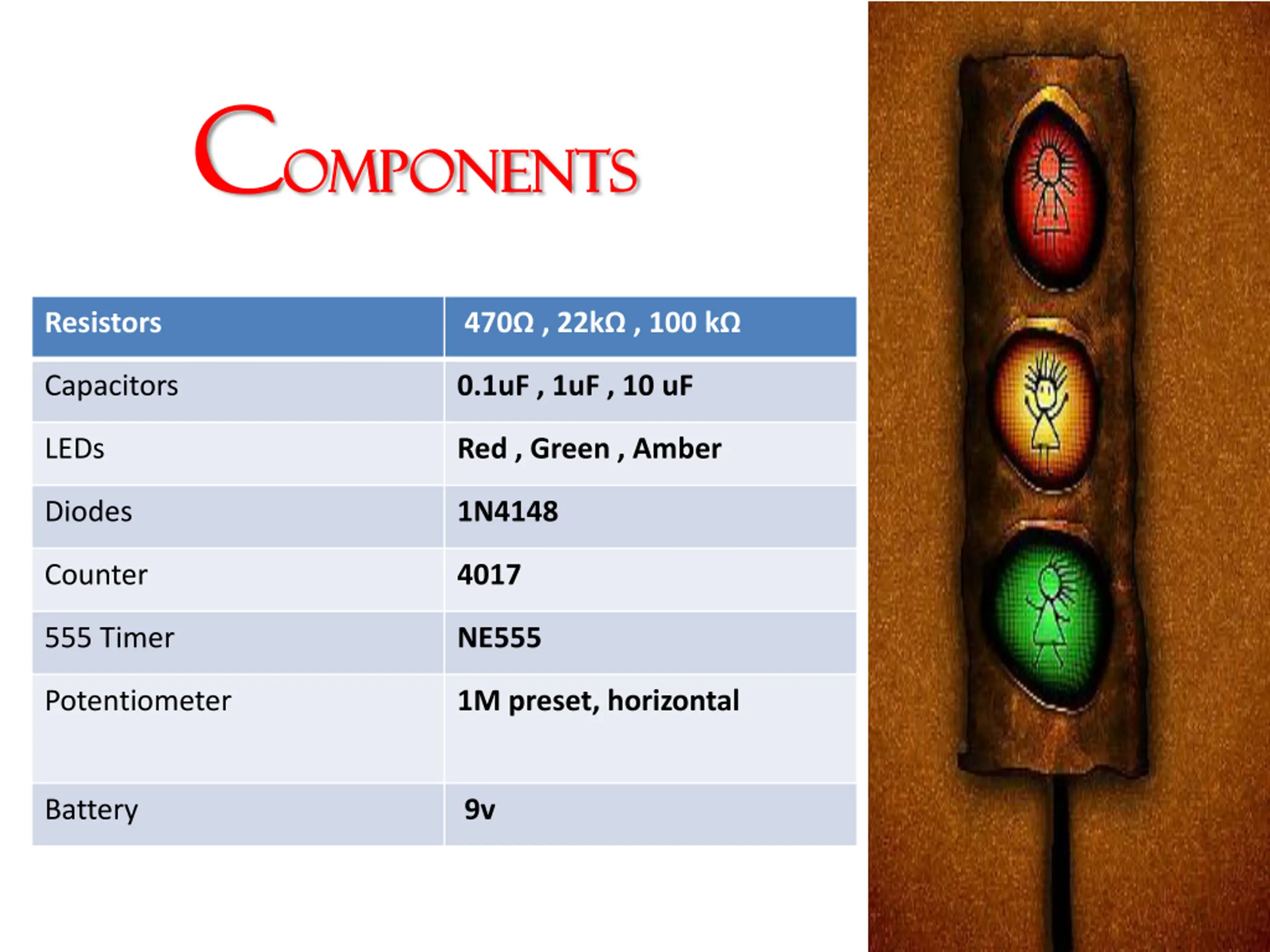

c components omponents Resistors 470 , 22k , 100 k Capacitors 0.1uF , 1uF , 10 uF LEDs Red , Green , Amber Diodes 1N4148 Counter 4017 555 Timer NE555 Potentiometer 1M preset, horizontal Battery 9v

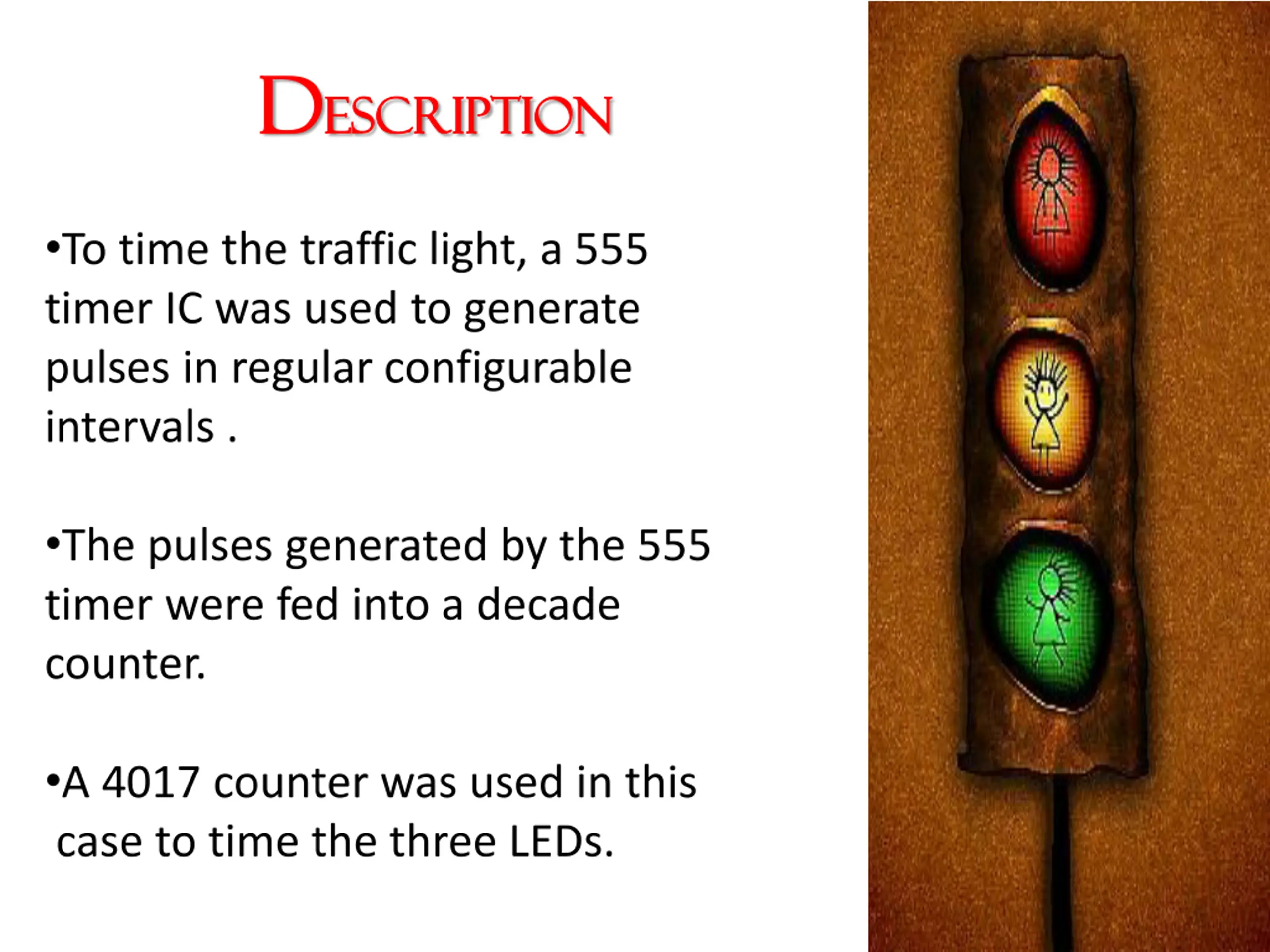

D Description escription To time the traffic light, a 555 timer IC was used to generate pulses in regular configurable intervals . The pulses generated by the 555 timer were fed into a decade counter. A 4017 counter was used in this case to time the three LEDs.

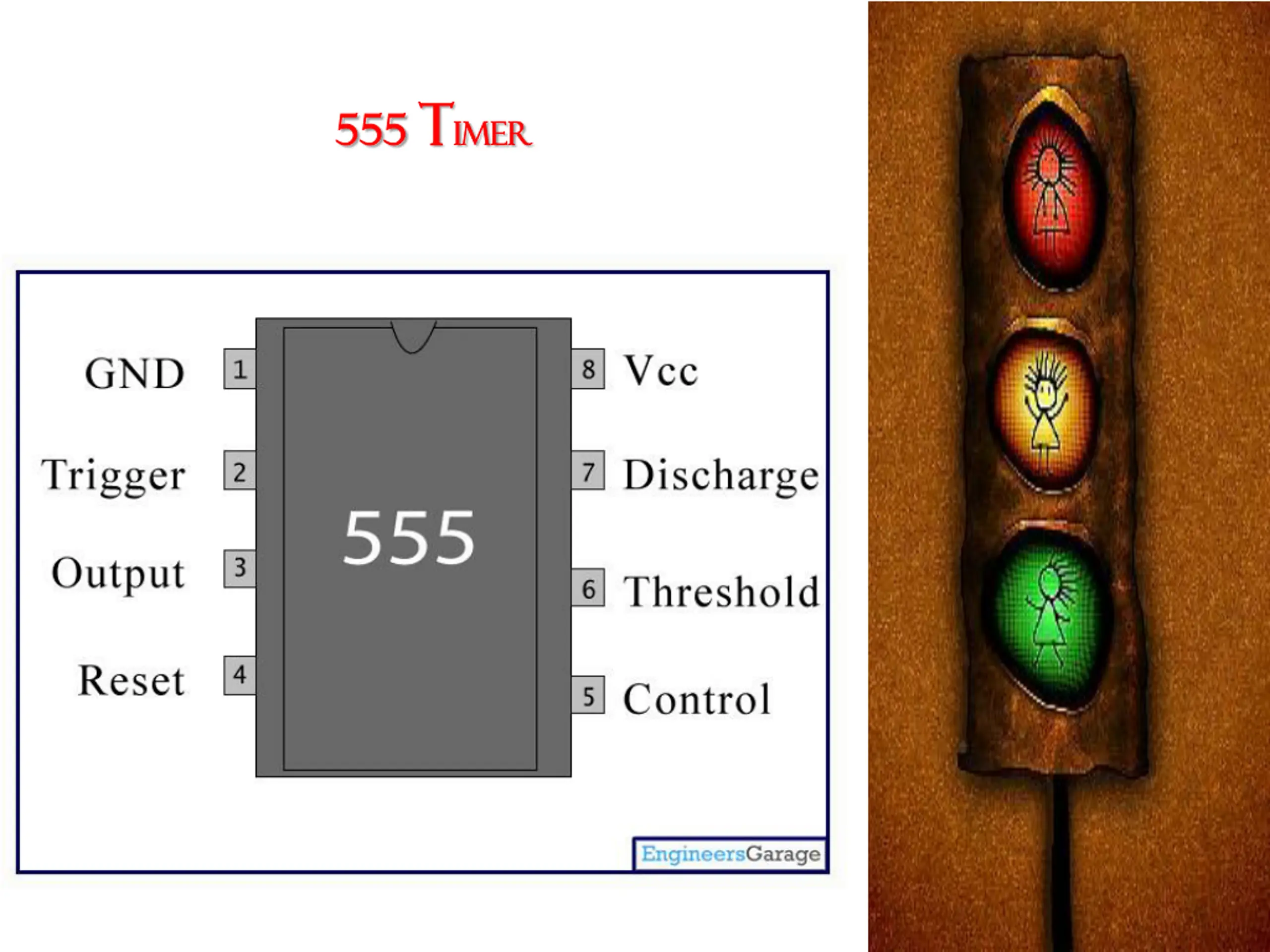

555 555 t timer imer

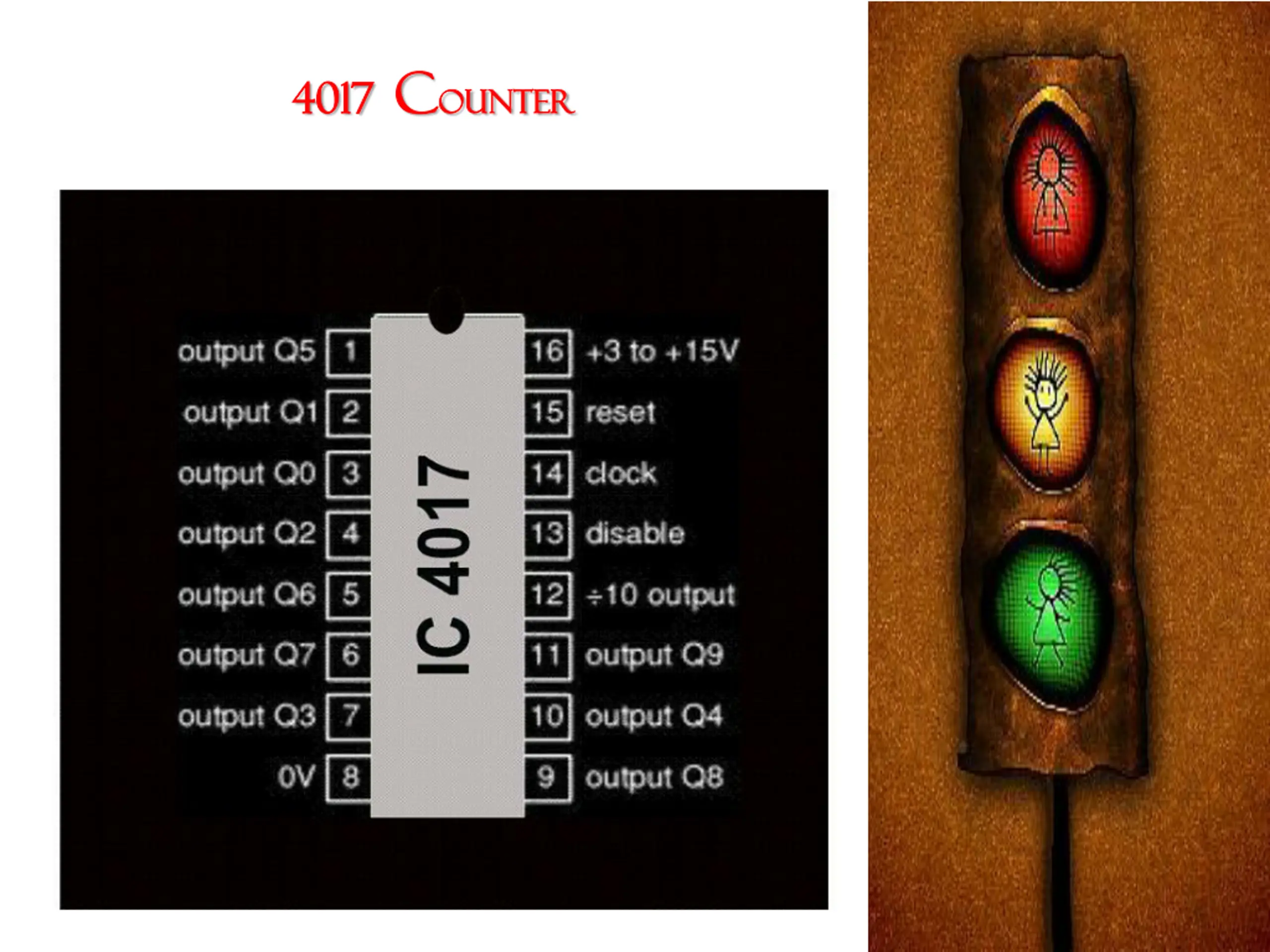

4017 4017 c counter ounter

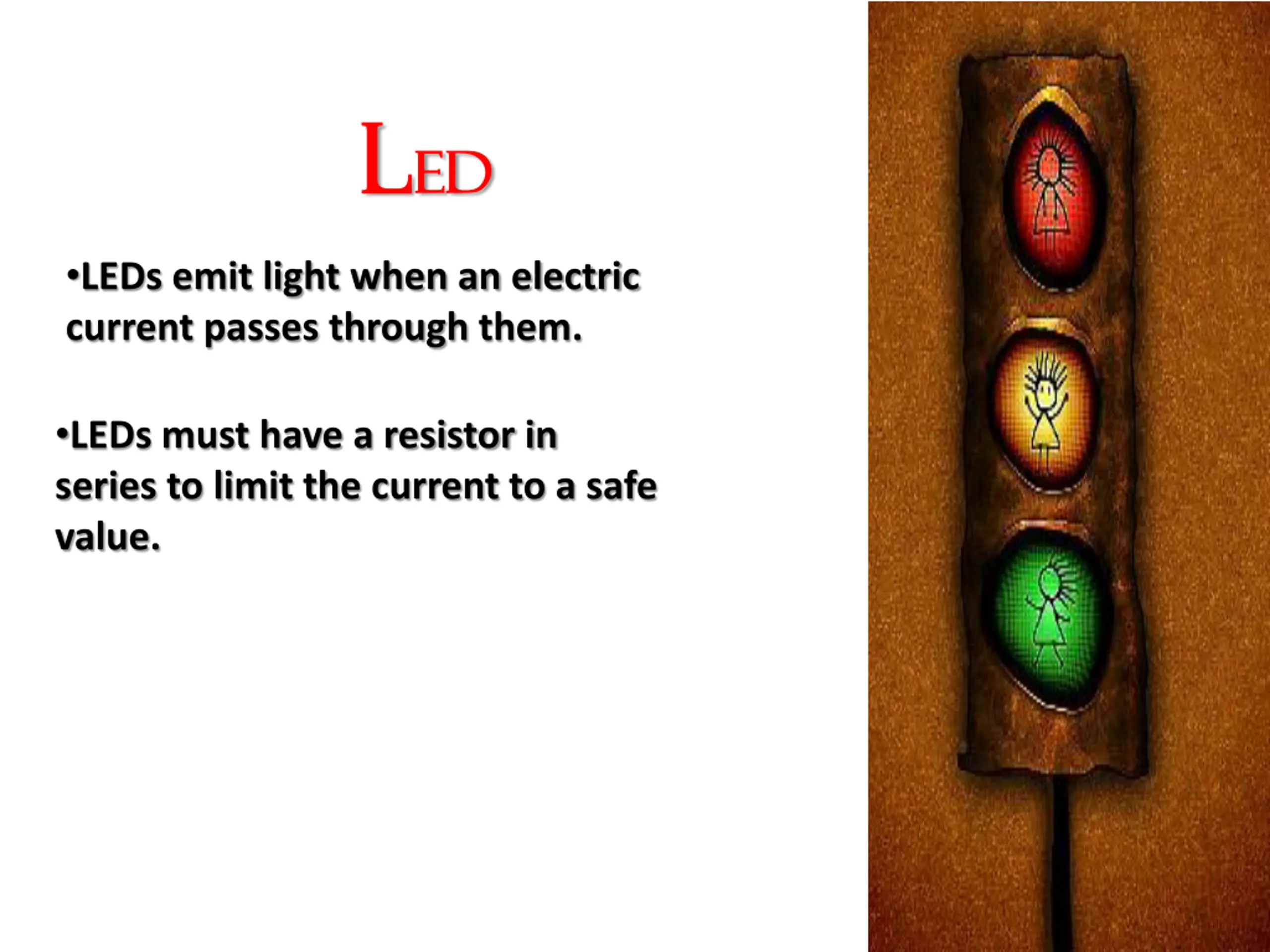

l led ed LEDs emit light when an electric current passes through them. LEDs must have a resistor in series to limit the current to a safe value.

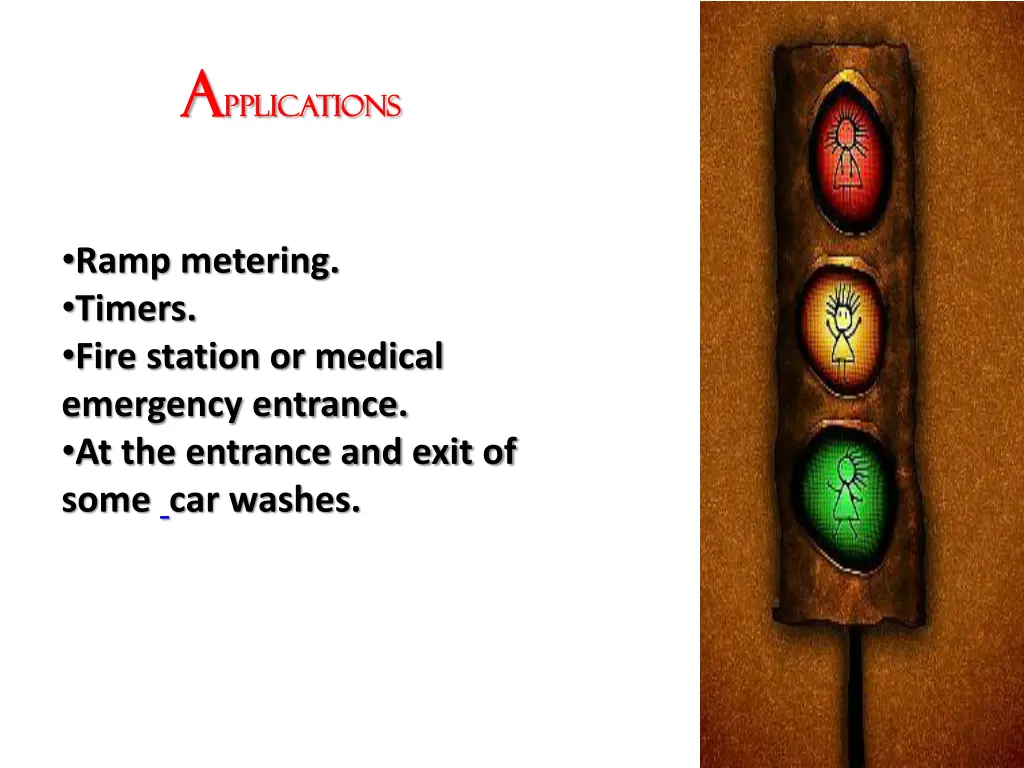

a applications pplications Ramp metering. Timers. Fire station or medical emergency entrance. At the entrance and exit of some car washes.
