Presentation Transcript
LG Board test connection for SN65DSI83 TI Confidential Maximum Restrictions TI Information Selective Disclosure 1

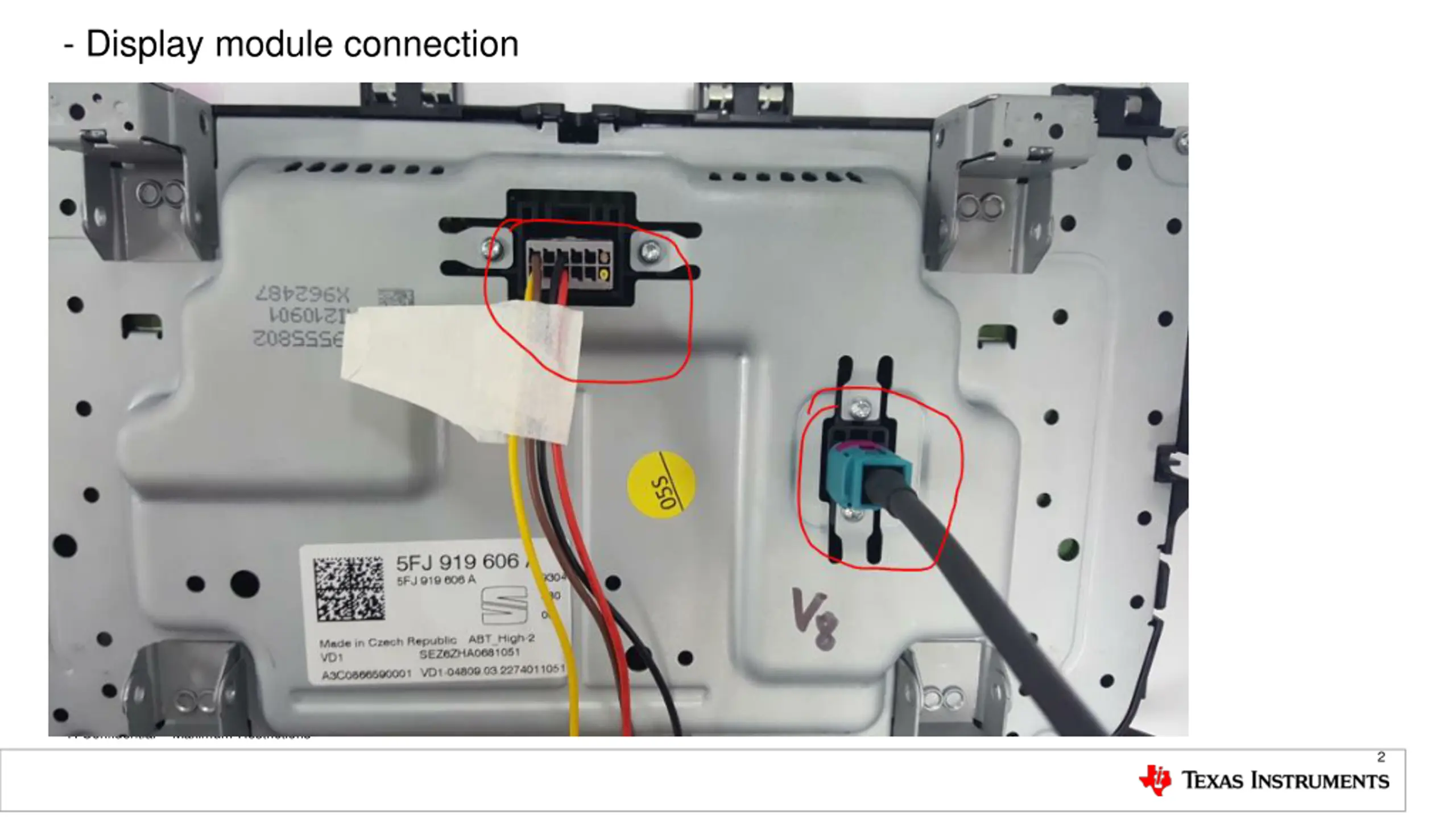

- Display module connection TI Confidential Maximum Restrictions 2

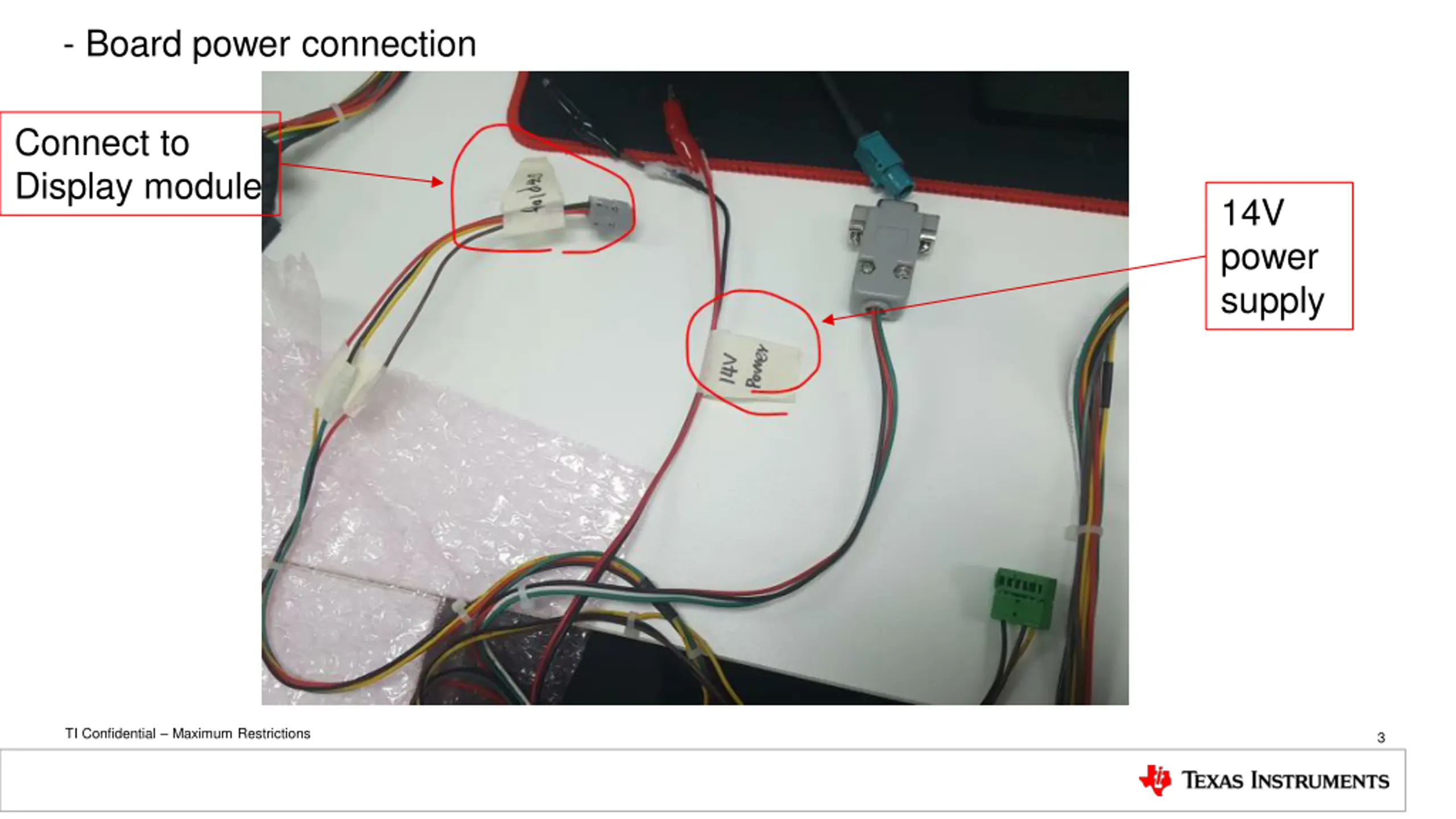

- Board power connection Connect to Display module 14V power supply TI Confidential Maximum Restrictions 3

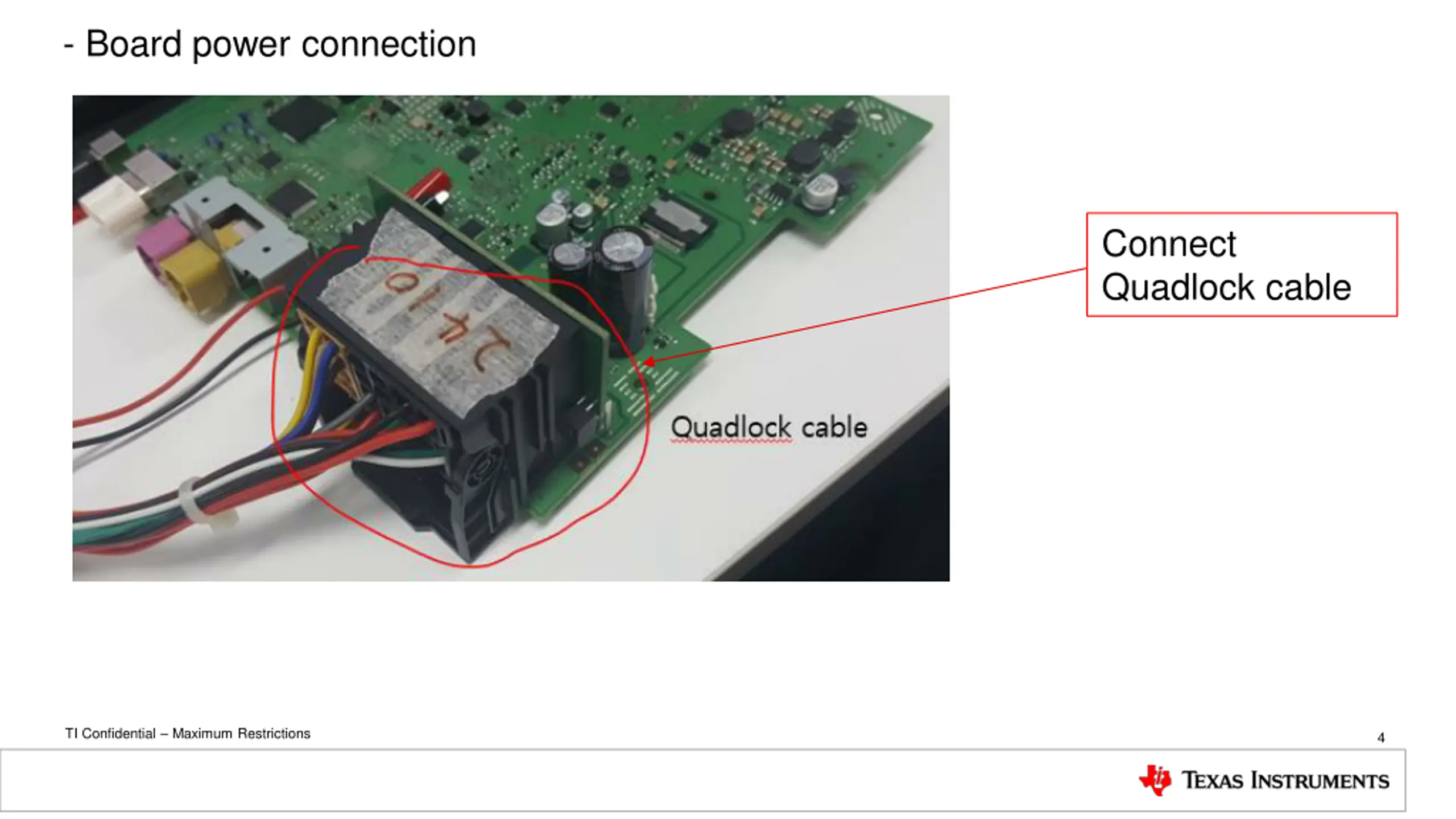

- Board power connection Connect Quadlock cable TI Confidential Maximum Restrictions 4

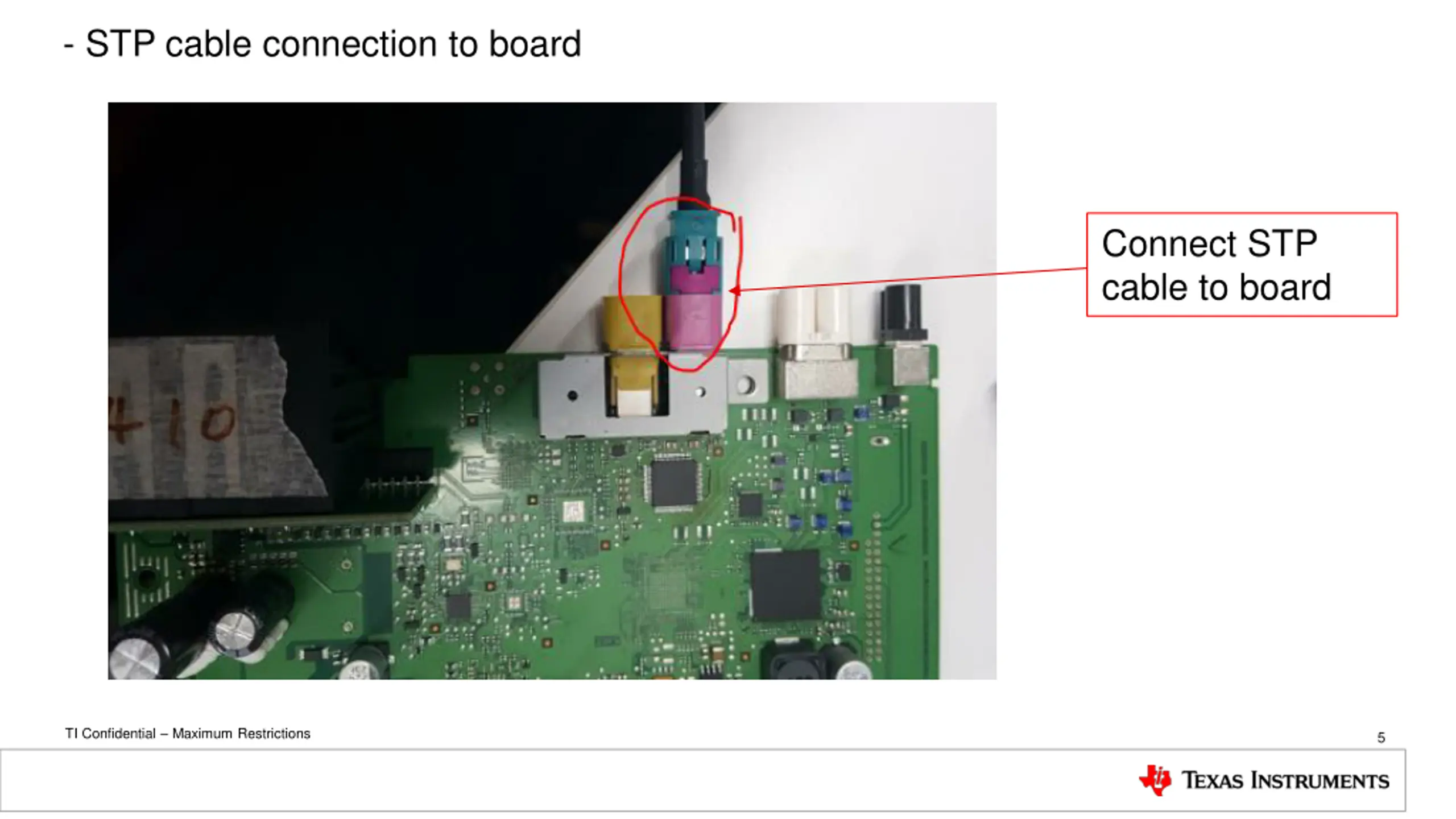

- STP cable connection to board Connect STP cable to board TI Confidential Maximum Restrictions 5

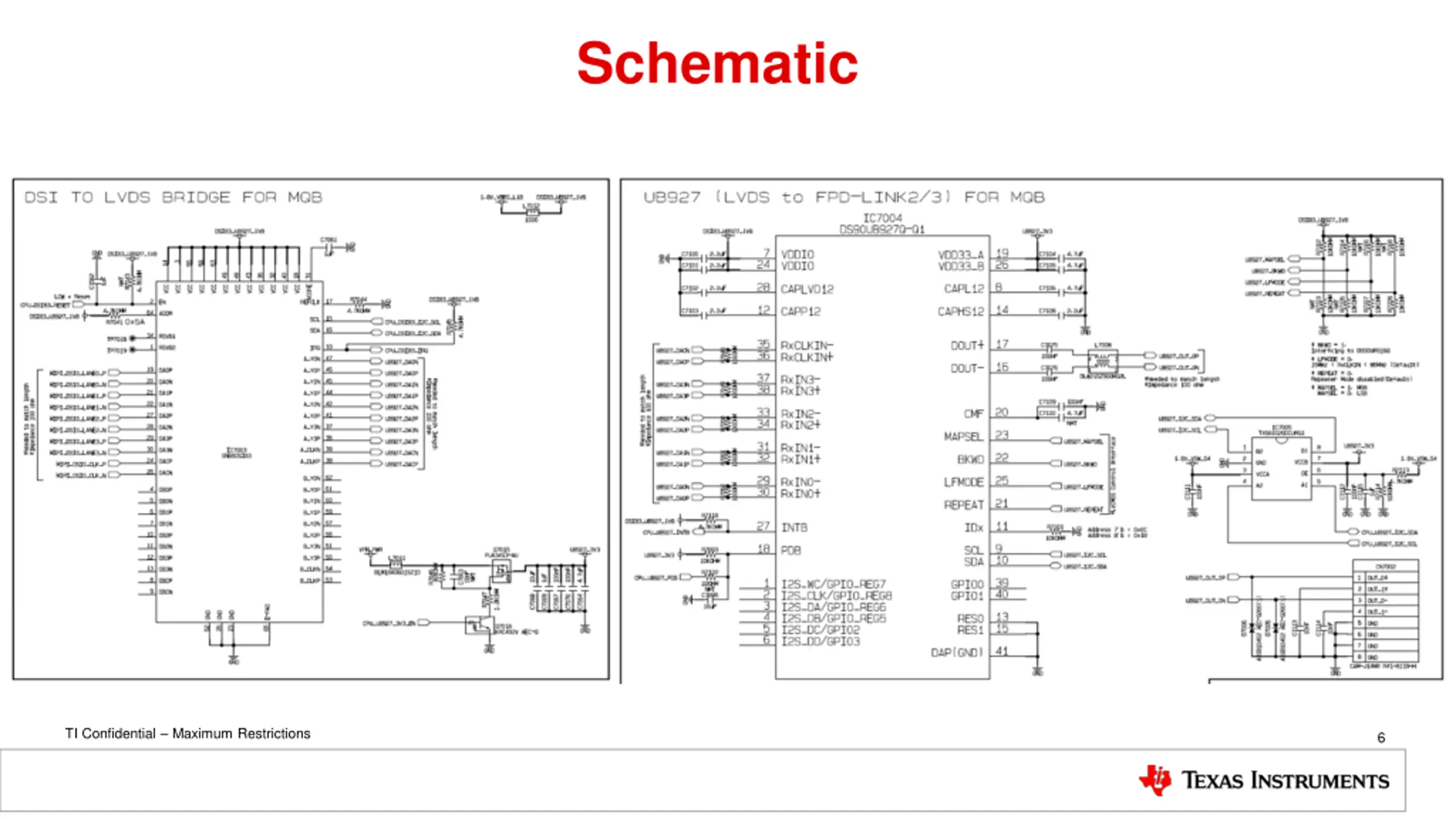

Schematic TI Confidential Maximum Restrictions 6

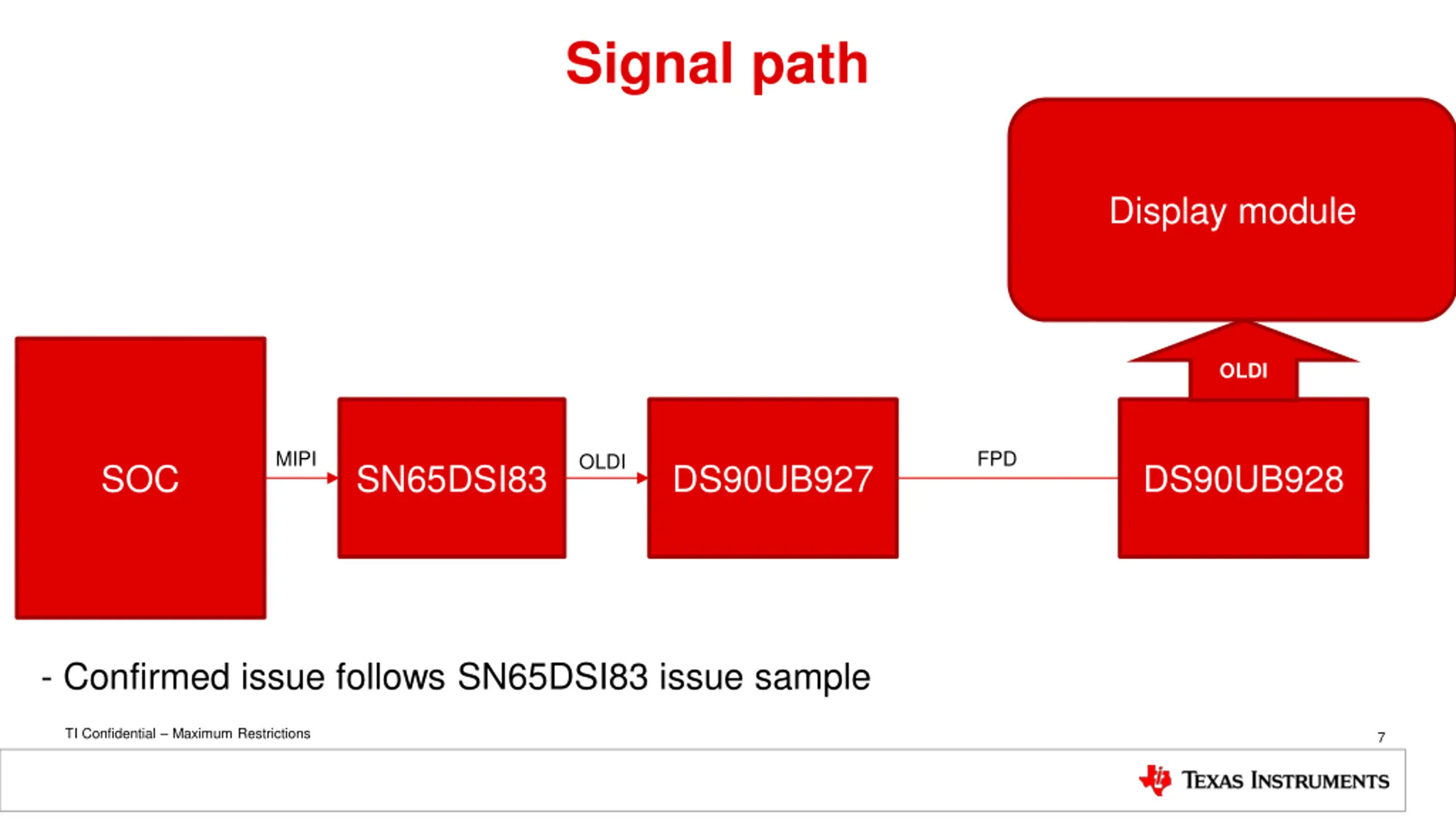

Signal path Display module OLDI MIPI FPD OLDI SOC SN65DSI83 DS90UB927 DS90UB928 - Confirmed issue follows SN65DSI83 issue sample TI Confidential Maximum Restrictions 7
